# Local and Network-Wide Time Scales of Delay Propagation in Air Transport: A Granger Causality Approach

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methods

#### 2.1. Real Operational Data

#### 2.2. Delay Propagation Assessment: The Granger Causality

#### 2.3. Network Reconstruction and Analysis

- Link density is the fraction of the potential edges in the network that are active, i.e., that have passed the statistical significance test.
- Diameter is the greatest distance between any pair of nodes in the network. Note that such a distance is defined as the number of links in the shortest path connecting the nodes and not the physical distance between them. Thus, it indicates how many intervening airports are needed to disseminate the delays throughout the whole network in the worst possible case.
- Transitivity measures the existence of triangles in the network and represents the propensity of nodes to form clusters. It is defined as the ratio between the number of closed triangles and of connected triplets of nodes. A high density of triplets of airports that are strongly connected (a high transitivity) means that a delay in one of them is easily propagated to the other airports of the group.
- Assortativity is the propensity of links to connect nodes of similar degrees (i.e., with a similar number of connections) [52].
- Efficiency measures how easily the network can move information within it and is defined as the inverse of the harmonic mean of the distances between pairs of nodes [53,54]. The efficiency of a network thus represents how easily information (here, delays) can move between two nodes and is inversely proportional to the number of intervening nodes needed on average to reach the destination of the propagation.
- The information content (IC) metric evaluates the presence of regularities in the adjacency matrix. It is defined as the quantity of information lost when pairs of nodes are iteratively merged [55]. Small values of IC indicate complex topological patterns, while large values correspond to random-like structures.
- Out-degree centrality is the number of edges coming out from a node. It represents how strongly an airport can influence other.
- In-degree centrality is the number of edges arriving to a node. It represents how strongly an airport is influenced by its neighbours.
- Betweenness centrality represents the fraction of times a node is included in the shortest path between two other nodes. Thus, it depicts the amount of influence a node has over the flow of information (delays) in a graph [56].

## 3. Synthetic Model of Delay Propagation

## 4. Analysis of Real Delay Propagation Patterns

#### 4.1. Methodological Viewpoint: Best Time Scale for Detecting Delay Propagation

#### 4.2. Operational Viewpoint: Delay Propagation Time

#### 4.3. Network Viewpoint: Propagation Network and Its Structure

## 5. Resampling Validation

## 6. Discussion and Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Appendix A

**Table A1.**Information on the 50 airports considered in this study, including their 4-letter ICAO code, number of landing flights and percentage of flights delayed more than 10 and 30 min.

Rank | Name | ICAO | # Flights | % Delayed > 10 min. | % Delayed > 30 min. |
---|---|---|---|---|---|

1 | Frankfurt Airport | EDDF | 23,061 | 30.65% | 5.06% |

2 | Amsterdam Airport Schiphol | EHAM | 22,350 | 52.77% | 11.55% |

3 | Paris Charles de Gaulle Airport | LFPG | 22,275 | 33.76% | 5.39% |

4 | London Heathrow | EGLL | 19,407 | 68.39% | 20.39% |

5 | Munich Airport | EDDM | 18,588 | 25.22% | 2.75% |

6 | Adolfo Suárez Madrid-Barajas Airport | LEMD | 18,345 | 38.50% | 7.44% |

7 | Josep Tarradellas Barcelona-El Prat Airport | LEBL | 15,817 | 44.39% | 10.14% |

8 | Rome-Fiumicino International Airport | LIRF | 13,930 | 14.45% | 2.84% |

9 | Milan Malpensa Airport | LIMC | 13,383 | 12.67% | 2.84% |

10 | London Gatwick Airport | EGKK | 12,985 | 61.29% | 18.78% |

11 | Palma de Mallorca Airport | LEPA | 12,616 | 32.13% | 10.03% |

12 | Vienna International Airport | LOWW | 12,482 | 42.16% | 7.34% |

13 | Copenhagen Kastrup Airport | EKCH | 11,811 | 18.72% | 2.24% |

14 | Zürich Airport | LSZH | 11,426 | 41.24% | 5.56% |

15 | Oslo Airport | ENGM | 11,203 | 12.79% | 1.11% |

16 | Athens Intl Eleftherios Venizelos | LGAV | 10,808 | 25.54% | 3.22% |

17 | Dublin Airport | EIDW | 10,731 | 26.94% | 4.63% |

18 | Stockholm Arlanda Airport | ESSA | 10,585 | 22.57% | 2.51% |

19 | Brussels Airport | EBBR | 10,313 | 40.79% | 6.73% |

20 | Düsseldorf Airport | EDDL | 10,178 | 33.52% | 4.87% |

21 | Humberto Delgado Airport | LPPT | 9852 | 45.98% | 8.10% |

22 | Manchester Airport | EGCC | 9635 | 39.81% | 6.58% |

23 | Paris Orly Airport | LFPO | 9283 | 30.09% | 4.73% |

24 | London Stansted Airport | EGSS | 8634 | 41.52% | 6.24% |

25 | Berlin Tegel “Otto Lilienthal” Airport | EDDT | 8545 | 27.55% | 3.25% |

26 | Warsaw Chopin Airport | EPWA | 8434 | 10.91% | 1.67% |

27 | Václav Havel Airport Prague | LKPR | 7263 | 24.03% | 3.33% |

28 | Geneva Airport | LSGG | 7108 | 25.63% | 4.47% |

29 | Nice Côte d’Azur Airport | LFMN | 6703 | 20.50% | 3.43% |

30 | Málaga-Costa del Sol Airport | LEMG | 6660 | 35.47% | 4.76% |

31 | Hamburg Airport | EDDH | 6531 | 21.45% | 2.56% |

32 | Cologne Bonn Airport | EDDK | 6423 | 26.48% | 3.30% |

33 | London Luton Airport | EGGW | 6103 | 46.53% | 8.65% |

34 | Stuttgart Airport | EDDS | 6066 | 28.70% | 3.07% |

35 | Edinburgh Airport | EGPH | 5843 | 21.80% | 2.57% |

36 | Boryspil International Airport | UKBB | 5620 | 22.94% | 2.74% |

37 | Budapest Ferenc Liszt International Airport | LHBP | 5452 | 17.59% | 2.27% |

38 | Bucharest Henri Coandă International Airport | LROP | 5390 | 13.36% | 1.78% |

39 | Lyon-Saint Exupéry Airport | LFLL | 5127 | 26.41% | 3.49% |

40 | Alicante-Elche Miguel Hernández Airport | LEAL | 4946 | 34.17% | 5.14% |

41 | Birmingham Airport | EGBB | 4891 | 20.40% | 2.25% |

42 | Venice Marco Polo Airport | LIPZ | 4720 | 27.58% | 5.76% |

43 | Francisco Sá Carneiro Airport | LPPR | 4443 | 38.06% | 10.44% |

44 | Orio al Serio International Airport | LIME | 4417 | 16.32% | 2.04% |

45 | Marseille Provence Airport | LFML | 4329 | 23.56% | 2.73% |

46 | Toulouse-Blagnac Airport | LFBO | 4159 | 17.62% | 1.90% |

47 | Naples International Airport | LIRN | 4041 | 27.86% | 3.07% |

48 | Glasgow Airport | EGPF | 3732 | 28.27% | 3.99% |

49 | Catania-Fontanarossa Airport | LICC | 3660 | 14.64% | 1.53% |

50 | Bologna Guglielmo Marconi Airport | LIPE | 3519 | 25.09% | 2.90% |

Metric | Definition | Range |
---|---|---|

Link density | ${l}_{d}=\frac{L}{{N}^{2}}$, | $0\le {l}_{d}\le 1$ |

L being the total number of active links in the network and N the number of nodes. | ||

Diameter | $D={max}_{i,j}{d}_{i,j}$, | $0\le D\le N$ |

${d}_{i,j}$ being the distance between nodes i and j | ||

Transitivity | $T=\frac{3{N}_{\u25b5}}{{N}_{3}},$ | |

${N}_{\u25b5}$ being the number of closed triangles $3{N}_{\u25b5}=\sum _{k>i>j}{a}_{i,j}{a}_{i,k}{a}_{j,k}$, and ${N}_{3}$ the number of connected triplets ${N}_{3}=\sum _{k>i>j}({a}_{i,j}{a}_{i,k}+{a}_{j,i}{a}_{j,k}+{a}_{k,i}{a}_{k,j})$. | $0\le T\le 1$ | |

Assortativity | $r=\frac{1}{{\sigma}_{q}^{2}}{\sum}_{jk}jk({e}_{jk}-{q}_{j}{q}_{k})$, | $-1\le r\le 1$ |

j and k being the degrees of nodes at each end of a link; ${q}_{k}$ the distribution of the remaining degree, i.e., of the degree without the link under study; ${\sigma}_{q}^{2}$ the variance of the distribution ${q}_{k}$; and ${e}_{jk}$ the joint probability distribution of the remaining degrees of the two vertices at either end of a randomly chosen link. | ||

Efficiency | $E=\frac{1}{N(N-1)}\sum _{i\ne j}\frac{1}{{d}_{ij}}$, | $0\le E\le 1$ |

${d}_{ij}$ being the distance between the nodes i and j. | ||

Information Content | See [55] | $0\le IC$ |

**Table A3.**Formal definition of the centrality metrics considered in this study. Note that these metrics are calculated for a single node (here denoted as w), as opposed to the whole network; nodes can then be ranked in importance accordingly.

Centrality Metric | Definition |
---|---|

Out-degree centrality | ${c}_{O}\left(w\right)\propto {\sum}_{j}{a}_{w,j}$, |

where ${a}_{w,j}$ is equal to one if a link exists between nodes w and j, and zero otherwise. | |

In-degree centrality | ${c}_{I}\left(w\right)\propto {\sum}_{j}{a}_{j,w}$, |

where ${a}_{j,w}$ is equal to one if a link exists between nodes j and w, and zero otherwise. | |

Betweenness centrality | $c}_{B}\left(w\right)\propto \sum _{s,t\in V}\frac{{P}_{w}(s,t)}{P(s,t)$, |

where V is the set of nodes, $P(s,t)$ the number of shortest paths between s and t, and ${P}_{w}(s,t)$ the number of shortest paths between s and t that includes w. |

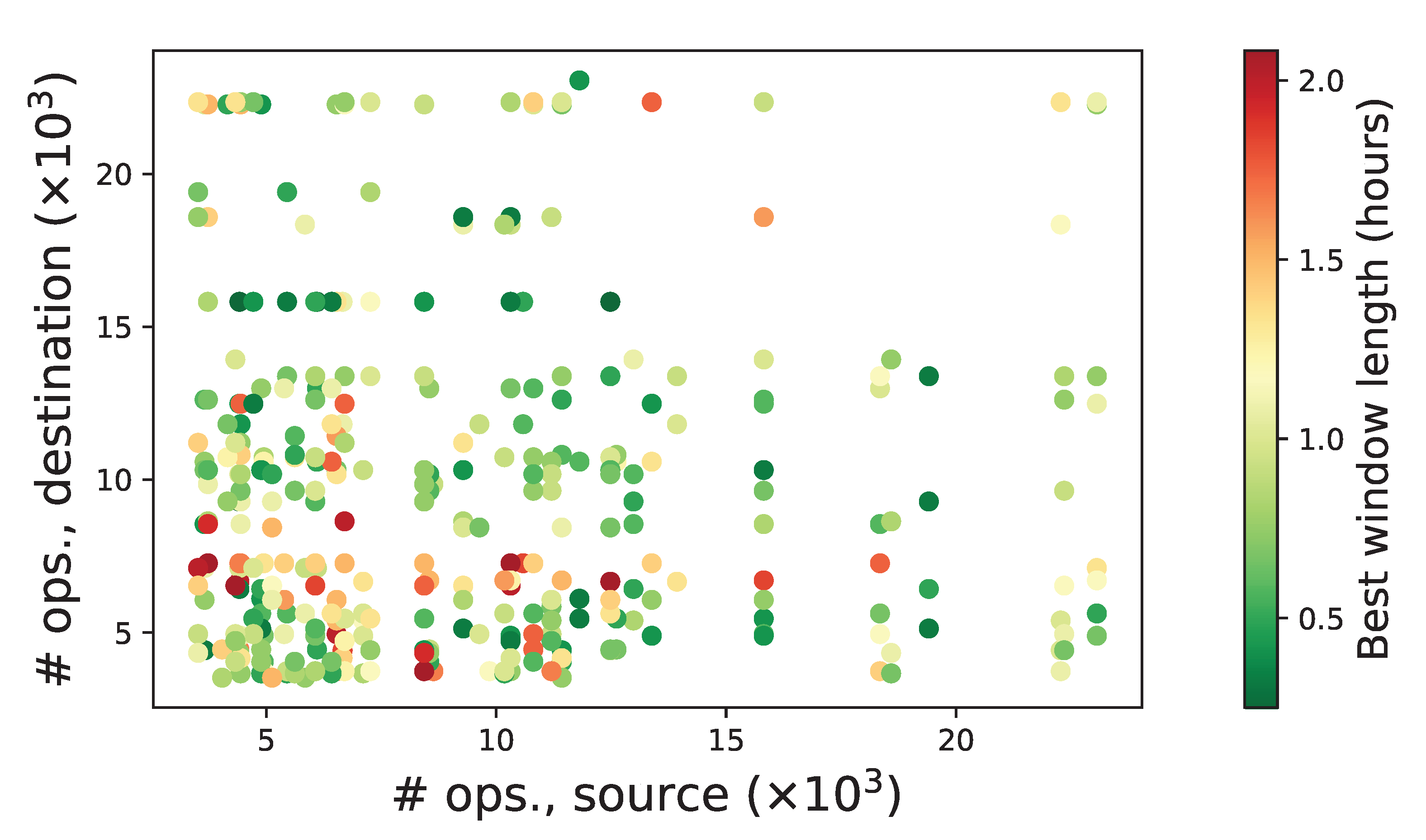

**Figure A1.**Scatter plot of the length of the optimal window for each pair of airports as a function of the number of operations recorded in the data set for the source (X axis) and destination (Y axis) airports.

**Table A4.**Coefficients of determination ${R}^{2}$ obtained by fitting linear models to recover the best window size for each pair of airports, using the corresponding features listed in the left columns; a: source airport of the causality (i.e., the cause); b: destination airport of the causality (i.e., the consequence).

Input Time | Metric | ${\mathit{R}}^{2}$ | |||||
---|---|---|---|---|---|---|---|

Series | a | b | $\mathit{a}\xb7\mathit{b}$ | ${log}_{2}\mathit{a}/\mathit{b}$ | Max | Min | |

Landing times | MAD | $0.00$ | $0.01$ | $0.00$ | $0.01$ | $0.05$ | $0.02$ |

Hurst exponent | $0.00$ | $0.01$ | $0.01$ | $0.00$ | $0.02$ | $0.00$ | |

Landing separation | Mean | $0.01$ | $0.01$ | $0.03$ | $0.00$ | $0.02$ | $0.02$ |

Standard deviation | $0.00$ | $0.04$ | $0.03$ | $0.01$ | $0.02$ | $0.04$ | |

Linear correlation | $0.00$ | $0.00$ | $0.00$ | $0.00$ | $0.01$ | $0.00$ | |

MAD | $0.01$ | $0.00$ | $0.01$ | $0.00$ | $0.01$ | $0.01$ | |

Delays | Mean | $0.01$ | $0.02$ | $0.01$ | $0.00$ | $0.02$ | $0.01$ |

Standard deviation | $0.01$ | $0.02$ | $0.02$ | $0.00$ | $0.02$ | $0.01$ | |

Linear correlation | $0.01$ | $0.00$ | $0.01$ | $0.00$ | $0.01$ | $0.00$ | |

MAD | $0.00$ | $0.00$ | $0.00$ | $0.00$ | $0.01$ | $0.00$ | |

Hurst exponent | $0.02$ | $0.01$ | $0.03$ | $0.00$ | $0.02$ | $0.02$ | |

$\Delta $ consecutive delays | Mean | $0.00$ | $0.01$ | $0.00$ | $0.00$ | $0.01$ | $0.01$ |

Standard deviation | $0.00$ | $0.01$ | $0.01$ | $0.00$ | $0.01$ | $0.01$ | |

Linear correlation | $0.00$ | $0.00$ | $0.00$ | $0.00$ | $0.00$ | $0.00$ | |

MAD | $0.00$ | $0.00$ | $0.00$ | $0.00$ | $0.00$ | $0.00$ |

**Table A5.**List of the ten pairs of airports with the longest propagation time (in hours); a: source airport of the causality (i.e., the cause); b: destination airport of the causality (i.e., the consequence).

Airport a | Airport b | Distance (NM) | Prop. Time $\mathit{a}\to \mathit{b}$ |
---|---|---|---|

EBBR | EDDH | 482 | 8.0 |

LIME | LEMG | 1549 | 8.0 |

EDDH | EDDS | 552 | 7.5 |

EDDT | LPPR | 2077 | 7.3 |

LEBL | LHBP | 1523 | 7.1 |

EBBR | EGBB | 463 | 7.1 |

LIMC | LOWW | 657 | 7.1 |

LIMC | LKPR | 646 | 7.1 |

LIME | LOWW | 588 | 7.1 |

EGBB | EBBR | 463 | 7.1 |

**Table A6.**List of the ten pairs of airports with the shortest propagation time (in hours); a: source airport of the causality (i.e., the cause); b: destination airport of the causality (i.e., the consequence).

Airport a | Airport b | Distance (NM) | Prop. Time $\mathit{a}\to \mathit{b}$ |
---|---|---|---|

LFPO | EDDS | 502 | 0.8 |

UKBB | LGAV | 1485 | 1.0 |

EDDS | LFPO | 502 | 1.2 |

EHAM | EDDH | 379 | 1.2 |

LIML | ENGM | 1645 | 1.4 |

LGAV | UKBB | 1485 | 1.8 |

EDDS | EDDH | 552 | 1.8 |

LFML | ENGM | 1906 | 2.0 |

ENGM | EDDS | 1286 | 2.0 |

LSZH | EPWA | 1031 | 2.2 |

**Table A7.**List of the ten pairs of airports with the most asymmetrical propagation time, defined as the difference between the forward (reported in the fourth column) and backward time (fifth column); a: source airport of the causality (i.e., the cause); b: destination airport of the causality (i.e., the consequence). Propagation times in hours.

Airport a | Airport b | Distance (NM) | Prop. Time $\mathit{a}\to \mathit{b}$ | Prop. Time $\mathit{b}\to \mathit{a}$ |
---|---|---|---|---|

EDDH | EDDS | 552 | 7.5 | 1.8 |

LIME | LEMG | 1549 | 8.0 | 3.7 |

EBBR | EDDH | 482 | 8.0 | 4.0 |

LICC | LSGG | 1223 | 6.5 | 4.2 |

EKCH | ESSA | 546 | 7.0 | 5.2 |

LIMC | EDDS | 342 | 6.8 | 5.0 |

LGAV | LPPR | 2803 | 7.0 | 5.7 |

LIMC | EHAM | 795 | 7.0 | 5.8 |

LIMC | LOWW | 657 | 7.1 | 6.0 |

LIME | LOWW | 588 | 7.1 | 6.0 |

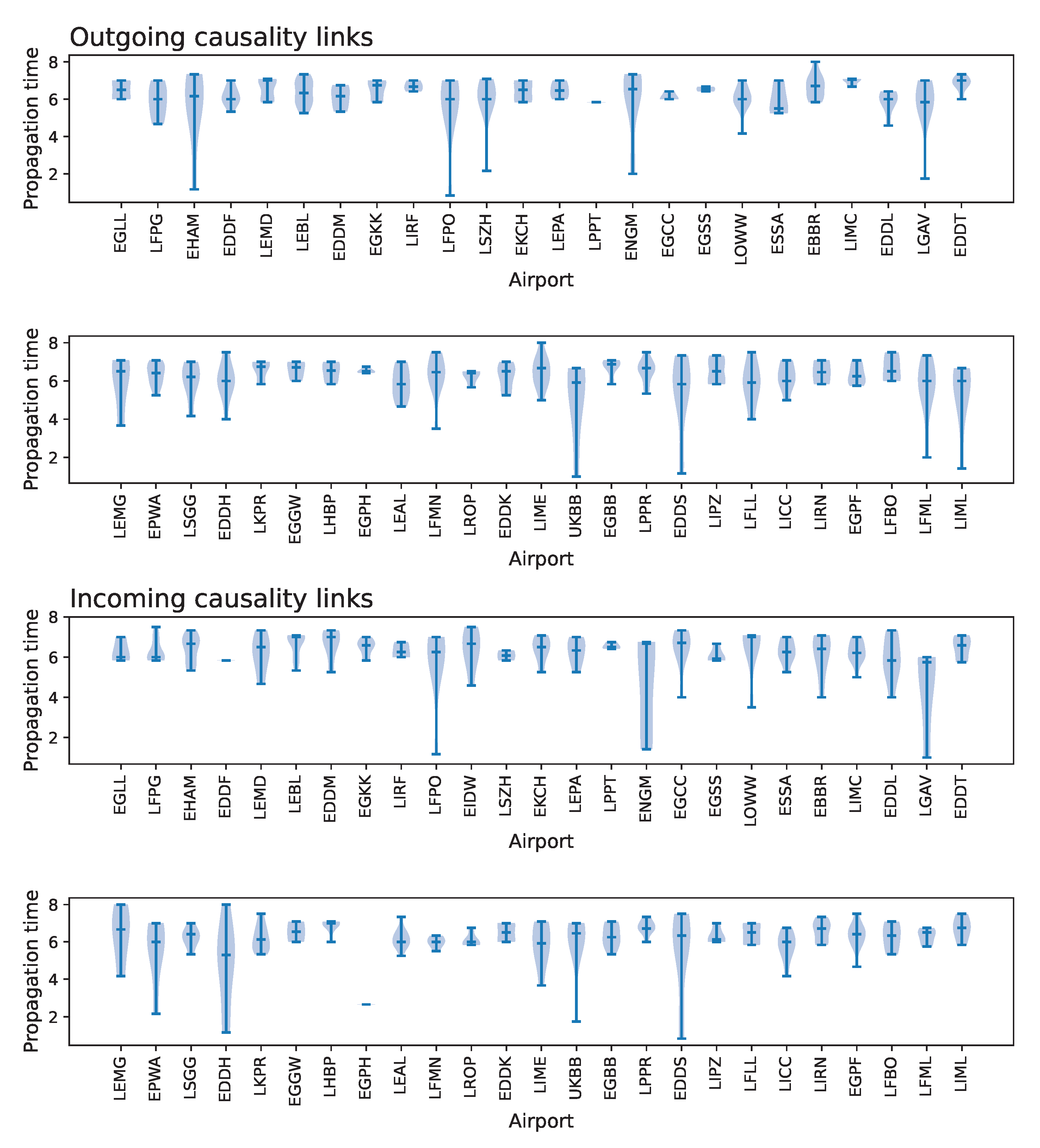

**Figure A2.**Probability distributions of delay propagation times. Violin plots report the distribution of the delay propagation times in hours for all 50 considered airports for outgoing (i.e., delays propagated by an airport, top panels) and incoming (i.e., delays received by an airport, bottom panels) links.

## References

- Rantanen, E.M.; Wickens, C.D. Conflict resolution maneuvers in air traffic control: Investigation of operational data. Int. J. Aviat. Psychol.
**2012**, 22, 266–281. [Google Scholar] [CrossRef] - Shang-Wen, Y.; Ming-Hua, H. Estimation of air traffic longitudinal conflict probability based on the reaction time of controllers. Saf. Sci.
**2010**, 48, 926–930. [Google Scholar] [CrossRef] - Delgado, L.; Martin, J.; Blanch, A.; Cristóbal, S. Hub operations delay recovery based on cost optimisation-Dynamic cost indexing and waiting for passengers strategies. In Sixth SESAR Innovation Days; SESAR: Brussels, Belgium, 2016. [Google Scholar]
- Montlaur, A.; Delgado, L. Flight and passenger delay assignment optimization strategies. Transp. Res. Part C Emerg. Technol.
**2017**, 81, 99–117. [Google Scholar] [CrossRef] [Green Version] - Pyrgiotis, N.; Malone, K.M.; Odoni, A. Modelling delay propagation within an airport network. Transp. Res. Part C Emerg. Technol.
**2013**, 27, 60–75. [Google Scholar] [CrossRef] - Beatty, R.; Hsu, R.; Berry, L.; Rome, J. Preliminary evaluation of flight delay propagation through an airline schedule. Air Traffic Control. Q.
**1999**, 7, 259–270. [Google Scholar] [CrossRef] - Liu, Y.J.; Cao, W.D.; Ma, S. Estimation of arrival flight delay and delay propagation in a busy hub-airport. In Proceedings of the IEEE 2008 Fourth International Conference on Natural Computation, Jinan, China, 18–20 October 2008; Volume 4, pp. 500–505. [Google Scholar]
- AhmadBeygi, S.; Cohn, A.; Guan, Y.; Belobaba, P. Analysis of the potential for delay propagation in passenger airline networks. J. Air Transp. Manag.
**2008**, 14, 221–236. [Google Scholar] [CrossRef] [Green Version] - Fleurquin, P.; Ramasco, J.J.; Eguiluz, V.M. Systemic delay propagation in the US airport network. Sci. Rep.
**2013**, 3, 1159. [Google Scholar] [CrossRef] [Green Version] - Baspinar, B.; Koyuncu, E. A data-driven air transportation delay propagation model using epidemic process models. Int. J. Aerosp. Eng.
**2016**, 2016, 4836260. [Google Scholar] [CrossRef] - Zhang, H.; Wu, W.; Zhang, S.; Witlox, F. Simulation analysis on flight delay propagation under different network configurations. IEEE Access
**2020**, 8, 103236–103244. [Google Scholar] [CrossRef] - Wang, Y.; Li, M.Z.; Gopalakrishnan, K.; Liu, T. Timescales of delay propagation in airport networks. Transp. Res. Part E Logist. Transp. Rev.
**2022**, 161, 102687. [Google Scholar] [CrossRef] - Granger, C.W. Investigating causal relations by econometric models and cross-spectral methods. Econom. J. Econom. Soc.
**1969**, 37, 424–438. [Google Scholar] [CrossRef] - Granger, C.W. Causality, cointegration, and control. J. Econ. Dyn. Control.
**1988**, 12, 551–559. [Google Scholar] [CrossRef] - Zanin, M. Can we neglect the multi-layer structure of functional networks? Phys. A Stat. Mech. Its Appl.
**2015**, 430, 184–192. [Google Scholar] [CrossRef] [Green Version] - Zanin, M.; Belkoura, S.; Zhu, Y. Network analysis of chinese air transport delay propagation. Chin. J. Aeronaut.
**2017**, 30, 491–499. [Google Scholar] [CrossRef] - Du, W.B.; Zhang, M.Y.; Zhang, Y.; Cao, X.B.; Zhang, J. Delay causality network in air transport systems. Transp. Res. Part E Logist. Transp. Rev.
**2018**, 118, 466–476. [Google Scholar] [CrossRef] - Mazzarisi, P.; Zaoli, S.; Lillo, F.; Delgado, L.; Gurtner, G. New centrality and causality metrics assessing air traffic network interactions. J. Air Transp. Manag.
**2020**, 85, 101801. [Google Scholar] [CrossRef] [Green Version] - Pastorino, L.; Zanin, M. Air delay propagation patterns in Europe from 2015 to 2018: An information processing perspective. J. Phys. Complex.
**2021**, 3, 015001. [Google Scholar] [CrossRef] - Guo, Z.; Hao, M.; Yu, B.; Yao, B. Detecting delay propagation in regional air transport systems using convergent cross mapping and complex network theory. Transp. Res. Part E Logist. Transp. Rev.
**2022**, 157, 102585. [Google Scholar] [CrossRef] - Jia, Z.; Cai, X.; Hu, Y.; Ji, J.; Jiao, Z. Delay propagation network in air transport systems based on refined nonlinear Granger causality. Transp. B Transp. Dyn.
**2022**, 10, 586–598. [Google Scholar] [CrossRef] - Costa, L.d.F.; Rodrigues, F.A.; Travieso, G.; Villas Boas, P.R. Characterization of complex networks: A survey of measurements. Adv. Phys.
**2007**, 56, 167–242. [Google Scholar] [CrossRef] - Zanin, M. Simplifying functional network representation and interpretation through causality clustering. Sci. Rep.
**2021**, 11, 15378. [Google Scholar] [CrossRef] [PubMed] - Gong, M.; Zhang, K.; Schoelkopf, B.; Tao, D.; Geiger, P. Discovering temporal causal relations from subsampled data. In Proceedings of the International Conference on Machine Learning, PMLR, Lille, France, 6–11 July 2015; pp. 1898–1906. [Google Scholar]
- Lin, F.H.; Ahveninen, J.; Raij, T.; Witzel, T.; Chu, Y.H.; Jääskeläinen, I.P.; Tsai, K.W.K.; Kuo, W.J.; Belliveau, J.W. Increasing fMRI sampling rate improves Granger causality estimates. PLoS ONE
**2014**, 9, e100319. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Zhou, D.; Zhang, Y.; Xiao, Y.; Cai, D. Reliability of the Granger causality inference. New J. Phys.
**2014**, 16, 043016. [Google Scholar] [CrossRef] [Green Version] - Renault, E.; Sekkat, K.; Szafarz, A. Testing for spurious causality in exchange rates. J. Empir. Financ.
**1998**, 5, 47–66. [Google Scholar] [CrossRef] - McCrorie, J.R.; Chambers, M.J. Granger causality and the sampling of economic processes. J. Econom.
**2006**, 132, 311–336. [Google Scholar] [CrossRef] [Green Version] - Solo, V. On causality I: Sampling and noise. In Proceedings of the IEEE 2007 46th IEEE Conference on Decision and Control, New Orleans, LA, USA, 12–14 December 2007; pp. 3634–3639. [Google Scholar]
- Smirnov, D.; Bezruchko, B. Spurious causalities due to low temporal resolution: Towards detection of bidirectional coupling from time series. EPL (Europhys. Lett.)
**2012**, 100, 10005. [Google Scholar] [CrossRef] [Green Version] - Anderson, B.D.; Deistler, M.; Dufour, J.M. On the Sensitivity of Granger causality to Errors-In-Variables, Linear Transformations and Subsampling. J. Time Ser. Anal.
**2019**, 40, 102–123. [Google Scholar] [CrossRef] [Green Version] - Elsegai, H. Granger-causality inference in the presence of gaps: An equidistant missing-data problem for non-synchronous recorded time series data. Phys. A Stat. Mech. Its Appl.
**2019**, 523, 839–851. [Google Scholar] [CrossRef] - Zanin, M. Assessing Granger causality on irregular missing and extreme data. IEEE Access
**2021**, 9, 75362–75374. [Google Scholar] [CrossRef] - Bessler, D.A.; Kling, J.L. A note on tests of Granger causality. Appl. Econ.
**1984**, 16, 335–342. [Google Scholar] [CrossRef] - Joerding, W. Economic growth and defense spending: Granger causality. J. Dev. Econ.
**1986**, 21, 35–40. [Google Scholar] [CrossRef] - Chiou-Wei, S.Z.; Chen, C.F.; Zhu, Z. Economic growth and energy consumption revisited—Evidence from linear and nonlinear Granger causality. Energy Econ.
**2008**, 30, 3063–3076. [Google Scholar] [CrossRef] - Yuan, T.; Qin, S. Root cause diagnosis of plant-wide oscillations using Granger causality. J. Process. Control.
**2014**, 24, 450–459. [Google Scholar] [CrossRef] - Seth, A.K.; Barrett, A.B.; Barnett, L. Granger causality Analysis in Neuroscience and Neuroimaging. J. Neurosci.
**2015**, 35, 3293–3297. [Google Scholar] [CrossRef] [PubMed] - Stokes, P.A.; Purdon, P.L. A study of problems encountered in Granger causality analysis from a neuroscience perspective. Proc. Natl. Acad. Sci. USA
**2017**, 114, E7063–E7072. [Google Scholar] [CrossRef] [Green Version] - Porta, A.; Faes, L. Wiener–Granger causality in Network Physiology with Applications to Cardiovascular Control and Neuroscience. Proc. IEEE
**2016**, 104, 282–309. [Google Scholar] [CrossRef] - Dhamala, M.; Rangarajan, G.; Ding, M. Estimating Granger causality from Fourier and wavelet transforms of time series data. Phys. Rev. Lett.
**2008**, 100, 018701. [Google Scholar] [CrossRef] [Green Version] - Marinazzo, D.; Pellicoro, M.; Stramaglia, S. Kernel method for nonlinear Granger causality. Phys. Rev. Lett.
**2008**, 100, 144103. [Google Scholar] [CrossRef] [Green Version] - Bueso, D.; Piles, M.; Camps-Valls, G. Explicit Granger causality in kernel Hilbert spaces. Phys. Rev. E
**2020**, 102, 062201. [Google Scholar] [CrossRef] - Bullmore, E.; Sporns, O. Complex brain networks: Graph theoretical analysis of structural and functional systems. Nat. Rev. Neurosci.
**2009**, 10, 186–198. [Google Scholar] [CrossRef] - Park, H.J.; Friston, K. Structural and functional brain networks: From connections to cognition. Science
**2013**, 342, 1238411. [Google Scholar] [CrossRef] [Green Version] - Sporns, O. Graph theory methods: Applications in brain networks. Dialogues Clin. Neurosci.
**2022**, 20, 111–121. [Google Scholar] [CrossRef] [PubMed] - Donges, J.F.; Zou, Y.; Marwan, N.; Kurths, J. Complex networks in climate dynamics. Eur. Phys. J. Spec. Top.
**2009**, 174, 157–179. [Google Scholar] [CrossRef] [Green Version] - Donges, J.F.; Zou, Y.; Marwan, N.; Kurths, J. The backbone of the climate network. EPL (Europhys. Lett.)
**2009**, 87, 48007. [Google Scholar] [CrossRef] [Green Version] - Ludescher, J.; Martin, M.; Boers, N.; Bunde, A.; Ciemer, C.; Fan, J.; Havlin, S.; Kretschmer, M.; Kurths, J.; Runge, J.; et al. Network-based forecasting of climate phenomena. Proc. Natl. Acad. Sci. USA
**2021**, 118, e1922872118. [Google Scholar] [CrossRef] - Albert, R.; Barabási, A.L. Statistical mechanics of complex networks. Rev. Mod. Phys.
**2002**, 74, 47. [Google Scholar] [CrossRef] [Green Version] - Boccaletti, S.; Latora, V.; Moreno, Y.; Chavez, M.; Hwang, D.U. Complex networks: Structure and dynamics. Phys. Rep.
**2006**, 424, 175–308. [Google Scholar] [CrossRef] - Newman, M.E. Assortative mixing in networks. Phys. Rev. Lett.
**2002**, 89, 208701. [Google Scholar] [CrossRef] [Green Version] - Latora, V.; Marchiori, M. Efficient behavior of small-world networks. Phys. Rev. Lett.
**2001**, 87, 198701. [Google Scholar] [CrossRef] [Green Version] - Crucitti, P.; Latora, V.; Marchiori, M.; Rapisarda, A. Efficiency of scale-free networks: Error and attack tolerance. Phys. A Stat. Mech. Its Appl.
**2003**, 320, 622–642. [Google Scholar] [CrossRef] - Zanin, M.; Sousa, P.A.; Menasalvas, E. Information content: Assessing meso-scale structures in complex networks. EPL (Europhys. Lett.)
**2014**, 106, 30001. [Google Scholar] [CrossRef] [Green Version] - Bonacich, P. Power and centrality: A family of measures. Am. J. Sociol.
**1987**, 92, 1170–1182. [Google Scholar] [CrossRef] - Zanin, M.; Sun, X.; Wandelt, S. Studying the topology of transportation systems through complex networks: Handle with care. J. Adv. Transp.
**2018**, 2018, 3156137. [Google Scholar] [CrossRef] [Green Version] - Tabor, M.; Weiss, J. Analytic structure of the Lorenz system. Phys. Rev. A
**1981**, 24, 2157. [Google Scholar] [CrossRef] - Brock, W.A.; Malliaris, A.G. Differential Equations, Stability and Chaos in Dynamic Economics; World Scientific: Amsterdam, The Netherlands, 1989. [Google Scholar]
- Coffey, D.S. Self-organization, complexity and chaos: The new biology for medicine. Nat. Med.
**1998**, 4, 882–885. [Google Scholar] [CrossRef] - Campanelli, B.; Fleurquin, P.; Arranz, A.; Etxebarria, I.; Ciruelos, C.; Eguíluz, V.M.; Ramasco, J.J. Comparing the modeling of delay propagation in the US and European air traffic networks. J. Air Transp. Manag.
**2016**, 56, 12–18. [Google Scholar] [CrossRef] - Cook, A.; Belkoura, S.; Zanin, M. ATM performance measurement in Europe, the US and China. Chin. J. Aeronaut.
**2017**, 30, 479–490. [Google Scholar] [CrossRef] - Sun, X. Assessing nonlinear Granger causality from multivariate time series. In Proceedings of the Joint European Conference on Machine Learning and Knowledge Discovery in Databases; Springer: Berlin/Heidelberg, Germany, 2008; pp. 440–455. [Google Scholar]
- Song, X.; Taamouti, A. Measuring nonlinear granger causality in mean. J. Bus. Econ. Stat.
**2018**, 36, 321–333. [Google Scholar] [CrossRef] [Green Version] - Staniek, M.; Lehnertz, K. Symbolic transfer entropy. Phys. Rev. Lett.
**2008**, 100, 158101. [Google Scholar] [CrossRef] - Boccaletti, S.; Bianconi, G.; Criado, R.; Del Genio, C.I.; Gómez-Gardenes, J.; Romance, M.; Sendina-Nadal, I.; Wang, Z.; Zanin, M. The structure and dynamics of multilayer networks. Phys. Rep.
**2014**, 544, 1–122. [Google Scholar] [CrossRef]

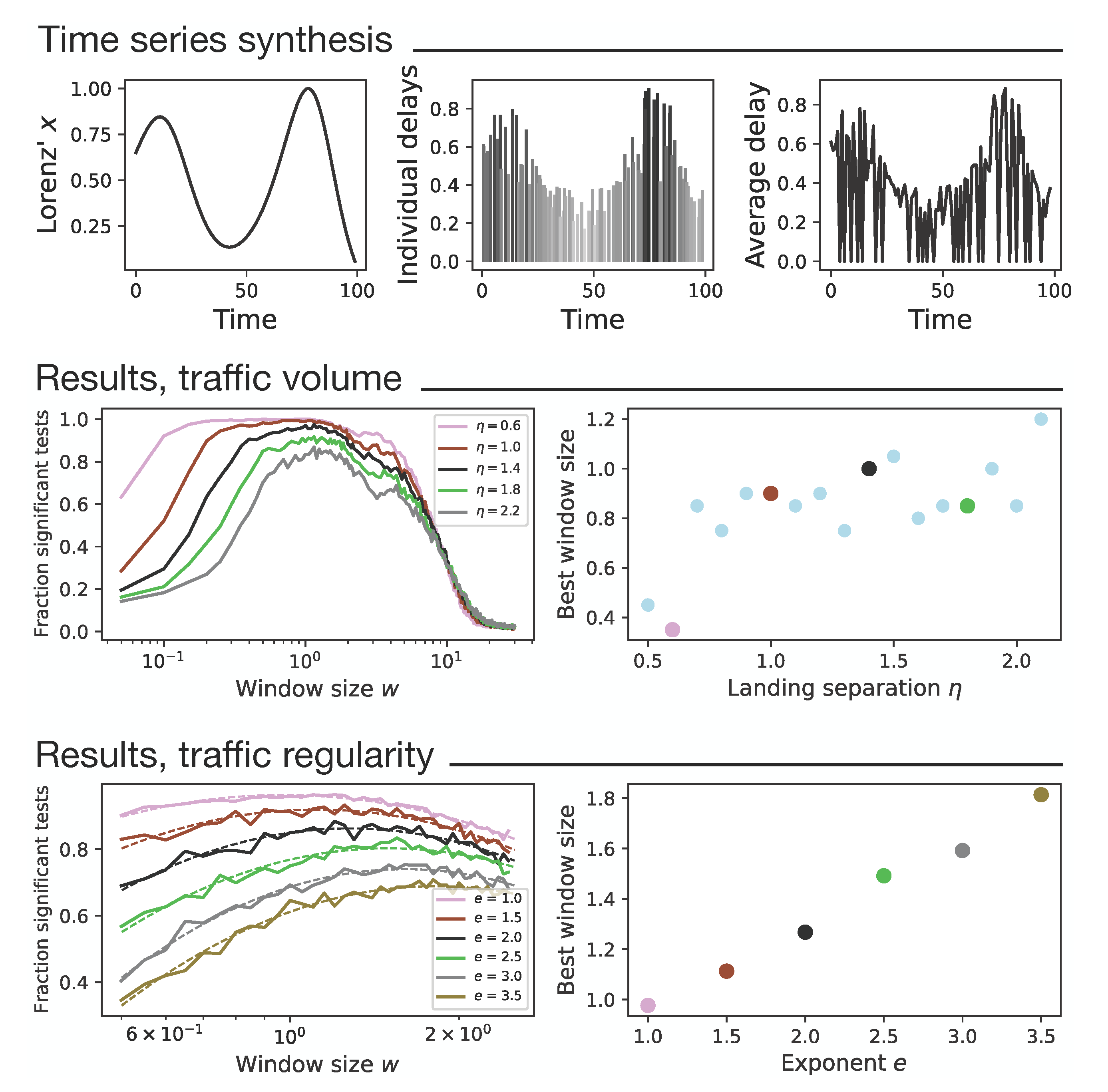

**Figure 1.**Analysis of the synthetic model—see Section 3 for details. (

**Top**panels) Example of the synthesis of one time series, with the calculation of the global delay trend using a Lorenz system (

**top left**panel); synthesis of individual landing events (

**top central**panel); and reconstruction of the evolution of the average delay (

**top right**panel); (

**Middle**panels) Analysis of the Granger causality test as a function of the traffic volume: evolution of the fraction of significant tests as a function of the window size w and of the event separation time $\eta $; (

**left middle**panel); and size of the best window size, i.e., the one maximising the fraction of significant tests for different values of $\eta $ (

**right middle**panel); (

**Bottom**panels) Analysis of the Granger causality test as a function of the traffic regularity: evolution of the fraction of significant tests as a function of w and of the asymmetry exponent e (

**left bottom**panel); and value of w maximising that fraction as a function of e, as obtained from the quadratic fits (

**right bottom**panel). In the middle and bottom panels, coloured points in the right panels correspond to the line of the same colour in the left ones.

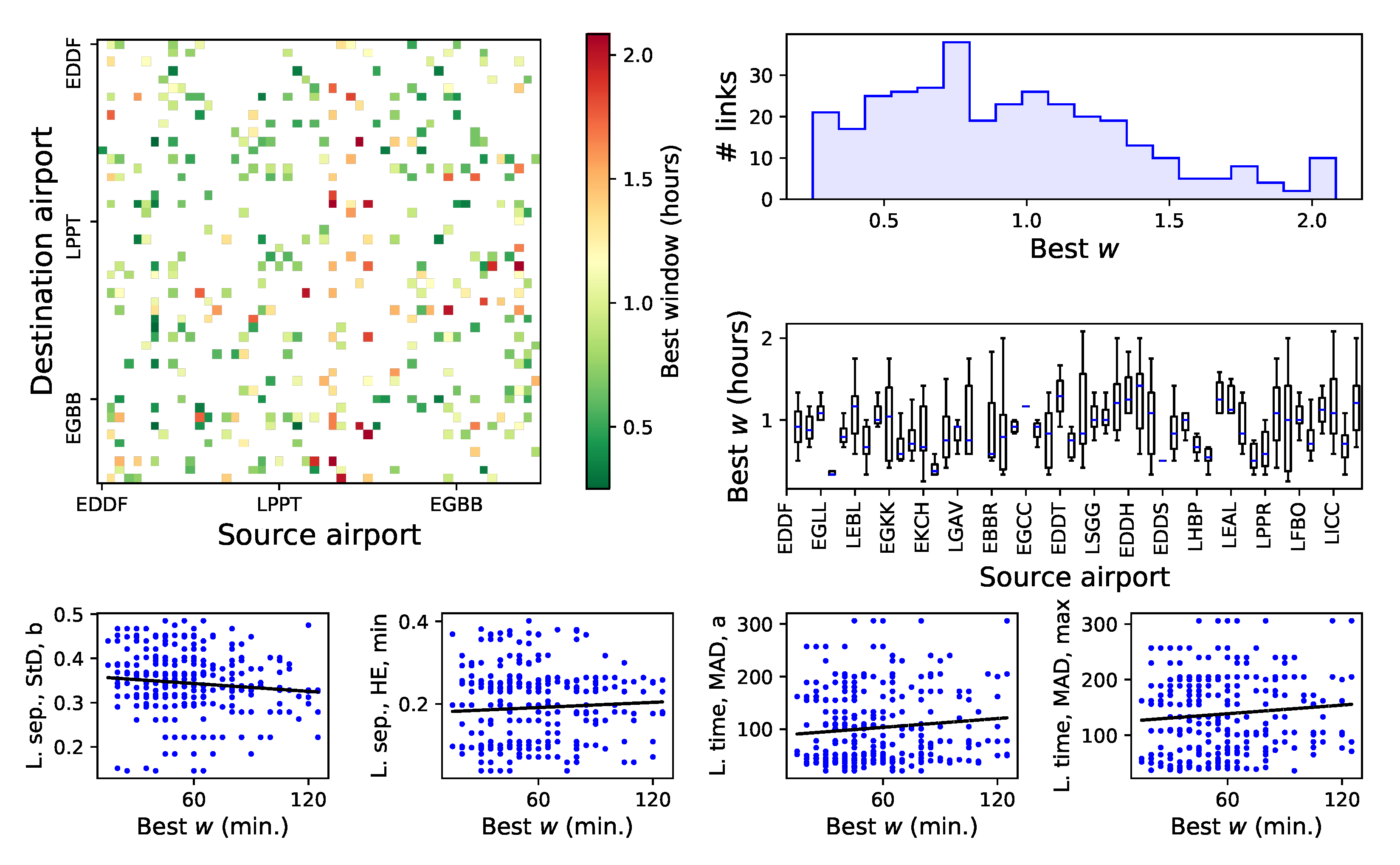

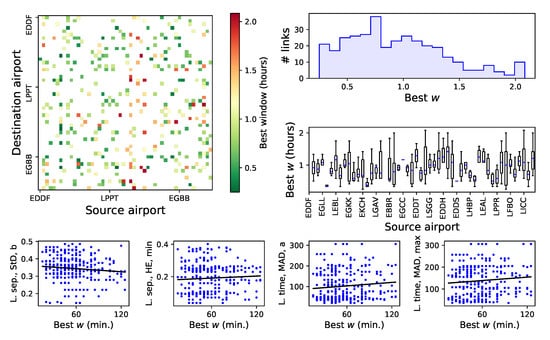

**Figure 2.**Best time scale for detecting real delay propagation patterns. (

**Top left**) window length minimising the p-value of the Granger causality test for each pair of source–destination airports; note that results are only reported for those pairs for which the test is statistically significant and that airports are sorted in decreasing number of operations (see Table A1); (

**Top right**) histogram of the best window lengths w; (

**Middle right**) box plot depicting the distribution of the best window lengths for each airport, considering the links it causes, with airports sorted by decreasing number of operations; boxes indicate the interquartile range (Q3–Q1) and blue horizontal lines the median of the distribution; (

**Bottom**) scatter plots of the four features that best predict the length of the optimal window as a function of the latter for each statistically significant causality link; the black lines represent the best linear fit. L. sep.: landing separation; L. time: landing time. See main text and Table A4 for details on the metrics.

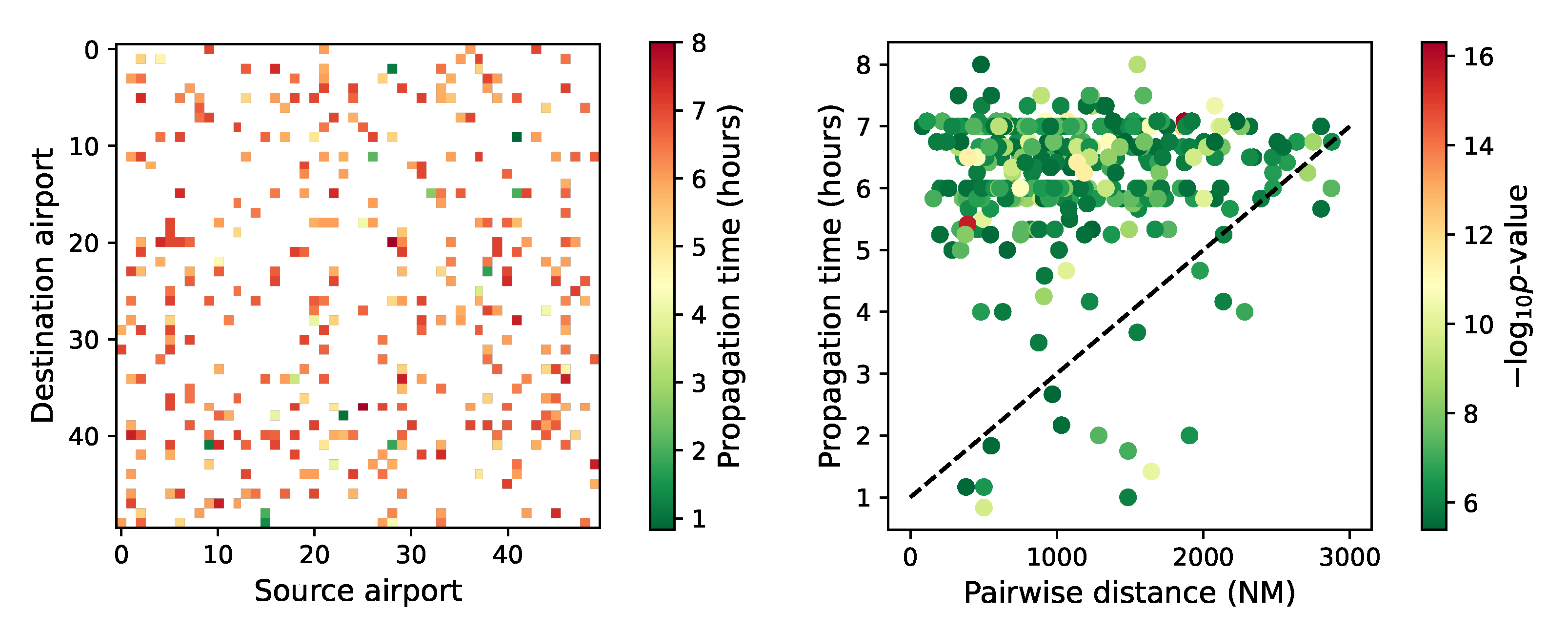

**Figure 3.**Delay propagation time. The left panel reports the delay propagation time in hours between each pair of airports. Only pairs with a statistically significant propagation are reported, and airports are sorted in decreasing number of operations (see Table A1). The right panel represents a scatter plot of the propagation time in hours as a function of the distance between each pair of airports. The diagonal dotted line approximates the flight time as a function of the distance.

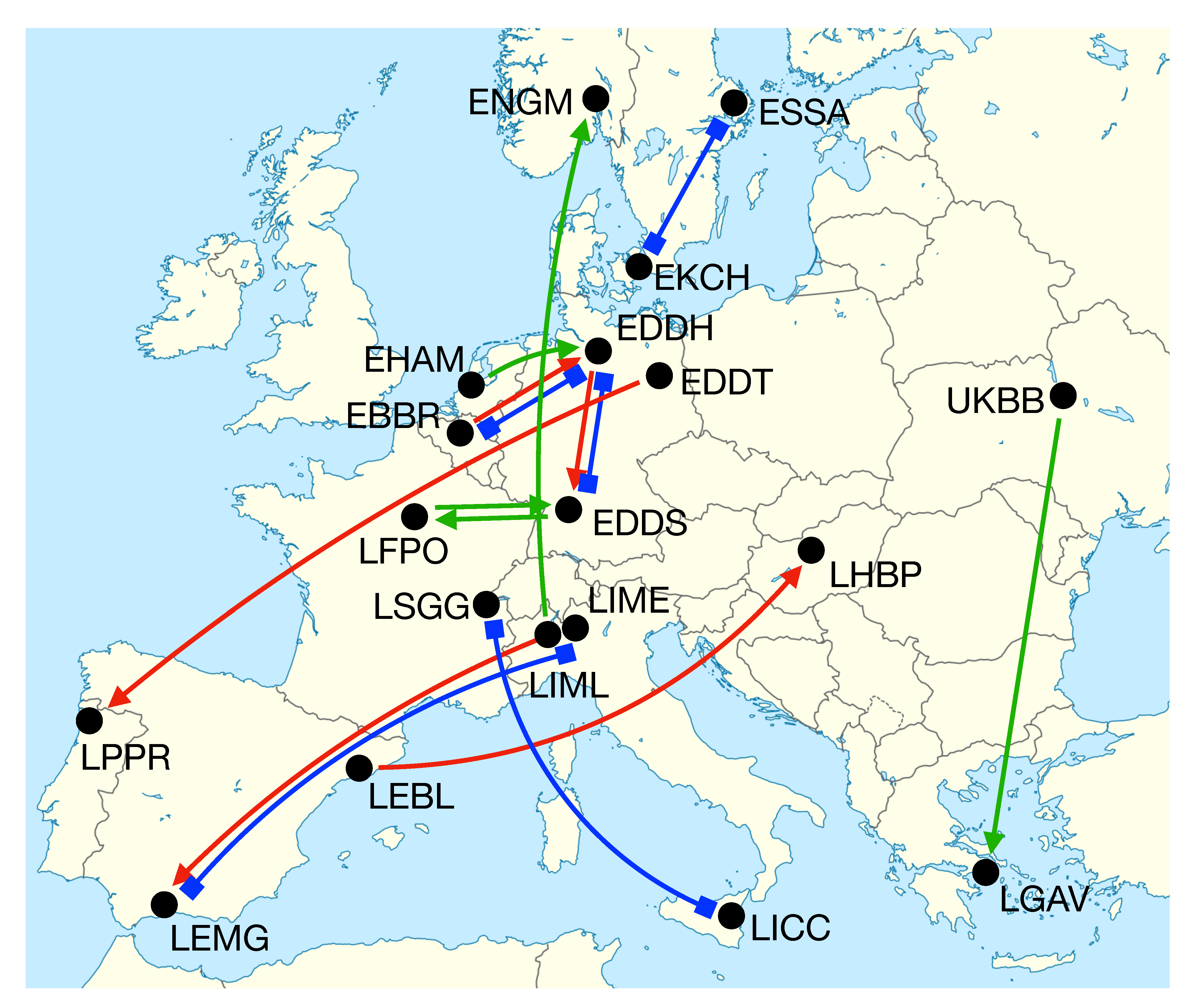

**Figure 4.**Graphical representation of the most extreme delay propagation times. Red and green arrows indicate the five pairs of airports with, respectively, the largest and smallest propagation times; blue lines indicate those pairs with the most asymmetrical ones. See Table A5, Table A6 and Table A7 for numerical values.

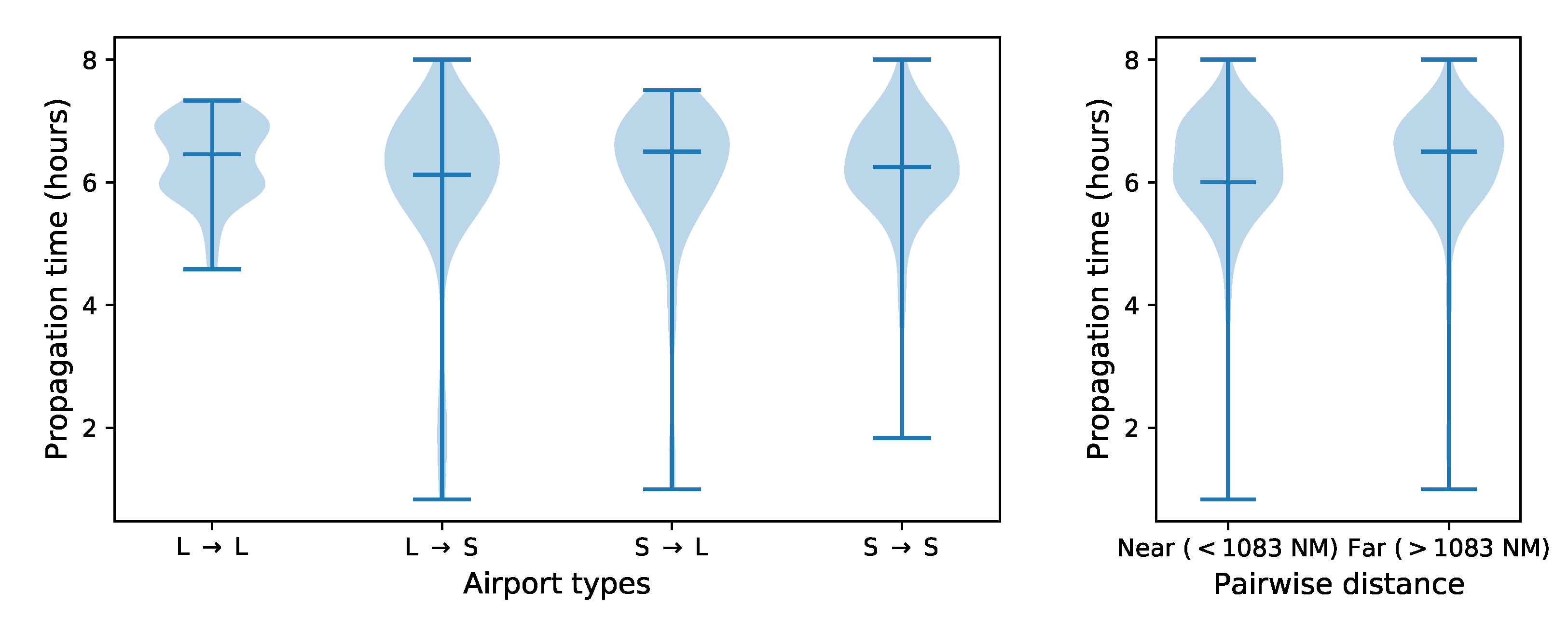

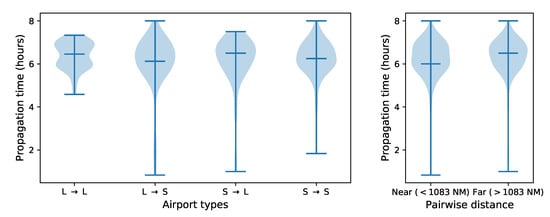

**Figure 5.**Violin plots reporting the distributions of propagation times as a function of the size of the airports at each end of the link (

**left**panel) and of the distance between them (

**right**panel). L: large; S: small.

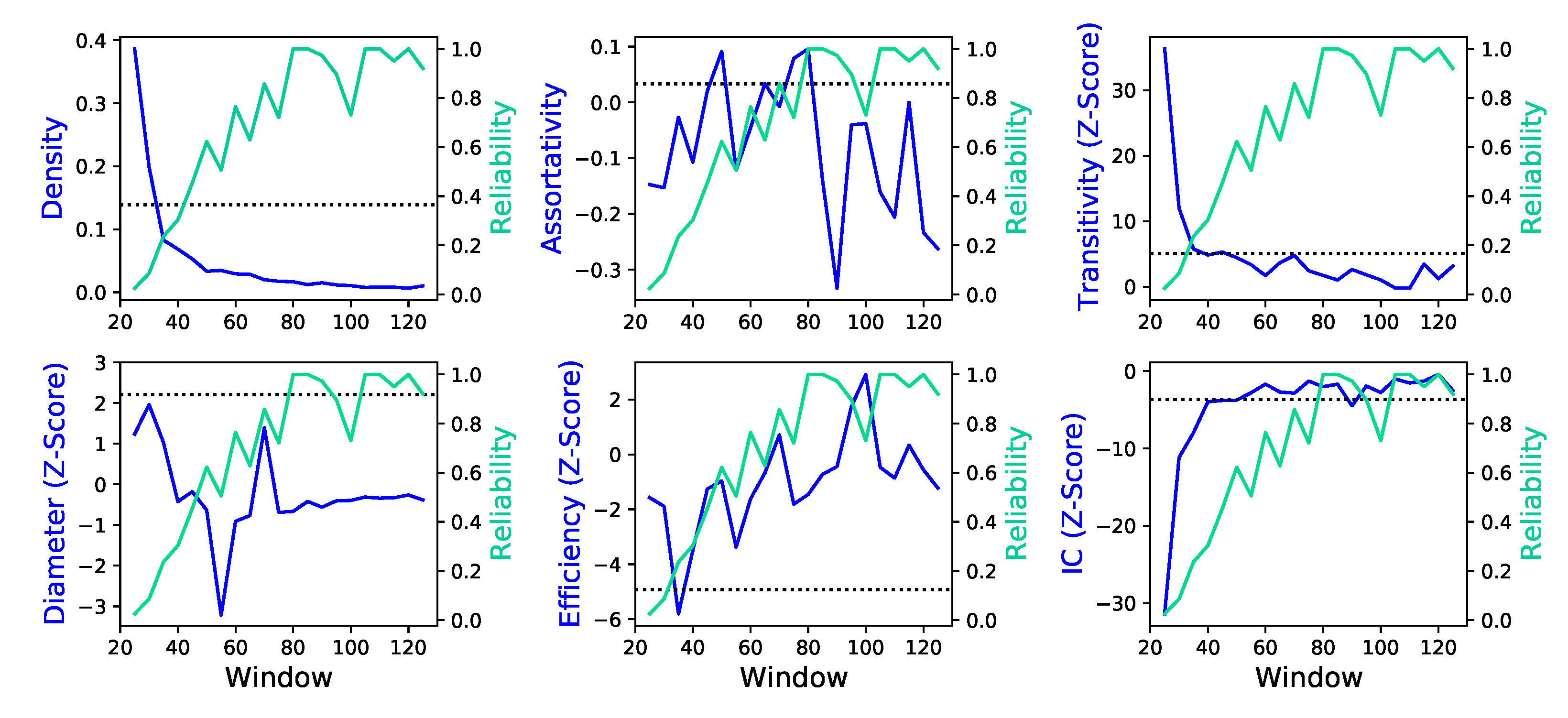

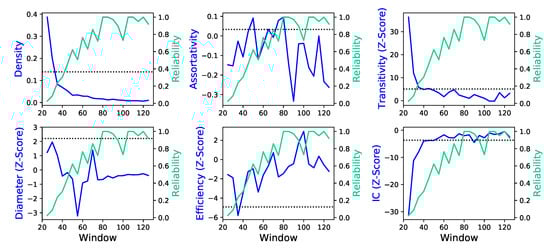

**Figure 6.**Evolution of the six topological metrics described in Section 2.3 (blue lines, left Y axes), as a function of the size of the window used for calculating the Granger causality. Aqua lines (right Y axes) depict the reliability of each value, i.e., the fraction of pairs of airports having operations in at least $50\%$ of the windows used to calculate the causality. The horizontal dotted lines indicate the values of the metrics when the optimal window size is used for each link.

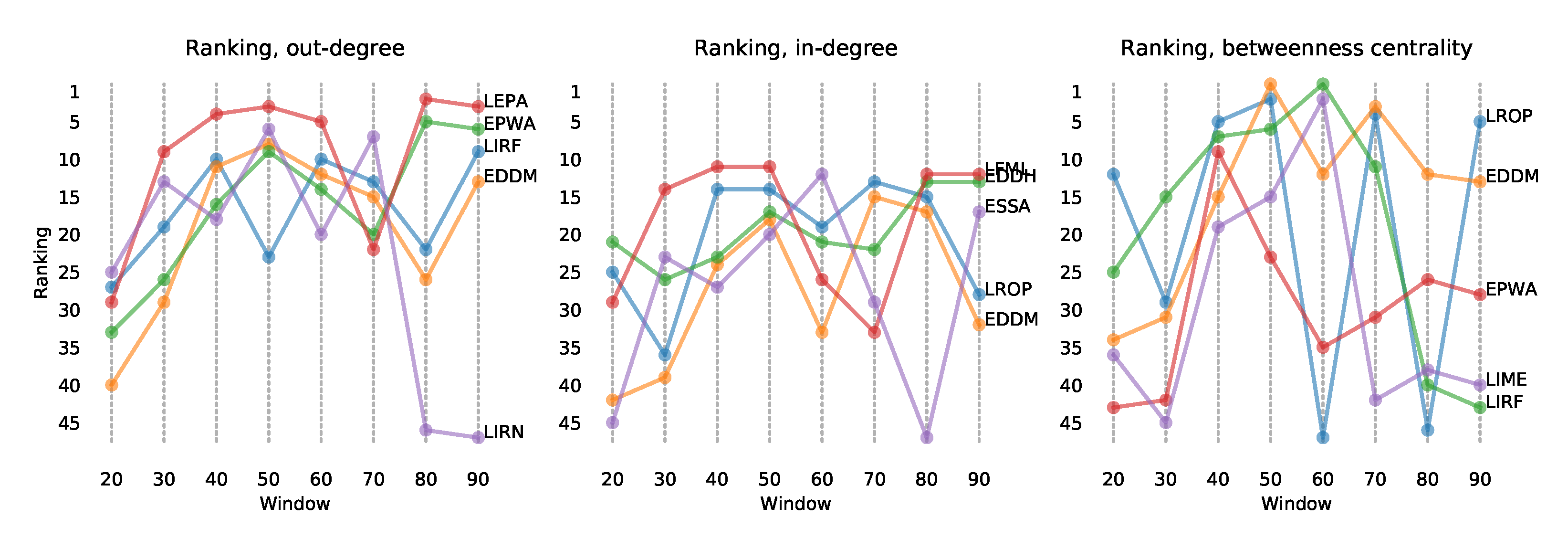

**Figure 7.**Evolution of the centrality ranking as a function of the window size used to calculate the Granger causality. From left to right, the three panels depict the evolution of the ranking according to the out-degree, in-degree and betweenness centrality. In each case, the five reported airports are those with the maximal centrality in the networks reconstructed with optimal window sizes.

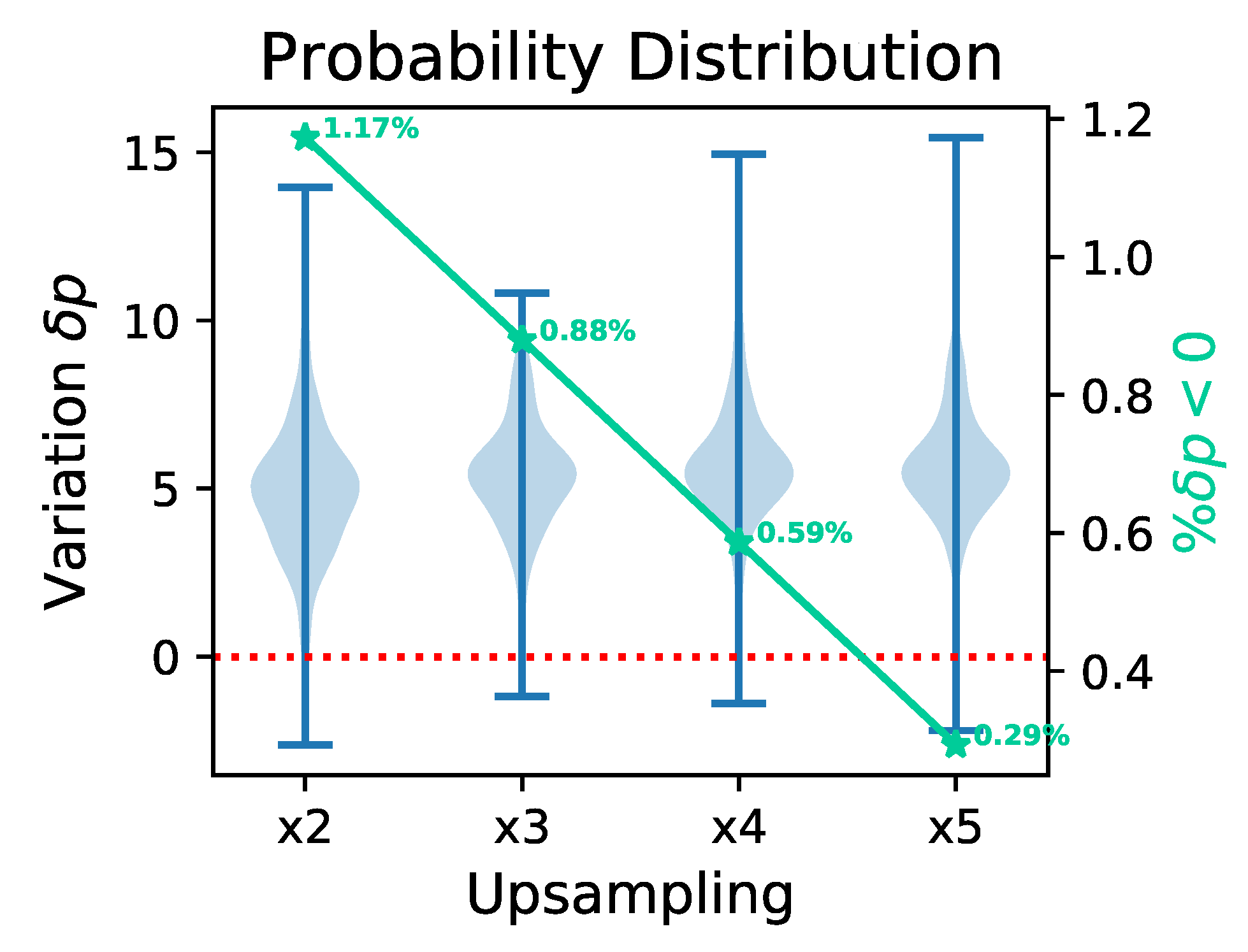

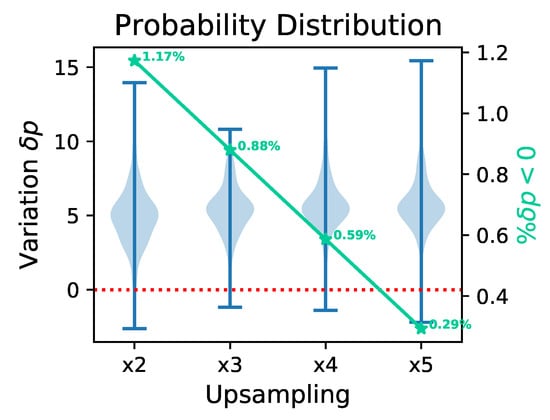

**Figure 8.**Probability distribution of $\delta p$, i.e., the difference between the p-values obtained with the original and the resampled time series. Each violin plot corresponds to a different resampling, and its values to all pairs of airports with a statistically significant causality (according to the original time series). The water green line (right Y axis) shows the percentage of pairs for which the resampled time series yield a smaller p-value (that is, a more statistically significant relationship) than the one obtained with the original series.

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |

© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Pastorino, L.; Zanin, M.
Local and Network-Wide Time Scales of Delay Propagation in Air Transport: A Granger Causality Approach. *Aerospace* **2023**, *10*, 36.
https://doi.org/10.3390/aerospace10010036

**AMA Style**

Pastorino L, Zanin M.
Local and Network-Wide Time Scales of Delay Propagation in Air Transport: A Granger Causality Approach. *Aerospace*. 2023; 10(1):36.
https://doi.org/10.3390/aerospace10010036

**Chicago/Turabian Style**

Pastorino, Luisina, and Massimiliano Zanin.
2023. "Local and Network-Wide Time Scales of Delay Propagation in Air Transport: A Granger Causality Approach" *Aerospace* 10, no. 1: 36.
https://doi.org/10.3390/aerospace10010036
