Article

Investigating the Origin and Evolution of Polyploid Trifolium medium L. Karyotype by Comparative Cytogenomic Methods

by
Eliška Lukjanová
,
Alžběta Hanulíková
and
Jana Řepková
*
Department of Experimental Biology, Faculty of Sciences, Masaryk University, 611 37 Brno, Czech Republic
*
Author to whom correspondence should be addressed.
Plants 2023, 12(2), 235; https://doi.org/10.3390/plants12020235
Submission received: 9 December 2022 / Revised: 30 December 2022 / Accepted: 3 January 2023 / Published: 4 January 2023
(This article belongs to the Special Issue Plant Evolutionary Cytogenetics)
Browse Figures
Review Reports Versions Notes

Abstract

:
Trifolium medium L. is a wild polyploid relative of the agriculturally important red clover that possesses traits promising for breeding purposes. To date, T. medium also remains the only clover species with which agriculturally important red clover has successfully been hybridized. Even though allopolyploid origin has previously been suggested, little has in fact been known about the T. medium karyotype and its origin. We researched T. medium and related karyotypes using comparative cytogenomic methods, such as fluorescent in situ hybridization (FISH) and RepeatExplorer cluster analysis. The results indicate an exceptional karyotype diversity regarding numbers and mutual positions of 5S and 26S rDNA loci and centromeric repeats in populations of T. medium ecotypes and varieties. The observed variability among T. medium ecotypes and varieties suggests current karyotype instability that can be attributed to ever-ongoing battle between satellite DNA together with genomic changes and rearrangements enhanced by post-hybridization events. Comparative cytogenomic analyses of a T. medium hexaploid variety and diploid relatives revealed stable karyotypes with a possible case of chromosomal rearrangement. Moreover, the results provided evidence of T. medium having autopolyploid origin.

1. Introduction

Zigzag clover, Trifolium medium, is a wild species of the clover genus, itself one of the largest genera in the bean family (Fabaceae). This herbaceous species is native to southwestern Asia and Europe but can be found in Northern America and rather infrequently in the southern hemisphere, such as in Australia, New Zealand, and Africa. The clover genus is of general agronomic importance due to its ability to form a symbiotic relationship with nitrogen-fixing bacteria that results in protein-rich forage even as it decreases the need for nitrogen fertilizers [1]. A number of clover species are cultivated extensively today as fodder plants and/or green manure crops to reduce nutrient runoff and soil erosion [2]. The economically most important clovers, namely red clover (Trifolium pratense L.) and white clover (Trifolium repens L.), are the subjects of breeding programs to improve agronomic traits such as yield, longevity, and nutrient content while overcoming constraints such as proneness to specific diseases, pests, or abiotic stress factors.
The low persistency of red clover (generally 2–3 years) is even more impacted by intensive grazing systems [3]. Being a highly complex trait, persistency is difficult to address even by modern improvement methods based upon molecular genetics [4]. Introduction of traits associated with perennialism, such as rhizomatous habit, from more persistent clover species has been pursued for many years, as reviewed by Abberton [5]. However, the only stable and viable progeny was produced from hybrids between tetraploid T. pratense cv. Tatra as a female and octoploid T. medium as a male parent, despite the fact that those two species have a different basic chromosome number in the haploid state (x = 7 in T. pratense and x = 8 in T. medium) [6]. Variability of the resulting progeny has been evaluated at the genetic level by means of flow cytometry measurement of DNA content in the fifth hybrid generation and by evaluation of chromosome numbers and rDNA loci [7,8]. Additionally, morphological, reproductive, and agronomic traits have been evaluated [9,10]. The results of analyses of generations after several rounds of backcrossing with T. pratense have revealed a tendency to stabilize the genomes into the maternal state with 2n = 28, which was previously reported in other crop plants [11,12], as well as a significant proportion of genetic variability maintained, with chromosome numbers ranging from 2n = 22 to 2n = 47 [8]. Moreover, T. medium displays higher tolerance to cold and virus-caused diseases and high content of phytoestrogens [9]. Therefore, T. medium is a promising target for breeding purposes and, as the success of interspecific hybridization to a large extent reflects the compatibility of both parental genomes, it is essential to have broad knowledge of its genome.
The genome sequence of T. medium was published in 2014, and, to date, that remains the largest Trifolium sequencing project, as it has an estimated genome size of 3154 Mbp [13,14]. Only a partial genomic sequence of 492.7 Mb was assembled, however, due to fragmentation caused by the large haploid genome size, polyploid state, cross-pollination, and high fraction of repetitive elements. Because of the fragmentation, the assembly was not sufficient for purposes of comprehensive annotation and so the authors provided a characterization of repeat content and its comparative analysis between T. medium and T. pratense [13]. Even though the authors managed to fully annotate 46.74% of analysed sequences as repetitive elements, it is likely that, due to underestimation caused by the low number of reads used in the analysis (only 0.1× coverage), the overall repeat content may make up as much as to 70% of the genome.
The comparative analysis between T. medium and T. pratense repeat content revealed a significant expansion of Ty-3/Gypsy retrotransposons in the T. medium genome (6.65% in T. pratense and 26.29% in T. medium) and oppositely a reduction in Ty-1/Copia retrotransposons and DNA transposons in general (12.22% in T. pratense and 7.80% in T. medium and 6.07% in T. pratense and 2.89% in T. medium, respectively). The striking difference in Ty-3/Gypsy retrotransposons content and, in particular, expansion of chromovirus lineage, which in absolute numbers covers 54 Mb in T. pratense and more than 766 Mb T. medium, is presumably the main cause of the genome expansion in T. medium [13].
In T. pratense, a partial karyotype and cytogenetic map was constructed based on 5S rDNA, 26S rDNA, and initially seven (later fourteen) bacterial artificial chromosome probes containing microsatellite markers with known position [15,16]. The proposed bacterial artificial chromosomes allow identification of individual T. pratense chromosomes. This was due to the well-described genome of T. pratense with a genome assembly at a pseudo-molecule level [17,18].
The T. medium genome characterization resulted in successful validation of 45 T. medium-specific repetitive elements spanning 2.83% of its genome in total with newly discovered four repeats, namely two centromeric, one pericentromeric, and one subtelomeric. Based upon these newly discovered repetitive elements and their localization, determined by fluorescent in-situ hybridization (FISH), as well as previously reported 5S and 26S rDNA loci, a partial T. medium (2n = 8x = 64) karyotype was proposed [8,13]. 5S and 26S rDNA loci were separated on individual chromosomes with 12 chromosomes bearing 5S and eight bearing 26S rDNA loci. Ten and six chromosomes with 5S and 26S loci, respectively, were carrying also centromeric repeats TrM378 and TrM300. Centromeric repeats were observed on half of the chromosomes. In 24 chromosomes TrM378 was prevalent, while TrM300 prevailed in eight chromosomes. Subtelomeric repeat TrM179 was observed on one arm of 24 chromosomes, on 8 chromosomes co-localized with centromeric repeats TrM378 and TrM300, on 4 chromosomes with pericentromeric repeat TrM60, and on 12 chromosomes separately. Twelve chromosomes bore no analysed cytogenetic marker. Based on the hybridization pattern, the chromosomes were sorted into 11 categories. Moreover, based upon the presence of identified centromeric repeats on only half of the chromosomes, the authors hypothesized for T. medium an allopolyploid origin [13].
Diversity was described on the T. medium ploidy level, with total chromosome counts ranging between 2n = 6x = 48 (T. medium var. sarosiense), 2n = 8x = 64, and 2n = 10x = 80 [13,14,19]. Regardless of ploidy level, however, these published T. medium ecotypes have a coincident basic chromosome number x = 8, which also has been suggested to be the ancestral state for the whole genus [20]. Moreover, basic chromosome numbers x = 7, 6, and 5 have to date been found also in 31 Trifolium spp. [20].
On the basis of chloroplast trnL intron sequences, the Trifolium genus has been divided into the two subgenera Chronosemium and Trifolium, with the latter being subdivided into eight sections, and a phylogenetic tree for all subgenera and sections has been constructed [20]. T. medium belongs to the most numerous Trifolium subgenera section Trifolium (73 species), and it is closely related to a number of diploid species, including T. pratense, the only species with which T. medium has been successfully hybridized (Figure 1) [9].
The aims of this study were to use selected cytogenetic markers and available sequences to (i) evaluate karyotype diversity in various T. medium ecotypes, varieties, and related species; (ii) capture events accompanying karyotype evolution in subspecies and ecotypes with different ploidy level; and then (iii) confirm or refute the hypothesis that T. medium is of allopolyploid origin.

2. Results

2.1. Cytogenetic Variability in T. medium Ecotypes and Varieties

To evaluate cytogenetic variability in T. medium populations, we investigated seven T. medium ecotypes collected from different localities in the Czech Republic and the Republic of Serbia and four varieties obtained from breeding and research facilities. Chromosome numbers as well as numbers and positions of rDNA loci and loci of centromeric repeats TrM378 and TrM300 were evaluated by FISH (Table 1). Mitoses with hybridization signals based upon which the Table 1 were constructed can be found in the Supplementary Materials (Figures S1 and S2).
Numbers of chromosomes ranged in analysed ecotypes and varieties between 64, 70, 74 and 76 and were constant in all evaluated mitoses except for T. medium ecotype 1, where chromosome counts were 64 and 74. Numbers and mutual positions of rDNA loci varied between 8 and 19 for 5S rDNA and from 7to 13 for 26S rDNA. In contrast to the number of chromosomes, significant variability was observed between evaluated mitoses. Constant numbers and positions of rDNA loci were observed in T. medium ecotypes 2, 4, and 5 and variety Ruža. Co-localization of all 26S rDNA loci with 5S rDNA loci in all analysed mitoses was observed only in T. medium ecotype 5 (Figure 2B). On the contrary, strict separation of all rDNA loci on different chromosomes was observed in T. medium ecotype 2 and T. medium varieties 8/40, Melot, and Ruža (Figure 2A).
As in the case of rDNA loci, numbers and mutual positions of centromeric repeats TrM378 and TrM300 loci fluctuated among analysed species as well as between mitoses evaluated for each ecotype and variety prepared from bulked root tips of several seedlings of the same accessions. Numbers of centromeric repeats loci ranged between 16 and 38 for TrM378 and from six to 23 for TrM300 (Table 1). In each analysed ecotype and variety, at least two different hybridization patterns were observed regarding numbers and/or mutual positions of TrM378 and TrM300 loci. Strict co-localization of all TrM300 loci with TrM378 loci in all mitoses was observed only in T. medium ecotype 5 (Figure 3B). Strict separation of centromeric repeats loci TrM378 and TrM300 on different chromosomes in all mitoses was observed in T. medium ecotype 2 (Figure 3).

2.2. T. medium var. sarosiense

T. medium var. sarosiense is a hexaploid variety with 2n = 6x = 48. Like T. medium, T. medium var. sarosiense partial karyotype was proposed based upon the hybridization pattern of T. medium-specific repetitive elements, namely two centromeric repeats, one pericentromeric repeat, and one subtelomeric repeat and rDNA loci (Figure 4 and Figure 5).
The 5S and 26S rDNA loci were separated on individual chromosomes, with ten chromosomes bearing 5S and six chromosomes bearing 26S rDNA loci. TrM378 and TrM300 were observed on eight chromosomes co-localized with 5S rDNA loci. All chromosomes carrying 26S rDNA loci carried also centromeric repeats TrM378 and TrM300. Correspondingly to T. medium, centromeric repeats were observed on half of the chromosomes, but TrM378 prevailed on all chromosomes bearing 5S and 26S rDNA loci (14) and TrM300 predominated on chromosomes without rDNA loci (ten). Expansion of subtelomeric repeat TrM179 compared to T. medium was observed with 38 chromosomes bearing signals. In contrast with T. medium, subtelomeric repeats were observed on all chromosomes bearing 5S rDNA loci, with one chromosome having two loci on both arms. Pericentromeric repeat TrM60 was not observed on T. medium var. sarosiense chromosomes. Only one chromosome pair bore no analysed cytogenetic marker.

2.3. Diploid Relatives of T. medium–T. alpestre, T. rubens and T. pignantii

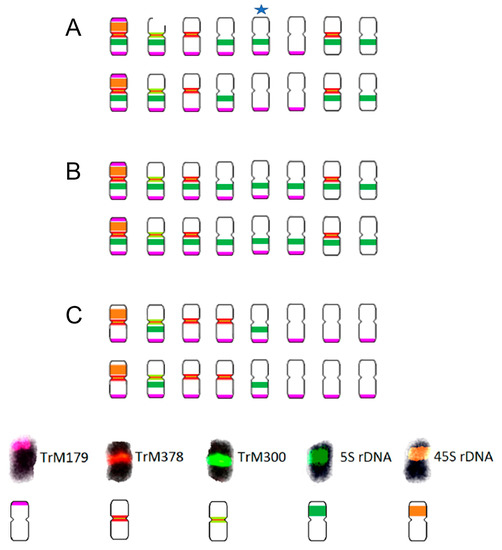

For further analyses, three diploid species were selected on the basis of the phylogenetic tree for section Trifolium constructed by Ellison et al. [20] (Figure 1), namely T. alpestre, T. pignantii, and T. rubens. All these species are diploid with 2n = 2x = 16. Their partial karyotypes were proposed using T. medium-specific repetitive elements and rDNA loci as FISH probes (Figure 6, Figure 7 and Figure 8).
While all analysed species carried two 26S rDNA sites per diploid genome and centromeric repeats TrM378 and TrM300 were observed on half of the chromosomes, with TrM378 prevalent on six and TrM300 on two, great variability was observed in the hybridization pattern regarding the number and localization of 5S rDNA loci and telomeric repeat TrM179.
In T. alpestre, variability in 5S rDNA loci number was observed, as previously reported by Vozárová et al. [21], with 10 or 11 chromosomes carrying 5S rDNA signals. In T. pignantii, 5S rDNA loci were observed on all chromosomes. In both T. alpestre and T. pignantii, co-localization of 26S and 5S rDNA loci on one chromosome pair was observed and subtelomeric repeat TrM179 was observed on 12 chromosomes, with 2 chromosomes (chromosomal pair with 26S rDNA loci) carrying two loci on both arms. The latter signals were very weak, however, and difficult to capture. Centromeric repeats TrM378 were in three chromosome pairs co-localized with telomeric repeat TrM179.
In T. rubens, on the other hand, two chromosomes carried 5S rDNA signals separately and no co-localization with 26S rDNA loci was observed. Subtelomeric repeat TrM179 was observed on all chromosomes with only one locus on one chromosome arm and all signals were clearly visible, similarly to those in T. medium and T. medium var. sarosiense. In all analysed species, all chromosome pairs carried at least one of the analysed cytogenetic markers.

2.4. RepeatExplorer rDNA Cluster Analysis

Furthermore, T. medium 5S rDNA genomic organization and homogeneity were investigated using RepeatExplorer2/TAREAN clustering pipeline and cluster graph computation methods (Figure 9).

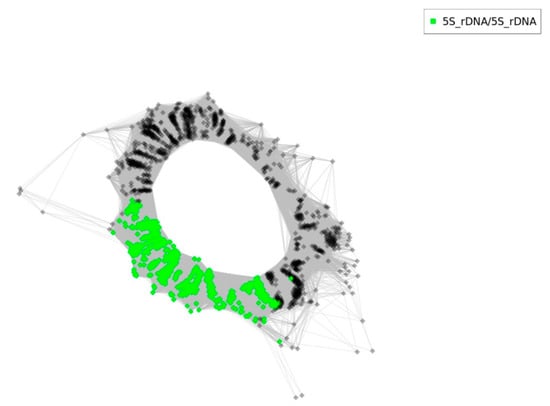

RepeatExplorer2/TAREAN clustering analyses revealed a simple graph organization with intergenic spacer of one origin (Figure 9, grey nodes). Number of reads in the cluster was 2061 and the genome proportion was 0.19% with consensus repeat size length 338 bp. The analysed cluster had k-mer coverage 0.861 with connected component index C of 0.994. A cluster annotation report can be found in the Supplementary Material (Table S1).

3. Discussion

The Chromosome Count Database (CCDB) compiles 82 entries for T. medium L., ten of which are more recent than 2000 [22]. The recent chromosome numbers listed in the CCDB include 64, 72, 76, 79, 80, 82, 84, ca 96–98, and ca 126. In our study, the number of chromosomes in analysed T. medium ecotypes and varieties varied between 64, 70, 74 and 76, with the most common being 64 (corresponding to octoploid state.) The number of chromosomes in octoploid ecotypes and varieties corresponds with basic chromosome number x = 8, which agrees with the ancestral basic chromosome number suggested by Ellison et al. [20]. The uniformity in all analysed mitoses of specific ecotypes and varieties, with the exception of T. medium ecotype 1, in which chromosome counts varied between 64 and 74, and T. medium variety Ruža, in which seeds from specifically octoploid plants were obtained, indicates an overall tendency towards stabilization of chromosome numbers in genotypes originating from both natural environments and breeding programmes. As the microscope slides were prepared from root tips harvested from different seedlings, different chromosome numbers between mitoses probably reflects variation between genotypes. Overall, the variability in chromosome counts in T. medium ecotype 1 and T. medium variety Ruža might be caused by recent hybridization events with parental species of different chromosome numbers.
However, great variability has been observed in numbers of 5S and 26S rDNA loci between analysed ecotypes and varieties, as well as in their mutual positions. rDNA sites are predominant targets of repeated recombination events and frequently are targeted by mobile element insertions, possibly promoting changes in the number of rDNA loci numbers [23,24]. The numbers and locations of 5S rDNA loci are regarded as highly conserved in different plants [25,26,27]. On the other hand, 45S rDNA repeats including 26S are fragile and associated with epigenetic modifications, and high variability in number of 26S rDNA sites has been described in many plant species [25,28,29,30]. In our research, similarly to other Trifolium spp., diversification of 5S rDNA loci per haploid genome was more common than was diversification of 26S rDNA [21]. Polyploid karyotypes of T. medium ecotypes and varieties and natural hybridization events might have promoted deregulation of transposable elements as well as translocation events resulting in amplification of 5S rDNA sites [24,31].
Vozárová et al. [21] suggested for ancestral Trifolium karyotype x = 8 a single pair of 5S and 26S per haploid genome on separate chromosomes. Regarding 5S rDNA loci, this possible ancestral constitution has been observed to be occurring in all analysed mitoses only in T. medium ecotype 2 and T. medium variety Ruža. These were the only ones of all analysed ecotypes and varieties that strictly follow the proposed ancestral state of one locus of both 5S and 26S rDNA per haploid genome. Variability in other ecotypes and varieties, including differentiation of loci numbers and their mutual positions, suggests substantial expansion, loss, and/or rearrangements and, similarly to T. medium clone 10/8 analysed by Dluhošová et al. [13], neither of these ecotypes nor varieties with octoploid chromosome count can be counted as true octoploids. Overall, variability in loci numbers between analysed mitoses of the same ecotype indicates ongoing evolution towards future stabilization and might emerge, among other reasons, from processes following natural hybridization between populations. Intraspecific variability of numbers of rDNA loci has been observed in many plant species, such as among the genera Brachypodium [32], Oryza [33], Phaseolus [34], Paphiopedilum [35], and many others. This natural variability might be further diversified by a mechanism similar to that observed after intergeneric or interspecific hybridization described in Triticum × Aegilops and Festuca × Lolium hybrids [36,37] or Tragopogon mirus Ownbey [38].
Constancy of mutual positions of 5S and 26S rDNA loci has been observed in three of four analysed varieties, with all rDNA loci separated on different chromosomes corresponding to the ancestral state positions. Observed stability can be explained by controlled hybridization in breeding facilities and conservation of current state. However, variability between numbers of rDNA loci indicates that loci numbers are under constant evolution. On the other hand, in the T. medium clone 10/8 described by Dluhošová et al. [13], which is the female parent of T. medium varieties 8/40 and 8/41, constant numbers of rDNA loci were described with twelve 5S rDNA and eight 26S rDNA separately. Observed variability in numbers of rDNA loci within its progeny might result from introducing genetic material of the male parent and post-hybridization events.
Satellite DNA, in higher plants preferentially localized to centromeric positions, is the most dynamic component of the genome during evolution [39]. Abundance of centromeric repeats, therefore, shows remarkable variation among species, sometimes resulting in emergence of a single species-specific repeat family. Usually, a single family of species-specific centromeric repeat occupies centromeres of all chromosomes [40]. This has been observed in Oryza [41], some Brassicaceae [42], and Medicago [43]. Moreover, single centromeric repeat has been reported on all chromosomes of T. medium relative T. pratense [13]. Exceptional variability of satellite repeats has been reported in other genera in the Fabeae tribe, however, reflecting even the variety of centromeric repeats [44,45,46]. Ávila Robledillo et al. [40] identified and characterized a diverse set of 64 families of centromeric repeats in 14 analysed species in the genera Lens, Vicia, Pisum, and Lathyrus. Dluhošová et al. [13] described in T. medium clone 8/10 a stable presence of centromeric repeats TrM378 and TrM300 co-localized on half of the chromosomes (32 of 64), upon the basis of which they suggested a theory of allopolyploid origin of T. medium. On 24 chromosomes TrM378 showed stronger signals, while TrM300 prevailed on only 8 chromosomes. Our research revealed great variability between both centromeric loci and their mutual position. Accordingly, in all analysed ecotypes and varieties numbers of TrM378 prevailed, thus suggesting expansion of this specific centromeric repeat at the expense of TrM300. In conflict with T. medium clone 10/8, separation of TrM378 and TrM300 was observed more often. This suggests a rivalry between centromeric repeats resulting in elimination of the losing repeat. Chromosomes with no hybridization signals of analysed centromeric repeats might have so few of the repetitive sequences that fluorescently marked probes produce uncapturable signals, possess satellite-free centromeres, as observed in potato (Solanum tuberosum L. [47]), or bear other yet unidentified centromeric repeat(s). In the case that T. medium chromosomes without hybridization signal are satellite-free, the karyotype might represent a transition stage between repeat-free and repeat-based centromeres where repeat-based centromeres might have retrotransposon-derived origin, as reported in sugarcane [48]. Variability regarding number and mutual positions of centromeric repeats loci between analysed ecotypes, varieties, and even mitoses might result from continuous battle between these repetitive elements. A similar phenomenon has been observed in the related legume Phaseolus [49]. The authors hypothesize that two centromeric repeats identified in Phaseolus spp. are currently not fixed in the genome but will ultimately reach a stable state with one repeat dominating on all chromosomes. This theory would support the centromere-drive hypothesis proposed by Henikoff et al. [50], according to which the centromeric satellite DNA acts as a selfish element resulting in an evolutionary arms race between selfish centromeric DNA, which propagates through female asymmetric meiosis at the expense of the homologous chromosome, and its associated kinetochore proteins, which must undergo adaptive evolution to maintain the interaction with the centromeric sequences. The current state of knowledge suggests, however, that the association and co-evolution of satellite repeats with interacting proteins in plants is far more complex. The centromere drive may act only periodically or just in specific cases, and this question demands further study [40]. The mechanism in T. medium might be enhanced and amplified by its polyploid state and ever-ongoing genomic changes and rearrangements with the tendency to return to diploid state. Nevertheless, the character of centromeric regions in these T. medium chromosomes remains a mystery and requires further investigation.
Comparative cytogenetic studies among species of certain taxa using markers such as ribosomal rDNA loci, tandem repeats, and/or bacterial artificial chromosomes are common in plant research and have been proven to provide valuable insights into karyotype evolution while allowing capture of chromosomal rearrangements [51,52,53,54,55]. In legumes, comparative cytogenetic and cytogenomic karyotype analyses have been published for several taxa, including Phaseolus [49], Medicago and allied genera [56], Senna [57,58], Arachis [59], Canavalia [60], Lupinus [61], and Pisum [62]. For this reason, we expanded our cytogenomic analyses to hexaploid T. medium var. sarosiense and diploid relatives T. alpestre, T. pignantii, and T. rubens. Quite the opposite of the significant variability among T. medium ecotypes and varieties previously described has been observed in T. medium var. sarosiense, which showed a stable karyotype with a constant number of all analysed elements. All 5S and 26S rDNA loci were localized on separate chromosomes, just as in T. medium clone 10/8 described by Dluhošová et al. [13]. Moreover, number of 26S rDNA loci in both of these karyotypes corresponds to the proposed ancestral state of one per haploid genome [21]. Identically to T. medium clone 10/8, we also observed the presence of both centromeric repeats TrM378 and TrM300 on half of the chromosomes (24 of 48). These repetitive elements and their constitution, therefore, can be acquired from a common ancestor and variability observed in T. medium ecotypes and varieties can be triggered by evolution in separate populations and post-hybridization events. The prevalence of TrM378 on T. medium clone 10/8 and T. medium var. sarosiense supports the hypothesis of ever-ongoing battle between selfish repetitive DNA.
In contrast to the T. medium clone 10/8, only one chromosome pair of T. medium var. sarosiense bore no signal. This is caused by substantial amplification of subtelomeric repeat TrM179, which we observed on 38 of 48 chromosomes (24 of 64 in T. medium clone 10/8). Together with centromeres, subtelomeric regions are the places accounting for the majority of constitutive heterochromatin. They are regions with a high abundance of satellite DNA that can act as selfish DNA and enhance their own transmission. In contrast to the T. medium clone 10/8, we observed one chromosome pair bearing subtelomeric repeat TrM179 signal on both arms. A similar phenomenon regarding differentiation of loci number and chromosomal hybridization pattern of satellite repeat has been described in Medicago and allied species by Rosato et al. [56]. The authors traced the presence of an AT-rich satellite repeat 185–189 bp in length which they determined to be preferentially localized in subtelomeric and interstitial regions. The analysed satellite DNA hybridized not only to different numbers of chromosomes but also in different hybridization patterns, upon which basis the authors divided the chromosomes into six categories. Overall, our results suggest stable localization of TrM179 in subtelomeric regions. One chromosome pair bearing two loci on both chromosomal arms probably emerged from rearrangement, such as a translocation or rare event of centric fission, followed by common centric fusion.
Regarding rDNA loci, karyotypes of T. alpestre and T. rubens have been already described by Vozárová et al. [21]. Nonetheless, we are the first to report number and position of rDNA loci in T. pignantii. This species represents the same phylogenetic branch, as does T. alpestre, with which it shares one locus of 26S rDNA per haploid genome co-localized with 5S rDNA loci. However, 5S rDNA sites were observed on all chromosomes. As in T. medium var. sarosiense, amplification of subtelomeric repeat TrM179 has been found with T. alpestre and T. pignantii having one chromosome pair bearing two loci of this subtelomeric repeat. This chromosomes pair seems identical in both of these species regarding hybridization patterns of the cytogenetic markers used, including rDNA loci. Therefore, it is probable that this chromosome emerged in a common ancestor of these two species. The presence of two subtelomeric repeats loci on one chromosome pair of T. medium var. sarosiense, however, with different hybridization signal regarding rDNA loci compared to T. alpestre and T. rubens, raises a question whether the origin of this chromosome pair first included chromosomal rearrangement that resulted in a chromosome pair bearing two loci of this subtelomeric repeat in the common ancestor of these three species. In this case, a different hybridization pattern regarding 5S and 26S rDNA loci would have occurred because of another rearrangement, causing their co-localization in the common ancestor of T. alpestre and T. pignantii. Alternatively, the chromosome pair bearing two loci of subtelomeric repeat might have emerged twice during evolution in two phylogenetic branches (first, leading to T. medium var. sarosiense and, second, leading to T. alpestre and T. pignantii) because of rearrangement between some recombination hot spots. In case of the latter, a unique genomic and/or epigenomic landscape in these species might be the cause of recurrent chromosomal rearrangements with reuse of DNA breakpoints, as described in the evolution of Triticae [63].
In all analysed diploid species and all mitoses, presence of centromeric repeats TrM378 and TrM300 was observed on half of the chromosomes with prevalence of TrM378, just as in T. medium clone 10/8 and T. medium var. sarosiense [13]. Furthermore, presence of analysed centromeric repeats in stable constitution in T. medium clone 10/8, T. medium var. sarosiense, and in the three diploid relatives suggests it has been inherited on half of the genome from the common ancestor of all these species. This is in contradiction to the hypothesis of allopolyploid origin of T. medium based on the presence of centromeric repeats on only half of the chromosomes as proposed by Dluhošová et al. [13]. Presence of the same centromeric repeat on different species of the same subclade indicating its ancestral status has recently been reported in other species, including carrot and a related legume bean [49,53]. In some of the analysed taxa, centromeric repeat probe hybridized uniformly to all chromosomes while others displayed different hybridization patterns with variable numbers of chromosomes devoid of centromeric repeat signals. The ancestral state of centromeric regions in the T. medium subclade might follow the hypothesis proposed by Iwata-Otsubo et al. [49] that centromeres evolve from repeat-free to repeat-based. Whether the repeat-based centromeres then emerged on all chromosomes of a diploid ancestor of all analysed taxa and over the course of time there was a distinction leading to loss or replacement of the repeat, as suggested in carrot [53], or whether the repeat-based centromeres appeared on only half of the chromosomes remains unclear.
Last but not least, Garcia et al. [64] suggested that the RepeatExplorer graph topologies of 5S rDNA clusters reflect divergence and number of homologous gene families in allopolyploid genomes. This results in a simple circular graph species with a single gene family and more complex graphs consisting of two or more interconnected loops representing intergenic spacers in allopolyploid genomes. Our results, therefore, proved the autopolyploid origin of T. medium.

4. Materials and Methods

4.1. Plant Material and Chromosome Preparation

Table 2 lists all 13 T. medium ecotypes and varieties as well as 3 diploid-related species used in this study and their seed origin. Seeds were germinated on Petri dishes in a refrigerator at 8–10 °C for 24 h and then transferred at 23 °C. Seedlings were placed into pots with soil or with perlite supplemented with Murashige and Skoog medium [65]. Root tips were harvested directly from germinated seeds or from growing plants.
The microscope slides were prepared following protocols by Lysák and Mandáková [66] and by Kirov et al. [67], with only slight modifications. On the first day, root tips were harvested and pretreated in cold water overnight. The second day, the cold water was replaced by freshly prepared 96% ethanol and 99% acetic acid in a 3:1 ratio and left overnight. On the third day, root tips were transferred to freshly prepared 100% ethanol and 99% acetic acid in a 3:1 ratio and stored at −20 °C. For the preparation of microscope slides, root tips (1–2 per microscope slide) from several seedlings were bulked, washed in a 0.1 M citrate buffer (0.08 M sodium citrate dihydrate, 0.01 citric acid) and digested in 30 µL of enzymatic mixture containing 0.3% cellulase, 0.3% pectolyase, and 0.3% cytohelicase (Merck, Prague, Czech Republic) in a citrate buffer for 120–150 min at 37 °C. The cell suspension was vortexed, 470 µL of water was added, and the whole mixture was then centrifuged at 11,000 rpm (Eppendorf 5415C centrifuge, Hamburg, Germany) for 2 min. Supernatant was carefully removed, 470 µL of 96% ethanol was added, and the mixture was again centrifuged at 11,000 rpm for 1 min. The pellet was resuspended in ethanol (10 µL per slide). Ten microlitres of cell suspension in ethanol was dropped onto a slide and a few seconds later 20 µL of the first fixation (3:1 ethanol and acetic acid) was added. After 20–30 s, the slide was held upside down over steam from a water bath heated at 55–60 °C for 15–20 s. Then 5 µL of the second fixation (2:1 ethanol and acetic acid) was added and the slide was held upside down over the steam for 5 s. The slide was then dried at room temperature and stored in a refrigerator at 8–10 °C prior to further use. Those slides with suitable chromosome spreads were treated with 100 µg mL−1 RNase A (Sigma, St. Louis, MO, USA) in saline–sodium citrate (SSC) buffer (2× SSC; 0.3 sodium chloride, 30 mM trisodium citrate, pH 7.0) for 1 h at 37 °C in a humid chamber box, then with 0.1 µg mL−1 pepsin in 10 mM HCl for 5 min at 37 °C in a Coplin jar. Finally, they were washed two times in 2× SSC and dewatered in a 70–90–96% ethanol series. At least six microscope slides were prepared from different root tips for each analysed sample. The number of analysed mitoses on individual slides ranged between 1 and 10+.

4.2. Probe DNA Isolation and Labelling

The DNA probes were prepared (with slight modifications) following Vozárová et al. [21] for 26S rDNA and 5S rDNA loci and Dluhošová et al. [13] for centromeric repeats TrM378 and TrM300. Selected sequences were amplified by polymerase chain reaction (PCR). Primer sequences used for PCR can be found in Table 3.
The PCR mixture contained 1× GoTaq Reaction Buffer (Promega, Madison, WI, USA), 0.2 mM deoxyribonucleotide triphosphate, 1 µL primers, 0.5 U Taq Polymerase (Promega, Prague, Czech Republic), and 20 ng of gDNA (T. pratense var. Tatra for 5S rDNA and Arabidopsis thaliana for 26S rDNA, T. medium for TrM378, TrM300, and TrM179). PCR products were separated by electrophoresis in 1% agarose gel and the products of corresponding length were excised from the gel. The DNA was extracted and purified using Nucleospin Gel and PCR Clean-Up Kit (Macherey-Nagel, Düren, Germany) and further purified by precipitating in sodium acetate. The DNA yield was quantified using a NanoDrop 2000c spectrophotometer (Thermo Scientific, Waltham, MA, USA). Probes were labelled by nick translation using biotin and digoxigenin Nick Translation Mix (Roche, Mannheim, Germany) and Ulysis Alexa Fluor 594 Nucleic Acid Labelling Kit (Invitrogen, Waltham, MA, USA).

4.3. Fluorescence In Situ Hybridization

The hybridization mixture in volume 25 µL contained 50% formamide, 10% dextran sulphate, 2× SSC, and 1 µL of each of those probes used (maximum three probes at a time; 26S rDNA, 5S rDNA, TrM378, TrM300, TrM179) in a final concentration of 100 ng per used volume. The mixture was denatured at 96 °C for 10 min, then rapidly cooled for 2 min at −20 °C in a cooling block. The mixture was applied onto a chosen slide, co-denaturated on a hot plate at 80 °C for 2 min, then incubated overnight at 37 °C in a humid chamber box. Post-hybridization washing was carried out at 42 °C with the following steps: 2× SSC twice for 5 min, 10% formamide in 0.1× SSC twice for 5 min, 2× SSC for 5 min, and 4× SSC + 0.05% Tween-20 for 5 min. Biotin and digoxigenin-labelled probes were immunodetected using streptavidin-Cy3 (GE Healthcare, Buckinghamshire, UK; 1:750 dilution) and anti-DIG-FITC (Roche; 1:250 dilution) antibodies, respectively. Chromosomes were counterstained with 40,6-diamidino-2-phenylindole (DAPI) in Vectashield (Vector Laboratories, Burlingame, CA, USA).
Images were captured using an Olympus BX 51 (Olympus, Tokyo, Japan) fluorescence microscope equipped with an Olympus DP72 CCD camera. Three greyscale images were taken of each mitosis event, and images were pseudocoloured using Adobe Photoshop CS6 software.
In some cases, the slides were washed for re-hybridization of another probe mixture. In these cases, the slides with probes hybridized were washed at room temperature in the following steps: 2× SSC twice for 10 min, 4× SSC + 0.1% Tween three times for 45 min, then the first fixation (3:1 ethanol and acetic acid) for 60 min. The slides were left to dry naturally, and the new hybridization mixture was applied.

4.4. RepeatExplorer rDNA Clustering Analysis

The sequence reads of T. medium in fastq format were acquired from GeneBank (accession SRR3229323). Total number of sequence reads was 709,783,962, with length ranging from 19 to 99 bp. The fastq reads were pre-processed by Quality Control tools implemented in the RepeatExplorer2 pipeline for quality filtering and trimming to a uniform length of 81 bp [68]. The pipeline is implemented within the international ELIXIR infrastructure (European research infrastructure for biological information).
Fastq files were converted into fasta and the reads were then analysed with RepeatExplorer2 using default parameters. The RepeatExplorer 2 computational pipeline uses graph-based clustering of next-generation sequencing reads to assemble groups of frequently overlapping reads into clusters of reads. The pipeline utilizes a BLAST threshold of 90% similarity. The clusters then represent repetitive elements. The total number of analysed reads was 1,102,062. The Cluster annotation files were searched for 5S rDNA using “5S rDNA” as search keywords. Cluster graph topology was visually investigated.

5. Conclusions

T. medium ecotypes and varieties show a remarkable level of variability regarding the numbers and mutual positions of rDNA loci and loci of T. medium-specific centromeric repeats. This can be attributed to ever-ongoing genomic changes and rearrangements along with the tendency to return to diploid state enhanced by genomic disbalance such as deregulation of transposable elements following natural hybridization. No intraspecific variability has been observed between hybridization patterns of the cytogenetic markers used in T. medium var. sarosiense and T. medium diploid relatives T. alpestre, T. pignantii, and T. rubens. Uniform presence of centromeric repeats on half of the chromosomes together with results of RepeatExplorer 5S rDNA clustering analysis constitute the evidence presented for autopolyploid origin of T. medium.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants12020235/s1, Figure S1: T. medium ecotypes and varieties rDNA; Figure S2: T. medium ecotypes and varieties TrM300 and TrM378 repeats; Table S1: RepeatExplorer cluster annotation report 5S rDNA.

Author Contributions

J.Ř. and E.L. designed the study; J.Ř. supervised analyses; E.L. prepared plant material, designed and performed FISH experiments regarding T. medium var. sarosiense and T. medium diploid relatives, executed RepeatExplorer analysis, processed and validated the results; A.H. prepared plant material and performed FISH experiments regarding T. medium ecotypes and varieties; E.L. and J.Ř. wrote the manuscript. All authors approved the final manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Education, Youth and Sports of the Czech Republic (project no. MUNI/A/1325/2021).

Data Availability Statement

All data generated or analysed during this study are included in this published article. Further inquiries can be addressed to the corresponding author.

Acknowledgments

We thank RCGB and RIFC, Ltd. for providing seeds of T. medium varieties. Seeds were also procured from the GRIN GeneBank of Crop Research Institute Ltd., Prague-Ruzyně, Czech Republic and IPK Gatersleben, Germany.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Taylor, N.L.; Quesenberry, K.H. Red Clover Science; Kluwer Academic: Dordrecht, The Netherland, 1996; p. 28. [Google Scholar]
  2. Kintl, A.; Elbl, J.; Lošák, T.; Vaverková, M.; Nedělník, J. Mixed intercropping of wheat and white clover to enhance the sustainability of the conventional cropping system: Effects on biomass production and leaching of mineral nitrogen. Sustainability 2018, 10, 3367. [Google Scholar] [CrossRef] [Green Version]
  3. Hyslop, M.G.; Kemp, P.D.; Hodgson, J. Vegetatively reproductive red clovers (Trifolium pratense L.): An overview. Proc. N. Z. Grassl. Assoc. 1999, 121–126. [Google Scholar] [CrossRef]
  4. Řepková, J.; Nedělník, J. Modern methods for genetic improvement of trifolium pratense. Czech J. Genet. Plant Breed 2014, 50, 92–99. [Google Scholar] [CrossRef] [Green Version]
  5. Abberton, M.T. Interspecific hybridization in the genus trifolium. Plant Breed 2007, 126, 337–342. [Google Scholar] [CrossRef]
  6. Řepková, J.; Jungmannová, B.; Jakešová, H. Identification of barriers to interspecific crosses in the genus trifolium. Euphytica 2006, 151, 39–48. [Google Scholar] [CrossRef]
  7. Řepková, J.; Jungmannová, B.; Jakešová, H. Interspecific hybridisation prospects in the genus trifolium. Czech J. Genet. Plant Breed 2003, 39, 306–308. [Google Scholar]
  8. Dluhošová, J.; Řepková, J.; Jakešová, H.; Nedělník, J. Impact of interspecific hybridization of T. pratense × T. medium and backcrossing on genetic variability of progeny. Czech J. Genet. Plant Breed 2016, 52, 125–131. [Google Scholar] [CrossRef] [Green Version]
  9. Jakešová, H.; Řepková, J.; Hampel, D.; Čechová, L.; Hofbauer, J. Variation of morphological and agronomic traits in hybrids of Trifolium pratense × T. medium and a comparison with the parental species. Czech J. Genet. Plant Breed 2011, 47, 28–36. [Google Scholar] [CrossRef] [Green Version]
  10. Jakešová, H.; Hampel, D.; Řepková, J.; Nedělník, J. Evaluation of feeding characteristics in variety Pramedi–interspecific hybrid Trifolium pratense × Trifolium medium. Úroda 2014, 12, 183–186. [Google Scholar]
  11. Isobe, S.; Sawai, A.; Yamaguchi, H.; Gau, M.; Uchiyama, K. Breeding potential of the backcross progenies of a hybrid between Trifolium medium × T. pratense to T. pratense. Can. J. Plant Sci. 2002, 82, 395–399. [Google Scholar]
  12. Renny-Byfield, S.; Wendel, J.F. Doubling down on genomes: Polyploidy and crop plants. Am. J. Bot. 2014, 101, 1711–1725. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Dluhošová, J.; Ištvánek, J.; Nedělník, J.; Řepková, J. Red clover (Trifolium pratense) and zigzag clover (T. medium)–A picture of genomic similarities and differences. Front. Plant Sci. 2018, 9, 724. [Google Scholar] [CrossRef]
  14. Vižintin, L.; Javornik, B.; Bohanec, B. Genetic characterization of selected Trifolium species as revealed by nuclear DNA content and ITS rDNA region analysis. Plant Sci. 2006, 170, 859–866. [Google Scholar] [CrossRef]
  15. Sato, S.; Isobe, S.; Asamizu, E.; Ohmido, N.; Kataoka, R.; Nakamura, Y.; Kaneko, T.; Sakurai, N.; Okumura, K.; Klimenko, I.; et al. Comprehensive structural analysis of the genome of red clover (Trifolium pratense L.). DNA Res. 2005, 12, 301–364. [Google Scholar] [CrossRef] [Green Version]
  16. Kataoka, R.; Hara, M.; Kato, S.; Isobe, S.; Sato, S.; Tabata, S.; Ohmido, N. Integration of linkage and chromosome maps of red clover (Trifolium pratense L.). Cytogenet. Genome. Res. 2012, 137, 60–69. [Google Scholar] [CrossRef] [PubMed]
  17. Ištvánek, J.; Jaroš, M.; Křenek, A.; Řepková, J. Genome assembly and annotation for red clover (Trifolium pratense; Fabaceae). Am. J. Bot. 2014, 101, 327–337. [Google Scholar] [CrossRef]
  18. De Vega, J.J.; Ayling, S.; Hegarty, M.; Kudrna, D.; Goicoechea, J.L.; Ergon, Å.; Rognli, O.A.; Jones, C.; Swain, M.; Geurts, R.; et al. Red clover (Trifolium pratense L.) draft genome provides a platform for trait Improvement. Nature 2015, 5, 17394. [Google Scholar] [CrossRef] [Green Version]
  19. Salimpour, F.; Sharifnia, F.; Mostafavi, G.; Hajrasoliha, S.; Ukhneh, E. Chromosome counts and determination of ploid levels in Iranian species of Trifolium. Chromosome Bot. 2008, 3, 53–63. [Google Scholar] [CrossRef] [Green Version]
  20. Ellison, N.W.; Liston, A.; Steiner, J.J.; Williams, W.M.; Taylor, N.L. Molecular phylogenetics of the clover genus (Trifolium—Leguminosae). Mol. Phylogenet. Evol. 2006, 39, 688–705. [Google Scholar] [CrossRef]
  21. Vozárová, R.; Macková, E.; Vlk, D.; Řepková, J. Variation in ribosomal DNA in the genus Trifolium (Fabaceae). Plants 2021, 10, 1771. [Google Scholar] [CrossRef]
  22. Chromosome Counts Database. Available online: http://ccdb.tau.ac.il/ (accessed on 10 October 2022).
  23. Kobayashi, T.; Ganley, A.R.D. Recombination regulation by transcription-induced cohesin dissociation in rDNA repeats. Science 2005, 309, 1581–1584. [Google Scholar] [CrossRef] [PubMed]
  24. Raskina, O.; Barber, J.C.; Nevo, E.; Belyayev, A. Repetitive DNA and chromosomal rearrangements: Speciation-related events in plant genomes. Cytogenet. Genome Res. 2008, 120, 351–357. [Google Scholar] [CrossRef]
  25. Rosato, M.; Moreno-Saiz, J.C.; Galián, J.A.; Rosselló, J.A. Evolutionary site-number changes of ribosomal DNA loci during speciation: Complex scenarios of ancestral and more recent polyploid events. AoB Plants 2015, 7, 135. [Google Scholar] [CrossRef] [PubMed]
  26. Su, D.; Chen, L.; Sun, J.; Zhang, L.; Gao, R.; Li, Q.; Han, Y.; Li, Z. Comparative chromosomal localization of 45S and 5S rDNA sites in 76 purple-fleshed sweet potato cultivars. Plants 2020, 9, 865. [Google Scholar] [CrossRef]
  27. He, J.; Zhao, Y.; Zhang, S.; He, Y.; Jiang, J.; Chen, S.; Fang, W.; Guan, Z.; Liao, Y.; Wang, Z.; et al. Uneven levels of 5S and 45S rDNA site number and loci variations across wild chrysanthemum accessions. Genes 2022, 13, 894. [Google Scholar] [CrossRef]
  28. Yue, M.; Gautam, M.; Chen, Z.; Hou, J.; Zheng, X.; Hou, H.; Li, L. Histone acetylation of 45S rDNA correlates with disrupted nucleolar organization during heat stress response in Zea mays L. Physiol. Plant. 2021, 172, 2079–2089. [Google Scholar] [CrossRef]
  29. Macháčková, P.; Majeský, Ľ.; Hroneš, M.; Bílková, L.; Hřibová, E.; Vašut, R.J. New insights into ribosomal DNA variation in apomictic and sexual Taraxacum (Asteraceae). Bot. J. Linn. Soc. 2022, 199, 790–815. [Google Scholar] [CrossRef]
  30. Huang, M.; Li, H.; Zhang, L.; Gao, F.; Wang, P.; Hu, Y.; Yan, S.; Zhao, L.; Zhang, Q.; Tan, J.; et al. Plant 45S rDNA clusters are fragile sites and their instability is associated with epigenetic alterations. PLoS ONE 2012, 7, e35139. [Google Scholar] [CrossRef] [Green Version]
  31. Hanson, R.E.; Nurul Islam-Faridi, M.; Percival, E.A.; Crane, C.F.; Ji, Y.; McKnight, T.D.; Stelly, D.M.; Price, H.J. Distribution of 5S and 18S–28S rDNA loci in a tetraploid cotton (Gossypium hirsutum L.) and its putative diploid ancestors. Chromosoma 1996, 105, 55–61. [Google Scholar] [CrossRef]
  32. Breda, E.; Wolny, E.; Hasterok, R. Intraspecific polymorphism of ribosomal DNA loci number and morphology in Brachypodium pinnatum and Brachypodium sylvaticum. Cell. Mol. Biol. 2012, 17. [Google Scholar] [CrossRef] [Green Version]
  33. Chung, M.-C.; Lee, Y.-I.; Cheng, Y.-Y.; Chou, Y.-J.; Lu, C.-F. Chromosomal polymorphism of ribosomal genes in the genus Oryza. Theor. Appl. Genet. 2008, 116, 745–753. [Google Scholar] [CrossRef] [Green Version]
  34. Pedrosa, A.; Vallejos, C.; Bachmair, A.; Schweizer, D. Integration of common bean (Phaseolus vulgaris L.) linkage and chromosomal maps. Theor. Appl. Genet. 2003, 106, 205–212. [Google Scholar] [CrossRef]
  35. Lan, T.; Albert, V.A. Dynamic distribution patterns of ribosomal DNA and chromosomal evolution in Paphiopedilum, a Lady’s Slipper Orchid. BMC Plant Biol. 2011, 11, 126. [Google Scholar] [CrossRef]
  36. Shcherban, A.B.; Sergeeva, E.M.; Badaeva, E.D.; Salina, E.A. Analysis of 5S rdna changes in synthetic allopolyploids Triticum × Aegilops. Mol. Biol. 2008, 42, 536–542. [Google Scholar] [CrossRef]
  37. Książczyk, T.; Taciak, M.; Zwierzykowski, Z. Variability of ribosomal DNA sites in festuca pratensis, lolium perenne, and their intergeneric hybrids, revealed by FISH and GISH. J. Appl. Genet. 2010, 51, 449–460. [Google Scholar] [CrossRef]
  38. Malinska, H.; Tate, J.A.; Matyasek, R.; Leitch, A.R.; Soltis, D.E.; Soltis, P.S.; Kovarik, A. Similar patterns of rDNA evolution in synthetic and recently formed natural populations of Tragopogon (Asteraceae) allotetraploids. BMC Evol. Biol. 2010, 10, 291. [Google Scholar] [CrossRef] [Green Version]
  39. Garrido-Ramos, M. Satellite DNA: An evolving topic. Genes 2017, 8, 230. [Google Scholar] [CrossRef]
  40. Ávila Robledillo, L.; Neumann, P.; Koblížková, A.; Novák, P.; Vrbová, I.; Macas, J. Extraordinary sequence diversity and promiscuity of centromeric satellites in the legume tribe Fabeae. Mol. Biol. Evol. 2020, 37, 2341–2356. [Google Scholar] [CrossRef] [Green Version]
  41. Lee, H.-R.; Zhang, W.; Langdon, T.; Jin, W.; Yan, H.; Cheng, Z.; Jiang, J. Chromatin immunoprecipitation cloning reveals rapid evolutionary patterns of centromeric DNA in Oryza species. Proc. Natl. Acad. Sci. USA 2005, 102, 11793–11798. [Google Scholar] [CrossRef] [Green Version]
  42. Lermontova, I.; Sandmann, M.; Demidov, D. Centromeres and kinetochores of Brassicaceae. Chromosome Res. 2014, 22, 135–152. [Google Scholar] [CrossRef]
  43. Yu, F.; Dou, Q.; Liu, R.; Wang, H. A Conserved repetitive DNA element located in the centromeres of chromosomes in Medicago genus. Genes Genom. 2017, 39, 903–911. [Google Scholar] [CrossRef]
  44. Neumann, P.; Navrátilová, A.; Schroeder-Reiter, E.; Koblížková, A.; Steinbauerová, V.; Chocholová, E.; Novák, P.; Wanner, G.; Macas, J. Stretching the rules: Monocentric chromosomes with multiple centromere domains. PLoS Genet. 2012, 8, e1002777. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Macas, J.; Novák, P.; Pellicer, J.; Čížková, J.; Koblížková, A.; Neumann, P.; Fuková, I.; Doležel, J.; Kelly, L.J.; Leitch, I.J. In depth characterization of repetitive DNA in 23 plant genomes reveals sources of genome size variation in the legume tribe Fabeae. PLoS ONE 2015, 10, e0143424. [Google Scholar] [CrossRef]
  46. Ávila Robledillo, L.; Koblížková, A.; Novák, P.; Böttinger, K.; Vrbová, I.; Neumann, P.; Schubert, I.; Macas, J. Satellite DNA in Vicia faba is characterized by remarkable diversity in its sequence composition, association with centromeres, and replication timing. Sci. Rep. 2018, 8, 5838. [Google Scholar] [CrossRef] [Green Version]
  47. Gong, Z.; Wu, Y.; Koblížková, A.; Torres, G.A.; Wang, K.; Iovene, M.; Neumann, P.; Zhang, W.; Novák, P.; Buell, C.R.; et al. repeatless and repeat-based centromeres in potato: Implications for centromere evolution. Plant Cell 2012, 24, 3559–3574. [Google Scholar] [CrossRef] [Green Version]
  48. Huang, Y.; Ding, W.; Zhang, M.; Han, J.; Jing, Y.; Yao, W.; Hasterok, R.; Wang, Z.; Wang, K. The formation and evolution of centromeric satellite repeats in Saccharum species. Plant J. 2021, 106, 616–629. [Google Scholar] [CrossRef]
  49. Iwata-Otsubo, A.; Radke, B.; Findley, S.; Abernathy, B.; Vallejos, C.E.; Jackson, S.A. Fluorescence In Situ Hybridization (FISH)-based karyotyping reveals rapid evolution of centromeric and subtelomeric repeats in common bean (Phaseolus vulgaris) and Relatives. G3-Genes Genom. Genet. 2016, 6, 1013–1022. [Google Scholar] [CrossRef] [Green Version]
  50. Henikoff, S.; Ahmad, K.; Malik, H.S. The centromere paradox: Stable inheritance with rapidly evolving DNA. Science 2001, 293, 1098–1102. [Google Scholar] [CrossRef] [Green Version]
  51. Kirov, I.V.; Van Laere, K.; Van Roy, N.; Khrustaleva, L.I. Towards a FISH-based karyotype of Rosa L. (Rosaceae). Comp. Cytogenet. 2016, 10, 543–554. [Google Scholar] [CrossRef]
  52. Wang, G.; He, Q.; Macas, J.; Novák, P.; Neumann, P.; Meng, D.; Zhao, H.; Guo, N.; Han, S.; Zong, M.; et al. Karyotypes and distribution of tandem repeat sequences in Brassica Nigra determined by fluorescence in Situ Hybridization. Cytogenet. Genome Res. 2017, 152, 158–165. [Google Scholar] [CrossRef]
  53. Kadluczka, D.; Grzebelus, E. Using carrot centromeric repeats to study karyotype relationships in the genus Daucus (Apiaceae). BMC Genomics 2021, 22, 508. [Google Scholar] [CrossRef]
  54. Zhao, H.; Li, S.; Yang, C.; Li, G.; Wang, Y.; Peng, J.; Yan, Z.; Li, R.; Wang, Y.; Zhang, L. FISH-based karyotype analyses of four Dracaena species. Cytogenet. Genome Res. 2021, 161, 272–277. [Google Scholar] [CrossRef]
  55. Borowska-Zuchowska, N.; Senderowicz, M.; Trunova, D.; Kolano, B. Tracing the evolution of the angiosperm genome from the cytogenetic point of view. Plants 2022, 11, 784. [Google Scholar] [CrossRef]
  56. Rosato, M.; Galián, J.A.; Rosselló, J.A. Amplification, contraction and genomic spread of a satellite DNA family (E180) in Medicago (Fabaceae) and allied genera. Ann. Bot.-Lond. 2012, 109, 773–782. [Google Scholar] [CrossRef] [Green Version]
  57. Pellerin, R.J.; Waminal, N.E.; Kim, H.H. FISH mapping of rDNA and telomeric repeats in 10 Senna Species. Hortic. Environ. Biote. 2019, 60, 253–260. [Google Scholar] [CrossRef]
  58. Nguyen, T.H.; Waminal, N.E.; Lee, D.S.; Pellerin, R.J.; Ta, T.D.; Campomayor, N.B.; Kang, B.Y.; Kim, H.H. Comparative triple-color FISH mapping in eleven Senna species using rDNA and telomeric repeat probes. Hortic. Environ. Biotechnol. 2021, 62, 927–935. [Google Scholar] [CrossRef]
  59. Du, P.; Li, L.; Zhang, Z.; Liu, H.; Qin, L.; Huang, B.; Dong, W.; Tang, F.; Qi, Z.; Zhang, X. Chromosome painting of telomeric repeats reveals new evidence for genome evolution in peanut. J. Integ. Agr. 2016, 15, 2488–2496. [Google Scholar] [CrossRef] [Green Version]
  60. She, C.-W.; Wei, L.; Jiang, X.-H. Molecular cytogenetic characterization and comparison of the two cultivated Canavalia species (Fabaceae). Comp. Cytogenet. 2017, 11, 579–600. [Google Scholar] [CrossRef] [Green Version]
  61. Susek, K.; Bielski, W.K.; Hasterok, R.; Naganowska, B.; Wolko, B. A first glimpse of wild lupin karyotype variation as revealed by comparative cytogenetic mapping. Front. Plant Sci. 2016, 7, 1152. [Google Scholar] [CrossRef] [Green Version]
  62. Yurkevich, O.Y.; Samatadze, T.E.; Levinskikh, M.A.; Zoshchuk, S.A.; Signalova, O.B.; Surzhikov, S.A.; Sychev, V.N.; Amosova, A.V.; Muravenko, O.V. Molecular Cytogenetics of Pisum sativum L. grown under spaceflight-related stress. BioMed Res. Int. 2018, 2018, 1–10. [Google Scholar] [CrossRef] [Green Version]
  63. Li, W.; Challa, G.S.; Zhu, H.; Wei, W. Recurrence of chromosome rearrangements and reuse of DNA breakpoints in the evolution of the Triticeae genomes. G3-Genes Genom. Genet. 2016, 6, 3837–3847. [Google Scholar] [CrossRef] [Green Version]
  64. Garcia, S.; Wendel, J.F.; Borowska-Zuchowska, N.; Aïnouche, M.; Kuderova, A.; Kovarik, A. The utility of graph clustering of 5s ribosomal dna homoeologs in plant allopolyploids, homoploid hybrids, and cryptic introgressants. Front. Plant Sci. 2020, 11, 41. [Google Scholar] [CrossRef] [Green Version]
  65. Murashige, T.; Skoog, F. A revised medium for rapid growth and bio assays with tobacco tissue cultures. Physiol. Plant 1962, 15, 473–497. [Google Scholar] [CrossRef]
  66. Lysák, M.A.; Mandáková, T. Analysis of plant meiotic chromosomes by chromosome painting. Methods Mol. Biol. 2013, 990, 13–24. [Google Scholar]
  67. Kirov, I.; Divashuk, M.; Van Laere, K.; Soloviev, A.; Khrustaleva, L. An easy “steamdrop” method for high quality plant chromosome preparation. Mol. Cytogenet. 2014, 7, 21. [Google Scholar] [CrossRef] [Green Version]
  68. Novák, P.; Neumann, P.; Pech, J.; Steinhaisl, J.; Macas, J. RepeatExplorer: A galaxy-based web server for genome-wide characterization of eukaryotic repetitive elements from next-generation sequence reads. Bioinformatics 2013, 29, 792–793. [Google Scholar] [CrossRef]
Plants 12 00235 g001 550

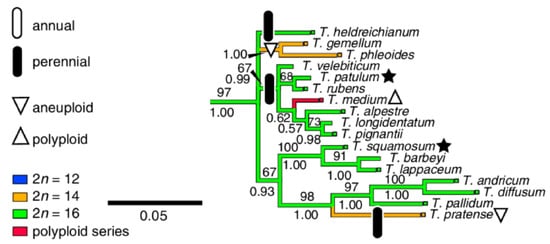

Figure 1. Branch of Trifolium section phylogenetic tree capturing T. medium and its closely related species (adapted from Ellison et al. [20]).
Figure 1. Branch of Trifolium section phylogenetic tree capturing T. medium and its closely related species (adapted from Ellison et al. [20]).
Plants 12 00235 g001
Plants 12 00235 g002 550
Figure 2. Numbers and localization of 5S (red) and 26S (green) loci on chromosomes of two T. medium ecotypes. (A) T. medium variety Ruža with eight 5S and eight 26S rDNA loci all occurring separately on different chromosomes. (B) T. medium ecotype 5 with 16 5S and eight 26S rDNA loci with all 26S rDNA loci co-localized with 5S rDNA loci. Four pictures are presented for each ecotype including chromosome spread (i) without fluorescent signals, (ii) with merged signals, (iii) with only 26S rDNA signals and (iv) with only 5S rDNA signals. Yellow arrows indicate T. medium ecotype 5 chromosomes with overlapping signals. Scale bar = 10 μm.
Figure 2. Numbers and localization of 5S (red) and 26S (green) loci on chromosomes of two T. medium ecotypes. (A) T. medium variety Ruža with eight 5S and eight 26S rDNA loci all occurring separately on different chromosomes. (B) T. medium ecotype 5 with 16 5S and eight 26S rDNA loci with all 26S rDNA loci co-localized with 5S rDNA loci. Four pictures are presented for each ecotype including chromosome spread (i) without fluorescent signals, (ii) with merged signals, (iii) with only 26S rDNA signals and (iv) with only 5S rDNA signals. Yellow arrows indicate T. medium ecotype 5 chromosomes with overlapping signals. Scale bar = 10 μm.
Plants 12 00235 g002
Plants 12 00235 g003 550
Figure 3. Numbers and localization of TrM378 (red) and TrM300 (green) loci on chromosomes of two T. medium ecotypes. (A) T. medium ecotype 2 with 16 TrM378 and 10 TrM300 loci, all separated on different chromosomes. (B) T. medium ecotype 5 with 28 TrM378 and 22 TrM300 loci with all TrM300 loci co-localized with TrM378 loci. Four pictures are presented for each ecotype including chromosome spread (i) without fluorescent signals, (ii) with merged signals, (iii) with only TrM300 signals and (iv) with only TrM378 signals. Red arrows indicate T. medium ecotype 5 chromosomes carrying only TrM378 signals. Scale bar = 10 μm.
Figure 3. Numbers and localization of TrM378 (red) and TrM300 (green) loci on chromosomes of two T. medium ecotypes. (A) T. medium ecotype 2 with 16 TrM378 and 10 TrM300 loci, all separated on different chromosomes. (B) T. medium ecotype 5 with 28 TrM378 and 22 TrM300 loci with all TrM300 loci co-localized with TrM378 loci. Four pictures are presented for each ecotype including chromosome spread (i) without fluorescent signals, (ii) with merged signals, (iii) with only TrM300 signals and (iv) with only TrM378 signals. Red arrows indicate T. medium ecotype 5 chromosomes carrying only TrM378 signals. Scale bar = 10 μm.
Plants 12 00235 g003
Plants 12 00235 g004 550
Figure 4. Hybridization pattern of analysed T. medium-specific repetitive elements on metaphase chromosomes of T. medium var. sarosiense. (A) Centromeric repeats TrM378 (red) and TrM300 (green). Four pictures are presented; (i) chromosome spread without fluorescent signals, (ii) with merged signals, (iii) with only TrM300 signals and (iv) with only TrM378 signals. (B) Centromeric repeat TrM378 (red), subtelomeric repeat TrM179 (pink), 5S rDNA (green), and 26S rDNA (orange). No presence of pericentromeric repeat TrM60 was observed. Scale bar = 10 μm.
Figure 4. Hybridization pattern of analysed T. medium-specific repetitive elements on metaphase chromosomes of T. medium var. sarosiense. (A) Centromeric repeats TrM378 (red) and TrM300 (green). Four pictures are presented; (i) chromosome spread without fluorescent signals, (ii) with merged signals, (iii) with only TrM300 signals and (iv) with only TrM378 signals. (B) Centromeric repeat TrM378 (red), subtelomeric repeat TrM179 (pink), 5S rDNA (green), and 26S rDNA (orange). No presence of pericentromeric repeat TrM60 was observed. Scale bar = 10 μm.
Plants 12 00235 g004
Plants 12 00235 g005 550

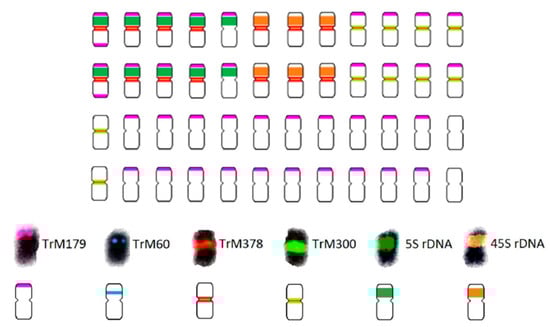

Figure 5. Schematic karyotype of T. medium var. sarosiense based on the hybridization pattern of probes derived from 5S (dark green) and 26S (orange) rDNA, subtelomeric repeat TrM179 (pink), pericentromeric repeat TrM60 (blue), and two centromeric repeats TrM378 (red) and TrM300 (light green). The ideogram illustrates numbers and mutual localizations of analysed cytogenetic markers only schematically and does not precisely capture specific chromosomal localization of each locus.
Figure 5. Schematic karyotype of T. medium var. sarosiense based on the hybridization pattern of probes derived from 5S (dark green) and 26S (orange) rDNA, subtelomeric repeat TrM179 (pink), pericentromeric repeat TrM60 (blue), and two centromeric repeats TrM378 (red) and TrM300 (light green). The ideogram illustrates numbers and mutual localizations of analysed cytogenetic markers only schematically and does not precisely capture specific chromosomal localization of each locus.
Plants 12 00235 g005
Plants 12 00235 g006 550
Figure 6. Hybridization patterns of centromeric repeats TrM378 (red) and TrM300 (light green) on metaphase chromosomes of (A) T. alpestre, (B) T. pignantii, and (C) T. rubens. Four pictures are presented for each species; (i) chromosome spread without fluorescent signals, (ii) with merged signals, (iii) with only TrM300 signals and (iv) with only TrM378 signals. Centromeric repeats were observed on half of the chromosomes of all analysed species, with TrM300 prevalent in one and TrM378 prevalent in three chromosome pairs. Scale bar = 10 μm.
Figure 6. Hybridization patterns of centromeric repeats TrM378 (red) and TrM300 (light green) on metaphase chromosomes of (A) T. alpestre, (B) T. pignantii, and (C) T. rubens. Four pictures are presented for each species; (i) chromosome spread without fluorescent signals, (ii) with merged signals, (iii) with only TrM300 signals and (iv) with only TrM378 signals. Centromeric repeats were observed on half of the chromosomes of all analysed species, with TrM300 prevalent in one and TrM378 prevalent in three chromosome pairs. Scale bar = 10 μm.
Plants 12 00235 g006
Plants 12 00235 g007 550
Figure 7. Hybridization patterns of selected T. medium-specific repetitive elements and 5S and 26S rDNA fluorescent probes on metaphase chromosomes of (A) T. alpestre, (B) T. pignantii, and (C) T. rubens. Centromeric repeat TrM378 (red), subtelomeric repeat TrM179 (pink), 5S rDNA (green), and 26S rDNA (orange). Black dots and black arrows indicate highlighted nucleolar organizer regions (NORs). Scale bar = 10 μm.
Figure 7. Hybridization patterns of selected T. medium-specific repetitive elements and 5S and 26S rDNA fluorescent probes on metaphase chromosomes of (A) T. alpestre, (B) T. pignantii, and (C) T. rubens. Centromeric repeat TrM378 (red), subtelomeric repeat TrM179 (pink), 5S rDNA (green), and 26S rDNA (orange). Black dots and black arrows indicate highlighted nucleolar organizer regions (NORs). Scale bar = 10 μm.
Plants 12 00235 g007
Plants 12 00235 g008 550
Figure 8. Schematic karyotypes of (A) T. alpestre, (B) T. pignantii, and (C) T. rubens based on the hybridization patterns of probes derived from 5S (dark green) and 26S (orange) rDNA; subtelomeric repeat TrM179 (pink); and two centromeric repeats, TrM378 (red) and TrM300 (light green). A star indicates an odd chromosome carrying 5S signal in only some mitoses prepared from individuals of the same accession. This odd chromosome carried subtelomeric repeat TrM179 in all analysed mitoses. The ideograms illustrate numbers and mutual localizations of analysed cytogenetic markers only schematically and do not precisely capture specific chromosomal localization of each locus.
Figure 8. Schematic karyotypes of (A) T. alpestre, (B) T. pignantii, and (C) T. rubens based on the hybridization patterns of probes derived from 5S (dark green) and 26S (orange) rDNA; subtelomeric repeat TrM179 (pink); and two centromeric repeats, TrM378 (red) and TrM300 (light green). A star indicates an odd chromosome carrying 5S signal in only some mitoses prepared from individuals of the same accession. This odd chromosome carried subtelomeric repeat TrM179 in all analysed mitoses. The ideograms illustrate numbers and mutual localizations of analysed cytogenetic markers only schematically and do not precisely capture specific chromosomal localization of each locus.
Plants 12 00235 g008
Plants 12 00235 g009 550
Figure 9. RepeatExplorer2 graphical output of T. medium 5S rDNA sequence reads cluster analysis. Nodes represent single reads. The intergenic spacers and 5S coding sequences are highlighted in grey and green, respectively.
Figure 9. RepeatExplorer2 graphical output of T. medium 5S rDNA sequence reads cluster analysis. Nodes represent single reads. The intergenic spacers and 5S coding sequences are highlighted in grey and green, respectively.
Plants 12 00235 g009
Table
Table 1. Numbers of chromosomes, rDNA loci and centromeric repeats TrM378 and TrM300 loci and their positions in analysed T. medium ecotypes and varieties.
Table 1. Numbers of chromosomes, rDNA loci and centromeric repeats TrM378 and TrM300 loci and their positions in analysed T. medium ecotypes and varieties.
Number of Chromosomes 5S rDNA26S rDNA26S rDNA Position TrM378 LociTrM300 lociTrM300 Position
Co-Localized with 5SSeparatelyCo-Localized with TrM378Separately
EcotypesT. medium 174 18945 2812210
19972281046
64161037
T. medium 264 880all 2480all
2680all
16100all
T. medium 364 158all0 2220119
1275218100all
1690all
T. medium 464 13716 1880all
1660all
161028
T. medium 564 168all0 248all0
2822all0
T. medium 664 14853 2823167
1084420743
121037
T. medium 770 141055 221082
14107322927
1887124120all
VarietiesT. medium 8/4064 1070all 3818612
14110all20936
10100all3290all
T. medium 8/4164 860all 28862
101358281266
1080all
T. medium Melot76 10120all 32100all
12120all301248
32826
T. medium Ruža64 880all 261266
241248
TrM378, TrM300—centromeric repeats.
Table
Table 2. Origin and accession numbers of analysed Trifolium species.
Table 2. Origin and accession numbers of analysed Trifolium species.
Acquired fromOriginAccession Number
T. medium 1GRIN, CZCZ13T0500049
T. medium 2GRIN, CZCZ13T0500437
T. medium 3GRIN, CZSRB13T0500062
T. medium 4GRIN, CZSRB13T0500110
T. medium 5GRIN, CZSRB13T0500108
T. medium 6GRIN, CZCZ13T0500116
T. medium 7GRIN, CZCZ13T0500113
T. medium 8/40 1RCGB, CZCZ-
T. medium 8/41 1RCBG, CZCZ-
T. medium Melot 2RIFC, Ltd., CZCZ-
T. medium Ruža 3RCGB, CZCZ-
T. medium var. sarosienseIPK, DE-TRIF 179
T. alpestreIPK, DE-TRIF 210
T. pignantiiIPK, DE-TRIF 277
T. rubensIPK, DEGRETRIF 211
1 Sexual progeny of female T. medium clone 10/8 and unknown male. 2 Bred using wild ecotypes collected locally in the South Moravian Region of the Czech Republic. 3 Bred using T. medium varieties Melot and 10/8 and ecotypes from The U.S. National Plant Germplasm System Seed Bank, Beltsville, MD, USA and from the GeneBank of Crop Research Institute (GRIN), Prague-Ruzyně, Czech Republic. Seeds from plants with octoploid number of chromosomes were selected. IPK = Leibniz Institute of Plant Genetics and Crop Plant Research, Gatersleben, Germany. RCGB = Red Clover and Grass Breeding, Hladké Životice, Czech Republic. RIFC, Ltd. = Research Institute for Fodder Crops, Ltd., Troubsko, Czech Republic.
Table
Table 3. Primer sequences used for amplification of DNA for FISH probes.
Table 3. Primer sequences used for amplification of DNA for FISH probes.
ProbeForward PrimerReverse PrimerPCR Product Length (bp)
26S rDNATTCCCACTGTCCCTGTCTACTATGAACGGACTTAGCCAACGACA899
5S rDNAGGTGCGATCATACCAGCACTAAGAGGTGCAACACAAGGACTTC117
TrM378ACTTTTGATCTGGTTATCTCTACTGTATATGAATCGAGAAGCA378
TrM300CTGTTAGTAAGCTATTAGAAGTATTTAACTTATCTGCACTATCTT300
TrM179CTCTACGTATTTCGGTAGTGCCCTCATTGTTTTTACCCGACGAACG132
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lukjanová, E.; Hanulíková, A.; Řepková, J. Investigating the Origin and Evolution of Polyploid Trifolium medium L. Karyotype by Comparative Cytogenomic Methods. Plants 2023, 12, 235. https://doi.org/10.3390/plants12020235

AMA Style

Lukjanová E, Hanulíková A, Řepková J. Investigating the Origin and Evolution of Polyploid Trifolium medium L. Karyotype by Comparative Cytogenomic Methods. Plants. 2023; 12(2):235. https://doi.org/10.3390/plants12020235

Chicago/Turabian Style

Lukjanová, Eliška, Alžběta Hanulíková, and Jana Řepková. 2023. "Investigating the Origin and Evolution of Polyploid Trifolium medium L. Karyotype by Comparative Cytogenomic Methods" Plants 12, no. 2: 235. https://doi.org/10.3390/plants12020235

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
