# Shp2graph: Tools to Convert a Spatial Network into an Igraph Graph in R

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

**R**package

**shp2graph**, which provides tools to convert a spatial network into an ‘

**igraph**’ graph of the

**igraph**

**R**package. This conversion greatly empowers a spatial network study, as the vast array of graph analytical tools provided in

**igraph**are then readily available to the network analysis, together with the inherent advantages of being within the

**R**statistical computing environment and its vast array of statistical functions. Through three urban road network case studies, the calculation of road network distances with

**shp2graph**and with

**igraph**is demonstrated through four key stages: (i) confirming the connectivity of a spatial network; (ii) integrating points/locations with a network; (iii) converting a network into a graph; and (iv) calculating network distances (and travel times). Throughout, the required

**R**commands are given to provide a useful tutorial on the use of

**shp2graph**.

## 1. Introduction

**R**statistical computing environment. This conversion tool is provided in the

**R**package

**shp2graph**[2], where this study details its construction, properties and uses.

**R**statistical computing environment [8], so that a local spatial regression model for hedonic house price could be directly calibrated using different distance metrics [9]. Here the

**R**package

**gdistance**provides routines to calculate least-cost distances and routes on geographic grids [10] but it is not applicable when a spatial network is in a vector format, for example, a SpatialLines or SpatialLinesDataFrame object in

**R**[11]. For this, the only solution is to work outside of

**R**with tools provided in ArcGIS [12], GRASS GIS [13], pgRouting [14] and OSMnx [15,16], say; or using packages such as

**NetworkX**[17] and

**OSMnx**[15] within

**Python**, a GIS protocol [18], OSM tools in

**spatialite**[19] and Axwoman [20], say. This is of course problematic given the statistical functions and associated tools reside in

**R**(e.g., for a local regression application, see [21,22]). Fortunately, the

**C**library

**igraph**provides such a collection of network analysis tools and has an interface in

**R**, that is, the

**igraph**package [23] but where the computations have to be carried out with a special class of graphs in

**R**, namely ‘

**igraph**.’ Thus, to bridge this gap within the

**R**environment, the package

**shp2graph**was developed for converting a spatial network of vector format into an ‘

**igraph**’ object, which is now presented in its entirety. Through this conversion, travel time distances, shortest paths and network distances can be calculated efficiently via a range of classic algorithms, including Dijkstra’s algorithm [24], Bellman–Ford’s algorithm [25,26] and Johnson’s algorithm [27].

**igraph**’ graph are introduced. Secondly, the step by step procedure for calculating network distances with

**shp2graph**and

**igraph**is given. Thirdly, the same procedure is summarized and useful extensions are proposed. Finally, a summary is given together with suggestions for future spatial network tools.

## 2. Converting a Spatial Network into an ‘igraph’ Graph

#### 2.1. The Graph Data Model

- (i)
- vertex-vertex relations, where the adjacency relationship is defined between two vertices if they are connected by an undirected or directed edge;
- (ii)
- vertex-edge relations, where the member-owner relationship is defined if it is a starting or ending vertex of an edge;
- (iii)
- edge-edge relations, where the contiguity relationship between two edges is defined if they share one or more vertex.

**igraph**’ graph in three steps:

- Step 1.
- Extract objects from the spatial network as vertices and include an identifier (ID) and 2-D coordinate (x, y) for each vertex;
- Step 2.
- Construct all the edges according to the vertex-vertex adjacency relationships and deliver them as an adjacency matrix or 2-D array;
- Step 3.
- Use existing functions in
**igraph**to create an ‘**igraph**’ graph.

**shp2graph**functions readshpnw and nel2igraph where we provide examples in the following section.

#### 2.2. Data Conversion

**R**, where each individual polyline is expressed as a set of coordinates connected sequentially [11]. In

**shp2graph**, the default input for graph conversion is assumed to be a SpatialLines or SpatialLinesDataFrame object. The most straightforward conversion is to take all the endpoints or junctions as vertices, that is, obtaining the first and last locations of each polyline as the starting and ending vertices, respectively, of an edge in the converted graph. Observe that the endpoints from equivalent coordinates are regarded as a single vertex (i.e., a junction in the network); where the numerical precision of the coordinates may affect this conversion (i.e., a lower-level floating point definition may cause false junctions to be recognized). As an example, the following R code (snippet 1, with

**shp2graph**loaded) converts a sampled part of the ‘Ontario road network’ (ORN) [29], as shown in Figure 1a into an ‘

**igraph**’ graph, as shown in Figure 1b. Observe that the coordinates of the vertices have been incorporated autonomously as vertex attributes “x” and “y.”

Code snippet1:data(ORN) plot(ORN.nt) title(“The ORN spatial network”) rtNEL1 <-readshpnw(ORN.nt) igr1 <-nel2igraph(rtNEL1[[2]], rtNEL1[[3]]) plot(igr1, vertex.label = NA, vertex.size = 2, vertex.size2 = 2, mark.col = “green”, main = “The converted igraph graph”) summary(igr1) IGRAPH U--- 298 343 -- + attr: x (v/n), y (v/n)

**igraph**’ graph is produced with all geometric detail retained (Figure 2). It looks the same as the spatial network and is comprised of 597 vertices and 642 edges. This contrasts with the first graph conversion (Figure 1b), which has a much smaller number of vertices and edges, that is, 298 and 343, respectively. Observe that the parameter ea.prop is used here to denote whether the attributes of each polyline should be kept for the edges.

Code snippet2:rtNEL2 <-readshpnw(ORN.nt, Detailed = TRUE, ea.prop = rep(0, 37)) igr2 <-nel2igraph(rtNEL2[[2]], rtNEL2[[3]]) plot(igr2, vertex.label = NA, vertex.size = 1, vertex.size2 = 1, main = “The convertedigraphgraph with all the geometric properties”) summary(igr2) IGRAPH U--- 597 642 -- + attr: x (v/n), y (v/n)

**igraph**’ object and the desired network-based analysis can follow accordingly, where it is enhanced by having the many useful functions and algorithms in

**igraph**now readily available. For example, we can calculate network distances or shortest paths with

**shp2graph**and

**igraph**in

**R**and this process is detailed below. Furthermore,

**shp2graph**can easily be extended to different conversion strategies. For example, taking complex objects as vertices (see master_node definition in [30]), or taking polylines themselves as vertices for conversion to a connectivity graph [31]. Note that this conversion would assume planarity in the produced ‘

**igraph**’ object (see similar conversions defined in [32]), which is largely dependent on the data structure of the original spatial network (like 2-D coordinates), or models with them. However, overpasses (viaducts) and underpasses (tunnels) in an urban road network bring typical nonplanarity [33], which can only be properly treated here by ensuring topological correctness at overpasses or underpasses, that is, no intersections.

## 3. Calculating Network Distances with Shp2graph and Igraph

**shp2graph**was motivated by the need to provide solutions to the calculation of network distances and shortest paths within the

**R**statistical computing environment. The

**shp2graph R**package provides routines to convert a vector-format spatial network into an ‘

**igraph**’ graph, allowing functions such as distances, distance_table, shortest_paths and all_shortest_paths in the

**igraph R**package to be utilized. In practice, however, the conversions are rarely straightforward, where extra pre-processing operations are often required—such as checking the topology, optimizing the network structure and so forth.

**shp2graph**. Thus, if the following R code is run (snippet 3), then the map of Figure 3 results, where both data sets are combined.

Code snippet3:require(RColorBrewer) data(LNNT) data(LNHP) road.type <- unique(LN.nt$nt_RoadTyp) idx <- match(LN.nt$nt_RoadTyp, road.type) ltypes <- c(1, 1, 3, 1) lwidths <- c(1, 1.5, 0.2, 2) shades <- brewer.pal(4, “Dark2”) plot(LN.nt, col = shades[idx], lty = ltypes[idx], lwd = lwidths[idx], cex = 0.3) points(coordinates(LN.prop), pch = 15) legend(551000, 172000, legend = road.type, lty = ltypes, lwd = lwidths, col = shades, title = “Road type”)

#### 3.1. Confirming Connectivity in a Spatial Network

**shp2graph**function, nt.connect, searches through all the self-connected parts in the input network and returns a series of self-connected parts with the most vertices. In this sense, it always possible to get at least one self-connected network from this output. We can demonstrate this function as follows with this

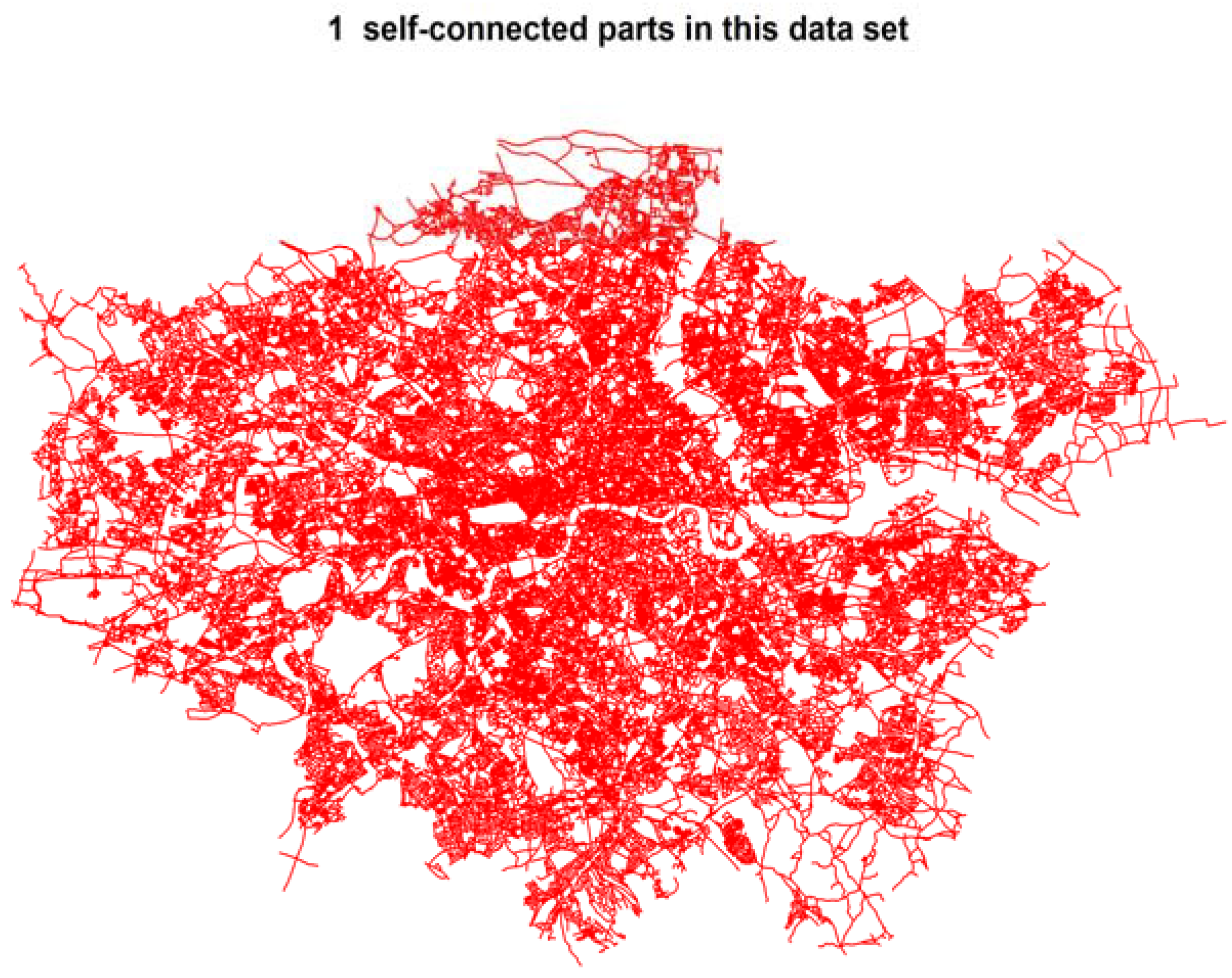

**R**code (snippet 4) together with the mapped output in Figure 4:

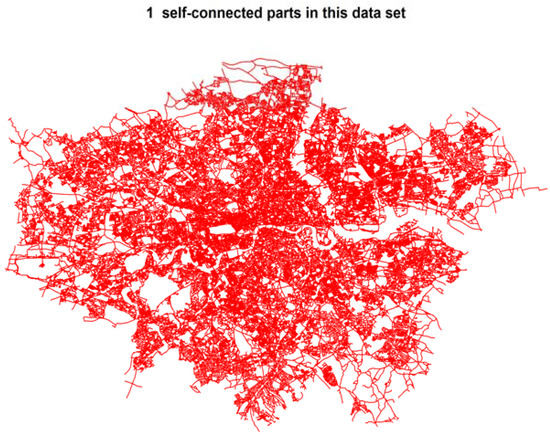

Code snippet4:LN.nt.con <- nt.connect(LN.nt) plot(LN.nt.con)

Code snippet5:data(ERN_OSM) ERN.con <- nt.connect(ERN_OSM.nt) plot(ERN.con)

- ▗

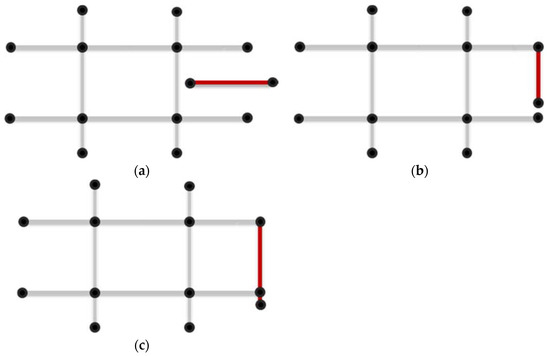

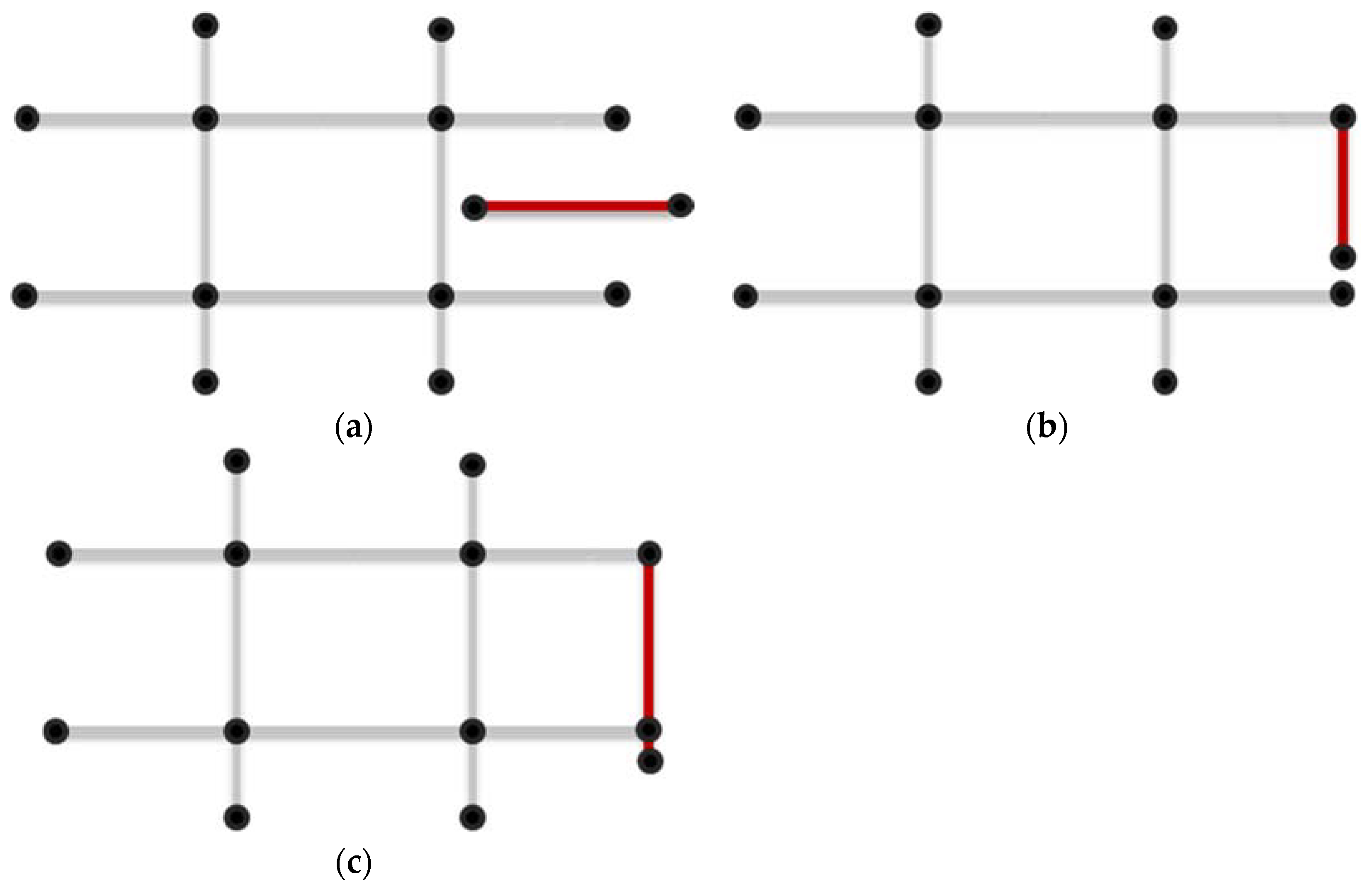

- Dangling arc (Figure 6a): an arc featured by having the same polygon on both its sides and at least one vertex that does not connect to any other arc, which is especially harmful for the connectivity of the converted graph when both nodes are not connected to any other arc;
- ▗
- Overshoot (Figure 6b): an arc passes another arc which should intersect and stop there;
- ▗
- Undershoot (Figure 6c): an arc does not extend long enough to another arc which it should intersect.

**igraph**graph and as a consequence, cause failures in calculating shortest paths or network distances. Using the function nt.connect allows the user to find the main self-connected part, where all remaining unconnected parts can be dropped and thus provides an immediate solution for finding a self-connected network. However, this dropping of network parts is not always acceptable, especially when the dropped (unconnected) parts are clearly important to understanding the spatial process. This is the case for the Estevan road network example, where the main self-connected part (as shown in Figure 7), a SpatialLinesDataFrame object ERN.con returned by nt.connect, does not adequately cover the study area (see the red part in Figure 6). In this instance, we have to move outside of R, where there are a number of GIS tools available to correct topology errors, for example, topology error fixes in ArcGIS [37], polyline tools in ET Geo-tools [37] and a toolset for cleaning topology in GRASS [13]. In this instance, we processed the Estevan road data with the GRASS tools and got a new network with all topology errors fixed. The topology corrected data has been incorporated into

**shp2graph**, as demonstrated by the following R commands (snippet 6) and mapped in Figure 8:

Code snippet6:data(ERN_OSM_correct) ERN_cor.con <- nt.connect(ERN_OSM_cor.nt)

**shp2graph**goes some way in addressing. Note however, that these tools can themselves create new topology errors. For example, when a bridge crosses over a road (or multiple bridges/roads, as in the U.S. Interstate System), resulting in incorrect splits and the creation of false junctions.

#### 3.2. Integrating Points with a Spatial Network

**igraph**, network distances or shortest paths can only be calculated between pairwise vertices of the graph. This entails that all associated points/locations (i.e., where we have sample observations) should be inherent nodes of the spatial network, that in turn, are recognized as vertices in the converted graph. This collocated situation however, rarely occurs in practice, where the points/locations and the spatial network are usually isolated from each other (e.g., the London houses appear off the road network, as shown in Figure 3). To address this issue, four strategies (solutions) are incorporated in

**shp2graph**, all within the function points2network that allows the integration of the points/locations with the spatial network by representing each point with: (1) its nearest vertex; or (2) its nearest geometric point; or (3) adding a pseudo edge to connect each point with its nearest vertex; or (4) adding a pseudo edge to connect each point with its nearest geometric point. These four strategies are illustrated in Figure 9.

Code snippet7:data(ORN) pts <- spsample(ORN.nt, 100, type = “random”) ptsxy <- coordinates(pts)[, 1:2] ptsxy <- cbind(ptsxy[, 1] + 0.008, ptsxy[, 2] + 0.008) res.nv <- points2network(ntdata = ORN.nt, pointsxy = ptsxy, ELComputed = TRUE, approach = 1) ptsinnt.view(ntdata = ORN.nt, nodelist = res.nv[[1]], pointsxy = ptsxy, CoorespondIDs = res.nv[[3]]) res.np <- points2network(ntdata = ORN.nt, pointsxy = ptsxy, approach = 2, ea.prop = rep(0, 2)) ptsinnt.view(ntdata = ORN.nt, nodelist = res.np[[1]], pointsxy = ptsxy, ELComputed = TRUE, CoorespondIDs = res.np[[3]]) res.vnv <- points2network(ntdata = ORN.nt, pointsxy = ptsxy, ELComputed = TRUE, approach = 3, ea.prop = rep(0, 2)) ptsinnt.view(ntdata = ORN.nt, nodelist = res.vnv[[1]], pointsxy = ptsxy, CoorespondIDs = res.vnv[[3]], VElist = res.vnn[[7]]) res.vnp <- points2network(ntdata = ORN.nt, pointsxy = ptsxy, ELComputed = TRUE, approach = 4, ea.prop = rep(0, 2)) ptsinnt.view(ntdata = ORN.nt, nodelist = res.vnp[[1]], pointsxy = ptsxy, CoorespondIDs = res.vnp[[3]], VElist = res.vnp[[7]])

^{®}Core™ i5-4570 Processor, 8 G RAM, Windows 7 64 bit) due to a relatively large number of points and a relatively complex network. Results suggest that both strategies achieve integration with acceptable levels of accuracy but where strategy 2 seems more accurate but is computationally costly (it uses 43 of the full 67 min). Computational efficiency could be improved by establishing a spatial index of the network, like using a boundary box to roughly track each road segment. This is a subject of on-going work.

#### 3.3. Converting a Spatial Network into an **Igraph** Graph

**igraph**graph via the

**shp2graph**function nel2igraph. To calculate network distances with converted graphs, the length of each polyline (e.g., road length) is assigned to the corresponding edge in the converted graph. The vertex lists and vertex-vertex (i.e., edge) adjacency matrices returned by points2network (from Section 3.2) are used for the conversion using the following R commands (snippet 8), for the London case study and for respective point integration strategies 1 and 2, from before:

Code snippet8:# Strategy 1 Edge.len1 <- LN.pt2nt1[[8]] LN.ig1 <-nel2igraph(LN.pt2nt1[[1]], LN.pt2nt1[[2]], weight = Edge.len1) summary(LN.ig1) IGRAPH U-W- 75236 97800 -- + attr: x (v/n), y (v/n), weight (e/n) # Strategy 2 Edge.len2 <- LN.pt2nt2[[8]] LN.ig2 <-nel2igraph(LN.pt2nt2[[1]], LN.pt2nt2[[2]], weight = Edge.len2) summary(LN.ig2) IGRAPH U-W- 76762 99326 -- + attr: x (v/n), y (v/n), weight (e/n)

Code snippet9:# Strategy 1 names(LN.pt2nt1[[6]]) Speed1 <- LN.pt2nt1[[6]][, 4] * 0.44704 LN.ig3 <- nel2igraph(LN.pt2nt1[[1]], LN.pt2nt1[[2]], weight = Edge.len1/Speed1) summary(LN.ig3) IGRAPH U-W- 75236 97800 -- + attr: x (v/n), y (v/n), weight (e/n) # Strategy 2 Speed2 <- LN.pt2nt2[[6]][, 4] * 0.44704 LN.ig4 <- nel2igraph(LN.pt2nt2[[1]], LN.pt2nt2[[2]], weight = Edge.len2/Speed2) summary(LN.ig4) IGRAPH U-W- 76762 99326 -- + attr: x (v/n), y (v/n), weight (e/n)

#### 3.4. Calculating Network Distances and Travel Times

Code snippet10:# Strategy 1 LN.pt.VIDs1 <- as.numeric(LN.pt2nt1[[3]]) V.idx1 <- as.numeric(levels(as.factor(LN.pt.VIDs1))) ND.mat1 <- shortest.paths(LN.ig1, v = LN.pt.VIDs1, to = V.idx1) ND.mat1 <- ND.mat1[, match(LN.pt.VIDs1, V.idx1)] # Strategy 2 LN.pt.VIDs2 <- as.numeric(LN.pt2nt2[[3]]) V.idx2 <- as.numeric(levels(as.factor(LN.pt.VIDs2))) ND.mat2 <- shortest.paths(LN.ig2, v = LN.pt.VIDs2, to = V.idx2) ND.mat2 <- ND.mat2[, match(LN.pt.VIDs2, V.idx2)] # Scatterplot plot(ND.mat1, ND.mat2, pch = 16, cex = 0.2, col = “grey”, xlab = “Network distances calculated with integrating strategy 1”, ylab = “Network distances calculated with integrating strategy 2”) abline(a = 0, b = 1, col = “blue”, lwd = 2)

**R**commands (snippet 11):

Code snippet11:# Strategy 1 TT.mat1 <- shortest.paths(LN.ig3, v = LN.pt.VIDs1, to = V.idx1) TT.mat1 <- ND.mat1[, match(LN.pt.VIDs1, V.idx1)] # Strategy 2 TT.mat2 <- shortest.paths(LN.ig2, v = LN.pt.VIDs2, to = V.idx2) TT.mat2 <- TT.mat2[, match(LN.pt.VIDs2, V.idx2)]

**shp2graph**and

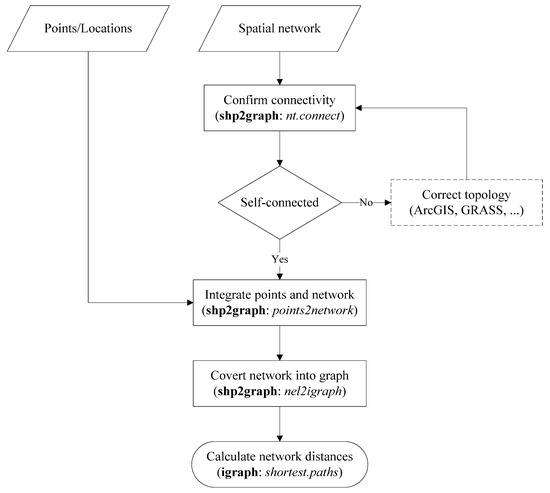

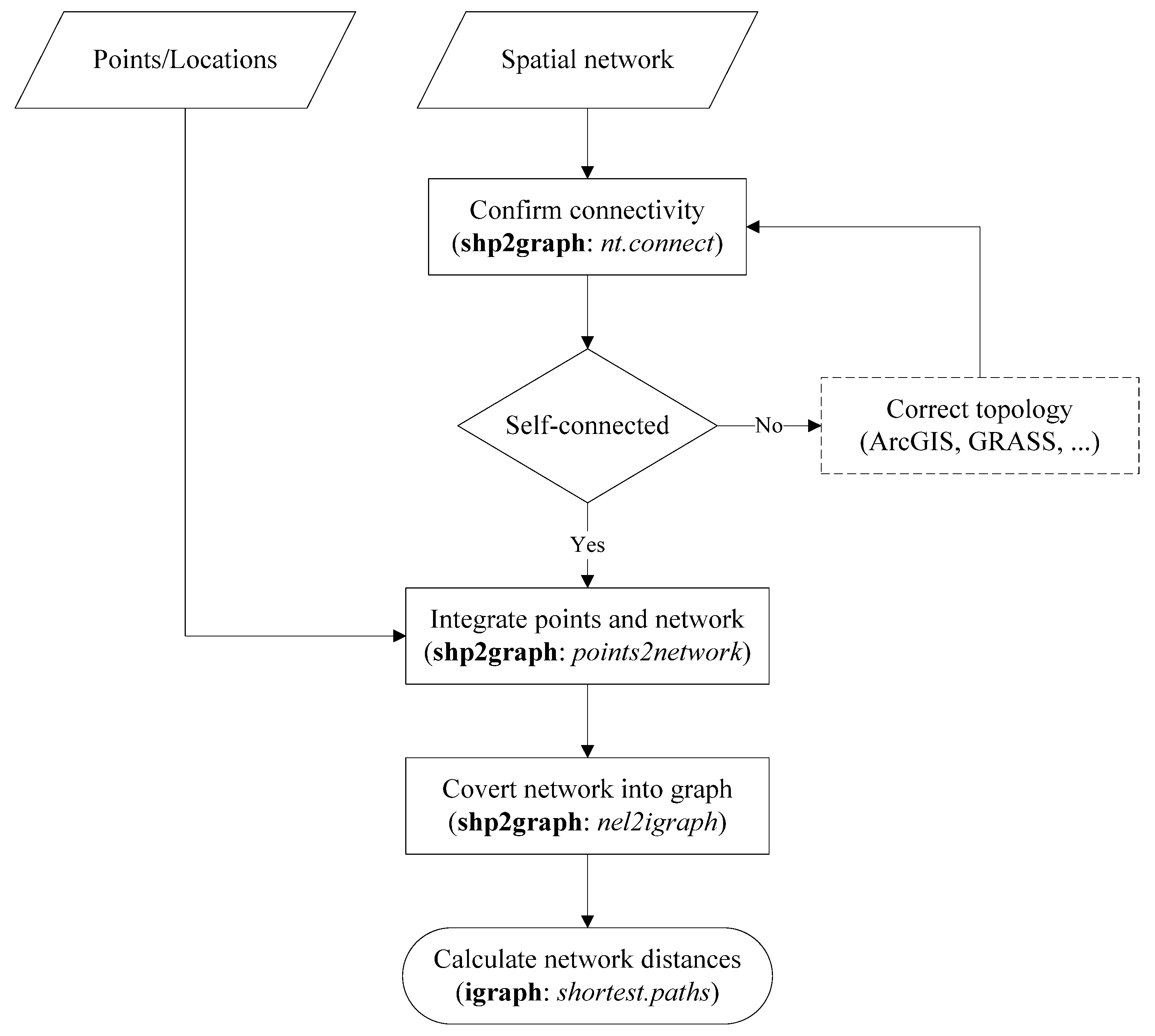

**igraph**is given in Figure 13.

#### 3.5. Example Extensions

Code snippet12:plot(ORN.nt) coords <- locator(2) coords <- cbind(coords$x, coords$y) points(coords, pch = 3, col = “red”) pt2nt1 <- points2network(ntdata = ORN.nt, pointsxy = coords, Detailed = T, ELComputed = T, approach = 2, ea.prop = rep(0, 2)) V.idx3 <- as.numeric(pt2nt1[[3]]) V.coords <- cbind(pt2nt1[[4]][V.idx3], pt2nt1[[5]][V.idx3]) points(V.coords, pch = 16, col = “green”) lines(rbind(coords[1,], V.coords[1,]), lty = 2, col = “blue”) lines(rbind(coords[2,], V.coords[2,]), lty = 2, col = “blue”) igr3 <- nel2igraph(pt2nt1[[1]], pt2nt1[[2]], weight = pt2nt1[[8]]) path <- get.shortest.paths(igr3, from = V.idx3[1], to = V.idx3[2])$vpath[[1]] for(i in 1:(length(path)-1)) lines(cbind(pt2nt1[[4]][path[i,i+1]], pt2nt1[[5]][path[i,i+1]]), lwd =2, col = “blue”)

**igraph**package provides a vast collection of graph handling and analysis tools—i.e., not just tools to calculate network distances and shortest paths, as demonstrated here. The following

**R**code (snippet 13) showcases some extensions for

**shp2graph**via

**igraph**, such as calculating vertex and edge ‘betweeness’ and network diameter (as shown in Figure 15), or measuring network connectivity [38].

Code snippet13:V.bn <- betweenness(igr2) E.bn <- edge_betweenness(igr2) G.dm <- diameter(igr2, directed = F) V.gdm <- get_diameter(igr2, directed = F) plot(ORN.nt) for(i in 1:(length(V.gdm)-1)) lines(cbind(rtNEL2[[6]][V.gdm [i,i+1]], rtNEL2[[7]][V.gdm[i,i+1]]), lwd = 2, col = “red”)

## 4. Summary

**R**package

**shp2graph**is demonstrated. It provides a set of tools to convert a spatial network into an ‘

**igraph**’ graph of the

**igraph R**package and in doing so, allows the rich set of graph handling and analysis tools in

**igraph**to be available for a spatial network analysis, all within the

**R**statistical computing environment. In particular, a route map for calculating road network distances for three urban case studies is presented, where functions from both

**shp2graph**and

**igraph**are described and applied. The calculation of travel time distances by weighting edges of the converted graph with travel costs is also presented. The

**shp2graph**package continues to evolve, where tools such as those for topology correction and spatial indexing for improved computation times are in current development.

## Author Contributions

**shp2graph**, performing experiments and analyses; M.X. validated all the experiments and codes; H.S. made suggestions and provided project administration for funding this study; B.L. wrote the manuscript assisted by P.H.

## Funding

## Conflicts of Interest

## References

- Barthélemy, M. Spatial networks. Phys. Rep.
**2011**, 499, 1–101. [Google Scholar] [CrossRef] [Green Version] - Lu, B.; Charlton, M. Convert a Spatial Network to a Graph in R. In Proceedings of the R User Conference, Coventry, UK, 16–18 August 2011. [Google Scholar]
- George, B.; Shekhar, S. Road maps, digital. In Encyclopedia of GIS; Shashi, S., Hui, X., Eds.; Springer: New York, NY, USA, 2008. [Google Scholar]
- Goodchild, M.F. Geographical data modeling. Comput. Geosci.
**1992**, 18, 401–408. [Google Scholar] [CrossRef] - Gastner, M.T.; Newman, M.E.J. The spatial structure of networks. Eur. Phys. J. B Condens. Matter Complex Syst.
**2006**, 49, 247–252. [Google Scholar] [CrossRef] [Green Version] - Fowler, P.A. The königsberg bridges—250 years later. Am. Math. Mon.
**1988**, 95, 42–43. [Google Scholar] - Appert, M.; Chapelon, L. The space-time variability of road base accessibility: Application to london. In Graphs and Networks; Mathis, P., Ed.; ISTE: London, UK, 2007; pp. 3–28. [Google Scholar]
- R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2017. [Google Scholar]
- Lu, B.; Charlton, M.; Harris, P.; Fotheringham, A.S. Geographically weighted regression with a non-euclidean distance metric: A case study using hedonic house price data. Int. J. Geogr. Inf. Sci.
**2014**, 28, 660–681. [Google Scholar] [CrossRef] - Van Etten, J. R package gdistance: Distances and routes on geographical grids. J. Stat. Softw.
**2017**, 1. [Google Scholar] [CrossRef] - Pebesma, E.J.; Bivand, R.S. Classes and methods for spatial data in R. R News
**2005**, 5, 9–13. [Google Scholar] - ESRI Corp. Arcgis Desktop: Release 10; Environmental Systems Research Institute: Redlands, CA, USA, 2011. [Google Scholar]
- GRASS Development Team. Geographic Resources Analysis Support System (Grass GIS) Software; Open Source Geospatial Foundation: Chicago, IL, USA, 2018. [Google Scholar]
- pgRouting Community. Pgrouting 2.3. Available online: https://pgrouting.org/index.html (accessed on 5 May 2018).
- Boeing, G. Osmnx: New methods for acquiring, constructing, analyzing, and visualizing complex street networks. Comput. Environ. Urban Syst.
**2017**, 65, 126–139. [Google Scholar] [CrossRef] - Boeing, G. A multi-scale analysis of 27,000 urban street networks. Environ. Plan. B Urban Anal. City Sci.
**2018**, in press. [Google Scholar] - Hagberg, A.; Swart, P.; S Chult, D. Exploring Network Structure, Dynamics, and Function Using NetworkX. In Proceedings of the 7th Python in Science Conference, Pasadena, CA, USA, 19–24 August 2008. [Google Scholar]
- Karduni, A.; Kermanshah, A.; Derrible, S. A protocol to convert spatial polyline data to network formats and applications to world urban road networks. Sci. Data
**2016**, 3, 160046. [Google Scholar] [CrossRef] [PubMed] - Furieri, A. Spatialite-Tools, 2017-03-03 ed.; SpatiaLite: Genova, Italy, 2018. [Google Scholar]
- Jiang, B. Axwoman 6.3: An Arcgis Extension for Urban Morphological Analysis; University of Gävle: Gävle, Sweden, 2015. [Google Scholar]
- Gollini, I.; Lu, B.; Charlton, M.; Brunsdon, C.; Harris, P. Gwmodel: An R package for exploring spatial heterogeneity using geographically weighted models. J. Stat. Softw.
**2015**, 63, 1–50. [Google Scholar] [CrossRef] - Lu, B.; Harris, P.; Charlton, M.; Brunsdon, C. The gwmodel r package: Further topics for exploring spatial heterogeneity using geographically weighted models. Geo-Spat. Inf. Sci.
**2014**, 17, 85–101. [Google Scholar] [CrossRef] - Csardi, G.; Nepusz, T. The igraph software package for complex network research. InterJournal Complex Syst.
**2006**, 1695, 1–9. [Google Scholar] - Dijkstra, E.W. A note on two problems in connexion with graphs. Numer. Math.
**1959**, 1, 269–271. [Google Scholar] [CrossRef] [Green Version] - Bellman, R. On a routing problem. Q. Appl. Math.
**1958**, 16, 87–90. [Google Scholar] [CrossRef] [Green Version] - Ford, L.R. Network Flow Theory; RAND Corporation: Santa Monica, CA, USA, 1956. [Google Scholar]
- Johnson, D.B. Efficient algorithms for shortest paths in sparse networks. J. ACM
**1977**, 24, 1–13. [Google Scholar] [CrossRef] - Mathis, P. (Ed.) Strengths and deficiencies of graphs for network description and modeling. In Graphs and Networks; ISTE: London, UK, 2007; p. xvi. [Google Scholar]
- Peterborough, O. Ontario Road Network; Ontario Ministry of Natural Resources: Peterborough, ON, Canada, 2006. [Google Scholar]
- Mainguenaud, M. Modelling the network component of geographical information systems. Int. J. Geogr. Inf. Syst.
**1995**, 9, 575–593. [Google Scholar] [CrossRef] - Jiang, B.; Claramunt, C. A structural approach to the model generalization of an urban street network. Geoinformatica
**2004**, 8, 157–171. [Google Scholar] [CrossRef] - Viana, M.P.; Strano, E.; Bordin, P.; Barthelemy, M. The simplicity of planar networks. Sci. Rep.
**2013**, 3, 3495. [Google Scholar] [CrossRef] [PubMed] - Boeing, G. Planarity and street network representation in urban form analysis. arXiv, 2018; arXiv:1806.01805. [Google Scholar] [CrossRef]
- Abdulganiev, I.; Agafonov, A. Automatic Checking of Road Network Models. In Proceedings of the CEUR Workshop Proceedings, Moscow, Russia, 25–26 November 2016; pp. 249–255. [Google Scholar]
- OpenStreetMap. Estevan Road Network; OpenStreetMap Community: London, UK, 2014. [Google Scholar]
- Wade, T.; Sommer, S. A to Z GIS: An Illustrated Dictionary of Geographic Information Systems; ESRI Press: Redlands, CA, USA, 2006. [Google Scholar]
- Tchoukanski, I. Et Geotools; 11.5; ET SpatialTechniques: Faerie Glen, South Africa, 2018. [Google Scholar]
- Knight, P.L.; Marshall, W.E. The metrics of street network connectivity: Their inconsistencies. J. Urban. Int. Res. Placemarking Urban Sustain.
**2015**, 8, 241–259. [Google Scholar] [CrossRef]

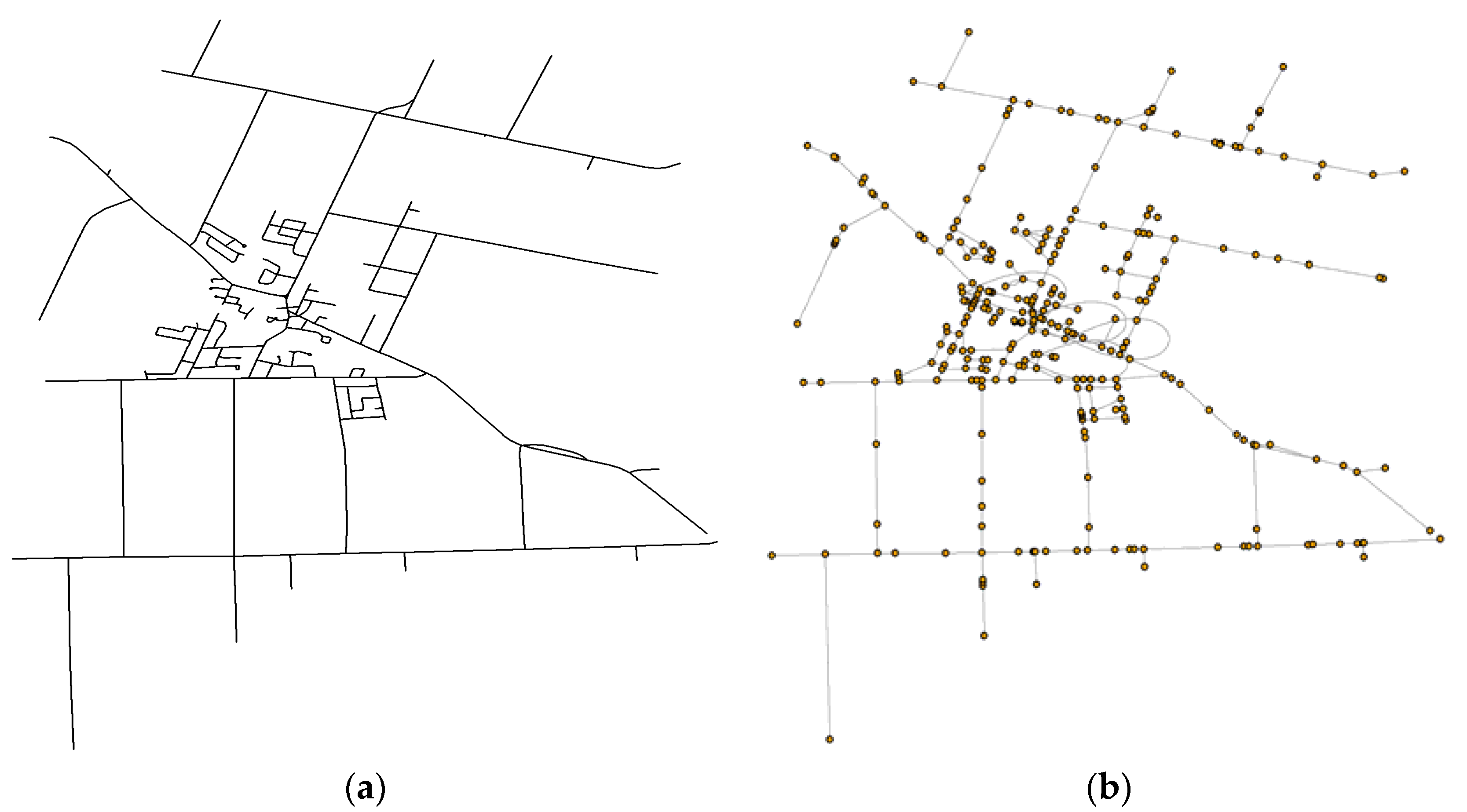

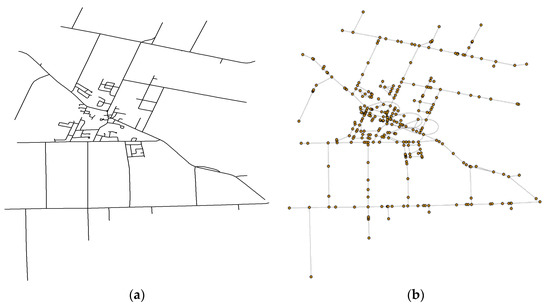

**Figure 1.**Network to graph conversion by taking all the endpoints or junctions as vertices (Ontario road data). (

**a**) The ORN spatial network, (

**b**) The resultant ‘

**igraph**’ graph.

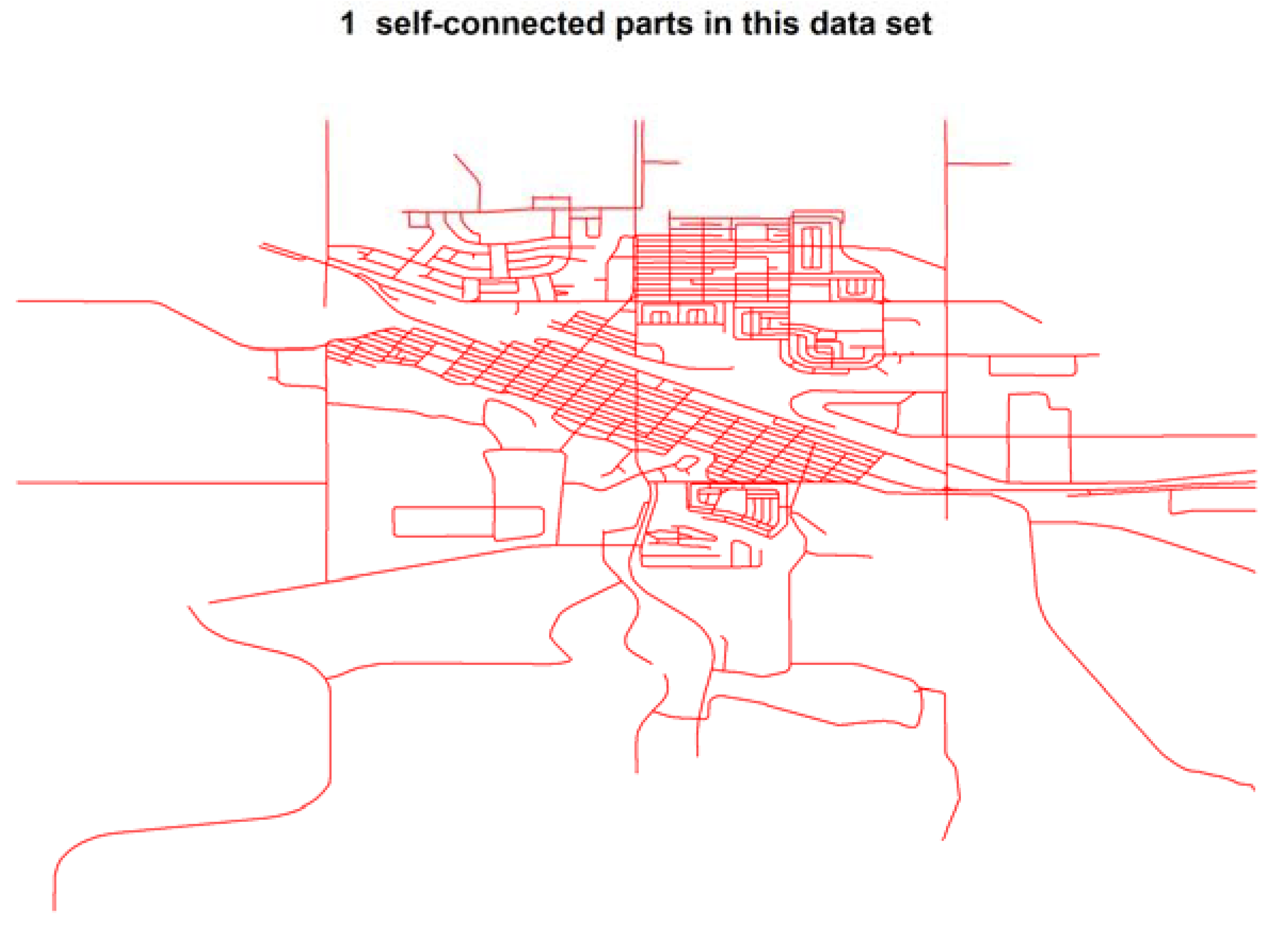

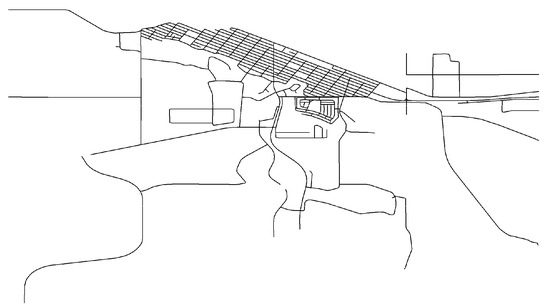

**Figure 7.**The main self-connected part of the Estevan road network returned by the function nt.connect.

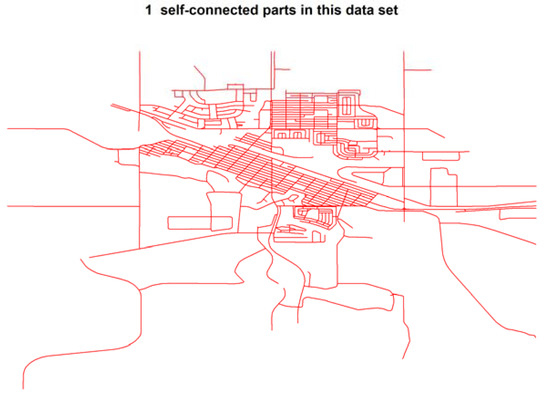

**Figure 8.**Connectivity of the Estevan road network with topology errors fixed via the function nt.connect.

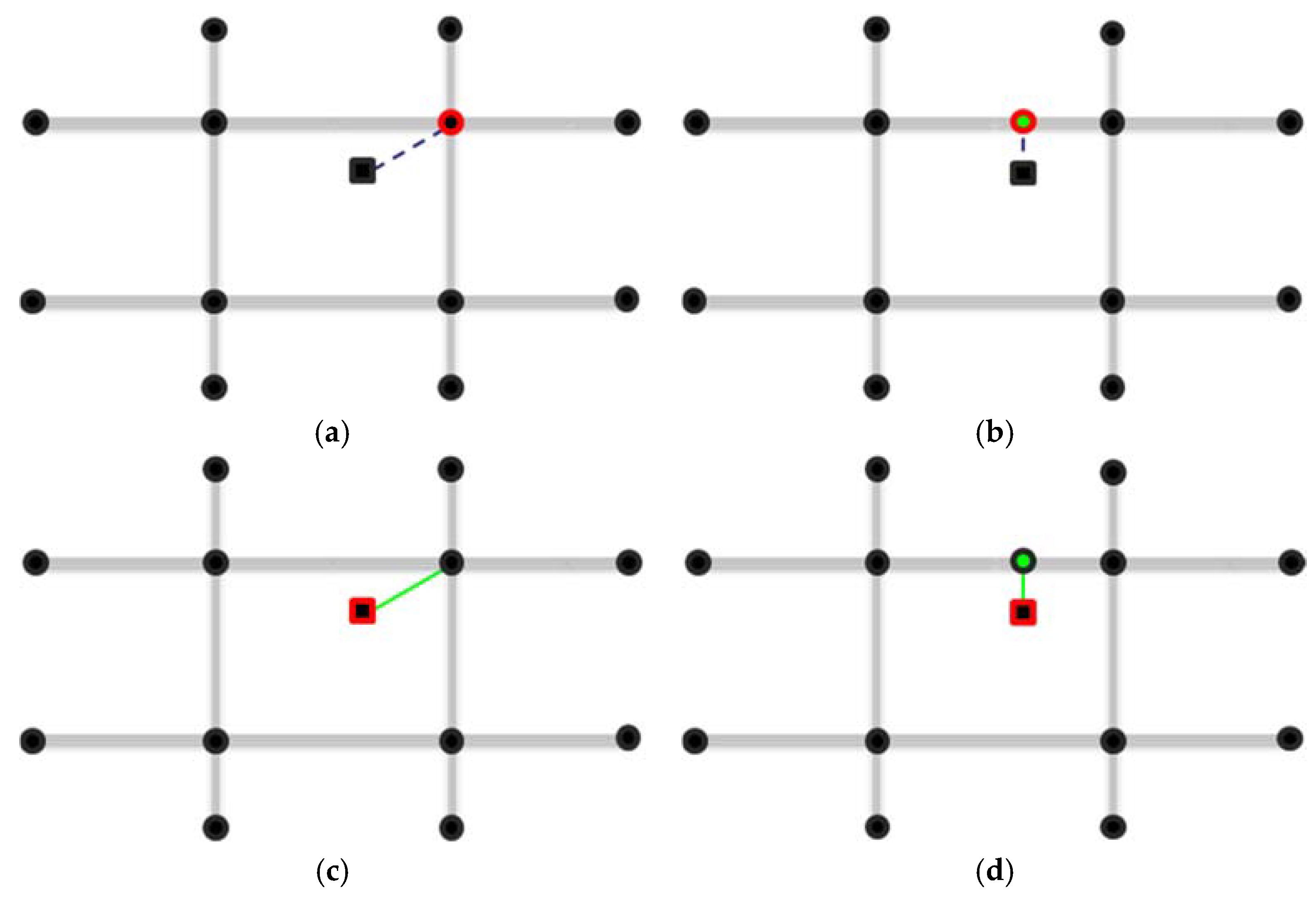

**Figure 9.**Four strategies to integrate points/locations within the spatial network. (

**a**) Strategy 1: represent each point with its nearest vertex; (

**b**) Strategy 2: represent each point with its nearest geometric point; (

**c**) Strategy 3: add a pseudo edge (colored green) between each point and its nearest vertex; (

**d**) Strategy 4: Add a pseudo edge (colored green) between each point and its nearest geometric point.

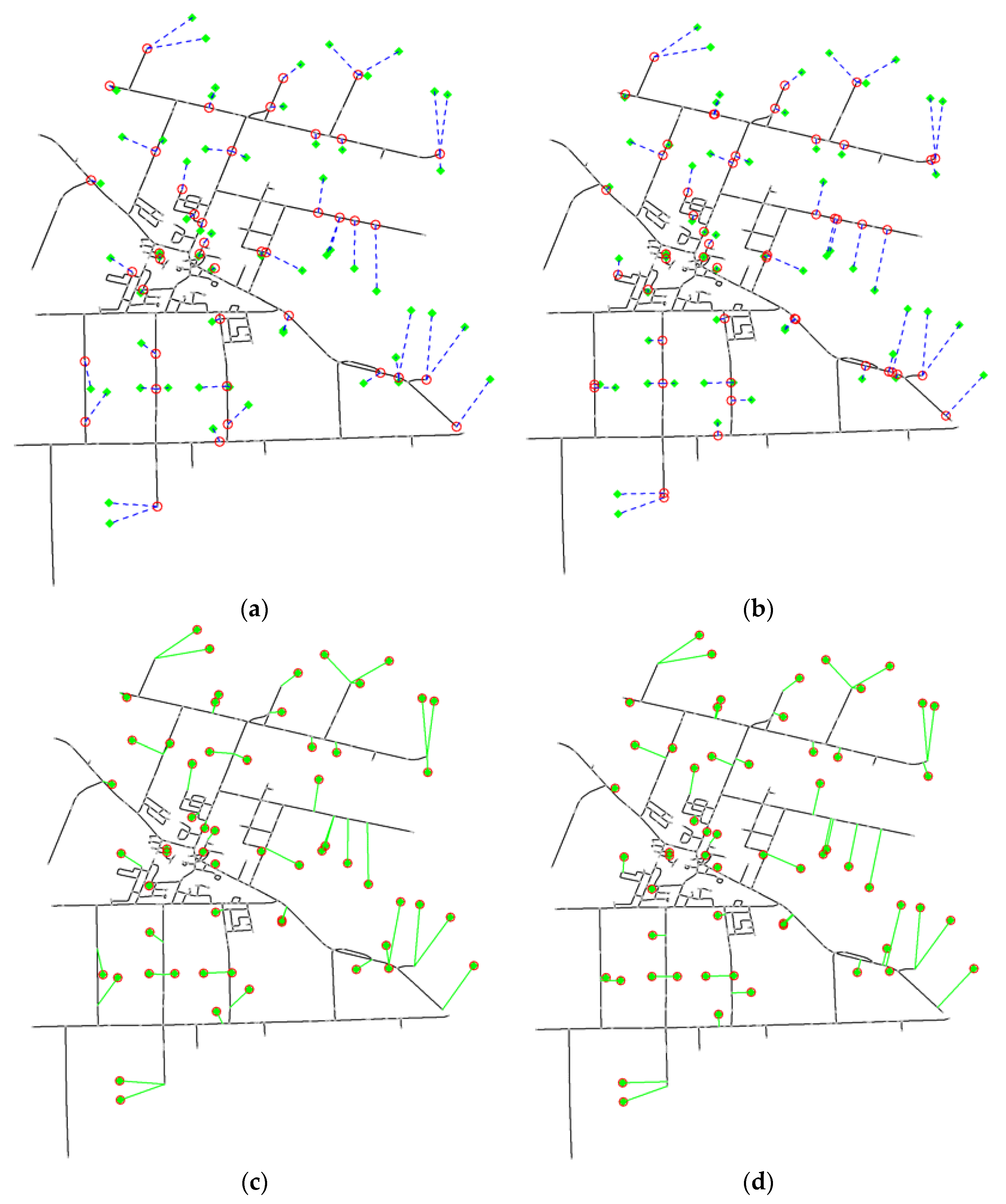

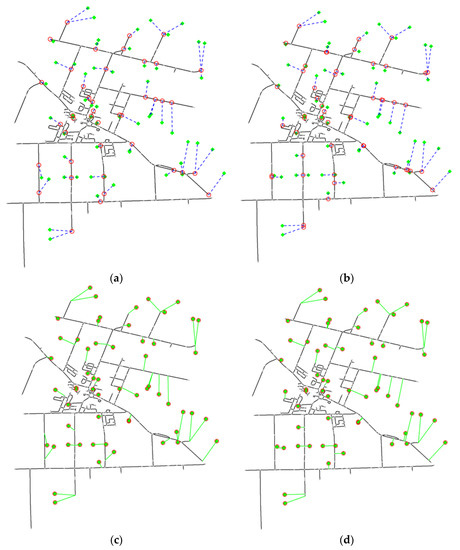

**Figure 10.**Examples of integrating points/locations with a spatial network (Ontario road data), where green dots represent points given, a blue dash in (

**a**,

**b**) indicate the closest relationship between a point and its nearest vertex/position on the network, green lines in (

**c**,

**d**) mean the edges newly added and red circles mark the representative vertices. (

**a**) Solution with strategy 1; (

**b**) Solution with strategy 2; (

**c**) Solution with strategy 3; (

**d**) Solution with strategy 4.

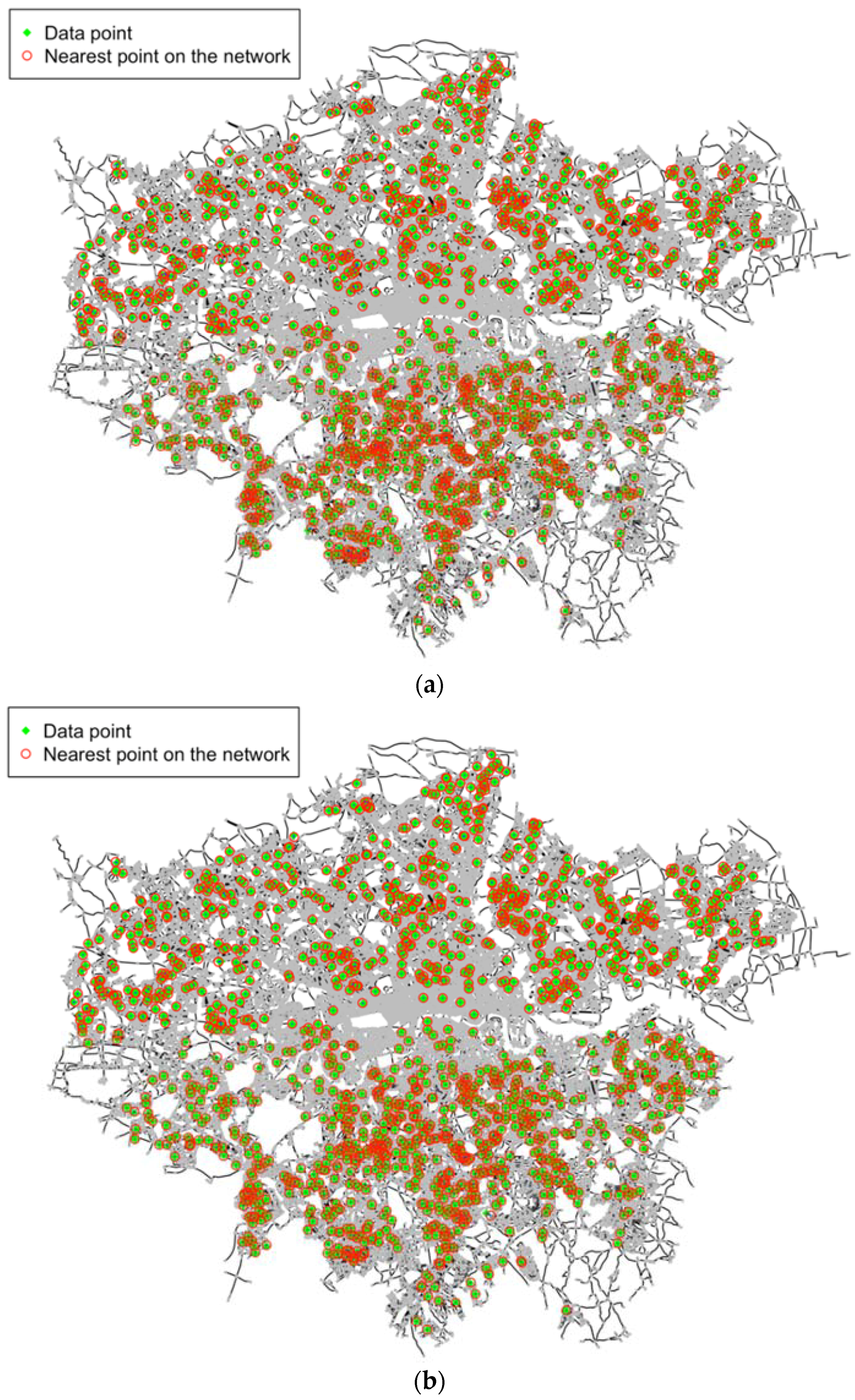

**Figure 11.**Integration of the London property locations onto the London road network using strategies 1 and 2. (

**a**) Solution with strategy 1; (

**b**) Solution with strategy 2.

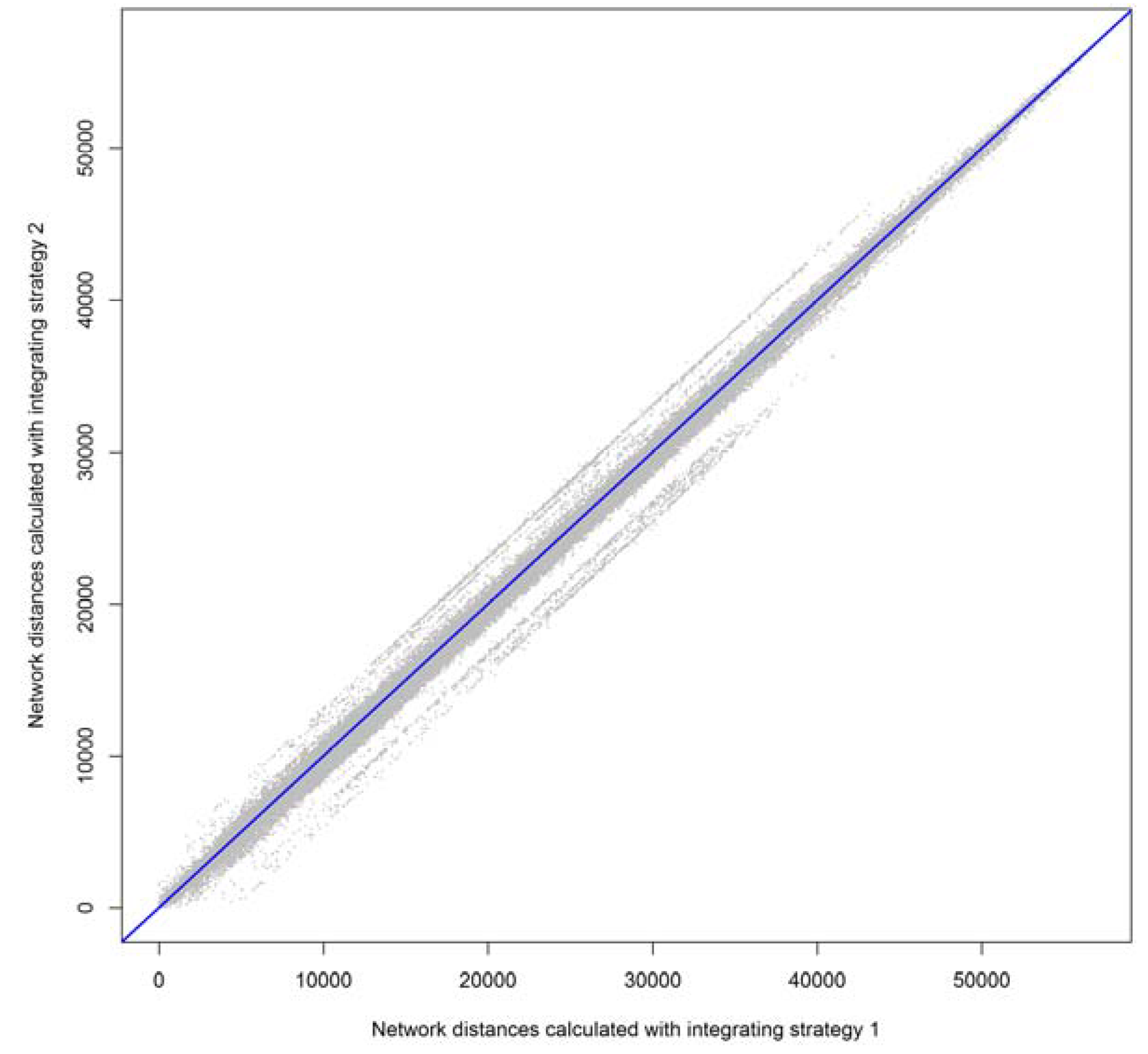

**Figure 12.**Network distances calculated with two different integrating strategies (London case study).

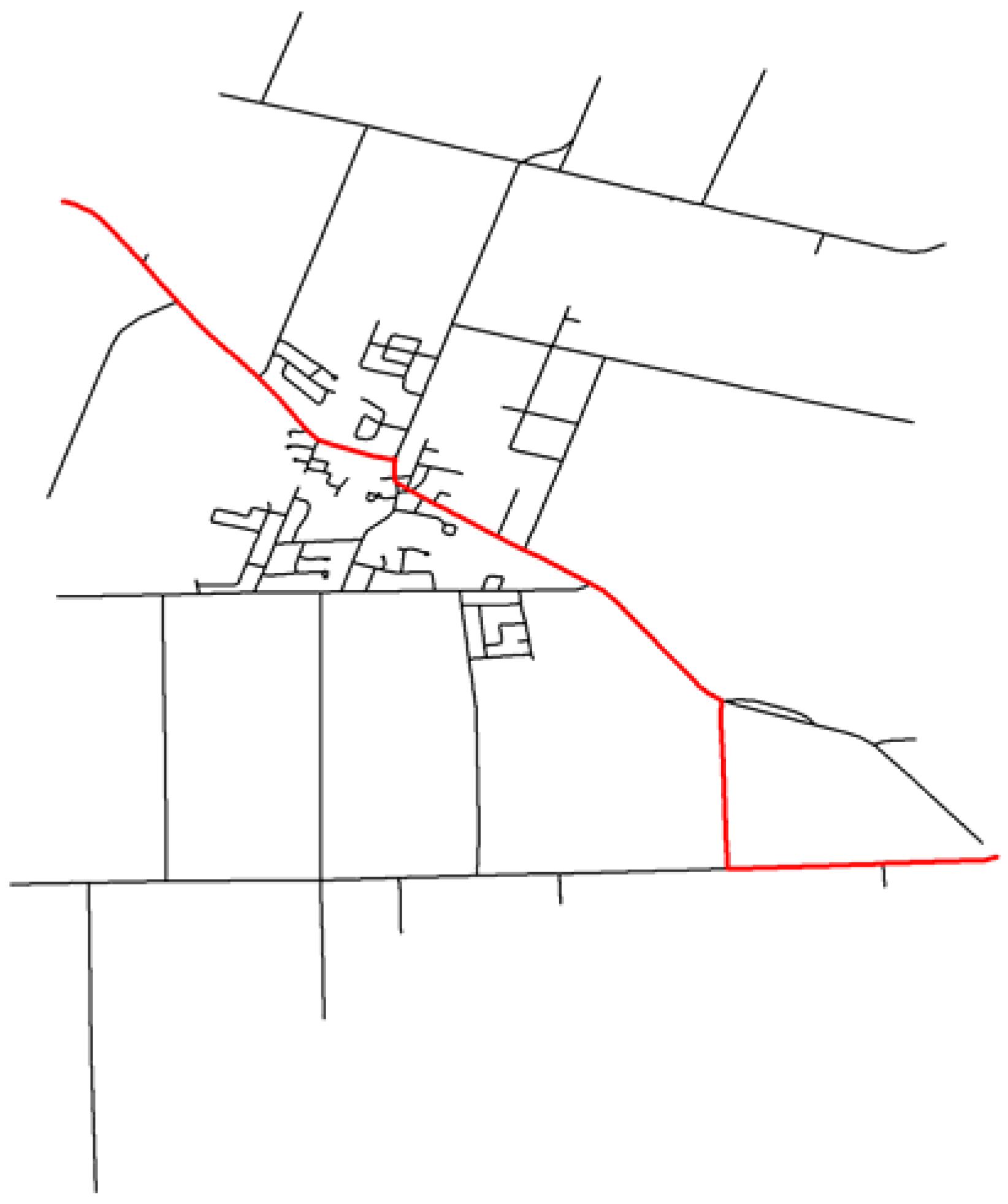

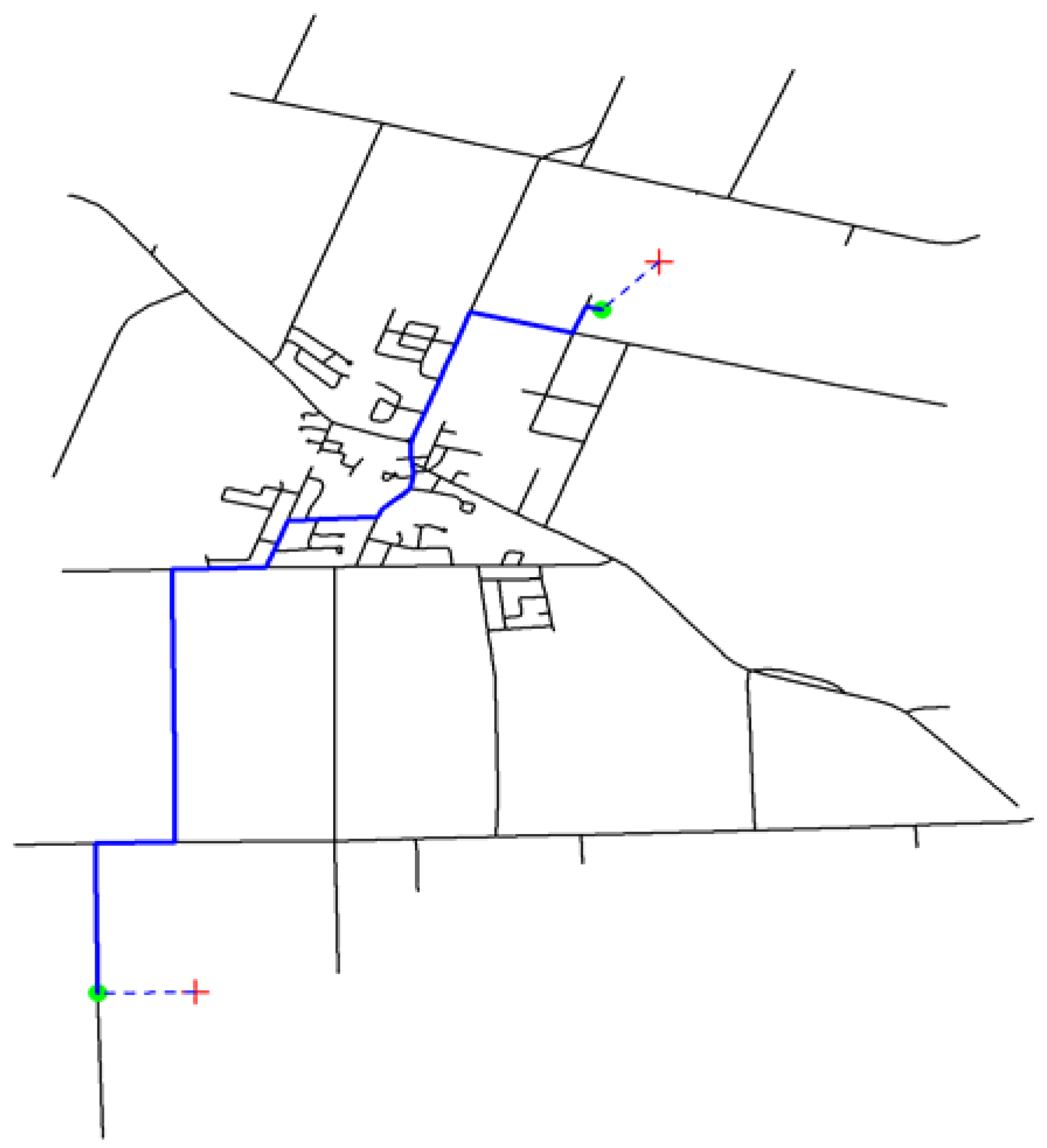

**Figure 14.**An interactive example for finding the shortest path with

**shp2graph**and

**igraph**(Ontario road data).

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Lu, B.; Sun, H.; Harris, P.; Xu, M.; Charlton, M.
Shp2graph: Tools to Convert a Spatial Network into an Igraph Graph in R. *ISPRS Int. J. Geo-Inf.* **2018**, *7*, 293.
https://doi.org/10.3390/ijgi7080293

**AMA Style**

Lu B, Sun H, Harris P, Xu M, Charlton M.
Shp2graph: Tools to Convert a Spatial Network into an Igraph Graph in R. *ISPRS International Journal of Geo-Information*. 2018; 7(8):293.
https://doi.org/10.3390/ijgi7080293

**Chicago/Turabian Style**

Lu, Binbin, Huabo Sun, Paul Harris, Miaozhong Xu, and Martin Charlton.
2018. "Shp2graph: Tools to Convert a Spatial Network into an Igraph Graph in R" *ISPRS International Journal of Geo-Information* 7, no. 8: 293.
https://doi.org/10.3390/ijgi7080293
