Article

Untargeted Metabolomic Profiling and Antioxidant Capacities of Different Solvent Crude Extracts of Ephedra foeminea

1
Department of Biochemistry, College of Science, University of Jeddah, P.O. Box 80327, Jeddah 21589, Saudi Arabia
2
Department of Biological Sciences, Al Quds University, P.O. Box 51000, Jerusalem 9103401, Palestine
3
Smart-Health Initiative and Red Sea Research Center, Division of Biological and Environmental Sciences and Engineering, King Abdullah University of Science and Technology, P.O. Box 4700, Thuwal 23955-6900, Saudi Arabia
*
Authors to whom correspondence should be addressed.
Metabolites 2022, 12(5), 451; https://doi.org/10.3390/metabo12050451
Submission received: 10 April 2022 / Revised: 11 May 2022 / Accepted: 13 May 2022 / Published: 17 May 2022
(This article belongs to the Section Plant Metabolism)

Abstract

:
Ephedra foeminea is a traditional medicinal plant used in the Eastern Mediterranean region. This study aims to investigate the chemical profiles of different solvent extracts of E. foeminea via an untargeted metabolomics approach, alongside determining their antioxidant capacities. E. foeminea samples collected from Jordan were macerated in solvents of varying polarities; dichloromethane/methanol, methanol, ethanol, ethyl acetate, and acetone. The crude extracts were subjected to comprehensive chemical profiling and metabolomics study using Gas chromatography–Mass spectrometry (GC–MS), Liquid chromatography–Mass spectrometry (LC–MS), and Nuclear Magnetic Resonance (NMR). The obtained data were analyzed using Venn diagrams, Principle Component Analysis (PCA), and Metabolite Enrichment Set Analysis (MESA). ABTS assay was performed to measure the crude extracts’ antioxidant activity. MESA revealed the dominant chemical groups as amino acids, fatty acids, carboxylic acids, and carbohydrates. Results indicated that dichloromethane/methanol and methanolic extracts had the most distinct composition as well as the most unique compounds. The methanolic extract had the most potency (IC50 249.6 µg/mL) in the ABTS assay. However, no significant differences were found. In conclusion, solvents influenced the recovery of metabolites in E. foeminea and the antioxidant activity of the E. foeminea methanolic extract could be correlated to the abundant presence of diverse bioactive compounds.

1. Introduction

The East Mediterranean region harbors an abundance of traditionally medicinal plants often used in folk medicine to treat various diseases and conditions [1,2,3,4]. Ephedra foeminea, also known as “Alandah” or “Qudab” in Arabic, is a common and widespread plant in the East Mediterranean habitats which is similar to the popular Chinese species Ephedra sinica, or “Ma Huang” as it is known in Traditional Chinese Medicine. E. foeminea a member of the family Ephedraceae, is a shrub and a perennial climber with multi branches, stems, and fruits. The leaves are small in size and whorled at nodes of cylindrical stems. A published study indicated that E. foeminea is the only Ephedra species which does not contain ephedrine and pseudoephedrine [5], which may have adverse effects on the central nervous system, blood pressure, and pulse, making it a relatively safe therapeutic candidate. Ephedra’s use in folk medicine is as a remedy for a wide range of illnesses including allergies, bronchial asthma, chills, colds, coughs, edema, fever, flu, headaches, and nasal congestion [6]. A recent study of the traditional usage of E. foeminea in Arabic, Hebrew, and Judeo-Arabic medical literature reported the plant’s application in traditional Arab medicine as a treatment for many ailments [7]. The components of plants can vary between species and origins and may lead to diverse metabolic phenotypes [8,9]. The extraction solvent and drying process used can also have a significant impact on the biological activities and metabolite contents of plant materials because distinct bioactive constituents with different chemical properties and polarities may have varying solubility in different solvents [10,11].
Metabolomics has evolved in recent years as a vital method for comprehensively evaluating all metabolites in a crude extract while offering a reasonable metabolic snapshot of a plant, aiding the development of natural product-derived therapeutic agents [12]. Several Ephedra species have previously been shown to be rich in antioxidant phenolic compounds such as transcinnamic acid, catechin, syringin, epicatechin, symplocoside, kaempferol 3-O-rhamnoside-7-O-glucoside, and isovitexin-O-rhamnoside, which contributed significantly to the antioxidant potential of the plant [5,13,14,15]. These constituents could prevent many diseases when used in food, cosmetics, and pharmaceutical products. A recent study by Soumaya et al. conducted on two Ephedra species (E. alata and E. fragilis) collected from Tunisia revealed that both plants had significant antioxidant activities, particularly the ethanol extract of E. alata, which exhibited stronger activity in comparison to the synthetic antioxidant butylated hydroxytoluene (BHT) [16].
We have found no reported paper for extracting metabolites in E. foeminea with different solvent extractions using maceration to investigate their metabolomic profiles and antioxidant activities. Thus, as metabolomics enables a comprehensive approach to examine a complex mixture of molecules that may be connected to observations obtained through biological activity tests and assays without the need for isolation procedures, the characterization, quantification and maximizing of active metabolites of E. foeminea crude extracts using different solvents of varying polarities; dichloromethane/methanol (DCM/MeOH), methanol (MeOH), ethanol (EtOH), acetone (Ace), and ethyl acetate (EA), through Nuclear Magnetic Resonance (NMR), gas-chromatography mass-spectrometry (GC–MS), and liquid-chromatography mass-spectrometry (LC–MS) coupled with an evaluation of each crude extracts’ antioxidant capacity is described. We will gain a better understanding of the properties of each extract by mapping the chemical profile and antioxidant activity of the different E. foeminea crude extracts. This study will employ untargeted metabolomics to examine and uncover the impact of various polar solvents on the preservation of molecules as well as the active compounds of this plant and their subsequent antioxidant activities.

2. Results

2.1. Qualitative and Quantitative Analyses of E. foeminea Crude Extracts Using Liquid-State NMR

NMR is an inherently quantitative tool where the intensity of NMR signals is directly correlated with the concentration levels of detected molecules and the number of equivalent nuclei within the same molecule [17,18,19]. It has been routinely used for identification and for structural elucidation of molecules in mixture samples such as natural product extracts [20,21,22]. In this study, we divided the NMR spectrum into different regions associated with specific functional groups (Figure 1) and measured the analytes through signal intensities and their linear relationship with analytes concentration (%). The determination of functional groups in natural products such as heavy fuel oil, natural gas, and other similar natural products samples using NMR has been recently studied [23,24,25,26]; it has also been reported that 1H NMR can be used to predict the chemical and physical properties of analytes and thus functional groups [27,28,29,30]. NMR spectroscopy offers many experiments in both solid state and solution to study the chemical and structural properties of investigated molecules [31,32,33]. One of the most significant advantages of NMR is the ability to study the molecules at their atomic levels, where the chemical shift of different functional groups can be observed at different chemical shifts [34]. This is an approximate method where we estimated the CH3, which most likely came from amino acids in the case of plant extracts. However, that does not rule out the possibility that CH3 from other hydrocarbons may appear around δ 1. Nonetheless, these signals most likely come from amino acids such as leucine, valine, glycine, etc. Therefore, to validate our assumption, we utilized Chenomx Profiler (Chenomx Suite 9.0. Edmonton, AB, Canada) software as is shown in the Supplementary Figures to highlight several amino acids and polysaccharides as examples of the related peak (Figures S19–S26).
Results revealed that the different solvent extractions resulted in substantial variation in the extracted metabolites. It is well known that the water peak is observed at 4.7 ppm, which is why, in our figure, we excluded the region between δ 4.5 to 4.9 ppm. A figure showing the HDO peak is available as Supplementary Figure (Figure S29). The polysaccharides region showed the highest value at 62.59% using methanol, while ethyl acetate showed the lowest at only 10.38%, and the amino acids regional signals were the highest in the acetone extract at 14.36%. The aromatic portion of the signals was found to be quite similar across all extracts, with the highest value at 7.48% using ethyl acetate and the lowest values at 3.51% using acetone. The aliphatic region, while only making up 6.83% of the methanolic extract, was found to be the richest in the acetone extraction at 19.90%. As for carboxylic and carboxyl-rich alicyclic molecules (CRAM), the extract with highest signals was the acetone extract at 22.53% and the lowest was revealed to be the ethyl acetate extract at 12.48%. Furthermore, the amides region was significantly higher in the ethyl acetate extract compared to other extracts, comprising 49.70% of total extracted metabolites, while the extract with the lowest amides signals was the methanol extract at 3.77%. Aldehyde signals were revealed to be generally low across all extracts, where a negligible number of signals were detected in the ethanol extract and with the ethyl acetate extract spectrum displaying the most intense signals at 4.65%.
Figure 2a shows a 1D 1H spectra comparison between the five different solvent crude extracts of E. foeminea. Around the high-field region of δ 1.5 to 0.5 ppm, it is suggested that the methanolic extract has the largest number of amino acids. As expected, the acetone extract showed the highest peak at the lipid region around δ 1.25 as this is typically associated with the CH2 of lipids (Figure 3b). Figure 2c shows the polysaccharides and sugar resonance, which is present in the high to mid-field extended region of δ 4 to 3.2 ppm which clearly demonstrated that the methanolic extract had the most intense peaks in that region. The low-field region of δ 8.5 to 6.5 ppm generally shows the aromatic, substituted aromatic, phenolic, and multicyclic compound peaks. The methanolic extract showed pronounced aromatic resonance (Figure 2d) while the lipid pattern dominated the ethyl acetate extract spectrum. The ethanolic extract spectrum was found to be generally similar to the methanolic extract spectrum, which is expected from solvents with similar polarities, although the methanolic extract spectrum showed stronger intensities and more varied peaks. Individual typical 1H 1D spectra recorded by 600 MHz liquid-state NMR of each extract dissolved in D2O is shown in Supplementary Figures S1–S5.
Figure 3a shows a stack plot comparison between two E. foeminea extracts, methanol and ethyl acetate, spectra. The figure demonstrates that more lipids using ethyl acetate were extracted compared to the methanol extract spectrum. Figure 3b shows the extended region from δ 4 to 3.2, this is the typical polysaccharides and sugars region. Due to the region being polar, we see more pronounced resonance peaks from the methanolic extract spectrum, the more polar solvent, compared to the ethyl acetate extract spectrum. Individual typical 1H 1D spectra recorded by 500 MHz liquid-state NMR of each extract dissolved in CDCl3 is displayed in Supplementary Figures S6–S10.

2.2. Qualitative and Quantitative Analyses of E. foeminea Powder Using Solid-State NMR

Figure 4 shows the 13C spectrum of solid-state NMR. The spectrum can be divided into four main regions, each corresponding to a different class of functional group: aliphatic carbons, polysaccharides and cellulose, aromatic carbons, and carboxylic phenols and carbons. As expected, the polysaccharides region is dominating the spectrum, shown in the mid to high-field region δ 90 to 45 ppm [35,36]. The high-field region from δ 45 to 10 ppm showed peaks mainly associated with aliphatic carbons. The low-field region beyond δ 90 ppm contained mainly aromatic and carboxylic resonances.
The assignments of the E. foeminea solid-state NMR spectrum and the calculated ratios of the groups are summarized in Figure 5.
To validate our findings in 13C solid-state NMR spectrum, 1H solid-state NMR spectrum was obtained using the same powder sample as shown in Figure 6.
The spectrum obtained verified the 13C results, where the δ 10 to 3 ppm mid-field sugars and polysaccharides region peaks are dominating the spectrum, while the aromatics region is shown as a small shoulder around δ 7.5 ppm. On the other hand, the aliphatic resonance peaks were found to be pronounced as shown in the high-field region of δ 3 ppm.

2.3. Chemical Profiling of E. foeminea Crude Extracts Using GC–MS and LC–MS

The data resulting from further analysis of the E. foeminea crude extracts revealed a significant disparity in the number of the identified metabolites according to solvent and instrument used (Figure 7).
For example, the E. foeminea crude extracts analyzed by LC–MS revealed a variation between the metabolites identified in the positive ion mode scan and in the negative ion scan mode. The positive ion scan LC–MS data revealed a total of 401 metabolites in the DCM/MeOH crude extract sample, 159 metabolites in the Ace sample, 132 metabolites in the MeOH sample, 130 metabolites in the EtOH sample, and 107 in the EA sample (Supplementary Table S1). Unique compounds were detected using ESI+ mode LC–MS as a combined total of 300 metabolites in all five extracts, with the DCM/MeOH sample displaying the largest amount of identified unique compounds at 225 metabolites. The samples also had 29 identified metabolites in common (Figure 7a). The unique and shared compounds are listed in Supplementary Table S2. The major constituents of each extract analyzed by ESI+ mode LC–MS, determined by calculating the peak area (%), are described in Table 1b. Typical positive mode LC–MS total ion chromatograms (TIC) of different E. foeminea crude extracts are shown in Supplementary Figure S11.
Furthermore, data acquired through negative ion LC–MS scan of the five extracts detected 62 metabolites in the EA sample, 46 metabolites in the Ace sample, 43 metabolites in the MeOH sample, 41 metabolites in the DCM/MeOH sample, and 39 metabolites in the EtOH sample (Table S3). A sum of 45 unique metabolites were detected in all five extracts, where the highest number of identified unique compounds was found in the EA crude extract sample at 15 metabolites. Meanwhile, the total number of common metabolites shared by all the samples was also found to be 15 metabolites (Figure 7b). The unique and shared compounds analyzed by negative ion LC–MS are listed in Supporting Material (Table S4). The major constitutes of each extract analyzed by negative ion LC–MS are described in Table 1a, determined by calculating the peak area (%). Typical negative mode LC–MS TIC of different E. foeminea crude extracts are shown in Supplementary Figure S12.
Derivatized (TMS) metabolites were also tentatively identified in the E. foeminea crude by GC–MS scan; however, some compounds could not be determined by mass spectral matching due to the match being less than 65%. Results revealed a difference in the number of identified metabolites; for instance, a total of 113 metabolites were tentatively identified in the E. foeminea MeOH crude extract sample, followed by 66 metabolites in the EtOH extract sample, 58 metabolites in the DCM/MeOH extract sample, 47 metabolites in the Ace extract sample, and 31 metabolites in the EA extract sample (Table S5). The combined number of unique compounds detected by the GC–MS scan in all extracts totaled 49 compounds, with the MeOH extract sample containing the largest number of unique compounds at 34 (Table S6). Conversely, the extracts collectively shared 16 of the identified compounds. The main constituents of each extract were determined by calculating the peak area (%) Table 2 Typical GC–MS TIC of derivatized E. foeminea crude extracts using different solvents are exhibited in Supplementary Figure S13.

2.4. Untargeted Metabolomics Study of E. foeminea Crude Extracts

The untargeted metabolomics profile of the different solvent E. foeminea crude extracts was performed using GC–MS and LC–MS. The data obtained from positive and negative ion LC–MS scans were subjected to the principal component analysis (PCA) in order to underline the E. foeminea crude extracts’ similarities and differences based on their chemical compositions (Figure 8). In this regard, a matrix containing the five different solvent crude extract samples and one pooled sample, and six variables for each sample according to the solvent used was computed. Analysis was carried out in triplicates, where the pooled samples clustered in the middle in both PCA plots. The second and third principal components (PC2 and PC3) were chosen. In the negative mode scan, the second and third principal components explained 2.1% and 1.0% of the variation, respectively (Figure 8a). The solvent extracts EtOH, EA, and Ace clustered roughly on one side of the scatter plot; meanwhile, the MeOH and DCM/MeOH extracts were highly separated from each other as well as from the other three extracts. The positive scan mode score plot showcased some differences where the second component explained 5.3% of the variation, while the third component explained 2.1% (Figure 8b). The Ace and EA extracts were very closely clustered, while the EtOH, and DCM/MeOH, and MeOH extract samples had distinct features compared to the other extracts, with the latter clustering more closely to the EtOH extract sample.
A total of 320 compounds were identified in all samples using ESI+ mode GC–MS scan. Metabolite set enrichment analysis (MSEA) was conducted to classify the chemical groups of all identified compounds using GC–MS (Figure 9). The bar chart represents the chemical classifications of the identified metabolite sets (top 25) under the chemical structure metabolite set library category (Figure 9a). As shown in the bar chart, among the top 25 chemical classes, the primary chemical groups with a higher p-value were mainly amino acids, sugar alcohols, saturated fatty acids, monosaccharides, dicarboxylic acids, 1,2-aminoalcohols, pyridines, hydroxy benzoic acids, disaccharides, and trichloroacetic acids. The colors in the pie chart designate each chemical group relative to the total number of compounds (Figure 9b). Among the 15 chemical groups, the highest number of compounds were mainly described by amino acids (red), saturated fatty acids (deep purple), sugar alcohols (blue), dicarboxylic acids (turquoise blue), monosaccharides (green), unsaturated fatty acids (grey), and hydroxy fatty acids (violet), consecutively. Detailed results of this analysis are displayed in Supplementary Table S7. Individual MESA pie charts and ORA bars analysis of each extract is shown in Supplementary Figure S14–S18. Alongside the detailed results shown in Supplementary Table S8.
The described top compound classes were detected in some extract samples but were found to be absent in others (Table 3).

2.5. Effect of E. foeminea Crude Extracts on ABTS Antioxidant Assay

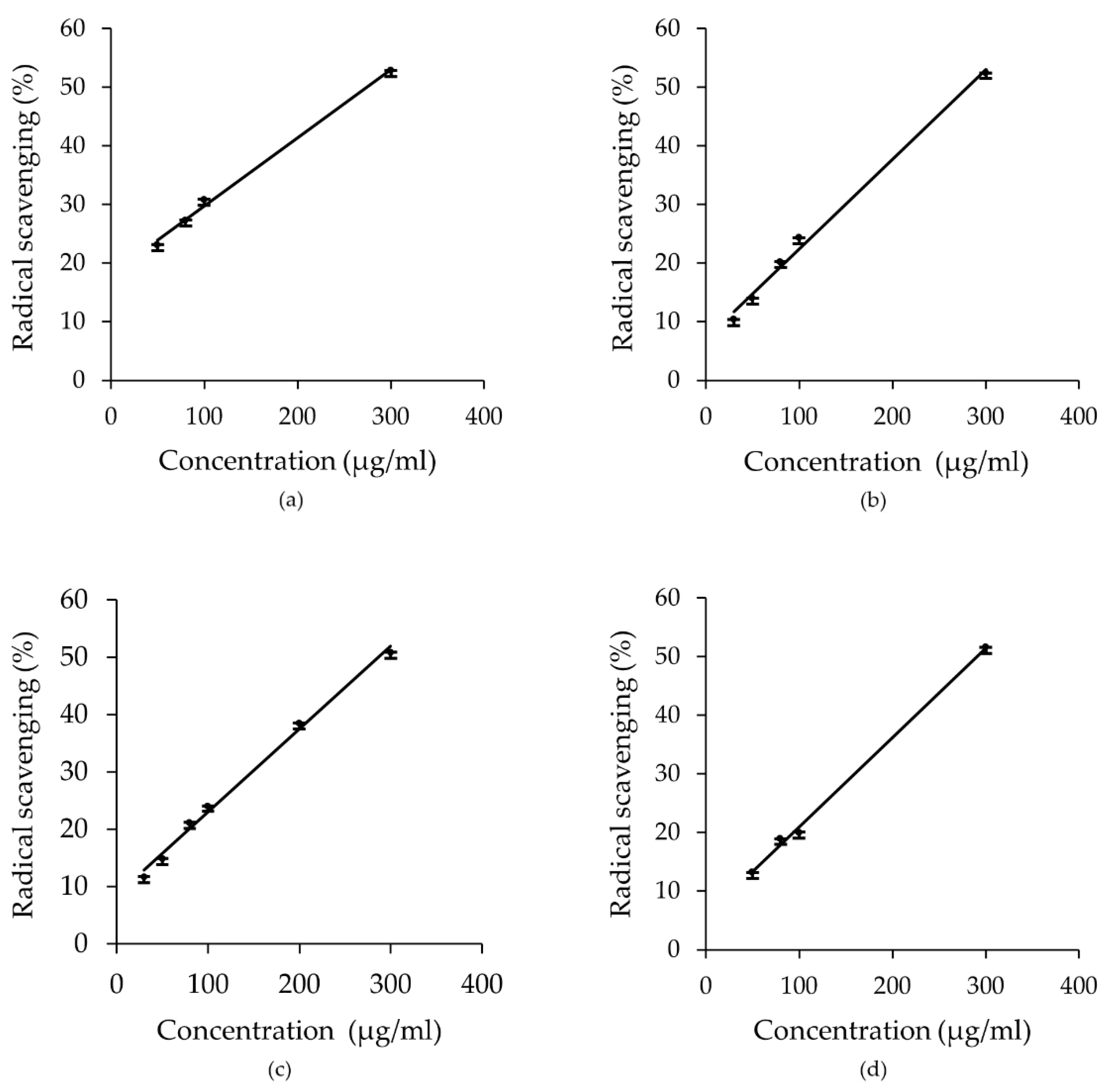

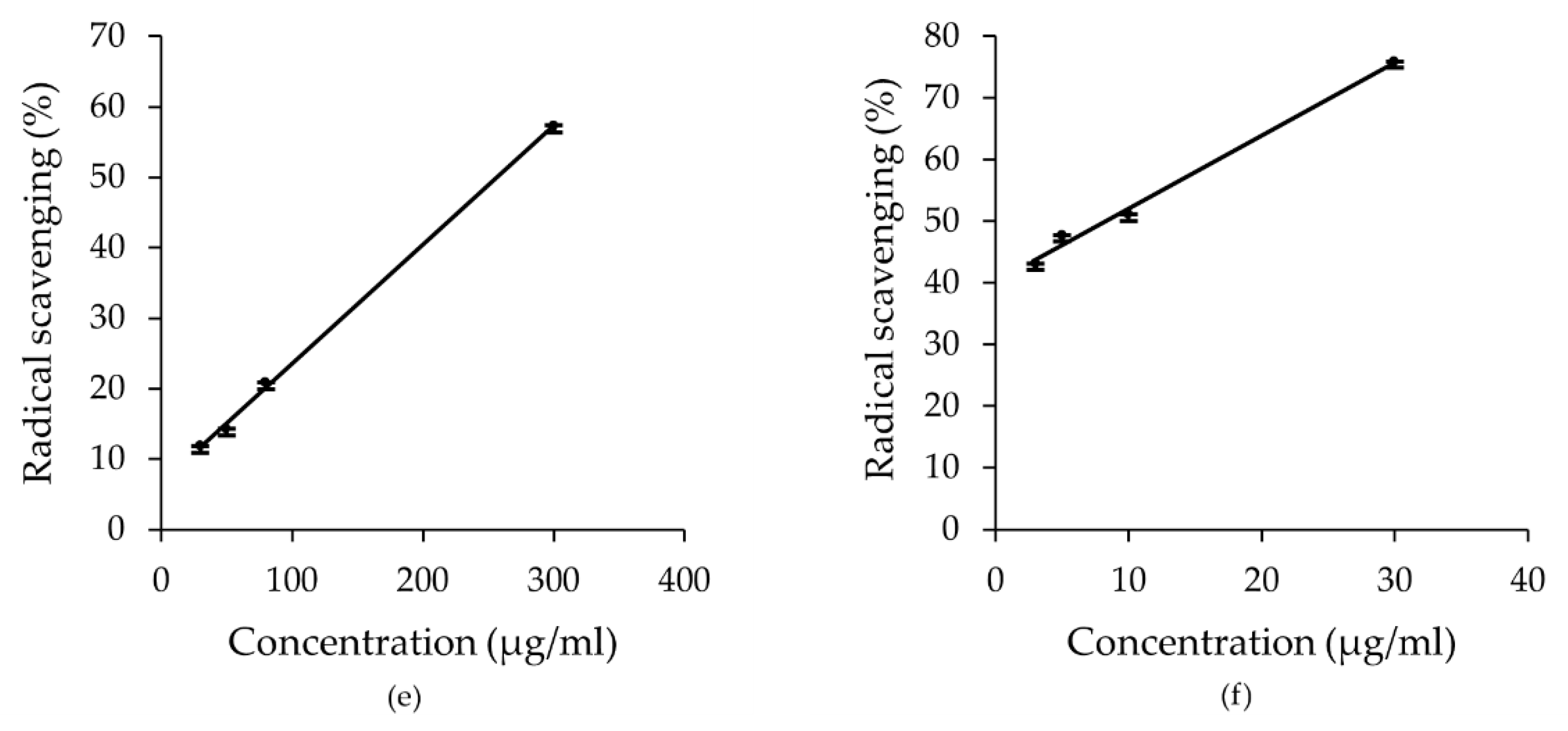

Several concentrations (30–300 µg/mL) of the different solvent extracts of E. foeminea were tested for antioxidant activity. Dose dependent calibration curves were constructed and carried out and IC50 values were determined for each extract (Figure 10). The ABTS radical scavenging effects of the different solvent extracts are presented, alongside ascorbic acid as the positive control. The lower the IC50 value of plant extracts used, the higher was their free radical scavenging activity. Antioxidant activity for E. foeminea crude extracts was observed in the following order: methanol extract (IC50 249.6 µg/mL) > acetone extract (IC50 275.2 µg/mL) > dichloromethane/methanol extract (IC50 280 µg/mL) > ethanol extract (IC50 285.9 µg/mL) > ethyl acetate extract (IC50 289.8 µg/mL). The IC50 values for all five extractions of E. foeminea were generally within a similar range at (249.6 to 289.8 µg/mL), and the IC50 of the pure ascorbic acid standard was significantly lower than all tested extracts (IC50 5.974 µg/mL), which indicates that the plant possesses moderate to low antioxidant ability, with the methanolic extraction having the lowest IC50 value at 249.6 µg/mL.

3. Discussion

Plants native to the Eastern Mediterranean region have long been used in medicine [37]. However, few studies have been conducted to investigate the antioxidant activity and chemical composition of medicinal plants in that region, specifically in the Arab regions of the East Mediterranean. Our study aimed to obtain a comprehensive snapshot of E. foeminea chemical composition and detect bioactive metabolites with reported antioxidant potential. Therefore, we subjected the different solvent crude extracts to extensive chemical analysis and metabolomics study using GC–MS, LC–MS, and NMR instruments. Many studies have reported the impact of different solvents on the content of secondary metabolites and/or their antioxidant activity [10,11,38]. NMR spectroscopy offers a potent and versatile analytical platform that has been widely used for molecular identification and quantification [17]. Several advantageous features, such as non-destructive and non-biased methods, make NMR spectroscopy superior in investigating the specific and general chemical composition of studied samples, as a 1H NMR spectrum provides a single snapshot of all the detectable compounds present in the sample.
Although liquid-state NMR is very informative in showing this ratio of the chemical composition of the extracted samples, there are several molecules that play an interesting functional and structural role in the plant. However, some of these important compounds can be insoluble in solvents; thus, we decided to run solid-state NMR for the plant powder alongside liquid-state NMR for the different extracts. To the best of our knowledge, this is the first time that solid-state NMR is used to evaluate the chemical composition of E. foeminea. Visual inspection of the typical liquid-state NMR spectra revealed obvious visual differences between the different solvent extracts of E. foeminea, especially in the methanolic extract spectrum where the most pronounced and varied peaks were seen, suggesting a variation in metabolic makeup according to the solvent used. Generally, the results obtained from both analyses have shown that the polysaccharides region dominated the spectra; most likely attributed to cellulose, which is known as the main structural fiber in plants. Furthermore, elevated carboxylic, phenolic, and substituted aromatic associated signals were detected, particularly in the methanolic extract, indicating that E. foeminea possesses bioactive molecules such as flavonoids, alkaloids, and phenolic compounds, among others. These findings were found to be in accordance with previous reports [5]. Ultimately, our liquid-state NMR analyses results indicated that the methanolic extract showed the most variance in composition compared to the other extracts.
To further investigate and maximize the detection of these molecules, ESI+ mode GC–MS and ESI+, ESI− mode LC–MS analyses of E. foeminea crude extracts were conducted. Generally, our major constitute analyses implied that fatty acids, particularly palmitic acid, and carbohydrates are the majority metabolites in E. foeminea. A Venn diagram is a schematic representation of the elements in a set or a group, where it demonstrates all the possible relationships between a finite assemblage of sets or groups. Our analysis revealed variations in the extracted metabolites according to the solvent used, as well as demonstrated differences and similarities between each extract. A total of 521 metabolites were identified in DCM/MeOH extract, 272 in the MeOH extract, 260 in the Ace extract, 258 in the EtOH extract, and 195 in the EA extract. The DCM/MeOH extract was shown to extract the most unique compounds in the LC–MS Venn analyses. These results suggest that utilizing a solvent mixture is advantageous in maximizing the extraction of metabolites with varying structures and capabilities, due to the difference in polarities. Similarly, the GC–MS Venn analysis results demonstrated that MeOH extracted a large number of unique compounds in comparison to the other extracts, indicating that methanol is an efficient solvent for extracting diverse plant metabolites. Furthermore, the qualitative screening of the five crude extracts demonstrated that the MeOH extract contained the most varied number of chemical classes. The results also confirmed the presence of different known bioactive metabolites which may have contributed to the antioxidant capacity of E. foeminea.

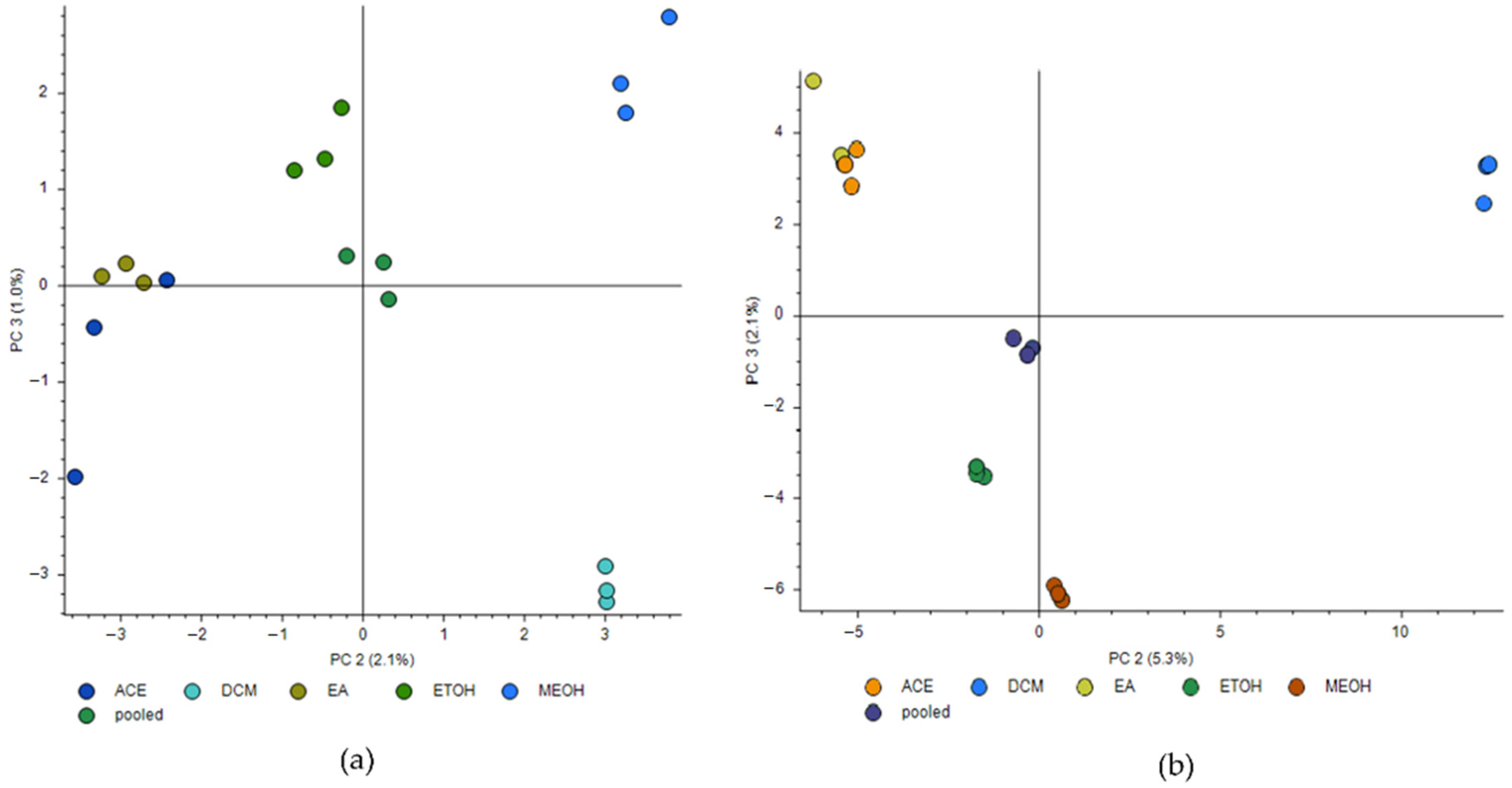

PCA is a projection method used for overviewing and explaining clusters and trends within multivariate data where the resulting score plot highlights clustering or pattern formations in a 2D space, which provides a view of similarities and dissimilarities between samples. The PCA score plots also further confirmed variations in the chemical profiles of the E. foeminea crude extracts according to the solvent used. The plots suggest a close similarity in the chemical composition of the acetone and ethyl acetate extracts, while the dichloromethane/methanolic extract and the methanolic extract were found to be highly separated. This implies the possession of distinctive features and further supports our findings indicating a diverse chemical makeup in both these extracts.

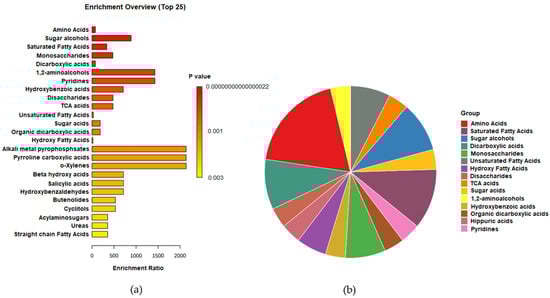

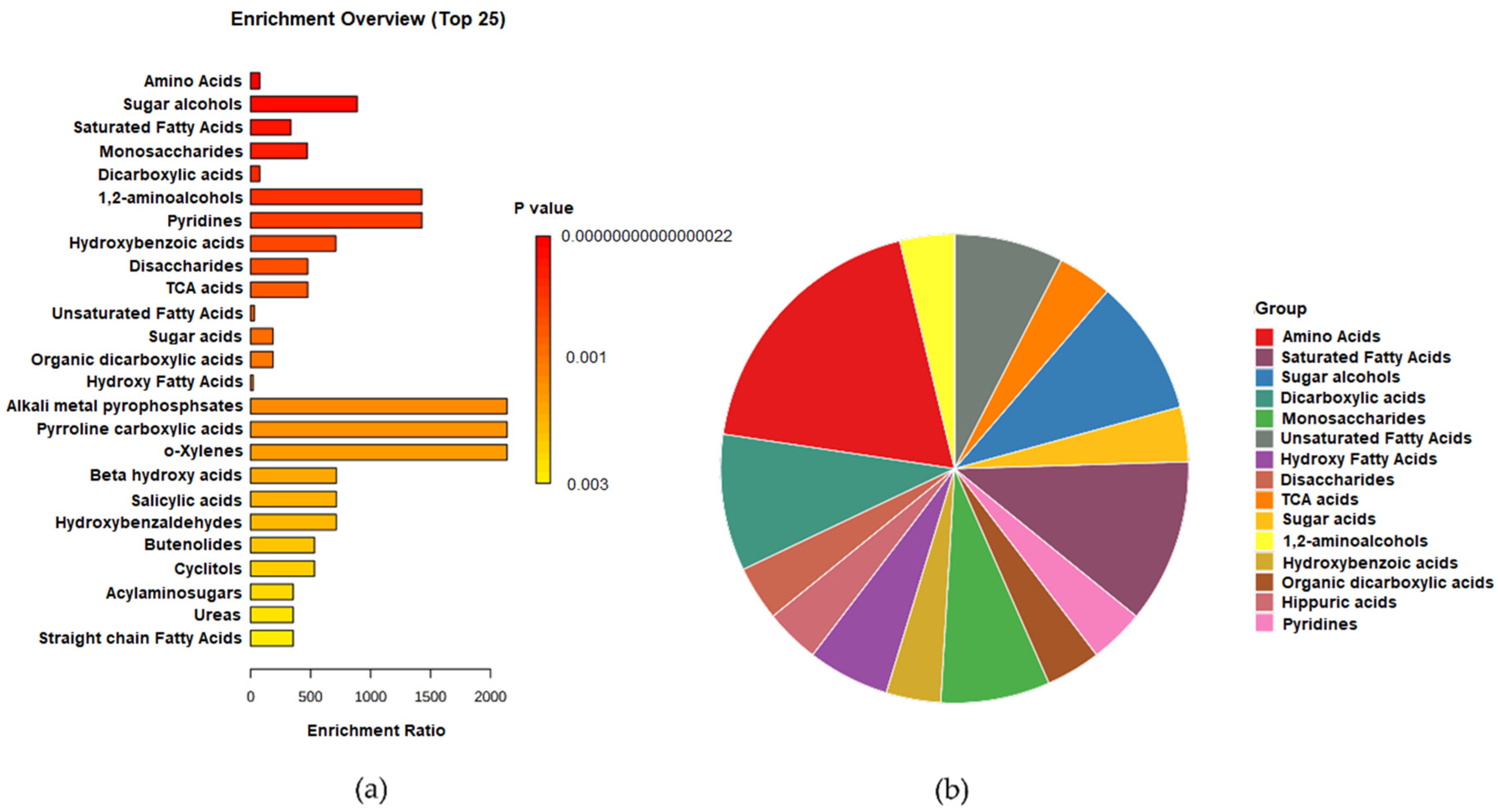

Metabolite Set Enrichment Analysis (MESA) is a method to identify biologically meaningful patterns that are significantly enriched in quantitative metabolomic data. Inputting the acquired GC–MS identified compound name lists revealed that amino acids were among the largely identified compound classes in the E. foeminea extracts, followed by saturated fatty acids. This supports our previous findings. Several of the identified amino acids have previously been reported to possess protective antioxidant and radical scavenging abilities, including valine, serine, leucine, proline, threonine, and γ-aminobutyric acid (GABA), a naturally occurring non-protein amino acid [38,39,40,41,42]. Our analysis also identified several polyols with antioxidant capabilities; mannitol, myo-inositol, and meso-erythritol, all of which have not yet been reported in Ephedra species, to the best of our knowledge. Mannitol is a polyol and a known diuretic that was recently proposed to be an oxygen radical scavenger, myo-inositol is a naturally occurring sugar alcohol that has demonstrated superoxide scavenging abilities, and Meso-erythritol has been revealed to be an excellent OH radical scavenger [43,44,45]. Other previously reported carboxylic acids in Ephedra species with potential antioxidant abilities were detected in our study; they included kynurenic, malic, oxalic, and citric acid. Succinic acid and azelaic acid were also detected in this study; however, their detection had not yet been reported in Ephedra species [5,46,47,48]. Another highly identified class was saturated and unsaturated fatty acids. Among the identified fatty acids was oleic acid, which exhibited a strong DPPH radicals scavenging activity in a recent study [49], as well as myristic acid, which reportedly had antioxidant, COX-I, and COX-II enzymes inhibitory activities [50]. These findings are in line with previous reports on Ephedra species including E. foeminea [13,51]. However, our study identified another fatty acid with antioxidant capabilities, α-eleostearic acid, which had not yet been detected in previous Ephedra studies [52]. Several vitamins were also detected in E. foeminea as potential antioxidant metabolites, among them was pantothenic acid (vitamin B5), which had not yet been reported in the Ephedra species. A study published in 2020 demonstrated that pantothenic acid, among other molecules in the leaves and petioles of four celery cultivars, contributed significantly to O2—scavenging activity [53]. Lower levels of ascorbic acid (vitamin C), which is well-known for its powerful radical scavenging activities [54], were also detected in our E. foeminea crude extracts. A study by Harisaranraj et al. had previously reported the identification of ascorbic acid in E. vulgaris, another member of the Ephedra species [55]. The Ephedra species is also well known for its vast alkaloid content. Among the alkaloids which showed some antioxidant activity detected in this study are trigonelline and stachydrine [56,57], both of which had not yet been reported in E. foeminea. Phenolic compounds, which are well-known for their strong radical scavenging abilities, were detected in E. foeminea through GC–MS and LC–MS analyses. They included benzoic, salicylic and protocatechuic acid, coumarin, kaempferol, caffeic acid, and o-coumaric acid, which were previously reported in several Ephedra species [58,59,60], as well as phloretin, shogaol, and vitexin 2″-O-p-coumarate, which are reported for the first time in this study. These compounds have all been shown to possess antioxidant and radical scavenging abilities in past studies [61,62,63,64,65,66]. However, a study by Ibragic and Sofić found that E. foeminea had the lowest total phenolic content (TPC), and had among the lowest total alkaloids content (TAC) and total flavonoids content (TFC) compared to the other tested Ephedra species [5]. A diverse number of antioxidant terpenoids have also been identified in our study, some of which have been detected in E. sinica in a previous study by Qingbiao et al., such as β-ionone, cumin aldehyde, geranyl acetate, and p-cymene [67]. Other detected terpenoids with antioxidant potential included andrographolide and cafestol, both of which have yet to be reported in previous studies [68,69]. Our analysis also revealed the presence of pheophorbide A and pheophorbide B in all the extracts, which had not been previously reported in E. foeminea or any other Ephedra study. Pheophorbides are plant products related to the chlorophyll molecule and has been reported to possess potential antioxidant activities [70,71].
The crude extracts obtained from different solvents were studied for their antioxidant activity by using ABTS scavenging activity assays. The methanolic extract showed the highest potency expressed as IC50 value of ABTS scavenging activity (249.6 µg/mL). This could be linked to the presence of pheophorbide A and kynurenic acid as major constituents of the methanolic extract, as well as the possibility that methanol extracted the highest level of phenols, flavonoids, alkaloids, and terpenoids as differences in the polarity of the extraction solvents could cause a wide variation in the level and class of bioactive compounds in the extract [72,73]. However, no significant differences were found in the ABTS radical scavenging activity of the five E. foeminea crude extracts. The DPPH, ABTS, FRAP antioxidant activity expressed as Trolox equivalents of E. foeminea collected from South Lebanon was reported in a recent study, where the radical scavenging activities varied according to solvent system used [74]. Our results concluded that methanol is the most relatively efficient solvent for extracting diverse bioactive metabolites from E. foeminea. More research should be conducted to optimize the identification and isolation of bioactive compounds from E. foeminea.

4. Materials and Methods

4.1. Plant Material

Whole plant samples of Ephedra foeminea were identified and collected from Jordan in 2013. The dried plant sample was ground using an electrical grinder into fine powder, then labeled and stored in an air sealed plastic bag at −20 °C.

4.2. Preparation of E. foeminea Crude Extracts

Four grams of E. foeminea plant powder was macerated on a shaker overnight (approximately 17 h) at room temperature in 40 mL of each different solvent; dichloromethane/methanol (1:1) mixture was prepared from methanol (purity ≥ 99.8%) and dichloromethane (purity ≥ 99.8%) purchased from Honeywell Riedel-de Haen (Seelze, Germany), ethyl acetate (purity ≥ 99.8%) purchased from VWR Chemicals (Radnor, PA, USA), acetone (purity ≥ 99.8%) purchased from Fisher Chemical (Waltham, MA, USA), ethanol (purity ≥ 99.8%), and methanol (purity ≥ 99.8%) purchased from Honeywell Riedel-de Haen. The extracts were centrifuged the next day at 14,000× g for 2 min to pellet down all solid material, and the supernatant was transferred into fresh, properly labeled tubes. Centrifugation is a more efficient and a less time- and resource-consuming method of separating extracts from particles, it is an accelerated form of sedimentation. This process was repeated a few times to obtain clear crude extracts. The extracts were then stored at −20 °C.

4.3. NMR Analyses of E. foeminea

4.3.1. Liquid-State NMR Analysis

To prepare NMR samples for each extract, 1.5 mL of the crude extracts was transferred to 2 mL Eppendorf tubes using pipettes, then dried using speed vacuum for approximately 14 h. Each NMR sample was prepared by dissolving the dried extract in 600 µL of deuterium oxide (purity 99.9 Atom % D) purchased from Sigma-Aldrich (Saint Louis, MO, USA) in 2 mL Eppendorf tubes, vigorously vortexed for 30 s, then 550 µL of the solution was transferred to 5 mm NMR tubes. NMR spectra were recorded using a Bruker 600 MHz AVANACE III NMR spectrometer equipped with a Bruker BBOF probe (BrukerBioSpin, Rheinstetten, Germany). For quantitative analysis, all 1H NMR spectra were recorded by collecting 128 scans with a recycle delay time of 5 s using one 90° pulse sequence (zg) program from the Bruker pulse library. To create comparable data, all liquid-state NMR spectra were recorded under the same conditions using identical parameters. Chemical shifts were adjusted using the 4,4-dimethyl-4-Silapentane-1-Sulfonic acid (DSS) signal at 0.0 ppm as an internal chemical shift reference. The pulse duration was set to 10.5 microseconds at 35.5 watts with the spectral width set to 16 ppm, digitized with 32K points. The FID signals were amplified by an exponential line-Broadening factor of 1–5 Hz before Fourier transformation. Before recording the integration values, the phase of each spectrum was corrected manually, and the baseline was adjusted automatically using the “abs n” command.
NMR spectra of the samples dissolved in Chloroform D (purity 99.8 atom % D) purchased from Sigma-Aldrich were recorded using a Bruker 500 MHz AVANACE III NMR spectrometer equipped with Bruker CPTCI multinuclear CryoProbe (BrukerBioSpin, Rheinstetten, Germany) operating on fully automated mode. The 1H NMR spectrum was recorded by collecting 128 scans with a recycle delay time of 5 s, using one pulse sequence through a standard (zg) program from the Bruker pulse library. Chemical shifts were corrected using Tetramethylsilane (TMS) signal at 0.0 pp, as internal chemical shift reference. The duration of 90 pulse is optimized to 12 microseconds at 13.734 watts. The phase of each spectrum was corrected manually, and the baseline was adjusted automatically using “abs n” command. DSS was used for the analyses an internal reference (0.5 mM) as recommended in literature [75].

4.3.2. Solid-State NMR Analysis

For solid-state NMR analysis, plant powder was packed evenly into 4 mm zirconia rotor and sealed at the open end with a Vespel cap. The 13C solid-state NMR spectra were acquired using Bruker 600 MHz AVANACE III spectrometer equipped with a 4 mm double resonance MAS Bruker Probe (BrukerBioSpin, Rheinstetten, Germany). The spectrum was measured with a 14 kHz spinning rate using cross polarization experiment cp pulse program from the Bruker pulse library with 3ms contact time and recycle delay time of 5 s. To achieve high signal to noise ratio, the spectra were recorded by collecting at least 18k scans with recycle delay time of 30 s. The chemical shifts were corrected using adamantane signal at δ 37.7 for 13C spectra and δ 1.7 for 1H spectra as external chemical shift reference. The 1H NMR spectrum was recorded using a Bruker 600 MHz AVANACE III NMR spectrometer equipped with a 3.2 mm Bruker MAS probe (BrukerBioSpin, Rheinstetten, Germany). The spectrum was recorded with 22 kHz and 20 kHz spinning rate using adiabatic double echo refocusing (zgse.ajr) pulse program with recycle delay time of 5 s. The functional group ratios (%) were calculated for each extract based on the total sum of the following spectral integrals: (a) δ 0.7–1.129, (b) δ 1.129–1.7, (c) δ 1.7–3, (d) δ 3.15–4.5, (e) δ 4.9–6.8, (f) δ 6.8–7.8, and (g) δ 7.8–9.8.

4.4. GC–MS Analysis of E. foeminea Crude Extracts

Extract samples were centrifuged for 5 min at 4 °C and 14,000× g to remove particles, then transferred 10 μL of the supernatants in fresh tubes and dried in speed vacuum. In a fume hood, 30 μL of MOX reagent (methoxyamine HCl in pyridine, 15 mg/mL) was added to the dried samples and thermomixed (mixed with heat) at 30 °C and 600 rpm for 90 min. For extract derivatization, 50 μL of a mixture of BSTFA spiked with n-alkanes (C 8 to C 40) purchased from Supelco was added as an internal standard and thermomixed at 37 °C and 600 rpm for 30 min to form trimethylsilyl (TMS) derivatives. The samples were then centrifuged at room temperature for 5 min at 14,000× g to sediment any particles, and 30 μL of the supernatants was then transferred into amber GC vials for analysis.
The triple quadrupole mass spectrometer system (Agilent 7010B) was coupled with GC (Agilent 7890). The electron ion (EI) source was operated at electron energy of 70 ev with temperature set at 230 °C and mass analyzer temperature set at 150 °C. The scan range was set 50–700 Da with scan time of 106 ms and the GC inlet and transfer line temperatures were set at 250 °C and 320 °C, respectively. Helium was utilized as the carrier gas at a constant flow rate of 1.0 mL min1. The derivatized solution of each sample (1 µL) was injected in a splitless mode into the GC inlet using an autosampler and analyzed in full MS scan with a solvent delay of 8 min. Compounds were separated on a DB-5MS fused silica capillary column (30 m × 0.25 mm I.D., 0.25-µm film thickness; Agilent J&W Scientific, Folsom, CA, USA) with 5% phenyl methylpolysiloxane cross-linked stationary phase. The initial oven temperature was held at 70 °C for 4 min, then ramped to 330 °C at a rate of 6.0 °C min−1, and, finally, held at 330 °C for 5 min. The total analysis time was 52 min.

4.5. LC–MS Analysis of E. foeminea Crude Extracts

The untargeted screening and metabolomics study of the five different solvent E. foeminea crude extracts were performed using ultra-high-pressure liquid chromatography coupled to Orbitrap ID-X mass spectrometer (UHPLC-Orbitrap ID-X MS). Samples were prepared for analysis by transferring 0.5 mL of each extract into an Eppendorf tube and completely dried under speed vacuum before reconstituting the dried extracts in 1 mL of Acetonitrile (purity ≥ 99.9%) purchased from Sigma-Aldrich for analysis. Reserpine was used as ACL quality control. The Orbitrap ID-X is a mass spectrometer that contains three mass analyzers, which was used to analyze the mass-to-charge ratio (m/z) of the studied molecules. The Orbitrap IDX spectrometer could reach a high resolution (>120,000) and reliable mass accuracy (<3 ppm mass error). The Mass spectrometer was calibrated using a purchasable “Calibration Mix ESI (Thermo Scientific)” in accordance with the manufacturer’s guidelines. Electrospray ionization in positive (ESI+) and negative (ESI−) modes were applied for the studied compounds and the following parameters were applied: vaporized temperature = 100 °C, voltage = 3500 V, sheath gas = 30, auxiliary gas: 15, ion source fragmentation = 35 V, and capillary temperature = 300 °C. An amount of 10 µL of each sample was injected through a loop injection to a C18 column (Acquity CSH 100 × 2.1 mm, 1.7 µm) using an independent UPLC pump. The samples were automatically infused (5 µL each) through the UHPLC system with the use of the C18 column for the separation. The flow rate was set to 0.5 mL/min and a gradient of 15 min was applied for the separation.

4.6. The 2,2′-azino-bis(3-ethylbenzothiazoline-6-sulfonic acid (ABTS) Radical Cation Assay of E. foeminea Crude Extracts

ABTS (Diammonium 2,2′-Azinobis [3-ethyl-2,3-dihydrobenzothiazole-6-sulfonate]) Ultra Pure (purity ≥ 98.5%) purchased from VWR Chemicals and potassium persulfate (purity ≥ 99.0%) purchased from Honeywell Fluka were dissolved in deionized water to make a 7 mM solution and 2.45 mM solution, respectively. To produce the ABTS free radical cation, the solutions were mixed and incubated in the dark at room temperature for 12 to 16 h. The free radical solution of ABTS was diluted before use with ethanol (purity ≥ 99.8%) purchased from Riedel-de Haen to an absorbance of 0.7 at 734 nm for the assay. Reaction mixtures of 200 µL volume were formed in the wells of 96 well microplates, by mixing 10 µL of each plant extract in different concentrations with 190 µL diluted ABTS working solution as triplicates and incubated for 10 min in the dark at room temperature. After incubation, the absorbance was recorded at 734 nm. The results were compared with the control wells which contained 200 µL of the diluted ABTS working solution instead of plant extracts. The positive control was ascorbic acid in concentrations (1, 3, 5, 10, and 30 µg/mL). The ABTS radical scavenging was calculated as percent (%) disappearance of the deep blue color as follows:
{(absorbance of control − absorbance of samples)/absorbance of the control} × 100.
The IC50 of the plant extracts were calculated from a linear regression curve of (%) radical scavenging against concentrations of the extracts (µg/mL), and extrapolation from the equation of the curve, y = mx + c. Where y is IC50 = 50, m is the gradient of the curve, x is the concentration and c is the intercept on y axis.

4.7. Statistical and Multivariate Analysis and Data Processing

For LC–MS, AcquireX Deep Scan on pooled sample workflow was used as an intelligent data-dependent Automated MSn data acquisition of all precursor ions. Automated AcquireX background exclusion and inclusion lists were generated. MS/MS data were automatically acquired on the pooled sample for identification only for comprehensive fragmentation of sample relevant compounds. Compound discoverer version 3.1 (Thermo Fisher Scientific, Bremen, Germany) was used to treat and process the LC–MS data using the following workflow: Untargeted Metabolomics workflow to find and identify the differences between samples, visualized by the multivariate statistical tool PCA. Retention time alignment and unknown compound detection was performed using mzcloud spectral library (ddMS2) and local compound databases (exact mass or formula). Metabolite set enrichment analysis (MSEA) including Over Representation Analysis (ORA) carried out using on GC–MS data using MetaboAnalyst 5.0 online software (https://www.metaboanalyst.ca/MetaboAnalyst/home.xhtml, accessed on 20 February 2022) based on enrichment analysis by inputting the compound names lists, which were identified through raw data processing by the open-access metabolomics software MSDIAL 4.80 (http://prime.psc.riken.jp/compms/msdial/main.html, accessed on 20 February 2022). The raw data was converted from the original file format (.raw) into the common file format (.abf) which could better match the MSDIAL software by a Reifycs Abf (Analysis Base File) Converter. Moreover, the compound name lists obtained through MSDIAL were also analyzed using Venn diagrams via the open-source Venn diagram creation tool (https://bioinformatics.psb.ugent.be/webtools/Venn/, accessed on 19 March 2022). Agilent MassHunter Workstation software (B.08.00) was used to tentatively identify any remaining unknown compounds from the GC–MS data by matching the spectra to those stored in National Institute of Standards and Technology library (NIST14). ChemOnt (ClassyFire) (http://classyfire.wishartlab.com/tax_nodes, accessed on 22 April 2022) ontology was used to classify and reference chemical classes. Bruker Topspin 3.5pl7 software (Bruker BioSpin, Rheinstetten, Germany) was used for 1H and 13C NMR data collection and spectral post-processing. Pearson correlation coefficients (r) between concentrations and % radical scavenging activity were calculated. The graphical abstract was created using web-based application BioRender (https://www.biorender.com, accessed on 24 April 2022). GraphPad Prism version 9.3. for Windows (GraphPad Software, San Diego, California USA) was used to create figures. Chenomx Profiler (Chenomx Suite 9.0, Edmonton, AB, Canada) software was used to highlight several NMR peak assignments.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/metabo12050451/s1, Figure S1: (a) 1H NMR 1D spectrum of E. foeminea acetone extract recorded using 600 MHz liquid-state NMR and dissolved in D2O; (b) extended region of CH3 and CH2 mainly CH3 of amino acids (δ 3–0); (c) polysaccharides extended region (δ 4.5–3); (d) aromatic region.; Figure S2: (a) 1H NMR 1D spectrum of E. foeminea dichloromethane/methanol extract recorded using 600 MHz liquid-state NMR and dissolved in D2O; (b) extended region of CH3 and CH2 mainly CH3 of amino acids (δ 3–0); (c) polysaccharides extended region (δ 4.5–3); (d) aromatic region; Figure S3: (a) 1H NMR 1D spectrum of E. foeminea ethanol extract recorded using 600 MHz liquid-state NMR and dissolved in D2O; (b) extended region of CH3 and CH2 mainly CH3 of amino acids (δ 3–0); (c) polysaccharides extended region (δ 4.5–3); (d) aromatic region; Figure S4: (a) 1H NMR 1D spectrum of E. foeminea ethyl acetate extract recorded using 600 MHz liquid-state NMR and dissolved in D2O; (b) extended region of CH3 and CH2 mainly CH3 of amino acids (δ 3–0); (c) polysaccharides extended region (δ 4.5–3); (d) aromatic region; Figure S5: (a) 1H NMR 1D spectrum of E. foeminea methanol extract recorded using 600 MHz liquid-state NMR and dissolved in D2O; (b) extended region of CH3 and CH2 mainly CH3 of amino acids (δ 3–0); (c) polysaccharides extended region (δ 4.5–3); (d) aromatic region; Figure S6: (a) 1H NMR 1D spectrum of E. foeminea acetone extract recorded using 500 MHz liquid-state NMR and dissolved in CDCl3; (b) extended region of CH3 and CH2 mainly CH3 of amino acids (δ 3–0); (c) polysaccharides extended region (δ 4.5–3); (d) aromatic region; Figure S7: (a) 1H NMR 1D spectrum of E. foeminea dichloromethane/methanol extract recorded using 500 MHz liquid-state NMR and dissolved in CDCl3; (b) extended region of CH3 and CH2 mainly CH3 of amino acids (δ 3–0); (c) polysaccharides extended region (δ 4.5–3); (d) aromatic region; Figure S8: (a) 1H NMR 1D spectrum of E. foeminea ethanol extract recorded using 500 MHz liquid-state NMR and dissolved in CDCl3; (b) extended region of CH3 and CH2 mainly CH3 of amino acids (δ 3–0); (c) polysaccharides extended region (δ 4.5–3); (d) aromatic region; Figure S9: (a) 1H NMR 1D spectrum of E. foeminea ethanol extract recorded using 500 MHz liquid-state NMR and dissolved in CDCl3; (b) extended region of CH3 and CH2 mainly CH3 of amino acids (δ 3–0); (c) polysaccharides extended region (δ 4.5–3); (d) aromatic region; Figure S10: (a) 1H NMR 1D spectrum of E. foeminea methanol extract recorded using 500 MHz liquid-state NMR and dissolved in CDCl3; (b) extended region of CH3 and CH2 mainly CH3 of amino acids (δ 3–0); (c) polysaccharides extended region (δ 4.5–3); (d) aromatic region; Figure S11: Typical positive mode LC–MS total ion chromatograms (TIC) of different E. foeminea crude extracts. (a) acetone; (b) dichloromethane/methanol; (c) ethanol; (d) ethyl acetate; (e) methanol; Figure S12: Typical negative mode LC–MS total ion chromatograms (TIC) of different E. foeminea crude extracts. a) acetone; (b) dichloromethane/methanol; (c) ethanol; (d) ethyl acetate; (e) methanol; Figure S13: GC–MS total ion chromatograms (TIC) of derivatized E. foeminea crude extracts using different solvents. (a) acetone; (b) dichloromethane/methanol; (c) ethanol; (d) ethyl acetate; (e) methanol.; Figure S14: (a) Over Representation Analysis (ORA) Bar chart and (b) pie chart of the chemical classification of the total metabolites identified in the E. foeminea acetone crude extract sample using GC–MS via metabolite set enrichment analysis (MSEA); Figure S15: (a) Over Representation Analysis (ORA) Bar chart and (b) pie chart of the chemical classification of the total metabolites identified in the E. foeminea dichloromethane/methanol crude extract sample using GC–MS via metabolite set enrichment analysis (MSEA); Figure S16: (a) Over Representation Analysis (ORA) Bar chart and (b) pie chart of the chemical classification of the total metabolites identified in the E. foeminea ethanol crude extract sample using GC–MS via metabolite set enrichment analysis (MSEA); Figure S17: (a) Over Representation Analysis (ORA) Bar chart and (b) pie chart of the chemical classification of the total metabolites identified in the E. foeminea ethyl acetate crude extract sample using GC–MS via metabolite set enrichment analysis (MSEA); Figure S18: (a) Over Representation Analysis (ORA) Bar chart and (b) pie chart of the chemical classification of the total metabolites identified in the E. foeminea methanol crude extract sample using GC–MS via metabolite set enrichment analysis (MSEA); Figure S19: Screenshot of Chenomx Profiler (Chenomx Suite 9.0, Alberta, Canada) software window. As shown in the figure, the peaks at δ 1.05 ppm and 0.99 ppm can be assigned to valine; Figure S20: Screenshot of Chenomx Profiler (Chenomx Suite 9.0, Alberta, Canada) software window. As shown in the figure, the doublet at δ 0.96 ppm and 0.97 ppm can be assigned to leucine; Figure S21: Screenshot of Chenomx Profiler (Chenomx Suite 9.0, Alberta, Canada) software window. As shown in the figure, the peaks at δ 1.1 ppm and 0.9 ppm can be assigned to isoleucine; Figure S22: Screenshot of Chenomx Profiler (Chenomx Suite 9.0, Alberta, Canada) software window. As shown in the figure, the peaks mainly found between δ 3.2 ppm and 3.9 ppm can be assigned to glucose; Figure S23: Screenshot of Chenomx Profiler (Chenomx Suite 9.0, Alberta, Canada) software window. As shown in the figure, the peaks mainly found between δ 3.4 ppm and 4.0 ppm can be assigned to maltose; Figure S24: Screenshot of Chenomx Profiler (Chenomx Suite 9.0, Alberta, Canada) software window. As shown in the figure, the peaks mainly found between δ 3.4 ppm and 4.9 ppm can be assigned to mannose; Figure S25: Screenshot of Chenomx Profiler (Chenomx Suite 9.0, Alberta, Canada) software window. As shown in the figure, the peaks mainly found between δ 3.5 ppm and 4.9 ppm can be assigned to ribose; Figure S26: Screenshot of Chenomx Profiler (Chenomx Suite 9.0, Alberta, Canada) software window. As shown in the figure, the peaks mainly found between δ 3.5 ppm and 4.2 ppm can be assigned to sucrose; Figure S27: 1H NMR 1D spectrum of E. foeminea methanolic extract recorded using 600 MHz liquid-NMR displaying the solvent region acquired with water suppression pulse program; Figure S28: 1H NMR 1D spectrum of E. foeminea methanolic extract recorded using 600 MHz liquid-NMR displaying the internal reference DSS region at δ 0.0 ppm; Figure S29: (a) 1H NMR 1D spectrum of E. foeminea methanolic extract recorded using 600 MHz liquid-NMR with water suppression (red) and without water suppression (blue); (b) extended region; Table S1: Identified metabolites in E. foeminea crude extracts analyzed by positive mode LC–MS. (a) acetone extract; (b) dichloromethane/methanol extract; (c) ethanol extract; (d) ethyl acetate extract; (e) methanol extract.; Table S2: Common and unique compounds identified in different E. foeminea crude extracts via Venn diagram analysis using positive ion mode LC–MS; Table S3: Identified metabolites in E. foeminea crude extracts analyzed by negative mode LC–MS. (a) acetone extract; (b) dichloromethane/methanol extract; (c) ethanol extract; (d) ethyl acetate extract; (e) methanol extract; Table S4: Common and unique compounds identified in different E. foeminea crude extracts via Venn diagram analysis using negative ion mode LC–MS; Table S5: Identified metabolites in E. foeminea crude extracts analyzed by GC–MS. (a) acetone extract; (b) dichloromethane/methanol extract; (c) ethanol extract; (d) ethyl acetate extract; (e) methanol extract.; Table S6: Common and unique compounds identified in different E. foeminea crude extracts via Venn diagram analysis using GC–MS; Table S7: Result from Over Representation Analysis (ORA) of all five E. foeminea crude extract samples; Table S8: Result from Over Representation Analysis (ORA) of different E. foeminea crude extract samples. (a) acetone extract; (b) dichloromethane/methanol extract; (c) ethanol extract; (d) ethyl acetate extract; (e) methanol extract; Table S9: Raw spectral data of E. foeminea acetone crude extract analyzed using GC–MS; Table S10: Raw spectral data of E. foeminea dichloromethane/methanol crude extract analyzed using GC–MS Table S11: Raw spectral data of E. foeminea ethanol crude extract analyzed using GC–MS; Table S12: Raw spectral data of E. foeminea ethyl acetate crude extract analyzed using GC–MS; Table S13: Raw spectral data of E. foeminea methanol crude extract analyzed using GC–MS; Table S14: Raw spectral data of E. foeminea acetone crude extract analyzed using ESI+ LC–MS; Table S15: Raw spectral data of E. foeminea dichloromethane/methanol crude extract analyzed using ESI+ LC–MS; Table S16: Raw spectral data of E. foeminea ethanol crude extract analyzed using ESI+ LC–MS; Table S17: Raw spectral data of E. foeminea ethyl acetate crude extract analyzed using ESI+ LC–MS; Table S18: Raw spectral data of E. foeminea methanol crude extract analyzed using ESI+ LC–MS; Table S19: Raw spectral data of E. foeminea acetone crude extract analyzed using ESI− LC–MS; Table S20: Raw spectral data of E. foeminea dichloromethane/methanol crude extract analyzed using ESI− LC–MS; Table S21: Raw spectral data of E. foeminea ethanol crude extract analyzed using ESI− LC–MS; Table S22: Raw spectral data of E. foeminea ethyl acetate crude extract analyzed using ESI− LC–MS; Table S23: Raw spectral data of E. foeminea methanol crude extract analyzed using ESI− LC–MS.

Author Contributions

Conceptualization, M.J.; Data curation, R.A.-N.; Formal analysis, A.A.M.; Funding acquisition, D.H. and M.J.; Investigation, R.A.-N.; Methodology, R.A.-N.: Project administration. A.A.M., D.H. and M.J.; Resources, K.S. and M.J.: Supervision, A.A.M., D.H. and M.J.; Visualization, R.A.-N.; Writing—original draft, R.A.-N.; Writing—review & editing, A.A.M., D.H. and M.J. All authors have read and agreed to the published version of the manuscript.

Funding

The authors extend their appreciation to the Deputyship for Research & Innovation, Ministry of Education in Saudi Arabia: MoE-IF-20-02/11; M.J. would like to thank KAUST and Smart Health Initiative for financial support: 4447.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article or Supplementary Material.

Acknowledgments

We would like to thank Abdel-Hamid Emwas, Najeh Kharbatia, Salim Sioud (Core Labs, KAUST, Thuwal, Saudi Arabia) and Inas Al-Younis for aiding in technical support and data analysis.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Sher, A.A.; Iqbal, A.; Muhammad, N.; Badshah, S.L.; Emwas, A.-H.; Jaremko, M. Prokinetic and Laxative Effects of Chrozophora tinctoria Whole Plant Extract. Molecules 2022, 27, 2143. [Google Scholar] [CrossRef] [PubMed]
  2. Hijazi, M.A.; Hijazi, K.; Bouhadir, K.; Fatfat, Z.; Aboul-Ela, M.; Gali-Muhtasib, H.; El-Lakany, A. Anticancer activity of abietane diterpenoids from Salvia libanoticum grown in Lebanon. Pharmacogn. Mag. 2021, 17, 127. [Google Scholar] [CrossRef]
  3. Aziz, F.T.A.; Sanad, F.A.A.; Temraz, A.; El-Tantawy, W.H.; Hassan, M.A. Study of cardioprotective activity of the methanolic extract of the aerial parts of Bauhinia madagascariensis compared to Bauhinia purpurea against adrenaline-induced myocardial toxicity in rats. Drug Chem. Toxicol. 2021, 24, 1–11. [Google Scholar] [CrossRef] [PubMed]
  4. Malek, A.; Sadaka, M.W.M.; Hamo, S.; Al-Mahbashi, H.M. Evaluation of Antidiabetic Activity of Rosmarinus officinalis var. prostratus Growing in Syria in Alloxan Diabetic Rats. Curr. Bioact. Compd. 2020, 17, 187–193. [Google Scholar] [CrossRef]
  5. Ibragic, S.; Sofić, E. Chemical composition of various Ephedra species. Bosn. J. Basic Med. Sci. 2015, 15, 21. [Google Scholar] [CrossRef] [Green Version]
  6. Leung, A.Y.; Foster, S. Encyclopedia of Common Natural Ingredients Used in Food, Drugs, and Cosmetics, 2nd ed.; John Wiley & Sons Inc.: New York, NY, USA, 1996; ISBN 0-532-42154-5. [Google Scholar]
  7. Ben-Arye, E.; Mahajna, J.; Aly, R.; Ali-Shtayeh, M.S.; Bentur, Y.; Lev, E.; Deng, G.; Samuels, N. Exploring an herbal “wonder cure” for cancer: A multidisciplinary approach. J. Cancer Res. Clin. Oncol. 2016, 142, 1499–1508. [Google Scholar] [CrossRef] [Green Version]
  8. Zhu, Y.; Yin, Q.; Yang, Y. Comprehensive Investigation of Moringa oleifera from Different Regions by Simultaneous Determination of 11 Polyphenols Using UPLC-ESI-MS/MS. Molecules 2020, 25, 676. [Google Scholar] [CrossRef] [Green Version]
  9. Steenkamp, P.A.; Steenkamp, L.H. UPLC–MS profiling, identification of major peaks and comparison of Harpagophytum procumbens extracts from different locations. S. Afr. J. Bot. 2019, 124, 138–143. [Google Scholar] [CrossRef]
  10. Rafi, M.; Meitary, N.; Septaningsih, D.A.; Bintang, M. Phytochemical Profile and Antioxidant Activity of Guazuma ulmifolia Leaves Extracts Using Different Solvent Extraction. Res. Artic. Indones. J. Pharm. Indones. J. Pharm 2020, 31, 171–180. [Google Scholar] [CrossRef]
  11. Sharma, S.; Kumari, A.; Dhatwalia, J.; Guleria, I.; Lal, S.; Upadhyay, N.; Kumar, V.; Kumar, A. Effect of solvents extraction on phytochemical profile and biological activities of two Ocimum species: A comparative study. J. Appl. Res. Med. Aromat. Plants 2021, 25, 100348. [Google Scholar] [CrossRef]
  12. Salem, M.A.; De Souza, L.P.; Serag, A.; Fernie, A.R.; Farag, M.A.; Ezzat, S.M.; Alseekh, S. Metabolomics in the Context of Plant Natural Products Research: From Sample Preparation to Metabolite Analysis. Metabolites 2020, 10, 37. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Mellado, M.; Soto, M.; Madrid, A.; Montenegro, I.; Jara-Gutiérrez, C.; Villena, J.; Werner, E.; Godoy, P.; Aguilar, L.F. In vitro antioxidant and antiproliferative effect of the extracts of Ephedra chilensis K Presl aerial parts. BMC Complement. Altern. Med. 2019, 19, 53. [Google Scholar] [CrossRef] [PubMed]
  14. Gul, R.; Jan, S.U.; Faridullah, S.; Sherani, S.; Jahan, N. Preliminary Phytochemical Screening, Quantitative Analysis of Alkaloids, and Antioxidant Activity of Crude Plant Extracts from Ephedra intermedia Indigenous to Balochistan. Sci. World J. 2017, 2017, 7. [Google Scholar] [CrossRef] [Green Version]
  15. Al-Rimawi, F.; Abu-Lafi, S.; Abbadi, J.; Alamarneh, A.A.A.; Sawahreh, R.A.; Odeh, I. Analysis of phenolic and flavonoids of wild Ephedra alata plant extracts by LC/PDA and LC/MS and their antioxidant activity. Afr. J. Tradit. Complement. Altern. Med. 2017, 14, 130–141. [Google Scholar] [CrossRef] [PubMed]
  16. Soumaya, B.; Yosra, E.; Rim, B.M.; Sarra, D.; Sawsen, S.; Sarra, B.; Kamel, M.; Wissem, A.W.; Isoda, H.; Wided, M.K. Preliminary phytochemical analysis, antioxidant, anti-inflammatory and anticancer activities of two Tunisian Ephedra species: Ephedra alata and Ephedra fragilis. S. Afr. J. Bot. 2020, 135, 421–428. [Google Scholar] [CrossRef]
  17. Bharti, S.K.; Roy, R. Quantitative 1H NMR spectroscopy. TrAC Trends Anal. Chem. 2012, 35, 5–26. [Google Scholar] [CrossRef]
  18. Emwas, A.H.; Roy, R.; McKay, R.T.; Ryan, D.; Brennan, L.; Tenori, L.; Luchinat, C.; Gao, X.; Zeri, A.C.; Gowda, G.A.N.; et al. Recommendationsand Standardization of Biomarker QuantificationUsing NMR-Based Metabolomics with Particular Focus on Urinary Analysis. J. Proteome Res. 2016, 15, 360–373. [Google Scholar] [CrossRef] [Green Version]
  19. Emwas, A.H.; Saccenti, E.; Gao, X.; McKay, R.T.; dos Santos, V.A.P.M.; Roy, R.; Wishart, D.S. Recommended strategies for spectral processing and post-processing of 1D 1 H-NMR data of biofluids with a particular focus on urine. Metabolomics 2018, 14, 31. [Google Scholar] [CrossRef] [Green Version]
  20. Qureshi, K.A.; Bholay, A.D.; Rai, P.K.; Mohammed, H.A.; Khan, R.A.; Azam, F.; Jaremko, M.; Emwas, A.H.; Stefanowicz, P.; Waliczek, M.; et al. Isolation, characterization, anti-MRSA evaluation, and in-silico multi-target anti-microbial validations of actinomycin X2 and actinomycin D produced by novel Streptomyces smyrnaeus UKAQ_23. Sci. Rep. 2021, 11, 14539. [Google Scholar] [CrossRef]
  21. Emwas, A.H.M.; Al-Rifai, N.; Szczepski, K.; Alsuhaymi, S.; Rayyan, S.; Almahasheer, H.; Jaremko, M.; Brennan, L.; Lachowicz, J.I. You Are What You Eat: Application of Metabolomics Approaches to Advance Nutrition Research. Foods 2021, 10, 1249. [Google Scholar] [CrossRef]
  22. Mohammed, S.A.A.; Khan, R.A.; El-readi, M.Z.; Emwas, A.H.; Sioud, S.; Poulson, B.G.; Jaremko, M.; Eldeeb, H.M.; Al-omar, M.S.; Mohammed, H.A. Suaeda vermiculata Aqueous-Ethanolic Extract-Based Mitigation of CCl 4-Induced Hepatotoxicity in Rats, and HepG-2 and HepG-2/ADR Cell-Lines-Based Cytotoxicity Evaluations. Plants 2020, 9, 1291. [Google Scholar] [CrossRef] [PubMed]
  23. Abdul Jameel, A.G.; Elbaz, A.M.; Emwas, A.H.; Roberts, W.L.; Sarathy, S.M. Calculation of Average Molecular Parameters, Functional Groups, and a Surrogate Molecule for Heavy Fuel Oils Using 1H and 13C Nuclear Magnetic Resonance Spectroscopy. Energy Fuels 2016, 30, 3894–3905. [Google Scholar] [CrossRef] [Green Version]
  24. Abdul Jameel, A.G.; Van Oudenhoven, V.; Emwas, A.H.; Sarathy, S.M. Predicting Octane Number Using Nuclear Magnetic Resonance Spectroscopy and Artificial Neural Networks. Energy Fuels 2018, 32, 6309–6329. [Google Scholar] [CrossRef] [Green Version]
  25. Abdul Jameel, A.G.; Naser, N.; Emwas, A.H.; Dooley, S.; Sarathy, S.M. Predicting Fuel Ignition Quality Using 1H NMR Spectroscopy and Multiple Linear Regression. Energy Fuels 2016, 30, 9819–9835. [Google Scholar] [CrossRef]
  26. Tiziani, S.; Emwas, A.H.; Lodi, A.; Ludwig, C.; Bunce, C.M.; Viant, M.R.; Günther, U.L. Optimized metabolite extraction from blood serum for 1H nuclear magnetic resonance spectroscopy. Anal. Biochem. 2008, 377, 16–23. [Google Scholar] [CrossRef]
  27. Rehman, Z.U.; Jeong, S.; Tabatabai, S.; Emwas, A.H.; Leiknes, T. Advanced characterization of dissolved organic matter released by bloom-forming marine algae. Desalin. Water Treat. 2017, 69, 1–11. [Google Scholar] [CrossRef] [Green Version]
  28. Abdul Jameel, A.G.; Naser, N.; Emwas, A.H.; Sarathy, S.M. Surrogate formulation for diesel and jet fuels using the minimalist functional group (MFG) approach. Proc. Combust. Inst. 2019, 37, 4663–4671. [Google Scholar] [CrossRef]
  29. Li, S.; Winters, H.; Villacorte, L.O.; Ekowati, Y.; Emwas, A.H.; Kennedy, M.D.; Amy, G.L. Compositional similarities and differences between transparent exopolymer particles (TEPs) from two marine bacteria and two marine algae: Significance to surface biofouling. Mar. Chem. 2015, 174, 131–140. [Google Scholar] [CrossRef] [Green Version]
  30. Gonzalez-Gil, G.; Thomas, L.; Emwas, A.H.; Lens, P.N.L.; Saikaly, P.E. NMR and MALDI-TOF MS based characterization of exopolysaccharides in anaerobic microbial aggregates from full-scale reactors. Sci. Rep. 2015, 5, 14316. [Google Scholar] [CrossRef] [Green Version]
  31. Emwas, A.H.M.; Al-Talla, Z.A.; Guo, X.; Al-Ghamdi, S.; Al-Masri, H.T. Utilizing NMR and EPR spectroscopy to probe the role of copper in prion diseases. Magn. Reson. Chem. 2013, 51, 255–268. [Google Scholar] [CrossRef]
  32. Nageeb, A.; Al-Tawashi, A.; Emwas, A.-H.M.; Al-Talla, Z.A.-H.; Al-Rifai, N. Comparison of Artemisia annua Bioactivities between Traditional Medicine and Chemical Extracts. Curr. Bioact. Compd. 2013, 9, 324–332. [Google Scholar] [CrossRef] [PubMed]
  33. Emwas, A.H.; Szczepski, K.; Poulson, B.G.; Chandra, K.; McKay, R.T.; Dhahri, M.; Alahmari, F.; Jaremko, L.; Lachowicz, J.I.; Jaremko, M. NMR as a “gold standard” method in drug design and discovery. Molecules 2020, 25, 4597. [Google Scholar] [CrossRef] [PubMed]
  34. Alahmari, F.; Davaasuren, B.; Emwas, A.H.; Costa, P.M.; Rothenberger, A. Tris(ethylenediamine)nickel(II) thio-hydroxogermanate monohydrate: Synthesis, crystal structure, 1H NMR, EPR, optical and magnetic properties. Inorg. Chim. Acta 2019, 488, 145–151. [Google Scholar] [CrossRef]
  35. Dhahri, M.; Sioud, S.; Dridi, R.; Hassine, M.; Boughattas, N.A.; Almulhim, F.; Al Talla, Z.; Jaremko, M.; Emwas, A.H.M. Extraction, Characterization, and Anticoagulant Activity of a Sulfated Polysaccharide from Bursatella leachii Viscera. ACS Omega 2020, 5, 14786–14795. [Google Scholar] [CrossRef] [PubMed]
  36. Chisca, S.; Duong, P.H.H.; Emwas, A.H.; Sougrat, R.; Nunes, S.P. Crosslinked copolyazoles with a zwitterionic structure for organic solvent resistant membranes. Polym. Chem. 2014, 6, 543–554. [Google Scholar] [CrossRef]
  37. Azaizeh, H.; Saad, B.; Khalil, K.; Said, O. The state of the art of traditional Arab herbal medicine in the Eastern region of the Mediterranean: A review. Evid. Based Complement. Altern. Med. 2006, 3, 229–235. [Google Scholar] [CrossRef] [PubMed]
  38. Dowlath, M.; Karuppannan, S.K.; Darul, R.; Mohamed, K.; Subramanian, S.; Arunachalam, K.D. Effect of Solvents on Phytochemical Composition and Antioxidant Activity of Cardiospermum halicacabum (L.) Extracts. Pharmacogn. J. 2020, 12, 1241–1251. [Google Scholar] [CrossRef]
  39. Zhu, Z.; Shi, Z.; Xie, C.; Gong, W.; Hu, Z.; Peng, Y. A novel mechanism of Gamma-aminobutyric acid (GABA) protecting human umbilical vein endothelial cells (HUVECs) against H2O2-induced oxidative injury. Comp. Biochem. Physiol. Part C Toxicol. Pharmacol. 2019, 217, 68–75. [Google Scholar] [CrossRef]
  40. Filip, E.; Ungureanu, N.; Filip, C.; Danciu, C. Effects of Valine and Leucine on Some Antioxidant Enzymes in Hypercholesterolemic Rats. Health 2014, 6, 2313–2321. [Google Scholar] [CrossRef] [Green Version]
  41. Huang, L.; Fang, Z.; Gao, J.; Wang, J.; Li, Y.; Sun, L.; Wang, Y.; Liao, J.; Gooneratne, R. Protective role of l-threonine against cadmium toxicity in Saccharomyces cerevisiae. J. Basic Microbiol. 2021, 61, 339–350. [Google Scholar] [CrossRef]
  42. Kaul, S.; Sharma, S.S.; Mehta, I.K. Free radical scavenging potential of L-proline: Evidence from in vitro assays. Amin. Acids 2006, 34, 315–320. [Google Scholar] [CrossRef] [PubMed]
  43. Sinha, T.; Ikelle, L.; Naash, M.I.; Al-Ubaidi, M.R. The Intersection of Serine Metabolism and Cellular Dysfunction in Retinal Degeneration. Cells 2020, 9, 674. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Truffin, D.; Häusler, O.; Blouet, E.; Ramnath, M.; Martin, M.; Cotier, S. Determination of antioxidant effect of polyols in a cell free environment. In Proceedings of the 12th World Meeting on Pharmaceutics, Biopharmaceutics and Pharmaceutical Technology, Vienna, Austria, 11–14 May 2021; p. 1. [Google Scholar]
  45. Nascimento, N.R.F.; Lessa, L.M.A.; Kerntopf, M.R.; Sousa, C.M.; Alves, R.S.; Queiroz, M.G.R.; Price, J.; Heimark, D.B.; Larner, J.; Du, X.; et al. Inositols prevent and reverse endothelial dysfunction in diabetic rat and rabbit vasculature metabolically and by scavenging superoxide. Proc. Natl. Acad. Sci. USA 2006, 103, 218–223. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. den Hartog, G.J.M.; Boots, A.W.; Adam-Perrot, A.; Brouns, F.; Verkooijen, I.W.C.M.; Weseler, A.R.; Haenen, G.R.M.M.; Bast, A. Erythritol is a sweet antioxidant. Nutrition 2010, 26, 449–458. [Google Scholar] [CrossRef] [PubMed]
  47. Zhang, D.; Nie, S.; Xie, M.; Hu, J. Antioxidant and antibacterial capabilities of phenolic compounds and organic acids from Camellia oleifera cake. Food Sci. Biotechnol. 2019, 29, 17–25. [Google Scholar] [CrossRef] [PubMed]
  48. Lugo-Huitrón, R.; Blanco-Ayala, T.; Ugalde-Muñiz, P.; Carrillo-Mora, P.; Pedraza-Chaverrí, J.; Silva-Adaya, D.; Maldonado, P.D.; Torres, I.; Pinzón, E.; Ortiz-Islas, E.; et al. On the antioxidant properties of kynurenic acid: Free radical scavenging activity and inhibition of oxidative stress. Neurotoxicol. Teratol. 2011, 33, 538–547. [Google Scholar] [CrossRef]
  49. Passi, S.; Picardo, M.; Zompetta, C.; de Luca, C.; Breathnach, A.S.; Nazzaro-porro, M. The Oxyradical-Scavenging Activity of Azelaic Acid in Biological Systems. Free Radic. Res. Commun. 1991, 15, 17–28. [Google Scholar] [CrossRef]
  50. Wang, J.; Zhang, Y.; Fang, Z.; Sun, L.; Wang, Y.; Liu, Y.; Xu, D.; Nie, F.; Gooneratne, R. Oleic Acid Alleviates Cadmium-Induced Oxidative Damage in Rat by Its Radicals Scavenging Activity. Biol. Trace Elem. Res. 2019, 190, 95–100. [Google Scholar] [CrossRef]
  51. Henry, G.E.; Momin, R.A.; Nair, M.G.; Dewitt, D.L. Antioxidant and Cyclooxygenase Activities of Fatty Acids Found in Food. J. Agric. Food Chem. 2002, 50, 2231–2234. [Google Scholar] [CrossRef]
  52. Al-Saraireh, Y.M.; Youssef, A.M.; Alshammari, F.O.; Al-Sarayreh, S.A.; Al-Shuneigat, J.M.; Alrawashdeh, H.M.; Mahgoub, S.S. Phytochemical characterization and anti-cancer properties of extract of Ephedra foeminea (Ephedraceae) aerial parts. Trop. J. Pharm. Res. 2021, 20, 1675–1681. [Google Scholar] [CrossRef]
  53. Saha, S.S.; Ghosh, M. Comparative study of antioxidant activity of α-eleostearic acid and punicic acid against oxidative stress generated by sodium arsenite. Food Chem. Toxicol. 2009, 47, 2551–2556. [Google Scholar] [CrossRef] [PubMed]
  54. Liu, D.K.; Xu, C.C.; Zhang, L.; Ma, H.; Chen, X.J.; Sui, Y.C.; Zhang, H.Z. Evaluation of bioactive components and antioxidant capacity of four celery (Apium graveolens L.) leaves and petioles. Int. J. Food Prop. 2020, 23, 1097–1109. [Google Scholar] [CrossRef]
  55. Njus, D.; Kelley, P.M.; Tu, Y.J.; Schlegel, H.B. Ascorbic acid: The chemistry underlying its antioxidant properties. Free Radic. Biol. Med. 2020, 159, 37–43. [Google Scholar] [CrossRef] [PubMed]
  56. Harisaranraj, R.; Suresh, K.; Saravanababu, S. Evaluation of the Chemical Composition Rauwolfia serpentina and Ephedra vulgaris. Adv. Biol. Res. 2009, 3, 174–178. [Google Scholar]
  57. Mohamadi, N.; Sharififar, F.; Pournamdari, M.; Ansari, M. A Review on Biosynthesis, Analytical Techniques, and Pharmacological Activities of Trigonelline as a Plant Alkaloid. J. Diet. Suppl. 2017, 15, 207–222. [Google Scholar] [CrossRef]
  58. Li, L.; Sun, L.; Qiu, Y.; Zhu, W.; Hu, K.; Mao, J. Protective Effect of Stachydrine Against Cerebral Ischemia-Reperfusion Injury by Reducing Inflammation and Apoptosis Through P65 and JAK2/STAT3 Signaling Pathway. Front. Pharmacol. 2020, 11, 64. [Google Scholar] [CrossRef] [Green Version]
  59. González-Juárez, D.E.; Escobedo-Moratilla, A.; Flores, J.; Hidalgo-Figueroa, S.; Martínez-Tagüeña, N.; Morales-Jiménez, J.; Muñiz-Ramírez, A.; Pastor-Palacios, G.; Pérez-Miranda, S.; Ramírez-Hernández, A.; et al. A Review of the Ephedra genus: Distribution, Ecology, Ethnobotany, Phytochemistry and Pharmacological Properties. Molecules 2020, 25, 3283. [Google Scholar] [CrossRef]
  60. Elhadef, K.; Smaoui, S.; Fourati, M.; Ben Hlima, H.; Chakchouk Mtibaa, A.; Sellem, I.; Ennouri, K.; Mellouli, L. A Review on Worldwide Ephedra History and Story: From Fossils to Natural Products Mass Spectroscopy Characterization and Biopharmacotherapy Potential. Evid. Based Complement. Altern. Med. 2020, 2020, 22. [Google Scholar] [CrossRef]
  61. Mighri, H.; Akrout, A.; Bennour, N.; Eljeni, H.; Zammouri, T.; Neffati, M. LC/MS method development for the determination of the phenolic compounds of Tunisian Ephedra alata hydro-methanolic extract and its fractions and evaluation of their antioxidant activities. S. Afr. J. Bot. 2019, 124, 102–110. [Google Scholar] [CrossRef]
  62. Mathew, S.; Abraham, T.E.; Zakaria, Z.A. Reactivity of phenolic compounds towards free radicals under in vitro conditions. J. Food Sci. Technol. 2015, 52, 5790–5798. [Google Scholar] [CrossRef] [Green Version]
  63. Sarker, U.; Oba, S. Polyphenol and flavonoid profiles and radical scavenging activity in leafy vegetable Amaranthus gangeticus. BMC Plant Biol. 2020, 20, 1–12. [Google Scholar] [CrossRef] [PubMed]
  64. Al-Amiery, A.; Al-Majedy, Y.; Kadhum, A.A.; Bakarmohamad, A. Antioxidant Activity of Coumarins A Multifaceted Review Journal in the field of Pharmacy. Syst. Rev. Pharm. 2016, 8, 24–30. [Google Scholar] [CrossRef]
  65. Mariadoss, A.V.A.; Vinyagam, R.; Rajamanickam, V.; Sankaran, V.; Venkatesan, S.; David, E. Pharmacological Aspects and Potential Use of Phloretin: A Systemic Review. Mini-Reviews Med. Chem. 2019, 19, 1060–1067. [Google Scholar] [CrossRef] [PubMed]
  66. Dugasani, S.; Pichika, M.R.; Nadarajah, V.D.; Balijepalli, M.K.; Tandra, S.; Korlakunta, J.N. Comparative antioxidant and anti-inflammatory effects of [6]-gingerol, [8]-gingerol, [10]-gingerol and [6]-shogaol. J. Ethnopharmacol. 2010, 127, 515–520. [Google Scholar] [CrossRef]
  67. Abdulai, I.L.; Kwofie, S.K.; Gbewonyo, W.S.; Boison, D.; Puplampu, J.B.; Adinortey, M.B. Multitargeted Effects of Vitexin and Isovitexin on Diabetes Mellitus and Its Complications. Sci. World J. 2021, 2021, 1–20. [Google Scholar] [CrossRef]
  68. Wang, Q.; Yang, Y.; Zhao, X.; Zhu, B.; Nan, P.; Zhao, J.; Wang, L.; Chen, F.; Liu, Z.; Zhong, Y. Chemical variation in the essential oil ofEphedra sinica from Northeastern China. Food Chem. 2006, 98, 52–58. [Google Scholar] [CrossRef]
  69. Made Pitri Susanti, N.; Kadek Warditiani, N.; Made Agus Gelgel Wirasuta, I. Antioxidant activity test of andrographolide in bitter herbs using DPPH scavenging. J. Health Sci. Med. 2017, 1, 9–11. [Google Scholar] [CrossRef] [Green Version]
  70. Ren, Y.; Wang, C.; Xu, J.; Wang, S. Cafestol and Kahweol: A Review on Their Bioactivities and Pharmacological Properties. Int. J. Mol. Sci. 2019, 20, 4238. [Google Scholar] [CrossRef] [Green Version]
  71. Kandagatla, S.K.; Uhl, R.T.; Graf, T.N.; Oberlies, N.H.; Raner, G.M. Pheophorbide Derivatives Isolated from Açaí Berries (Euterpea oleracea) Activate an Antioxidant Response Element In Vitro. Nat. Prod. Commun. 2019, 14, 1–6. [Google Scholar] [CrossRef] [Green Version]
  72. Saide, A.; Lauritano, C.; Ianora, A. Pheophorbide a: State of the Art. Mar. Drugs 2020, 18, 257. [Google Scholar] [CrossRef]
  73. Sri Widyawati, P.; Dwi Wibawa Budianta, T.; Anggraeni Kusuma, F.; Livia Wijaya, E. Difference of Solvent Polarity to Phytochemical Content and Antioxidant Activity of Pluchea indicia Less Leaves Extracts. Int. J. Pharmacogn. Phytochem. Res. 2014, 6, 850–855. [Google Scholar]
  74. Khalil, M.; Khalifeh, H.; Saad, F.; Serale, N.; Salis, A.; Damonte, G.; Lupidi, G.; Daher, A.; Vergani, L. Protective effects of extracts from Ephedra foeminea Forssk fruits against oxidative injury in human endothelial cells. J. Ethnopharmacol. 2020, 260, 112976. [Google Scholar] [CrossRef] [PubMed]
  75. Emwas, A.H.; Luchinat, C.; Turano, P.; Tenori, L.; Roy, R.; Salek, R.M.; Ryan, D.; Merzaban, J.S.; Kaddurah-Daouk, R.; Zeri, A.C.; et al. Standardizing the experimental conditions for using urine in NMR-based metabolomic studies with a particular focus on diagnostic studies: A review. Metabolomics 2015, 11, 872–894. [Google Scholar] [CrossRef] [PubMed] [Green Version]

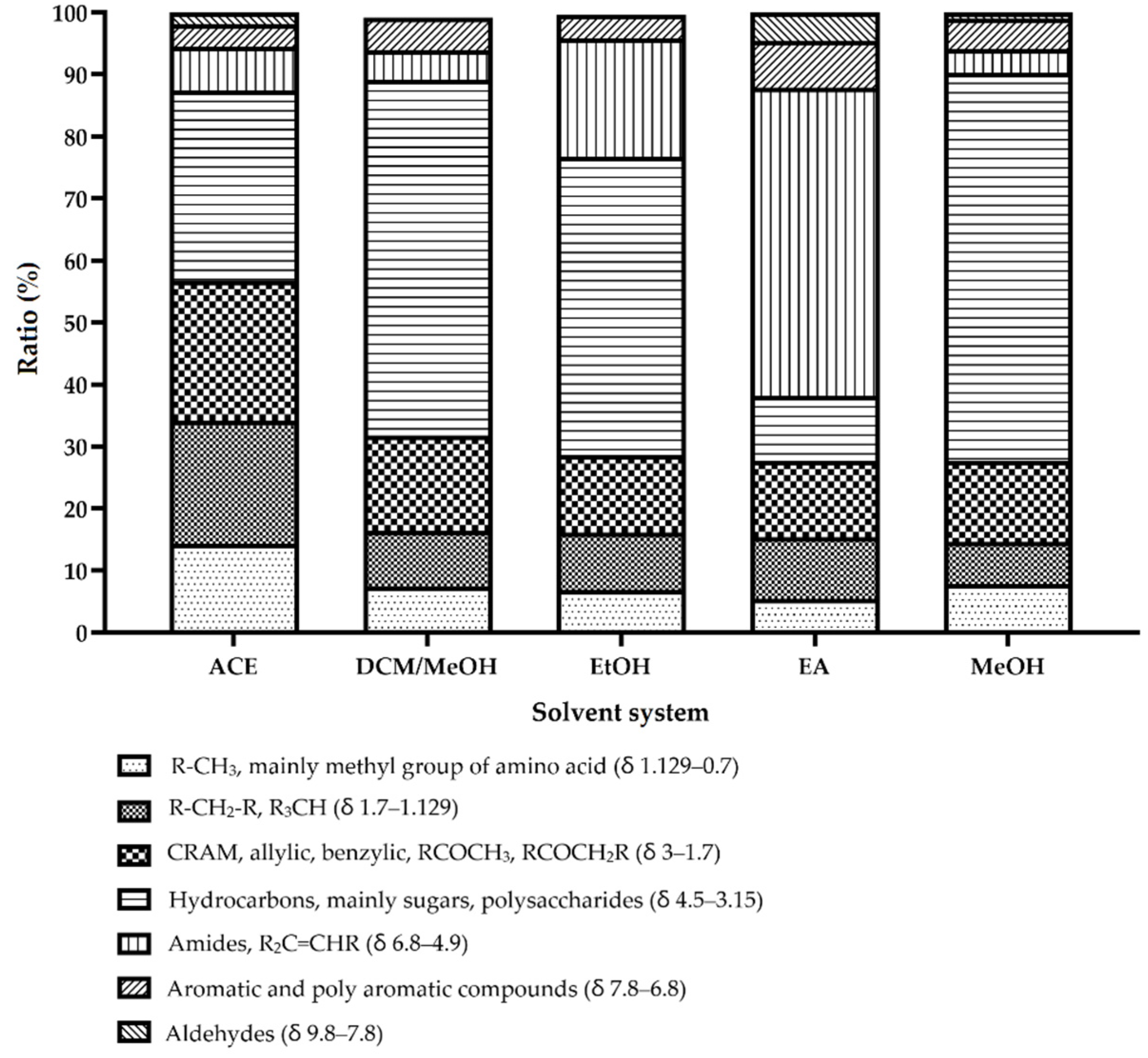

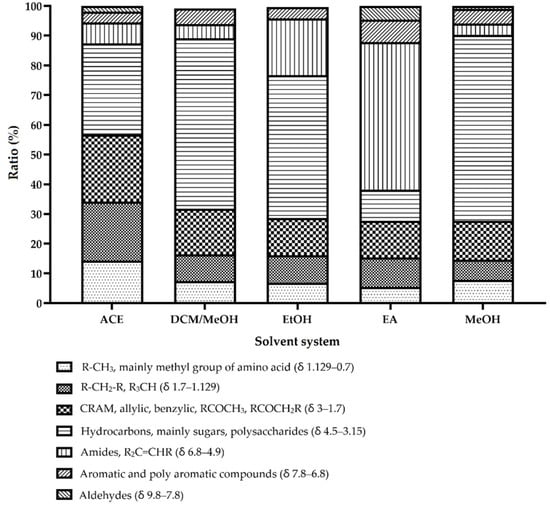

Figure 1. Functional group ratio comparison of different solvent extractions of E. foeminea. MeOH, methanolic extract; DCM/MeOH, dichloromethane/methanol extract; Ace, acetone extract; EA, ethyl; EtOH, ethanolic extract.
Figure 1. Functional group ratio comparison of different solvent extractions of E. foeminea. MeOH, methanolic extract; DCM/MeOH, dichloromethane/methanol extract; Ace, acetone extract; EA, ethyl; EtOH, ethanolic extract.
Metabolites 12 00451 g001

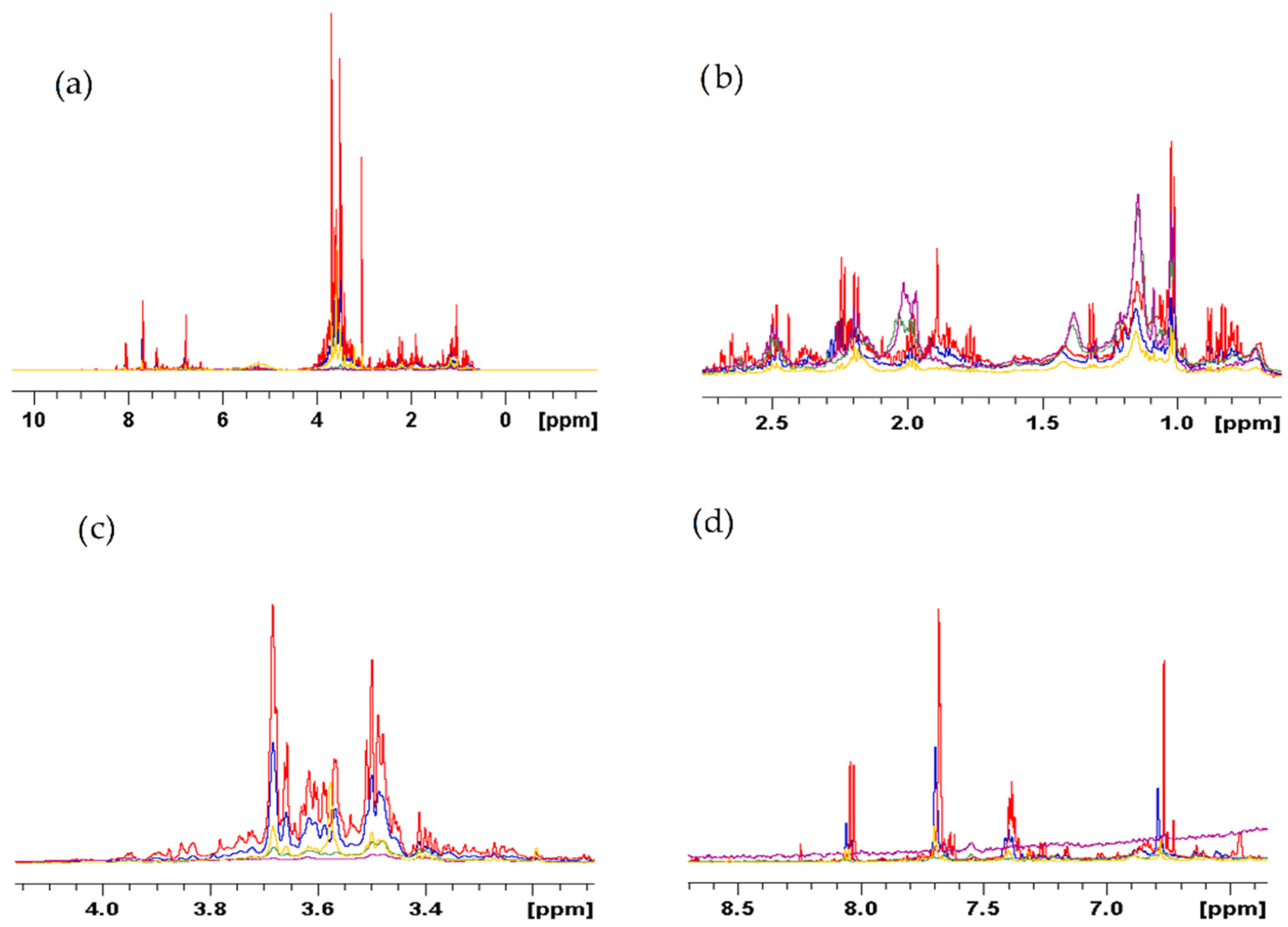

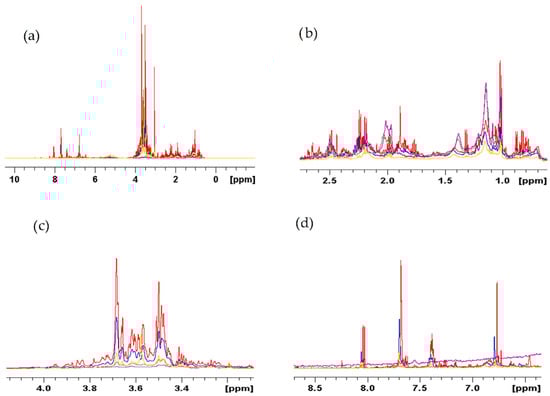

Figure 2. (a) Stack plot comparison of the 1D 1H spectra of different solvent extracts of E. foeminea recorded using 600 MHz solution NMR and dissolved in D2O; (b) extended region of CH3 and CH2 mainly CH3 of amino acids (δ 3–0); (c) polysaccharides extended region (δ 4.5–3); and (d) aromatic region. Yellow, ethanolic extract; purple, ethyl acetate extract; green, acetone extract; red, methanolic extract; blue, dichloromethane/methanol extract.
Figure 2. (a) Stack plot comparison of the 1D 1H spectra of different solvent extracts of E. foeminea recorded using 600 MHz solution NMR and dissolved in D2O; (b) extended region of CH3 and CH2 mainly CH3 of amino acids (δ 3–0); (c) polysaccharides extended region (δ 4.5–3); and (d) aromatic region. Yellow, ethanolic extract; purple, ethyl acetate extract; green, acetone extract; red, methanolic extract; blue, dichloromethane/methanol extract.
Metabolites 12 00451 g002

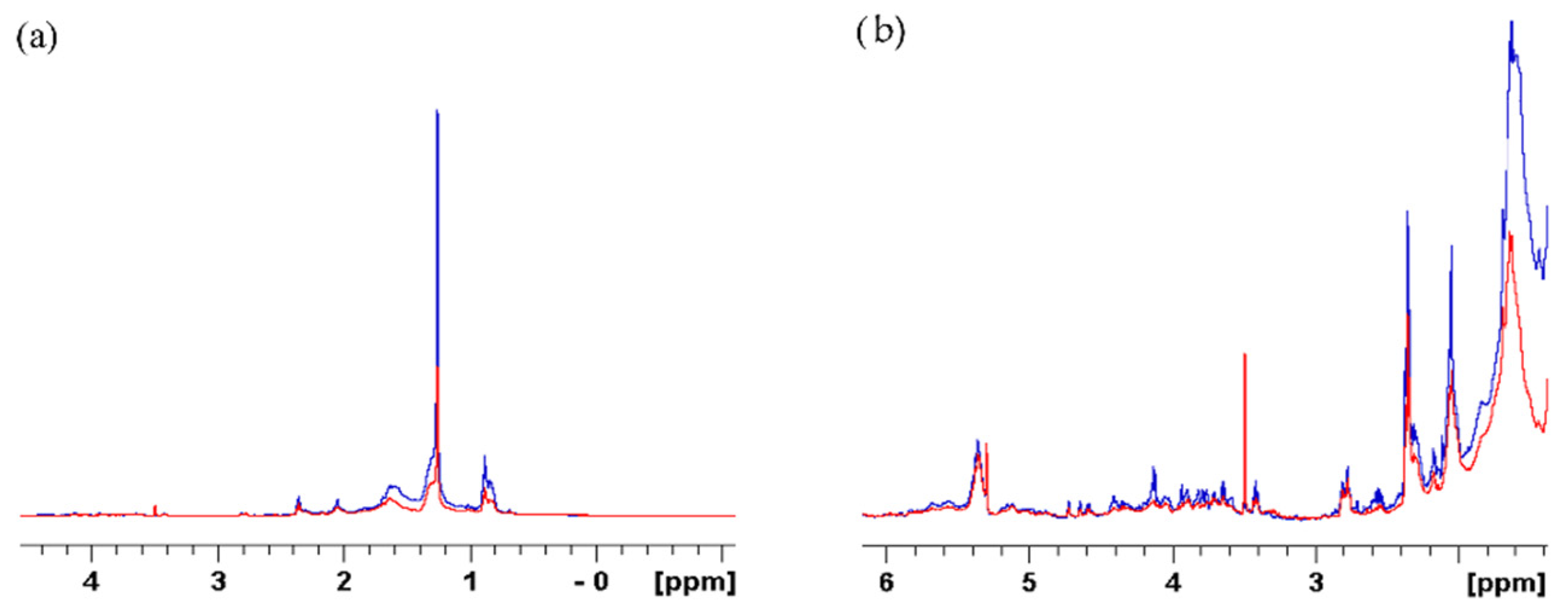

Figure 3. (a) Stack plot comparison of 1D 1H spectra of E. foeminea methanolic (red) and ethyl acetate (blue) extracts; (b) extended region (δ 4–3.2) dissolved in CDCl3 and recorded using 500 MHz NMR.
Figure 3. (a) Stack plot comparison of 1D 1H spectra of E. foeminea methanolic (red) and ethyl acetate (blue) extracts; (b) extended region (δ 4–3.2) dissolved in CDCl3 and recorded using 500 MHz NMR.
Metabolites 12 00451 g003

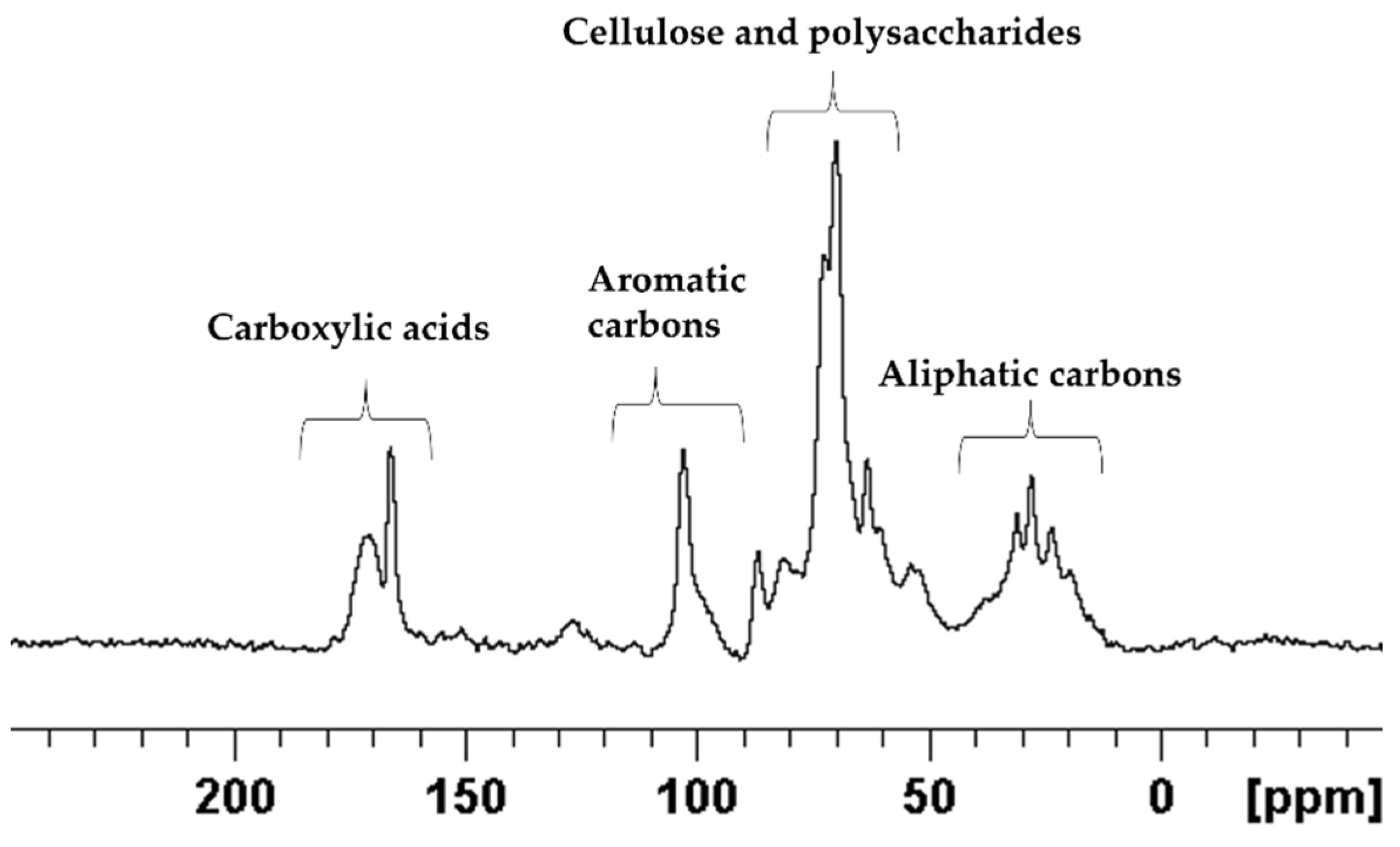

Figure 4. 1D 13C spectrum of E. foeminea plant powder recorded using 600 MHZ solid-state NMR.
Figure 4. 1D 13C spectrum of E. foeminea plant powder recorded using 600 MHZ solid-state NMR.
Metabolites 12 00451 g004

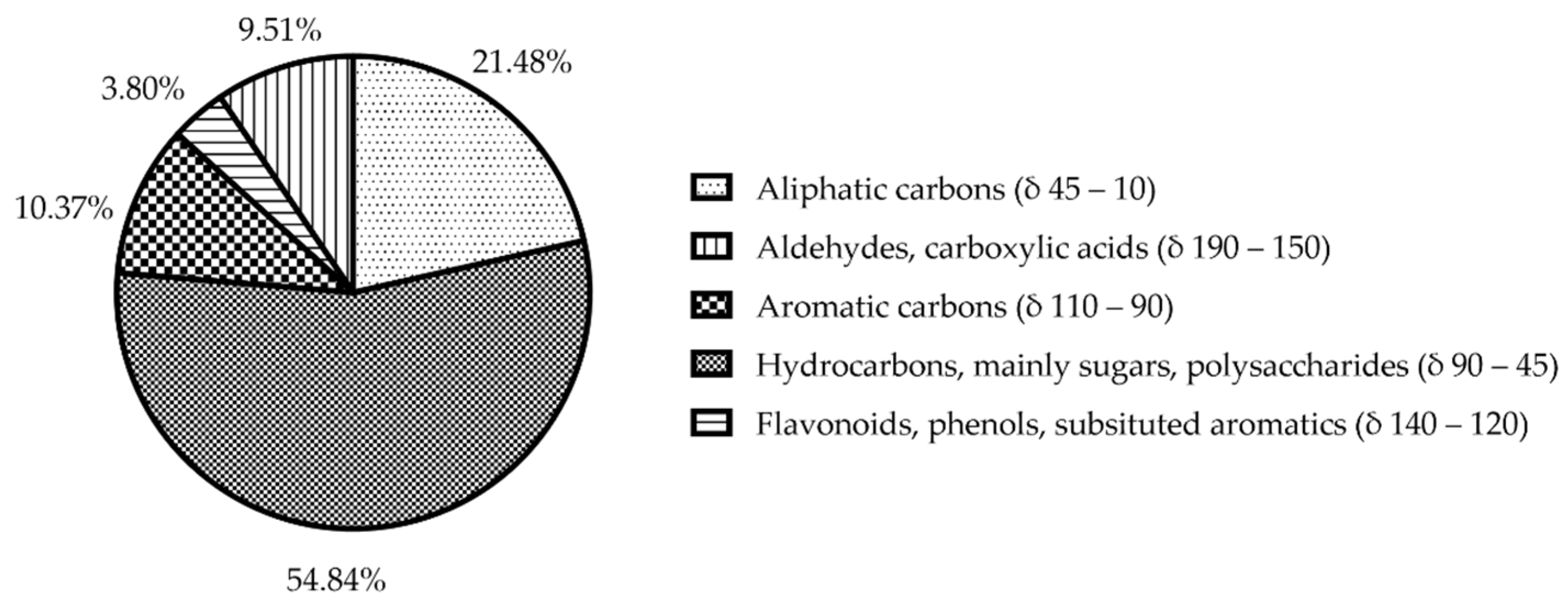

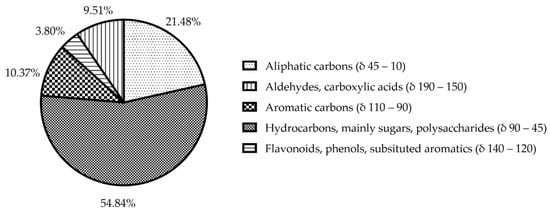

Figure 5. Pie diagram showcasing the signals ratio of different functional groups calculated from E. foeminea 13C solid-State NMR spectrum.
Figure 5. Pie diagram showcasing the signals ratio of different functional groups calculated from E. foeminea 13C solid-State NMR spectrum.
Metabolites 12 00451 g005

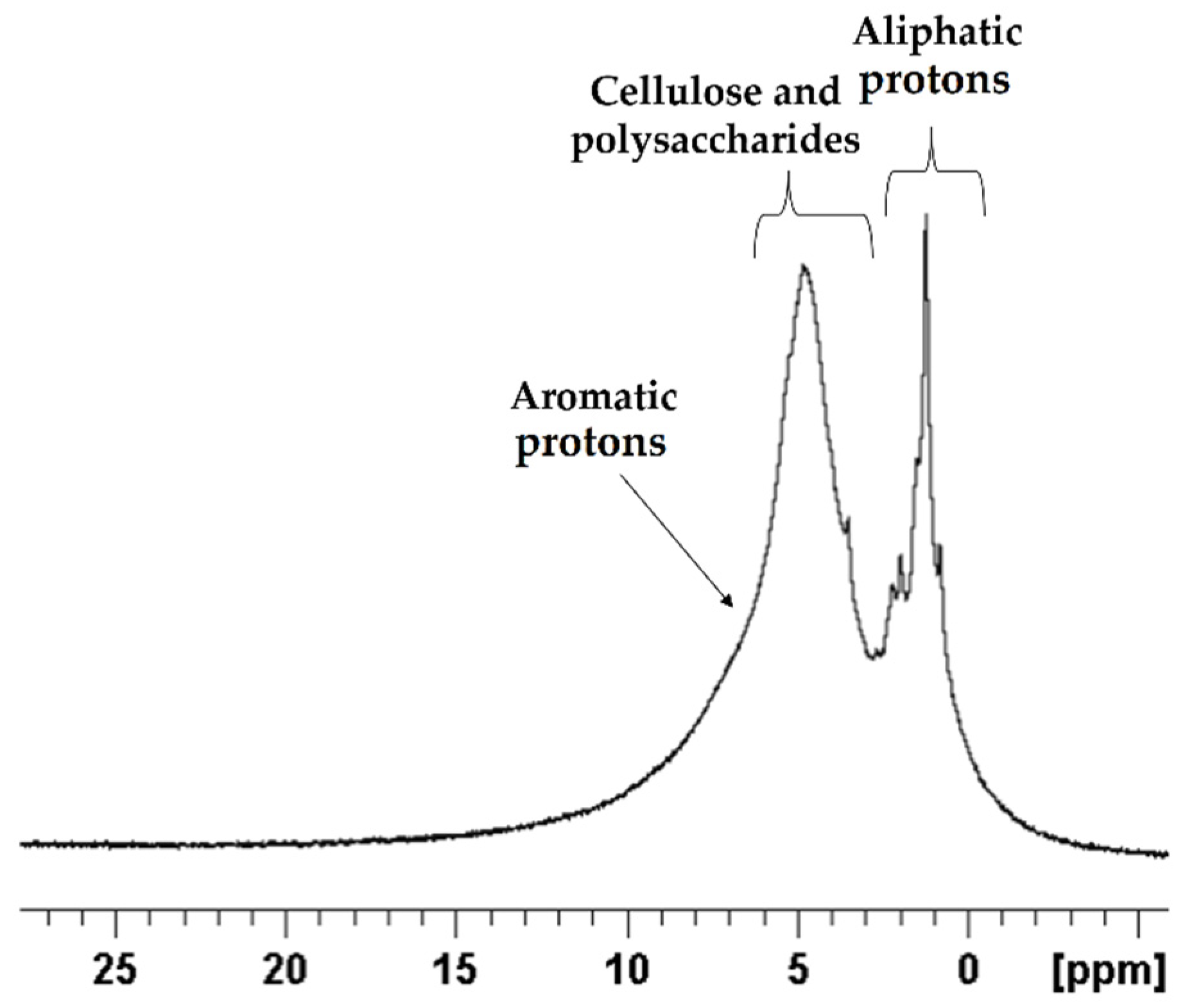

Figure 6. 1D 1H spectrum of E. foeminea plant powder recorded using 600 MHz solid-state NMR.
Figure 6. 1D 1H spectrum of E. foeminea plant powder recorded using 600 MHz solid-state NMR.
Metabolites 12 00451 g006

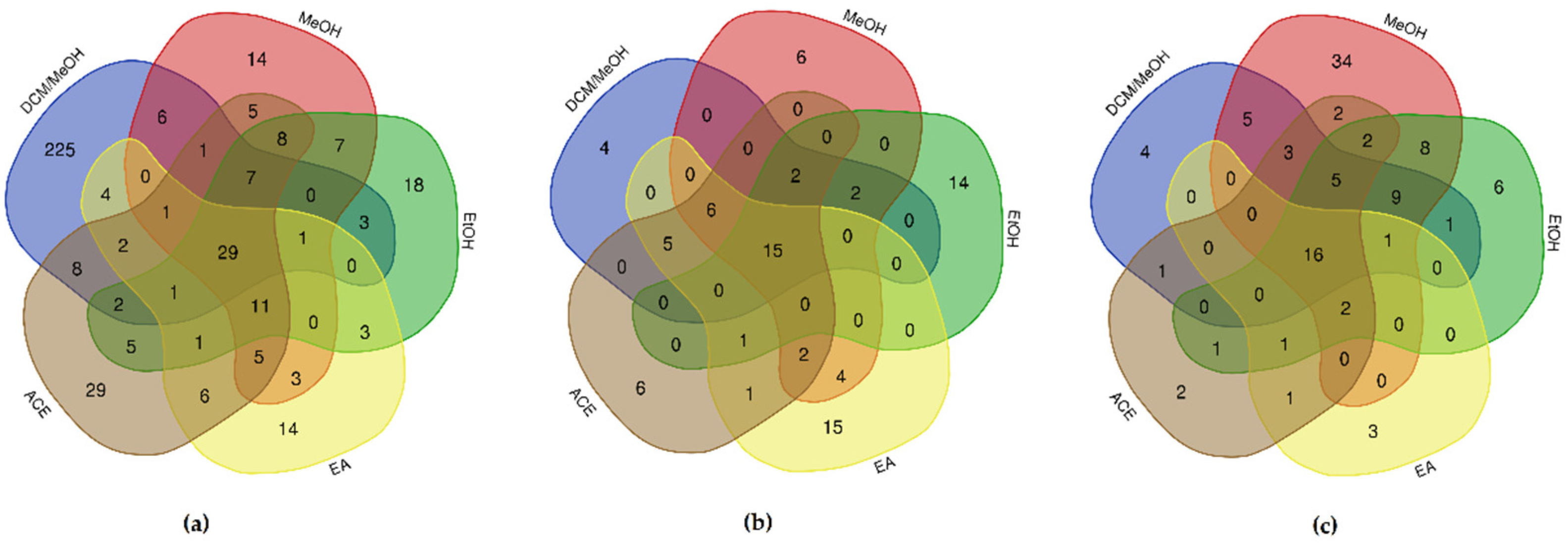

Figure 7. Venn diagrams showing overlapping and unique compounds of E. foeminea crude extracts using different solvents analyzed by (a) positive ion mode and (b) negative ion mode LC–MS scans, and (c) GC–MS scan. Ace, acetone; DCM/MeOH, dichloromethane/methanol; EtOH, ethanol; EA, ethyl acetate; MeOH, methanol.
Figure 7. Venn diagrams showing overlapping and unique compounds of E. foeminea crude extracts using different solvents analyzed by (a) positive ion mode and (b) negative ion mode LC–MS scans, and (c) GC–MS scan. Ace, acetone; DCM/MeOH, dichloromethane/methanol; EtOH, ethanol; EA, ethyl acetate; MeOH, methanol.
Metabolites 12 00451 g007
Figure 8. Principal component analysis (PCA) score plots of different solvent E. foeminea crude extract LC–MS data per injection. (a) negative mode scan; (b) positive mode scan. Ace, acetone extract; DCM/MeOH, dichloromethane/methanol extract; EA, ethyl acetate; EtOH, ethanol; MeOH, methanol. Samples were analyzed in triplicates.
Figure 8. Principal component analysis (PCA) score plots of different solvent E. foeminea crude extract LC–MS data per injection. (a) negative mode scan; (b) positive mode scan. Ace, acetone extract; DCM/MeOH, dichloromethane/methanol extract; EA, ethyl acetate; EtOH, ethanol; MeOH, methanol. Samples were analyzed in triplicates.
Metabolites 12 00451 g008
Figure 9. (a) Over Representation Analysis (ORA) Bar chart and (b) pie chart of the chemical classification of the total metabolites identified in the five E. foeminea crude extract samples using GC–MS via metabolite set enrichment analysis (MSEA). Colors in the bar plot describe the p-value. The red and orange colors signify the high and low values, respectively. The lines indicate the enrichment ratio, which was computed by hits/expected, where hits = observed hits and expected = expected hits. The colors in the pie chart designate each chemical group relative to the total number of compounds.
Figure 9. (a) Over Representation Analysis (ORA) Bar chart and (b) pie chart of the chemical classification of the total metabolites identified in the five E. foeminea crude extract samples using GC–MS via metabolite set enrichment analysis (MSEA). Colors in the bar plot describe the p-value. The red and orange colors signify the high and low values, respectively. The lines indicate the enrichment ratio, which was computed by hits/expected, where hits = observed hits and expected = expected hits. The colors in the pie chart designate each chemical group relative to the total number of compounds.
Metabolites 12 00451 g009
Figure 10. Dose-dependent ABTS (%) radical scavenging activity of E. foeminea crude extracts. (a) Acetone; (b) dichloromethane/methanol; (c) ethanol; (d) ethyl acetate; (e) methanol; (f) ascorbic acid as control. Pearson correlation coefficients (r) between concentrations and % radical scavenging activity were found to be 0.9735, 0.9969, 0.9970, 0.9988, and 0.9995, respectively. Values are the means of triplicate analyses; error bars denote the relative standard deviation.
Figure 10. Dose-dependent ABTS (%) radical scavenging activity of E. foeminea crude extracts. (a) Acetone; (b) dichloromethane/methanol; (c) ethanol; (d) ethyl acetate; (e) methanol; (f) ascorbic acid as control. Pearson correlation coefficients (r) between concentrations and % radical scavenging activity were found to be 0.9735, 0.9969, 0.9970, 0.9988, and 0.9995, respectively. Values are the means of triplicate analyses; error bars denote the relative standard deviation.
Metabolites 12 00451 g010aMetabolites 12 00451 g010b
Table 1. Major constitutes of different solvent E. foeminea crude extracts analyzed by (a) ESI− and (b) ESI+ mode LC–MS.
Table 1. Major constitutes of different solvent E. foeminea crude extracts analyzed by (a) ESI− and (b) ESI+ mode LC–MS.
(a) ESI–
S. No.Compound NameRT (Min)FormulaM/ZPeak Area (%) 1InChI Key
Ethanol extract
1(9Z)-(13S)-12,13-Epoxyoctadeca-9,11-dienoicacid10.809C18H30O3294.219816.82ZFVKKBAQVWQQHP-ALADIWIOSA-N
2(9Z)-(12S,13R)-12,13-epoxyoctadecenoic acid10.578C18H32O3296.235413.195CCPPLLJZDQAOHD-GJGKEFFFSA-N
38-Hydroxyluteolin 4′-methyl ether 7-(6′-acetylallosyl) (1->2) (6′-acetylglucoside)9.179C32H36O19724.182910.772ZXQCHXLLIKMUTB-WIFPZZFDSA-N
4(9Z,15Z)-(13S)-12,13-Epoxyoctadeca-9,11,15-trienoicacid10.277C18H28O3292.20428.94YZBZORUZOSCZRN-DCUPSMFCSA-N
5Pregna-4,9(11)-diene-3,20-dione11.455C21H28O2312.20935.052LCXMRSLFWMMCAS-WRJHFWDFSA-N
6(7S,8S,9Z,12Z)-7,8-dihydroxyoctadeca-9,12-dienoic acid10.811C18H32O4312.23054.518NMONGVDUESEHOK-MPOZZNMKSA-N
7Hexadecanedioic acid7.543C16H30O4286.21463.635QQHJDPROMQRDLA-UHFFFAOYSA-N
89,10,13-trihydroxy-11-octadecenoicacid7.418C18H34O5330.24113.445NTVFQBIHLSPEGQ-BUHFOSPRSA-N
9(9Z)-(13S)-12,13-Epoxyoctadeca-9,11-dienoicacid10.075C18H30O3294.21983.254ZFVKKBAQVWQQHP-ALADIWIOSA-N
10(9Z)-(13S)-12,13-Epoxyoctadeca-9,11-dienoicacid10.008C18H30O3294.21982.933ZFVKKBAQVWQQHP-ALADIWIOSA-N
11[(2S,3R,4S,5S,6R)-2-[5,7-dihydroxy-2-(4-hydroxyphenyl)-4-oxochromen-8-yl]-4,5-dihydroxy-6-(hydroxymethyl)oxan-3-yl] (E)-3-(4-hydroxyphenyl)prop-2-enoate7.8C30H26O12578.14482.71FJGOEBQRHWKKJH-HORBVDEJSA-N
Ethyl acetate extract
1(9Z)-(12S,13R)-12,13-epoxyoctadecenoic acid10.557C18H32O3296.235411.215CCPPLLJZDQAOHD-GJGKEFFFSA-N
28-Hydroxyluteolin 4′-methyl ether 7-(6′-acetylallosyl) (1->2) (6′-acetylglucoside)9.158C32H36O19724.182810.9ZXQCHXLLIKMUTB-WIFPZZFDSA-N
3(9Z)-(13S)-12,13-Epoxyoctadeca-9,11-dienoicacid10.788C18H30O3294.219810.268ZFVKKBAQVWQQHP-ALADIWIOSA-N
4(9Z,15Z)-(13S)-12,13-Epoxyoctadeca-9,11,15-trienoicacid10.261C18H28O3292.20417.105YZBZORUZOSCZRN-DCUPSMFCSA-N
5(9Z)-(13S)-12,13-Epoxyoctadeca-9,11-dienoicacid10.741C18H30O3294.21983.744ZFVKKBAQVWQQHP-ALADIWIOSA-N
6Hexadecanedioic acid7.527C16H30O4286.21463.195QQHJDPROMQRDLA-UHFFFAOYSA-N
7[(2S,3R,4S,5S,6R)-2-[5,7-dihydroxy-2-(4-hydroxyphenyl)-4-oxochromen-8-yl]-4,5-dihydroxy-6-(hydroxymethyl)oxan-3-yl] (E)-3-(4-hydroxyphenyl)prop-2-enoate7.781C30H26O12578.14483.176FJGOEBQRHWKKJH-HORBVDEJSA-N
8(7S,8S,9Z,12Z)-7,8-dihydroxyoctadeca-9,12-dienoic acid10.795C18H32O4312.23052.66NMONGVDUESEHOK-MPOZZNMKSA-N
99,10,13-trihydroxy-11-octadecenoicacid7.407C18H34O5330.24112.317NTVFQBIHLSPEGQ-BUHFOSPRSA-N
10(9Z)-(13S)-12,13-Epoxyoctadeca-9,11-dienoicacid9.992C18H30O3294.21982.239ZFVKKBAQVWQQHP-ALADIWIOSA-N
Acetone extract
1(9Z)-(13S)-12,13-Epoxyoctadeca-9,11-dienoicacid10.81C18H30O3294.219814.915ZFVKKBAQVWQQHP-ALADIWIOSA-N
28-Hydroxyluteolin 4′-methyl ether 7-(6′-acetylallosyl) (1->2) (6′-acetylglucoside)9.171C32H36O19724.182911.41ZXQCHXLLIKMUTB-WIFPZZFDSA-N
3(9Z)-(12S,13R)-12,13-epoxyoctadecenoic acid10.58C18H32O3296.235510.974CCPPLLJZDQAOHD-GJGKEFFFSA-N
4(9Z,15Z)-(13S)-12,13-Epoxyoctadeca-9,11,15-trienoicacid10.274C18H28O3292.20427.2721YZBZORUZOSCZRN-DCUPSMFCSA-N
5(7S,8S,9Z,12Z)-7,8-dihydroxyoctadeca-9,12-dienoic acid10.813C18H32O4312.23054.0297NMONGVDUESEHOK-MPOZZNMKSA-N
6[(2S,3R,4S,5S,6R)-2-[5,7-dihydroxy-2-(4-hydroxyphenyl)-4-oxochromen-8-yl]-4,5-dihydroxy-6-(hydroxymethyl)oxan-3-yl] (E)-3-(4-hydroxyphenyl)prop-2-enoate7.798C30H26O12578.14473.1966FJGOEBQRHWKKJH-HORBVDEJSA-N
7Hexadecanedioic acid7.543C16H30O4286.21473.035QQHJDPROMQRDLA-UHFFFAOYSA-N
8(9Z)-(13S)-12,13-Epoxyoctadeca-9,11-dienoicacid10.078C18H30O3294.21982.6986ZFVKKBAQVWQQHP-ALADIWIOSA-N
99,10,13-trihydroxy-11-octadecenoicacid7.418C18H34O5330.2412.3583NTVFQBIHLSPEGQ-BUHFOSPRSA-N
Methanol extract
1(9Z)-(12S,13R)-12,13-epoxyoctadecenoic acid10.576C18H32O3296.235418.507CCPPLLJZDQAOHD-GJGKEFFFSA-N
2(9Z)-(13S)-12,13-Epoxyoctadeca-9,11-dienoicacid10.805C18H30O3294.219812.096ZFVKKBAQVWQQHP-ALADIWIOSA-N
39,10,13-trihydroxy-11-octadecenoicacid7.416C18H34O5330.24117.071NTVFQBIHLSPEGQ-BUHFOSPRSA-N
4(9Z,15Z)-(13S)-12,13-Epoxyoctadeca-9,11,15-trienoicacid10.274C18H28O3292.20426.918YZBZORUZOSCZRN-DCUPSMFCSA-N
58-Hydroxyluteolin 4′-methyl ether 7-(6′-acetylallosyl) (1->2) (6′-acetylglucoside)9.172C32H36O19724.18285.26ZXQCHXLLIKMUTB-WIFPZZFDSA-N
6(9Z)-(13S)-12,13-Epoxyoctadeca-9,11-dienoicacid10.003C18H30O3294.21984.116ZFVKKBAQVWQQHP-ALADIWIOSA-N
7Hexadecanedioic acid7.541C16H30O4286.21463.969QQHJDPROMQRDLA-UHFFFAOYSA-N
8(9Z)-(13S)-12,13-Epoxyoctadeca-9,11-dienoicacid10.084C18H30O3294.21983.547ZFVKKBAQVWQQHP-ALADIWIOSA-N
9(7S,8S,9Z,12Z)-7,8-dihydroxyoctadeca-9,12-dienoic acid10.804C18H32O4312.23043.513NMONGVDUESEHOK-MPOZZNMKSA-N
Dichloromethane/methanol extract
1(9Z)-(12S,13R)-12,13-epoxyoctadecenoic acid10.583C18H32O3296.235413.566CCPPLLJZDQAOHD-GJGKEFFFSA-N
2(9Z)-(13S)-12,13-Epoxyoctadeca-9,11-dienoicacid10.812C18H30O3294.219810.277ZFVKKBAQVWQQHP-ALADIWIOSA-N
38-Hydroxyluteolin 4′-methyl ether 7-(6′-acetylallosyl) (1->2) (6′-acetylglucoside)9.18C32H36O19724.1839.5114ZXQCHXLLIKMUTB-WIFPZZFDSA-N
49,10,13-trihydroxy-11-octadecenoicacid7.424C18H34O5330.24117.2406NTVFQBIHLSPEGQ-BUHFOSPRSA-N
5(9Z,15Z)-(13S)-12,13-Epoxyoctadeca-9,11,15-trienoicacid10.279C18H28O3292.20425.3214YZBZORUZOSCZRN-DCUPSMFCSA-N
6(7S,8S,9Z,12Z)-7,8-dihydroxyoctadeca-9,12-dienoic acid10.814C18H32O4312.23053.017NMONGVDUESEHOK-MPOZZNMKSA-N
7Hexadecanedioic acid7.544C16H30O4286.21462.5871QQHJDPROMQRDLA-UHFFFAOYSA-N
8(9Z)-(13S)-12,13-Epoxyoctadeca-9,11-dienoicacid10.083C18H30O3294.21982.5798ZFVKKBAQVWQQHP-ALADIWIOSA-N
(b) ESI+
S. No.Compound NameRT (Min)FormulaM/ZPeak Area (%) 1InChI Key
Methanol extract
12-Hydroxy-N,N,N-trimethylethan-1-aminium0.583C5H13NO103.09958.911OEYIOHPDSNJKLS-UHFFFAOYSA-N
23-[(3S,4S,21R)-14-Ethyl-21-(methoxycarbonyl)-4,8,13,18-tetramethyl-20-oxo-9-vinyl-3-phorbinyl]propanoic acid12.36C35H36N4O5592.26837.014RKEBXTALJSALNU-LDCXZXNSSA-N
3Hexadecanoic acid8.206C16H32O2273.26654.653IPCSVZSSVZVIGE-UHFFFAOYSA-N
4(2R,3S,4S,5S,6R)-2-({7-hydroxy-4-[(3Z)-5-hydroxy-3-methylpent-3-en-1-yl]-4a,8,8-trimethyl-3-methylidene-decahydronaphthalen-2-yl}oxy)-6-(hydroxymethyl)oxane-3,4,5-triol4.895C26H44O8506.28863.283
5(9Z)-Hexadec-9-enoic acid10.037C16H30O2276.20892.004SECPZKHBENQXJG-UHFFFAOYSA-N
Acetone extract
13-[(3S,4S,21R)-14-Ethyl-21-(methoxycarbonyl)-4,8,13,18-tetramethyl-20-oxo-9-vinyl-3-phorbinyl]propanoic acid12.365C35H36N4O5592.26849.229RKEBXTALJSALNU-LDCXZXNSSA-N
2methyl (3β,16β,17α,18β,20α)-11,17-dimethoxy-18-[(3,4,5-trimethoxybenzoyl)oxy]yohimban-16-carboxylate12.152C33H40N2O9608.26225.105QEVHRUUCFGRFIF-MDEJGZGSSA-N
32-Hydroxy-N,N,N-trimethylethan-1-aminium0.583C5H13NO103.09953.663OEYIOHPDSNJKLS-UHFFFAOYSA-N
4Hexadecanoic acid8.206C16H32O2273.26683.301IPCSVZSSVZVIGE-UHFFFAOYSA-N
53-[(3S,4S,21R)-14-Ethyl-21-(methoxycarbonyl)-4,8,13,18-tetramethyl-20-oxo-9-vinyl-3-phorbinyl]propanoic acid12.549C35H36N4O5592.26842.713RKEBXTALJSALNU-LDCXZXNSSA-N
6(2R,3S,4S,5S,6R)-2-({7-hydroxy-4-[(3Z)-5-hydroxy-3-methylpent-3-en-1-yl]-4a,8,8-trimethyl-3-methylidene-decahydronaphthalen-2-yl}oxy)-6-(hydroxymethyl)oxane-3,4,5-triol4.887C26H44O8506.28852.119
Ethyl acetate extract
13-[(3S,4S,21R)-14-Ethyl-21-(methoxycarbonyl)-4,8,13,18-tetramethyl-20-oxo-9-vinyl-3-phorbinyl]propanoic acid12.367C35H36N4O5592.268112.56RKEBXTALJSALNU-LDCXZXNSSA-N
2methyl (3β,16β,17α,18β,20α)-11,17-dimethoxy-18-[(3,4,5-trimethoxybenzoyl)oxy]yohimban-16-carboxylate12.152C33H40N2O9608.26245.663QEVHRUUCFGRFIF-MDEJGZGSSA-N
3Hexadecanoic acid8.208C16H32O2273.26675.587IPCSVZSSVZVIGE-UHFFFAOYSA-N
4Bis(methylbenzylidene)sorbitol7.809C22H26O6386.17253.821WOOQSKAMMPIQIW-HCXPZJNHSA-N
5Unknown12.549C35H36N4O5592.26813.169OINDWIFDMFYGDX-LDCXZXNSSA-N
Ethanol extract
1Unknown12.363C38H35F3N2O592.26828.414
22-Hydroxy-N,N,N-trimethylethan-1-aminium0.584C5H13NO103.09956.534OEYIOHPDSNJKLS-UHFFFAOYSA-N
3(2R,3S,4S,5S,6R)-2-({7-hydroxy-4-[(3Z)-5-hydroxy-3-methylpent-3-en-1-yl]-4a,8,8-trimethyl-3-methylidene-decahydronaphthalen-2-yl}oxy)-6-(hydroxymethyl)oxane-3,4,5-triol4.898C26H44O8506.28874.339
4Hexadecanoic acid8.21C16H32O2273.26683.981IPCSVZSSVZVIGE-UHFFFAOYSA-N
5methyl (3β,16β,17α,18β,20α)-11,17-dimethoxy-18-[(3,4,5-trimethoxybenzoyl)oxy]yohimban-16-carboxylate12.152C33H40N2O9608.26233.057QEVHRUUCFGRFIF-MDEJGZGSSA-N
63-[(3S,4S,21R)-14-Ethyl-21-(methoxycarbonyl)-4,8,13,18-tetramethyl-20-oxo-9-vinyl-3-phorbinyl]propanoic acid12.55C35H36N4O5592.26822.644RKEBXTALJSALNU-LDCXZXNSSA-N
Dichloromethane/methanol extract
1Unknown13.965C23H30ClN7O2S2535.158423.76
2(Z)-docos-13-enamide12.806C22H43NO337.33464.218UAUDZVJPLUQNMU-KTKRTIGZSA-N
32-[[(5S,6R,9S)-14-[[(2-fluoroanilino)-oxomethyl]amino]-5-methoxy-3,6,9-trimethyl-2-oxo-11-oxa-3,8-diazabicyclo[10.4.0]hexadeca-1(12),13,15-trien-8-yl]methyl]benzoic acid11.623C32H37FN4O6592.26782.383
4Unknown13.966C21H35ClFN7S3535.18052.087
1 Peak area (%) is based on the total sum.
Table 2. Major derivatized constitutes of different solvent E. foeminea extracts analyzed by GC–MS.
Table 2. Major derivatized constitutes of different solvent E. foeminea extracts analyzed by GC–MS.
S. No.Compound NameRT (Min)FormulaPeak Area (%) 1Inchi Key
Methanol extract
1Propane-1,2,3-triol (3TMS)15.69C12H32O3Si33.5288PEDCQBHIVMGVHV-UHFFFAOYSA-N
2Hexadecanoic acid (TMS)30.66C19H40O2Si2.9008IPCSVZSSVZVIGE-UHFFFAOYSA-N
3(3S,4R,5R)-1,3,4,5,6-Pentahydroxyhexan-2-one (methyloxime 5TMS)27.72C22H55NO6Si52.7562RFSUNEUAIZKAJO-VRPWFDPXSA-N
4(3S,4S,5R)-1,3,4,5,6-Pentahydroxy-hexan-2-one27.90C6H12O62.1988RFSUNEUAIZKAJO-VRPWFDPXSA-N
54-Hydroxyquinoline-2-carboxylic acid (2TMS)30.97C16H23NO3Si22.1261HCZHHEIFKROPDY-UHFFFAOYSA-N
6(3S,4S,5S,6R)-6-(hydroxymethyl)oxane-2,3,4,5-tetrol (methyloxime 5TMS)28.17C22H55NO6Si52.0817WQZGKKKJIJFFOK-UHFFFAOYNA-N
Dichloromethane/methanol extract
1Octadecanoic acid (TMS)33.55C21H44O2Si3.7416QIQXTHQIDYTFRH-UHFFFAOYSA-N
2Propane-1,2,3-triol (3TMS)15.33C12H32O3Si33.5086PEDCQBHIVMGVHV-UHFFFAOYSA-N
3Hexadecanoic acid (TMS)30.58C19H40O2Si3.5085IPCSVZSSVZVIGE-UHFFFAOYSA-N
4Tetradecanoic acid33.56C14H28O22.4111TUNFSRHWOTWDNC-UHFFFAOYSA-N
51,3-Diazinane-2,4-dione (2TMS)12.26C10H22N2O2Si22.098OIVLITBTBDPEFK-UHFFFAOYSA-N
Ethanol extract
1Propane-1,2,3-triol (3TMS)15.69C12H32O3Si33.705PEDCQBHIVMGVHV-UHFFFAOYSA-N
2Hexadecanoic acid (TMS)30.66C19H40O2Si3.3054IPCSVZSSVZVIGE-UHFFFAOYSA-N
3Octadecanoic acid (TMS)33.64C21H44O2Si2.649QIQXTHQIDYTFRH-UHFFFAOYSA-N
4(2S,3R,4S,5R,6R)-6-(hydroxymethyl)oxane-2,3,4,5-tetrol28.85C6H12O62.4626WQZGKKKJIJFFOK-UHFFFAOYNA-N
Acetone extract
1Hexadecanoic acid (TMS)30.66C19H40O2Si4.107IPCSVZSSVZVIGE-UHFFFAOYSA-N
2Octadecanoic acid (TMS)33.644C21H44O2Si2.7569QIQXTHQIDYTFRH-UHFFFAOYSA-N
3Propane-1,2,3-triol (3TMS)15.69C12H32O3Si32.3189PEDCQBHIVMGVHV-UHFFFAOYSA-N
41,3-Diazinane-2,4-dione (2TMS)12.30C10H22N2O2Si21.9999OIVLITBTBDPEFK-UHFFFAOYSA-N
Ethyl acetate extract
11,3-Diazinane-2,4-dione (2TMS)12.33C10H22N2O2Si27.8011OIVLITBTBDPEFK-UHFFFAOYSA-N
2Hexadecanoic acid (TMS)30.66C19H40O2Si3.6583IPCSVZSSVZVIGE-UHFFFAOYSA-N
1 Peak area (%) is based on the total sum.
Table 3. Qualitative screening of the top compound classes present in the different solvent crude extracts of E. foeminea analyzed by GC–MS.
Table 3. Qualitative screening of the top compound classes present in the different solvent crude extracts of E. foeminea analyzed by GC–MS.
Class GroupAceDCM/MeOHEAEtOHMeOHChemOnt ID
1,2-aminoalcohols+++0001897
1,2-diols+0002467
Acylaminosugars+0000146
Alkali metal pyrophosphates+0000657
Amino acids+++0004176
Amino Fatty Acids++0000489
Benzoic acids+++++0002565
Beta hydroxy acids++0001713
Branched Fatty Acids+0000338
Butenolides++0002223
Cyclitols++++0004344
Dicarboxylic acids+++++0000346
Disaccharides++0001542
Fatty acids and conjugates+++++0000262
Hippuric acids++++0001318
Hydroxy Fatty Acids+++++0000341
Hydroxybenzaldehydes+0003978
Hydroxybenzoic acids+++0001248
Monoalkylamines++0000469
Monosaccharides++++0001540
o-Xylenes+0004210
Organic acids+++++0000264
Pyridines+++++0000089
Pyrimidine ribonucleoside diphosphates+0001621
Pyrimidines+++++0000075
Pyrroline carboxylic acids++++0002417
Quinoline carboxylic acids+0002552
Salicylic acids+0002514
Sugar acids++0000215
Sugar alcohols+++++0002210
Ureas++0000517
+ = present, − = absent. Ace: acetone; DCM/MeOH: dichloromethane/methanol; EA: ethyl acetate; EtOH: ethanol; MeOH: methanol.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Al-Nemi, R.; Makki, A.A.; Sawalha, K.; Hajjar, D.; Jaremko, M. Untargeted Metabolomic Profiling and Antioxidant Capacities of Different Solvent Crude Extracts of Ephedra foeminea. Metabolites 2022, 12, 451. https://doi.org/10.3390/metabo12050451

AMA Style

Al-Nemi R, Makki AA, Sawalha K, Hajjar D, Jaremko M. Untargeted Metabolomic Profiling and Antioxidant Capacities of Different Solvent Crude Extracts of Ephedra foeminea. Metabolites. 2022; 12(5):451. https://doi.org/10.3390/metabo12050451

Chicago/Turabian Style

Al-Nemi, Ruba, Arwa A. Makki, Khaled Sawalha, Dina Hajjar, and Mariusz Jaremko. 2022. "Untargeted Metabolomic Profiling and Antioxidant Capacities of Different Solvent Crude Extracts of Ephedra foeminea" Metabolites 12, no. 5: 451. https://doi.org/10.3390/metabo12050451

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
