Open AccessArticle

A 2.6 ppm/°C 2.5 V Piece-Wise Compensated Bandgap Reference with Low Beta Bipolar

1
State Key Laboratory of Electronic Thin Films and Integrated Devices, University of Electronic Science and Technology of China, Chengdu 610054, China
2
O2micro Co. Ltd., Chengdu 610041, China
*
Authors to whom correspondence should be addressed.
Electronics 2019, 8(5), 555; https://doi.org/10.3390/electronics8050555
Received: 17 April 2019 / Revised: 3 May 2019 / Accepted: 5 May 2019 / Published: 17 May 2019
(This article belongs to the Section Semiconductors and Quantum)
  |
PDF [5051 KB, uploaded 17 May 2019]
  |     |

Abstract

Traditional bandgap reference (BGR) is sensitive to process variation and is not suitable for mass production. Consequently, a stacked piece-wise compensated bandgap reference (SPWBGR) with low beta bipolar is proposed, designed and fabricated in the 0.18 μm high-voltage (HV) BCD process. Two stacked BGR (SBGR) cores make up the proposed BGR circuit. Through setting the target reference voltage near the output voltage of SBGR cores, the feedback resistor ratio is reduced and the base current side-effect is significantly decreased. Notably, the SBGR core is implemented by the low beta npn bipolar and it relaxes the requirement for the high beta bipolar. The two SBGR cores are almost identical except for the temperature slope and feedback ratio. The two cores have different zero temperature coefficient (TC) points, one is set at −5 °C, and the other is set at 60 °C, named as SBGRA and SBGRB, respectively. The SBGRA and SBGRB output the same voltage at their zero TC point. The higher voltage of SBGRA and SBGRB is the output voltage. Through the process of tracking the maximum value of different SBGR cores, the proposed SPWBGR achieves 2.6 ppm/°C TC from −40 to 100 °C. As a result, the average TC for five random samples is 5.3 ppm/°C. The line regulation is 2 mV/V from 4.5 to 5.5 V power supply. The current consumption is 6.8 µA. The active area of the proposed BGR is 0.075 mm2. View Full-Text
Keywords: piece-wise compensation; bandgap reference; low temperature coefficient; TC piece-wise compensation; bandgap reference; low temperature coefficient; TC

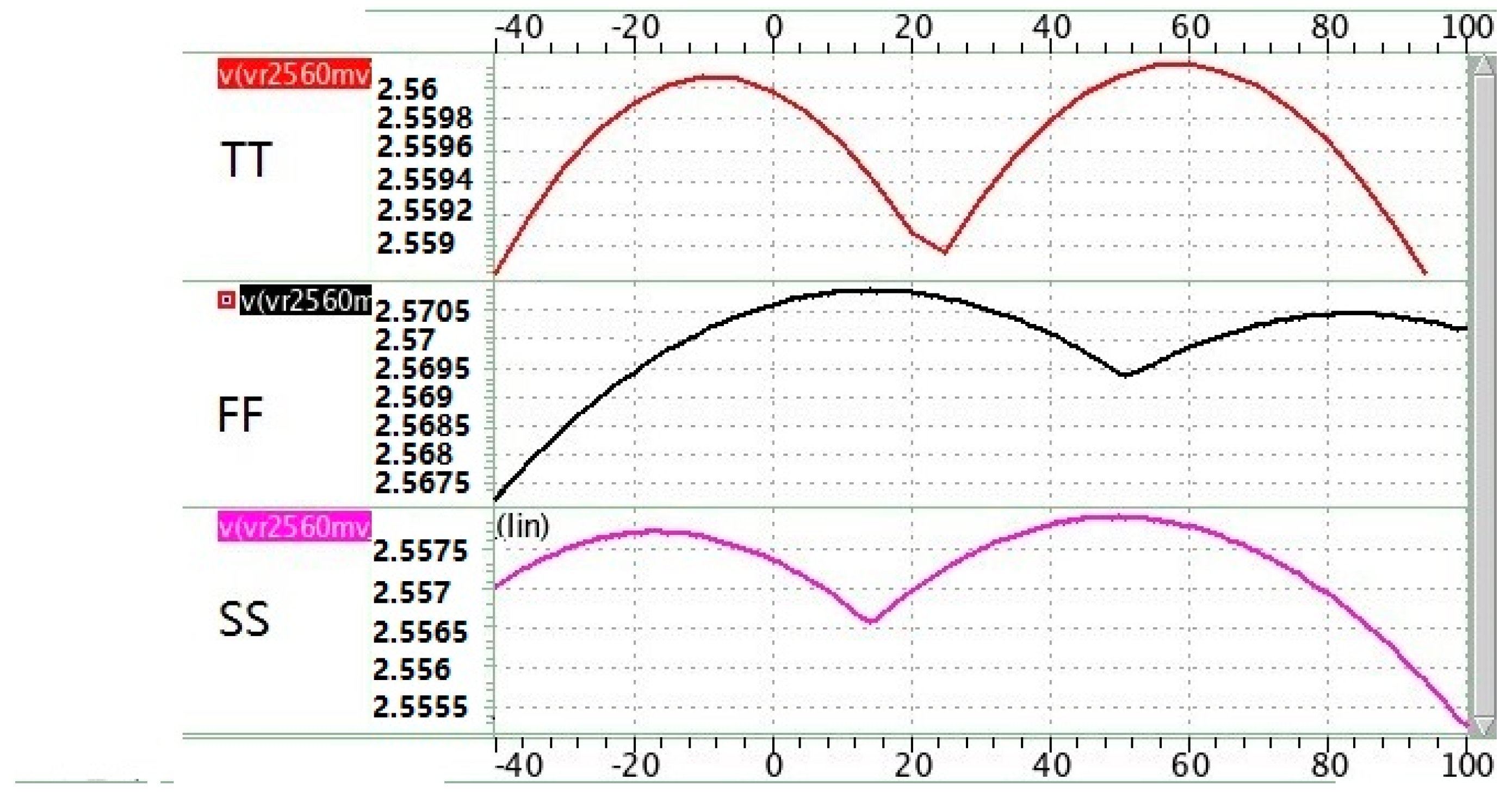

Figures

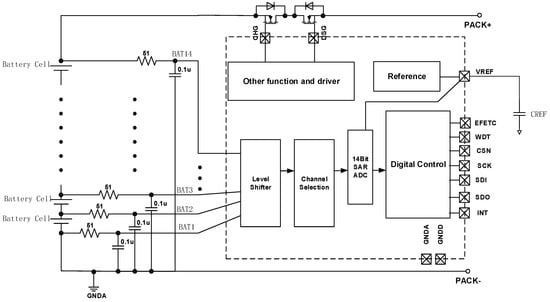

Figure 1
