Sliceable BVT Evolution Towards Programmable Multi-Tb/s Networking
Next Article in Special Issue
Two-Bit Terahertz Encoder Realized by Graphene-Based Metamaterials
Previous Article in Journal
A Low-Voltage Multi-Band ZigBee Transceiver
Previous Article in Special Issue
A Dual-Band Compact Metamaterial Absorber with Fractal Geometry

Microfluidic Sensor Based on Composite Left-Right Handed Transmission Line

BioSense Institute - Research and development institute for information technologies in biosystems, University of Novi Sad, 21101 Novi Sad, Serbia
Author to whom correspondence should be addressed.
Electronics 2019, 8(12), 1475;
Received: 31 October 2019 / Revised: 30 November 2019 / Accepted: 1 December 2019 / Published: 4 December 2019
(This article belongs to the Special Issue Engineering Metamaterials)

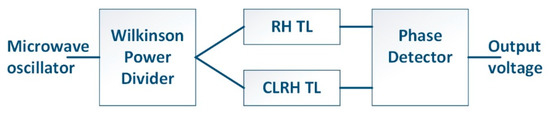

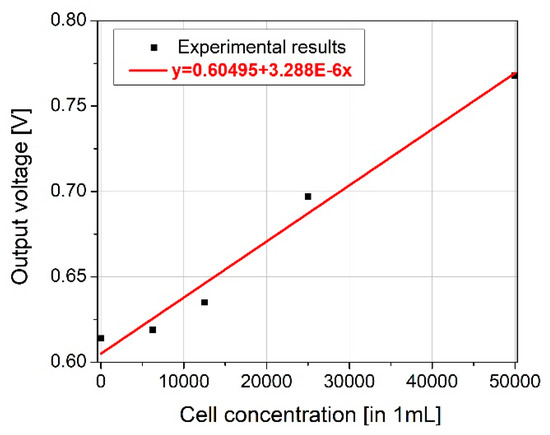

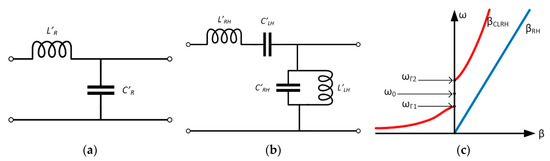

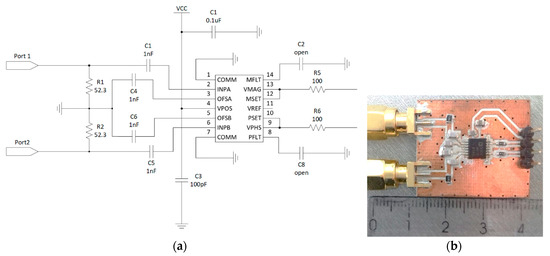

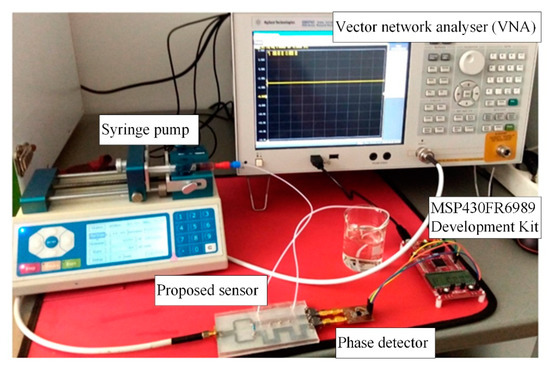

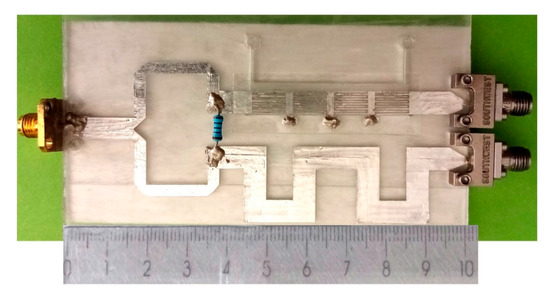

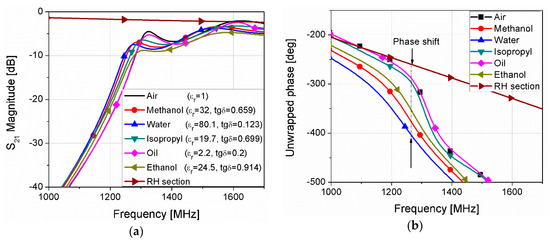

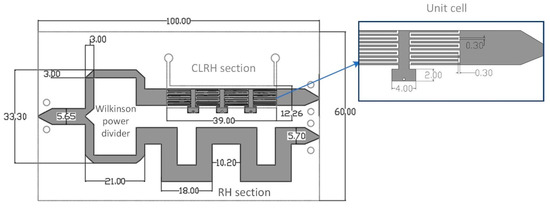

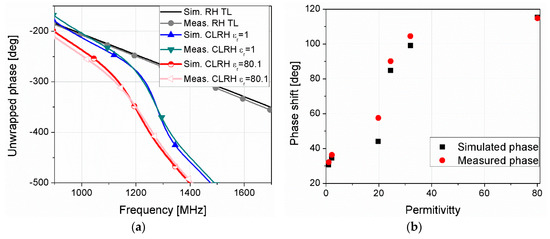

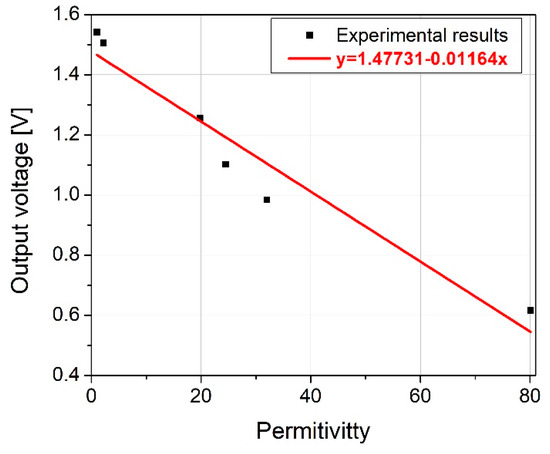

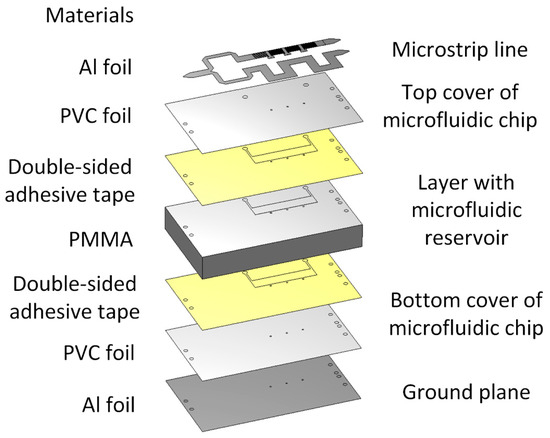

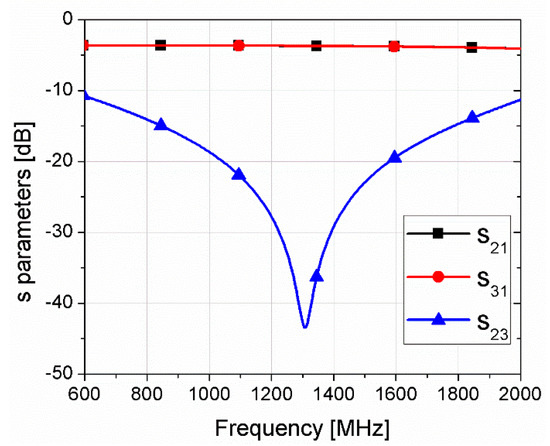

In this paper, we propose a novel metamaterial-based microfluidic sensor that permits the monitoring of properties of the fluid flowing in the microfluidic reservoir embedded between the composite left–right handed (CLRH) microstrip line and the ground plane. The sensor’s working principle is based on the phase shift measurement of the two signals, the referent one that is guided through conventional microstrip line and measurement signal guided through the CLRH line. At the operating frequency of 1.275 GHz, the CLRH line supports electromagnetic waves with group and phase velocities that are antiparallel, and therefore the phase “advance” occurs in the case of CLRH line, while phase delay arises in the right-handed (RH) frequency band. The change of the fluid’s properties that flow in the microfluidic reservoir causes the change of effective permittivity of the microstrip substrate, and subsequently the phase velocity changes, as well as the phase shift. This effect was used in the design of the microfluidic sensor for the measurement of characteristics of the fluid that flows in the microfluidic reservoir placed under the CLRH line. The complete measurement system was developed including the Wilkinson power divider that splits the signal between conventional RH and CLRH section, transmission lines with the microfluidic reservoirs, and a detection circuit for phase shift measurement. Measurement results for different fluids confirm that the proposed sensor is characterized by relatively high sensitivity and good linearity (R2 = 0.94). In this study, the practical application of the proposed sensor is demonstrated for the biomass estimation inside the microfluidic bioreactors, which are used for the cultivation of MRC-5 fibroblasts. View Full-Text
Keywords: metamaterials; left-handed line; sensors; phase shift metamaterials; left-handed line; sensors; phase shift
