An Inverse Vehicle Model for a Neural-Network-based Integrated Lateral and Longitudinal Automatic Parking Controller

Seamless Transportation Lab (STL), School of Integrated Technology, and Yonsei Institute of Convergence Technology, Yonsei University, Incheon 21983, Korea
*
Author to whom correspondence should be addressed.
Electronics 2019, 8(12), 1452; https://doi.org/10.3390/electronics8121452
Received: 1 November 2019 / Revised: 22 November 2019 / Accepted: 25 November 2019 / Published: 1 December 2019
(This article belongs to the Special Issue New Advances of Intelligent Vehicles)

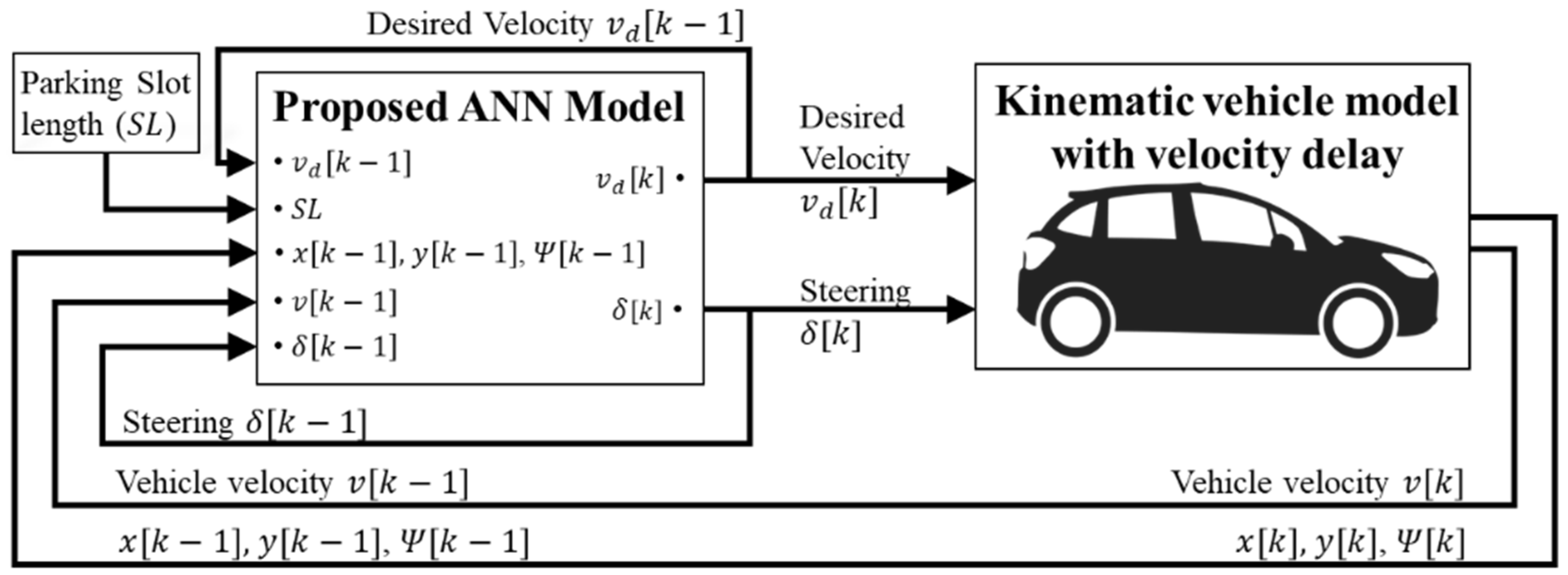

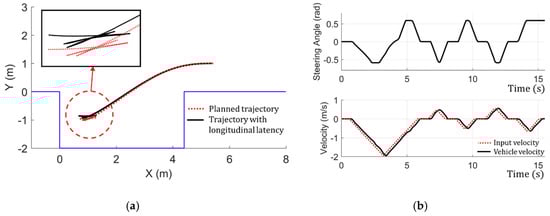

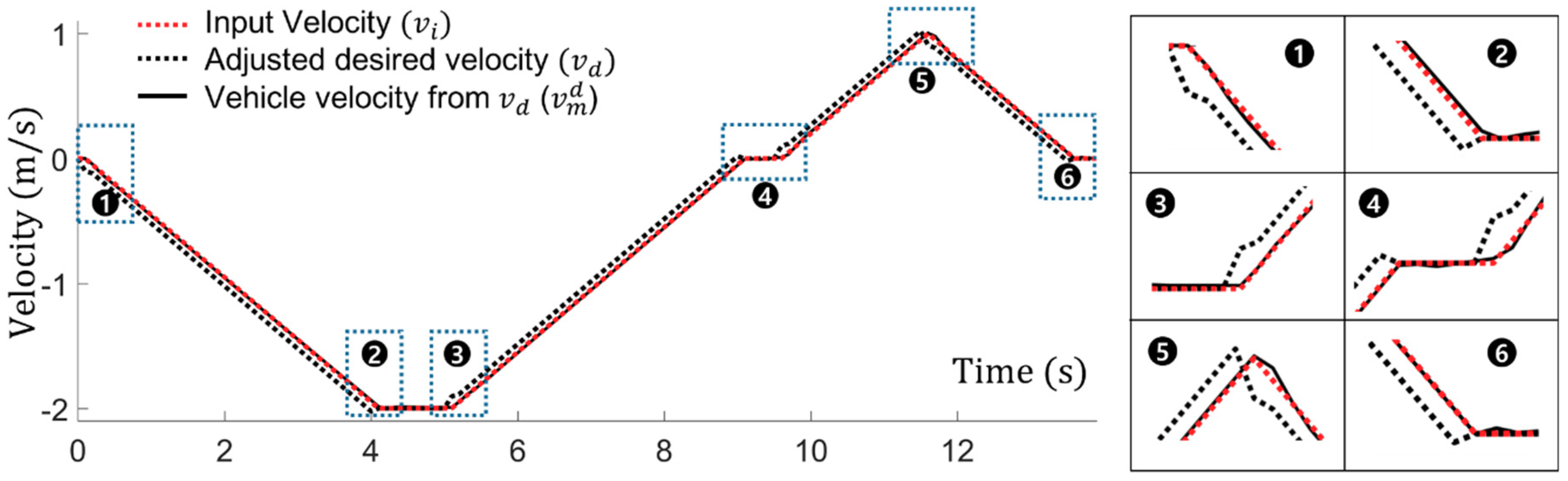

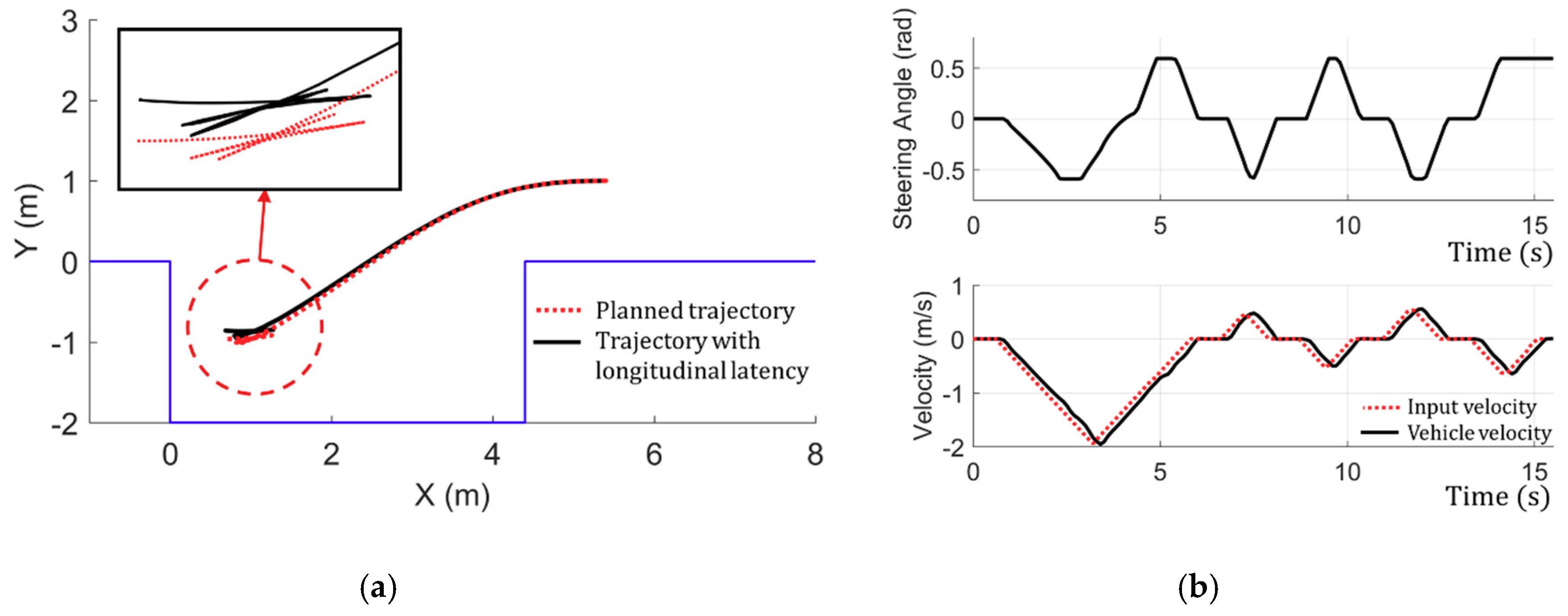

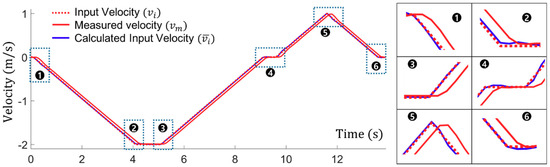

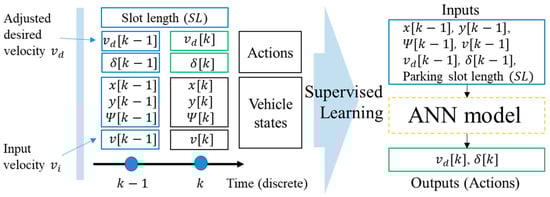

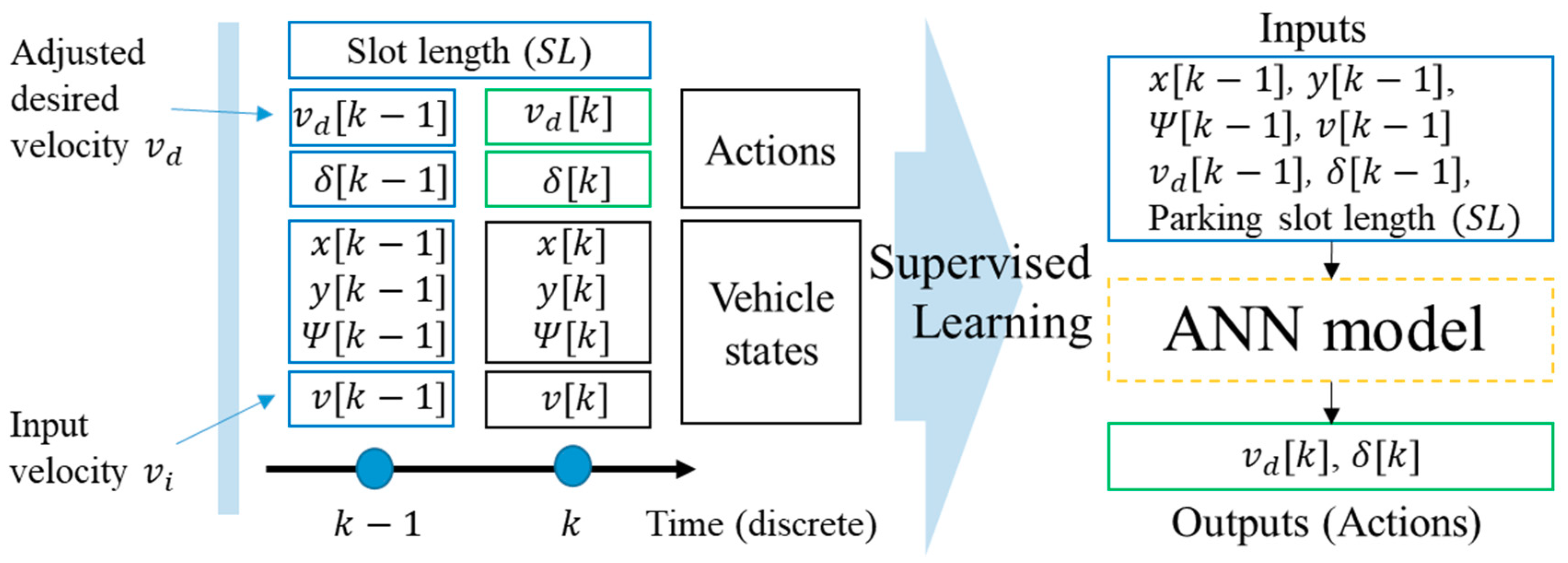

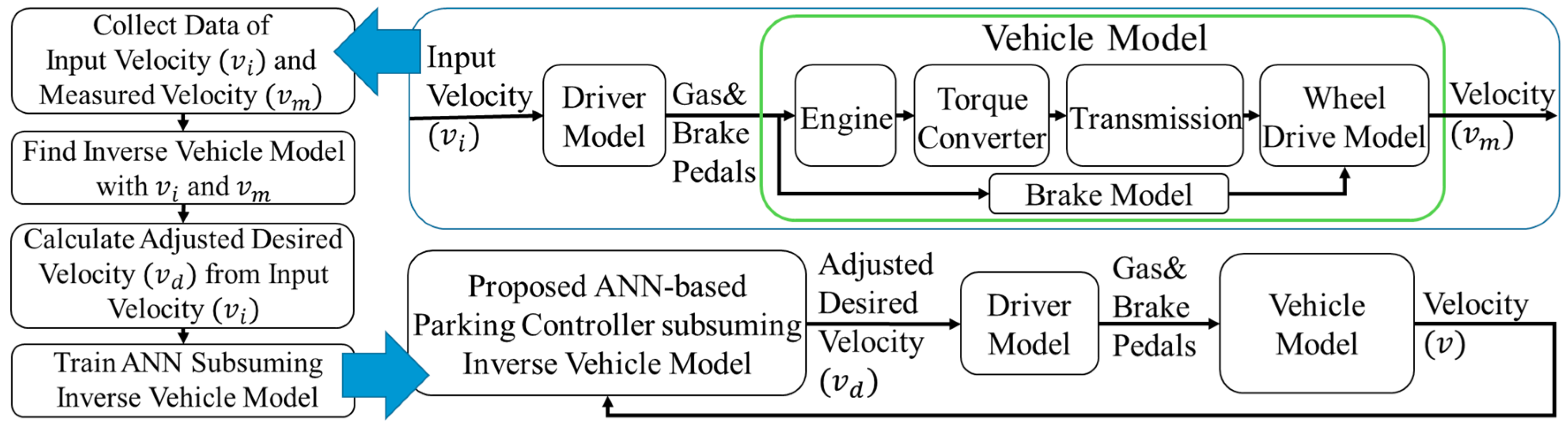

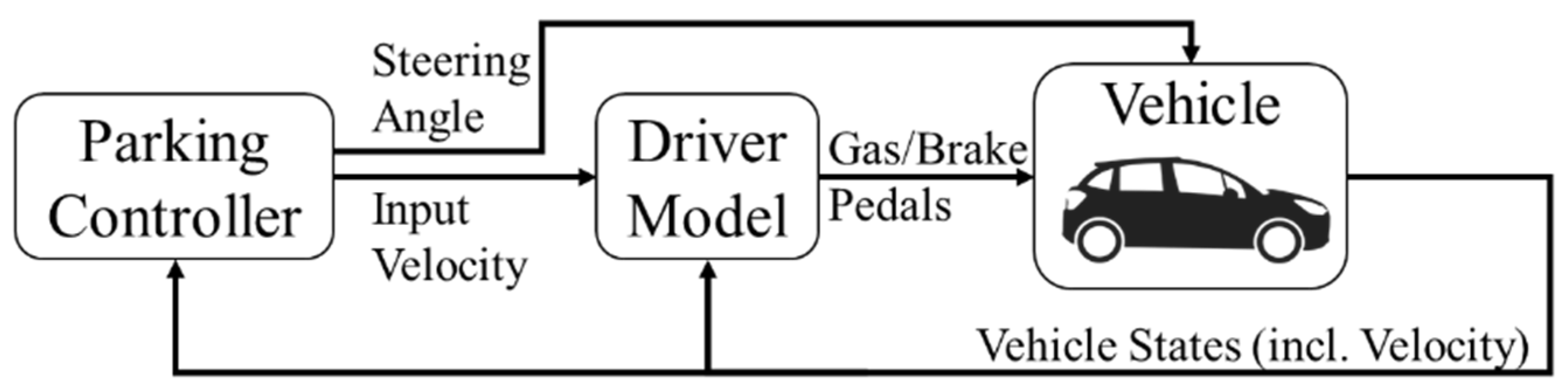

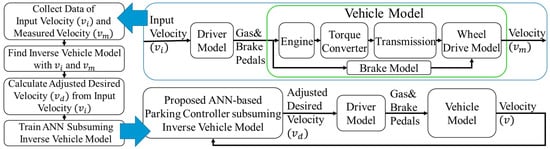

The majority of currently used automatic parking systems exploit the planning-and-tracking approach that involves planning the reference trajectory first and then tracking the desired reference trajectory. However, the response delay of longitudinal velocity prevents the parking controller from tracing the desired trajectory because the vehicle’s velocity and other state parameters are not synchronized, while the controller maneuvers the vehicle according to the planned desired velocity and steering profiles. We propose an inverse vehicle model to provide a neural-network-based integrated lateral and longitudinal automatic parking controller. We approximated the relationship of the planned velocity to the vehicle’s velocity using a second-order difference equation that involves the response characteristic of the vehicle’s longitudinal delay. The adjusted desired velocity to track the origin-planned velocity is calculated using the inverse vehicle model. Furthermore, we proposed an integrated longitudinal and lateral parking controller using an artificial neural network (ANN) model trained on a dataset applying the inverse vehicle model. By learning the control laws between the vehicle’s states and the corresponding actions, the proposed ANN-based controller could yield a steering angle and the adjusted desired velocity to complete automatic parking in a confined space.
Keywords: Autonomous Vehicle; Automatic Parking; Integrated Longitudinal and Lateral Controller; Inverse Vehicle Model; Artificial Neural Network; Autonomous Vehicle; Automatic Parking; Integrated Longitudinal and Lateral Controller; Inverse Vehicle Model; Artificial Neural Network;
MDPI and ACS Style

Moon, J.; Bae, I.; Kim, S. An Inverse Vehicle Model for a Neural-Network-based Integrated Lateral and Longitudinal Automatic Parking Controller. Electronics 2019, 8, 1452.
