Monitoring System for Laboratory Mice Transportation: A Novel Concept for the Measurement of Physiological and Environmental Parameters
Previous Article in Journal
Cost Minimization Energy Control Including Battery Aging for Multi-Source EV Charging Station
Article Menu
Issue 1 (January) cover image

Export Article

Open AccessFeature PaperArticle
Electronics 2019, 8(1), 32;

Perturbed Point-to-Point Reaching Tasks in a 3D Environment Using a Portable Haptic Device

Department of Mechanical and Aerospace Engineering (DIMA), “Sapienza” University of Rome, 00185 Roma, Italy
Consiglio Nazionale delle Ricerche (CNR), Institute of Neuroscience, 43125 Parma, Italy
Seidenberg School of CSIS, Pace University, New York, NY 10038, USA
Department of Economics, Engineering, Society and Business Organization (DEIM), University of Tuscia, 01100 Viterbo, Italy
Author to whom correspondence should be addressed.
Received: 16 October 2018 / Revised: 9 December 2018 / Accepted: 23 December 2018 / Published: 1 January 2019
(This article belongs to the Section Computer Science & Engineering)
Full-Text   |   PDF [2550 KB, uploaded 1 January 2019]   |

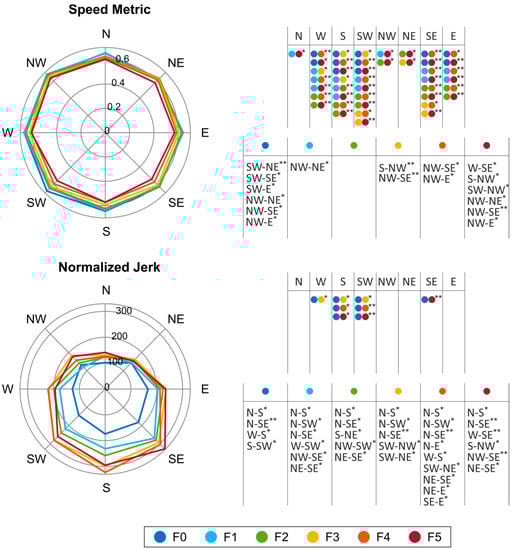

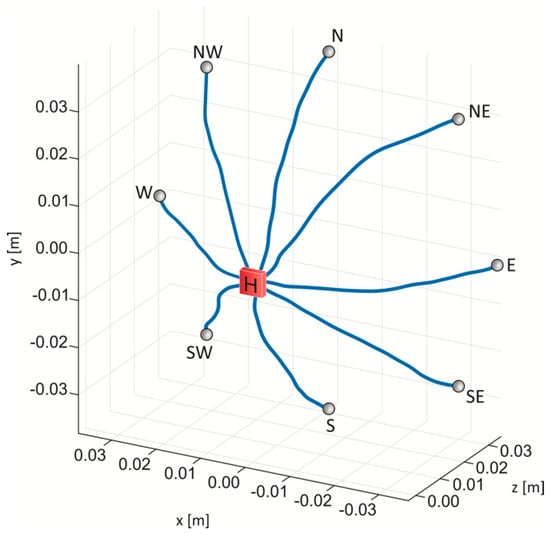

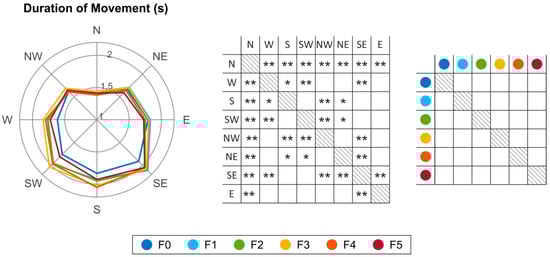

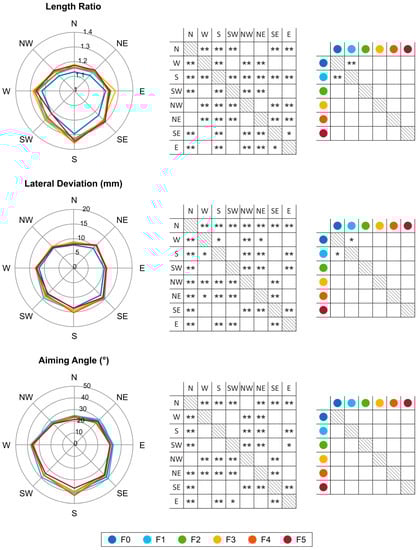

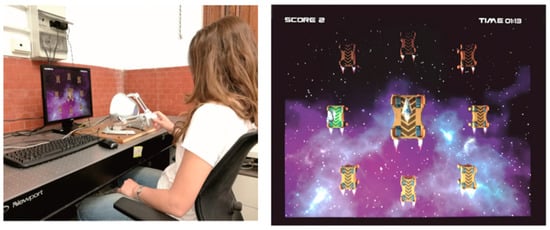

In this paper, we propose a new protocol, integrating Virtual Reality with the Novint Falcon, to evaluate motion performance during perturbed 3D reaching tasks. The protocol consists of six 3D point-to-point reaching tasks, performed using Falcon with six opposing force fields. Twenty subjects were enrolled in the study. During each task, subjects reached 80 targets and the protocol was repeated over three different days. The trajectories of the end-effector were recorded to calculate: duration of movement, length ratio, lateral deviation, aiming angle, speed metric, and normalized jerk. The coefficient of variation was calculated to study the intra-subject variability and the intra-class correlation coefficient to assess the reliability of the indices. Two-way repeated measurement ANOVA tests were performed for all indices in order to ascertain the effects of force and direction on the trajectories. Duration of movement, length ratio and speed metric have proven to be the most repeatable and reliable indices. Considering the force fields, subjects were able to optimize the trajectory in terms of duration and accuracy but not in terms of smoothness. Considering the directions, the best motor performance occurred when the trajectories were performed in the upper quadrant compared to those performed in the lower quadrant. View Full-Text
Keywords: Virtual Reality; haptic; 3D reaching; upper limb rehabilitation; health monitoring Virtual Reality; haptic; 3D reaching; upper limb rehabilitation; health monitoring

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Scalona, E.; Hayes, D.; Del Prete, Z.; Palermo, E.; Rossi, S. Perturbed Point-to-Point Reaching Tasks in a 3D Environment Using a Portable Haptic Device. Electronics 2019, 8, 32.
