Design and Realization of a Compact High-Frequency Band-Pass Filter with Low Insertion Loss Based on a Combination of a Circular-Shaped Spiral Inductor, Spiral Capacitor and Interdigital Capacitor

Lee, Ki-Hun; Kim, Eun-Seong; Liang, Jun-Ge; Kim, Nam-Young

doi:10.3390/electronics7090195

Open AccessArticle

Design and Realization of a Compact High-Frequency Band-Pass Filter with Low Insertion Loss Based on a Combination of a Circular-Shaped Spiral Inductor, Spiral Capacitor and Interdigital Capacitor

by

Ki-Hun Lee

,

Eun-Seong Kim

,

Jun-Ge Liang

and

Nam-Young Kim

^*

Radio Frequency Integrated Centre (RFIC), Kwangwoon University, Kwangwoon-ro, Nowon-gu, Seoul 01897, Korea

^*

Author to whom correspondence should be addressed.

Electronics 2018, 7(9), 195; https://doi.org/10.3390/electronics7090195

Submission received: 31 July 2018 / Revised: 10 September 2018 / Accepted: 10 September 2018 / Published: 12 September 2018

(This article belongs to the Special Issue Selected Papers from IEEE ICKII 2018)

Download

Browse Figures

Versions Notes

Abstract

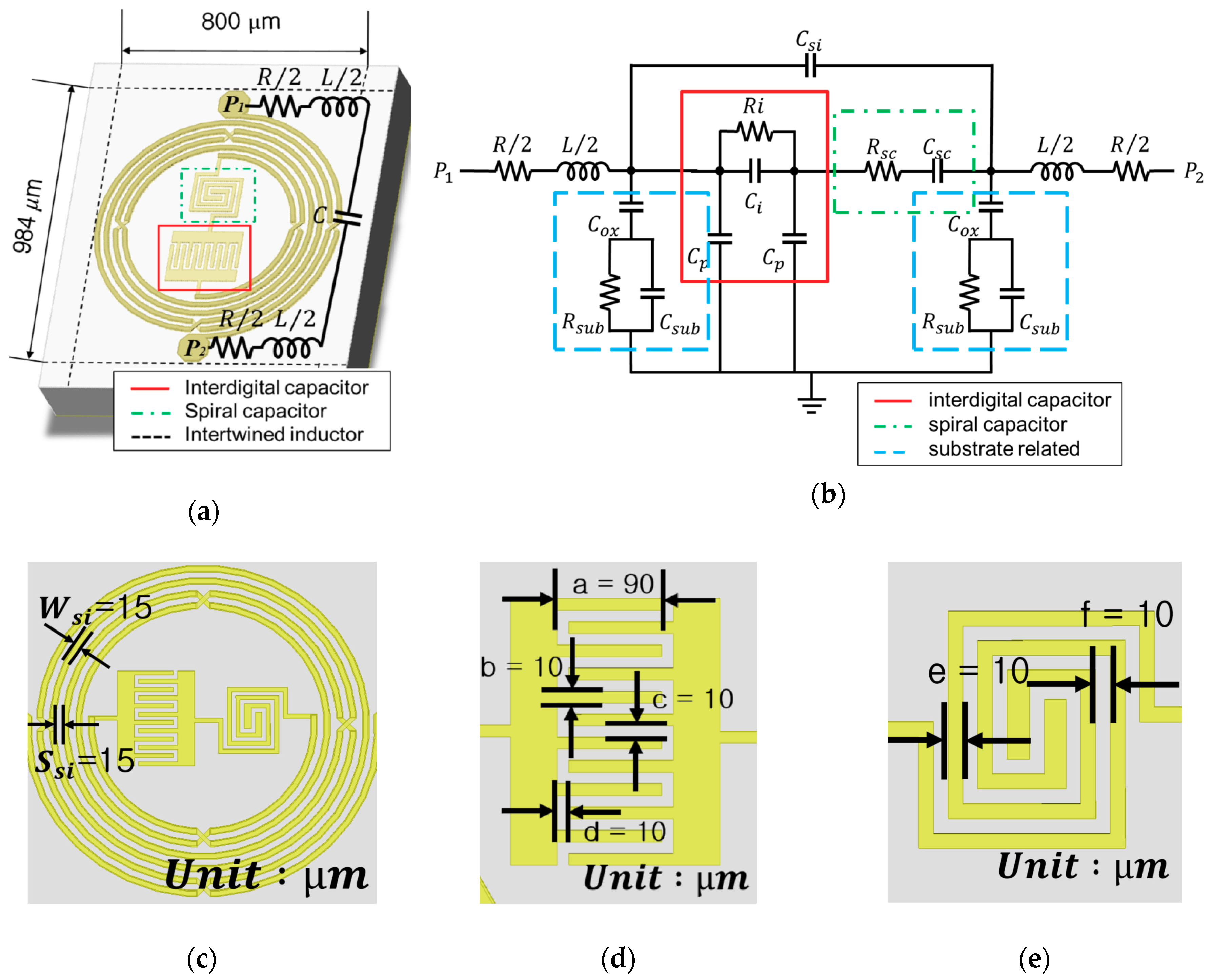

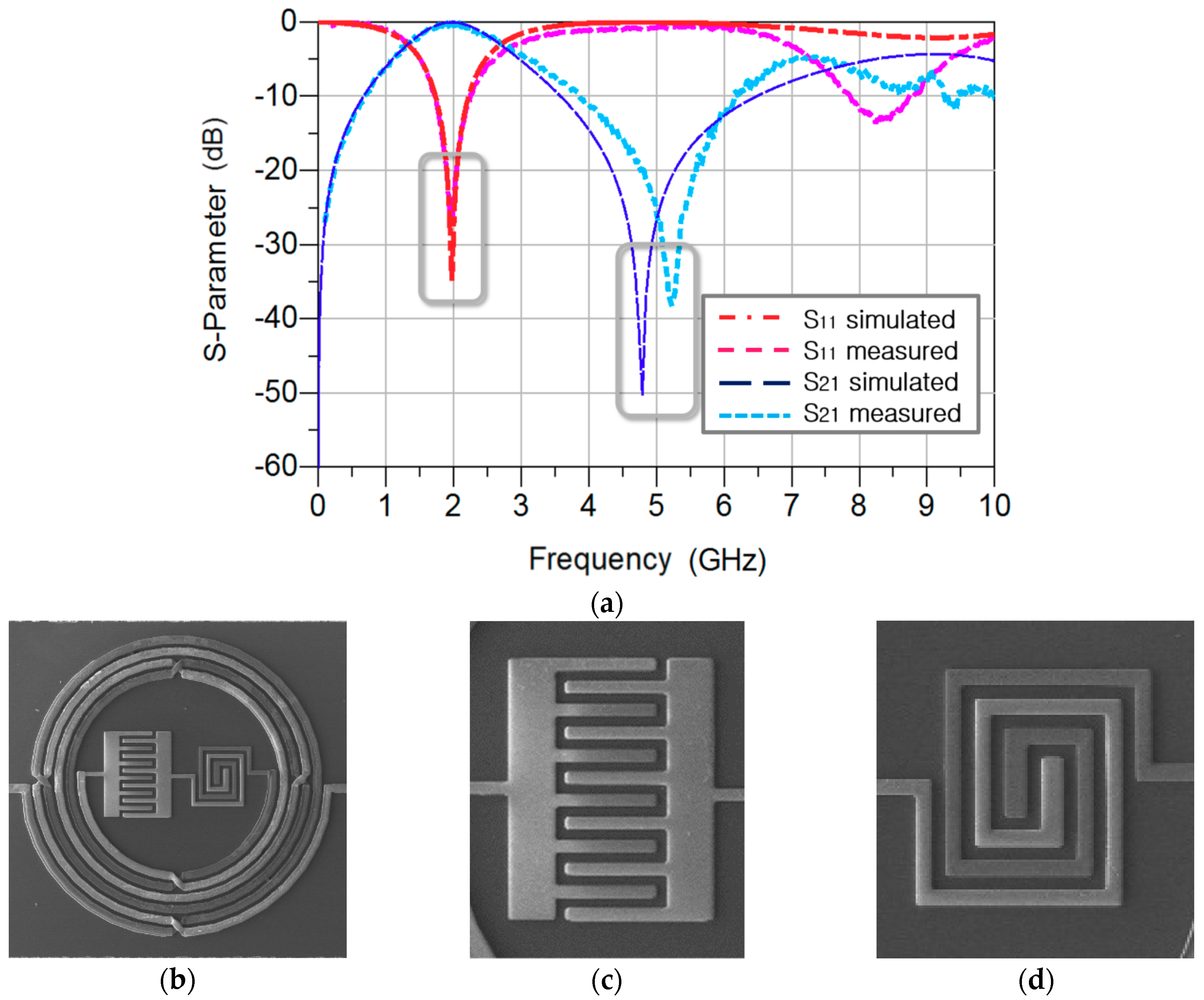

In this study, the proposed bandpass filter (BPF) connects an interdigital and a spiral capacitor in series between the two symmetrical halves of a circular intertwined spiral inductor. For the mass production of devices and to achieve a higher accuracy and a better performance compared with other passive technologies, we used integrated passive device (IPD) technology. IPD has been widely used to realize compact BPFs and achieve the abovementioned. The center frequency of the proposed BPF is 1.96 GHz, and the return loss, insertion loss and transmission zero are 26.77 dB, 0.27 dB and 38.12 dB, respectively. The overall dimensions of BPFs manufactured using IPD technology are 984 × 800

{μ m}^{2}

, which is advantageous for miniaturization and integration.

Keywords: bandpass filter; integrated passive device; intertwined spiral inductor; spiral capacitor; interdigital capacitor
