# Real-Time and High-Accuracy Arctangent Computation Using CORDIC and Fast Magnitude Estimation

^{*}

## Abstract

**:**

## 1. Introduction

_{θ}is bounded by the expression in Equation (1), which depends on the number of iterations n. This means that ideally we can reduce the angle computation error using more iterations of the CORDIC algorithm.

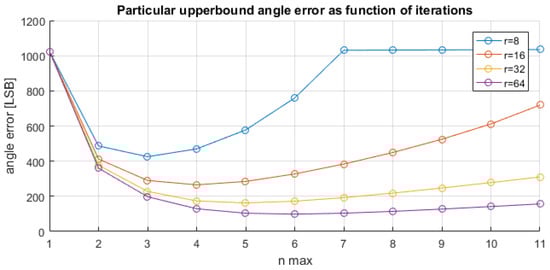

^{−1}function in Equation (2), then the error bound depends mainly on the number of iterations. Due to the quantization in the data paths of the fixed-point implementation, every loop of the algorithm has a truncation error that accumulates itself. This is the meaning of the terms $\left(n-1\right)$ and $n\delta $ in Equation (2). Particularly, the latter can lead to an increase of the error upper bound in each iteration. Instead, the ${2}^{-n\text{}+\text{}1}$ term indicates the improvement of the error due to more iterations. An example of the dependence of the error upper bound on the number n, once the parameters ε, r and δ are fixed, will be shown in Section 3. It must be noted that Equation (2) expresses an upper bound to the error, and not the real error (see the difference between the red lines and blue lines in Figures 6–9 in Section 3).

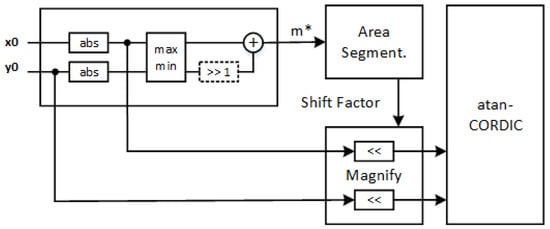

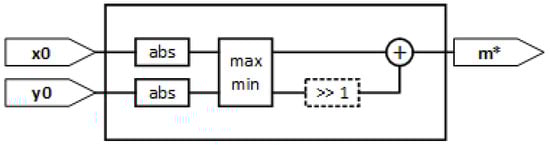

^{−1}term in Equation (2). The idea proposed in this work is to have a fast estimation of the magnitude of the initial vector and to design a circuit able to magnify the coordinates to let the standard atan-CORDIC work in the area where the phase error is small.

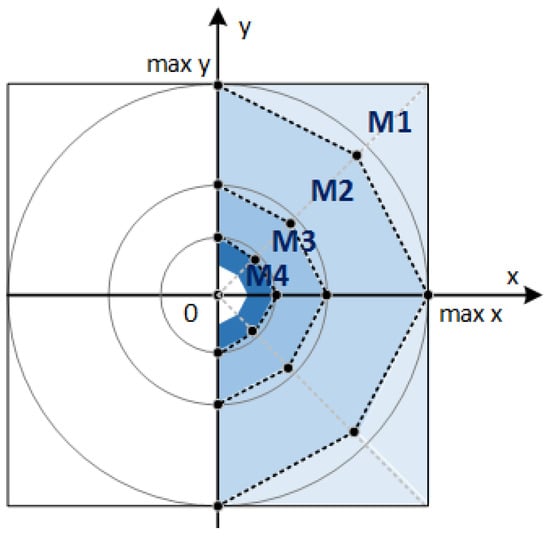

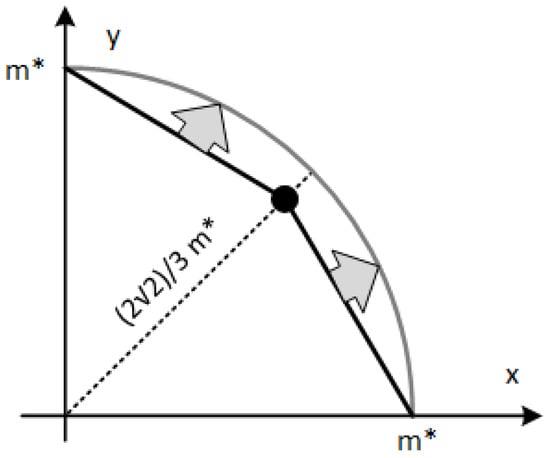

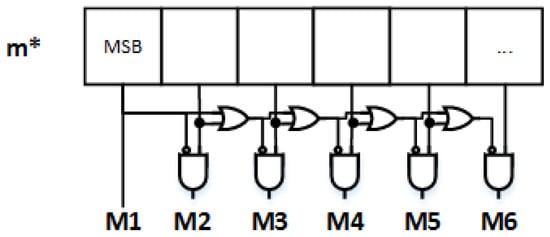

## 2. Fast Magnitude Estimator and Improved CORDIC Architecture

## 3. Computation Accuracy Evaluation

## 4. VLSI Implementation and Characterization

^{−5}rad with an optimized algorithm. At 60 MHz with 180 nm 1.8 V CMOS technology, the ARM7-TDMIs has a power consumption of about 24 mW. Although [8] is optimized to achieve a lower error, 2.42 × 10

^{−5}rad vs. 6.14 × 10

^{3}rad in our implementation, with K = 12, the proposed design outperforms the design in [8] in terms of the reduced processing time, by a factor ×124, the reduced power consumption, by a factor ×31, and the reduced circuit complexity, by a factor ×9.5 . To achieve a similar calculation accuracy as in [8], our IP has been re-synthetized with K = 20. In such a case, the processing time is still within 1 µs and the complexity in the logic gates is still below 4 kgates.

^{2}[18]. The N-MOS supplied at 1.8 V has a voltage threshold of 0.35 mV and a current capability of 600 µA/µm

^{2}. The P-MOS supplied at 1.8 V has a voltage threshold of 0.42 mV and a current capability of 260 µA/µm

^{2}.

## 5. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Volder, J.E. The CORDIC Trigonometric Computing Technique. IRE Trans. Electr. Comput.
**1959**, EC-8, 330–334. [Google Scholar] [CrossRef] - Meher, P.K.; Valls, J.; Juang, T.B.; Sridharan, K.; Maharatna, K. 50 Years of CORDIC: Algorithms, Architectures, and Applications. IEEE Trans. Circuit Syst. I
**2009**, 56, 1893–1907. [Google Scholar] [CrossRef] - Sisto, A.; Pilato, L.; Serventi, R.; Fanucci, L. A design platform for flexible programmable DSP for automotive sensor conditioning. In Proceedings of the Nordic Circuits and Systems Conference (NORCAS): NORCHIP & International Symposium on System-on-Chip (SoC), Oslo, Norway, 26–28 October 2015; pp. 1–4.
- Zheng, D.; Zhang, S.; Zhang, Y.; Fan, C. Application of CORDIC in capacitive rotary encoder signal demodulation. In Proceedings of the 2012 8th IEEE International Symposium on Instrumentation and Control Technology (ISICT), London, UK, 11–13 July 2012; pp. 61–65.
- Sisto, A.; Pilato, L.; Serventi, R.; Saponara, S.; Fanucci, L. Application specific instruction set processor for sensor conditioning in automotive applications. Microprocess. Microsyst.
**2016**, 47, 375–384. [Google Scholar] [CrossRef] - Timmermann, D.; Hahn, H.; Hosticka, B.; Schmidt, G. A Programmable CORDIC Chip for Digital Signal Processing Applications. IEEE J. Solid-State Circuits
**1991**, 26, 1317–1321. [Google Scholar] [CrossRef] - Rajan, S.; Wang, S.; Inkol, R.; Joyal, A. Efficient approximation for the arctangent function. IEEE Signal Process. Mag.
**2006**, 23, 108–111. [Google Scholar] [CrossRef] - Ukil, A.; Shah, V.H.; Deck, B. Fast computation of arctangent functions for embedded applications: A comparative analysis. In Proceedings of the 2011 IEEE International Symposium on Industrial Electronics (ISIE), Gdansk, Poland, 27–30 June 2011; pp. 1206–1211.
- Revathi, P.; Rao, M.V.N.; Locharla, G.R. Architecture design and FPGA implementation of CORDIC algorithm for fingerprint recognition applications. Procedia Technol.
**2012**, 6, 371–378. [Google Scholar] [CrossRef] - Walther, J.S. A unified algorithm for elementary functions. In Proceedings of the Spring Joint Computer Conference AFIPS ‘71 (Spring), Atlantic City, NJ, USA, 18–20 May 1971; pp. 379–385.
- Hu, Y.H. The quantization effects of the CORDIC algorithm. IEEE Trans. Signal Process.
**1992**, 40, 834–844. [Google Scholar] [CrossRef] - Kota, K.; Cavallaro, J.R. A normalization scheme to reduce numerical errors in inverse tangent computations on a fixed-point CORDIC processor. In Proceedings of the 1992 IEEE International Symposium on Circuits and Systems, San Diego, CA, USA, 10–13 May 1992; Volume 1, pp. 244–247.
- Fanucci, L.; Rovini, M. A Low-Complexity and High-Resolution Algorithm for the Magnitude Approximation of Complex Numbers. IEICE Trans. Fundam. Electron. Commun. Comput. Sci.
**2002**, E85-A, 1766–1769. [Google Scholar] - Muller, J.-M. The CORDIC Algorithm. In Elementary Functions; Birkhäuser Boston: Cambridge, MA, USA, 2016; pp. 165–184. [Google Scholar]
- Glascott-Jones, A. Optimising Efficiency using Hardware Co-Processing for the CORDIC Algorithm. In Advanced Microsystems for Automotive Applications; Springer: Heidelberg, Germany, 2010; pp. 325–335. [Google Scholar]
- Taylor, A.P. How to use the CORDIC algorithm in your FPGA design. XCell J.
**2012**, 79, 50–55. [Google Scholar] - Anoop, C.V.; Betta, C. Comparative Study of Fixed-Point and Floating-Point Code for a Fixed-Point Micro. In Proceedings of the dSPACE User Conference 2012, Bangalore, India, 14 September 2012.
- Minixhofer, R.; Feilchenfeld, N.; Knaipp, M.; Röhrer, G.; Park, J.M.; Zierak, M.; Enichlmair, H.; Levy, M.; Loeffler, B.; Hershberger, D.; et al. A 120 V 180 nm High Voltage CMOS smart power technology for System-on-chip integration. In Proceedings of the 2010 22nd International Symposium on Power Semiconductor Devices & IC’s (ISPSD), Hiroshima, Japan, 6–10 June 2010.
- Bretschneider, J.; Wilde, A.; Schneider, P.; Hohe, H.-P.; Koehler, U. Design of multidimensional magnetic position sensor systems based on hallinone technology. IEEE Int. Symp. Ind. Electron. (ISIE)
**2010**, 422–427. [Google Scholar] [CrossRef] - Sarti, L.; Sisto, A.; Pilato, L.; di Piro, L.; Fanucci, L. Platform based design of 3D Hall sensor conditioning electronics. In Proceedings of the 2015 11th Conference on IEEE Conference on Ph.D. Research in Micr. and Electronics (PRIME), Glasgow, UK, 29 June–2 July 2015; pp. 200–203.
- Kim, S.; Abbasizadeh, H.; Ali, I.; Kim, H.; Cho, S.; Pu, Y.; Yoo, S.-S.; Lee, M.; Hwang, K.C.; Yang, Y.; et al. An Inductive 2-D Position Detection IC With 99.8% Accuracy for Automotive EMR Gear Control System. IEEE Trans. Very Large Scale Integr. (VLSI) Syst.
**2017**. [Google Scholar] [CrossRef]

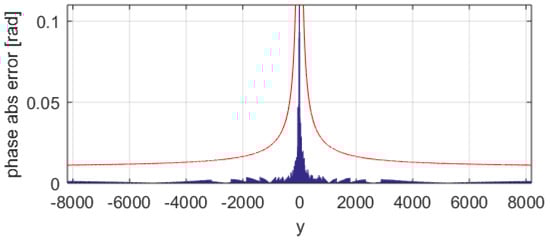

**Figure 6.**Standard atan-CORDIC phase error of x = 16 and y. The red line is the coarse upper-bound error evaluated with Equation (2); the blue trace is the standard atan-CORDIC phase error.

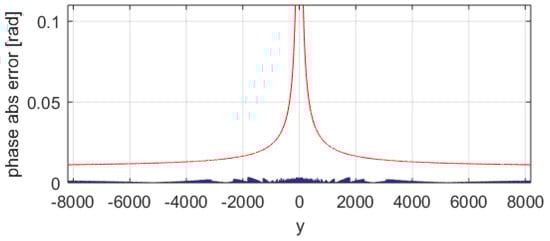

**Figure 7.**Improved atan-CORDIC phase error of x = 16 and y. The red line is the coarse upper-bound error evaluated with Equation (2); the blue trace is the standard atan-CORDIC phase error.

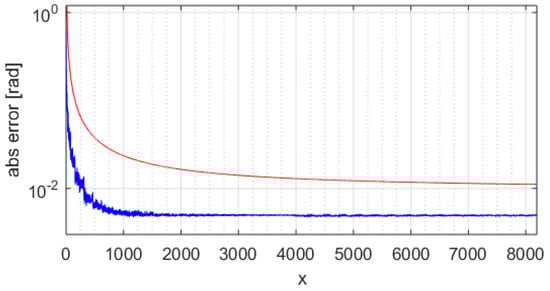

**Figure 8.**Standard atan-CORDIC max phase error on all the input space. The red line is the coarse upper-bound error evaluated with Equation (2); the blue trace is the standard atan-CORDIC phase error.

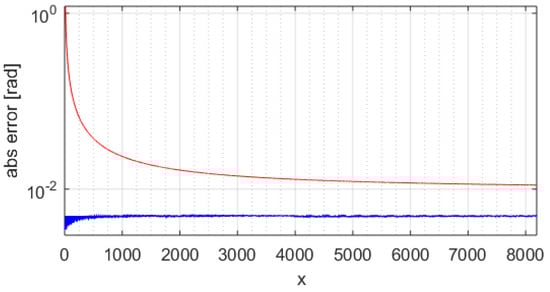

**Figure 9.**Improved atan-CORDIC max phase error on all the input space. The red line is the coarse upper-bound error evaluated with Equation (2); the blue trace is the standard atan-CORDIC phase error.

**Table 1.**Max angle error expressed in LSB of the standard (std) vs. the proposed (our) CORDIC, K = 12, 12 iterations from 0 to 11, bits for x and y from 10 to 14, M areas from 6 to 9.

M Areas | ||||||||
---|---|---|---|---|---|---|---|---|

6 | 7 | 8 | 9 | |||||

x, y Bits | std | our | std | our | std | our | std | our |

10 | 414 | 50 | 414 | 16 | 414 | 16 | 414 | 16 |

11 | 414 | 50 | 414 | 13 | 414 | 10 | 414 | 10 |

12 | 414 | 50 | 414 | 13 | 414 | 10 | 414 | 6 |

13 | 414 | 50 | 414 | 13 | 414 | 10 | 414 | 4 |

14 | 414 | 50 | 414 | 13 | 414 | 10 | 414 | 4 |

**Table 2.**Max angle error expressed in LSB of the standard (std) vs. the proposed (our) CORDIC, K = 12, nine iterations from 0 to 8, bits for x and y from 10 to 14, M-areas from 6 to 9.

M areas | ||||||||
---|---|---|---|---|---|---|---|---|

6 | 7 | 8 | 9 | |||||

x, y Bits | std | our | std | our | std | our | std | our |

10 | 410 | 45 | 410 | 15 | 410 | 15 | 410 | 15 |

11 | 410 | 45 | 410 | 10 | 410 | 10 | 410 | 10 |

12 | 410 | 45 | 410 | 9 | 410 | 9 | 410 | 8 |

13 | 410 | 45 | 410 | 9 | 410 | 9 | 410 | 7 |

14 | 410 | 45 | 410 | 9 | 410 | 9 | 410 | 7 |

**Table 3.**Max angle error expressed in LSB of the standard vs. proposed CORDIC (K = 12, 12 bits for x and y data paths, six M areas).

Max. Number of Iterations | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|

2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |

Standard CORDIC | 512 | 302 | 252 | 333 | 374 | 394 | 404 | 409 | 412 | 413 | 414 |

Proposed CORDIC | 512 | 302 | 160 | 82 | 43 | 30 | 40 | 45 | 48 | 49 | 50 |

IP macrocell | Standard CORDIC | This work | [6] | [8] |
---|---|---|---|---|

Equivalent gates | 1400 | 1700 (1900 pipelined) | 8000 | 18,000 + 32kB RAM + 512 kB E2PROM |

Clock frequency, MHz | 46 | 30 (46 pipelined) | 10 | 60 |

Max. angle error | 0.6355 rad | 6.1 × 10^{−3} rad | N/A (K = 16, n = 20) | 2.42 × 10^{−5} rad |

Processing latency, µs | 0.28 | 0.4 (0.28 pipelined) | N/A | 35 |

Power consumption, mW | 0.57 | 0.45 (0.77 pipelined) | N/A | 24 |
