Transmit Power Optimization in Multihop Amplify-and-Forward Relay Systems with Simultaneous Wireless Information and Power Transfer

Abstract

In this paper, we study a multi-hop amplify-and-forward (AF) simultaneous wireless information and power transmission (SWIPT) relay system. Each relay node harvests power using a power split (PS) method from a portion of the received signal, amplifies the remaining received signal, and passes it to the next relay. Based on this system model and signal flow, we derived and solved the convex power minimization problem with the optimal PS ratio. In this case, it was found that using the optimal PS ratio consumed a lower amount of power than when using a fixed PS ratio (0.5). We then investigated the impact of processing cost on the AF-SWIPT system using decoding and forwarding SWIPT as benchmarks, and found that AF-SWIPT was superior.

1. Introduction

The Internet of Things (IoT) connects network-enabled devices communicating with each other over the Internet. Hence, the objective of the IoT is to integrate the physical world and the virtual world to attain a self-sustaining system [1]. Currently, research into the application of the IoT for the creation of smart cities, smart homes, smart energy, intelligent transportation systems, and many more innovations is growing. An IoT network consists of the use of routing schemes, a gateway supporting communication between the different nodes and a central system [1,2,3]. These routing schemes facilitate either direct or relaying communication between a gateway and a particular node. As the demand for data service provision rapidly increases worldwide, cooperative communication through relays has recently been recommended as an effective solution. The use of cooperative relay systems significantly enhances the reliability of data transmission [4,5]. Additionally, relay technology is applied to effectively minimize path loss, expanding the system’s coverage area and capacity [6,7,8]. The relaying nodes can be opportunistically implemented by non-active user devices [1,9]. This results in the selected user nodes consuming their power in facilitating communication between the two user pairs [10,11]. This implies that the selected users sacrifice their resources to facilitate relaying procedures [10,12]. The strain on the relay nodes can be mitigated by employing wireless power transfer (WPT) [1,10,11,13,14].

Recently, the amount of research into alternative wireless sources of energy (e.g., radio frequency (RF) and light energy harvesting) to power IoT devices is also increasing [1,4,5,6,10,11,15,16,17,18,19]. WPT can be accomplished by using two different techniques, namely, simultaneous wireless information and power transfer (SWIPT), and wireless powered communication networks (WPCNs) [1,10,11,16].

SWIPT is a technology proposed to extend the life of power-constrained wireless networks and provide an alternative solution for battery-operated devices with limited lifespans [20,21]. SWIPT involves the transmission of wireless information signals and wireless power signals concurrently [1,10,11,16]. SWIPT can benefit significantly from power consumption, spectrum efficiency, interference management, and transmission latency by enabling the simultaneous transmission of power and information [17,22]. Thus, SWIPT is an essential solution for beyond fifth-generation (B5G) technology, providing the energy needed to wirelessly charge energy-limited devices and transmit and receive information [23]. Furthermore, SWIPT can be effectively integrated with B5G small cell systems, including Millimeter-Wave (mmWave) technology and massive multiple-input multiple-output (MIMO) systems, to enhance both throughput and energy efficiency [17,18]. To implement the SWIPT system, time switching (TS) and power splitting (PS) are the two main techniques [1,10,11]. Zhou et al. [24] and Zhang and Ho [25] investigated both PS and TS methods and compared the performance of these two methods.

The successive transmission of a wireless information signal and a wireless power signal is used to accomplish a WPCN [1,10,11]. A WPCN can be deployed efficiently to power multiple communication devices with different physical conditions and service requirements. Moreover, RF-enabled wireless energy transfer also allows information to be transmitted along with energy using the same waveform [26]. Compared with existing battery-powered networks, a WPCN does not require manual battery replacement/charging, which can effectively reduce operating costs and improve communication performance [5].

Research on RF-based WPT has evolved from point-to-point systems and dual-hop cooperative systems to multi-hop cooperative systems. A few studies in the literature on both dual-hop and multi-hop cooperative systems can be found in [1,10,11]. Asiedu et al. [11] considered a single-antenna amplify-and-forward (AF) dual-hop configuration with multiple relay nodes. Both the power control elements and the PS ratio of each relay node have been optimized with the goal of maximizing the achievable speed. In [1], a single-antenna multi-hop decode-and-forward (DF) SWIPT system was optimized. Both the transmission power and data rate were optimized based on the PS ratio.

In this paper, we extend the work in [1], which focused on a DF-SWIPT multi-hop system model to an AF-SWIPT multi-hop system model. We consider single-antenna relay nodes, a SWIPT PS mode at each node, unlike [1] each relay node operated as a AF mode. And, we derive the transmit power optimization problem based on a PS scheme. Finally, the closed-form solution is obtained for our optimization problem. In the simulation results, we compare AF-SWIPT multi-hop systems to the DF-SWIPT in [1].

The rest of the paper is organized as follows: Section 2, Section 3 and Section 4 contain the the stepwise process in formulating the AF-SWIPT multi-hop optimization problem, the solutions for our the optimization problem, and the simulation results and discussion, respectively. Finally, concluding remarks are provided in Section 5.

2. System Model and Problem Formulation

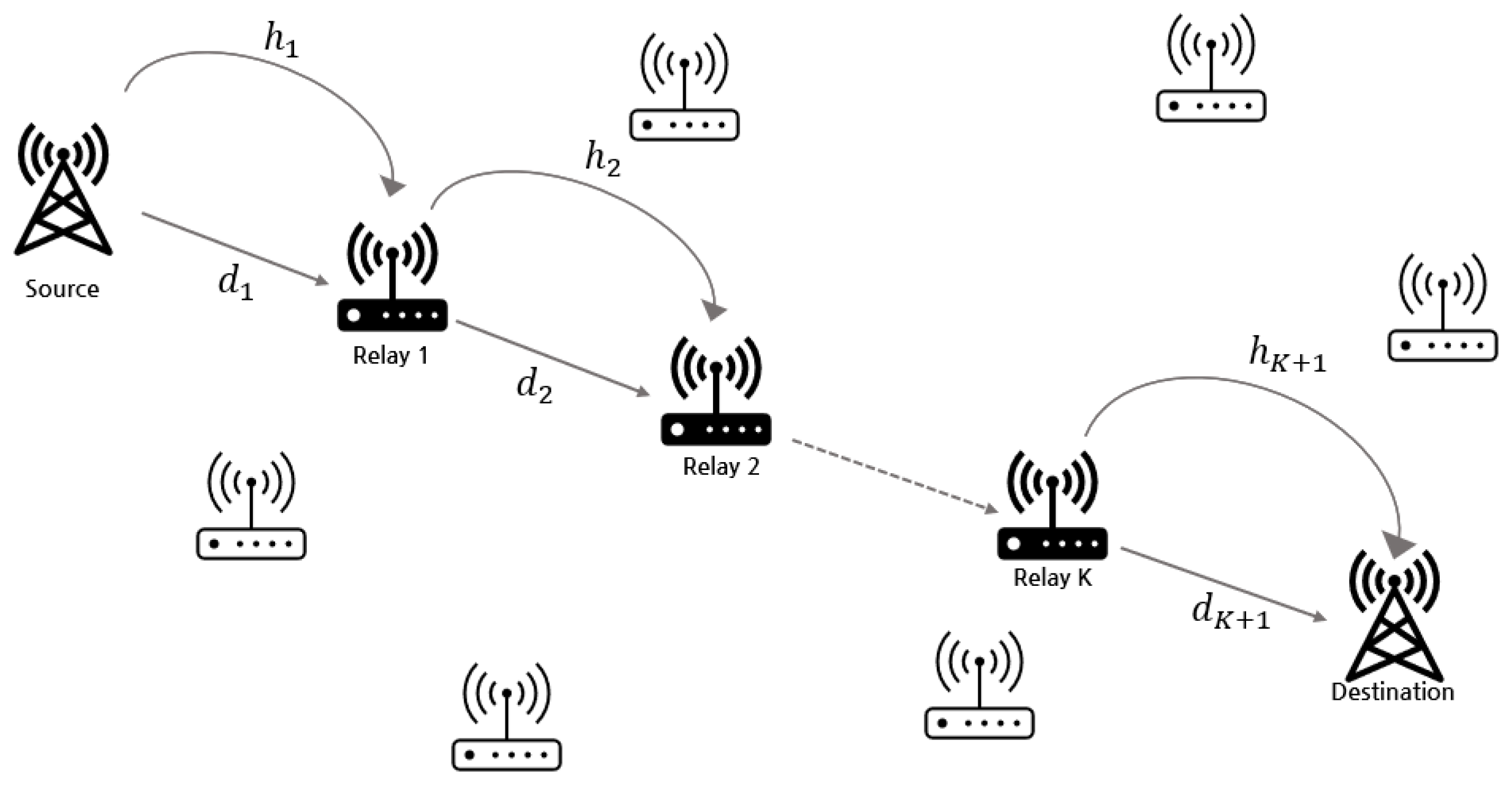

Consider the system model shown in Figure 1, which consists of a single base station (BS), a single destination, and K relay nodes. All nodes have single antennas. The BS node communicates with the destination node through multi-hop relays. Each relay node uses the AF protocol to forward its signals to the next node. We assume that each relay does not have a dedicated power but utilizes energy harvesting to forward its signals during coherence time. The relay nodes operate according to the SWIPT technique, where the received signal is split into information and energy harvesting (EH) parts. In this work, the PS ration technique is adopted for the SWIPT EH process at the multi-hop nodes. The relays store the harvested energy in their batteries for signal retransmission.

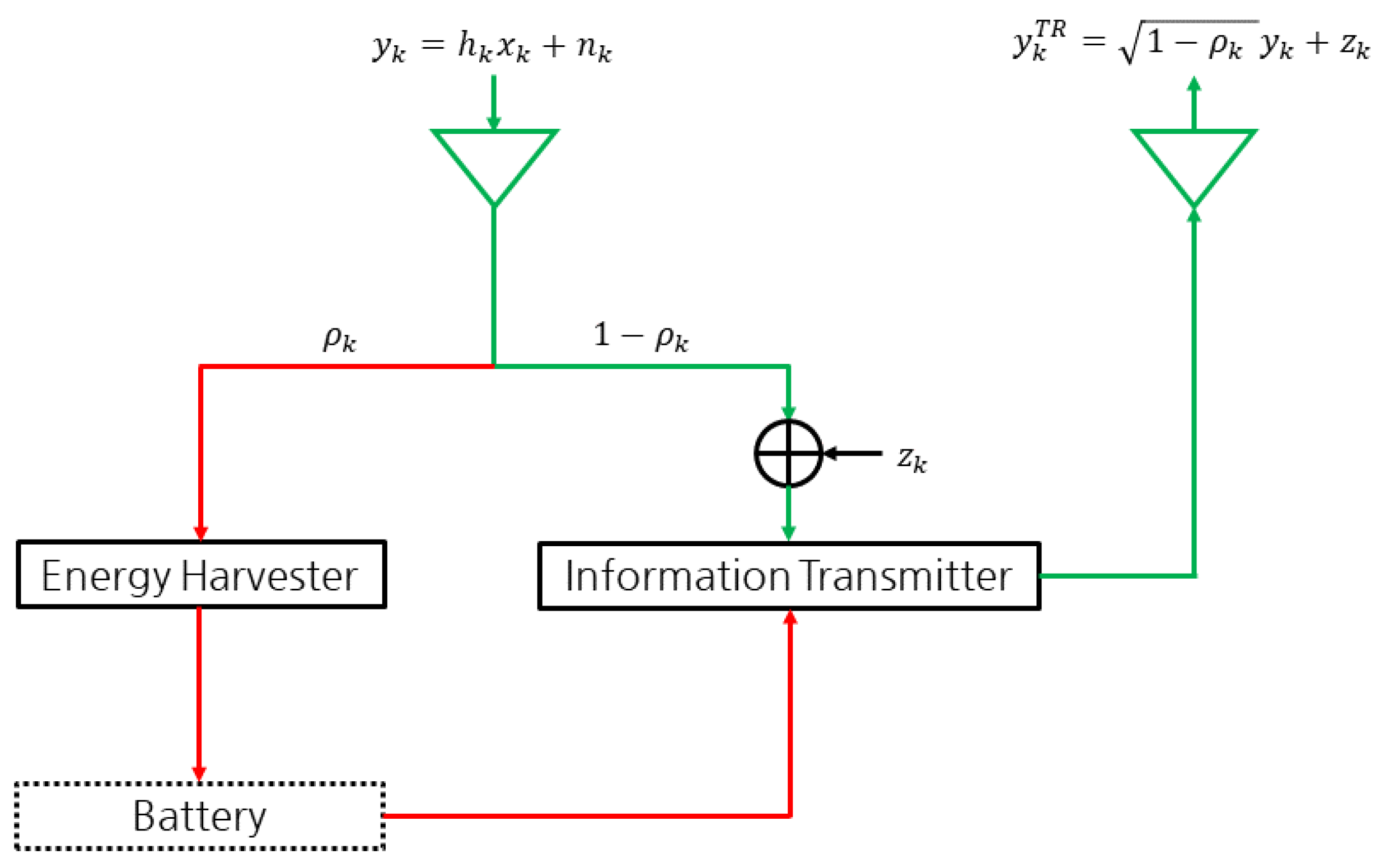

The structure of our AF-SWIPT relay is shown in Figure 2. Each relay node has a battery that can store energy harvested from the received RF signal and use it only to retransmit the relaying data after amplification. The signal transmitted to the relay node is divided into an information part and an EH part by the PS ratio ${\rho }_k,(0\le {\rho }_k\le 1)$.

We assume that the source node knows the channel state information (CSI) for all communication nodes. However, each relay and the destination node only know the CSI of their own communication channel. It is assumed that there is no direct communication link between the current node and the next second or more nodes. For example, there is no direct link between the first node and the third node.

The received RF signal at node ($k,\forall k=1\cdots ,K+1$) from the previous node is given as

$$y_k=h_k{x}_{k-1}+n_k,$$

(1)

where $h_k$ is the channel coefficient between the current node and the previous node, and $n_k$∼$CN$(0,${\delta }_k^2$) represents the antenna noise at the current node. The channel $h_k$ is defined as $h_k=\sqrt{{\zeta }_k}{\tilde{h}}_k$, where ${\zeta }_k=G_k{(d_k/d_0)}^{-{\alpha }_k}$ is the large-scale fading coefficient, $G_k$ is the attenuation constant at a reference distance $d_0$, ${\alpha }_k$ is the pathloss exponent, $d_k$ is the distance between the transmit and receive nodes, and ${\tilde{h}}_k$∼$CN$(0,1) is the Rayleigh fading component. The received signal at the kth relay node is split into EH and information signals which are written, respectively, as

$$y_k^{EH}=\sqrt{{\rho }_k}{y}_k,$$

(2)

$$y_k^{ID}=\sqrt{1-{\rho }_k}{y}_k,$$

(3)

and the harvested energy at the kth node and the destination node are given by, respectively,

$$E_k={\beta }_k{\rho }_k{\left|h_k\right|}^2{E}_{k-1},$$

(4)

$$E_{K+1}={\beta }_{K+1}{\rho }_{K+1}{\left|h_{K+1}\right|}^2{E}_K-P_c,$$

(5)

where $P_c$ is the processing power for information decoding at the destination node, $E_0$ is the transmit power at the source node, $0\le {\beta }_k\le 1$ is the energy conversion efficiency for the kth node, and the signal for information transmission at the kth relay is represented by

$$y_k^{TR}=\sqrt{1-{\rho }_k}{y}_k+z_k,$$

(6)

where $z_k\sim CN(0,{\sigma }_k^2)$ is the additional noise introduced by the information decoding (ID) circuitry. The signal-to-noise ratio (SNR) is expressed as

$${\gamma }_k={\displaystyle \frac{{\prod }_{j=1}^{k-1}{\beta }_j{\rho }_j{\prod }_{j=1}^k(1-{\rho }_j){\left|h_j\right|}^2{E}_0}{{\sum }_{i=1}^k\left[((1-{\rho }_i){\delta }_i^2+{\sigma }_i^2){\prod }_{j=i}^{k-1}{\beta }_j{\rho }_j{\prod }_{j=1,j\ne i}^k(1-{\rho }_j){\prod }_{j=i+1}^k{\left|h_j\right|}^2\right]}},$$

(7)

The signal to be transmitted to the kth relay is represented by

$$x_k=g_k{y}_k^{TR},$$

(8)

where $g_k=\sqrt{{\displaystyle \frac{E_k}{(1-{\rho }_k)E_{k-1}{\left|h_j\right|}^2}}}\approx \sqrt{{\displaystyle \frac{{\beta }_k{\rho }_k}{1-{\rho }_k}}}$ is the amplification factor [27], and $x_0$ is the information signal at the source node.

We now consider the problem of optimizing the PS ratio ${\left\{{\rho }_k\right\}}_{k=1}^K$ at the relay nodes and the power at the source node $E_0$. We aim to minimize the source transmit power subject to the destination node SNR and PS ratio constraints. Consequently, we formulate the optimization problem as

$$\begin{array}{cc}\hfill & \underset{E_0,{\left\{{\rho }_k\right\}}_{k=1}^K}{\min }{E}_0\hfill \\ \hfill & \mathrm{subject}\mathrm{to}{\gamma }_{K+1}\ge {\overline{\gamma }}_{K+1}\hfill \\ \hfill & 0\le {\rho }_k\le 1,k=1,\cdots ,K+1\hfill \\ \hfill & E_0\ge 0,\hfill \end{array}$$

(9)

The first constraint means that the SNR threshold value at the destination is greater or equal to the SNR value at the destination node.

3. Problem Solution

In this section, we provide the solution for the source transmit power minimization problem. The optimal transmit power at the source node is determined to be

$$E_0={\overline{\gamma }}_{K+1}{\displaystyle \frac{{\sum }_{i=1}^{K+1}\left[((1-{\rho }_i){\delta }_i^2+{\sigma }_i^2){\prod }_{j=i}^K{\beta }_j{\rho }_j{\prod }_{j=1,j\ne i}^{K+1}(1-{\rho }_j){\prod }_{j=i+1}^{K+1}{\left|h_j\right|}^2\right]}{{\prod }_{j=1}^K{\beta }_j{\rho }_j{\prod }_{j=1}^{K+1}(1-{\rho }_j){\left|h_j\right|}^2}},$$

(10)

where ${\overline{\gamma }}_{K+1}$ is the SNR threshold constraint of the destination node. The optimal PS ratio at the kth node is written as

$${\rho }_k={\displaystyle \frac{C_k+{\sum }_{i=k+1}^K{D}_i-\sqrt{F_k{\sum }_{i=k+1}^{K+1}{D}_i}}{C_k+{\sum }_{i=k+1}^K{D}_i-F_k}},k=1,\cdots ,K$$

(11)

where $C_k$, $D_i$, and $F_k$ are defined as

$$C_k=((1-{\rho }_{K+1}){\delta }_{K+1}^2+{\sigma }_{K+1}^2)\prod _{j=k}^K(1-{\rho }_{j+1}),$$

(12)

$$D_i=((1-{\rho }_i){\delta }_i^2+{\sigma }_i^2)\prod _{j=i}^K{\beta }_j\prod _{j=k+1,j\ne i}^{K+1}(1-{\rho }_j)\prod _{j=i}^K{\rho }_j{\left|h_{j+1}\right|}^2,$$

(13)

$$F_k=\prod _{j=k}^K{\beta }_j\prod _{j=k+1}^{K+1}(1-{\rho }_j){\left|h_j\right|}^2\prod _{j=k+1}^K{\rho }_j{\sigma }_k^2,$$

(14)

Proof.

The proof in acquiring the optimal values is provided in Appendix A. □

4. Simulation Results

This section contains the evaluation of the performance of the AF-SWIPT system compared with the DF-SWIPT system as a benchmark [1]. In the simulation setup, for the large-scale fading component, the attenuation constant $G=G_0=\cdots =G_K=-10$ dB, and the pathloss exponent $\alpha =3$ is assumed. The distance between each node is $d=d_1=\cdots =d_K=2$ m, the antenna noise variance ${\sigma }^2={\sigma }_1^2=\cdots ={\sigma }_{K+1}^2=-80$ dBm, and the energy conversion efficiency $\beta ={\beta }_1=\cdots ={\beta }_K=0.7$. We assume that $P_c=0$ W at the destination node, because the destination node possesses enough power for decoding the received signal. The PS ratio used for the suboptimal scheme is ${\rho }_k=0.5$. The simulation results are obtained over ${10}^4$ random channel realizations.

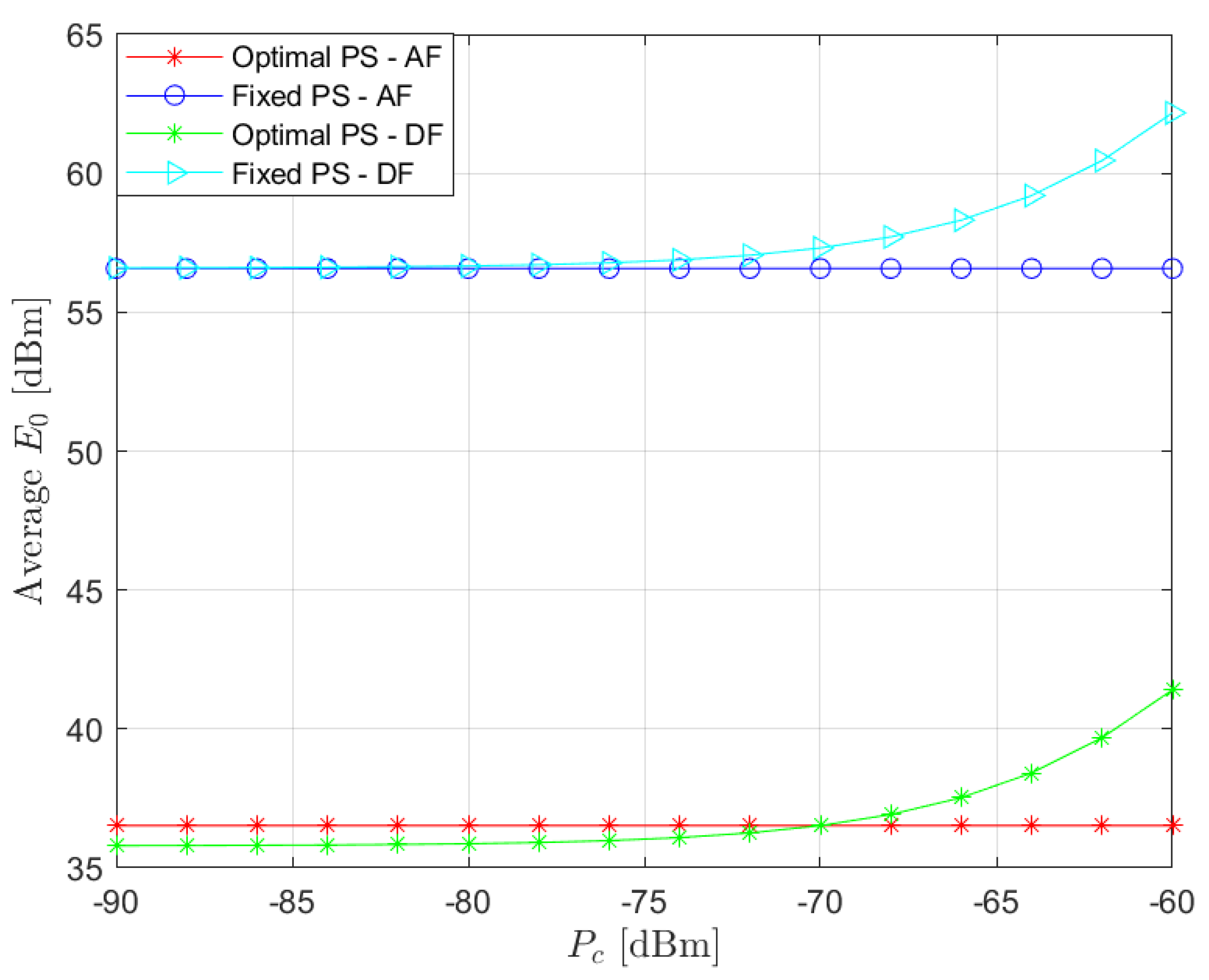

Figure 3 shows the effect of each relay circuit power $P_c$ on $E_0$. When the PS ratio is fixed, the performance is the same when the relay circuit power $P_c$ is very low, but from −80 dBm, the transmission power $E_0$ of AF-SWIPT is lower than that of DF-SWIPT. In the case of the optimal PS ratio, DF-SWIPT has a less transmission power than AF-SWIPT for a very low $P_c$. However, above −70 dBm, the trend reverses. Through this, it can be seen that above a certain $P_c$, the performance of AF-SWIPT is better than DF-SWIPT in terms of transmission power.

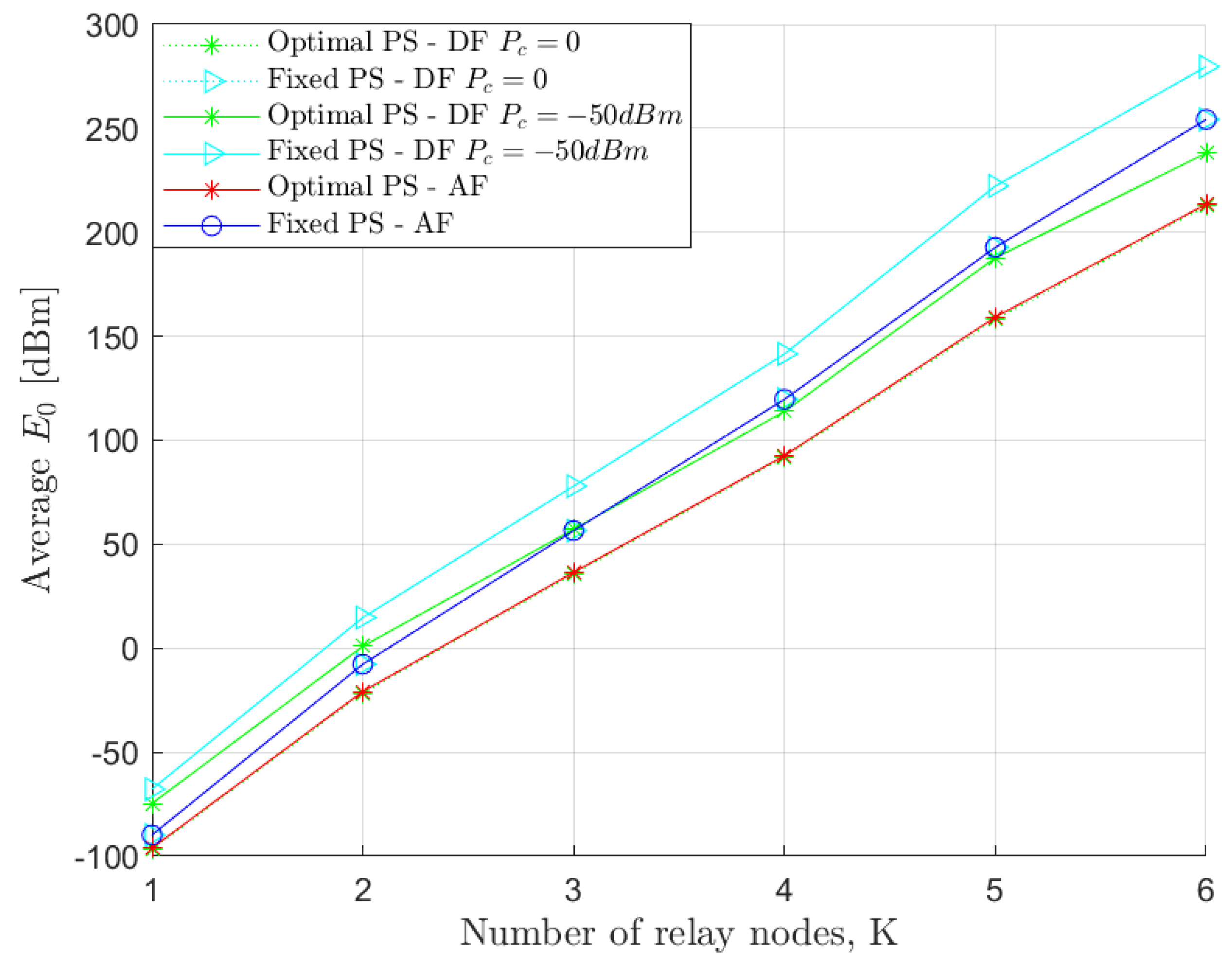

Figure 4 shows a plot of the average power $E_0$ against the number of relays K for different circuit powers $P_c$. When $P_c$ is 0, there is little difference in performance between both DF-SWIPT and AF-SWIPT, but when $P_c$ is −50 dBm, the transmission power of DF-SWIPT is actually higher than that of AF-SWIPT. This shows the same trend for all numbers of relays. This is because there is no signal decoding (i.e., processing power) at the relays for AF-SWIPT, unlike in the DF-SWIPT. In the AF-SWIPT, signal decoding occurs only at the destination. Therefore, processing power is used only at the destination for the AF-SWIPT, while processing power is used at all nodes in the DF-SWIPT.

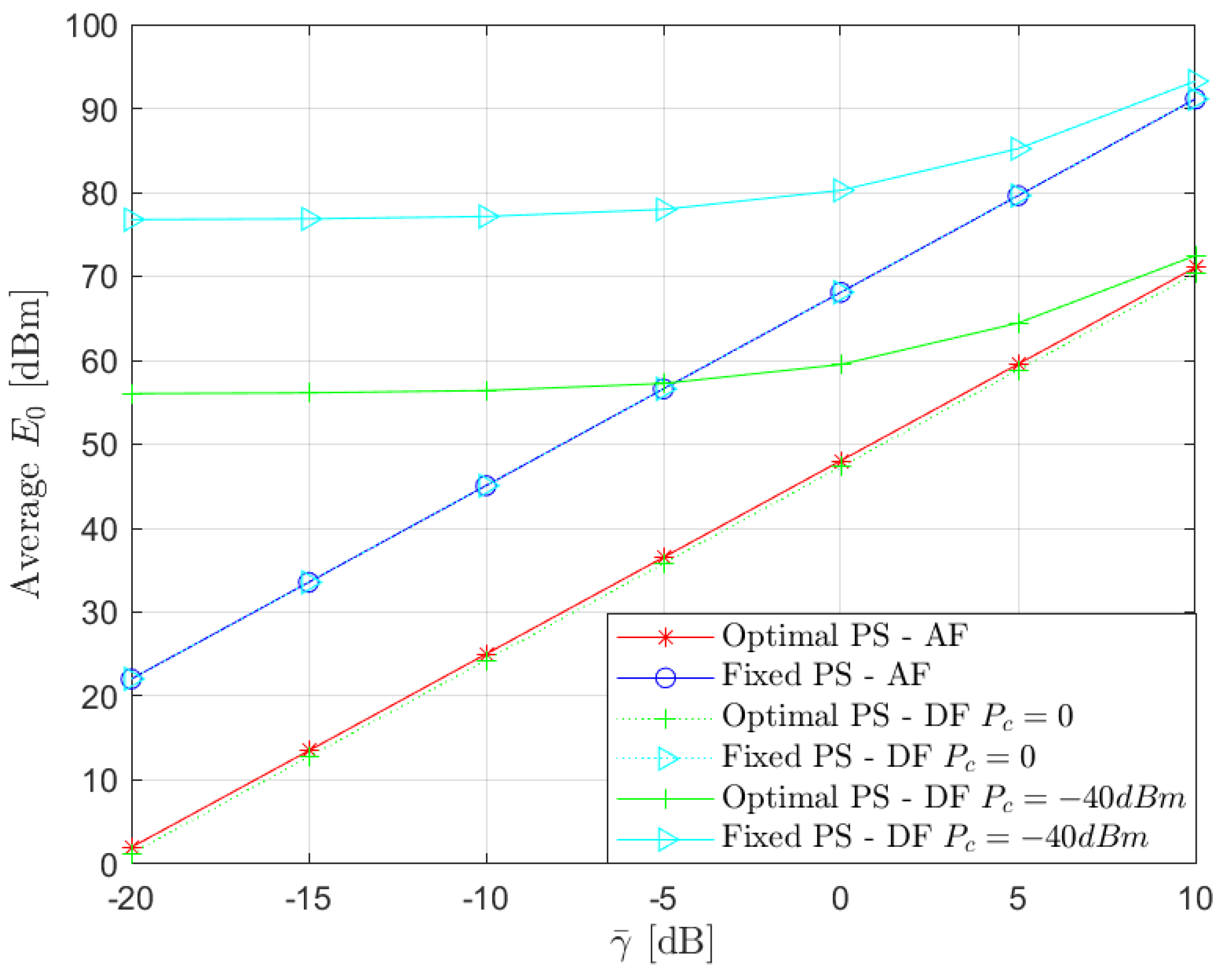

Figure 5 shows a plot of the average $E_0$ versus the SNR threshold $\overline{\gamma }$ (in dB). Similar to the previous results, when $P_c$ is 0, the transmission power of DF-SWIPT and AF-SWIPT are similar, but when $P_c$ is −40 dBm, DF-SWIPT consumes more power than AF-SWIPT. We can also see that the lower the SNR threshold, the larger the transmit power difference between DF-SWIPT and AF-SWIPT.

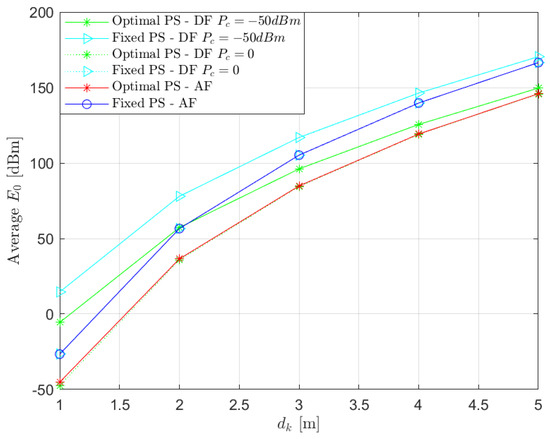

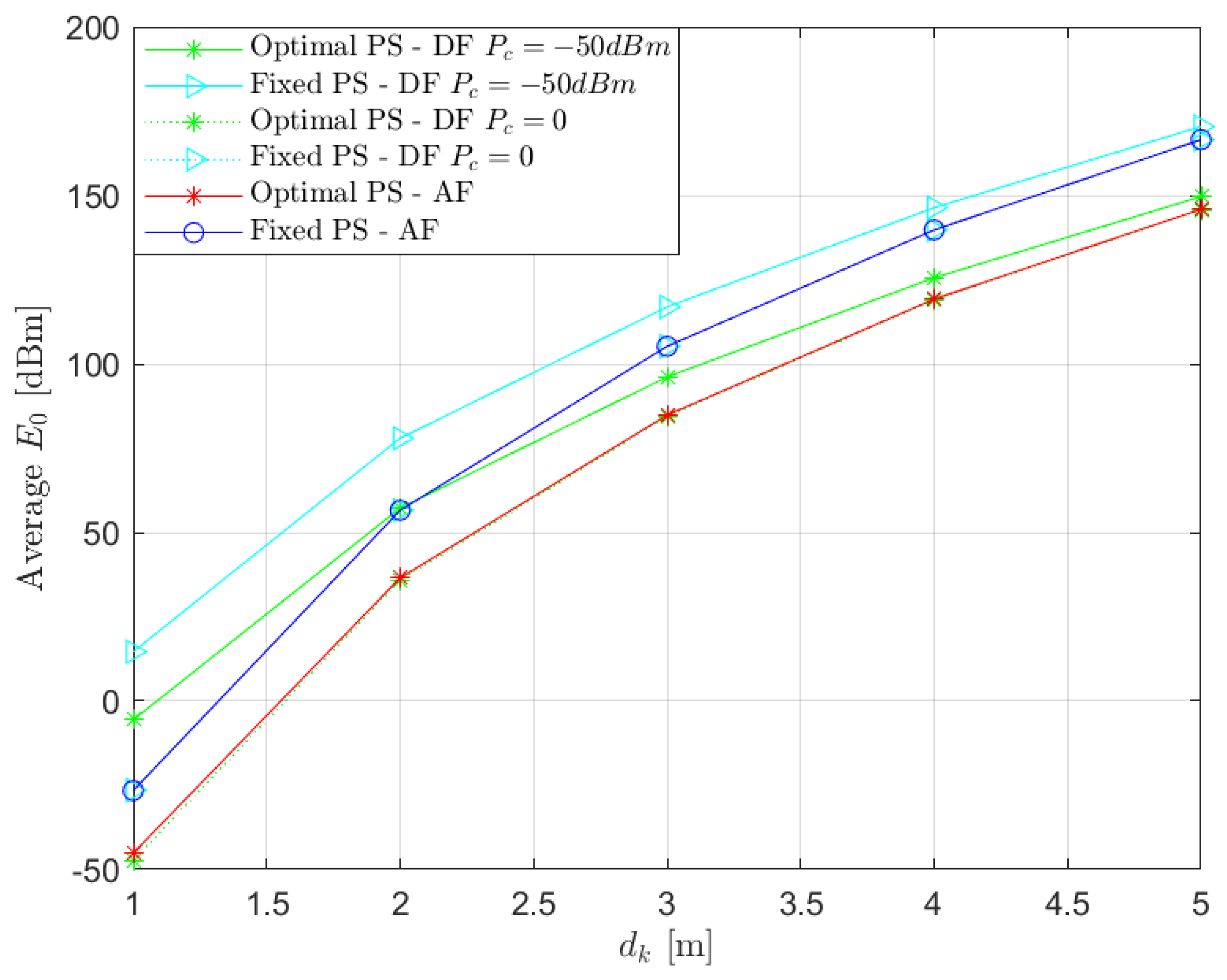

Figure 6 shows the $E_0$ against the internode distance, $d_k$. As $d_k$ increases, more transmission power is required. Additionally, when $P_c$ is −50 dBm, it can be seen that AF-SWIPT consumes less power than DF-SWIPT.

5. Conclusions

This paper investigated AF-SWIPT multi-hop cooperative relaying in IoT networks. The AF-SWIPT source power minimization optimization problem is presented, studied, and evaluated in this paper. The reason for the energy minimization is to promote energy efficiency during signal transmission, reduce energy cost, and lengthen network lifespan in the netowrk operation. When considering computational overhead and operational cost, the AF-SWIPT is shown to be more efficient compared to the DF-SWIPT benchmark. Simulation results showed that the AF-SWIPT has better energy efficiency in terms of decoding cost compared to the DF-SWIPT. Possible extensions of this research are in the area of implementing the time-switching SWIPT protocol, MIMO multi-hop systems, WPCN multi-hop networks, and the development of routing algorithms for the multi-hop wireless-powered networks.
