# Analysis of Doherty Power Amplifier Matching Assisted by Physics-Based Device Modelling

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. TCAD Simulation Setup for the Doherty Amplifier Design

## 3. TCAD Simulation of the Main and Auxiliary Stages

- class AB stage (${V}_{\mathrm{GS}}=-3$ V) & $({R}_{\mathrm{test}}={R}_{\mathrm{opt}})$. This represents a conventional class AB stage (used for reference) and also the expected operation of the MAIN amplifier at high power. Hereafter, we refer to this case as “ClassAB”.
- class AB stage (${V}_{\mathrm{GS}}=-3$ V) & $({R}_{\mathrm{test}}=2{R}_{\mathrm{opt}})$. This represents the expected operation of the MAIN amplifier in back-off. Hereafter, we refer to this case as “DohertyAB”.
- class C stage (${V}_{\mathrm{GS}}=-5$ V) & $({R}_{\mathrm{test}}={R}_{\mathrm{opt}})$. This represents the expected operation of the AUX amplifier at high power. Hereafter, we refer to this case as “DohertyC”.

**classC high Z load**curves). It can be seen that the input reflection coefficient in back-off significantly differs from the DohertyC case: the combination of the feedback device capacitance and of the high resistive load pushes ${G}_{\mathrm{in}}$ towards the centre of the Smith Chart. This reduces the mismatch of the class C stage in back-off and limits the gain penalty (see Figure 6, left). On the other hand, the class C stage exhibits a more sharp turn-on, which is beneficial for the Doherty operation, but at a higher output power, which may lead to a later turn-on of the AUX stage.

## 4. TCAD Simulation of the Doherty Amplifier

## 5. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Raab, F.; Asbeck, P.; Cripps, S.; Kenington, P.; Popovic, Z.; Pothecary, N.; Sevic, J.; Sokal, N. Power amplifiers and transmitters for RF and microwave. IEEE Trans. Microw. Theory Tech.
**2002**, 50, 814–826. [Google Scholar] [CrossRef] - Doherty, W.H. A New High Efficiency Power Amplifier for Modulated Waves. Proc. IRE
**1936**, 24, 1163–1182. [Google Scholar] [CrossRef] - Asbeck, P.M. Will Doherty continue to rule for 5G? In Proceedings of the 2016 IEEE MTT-S International Microwave Symposium (IMS), San Francisco, CA, USA, 22–27 May 2016. [Google Scholar] [CrossRef]
- Kim, B.; Kim, J.; Kim, I.; Cha, J. The Doherty power amplifier. IEEE Microw. Mag.
**2006**, 7, 42–50. [Google Scholar] [CrossRef] - Colantonio, P.; Giannini, F.; Giofrè, R.; Piazzon, L. The AB-C Doherty power amplifier. Part I: Theory. Int. J. RF Microw. Comput. Aided Eng.
**2009**, 19, 293–306. [Google Scholar] [CrossRef] - Yang, Y.; Yi, J.; Woo, Y.Y.; Kim, B. Optimum design for linearity and efficiency of a Microwave Doherty amplifier using a new load matching technique. (Technical Feature). Microw. J.
**2001**, 44, 20–27. [Google Scholar] - Zhang, X.; Li, S.; Huang, D.; Chi, T. A Millimeter-Wave Three-Way Doherty Power Amplifier for 5G NR OFDM. IEEE J. Solid-State Circuits
**2023**, 58, 1256–1270. [Google Scholar] [CrossRef] - Zong, Z.; Tang, X.; Khalaf, K.; Yan, D.; Mangraviti, G.; Nguyen, J.; Liu, Y.; Wambacq, P. A 28-GHz SOI-CMOS Doherty Power Amplifier With a Compact Transformer-Based Output Combiner. IEEE Trans. Microw. Theory Tech.
**2021**, 69, 2795–2808. [Google Scholar] [CrossRef] - Chen, H.; Xu, J.X.; Zhang, X.Y. Miniaturized Broadband Doherty Power Amplifier Using Simplified Output Matching Topology. IEEE Trans. Circuits Syst. Regul. Pap.
**2022**, 69, 3083–3092. [Google Scholar] [CrossRef] - Quaglia, R.; Camarchia, V.; Jiang, T.; Pirola, M.; Donati Guerrieri, S.; Loran, B. K-Band GaAs MMIC Doherty Power Amplifier for Microwave Radio With Optimized Driver. IEEE Trans. Microw. Theory Tech.
**2014**, 62, 2518–2525. [Google Scholar] [CrossRef] - Xie, H.; Fan, Y.; Li, W.Y.; Wang, L.; Cheng, Y.J. A Ka-Band Watt-Level High-Efficiency Doherty Amplifier MMIC in 90-nm GaAs Technology. IEEE Microw. Wirel. Technol. Lett.
**2023**, 33, 204–207. [Google Scholar] [CrossRef] - Campbell, C.F.; Tran, K.; Kao, M.Y.; Nayak, S. A K-Band 5W Doherty Amplifier MMIC Utilizing 0.15µm GaN on SiC HEMT Technology. In Proceedings of the 2012 IEEE Compound Semiconductor Integrated Circuit Symposium (CSICS), La Jolla, CA, USA, 14–17 October 2012; pp. 1–4. [Google Scholar] [CrossRef]
- Fang, J.; Moreno, J.; Quaglia, R.; Camarchia, V.; Pirola, M.; Donati Guerrieri, S.; Ramella, C.; Ghione, G. 3.5 GHz WiMAX GaN Doherty power amplifier with second harmonic tuning. Microw. Opt. Technol. Lett.
**2012**, 54, 2601–2605. [Google Scholar] [CrossRef] - Liang, C.; Roblin, P.; Hahn, Y.; Martinez-Lopez, J.I.; Chang, H.C.; Chen, V. Single-Input Broadband Hybrid Doherty Power Amplifiers Design Relying on a Phase Sliding-Mode of the Load Modulation Scheme. IEEE Trans. Microw. Theory Tech.
**2023**, 71, 1550–1562. [Google Scholar] [CrossRef] - Liu, R.J.; Zhu, X.W.; Xia, J.; Chen, P.; Yu, C.; Wu, X.L.; Chen, X. Highly Efficient Wideband GaN MMIC Doherty Power Amplifier Considering the Output Capacitor Influence of the Peaking Transistor in Class-C Operation. IEEE Trans. Circuits Syst. Regul. Pap.
**2022**, 69, 1932–1942. [Google Scholar] [CrossRef] - Quaglia, R.; Pirola, M.; Ramella, C. Offset Lines in Doherty Power Amplifiers: Analytical Demonstration and Design. IEEE Microw. Wirel. Components Lett.
**2013**, 23, 93–95. [Google Scholar] [CrossRef] - Hasin, M.R.; Kitchen, J. Exploiting Phase for Extended Efficiency Range in Symmetrical Doherty Power Amplifiers. IEEE Trans. Microw. Theory Tech.
**2019**, 67, 3455–3463. [Google Scholar] [CrossRef] - Chen, Y.; Choi, W.; Shin, J.; Jeon, H.; Bae, S.; Choi, Y.C.; Park, C.S.; Lee, K.Y.; Hwang, K.C.; Yang, Y. New Load Modulation Combiner Having a Capability of Back-Off Control for Doherty Power Amplifiers. IEEE Access
**2023**, 11, 11479–11488. [Google Scholar] [CrossRef] - Pang, J.; Chu, C.; Wu, J.; Dai, Z.; Li, M.; He, S.; Zhu, A. Broadband GaN MMIC Doherty Power Amplifier Using Continuous-Mode Combining for 5G Sub-6 GHz Applications. IEEE J. Solid-State Circuits
**2022**, 57, 2143–2154. [Google Scholar] [CrossRef] - Shahmoradi, M.; Javid-Hosseini, S.H.; Nayyeri, V.; Giofrè, R.; Colantonio, P. A Broadband Doherty Power Amplifier for Sub-6GHz 5G Applications. IEEE Access
**2023**, 11, 28771–28780. [Google Scholar] [CrossRef] - Aydin, O.; Palamutcuogullari, O.; Yarman, B.S. Effect of input phase mismatch in Doherty power amplifiers. IEICE Electron. Express
**2016**, 13, 20160870. [Google Scholar] [CrossRef] - Qu, Y.; Crupi, G.; Cai, J. A Broadband PA Design Based on Bayesian Optimization Augmented by Dynamic Feasible Region Shrinkage. IEEE Microw. Wirel. Components Lett.
**2022**, 32, 1139–1142. [Google Scholar] [CrossRef] - Wu, H.; Chen, W.; Liu, X.; Feng, Z.; Ghannouchi, F.M. A Uniform Neural Network Digital Predistortion Model of RF Power Amplifiers for Scalable Applications. IEEE Trans. Microw. Theory Tech.
**2022**, 70, 4885–4899. [Google Scholar] [CrossRef] - Soleimani, N.; Trinchero, R.; Canavero, F.G. Bridging the Gap Between Artificial Neural Networks and Kernel Regressions for Vector-Valued Problems in Microwave Applications. IEEE Trans. Microw. Theory Tech.
**2023**, 1–14. [Google Scholar] [CrossRef] - Darraji, R.; Mousavi, P.; Ghannouchi, F.M. Doherty Goes Digital: Digitally Enhanced Doherty Power Amplifiers. IEEE Microw. Mag.
**2016**, 17, 41–51. [Google Scholar] [CrossRef] - Mengozzi, M.; Gibiino, G.P.; Angelotti, A.M.; Santarelli, A.; Florian, C.; Colantonio, P. Automatic Optimization of Input Split and Bias Voltage in Digitally Controlled Dual-Input Doherty RF PAs. Energies
**2022**, 15, 4892. [Google Scholar] [CrossRef] - Wu, M.; Crupi, G.; Yu, C.; Cai, J. Application of X-parameter model of gallium nitride device for a continuous broadband Doherty power amplifier design. Int. J. Numer. Model. Electron. Netw. Devices Fields
**2022**, e3072. [Google Scholar] [CrossRef] - Donati Guerrieri, S.; Bonani, F.; Ghione, G. Linking X Parameters to Physical Simulations For Design-Oriented Large-Signal Device Variability Modeling. In Proceedings of the 2019 IEEE MTT-S International Microwave Symposium (IMS), Boston, MA, USA, 2–7 June 2019. [Google Scholar] [CrossRef]
- Donati Guerrieri, S.; Pirola, M.; Bonani, F. Concurrent Efficient Evaluation of Small-Change Parameters and Green’s Functions for TCAD Device Noise and Variability Analysis. IEEE Trans. Electron Devices
**2017**, 64, 1269–1275. [Google Scholar] [CrossRef] - Donati Guerrieri, S.; Catoggio, E.; Bonani, F. TCAD simulation of microwave circuits: The Doherty amplifier. Solid-State Electron.
**2022**, 197, 108445. [Google Scholar] [CrossRef] - Donati Guerrieri, S.; Ramella, C.; Catoggio, E.; Bonani, F. Bridging the Gap between Physical and Circuit Analysis for Variability-Aware Microwave Design: Modeling Approaches. Electronics
**2022**, 11, 860. [Google Scholar] [CrossRef] - Bonani, F.; Donati Guerrieri, S.; Filicori, F.; Ghione, G.; Pirola, M. Physics-based large-signal sensitivity analysis of microwave circuits using technological parametric sensitivity from multidimensional semiconductor device models. IEEE Trans. Microw. Theory Tech.
**1997**, 45, 846–855. [Google Scholar] [CrossRef] - Donati Guerrieri, S.; Bonani, F.; Bertazzi, F.; Ghione, G. A Unified Approach to the Sensitivity and Variability Physics-Based Modeling of Semiconductor Devices Operated in Dynamic Conditions—Part I: Large-Signal Sensitivity. IEEE Trans. Electron Devices
**2016**, 63, 1195–1201. [Google Scholar] [CrossRef]

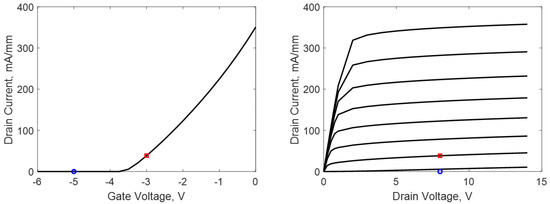

**Figure 1.**MESFET transcharacteristic (

**left**) and output characteristics (

**right**). The estimated threshold voltage is −3.75 V. Red square: Class AB bias point (10% IDSS) of the MAIN device and the class AB stage with parallel devices. Blue circle: class C bias point of the AUX device.

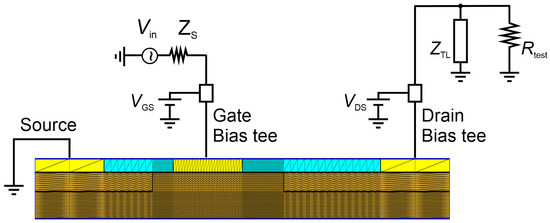

**Figure 2.**Circuit setup for the single-stage analysis. The resistance ${R}_{\mathrm{test}}$ is set to $2{R}_{\mathrm{opt}}$ or ${R}_{\mathrm{opt}}$ to mimic the operation of the MAIN amplifier in back-off or saturation, respectively. ${R}_{\mathrm{test}}$ is set to ${R}_{\mathrm{DS}}$ or ${R}_{\mathrm{opt}}$ to mimic the operation of the AUX amplifier in back-off or saturation, respectively.

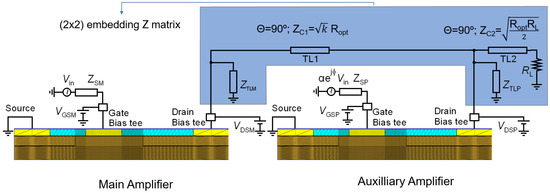

**Figure 3.**Circuit setup for the TCAD Doherty simulation. In TCAD simulations, the embedding circuit is substituted by an equivalent $2\times 2$ impedance matrix coupling the drain ports of the main and auxiliary devices. The mesh for each device includes roughly 3200 nodes.

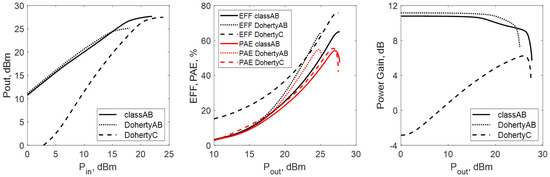

**Figure 4.**${P}_{\mathrm{out}}$ (

**left**), efficiency and PAE (

**middle**) and power gain (

**right**) for the three cases: classAB, DohertyAB and DohertyC.

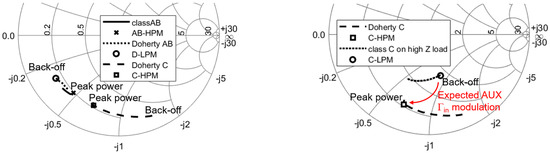

**Figure 5.**Left: Input reflection coefficient ${\mathsf{\Gamma}}_{\mathrm{in}}$ for the three cases: classAB, DohertyAB and DohertyC. AB-HPM (class AB–High-Power Match) matches the input port of the class AB at peak power. D-LPM matches the DohertyAB amplifier in back-off and C-HPM matches the input port of the DohertyC at peak power. Right: Class C input reflection coefficient of the DohertyC (dashed line) compared to a class C stage loaded with high impedance (equivalent to ${R}_{\mathrm{DS}}$—dotted line). Red arrow: expected modulation of the AUX amplifier input reflection coefficient in the Doherty amplifier.

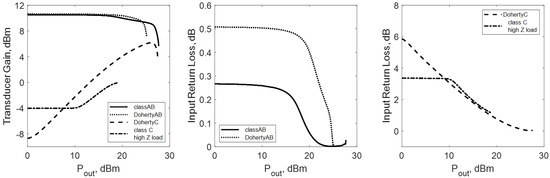

**Figure 6.**Transducer gain (

**left**) for classAB, DohertyAB, DohertyC and classC loaded on high impedance. Input return loss for classAB and DohertyAB (

**middle**). Input return loss for DohertyC and classC loaded on high impedance (

**right**). All stages are input matched at peak power.

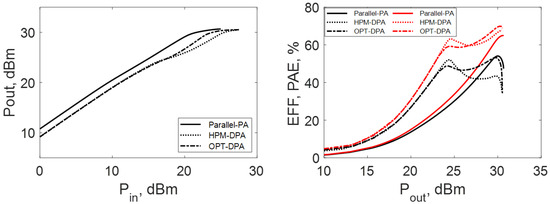

**Figure 7.**${P}_{\mathrm{in}}-{P}_{\mathrm{out}}$ (

**left**), efficiency (

**right**, red) and PAE (

**right**, black) for HPM-DPA, OPT-DPA and Parallel-PA cases.

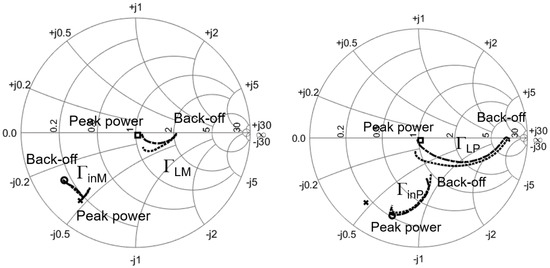

**Figure 8.**Input (${\mathsf{\Gamma}}_{\mathrm{in}}$) and load (${\mathsf{\Gamma}}_{\mathrm{L}}$) reflection coefficients seen by the MAIN (

**left**) and AUX (

**right**) stages for HPM-DPA (dotted line) and OPT-DPA (dashed line). Square: Optimum power load. Cross: conjugate of ${Z}_{\mathrm{SM}}$ (

**left**) and ${Z}_{\mathrm{SP}}$ (

**right**) in the HPM-DPA. Circle: conjugate of ${Z}_{\mathrm{SM}}$ (

**left**) and ${Z}_{\mathrm{SP}}$ (

**right**) in the OPT-DPA.

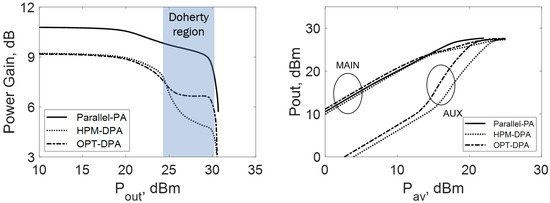

**Figure 9.**Power Gain (

**left**) and Output power of the MAIN and AUX stage separately (

**right**) for HPM-DPA, OPT-DPA and Parallel-PA cases.

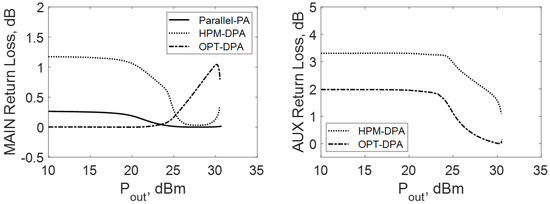

**Figure 10.**Input return loss of the MAIN (

**left**) and AUX (

**right**) stage for HPM-DPA, OPT-DPA and Parallel-PA cases.

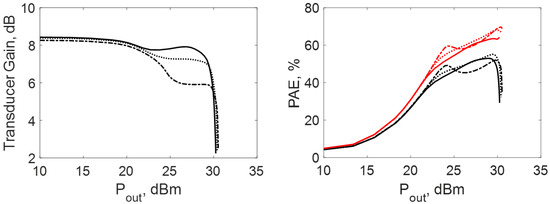

**Figure 11.**Transducer gain (

**left**), efficiency and PAE (

**right**) for three values of the AUX input phase: $\varphi ={90}^{\circ}$ (solid line); $\varphi ={75}^{\circ}$ (dotted line); $\varphi ={55}^{\circ}$ (dashed line).

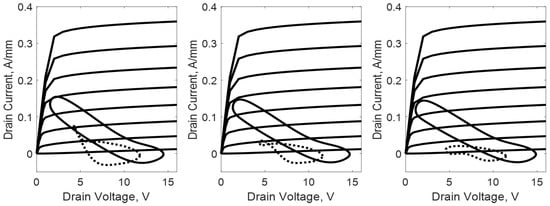

**Figure 12.**DPA MAIN (solid) and AUX (dotted) dynamic load lines at the AUX turn-on for the three values of the AUX input phase: $\varphi ={90}^{\circ}$ (

**left**); $\varphi ={75}^{\circ}$ (

**middle**); $\varphi ={55}^{\circ}$ (

**right**). The available input power is the same, the output power is 24.8 dBm (

**left**), 24.3 dBm (

**middle**) and 23.9 dBm (

**right**).

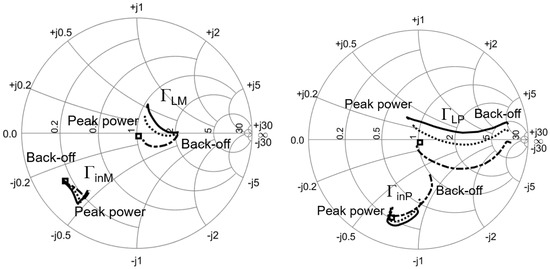

**Figure 13.**Input and load reflection coefficients seen by the MAIN (

**left**) and AUX (

**right**) stages for three values of the AUX input generators: $\varphi ={90}^{\circ}$ (solid line); $\varphi ={75}^{\circ}$ (dotted line); $\varphi ={55}^{\circ}$ (dashed line).

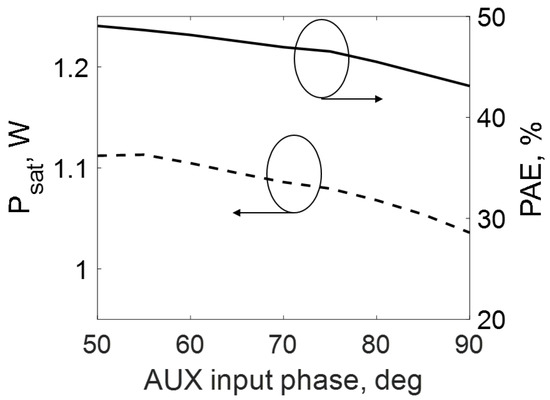

**Figure 14.**DPA-saturated output power (solid line) and peak efficiency (dotted line) as a function of the AUX input phase.

${\mathit{P}}_{\mathbf{out}}$ (dBm) | Eff (%) | PAE (%) | Power Gain (dB) | Gain Compression (dB) | |
---|---|---|---|---|---|

$\mathrm{classAB}$ | 27 | 63 | 54 | 8.5 | 2.3 |

$\mathrm{DohertyAB}$ | 24.7 | 62 | 55 | 8.8 | 2.4 |

$\mathrm{DohertyC}$ | 26.6 | 73 | 55 | 5.9 | N/A |
