Design and Implementation of a Metadata Repository about UML Class Diagrams. A Software Tool Supporting the Automatic Feeding of the Repository

Abstract

Model-Driven Engineering is largely recognized as the most powerful method for the design of complex software. This study deals with the automated archival of metadata about the content of UML class diagrams (a particularly relevant category of models) into a pre-existing repository. To define the structure of the repository, we started from the definition of a UML metamodel. From the latter, we derived the schema of the metadata repository. Then, a parser was developed that is responsible for extracting the useful information from the XMI file about class diagrams and enters it as metadata into the repository. The parser has been implemented as a Java web interface, while the metadata repository has been implemented as a PostgreSQL database based on the JSONB data type. The metadata repository is thought to support modelers in the initial phase of the process of the development of new models when looking for artifacts to start from. The schema of the metadata repository and the Java code of the parser are available from the authors.

1. Introduction

Time and quality are critical factors in the development of complex software projects, so it is necessary to enforce consistent reuse to increase the quality while reducing the development time. Regarding programming, reuse has been successful for decades. Nowadays, however, software development is moving in the direction of modeling while the code is largely generated. The more the development of complex software is based on modeling, the more models become of paramount importance.

In the context of software application development based on Model-Driven (System) Engineering (MD(S)E) [1], UML models (in particular, class models and use case models [2,3]) are the artifacts to be reused. The models stored inside a company’s folders represent valuable information since they capture domain knowledge. This is the reason that locating such artifacts can help new modelers to become familiar with recurrent modeling patterns and best practices within their business context. In [4], it is claimed that the support for finding and reusing modeling artifacts is still limited. Consequently, developers too often have to develop artifacts from scratch.

Repositories are the precondition for reuse, as highlighted in many studies (e.g., [4,5,6,7,8,9]). Ref. [4] provides a list of the most representative repositories. In this study, we assume that the corporate repository is structured as three independent but interrelated components:

• a repository about the modeling artifacts, briefly the Model Repository [10], developed in previous projects;
• a repository about the generated code;
• a repository containing metadata about modeling artifacts, briefly the Metadata Repository [10].

The design of the metadata repository about UML class diagrams (which are a relevant specification technique to describe the structure of the software system to be developed) is the focus of the first part of the present paper. A metadata repository can be defined as a shared database of information regarding engineered artifacts [9]. The metadata in the database describe the class diagrams, besides providing the link to those artifacts inside the model repository. Our metadata repository is structured as a PostgreSQL database.

Once a metadata repository about UML artifacts is made available, a relevant, time-consuming, and monotonous task is to feed it. The second part of this paper describes a parser that makes such a step automatic. This accomplishment was possible because UML models can be saved into a CASE tool format (e.g., StarUML) and then into the XMI format. These files contain $all$ model information (e.g., class names, attributes, operations, association ends, multiplicities, association names, etc.). By processing them, it is possible to find the information to be stored in the metadata repository. In the present version of the parser, the extraction of the content of an XMI file and its formatting as NoSQL records works for XMI files coming from StarUML (https://staruml.io/download, accessed on 6 September 2021). The extension of this software component to other UML tools is planned as future work.

The paper is structured as follows. Section 2 describes our approach. Section 3 presents the UML metamodel of the metadata repository about class diagrams, while Section 4 details the storage technology for implementing it. Section 5 depicts the paths to feed the metadata repository. Then, it focuses on the software module, which takes as input the XMI file about a single class diagram present in the model repository and finds the data to be stored in the metadata repository. These metadata provide a detailed description of the class diagram. Section 6 proposes a simple case study; Section 7 recalls previous studies similar to ours; Section 8 concludes the paper and outlines the future work.

Three appendices integrate the information given in Section 4, Section 5 and Section 6. In detail, Appendix A contains the SQL scripts for the creation of the database tables and shows the actual implementation of the OCL constraints that complete the description of the metamodel of Section 3. Appendix B shows an excerpt of the content of the database concerning the information coming from the case study. Appendix C simulates a session of interaction with the metadata repository by a software engineer looking for class diagrams to be reused. The queries are general, so they can be reused by the modelers.

2. Our Approach

In [11], the authors provide an overview of the objectives, beneficiaries, architecture and technologies of an ongoing industrial project whose goal is to release an open-source software tool (called xMetaRep) devoted to the creation, feeding and querying of a metadata repository about UML class diagrams. The project comprises two distinct actions: the first belongs to the conceptual level, while the second one belongs to the technological level (Figure 1). Action 1 involves the design of the metadata repository about class diagrams, while Action 2 concerns the development of the user interface (i.e., xMetaRep) on top of it.

2.1. Action 1

The design of the metadata repository starts from a general UML metamodel of the repository. The latter is then mapped into the corresponding Entity–Relationship (E–R) conceptual metaschema (Figure 2). The translation of such a schema produces the logical schema of a relational database.

As pointed out in [10], the preliminary task of a repository architect is to choose the storage technology for the metadata repository. In this paper, we structured it as a PostgreSQL database. The PostgreSQL Object Relational Database System is an open-source mix of relational and NoSQL databases; in fact, it has supported, for many years, document databases and key–value databases—two of the most common NoSQL database types. This is the reason that, in the EnterpriseDB white paper [12], the expression “Postgres NoSQL” is used. In line with [12], in our paper, we state that our metadata repository is a NoSQL database because it is composed of tables comprising attributes of the JSONB data type. In detail, the work identifies the number and the schema of the tables composing the metadata repository. The schema of the tables is independent of the internal organization of the classes inside the class diagram. This result is brought about by the flexibility of the JSONB data type. Several advantages come from storing metadata about UML models within a company NoSQL repository. First, NoSQL databases overcome “pure” relational ones in terms of flexibility. Second, NoSQL databases guarantee a high level of interoperability. Third, a company database ensures the cooperation of modelers and developers in the development of a system. Fourth, querying the metadata inside the company’s repository helps in the reuse of the artifacts that best fit the requirements of new projects. Fifth, studying UML diagrams from previous high-quality projects can help novice modelers to learn from the experience of senior ones. This latter motivation has been pointed out by Gosala et al. in [8]. The availability of a centralized company repository containing metadata about UML diagrams implemented as a NoSQL database represents the ultimate alternative to the current scenario, where software engineers have to manually search these artifacts inside a huge number of files stored in different folders (i.e., the model repository).

2.2. Action 2

The field of modeling repositories addresses mostly collaborative work (e.g., [13,14,15]). The Repository for Model-Driven Development (ReMoDD) [6,7] is a project from industry and academia aiming at developing a public resource collecting artifacts coming from high-quality MDD experiences (ReMoDD is located at the following URL: http://www.cs.colostate.edu/remodd/, accessed on 11 September 2021). The objective of the project is to facilitate the sharing of relevant knowledge and experience for improving MDD research productivity and education. In the collaborative domain, a relevant issue concerns the management of the versioning of artifacts during their development. This aspect is marginal in our reference scenario delimited by the firm’s boundaries. In this context, we assume that single modelers undertake the development of UML diagrams (e.g., use case diagrams, class diagrams, sequence diagrams, etc.) for specific software projects. At the end of the development process, it is a modeler’s responsibility to invoke the archiving, in the company repository, of the metadata about the developed diagrams.

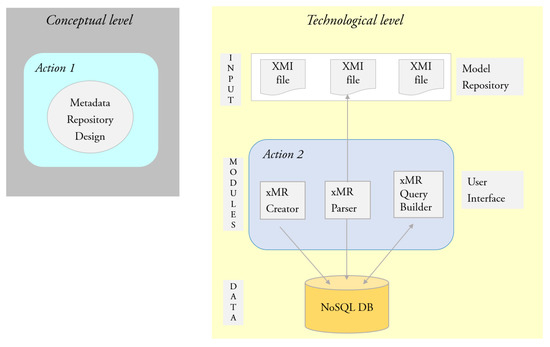

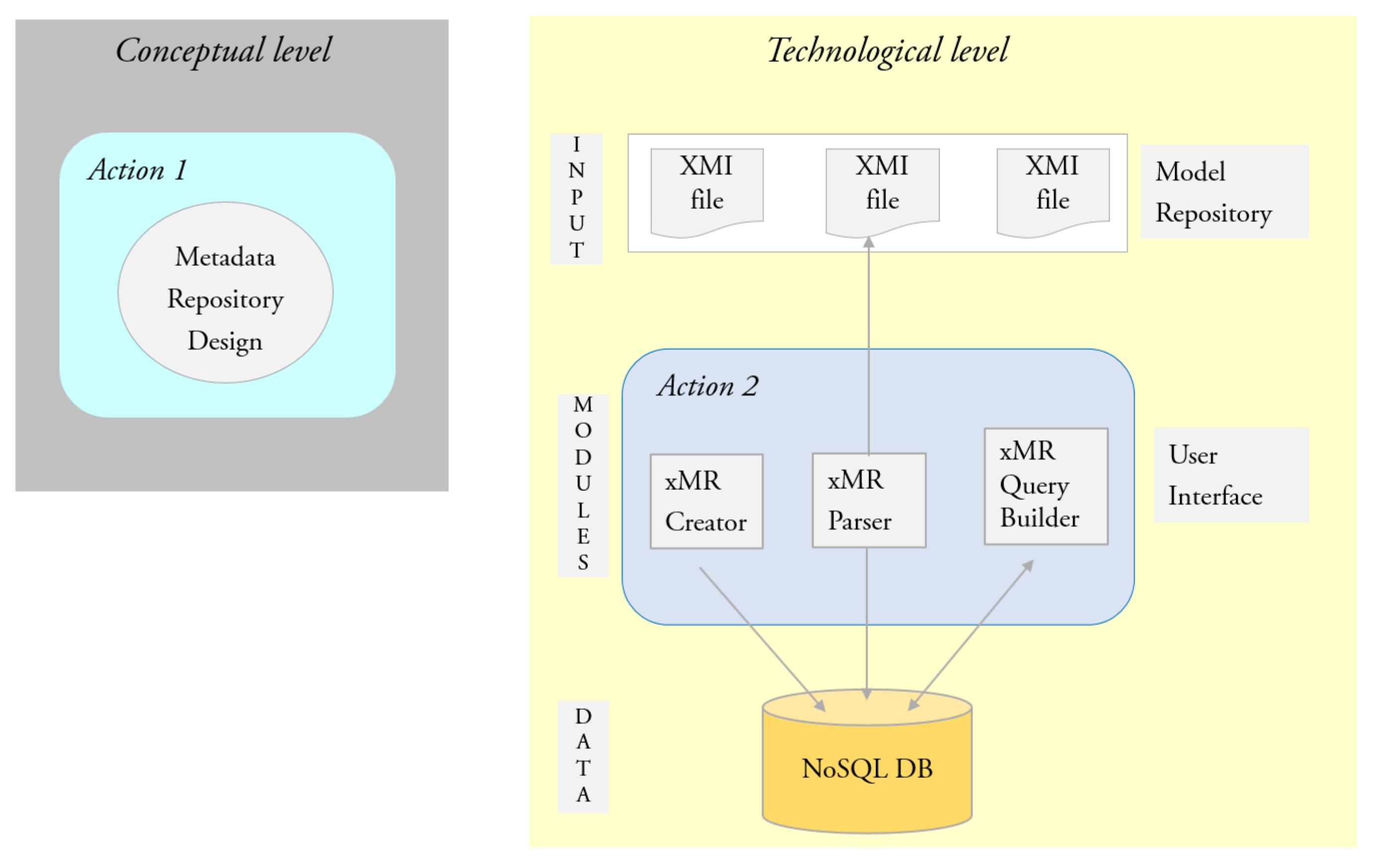

Figure 1 (right side) shows the components of xMetaRep:

• The Model Repository of the company contains the XMI files about UML class diagrams. These files are the input data for the overall process for building and feeding the metadata repository about such a category of artifacts.
• The User Interface is composed of three software components: xMR Creator, xMR Parser (in [16], xMR Parser is called XMI_to_Parser) and xMR Query Builder. They support, in turn, (a) the creation of an empty instance of the NoSQL DB; (b) the extraction of metadata from the XMI files and the copying of them into the NoSQL DB; (c) the instantiation of a predefined set of flexible query templates against the NoSQL DB.
• The NoSQL DB layer denotes the Metadata Repository about UML class diagrams in the Model repository.

The parser has been implemented as a Java web application that adheres to the Model-View-Controller (MVC) pattern. The Spring framework was used for creating the application. Spring is the most adopted Java framework worldwide. The core of the web application is xMR Parser. It is the result of a long and engaging journey that started in 2008 [17], in which research, implementation and validation in the domain of enterprise web applications have been joined together. In 2020, Paolone et al. [16] introduced an automatic process to develop such a category of web applications. The frame of reference is MDA, and the pillars of the proposal are use cases, class and sequence diagrams. These diagrams cover, in order, the structure and the behavior of the system to be developed, as well as their interactions. In this way, all the system requirements that the OMG recommends are satisfied. The methodological process ensures continuity between business modeling, system modeling, design and implementation. This lays the foundation for the mapping of the behavioral business model into a consistent software that meets the requirements. A proprietary Java technology platform called xGenerator implements the Software Development Process described in [16]. At a high level of abstraction, such a tool acts as a black box that receives as input a UML model and returns the Java code of the web application. xMR Parser is a component of xGenerator.

3. UML Metamodel for a Metadata Repository about Class Diagrams

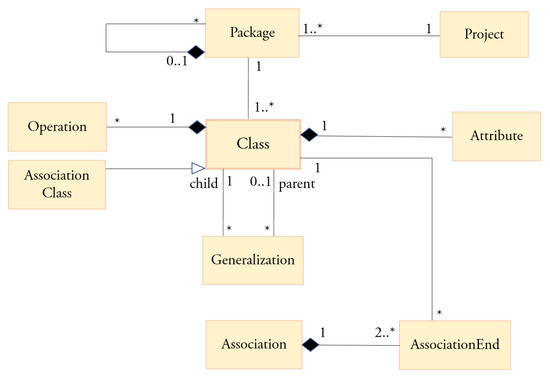

The basic elements that determine the structure of a metadata repository about class diagrams are collected in the UML metamodel of Figure 3. The metamodel shows that the class diagram, which models the $structural$ $view$ of a completed software project, is stored inside a company’s package, possibly nested. Each diagram comprises a set of classes linked through several different kinds of relationships; moreover, classes may be linked through a generalization hierarchy, while association classes are a specialization of the notion of class. Each association is described in terms of two or more association ends; an association end is bound to a class. The metamodel of Figure 3 depicts the meta-associations between the UML elements class and generalization as a two-way relationship, for the reasons explained in [18].

The metamodel of Figure 3 introduces two variants to standard UML class diagrams: operations constitute part of the class description with their signature; moreover, the data types of the attributes are made explicit. Unlike previous studies, whose purpose was to build a repository that offers support for checking the structural consistency of the class diagram during the process of modeling of a software product (e.g., [19,20]), in our work, the emphasis is on providing support to the modelers before they start the modeling stage of the new software product. In this phase, it makes sense to investigate whether there are artifacts (in the model repository of the company) from which to start. In this working scenario, the more metadata about classes in the class diagram, the more effective and aware the decision regarding what to start from will be. Moreover, in the Lindholmen database schema (http://models-db.com/oss/default.aspx, accessed on 18 September 2021), the metadata about UML classes include attributes’ data type, methods and their signature. Such a dataset includes links to more than 93,000 UML files spread across more than 24,000 GitHub repositories [21].

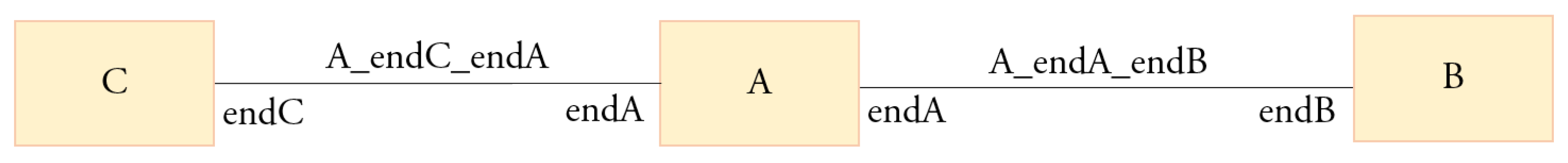

According to the OMG conventions, if the association ends of a class are not explicitly named in the class diagram, the implicit rule is that their names are given as follows: ([2], p. 202): "end"<class-name> (Figure 4 proposes an example). Moreover, if the associations are not explicitly named, then their given names come from the following rule ([2], p.19):

"A_"<association-end-name1>"_"<association-end-name2>,

where <association-end-name1> is the name of the first association end and <association-end-name2> is the name of the second association end (see Figure 4).

UML diagrams cannot by themselves provide all relevant aspects of a specification. To add more semantics to the metamodel of Figure 3, a set of integrity constraints, which each state of the information base must satisfy, is to be used. The OMG Object Constraint Language (OCL) is used to describe expressions on UML models [22]. Many studies have pointed out the relevance of adding OCL constraints to UML models for controlling the correctness of their structure (e.g., [19]). In the present study, we focus on two categories of constraints. The first category must be satisfied by each class instance (briefly, the intra-UML-element constraint), while the second one must be satisfied by pairs of class instances (briefly, the inter-UML-element constraint). Of course, many more constraints need to be taken into account. For example, the OCL expression of Equation (1) formalizes the following invariant constraint: “a root class has no parent” (an invariant OCL expression must be true for all instances that it refers to at any time).

$$\mathtt{contextclassinv}:\mathtt{self}.\mathtt{isRootimpliesself}.\mathtt{generalization}\text{-}>\mathtt{isEmpty};$$

(1)

4. The Schema of the Metadata Repository

As pointed out in [10], the preliminary task of a repository architect is to choose the storage technology for the metadata repository. In this paper, we structured it as a NoSQL database. NoSQL is an umbrella term for different technologies. The most mature are known as: key–value databases, document databases, column databases and graph databases. Key–value databases are the simplest NoSQL databases. They store a set of key–value pairs. Redis implements this model. Document databases contain key–value pairs, which can be any sort of value, array or even another document. MongoDB implements this model. Column databases organize data into columns rather than rows; however, they operate in the same manner as tables do in relational databases. Apache Cassandra implements this model. Graph databases are for general-purpose use, particularly with unstructured data and social networks. Neo4j is a popular system example.

To build the metadata repository about class diagrams, the flexibility demonstrated by document databases is fully satisfactory; in fact, it makes the database schema independent of the internal organization of the classes in the class diagram. Specifically, flexibility is needed to model the names and data types of attributes and the names and I/O parameters of the operations. Both these features are highly variable moving from one class to another. We took into account two alternative open-source technologies: MongoDB and PostgreSQL (from version 11.0, the latter system fully supports the storage of documents in the JSONB format, as MongoDB does). The final choice was to adopt PostgreSQL because it closed the gap that motivated the rise and development of NoSQL technologies; moreover, PostgreSQL provides capabilities that NoSQL technologies simply cannot, namely a powerful query language, a sophisticated query optimizer, data normalization, joins and referential integrity. A positive consequence of the availability of a powerful query optimizer is that PostgreSQL outperforms MongoDB in almost all cases, as has been pointed out in recent studies (e.g., [23,24]). For example, in [24], the authors loaded a dataset of 200 million records of JSON documents in MongoDB (Community Server1, ver. 4) and in PostgreSQL (ver. 11) using the JSONB data type. The aim of the experiment was to compare the performance of the two systems on four custom-written queries over one year of GitHub archive data. PostgreSQL was found to be between 35 and 53% faster on three of the four queries, and 22% slower on the other one.

As the next step, repository architects have to decide whether to add version metadata or not [10]. As explained in Section 1, our solution does not include metadata about versions of class diagrams simply because only their final version is stored in the model repository. Moreover, affiliation information about the artifact owners, which might be relevant in the case of collaborative repositories [10], is not necessary for corporate metadata repositories.

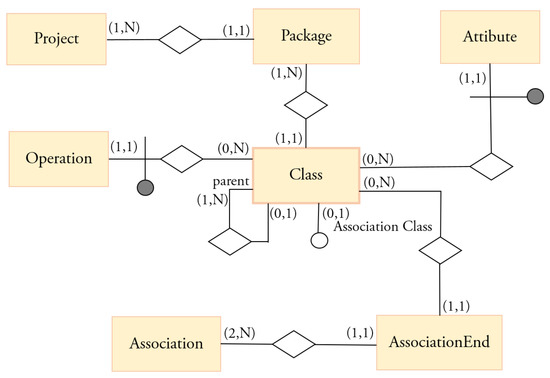

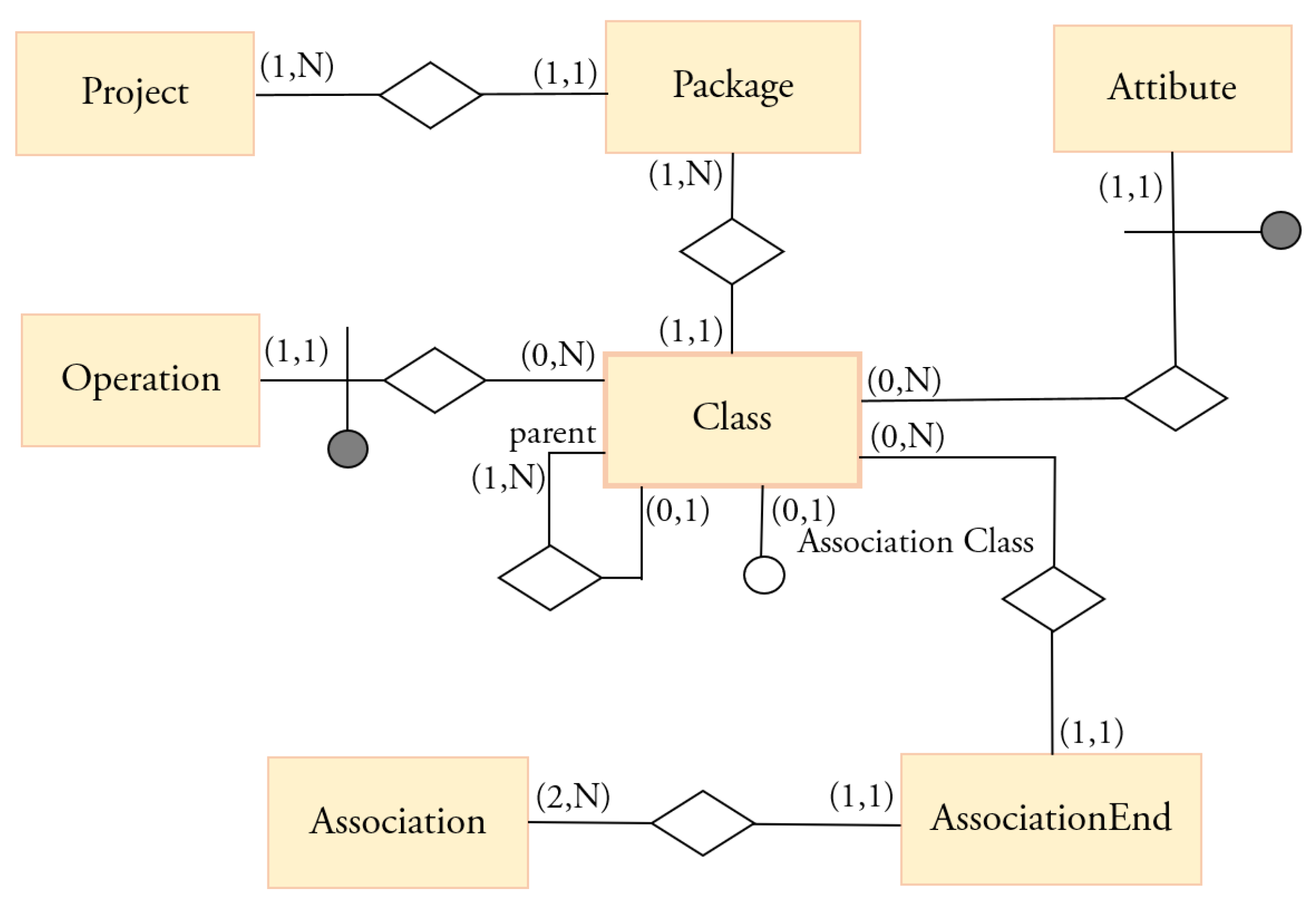

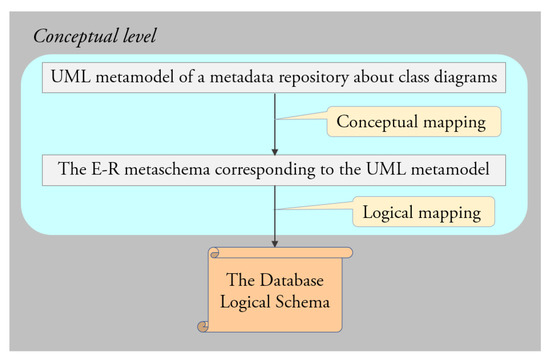

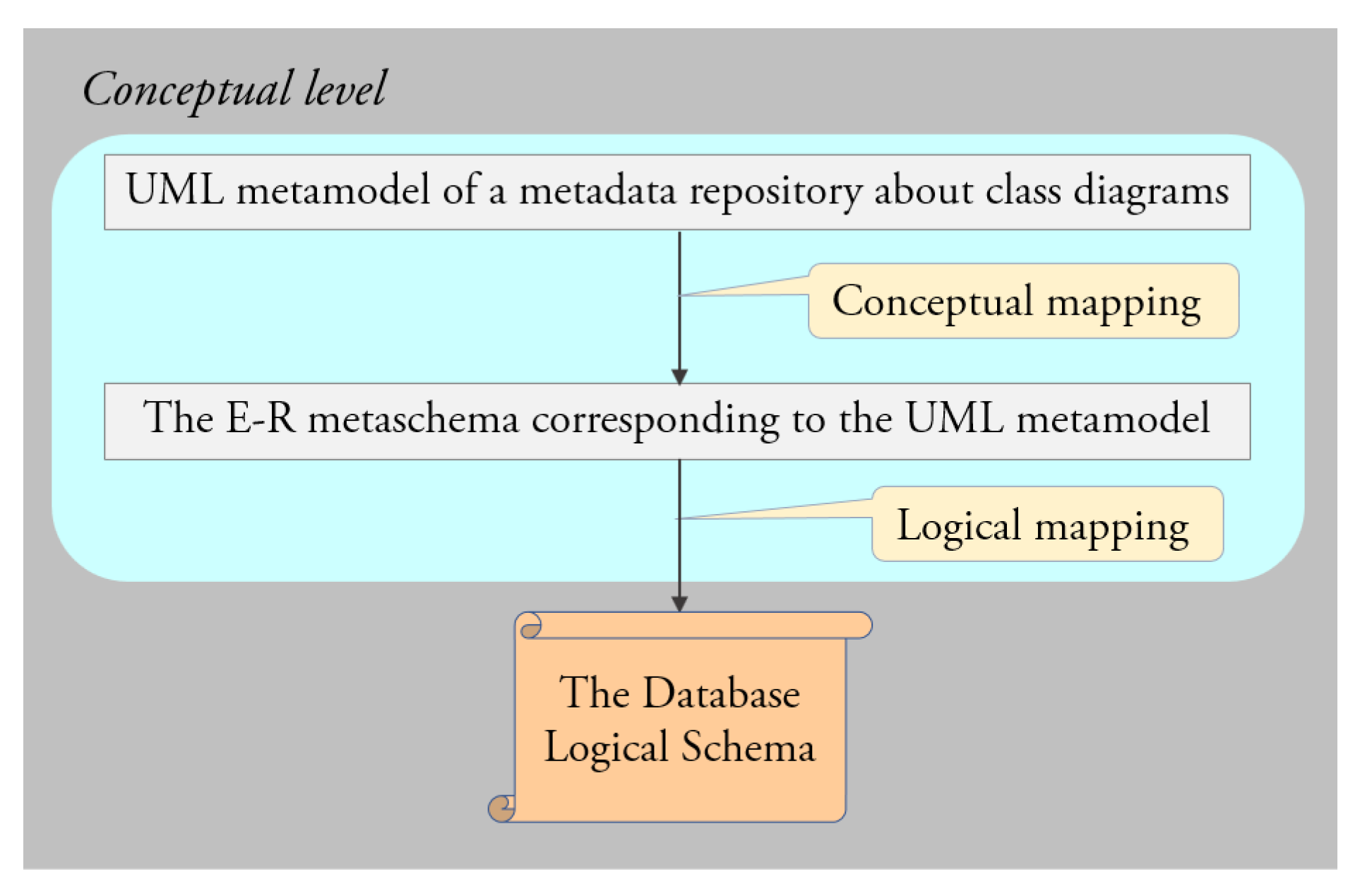

In order to determine the schema of the metadata repository, the UML metamodel of Figure 3 was mapped to the corresponding Entity–Relationship (E–R) schema (Figure 5). The translation of such a schema gives rise to the seven tables listed below (underlined attributes denote the primary key). Appendix A contains the SQL scripts for the creation of these tables.

-

project(projectID, name);

-

package(packageID, name, URI, projectID);

-

class(classID, name, packageID, associationClass, parent);

-

operation(classID, list);

-

attribute(classID, list);

-

association(associationID, name);

-

associationEnd(associationEndID, name, classID, associationID).

The Primary Key constraint is the mechanism offered by the database technology for implementing OCL intra-UML-element constraints. Seven Primary Key constraints have to be defined, one for each class.

For example, the OCL expression of Equation (2) states that $all$ instances of the class classifier must have a distinct value for the property classID.

$$\begin{array}{ll}\mathtt{context}\mathtt{class}\mathtt{inv}& \mathtt{UniqueClassID}:\\ & \mathtt{self}.\mathtt{allInstances}\left(\right)\mathtt{implies}\mathtt{isUnique}\left(\mathtt{ClassID}\right);\end{array}$$

(2)

As is well-known, the relationship between classes is implemented as a referential integrity constraint between the foreign key of the $slave$ table and the primary key of the $master$ table. This mechanism of the relational database technology is the simplest means of implementing OCL inter-UML-element constraints. For example, the OCL expression of Equation (3) states that $each$ instance of class must be linked to a unique value of packageID, i.e., to a unique physical package.

$$\begin{array}{ll}\mathtt{context}\mathtt{class}\mathtt{inv}& \mathtt{UniquePackage}:\\ & \mathtt{self}.\mathtt{allInstances}\left(\right)\mathtt{implies}\mathtt{isUnique}\left(\mathtt{packageID}\right);\end{array}$$

(3)

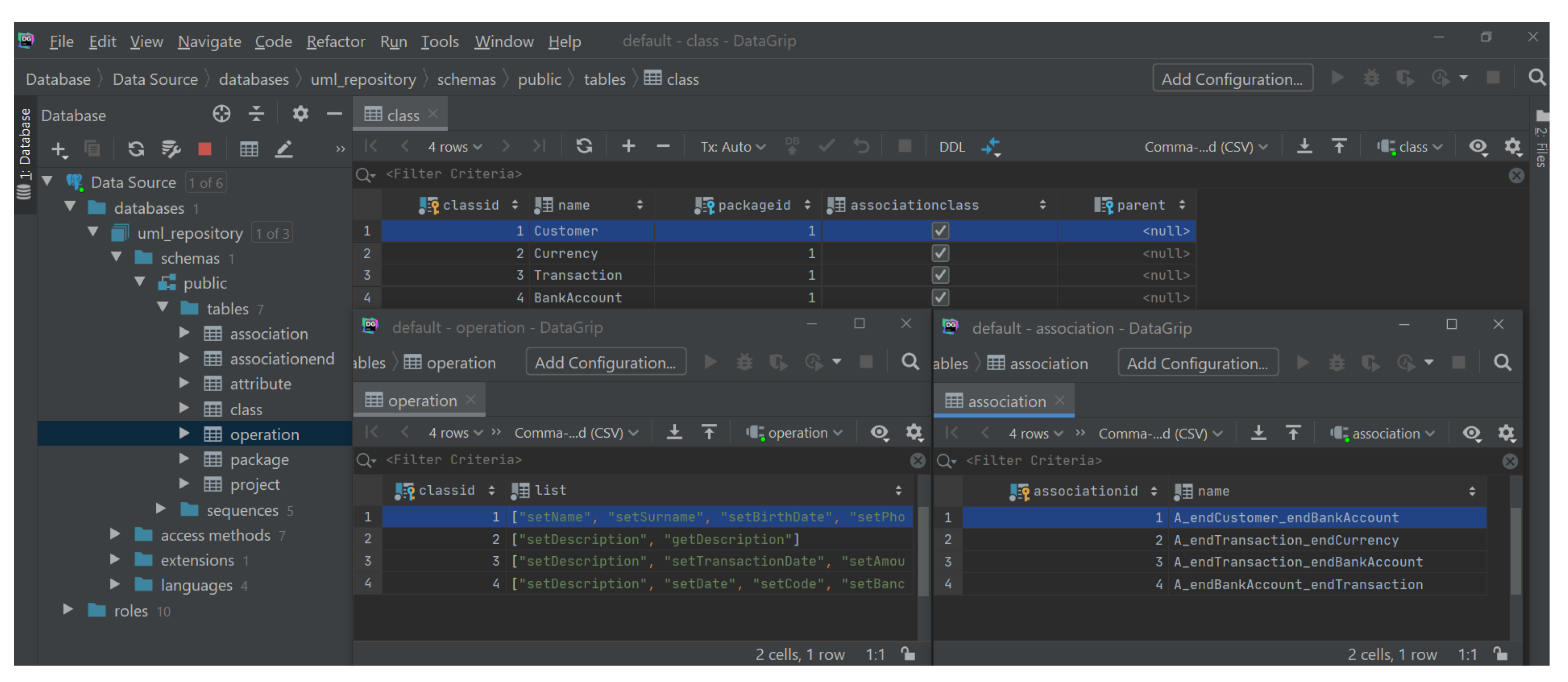

Appendix A shows the actual implementation of the OCL constraints mentioned above.

5. Architecture and Implementation of the XMI Parser

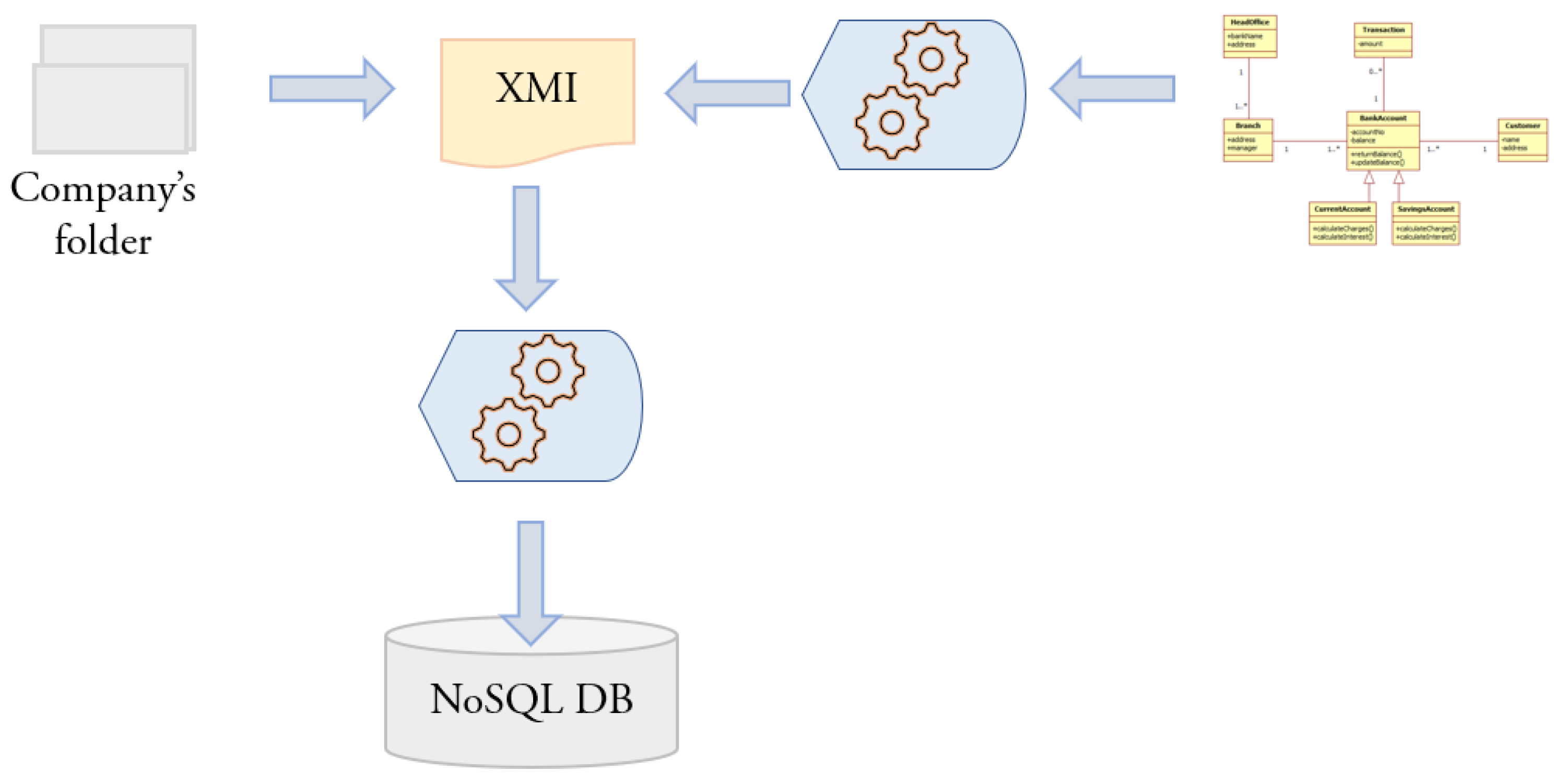

Figure 6 depicts the paths to feed the metadata repository about UML artifacts. The starting point for collecting metadata about UML class diagrams is twofold. One entry point is represented by an image of the diagram, while the alternative is represented by the file generated by one of the available UML tools (e.g., StarUML).

A few years ago, Robles et al. [25] mined the content of 24,717 different GitHub repositories, looking for UML models. They found 93,596 UML models, of which approximately 62% were images, the rest being either XML or UML files. This finding tells us that UML models are mostly stored as images in public repositories. To the best of our knowledge, the situation inside firms has not been investigated yet. If the starting point is an image of the class diagram, then a tool that automatically extracts the UML diagram from the image is needed. Img2UML is one such tool [26,27,28]. It is able to recognize shapes, symbols, lines and text; moreover, it identifies the role of diagram elements in the model. Img2UML returns as output a file in the XML Metadata Interchange (XMI) format. The authors claim that the class detection accuracy is 100%, relationship accuracy is 97% and symbol accuracy is 85%. To correct recognition mistakes in the returned UML class diagrams, the authors suggest importing the XMI file generated by Img2UML into StarUML and manually correcting the recognition mistakes.

Alternatively, metadata about UML class diagrams may come from XMI files about previous company projects. As explained in Section 1, we assume that the XMI files are in the model repository of the company (“Company’s folder” in Figure 6). In both paths, the final step consists of migrating the information in the XMI file into the metadata repository. We have implemented this final step.

The idea of parsing the XMI file of the class diagram for extracting metadata describing its content is not new. For instance, in [29], Girgis et al. describe an XMI file parser that extracts metadata from this category of files to be used to calculate common metrics about the class diagram.

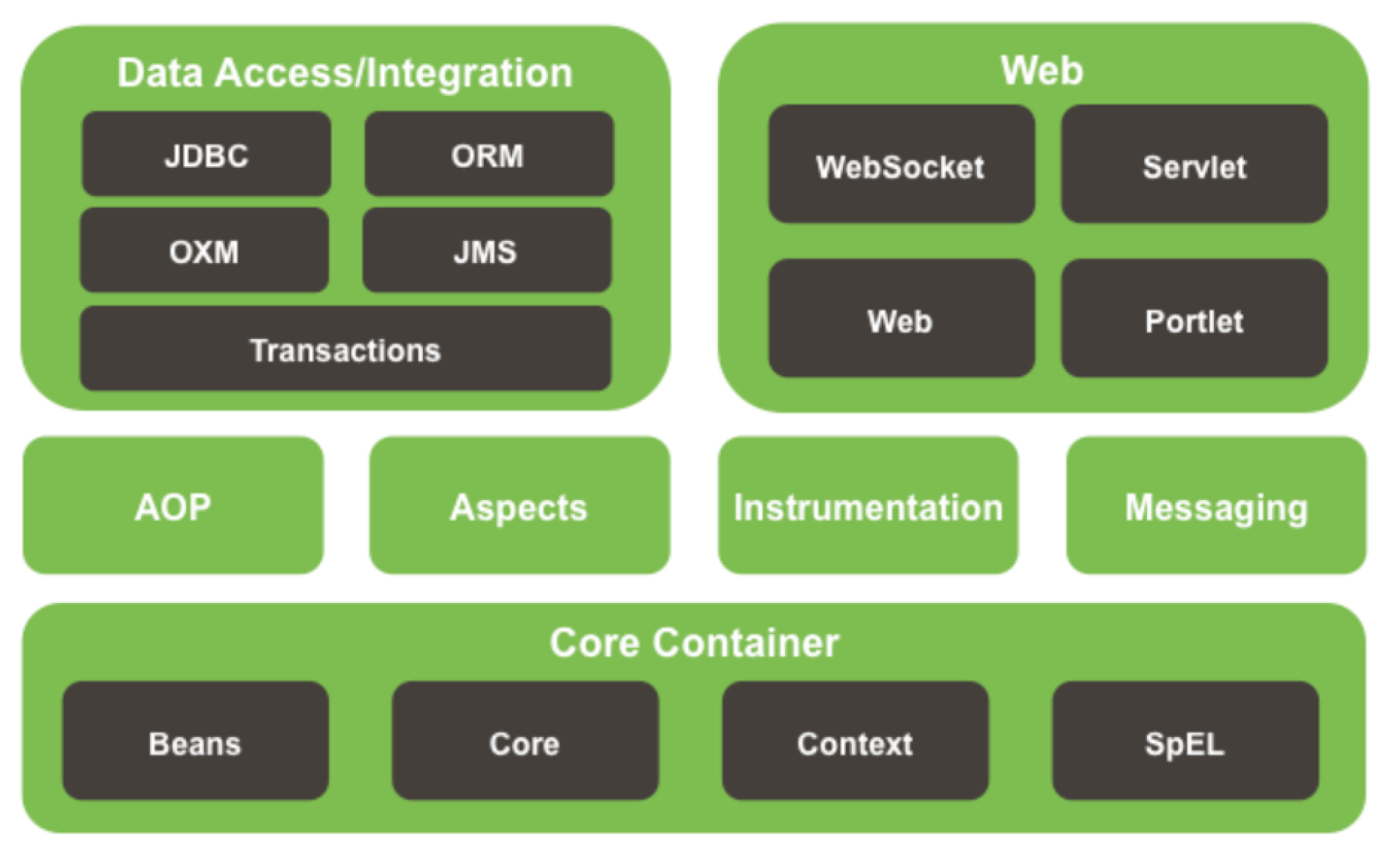

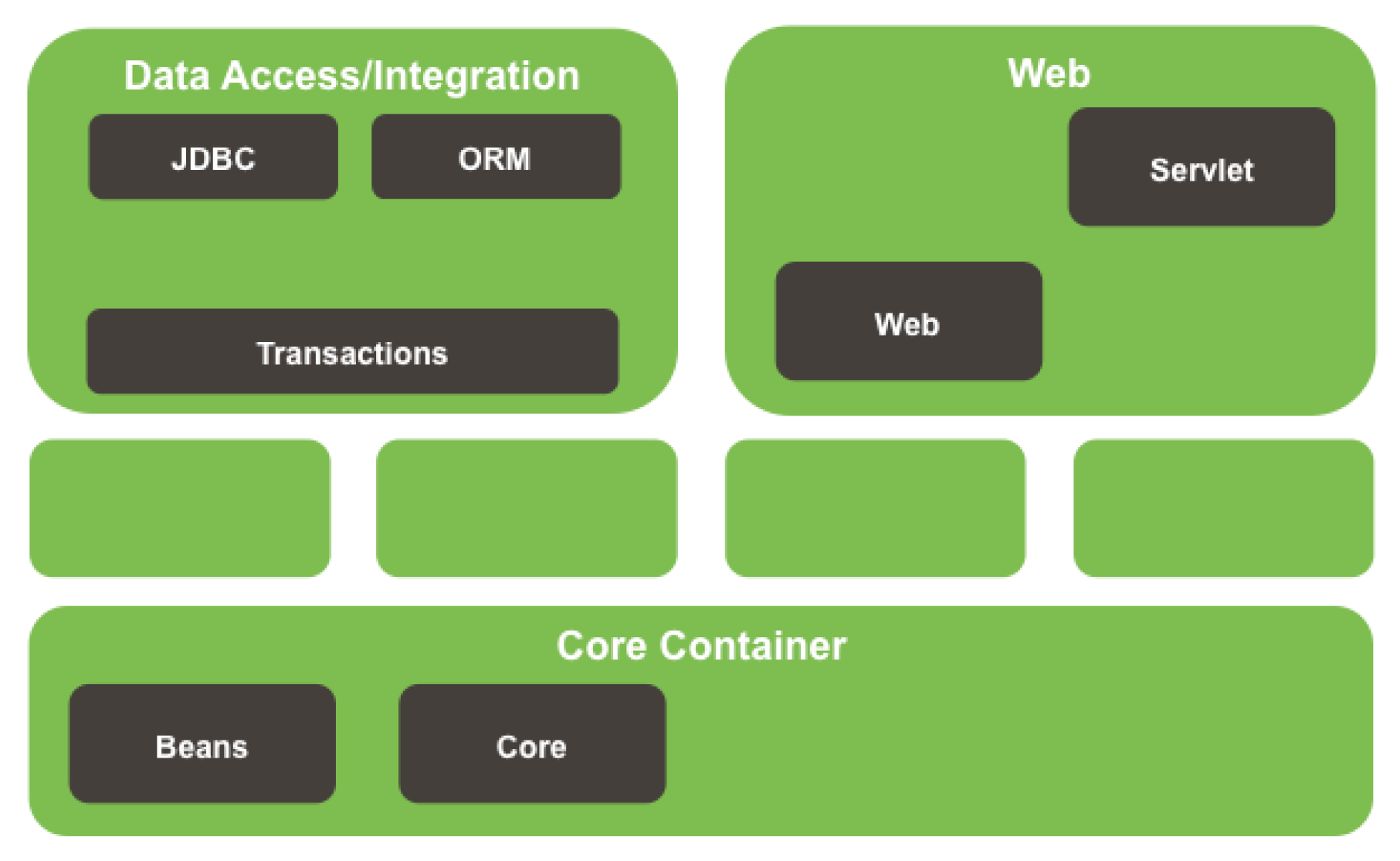

The parser has been implemented as a Java web application that adheres to the Model-View-Controller (MVC) pattern. The Spring framework (https://docs.spring.io/spring-framework/docs/4.3.x/spring-framework-reference/html/overview.html, accessed on 14 September 2021) was used for creating the application. Spring is the most adopted Java framework worldwide. Figure 7 shows the full stack of the Spring framework, while Figure 8 shows only the modules that were used in the development of the parser.

It has been remarked (see, for instance, ref. [30]) that carrying out a project based on Spring is not a trivial task and, in fact, it takes a lot of time, even for small applications. This is a direct consequence of the large number of XML configuration files that have to be properly set up, so that the individual components and application modules might work properly. In order to simplify the process, besides Spring, we used also Spring Boot. Spring Boot is an addition to the Spring platform that makes it very easy to get started with the tool and create stand-alone, production-grade applications. In other words, Boot is not intended to replace Spring, but to make its operation faster and easier. According to a 2021 public survey carried out by JRebel [31] (from August through November 2020 among 876 members of the Java development community), 62% of the respondents were working with Spring Boot.

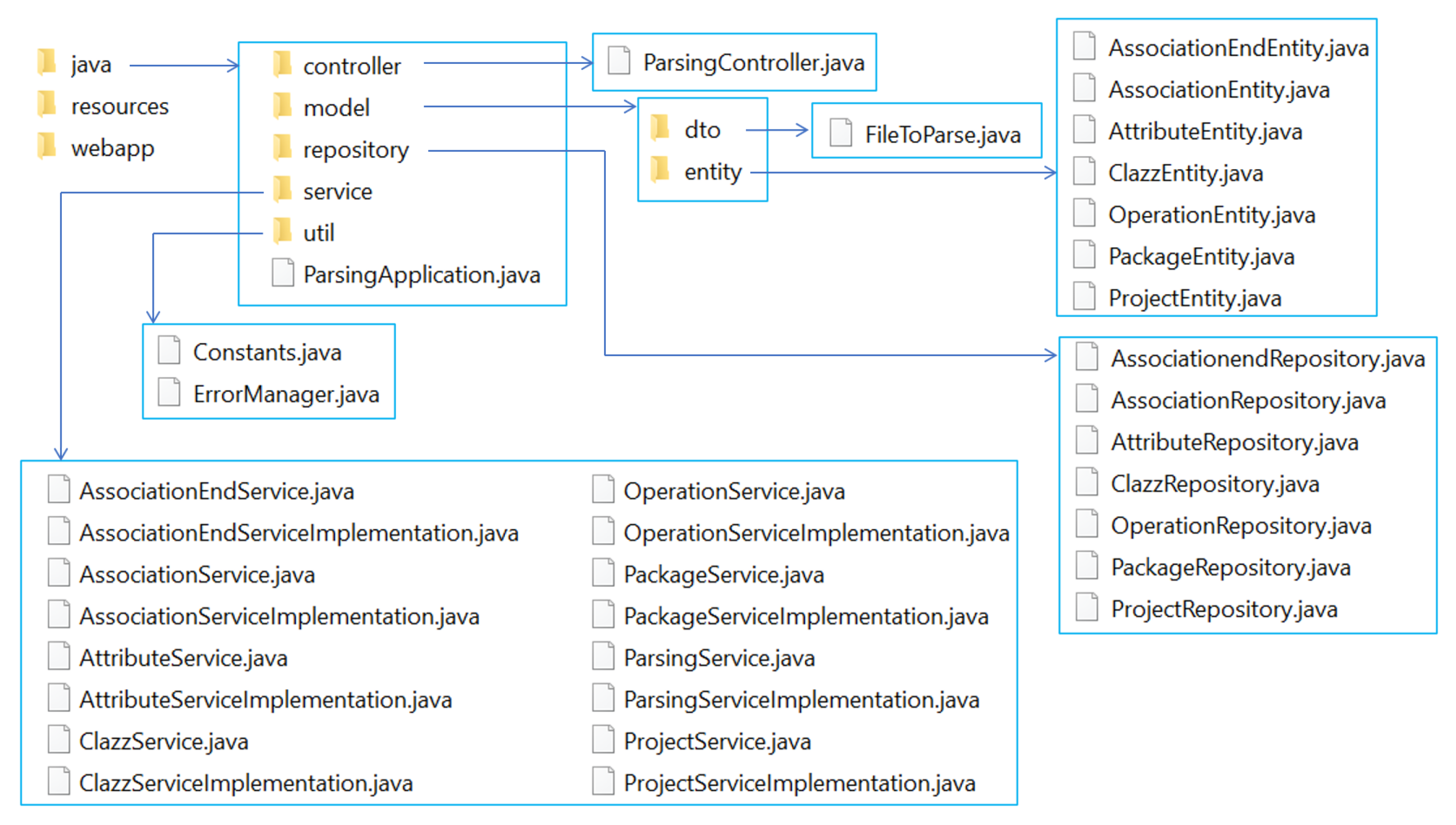

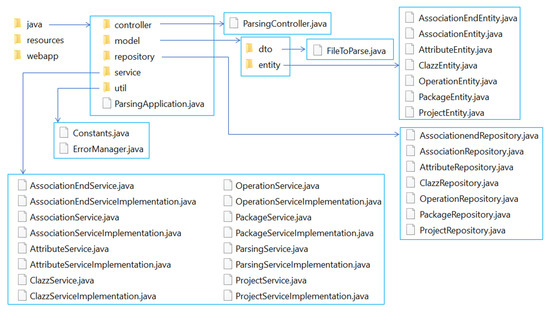

The code of the parser inside the main folder is structured as shown in Figure 9. The class ParsingApplication.java (annotated as @SpringBootApplication) is the entry point of the Spring Boot application. Overall, the web application consists of 20 classes, 15 interfaces and 2 views, as described below:

• The MVC controller layer corresponds to the controller package. It contains 1 class that is responsible for loading the Java Server Page (JSP) views, handling events, user actions and the navigation logic.
• The Model layer corresponds to the model package, which contains 7 classes in the entity subpackage and 1 class in the dto subpackage. The entity package contains Plain Old Java Objects, which correspond in number and structure to the database tables (Section 4). For instance, AssociationEntity corresponds to the association table.
• The Repository layer corresponds to the repository package. It contains 7 interfaces, one for each entity class of the model package, which extend the CRUDRepository interface of Spring.
• The Service layer corresponds to the service package. It is structured as 8 interfaces and 8 classes; the latter implement the former. The classes use the relative interfaces of the repository to query the database. The ParsingServiceImplementation class uses the services of the other classes to insert the metadata extracted from the XMI file, as a single database transaction.
• The 2 utility classes contain constants and variables used to carry out the needed checks.

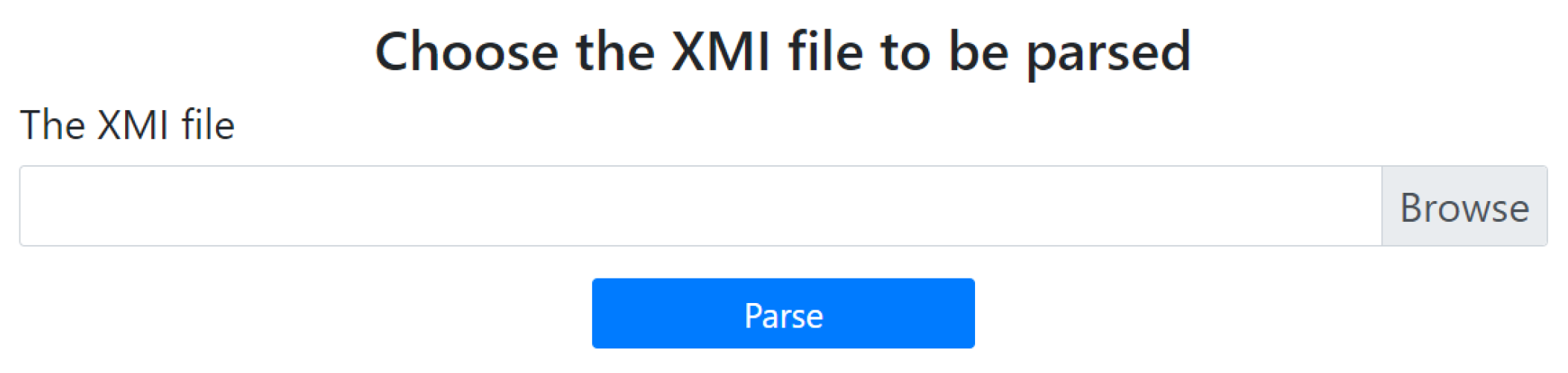

• The webapp package collects 2 views. They are 2 JSPs that implement the user interface of the web application. The first JSP is responsible for the loading of the XMI file from the user; then, such a file is passed to the controller for the parsing (Figure 10); meanwhile, the second one shows the result (either “Success” or “Error”).

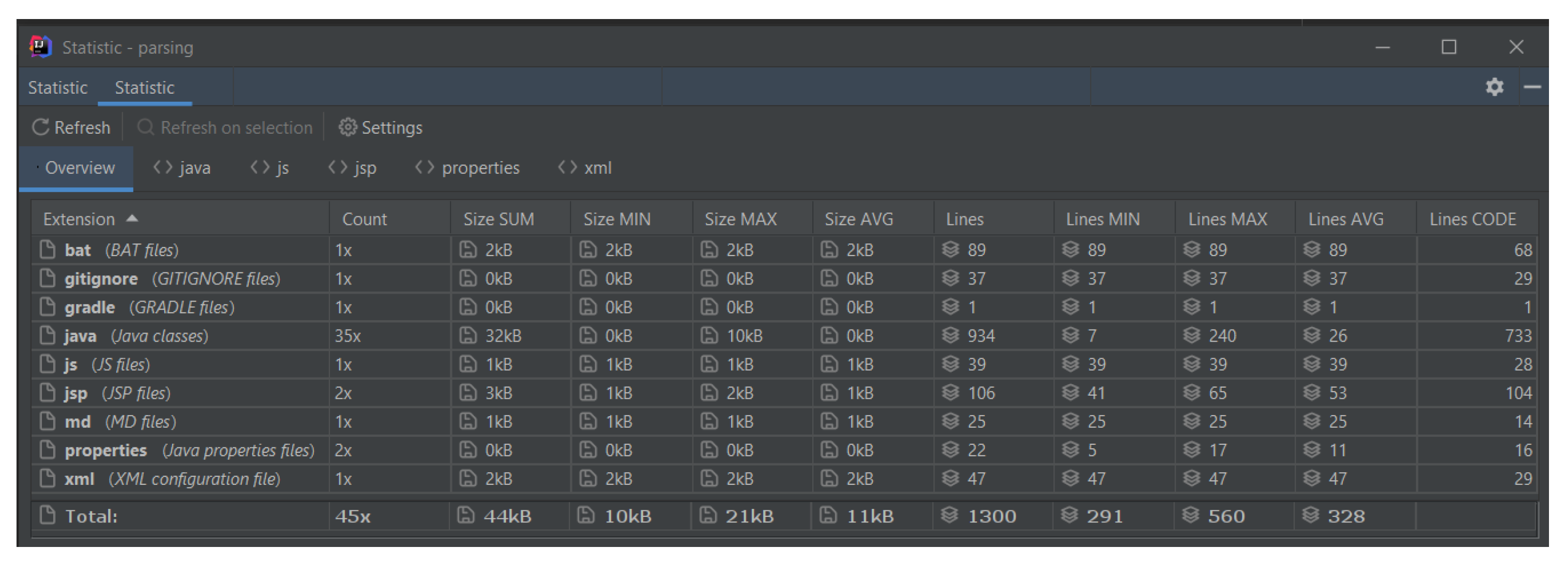

The screenshot in Figure 11 collects the statistics of the parser web application. Files bat, gitignore, gradle, md and properties are auto-generated by the Intellij Idea IDE when the software project is created; the remaining files (java, js, jsp and xml) were written by us. The second column of the figure counts the number of files of a given category in the web application. For instance, we can see that there are 35 Java classes (Figure 9 confirms such a number). The total number of lines of CODE is 894 (blank lines excluded), while 128 is the total number of autogenerated LOC.

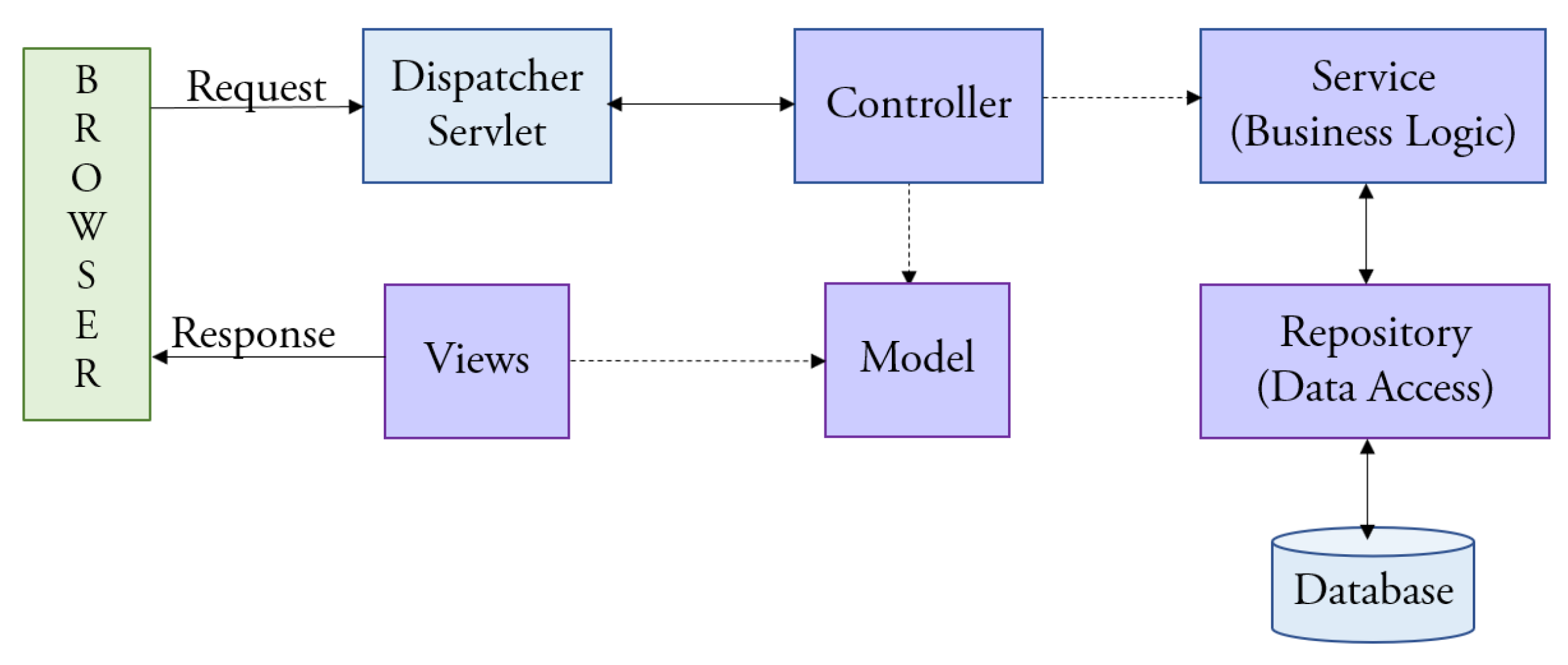

At a high level of abstraction, the processing flow of the developed Spring MVC Web application (from receiving the modeler request till the response is returned) is shown in Figure 12.

The extraction of the metadata from the XMI file (i.e., class names, attributes, operations, association ends, multiplicities, association names, etc.) is done by xMR Parser, while their persistence is the responsibility of the Repository layer (Data Access) (Figure 12). xMR Parser is a component of the xGenerator proprietary software [16]; it has been wrapped inside the Service layer (which implements the Business Logic of the Web application) (Figure 12). xMR Parser is an alternative to the well-known Acceleo (https://www.eclipse.org/acceleo/, accessed on 14 September 2021), an open-source solution. In our case, the adoption of Acceleo would have required much more time than xMR Parser, which, on the other hand, we were familiar with.

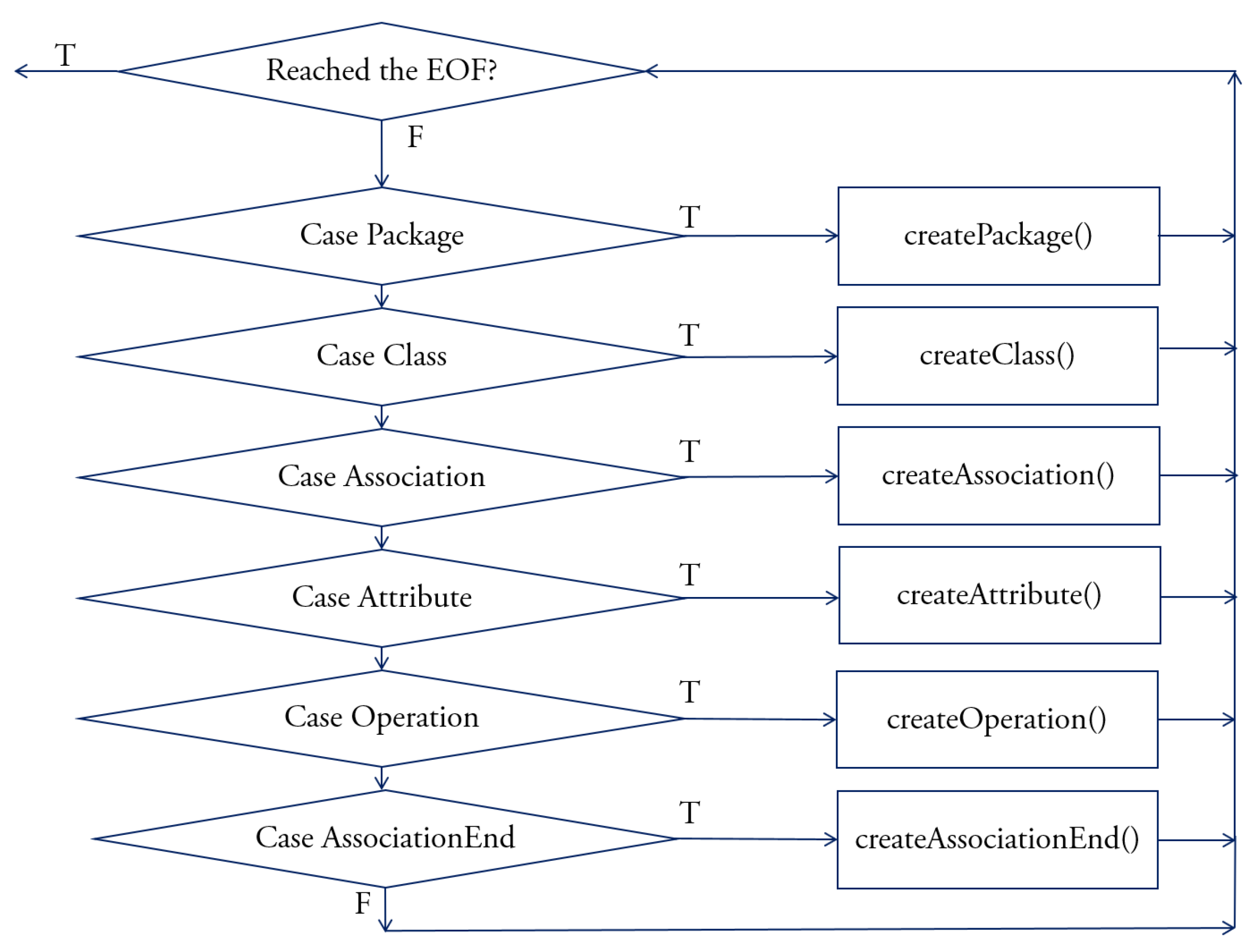

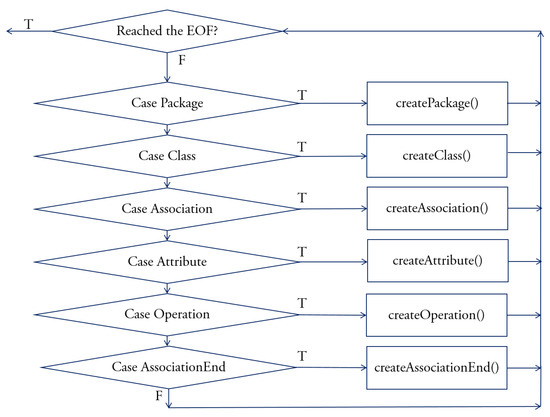

The algorithm behind the parser works as follows. Preliminarily, checks are carried out on the existence of the file chosen by the modeler, in order to ensure that it has an XMI extension and that it is not empty. If the checks are successful, then the actual processing begins. The first step reads the input XML file and creates a tree-like structure, which resides in the main memory. This step is accomplished by the Java DOM parser. The visit of the tree data structure is organized as a cycle in which, at each iteration process, one of its “nodes” is searching for one of the six XMI types that we are interested in, namely (Figure 13): uml:Package, uml:Class, uml:Association, uml:Attribute, uml:Operation, and uml:AssociationEnd. At the end of the iteration, it is the responsibility of the saveToDb() method and the Hibernate ORM to perform the uploading of the metadata collected in the output list into the repository.

The used technologies to develop the web application are listed in

Table 1. List of the software technologies used.

Layer	Adopted Software Technologies
User Interface	JSP, JavaScript, Bootstrap
Business Logic	Intellij Idea, Java, Spring, Spring Boot,
	Hibernate, JDOM Parser, xMR Parser
Data	PostgreSQL

and

Table 2. Communication software between adjacent layers.

Adjacent Layers	Technology
User Interface–Business Logic	JSP, Spring
Business Logic–DBMS	Spring, Spring Boot
DBMS–DB	Hibernate

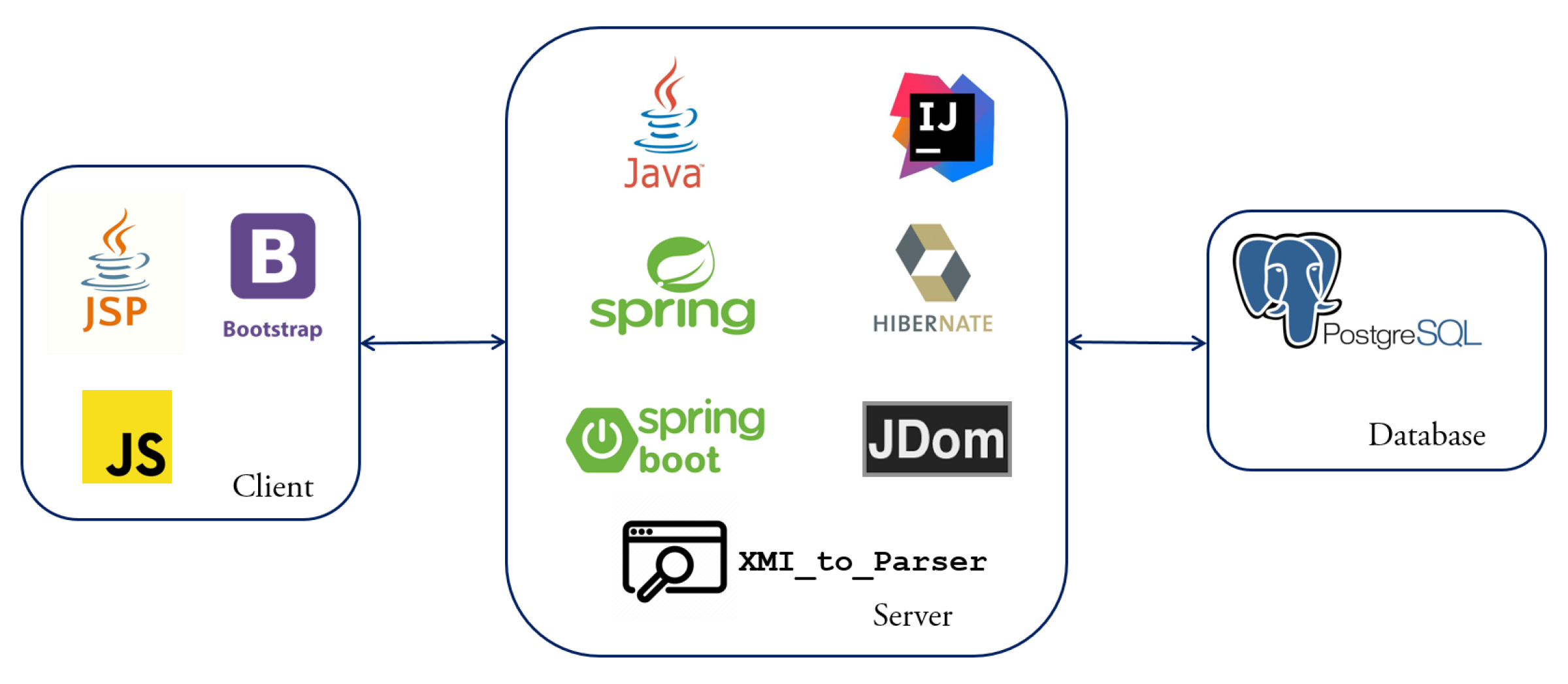

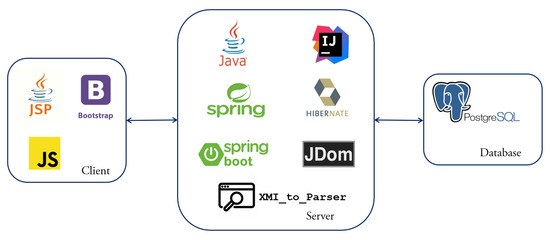

and graphically summarized in Figure 14.

In summary, the automatic step that the parser is responsible for is fundamental for the success of the experiment of building and keeping updated a corporate metadata repository about UML class diagrams, since, as remarked, for example, in [32], one of the desirable properties of repositories is that their content does not depend on a single person or a small group of people.

6. Case Study

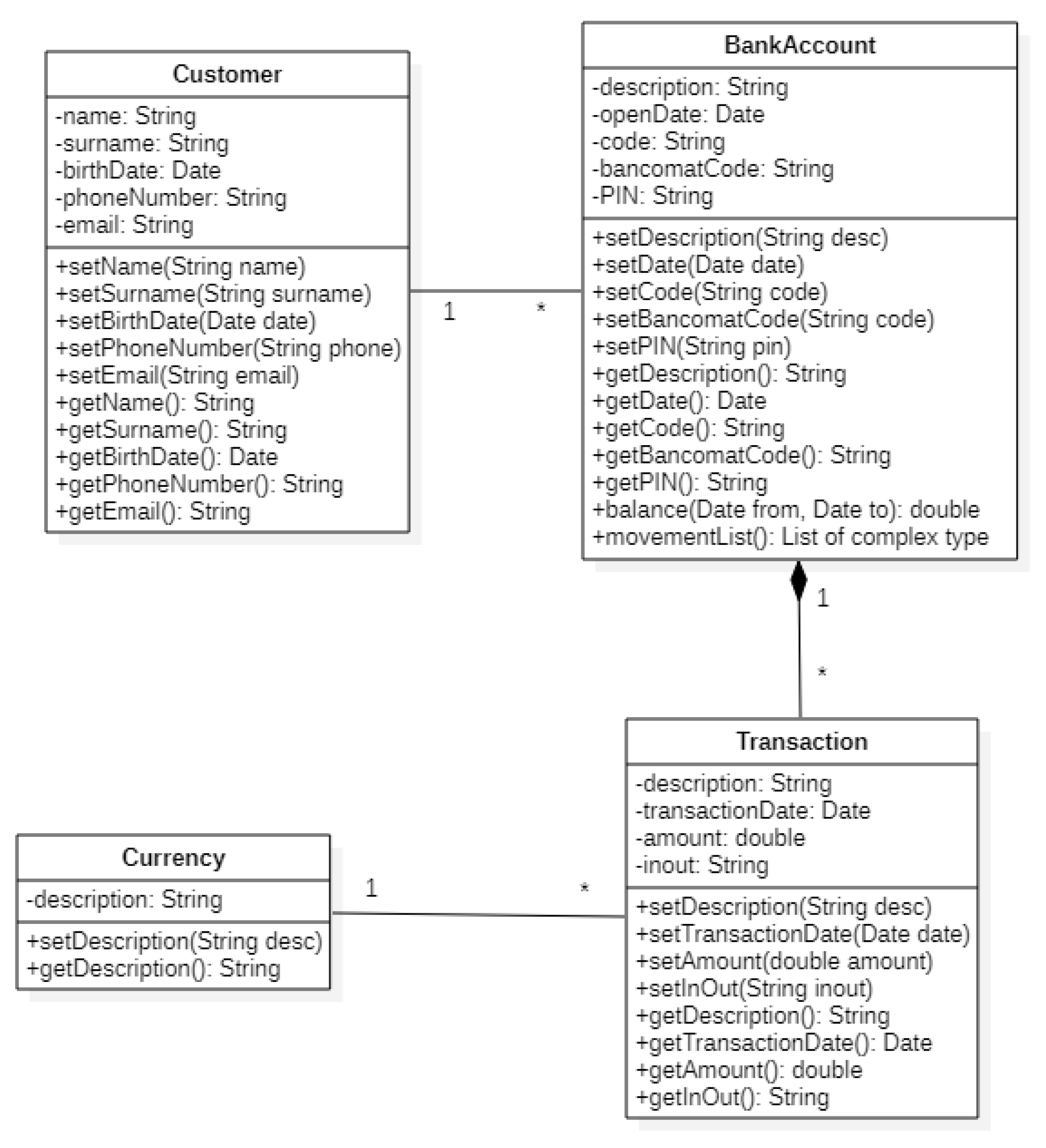

The example that we refer to migrates into the metadata repository information about the UML class diagram of Figure 15. The diagram comes from the ATMProject described in [33] (the full code of the Java classes of the project are available at https://www.softwareindustriale.it/atmproject.html).

Table 3. An excerpt of the metadata to be inserted into the corporate repository.

Table	Number of Tuples	Metadata
project	1	ATMProject
package	1	myUMLClasses
association	3	A_endCustomer_endBankAccount
		A_endBankAccount_endTransaction
		A_endTransaction_endCurrency
class	4	customer
		bankAccount
		transaction
		currency
operation	32	setName(String:name)
		setSurname(String: surname)
		setBirthDate(Date: date)
		setPhoneNumber(String: phone)
		setEmail(String: email)
		getName(): String
		getSurname(): String
		getBirthDate(): Date
		getPhoneNumber(): String
		getEmail(): String
attribute	15	name: String
		surname: String
		birthDate: Date
		phoneNumber: String
		email: String
associationEnd	6	endCustomer
		endBankAccount
		endBankAccount
		endTransaction
		endTransaction
		endCurrency

provides a summary of the metadata that have to be stored into the database. In brief, only the names of the attributes and operations of the customer class are listed. Appendix B shows an excerpt of the content of the database as the result of the automatic parsing of the corresponding XMI file.

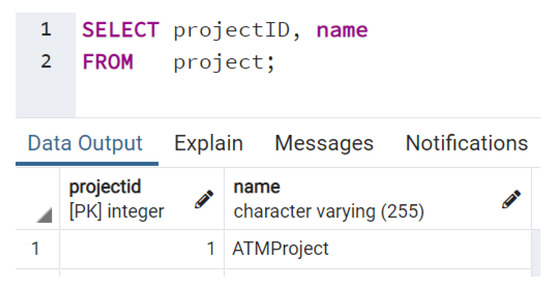

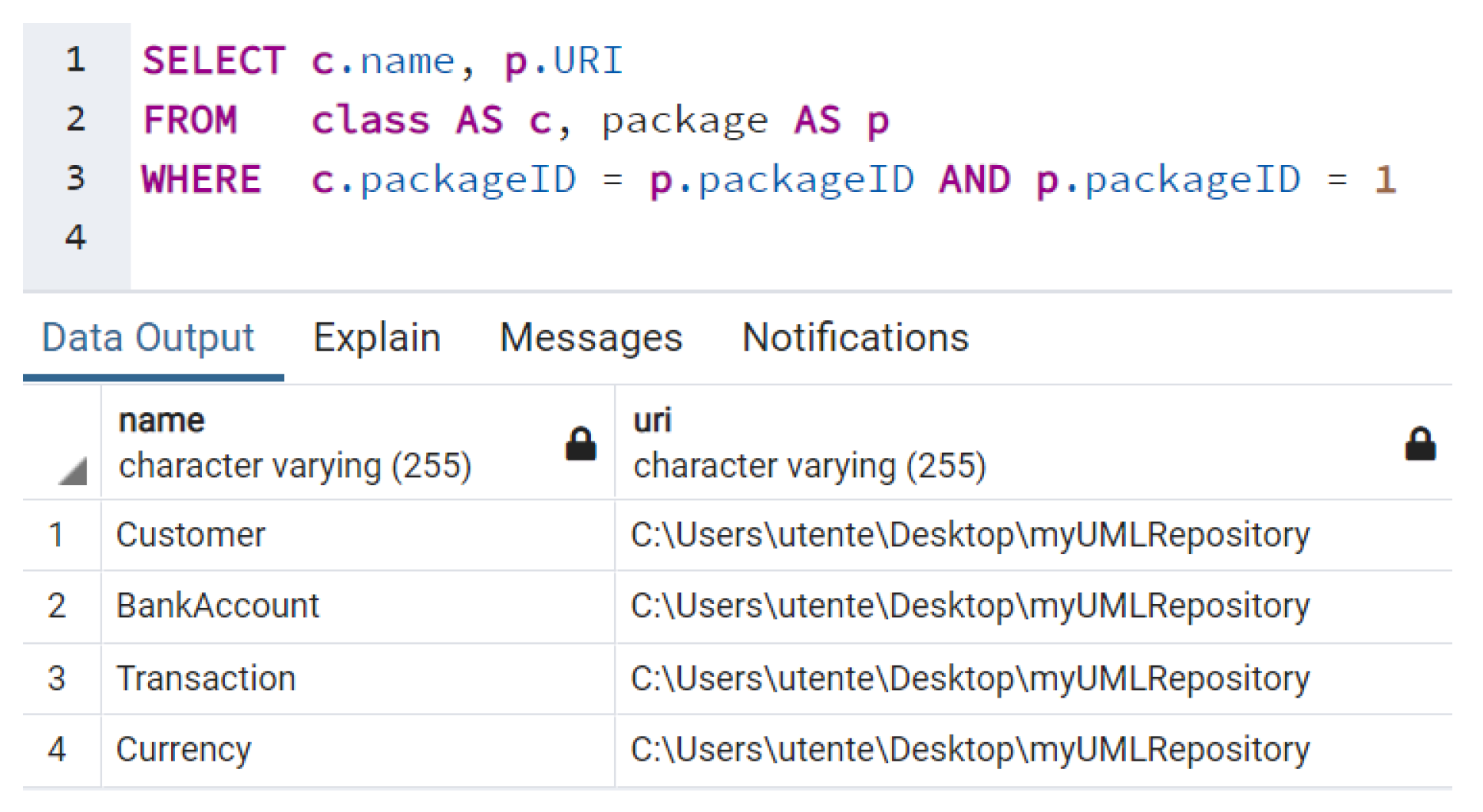

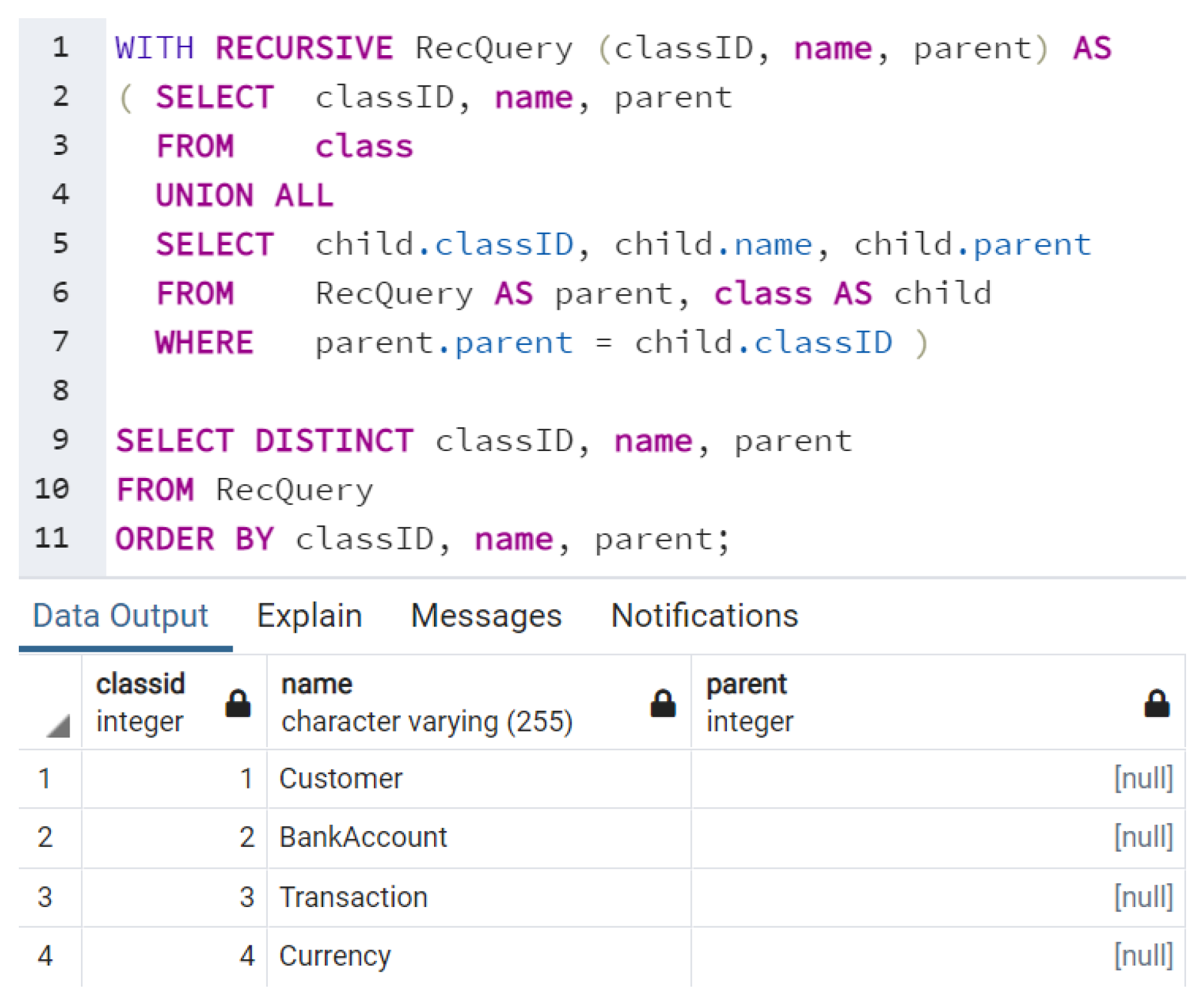

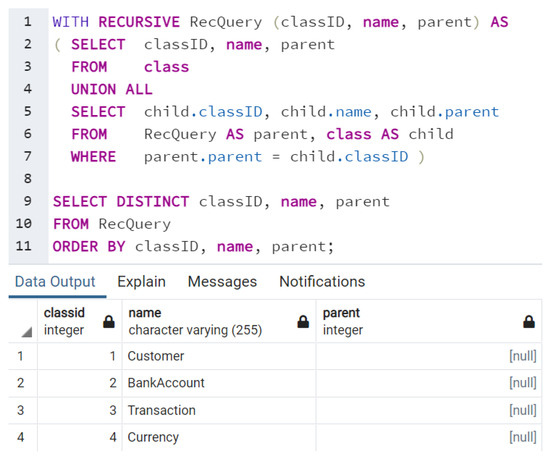

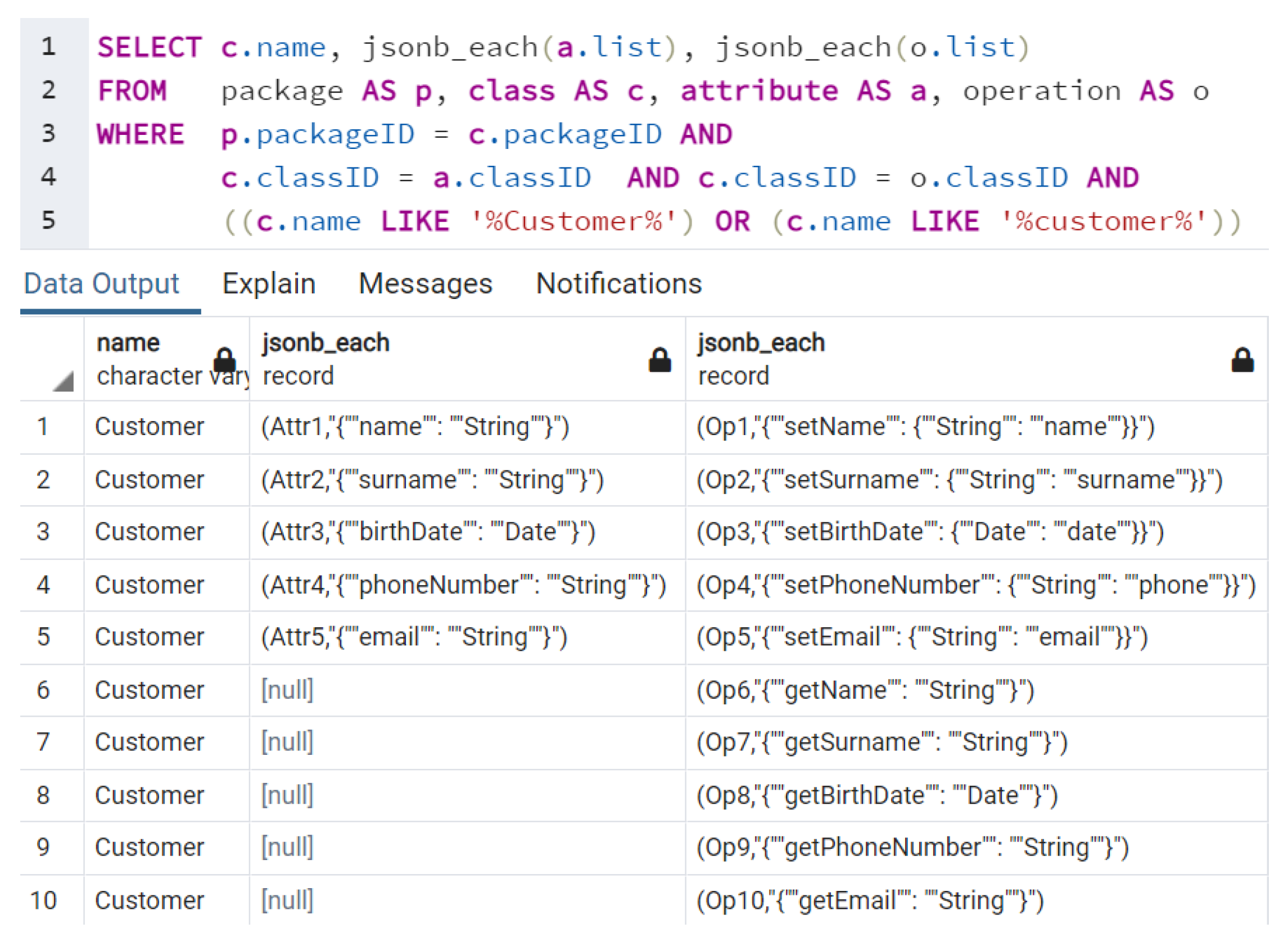

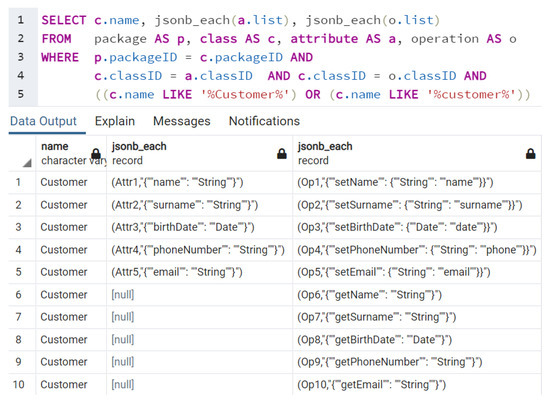

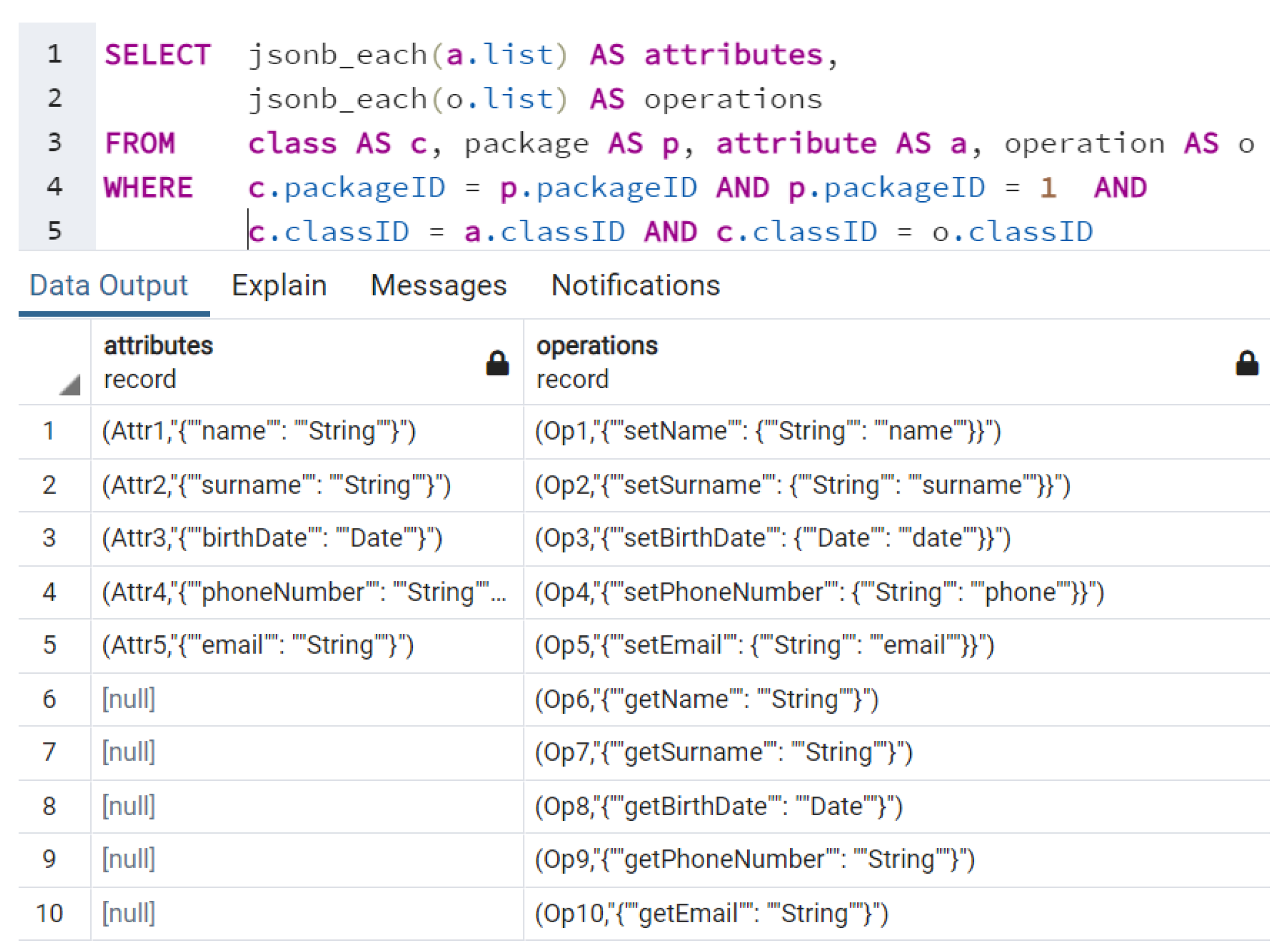

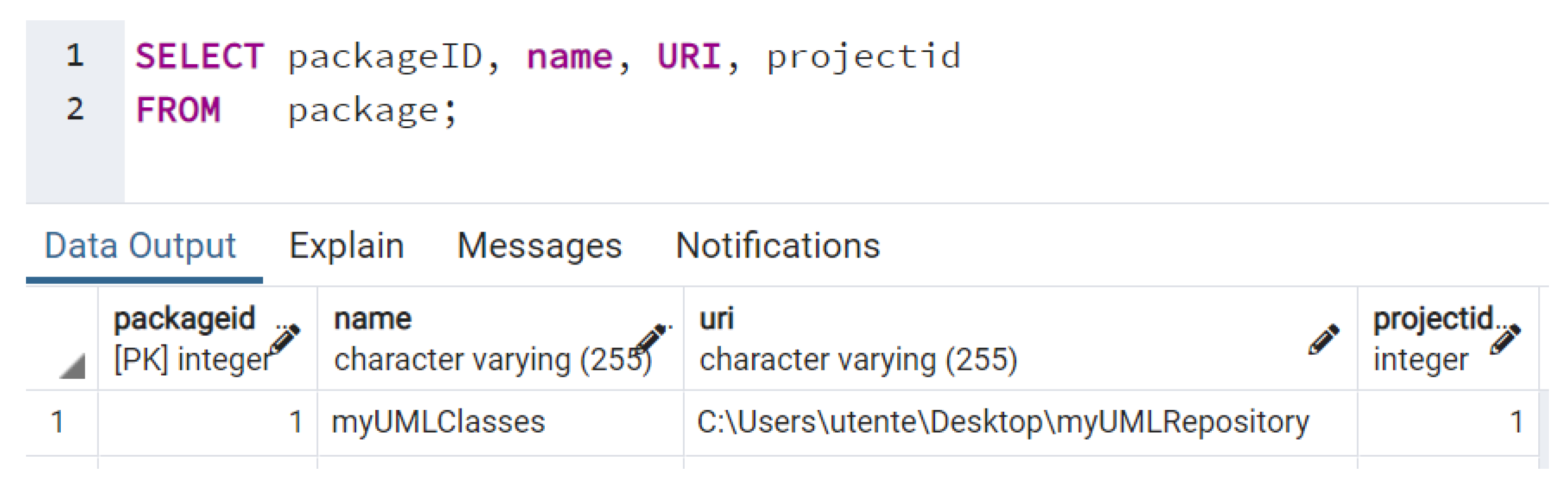

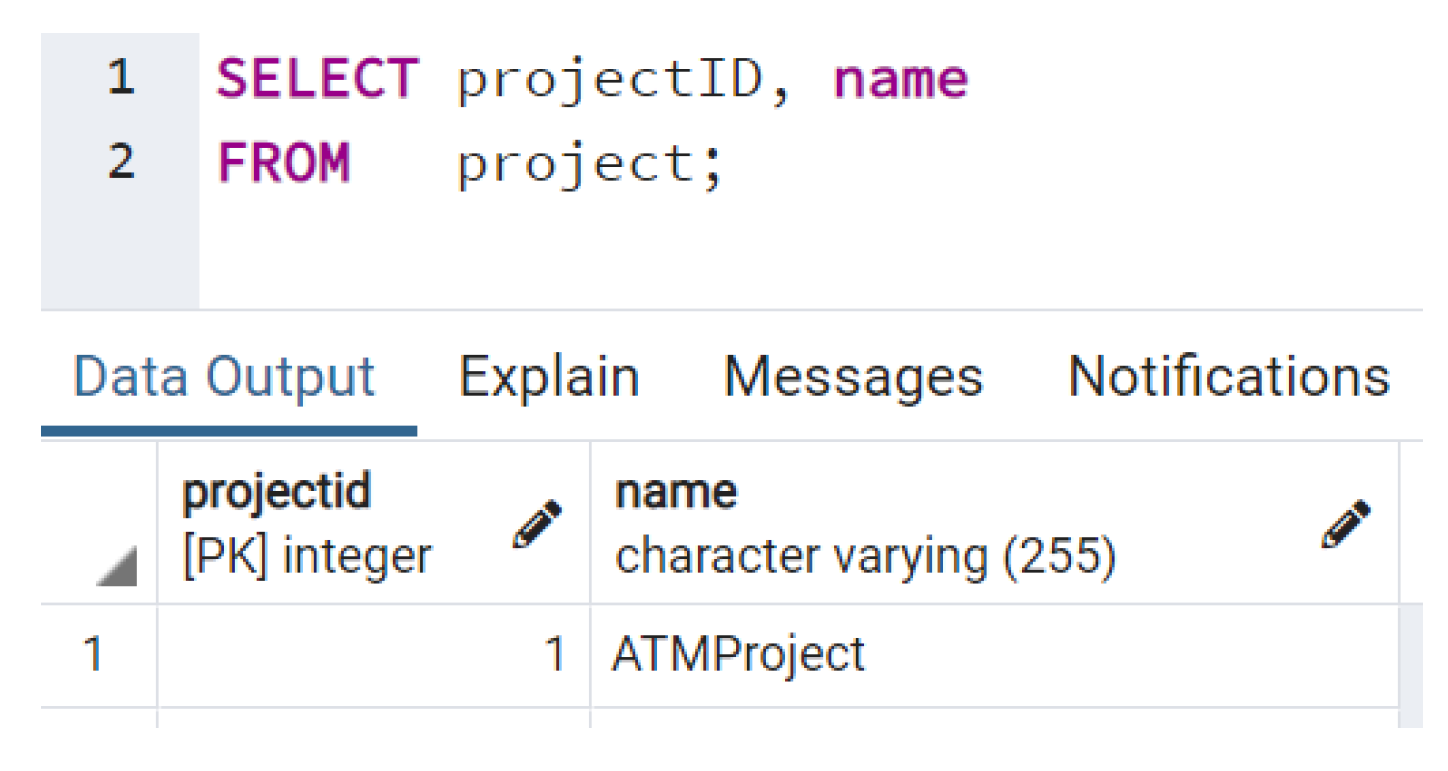

Appendix C simulates an interaction session with the metadata repository by a software engineer looking for potential class diagrams to be reused. Each interaction takes place as an SQL query against the sample database. Of course, the more metadata stored in the database, the more powerful queries can be written.

7. Related Work

The idea of building a corporate repository about UML models is not new. For example, Belaunde describes a project started in 1996 at the France Telecom research center [34]. The aim of the project was the design and development of a repository about UML class diagrams. As in our case, the structure of the metadata repository comes from an UML metamodel, where the abstraction about “operations” is missed. The repository was implemented as a Java program. Therefore, while, in [34], each metaclass maps into a programming class, in our approach, each metaclass maps into a database table.

Ref. [5] discusses the architecture, the schema and the implementation of a repository at the design level, therefore called the “design repository”. Such a repository is at the core of the SPOOL reverse software engineering environment. The design repository stores information about the source code of software systems, enabling users to conduct tasks of system analysis and reengineering. The SPOOL design repository was implemented as an object-oriented database.

In [13], Tran et al. adopt a NoSQL graph database to store UML artifacts. The graph represents each model (a UML class in the paper, but the authors claim that the solution is general) as a node, while edges between pairs of nodes express the kind of relationship between the classes. The final aim of their research was to build a model recommender system on top of the repository in order to support modelers during the modeling activities.

Ritter and Steiert [20] implemented a UML repository based on a metamodel and by exploiting an object-relational database management system. The mapping of the UML metamodel to the database schema is described in the paper. In order to enforce data integrity in the repository, the authors implemented OCL expressions as SQL constraints. This study was the first one exploiting the database technology for the purposes of building an UML repository.

In [27], the authors claim that each class model processed by the Img2UML tool is stored in a model repository implemented as a Microsoft Office Access 2010 database. Therefore, this approach does not adopt a metadata repository about class diagrams.

In [28] (see also http://models-db.com/oss/default.aspx, accessed on 5 September 2021), a relational database schema is described. It is devoted to collecting metadata about UML diagrams developed at the early stages of open-source projects. From the point of view of the metadata taken into account, the schema of our (metadata) repository overlaps with their schema significantly (

Table 4. Comparison with the schema of the metadata repository in [28].

[28]	Our Repository
class_Table	class
attributes_Table	attribute
operations_Table	operation
generalization_Table	parent attribute of class table
associationEnd_Table	associationEnd
association_Table	association
image_Table
xmi_Table	packageID attribute of class table
realization_Table
dependence_Table
	project
	package

), while the organization of the two databases is totally distinct, which is a consequence of the adoption, in our case, of the JSONB data type. This choice makes our solution more compact (seven tables vs. ten (http://models-db.com/oss/default.aspx, accessed on 5 September 2021)) and much more flexible for the storage of the metadata about attributes and operations whose number is highly variable moving from one class to another. From the previous two merits of the NoSQL solution, a third one follows, namely that the formulation of queries is easier than in the solution adopted in [28].

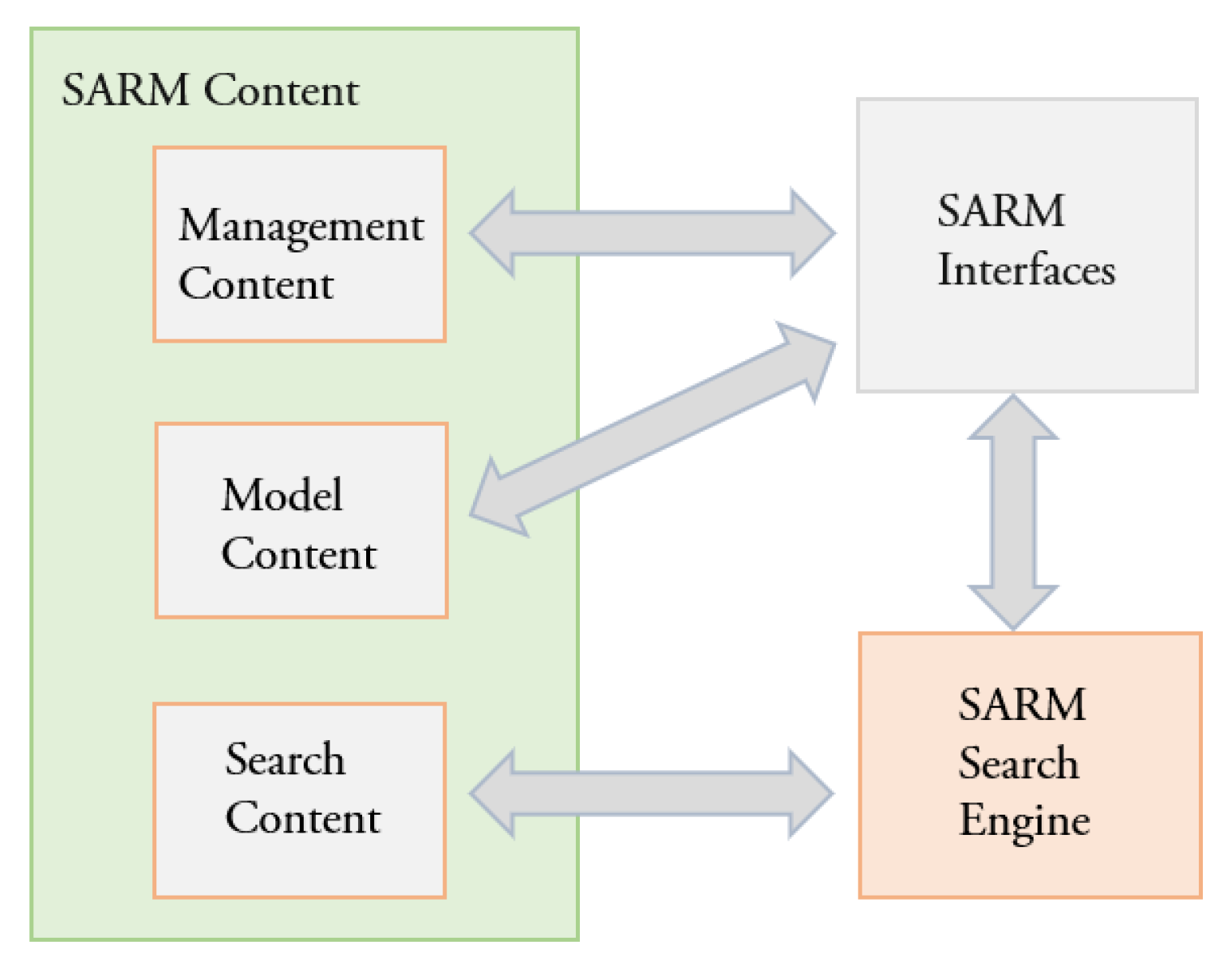

The Software Artifact Repository conceptual Model (briefly SARM) proposed in [35] is composed of three main concepts: SARM Content (in turn composed of Management Content, Model Content and Search Content), SARM Search Engine and SARM Interfaces (Figure 16). Our metadata repository implements the Search Content component, which, according to Hamid, must store metadata about the artifacts (e.g., UML class diagrams) in order to facilitate their location. Our solution delegates to the developed XMI parser the automatic extraction of information describing the artifacts in the model repository and their subsequent upload into the metadata repository. The Search Engine (Figure 16) manages the searching of the artifacts stored in the model repository. Hamid claims that three different modes of searching for artifacts are valuable: simple search, advanced search and browsing. Simple search offers support to general-purpose queries using keywords, while advanced search supports more complex queries. Search Interfaces use the Search Engine to search for artifacts in the repository.

8. Conclusions and Future Work

The present study belongs to the domain concerning the automated feeding of repositories of UML diagrams, a topic that is considered relevant by most scholars. A software module was developed that is responsible for extracting useful information from the XMI file about class diagrams and entering it as metadata into a pre-existing (metadata) repository. The XMI parser has been implemented as a Java web interface. The structure of the metadata repository adopted in the paper comes from a UML metamodel and it has been implemented as a PostgreSQL database based on the JSONB data type.

The metadata repository together with the linked parser is a useful tool for companies operating in the market segment of advanced web applications. We believe that it can be of particular relevance for Small and Medium-Sized Enterprises (SMEs) developing software. This category of SMEs represents the majority of software development organizations around the world. “SMEs are made up of enterprises which employ fewer than 250 persons and which have an annual turnover not exceeding EUR 50 million, and/or an annual balance sheet total not exceeding EUR 43 million” ( definition based on Article 2 of the Annex to Commission Recommendation 2003/361/EC; https://ec.europa.eu/docsroom/documents/42921, accessed on 23 September 2021). The development of web applications often requires a team of analysts of the “business model” and a team of programmers who implement what the first modeled. The number of human resources to be involved is, in general, conspicuous and with a high professional profile, factors that translate into high costs, which most SMEs are unable to afford. It follows that, to help SMEs to remain competitive or even to survive, a software development process that is not too complex, and easy-to-use tools for implementing it, are required. Lastly, the tools must be free of charge.

We understand that formulating NoSQL queries may be challenging. In order to make the proposed approach appealing, it is part of our future work to supplement the metadata repository with an additional web interface that implements advanced query mechanisms for the retrieval of class diagrams in the model repository according to different criteria, as suggested, for example, in [15]. Such a web interface will implement the Search Interface discussed by Hamid in [35].
