A 24 GHz Direct Conversion Receiver for FMCW Ranging Radar Based on Low Flicker Noise Mixer

Abstract

In this paper, a 24 GHz direct conversion receiver (DCR) for frequency-modulated continuous-wave (FMCW) ranging radar based on low flicker noise mixer in 90 nm silicon-on-insulator (SOI) CMOS technology is presented. A low-noise and low-power low-noise-amplifier (LNA) adopting simultaneous noise and input matching (SNIM) method is designed. Neutralized technology and boost inductor are introduced to improve performance. The measurement results of standalone LNA show that the peak gain is 17.2 dB at 23.8 GHz and the −3 dB bandwidth is around 2.2 GHz from 22.8 GHz to 25 GHz. The LNA achieves an average 3 dB NF within the 24 GHz band. A current-bleeding mixer is used to lower noise and the factors influencing flicker noise have been discussed. Proper element values and local oscillator (LO) power have been chosen to make the mixer low-noise. Measurement results illustrate that the receiver exhibits 20.3 dB peak gain, 7 dB SSB noise figure (NF) and −22 dBm IP_1dB. Flicker noise of the mixer and the receiver are measured respectively and the noise knee-point of receiver is observed 60 kHz. The receiver consumes only 16 mW with chip area of 0.65 mm² including pads. The results demonstrate that the proposed receiver can be a promising candidate for FMCW ranging radar.

1. Introduction

Since the Federal Communications Commission (FCC) granted unlicensed 24 GHz band as Industrial Scientific Medical (ISM) band, intense research activity toward realization of highly integrated solutions around 24 GHz band is presently underway [1]. Advances in integrated circuit and semiconductor device technologies are now enabling the development of low-cost radar products for the automotive [2], industrial [3] and consumer electronics [4]. Among them, the classical direct-conversion receiver has attracted wide-spread attention recently for its simple architecture and easy integration with the baseband circuit, as well as for its low power consumption and potentially low manufacturing costs [1].

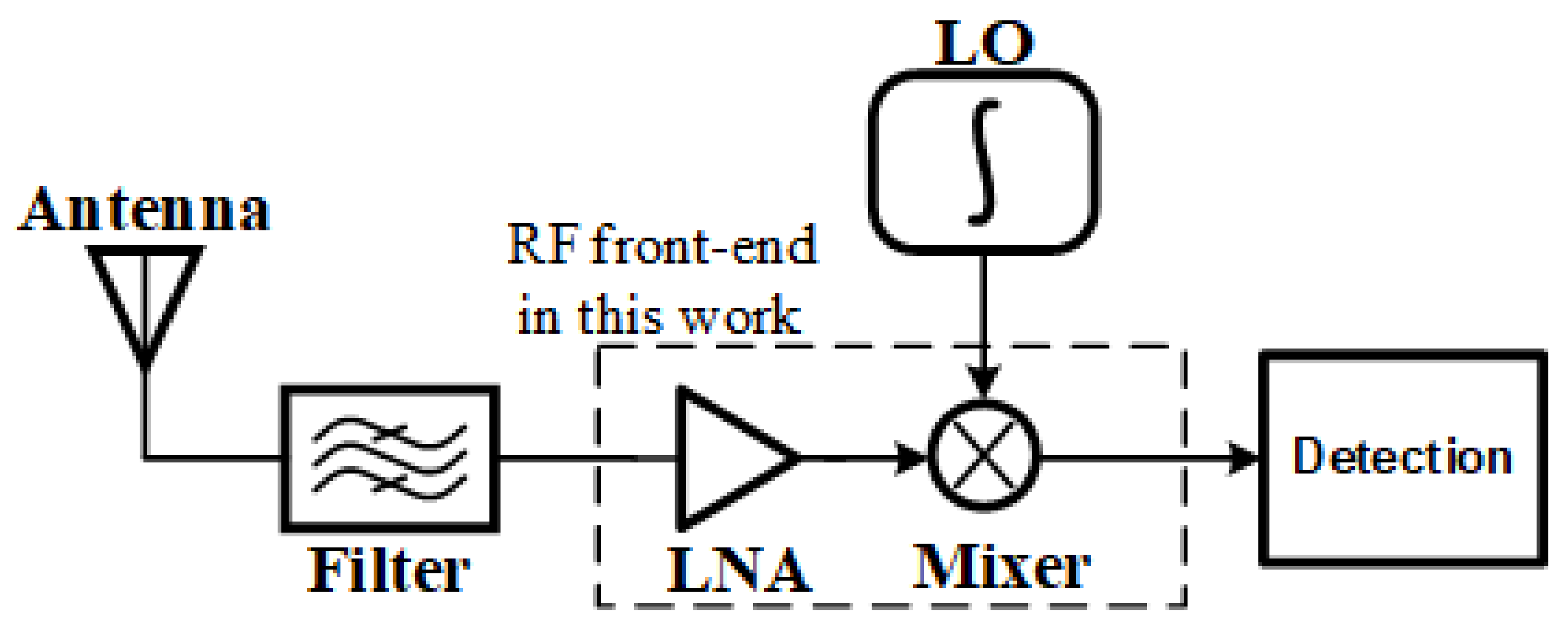

A simplified block diagram of a DCR is illustrated in Figure 1. The echo signal is first picked up by a receiver antenna before being passed through a band select filter. The process is usually carried out in a printed circuit board (PCB). Afterwards, the signal is scaled up by a low-noise-amplifier (LNA) and is subsequently frequency down-converted by the mixer with a LO signal produced by the voltage-controlled oscillator (VCO). The LNA and mixer are key parts to complete the down-conversion operation and their performance influence subsequent detection circuit block most. In this work, the designs mainly cover the implementation and optimization of the low noise amplification and subsequent frequency downconversion. Then, they are integrated into a low-power radar receiver radio frequency (RF) front-end.

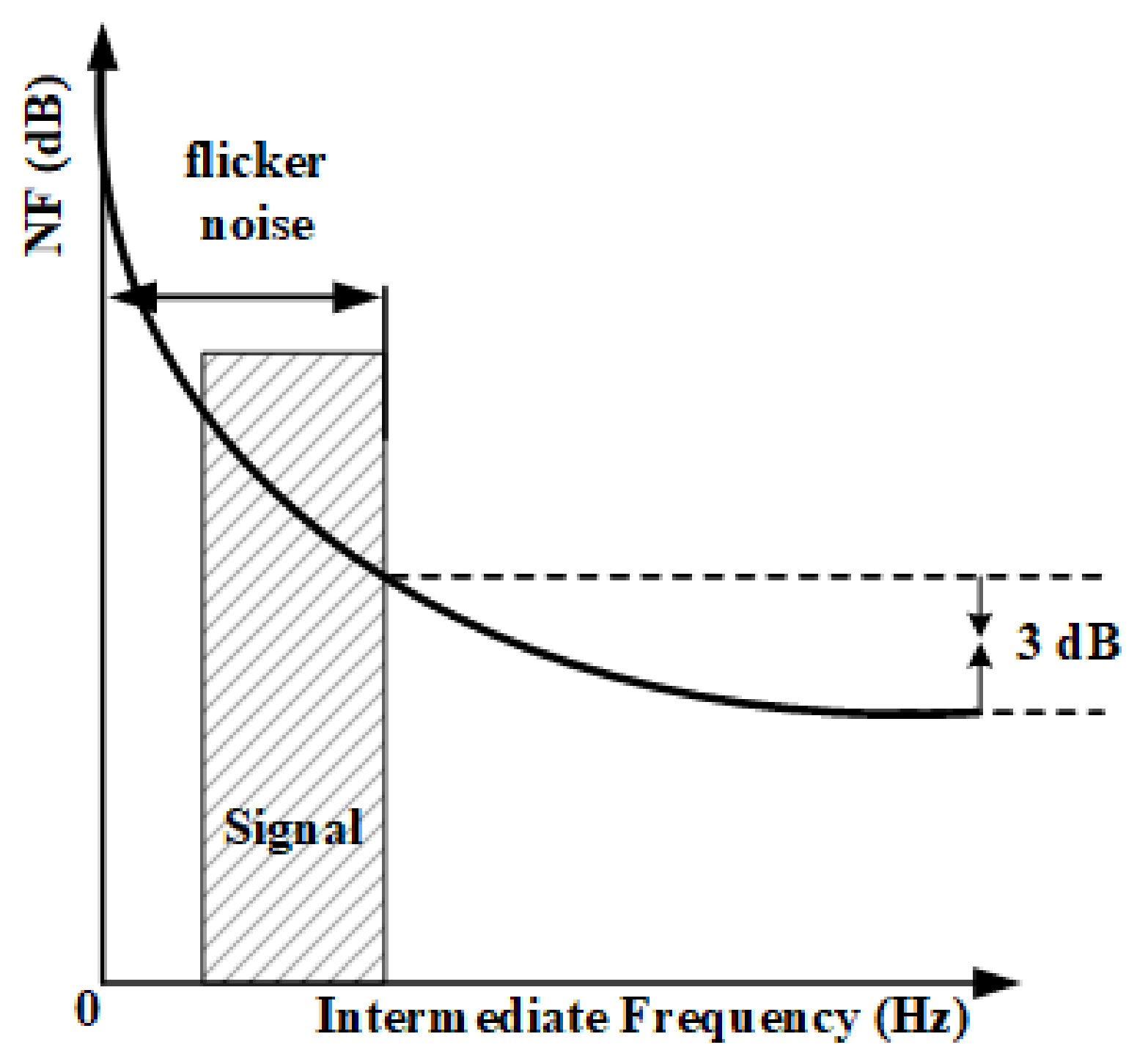

Nevertheless, the flicker noise is the biggest obstacle in pursing the DCR design. In millimeter-wave radars, the FMCW type has drawn the most attention because of its compact size and robustness over weather, temperature and light conditions [5,6,7,8]. However, when a DCR radar is used to measure the distance, the intermediate frequency (IF) calculated from FMCW may lie in the high flicker noise area. As shown in Figure 2, the useful baseband signal will be “buried” in noise, leading to poor measured result. A low flicker noise receiver is attractive in DCR applications. Several publications mentioned low flicker noise designs. Traditional current bleeding method was described in [9,10] and in [11] a gm-boost method was introduced with an additional circuitry connected to the switching pair transistor of the mixer to enhance gain. No measured results have been reported on 24 GHz low flicker noise receiver. In this paper, an intuitive and understandable current bleeding method is introduced to get relatively low flicker noise. Flicker noise of the mixer and the receiver are measured respectively for the first time.

The SiGe technology was once the first choice due to its excellent-performance and high-efficiency [2], but the low integration level and high cost are insufferable. In recent years, the burgeoning CMOS technology has become a hotspot for low-cost mm-wave radar chips [12] with its high integration and low cost. However, the lossy substrate and low-Q-factor passive components, such as inductors and capacitors, make it hard to achieve a high-gain, low-noise and low-power-consumption receiver. Compared with bulk CMOS technology, the SOI’s buried oxide layer above low resistivity substrate decreases RF coupling to the conductive silicon substrate [13]. Based on that, the SOI CMOS process is promising to overcome the weakness mentioned above. By greatly improving the circuit performance with limited increased cost, the SOI CMOS is expected to be cost-effective for good performance, low cost radar chip.

In this paper, a low noise receiver is proposed. The paper is organized as follows-in Section 2, the FMCW principle is presented. In Section 3, the low noise receiver circuit implication is described in detail. A low-noise and low-power LNA is proposed. The factors influencing flicker noise of mixer are analyzed and a low flicker noise mixer is designed. Measurement results and comparison with simulation results are shown in Section 4. Results indicate that the proposed receiver promises for 24 GHz FMCW Ranging Radar.

2. FMCW Principle

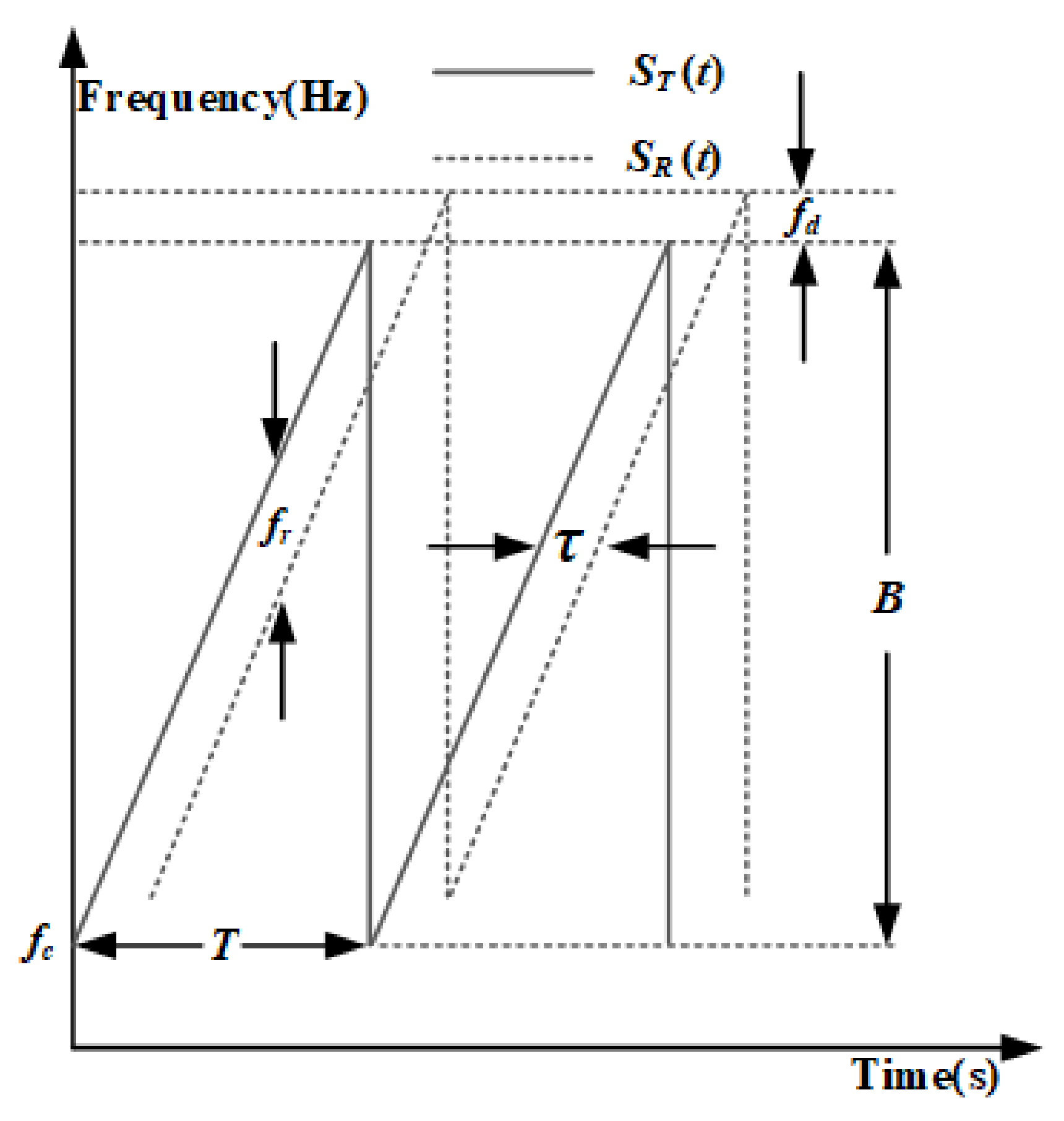

The principle of the FMCW ranging radar is discussed in detail here [14]. The frequency of FMCW signal changes linearly with time. A simplified model of FMCW signal can be seen in Figure 3. By calculating the frequency difference, the delay between the transmitted wave and the reflected wave can be known to determine the position of the target. It can be expressed as

$$R=\frac{c·T\cdot f_r}{2B}$$

(1)

where R stands for the distance between target and radar, c is the speed of light, T is the duration of the chirp, $f_r$ is the beat frequency and B is the bandwidth of carrier frequency.

As mentioned above, the beat frequency $f_r$ goes linearly with distance R. If the target is relatively close to the radar, the R is small; thus, the beat frequency $f_r$ is also small,. For example, when the distance between radar and target is 3 m, B is 250 MHz and T = 0.5 ms is a regular resolution. Thus, the calculated 10 kHz beat frequency $f_r$ is lying in the high flicker noise area exactly. As a consequence, the short-range detecting ability deteriorates.

The beat frequency containing information of target is calculated from received RF signal and LO signal and it is irrelevant to the received signal scope. In this way, the receiver used for FMCW can loosen restriction of linearity.

3. Circuit Implementations

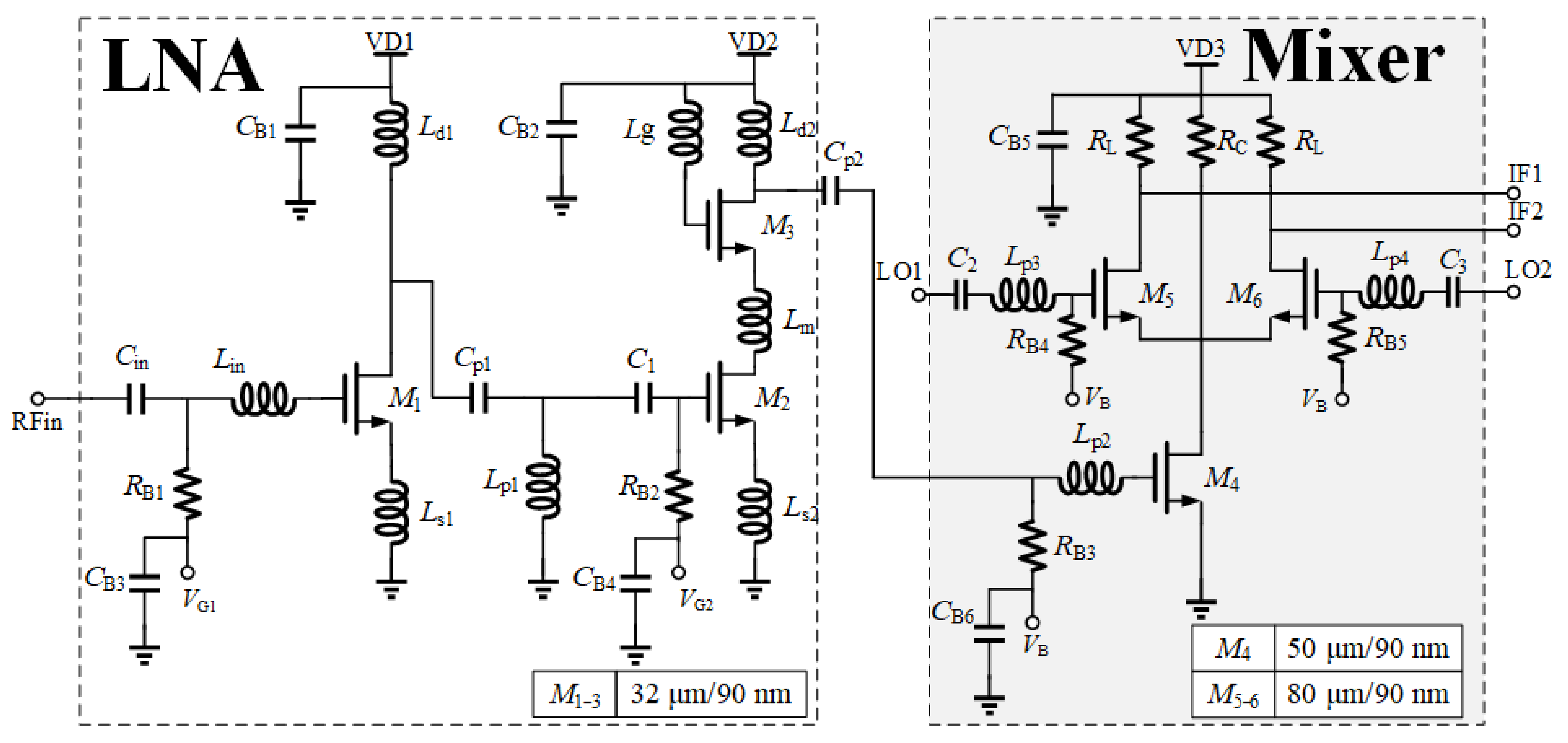

Figure 4 shows the proposed direct down-conversion receiver with dimensions of the RF active devices. The passive element values of proposed circuit are shown in

Table 1. Values of the circuit elements of the proposed receiver.

Cin	CB1–6	Cp1	Cp2	C1-3	Lin	Ls1	Ls2	Ld1
1.25 pF	2 pF	200 fF	550 fF	1 pF	720 pH	300 pH	270 pH	600 pH
Ld2	Lm	Lg	Lp1	Lp2	Lp3–4	RB1–5	RL	RC
450 pH	130 pH	150 pH	180 pH	300 pH	430 pH	1.2 kΩ	800 Ω	60 Ω

. These element values are based on the results of EM simulation. The receiver is based on the zero IF architecture with RF and LO signals operating in the 24 GHz frequency band. Low noise, low power consumption and high integration are some of the important system requirements of the receiver. To avert lossy balun and reduce the power consumption of this circuit, single-end topology is used. L_d2 was the load of LNA and its inductance was chosen to form the matching circuit with C_p2 and L_p2 between the output of LNA and input of mixer. The LO input ports of the mixer were matched to 50 Ω impedance by introducing the matching inductors L_p3 and L_p4.

According to the system noise cascading formula, to keep the whole system low noise, LNA as the first stage should have enough gain and low noise [15]. The mixer used for down-converting RF signals should keep low flicker noise. Detailed design methods are described in following parts.

3.1. LNA Design

As depicted in Figure 4, a two-stage single-end LNA is designed in our work. The first stage plays the key part in the noise figure of the system. To meet the requirements of noise figure and gain, a common-source (CS) amplifier is set to be first stage to keep the circuit low-noise, followed by a cascode amplifier to enhance gain. SNIM method [16] was introduced in this design to ensure high gain and low NF without sacrificing each other, which used to be a tradeoff. As shown in Figure 4, L_s1 and L_s2 worked as source degeneration inductors to simplify the LNA’s input and noise matching. The researcher in [13] reported that the SNIM state will be easily influenced by the bias circuit when designing LNAs, leading to mismatch and deteriorated performance. Based on simulated results, a 1200 Ω resistor was chosen in the bias circuit and the bias circuit was placed proposition before L_in. The input port of the LNA is matched to 50 Ω impedance. In receiver the output port of the LNA is matched to mixer and in standalone LNA the output port of the LNA is matched to 50 Ω impedance.

To reduce the power consumption as much as possible, bias voltage of amplificatory transistors is elaborately set to 0.55 V for enough gain, acceptable NF and power consumption. Moreover, sizes of transistors M₁, M₂ and M₃ were selected elaborately through simulation. L_m, as neutralized inductor, was added between the CS and the common-gate (CG) transistors to resonate with parasitic capacitor to minimize the NF and increase the gain [15]. Meantime, an inductor L_g was added at the gate of the CG transistor as resonant tank to boost gain at the target frequency [17]. L_m was well-designed transmission line fabricated with upmost metal to maintain high Q, as well as L_g. A matching network composed of C_p1, L_p1 and C₁ is used to get interstage match. C_B1–C_B4 are bypass capacitors for leaching the clutter signal from supply source.

3.2. Low Flicker Noise Mixer Design

In general, the mixer flicker noise shown in and flicker noise figure shown in Equations (2) and (3) are [18]:

$$V_{n,out}\left(f\right)=\frac{8I_{ss}{f}_{LO}}{S_{LO}}{R}_l\cdot V_{n,LO}\left(f\right)$$

(2)

$$NF\left(\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$f$}\right.\right)=1+\frac{{\pi }^2\frac{8I_{ss}{f}_{LO}}{S_{LO}}\cdot V_{n,LO}\left(f\right)}{4g_m^2{R}_l}\cdot \frac{1}{4kT{R}_s}$$

(3)

where I_ss is the DC current flowing through each pair of LO switch transistor; k is Boltzmann constant; f_LO is frequency of LO signal; S_LO is the slope of the differential LO wave form; $V_{n,LO}\left(f\right)$ is flicker noise of switch transistor; g_m is gm of amplifying transistor; R_l is load resistance; R_s is the source resistance. From equations above, smaller I_ss and higher S_LO help to decrease the flicker noise, so long as other parameters stay unchanged. In this design, reducing the I_ss and enlarging the S_LO are considered to reduce the flicker noise of the mixer.

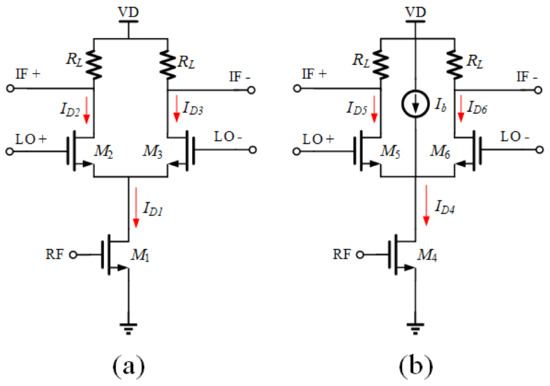

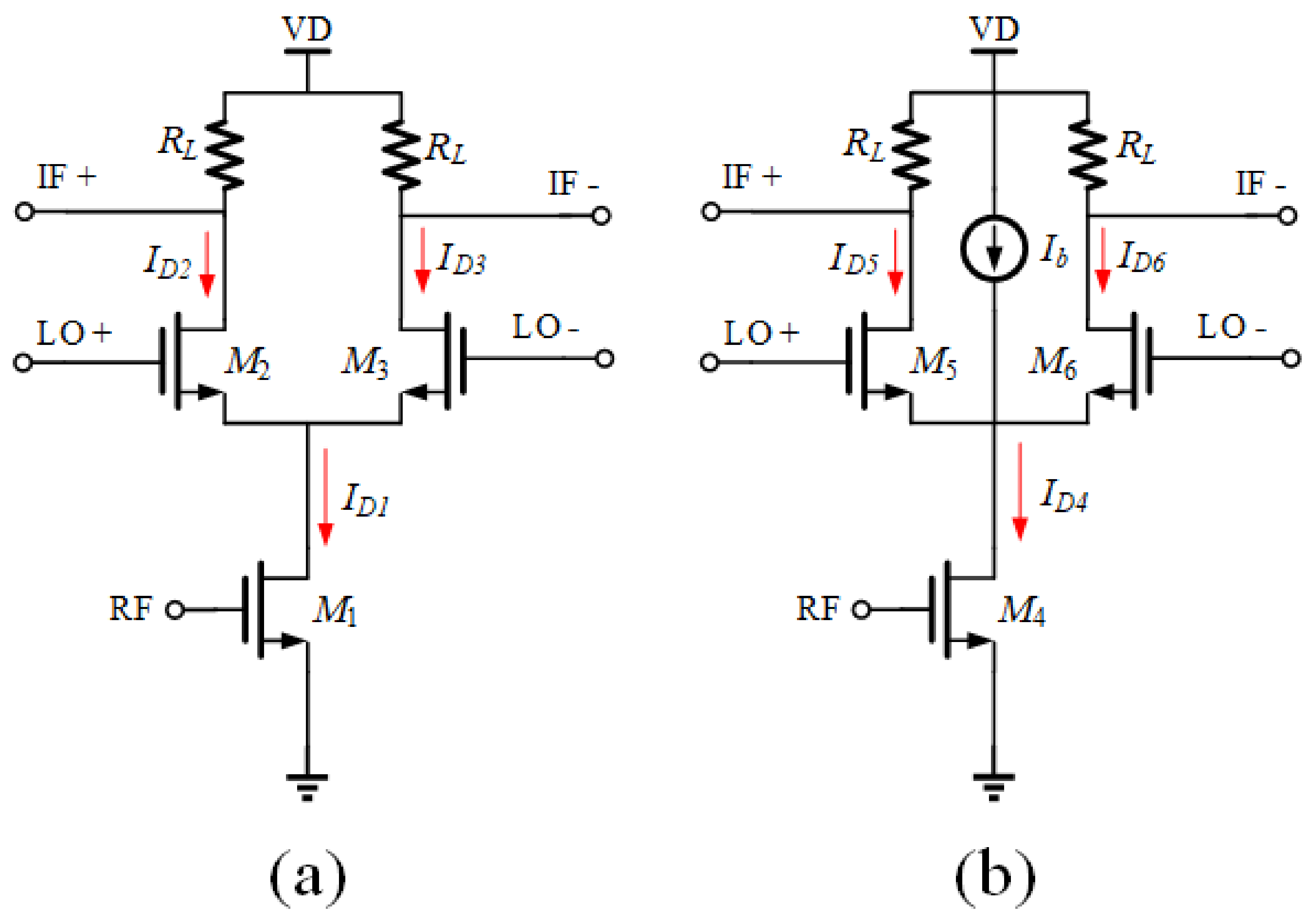

A conventional single-balanced mixer is shown in Figure 5a,b shows a single-balanced mixer with current-bleeding technology. For a conventional single-balanced mixer, as shown in Figure 5a, transistor M₁ acts as the driver-stage to convert the input RF voltage into current signals and transistors M_2–3 are biased at near pinch-off region to act as switches and steer the current depending on the LO signal.

From Figure 5a, the driver-stage current I_D1 is equal to switch-stage current I_D2 plus I_D3. Increasing in the driver stage current (I_D1) forces the reduction of load resistance R_L to maintain the fixed DC working state, degrading conversion gain of the mixer. Furthermore, large current at switch-stage leads to high noise [19]. Therefore, at that case, current-bleeding technology is introduced. In Figure 5b, the driver-stage current I_D4 is equal to switch-stage current including I_D2 and I_D3 plus bleeding current I_b. In other words, current bleeding allows the control of the DC current for the switching transistors separately from that of the driver-stage. By these means, I_D4 can be higher than I_D5 + I_D6 and switch-stage current can be lowered to reduce the flicker noise of proposed mixer.

Assuming the driver-stage current I_D1 in Figure 5a is equal to the driver-stage current I_D4 in Figure 5b. Based on Equation (2), the mixer flicker noise in Figure 5a,b can be expressed as:

$$V_{n,out}{\left(f\right)}_a=\frac{4I_{D1}{f}_{LO}}{S_{LO}}{R}_l\cdot V_{n,LO}\left(f\right)$$

(4)

$$V_{n,out}{\left(f\right)}_b=\frac{4\left(I_{D1}-I_b\right)f_{LO}}{S_{LO}}{R}_l\cdot V_{n,LO}\left(f\right)$$

(5)

Because of the bleeding current I_b, flicker noise in Equation (5) is smaller than that in Equation (4). In this way, the flicker noise with current-bleeding structure in Figure 5b promises smaller than that with conventional structure in Figure 5a.

Referred to Figure 4, the proposed mixer adopted a resistor R_C as a bleeding current source. Resistances of load resistor R_L and bleeding source resistor R_C are selected by elaborate simulation to keep good performance. In the design, R_C was chosen to be 60 Ω and load resistor was 800 Ω. The analysis on the mixer of static operating point shows that the bleeding current I_b takes 97% of whole DC current I_D4. The drain voltages of M₄, M₅/M₆ are 0.5 V and 1.1 V. The voltage drop of load resistor R_L is 0.1 V, making sure the headroom of this design under a 1.2 V supply voltage. However, the small resistance of R_C caused conversion gain loss to a certain extent. The simulation result showed that signal power loss caused by R_C was about 70%, leading to about 5 dB conversion gain loss.

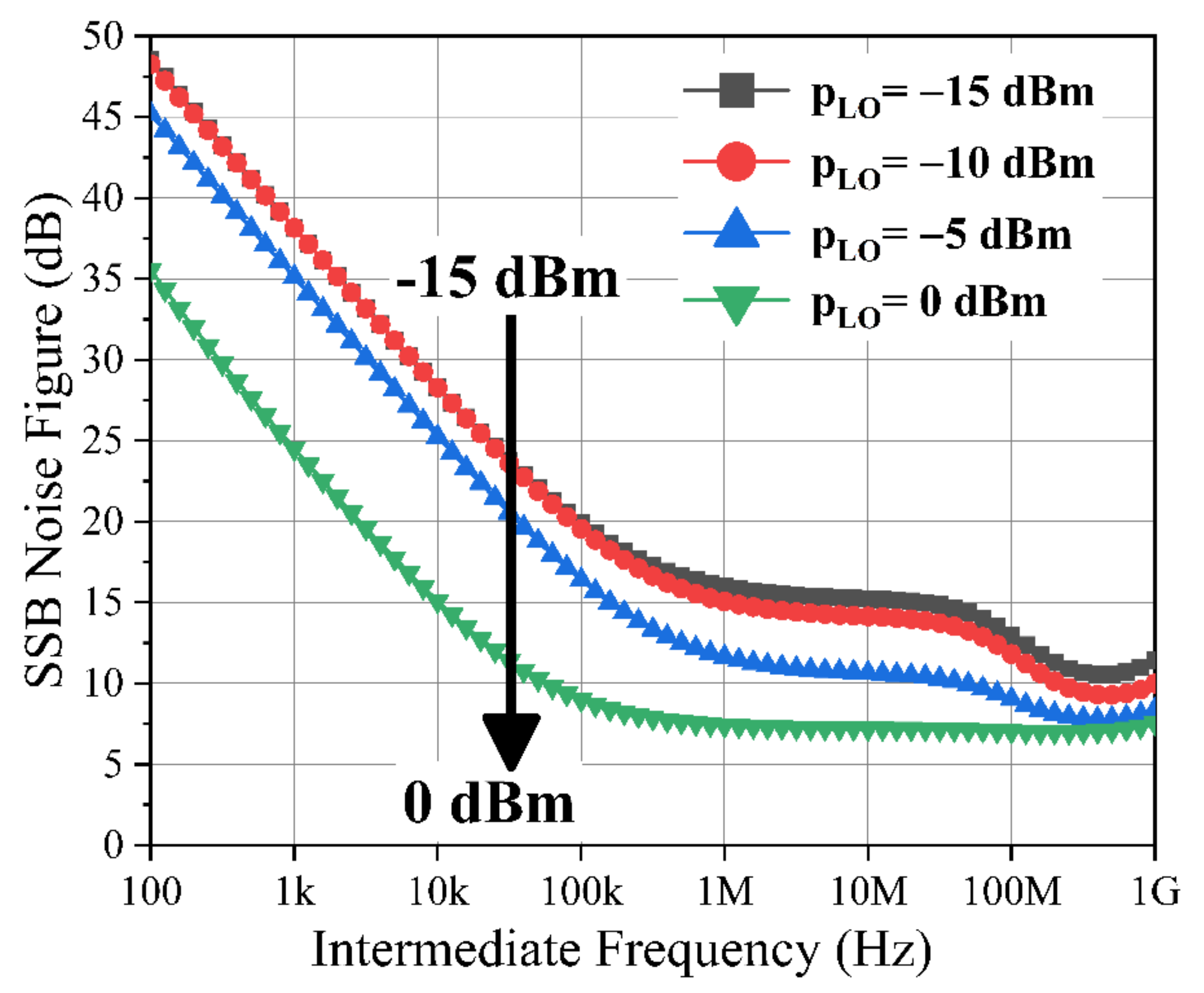

Based on the bleeding-current mixer, simulation was carried out on different LO power to find a suitable one to achieve low flicker noise. Result is depicted in Figure 6, showing that flicker noise is decreasing with LO power increasing. The result is in accord with Equation (3). From Figure 6, the LO power is increasing from −15 dBm to 0 dBm. Larger LO power was not adopted, because the 24 GHz frequency source could only offer moderate LO power in a system, for example, −10 dBm. Larger LO power needs additional amplifiers and power consumption, making system not cost-efficient. At last, a 0 dBm LO power was chosen.

4. Results

The 90 nm SOI CMOS technology has been utilized in this work for the receiver realization. The technology features five metal layers with two thick RF metals on the top. The upper two RF metal layers with 3.3 um thickness have been extensively utilized for the realization of on-chip transmission lines and spiral inductors. The design benefited from the high resistivity of the SOI substrate; thus, the traditional patterned ground shields on the bottom of on-chip spiral inductors could be omitted. High-Q inductors and capacitors can be realized. In addition, all the critical on-chip interconnections are based on the shielded co-planar transmission line structures. Taking into consideration the influence of electromagnetic coupling between lines and passive components, elaborate and complete EM simulation was carried out to ensure the accuracy of this design.

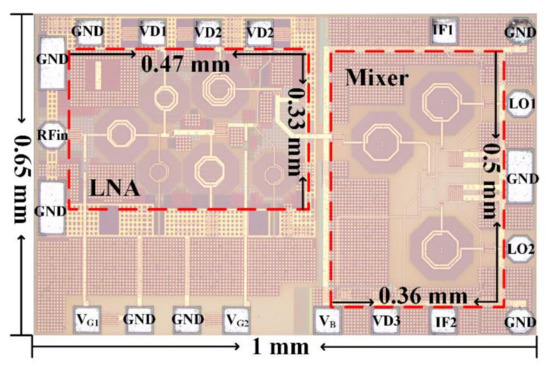

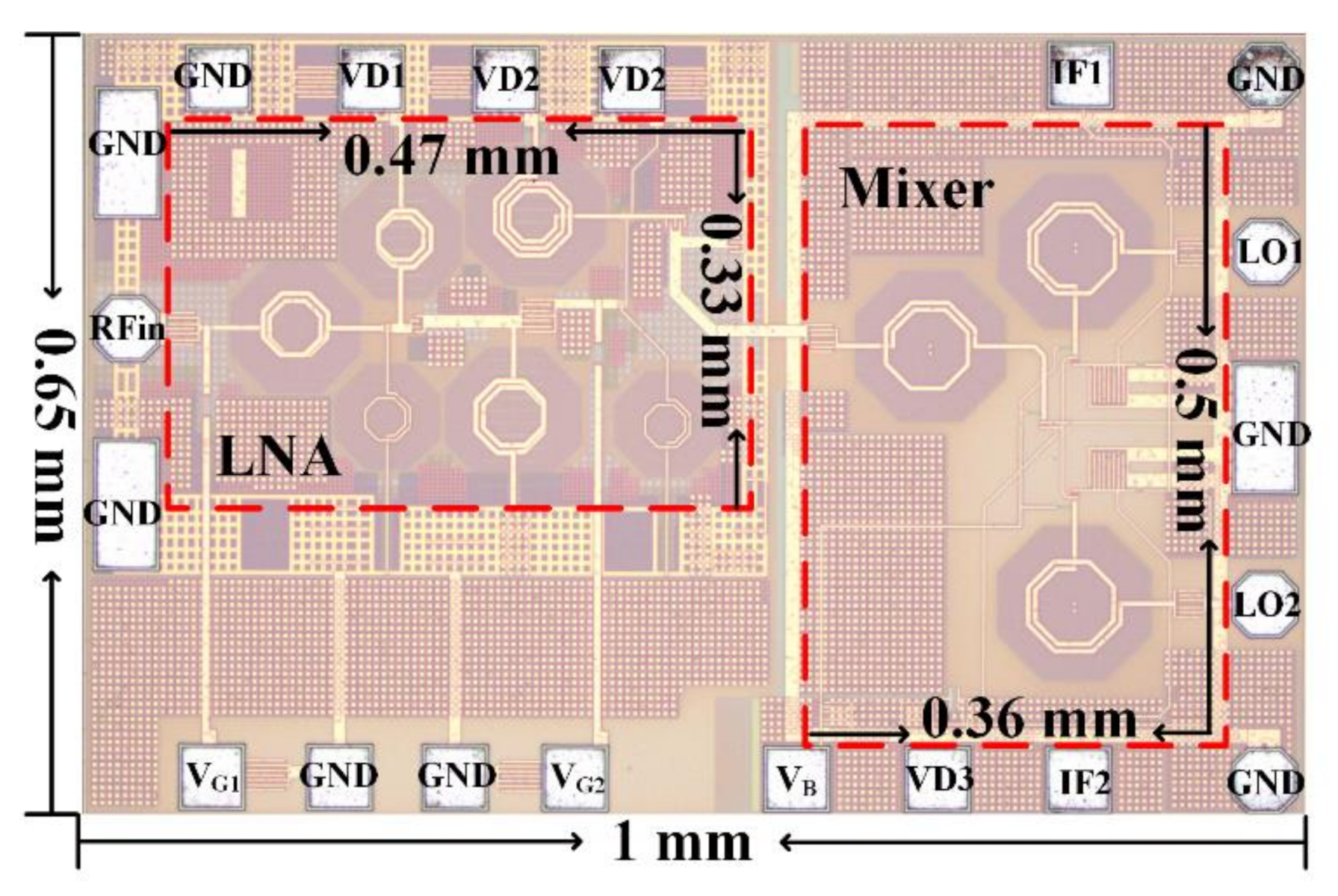

Figure 7 shows the micrograph of the realized receiver circuit. Decoupling capacitors with 2 pF capacitance were placed between every DC pad and closest ground pad to filter clutter from DC sources. The compact receiver chip achieves a total chip area (including the pads) of 0.65 mm² (1 mm × 0.65 mm). Test chips for two main building blocks namely the LNA and mixer have also been integrated on separate dies and tested alone. Standalone LNA and mixer occupy 0.16 mm² and 0.18 mm², respectively. Chips have been bonded on PCB for characterization. All RF signals have been provided through probe station. Small-signal measurements were carried out with Agilent N5247A network analyzer. The Agilent N8975A NFA offered platform for NF measurements.

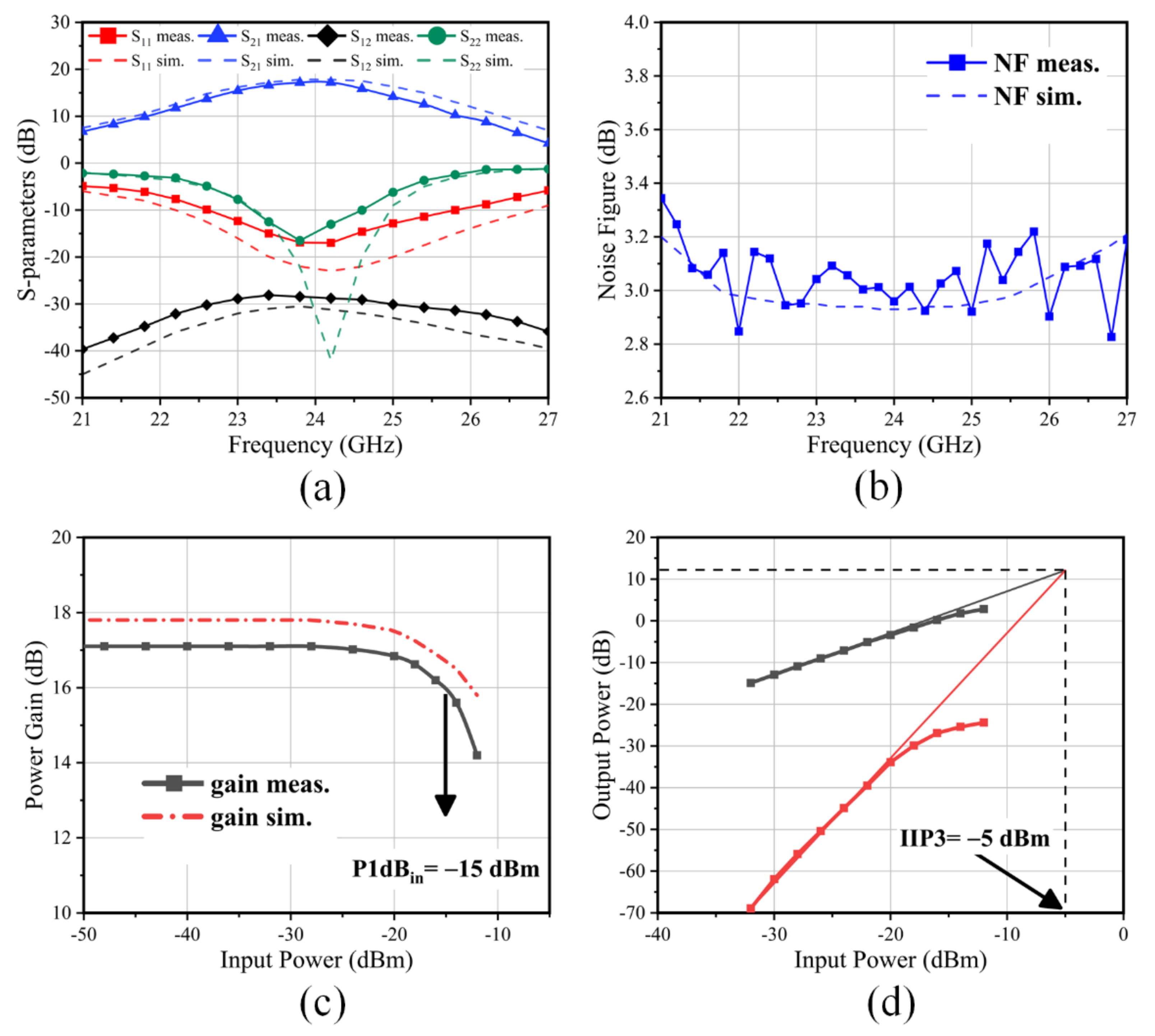

Performance of the LNA has been presented in Figure 8. The measured and simulated small-signal S-parameters, NF, P_1dB and IIP₃ of LNA are depicted in Figure 8a–d, separately. The measured S₂₁ reached 17.2 dB of its peak at 23.8 GHz and the −3 dB bandwidth is around 2.2 GHz from 22.8 GHz to 25 GHz. Compared with simulation results, the deteriorated S₁₁ and S₂₂ worsen gain and bandwidth. The S₁₁ is lower than −10 dB from 22.5 GHz to 26.6 GHz and S₂₂ is under −10 dB from 23.2 GHz to 24.6 GHz. The parameter standing for isolation from output to input S₁₂ is below −30 dB within the whole working band. The results in Figure 8b show that the LNA achieves an average 3 dB NF within the 24 GHz band. The linearity performance is illustrated in Figure 8c,d. Figure 8c plots the power gain versus input power and the IP_1dB could be observed −15 dBm. The IIP₃ is found to be −5 dBm in Figure 8d.

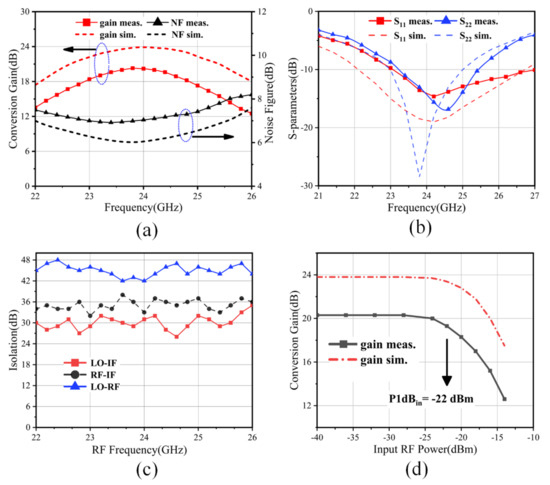

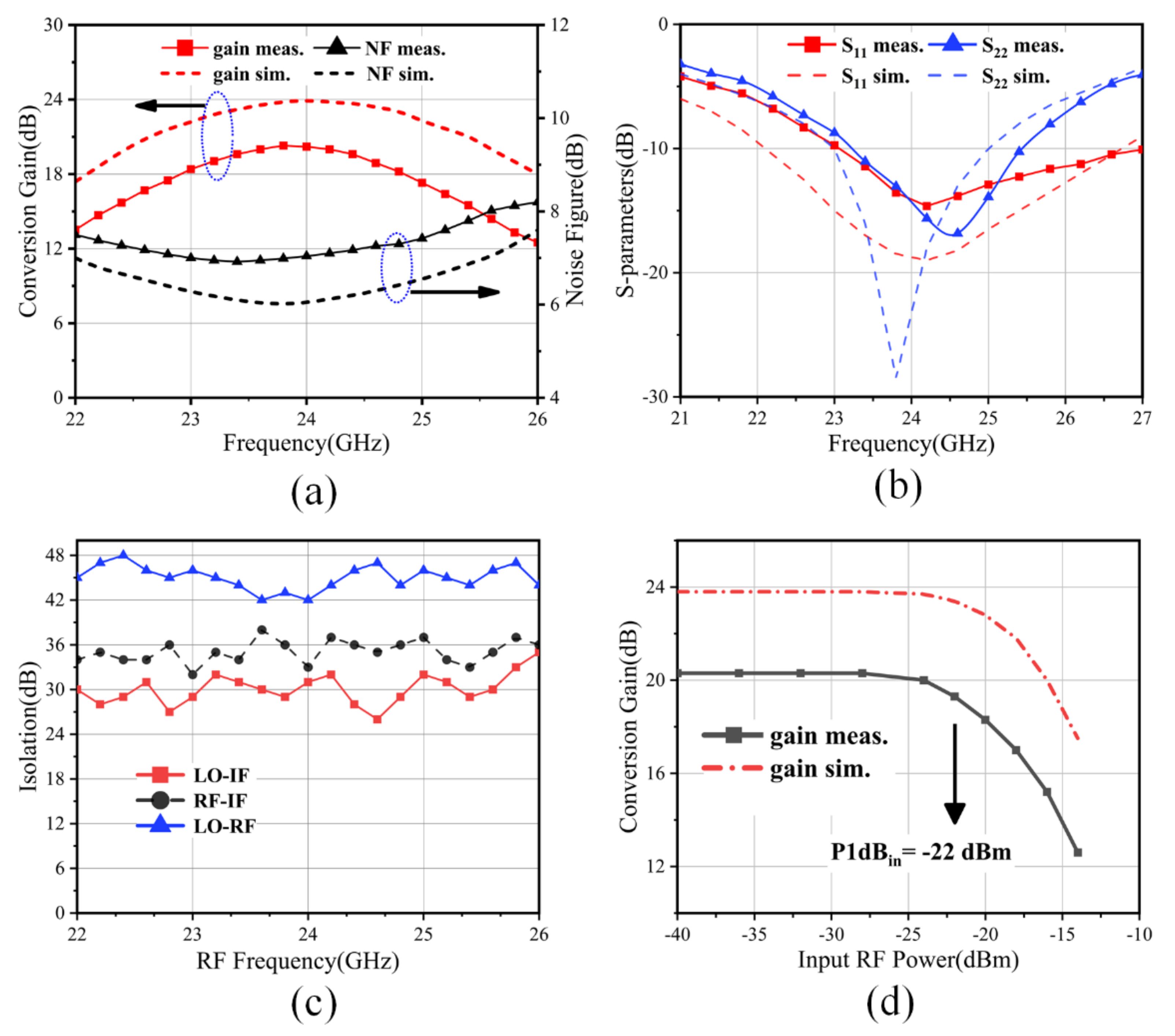

A second set of experiments was carried out on the receiver including LNA and mixer. Another signal source has been introduced to feed the 0 dBm LO signal to mixer. The measurements were carried out by sweeping the RF and LO frequency with fixed IF of 125 MHz. Figure 9 presents the measured and simulated results of the receiver chip. Figure 9a shows the simulated and measured conversion gain and noise figure performance of the receiver and 20.3 dB gain and 7 dB SSB NF are achieved. Compared with the simulation results, with influence of parasitic part and test environment, the measured conversion gain is 3.5 dB lower and the NF is 1 dB higher. The −3 dB bandwidth of receiver is constrained mainly by LNA, which is 2.2 GHz from 22.8 GHz to 25 GHz as well. Shown in Figure 9b is the RF and LO matching performance of the receiver. Even though measured results are worse than simulated results, the S₁₁ is below −10 dB from 23 GHz to 27 GHz and S₂₂ is below −10 dB from 23.2 GHz to 25.4 GHz. It means that RF port and LO port input match well, respectively. The port-to-port isolation has been characterized for proposed receiver from 21 GHz to 27 GHz and shown in Figure 9c. All the isolation levels are more than 30 dB in 24 GHz band. The LO-IF isolation is much lower, because the LO signal is fed directly to the mixer with relatively higher amplitude. With 24 GHz RF and 125 MHz IF, the input power at 1 dB gain compression point value of −22 dBm has been measured in Figure 9d.

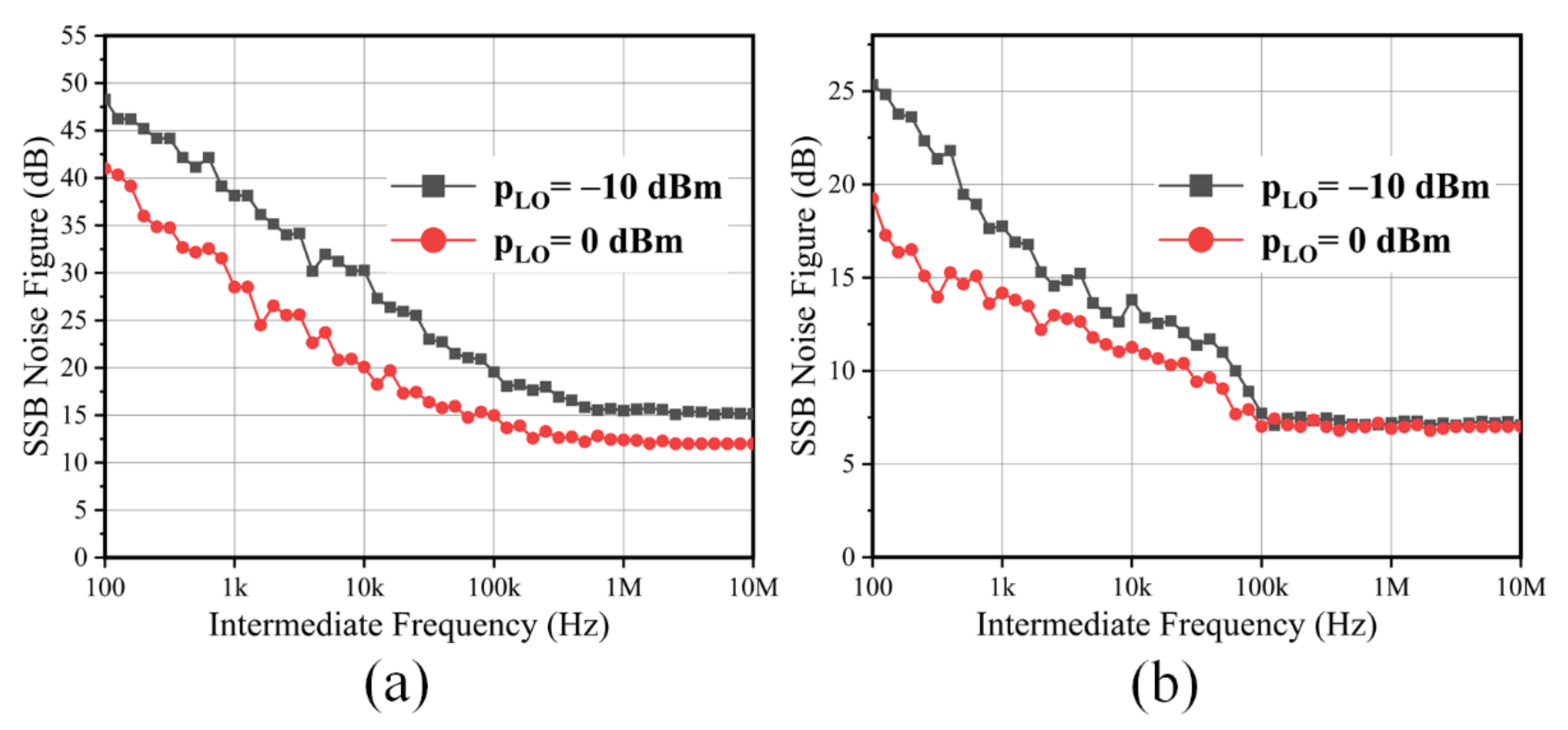

Measured flicker noise results of standalone mixer and receiver are shown in Figure 10. To verify influence of LO power on flicker noise, two LO power are set to −10 dBm and 0 dBm. The IF is selected from 100 Hz to 10 MHz and log scale is used to make results clear and intuitive. The results indicate that larger LO power can reduce the flicker noise of receiver, same as the simulated results. From Figure 10a, the flicker noise of mixer is higher than above simulation result. The reason may be inexact noise model of transistor and loss introduced by measure equipment. The literature often uses the term “knee-point” for the frequency below which the flicker noise dominates over thermal noise. Commonly, we consider the frequency at which the noise figure is 3 dB higher than the lowest noise figure to be knee-point. With a 0 dBm LO power, the knee-point is observed to be 60 kHz. Compared with the 48 kHz ideal simulated knee-point reported in [18], this circuit achieved a relatively low noise corner. In Figure 10b, because of the former-stage high-gain LNA, the contribution about NF of mixer part has been reduced. Then, a relatively low noise is achieved. Furthermore, as shown in Figure 10, noise under two different LO power stays almost the same when IF is larger than 100 kHz. With parameters in Equation (1), 100 kHz IF results from 30 m target distance. In a real scenario, when the target distance is larger than 30 m, a lower LO power can be used to save power consumption whilst introducing no more noise.

Table 2. Performance comparison table.

	This Work	[20]	[21]	[22]	[23] 1
Technology	90 nm SOI	0.13 um CMOS	65 nm CMOS	65 nm CMOS	45 nm SOI
Inclusion	LNA + Mixer	LNA + Mixer + VGA	LNA + Mixer	LNA + Mixer	LNA + Mixer
RF/IF (GHz)	24/0.125	24/0.1	24/0.002	21.5/0.1	24/NA
CG (dB)	20.3	36	28.3	14.5	26.2
NF (dB)	7	9.9	5	5.7	5.6
IP1dB (dBm)	−22	−35	−28	−40	NA
Knee-point (kHz)	60	NA	NA	NA	NA
PDC1 (mW)	21.1 1	40.8	26	NA	NA
PDC2 (mW)	16	NA	NA	0.683	NA
Area 2 (mm2)	0.65	0.8	0.66	0.4	NA

¹ simulation results; ² including pads.

compares the realized receiver performance with the published state-of-art K-band receivers. From this comparison, it can be seen that the realized 24 GHz CMOS receiver compares the state-of-the-art realizations with a balanced performance even in a non-superior process. The gain is not so high as [20] because high-gain variable-gain amplifier (VGA) can be integrated in later design easily. This design achieves a knee-point of 60 kHz. It’s the first time to report a low flicker noise measured result. In order to distinguish the power consumption of bias circuit is included or not, the P_DC part has been divided into two lines: P_DC1 and P_DC2. The former stands for the power consumption including the bias circuit and the latter stands for the power consumption excluding the bias circuit. As talked above, the linearity restriction can be loosened in FMCW application, so the −22 dBm IP1dB is adequate.

5. Conclusions

In this paper, a low-noise 24 GHz direct conversion receiver for FMCW ranging radar is designed and fabricated in 90 nm SOI CMOS technology. A low-noise and low-power LNA is proposed. To enhance gain of the receiver and reduce NF, the SNIM method was used in the input. Neutralized technology and boost inductors were introduced to improve performance. A 24 GHz current-bleeding mixer was introduced and the factors influencing flicker noise have been discussed. The measured results show the proposed receiver exhibits 20.3 dB peak gain and 7 dB SSB NF. A −22 dBm IP1dB and well-matched RF port S11 and LO port S22 have been measured. More than 30 dB isolations between RF, LO and IF ports are obtained within working frequency band. Flicker noise of both mixer and receiver are measured and the knee point of receiver is observed 60 kHz. Combined with the FMCW principle, the receiver indicates when the target distance is larger than 30 m, a lower LO power can be used to save power consumption. The receiver consumes only 16 mW with chip area of 0.65 mm² including pads. It suggests that the proposed SOI CMOS DCR receiver can be a promising candidate for FMCW ranging radar.
