NonInteractive and Secure Data Aggregation Scheme for Internet of Things
Abstract
:1. Introduction
 We design a noninteractive and secure data aggregation scheme that has low communication overheads, which is robust to the exiting users and supports mobile users offline. This scheme uses additive secret sharing to share the original data in two parts, and then masks two shared values with a random number. Finally, the ciphertext is sent to two noncolluding cloud servers separately. Compared with the previous aggregation ones, our scheme reduces the computation and communication costs of users.
 In most of the previous schemes, the server can obtain the final aggregation results, and it is possible for the cloud to misuse the aggregation results for malicious analysis and speculation. However, in our scheme, the two cloud servers perform data aggregation with the ciphertext of the aggregation result, and therefore the true aggregation result is wellprotected from the servers.
 This paper designs a set of algorithms so that the final aggregation result can be efficiently verified. Anyone can check the correctness of the aggregation results with a probability of 1, and it is impossible for an incorrect aggregation result to be successfully verified.
2. Related Work
3. Preliminaries
3.1. Secure MultiParty Computation
3.2. Additive Secret Sharing
3.3. PseudoRandom Generator
3.4. Bilinear Map
 Bilinearity: For any $a,b\in {Z}_{p}^{\ast}$ and $g\in {G}_{1},h\in {G}_{2},$ we have $e({g}^{a},{h}^{b})=e{(g,h)}^{ab}$.
 Computability: There is an efficient algorithm to compute $e(g,h)$ for $g\in {G}_{1},h\in {G}_{2}$.
 Nondegeneracy: There exists $g\in {G}_{1},h\in {G}_{2}$, such that $e(g,h)\ne 1$.
3.5. Verifiable Computation
 KeyGen $(f,\lambda )\to (pk,sk)$: The inputs to the key generation algorithm are the secure parameter $\lambda $ and function f, and then the outputs are $pk$ and $sk$.
 ProbGen $(sk,x)\to ({\sigma}_{x},{\tau}_{x})$: The inputs to the problem generation algorithm are $sk$ and x, and the outputs are ${\sigma}_{x},{\tau}_{x}$, where ${\sigma}_{x}$ is a public value and ${\tau}_{x}$ is a private value kept by the user.
 Compute $(pk,{\sigma}_{x})\to {\sigma}_{y}$: The algorithm takes $pk$ and ${\sigma}_{x}$ as inputs, and the cloud server computes the output value ${\sigma}_{y}$.
 Verify $(sk,{\tau}_{x},{\sigma}_{y})\to y\cup \perp $: The user uses $sk$ and ${\tau}_{x}$ to verify whether ${\sigma}_{y}$ is correct; if the verification passes, it will be accepted, otherwise, it will be rejected.
4. System Framework and NonInteractive and Secure Data Aggregation Scheme
4.1. System Framework

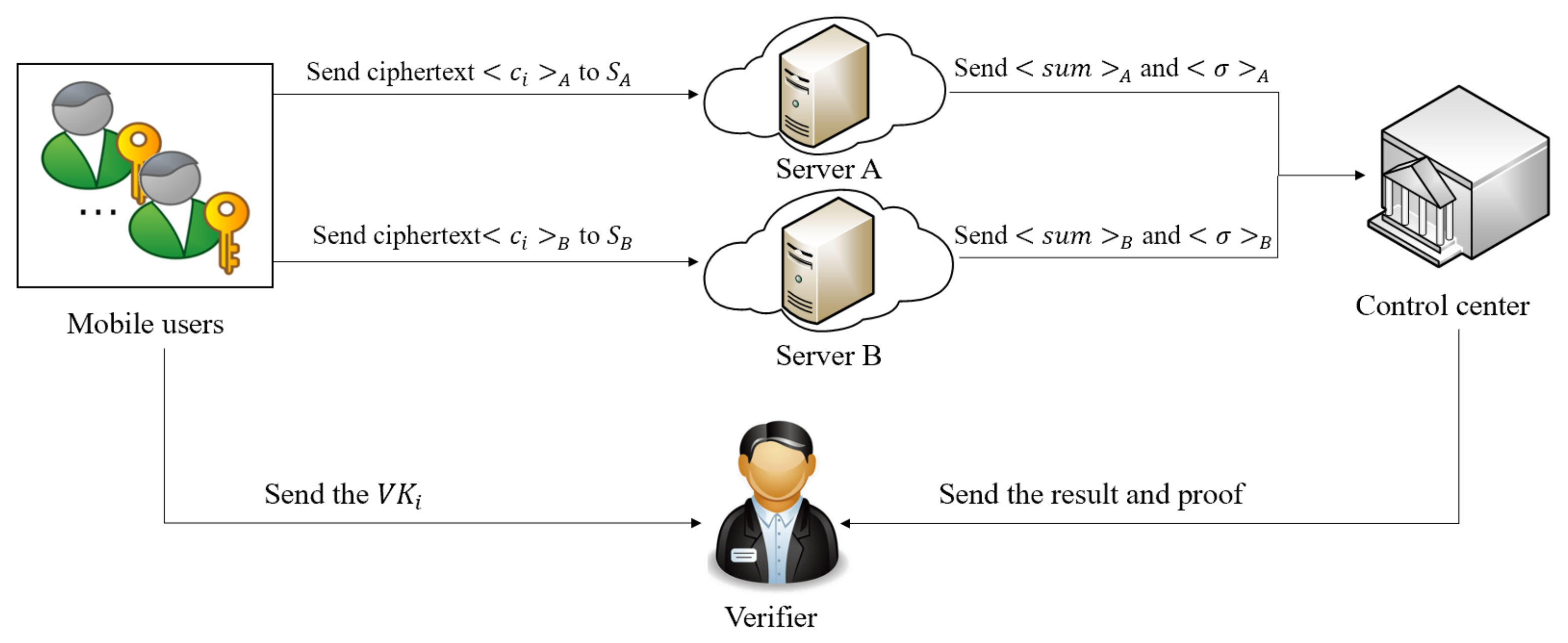

4.1.1. System Model
4.1.2. Threat Model
4.1.3. Design Goals
 Input privacy: The data collected by mobile users are sensitive data. These data should be masked before sending to the server; therefore, in this paper we should ensure that the data input is private.
 Output privacy: Since there are two noncolluding servers, they perform aggregation operations without obtaining the final aggregation result; therefore, in this paper we should ensure the output privacy.
 Verifiability: The verifier can utilize the verification algorithm to verify whether it is correct when all participants execute the protocol correctly.
 Noninteractivity: Our scheme guarantees noninteraction between users, which reduces the communication cost. Due to the noninteractivity between users, it will not affect the normal execution of the protocol even if someone drops out during the aggregation process.
 Efficiency: It is experimentally demonstrated that our aggregation scheme can obtain the aggregation result and verify its correctness with a low computation cost.
4.2. NonInteractive and Secure Data Aggregation Scheme
4.2.1. Key Generation
4.2.2. Masking of Private Data
Algorithm 1: NonInteractive and Secure Data Aggregation Scheme

4.2.3. Data Aggregation
4.2.4. Verification of the Results
5. Analysis
5.1. Input and Output Privacy
5.2. Verification Algorithm Security
5.3. Robustness Analysis
5.4. Limitations
6. Performance Evaluation
6.1. Function Analysis

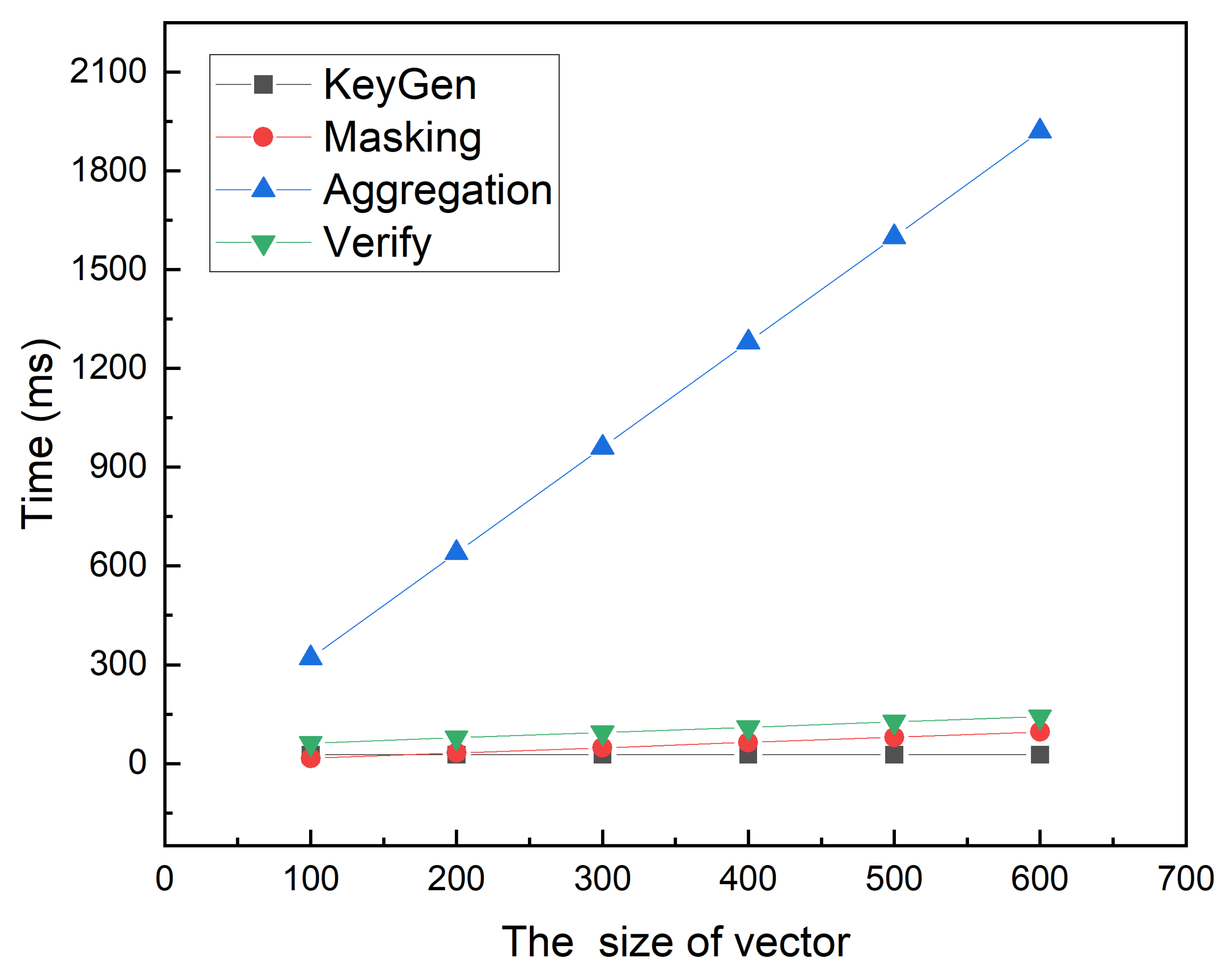

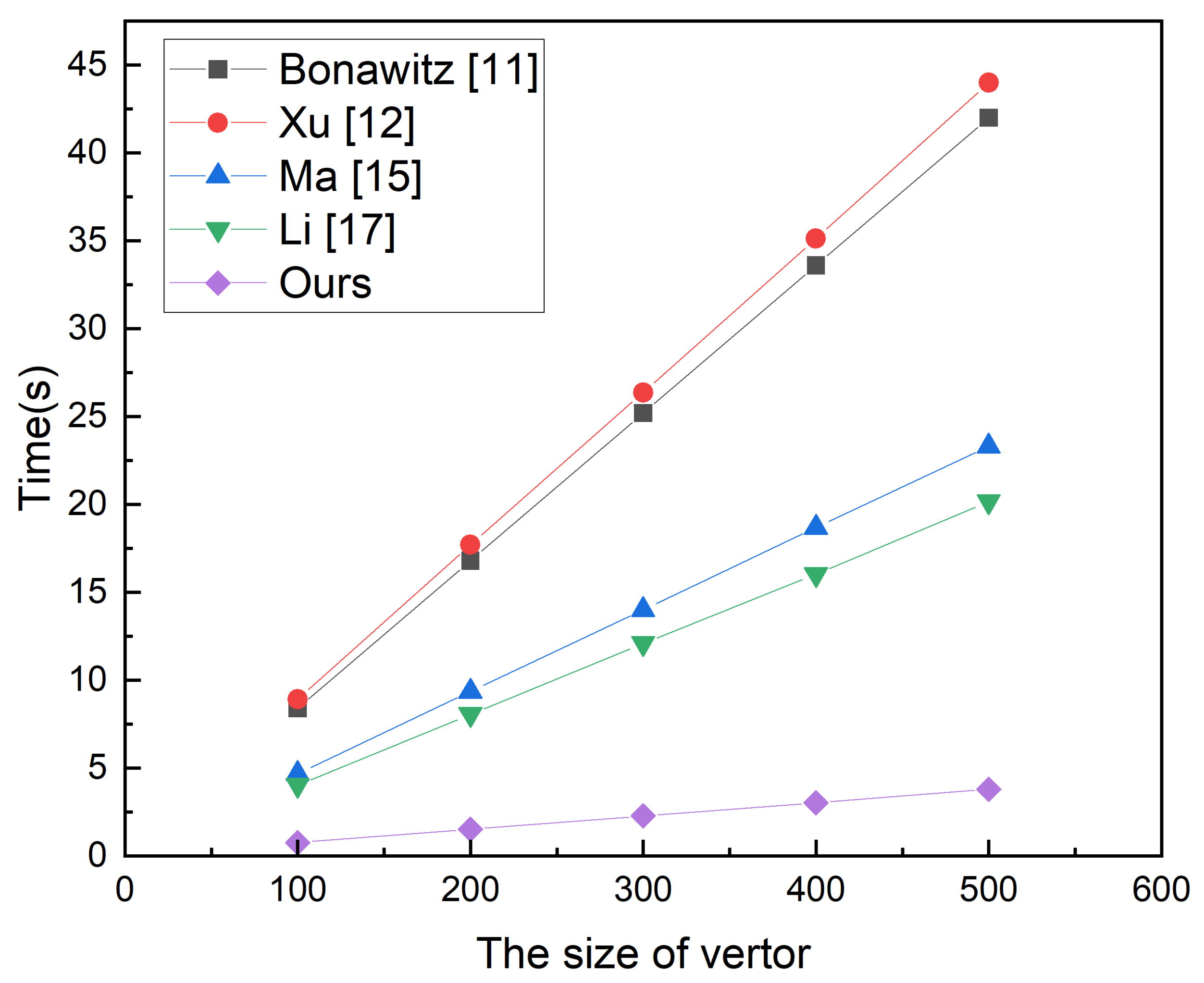

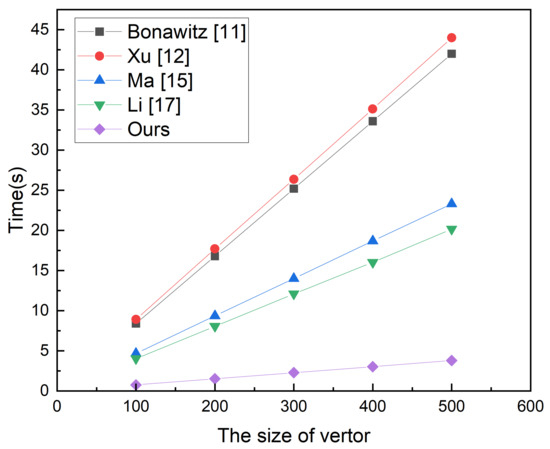

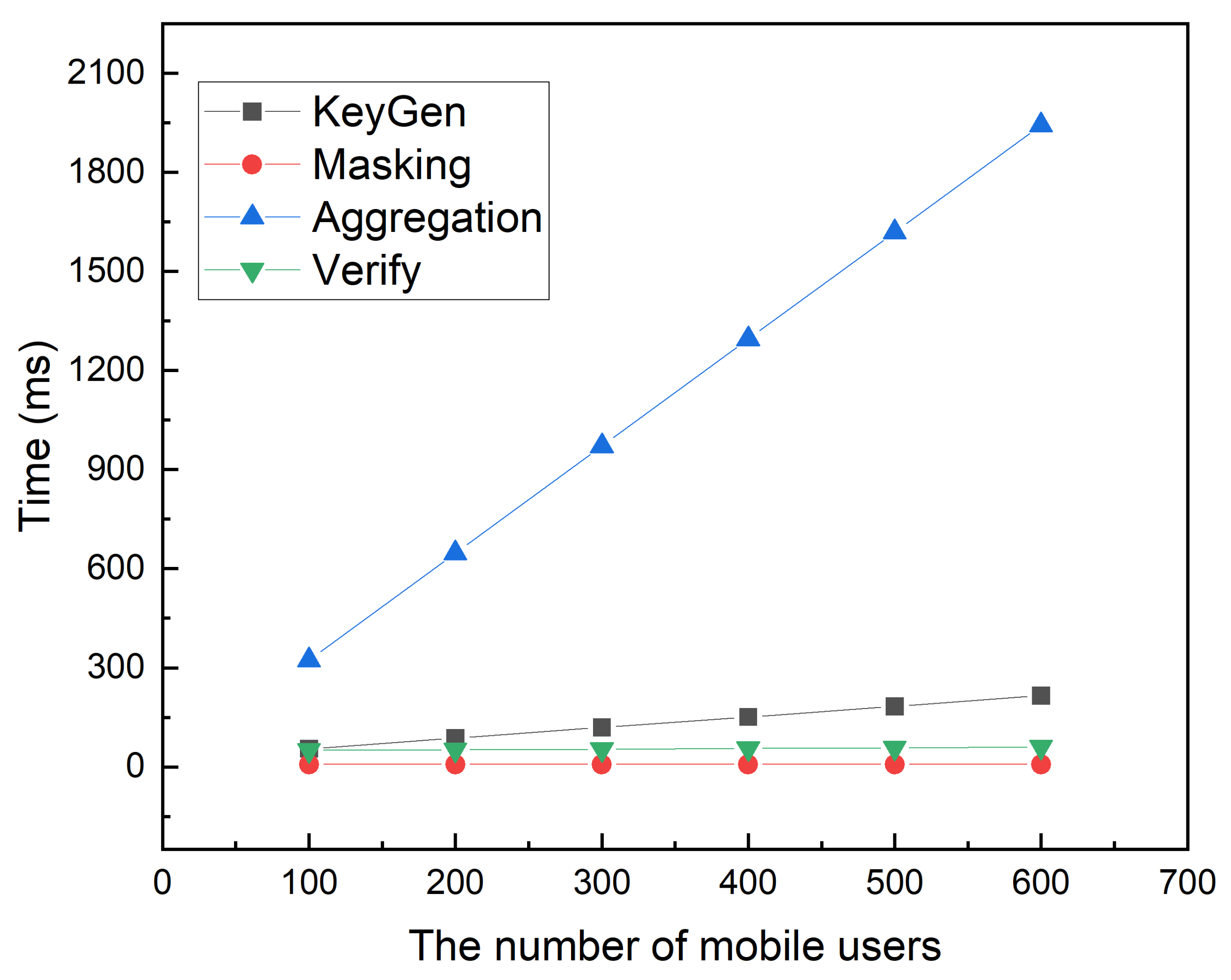

6.2. Experimental Results
7. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
 The Mobile Economy 2020. Available online: https://www.gsma.com/mobileeconomy/wpcontent/uploads/2020/03/GSMA_MobileEconomy2020_Global.pdf (accessed on 5 March 2020).
 Mandal, K.; Gong, G.; Liu, C. Nikebased fast privacypreserving highdimensional data aggregation for mobile devices. In IEEE T Depend Secure; Technical Report; University of Waterloo: Waterloo, ON, Canada, 2018; pp. 142–149. [Google Scholar]
 Jian, S.; Chen, W.; Li, T.; Xiao, F.C.; Huang, X.Y.; Zhan, Z.H. Secure data uploading scheme for a smart home system. INS 2018, 453, 186–197. [Google Scholar] [CrossRef]
 Wu, Z.D.; Liang, B.; You, L.; Jian, Z.H.; Li, J. Highdimension space projectionbased biometric encryption for fingerprint with fuzzy minutia. Soft Comput. 2016, 20, 4907–4918. [Google Scholar] [CrossRef]
 He, D.B.; Neeraj, K.; Shen, H.; JongHyouk, L. Onetomany authentication for access control in mobile payTV systems. Sci. China Inform. Sci. 2016, 59, 1–14. [Google Scholar] [CrossRef] [Green Version]
 Xu, C.; Xie, X.; Zhu, L.H. PPLS: A PrivacyPreserving LocationSharing Scheme in Vehicular Social Networks. Sci. China Inform. Sci. 2020, 063, 163–173. [Google Scholar] [CrossRef] [Green Version]
 Zhang, Y.H.; Zheng, D.; Deng, R.H. Security and privacy in smart health: Efficient policyhiding attributebased access control. IEEE Internet Things J. 2018, 5, 2130–2145. [Google Scholar] [CrossRef]
 Sattler, F.; Wiedemann, S.; Müller, K.R.; Samek, W. Robust and communicationefficient federated learning from noniid data. IEEE Trans. Neural Netw. Learn. 2019, 31, 3400–3413. [Google Scholar] [CrossRef] [Green Version]
 Chen, Y.; Sun, X.Y.; Jin, Y.C. Communicationefficient federated deep learning with layerwise asynchronous model update and temporally weighted aggregation. IEEE Trans. Neural Netw. Learn. 2019, 31, 4229–4238. [Google Scholar] [CrossRef]
 Liu, X.Y.; Li, H.W.; Xu, G.W.; Lu, R.X.; He, M. Adaptive privacypreserving federated learning. Peer Peer Netw. Appl. 2020, 13, 2356–2366. [Google Scholar] [CrossRef]
 Hao, M.; Li, H.W.; Luo, X.Z.; Xu, G.W.; Yang, H.M.; Liu, S. Efficient and privacyenhanced federated learning for industrial artificial intelligence. IEEE Trans. Industr. Inform. 2019, 16, 6532–6542. [Google Scholar] [CrossRef]
 Keith, B.; Vladimir, I.; Ben, K.; Antonio, M.; McMahan, H.B.; Patel, S.; Ramage, D.; Segal, A.; Seth, K. Practical secure aggregation for privacypreserving machine learning. In Proceedings of the 2017 ACM SIGSAC Conference on Computer and Communications Security, New York, NY, USA, 30 October 2017; pp. 1175–1191. [Google Scholar]
 Xu, G.W.; Li, H.W.; Liu, S.; Yang, K.; Lin, X.D. Verifynet: Secure and verifiable federated learning. IEEE Trans. Inf. Forensics Secur. 2019, 15, 911–926. [Google Scholar] [CrossRef]
 Yang, W.Q.; Liu, B.; Lu, C.L.; Yu, N.H. Privacy preserving on updated parameters in federated learning. In Proceedings of the ACM Turing Celebration Conference, Hefei, China, 22 May 2020; pp. 27–31. [Google Scholar]
 Kalikinkar, M.; Gong, G. Privfl: Practical privacypreserving federated regressions on highdimensional data over mobile networks. In Proceedings of the 2019 ACM SIGSAC Conference on Cloud Computing Security Workshop, London, UK, 11 November 2019; pp. 57–68. [Google Scholar]
 Xu, M.; Ji, C.M.; Zhang, X.Y.; Wang, J.F.; Li, J.; Li, K.C.; Chen, X. Secure multiparty learning from the aggregation of locally trained models. J. Netw. Comput. Appl. 2020, 167, 1084–8045. [Google Scholar] [CrossRef]
 AlZubaidie, M.; Zhang, Z.; Zhang, J. REISCH: Incorporating Lightweight and Reliable Algorithms into Healthcare Applications of WSNs. Appl. Sci. 2020, 10, 2007. [Google Scholar] [CrossRef] [Green Version]
 Edemacu, K.; Kim, J.W. MultiParty PrivacyPreserving Logistic Regression with Poor Quality Data Filtering for IoT Contributors. Electronics 2021, 10, 2049. [Google Scholar] [CrossRef]
 Ming, Y.; Zhang, X.Y.; Shen, X.Q. Efficient privacypreserving multidimensional data aggregation scheme in smart grid. IEEE Access 2019, 7, 32907–32921. [Google Scholar] [CrossRef]
 Li, T.; Gao, C.Z.; Jiang, L.L.; Witold, P.; Shen, J. Publicly verifiable privacypreserving aggregation and its application in IoT. J. Netw. Comput. Appl. 2019, 126, 39–44. [Google Scholar] [CrossRef]
 Jiang, Y.; Zhao, B.W.; Tang, S.H.; Wu, H.T. A verifiable and privacypreserving multidimensional data aggregation scheme in mobile crowdsensing. Trans. Emerg. Telecommun. Technol. 2021, 32, e4008. [Google Scholar] [CrossRef]
 Yao, A.C.C. How to generate and exchange secrets. In Proceedings of the 27th Annual Symposium on Foundations of Computer Science (SFCS), Toronto, ON, Canada, 27–29 October 1986; pp. 162–167. [Google Scholar]
 Qiu, S.; Wang, B.Y.; Li, M.; Liu, J.Q.; Shi, Y.F. Toward practical privacypreserving frequent itemset mining on encrypted cloud data. IEEE Trans. Cloud Comput. 2017, 8, 312–323. [Google Scholar] [CrossRef]
 Verykios, V.S.; Bertino, E.; Fovino, I.N.; Provenza, L.P.; Saygin, Y.; Theodoridis, Y. Stateoftheart in privacy preserving data mining. ACM Sigmod Rec. 2004, 33, 50–57. [Google Scholar] [CrossRef] [Green Version]
 Rakesh, A.; Ramakrishnan, S. Privacypreserving data mining. In Proceedings of the 2000 ACM SIGMOD International Conference on Management of Data, New York, NY, USA, 16 May 2000; pp. 439–450. [Google Scholar]
 Du, W.; Atallah, M.J. Privacypreserving cooperative scientific computations. In Proceedings of the 14th IEEE Computer Security Foundations Workshop (CSFW), Cape Breton, NS, Canada, 11–13 June 2001; Volume 1, p. 273. [Google Scholar]
 Liu, L.; Su, J.; Liu, X.; Chen, R.; Huang, K.; Deng, R.H.; Wang, X. Toward highly secure yet efficient KNN classification scheme on outsourced cloud data. IEEE Internet Things J. 2019, 6, 9841–9852. [Google Scholar] [CrossRef]
 Ma, X.; Chen, X.; Zhang, X. Noninteractive privacypreserving neural network prediction. Inf. Sci. 2019, 481, 507–519. [Google Scholar] [CrossRef]
 Manuel, B.; Silvio, M. How to generate cryptographically strong sequences of pseudorandom bits. SIAM J. Comput. 1984, 13, 850–864. [Google Scholar] [CrossRef]
 Andrew, C.Y. Theory and application of trapdoor functions. In Proceedings of the 23rd Annual Symposium on Foundations of Computer Science (SFCS), Chicago, IL, USA, 3–5 November 1982; pp. 80–91. [Google Scholar] [CrossRef]
 Dan, B.; Craig, G.; Ben, L.; Hovav, S. Aggregate and verifiably encrypted signatures from bilinear maps. In Proceedings of the International Conference on the Theory and Applications of Cryptographic Techniques, Berlin/Heidelberg, Germany, 13 May 2003; pp. 416–432. [Google Scholar]
 Chen, X.F.; Li, J.; Huang, X.Y.; Ma, J.F.; Lou, W.J. New publicly verifiable databases with efficient updates. IEEE Trans. Dependable Secur. Comput. 2014, 12, 546–556. [Google Scholar] [CrossRef]
 Li, J.; Huang, X.Y.; Li, J.W.; Chen, X.F.; Xiang, Y. Securely outsourcing attributebased encryption with checkability. IEEE Trans. Parallel. Distrib. Syst. 2013, 25, 2201–2210. [Google Scholar] [CrossRef]
 Chen, X.F.; Li, J.; Weng, J.; Ma, J.F.; Lou, W.J. Verifiable computation over large database with incremental updates. IEEE Trans. Comput. 2015, 65, 3184–3195. [Google Scholar] [CrossRef] [Green Version]
 Li, J.; Chen, X.F.; Li, M.Q.; Li, J.W.; Lee, P.P.; Lou, W. Secure deduplication with efficient and reliable convergent key management. IEEE Trans. Parallel Distrib. Syst. 2013, 25, 1615–1625. [Google Scholar] [CrossRef]
 Jia, K.; Li, H.W.; Liu, D.X.; Yu, S. Enabling efficient and secure outsourcing of large matrix multiplications. In Proceedings of the 2015 IEEE Global Communications Conference (GLOBECOM), San Diego, CA, USA, 6–10 December 2015; pp. 1–6. [Google Scholar] [CrossRef]
 Zhang, X.Y.; Jiang, T.; Li, K.C.; Castiglione, A.; Chen, X. New publicly verifiable computation for batch matrix multiplication. Inf. Sci. 2019, 479, 664–678. [Google Scholar] [CrossRef]
Symbols  Definition

U  Mobile user dataset
$<{x}_{i}{>}_{A},<{x}_{i}{>}_{B}$  The shares of ${x}_{i}$
${a}_{i}$  Random vector of the mask selected by user
$<{c}_{i}{>}_{A}$, $<{c}_{i}{>}_{B}$  The ciphertexts of shared value $<{x}_{i}>$
m  Dimension of the private vector
h  Verification vectors
$PK$  The public key for verification
$V{K}_{i}$  Authentication key for verification
$sum$  Aggregation result
$\sigma $  The proof of computation
Schemes  Data Privacy  NonInteractity  Verification  Roustness  Result Privacy

[12]  Yes  No  No  Yes  No
[13]  Yes  No  Yes  Yes  No
[16]  Yes  No  Yes  Yes  Yes
[20]  Yes  No  Yes  No  No
ours  Yes  Yes  Yes  Yes  Yes
Computational Cost Comparison  Communication Cost Comparison

Schemes  User  Server  Verifier  User–User Communication  User–Server Communication  User–Verifier Communication
[12]  $O({n}^{2}+mn)$  $O\left(m{n}^{2}\right)$    $6(n1)m\leftp\right$  $7m\leftp\right$
[13]  $O({n}^{2}+mn)$  $O\left(m{n}^{2}\right)$  $O\left(m\right)$  $6(n1)m\leftp\right$  $8m\leftp\right$
[16]  $O(m+n)$  $O\left(mn\right)$  $O\left(mn\right)$  $m\leftp\right$  $3m\leftp\right$
[20]  $O(m+n)$  $O\left(mn\right)$  $O\left(mn\right)$  $2(n1)m\leftp\right$  $2m\leftp\right$  $m\leftp\right$
ours  $O\left(m\right)$  $O\left(mn\right)$  $O\left(mn\right)$    $2m\leftp\right$  $m\leftp\right$
