# Theory and Design of a Flexible Two-Stage Wideband Wilkinson Power Divider

^{1}

^{2}

^{3}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

- Simple and generalized mathematical analysis.
- Fully Resistive isolation network.
- Closed-form equations for determining the value of isolation resistor without involving optimization.
- Flexible transmission bandwidth.
- Good isolation between two ports along with excellent port matching.
- Ready scalability for DC blocking application.

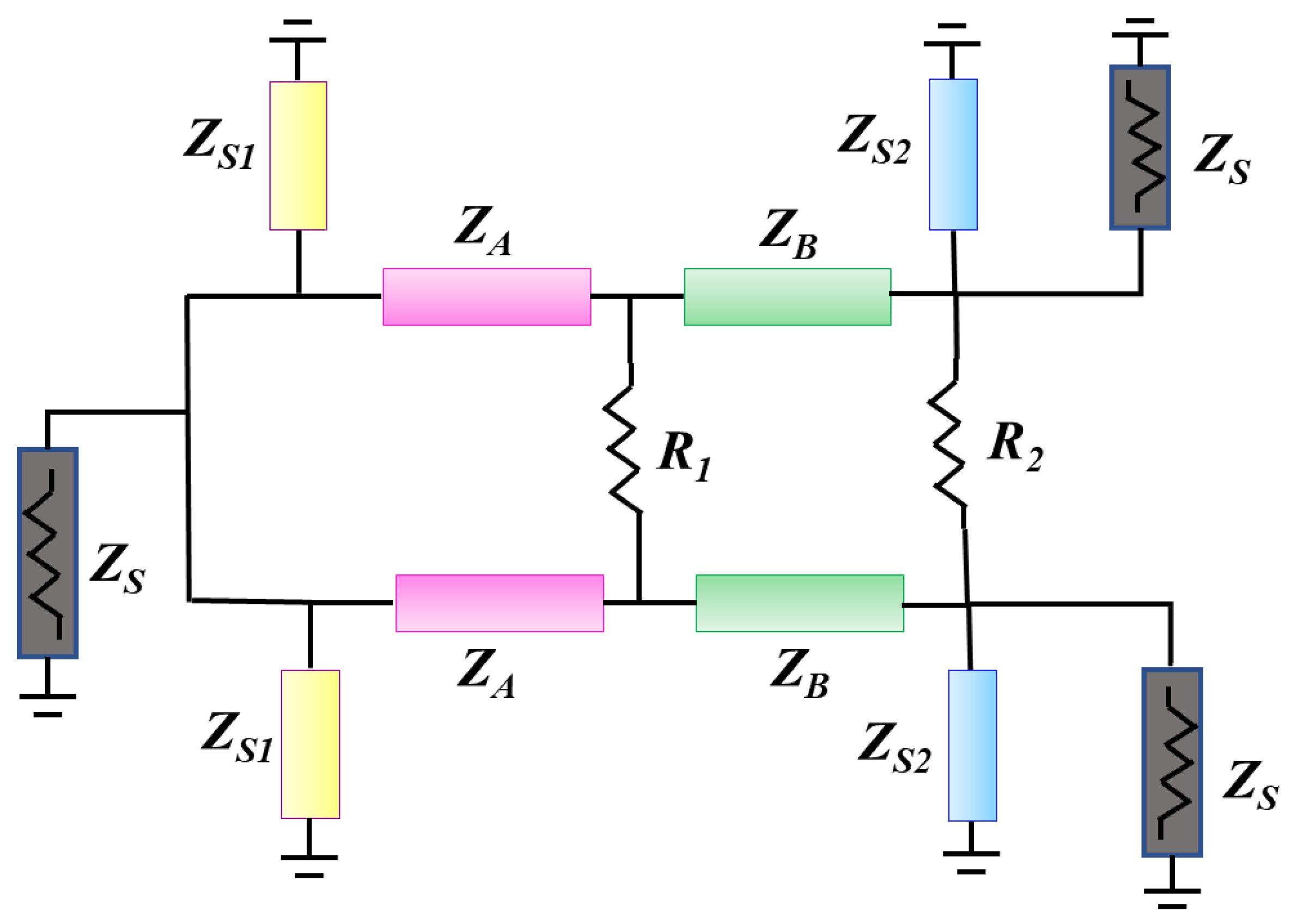

## 2. Analysis of Proposed Power Divider

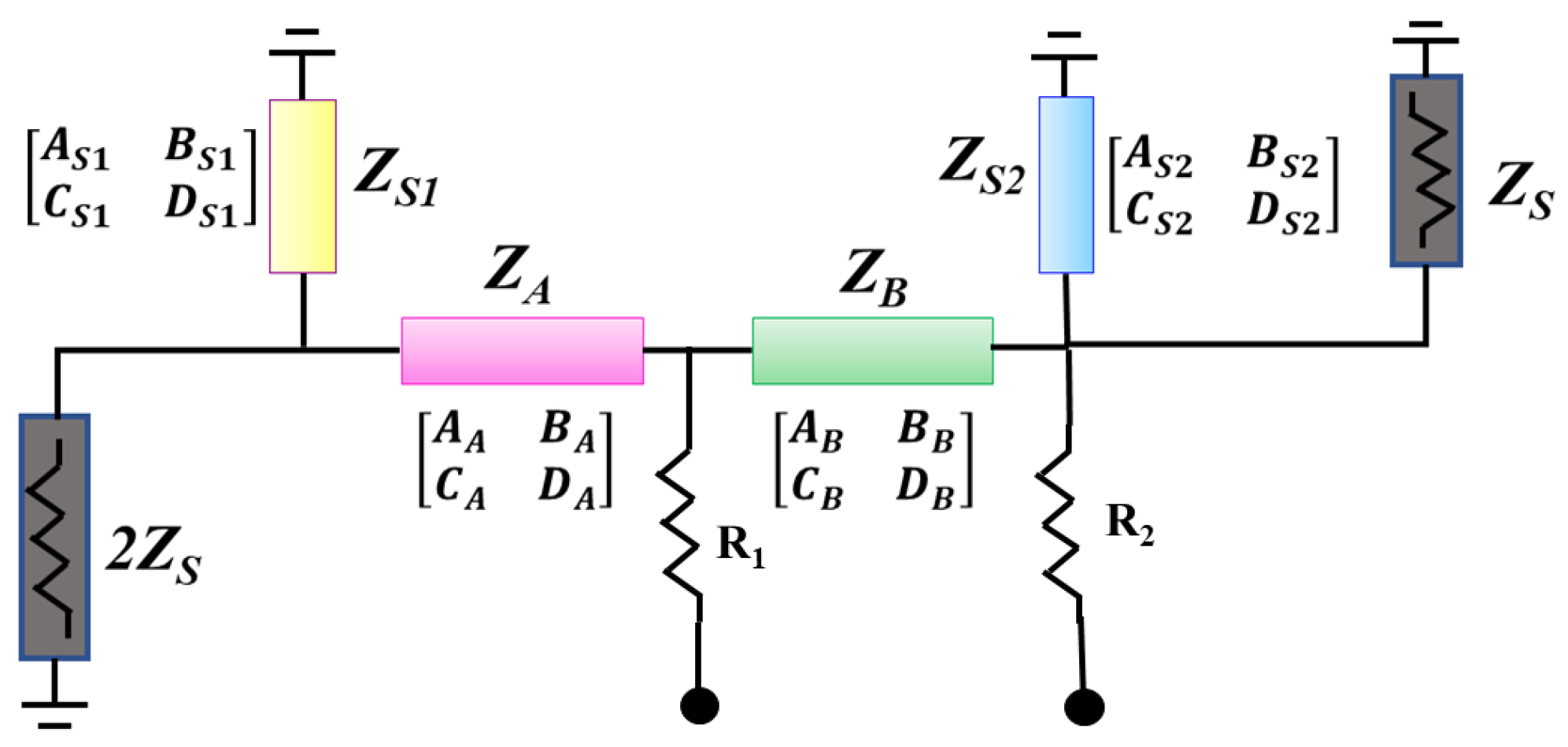

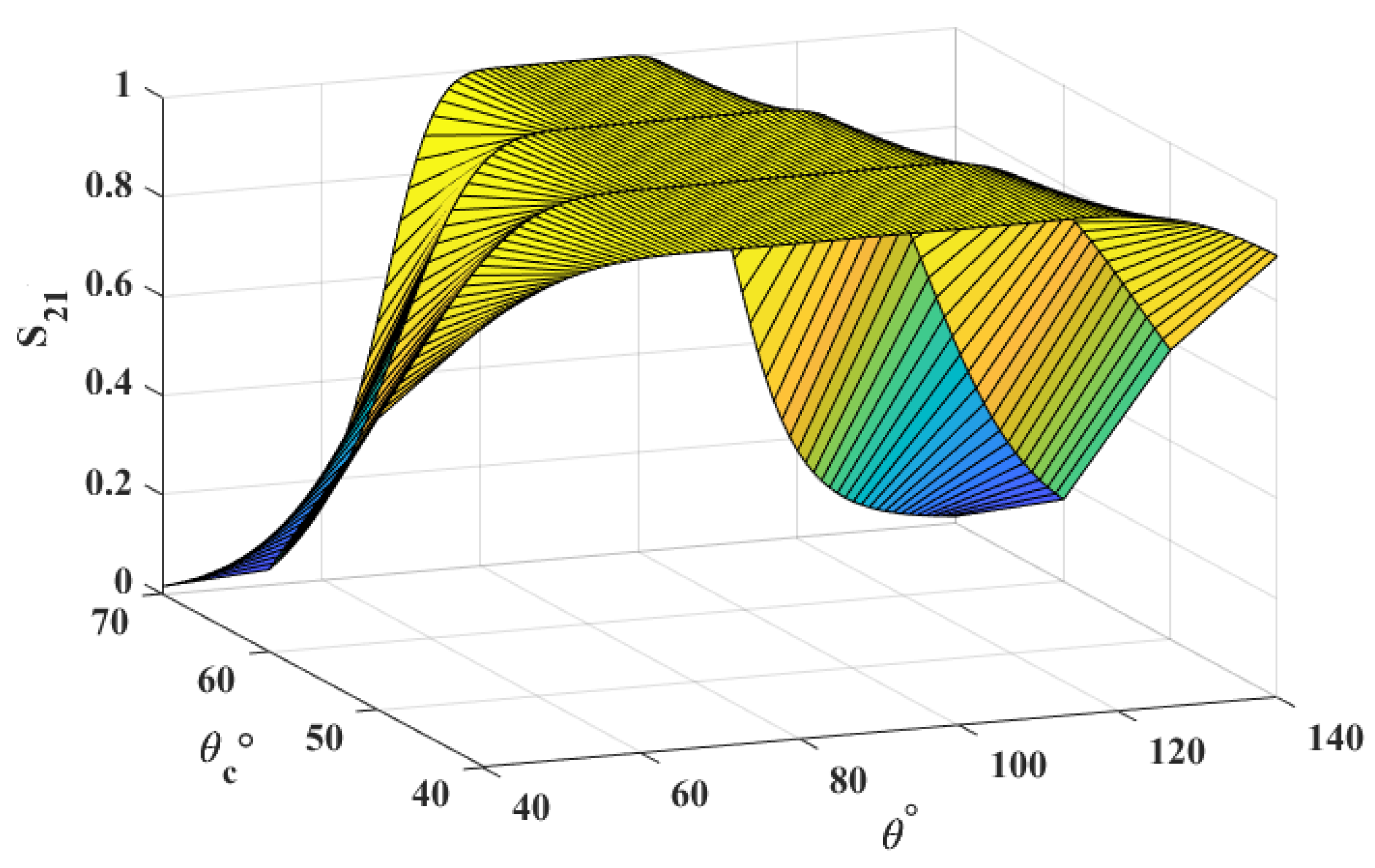

#### 2.1. Even-Mode Analysis

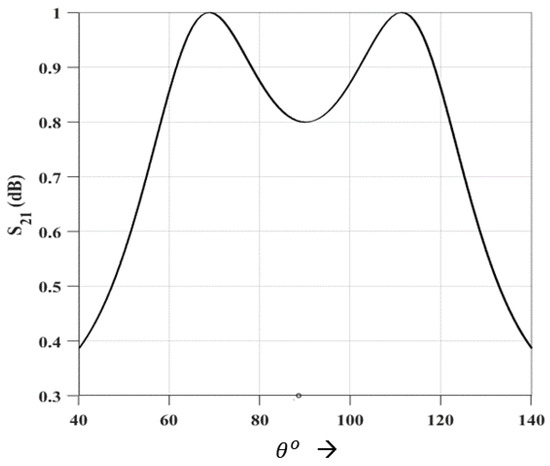

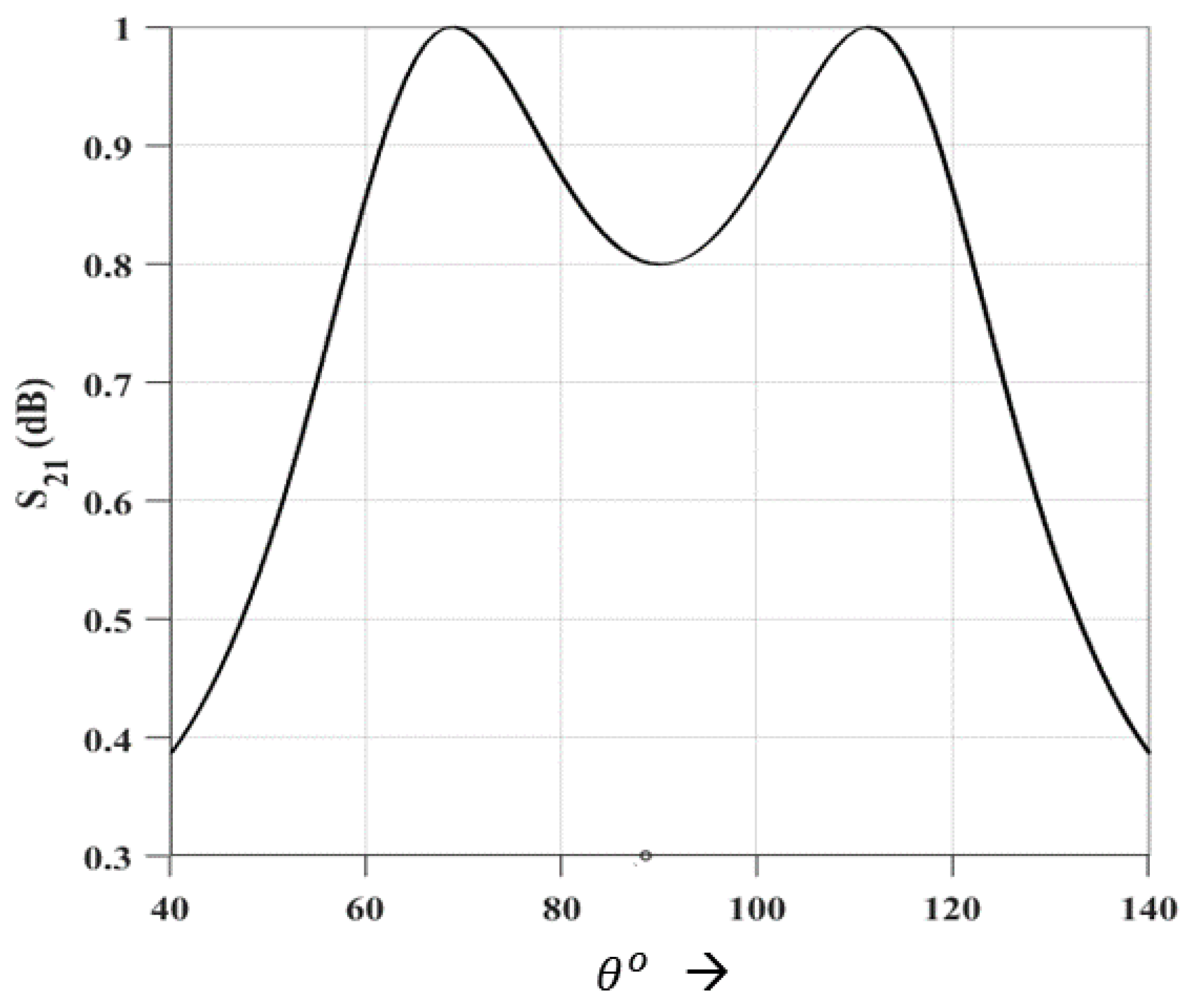

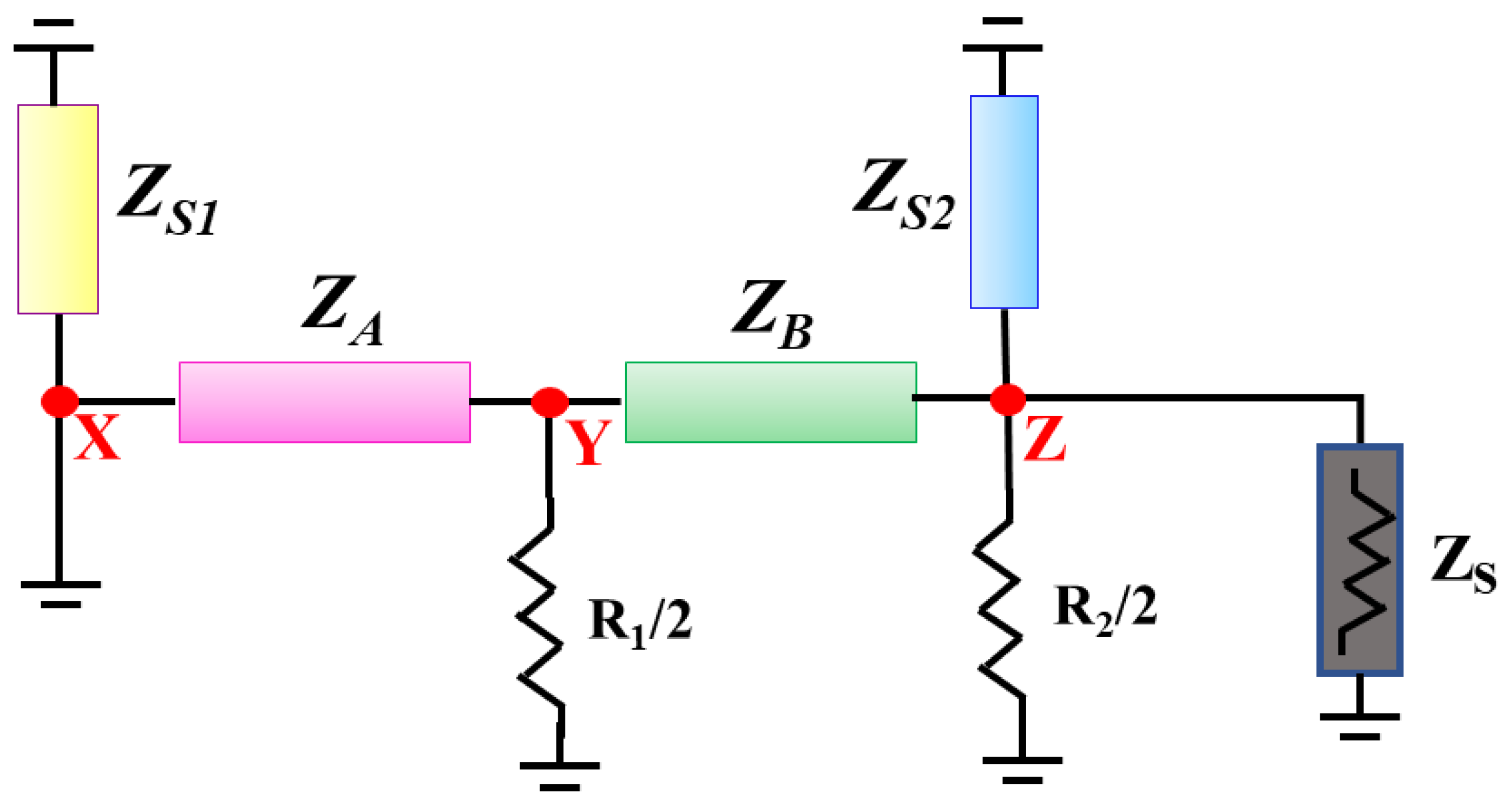

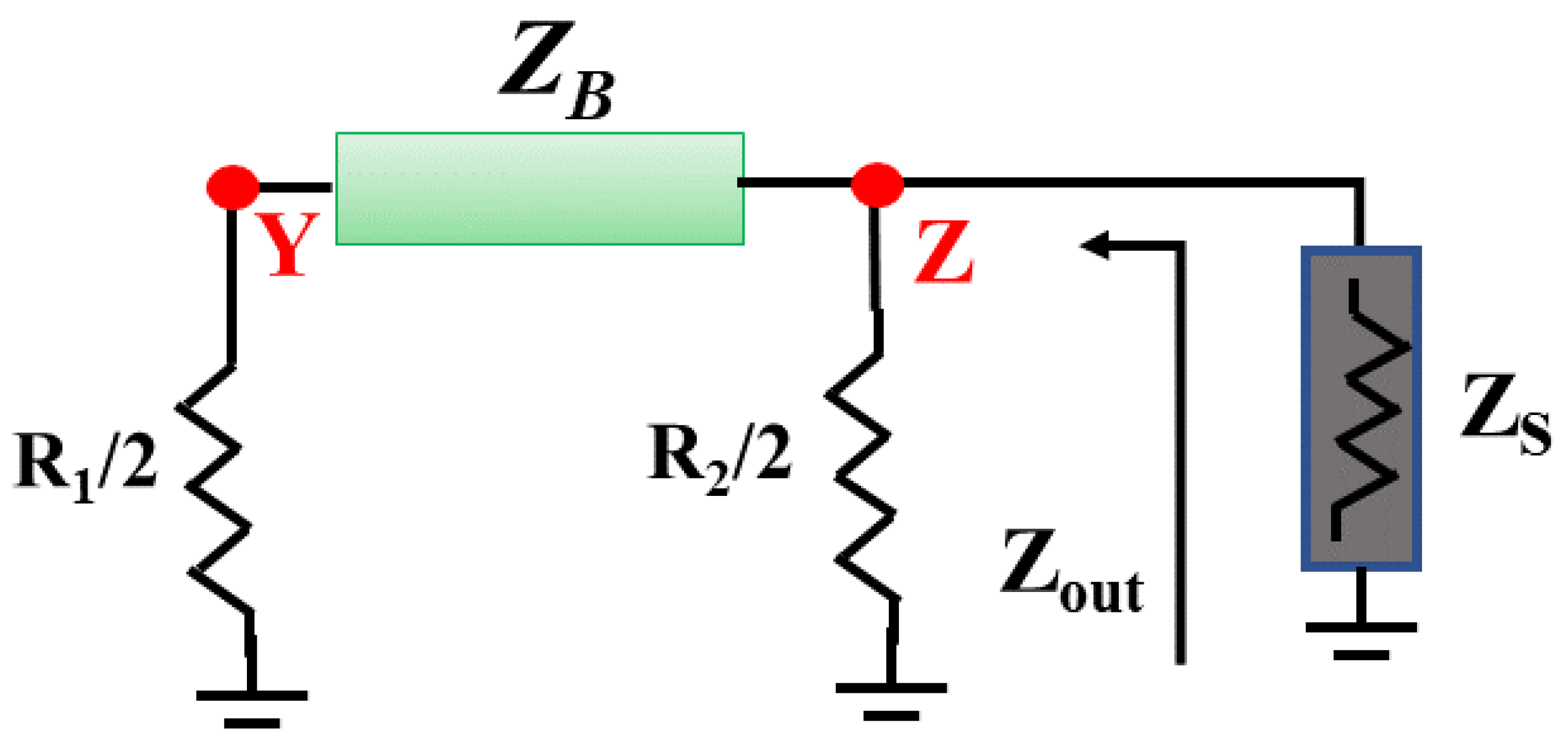

#### 2.2. Odd-Mode Analysis

#### 2.3. Design Steps

- Choose the center frequency ${f}_{c}$.
- Divide the network designed using transmission lines and short-circuit stubs into half-circuit because of the symmetrical structure.
- Perform the even-mode analysis to determine the impedance values, ${Z}_{A}$, ${Z}_{B}$, ${Z}_{S1}$ and ${Z}_{S2}$ according to (12) at centre frequency for distinct ${\theta}_{c}$.
- Perform the odd-mode analysis to determine the values of the isolation resistors from (14).
- For EM simulation and eventually layout, model the junction discontinuities properly using tapers and bends.

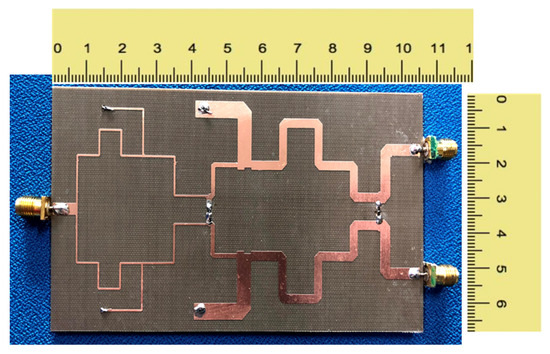

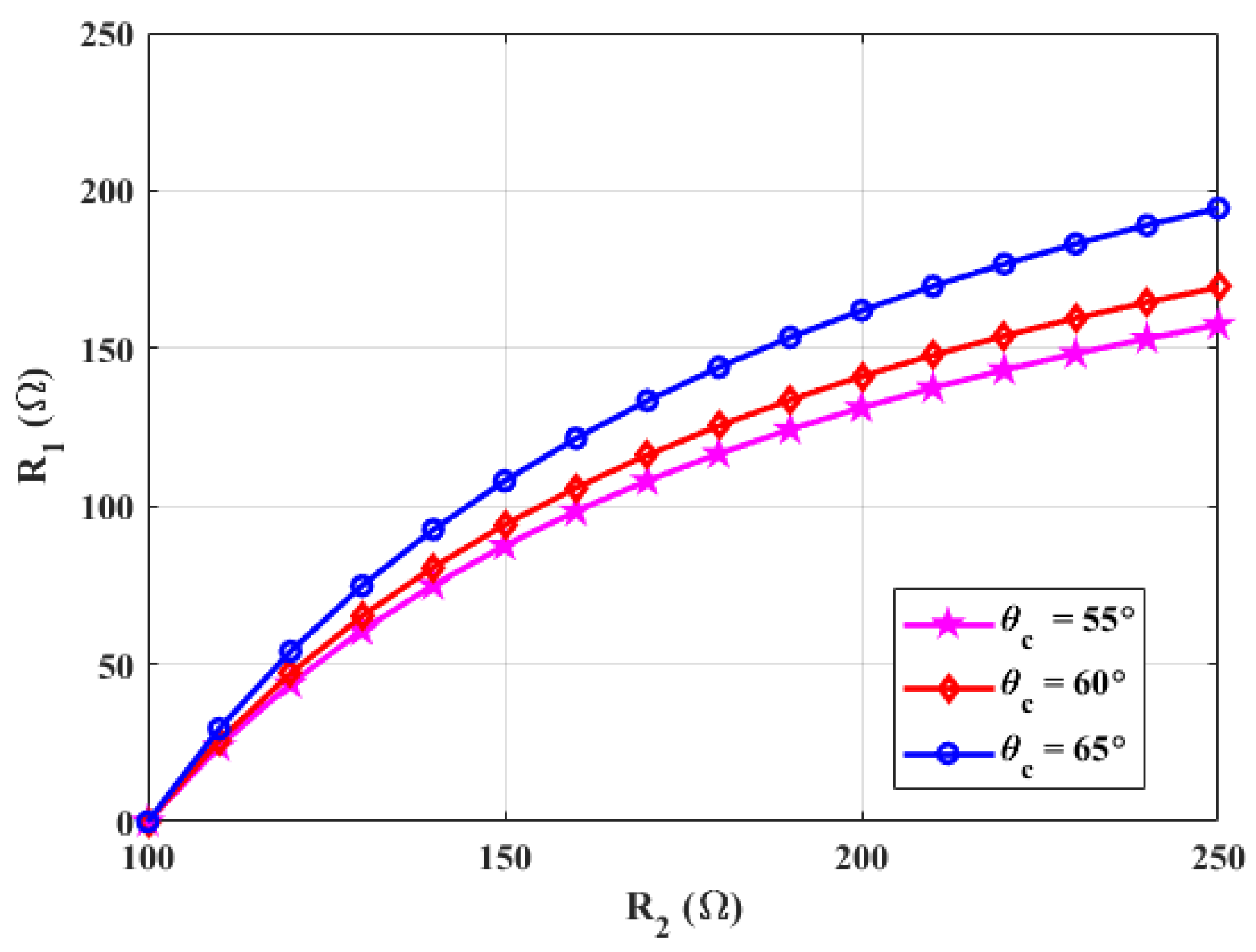

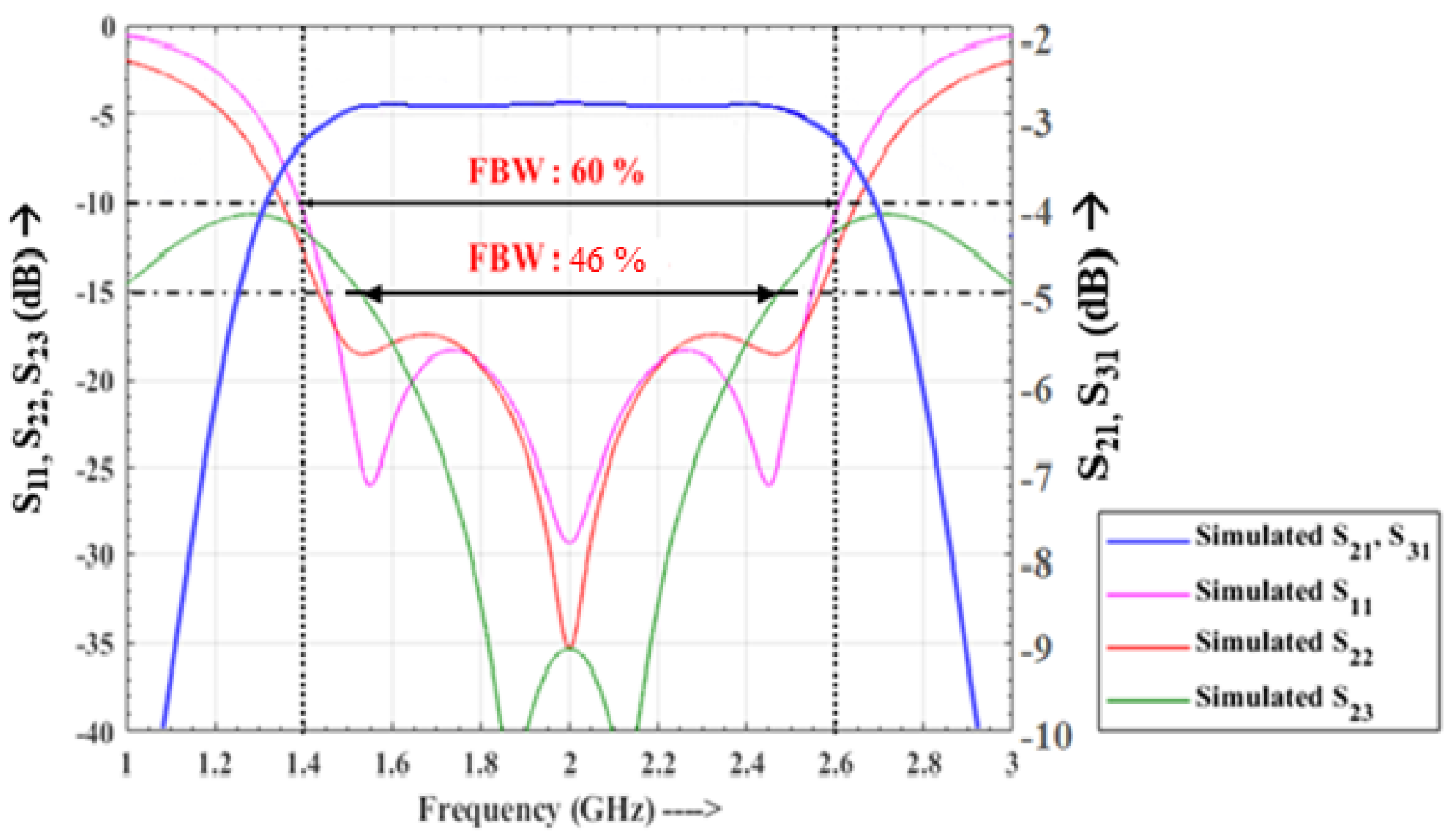

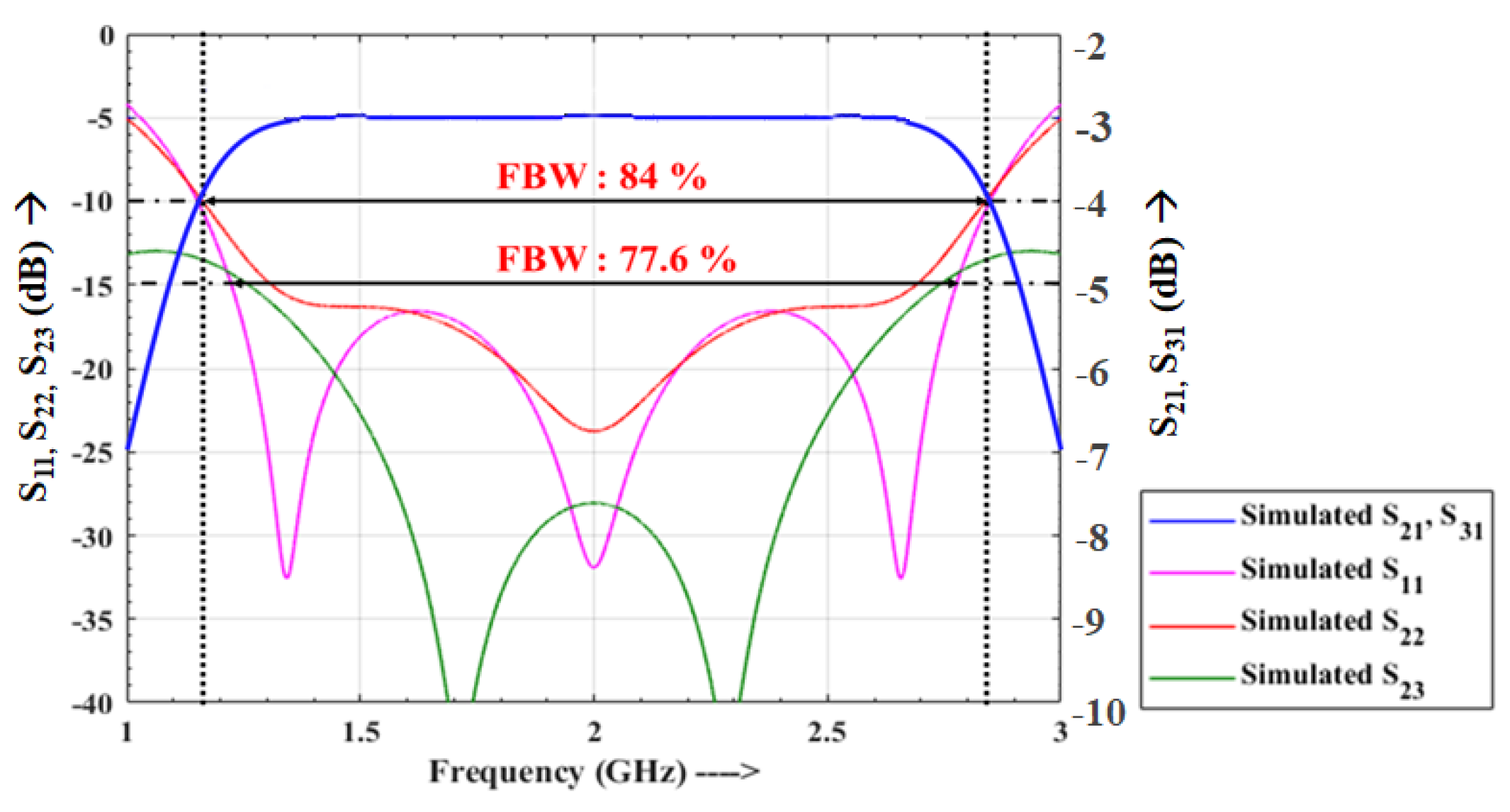

## 3. Case Studies, Results and Analysis

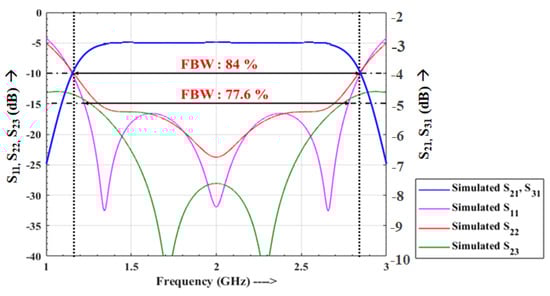

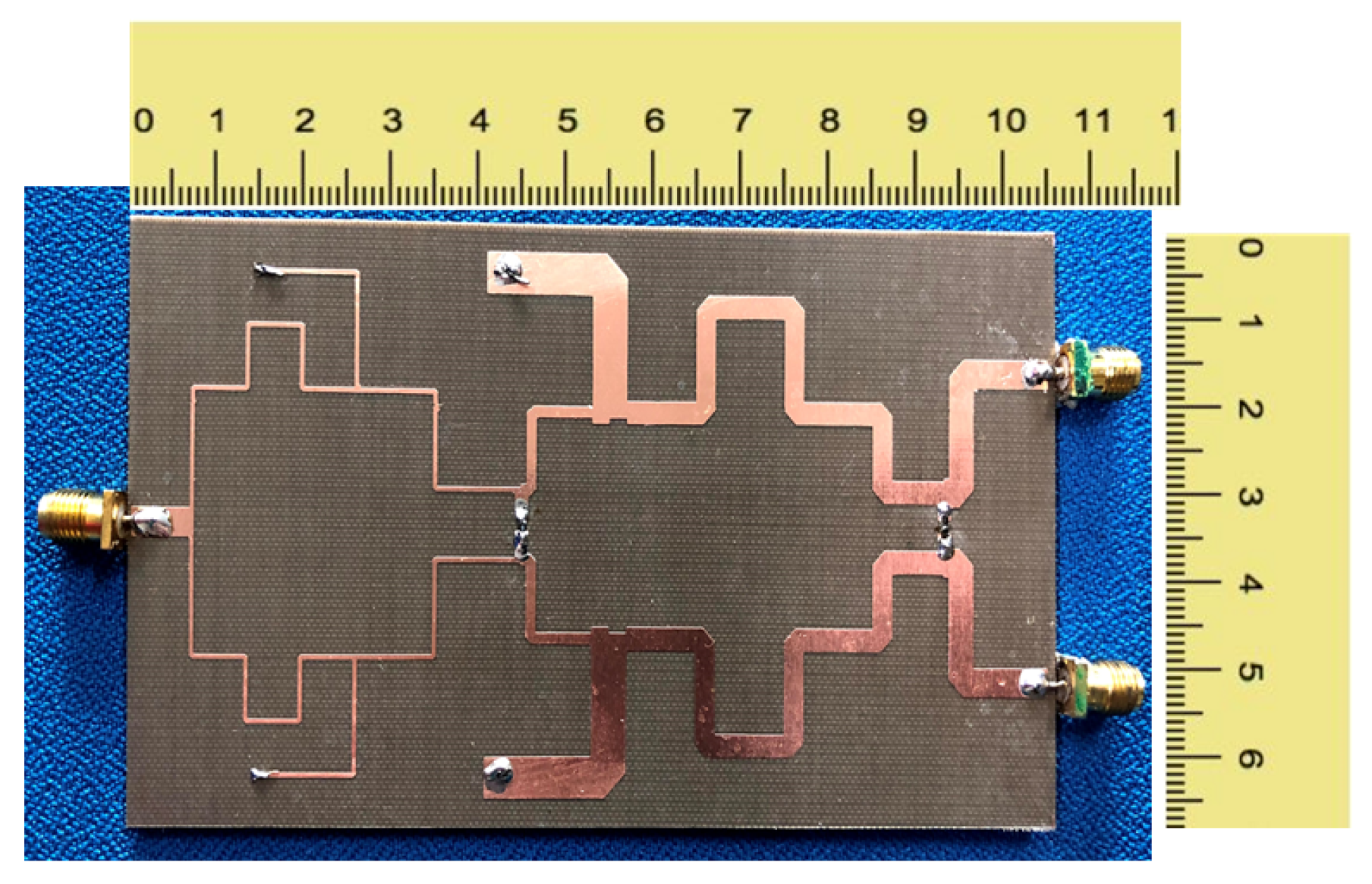

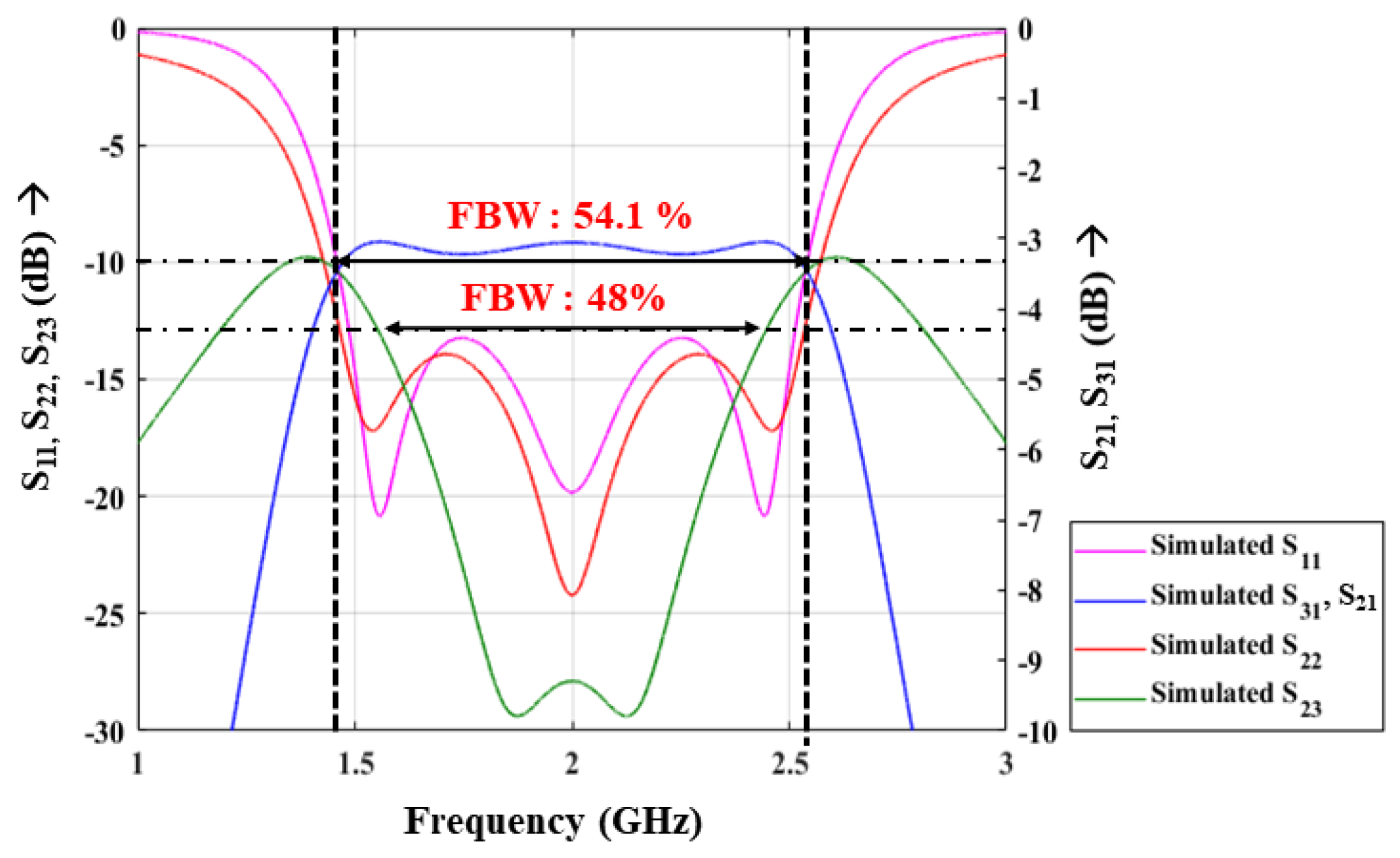

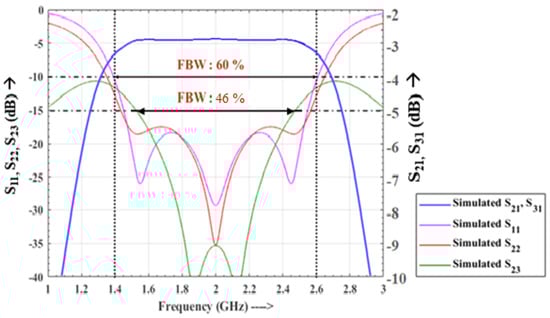

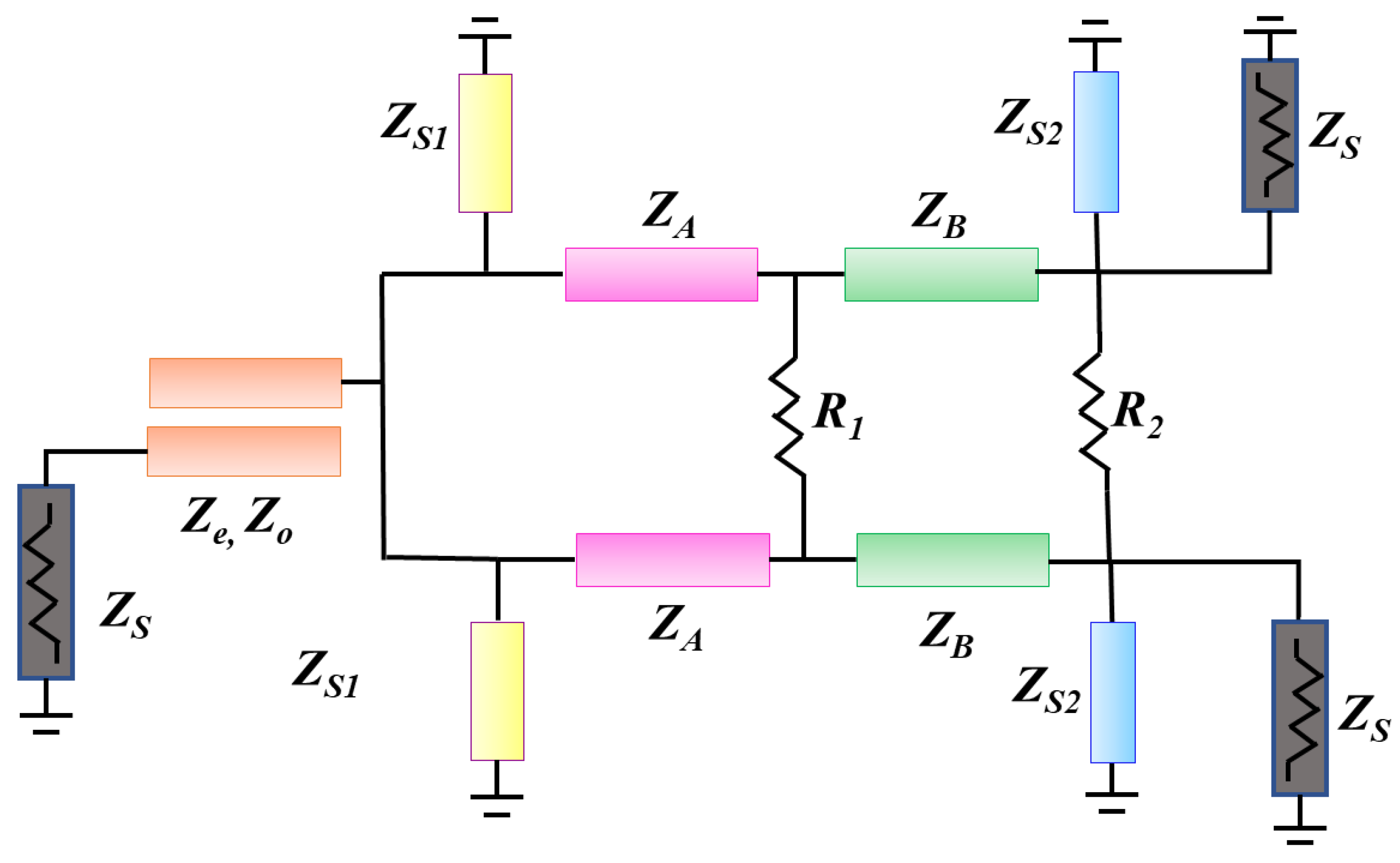

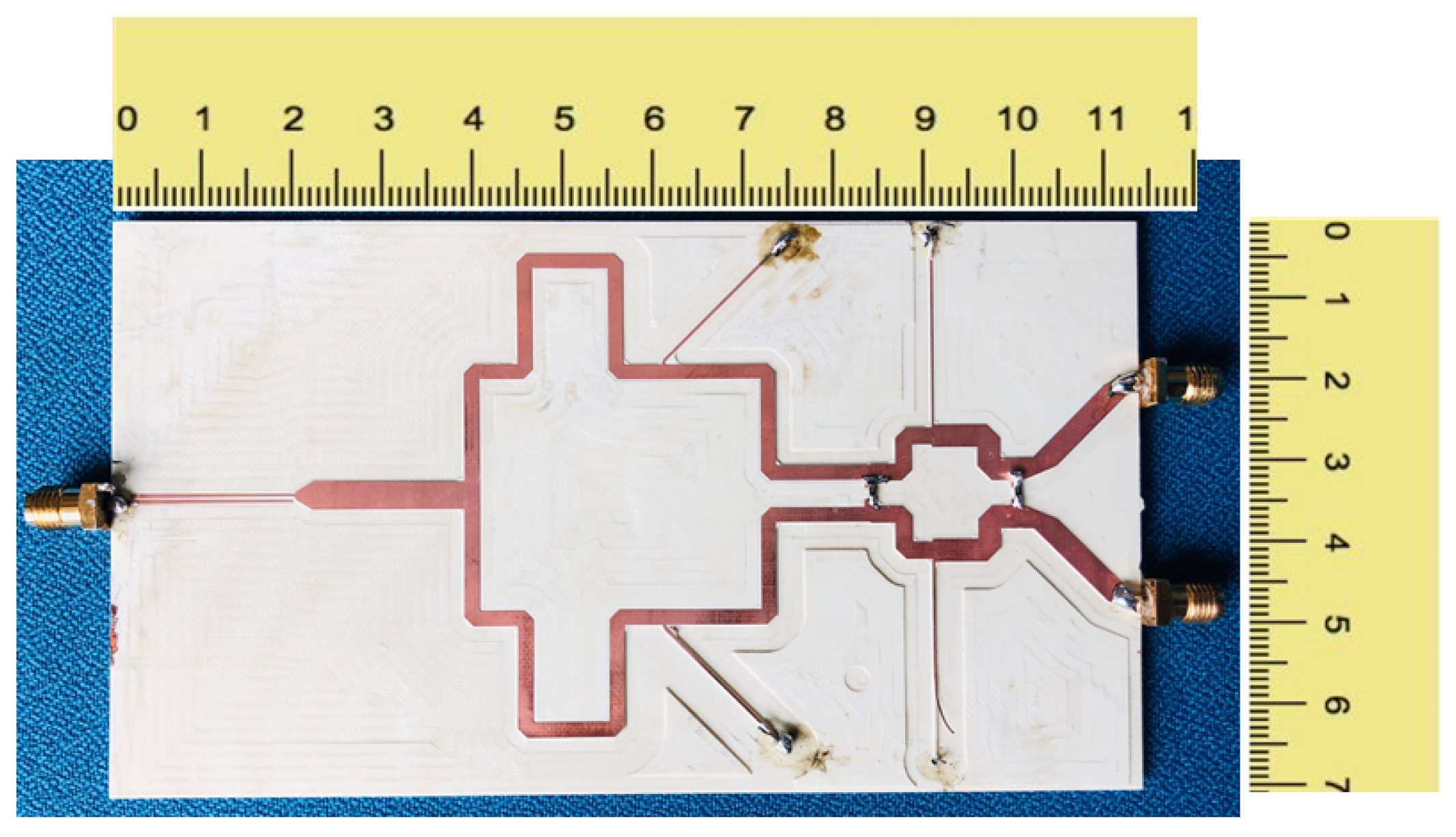

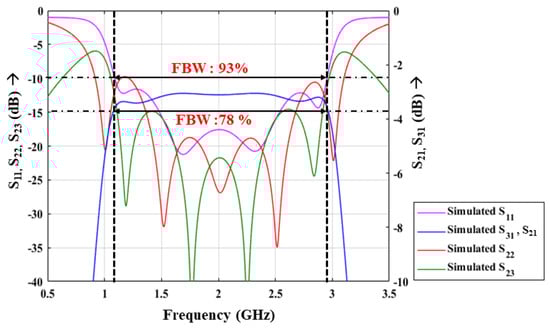

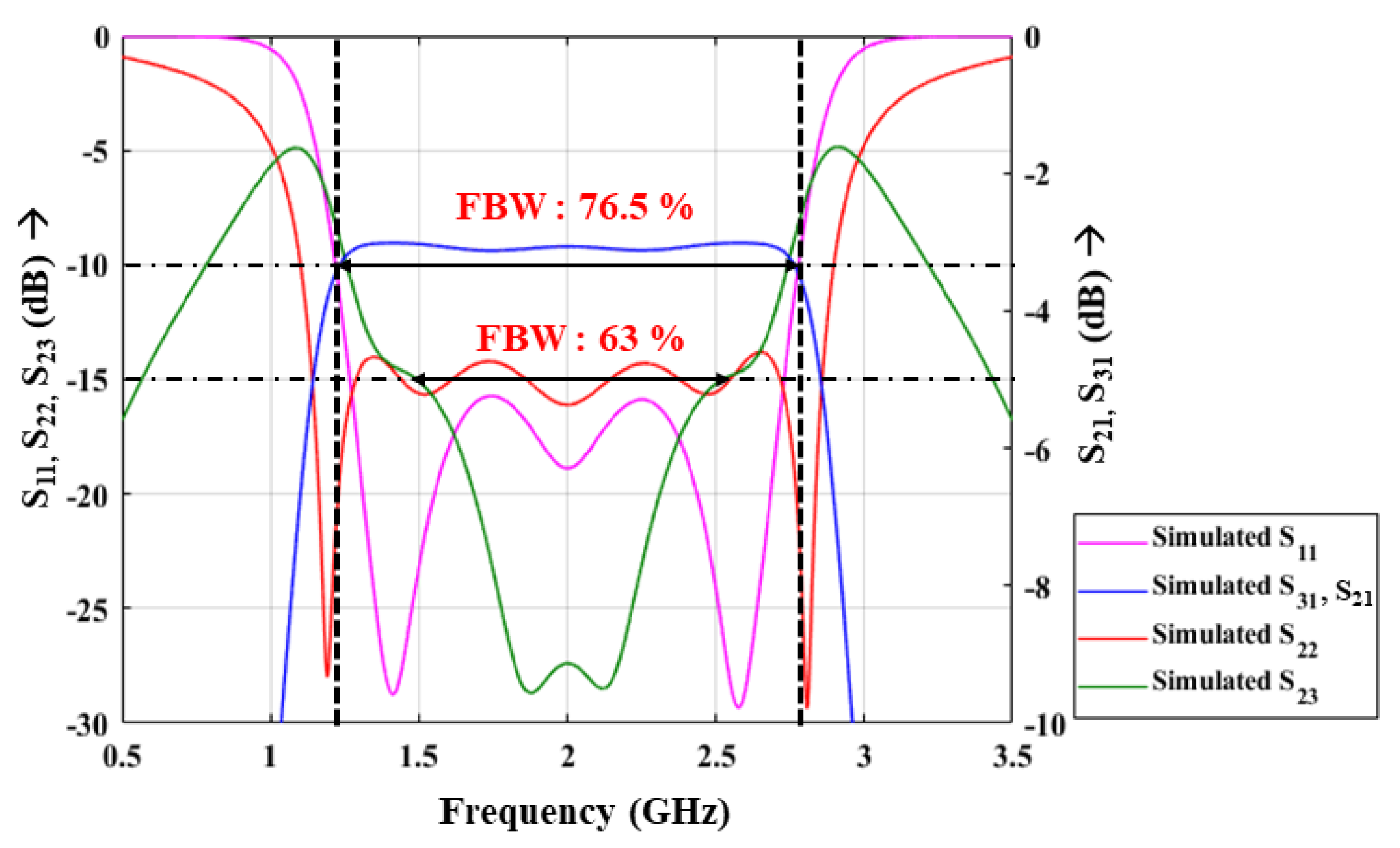

## 4. Wideband DC Isolated WPD

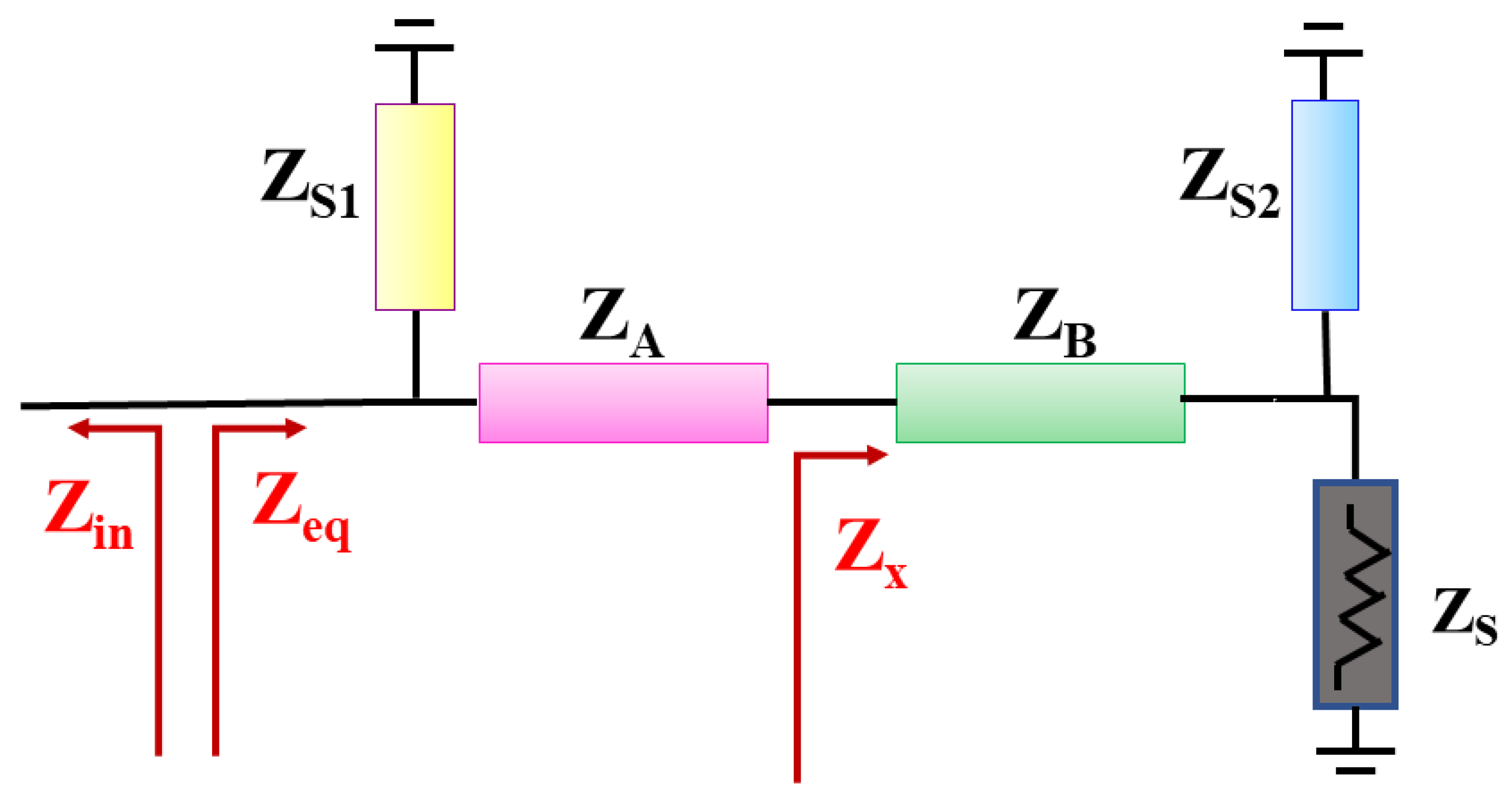

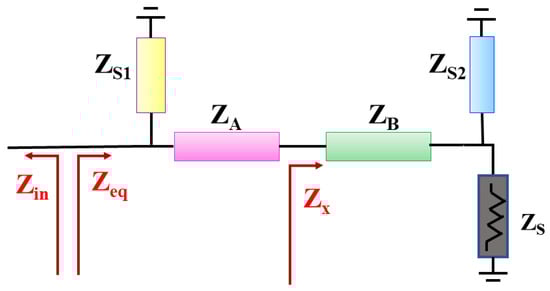

#### 4.1. Even-Mode Analysis

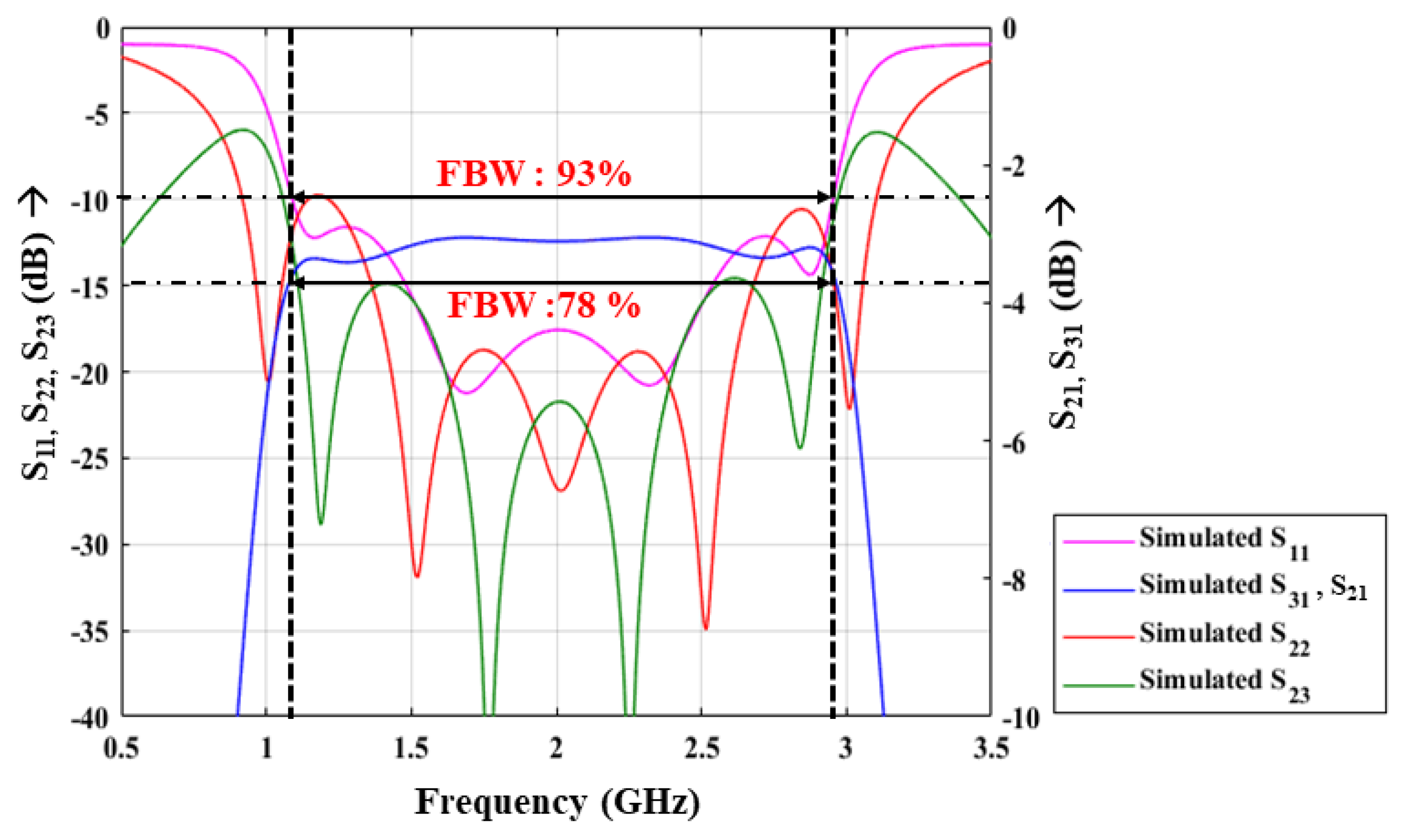

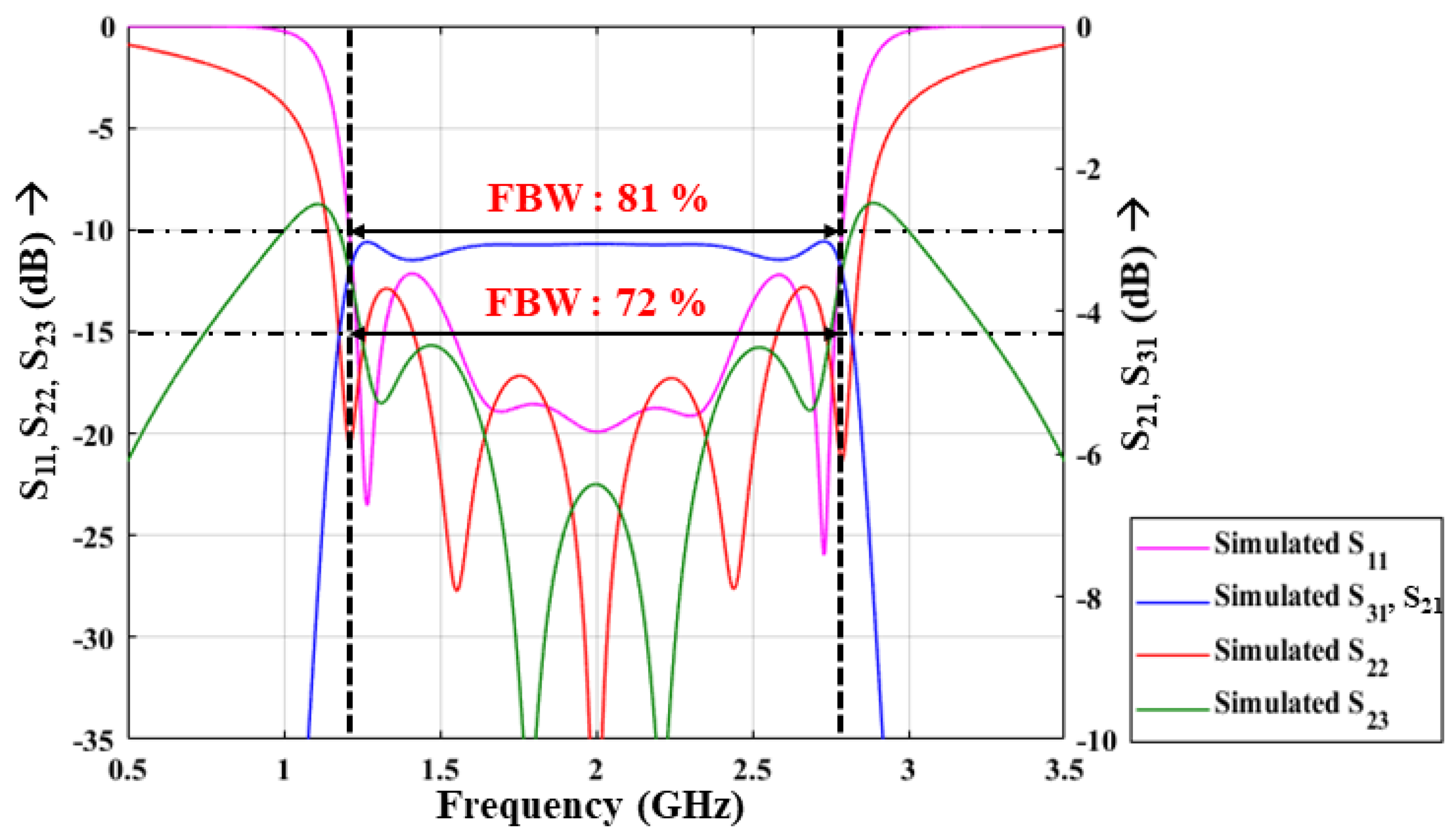

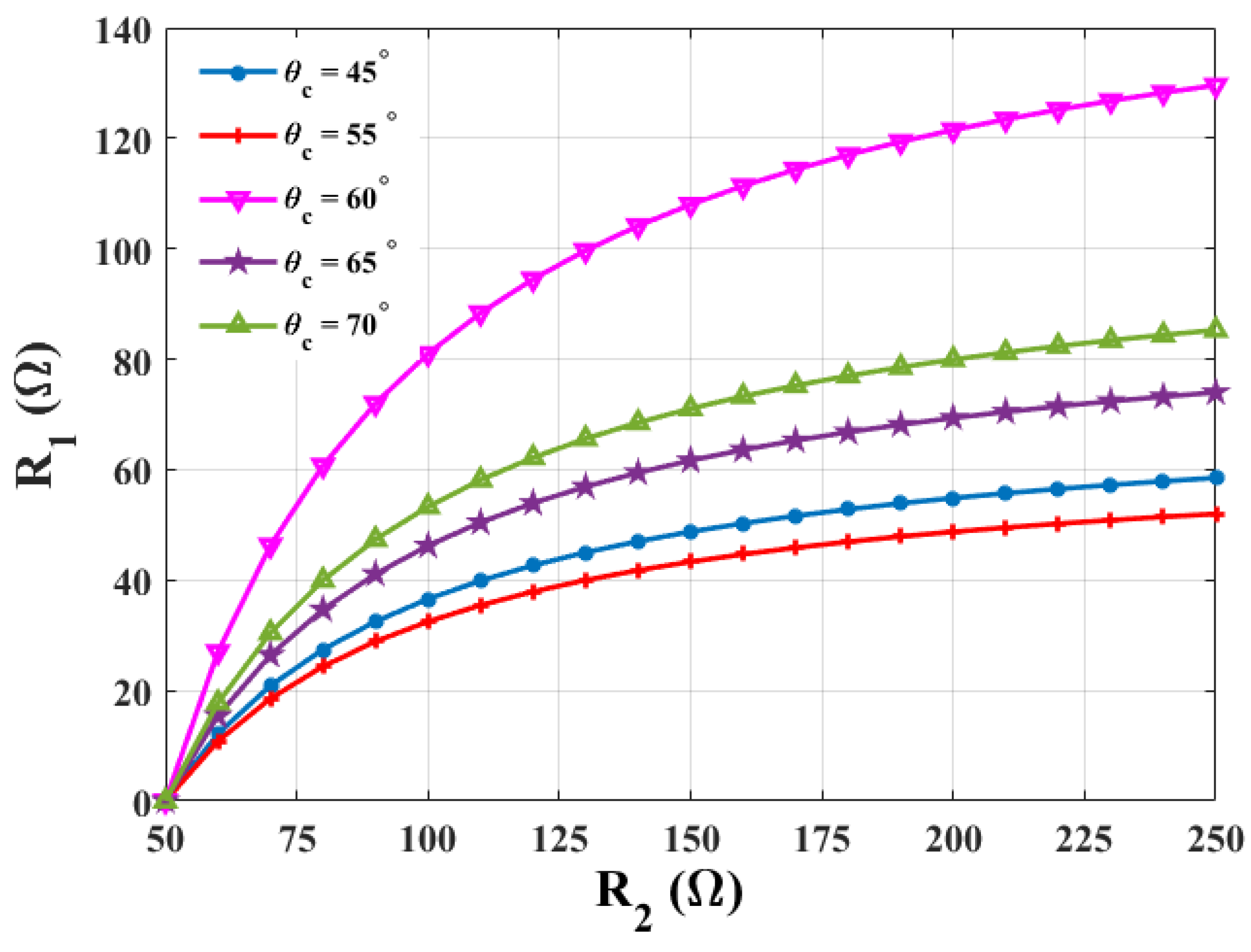

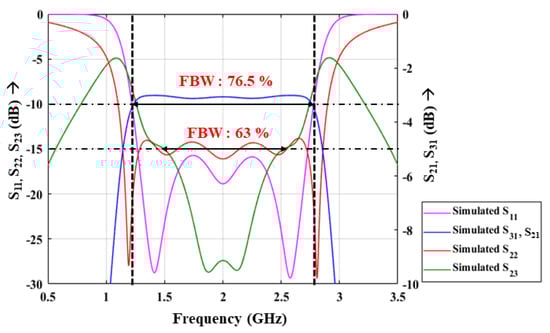

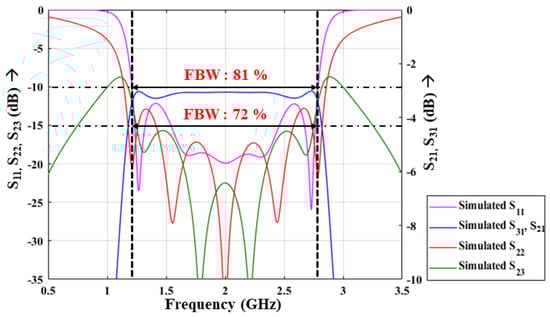

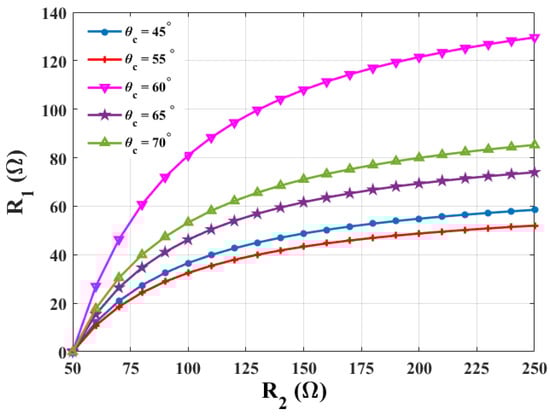

#### 4.2. Odd-Mode Analysis

## 5. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Gomez-Garcia, R.; Ghannouchi, F.M.; Carvalho, N.B.; Luong, H.C. Guest editorial advanced circuits and systems for CR/SDR applications. IEEE Trans. Emerg. Sel. Topics Circuits Syst.
**2013**, 3, 485–488. [Google Scholar] [CrossRef] - Hallberg, W.; Ozen, M.; Kuylenstierna, D.; Buisman, K.; Fager, C. A generalized 3-db wilkinson power divider/combiner with complex terminations. IEEE Trans. Microw. Theory Tech.
**2018**, 66, 4497–4506. [Google Scholar] [CrossRef] - Liu, Y. Synthesis techniques on multiband impedance matching networks for frequency-dependent complex loads. IEEE Trans. Microw. Theory Tech.
**2018**, 66, 4507–4519. [Google Scholar] [CrossRef] - Maktoomi, M.A.; Hashmi, M.S.; Ghannouchi, F.M. A dual-band port-extended branch-line coupler and mitigation of the band-ratio and power division limitations. IEEE Trans. Comp. Packag. Manf. Tech.
**2017**, 7, 1313–1323. [Google Scholar] [CrossRef] - Wilkinson, E.J. An N-way hybrid power divider. IRE Trans. Microw. Theory Tech.
**1960**, 8, 116–118. [Google Scholar] [CrossRef] - Park, M.J.; Lee, B. A dual-band Wilkinson power divider. IEEE Microw. Wirel. Compon. Lett.
**2008**, 18, 85–87. [Google Scholar] [CrossRef] - Wu, Y.; Liu, Y.; Zhang, Y.; Gao, J.; Zhou, H. A dual band unequal Wilkinson power divider without reactive components. IEEE Trans. Microw. Theory Tech.
**2008**, 57, 216–222. [Google Scholar] - Zhang, H.L.; Hu, B.J.; Zhang, X.Y. Compact equal and unequal dual-frequency power dividers based on composite right-/left-handed transmission lines. IEEE Trans. Ind. Electron.
**2012**, 59, 3464–3472. [Google Scholar] [CrossRef] - Al Shamaileh, K.; Dib, N.; Abushamleh, S. A dual-band 1:10 Wilkinson power divider based on multi-T-section characterization of high-impedance transmission lines. IEEE Microw. Wirel. Compon. Lett.
**2017**, 27, 897–899. [Google Scholar] [CrossRef] - Wu, L.; Sun, Z.; Yilmaz, H.; Berroth, M. A dual-frequency Wilkinson power divider. IEEE Trans. Microw. Theory Tech.
**2006**, 54, 278–284. [Google Scholar] [CrossRef] - Liu, F.X.; Lee, J.C. Design of new dual-band Wilkinson power dividers with simple structure and wide isolation. IEEE Trans. Microw. Theory Tech.
**2019**, 67, 3628–3635. [Google Scholar] [CrossRef] - Pakasiri, C.; Wang, S. Dual-band compact wilkinson power divider using common inductor and complex load. IEEE Access
**2020**, 8, 97189–97195. [Google Scholar] [CrossRef] - Gao, N.; Wu, G.; Tang, Q. Design of a novel compact dual-band Wilkinson power divider with wide frequency ratio. IEEE Microw. Wirel. Compon. Lett.
**2014**, 24, 81–83. [Google Scholar] [CrossRef] - Okada, Y.; Kawai, T.; Enokihara, A. Design Method for Multiband WPDs Using Multisection LC-Ladder Circuits. IEEE Microw. Wirel. Compon. Lett.
**2017**, 27, 894–896. [Google Scholar] [CrossRef] - Wang, X.; Ma, Z.; Ohira, M. Theory and experiment of two-section two-resistor Wilkinson power divider with two arbitrary frequency bands. IEEE Trans. Microw. Theory Tech.
**2017**, 66, 1291–1300. [Google Scholar] [CrossRef] - Zhao, W.; Zhang, N.; Wu, B.; Wang, X.; Ma, Z.; Chen, C.P. A Dual-Band Wilkinson Power Divider Using Dual Coupled Lines and Open Stubs. In Proceedings of the IEEE MTT-S International Wireless Symposium (IWS), Shanghai, China, 20–23 September 2020; pp. 1–3. [Google Scholar]
- Maktoomi, M.H.; Banerjee, D.; Hashmi, M.S. An enhanced frequency-ratio coupled-line dual-frequency Wilkinson power divider. IEEE Trans. Circ. Sys. II
**2017**, 65, 888–892. [Google Scholar] [CrossRef] - Song, A.; Wang, X.; Ma, Z.; Ohira, M. Design theory of dual-band Wilkinson power divider with different frequency ratio ranges. In Proceedings of the IEEE Asia-Pacific Microwave Conference (APMC), Kyoto, Japan, 6–9 November 2018; pp. 1489–1491. [Google Scholar]
- Chu, Q.X.; Lin, F.; Lin, Z.; Gong, Z. Novel design method of tri-band power divider. IEEE Trans. Microw. Theory Tech.
**2011**, 59, 2221–2226. [Google Scholar] [CrossRef] - Abdelrahman, B.M.; Ahmed, H.N.; Nashed, A.I. A novel tri-band Wilkinson power divider for multiband wireless applications. IEEE Microw. Wirel. Compon. Lett.
**2017**, 27, 891–893. [Google Scholar] [CrossRef] - Chen, H.H.; Pang, Y.H. A tri-band Wilkinson power divider utilizing coupled lines. In Proceedings of the 2011 IEEE International Symposium on Antennas and Propagation (APSURSI), Spokane, WA, USA, 3–8 July 2011; pp. 25–28. [Google Scholar]
- Papanastasiou, A.C.; Georghiou, G.E.; Eleftheriades, G.V. A quad-band Wilkinson power divider using generalized NRI transmission lines. IEEE Microw. Wirel. Compon. Lett.
**2008**, 18, 521–523. [Google Scholar] [CrossRef] - Singh, P.K.; Basu, S.; Wang, Y.H. Coupled line power divider with compact size and bandpass response. Electron. Lett.
**2009**, 45, 892–894. [Google Scholar] [CrossRef] - Li, Y.C.; Xue, Q.; Zhang, X.Y. Single-and dual-band power dividers integrated with bandpass filters. IEEE Trans. Microw. Theory Tech.
**2013**, 61, 69–76. [Google Scholar] [CrossRef] - Gao, S.S.; Sun, S.; Xiao, S. A novel wideband bandpass power divider with harmonic-suppressed ring resonator. IEEE Microw. Wirel. Compon. Lett.
**2013**, 23, 119–121. [Google Scholar] [CrossRef] [Green Version] - Song, K.; Ren, X.; Chen, F.; Fan, Y. Compact in-phase power divider integrated filtering response using spiral resonator. IET Microw. Ant. Prop.
**2014**, 8, 228–234. [Google Scholar] [CrossRef] - Shao, J.Y.; Huang, S.C.; Pang, Y.H. Wilkinson power divider incorporating quasi-elliptic filters for improved out-of-band rejection. Electron. Lett.
**2011**, 47, 1288–1289. [Google Scholar] [CrossRef] - Li, Q.; Zhang, Y.; Wu, C.T.M. High-selectivity and miniaturized filtering Wilkinson power dividers integrated with multimode resonators. IEEE Trans. Compon. Packag. Manuf. Technol.
**2017**, 7, 1990–1997. [Google Scholar] [CrossRef] - Zhang, X.Y.; Wang, K.X.; Hu, B.J. Compact filtering power divider with enhanced second-harmonic suppression. IEEE Microw. Wirel. Compon. Lett.
**2013**, 23, 483–485. [Google Scholar] [CrossRef] - Liu, Y.; Sun, S.; Yu, X.; Wu, Y.; Liu, Y. Design of a wideband filtering power divider with good in-band and out-of-band isolations. Int. J. RF Microw. Comp.-Aided Eng.
**2019**, 29, e21728. [Google Scholar] [CrossRef] - Wang, X.; Wang, J.; Zhang, G.; Hong, J.S.; Wu, W. Dual-wideband filtering power divider with good isolation and high selectivity. IEEE Microw. Wirel. Compon. Lett.
**2017**, 27, 1071–1073. [Google Scholar] [CrossRef] - Song, K.; Xue, Q. Novel ultra-wideband (UWB) multilayer slotline power divider with bandpass response. IEEE Microw. Wirel. Compon. Lett.
**2009**, 20, 13–15. [Google Scholar] [CrossRef] - Ren, X.; Xu, K.D. Multilayer balanced-to-unbalanced power divider with wideband transmission characteristic and common-mode suppression. IEEE Trans. Comp. Packag. Manf. Tech.
**2018**, 9, 72–79. [Google Scholar] [CrossRef] - Zhu, H.; Cheng, Z.; Guo, Y.J. Design of wideband in-phase and out-of-phase power dividers using microstrip-to-slotline transitions and slotline resonators. IEEE Trans. Microw. Theory Tech.
**2019**, 67, 1412–1424. [Google Scholar] [CrossRef] - Guo, L.; Abbosh, A.; Zhu, H. Ultra-wideband in-phase power divider using stepped-impedance three-line coupled structure and microstrip-to-slotline transitions. Electron. Lett.
**2014**, 50, 383–384. [Google Scholar] [CrossRef] - Chen, J.-X.; Chin, C.H.K.; Lau, K.W.; Xue, Q. 180° out-of-phase power divider based on double-sided parallel striplines. Electron. Lett.
**2006**, 42, 1229–1230. [Google Scholar] [CrossRef] - Bialkowski, M.E.; Abbosh, A.M. Design of a compact UWB outof-phase power divider. IEEE Microw. Wirel. Compon. Lett.
**2007**, 17, 289–291. [Google Scholar] [CrossRef] - Ahmed, U.T.; Abbosh, A.M. Wideband out-of-phase power divider using tightly coupled lines and microstrip to slotline transitions. Electron. Lett.
**2016**, 52, 126–128. [Google Scholar] [CrossRef] - Liu, Y.; Zhu, L.; Sun, S. Proposal and Design of a Power Divider With Wideband Power Division and Port-to-Port Isolation: A New Topology. IEEE Trans. Microw. Theory Tech.
**2020**, 68, 1431–1438. [Google Scholar] [CrossRef] - Chen, D.; Zhu, L.; Cheng, C. Dual-resonant-mode (DRM) impedance transformer and its application to wideband 3 dB power divider. IEEE Microw. Wirel. Compon. Lett.
**2013**, 23, 471–473. [Google Scholar] [CrossRef] - Weng, M.; Song, Y.; Zhao, J. Design of compact microstrip UWB power divider using square ring multiple-mode resonator. Asia-Pac. Microw. Conf. (APMC)
**2015**, 1, 1–3. [Google Scholar] - Zhu, H.; Abbosh, A.M.; Guo, L. Wideband four-way filtering power divider with sharp selectivity and wide stopband using looped coupled line structures. IEEE Microw. Wirel. Let.
**2016**, 26, 413–415. [Google Scholar] [CrossRef] - Jiao, L.; Wu, Y.; Liu, Y.; Xue, Q.; Ghassemlooy, Z. Wideband filtering power divider with embedded transversal signal-interference sections. IEEE Microw. Wirel. Compon. Lett.
**2017**, 27, 1068–1070. [Google Scholar] [CrossRef] - Song, K.; Mo, Y.; Fan, Y. Wideband four-way filtering-response power divider with improved output isolation based on coupled lines. IEEE Microw. Wirel. Compon. Lett.
**2014**, 24, 674–676. [Google Scholar] [CrossRef] - Tang, C.W.; Chen, J.T. A design of 3-dB wideband microstrip power divider with an ultra-wide isolated frequency band. IEEE Trans. Microw. Theory Tech.
**2016**, 64, 1806–1811. [Google Scholar] [CrossRef] - Li, L.; Li, Z.F. Side-coupled shorted microstrip line for compact quasi-elliptic wideband bandpass filter design. IEEE Microw. Wirel. Compon. Lett.
**2010**, 20, 322–324. [Google Scholar] [CrossRef] - Xu, K.D.; Bai, Y.; Ren, X.; Xue, Q. Broadband filtering power dividers using simple three-line coupled structures. IEEE Trans. Compon. Packg. Manf. Technol.
**2018**, 9, 1103–1110. [Google Scholar] [CrossRef] - Dang, T.S.; Kim, C.W.; Yoon, S.W. Ultra-wideband power divider using three parallel-coupled lines and one shunt stub. Electron. Lett.
**2014**, 50, 95–96. [Google Scholar] [CrossRef] - Guo, L.; Zhu, H.; Abbosh, A.M. Wideband tunable in-phase power divider using three-line coupled structure. IEEE Microw. Wirel. Compon. Lett.
**2016**, 26, 404–406. [Google Scholar] [CrossRef] - Yu, X.; Sun, S. A novel wideband filtering power divider with embedding three-line coupled structures. IEEE Access
**2018**, 6, 41280–41290. [Google Scholar] [CrossRef] - Oraizi, H.; Sharifi, A.-R. Optimum design of asymmetrical multisection two-way power dividers with arbitrary power division and impedance matching. IEEE Trans. Microw. Theory Tech.
**2011**, 59, 1478–1490. [Google Scholar] [CrossRef] - Wong, S.W.; Zhu, L. Ultra-wideband power divider with good in-band splitting and isolation performances. IEEE Microw. Wirel. Compon. Lett.
**2008**, 18, 518–520. [Google Scholar] [CrossRef] - Xu, Y.; Bosisio, R. Design of multiway power divider by using stepped-impedance transformers. IEEE Trans. Microw. Theory Tech.
**2012**, 60, 2781–2790. [Google Scholar] [CrossRef] - Maktoomi, M.A.; Hashmi, M.S.; Ghannouchi, F.M. Theory and design of a novel wideband DC isolated Wilkinson power divider. IEEE Microw. Wirel. Compon. Lett.
**2016**, 26, 586–588. [Google Scholar] [CrossRef] - Kao, J.-C.; Tsai, Z.M.; Lin, K.-Y.; Wang, H. A modified Wilkinson power divider with isolation bandwidth improvement. IEEE Trans. Microw. Theory Tech.
**2012**, 60, 2768–2780. [Google Scholar] [CrossRef] - Tas, V.; Atalar, A. An optimized isolation network for the Wilkinson divider. IEEE Trans. Microw. Theory Tech.
**2014**, 62, 3393–3402. [Google Scholar] [CrossRef] [Green Version] - Yu, T.; Tsai, J.-H.; Chang, Y. A radial four-way power divider with the proposed isolation network. IEEE Microw. Wirel. Compon. Lett.
**2018**, 28, 194–196. [Google Scholar] [CrossRef] - Wang, X.; Sakagami, I.; Mase, A.; Ichimura, M. Wilkinson power divider with complex isolation component and its miniaturization. IEEE Trans. Microw. Theory Tech.
**2014**, 62, 422–430. [Google Scholar] [CrossRef] - Pozar, D.M. Microwave Engineering; John Wiley and Sons: Hoboken, NJ, USA, 2009. [Google Scholar]
- Riblet, H.J. General synthesis of quarter-wave impedance transformers. IRE Trans. Microw. Theory Tech.
**1957**, 5, 36–43. [Google Scholar] [CrossRef]

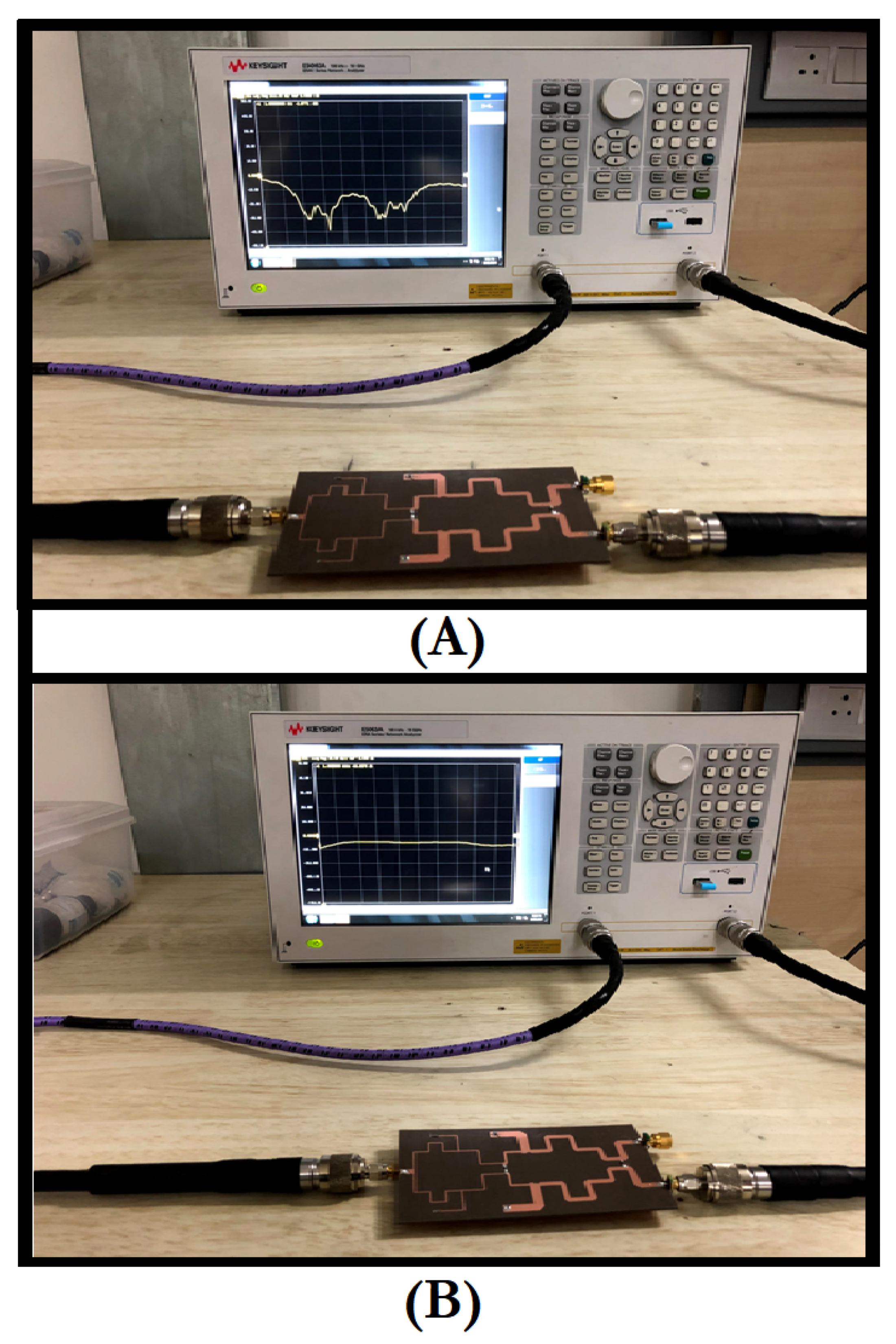

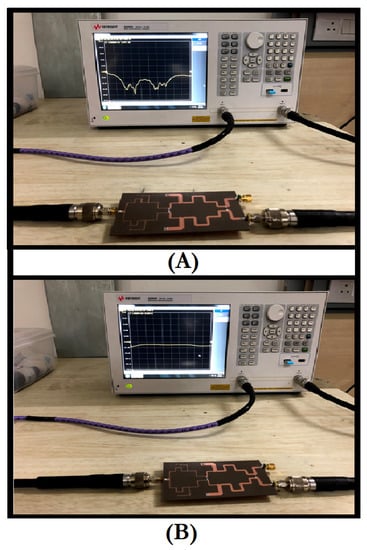

**Figure 12.**Measurement Setup for (

**A**): ${S}_{11}$; (

**B**): ${S}_{21}$ for ${\theta}_{c}$ = 55${}^{\circ}$.

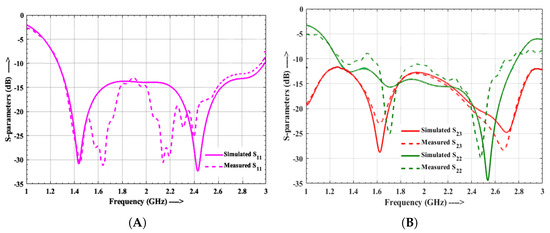

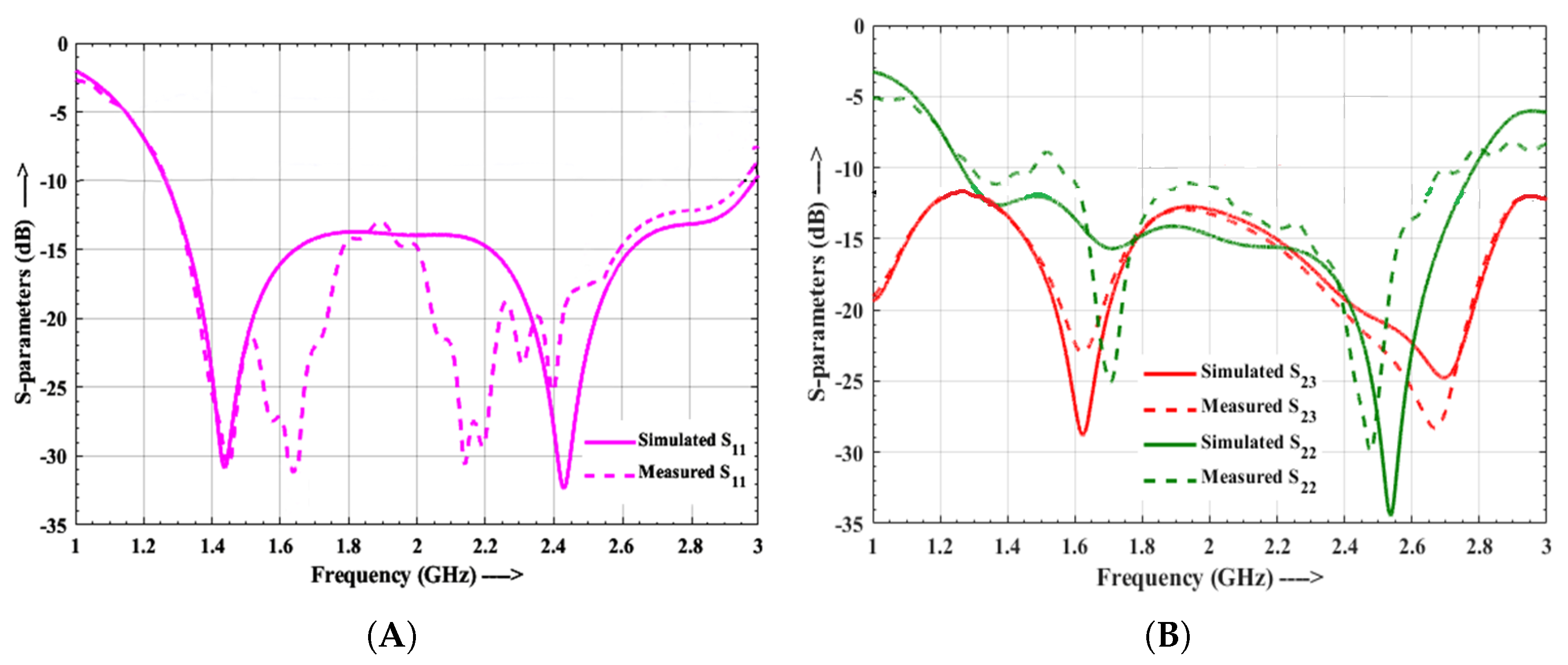

**Figure 13.**EM vs. Measured S-parameters for (

**A**) ${S}_{11}$; (

**B**) ${S}_{23},{S}_{22}$ for ${\theta}_{c}$ = 55${}^{\circ}$.

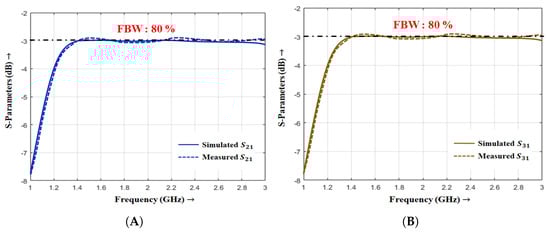

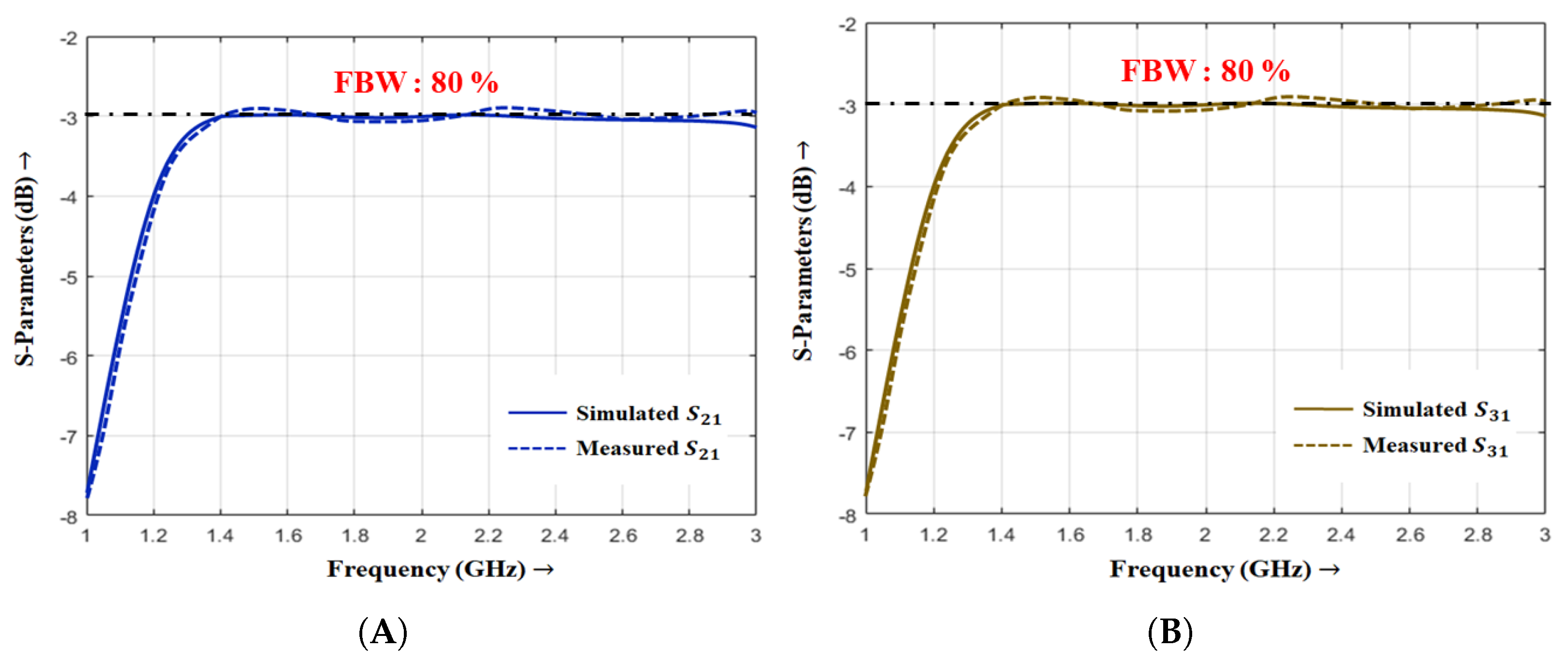

**Figure 14.**EM vs. Measured S-parameters for (

**A**) ${S}_{21}$; (

**B**) ${S}_{31}$ for ${\theta}_{c}$ = 55${}^{\circ}$.

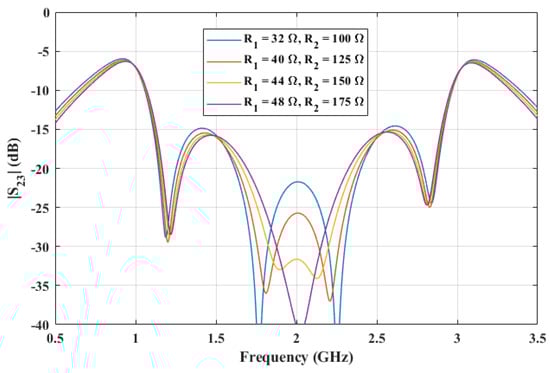

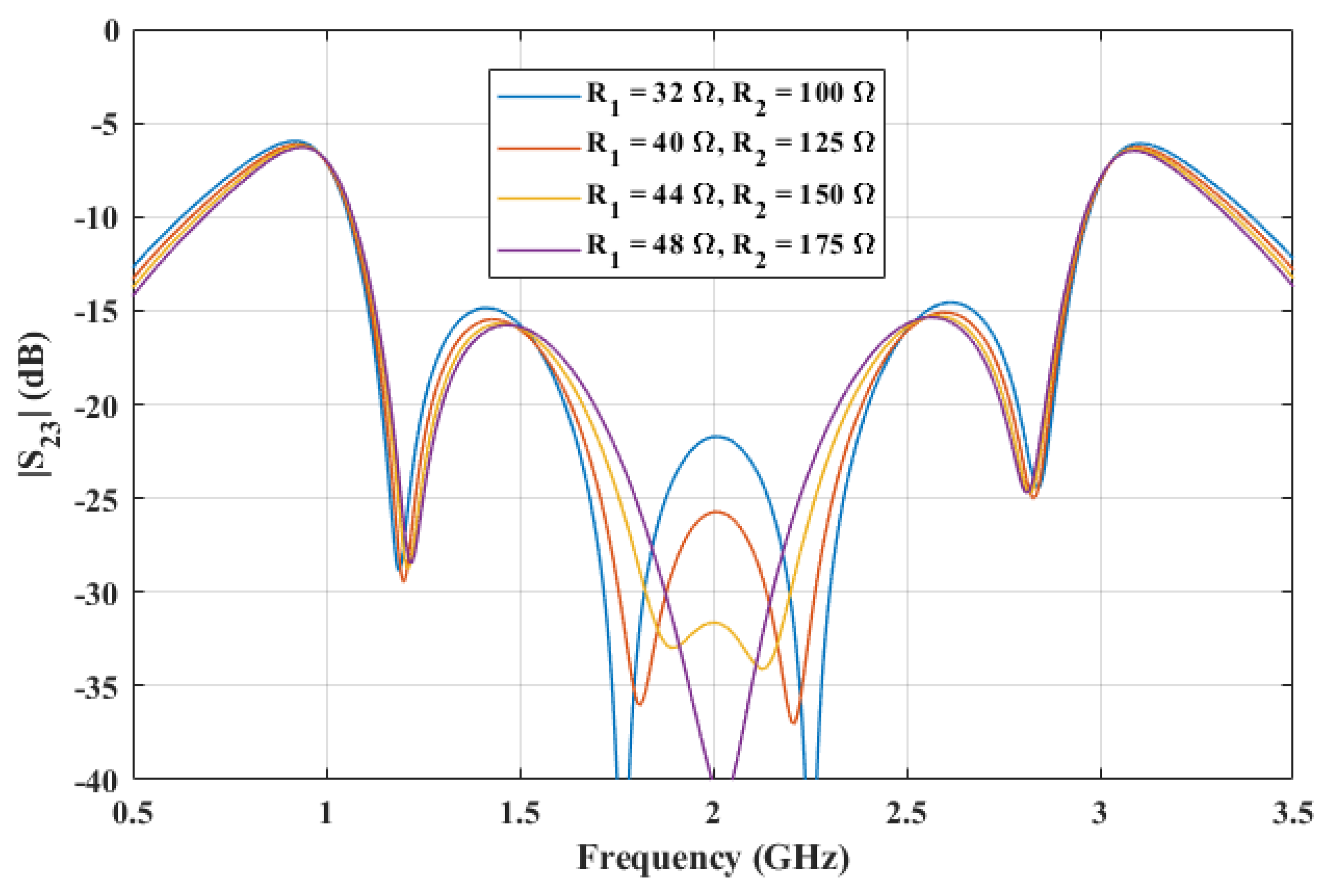

**Figure 18.**Variation of ${S}_{23}$(dB) for ${\theta}_{c}$ = 55${}^{\circ}$ with different isolation resistors.

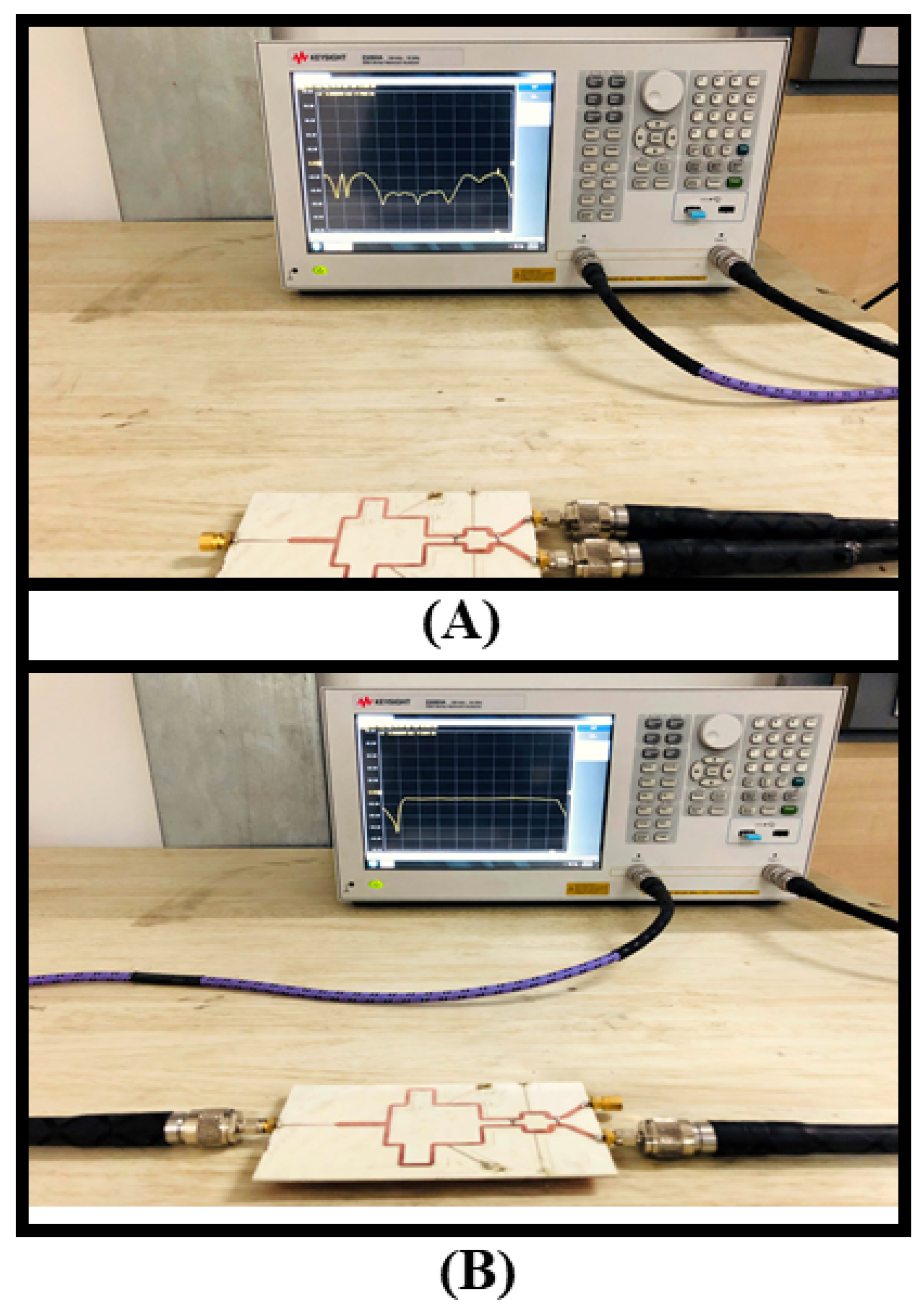

**Figure 23.**Measurement Setup for (

**A**): ${S}_{23}$; (

**B**): ${S}_{21}$ for ${\theta}_{c}$ = 55${}^{\circ}$.

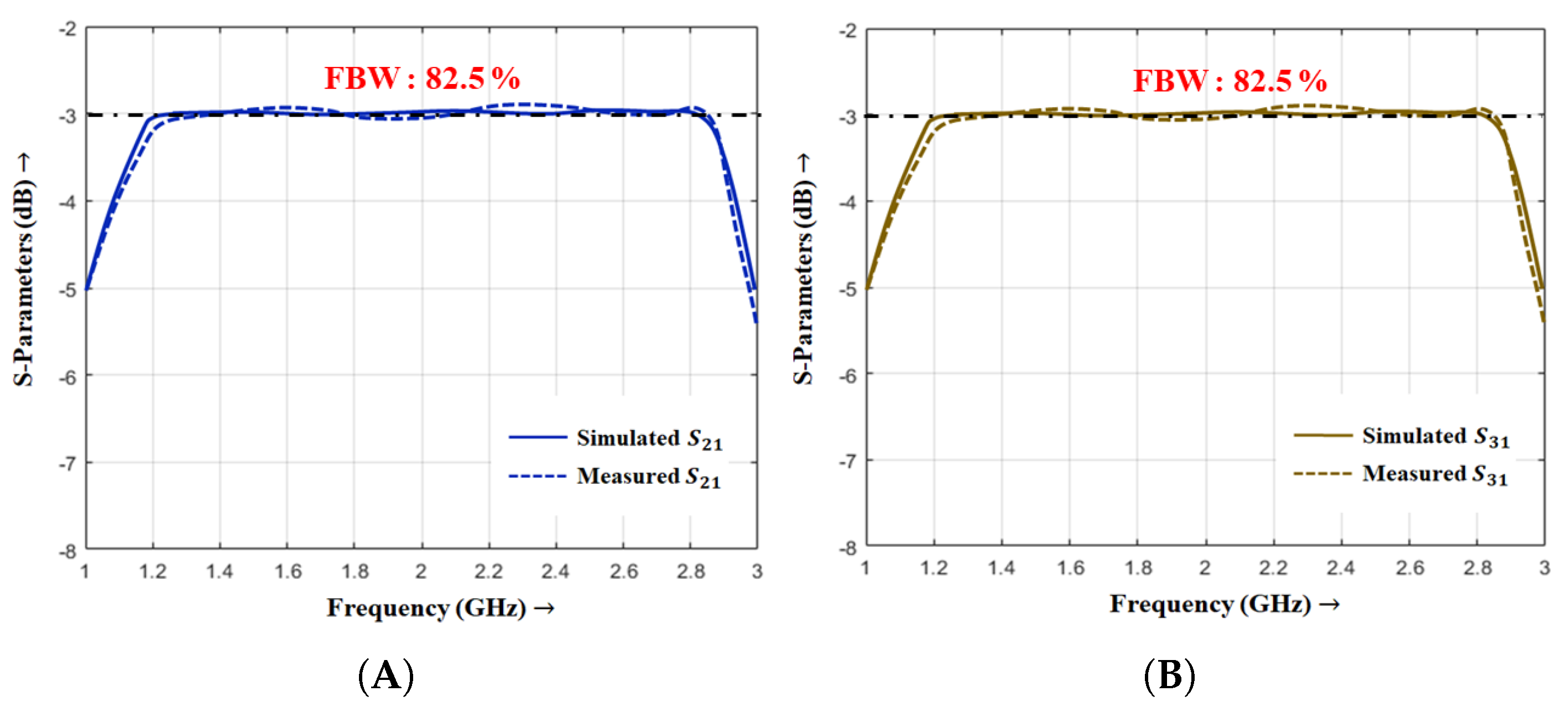

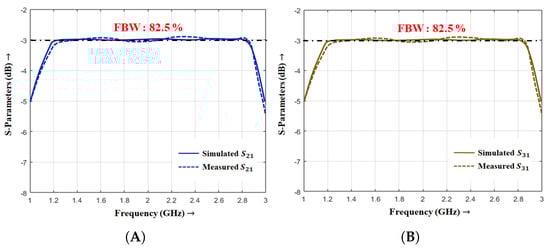

**Figure 24.**EM vs. Measured S-parameters for (

**A**) ${S}_{21}$; (

**B**) ${S}_{31}$ for ${\theta}_{c}$ = 55${}^{\circ}$.

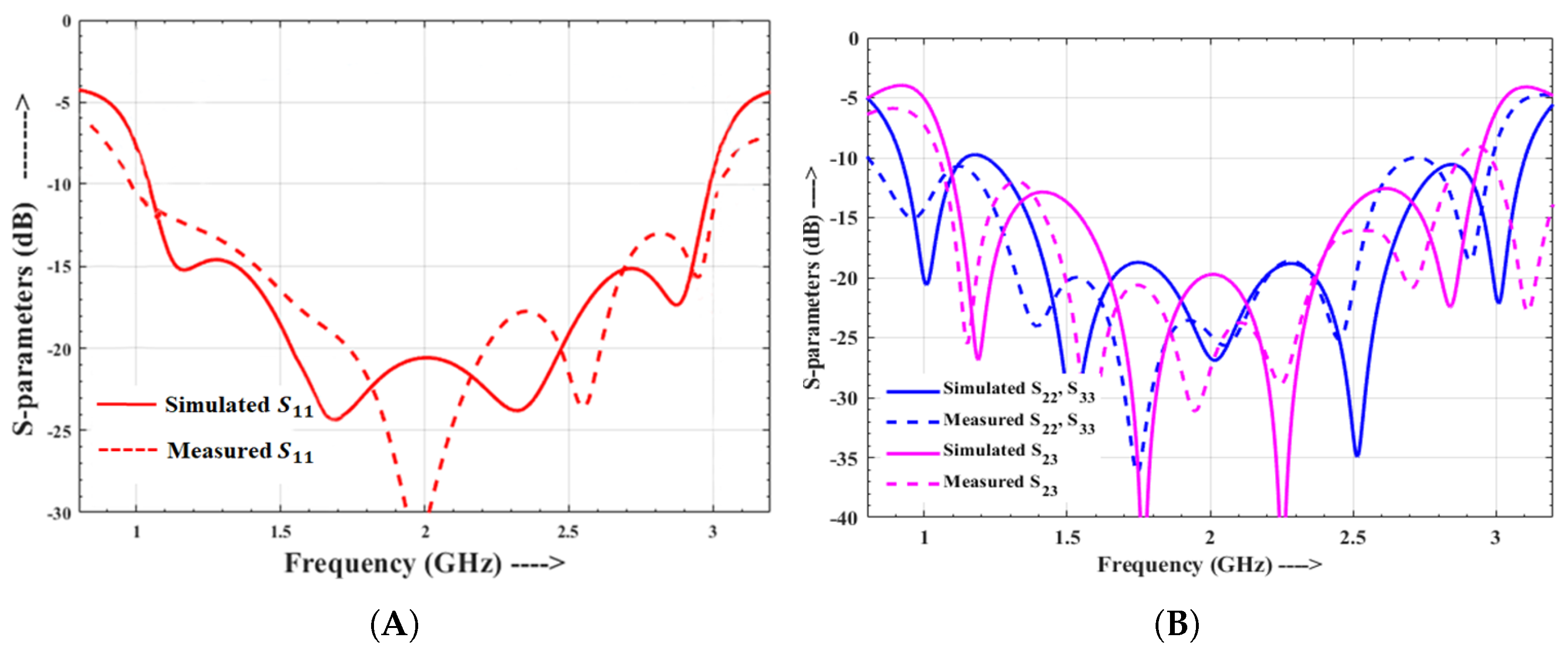

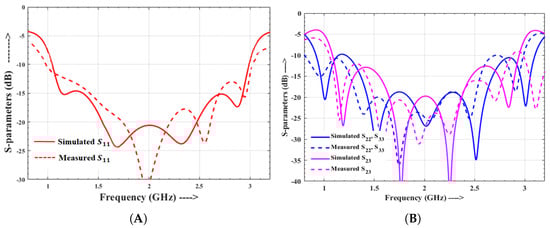

**Figure 25.**EM vs. Measured S-parameters for (

**A**) ${S}_{11}$; (

**B**) ${S}_{23},{S}_{22}$ for ${\theta}_{c}$ = 55${}^{\circ}$.

Parameters | Cases | ||
---|---|---|---|

${\mathit{\theta}}_{\mathit{c}}$ | 55${}^{\circ}$ | 60${}^{\circ}$ | 65${}^{\circ}$ |

${Z}_{A}$($\Omega $) | 115 | 127 | 120 |

${Z}_{B}$ ($\Omega $) | 81 | 90 | 94 |

${Z}_{S1}$ ($\Omega $) | 110 | 55 | 35 |

${Z}_{S2}$($\Omega $) | 40 | 31 | 24 |

${R}_{1}$ ($\Omega $) | 131 | 94 | 162 |

${R}_{2}$ ($\Omega $) | 200 | 150 | 200 |

Parameters | Cases | ||
---|---|---|---|

${\mathit{\theta}}_{\mathit{c}}$ | 55 ${}^{\circ}$ | 60${}^{\circ}$ | 65${}^{\circ}$ |

${Z}_{A}$ ($\Omega $) | 110 | 50.82 | 35 |

${Z}_{B}$ ($\Omega $) | 88.63 | 127 | 92 |

${Z}_{S1}$ ($\Omega $) | 56.5 | 90 | 68 |

${Z}_{S2}$ ($\Omega $) | 70 | 47.4 | 48 |

${Z}_{e}$ ($\Omega $) | 131 | 160 | 129 |

${Z}_{o}$($\Omega $) | 30 | 69 | 42 |

${R}_{1}$ ($\Omega $) | 38 | 100 | 62 |

${R}_{2}$($\Omega $) | 150 | 150 | 150 |

Reference | Frequency Range (GHz) | Topology | FBW * (|${\mathit{S}}_{21}$ = ${\mathit{S}}_{31}$|) | DC Isolation | Isolation Network | Size (${\mathit{\lambda}}_{\mathit{g}}\times {\mathit{\lambda}}_{\mathit{g}}$) |
---|---|---|---|---|---|---|

MWCL [40] | 2.7–4.7 | Dual Resonant Modes in single resonator | 53.5% (3 dB) | No | 1 Resistor | 1.06 × 0.89 |

MWCL [54] | 1.25–2.5 | Coupled-lines at Input/Output port | 51% (3 dB) | Yes | 1 Resistor | 0.89 × 0.57 |

TMTT [45] | 1.45–4.6 | Quasi-coupled Lines | 77% (3 dB) | No | 1 Resistor 1 Capacitor | 0.2 × 0.15 |

MWCL [43] | 1.55–4.24 | Embedded Transversal Signal Interference | 84% (3 dB) | No | 1 Resistor 1 Inductor 1 Capacitor | 0.8 × 0.5 |

Access [50] | 1.42–3.42 | Three Line coupled structure | 58% (3 dB) | Yes | 1 Resistor | 0.62 × 0.5 |

TCPMT [47] | 1.5–3.55 | Three Line Coupled structure | 64% (3 dB) | No | 1 Resistor | 0.05 × 0.32 |

This Work | 1.3–2.9 | Two-stage Configuration | 80% (3 dB) | No | 2 Resistors | 1.03 × 0.62 |

1.01–3.02 | Two-stage with Coupled Lines | 82.5% (3 dB) | Yes | 2 Resistors | 1.2 × 0.86 |
