Phycoremediation as a Strategy for the Recovery of Marsh and Wetland with Potential in Colombia

Abstract

Colombia is the country with the sixth highest amount of water reserves in the world, and 25% of its territory is covered by wetlands. However, approximately 50% of the country’s water is estimated to exhibit some type of contamination related to anthropic activities. An alternative for the treatment and the recovery of its bodies of water is the use of microalgae, unicellular, and mixotrophic microorganisms, as these bioreactors are highly adaptable to the environment, and their maintenance costs are minimal, because they feed on almost any substrate. In fact, different countries have already reported using microalgae as bioremediators for bodies of water. The use of these microphytes is efficient because they metabolize, degrade, or bioaccumulate heavy metals, pesticides, emerging pollutants, and antibiotics. In general, strategies relying on microalgae to eliminate pollutants are very similar to one another. For example, the first stage often includes a process of bioadsorption, consumption, degradation, and accumulation, wherein the microalgae use molecules generated from their own cellular metabolism. Some pilot studies focusing on the phycoremediation of marshes and other bodies of water have already been conducted in Colombia; however, more studies on process optimization, effectively leveraging the biodiversity of the existing microalgae, and better adapting microalgae to the region are still required.

1. Introduction

Marshes, known as flood plain lakes, are shallow, slow bodies of water (≤10 m), with temperatures rising above 25 °C and rainfall exceeding 2000 mm per year that play an important role in the biogeochemistry and the ecology of tropical river systems. Life in these systems is well adapted to the spatial–temporal and physicochemical variations caused by extreme water level fluctuations, which depend on the degree of connectivity (direct or indirect) between the corresponding marsh and the rivers from which they receive water (during floods) or to which they discharge their water in (in dry periods) [1,2]. The hydrodynamic nature of these systems fosters complex primary and secondary production cycles in addition to being water reoxygenators, ecological refuges, a breeding and feeding area for local and migratory species, and, thanks to their high biological productivity, a significant means of sustenance for several economic activities [3].

Colombia reports 1900 marshes covering an area of 478,418 ha. Still, 80% of this area is related to the Magdalena marsh system divided into four complexes: Bajo Magdalena–Canal del Dique, Delta rio Magdalena–Alto río Cauca y Magdalena medio, el sistema cenagoso de la depresión de la Momposina, and the Sinú river system [4].

The contamination of the marsh and wetland systems of the Colombian Caribbean region is largely associated with water management from their feeding natural (rivers) and anthropogenic sources (Figure 1A), some of which are easily distinguishable at the discharge site (direct), and others not as clearly visible, but causing environmental alteration and degradation (diffuse) [5]. Overall, the bodies of water feature different sources of contamination, which vary both in intensity and volume [6] and are closely linked to the expansion of agriculture, cattle ranches, mining, illegal plantations, and urban growth [7]. Wastewater is often a complex mixture of organic and inorganic materials coupled with artificial compounds. For example, 75% of the organic carbon found in wastewater is in the form of biomolecules such as carbohydrates, fats, proteins, amino acids, and volatile acids. Inorganic constituents include large concentrations of sodium, calcium, potassium, magnesium, chlorine, sulfur, phosphate, bicarbonate, ammonium salts, and heavy metals [6]. This large number of organic and inorganic substances affects water quality, thus generating an “eutrophic crisis”, which is characterized by an excessive and uncontrolled proliferation of phytoplankton, plants, and cyanobacteria (blue–green algae).

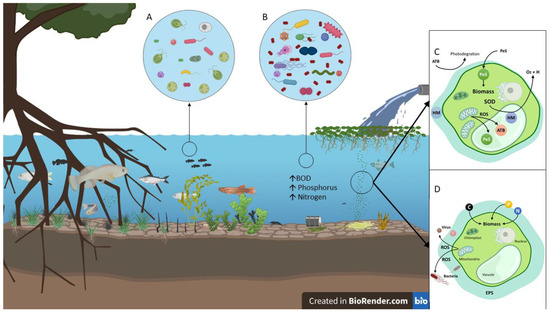

Perhaps the most visible effect of eutrophication (Figure 1B) is the generation of phytoplankton blooms on the surface, which constrain the penetration of light, hinder growth, and cause plant deaths, while, in turn, reducing the success rate of predators that require light to chase and catch their preys [8]. Furthermore, high photosynthesis rates can deplete dissolved inorganic carbon and raise pH to extreme levels, leaving large numbers of chemosensory organisms, which depend on the perception of dissolved chemical signals for their survival, without communication [9]. Ultimately, when these dense blooms die, microbial decomposition severely depletes the oxygen dissolved, thus creating a hypoxic environment, which is insufficient for sustaining most organisms [10].

Some algal blooms pose an additional threat, as they produce toxins (microcystin and anatoxin) that negatively affect the fishing industry and create significant risks to public health. Poisonings of domestic animals, wildlife, and even humans by toxic cyanobacteria blooms have been documented throughout the world, dating back to their first observation in Australia (1878), where cases of cattle killed by cyanobacterial blooms had been reported. In addition to posing significant public health risks, cyanobacteria have been identified as poor-quality food for most zooplankton grazers, thus reducing the efficiency of energy transfer in aquatic food webs [11].

In South America, blooms have been severely underestimated due to the lack of records and poor monitoring. One of the most notorious cases occurred in Brazil in 1996, where 52 people died from drinking microcystin-poisoned water. In Colombia, one of the first documented cases occurred in Ciénaga Grande de Santa Marta in 1971, where an unprecedented level of fish mortality was observed due to the proliferation of Anabaenopsis cyanobacteria. However, this was not an isolated event. In fact, this same event has been repeated several times in the same region: in 1985 and 1994 [12], and more recently in 2015 [13,14].

In addition to chemical contamination and direct environment eutrophication, microbial contamination is another issue that has become prominent in recent years. Marsh systems with direct sewage discharges are an ideal medium for the development of a wide range of microorganisms, especially bacteria, viruses, and protozoa. These microorganisms can cause diseases of different severity, ranging from gastroenteritis to severe diarrhea, dysentery, typhoid, or hepatitis. Most of these microorganisms are harmless (in fact, they are commonly used in wastewater treatments), but a few (excreted in large numbers by ill individuals) have the ability to survive and cause the aforementioned diseases. Some studies conducted on marshes denote a high microbial load related to fecal contamination (Table 1) and/or the prevalence of other enteropathogenic bacteria associated with autochthonous fauna, such as Vibrio [15], Citrobacter freundii [16], and Pseudomona aeruginosa [17].

In general, there are few studies related to marsh system contamination in the Caribbean region. Current information available is punctual and assesses few parameters (physical, chemical, biological, and ecological), and most of the studies available are gray literature and in many cases lack scientific rigor. Table 1, below, summarizes some research studies related to this subject matter. This type of marsh contamination and, in general, of continental bodies of water, is closely related to neighboring anthropic activity. For the marshes of the Colombian Caribbean, most reports indicate three major pollutants: coliform bacteria, pesticides, and heavy metals. These pollutants generate a eutrophication of the environment, with proliferation of pathogenic microorganisms, reduced primary production, genotoxic bioaccumulation, and, ultimately, loss of biodiversity.

Microalgae are unicellular organisms that convert the energy of solar radiation into chemical energy through photosynthesis. In terms of biomass, microalgae are one of the largest primary producers, and are responsible for at least 32% of global photosynthesis and oxygen production and CO₂ sequestration [18]. The introduction of these microorganisms in the wastewater sector represented one of the most promising advances in recent decades [19,20]. This idea aims to use wastewater as a medium for the cultivation of biomass (microalgae) with high commercial value and, at the same time, contribute in a sustainable way to the purification of the effluent during the growth process. [21,22]. In this way, it would be possible to carry out both a bio-cleaning action of wastewater and a bio-recovery of nutrients, helping to mitigate the negative environmental impact of industrial and agricultural practices that depend significantly on a constant supply of macronutrients [23]. The commercial use of this technology was proposed more than 60 years ago by Oswald et al. [24]; however, it only recently received a significant boost in its implementation, thanks to the new sustainability policies. Biorefineries (as currently referred to as systems for the sustainable production of algae biomass used to generate subproducts and energy) are complex systems from an operational point of view, with operating costs higher than traditional wastewater treatment plants [23]; however, over time, they will be profitable, as long as some general rules are adopted, for example, (a) production and extraction of biocomposites with high added value, for which there is already a market [25]; (b) production of slow-release biofertilizers [26]; and (c) sustainable bio-recovery of heavy or precious metals and rare-earth elements through bioaccumulation and biosorption processes [27,28,29].

Microalgae have a wide range of applications in the pharmaceutical, food, animal, renewable energy, and cosmetics industries; it is estimated that there are approximately 45,000 to 100,000 species. Generally, and as they are not considered a taxonomic group, microalgae are eukaryotic unicellular organisms (with a size that can vary between 0.5 and 200 nm), mixotrophic, with strong adaptability to the environment. This polyphyletic group of microorganisms is divided into subgroups called diatoms (Bacillariophyta), red algae (Rhodophyta), green algae (Chlorophyta), and blue-green algae (Cyanophyta) [30]. Currently, efforts are being made to standardize the double application of microalgae in the restoration of contaminated water bodies and the production of value-added products such as carotenoids, antioxidants, fatty acids, enzymes, polymers, peptides, toxins and sterols [31], and using industrial waste [32,33], livestock waste [34], agro-industrial waste and pesticides [35,36] as a substrate, making microalgae cultivation profitable [37]. Another promising approach is using these microorganisms as a phytoremediator of aquatic environments contaminated with antibiotics or toxic metals such as Aluminum, Nickel, Lead, Cadmium, Mercury, Tin, Arsenic and Bromine [38,39,40,41], and the elimination of pathogenic bacteria [42] and viruses [43]. In this review, we will delve into the physiological mechanisms used by microalgae to carry out these processes.

2. Phycoremediation

Phycoremediation refers to the use of macroalgae, microalgae, and cyanobacteria to eliminate or biotransformation of toxic and recalcitrant pollutants present in water and capture atmospheric CO₂ (for environmental cleaning). This technology has ecological and economic advantages, mainly due to its high-efficiency adsorption, rapid process, and widely available resources [44]. To date, the relevant literature abounds in studies focusing on those strains with a high content of pigments, starches and especially lipids, the latter being used to obtain biofuels through transesterification processes [45]. However, microalgal species tend to have different physiological requirements related to temperature, pH, the presence/absence of heavy metals and potentially toxic elements, the presence/absence of light radiation in the culture system, as well as the ability to perform an autotrophic, heterotrophic, or mixotrophic metabolism [23]. In this sense, microalgae, unlike other organisms (bacteria and fungi) used in the restoration of ecosystems, can perform several functions in parallel (metabolize, accumulate or adsorb pollutants, decrease organic load, capture CO₂, and produce oxygen and added-value compounds and biomass). Although the removal, production or degradation rates seen independently are lower than those of other microorganisms, in systems based on bacteria or fungi, the final degradation products are organic acids and inorganic minerals that make up most of the sludge, the disposal of which becomes a problem [46].

There are three main strategies used by microalgae for environmental remediation, providing advantages compared to other biological processes that use microorganisms. The ability to remove polluting compounds is mediated by: (a) Biosorption—considered a passive process that allows immobilizing organic pollutants such as aromatic compounds and pesticides, by electrostatic bonding of the pollutant with the cell wall and the extracellular matrix [47]. Due to the microalgae’s surface properties and retention capacity, its biomass is used as a biosorbent for diclofenac [48] and Cr+6 [49] present in water. In many cases, physical factors (pH and temperature) are among the essential parameters, since they affect the normal development of the microorganism and the pollutant, altering the pollutant’s color, solubility, and viscosity. For example, in the phytoremediation of synthetic dyes, the biosorbent surface of microalgae has numerous functional groups such as carboxyl, hydroxyl, amino, and phosphates. Due to this, the net charge of the biosorbent depends on the pH. If the pH drops, the biosorbent surface will have more positively charged sites, favoring the adsorption of anions due to electrostatic attraction. [50]. Therefore, at lower pH, the biosorbent surface binds to anionic molecules [51]; (b) Bioaccumulation—it is considered an active process where biomass captures organic and inorganic pollutants (heavy metals, pesticides, nitrates, sulfates and phosphates) and transfers them to the interior of the cells, eliminating them from the aqueous matrix [47]. This process is actively used to bioconcentrate metals such as Zn, Al, Fe, Cd and Cu [39]. (c) Biodegradation—essential process to eliminate organic matter and small molecules present in the water through transformation and/or mineralization [52]; it has been observed that microalgae are capable of degrading pollutants and transforming them into intermediates, or improving the degradation rate of the microbial community present [53].

2.1. Phycoremediation In Situ

These techniques involve the treatment of contaminated substances at the site of contamination. They do not require any movement of the contaminated material and, therefore, no alteration of the matrix structure. Taking into account that slow ecosystems such as swamps and wetlands are large bodies of water, ex situ bioremediation techniques such as tubular photobioreactor, open raceway pond, and a two-stage hybrid system are more efficient in terms of quality since they can operate in more controlled conditions [54]. However, they have a limited maximum volume of cargo and investment costs ranging between 180,000 and 3,400,000 USD/hectare [55] for the open raceway pond and tubular photobioreactor, respectively, making this type of strategy economically unviable for the recovery of bodies of water. Ideally, these in situ techniques should be less expensive compared to ex situ bioremediation techniques; however, the cost of designing and installing some sophisticated equipment on-site to enhance microbial activities during bioremediation is a significant concern [55].

Some in situ bioremediation techniques include: (a) Biosparging, which is the injection of air (or oxygen) and nutrients (if necessary) into the contaminated area, generating an upward movement of volatile organic compounds to the unsaturated area, thus promoting biodegradation. The effectiveness of this technique depends mainly on the bioavailability and biodegradability of the pollutant. [55,56]; (b) Intrinsic bioremediation, also known as natural mitigation, which is a technique that involves passive remediation (without human intervention). The process is based on natural aerobic and anaerobic microbial processes to biodegrade pollutants, transforming them into less dangerous compounds. The absence of external force implies that the technique is less expensive. However, the process must be monitored to establish that bioremediation is continuous and sustainable; and (c) Bioaugmentation, which is the process of adding selected strains/mixed cultures to improve the catabolism of specific compounds, generally divided into two main strategies. Bioaugmentation is performed either by enrichment with native or indigenous microorganisms previously adapted and isolated from the site or enrichment with non-native microorganisms. This methodology is used in places with no active macro-organisms that degrade the contaminant. [57].

2.2. Microbial Consortia

Microalgae and bacteria are closely related (from a nutritional exchange point of view), covering many interactions ranging from mutualism/commensalism to competition/parasitism [58,59]. Generally, microalgae produce O₂ and dissolve organic carbon that bacteria can use as an electron and energy acceptor. For their part, bacteria release CO₂ during the degradation of organic matter, nitrogen, vitamin B, and siderophores, which are easily accessible to microalgae [60,61]. The substrate/metabolite interdependence promotes the growth of the associated groups and provides stability against environmental oscillations, minimizes the invasion of other species, and improves the global absorption of nutrients [62]. These interactions are not limited only to the exchange of nutrients, but also to communication through chemical signals, such as indole-3-acetic acid (IAA) and N-acyl-homoserine lactones (AHL), which mediate a variety of collective behaviors and ecological functions, for example, acquisition of nutrients, construction of ecological niches (where the microalgae act as a secondary habitat, and the bacteria provide polysaccharides or proteins) and reproduction [63,64]. The antagonistic effects of microalgae/bacteria interactions cannot be ignored; in these cases, one microorganism controls the accelerated growth of the other. For example, bacteria produce toxic metabolites (mycotoxins and allelochemicals) and lytic enzymes that inhibit excessive growth of microalgae; and microalgae are capable of releasing exotoxins that act as bacteria growth-inhibiting compounds to maintain the balance of the community [64]. However, knowledge about the interaction mechanisms is limited at the moment [65], and is focused on understanding biological and physical interactions, with few studies having illustrated interactions at the molecular and biochemical level [58].

2.3. Microalgal Biomass

One of the main drawbacks of cultivation or bioremediation with microalgae is their collection and final disposal. Although there are multiple techniques available for separating biomass from the bulk of the crop, adopting a harvesting technique depends mainly on the application of the biomass produced and the energy requirement per unit of biomass production. In the preliminary step, collection techniques such as sedimentation, flocculation, filtration, electrocoagulation, and filtration are used to obtain a biomass suspension [66]. This biomass can be used as an alternative raw material (compared to the raw material that is typically generated from plants). The use of polluted water limits the application of the algae biomass produced [67]. In general, the microalgae biomass from contaminated waters can be used to produce alternative energies (biodiesel, biomethane, bioethanol, bioglycerol, polysaccharides and bioplastics). Therefore, removing contaminants would be necessary for use in specific applications. There are limited studies on the recovery of metals from coagulated-flocculated biomass. For this reason, it is imperative to study the recovery of other organic polymers from microalgae biomass [66].

3. Biodiversity

Microalgae are a very diverse group that includes prokaryotes (cyanobacteria) and photosynthetic eukaryotes located in three kingdoms: protozoa, chromista, and plantae [11]. Microalgae classification has been based on morphological, physiological, and ecological characteristics. However, molecular and ultrastructural characteristics have recently been included as part of their classification [68]. Given the differences between the International Code of Nomenclature of Prokaryotes and the classification systems used for eukaryotes, such as the International Code of Nomenclature for Algae, Fungi, and Plants, many authors exclude cyanobacteria from microalgae classification [67,68]. Still, a prokaryotic lineage is often identified within the group: Cyanophyta (blue–green algae), and nine eukaryotes: Prochlophyta, Glaucophyta, Rhodophyta (red algae), Cryptophyta, Chlorophyta (green algae), Euglenophyta, Chlorarachniophytes, Pyithophyta (dinoflagellates), and Chromophyta (heterokont algae) [67,68].

These microorganisms are characterized by exhibiting chloroplasts or photosynthetic cell structures, and phycobiliproteins, such as chlorophylls and carotenoids [11,69,70]. They are widely distributed in environments as diverse as freshwater or marine, in surface waters, in water columns, deep waters, and sediments; and in terrestrial environments, in soils rich in organic matter, hot and cold sandy regions, and in extreme regions such as the Antarctica [11,69,71,72]. Microalgae are a part of plankton and play a critical ecological role at the bottom of the food chain. In fact, they account for approximately half of photosynthesis and oxygen production on the planet and play an essential part in carbon fixation [12,13,72]. In Colombia, although some metagenomics and microbial ecology studies have identified microalgae in rivers, marshes, and hot springs in different regions, there are very few studies on microalgal diversity [13,73,74,75,76].

4. Chemical Biodegradation through Microalgae

Microalgae can degrade several chemical pollutants, such as heavy metals, contaminating gases, pesticides, antibiotics, and other toxic chemical compounds. For these purposes, and depending on the nature of the agent, microalgae use one of the following strategies to either degrade or internalize and bioaccumulate each agent (Figure 1C).

4.1. Phycoremediation of Heavy Metals

Heavy metals, such as arsenic, cadmium, chromium, lead, and mercury, are carcinogenic and may exhibit toxicity even in trace amounts, threatening ecosystems and human health. Within this context, there is an emerging trend of employing microalgae in the phycoremediation of heavy metals, due to their several benefits, including their abundant availability, affordable costs, excellent metal removal efficiency, and eco-friendly nature [75].

Meanwhile, even when microalgae are able to use heavy metals, such as boron, cobalt, copper, iron, molybdenum, manganese, and zinc, as enzymatic cofactors in cellular processes, other heavy metals, such as arsenic, cadmium, chromium, lead, and mercury, are toxic to them. However, due to the hormesis phenomenon, some low-toxicity heavy metals can even stimulate the growth and the metabolism of microalgae (Figure 1C).

In fact, microalgae use several self-protection strategies against toxicity, such as heavy metal immobilization, gene regulation, exclusion, chelation, antioxidant overexpression, and enzyme reduction; however, each strategy depends on the microalgae species and the nature of the metal. Below, we provide an overview of some of these strategies, but, for further information on this subject matter, please refer to Leong (2020) [75].

Table 1. Studies conducted in the main marshes of the Caribbean region.

Location	Pollution Sources	Type of Assessment	Conclusions	Reference
Grande de Santa Marta Marsh-Magdalena	Domestic waste Farming Manufacturing industry	Phosphorus Nitrogen Heat-resistant coliforms Total suspended solids	Eutrophication and microbiological/fecal contamination	[5]
		Metal (Pb, Cd, and Zn) determination in sediments	High heavy metal levels	[77]
		Determination of organochlorine pesticides (lindane, heptachlor, aldrin, DDE, DDD, and DDT) in sediments	Contamination with agrochemicals	[78]
		Characterization of cyanobacteria and their toxins	Eutrophication and contamination with phycotoxins	[12,13,14,79]
Mir River Estuary-Pacific Region	Trans-Andean pipeline	Determination of Petroleum Hydrocarbons equivalent of Chrysene (HP) and Polycyclic Aromatic Hydrocarbons (PAH)	contamination with agrochemicals	[80]
La Mojana Region (San Antonio Marsh, Machado Marsh, and San Marcos Marsh)-Sucre	Gold mining	Determination of Mercury in sediments, fish, hair, rice crops, and macrophytes	High heavy metal levels	[81]
Ayapel Marsh- Córdoba	Municipal and industrial wastewater.	Nitrogen Phosphorus Solids (total, suspended, sedimentable, and dissolved) Total coliforms	Eutrophication and microbiological/fecal contamination	[82]
		Determination of mercury in fish and marsh inhabitants	High heavy metal levels	[83]
		Not specified	Mercury contamination	[84]
		Cyanobacteria characterization	Eutrophication, high levels of toxic cyanobacteria	[85]
Mata de Palma Marsh-Cesar	Municipal and industrial wastewater Farming Cattle farming Open-pit mining	Tubificidae and Planorbidae counts- Indicators of highly contaminated waters from organic matter, polysaccharide waters, and hypoxia	eutrophication	[86]
		Fecal coliforms Total coliforms	Microbiological/fecal contamination	[87]
La Virgen Marsh-Bolívar	Farming	Organochlorine pesticides DT, DDE, and DDD Heptachlor and methoxychlor	Contamination with agrochemicals	[88]
	Municipal and industrial wastewater	Total suspended solids Ammonium Phosphorus Fecal coliforms Total coliforms	Eutrophication and microbiological/fecal contamination	[89]
Mallorquín Marsh-Atlantic Ocean	Municipal and industrial wastewater Farming	Metal (Hg, Cd, Cu, Pb, Cr, Ni, and Zn) determination in sediments	High levels of heavy metals	[90]
		Metal (Hg, Cr, Cd, and Ni) determination in sediments		[91]
		Metal (Zn, Cu, Pb, Cd, and Hg) determination in water		[92]
Miramar Marsh-Santander	Municipal and industrial wastewater Farming	Total suspended solids Fats and oils Metal determination (Al, Ba, Hg, Pb, and Cd) in water Total coliforms and fecal coliforms	Heavy metal contamination, eutrophication, and microbiological/fecal contamination	[93]
Opón and Miramar Marshes-Santander	Municipal and industrial wastewater	Phytoplankton and zooplankton	Eutrophication	[94]
Soledad Marsh-Córdoba	Farming Cattle farming Gold mining	Metal (Fe, Mn, Ni, Cr, Al, Hg, Pb, Cd, Cu, and Zn) determination in water, fish, and sediments	Heavy metal contamination	[95]
La Quinta Marsh- Bolívar	Municipal and industrial wastewater	Total coliforms and fecal coliforms Metal (Hg, Cr, and Cd) determination in sediments	Heavy metal contamination, eutrophication, and microbiological/fecal contamination	[77]
Puerto Caimán Marsh-Atlantic	Municipal and industrial wastewater Cattle farming	Phytoplankton	Eutrophication	[96]
Grande del Bajo Sinú Marsh-Córdoba	Farming Cattle farming	Organochlorine compounds in fish	Organochlorine contamination	[97]
		Cyanobacteria evaluation and characterization	Eutrophication, high levels of toxic cyanobacteria	[98]

Table 1. Studies conducted in the main marshes of the Caribbean region.

Location	Pollution Sources	Type of Assessment	Conclusions	Reference
Grande de Santa Marta Marsh-Magdalena	Domestic waste Farming Manufacturing industry	Phosphorus Nitrogen Heat-resistant coliforms Total suspended solids	Eutrophication and microbiological/fecal contamination	[5]
		Metal (Pb, Cd, and Zn) determination in sediments	High heavy metal levels	[77]
		Determination of organochlorine pesticides (lindane, heptachlor, aldrin, DDE, DDD, and DDT) in sediments	Contamination with agrochemicals	[78]
		Characterization of cyanobacteria and their toxins	Eutrophication and contamination with phycotoxins	[12,13,14,79]
Mir River Estuary-Pacific Region	Trans-Andean pipeline	Determination of Petroleum Hydrocarbons equivalent of Chrysene (HP) and Polycyclic Aromatic Hydrocarbons (PAH)	contamination with agrochemicals	[80]
La Mojana Region (San Antonio Marsh, Machado Marsh, and San Marcos Marsh)-Sucre	Gold mining	Determination of Mercury in sediments, fish, hair, rice crops, and macrophytes	High heavy metal levels	[81]
Ayapel Marsh- Córdoba	Municipal and industrial wastewater.	Nitrogen Phosphorus Solids (total, suspended, sedimentable, and dissolved) Total coliforms	Eutrophication and microbiological/fecal contamination	[82]
		Determination of mercury in fish and marsh inhabitants	High heavy metal levels	[83]
		Not specified	Mercury contamination	[84]
		Cyanobacteria characterization	Eutrophication, high levels of toxic cyanobacteria	[85]
Mata de Palma Marsh-Cesar	Municipal and industrial wastewater Farming Cattle farming Open-pit mining	Tubificidae and Planorbidae counts- Indicators of highly contaminated waters from organic matter, polysaccharide waters, and hypoxia	eutrophication	[86]
		Fecal coliforms Total coliforms	Microbiological/fecal contamination	[87]
La Virgen Marsh-Bolívar	Farming	Organochlorine pesticides DT, DDE, and DDD Heptachlor and methoxychlor	Contamination with agrochemicals	[88]
	Municipal and industrial wastewater	Total suspended solids Ammonium Phosphorus Fecal coliforms Total coliforms	Eutrophication and microbiological/fecal contamination	[89]
Mallorquín Marsh-Atlantic Ocean	Municipal and industrial wastewater Farming	Metal (Hg, Cd, Cu, Pb, Cr, Ni, and Zn) determination in sediments	High levels of heavy metals	[90]
		Metal (Hg, Cr, Cd, and Ni) determination in sediments		[91]
		Metal (Zn, Cu, Pb, Cd, and Hg) determination in water		[92]
Miramar Marsh-Santander	Municipal and industrial wastewater Farming	Total suspended solids Fats and oils Metal determination (Al, Ba, Hg, Pb, and Cd) in water Total coliforms and fecal coliforms	Heavy metal contamination, eutrophication, and microbiological/fecal contamination	[93]
Opón and Miramar Marshes-Santander	Municipal and industrial wastewater	Phytoplankton and zooplankton	Eutrophication	[94]
Soledad Marsh-Córdoba	Farming Cattle farming Gold mining	Metal (Fe, Mn, Ni, Cr, Al, Hg, Pb, Cd, Cu, and Zn) determination in water, fish, and sediments	Heavy metal contamination	[95]
La Quinta Marsh- Bolívar	Municipal and industrial wastewater	Total coliforms and fecal coliforms Metal (Hg, Cr, and Cd) determination in sediments	Heavy metal contamination, eutrophication, and microbiological/fecal contamination	[77]
Puerto Caimán Marsh-Atlantic	Municipal and industrial wastewater Cattle farming	Phytoplankton	Eutrophication	[96]
Grande del Bajo Sinú Marsh-Córdoba	Farming Cattle farming	Organochlorine compounds in fish	Organochlorine contamination	[97]
		Cyanobacteria evaluation and characterization	Eutrophication, high levels of toxic cyanobacteria	[98]

The phycoremediation of heavy metals through microalgae is achieved using a two-stage system. The first stage is rapid passive extracellular adsorption (biosorption). The outer surface of the cell presents a large number of peptides and exopolysaccharides with uronic groups, as well as functional groups, such as amino, carboxyl, hydroxyl, imidazole, phosphate, sulfonate, thiol, and others, capable of binding to anionic and cationic species of different heavy metals. The second stage begins when the metal is internalized through positive diffusion, and phytochelatin biosynthesis (peptides and proteins rich in thiol groups) is activated. These peptides and proteins form metalloprotein complexes, which are subsequently stored in vacuoles (bioaccumulation), helping to control metal ion concentrations in the cytoplasm and minimizing their toxic effects [99]. To counteract the free radicals released by heavy metals during adsorption, microalgae synthesize antioxidant enzymes, such as ascorbate peroxidase, catalase, glutathione reductase, peroxidase, and superoxide dismutase (SOD), as well as nonenzymatic antioxidants, such as carotenoids, cysteine, ascorbic acid (ASC), glutathione (GSH), and proline. SOD acts as the first line of defense against superoxide anions by decomposing them into oxygen and hydrogen peroxide molecules. Hydrogen peroxide is further degraded by catalase into water and oxygen molecules [75].

An example of bioremediation used in bodies of water contaminated with heavy metals is provided by Sivasubramanian et al. [100], who used Desmococcus oivaceus in the treatment of chromium-rich sludge generated by the electroplating industry. Based on this, microalgae play a critical role as primary producers in aquatic ecosystems, and their absorption capacity is a big additional advantage. Chlorella vulgaris, Scenedesmus incrassatulus, Chlamydomonas reinhardtii, Scenedesmus obliquus, and Chlorella pyrenoidosa have the ability to reduce chromium (VI) concentrations by 42% to 100% through chromium reductase and a glutathione purifying molecule [101].

Table 2. Using microalgae to remove heavy metals from bodies of water.

Name	Metal	Reference
Chaetoceros calcitrans	Cadmium	[102]
Chlorella vulgaris	Nickel, zinc, lead	[103]
Scenedesmus obliquus	Cadmium	[104]
Pithophora lanceolatum	Lead, mercury, cadmium	[105]
Spirogyra hialina	Mercury, cadmium, lead, arsenic, and cobalt	[106]

, below, lists other examples in which microalgae have been used to remove heavy metals.

4.2. Pesticide Phycoremediation

The increase in the population worldwide has generated agricultural activities to be increasingly intensive as they seek to satisfy the need for food of the different populations, becoming an important source of contamination for groundwater and surface water systems in different rural areas [107].

Microalgae can use a variety of organic pollutants, including pesticides, as an energy source (Figure 1C). Most of these compounds have recalcitrant chemical structures that are difficult to degrade, and in some cases, the degradation products are more toxic. Biodegradation of pesticides is determined by two groups of factors, the first relates to microorganisms including the presence and number of appropriate microorganisms, the contact between microorganisms and the substrate (pesticide), pH, temperature, salinity, nutrients, light quality and intensity, available water, oxygen tension and redox potential, surface binding, presence of alternative carbon substrates and alternative electron acceptors. The second group of factors including chemical structure, molecular weight and functional groups of the applied pesticides, their concentration and toxicity and their solubility in water [108]. In general, pesticide degradation (it is a similar process for antibiotic degradation) is a multistep process that includes the initial attack on substances, which thereby transforms the most hydrophilic compounds. In general, this process is characterized by reactions of hydrolysis, reduction, or oxidation of hydroxyl groups. The most common reactions portrayed are carboxylation, hydrogenation, and ring cleavage. The enzyme responsible for this initial process is cytochrome P450 [109]; in the second phase, the enzyme glutathione protects cells against oxidation processes. These catalysts are developed with the junction between electrophilic compounds and glutathione, glucose, or malonate [110,111]. In general, identifying enzymes responsible for the biodegradation of these contaminants in biodegradation processes is a highly complex process and there are only a few investigations on the same [111]. There are several studies that use algae from Chlorophyta phylum (green algae), Rhodophyta (red algae) and Chromophyta, to degrade organophosphate pesticides such as methyl parathion, parathion, malathion, phorate, quinalphos and monocrotophos; however, it has been proven that microalgae-bacteria microbial consortia are more effective in degrading compounds, for example: the use of Chlorella sp. and Scenedesmus sp. to degrade organophosphates, pyrethroids and oxadiazole [112], Chlorella vulgaris in non-anoxic cultures showed a high long-term removal rate in 10 of the most used industrial pesticides (carbofuran, carfentrazone-ethyl, fludioxonil, phenmedipham, propamocarb and terbuthylazine, among others) [35]. Chlorella sorokiniana [113] and Coccomyxa subellipsoidea [114] break down organophosphates (paraoxon, malathion and diazinon) through a mechanism that requires the formation of reactive oxygen species (ROS)

4.3. Emergent Contaminant Phycoremediation

Water quality management aimed at human health protection has focused on eutrophication, suspended sediments, heavy metals, and human pathogens. However, there has been a recent growing concern about the presence of Emergent Contaminants (CE, for the Spanish acronym) in bodies of water. Mainly, ECs (emergent contaminants) are compounds of different nature (synthetic or organic chemicals) with a high degree of solubility and are potentially dangerous for humans and the environment. These compounds are typically classified into several categories including pharmaceuticals, personal care products, illegal drugs, artificial sweeteners, plasticizers, and flame retardants. There are three main approaches through which microalgae can bioremediate EC: bioadsorption, bioconsumption, and biodegradation. Microalgae bioadsorption occurs when ECs are adsorbed on cell wall components or organic substances excreted by cell. Bioconsumption involves the active transport of ECs into the cell, where they link to intracellular proteins and other compounds. Unlike bioadsorption and bioconsumption, which simply act as biological filters that concentrate pollutants, biodegradation involves the transformation of complex compounds into simpler molecules through catalytic metabolic degradation. This process can occur through two mechanisms, either by metabolic degradation, where the EC serves as a carbon source; or by cometabolism, where EC is degraded by cytochrome P450 enzymes and other enzymes, such as glutathione-S-transferase, SOD, catalase, glutamyl-tRNA reductase, and malate/pyruvate dehydrogenase [115].

4.4. Antibiotic Phycoremediation

Antibiotic contamination has attracted increasing attention in recent years due to the potential harmful risks it represents to the environment and human health. Although most antibiotic traces found in the environment were in relatively low concentrations, growing evidence has demonstrate that they exert negative ecological effects on organisms, constraining the proliferation of beneficial microorganisms, and altering the composition and the activity of the microbial communities. Meanwhile, an excessive and improper use of antibiotics could promote the development and the spread of Antibiotic Resistant Bacteria and Antibiotic Resistant Genes, thus creating strong selection pressure on human and natural microbial systems [116].

Antibiotic removal rates depend to a large extent on the species of microalgae. For example, the species of the genus Chlorella are effective for the degradation of cephalosporins, ceftazindin, cephradine, cephalexin, amoxicillin, azithromycin, enrofloxacin, florfenicol, and levofloxacin. Some antibiotics can also be removed by photodegradation and volatilization; however, for these processes to occur, very special conditions must be met, which are not common and are generally considered insignificant. The degradation of antibiotics by microalgae occurs in three steps: (a) rapid passive adsorption through physicochemical interactions between the cell surface and contaminants; (b) a transfer of molecules across the cell membrane; and (c) bioaccumulation and biodegradation within the cell [117]. The mechanism of antibiotic adsorption and internalization is practically the same as that for heavy metals, but the underlying biodegradation mechanisms can be classified into two categories: (1) metabolic degradation, in which the antibiotic acts as a standalone carbon source or as a microalgae electron donor/acceptor (Figure 1C); and (2) cometabolism, in which additional organic substrates both sustain biomass production and act as electron donors. For further information on this matter, please refer to Xiong, 2021 [116].

4.5. Polycyclic Aromatic Hydrocarbons Degradation

Combined contamination of xenobiotics in aquatic ecosystems represents an environmental issue due to the limited information on the reciprocal interactions between chemicals and their toxic mechanisms [118]. The carcinogenic and mutagenic potential of Polycyclic aromatic hydrocarbons (PAHs) is well known; therefore, their effects on aquatic organisms are a critical concern [119]. PAHs consist of two or more benzene rings fused in linear, angular, or cluster [120]; they are considered recalcitrant compounds due to their low solubility, relative stability, low volatility, and resistance to biological degradation [121].

Compared to bacteria and fungi, not enough attention has been paid to the biodegradation of PAHs by microalgae, despite their ubiquitous distribution, their central role in carbon fixation and renewal, and the recognition of their heterotrophic capabilities. The information on the relationship between heterotrophy of algae and biodegradation of xenobiotic compounds is less than the broad information on bacteria and fungi [122].

Several microalgae strains are known to have the ability to metabolize/transform different PAHs (naphthalene, phenanthrene, anthracene, benzopyrene) [123]. Generally, microalgae have three mechanisms for eliminating PAHs from the environment: (1) PAHs adsorption on the surface of algae cells depending on the active groups present on those surfaces; (2) accumulation of PAH within algae cells; and (3) transformation of PAH depending on enzymatic actions [122,123,124]. The enzymatic degradation of PAHs depends on the nature and structure of the aromatic compound. For example, Warshawsky et al. (1995) [125] evaluated the degradation of benzopyrene (BaP) by Selenstrum capriconutum, discovering that the algae used a dioxygenase system (similar to the bacterial degradation systems of PAHs, but different from those of eukaryotic organisms) to oxidize the compound and convert it to glucoside ester sulfate conjugates. Benzene undergoes reduction followed by hydrolytic cleavage of the ring to produce aliphatic acids used in cell growth [124]. On the other hand, the biotransformation of naphthalene by Oscillatoria sp. produces four primary metabolites, 1-naphthol, 4-hydroxy-4-tetralone, cis-naphthalene dihydrodiol and trans-naphthalene dihydrodiol in concentrations that were not toxic. However, total naphthalene degradation was low, ranging from 1 to 1.9% [126,127].

In the biodegradation of Fluoranthene (FLT) by Chlorella vulgaris, enzymatic studies confirmed that the enzyme involved in the metabolism of FLT was catechol 2,3-oxygenase and peroxidase (POD). The analysis showed that growth rate, biomass, chlorophyll, carbohydrate and protein content were negatively affected. In contrast, lipid and carotenoid content increased significantly [123], a similar study where the degradation of phenol and its methylated homologues by Ochromonas danica showed that the enzyme catechol 2,3-oxygenase is directly involved in the degradation of this type of compound [124]. For a more in-depth description, refer to these articles [122,123,124,128,129].

5. Biological Contaminant Phycoremediation

The wastewater environment is an optimum medium for a wide range of microorganisms, especially bacteria, viruses, and protozoa. Most are harmless and, in some cases, are used in the biological treatment of wastewater. Nevertheless, wastewater also contains pathogenic microorganisms, which are excreted in large numbers by ill individuals and symptomatic carriers. For example, wastewater can contain the bacteria that cause cholera, typhoid fever, and tuberculosis, the viruses that cause infectious hepatitis and COVID-19, and the protozoa that cause dysentery [6].

5.1. Bacteria Removal

The photosynthetic activity of microalgae results in an increase in Dissolved Oxygen (DO) and temperature, which decreases the number of pathogens found in the body of water. The increase in DO promotes oxidative stress from the production of Reactive Oxygen Species (ROS) that damage cellular components, such as the proteins and the lipids of the cell membrane, and DNA, which increases the removal of pathogens (Figure 1D) [130,131].

During microalgae proliferation, the CO₂ assimilation, nitrogen adsorption (in photosynthesis), and carbon immobilization (in respiration) processes occur (Figure 1B), which decrease the number of nutrients available, thus fostering nutrient competition between the microalgae and bacteria. These two effects together (pH increase and nutrient decrease) generate a hypoosmotic shock producing irreversible changes in the cell membrane and wall, and, consequently, cell lysis in pathogenic bacteria such as fecal coliforms (Enterococci and Escherichia coli), Clostridium perfringens, and Salmonella enterica [127]. In addition, some studies have determined that Synechocystis sp. and C. vulgaris produce toxins that affect the environment (raise its pH level). The former is known as microsistin-LR, while the latter is a toxin derived from long-chain fatty acids. These toxins kill cells due to pH changes [132].

Developed countries often use microalgae in the treatment of wastewater and the elimination of pathogenic bacteria. For example, Chlorella sorokiniana and Scenedesmus obliquus have been used for treating water with high organic loads and the elimination of pathogenic bacteria and pollutants, such as fecal coliforms, total coliforms, E. coli, Salmonella, and Shigella, managing to destroy up to 99.78% of the microorganisms [78,133,134].

In addition, in recent studies, Galdieria sulphuraria (red extremophilic microalgae) has been used to reduce dissolved organic carbon, phosphates, and ammoniacal nitrogen in eutrophied waters, observing that, after four days, the nutrient concentrations and pH level decreased significantly (from pH 2.5 to pH 4), which removed 99% of the bacteria [135].

5.2. Viral Inactivation

Several pathogenic viruses associated with major disease outbreaks are commonly found in wastewater. However, conventional approaches to pathogen elimination are often associated with different economic and logistics drawbacks [76]. Conventional viral inactivation protocols use ultraviolet radiation, which in addition to being an economically unfeasible methodology, it is not equally effective for all viruses as its effectiveness depends on the type of virus genome. For example, RNA viruses are often more resistant to direct light inactivation [136]. Alternative and nontraditional systems use polysaccharides extracted from Porphyridium sp., which inhibit a large percentage of viruses, including the Human Immunodeficiency Virus (HIV 1 and 2). This viral inactivation occurs by inhibiting viral reverse transcriptase and RNase H, which are essential for the replication and synthesis of viral proteins [132,137,138].

Furthermore, microalgae have recently been used for the removal of Enterovirus and Norovirus from wastewater [139,140]. A team of researchers from Bangladesh developed a system of algae immobilized on filter paper [141], which managed to remove 100% of the viral particles found in wastewater, and generated 3 L of microbiologically safe drinking water in 25 min. In general, terms, there are only four models of viral particle removal or inactivation mechanisms.

One mechanism is mediated by direct sunlight induced by UV-B light or indirect sunlight induced by UV-A light. In the former case, viruses adsorb photons, causing damage to the capsid and proteins associated with their genetic material. The latter indirect form is related to the ROS produced during respiration and that are released by microalgae, which lead to the destruction of viral particles.

Another mechanism is the elevation of dissolved oxygen and the increase in pH mediated by microalgae, which is detrimental to several wastewater pathogens. In the cultivation of the Galdieria sulphuraria acidophilic microalgae, studies have been observed that these microalgae decrease wastewater pH levels, which, coupled with extreme temperatures and inactivation mediated by sunlight, play an important role in virus inactivation by changing the general virus load, impacting its structural proteins and improving the adsorption process.

Bioadsorption to the matrix followed by sedimentation of the microalgae biomass is considered one of the most effective mechanisms for the removal of viral particles. Virus binding is mediated by electrostatic interactions with exopolysacchariums or toxic exudates produced by microalgae. The ionization state of the carboxyl and amino groups from capsid proteins is highly dependent on pH levels, and conducts an electrical charge leading to the aggregation of viral particles on microalgae surfaces [142].

Predation is another important mechanism used in virus elimination. Here, the presence of heterotrophic and ciliated nanoflagellates in wastewater systems reduces virus viability [143]. In addition, predation can help remove viruses that become trapped in extracellular polymeric substances. Alternatively, the killing of virus predators and their subsequent settlement to the bottom of the water system by sedimentation may also contribute in reducing the number of wastewater viruses. Finally, microalgae also serve as the foundation for aquatic food networks as they feed on zooplankton and protozoa, specifically rotifers, copepods, and ciliates [144].

6. Microalgae in Colombia

In Colombia, water treatment systems are very common in urban settlements, whereas they are practically nonexistent in rural areas. Possibly, poor knowledge, economic technologies, and less cumbersome processes have constrained the implementation of water treatment plants in the country, resulting in pollutants being directly discharged to marshes, rivers, and reservoirs, often generating high levels of pollution, which far exceed the maximum permissible values, and negatively impacting the ecosystem and its surrounding populations. However, some promising research is currently being conducted in the country for the treatment of industrial wastewater using microalgae as bioreactors. For example, Chlorella sp. and Scenedesmus sp. in the wastewater treatment of a textile company [145,146], Synedra sp. as an inhibitor of pathogenic bacteria [147], Chlorella vulgaris and Scenedesmus acutus to remove chromium from tannery wastewater [148], Spirulina maxima; Spirulina platensis; and Chlorella vulgaris as an alternative for treating eu-trophication of the Ubaque lagoon [149], Chlorella vulgaris in the removal of organic matter in wastewater [150], Chlorella sp. for treating wastewater from the paint industry [151], Chlorella sp. for the production of biofuel from wastewater treatment [152], Chlorella sp. used in the degradation of phenol [153], Chlorella vulgaris and C. sorokiniana coupled with Azospirillum brasilense in the treatment of wastewater [154], Chlorella vulgaris used to remove nitrogen and organic matter through artificial wetlands [155], and Chlorophyta division in the biological treatment of acidic coal mine drains [156]. Despite 1695 micro-algae reports in the Colombian territory [157], majority of these studies have focused on a reduced number of species, not fully leveraging the biotechnological potential available in the country.

In addition, the microalgae have huge bioprospective potential, of importance for sustainable development, which has been studied and applied in Colombia, as the use of Chlorella sp. as a soil fertilizer [158], Scenedesmus sp. as a nutritional source for crustaceans used as food in the early stages of larviculture of freshwater [159,160], the species Dunaliella salina, Chlorella sorokiniana and Chlorella vulgaris for the production of fatty acids and subsequently as a source for biodiesel [161,162,163], and the use of the microalgae as an improvement in the carotenoids production with the biochemical and metabolic charac-teristic exhibited by Dunaliella salina [164].

The diversity of ecosystems, climates and water resources present in Colombia imply great conservation commitments. In this sense, within its biodiversity there are numerous species of microalgae known and yet to be explored, which contribute to solving environ-mental problems and the preservation of ecosystems. Some studies have shown that there is a great diversity of microalgae [79,85,165]; however, there is still much to explore, to identify new species and evaluate their biotechnological potential in water treatment and other applications.

7. Conclusions

Phycoremediation is an environmentally sustainable technology with great potential in traditional water treatment. This approach is a living example of the Circular Economy, which is so popular right now. The cultivation and application of microalgae is a promising approach for the recovery of hard-to-reach bodies of water and populations with few resources since it not only decreases eutrophication rates and increases dissolved oxygen concentrations in the bodies of water, but also generate innovative by-products (pigments, enzymes, sugars, and lipids). Currently, several Colombian companies and universities are using this eco-friendly technology under the premise of “restoring by producing”. In Colombia, a mega-diverse country with serious pollution problems, the bioprospecting, development, and application of microalgae in bodies of water would be an excellent strategy for the recovery of these ecosystems, thus improving the quality of life of their surrounding communities.
