An Optimization Model of Coupled Medical Material Dispatching Inside and Outside Epidemic Areas Considering Comprehensive Satisfaction

Abstract

This study addresses the critical challenge of emergency material distribution during atypical public health crises, using the COVID-19 pandemic in Hubei Province as a representative case. An innovative internal–external coupled dispatching framework is proposed by integrating regional medical resource allocation with cross-regional supply chain networks. Our methodology employs the SEIR epidemiological model to forecast infection rates and corresponding material demands, then incorporates bidirectional dispatching efficiency as a key determinant of demand urgency. Through systematic risk stratification of affected areas, we develop a dual-objective optimization model that simultaneously minimizes logistical time and cost, solved by the NSGA-II algorithm. The results demonstrate that the internal–external coupled emergency material dispatching approach significantly enhances demand satisfaction in affected regions and improves overall dispatching effectiveness. This study offers practical recommendations and valuable references for emergency material dispatching during public health crises.

1. Introduction

In recent years, the COVID-19 pandemic and other sudden public health events have had a huge impact on social and economic activities and resulted in immeasurable loss of life and property [1]. Timely and effective deployment of emergency supplies is critical. Because the epidemic and other public health emergencies involve contagious, sudden and long-range disease spread [2], once an outbreak has occurred, the affected area will often experience a shortage of internal materials and need external material rescue. Therefore, timely dispatch of emergency supplies internally and externally appears to be critical.

For the study of emergency material dispatching during public health emergencies, the existing literature is mostly focused on objectives such as the shortest time, the smallest cost, and fairness, among others. For example, Chen et al. [3] ranked the emergency logistics response capabilities of different provinces in China based on the entropy weight TOPSIS method and revealed regional differences and their causes through panel quantile regression. They found that the overall response capability was strongest in the eastern region and weakest in the western region. In addition, social labor input, urbanization, and digitalization levels had a significant positive impact on emergency logistics response capabilities. In terms of multi-depot routing optimization, Yin et al. [4] employed K-means clustering to decompose the problem into multiple single-depot problems and conducted a comparative analysis of the performance of guided local search (GLS), Tabu Search (TS), and Simulated Annealing (SA) algorithms. The results indicated that the GLS algorithm performed optimally in multi-depot emergency logistics distribution routing. Regarding the emergency logistics vehicle routing optimization problem during major public health events (such as the COVID-19 pandemic), Tan et al. [5] proposed an improved PSO algorithm that incorporates transportation costs, time costs, early/late arrival penalties, and fixed vehicle costs into the objective function. Combined with a soft time window constraint model, empirical evidence showed that the total cost was reduced by approximately 20% compared to the basic PSO algorithm. Wu et al. [6] combined the Estimation Distribution Algorithm (EDA) with the Multi-Objective Snow Goose Algorithm (MOSGA) to construct a multi-objective chance-constrained model. A case study during the COVID-19 pandemic in Chengdu demonstrated the superior performance of this method in real-world applications. With the development of deep reinforcement learning technology, Wang et al. [7] introduced an algorithm based on Deep Deterministic Policy Gradient (DDPG) to address the problem of rescue resource allocation and scheduling in storm surge inundation scenarios. By comparing the Mixed Integer Linear Programming (MILP) and DDPG methods in a case study during Typhoon Mangkhut in Futian District, Shenzhen, the advantages of DDPG in real-time performance and scalability were verified. Fan et al. [8] proposed the DHL (Deep Humanitarian Logistics) method, which models through a Markov Decision Process (MDP) and considers multiple objectives such as disaster area needs, initial state and transportation costs, material scarcity costs, and distribution fairness. In terms of hybrid and quantum algorithms, Sun and Cai [9] utilized the Quantum Particle Swarm Optimization (QPSO) algorithm to solve the location-routing coordination problem in complex environments. The study employed trapezoidal fuzzy numbers to characterize the uncertainties in congestion time and maximum rescue time. Experiments showed that QPSO achieved a 36.7% improvement in convergence speed compared to traditional PSO. Yan et al. [10] proposed a hybrid metaheuristic algorithm (DPSO-HHO) to address the multi-objective location-routing problem in the early stages after a disaster. Ge et al. [11] adopted a two-stage model approach to study the distribution of emergency logistics centers in the Yangtze River Delta region during the COVID-19 lockdown. The model includes principal component analysis (PCA) for screening candidate centers and the NSGA II algorithm for solving the bi-objective location model. Eshghi et al. [12] proposed a multi-objective robust optimization model that combines NSGA II and Taguchi parameter tuning methods. The model’s robustness to demand and cost uncertainties was validated in a case study of resource allocation and casualty evacuation in earthquake-prone areas of Iran. Li [13] proposed an ESD MEC method based on Mobile Edge Computing (MEC), which integrates ant colony optimization and supplier allocation algorithms to address tracking, deadhead trips, and delay issues in emergency logistics, significantly improving prediction accuracy and scheduling efficiency. Lei et al. [14] employed Qualitative Comparative Analysis (QCA) to study the generation mechanism of cross-regional emergency cooperation in major and catastrophic accidents and disaster relief in China. The study proposed three paths, autonomous adjustment, system-driven function, and demand generation, emphasizing the role of information assurance, regulatory support, and social resource investment in enhancing cooperation efficiency.

From the above, it can be seen that the current stage of epidemic material dispatching research mainly focuses on the objective or optimization algorithm of emergency material dispatching. There are some shortcomings: (1) Most of the epidemic emergency material dispatching studies have focused on emergency material dispatching according to the demand under the premise of the overall material sufficiency at the time of the epidemic, and seldom considered the situation of the overall material shortage in the early stage of the epidemic. (2) Most studies are limited to the optimization of material dispatching within the affected area, while ignoring the possibility of external rescue. (3) The evaluations of the results in the emergency material dispatching studies mostly analyze the objective optimization effect and parameter sensitivity, and lack of overall assessments of satisfaction perspective.

Therefore, this paper focuses on the characteristics of the COVID-19 epidemic. This paper takes the overall shortage of materials in the epidemic area as the premise and considers the material dispatching optimization not only within the epidemic area but also regarding external rescue to achieve the internal and external coupling of emergency material dispatching optimization. This paper builds a complete emergency material dispatching process based on the epidemic and describes the internal and external emergency material dispatching program. The specific number of people is obtained by the epidemic spreading model. Medical material demand is predicted by the epidemic risk level and the population number. A set of evaluation indicators for disaster sites is also established to quantify the urgency of demand for internal and external coupling situations. Finally, this paper puts forward comprehensive satisfaction and demand satisfaction results (and other emergency material dispatching results) for evaluations in order to achieve a better emergency material dispatching effect. This paper hopes to give some suggestions regarding epidemic emergency material dispatching.

2. Coupled Medical Material Dispatching Model for the Internal and External Infected Area Considering Comprehensive Satisfaction

2.1. Problem Description

Public health emergencies such as epidemics are characterized by contagiousness and diffusivity. After the outbreak of an epidemic, it will quickly spread to the surrounding area, forming a more serious internal area and a less serious external area. Compared with the external region, the degree of the epidemic in the internal region is more serious and the emergency supplies are also more limited, so the internal region emergency supplies are in high shortage. Therefore, the external region of the epidemic can be organized to carry out emergency supply rescue to the internal region of the epidemic to make up for the shortage of emergency supplies in the internal region of the epidemic. The disaster sites in the internal region of the epidemic, the demand for emergency supplies, and the degree of urgency will show differences in the limited time available due to the severity of the epidemic, the number of people, economic conditions, etc. How to scientifically allocate limited emergency materials in such limited time according to different disaster situations plays an important role in improving the effectiveness and precision of the rescue work. At the same time, the contagiousness of the epidemic makes it difficult to predict the number of people affected by the disaster and the amount of material demand, and it is necessary to introduce the theory of infectious disease dynamics for research. Zhu et al. [15] proposed a multi-objective fuzzy optimization model based on IT2TFS, aiming to optimize material delivery time, transportation frequency, and inventory cost, thereby enhancing the efficiency of disaster relief supplies. Ding et al. [16] designed a multi-objective emergency material scheduling method based on gray interval numbers, which improves the efficiency of disaster response by optimizing objectives such as time cost, transportation, and production cost. Guo et al. [17] designed a multi-objective shortest path problem for multi-mode transportation in emergency logistics, aiming to optimize transportation time, distance, and cost. Xu et al. [18] constructed a multi-mode path optimization model for emergency material transportation, aiming to minimize transportation time and cost. By introducing a risk coefficient, uncertain parameters are converted into deterministic values, further optimizing transportation paths and scheduling, and improving the emergency response efficiency of the logistics system. Ye et al. [19] proposed a multi-objective optimization emergency response framework integrating pre-disaster and post-disaster stages. The pre-disaster stage aims to minimize cost; in the post-disaster stage, third-party emergency forces are introduced to optimize material scheduling schemes with the objective of simultaneously minimizing transportation cost and rescue time. Hu et al. [20] proposed a multi-objective robust optimization model for designing optimization schemes in epidemic emergency logistics, thereby minimizing transportation time, transportation cost, and material shortage, improving emergency response efficiency and reducing costs. Wang et al. [21] constructed a multi-period emergency material distribution optimization model, using the NSGA-II algorithm to optimize material allocation. The objectives of the model include improving time-perceived satisfaction in disaster areas, reducing the pain effect of material loss, and lowering overall rescue cost. Liu et al. [22] analyzed the complex adaptive characteristics of cross-regional emergency collaboration in China through stochastic evolutionary game theory, constructing two game models: regional integration and paired assistance. The research showed that intergovernmental collaboration efficiency, emergency fund reserves, and external support have a significant impact on the stability and effectiveness of emergency collaboration. Therefore, in the epidemic disaster situation, we need reasonable classification of the epidemic population, scientific prediction of the epidemic material demand and classification of the risk level of each disaster point according to the disaster information of the internal region of each disaster point. After determining the degree of urgency of the demand, we implement a differentiated emergency material dispatch strategy to efficiently deploy the resources in the internal and external region of the epidemic. The key issue of this paper is to achieve the best prevention and control of the epidemic. The network of emergency material dispatching is shown in Figure 1.

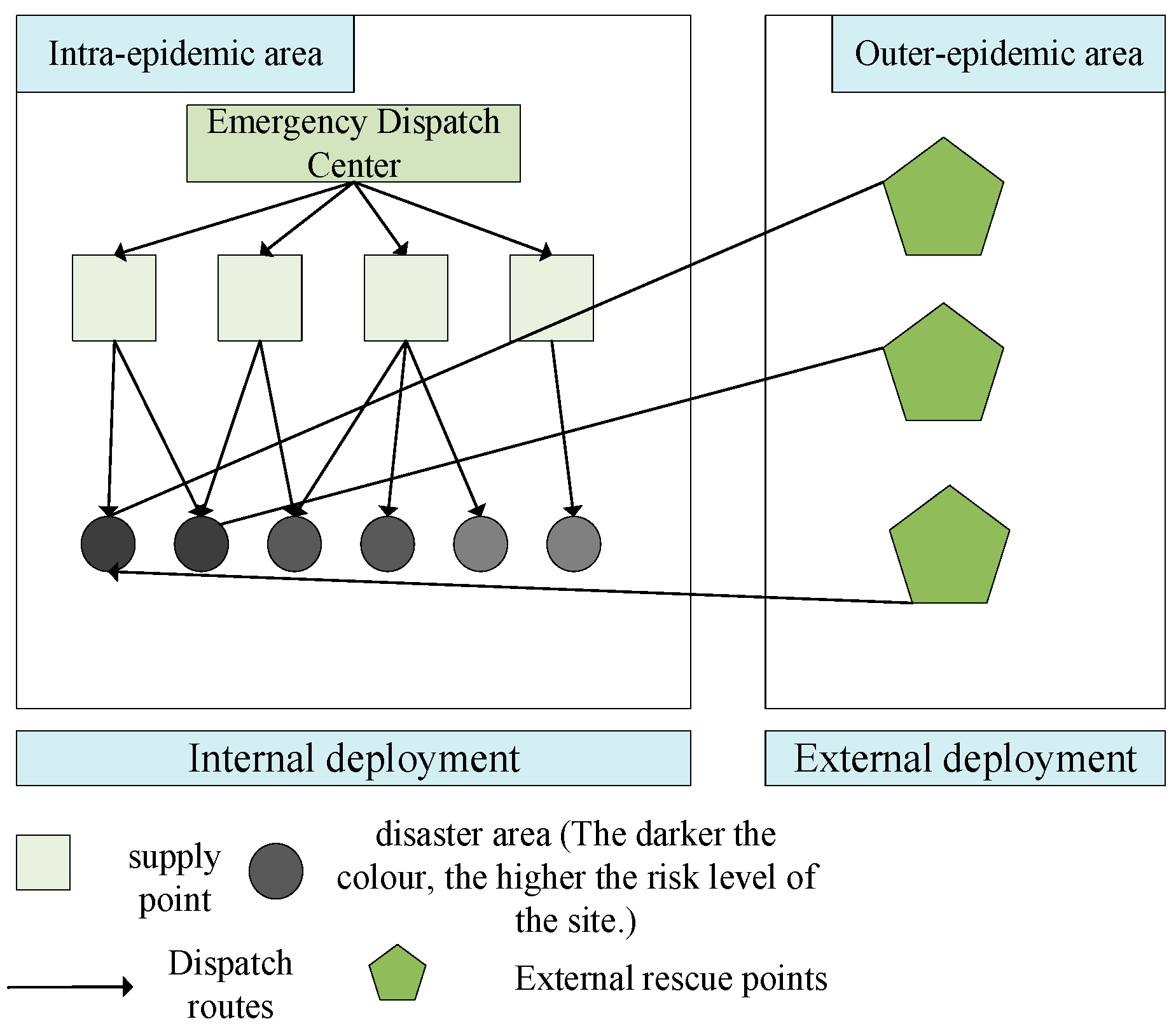

Figure 1. Emergency material dispatch network.

2.2. Epidemic Spreading Model

Therefore, the SEIR model is established, which is based on the following assumptions:

(1)

The population within the infected region at time t is divided into four categories, namely the susceptible population S(t), the non-infectious incubator population E(t), the infected population with disease flare-ups I(t), and the recovered population with acquired immunity R(t), and the four categories are homogeneously mixed.

(2)

The infected region is considered closed, disregarding population movements, births and deaths, and the total population is held constant, namely, $S(t)+E(t)+I(t)+R(t)=N$.

(3)

At moment t, the incubators are transformed into infected people in a certain proportion and their number is proportional to the number of incubators, noting the proportion as $\delta$.

(4)

$\alpha$ is the recovery rate, which is the probability that an infected person is successfully cured and transformed into a recovered person after treatment.

Provided that the above assumptions are valid, the following differential equation can be obtained:

$$\left\{\begin{array}{ll}{\displaystyle \frac{dS(t)}{dt}}=-{\displaystyle \frac{\beta I(t)S(t)}{N}}\hfill & \hfill \\ {\displaystyle \frac{dE(t)}{dt}}={\displaystyle \frac{\beta I(t)S(t)}{N}}-\delta E(t)\hfill & \hfill \\ {\displaystyle \frac{dI(t)}{dt}}=\delta E(t)-\alpha I(t)\hfill & \hfill \\ {\displaystyle \frac{dR(t)}{dt}}=\alpha I(t)\hfill & \hfill \end{array}\right.$$

(1)

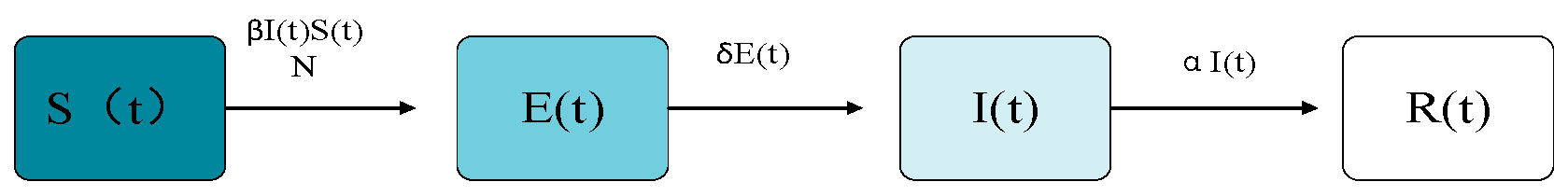

The SEIR model is shown in Figure 2.

Figure 2. SEIR model silo flow diagram.

2.3. Demand Forecast for Emergency Supplies

Through the relevant literature research, this paper mainly selects the epidemic risk level and the number of people affected by the epidemic as the factors determining the demand for epidemic materials, in which the population affected by the epidemic is subdivided into susceptible population, latent population, infected population and rehabilitated population. The specific number of people is obtained by the epidemic spreading model and the materials are selected as medical materials. The emergency medical material demand prediction model is established as follows:

$$X_s=I_{sk}\cdot M_k\cdot J_s$$

$X_s$ denotes the total demand for medical supplies for category k in area s;

$I_{sk}$ indicates the number of people in category k in area s who have a need for medical supplies;

$M_k$ denotes the average demand for medical supplies for category k;

$J_s$ denotes the coefficient of the epidemic risk level in area s;

k denotes the population affected by the outbreak, mainly including susceptible, latent, infected and recovered populations.

2.4. Consideration of the Urgency of the Demand for Internal and External Coupling

Irrational distribution of materials in the process of dispatching emergency supplies, such as in disaster areas where some are allocated too many materials and some receive insufficient materials, further aggravates the epidemic. This paper considers the differences in the affected points, that is, determining the degree of urgency of the needs of different regions to make a fair and reasonable distribution. The dispatching process of epidemic emergency supplies is carried out in both internal and external areas. Therefore, in defining the degree of urgency of the demand, this paper not only needs to consider the differences in the disaster situation of the affected points of the internal region of the epidemic, but also the degree of dispatching between the internal region of the epidemic and the external rescue points. This is the internal and external coupling degree. Ultimately, the degree of urgency of the demand is calculated.

2.4.1. Internal and External Dispatching Degree

(1)

Calculation of internal and external dispatching degree

Internal and external dispatching degree refers to the degree of dispatching between the external area that can be involved in rescue and the internal affected point of the epidemic. It mainly depends on the specific situation of the internal affected point and the dispatching ability of the external epidemic area. According to a survey, it is found that the higher the infection degree of the internal affected point of the epidemic area is, the higher the degree of demand for external rescue is. Meanwhile, the degree of shortage of materials of the internal affected point of the epidemic area also affects the degree of demand for external rescue. The distance from the external rescue point to the internal affected point determines the speed and efficiency of external rescue dispatching. So the degree of infection, the degree of material shortage, and the distance of external dispatching are selected to calculate the internal and external dispatching degree to determine the priority of external rescue dispatching.

$$\sigma ={\displaystyle \frac{k_n}{k_m}}$$

(2)

$${\rho }_{i_{o}k}={\rho }_1\sigma +{\rho }_2\gamma +{\rho }_3{d}_{i_{o}k}$$

(3)

${\rho }_{i_{o}k}$ denotes the extent to which external relief points dispatch internal disaster points;

$\sigma$ denotes the degree of infection at affected sites within the infected area;

$\gamma$ denotes the scarcity of supplies at the internal disaster site in the affected area;

$d_{i_{o}k}$ denotes the distance between the external relief point and the internal disaster point;

${\rho }_1$, ${\rho }_2$, ${\rho }_3$ denotes the weight of each factor;

k_n denotes the number of infected people in point k;

k_m denotes the total number of people in affected point k;

k_a denotes the demand for materials at affected point k;

k_b denotes material available at disaster site k.

(2)

Application of internal and external dispatching degree

The internal and external coupling degree mainly helps external regions to make decisions on the amount of emergency relief material. For external regions, according to their internal and external coupling degree, the rescue priority is determined. And ultimately the infected areas are selected. The total number of external rescue materials is proportionally allocated according to the sorting priority of their rescue regions.

2.4.2. Demand Urgency Factors

In this paper, the urgency degree of demand is taken into account in the distribution of supplies to ensure that the supplies at demand points with a higher degree of urgency of demand are met with higher priority. As shown in Figure 3, the degree of internal and external dispatching, regional population density, proportion of injured and stranded people, proportion of old and young people, demand for emergency supplies, and the degree of damage to infrastructure are selected as the evaluation indicators of the degree of urgency of the demand for emergency supplies at the disaster site.

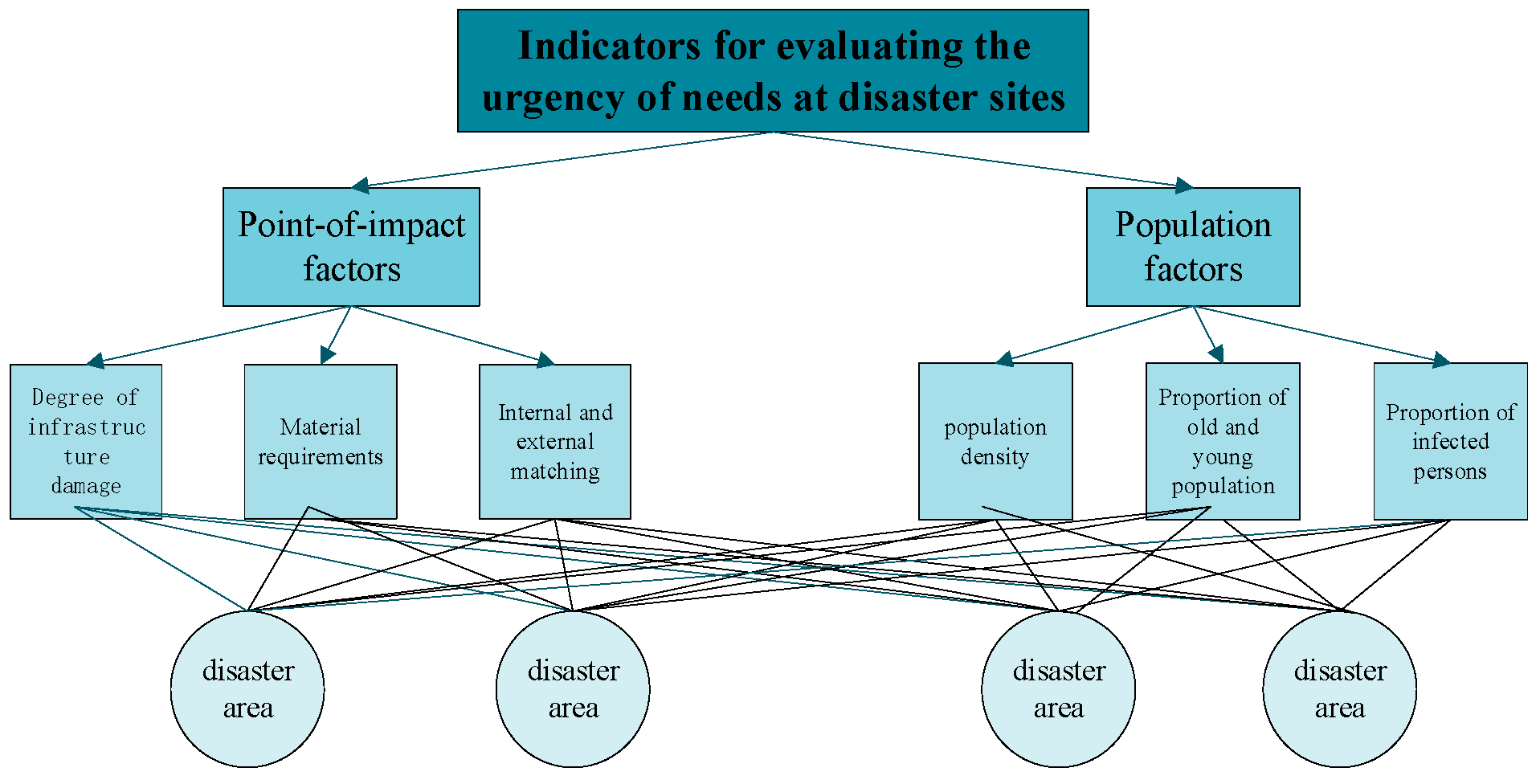

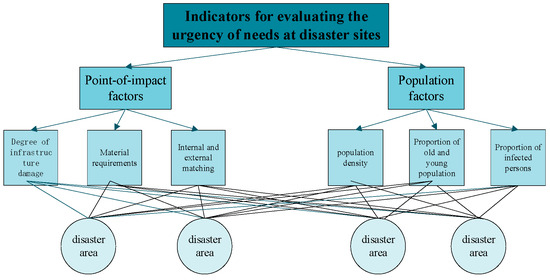

Figure 3. Indicators for evaluating the urgency of disaster sites.

2.4.3. Calculation of Demand Urgency

Considering the deviation brought about by the subjective weight assignment of the evaluation index experts, the TOPSIS entropy weight method is used to comprehensively evaluate and calculate the degree of urgency of the emergency material demand of each disaster site. Based on the results of the ranking of the degree of urgency of the demand of each disaster site, the risk level of each disaster site is divided.

2.5. Material Dispatching Model

This paper establishes an emergency material dispatching model with the goal of achieving minimum time and cost. At the same time, this paper considers the urgency of the demand and the internal and external coupling to prioritize and achieve reasonable dispatching.

Minimum total dispatching time is the first objective function f₁:

$$\min f_1=\min {\displaystyle \sum _{iϵI}{\displaystyle \sum _{kϵK}\frac{t_{ik}{x}_{ik}}{s_k}}}$$

(4)

where I is the set of distribution centers, $I=\{1,2,\dots ,i\}$, which are mainly divided into internal distribution centers i_n and external distribution centers i_o; K is the set of disaster points, $K=\{1,2,\dots ,k\}$; $t_{ik}$ is the transport time from distribution center i to disaster point k; $x_{ik}$ indicates if there is a material sent from distribution center i to disaster point k; otherwise, it is 0.

Minimum total cost f₂:

$$\min f_2={\displaystyle \sum _{iϵI}{\displaystyle \sum _{kϵK}{C}_1}}{s}_k(y_k-x_{ik})+{\displaystyle \sum _{iϵI}{\displaystyle \sum _{kϵk}{C}_2}}{d}_{ik}{a}_{ik}$$

(5)

where I is the set of distribution centers, $I=\{1,2,\dots ,i\}$, mainly divided into internal distribution centers i_n and external distribution centers i_o; K is the set of affected points, $K=\{1,2,\dots ,k\}$; $C_1$ is the penalty cost per unit quantity of material; $s_k$ is the demand urgency score of demand point k; $y_k$ is the demand for material at demand point k; $x_{ik}$ is the determined material distribution volume of distribution center i delivering medical material to demand point k; $C_2$ is the transport cost per unit vehicle per unit distance; $d_{ik}$ is the shortest transport mileage of material delivered by distribution center i to demand point k; $a_{ik}$ is the total number of vehicles of distribution center i delivering material to demand point k.

$$f_3=\min \left\{w_1\cdot f_1+w_2\cdot f_2\right\}$$

(6)

f₃ denotes the sum of the minimum cost and the time of availability of the supplies, taking into account the epidemic level, and the sum of these two is minimal, with weights w₁ and w₂, respectively.

The transport time from distribution center i to disaster point k is

$$t_{ik}=d_{ik}/v_{ik}$$

where $d_{ik}$ is the dispatch distance from distribution center i to disaster point k, km; $v_{ik}$ is its corresponding distribution speed, km/h.

Constraints:

(1)

The number of emergency supplies dispatched to disaster point k must not exceed their demand: ${\displaystyle \sum _{iϵI}{q}_{ik}}{x}_{ik}⩽Q_k,kϵK$;

(2)

The total number of emergency supplies dispatched is not greater than the total supply: ${\displaystyle \sum _{iϵI}{\displaystyle \sum _{kϵ\mathcal{K}}{q}_{ik}}}{x}_{ik}⩽B_i$, where $B_i$ is the number of emergency supplies available at distribution center i;

(3)

Ensure that limited emergency supplies are fully distributed: ${\displaystyle \sum _{iϵI}{B}_i}={\displaystyle \sum _{iϵI}{\displaystyle \sum _{kϵK}{x}_{ik}}}{q}_{ik}$;

(4)

A 0 to 1 decision variable indicates whether distribution center i dispatches to disaster point k or not: $x_{ik}=\left\{\begin{array}{c}0,q_{ik}=0\\ 1,q_{ik}>0\end{array},{\forall }_iϵI,kϵK\right.$;

(5)

At least one distribution center i dispatches supplies to disaster point k: ${\displaystyle \sum _{iϵI}{x}_{ik}}⩾1$;

(6)

A distribution center i dispatches supplies to at least one disaster point k: ${\displaystyle \sum _{kϵK}{x}_{ik}}⩾1$;

(7)

Demand satisfaction at disaster point k is not less than 10 per cent, with demand satisfaction equal to supply divided by demand: $h_k⩾20\%,h_k={\displaystyle \frac{x_{ik}}{y_{ik}}}$;

(8)

The range of values of each variable is $q_{ik}⩾0,B_i⩾0,Q_k⩾0$.

2.6. Comprehensive Satisfaction

Comprehensive satisfaction refers to the dispatch to the internal area of the epidemic based on the simultaneous consideration of the external rescue effect, including time satisfaction and cost satisfaction. It is mainly used to measure the gap between the desired and actual effect of the reasonableness of the emergency supply dispatching program.

$$v=m_1{\lambda }_1+m_2{\lambda }_2$$

(7)

where ${\lambda }_1$ is time satisfaction; ${\lambda }_2$ is cost satisfaction; $m_1$ and $m_2$, respectively, are the weight of time and cost satisfaction.

(1)

Time satisfaction:

$${\lambda }_1={\displaystyle \sum _{i\in I}{\displaystyle \sum _{k\in K}sk(\overline{t}-t_{ik})}}$$

(8)

$$\overline{t}={\displaystyle \frac{d_{ik}}{\overline{v}}}+0.5$$

(9)

The expected time $\overline{t}$ is the sum of transport time and dispatching time, where the dispatching time is 0.5 h; t_ik is the actual time; s_k is the demand point k demand urgency score; d_ik is the shortest transport mileage of distribution center i delivering materials to demand point k; $\overline{v}$ is the ideal state of the vehicle driving speed, 65 km per hour.

(2)

Cost satisfaction:

$${\lambda }_2={\displaystyle \sum _{\mathrm{i}\in \mathrm{I}}{\displaystyle \sum _{\mathrm{k}\in \mathrm{K}}(}}\overline{c}-c_{ik})$$

(10)

$\overline{c}$ is the total expected cost of material dispatching, namely the sum of the expected cost of emergency material transport and the delayed penalty cost; d_ik is the shortest transport mileage of distribution center i delivering materials to demand point k; a_ik is the total number of vehicles of distribution center i delivering materials to demand point k; C₄ is the ideal cost of transporting per unit of vehicle per unit of distance, which is set as 3 CNY/km; C₃ is the ideal penalty cost of material per unit of quantity, which is 8 CNY/unit; s_k is the demand urgency score of demand point k; y_k is the demand for the material at demand point k; x_ik is the determined material distribution volume of medical supplies delivered by distribution center i to demand point k.

3. Numerical Experiments

In 2020, the COVID-19 epidemic broke out comprehensively in China, which brought great losses to people’s life and health and social and economic development. In order to verify the effectiveness of the model and algorithm, the case is analyzed in the context of Hubei Province, which was the hardest-hit area in the early stage of the epidemic. The case selects medical materials as emergency dispatch materials and a national emergency material reserve center as well as 10 provincial emergency material reserve centers as emergency material distribution centers. According to the official notification of the epidemic, 17 cities and municipalities in Hubei Province were selected as the points affected by the epidemic (i.e., the points in need of emergency supplies). The distances between the reserve center and the epidemic areas of the cities and municipalities are obtained through Baidu Maps. The stock levels of emergency supplies in the 11 distribution centers originate from the emergency supplies reserve warehouse datasets. By checking the statistical yearbooks of each city and the officially released data of the epidemic, the values of each evaluation index of the urgency of emergency material demand of the 17 disaster points are determined. According to the information of each disaster site, the TOPSIS entropy weight method is used to obtain the ranking urgency of the demand for emergency supplies and to classify the risk level in each disaster site. In reality, the disaster level of the disaster point can be changed accordingly based on the actual situation.

3.1. Prediction of the Number of Infected People

By using the SEIR model to predict the number of infected people in various cities in Hubei Province, we obtain the fitted prediction data of the epidemic (as shown in Table 1). By comparing this with the real-world data, we obtain the following Figure 4, which shows that the forecasting results are good.

Table 1. Prediction of the number of infected persons in various municipalities in Hubei Province.

City	Number of Infections
Wuhan	117,100
Huanggang	43,919
Xiaogan	35,384
Jingmen	23,714
Xianning	24,560
Jingzhou	42,422
Suizhou	27,997
Xiangyang	46,804
Shiyan	35,038
Ezhou	9429
Huangshi	26,806
Yichang	39,069
Enshi	23,800
Xiantao	9062
Tianmen	9190
Qianjiang	9392
Shennongjia	799

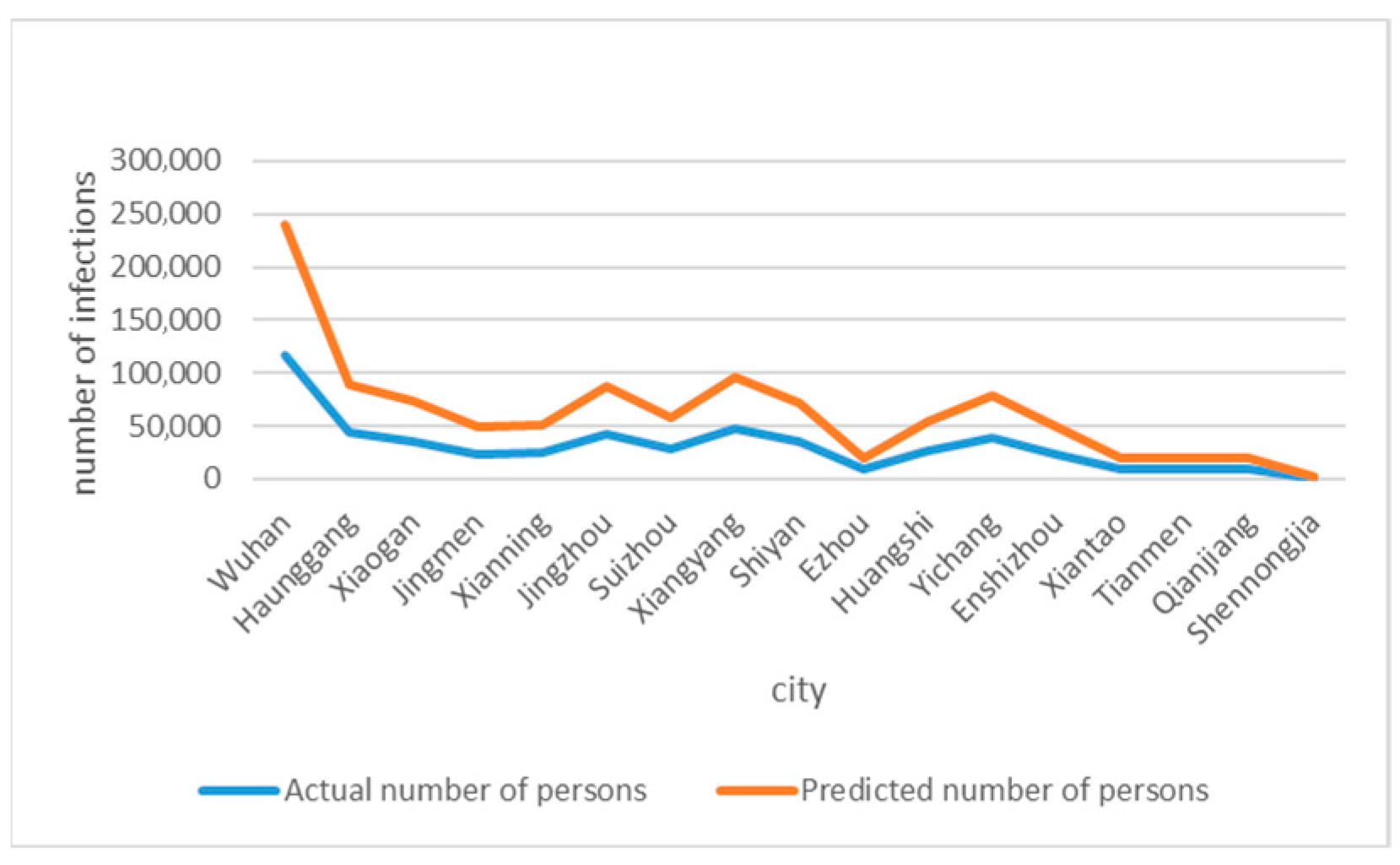

Figure 4. SEIR model predictions versus true values.

3.2. Epidemic Medical Material Demand Prediction

Medicine required by infected people is used as the emergency medical demand material for this study. After predicting the infected population in various cities in Hubei Province and classifying the epidemic level, medicine is used as the materials required by infected people in units. The material demand coefficient is set according to the coefficient of epidemic level in Table 2 and the forecasting demand of infections in Table 3. The material demand coefficient of high-risk areas is 1.5. The material demand coefficient of medium-risk areas is 0.8. The material demand coefficient of low-risk areas is 0.5. Then the material demand of each affected point is calculated.

Table 2. Classification of outbreak levels in Hubei Province on 27 February.

City	Epidemic Level
Wuhan	High-risk
Huanggang	High-risk
Xiaogan	High-risk
Jingmen	High-risk
Xianning	Medium-risk
Jingzhou	Medium-risk
Suizhou	Medium-risk
Xiangyang	Medium-risk
Shiyan	Medium-risk
Ezhou	Medium-risk
Huangshi	Medium-risk
Yichang	Medium-risk
Enshi	Medium-risk
Xiantao	Medium-risk
Tianmen	Medium-risk
Qianjiang	Low-risk
Shennongjia	Low-risk

Table 3. Forecasting of demand for medical supplies by city in Hubei Province on 27 February.

City	Number of Infections
Wuhan	175,650
Huanggang	35,135.2
Xiaogan	53,076
Jingmen	18,971.2
Xianning	19,648
Jingzhou	33,937.6
Suizhou	41,995.5
Xiangyang	37,443
Shiyan	28,030
Ezhou	14,143
Huangshi	21,444
Yichang	31,255
Enshi	11,900
Xiantao	7249
Tianmen	7352
Qianjiang	7513
Shennongjia	399

3.3. Measurement of the Urgency of Demand

By checking the statistical yearbooks of various cities and the official epidemic data released, the value of each evaluation index for the urgency of emergency material demand of 17 disaster sites is determined. According to the TOPSIS entropy weight method, we sort the results of the demand urgency for emergency supplies and divide the risk levels in each disaster area. In reality, the disaster level of the disaster point can be changed according to the actual situation. Beijing, Shanghai, Hangzhou and Shenzhen are selected as the external relief cities. And the internal and external dispatching degree is calculated based on three factors shown in Table 4: the number of people infected at the beginning of each infected area, the amount of material shortage, and the distance. The supply volume of external supply points refers to the average value of the city’s annual report on emergency material reserves in the past three years. It is revised proportionally according to the scale of its GDP to ensure that the dispatch capacity matches the economic strength.

Table 4. Evaluation indicators for internal and external dispatching.

Disaster Area	Number of Infected Persons	Material Shortages	Distance
			Beijing	Shanghai	Hangzhou	Shenzhen
Wuhan	117,100	52,695	1149	801	722	1092
Huangshi	26,806	5872	1181	756	682	1001
Shiyan	35,038	7607	1158	1176	1143	1448
Xiangyang	46,804	10,632	1058	1076	1000	1277
Yichang	39,069	8460	1294	1108	1056	1149
Jingzhou	42,422	9974	1251	1016	959	1072
Jingmen	23,714	2975	1179	1012	938	1160
Ezhou	9429	1248	1150	773	678	1014
Xiaogan	35,384	15,285	1127	834	762	1102
Huanggang	43,919	10,400	1143	743	669	1028
Xianning	24,560	4065	1252	832	727	994
Suizhou	27,997	12,559	1053	911	857	1196
Enshi	23,800	3380	1514	1317	1267	1326
Xiantao	9062	2	1233	897	834	1060
Tianmen	9190	4	1180	913	839	1059
Qianjiang	9392	4	1224	951	894	1047
Shennongjia	799	0	1227	1197	1134	1339

According to the above internal and external dispatching degree evaluation index in Table 5, the number of infected persons, the amount of material scarcity, and the percentage of distance are assigned 0.5, 0.3, and 0.2, respectively. We calculate the degree of internal and external dispatching, and the results are as shown in Table 6.

Table 5. The degree of internal and external dispatching.

Disaster Area	Degree
Wuhan	1.0000
Huangshi	0.1989
Shiyan	0.2625
Xiangyang	0.3541
Yichang	0.2931
Jingzhou	0.3217
Jingmen	0.1667
Ezhou	0.0626
Xiaogan	0.2953
Huanggang	0.3331
Xianning	0.1765
Suizhou	0.2344
Enshi	0.1697
Xiantao	0.0553
Tianmen	0.0562
Qianjiang	0.0576
Shennongjia	0

Table 6. Indicators for evaluating the urgency of needs.

Disaster Area	Number	Evaluation Indicators
		Population Density (person/km2)	Infected Person/%	Ratio of Old to Young/%	Emergency Material Requirements/Set	Degree of Infrastructure Damage	Internal and External Dispatch
Wuhan	Y1	1308.44	46.0052	31.41	175,650	0	1.0000
Huangshi	Y7	540.13	2.9883	34.28	21,444.8	0	0.1989
Shiyan	Y12	143.58	2.2904	31.27	28,030.4	0	0.2625
Xiangyang	Y4	287.92	4.9029	34.17	37,443.2	0	0.3541
Yichang	Y9	194.91	3.5072	33.38	31,255.2	0	0.2931
Jingzhou	Y5	391.10	4.4645	32.69	33,937.6	0	0.3217
Jingmen	Y10	233.59	3.0867	29.07	18,971.2	0	0.1667
Ezhou	Y8	663.97	2.7378	33.63	14,143.5	0	0.0626
Xiaogan	Y2	552.67	8.2133	34.11	53,076	0	0.2953
Huanggang	Y3	362.78	11.1479	34.31	35,135.2	0	0.3331
Xianning	Y11	261.32	2.6483	36.36	19,648	0	0.1765
Suizhou	Y6	231.02	4.0977	32.60	41,995.5	0	0.2344
Enshi	Y16	140.60	0.9931	36.79	11,900	0	0.1697
Xiantao	Y13	449.21	1.5120	32.82	7249.6	0	0.0553
Tianmen	Y14	475.74	1.0289	32.58	7352	0	0.0562
Qianjiang	Y15	482.09	0.3131	27.95	7513.6	0	0.0576
Shennongjia	Y17	23.39	0.0626	35.94	399.5	0	0

According to the above evaluation index dataset, the TOPSIS entropy weight method is applied to grade the regional disaster situation. The final grading results are obtained as shown in Table 7.

Table 7. Disaster risk levels in affected areas.

Disaster Area	Number	Score	Disaster Risk Value Ranking Results	Disaster Risk Level
Wuhan	Y1	100	1	Class Ⅰ
Huangshi	Y7	11.7955	7	Class II
Shiyan	Y12	8.6791	12	Class II
Xiangyang	Y4	14.8797	4	Class II
Yichang	Y9	11.2302	9	Class II
Jingzhou	Y5	14.5858	5	Class II
Jingmen	Y10	8.8723	10	Class II
Ezhou	Y8	11.2542	8	Class II
Xiaogan	Y2	24.0761	2	Class Ⅰ
Huanggang	Y3	23.0582	3	Class II
Xianning	Y11	8.6786	11	Class II
Suizhou	Y6	14.1645	6	Class II
Enshi	Y16	4.1921	16	Class III
Xiantao	Y13	6.6611	13	Class II
Tianmen	Y14	6.2900	14	Class II
Qianjiang	Y15	5.4555	15	Class III
Shennongjia	Y17	0	17	Class III

3.4. Emergency Material Dispatching Model Solutions

Model assumptions: (1) The demand for emergency resources in each affected region is known; (2) the supply quantity of emergency resources at each supply point and each distribution center as well as the geographic location information are known; (3) each distribution center has enough vehicles of the same type for dispatching, and the road trip is consistent during delivery; (4) the effect of road capacity and the number of emergency resources on the speed of emergency transport vehicles is not considered; (5) loading and unloading times of emergency resources at the distribution centers are not considered.

3.5. Analysis of Emergency Material Dispatching Results

In order to verify the effectiveness of the model, this paper takes the COVID-19 outbreak in Hubei Province as the case background. We select four cities, Beijing, Shanghai, Hangzhou and Shenzhen, as the external rescue cities for external rescue dispatching. The demand for internal and external supply points is presented in Table 8 and Table 9 respectively. The material requirements for cities are shown in Table 10. According to the data from Baidu Maps, the distance of the infected areas from each city’s supply points is shown in Table 11.

Table 8. Supply of materials at internal supply points.

Wuhan (1)	Wuhan (2)	Xiaochang	Xiangyang	Guangshui	Dangyang (1)	Suizhou	Zaoyang	Gucheng	Dangyang (2)	Yidu
80,000	40,000	30,000	40,000	30,000	30,000	30,000	30,000	30,000	30,000	30,000

Table 9. Supplies at external supply points.

Beijing	Shanghai	Hangzhou	Shenzhou
25,000	25,000	25,000	25,000

Table 10. Material requirements by need score.

City	Predicted Need
Wuhan	175,650
Huangshi	35,135.2
Shiyan	53,076
Xiangyang	18,971.2
Yichang	19,648
Jingzhou	33,937.6
Jingmen	41,995.5
Ezhou	37,443
Xiaogan	28,030
Huanggang	14,143
Xianning	21,444
Suizhou	31,255
Enshi	11,900
Xiantao	7249
Tianmen	7352
Qianjiang	7513
Shennongjia	399

Table 11. Distance of stockpile centers from infected areas in municipalities.

Supply/Need	Wuhan (1)	Wuhan (2)	Xiaochang	Xiangyang	Guangshui	Dangyang (1)	Suizhou	Zaoyang	Gucheng	Dangyang (2)	Yidu
Wuhan	3	24	93	323	145	270	171	246	355	286	309
Huangshi	102	76	167	397	221	330	245	320	429	345	387
Shiyan	62	88	40	265	90	262	115	190	299	273	325
Xiangyang	240	224	216	139	261	61	218	192	203	76	123
Yichang	112	94	175	405	228	336	253	328	437	336	328
Jingzhou	225	213	253	216	298	114	266	251	280	108	97
Jingmen	158	170	92	179	63	263	4	91	200	256	318
Ezhou	298	309	244	21	211	188	156	81	66	180	251
Xiaogan	449	441	376	179	343	312	289	212	101	302	352
Huanggang	75	82	177	390	230	350	256	313	422	365	381
Xianning	94	102	201	416	253	393	279	354	448	377	407
Suizhou	321	313	322	264	367	69	324	298	296	74	53
Enshi	503	521	515	457	560	256	517	491	489	270	246
Xiantao	103	121	151	322	191	234	190	264	373	241	217
Tianmen	134	143	118	274	230	191	198	254	338	189	164
Qianjiang	157	167	185	274	230	181	198	254	338	189	164
Shennongjia	483	472	407	237	374	203	326	300	192	206	256

According to the above case information, the genetic algorithm is used to solve the model in Matlab R2021a. The relevant parameters of the NSGA-II algorithm are as follows: population size = 100; the maximum number of iterations (maxgen) = 300; chromosome crossover rate = 0.8; mutation rate = 0.01; the objective function weights are set to w₁ = 0.7 and w₂ = 0.3. The vehicle drives at a uniform speed during the vehicle dispatch and the transport speed is 50 km/h. The material penalty cost is 10 CNY/unit and transport cost is 5 CNY/km. A vehicle can be loaded with 2000 units of goods.

Through the calculation of this scenario to achieve the emergency supply dispatching program, the objective functions are as follows: f₁ is 74.2 h; f₂ = CNY 385,743.9. The internal dispatching program is shown in Table 12 and in Figure 5. The external dispatching program is displayed in Figure 6. Based on actual logistics and vehicle deployment statistics from Hubei Province’s pandemic response, the daily vehicle utilization rate is 85–92%, and in accordance with the “COVID-19 Emergency Logistics Vehicle Allocation Guidelines” issued by China’s Ministry of Transport, our model incorporates specific operational metrics: an average vehicle capacity of 8–12 t, daily operating ranges of 200–300 km, and typical fleet sizes of 15–30 homogeneous vehicles per distribution center. All of these values reflect the real-world emergency logistics operations during the crisis.

Table 12. Dispatch program for emergency supplies within an outbreak.

Supply/Need	Wuhan (1)	Wuhan (2)	Xiaochang	Xiangyang	Guangshui	Dangyang (1)	Suizhou	Zaoyang	Gucheng	Dangyang (2)	Yidu
Wuhan	80,000	21,444	27,662	0	0	14,209	0	1713	0	0	0
Huangshi	0	4289	0	0	0	0	0	0	0	0	0
Shiyan	0	0	0	0	0	0	0	0	28,030	0	0
Xiangyang	0	0	0	37,443.2	0	0	0	0	0	0	0
Yichang	0	0	0	0	0	11,607	0	0	0	0	19,648
Jingzhou	0	0	0	0	0	0	0	0	0	30,000	3937
Jingmen	0	0	0	0	0	3794	0	0	0	0	0
Ezhou	0	3755	0	0	0	0	0	0	0	0	0
Xiaogan	0	0	2338	0	25,565	0	11,028	14,143	0	0	0
Huanggang	0	7507	0	0	0	0	0	0	0	0	0
Xianning	0	3929	0	0	0	0	0	0	0	0	0
Suizhou	0	0	0	2556	4434	0	18,971	14,143	1889	0	0
Enshi	0	0	0	0	0	388	0	0	0	0	1991
Xiantao	0	0	0	0	0	0	0	0	0	0	1449
Tianmen	0	0	0	0	0	0	0	0	0	0	1470
Qianjiang	0	0	0	0	0	0	0	0	0	0	1502
Shennongjia	0	0	0	0	0	0	0	0	80	0	0

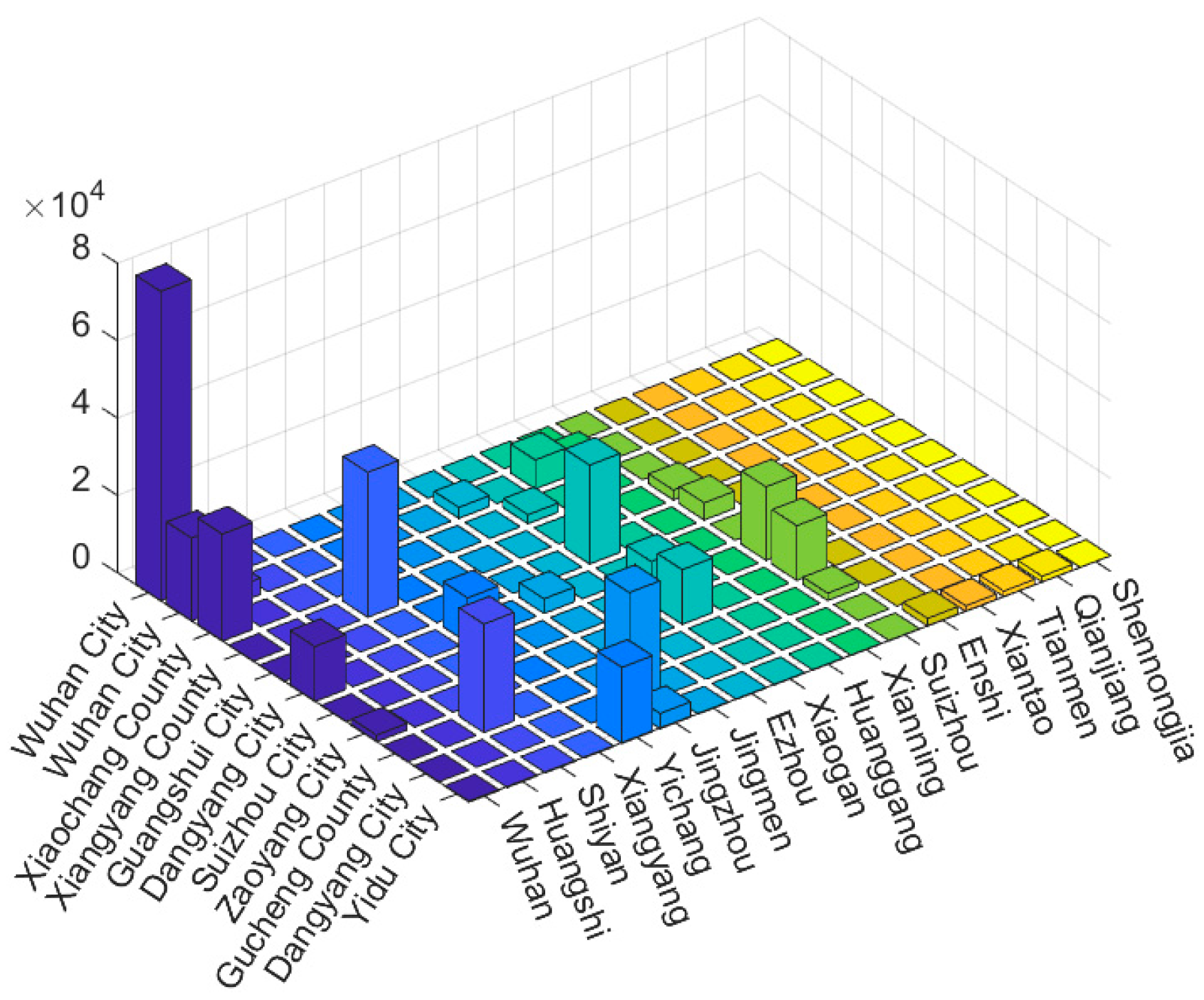

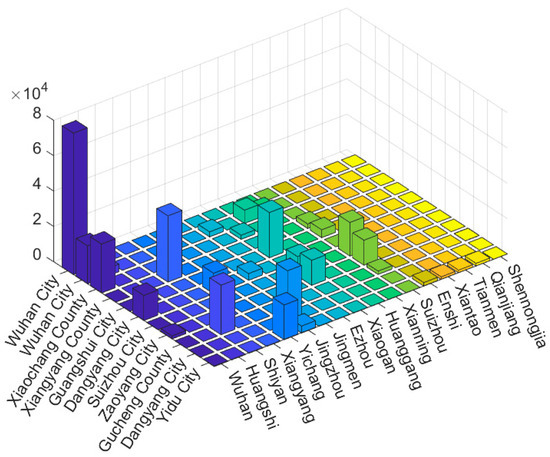

Figure 5. Dispatch program for internal emergency supplies in an epidemic situation.

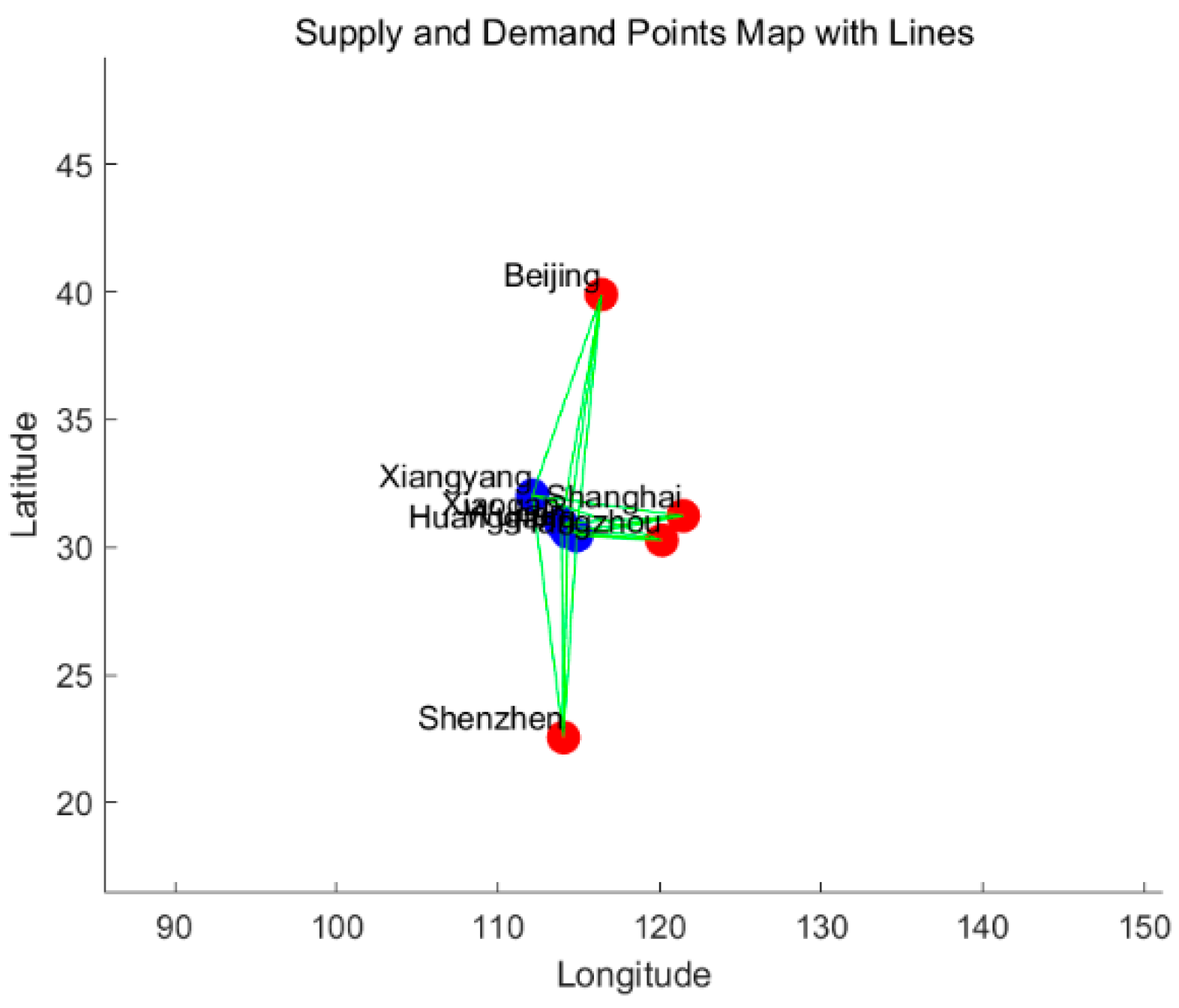

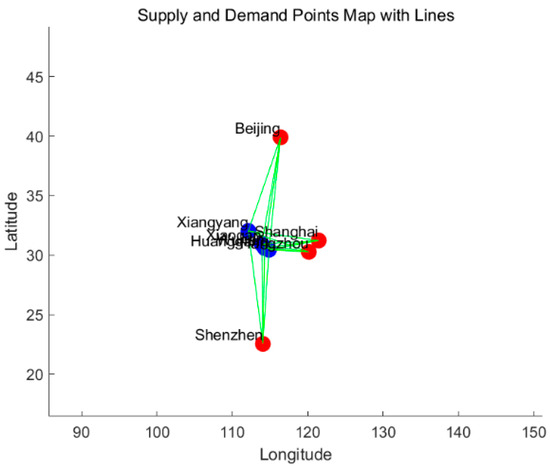

Figure 6. Outbreak external emergency material dispatch program.

As can be seen from Table 13, the number of medical supplies obtained by disaster sites at all levels is more or less in line with the differences in risk ratings at the disaster level. As an example, Wuhan experienced the most serious disaster, with a risk rating of 1, and therefore received five supply points for the dispatch of supplies and the largest number of supplies. This reflects the characteristics of the hierarchy of the dispatch of emergency supplies and is in line with the needs of actual emergency relief work.

Table 13. Dispatch program for external emergency response to an epidemic.

Supply/Need	Beijing	Shanghai	Hangzhou	Shenzhen
Wuhan	7505	7497	7495	7503
Xiangyang	6248	6249	6246	6256
Xiaogan	5007	4995	4992	5006
Huanggang	6260	6244	6241	6255

The same is shown in Table 14 for external rescue. Focusing on selecting the four affected cities with the highest degree of external dispatching for external rescue dispatching reflects the priority and focus of external rescue dispatching. Wuhan has the highest degree of external dispatching and the most serious disaster situation, and thus receives the most external rescue supplies; Xiaogan has a lower degree of external dispatching and a more serious disaster situation, and receives relatively fewer external rescue supplies. In addition, as can be seen in the epidemic internal emergency supply dispatching plan, Wuhan supply center (2) and Dangyang City supply center (1) undertook the task of dispatching supplies for five and four demand points, respectively, assuming important roles in this emergency supply dispatching process. It can provide a reference for the subsequent dispatching of supplies, personnel, vehicles and other reserve configurations from distribution centers.

Table 14. Effectiveness of material movement with and without consideration of external assistance.

Need	Demand Point Base Data		No Consideration of External Rescue			Consideration of External Rescue
Wuhan	Material needs	Internal and external dispatch	Quantity of material acquired	Demand shortfall	Demand satisfaction	Material needs	Demand shortfall	Demand satisfaction
Xiaogan	175,650	1	145,028	30,622	82.6%	175,028	622	99.6%
Huanggang	53,076	0.30	28,030	25,046	52.8%	48,030	5046	90.5%
Xiangyang	35,135	0.33	4289	30,846	12.2%	29,289	5847	83.4%

In order to verify the effectiveness of the model, this paper compares the difference in emergency material dispatching effect with and without considering external rescue (Table 14) and draws a comparison between the quantity of materials and demand satisfaction before and after obtaining external rescue (Figure 7). It shows that the material demand satisfaction of the cities at the affected points rises significantly after considering external rescue, which makes up for the shortcomings of the internal emergency material dispatching. It reflects the scientific rationality of including external rescue.

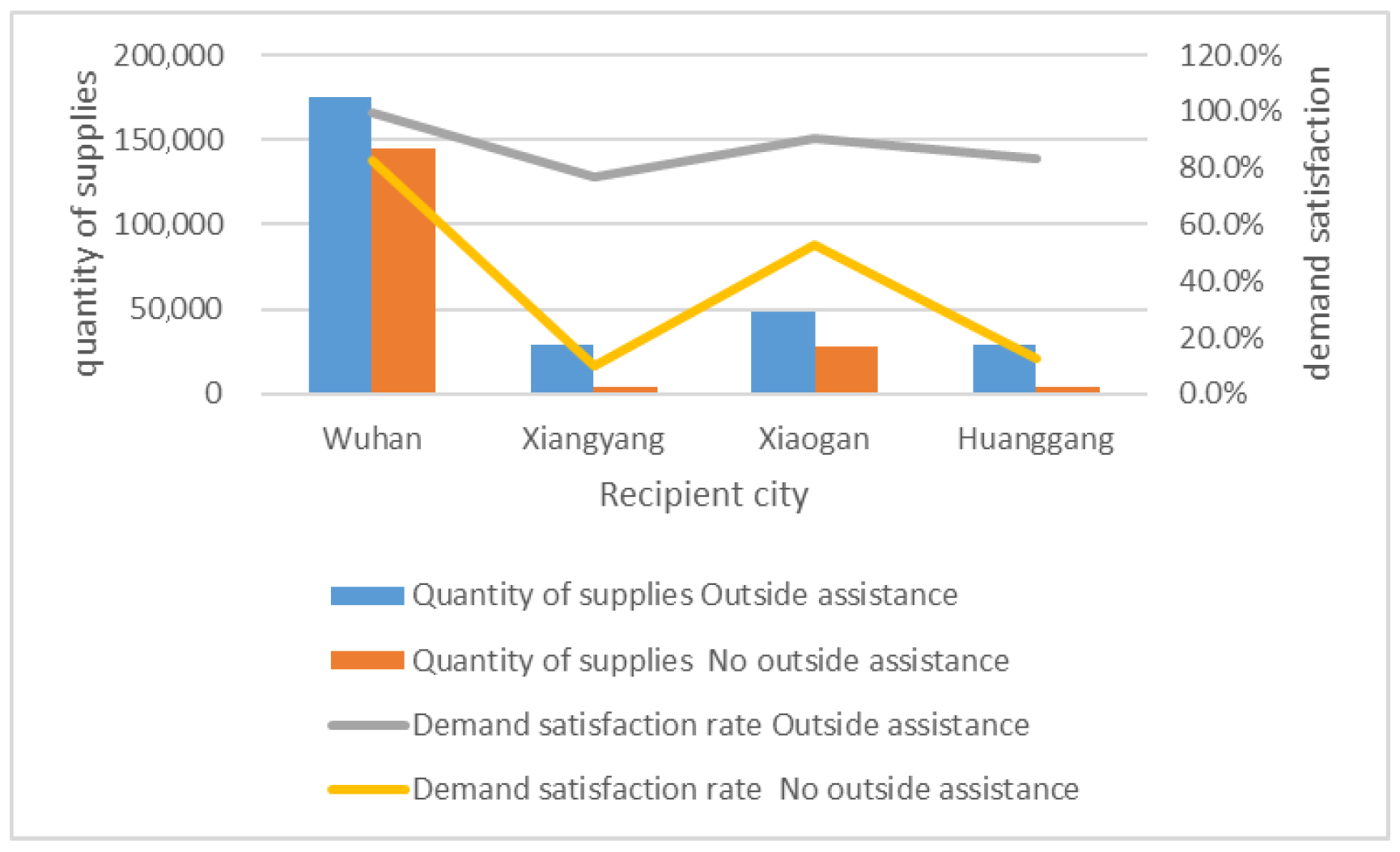

Figure 7. Changes in quantity of goods and satisfaction of needs before and after receiving external assistance.

In this paper, we also set a comprehensive satisfaction function to verify the difference in comprehensive satisfaction with and without external rescue in Figure 8. It can be seen that since external rescue increases the time and cost of rescue, both time satisfaction and cost satisfaction increase. It also leads to an increase in comprehensive satisfaction, which is in line with the actual situation of emergency material dispatch and rescue.

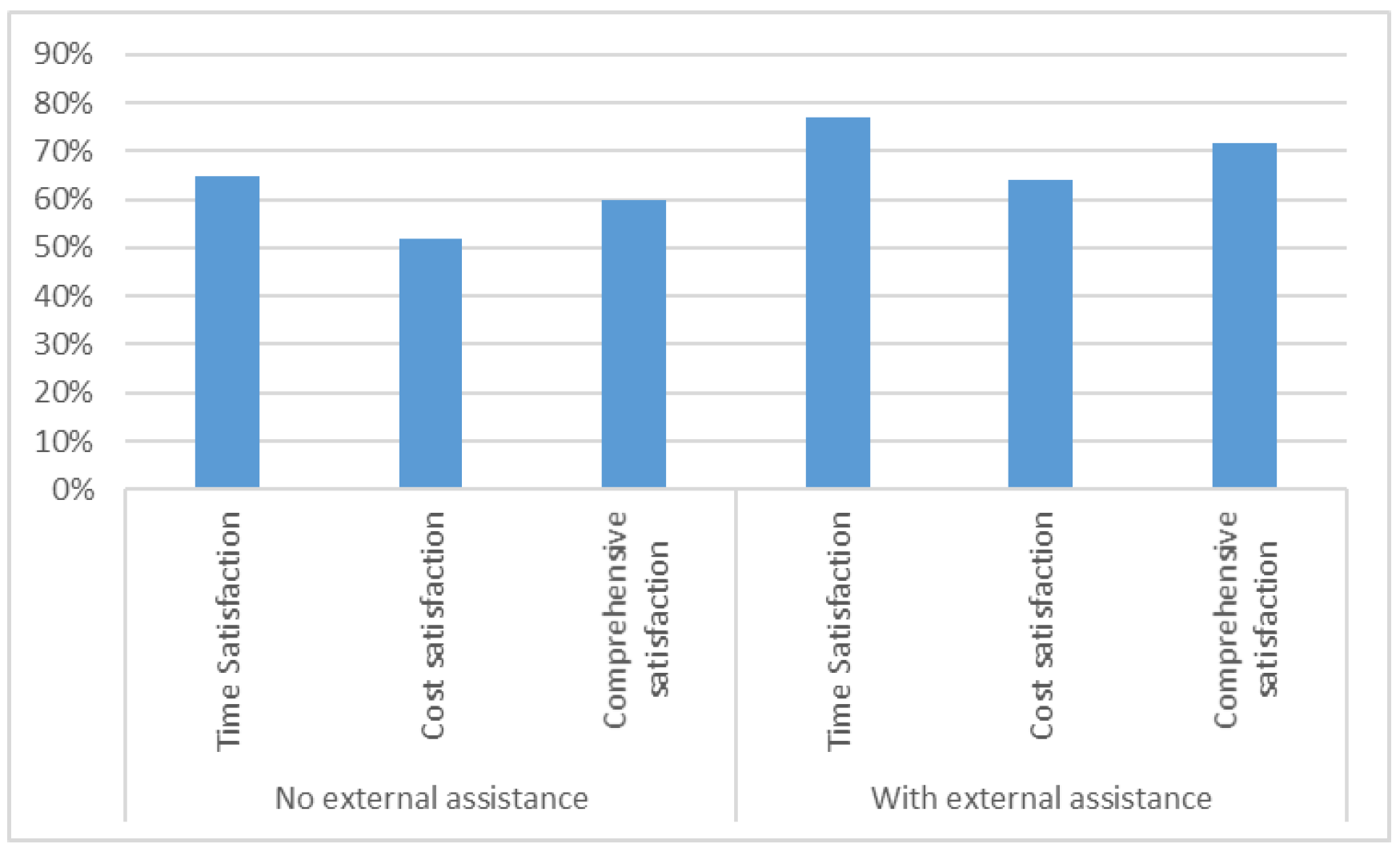

Figure 8. Comparison of overall satisfaction with and without external assistance.

In order to verify the effectiveness of the algorithm, the two objectives of this paper are transformed into a single objective, solved by the GA algorithm, and then compared with NSGA-II. The parameters of the GA algorithm and the data settings of the algorithm are kept the same as those of NSGA-II, and the iterative curves of the two algorithms are obtained. The iterative curves of the GA and NSGA-II algorithms are shown in Figure 9 and Figure 10. It is seen that the NSGA-II algorithm is better than the GA algorithm.

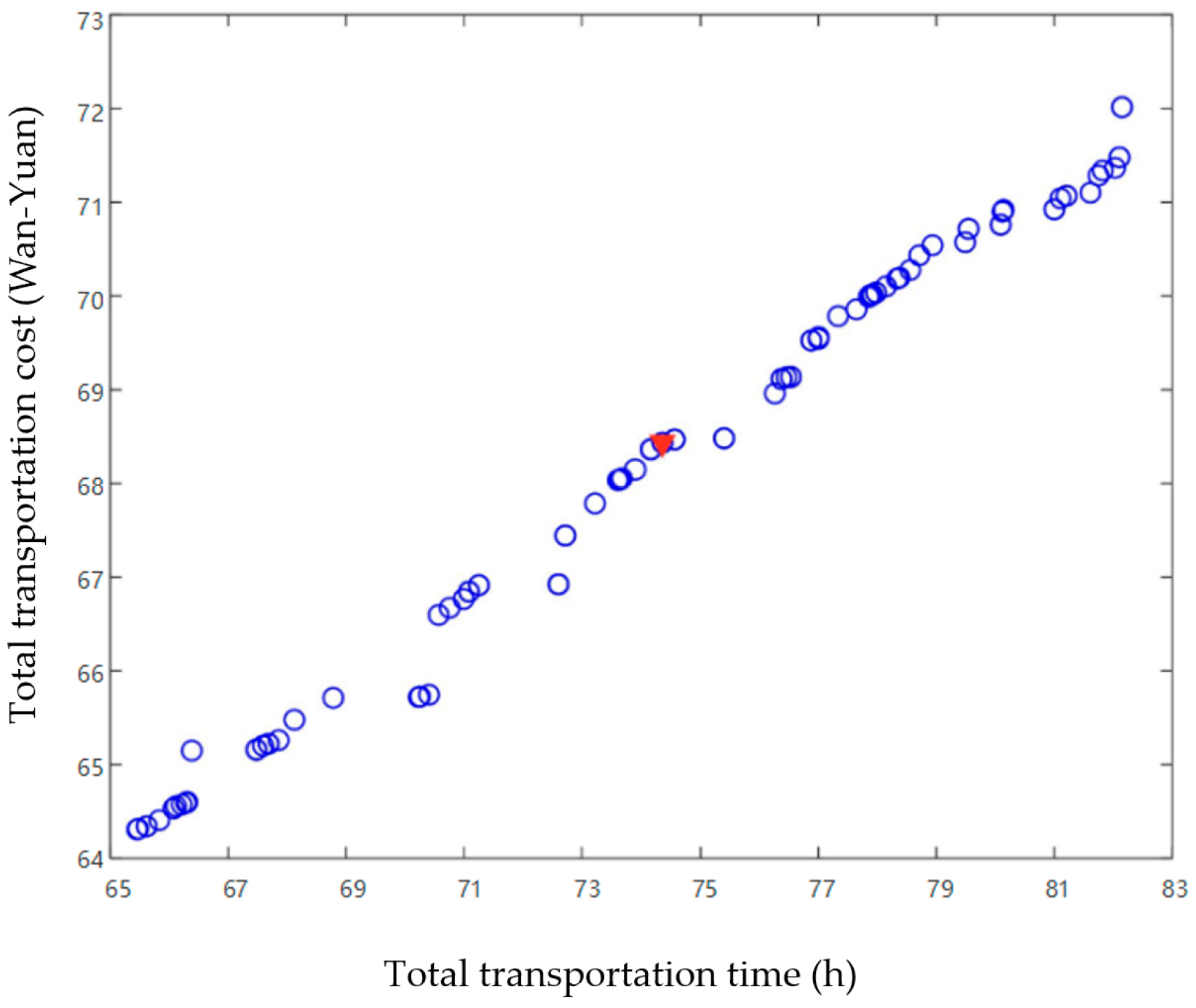

Figure 9. Pareto solution set.

Figure 10. GA algorithm iteration diagram.

4. Conclusions and Discussion

This paper addresses the characteristics of emergency material dispatch in response to sudden public health incidents such as epidemics. It proposed an internally and externally coupled emergency material dispatching model that simultaneously conducts internal dispatch and external rescue when the affected areas face overall material shortages. The results indicate the following:

(1)

When dispatching materials during public health incidents like epidemics, subdividing the infected population and predicting the number of infections using the SEIR model allows for a more scientific prediction of material needs, thereby more effectively responding to the actual epidemic material dispatch.

(2)

Introducing external rescue when there is a shortage of materials within the affected area can significantly improve the satisfaction of demand in the affected area and enhance the effectiveness of the rescue efforts.

(3)

By calculating the internal and external matching degree, it is possible to clarify the matching degree between the affected area and the external rescue points, improving the specificity of the rescue while reducing rescue costs.

From this study on the internally and externally coupled material dispatch during epidemic events, it is evident that coupling internal and external dispatch during disasters can effectively improve the effectiveness and level of rescue operations. Relying solely on internal material dispatch within the affected area cannot effectively meet the demand in a timely manner, nor is it realistic. In fact, external rescue is commonly present and effective in actual emergency dispatch events. Therefore, considering coupled internal and external material dispatch would be a key focus of future research.

This paper introduces the perspective of external rescue for epidemic internal and external coupled dispatch, but it has some limitations: the selection of external rescue cities is relatively subjective, lacking a scientific and reasonable method, making it difficult to choose the most suitable external rescue city for different affected points; the external rescue process is relatively simple and idealized, lacking consideration of possible issues during the rescue process. Therefore, a future study will attempt to construct a scientific method for selecting external rescue cities, subdivide the external rescue process, investigate possible issues, and propose corresponding strategies.
