Open AccessCommunication
Coatings 2019, 9(3), 190; https://doi.org/10.3390/coatings9030190

Adhesive Hybrid SiO2.01C0.23Hx Nanoparticulate Coating on Polyethylene (PE) Separator by Roll-to-Roll Atmospheric Pressure Plasma

1
Department of Physics, Donghua University (DHU), Shanghai 201600, China
2
Functional Materials Research Institute, Donghua University (DHU), Shanghai 201600, China
3
Member of Magnetic Confinement Fusion Research Centre, Ministry of Education, Shanghai 201600, China
*
Authors to whom correspondence should be addressed.
Received: 25 February 2019 / Revised: 8 March 2019 / Accepted: 12 March 2019 / Published: 14 March 2019
(This article belongs to the Special Issue Surface Plasma Treatments)
Full-Text   |   PDF [3523 KB, uploaded 14 March 2019]   |

Abstract

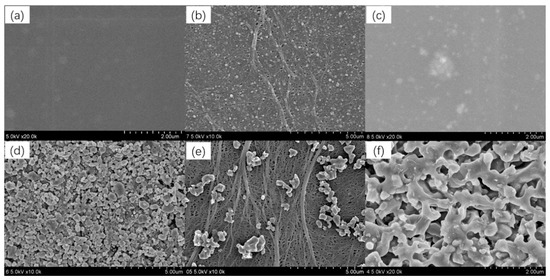

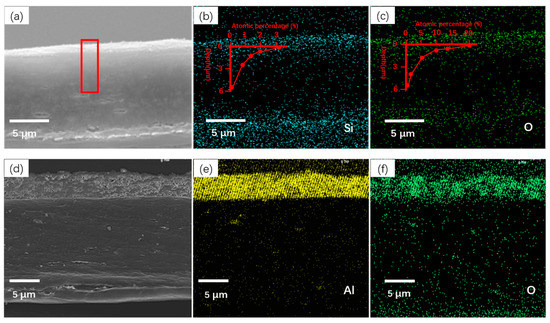

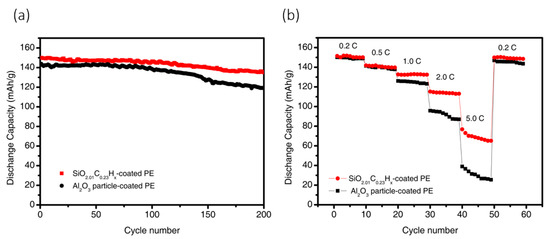

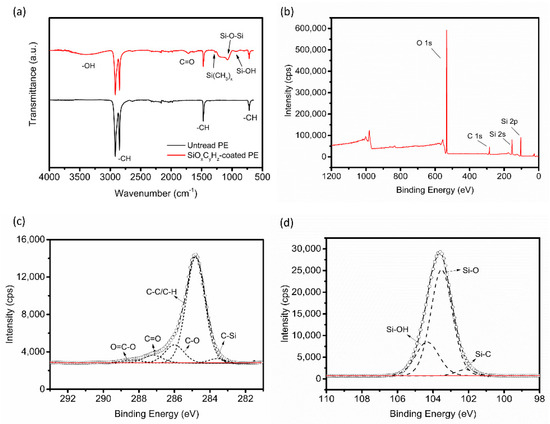

For the ever-increasing demand for highly safe lithium-ion batteries (LIBs), the common sol-gel process provides heat-resistance to separators with an inorganic coating, where the adhesion to the separator is the key to safety and stability. In this paper, we present a SiO2.01C0.23Hx-coated polyethylene (PE) separator through a roll-to-roll atmospheric plasma-enhanced chemical vapor deposition (R2R-APECVD) of hexamethyldisiloxane (HMDSO)/Ar/O2. The adhesion strength of SiO2.01C0.23Hx-coated PE was tested by peel-off test and found to be higher than that of the commercial Al2O3-coated separator (0.28 N/mm vs. 0.06 N/mm). Furthermore, the SiO2.01C0.23Hx-coated PE separator showed better electrochemical performance in C-rate and long term cycle tests. FTIR, SEM, and XPS analysis indicate that the increased adhesion and electrochemical performance are attributed to the inner hybrid SiO2.01C0.23Hx coating with organic and inorganic components. View Full-Text
Keywords: adhesion; hybrid nanoparticulate coating; atmospheric pressure plasma; chemical vapor deposition; lithium-ion battery separator adhesion; hybrid nanoparticulate coating; atmospheric pressure plasma; chemical vapor deposition; lithium-ion battery separator
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
