Lightning Performance of Copper-Mesh Clad Composite Panels: Test and Simulation

Key Discipline Laboratory of National Defence for Advanced Technology for Aircraft Design, Nanjing University of Aeronautics & Astronautics, Nanjing 210016, China
*
Author to whom correspondence should be addressed.
Coatings 2019, 9(11), 727; https://doi.org/10.3390/coatings9110727
Received: 22 September 2019 / Revised: 27 October 2019 / Accepted: 31 October 2019 / Published: 2 November 2019
(This article belongs to the Special Issue Thin Films for Thermoelectric Applications)

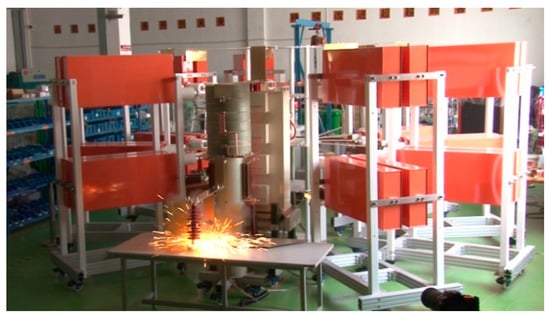

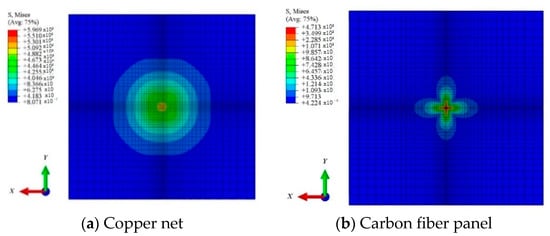

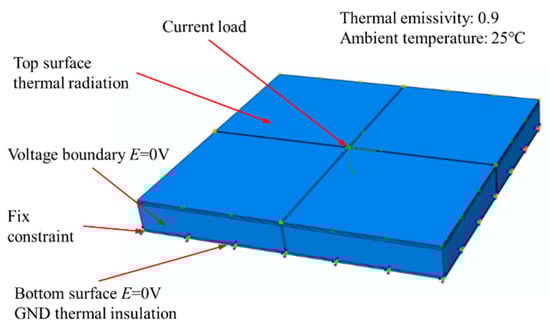

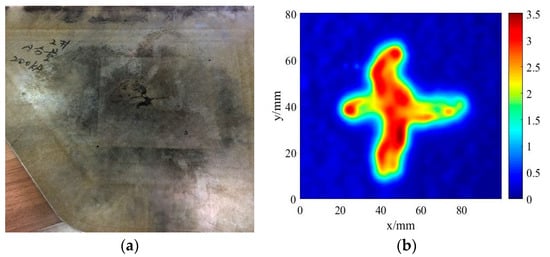

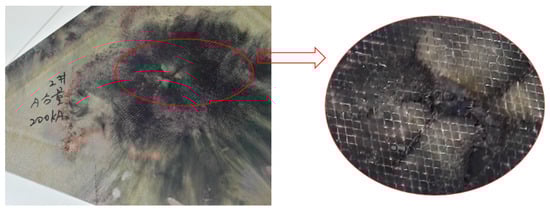

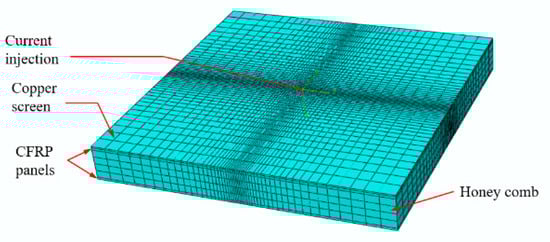

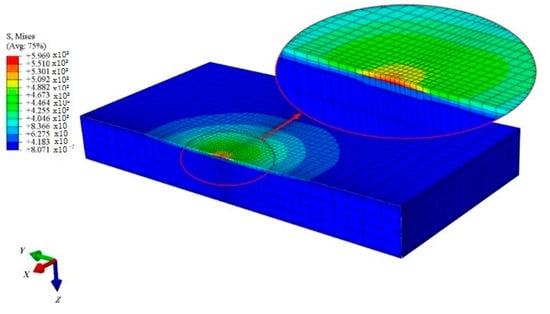

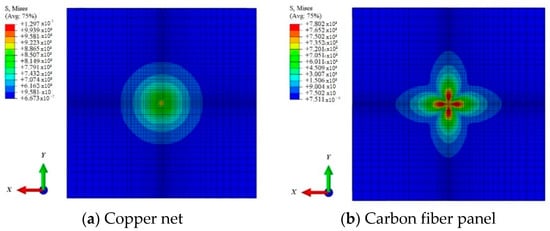

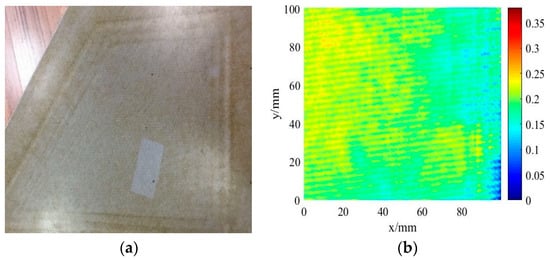

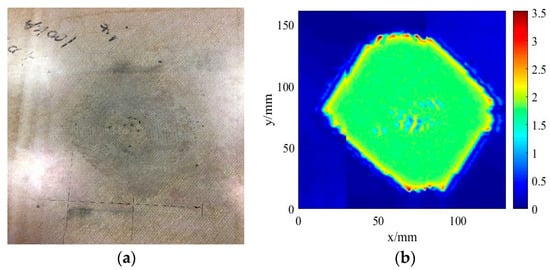

:According to simulation lightning experiments and eddy current analysis results, a three-dimensional finite element model of composite laminated plates with shield is established. By applying electric-thermal boundary and the coupling relationship between them, the lightning strike damage results under the protection of shield are realistically simulated with the commercial finite element analysis software, ABAQUS. Considering the coupling effect of heat, electricity, and force during lightning strike, the load distribution field of copper mesh and carbon fiber panel with lightning current inducted is analyzed. Comparing the thermal stress distribution of the specimen surface under various current loads, it is shown that the stress of carbon fiber panel is significantly lower than the one of the copper screen when the specimen structure suffers heavy current, since the copper network plays a role of endergonic protection. Simulation data are consistent with the test results, thus the method can be used for other similar research.
Keywords: copper screen; shielding; lightning test; composite copper screen; shielding; lightning test; composite
MDPI and ACS Style

Hu, T.; Yu, X. Lightning Performance of Copper-Mesh Clad Composite Panels: Test and Simulation. Coatings 2019, 9, 727.
