Phase Transition and Optical Properties of VO₂ and Al: ZnO/VO₂ Thin Films

Abstract

Thermochromic Vanadium dioxide (VO₂) has strong potential for smart window applications but its commercial scale usage is limited due to low visible light transmission. To address this issue, aluminum doped zinc oxide (AZO) anti-reflecting layer is integrated with VO₂ layer in the present work. VO₂ single layer and AZO/VO₂ bilayer thin film samples were deposited by sputtering technique on quartz substrate. The single-phase growth of VO₂ and AZO in single layer and bilayer thin film samples is confirmed by X-ray diffraction measurements. Monoclinic M1 phase of VO₂ is detected in VO₂ and AZO/VO₂ thin film samples at room temperature. Monoclinic to rutile structural phase transition (SPT) in these samples is studied by performing temperature-dependent X-ray diffraction measurements. SPT in VO₂ thin film samples is close to 68 °C and SPT temperature appears slightly lower in AZO/VO₂ sample as compared to VO₂ sample. Spectral transmittance measurement at room temperature showed significant improvement in the visible transmittance of AZO bilayer film than that of single layer VO₂ thin film. These results demonstrate the possibility of integration of anti-reflecting layers such as AZO with VO₂ layer for better visible transmittances suitable for large-scale smart window applications.

1. Introduction

The most common chromogenic materials are thermochromic, electrochromic, and photochromic materials which change their optical properties in response to temperature, external voltage bias, and photons, respectively. Thermochromic materials could potentially be used in wide technological applications such as Mott transistors, optical switches, filters, thermometers, smart windows, gas sensors, memory devices, and metamaterials [1,2,3,4,5,6,7]. Thermochromic materials involve temperature-dependent changes and are suitable for energy-saving smart windows to reduce building energy consumption [1,8,9]. Smart windows help to control the temperature inside the building even when there is a significant change in the temperature outside. Thermochromism can either be reversible or irreversible and can occur both over a range of temperatures or at particular transition temperature depending on the thermodynamics of the material [9]. Vanadium dioxide (VO₂) is a popular thermochromic material which shows reversible insulation (monoclinic M1 crystal structure) to metal (rutile crystal structure) at a critical temperature of ~68 °C [8,10,11,12]. The structural and electrical phase transition is also accompanied by optical transition. Below 68 °C, monoclinic insulating phase of VO₂ is infrared (IR) transparent while above 68 °C rutile metallic phase of VO₂ is infrared (IR) opaque [1,12]. Compared to other thermochromic materials, the transition temperature of VO₂ is closest to room temperature and therefore can be used for the development of smart windows [6,13]. This is the reason VO₂ is explored as a thermochromic material for the smart windows application across the world. However, large-scale use of VO₂ in smart window application is limited by its higher transition temperature and low visible transmittance. Therefore, different approaches such as deposition parameters control, strain/stress, doping, ion-implantation, oxygen vacancies, hydrogenation etc. [12,14,15,16,17,18] were extensively explored to tune the transition temperature of VO₂ close to the room temperature. The other crucial issue of low visible transmittance in VO₂ is not yet addressed well, unlike the issue of transition temperature tuning. Some groups have attempted to enhance the room temperature luminous transmittance of VO₂ by means of integration of VO₂ with an anti-reflecting layer such as TiO₂, Ti:ZnO etc. [19,20,21,22]. In continuation, we have explored AZO (ZnO having 5 wt% Al) as an anti-reflecting layer for integration with VO₂ in order to modify the luminous transmittance. ZnO is known to show good visible transmittance and its band gap can be tuned by properly selecting the dopant [23,24,25,26]. Earlier, attempts were made to study the effect of integration of AZO layer with VO₂ [21,22]. However, these works lack structural phase transition study aspect in the integrated samples.

In present work, we have deposited VO₂ single layer and AZO/VO₂ bilayer thin film samples on quartz substrate by sputtering and studied their structural phase transition and optical properties. Higher luminous transmittance was observed in the AZO/VO₂ sample compared to that of the VO₂ sample, which highlights the importance of anti-reflecting layer for realization of VO₂-based smart windows.

2. Materials and Methods

Ultrasonically cleaned quartz substrates were used to grow thin films of VO₂ and AZO. Using radio frequency (RF) magnetron sputtering technique, VO₂ and AZO layers were grown from commercially purchased VO₂ and AZO targets, respectively. At first, VO₂ thin film of about 100 nm thickness was simultaneously grown on two quartz substrates, one of which was used for bilayer growth later. Before the deposition, the deposition chamber was evacuated to 1 × 10⁻⁶ Torr. VO₂ film growth was carried out at 500 °C temperature, 120 W deposition power and 30 mTorr sputtering Ar gas pressure. One of the VO₂ thin film samples was taken out from the deposition chamber, and in place of it, another quartz substrate was mounted. Subsequently, AZO layer of about 50 nm thickness was simultaneously grown on substrate and the freshly prepared VO₂ thin film sample. AZO layer growth was carried out at room temperature, 100 W deposition power and 35 mTorr sputtering Ar gas pressure.

Table 1. Growth parameters for different layers of VO₂ and AZO/VO₂ thin film samples.

Film Layer	Target RF (W)	Ar Gas Pressure (mTorr)	Thickness (nm)
VO2	120	30	100
AZO	100	35	50

tabulates the growth parameters for different layers of VO₂ and AZO/VO₂ thin film samples.

The crystallographic properties of the grown thin film samples were studied at BL5A beamline of Pohang Light source-II, Pohang, South Korea. Room temperature and temperature-dependent grazing incidence X-ray diffraction (GIXRD) measurements were performed with X-ray of 11.57 keV energy and the incidence angle was kept at 0.5°. The obtained GIXRD data was converted to Cu K_α wavelength using Bragg’s diffraction formula to show in the present work. The surface microstructure of films was characterised by field emission scanning electron microscopy (FESEM) using Sigma FESEM instrument (Zeiss Microsccopy, Jena, Germany). Furthermore, Lambda 950 UV-Vis spectrophotometer (Perkin Elmer, Waltham, MA, USA) in transmission mode was used to measure transmittance spectra in 200–800 nm wavelength range.

3. Results

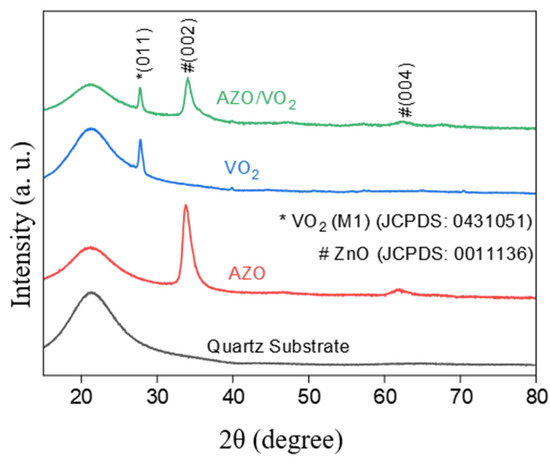

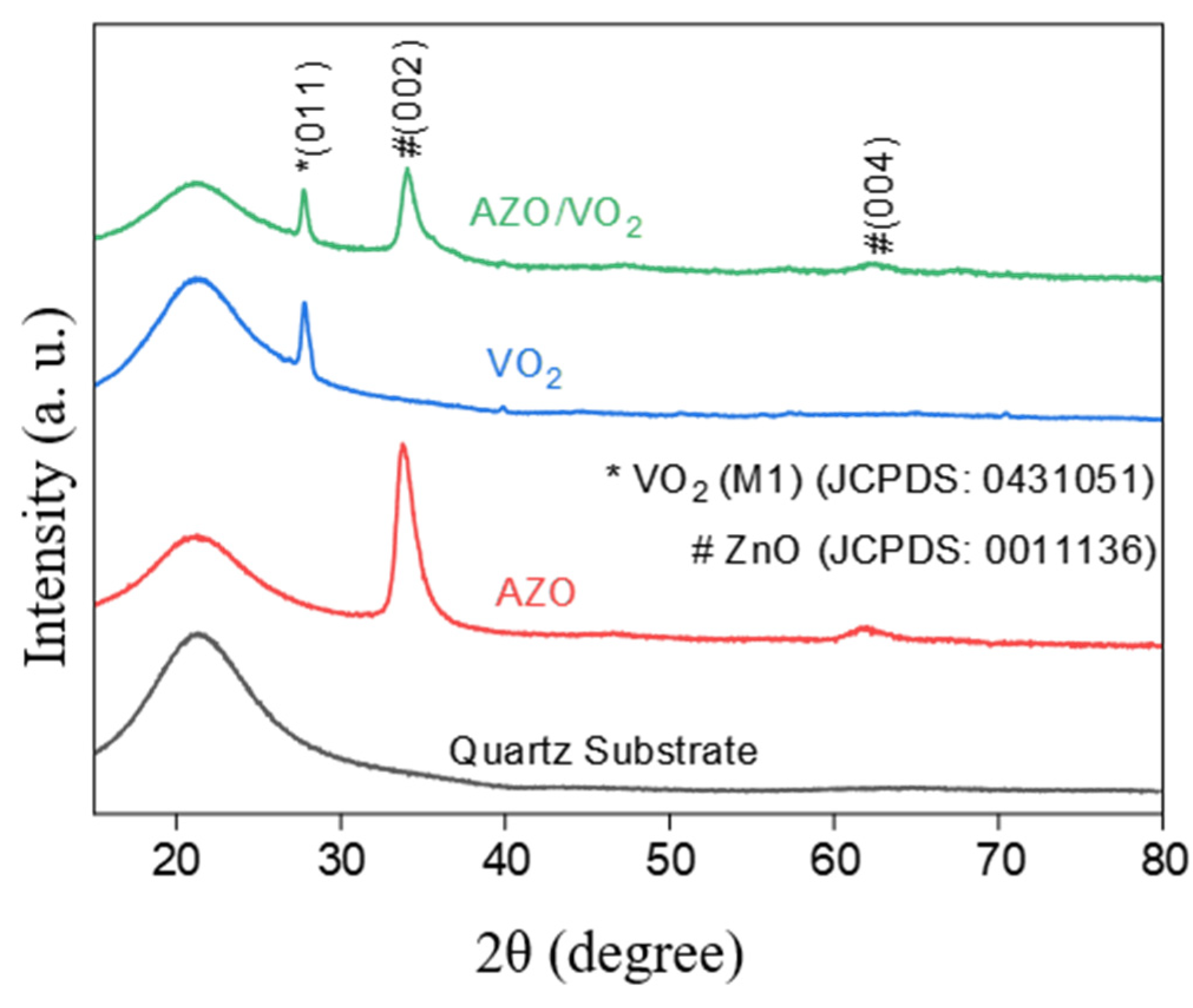

Figure 1 shows the room temperature GIXRD data of grown samples along with substrate. In VO₂ single layer thin film sample, apart from the substrate hump, only one diffraction peak is seen, and it belongs to (011) plane of monoclinic M1 phase of VO₂ (JCPDS card number 0431051). This observation of single peak in the GIXRD data points to preferred growth of VO₂ along this plane in single layer thin film sample. In case of AZO single layer sample, only the c-axis-oriented diffraction peaks representing the hexagonal structure of ZnO (JCPDS card number 0011136) are observed [27]. In AZO/VO₂ bilayer thin film sample, the diffraction peaks observed in the GIXRD data are only those which appeared in the single layer VO₂ and AZO thin film samples. Any other diffraction peak of significant intensity is not observed in the AZO/VO₂ thin film sample. Room temperature GIXRD results confirm the single-phase growth of VO₂ (monoclinic M1 phase) in single layer as well as bilayer sample. Moreover, the deposition of AZO layer on top of VO₂ did not produce any significant changes in the crystalline structure of VO₂. Earlier, extra peak corresponding to other vanadium oxides and/or zinc vanadate was observed when VO₂ layer was grown on top of ZnO layer for substrate temperature higher than 250 °C [21].

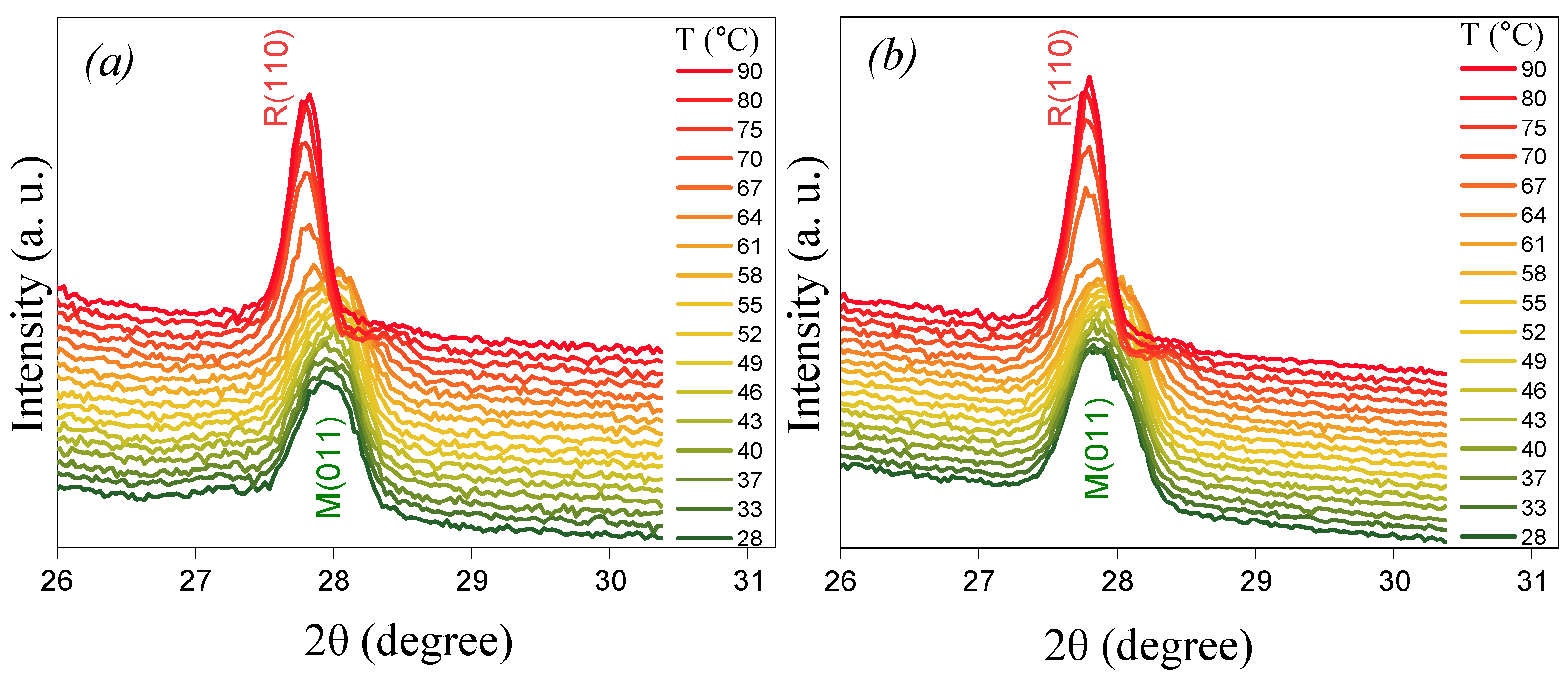

After confirming the single-phase growth of VO₂ in single and AZO/VO₂ thin film samples, we have recorded the temperature-dependent GIXRD data of these samples focused to M(011) diffraction peak in temperature range 28 to 90 °C. This enabled us to track the structural phase transition in these samples. The temperature-dependent diffraction data of VO₂ and AZO/VO₂ thin film samples are shown in Figure 2a,b, respectively. In VO₂ thin film sample, M(011) diffraction peak remains stable from 28 to ~60 °C, and beyond that it starts to shift towards lower 2θ values with increasing temperature and finally transforms to rutile phase R(110) diffraction peak. Similar behavior of M(011) diffraction peak with increasing temperature is also noticed in the AZO/VO₂ thin film sample.

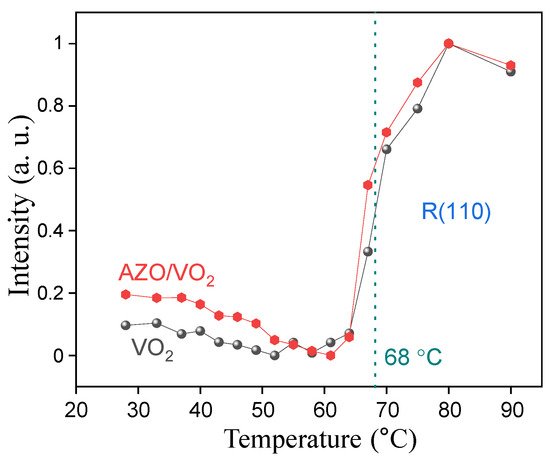

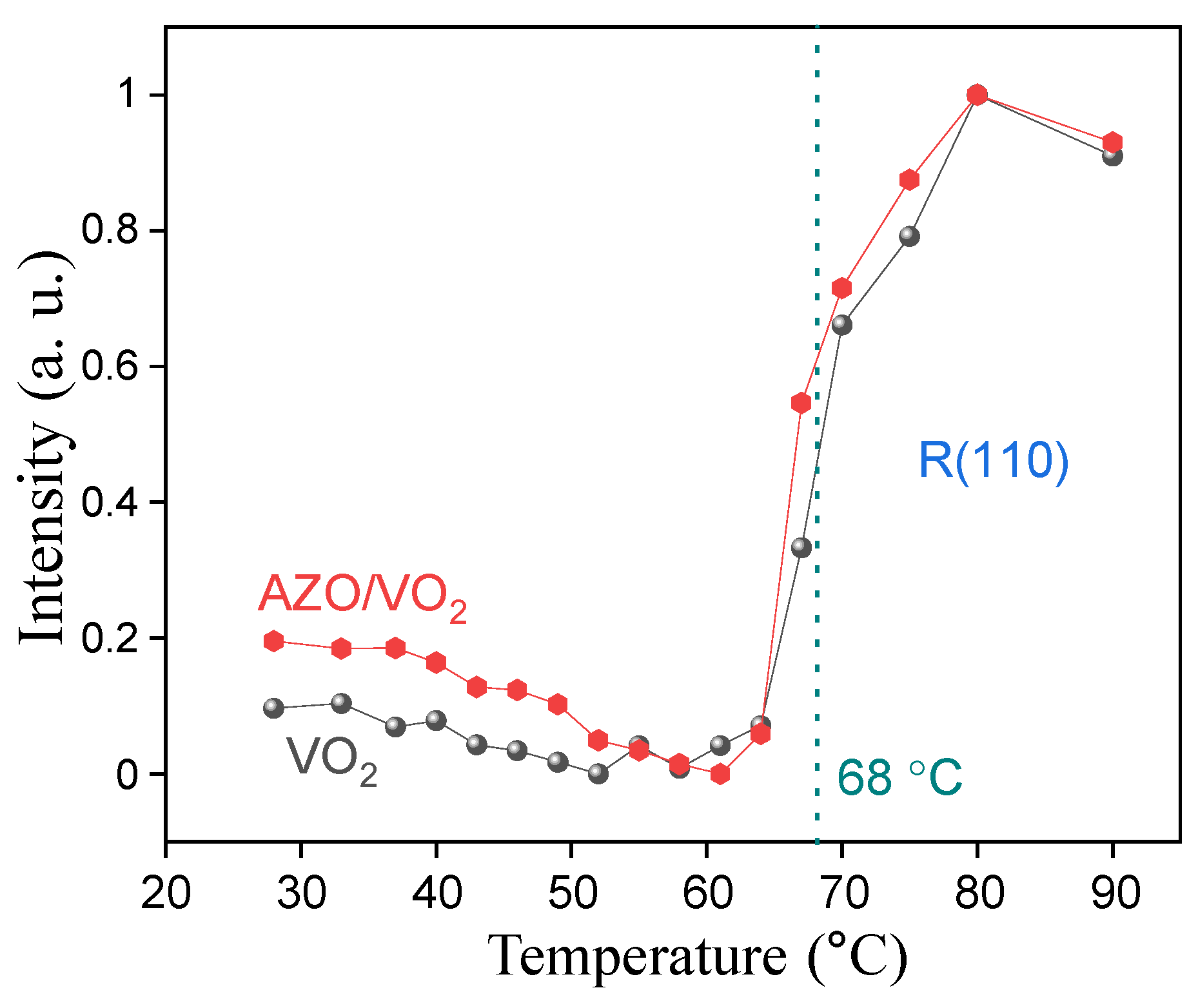

For better visualization of monoclinic to rutile structural phase transition and to identify the transition temperature in VO₂ and AZO/VO₂ thin film samples, the intensity variation of R(110) diffraction peak with increasing temperatures are plotted in Figure 3 for these samples. One can clearly see the emergence of R(110) diffraction peak when temperature is increased above 60 °C. The dotted line in Figure 3 represents the structural phase transition temperature (68 °C) seen in bulk VO₂ and good quality thin film samples [10]. The temperature-dependent intensity variation of R(110) diffraction peak of VO₂ thin film sample shown in Figure 3 also indicates that the structural phase transition temperature of this sample is close to 68 °C, which highlights its good growth quality. R(110) diffraction peak intensity variation trend is similar for VO₂ as well as AZO/VO₂ thin film samples, except the fact that the structural phase transition temperature in AZO/VO₂ sample appears to be on slightly lower temperature than that of VO₂ thin film sample. This is possible due to the formation of defects such as oxygen vacancies during the AZO layer growth on top of the VO₂ thin film. As AZO layer was grown at room temperature and no further annealing was performed after that, the defects were fewer and the change in transition temperature of AZO/VO₂ sample was not much different to that of VO₂ layer.

The surface morphology of VO₂ and AZO/VO₂ thin film samples was studied by means of FESEM (as seen in Figure 4). From Figure 4a, it can be seen that VO₂ film has large flat aggregated particles. In AZO/VO₂ thin film sample, uniform and continuous grain growth of AZO on VO₂ layer is observed (Figure 4b). Inset of Figure 4b shows the phot of VO₂ and AZO/VO₂ layers grown on quartz substrate. The uniform surface coverage of these layers is evident in this photo.

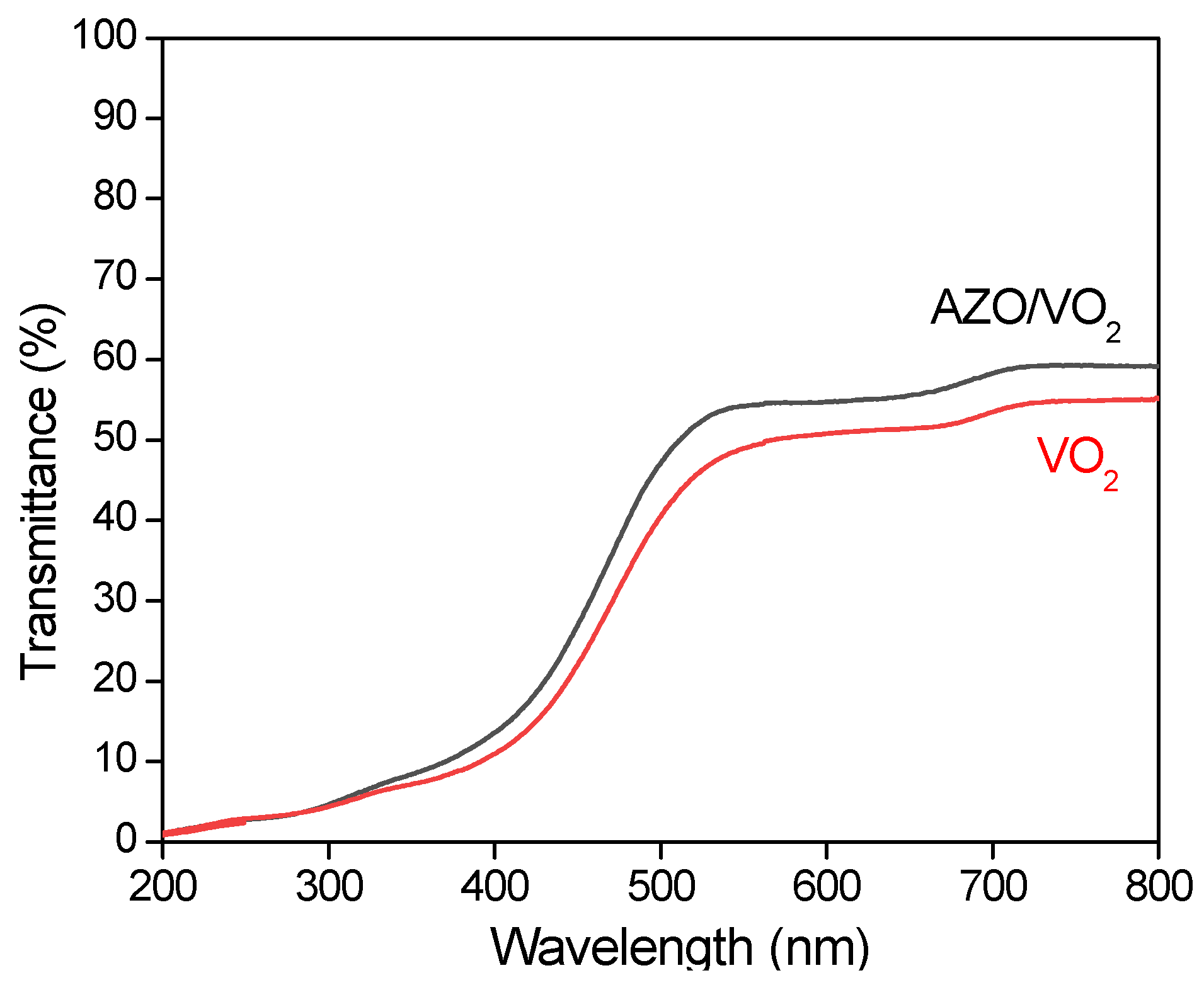

After structural characterization and surface morphological study of VO₂ and AZO/VO₂ thin film samples, UV-vis spectroscopy at room temperature in transmission mode was performed to examine the optical properties of these samples. Recorded UV-Vis spectra of VO₂ and AZO/VO₂ thin film samples in 200 to 800 nm range is shown in Figure 5. From Figure 5, it can be seen that growth of AZO layer on top of VO₂ has significantly modulated the optical transmittance in AZO/VO₂ sample as compared to the VO₂ thin film sample. It is worthy to note that transmittance is very little for both films in the UV region, while transmittance in visible region is significantly higher for the AZO/VO₂ bilayer film sample as compared to the VO₂ single layer sample. Better transmittance of AZO/VO₂ bilayer film sample is likely to be driven by the antireflection property of AZO layer that reduces the light loss by making use of phase change and the reflectivity dependence on index of refraction [19].

4. Conclusions

In summary, some initial results of VO₂ single layer and AZO/VO₂ bilayer films grown on quartz substrate by RF magnetron sputtering have been presented. Preferential crystal orientation of VO₂ and AZO in single and bilayer samples was confirmed by GIXRD measurements at room temperature. GIXRD results confirmed the absence of any extra peak corresponding to other vanadium oxides and/or zinc vanadate in VO₂ and azo/VO₂ thin film samples. Temperature-dependent GIXRD measurements revealed the monoclinic to rutile structural phase transition in VO₂ close to 68 °C and with slight shift towards lower temperature in AZO/VO₂ thin film sample. Through UV-Vis spectroscopy, it was found that bilayer structures have significantly higher optical transmittance than the VO₂ single layer, and the enhanced transmittance in bilayer sample is associated with anti-reflecting AZO layer. The use of anti-reflecting layer such as AZO leads to enhanced visible transmittance in the AZO/VO₂ integrated structure and can eventually solve the issue of low visible transmittance of VO₂ single layer.
