Next Article in Journal
Effects of Graphene-Based Fillers on Cathodic Delamination and Abrasion Resistance of Cataphoretic Organic Coatings
Previous Article in Journal
Effect of Laser Processing on Surface Properties of Additively Manufactured 18-Percent Nickel Maraging Steel Parts
Open AccessArticle

Corrosion Resistance of Hard Coat Anodized AA 6061 in Citric–Sulfuric Solutions

1
Universidad Autonoma de Nuevo Leon, FIME-Centro de Investigación e Innovación en ingeniería Aeronáutica (CIIIA), Av. Universidad s/n, Ciudad Universitaria, 66455 San Nicolás de los Garza, N.L, Mexico
2
Universidad Veracruzana, Facultad de Ingeniería Civil, 91000 Xalapa, Mexico
3
Centro de Investigación en Materiales Avanzados (CIMAV), Miguel de Cervantes 120, Complejo Industrial Chihuahua, 31136 Chihuahua, Mexico
*
Author to whom correspondence should be addressed.
Coatings 2020, 10(6), 601; https://doi.org/10.3390/coatings10060601
Received: 15 May 2020 / Revised: 20 June 2020 / Accepted: 24 June 2020 / Published: 26 June 2020
(This article belongs to the Special Issue Hard Coatings in Research and Industry)

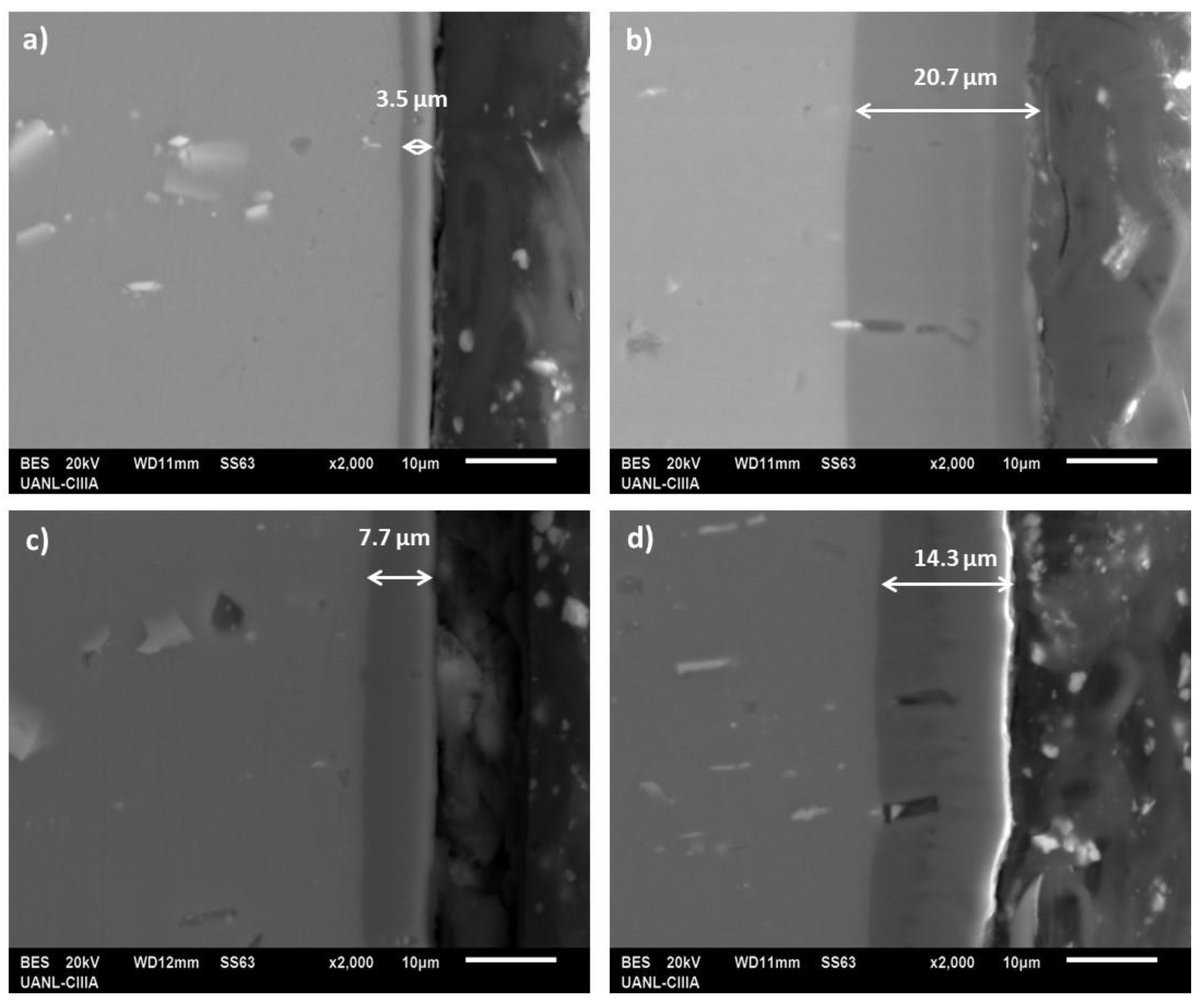

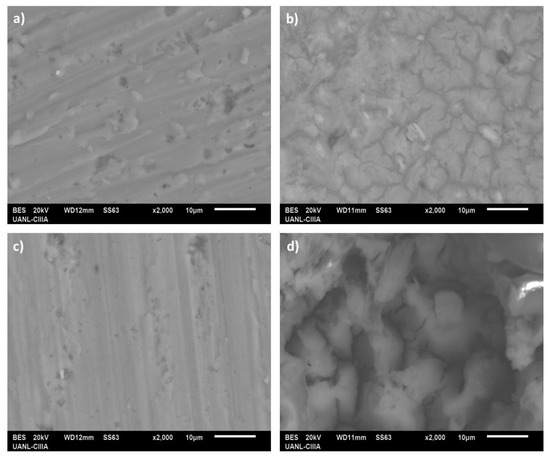

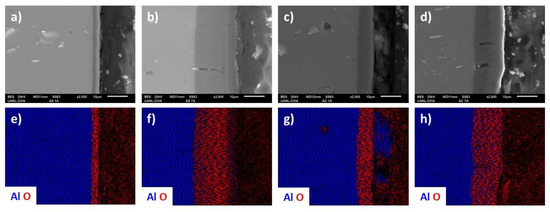

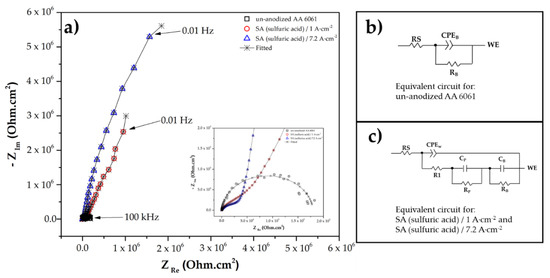

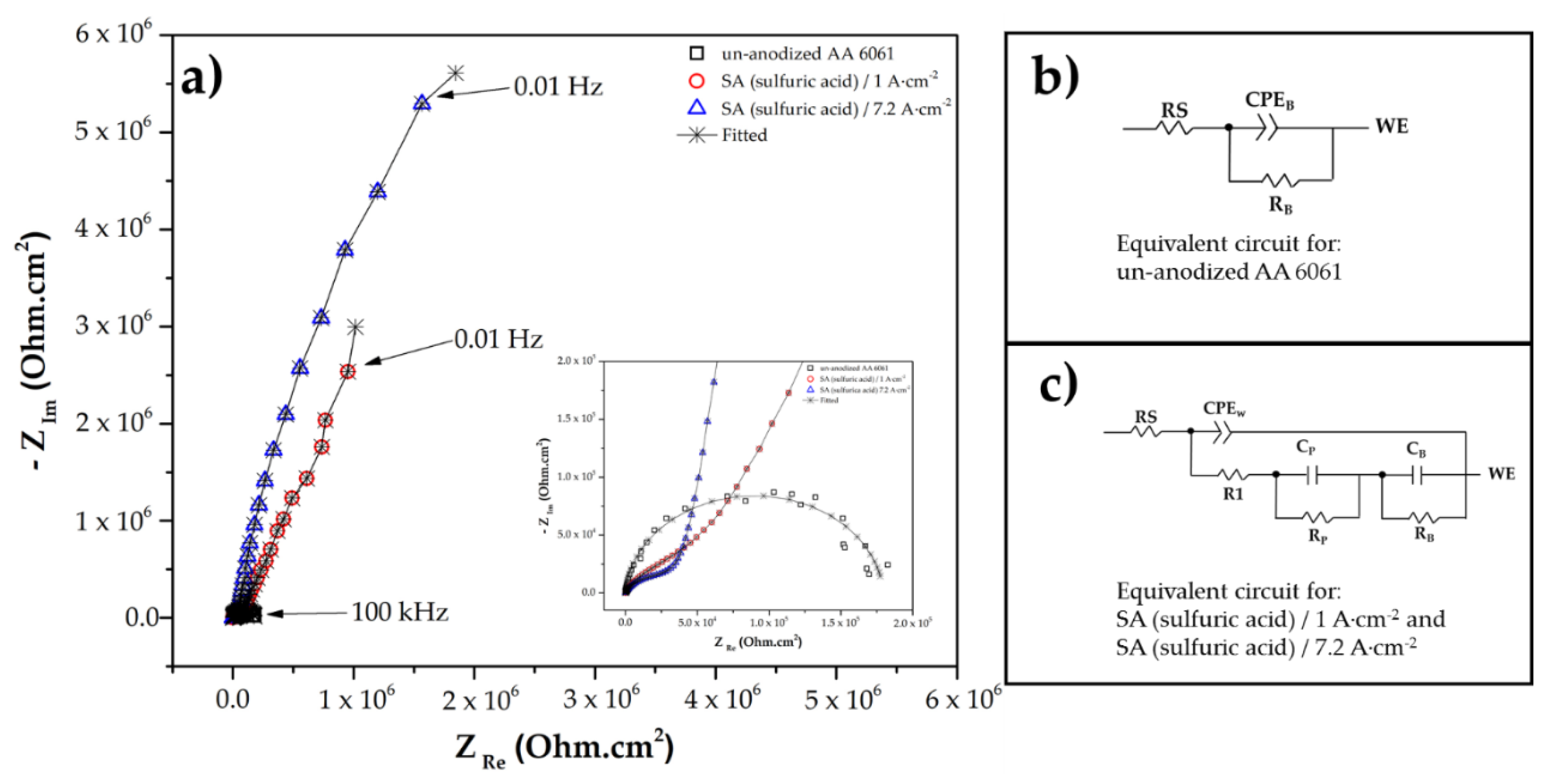

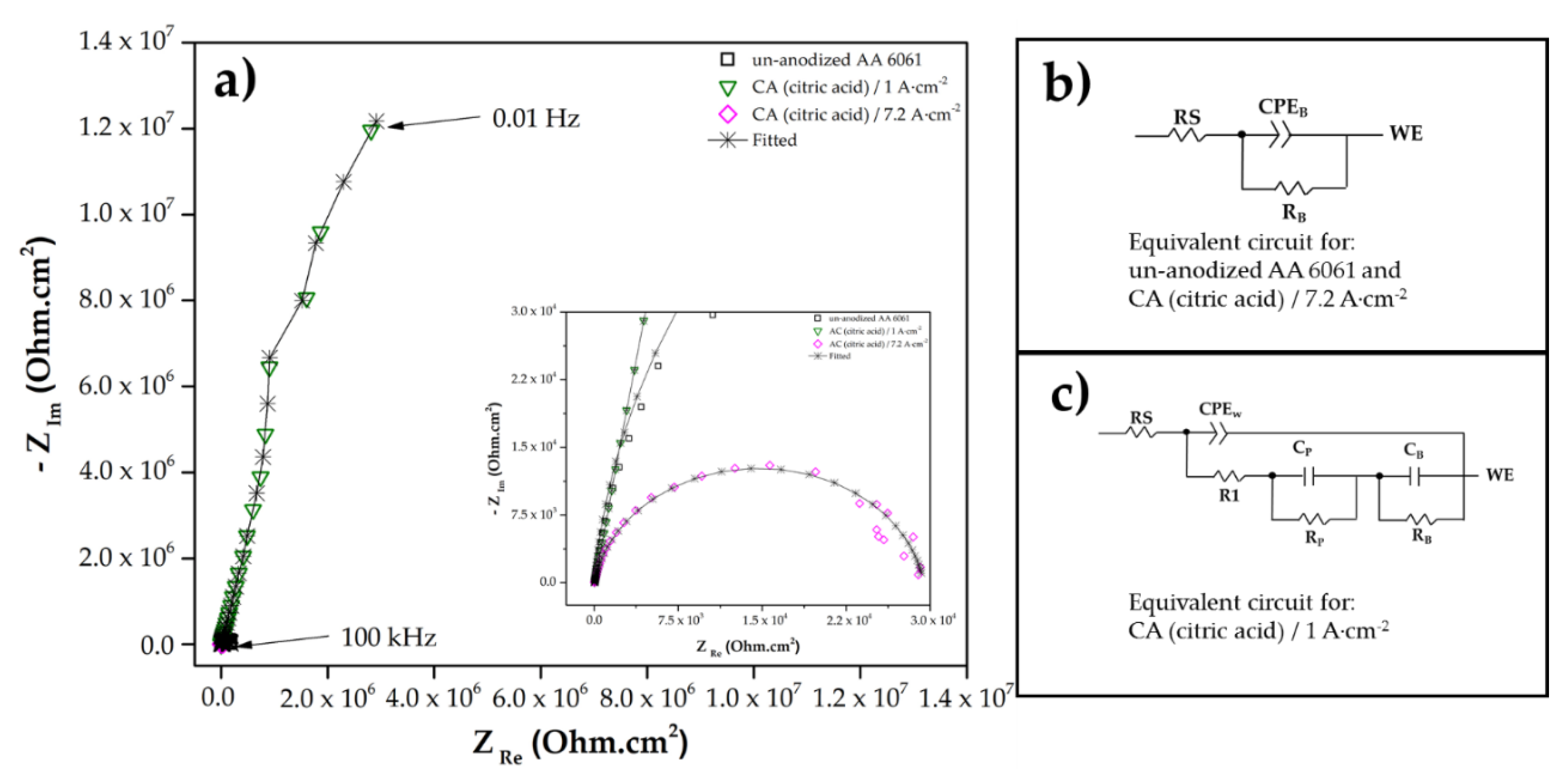

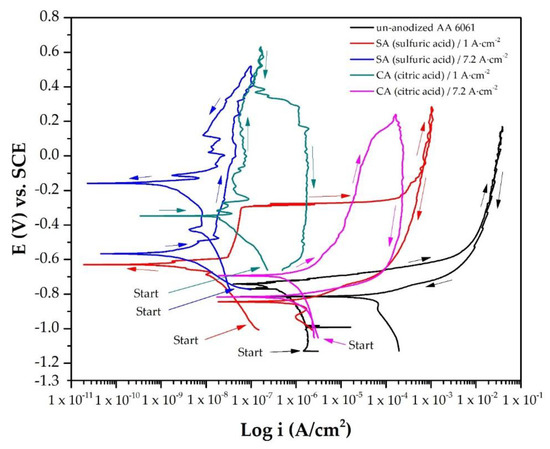

Aluminum is a material widely used in aeronautical and transport industries due to its excellent mechanical and corrosion resistance properties. Unfortunately, aluminum alloys are susceptible to corrosion, which limits their use in some corrosive environments. The aim of this work is to characterize hard coat film fabricated by anodizing in a citric–sulfuric acid system using electrochemical techniques. The anodization process was carried out using an aluminum alloy AA 6061 anodization bath: a mix of citric and sulfuric acid solutions were used. For the anodizing process, two current densities were used, 1 and 7.2 A·cm−2. Anodized specimens obtained under different conditions were exposed to a 3.5 wt.% NaCl solution, and their electrochemical behavior was studied by electrochemical impedance spectroscopy (EIS) and cyclic potentiodynamic polarization (CPP) according to ASTM G106-15 and ASTM G5-13, respectively. Scanning electron microscopy (SEM) was employed to determinate the morphology and thickness of coatings. The results showed improved corrosion resistance in 6061 aluminum anodized in citric–sulfuric acid electrolyte compared to those anodized in sulfuric acid solution. View Full-Text
Keywords: anodized; aluminum; corrosion; citric acid; electrochemical impedance spectroscopy anodized; aluminum; corrosion; citric acid; electrochemical impedance spectroscopy
Show Figures

Figure 1

MDPI and ACS Style

Cabral-Miramontes, J.; Gaona-Tiburcio, C.; Estupinán-López, F.; Lara-Banda, M.; Zambrano-Robledo, P.; Nieves-Mendoza, D.; Maldonado-Bandala, E.; Chacón-Nava, J.; Almeraya-Calderón, F. Corrosion Resistance of Hard Coat Anodized AA 6061 in Citric–Sulfuric Solutions. Coatings 2020, 10, 601.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
