Micro and Macro-Tribology Behavior of a Hierarchical Architecture of a Multilayer TaN/Ta Hard Coating
Previous Article in Journal
Reducing Static and Impact Ice Adhesion with a Self-Lubricating Icephobic Coating (SLIC)
Open AccessFeature PaperArticle

Microstructure and Wear of (CrN/CrAlN)/(CrAlN/VN) and (CrN/TiAlN)/(TiAlN/VN) Coatings for Molds Used in High Pressure Casting of Aluminum

Limatherm S.A., 34-600 Limanowa, Poland
Institute of Metallurgy and Materials Science, Polish Academy of Sciences, 30-059 Krakow, Poland
Institute for Sustainable Technologies, Łukasiewicz Research Network, 26-600 Radom, Poland
Author to whom correspondence should be addressed.
Coatings 2020, 10(3), 261;
Received: 5 February 2020 / Revised: 6 March 2020 / Accepted: 9 March 2020 / Published: 11 March 2020
(This article belongs to the Special Issue Nanoscale Multilayer Thin Films/Foils)

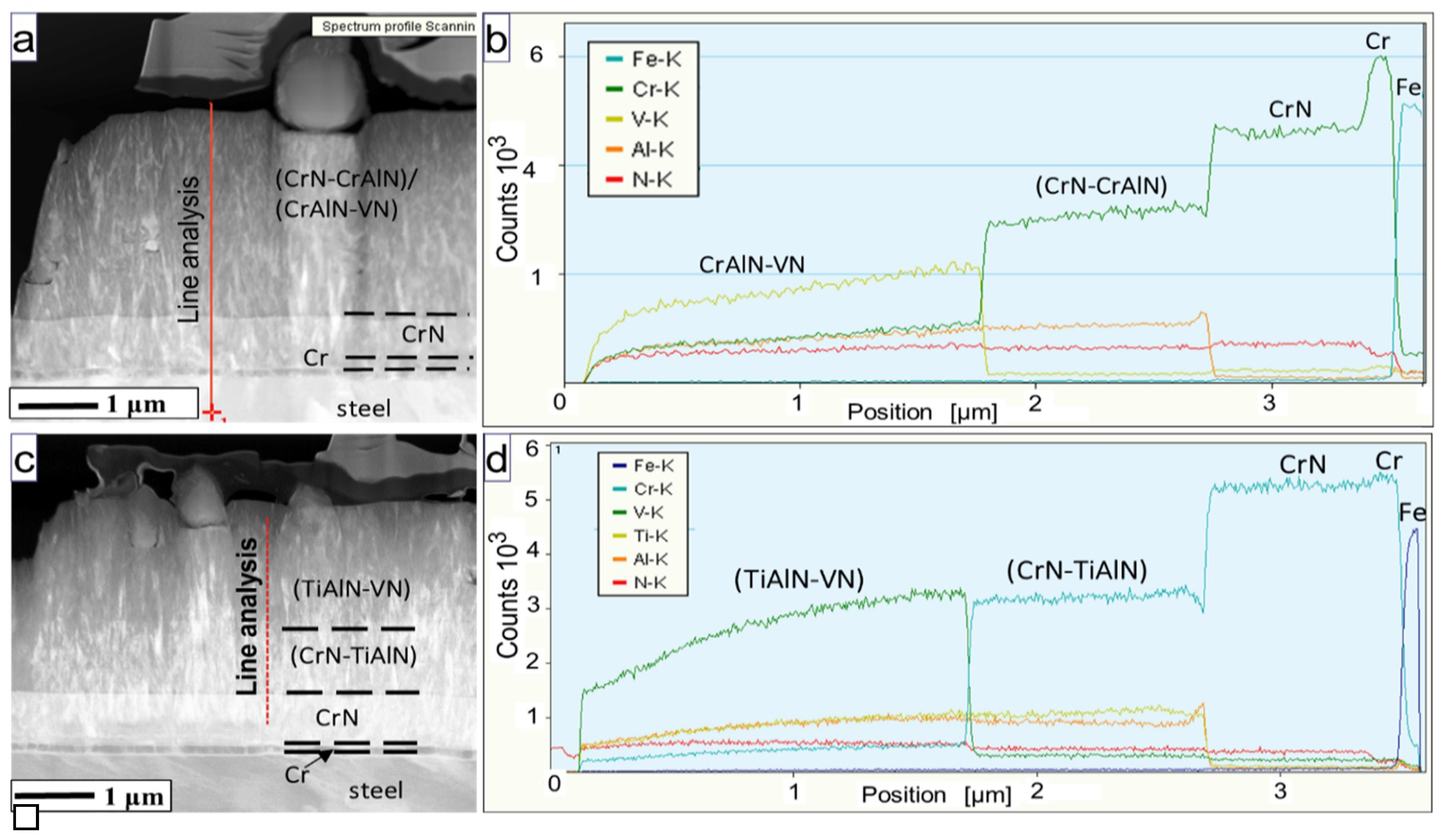

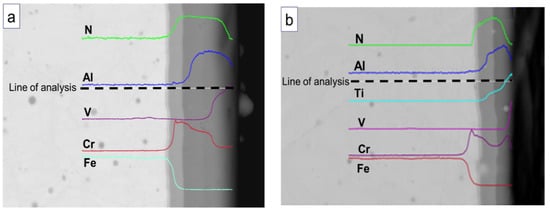

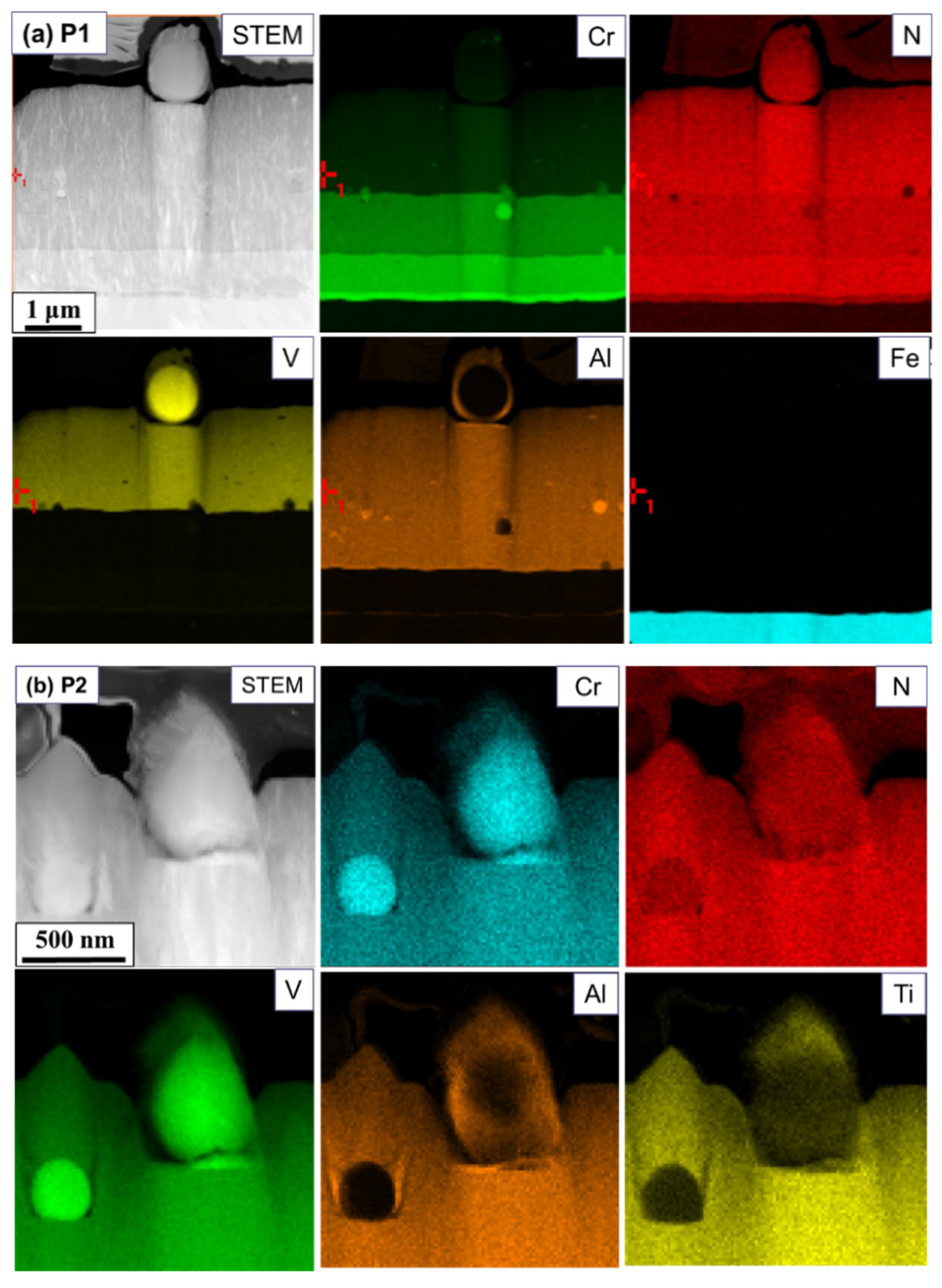

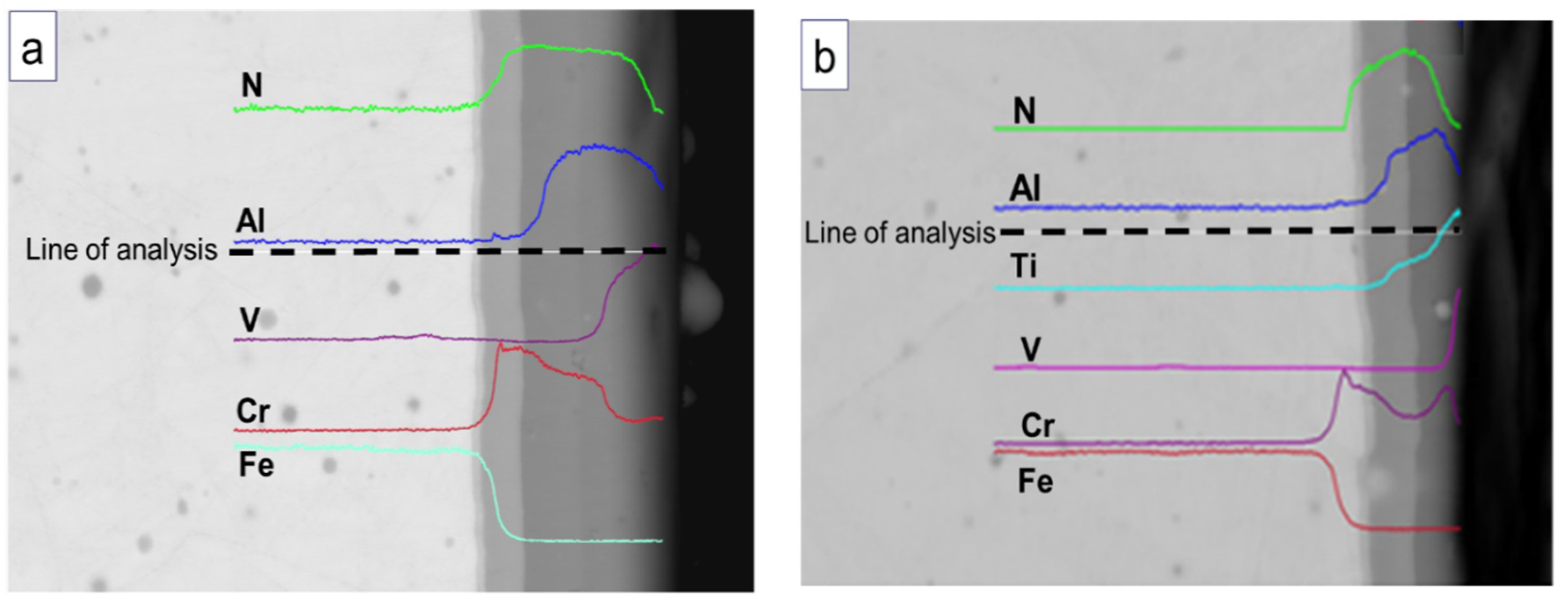

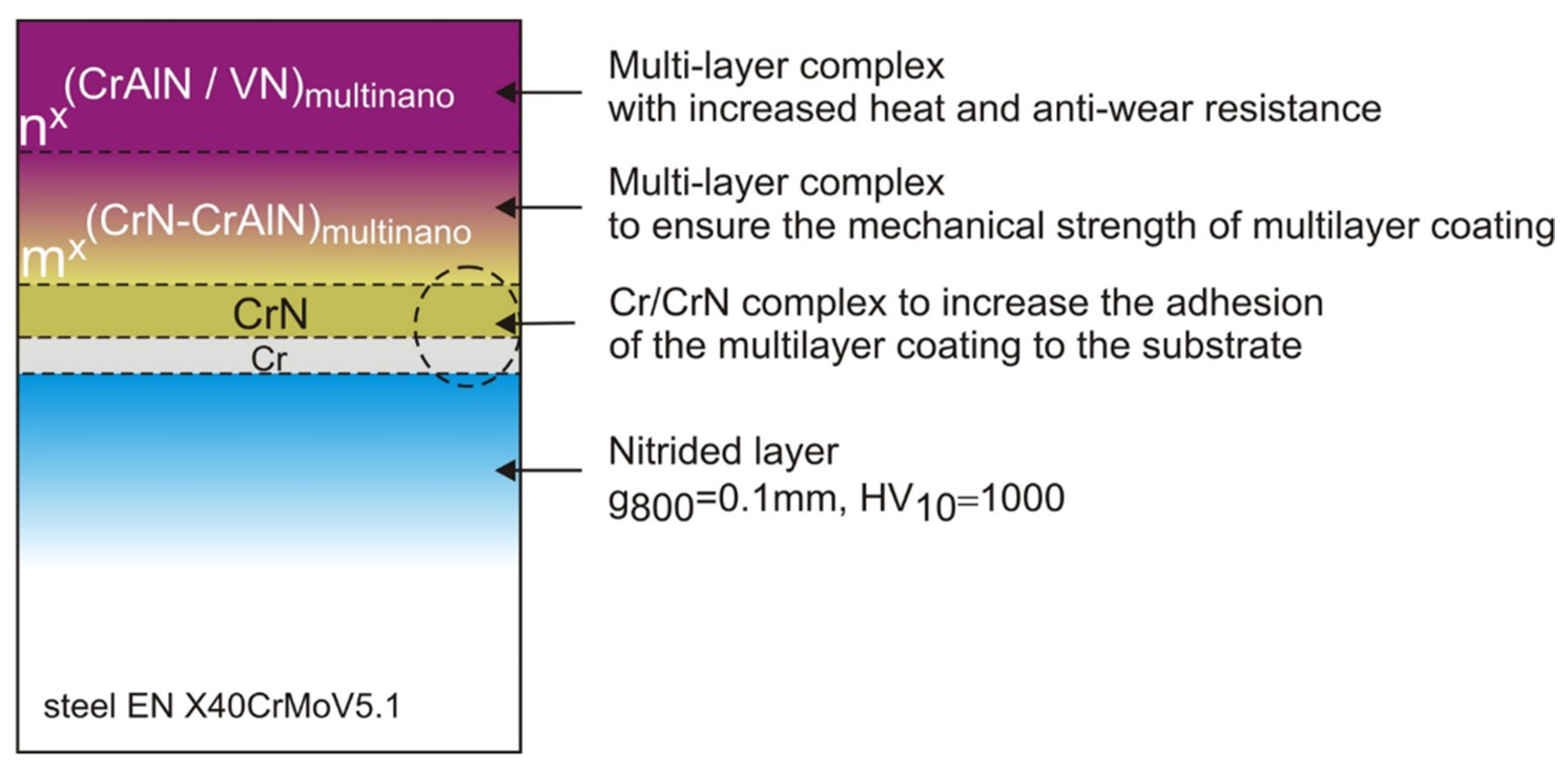

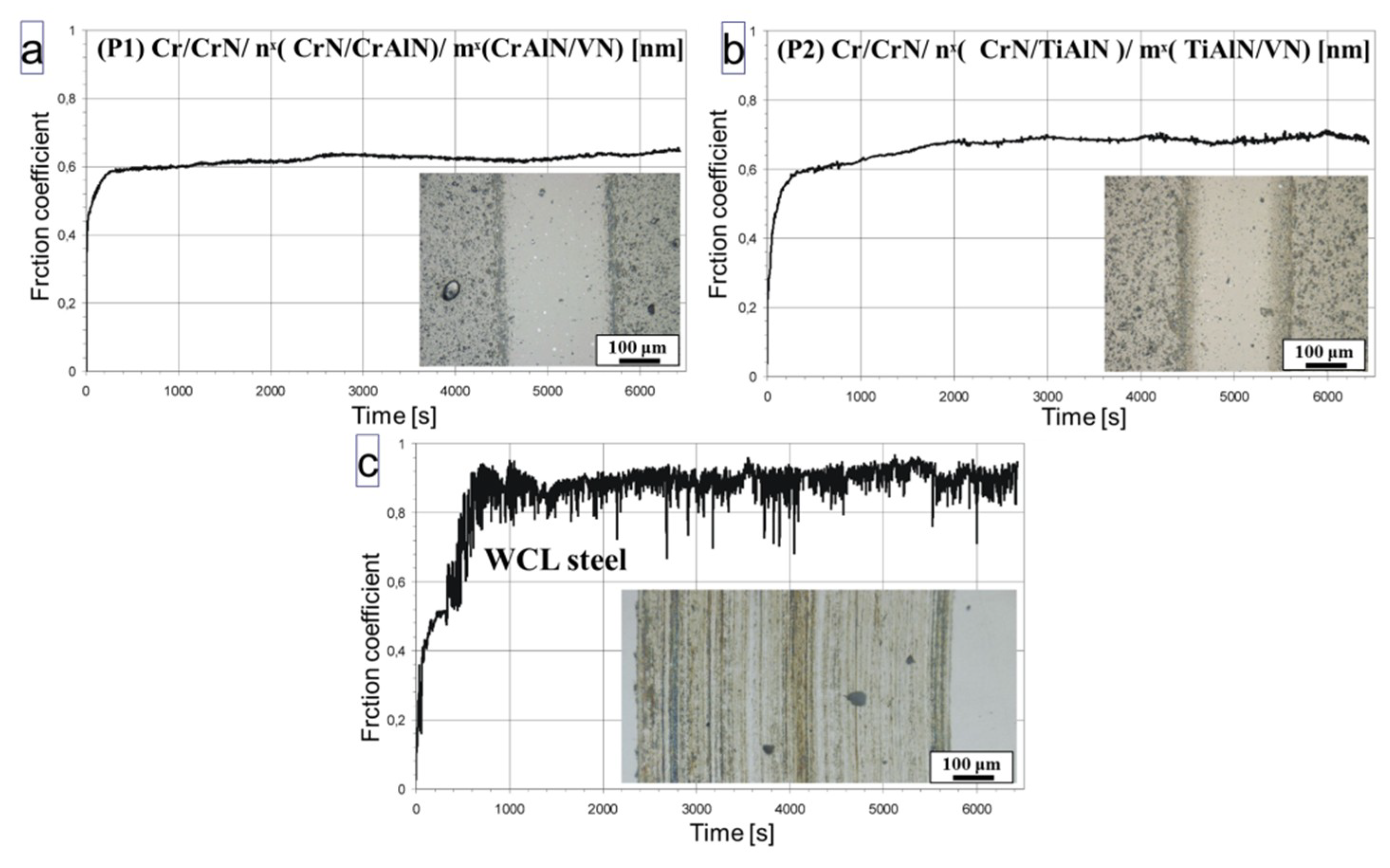

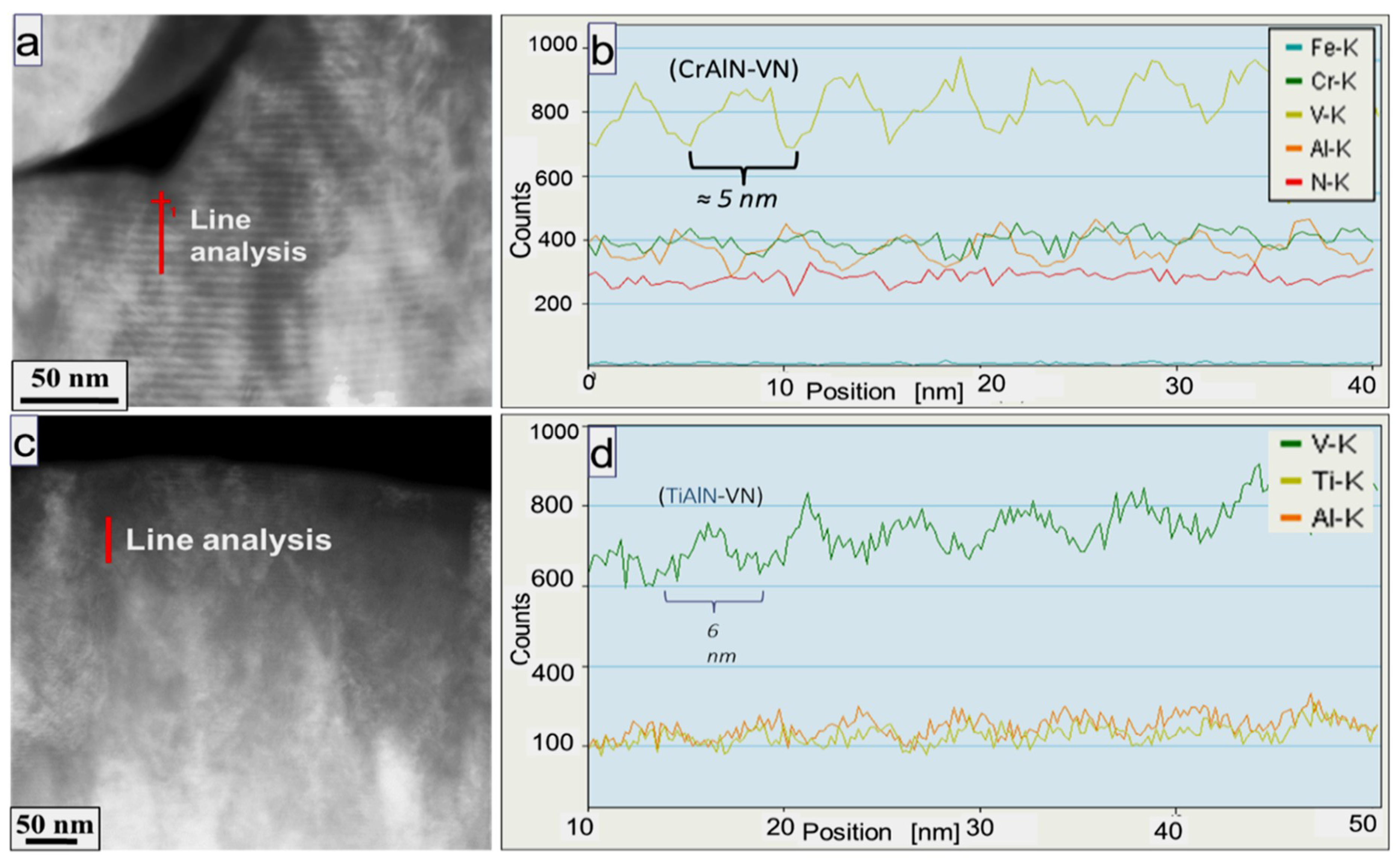

Molds made of tool steels used in aluminum high-pressure die casting should routinely withstand tens of thousands of injection cycles, but repeated loading and temperature spikes result in their frequent premature wear. Extending their lifetime could be sought by nitriding or application of coatings of even higher hardness or both. Therefore, in the present experiment the arc-deposited Cr/(CrN)/nx(CrN/CrAlN)/mx(CrAlN/VN) or Cr/(CrN)/nx(CrN/TiAlN)/mx(TiAlN/VN) nano-multilayer stacks were deposited on glow discharge nitrided X40CrMoV5.1 steel. The scanning and transmission electron microscopy backed by Energy Dispersive X-ray Spectroscopy measurements of local chemical composition helped to confirm that the coatings are built of nanolayers of respective nitrides of period less than 10 nm. They also showed that droplets being characteristic for arc deposition method were enriched either in chromium, aluminum or vanadium but not in titanium. Both coatings presented comparable hardness of ~25 GPa, but the one covered with TiAlN/VN was roughly twice as wear resistant as the CrAlN/VN. Simultaneously, they were ~200 and ~100 more wear resistant than X40CrMoV5.1reference steel. View Full-Text
Keywords: hybrid surface treatment; nano-multilayers; microstructure; wear resistance hybrid surface treatment; nano-multilayers; microstructure; wear resistance
Show Figures

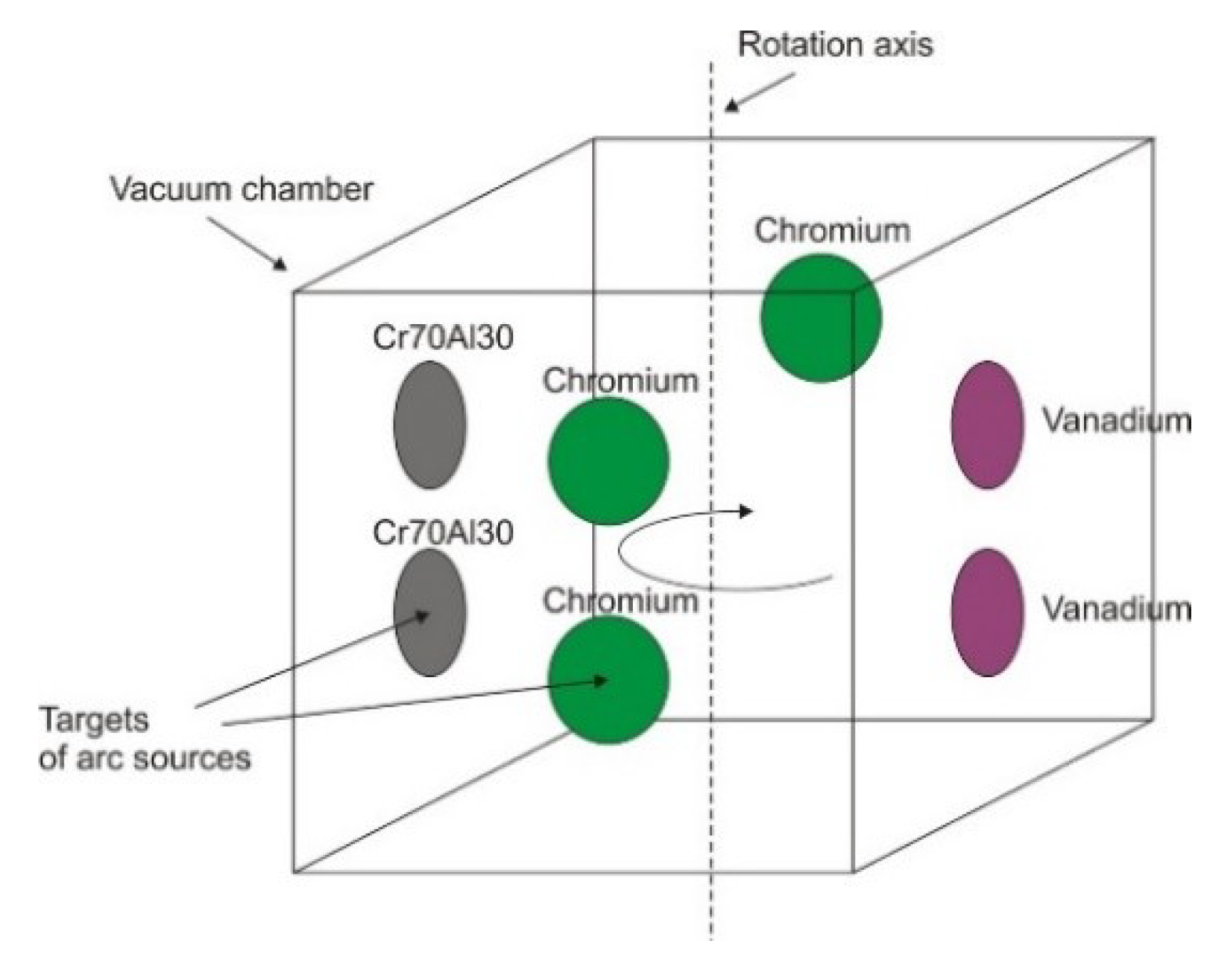

Figure 1

MDPI and ACS Style

Wilczek, A.; Morgiel, J.; Rogal, Ł.; Maziarz, W.; Smolik, J. Microstructure and Wear of (CrN/CrAlN)/(CrAlN/VN) and (CrN/TiAlN)/(TiAlN/VN) Coatings for Molds Used in High Pressure Casting of Aluminum. Coatings 2020, 10, 261.
