Next Article in Journal
The Problem of Copper Softening During Cold Gas Dynamic Spraying
Next Article in Special Issue
Characterization of Thermochemical and Thermomechanical Properties of Eyjafjallajökull Volcanic Ash Glass
Previous Article in Journal
Study on the Measurement of Stress in the Surface of Selective Laser Melting Forming Parts Based on the Critical Refraction Longitudinal Wave
Previous Article in Special Issue
Environmental Barrier Coatings Made by Different Thermal Spray Technologies
Open AccessFeature PaperArticle

Delayed Formation of Thermally Grown Oxide in Environmental Barrier Coatings for Non-Oxide Ceramic Matrix Composites

Fraunhofer Institute for Ceramic Technologies and Systems IKTS, Dresden 01277, Germany
*
Author to whom correspondence should be addressed.
Coatings 2020, 10(1), 6; https://doi.org/10.3390/coatings10010006
Received: 22 November 2019 / Revised: 13 December 2019 / Accepted: 17 December 2019 / Published: 19 December 2019
(This article belongs to the Special Issue Environmental Barrier Coatings)

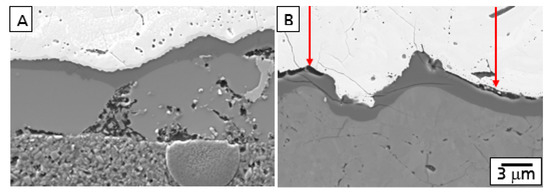

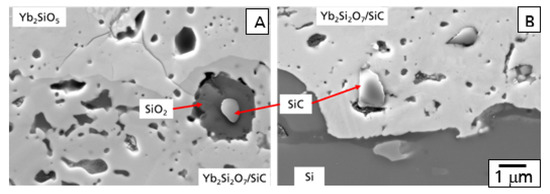

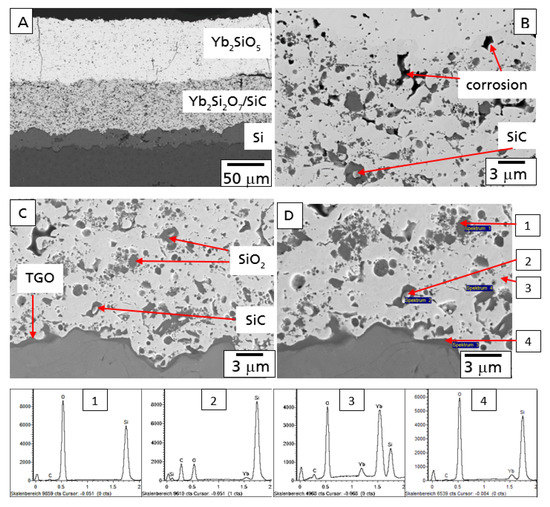

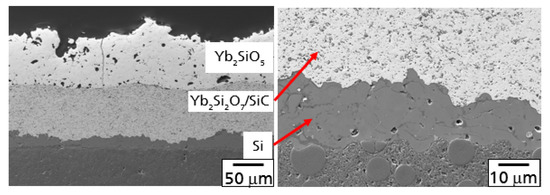

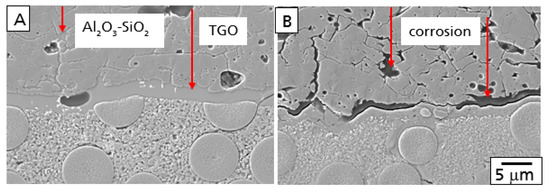

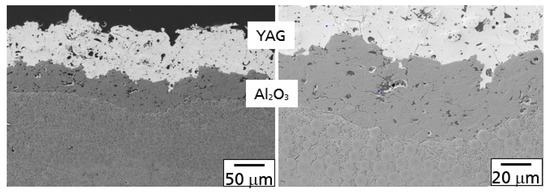

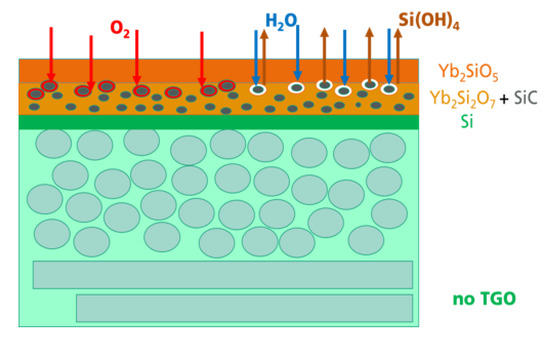

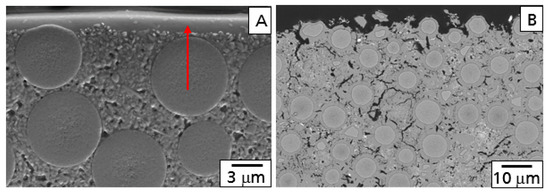

The oxidation and corrosion behavior at elevated temperatures of a SiCF/SiC(N) composite with two plasma-sprayed environmental barrier coating (EBC) systems were studied. After both processes, the formation of a silica-based thermally grown oxide (TGO) layer was observed. The formation of this TGO caused two principal failure mechanisms of the EBC. Firstly, spallation of the EBC induced by stresses from volume expansion and phase transformation to crystalline SiO2 was observed. Water vapor corrosion of the TGO with gap formation in the top region of the TGO was found to be a second failure mechanism. After a burner rig test of the Al2O3-YAG EBC system, this corrosion process was observed at the TGO surface and in the volume of the Al2O3 bond coat. In the case of the second system, Si-Yb2Si2O7/SiC-Yb2SiO5, the formation of the TGO could be delayed by introducing an additional intermediate layer based on Yb2Si2O7 filled with SiC particles. The SiC particles in the intermediate layer were oxidized and served as getter to reduce the permeation of oxidants (O2, H2O) into the material. In this way, the formation of the TGO and the failure mechanisms caused by their formation and growth could be delayed. View Full-Text
Keywords: environmental barrier coatings; non-oxide ceramic matrix composites; oxidation; water vapor corrosion; thermally grown oxide; damage mechanisms environmental barrier coatings; non-oxide ceramic matrix composites; oxidation; water vapor corrosion; thermally grown oxide; damage mechanisms
Show Figures

Figure 1

MDPI and ACS Style

Klemm, H.; Schönfeld, K.; Kunz, W. Delayed Formation of Thermally Grown Oxide in Environmental Barrier Coatings for Non-Oxide Ceramic Matrix Composites. Coatings 2020, 10, 6.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
