Nonlinear Dynamic Characteristic Analysis of a Coated Gear Transmission System

by Yangyi Xiao 1,2,*, Liyang Fu 1,2,3, Jing Luo 1,2, Wankai Shi 3 and Minglin Kang 4
1
College of Engineering, Huazhong Agricultural University, Wuhan 430070, China
2
Key Laboratory of Agricultural Equipment in Mid-Lower Yangtze River, Ministry of Agriculture, Wuhan 430070, China
3
State Key Laboratory of Mechanical Transmission, Chongqing University, Chongqing 400044, China
4
Chongqing Yangjiang Machine Manufacture Co., Ltd., Chongqing 400000, China
*
Author to whom correspondence should be addressed.
Coatings 2020, 10(1), 39; https://doi.org/10.3390/coatings10010039
Received: 28 November 2019 / Revised: 17 December 2019 / Accepted: 24 December 2019 / Published: 2 January 2020

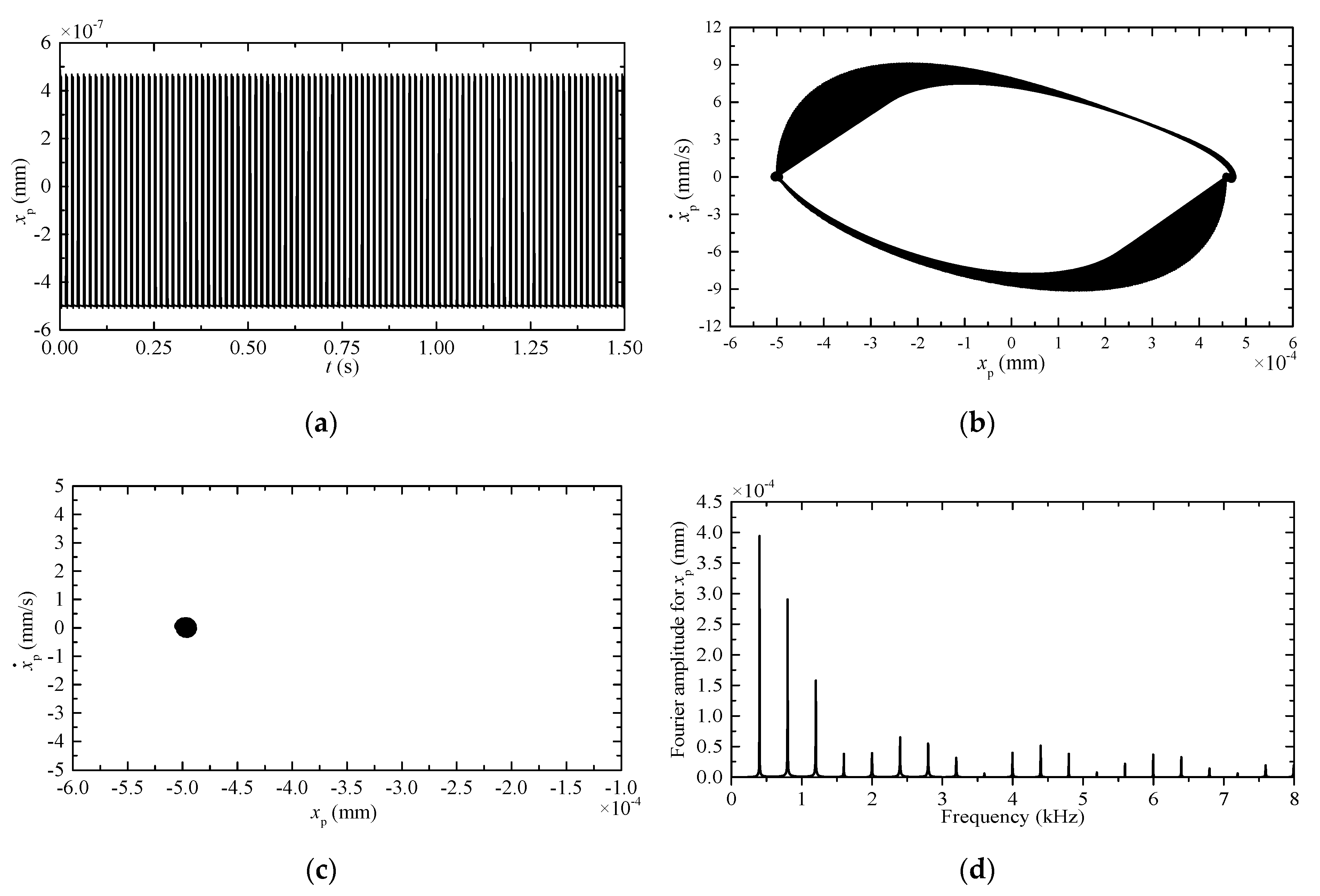

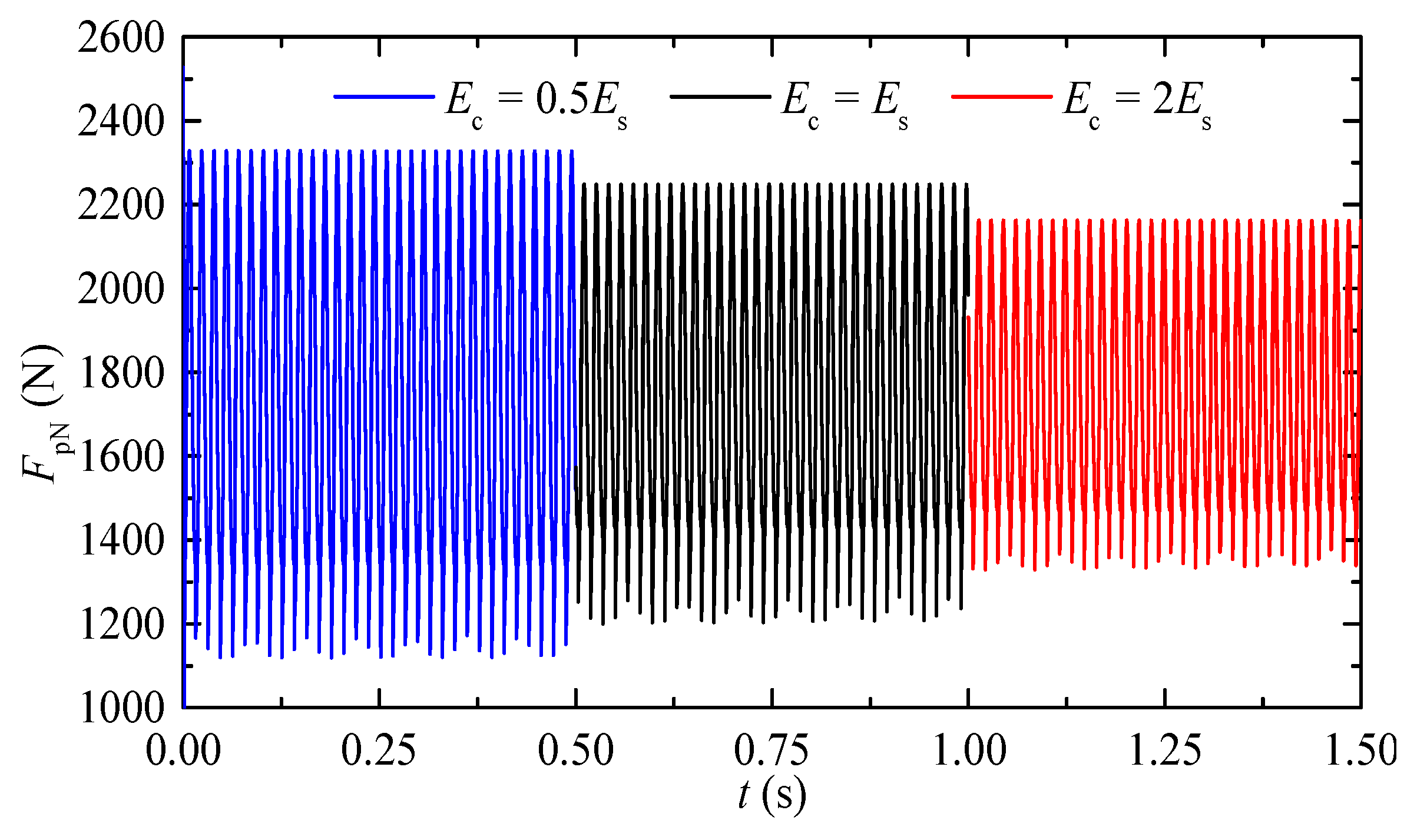

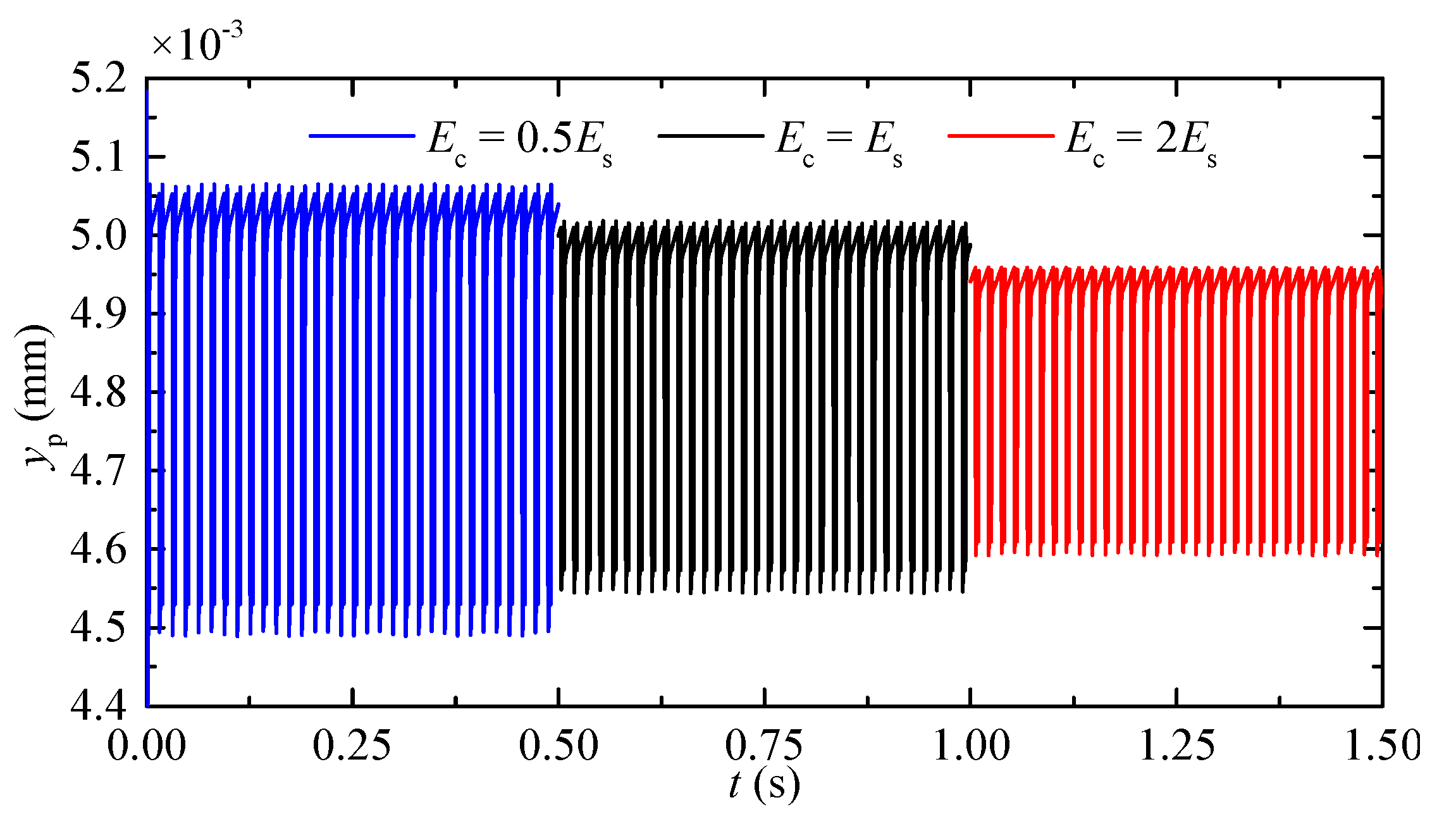

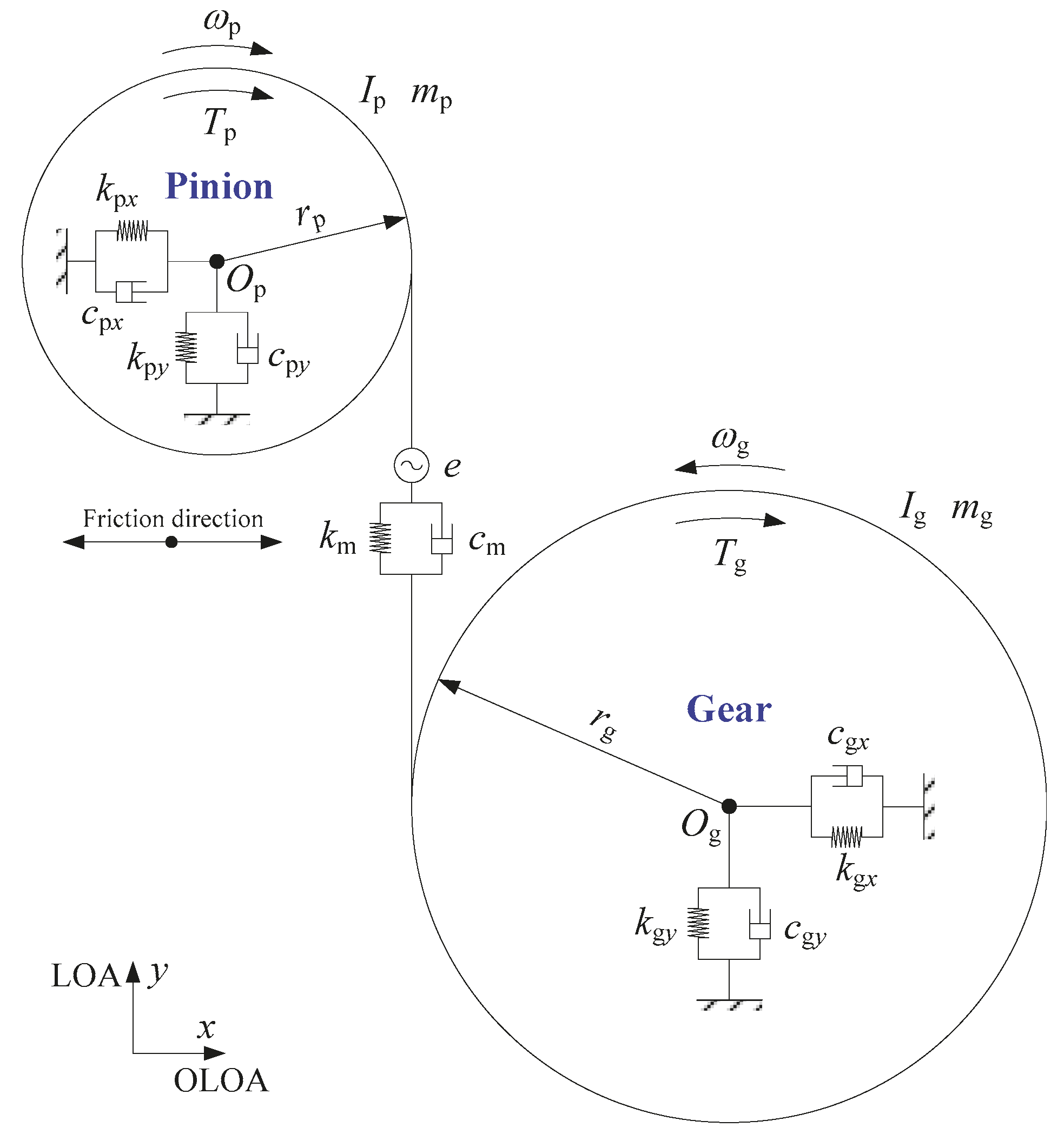

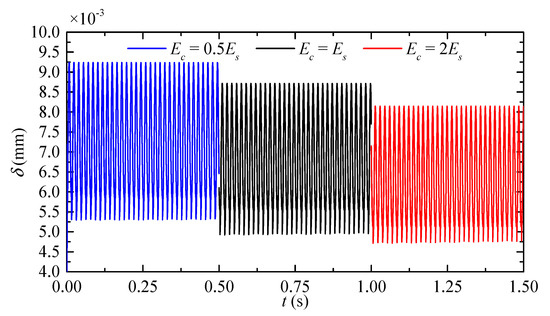

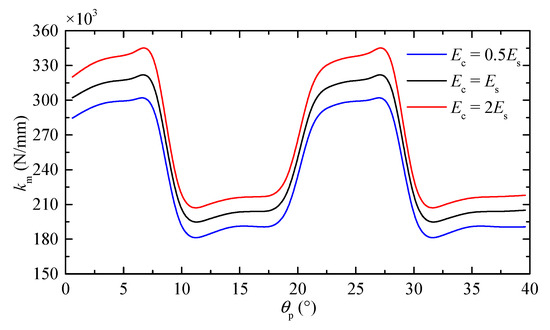

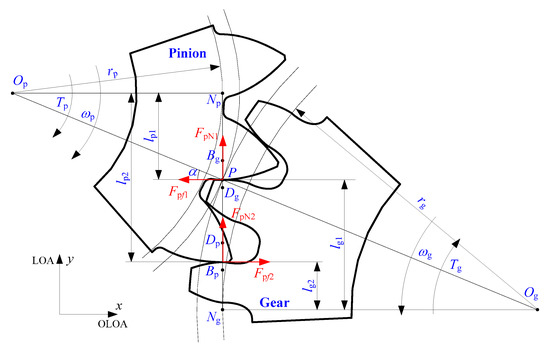

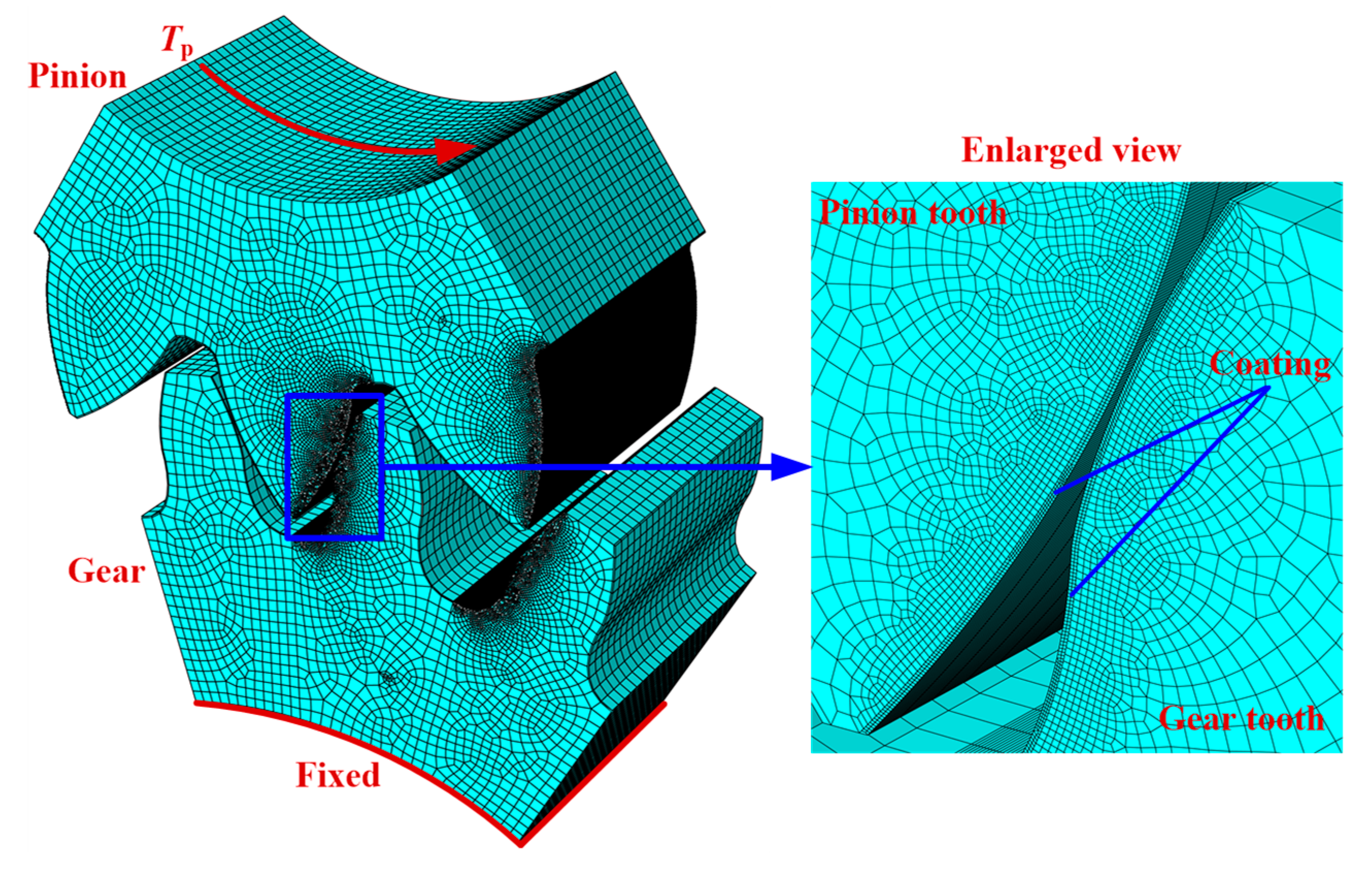

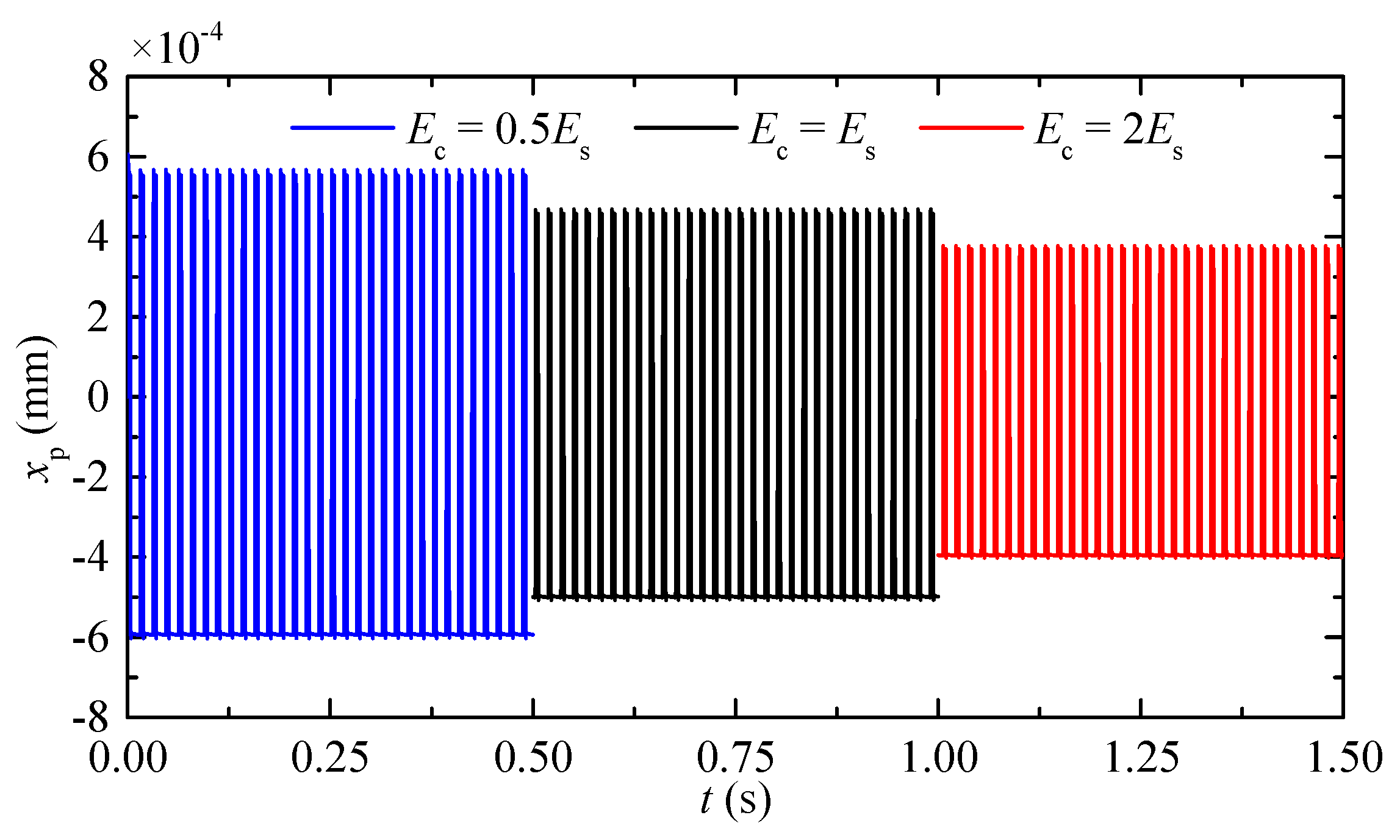

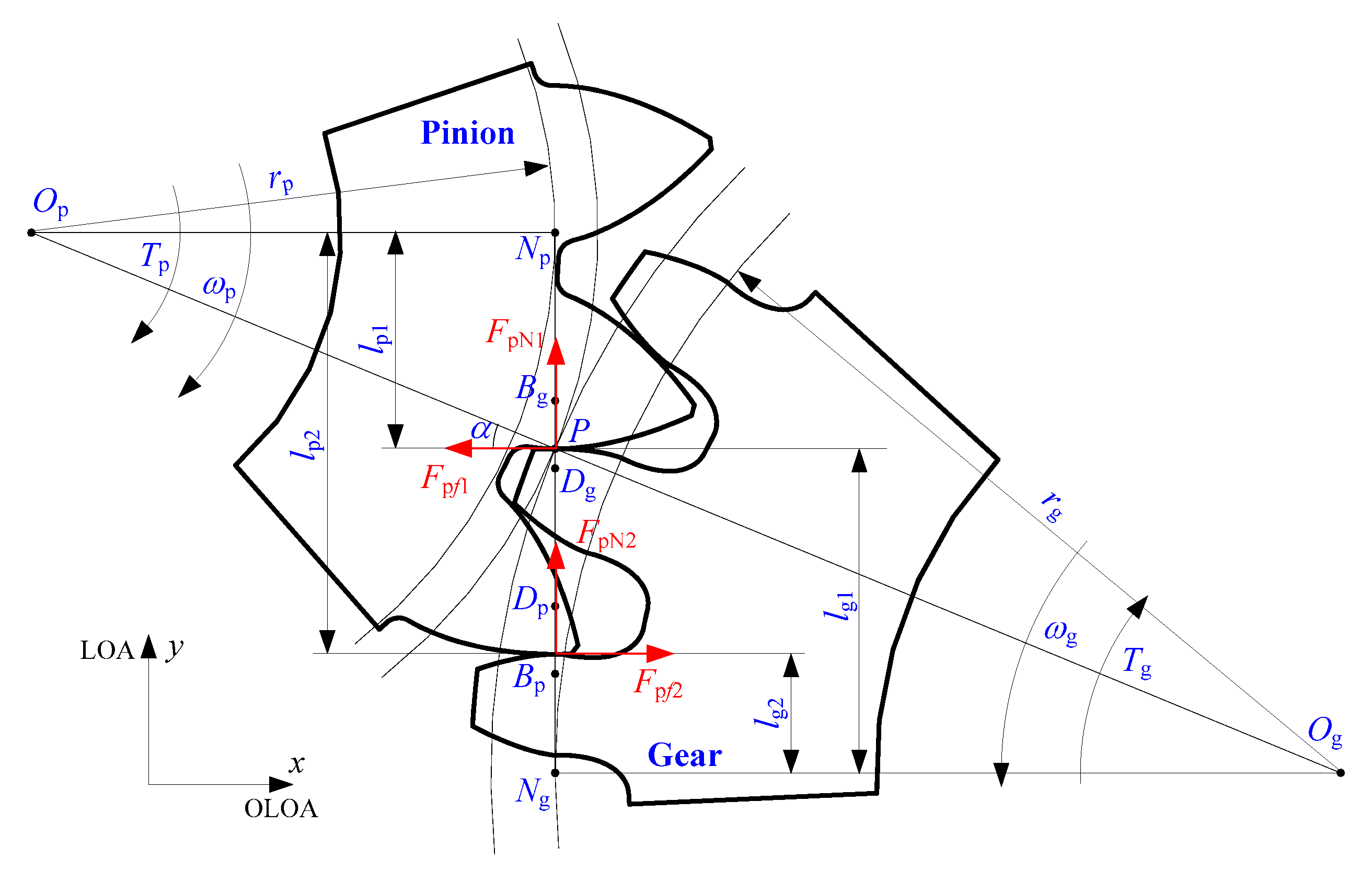

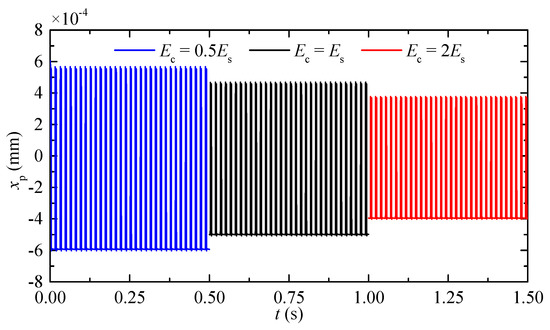

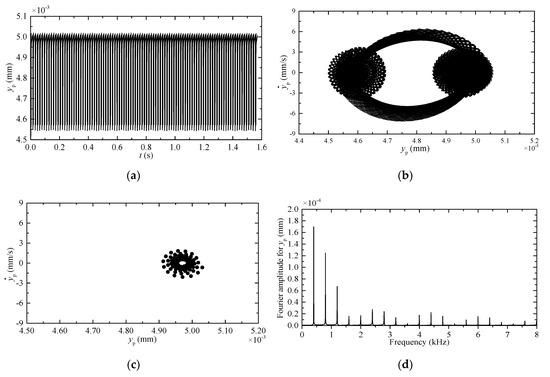

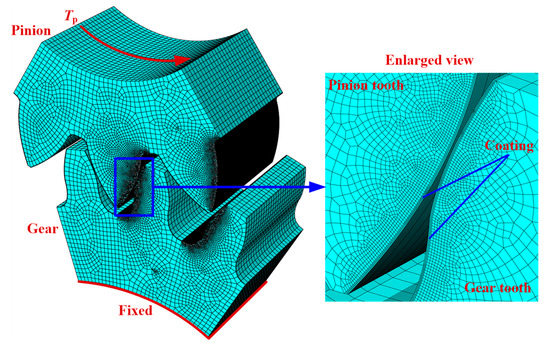

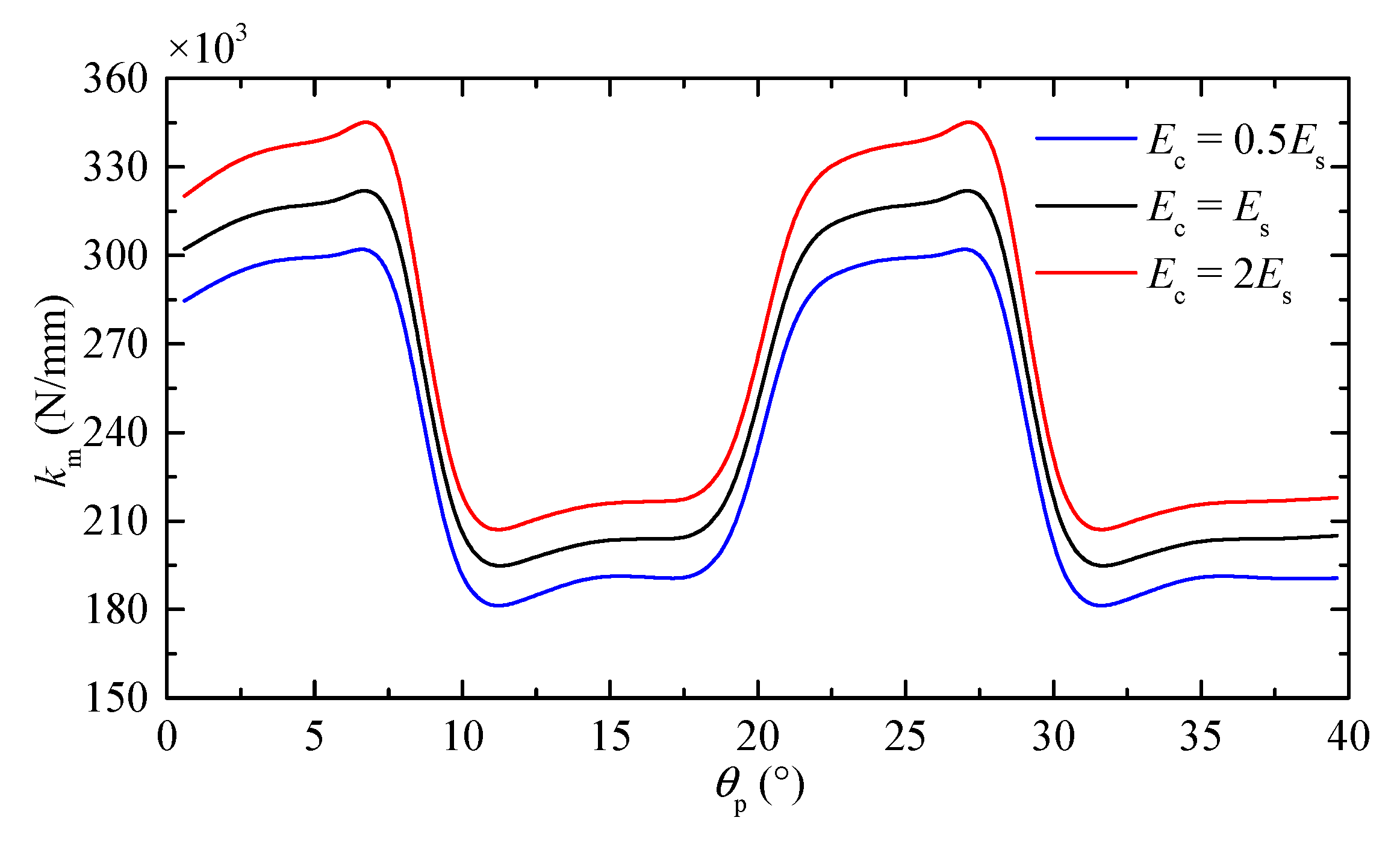

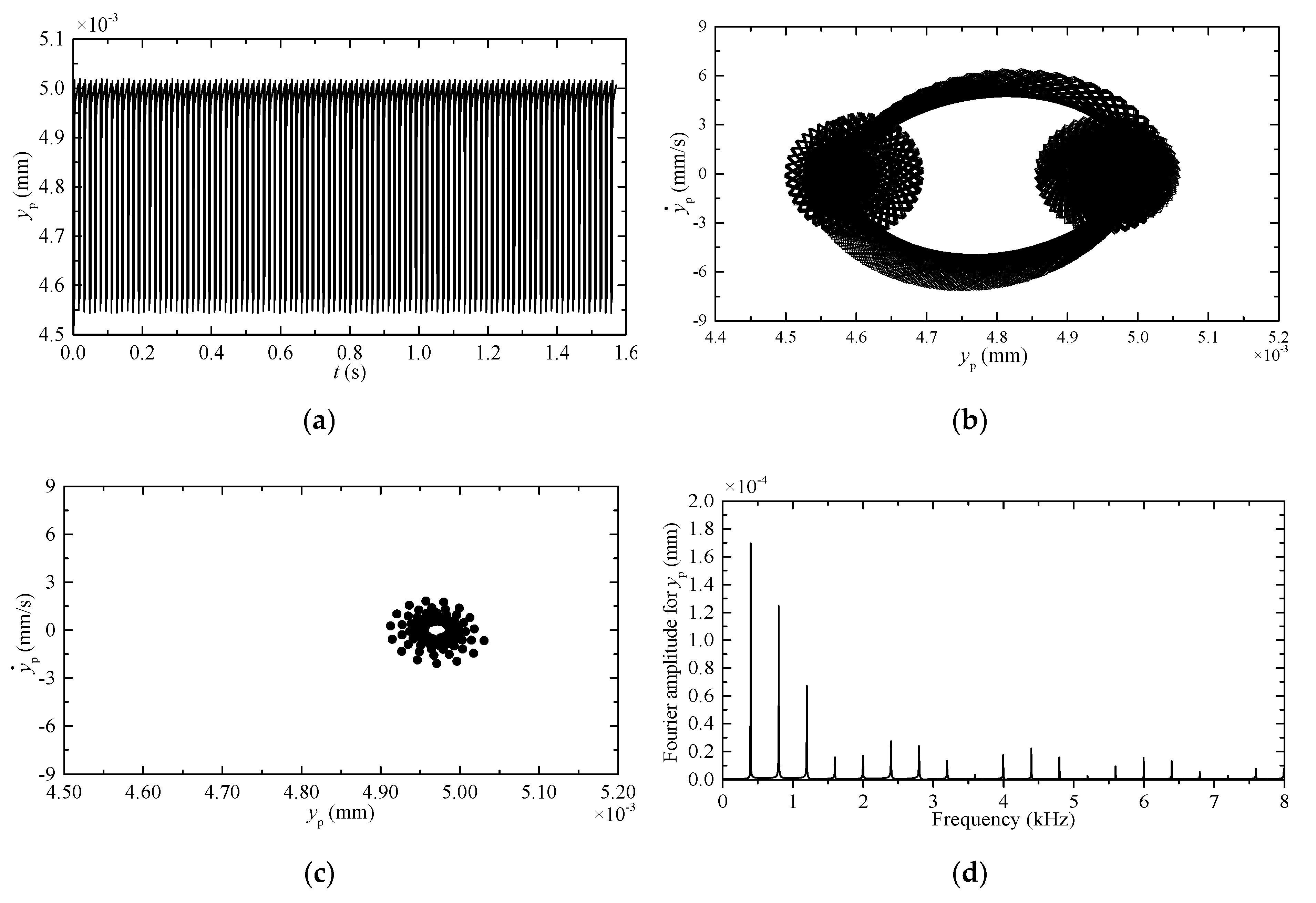

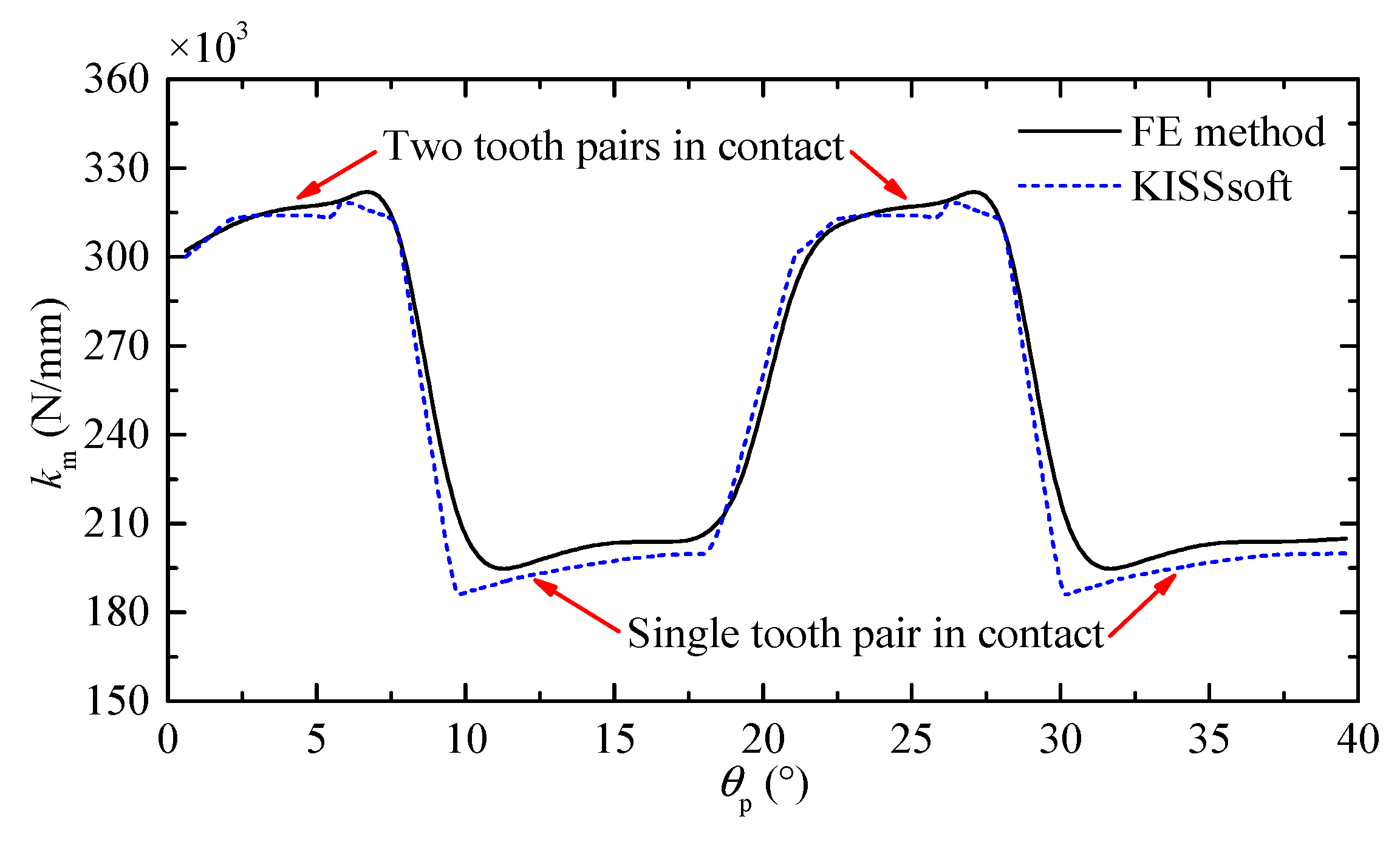

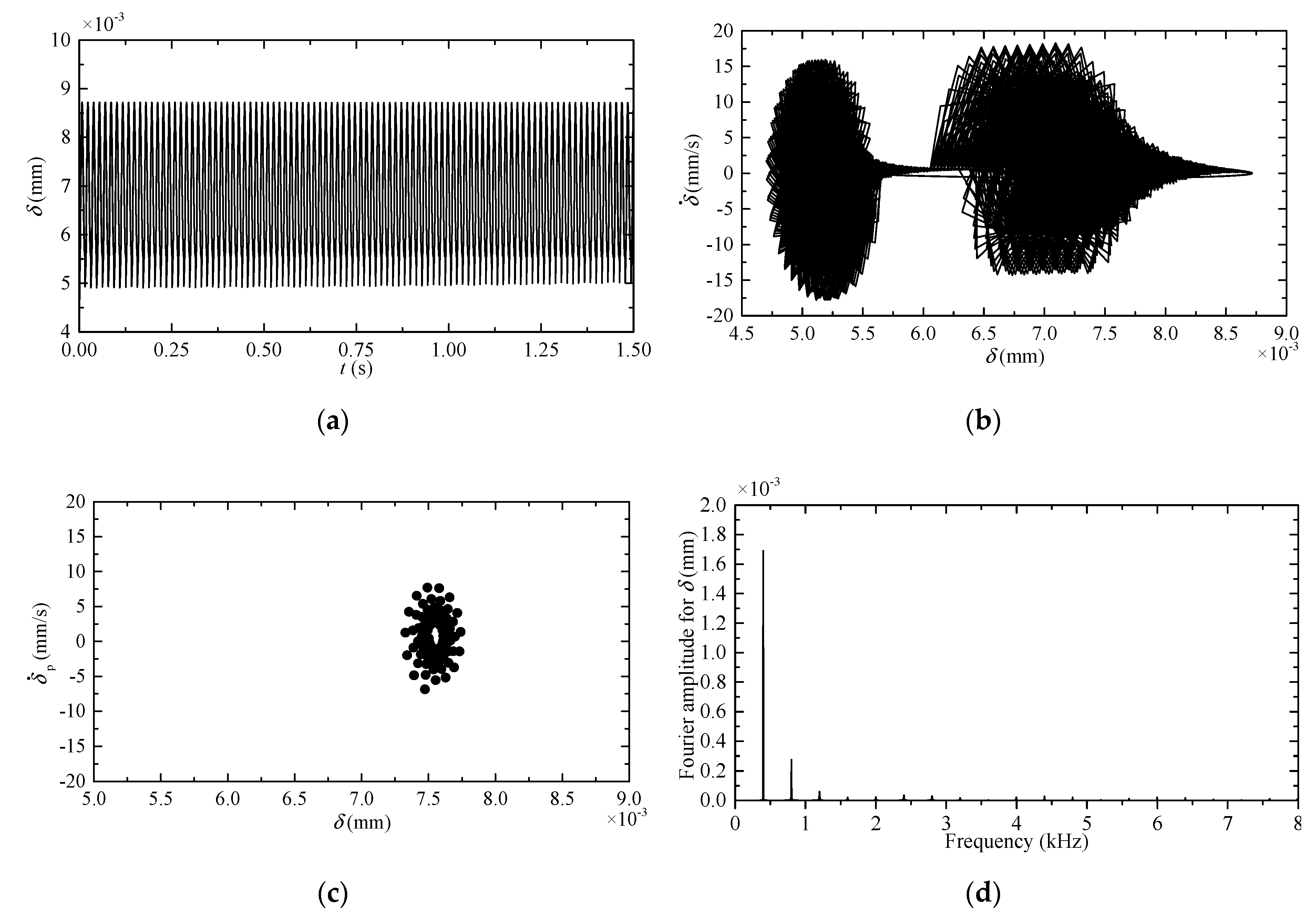

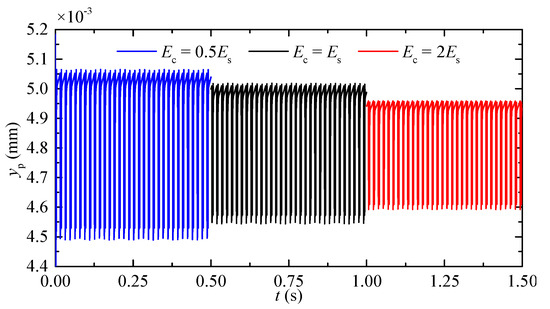

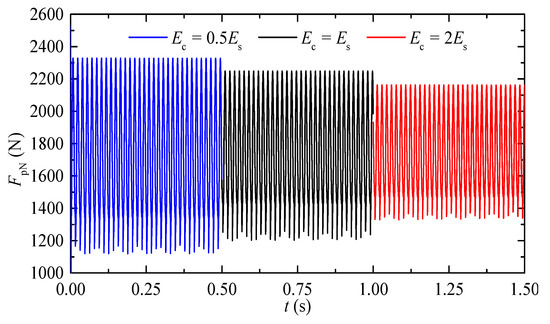

Coatings can significantly improve the load-carrying performance of a gear surface, but how they affect the vibration characteristic of the system is an urgent issue to be solved. Taking into account the nonlinear factors like the variable mesh stiffness, friction, backlash, and transmission error, a six-degree-of-freedom spur gear transmission system with coatings is presented. Meanwhile, the finite element method is applied to acquire the time-varying mesh stiffness of the coated gear pair in the engagement process. With the support of the time-history curve, phase curve, Poincare map, and fast Fourier transform spectrum, the dynamic characteristics and the effects of the coating elastic modulus on vibration behaviors of a gear transmission system are minutely dissected by using a numerical integration approach. Numerical cases illustrate that the dynamic characteristic of a gear transmission system tends toward a one-period state under the given operating condition. They also indicate that, compared with softer coatings, stiffer ones can properly enhance the transmission performance of the coated gear pair. Numerical results are also compared with previous studies, and can establish a theoretical basis for dynamic design and vibration control of the coated gear transmission system. View Full-Text
Keywords: coating; gear transmission; mesh stiffness; dynamics characteristic coating; gear transmission; mesh stiffness; dynamics characteristic
