Next Article in Journal
Mechanisms and Dynamics of Layered Structure Formation During Co-Deposition of Binary Compound Thin Films
Previous Article in Journal
Accelerated Hermeticity Testing of Biocompatible Moisture Barriers Used for the Encapsulation of Implantable Medical Devices
Previous Article in Special Issue
Production of Phosphorescent Coatings on 6082 Aluminum Using Sr0.95Eu0.02Dy0.03Al2O4-δ Powder and Plasma Electrolytic Oxidation
Open AccessArticle

Correlation between Defect Density and Corrosion Parameter of Electrochemically Oxidized Aluminum

1
Department of Chemical Engineering, National Taiwan University of Science and Technology, 43, Keelung Road, Section 4, Taipei 10607, Taiwan
2
Department of Mechanical Engineering, National Taiwan University of Science and Technology, 43, Keelung Road, Section 4, Taipei 10607, Taiwan
*
Author to whom correspondence should be addressed.
Coatings 2020, 10(1), 20; https://doi.org/10.3390/coatings10010020
Received: 5 December 2019 / Revised: 22 December 2019 / Accepted: 24 December 2019 / Published: 27 December 2019
(This article belongs to the Special Issue Plasma Electrolytic Oxidation (PEO) Coatings)

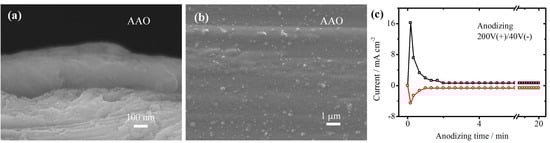

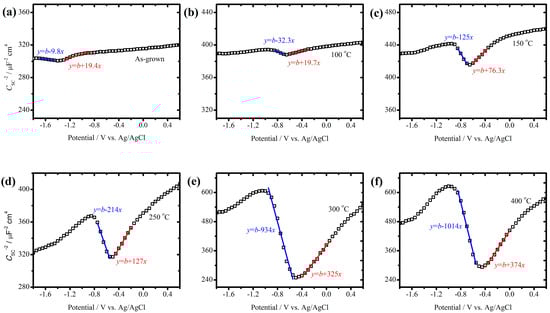

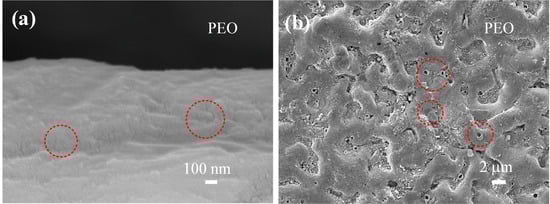

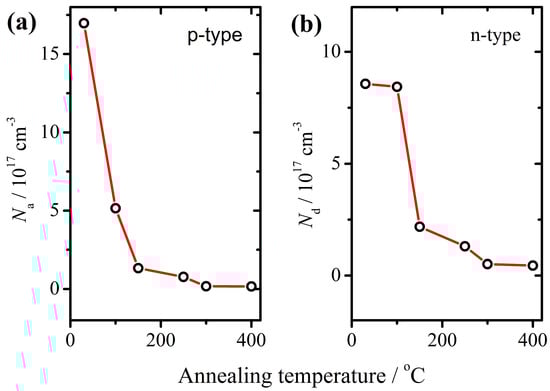

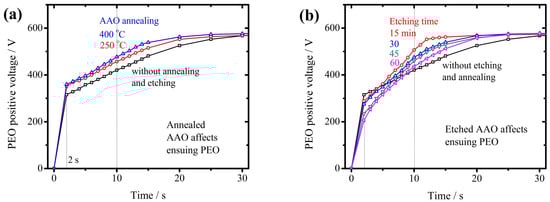

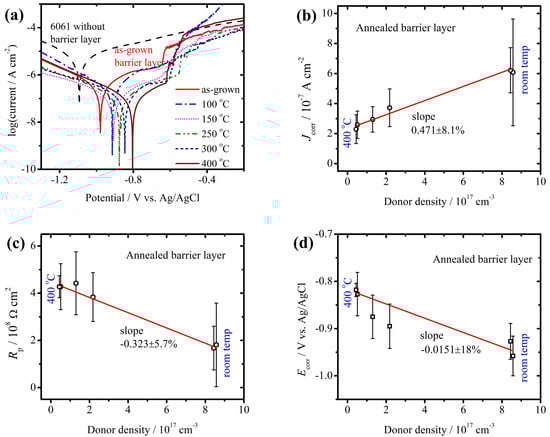

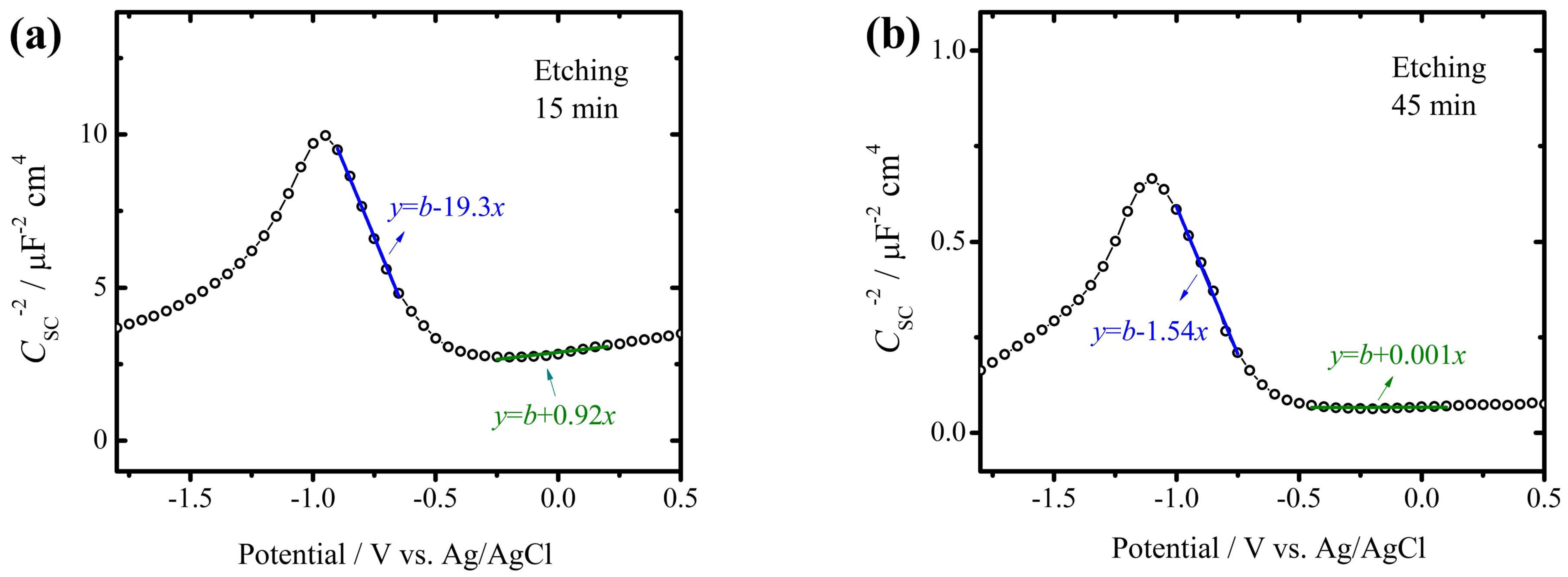

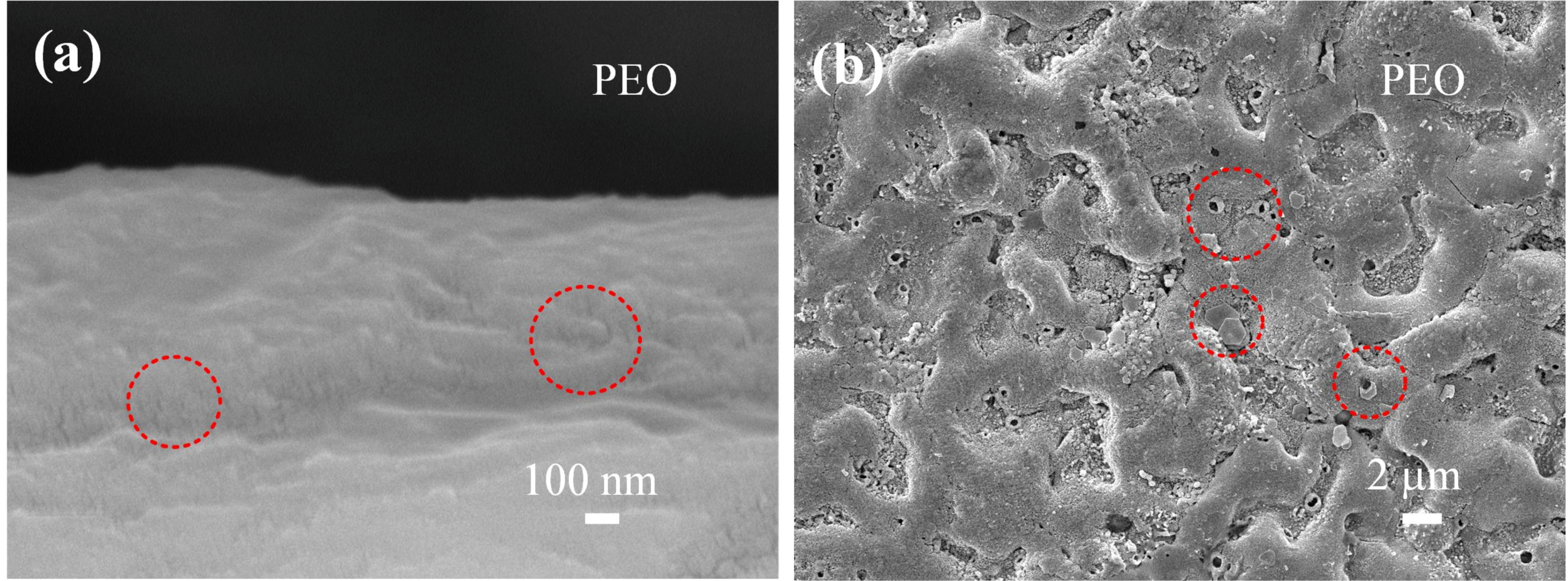

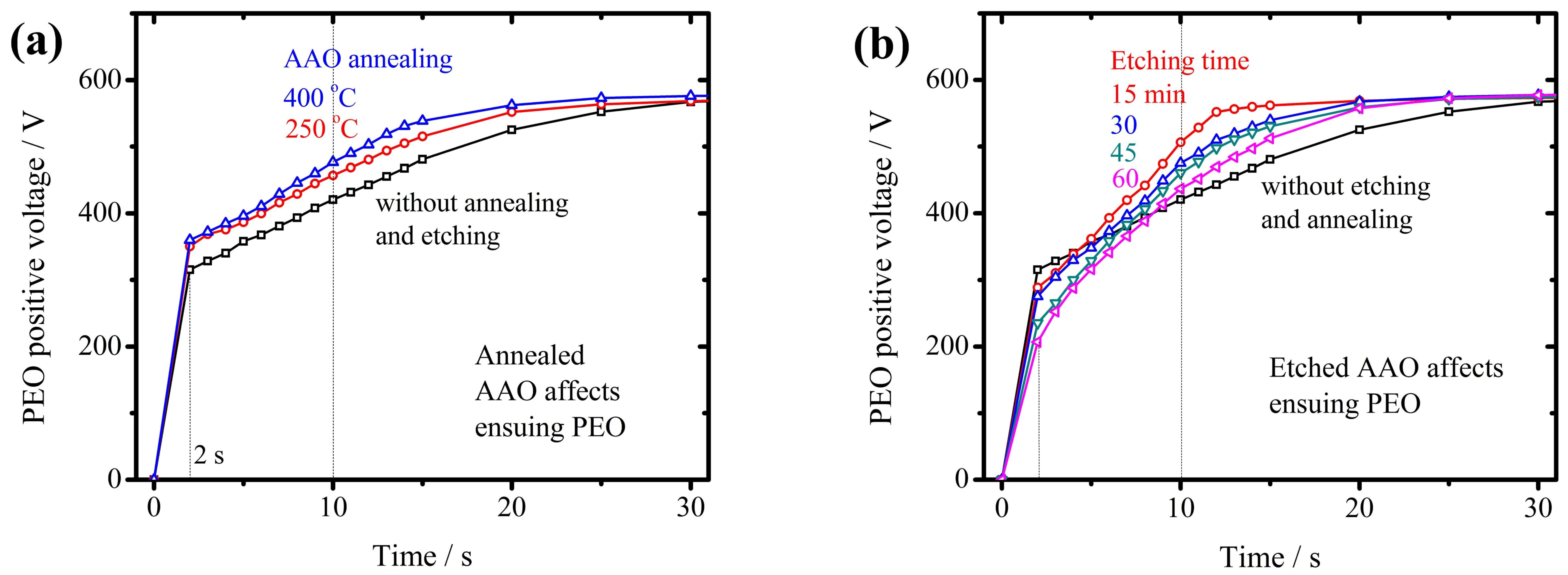

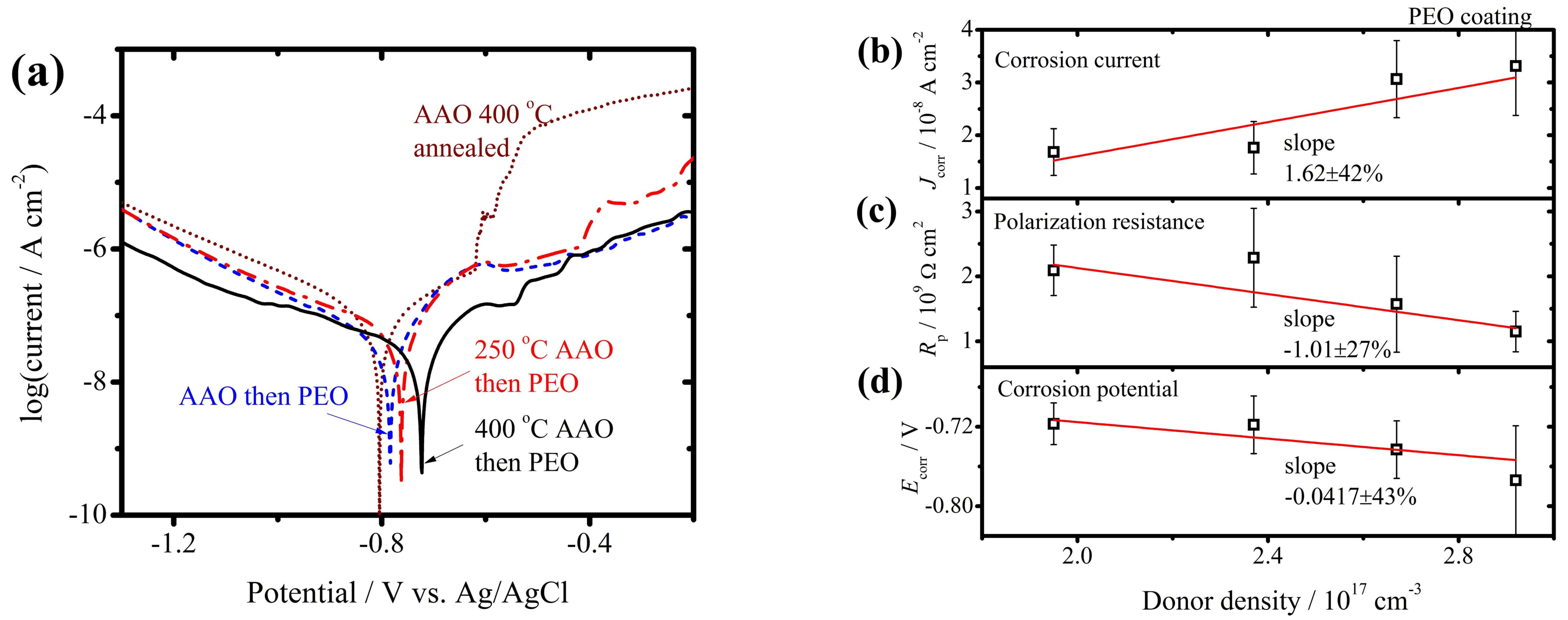

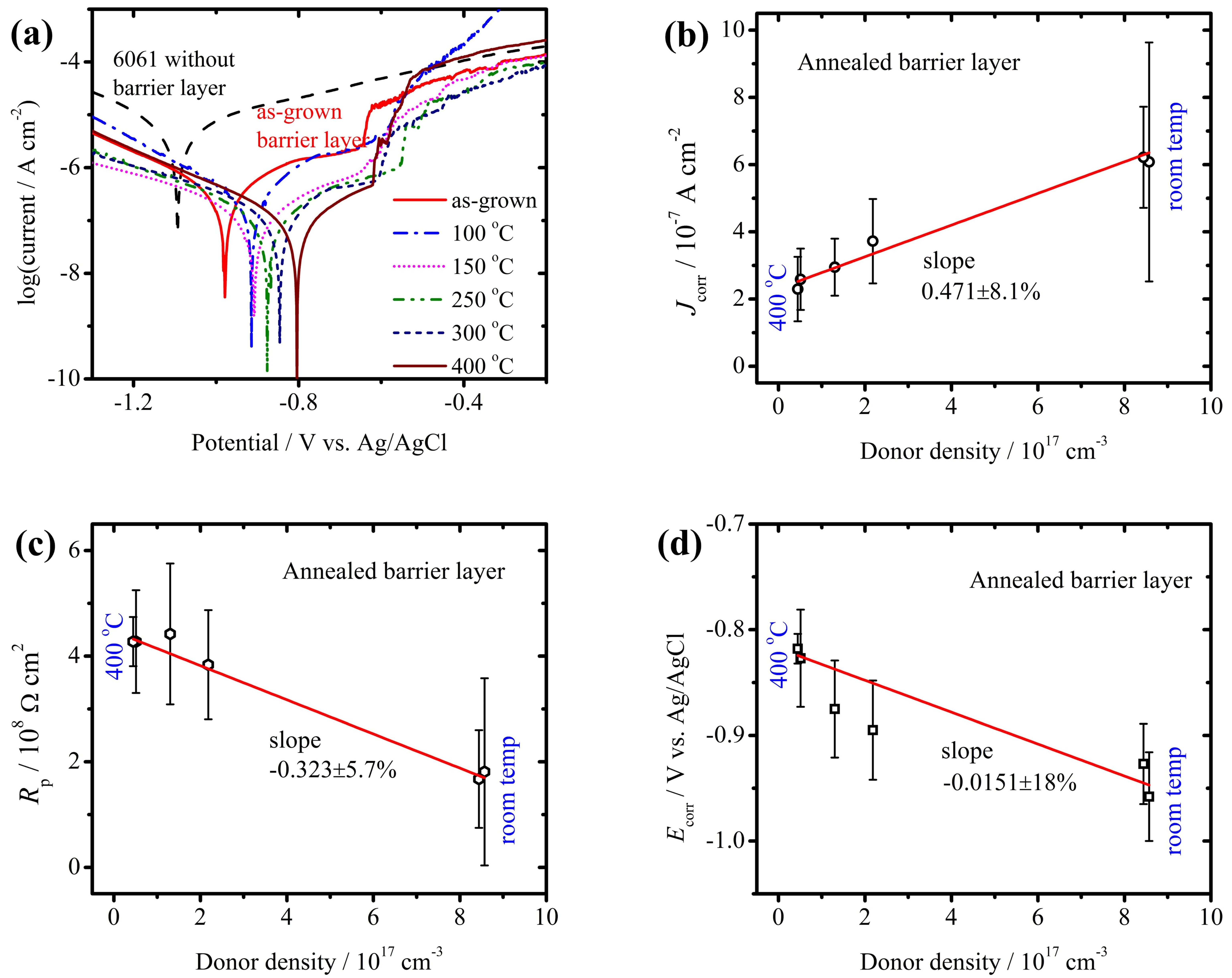

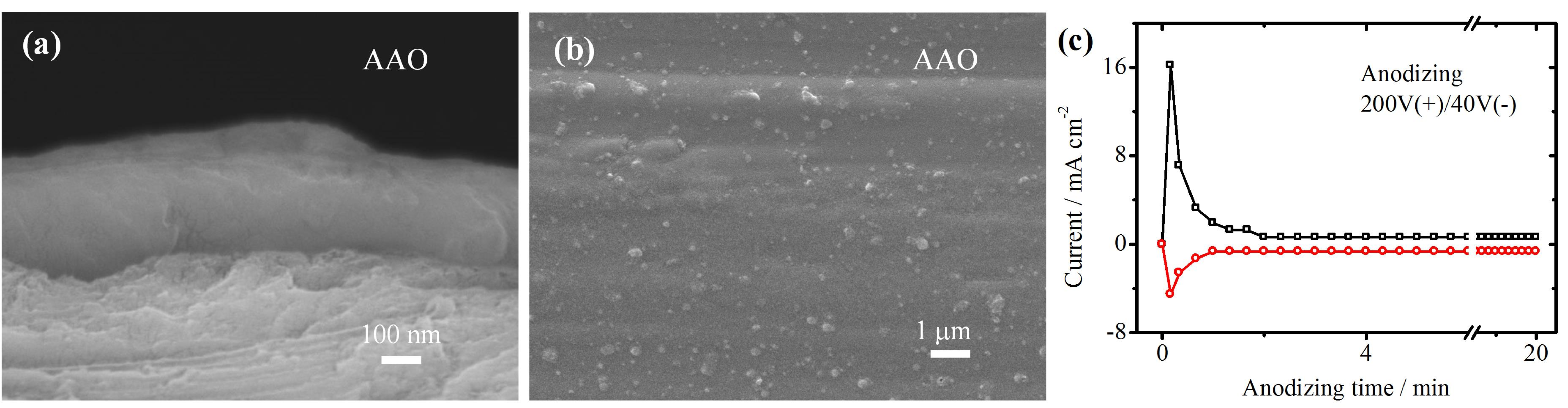

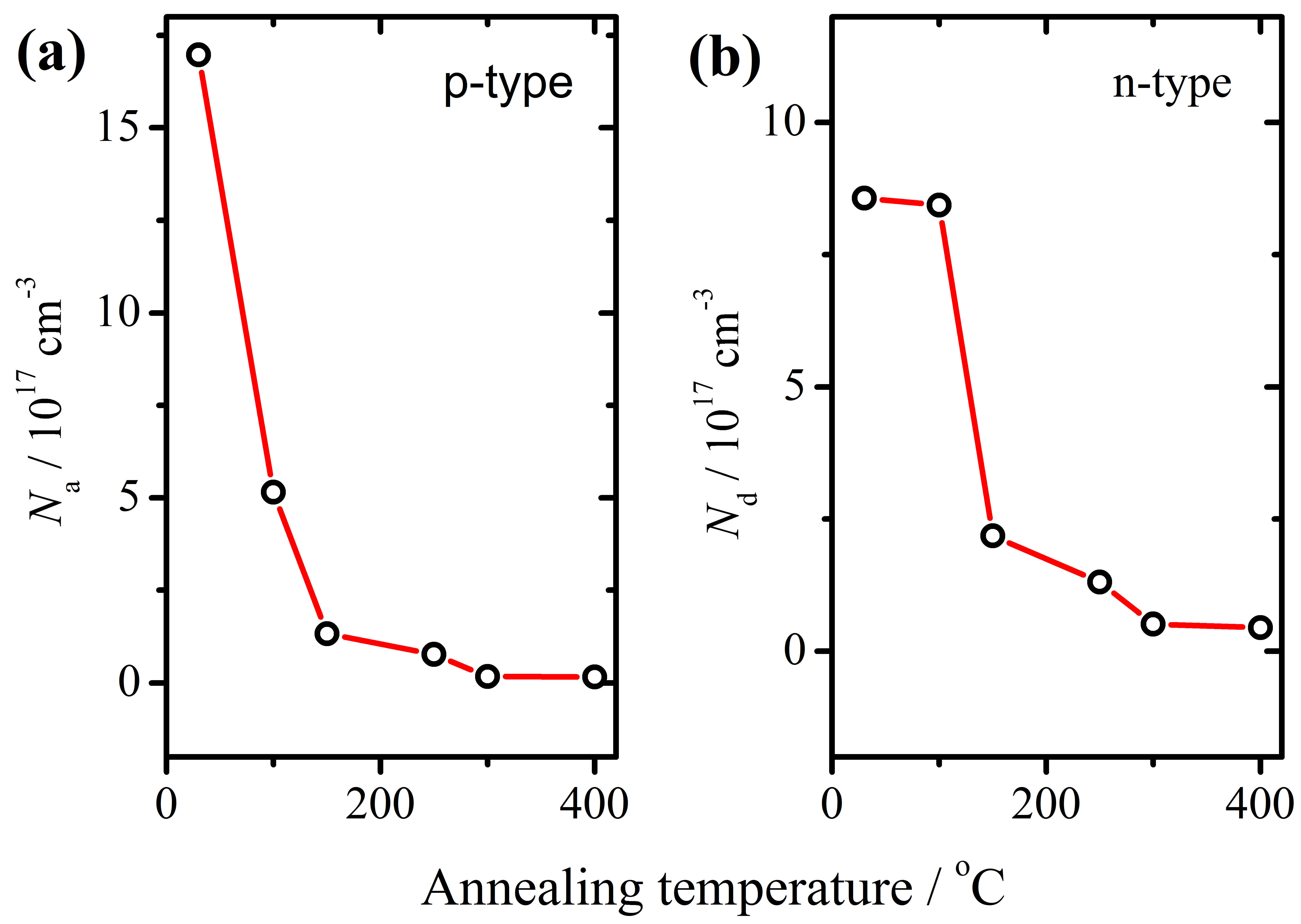

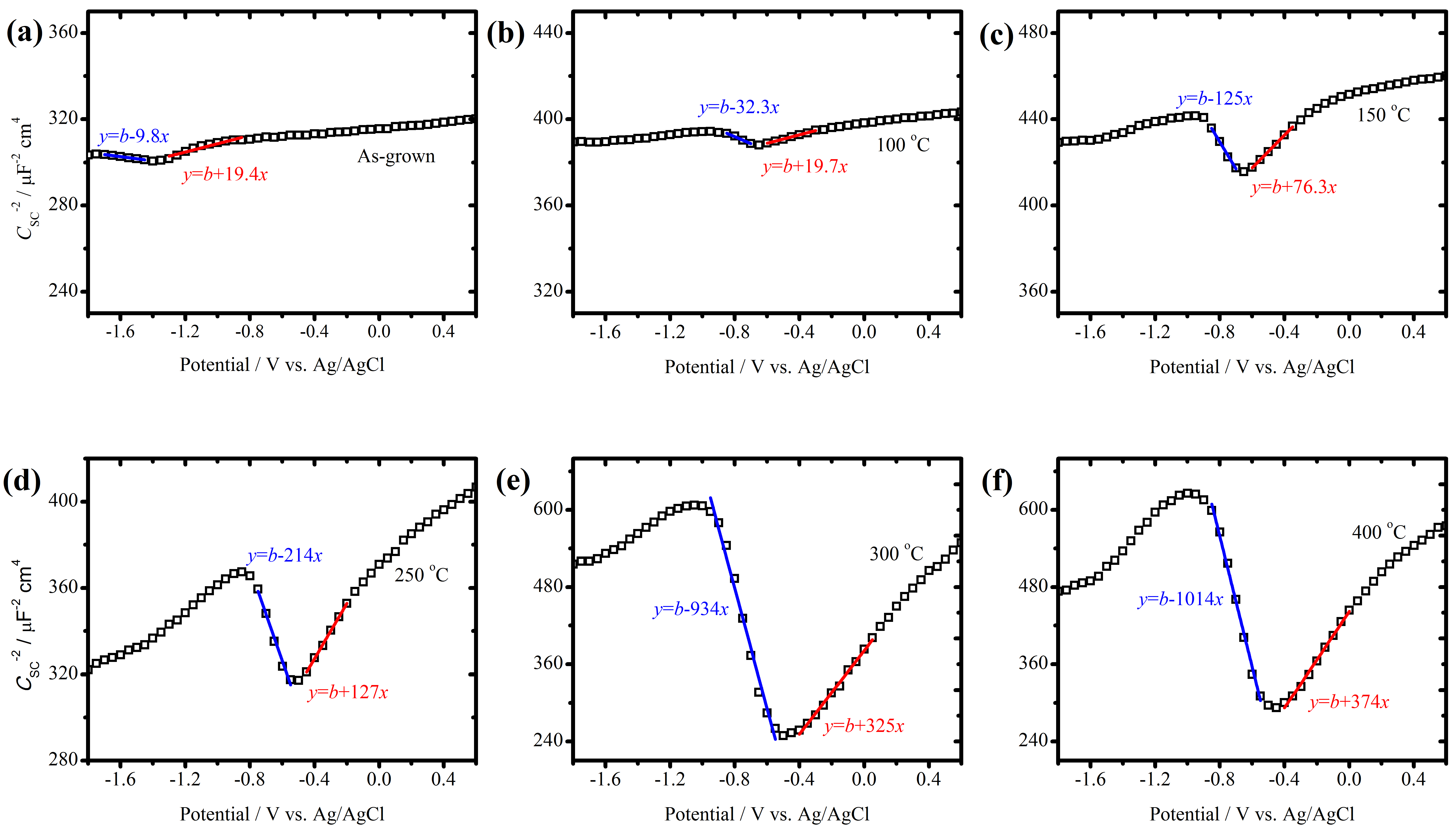

It has been recognized that a connection may exist between defects of oxide coating and its corrosion protection. Such a link has not been substantiated. We prepare two coatings of anodized aluminum oxide (AAO) and plasma electrolytic oxidation (PEO), and analyze them with Mott-Schottky plots and potentiodynamic polarization scans. The as-grown and annealed AAO coatings exhibit both p-type and n-type semiconductor behaviors. Polarization resistance of the AAO coating increases from (1.8 ± 1.7) × 108 to (4.3 ± 0.5) × 108 Ω·cm2, while corrosion current decreases from (6.1 ± 3.6) × 10−7 to (2.3 ± 0.9) × 10−7 A·cm−2, as annealing temperature increases from room temperature to 400 °C. The parameter analysis on AAO indicates a positive correlation between corrosion current and donor density, a negative correlation between polarization resistance and donor density. The attempt on correlating corrosion potential gives rise to considerable deviation from a linear fit. The results suggest protection of AAO hinges on its donor density, not acceptor. On the PEO coatings, only the n-type behavior is observed. Intriguingly, the donor density of PEO coating is influenced by the annealing temperature of its pre-anodized layer. The most resistant PEO coating, with pre-anodized and 400 °C annealed AAO, exhibits polarization resistance (2.1 ± 0.4) × 109 Ω·cm2 and corrosion current (1.7 ± 0.4) × 10−8 A·cm−2. View Full-Text
Keywords: anodized aluminum; corrosion resistance; Mott-Schottky analysis; defect; annealing; plasma electrolytic oxidation anodized aluminum; corrosion resistance; Mott-Schottky analysis; defect; annealing; plasma electrolytic oxidation
Show Figures

Graphical abstract

MDPI and ACS Style

Lou, H.-R.; Tsai, D.-S.; Chou, C.-C. Correlation between Defect Density and Corrosion Parameter of Electrochemically Oxidized Aluminum. Coatings 2020, 10, 20.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
