Next Article in Journal
In-Depth Characterization of Secondary Phases in Cu2ZnSnS4 Film and Its Application to Solar Cells
Next Article in Special Issue
Supercritical Antisolvent Processing of Nitrocellulose: Downscaling to Nanosize, Reducing Friction Sensitivity and Introducing Burning Rate Catalyst
Previous Article in Journal
Short- and Long-Range Mechanical and Chemical Interphases Caused by Interaction of Boehmite (γ-AlOOH) with Anhydride-Cured Epoxy Resins
Previous Article in Special Issue
Gaseous Products Evolution Analyses for Catalytic Decomposition of AP by Graphene-Based Additives
Open AccessArticle

An Electrospun Preparation of the NC/GAP/Nano-LLM-105 Nanofiber and Its Properties

1
School of Materials Science and Engineering, North University of China, Taiyuan 030051, China
2
China North Industries Group Corporation Limited, Beijing 100821, China
3
Teaching and Research Support Center, Army Academy of Armored Forces, Beijing 100072, China
4
School of Environment and Safety Engineering, North University of China, Taiyuan 030051, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2019, 9(6), 854; https://doi.org/10.3390/nano9060854
Received: 28 April 2019 / Revised: 30 May 2019 / Accepted: 31 May 2019 / Published: 4 June 2019
(This article belongs to the Special Issue Nanoenergetic Materials: Preparation, Properties, and Applications)

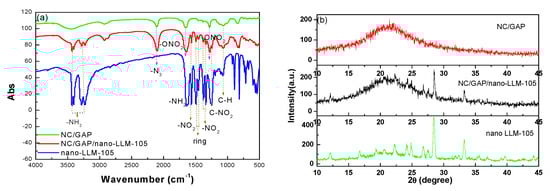

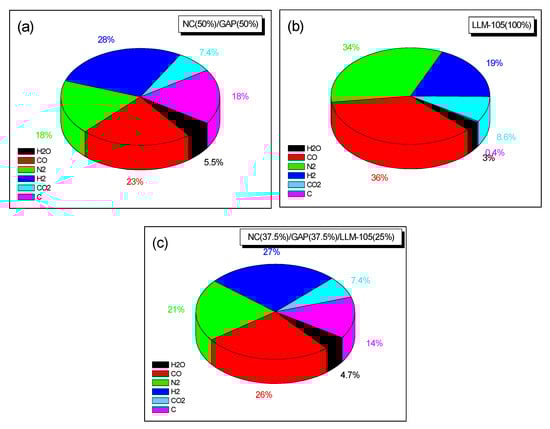

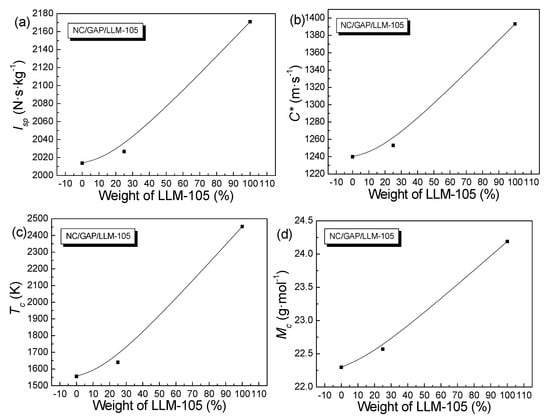

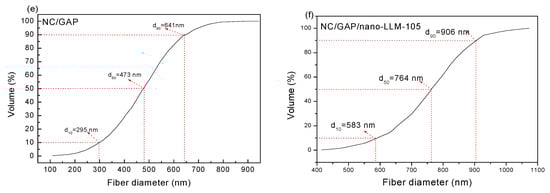

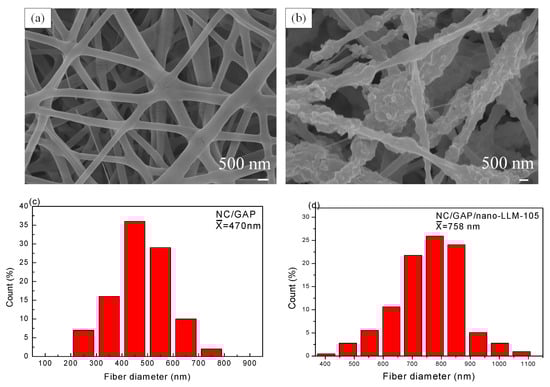

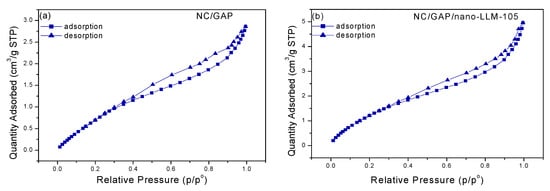

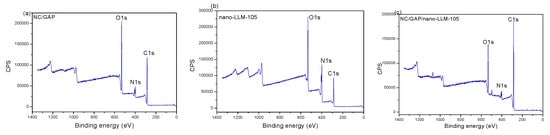

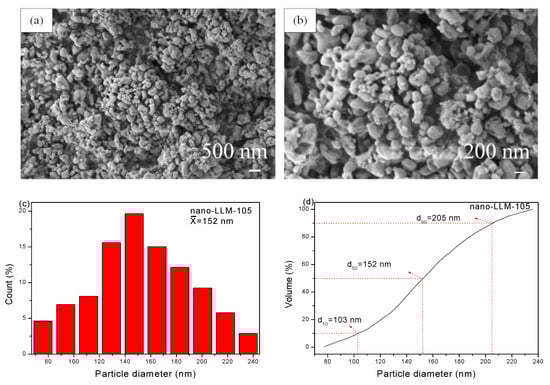

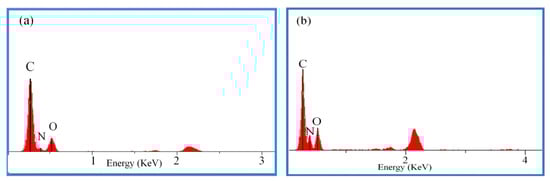

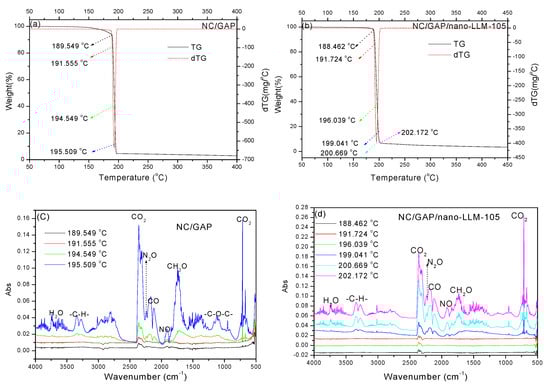

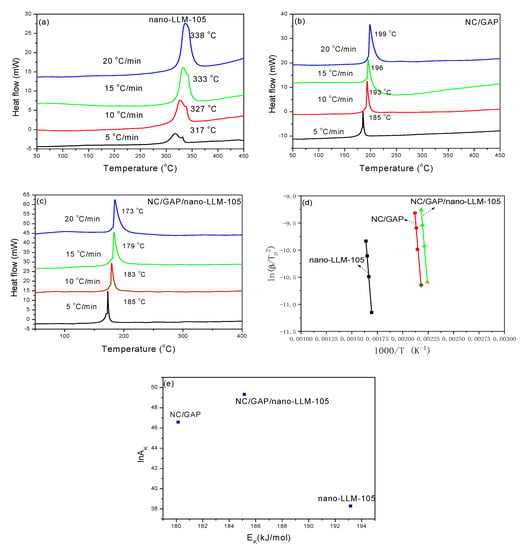

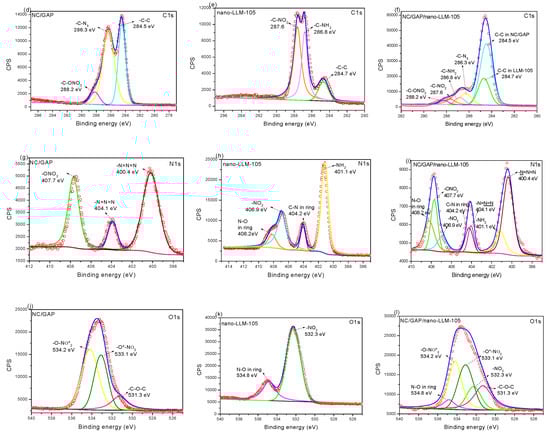

In this work, an energetic composite fiber, in which 2,6-diamino-3,5-dinitropyrazine-1-oxide (LLM-105) nanoparticles intimately incorporated with a nitrocellulose/glycidyl azide polymer (NC/GAP) fiber, was prepared by the electrospinning method. The morphology and structure of the nanofiber was characterized by scanning electron microscopy (SEM), energy dispersive X-Ray (EDX), fourier transform infrared spectroscopy (IR), X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), and Brunauer–Emmett–Teller (BET). The nanofibers possessed a three-dimensional (3D) net structure and a large specific surface area. Thermal analysis, energetic performance, and sensitivities were investigated, and they were compared with NC/GAP and LLM-105 nanoparticles. The NC/GAP/nano-LLM-105 nanofibers show higher decomposition rates and lower decomposition temperatures. The NC/GAP/nano-LLM-105 decomposed to CO2, CO, H2O, N2O, and a few NO, -CH2O-, and -CH- fragments, in the thermal-infrared spectrometry online (TG-IR) measurement. The NC/GAP/nano-LLM-105 nanofibers demonstrated a higher standard specific impulse (Isp), a higher combustion chamber temperature (Tc), and a higher specialty height (H50). The introduction of nano-LLM-105 in the NC/GAP matrix results in an improvement in energetic performance and safety. View Full-Text
Keywords: electrospinning; NC/GAP/nano-LLM-105; thermolysis; energetic performance; sensitivity electrospinning; NC/GAP/nano-LLM-105; thermolysis; energetic performance; sensitivity
Show Figures

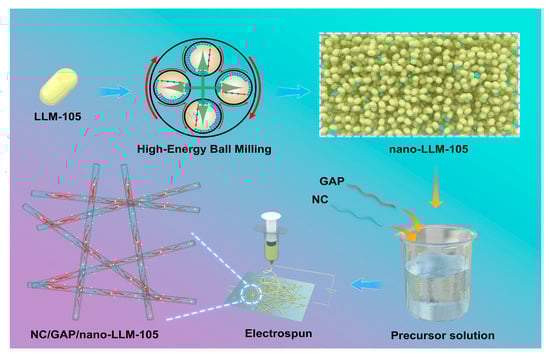

Figure 1

MDPI and ACS Style

Luo, T.; Wang, Y.; Huang, H.; Shang, F.; Song, X. An Electrospun Preparation of the NC/GAP/Nano-LLM-105 Nanofiber and Its Properties. Nanomaterials 2019, 9, 854.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
