On the Beneficial Effect of MgCl2 as Electrolyte Additive to Improve the Electrochemical Performance of Li4Ti5O12 as Cathode in Mg Batteries

Departamento de Química Inorgánica e Ingeniería Química, Instituto Universitario de Investigación en Química Fina y Nanoquímica (IUNAN), Universidad de Córdoba, Campus de Rabanales, Edificio Marie Curie, E-14071 Córdoba, Spain
Author to whom correspondence should be addressed.
Nanomaterials 2019, 9(3), 484;
Received: 6 March 2019 / Revised: 15 March 2019 / Accepted: 20 March 2019 / Published: 26 March 2019
PDF [4185 KB, uploaded 26 March 2019]

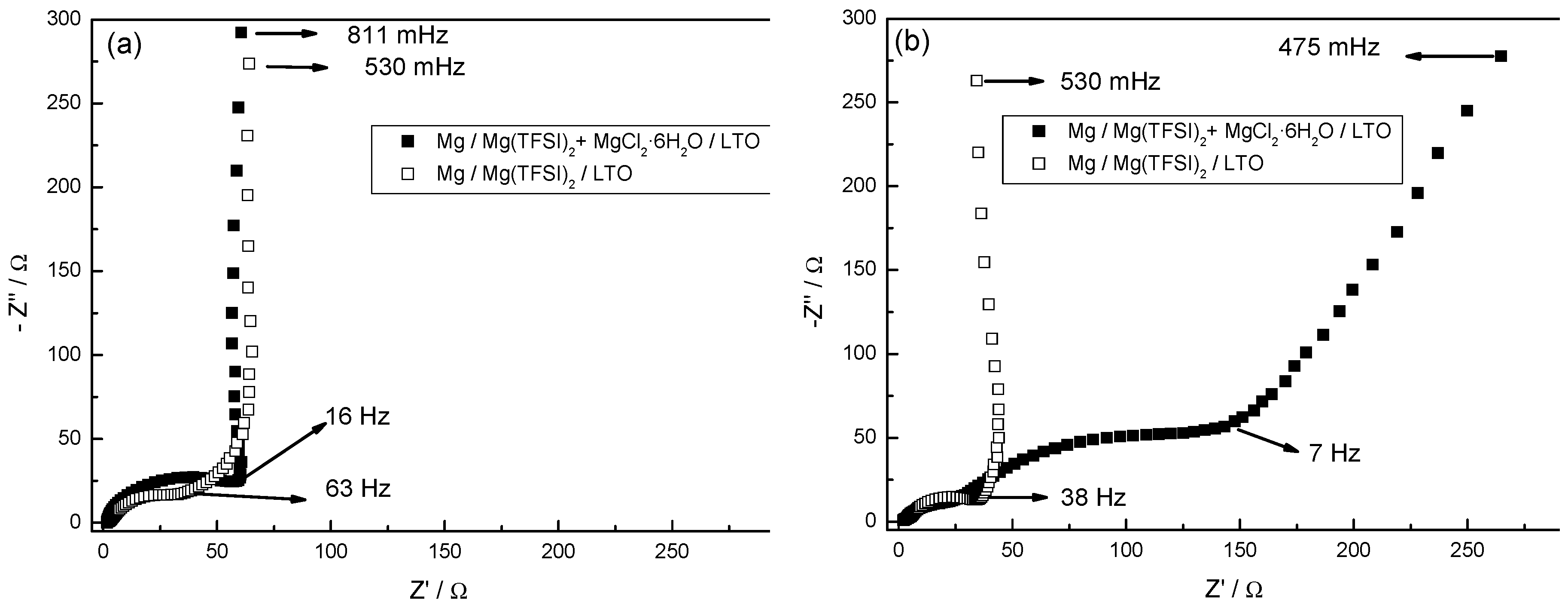

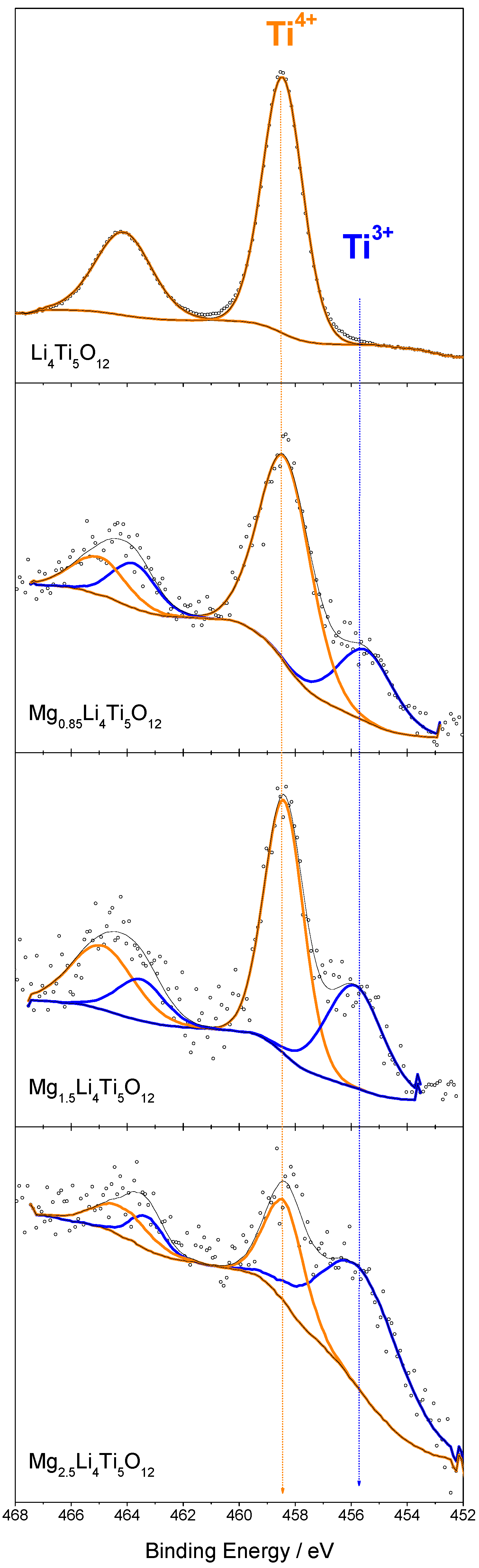

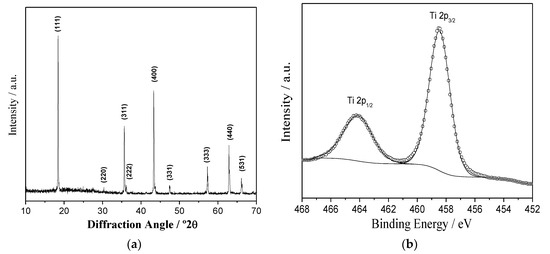

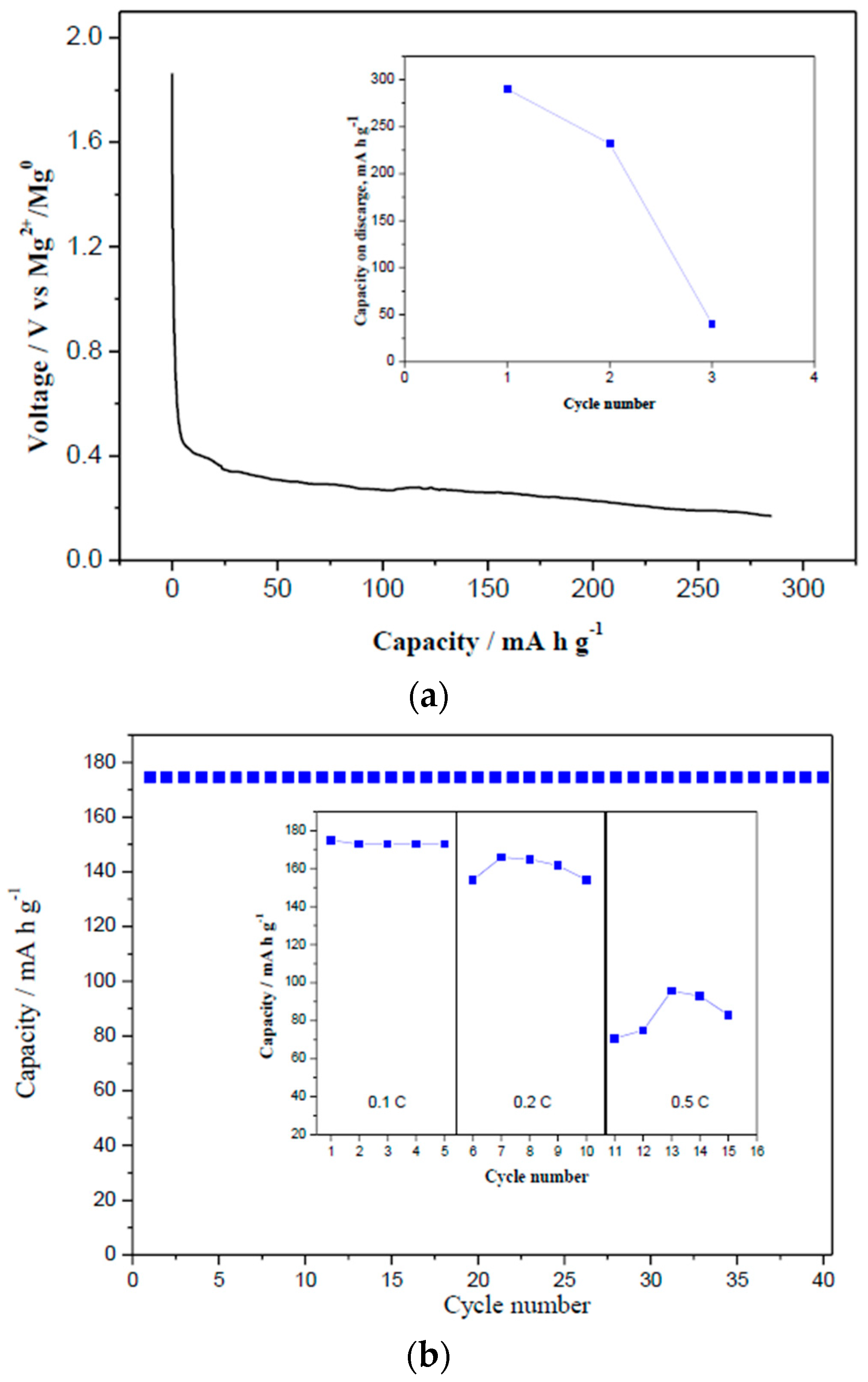

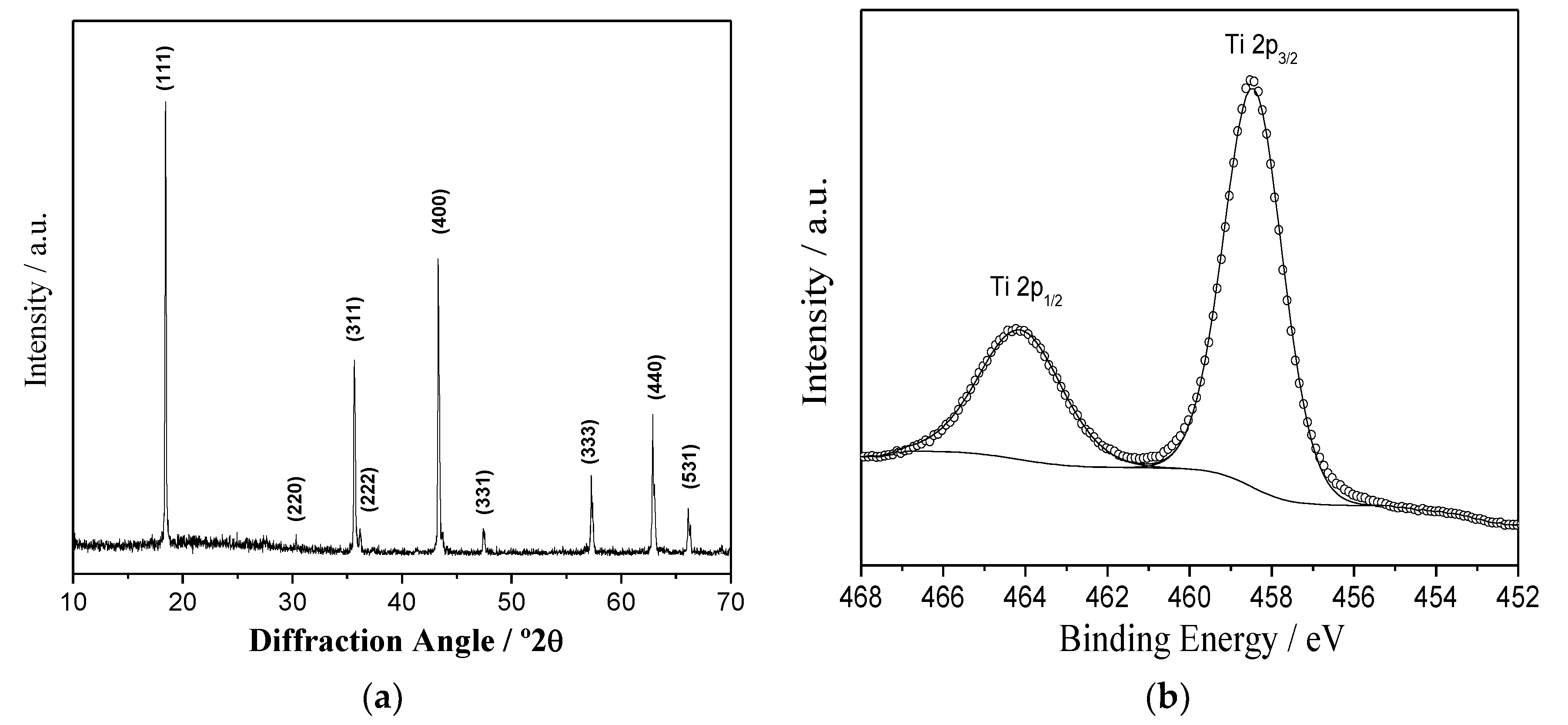

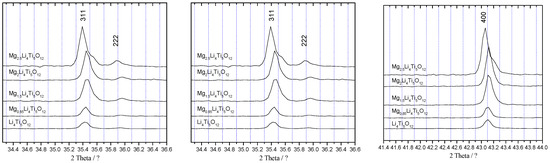

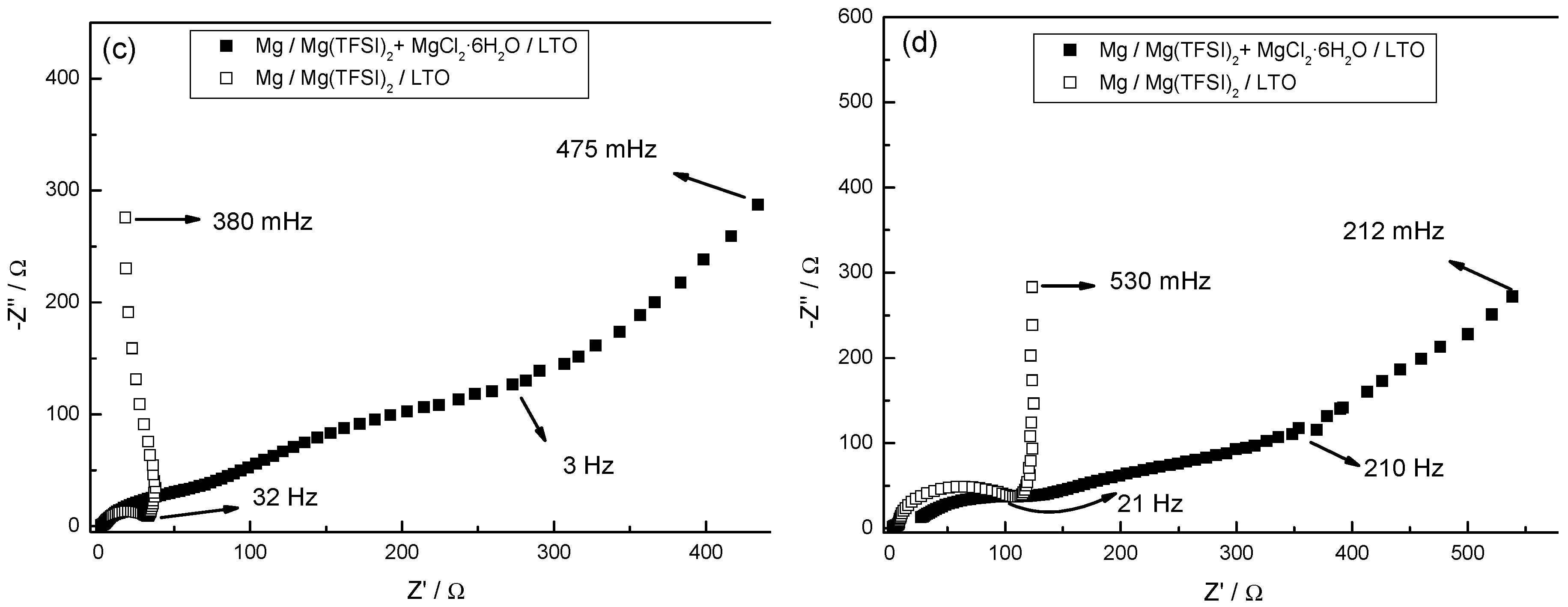

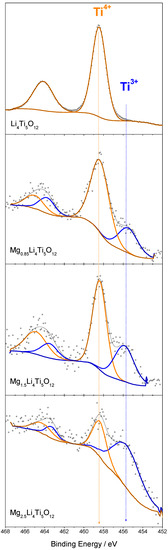

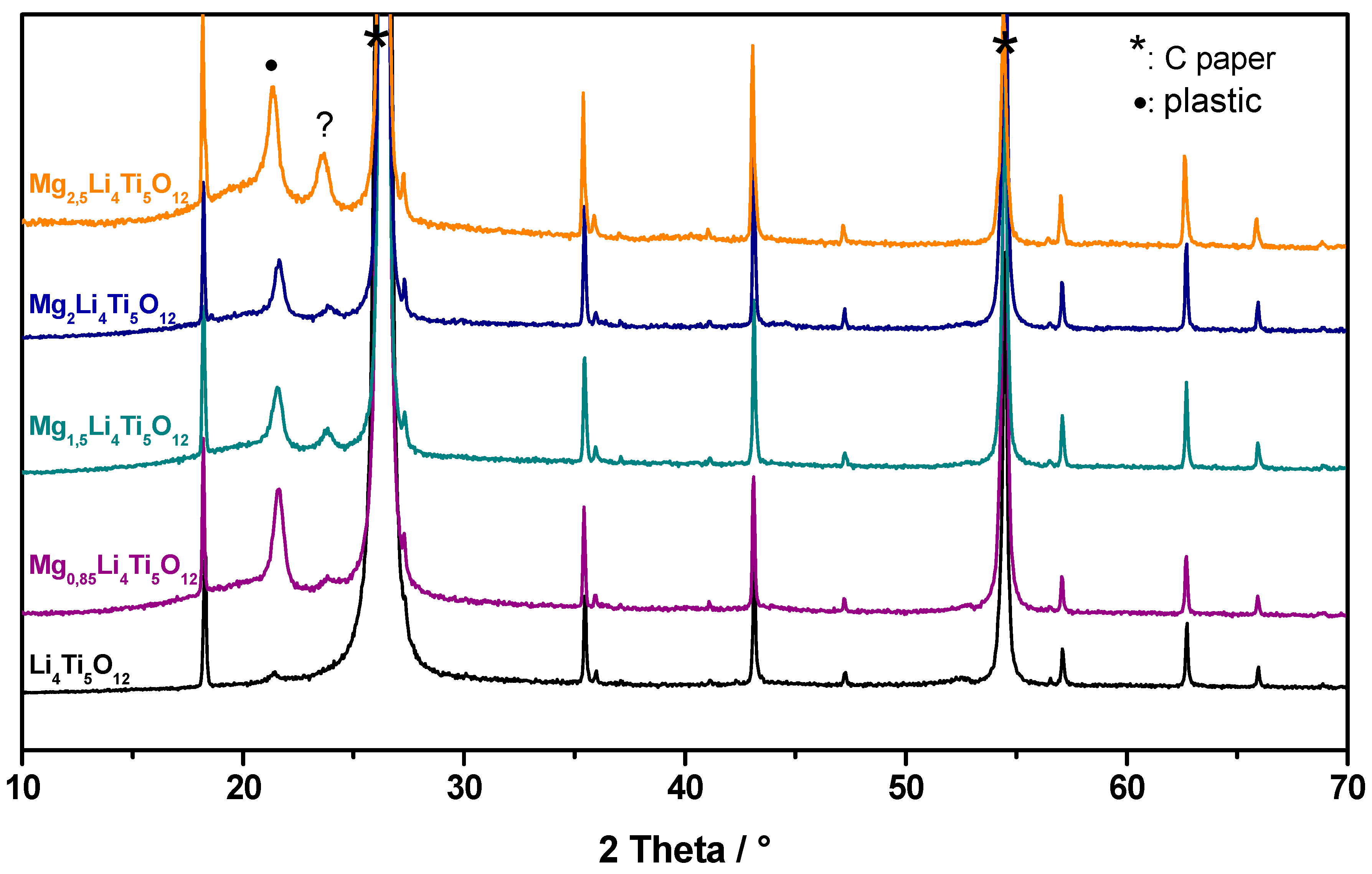

Magnesium batteries are a promising technology for a new generation of energy storage for portable devices. Attention should be paid to electrolyte and electrode material development in order to develop rechargeable Mg batteries. In this study, we report the use of the spinel lithium titanate or Li4Ti5O12 (LTO) as an active electrode for Mg2+-ion batteries. The theoretical capacity of LTO is 175 mA h g−1, which is equivalent to an insertion reaction with 1.5 Mg2+ ions. The ability to enhance the specific capacity of LTO is of practical importance. We have observed that it is possible to increase the capacity up to 290 mA h g−1 in first discharge, which corresponds to the reaction with 2.5 Mg2+ ions. The addition of MgCl2·6H2O to the electrolyte solutions significantly improves their electrochemical performance and enables reversible Mg deposition. Ex-situ X-ray diffraction (XRD) patterns reveal little structural changes, while X-ray photoelectron spectrometer (XPS) (XPS) measurements suggest Mg reacts with LTO. The Ti3+/Ti4+ ratio increases with the amount of inserted magnesium. The impedance spectra show the presence of a semicircle at medium-low frequencies, ascribable to Mg2+ ion diffusion between the surface film and LTO. Further experimental improvements with exhaustive control of electrodes and electrolytes are necessary to develop the Mg battery with practical application. View Full-Text
Keywords: Li4Ti5O12; magnesium batteries; cathodes; MgCl2 Li4Ti5O12; magnesium batteries; cathodes; MgCl2

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
