Transition Metal Hollow Nanocages as Promising Cathodes for the Long-Term Cyclability of Li–O2 Batteries

1
Department of Electrical Engineering, The Hong Kong Polytechnic University, Hung Hom, Kowloon, Hong Kong
2
Physics Laboratory, Industrial Training Center, Shenzhen Polytechnic, Shenzhen 518055, China
*
Author to whom correspondence should be addressed.
Received: 19 March 2018 / Revised: 27 April 2018 / Accepted: 2 May 2018 / Published: 7 May 2018
(This article belongs to the Special Issue Nanomaterials for Renewable and Sustainable Energy)
Full-Text   |   PDF [3853 KB, uploaded 26 September 2018]   |

Abstract

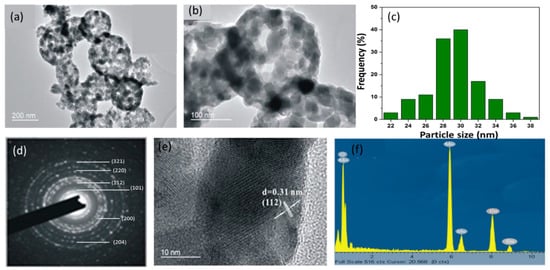

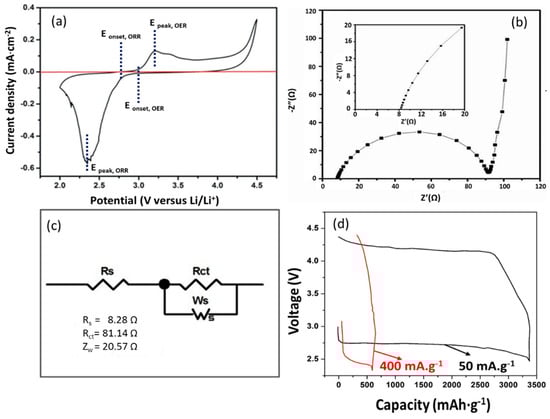

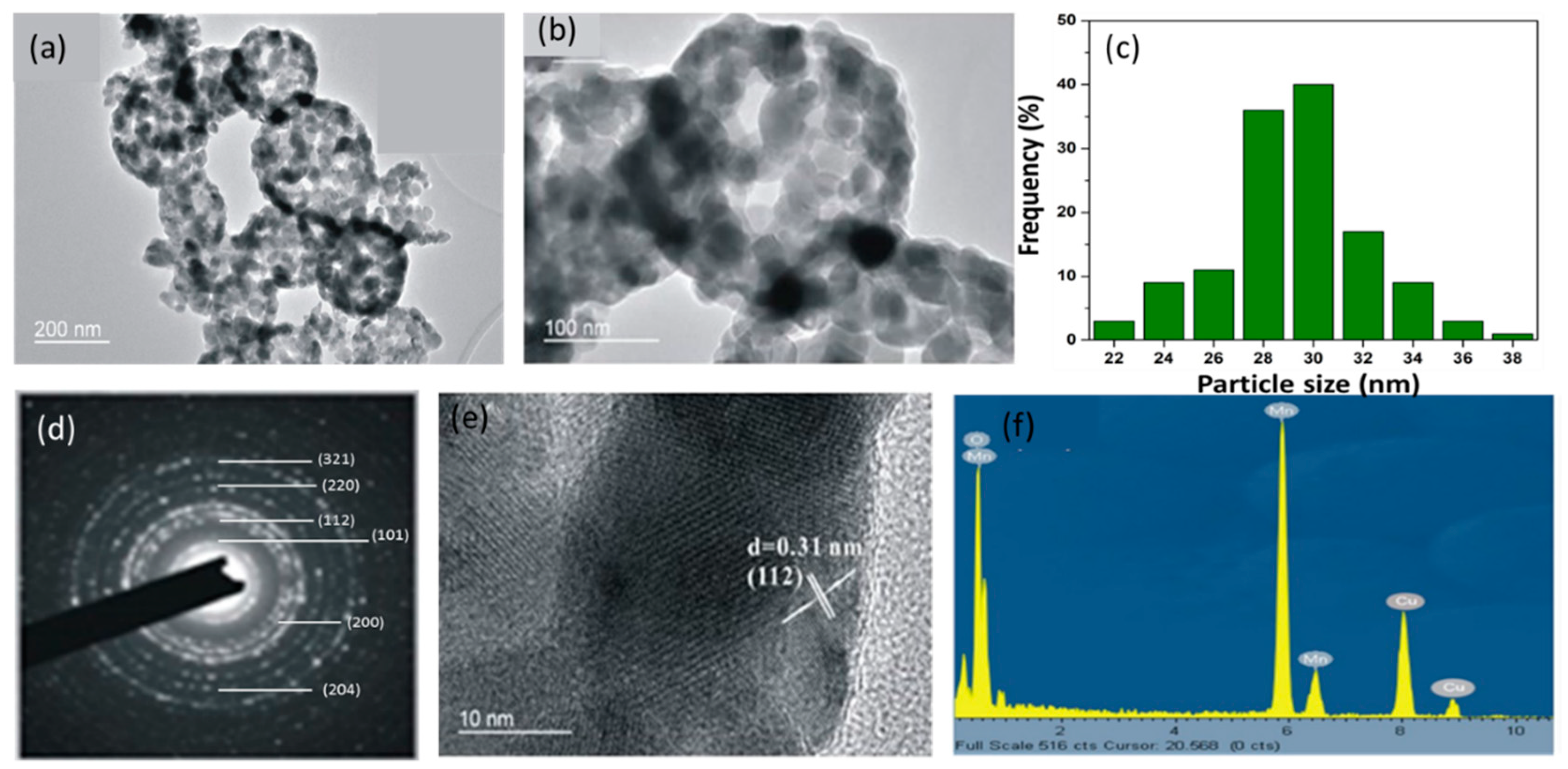

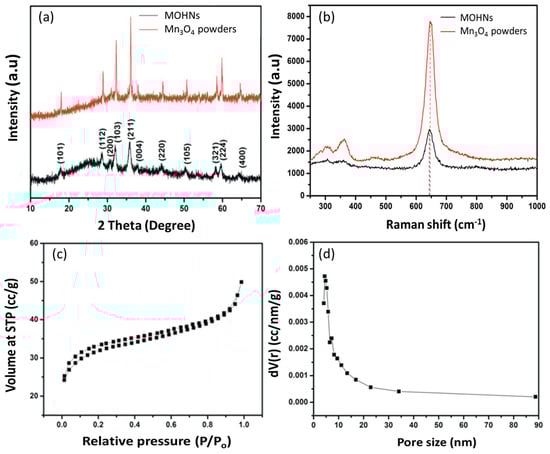

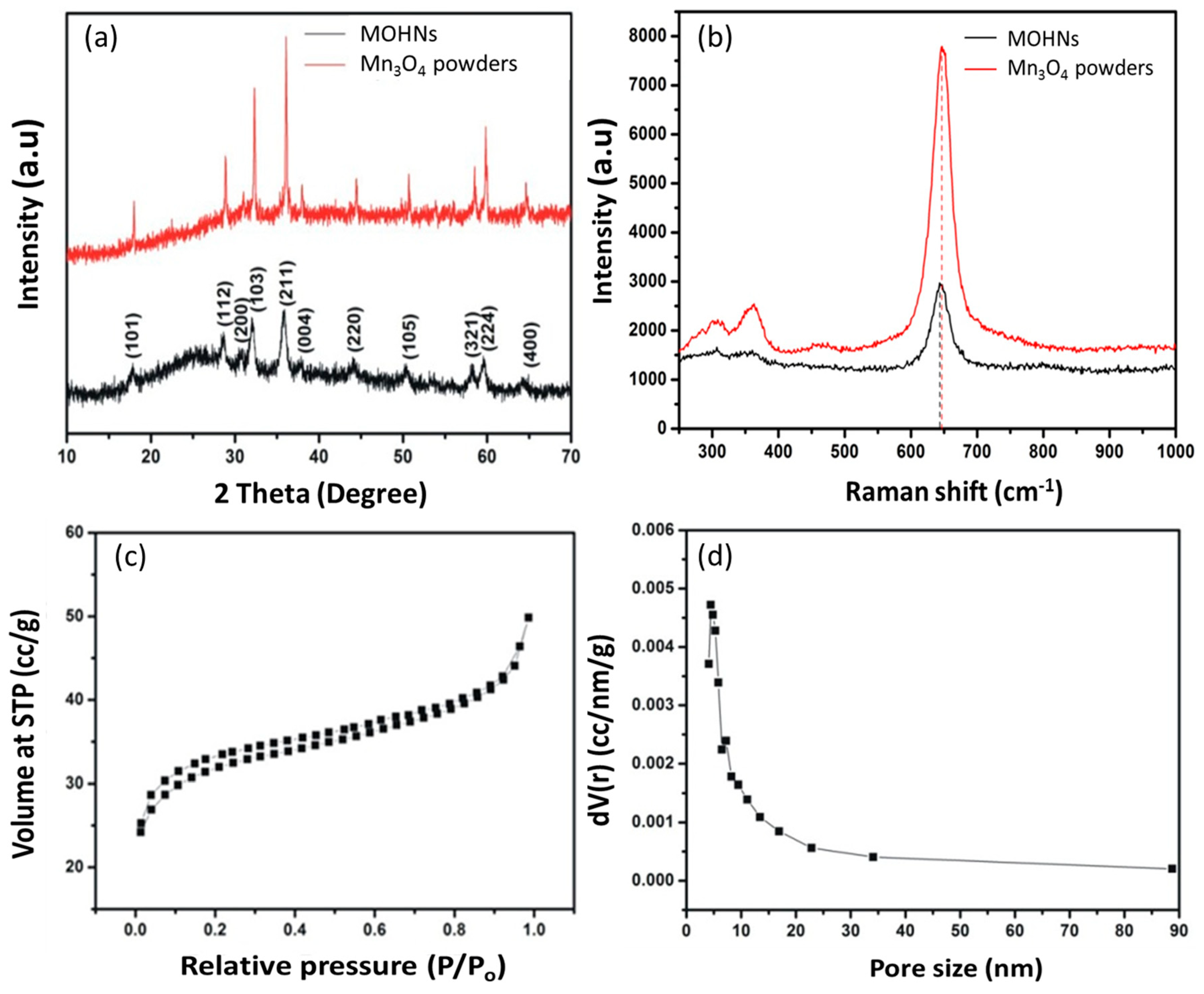

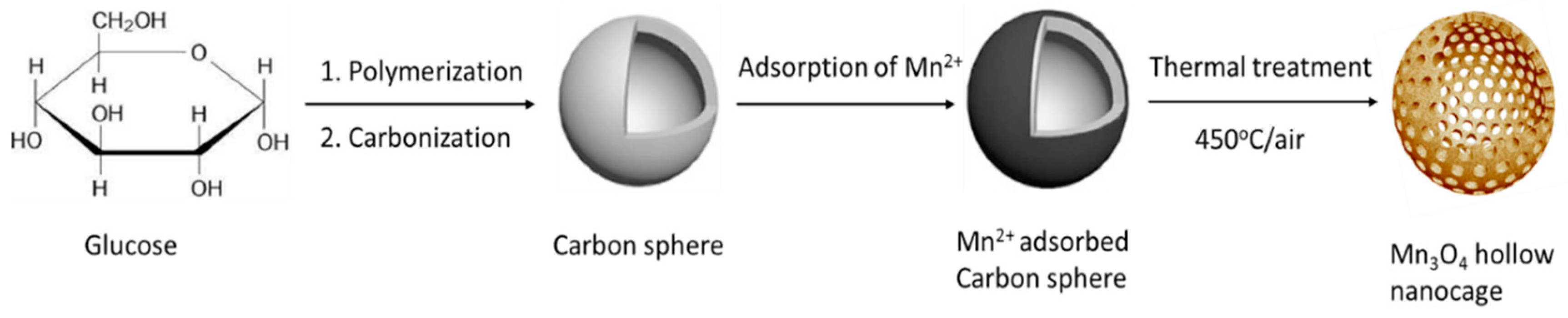

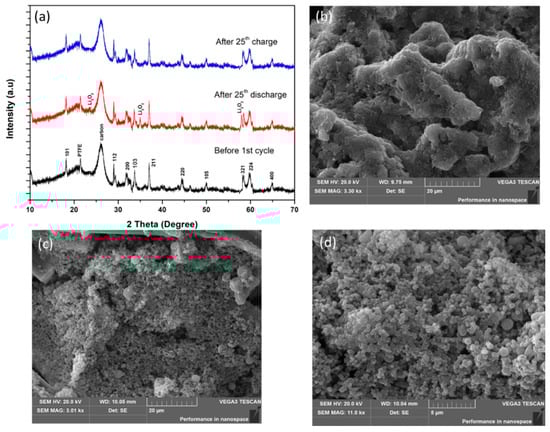

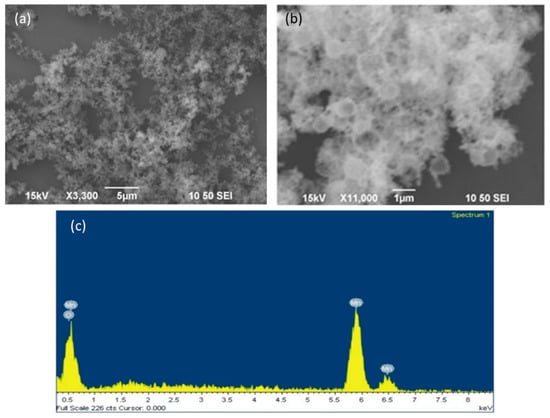

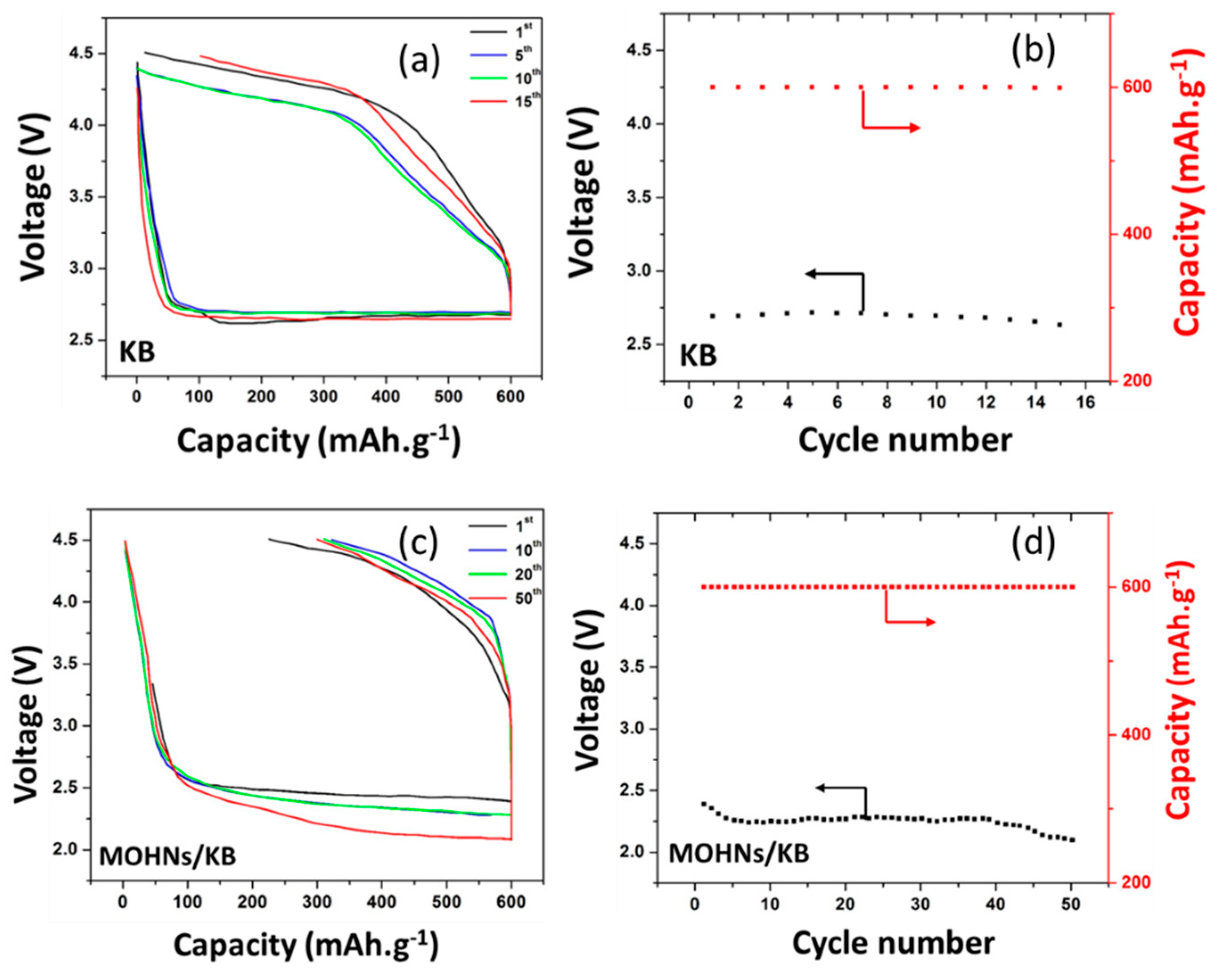

As a step towards efficient and cost-effective electrocatalytic cathodes for Li–O2 batteries, highly porous hausmannite-type Mn3O4 hollow nanocages (MOHNs) of a large diameter of ~250 nm and a high surface area of 90.65 m2·g−1 were synthesized and their physicochemical and electrochemical properties were studied in addition to their formation mechanism. A facile approach using carbon spheres as the template and MnCl2 as the precursor was adopted to suit the purpose. The MOHNs/Ketjenblack cathode-based Li–O2 battery demonstrated an improved cyclability of 50 discharge–charge cycles at a specific current of 400 mA·g−1 and a specific capacity of 600 mAh·g−1. In contrast, the Ketjenblack cathode-based one can sustain only 15 cycles under the same electrolytic system comprised of 1 M LiTFSI/TEGDME. It is surmised that the unique hollow nanocage morphology of MOHNs is responsible for the high electrochemical performance. The hollow nanocages were a result of the aggregation of crystalline nanoparticles of 25–35 nm size, and the mesoscopic pores between the nanoparticles gave rise to a loosely mesoporous structure for accommodating the volume change in the MOHNs/Ketjenblack cathode during electrocatalytic reactions. The improved cyclic stability is mainly due to the faster mass transport of the O2 through the mesoscopic pores. This work is comparable to the state-of-the-art experimentations on cathodes for Li–O2 batteries that focus on the use of non-precious transition materials. View Full-Text
Keywords: electrocatalytic cathodes; hollow nanocages; Li–O2 batteries; cyclic stability; transition metals electrocatalytic cathodes; hollow nanocages; Li–O2 batteries; cyclic stability; transition metals
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Chatterjee, A.; Or, S.W.; Cao, Y. Transition Metal Hollow Nanocages as Promising Cathodes for the Long-Term Cyclability of Li–O2 Batteries. Nanomaterials 2018, 8, 308.
