Influence of the Carrier Gas Flow in the CVD Synthesis of 2-Dimensional MoS2 Based on the Spin-Coating of Liquid Molybdenum Precursors

by
Fiorenza Esposito
1,2,
Matteo Bosi
1,
Giovanni Attolini
1,
Francesca Rossi
1,
Roberto Fornari
1,3,
Filippo Fabbri
4,*,† and
Luca Seravalli
1,*,†
1
Institute of Materials for Electronics and Magnetism—National Research Council (IMEM-CNR), Parco Area delle Scienze 37/A, 43124 Parma, Italy
2
Department of Chemical Science, Life, and Environmental Sustainability, University of Parma, 43124 Parma, Italy
3
Department of Mathematical, Physical and Computer Sciences, University of Parma, 43124 Parma, Italy
4
NEST, Istituto Nanoscienze—CNR, Scuola Normale Superiore, Piazza San Silvestro 12, 56127 Pisa, Italy
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Nanomaterials 2024, 14(21), 1749; https://doi.org/10.3390/nano14211749
Submission received: 30 September 2024 / Revised: 25 October 2024 / Accepted: 29 October 2024 / Published: 31 October 2024
(This article belongs to the Special Issue 2D Layered Nanomaterials and Heterostructures for Electronics, Optoelectronics and Sensing)
Browse Figures
Review Reports Versions Notes

Abstract

Atomically thin molybdenum disulfide (MoS2) is a two-dimensional semiconductor with versatile applications. The recent adoption of liquid molybdenum precursors in chemical vapor deposition has contributed significantly to the reproducible wafer-scale synthesis of MoS2 monolayer and few-layer films. In this work, we study the effects of the carrier gas flow rate on the properties of two-dimensional molybdenum disulfide grown by liquid-precursor-intermediate chemical vapor deposition on SiO2/Si substrates. We characterized the samples using Optical Microscopy, Scanning Electron Microscopy, Raman spectroscopy, and Photoluminescence spectroscopy. We analyzed samples grown with different nitrogen carrier flows, ranging from 150 to 300 sccm, and discussed the effect of carrier gas flows on their properties. We found a correlation between MoS2 flake lateral size, shape, and number of layers, and we present a qualitative growth model based on changes in sulfur provision caused by different carrier flows. We show how the use of liquid precursors can allow for the synthesis of homogeneous, single-layer flakes up to 100 µm in lateral size by optimizing the gas flow rate. These results are essential for gaining a deeper understanding of the growth process of MoS2.

1. Introduction

The synthesis of a 2D material is a crucial step because different preparation processes can determine its fundamental material properties [1,2,3,4,5,6]. Among the various techniques to obtain atomically thin structures from a bottom-up approach, Chemical Vapor Deposition (CVD) has established itself as the most successful, with the recent demonstration that CVD based on metalorganic sources (MOCVD) is the most promising option for wafer-scale synthesis [7,8,9,10,11]. Among 2D materials, molybdenum disulfide (MoS2) has attracted significant attention due to its unique optical and electrical properties, including a direct bandgap, strong light–matter interaction, and high quantum yield [12]. Various applications for this 2D material in the photonics field have been proposed, such as photodetectors, 2D LEDs, single photon sources, and components of nanophotonic circuits. We refer the reader to several excellent reviews dedicated to this topic [13,14,15].
The CVD growth of transition metal dichalcogenides is highly sensitive to reaction parameters such as precursor concentration and temperature. Therefore, any modification or uncontrolled fluctuation can significantly influence the reaction kinetics and material quality, leading to poor reproducibility in the synthesis [16]. Liquid molybdenum precursors have been introduced as a viable option to grow 2D MoS2 by CVD with large flake sizes, proving to be much more reliable than previously used powder precursors, which, despite initial promising results and the simplicity of the process, suffer from serious reproducibility issues [17,18,19,20,21]. This method relies on the sulfurization of a solution containing molybdenum precursors that is deposited by spin-coating on the substrate which is then loaded into the CVD reactor [22,23]. The typical solution is composed of three different components: (i) the water-soluble Mo precursor, (ii) the growth promoter, and (iii) the density gradient medium, which improves adhesion to the substrate surface during spinning. The first two components are mixed in ratios ranging from 1:1 to 8:1 [24,25].
The use of a molybdenum liquid precursor represents a significant modification to the paradigm of the CVD synthesis of two-dimensional materials. With solid precursors, both molybdenum and sulfur are provided to the growth substrate in vapor form, while in the liquid-precursor-intermediate CVD process (LPI-CVD), the solution containing the molybdenum precursor is already present on the growth substrate and undergoes oxidation and solidification during the temperature ramp [25]. This process is somewhat similar to the early work on the sulfurization of the molybdenum layer deposited on the growth substrates, where the primary drawback was that the MoS2 domains were limited by the initial size of the molybdenum grains in the deposited layer [26]. Although highly efficient outcomes in terms of reproducibility of the process have been obtained with Mo liquid precursors, the dynamic of the growth process has been somewhat overlooked, despite the complexity of the physical and chemical mechanisms involved. For instance, the issue of six-fold defective domains has been noted in the case of WS2 obtained by LPI-CVD [27]. Similarly, the synthesis of highly tensile-strained MoS2 monolayers has been demonstrated within a specific temperature range using liquid precursors [28]. Only recently have the different results in terms of material quality using different density gradient media been highlighted [29]. Likewise, Senkic et al. [30] reported variations in the morphology of MoS2 structures grown with different S:Mo ratios using liquid precursors. Nevertheless, the LPI-CVD has proven to be a successful approach for growing more complex two-dimensional structures, such as patterned MoSe2 [31], highly oriented MoS2 mono and bilayer structures [17], metal-doped monolayers [32], and van der Waals heterostructures [33]. Since the sulfurization process of liquid precursors spun on the substrate still relies on sulfur vapors being transported to the growth substrate, the flow rate of the inert carrier gas plays a crucial role as it affects both vapor concentration and sulfur precursor transportation. While several studies have focused on the effect of carrier gas in CVD growth using Mo solid precursors [33,34,35], very few have investigated the effect of carrier gas flow when using liquid precursors.
In this work, we demonstrate that the flow rate of the carrier gas is a critical parameter for the CVD growth of MoS2 structures, even when using Mo liquid precursors. Unlike the case of the Mo solid precursor, this parameter drastically affects the number of layers and flake sizes but has a lesser impact on the flake shape. At the lowest flow rate, structures with an inhomogeneous number of layers are obtained, featuring a bulk-like center (often pyramidal in shape) and bilayer structures along certain crystallographic directions. At the highest flow rate, the synthesis yields a 100 μm large triangular monolayer with concave edges. Notably, increasing the flow rate decreases the number of layers, reaching the monolayer limit.

2. Materials and Methods

The solution deposited on the substrate consists of a mixture of (i) 1 mL of ammonium heptamolybdate tetrahydrate (NH4)6Mo7O24∙4H2O (AHT, Sigma-Aldrich (St. Louis, MO, USA), 99.98%) 0.030 mol/L, (ii) 4 mL of NaOH 0.060 mol/L, which acts as a growth promoter, and (iii) 0.5 mL of OptiPrepTM, a density gradient medium containing 60% iodixanol and 40% water. In total, 10 µL of this mixture is then used for spin-coating on a 1 × 1 cm2 SiO2/Si substrate (3000 rpm, 30 s) which has been previously treated with O2 plasma (25 W, 3 min) to improve wettability. The substrate is placed 20 cm away from an alumina boat containing 275 mg of a sulfur solid precursor (Sigma-Aldrich, 99.98%). The growth process is carried out at a temperature of 820 °C (heating rate of 40 °C/min), providing optimal growth conditions, while the low zone containing sulfur powders is independently heated to 180 °C (heating rate of 60 °C/min). The nitrogen carrier gas flow rate, selected for its inert nature and low cost, is kept constant within the range of 150 to 300 sccm during the growth process. Further details on the CVD growth system can be found in [34,35].
The morphology of the MoS2 flakes is analyzed by scanning electron microscopy (SEM) using a Zeiss Auriga Compact system equipped with a GEMINI Field-Emission column. A statistical analysis of the lateral dimensions of the flakes is performed using SEM images. For each sample, approximately one hundred flakes distributed across different areas of the substrate are considered.
Raman and photoluminescence measurements are carried out with a Renishaw InVia system, equipped with a confocal microscope, a 532 nm excitation laser, and an 1800 line/mm grating (spectral resolution < 2 cm−1). All the analyses are performed with a 100X objective (NA = 0.85), excitation laser power 500 μW, and an acquisition time of 4 s. The Raman mapping is carried out with a pixel size between 800 nm and 1 μm.

3. Results

We observed that the density and the size of the flakes can be reproducibly controlled by adjusting the carrier gas flow rate. In Figure 1, optical microscopy (OM) and scanning electron microscopy (SEM) images are shown for samples grown under different carrier flows, ranging from 150 to 300 sccm. Lower and higher gas flow rates were also explored, resulting in very small flakes at values below 150 sccm and low-quality 3D structures at higher values.
The concavity of the flakes and thus their shape is directly influenced by the Mo:S ratio. A perfect triangular shape is typically reported in studies using solid precursors, achieved by increasing the sulfur content and growth temperature, whereas greater concavity (multi-apex triangles) is observed when the growth occurs under Mo excess [36]. Statistical measurements of flake concavity show values ranging from 7.5° to 10.2° for carrier flows between 150 and 250 sccm (Figure 2). A higher concavity, reaching 12.5°, was found for the sample with a flow rate of 300 sccm. This analysis suggests that the growth behavior using liquid precursors differs significantly from that observed with solid precursors (such as MoO3 powders), where carrier gas flow, gas velocity, MoO3 and S transport, and gas phase pre-reactions greatly influence the growth outcome [37,38,39]. As shown in Figure 2e, flake concavity remains almost constant for flows up to 250 sccm but increases significantly at 300 sccm.
Figure 3 presents the statistical analysis based on SEM images and the average lateral size of the flakes. By fitting the histograms in Figure 3a–d with Gaussian functions, the average flake sizes were found to be 5.6 ± 0.7 µm, 19.8 ± 2.9 µm, 12.0 ± 3.5 µm, and 76.7 ± 9.1 µm for flows rates of 150 sccm, 200 sccm, 250 sccm, and 300 sccm, respectively. As shown in Figure 3e, data indicate a nonlinear increase in flake size as the flow rate increases from 150 to 300 sccm.
In Figure 4, we present maps of the separation between Raman modes (Δk), a well-established method for determining the number of MoS2 layers. Monolayer structures exhibit Δk < 19 cm−1, while bulk structures show Δk > 24 cm−1 [40,41]. Optical reference images of the analyzed flakes, as well as representative Raman spectra, are shown in Figures S1–S3.
The flakes obtained with a flow of 150 sccm consist of a bulk-like central region and three bilayer lateral structures, as evidenced by the separation of the Raman modes: 26 cm−1 in the central region (bulk-like) and 20 cm−1 in the lateral areas. The flakes grown with a carrier gas flow rate of 200 sccm and 250 sccm exhibit a homogeneous spatial distribution of Δk. Specifically, Δk is equal to 23 cm−1 and 21 cm−1 in the case of the 200 sccm and 250 sccm specimens, respectively. These values indicate the presence of few-layer structures. The flakes obtained with a flow of 300 sccm are large, corner-shaped triangular monolayers with Δk = 19 cm−1. As recently reported [28], the separation of the Raman modes at the corner of the triangular structure is influenced by tensile strain.
Photoluminescence (PL) characterization was performed to analyze the effect of varying carrier gas flow rates on the optical properties [37,38,42].
Figure 5 presents the PL spectra of the triangular structures obtained at different carrier gas flows. For the sample grown at 150 sccm, we report the PL spectrum obtained from the lateral part of the flakes, as the central bulk-like area does not exhibit any light emission. The PL spectra reveal two distinct light emissions, corresponding to the A and B excitonic recombinations of MoS2 [43,44,45,46]. In the samples grown at 150 sccm and 300 sccm, the A exciton peaks at 1.83 eV, whereas the samples obtained at 200 sccm and 250 sccm show a redshift to 1.78 eV. The B exciton consistently peaks at 1.95 eV. Notably, the intensity ratio of A to B varies significantly: it is 2.1 for the 200 sccm and 250 sccm samples, increasing to 8 and 10.2 for the 150 sccm and 300 sccm samples, respectively. The PL intensity ratios and peak positions (Figure 5) confirm the findings from the Raman spectroscopic mapping (Figure 4), indicating that the number of layers varies with the carrier gas flow during the growth process. As the distance between the two Raman peaks decreases—an indication of there being few layers—the integrated area of the exciton A peak in the PL spectrum increases [45]. Both these features suggest the presence of an unstrained MoS2 monolayer.

4. Discussion

Most of the literature on MoS2 synthesis focuses on solid precursors, which is not directly applicable to our case. Liu et al. [47] demonstrated that increasing the carrier gas flow rate enhances the rate of precursor transport along the growth tube. Furthermore, Cao et al. [48] revealed that the carrier gas flow rate strongly influences the structural and morphological properties of MoS2 flakes during CVD growth, which subsequently affects their optical properties. In particular, they observed dendritic structures at higher carrier flow rates, while lower carrier flows resulted in triangular shapes. Additionally, it was shown [49] that the concentration of sulfur vapor determines the size and shape of CVD-grown MoS2 flakes, with the flake shape changing from triangle to hexagon and back to triangle as the sulfur concentration decreased.
The growth process with liquid precursors differs markedly from the typical synthesis of MoS2 flakes using solid sources in terms of species transport and the reactions involved. Unlike solid Mo powders, the molybdenum available for MoS2 synthesis with liquid precursors is controlled in a highly reproducible manner by applying a solution spun on the substrate. This method avoids the transport processes of MoO3 powder in the gas phase, the heterogeneous gas phase reactions between Mo and S, and the uncontrolled MoOx sub-oxidation processes that usually occur in the gas phase prior to the nucleation on the substrate. All these processes, which occur with solid sources, create a complex relationship between the carrier flow and the concentration of the precursors in both the gas phase and on the substrate surface, potentially leading to reproducibility issues [50,51]. By eliminating the role of gas phase reactions, we hypothesize that all the sulfur evaporating from the source will reach the substrate for the synthesis reactions: no sulfur is lost due to heterogeneous gas phase reactions, as in the case with solid precursors, and no sulfur deposition is experimentally observed in the hot zone of the furnace, between the sulfur boat and the substrate. We highlight that the temperature profile along the tube was measured prior to deposition, and no significant gradients were found in the zone relevant to the deposition. Moreover, uniform gas mixing between sulfur and nitrogen is expected due to the gas flow rate, the high temperature, and the significant distance between the sulfur source and the growth substrate.
The quantity of sulfur available for growth is defined by the solid source temperature and by its dilution in the transport carrier gas. The local concentration of sulfur in the gas stream depends on the flow dynamics of the system, which are influenced by the diameter of the reaction tube, the carrier gas flow rate, the evaporated sulfur, and the temperature profile of the system. The distance between the sulfur source and the substrate may also influence how sulfur is distributed in the gas stream and its local concentration over the liquid precursor. The sulfur available for growth is determined by the number of atoms reaching the substrate surface from the gas phase, primarily defined by the flow dynamics. The sulfur vapor pressure is set by the temperature of the sulfur powder: being in an open tube, the system is in a dynamic equilibrium, and we can assume that the sulfur vapor will never reach its equilibrium pressure. Consequently, the quantity of sulfur evaporating is constant at a given temperature, but its dilution and partial pressure in the gas phase depend on the total amount of the carrier gas: a higher gas flow in standard cubic centimeters per minute results in greater sulfur dilution in the growth tube because the same quantity of sulfur is evaporated and diluted in a larger volume of gas. Thus, we can express the sulfur partial pressure P.P.(S) as inversely proportional to the total flow Ftot:
P . P .   S   ~ 1 F t o t
Under our experimental conditions, the flow is laminar (the Reynolds number with a N2 flow of 300 sccm is approximately 14). The carrier gas flow affects the thickness of the boundary layer between the nutrient gas phase and the substrate surface, influencing sulfur diffusion from the nutrient gas phase to the surface and the diffusion of the reaction byproducts from the surface to the gas phase. The velocity of sulfur diffusion towards the surface is inversely proportional to the boundary layer thickness, which depends on 1 F t o t [52,53]. It has also been observed that, in the sulfurization of a molybdenum thin layer deposited by sputtering, the rate-limiting step is the diffusion of sulfur to the surface, highlighting the pivotal role of sulfur diffusion in a system similar to ours and supporting the relevance of the boundary layer model [54,55].
Combining these two dependencies, we can estimate that the sulfur concentration at the substrate surface is proportional to the following:
s u r f a c e   S   c o n c e n t r a t i o n   ~   P . P .   S × 1 b o u n d a r y   l a y e r   t h i c k n e s s   ~   1 F   × F   ~ 1 F
We therefore expect a higher sulfur concentration at the substrate surface at low carrier gas flows, and conversely, a lower sulfur surface concentration at higher flows.
In the model proposed here, we make several assumptions derived from previous works using solid molybdenum precursors, particularly regarding the effect of sulfur supply on flake growth. It is important to emphasize that the change in flow rate affects the growth of flakes using solid and liquid precursors in entirely different ways. The transport of molybdenum vapor from solid sources and reactions between MoO3 and S occurring in the gas phase prior to the synthesis on the flakes do not occur in our system [10,56,57]. By using liquid molybdenum precursors deposited by spin-coating on the growth substrate, the quantity of the molybdenum precursor can be considered constant, independent of other growth parameters. Following the seminal work of Kim et al. [25], during the temperature ramp, the AHT reacts with the residual oxygen in the chamber, creating a mixture of MoO3 and Na2MoO4.
The orientation of the MoS2 structures may also be affected, as changes in the S:Mo ratio can lead to the synthesis of vertically aligned MoS2 microscale structures [58]. Additionally, variations in the S:Mo can alter the CVD process, favoring a more layer-by-layer growth mechanism and reducing the desired two-dimensional in-plane enlargement [59].
In Figure 6, we illustrate the effect of the different sulfur provisions on the number of layers and the shape of the obtained MoS2 structures, based on total carrier flow. Considering the flow dynamic model described above, lower carrier flows result in higher sulfur supply (left panel), leading to MoS2 structures composed of a central layer-by-layer pyramidal structure with lateral bilayer features [60,61]. A medium sulfur supply (central panel) results in the growth of few-layer structures. Finally, increasing the flow decreases the sulfur provision, resulting in monolayer large-area structures.
The change in sulfur supply transitions the growth regime from kinetic driven (at low flow/high sulfur concentration at the surface) to thermodynamically driven (at higher flow/lower sulfur concentration), which may explain the observed changes in flake shape: at lower flows, the higher concentration of sulfur adatoms arriving at the substrate inhibits the enlargement of existing flakes, as it becomes more favorable to nucleate a new MoS2 seed rather than enlarging an existing one, thus explaining the formation of pyramid structures and the aggregation of flakes. As the carrier flow increases, the supersaturation of sulfur at the surface decreases and the growth becomes more thermodynamically driven; enlarging existing seeds becomes favorable compared to nucleating new ones, resulting in larger and more regular flakes.
By eliminating the gas phase heterogeneous reactions present when using solid precursors, which depend on many parameters (temperature, distance between the Mo and S powders, position of the substrate, etc.), the growth process with liquid precursors is more controlled and reliable. This may enhance our understanding of MoS2 growth mechanisms. It should also be noted that, for this reason, results obtained with solid precursors cannot be directly explained by this model.
We also discuss the modifications in the shape of the MoS2 structures obtained with different sulfur provisions. It is generally observed that concavity increases, and multi-apex triangles are formed if the growth occurs in molybdenum excess [41]. In the case of a lower provision of sulfur, the shape indicates that the CVD process is carried out in a molybdenum-rich environment, as the structures exhibit undergrowth along the sulfur in zig-zag directions [62]. Increasing the sulfur supply leads to a sulfur-rich environment, resulting in concave triangular structures [63].
The increased concavity in the specimen obtained with a 300 sccm flow rate can be related to a slight decrease in the S:Mo ratio under these conditions, which also induces an increase in the lateral size. Therefore, at higher flows, the increased concavity of flakes suggests that the growth occurs with a slightly lower sulfur supply, corroborating the proposed model regarding sulfur provision. This finding contrasts with what is generally observed with solid precursors, where a higher gas flow rate is reported to increase the provision of sulfur atoms, leading to flakes with reduced concavity and a more regular triangular shape. This discrepancy, as mentioned in the previous section, may be attributed to the very different growth dynamics in the two systems and the absence of gas phase pre-reactions between MoO3 and S when using solid precursors.
The use of liquid precursors simplifies the growth mechanism of MoS2 flakes by separating the sulfur supply, which is controlled solely by flow dynamics, from the surface reactions governed by kinetic and thermodynamic processes. This approach also clarifies the influence of sulfur supply on the shape and size of MoS2 flakes, as it depends only on the total carrier flow, which is proportional to 1 F . Our model demonstrates that the S:Mo ratio in the case of liquid precursor CVD simultaneously affects both the number of layers and the size of the MoS2 structures. At a high sulfur supply (carrier flow = 150 sccm), we obtain small structures characterized by a bulk central region with lateral overgrowth. Conversely, as the sulfur supply decreases, few-layer structures form. When the sulfur reaching the substrate is lower (carrier flow = 300 sccm), monolayer MoS2 flakes are produced with an average lateral size that is 3.5 times larger than those grown under higher sulfur supply conditions (carrier flow = 200–250 sccm). While our method allows for the growth of large flakes, obtaining a uniform continuous film with our CVD system configuration remains a challenge. To date, this has only been achieved using vertical substrate positioning [64].
To summarize the progress in 2D MoS2 growth using different approaches, we provide Table 1, where we highlight some relevant parameters from representative articles. Due to the vast number of scientific publications on this material, this table should be considered only as a guideline for standard values commonly found in the literature.

5. Conclusions

We investigated the influence of the carrier gas flow rate on the synthesis of two-dimensional MoS2 structures using Mo liquid precursors by analyzing the properties of samples grown under identical conditions with varying carrier flows. Our results demonstrate that adjusting the carrier gas flow allows control over the nucleation density, morphology, lateral size, and the number of layers in the MoS2 flakes. At the lowest flow rate, the resulting structures exhibit an inhomogeneous number of layers, featuring a bulk-like center (predominantly pyramidal) with bilayer structures extending along the Mo zig-zag crystallographic directions. At the highest flow rate, the synthesis yields 100 μm large triangular monolayers with concave edges. These findings are in stark contrast to the results commonly reported for MoS2 2D structures grown using solid Mo precursors.
We propose a model to explain the effect of different carrier flows on the properties of the flakes, based on changes in sulfur provision: low flows create sulfur-rich conditions, leading to small, layer-by-layer pyramidal structures with lateral bilayers, whereas high flows reduce the S:Mo ratio, resulting in larger, monolayer flakes with greater concavity. This discussion highlights the key differences in the growth process between solid and liquid Mo precursors, emphasizing that carrier gas flow is a critical parameter in the CVD growth of MoS2 structures. Our study shows that, by optimizing the CVD growth parameters, it is possible to reproducibly achieve monolayer flakes with an average lateral size of about 100 µm.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano14211749/s1, Figure S1: OM images of the flakes analyzed by Raman maps; Figure S2: Representative Raman spectra of MoS2 for 150-200-250-300 sccm growth processes; Figure S3: Representative Raman spectrum of MoS2 for 150 sccm growth process.

Author Contributions

Conceptualization, F.E. and L.S.; methodology, F.E., G.A., M.B., F.F. and L.S.; formal analysis, F.E., R.F., F.F. and L.S.; investigation, F.E., F.F. and L.S.; resources, L.S.; data curation, L.S.; writing—original draft preparation, F.E. and L.S.; writing—review and editing, F.E., M.B., G.A., F.R., R.F., F.F. and L.S.; visualization, F.E. and F.F.; supervision, L.S.; project administration, L.S.; funding acquisition, L.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was carried out within the PRIN Project “2DIntegrate” (Prot. 2022RHRZN2) funded under the National Recovery and Resilience Plan (NRRP), Mission 4 Component C2 Investment 1.1—Italian Ministry of University and Research funded by the European Union—NextGenerationEU.

Data Availability Statement

The data are available upon reasonable request from the corresponding author.

Acknowledgments

We would like to thank Antonino Picciotto and the technical personnel of the Micro-Nano Facility at Fondazione Bruno Kessler, Povo, Trento, Italy for the preparation of SiO2/Si substrates.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Yu, J.; Li, J.; Zhang, W.; Chang, H. Synthesis of high quality two-dimensional materials via chemical vapor deposition. Chem. Sci. 2015, 6, 6705–6716. [Google Scholar] [CrossRef]
  2. Singh, A.K.; Kumar, P.; Late, D.J.; Kumar, A.; Patel, S.; Singh, J. 2D Layered Transition Metal Dichalcogenides (MoS2): Synthesis, Applications and Theoretical Aspects. Appl. Mater. Today 2018, 13, 242–270. [Google Scholar] [CrossRef]
  3. Yu, J.; Hu, X.; Li, H.; Zhou, X.; Zhai, T. Large-Scale Synthesis of 2D Metal Dichalcogenides. J. Mater. Chem. C 2018, 6, 4627. [Google Scholar] [CrossRef]
  4. Xiao, X.; Wang, H.; Urbankowski, P.; Gogotsi, Y. Topochemical Synthesis of 2D Materials. Chem. Soc. Rev. 2018, 47, 8744. [Google Scholar] [CrossRef] [PubMed]
  5. Dong, R.; Zhang, T.; Feng, X. Interface-Assisted Synthesis of 2D Materials: Trend and Challenges. Chem. Rev. 2018, 118, 6189–6235. [Google Scholar] [CrossRef]
  6. Alam, S.; Chowdhury, M.A.; Shahid, A.; Alam, R.; Rahim, A. Synthesis of emerging two-dimensional (2D) materials—Advances, challenges and prospects. FlatChem 2021, 30, 100305. [Google Scholar] [CrossRef]
  7. Kim, S.Y.; Kwak, J.; Ciobanu, C.V.; Kwon, S.Y. Recent Developments in Controlled Vapor-Phase Growth of 2D Group 6 Transition Metal Dichalcogenides. Adv. Mater. 2019, 31, 1804939. [Google Scholar] [CrossRef]
  8. Dumcenco, D.; Ovchinnikov, D.; Marinov, K.; Lazić, P.; Gibertini, M.; Marzari, N.; Sanchez, O.L.; Kung, Y.-C.; Krasnozhon, D.; Chen, M.-W.; et al. Large-Area Epitaxial Monolayer MoS2. ACS Nano 2015, 9, 4611–4620. [Google Scholar] [CrossRef]
  9. Seravalli, L.; Bosi, M. A Review on Chemical Vapour Deposition of Two-Dimensional MoS2 Flakes. Materials 2021, 14, 7590. [Google Scholar] [CrossRef]
  10. Xia, Y.; Chen, X.; Wei, J.; Wang, S.; Chen, S.; Wu, S.; Ji, M.; Sun, Z.; Xu, Z.; Bao, W.; et al. 2-Inch Growth of Uniform MoS2 Monolayer for Integrated Circuit Manufacture. Nat. Mater. 2023, 22, 1324–1331. [Google Scholar] [CrossRef]
  11. Wang, Q.; Tang, J.; Li, X.; Tian, J.; Liang, J.; Li, N.; Ji, D.; Xian, L.; Guo, Y.; Li, L.; et al. Layer-by-Layer Epitaxy of Multi-Layer MoS2 Wafers. Natl. Sci. Rev. 2022, 9, nwac077. [Google Scholar] [CrossRef] [PubMed]
  12. Liu, X.; Galfsky, T.; Sun, Z.; Xia, F.; Lin, E.; Lee, Y.-H.; Kéna-Cohen, S.; Menon, V.M. Strong Light–Matter Coupling in Two-Dimensional Atomic Crystals. Nat. Photonics 2015, 9, 30–34. [Google Scholar] [CrossRef]
  13. Manzeli, S.; Ovchinnikov, D.; Pasquier, D.; Yazyev, O.V.; Kis, A. 2D Transition Metal Dichalcogenides. Nat. Rev. Mater. 2017, 2, 17033. [Google Scholar] [CrossRef]
  14. Nalwa, H.S. A Review of Molybdenum Disulfide (MoS2) Based Photodetectors: From Ultra-Broadband, Self-Powered to Flexible Devices. RSC Adv. 2020, 10, 30529–30602. [Google Scholar] [CrossRef] [PubMed]
  15. Cheng, Y.; Wan, R.; Li, L.; Liu, Z.; Yan, S.; Li, L.; Wang, J.; Gao, Y. Research Progress on Improving the Performance of MoS 2 Photodetector. J. Opt. 2022, 24, 104003. [Google Scholar] [CrossRef]
  16. Ye, Z.; Tan, C.; Huang, X.; Ouyang, Y.; Yang, L.; Wang, Z.; Dong, M. Emerging MoS2 Wafer-Scale Technique for Integrated Circuits. Nano-Micro Lett. 2023, 15, 38. [Google Scholar] [CrossRef]
  17. Seo, J.; Lee, J.; Baek, S.; Jung, W.; Oh, N.K.; Son, E.; Park, H. Liquid Precursor-Mediated Epitaxial Growth of Highly Oriented 2D van Der Waals Semiconductors toward High-Performance Electronics. ACS Appl. Electron. Mater. 2021, 3, 5528–5536. [Google Scholar] [CrossRef]
  18. Zhang, T.; Fujisawa, K.; Zhang, F.; Liu, M.; Lucking, M.C.; Gontijo, R.N.; Lei, Y.; Liu, H.; Crust, K.; Granzier-Nakajima, T.; et al. Universal In Situ Substitutional Doping of Transition Metal Dichalcogenides by Liquid-Phase Precursor-Assisted Synthesis. ACS Nano 2020, 14, 4326–4335. [Google Scholar] [CrossRef]
  19. Tong, S.W.; Medina, H.; Liao, W.; Wu, J.; Wu, W.; Chai, J.; Yang, M.; Abutaha, A.; Wang, S.; Zhu, C.; et al. Employing a Bifunctional Molybdate Precursor To Grow the Highly Crystalline MoS2 for High-Performance Field-Effect Transistors. ACS Appl. Mater. Interfaces 2019, 11, 14239–14248. [Google Scholar] [CrossRef]
  20. Liu, X.; Wang, H.; Yang, D.; Jing, F.; Qiu, H.; Liu, H.; Hu, Z. Embedded Lanthanoid Ions Modulated the Periodic Luminescence of Transition Metal Dichalcogenide Monolayers Prepared from an Aqueous Orecursor. J. Mater. Chem. C Mater. 2022, 10, 8061–8069. [Google Scholar] [CrossRef]
  21. Qin, Z.; Loh, L.; Wang, J.; Xu, X.; Zhang, Q.; Haas, B.; Alvarez, C.; Okuno, H.; Yong, J.Z.; Schultz, T.; et al. Growth of Nb-Doped Monolayer WS2 by Liquid-Phase Precursor Mixing. ACS Nano 2019, 13, 10768–10775. [Google Scholar] [CrossRef] [PubMed]
  22. Shen, D.; Jin, Y.; Zhang, Z.; Song, R.; Liu, M.; Li, W.; Li, X.; Wu, R.; Li, B.; Li, J.; et al. Recent Advances in Spin-Coating Precursor Mediated Chemical Vapor Deposition of Two-Dimensional Transition Metal Dichalcogenides. Precis. Chem. 2024, 2, 282–299. [Google Scholar] [CrossRef] [PubMed]
  23. Guan, H.; Zhao, B.; Zhao, W.; Ni, Z. Liquid-Precursor-Intermediated Synthesis of Atomically Thin Transition Metal Dichalcogenides. Mater. Horiz. 2023, 10, 1105–1120. [Google Scholar] [CrossRef]
  24. Kang, S.K.; Lee, H.S. Study on Growth Parameters for Monolayer MoS2 Synthesized by CVD Using Solution-Based Metal Precursors. Appl. Sci. Converg. Technol. 2019, 28, 159–163. [Google Scholar] [CrossRef]
  25. Kim, H.; Han, G.H.; Yun, S.J.; Zhao, J.; Keum, D.H.; Jeong, H.Y.; Ly, T.H.; Jin, Y.; Park, J.-H.; Moon, B.H.; et al. Role of Alkali Metal Promoter in Enhancing Lateral Growth of Monolayer Transition Metal Dichalcogenides. Nanotechnology 2017, 28, 36LT01. [Google Scholar] [CrossRef]
  26. Yang, K.Y.; Nguyen, H.T.; Tsao, Y.M.; Artemkina, S.B.; Fedorov, V.E.; Huang, C.W.; Wang, H.C. Large Area MoS2 Thin Film Growth by Direct Sulfurization. Sci. Rep. 2023, 13, 8378. [Google Scholar] [CrossRef]
  27. An, G.H.; Yun, S.J.; Lee, Y.H.; Lee, H.S. Growth Mechanism of Alternating Defect Domains in Hexagonal WS 2 via Inhomogeneous W—Precursor Accumulation. Small 2020, 16, e2003326. [Google Scholar] [CrossRef] [PubMed]
  28. Seravalli, L.; Esposito, F.; Bosi, M.; Aversa, L.; Trevisi, G.; Verucchi, R.; Lazzarini, L.; Rossi, F.; Fabbri, F. Built-in Tensile Strain Dependence on the Lateral Size of Monolayer MoS2 Synthesized by Liquid Precursor Chemical Vapor Deposition Nanoscale. Nanoscale 2023, 15, 14669. [Google Scholar] [CrossRef]
  29. Esposito, F.; Bosi, M.; Attolini, G.; Rossi, F.; Panasci, S.E.; Fiorenza, P.; Giannazzo, F.; Fabbri, F.; Seravalli, L. Role of Density Gradients in the Growth Dynamics of 2-Dimensional MoS2 Using Liquid Phase Molybdenum Precursor in Chemical Vapor Deposition. Appl. Surf. Sci. 2023, 639, 158230. [Google Scholar] [CrossRef]
  30. Senkić, A.; Bajo, J.; Supina, A.; Radatović, B.; Vujičić, N. Effects of CVD Growth Parameters on Global and Local Optical Properties of MoS2 Monolayers. Mater. Chem. Phys. 2023, 296, 127185. [Google Scholar] [CrossRef]
  31. Kang, W.T.; Phan, T.L.; Ahn, K.J.; Lee, I.; Kim, Y.R.; Won, U.Y.; Kim, J.E.; Lee, Y.H.; Yu, W.J. Selective Pattern Growth of Atomically Thin MoSe2Films via a Surface-Mediated Liquid-Phase Promoter. ACS Appl. Mater. Interfaces 2021, 13, 18056–18064. [Google Scholar] [CrossRef]
  32. Tian, C.; Xiao, R.; Sui, Y.; Feng, Y.; Wang, H.; Zhao, S.; Liu, J.; Gao, X.; Wang, S.; Yu, G. The Controllable Synthesis of Bilayer V Doped WS 2 Based on Liquid Precursor Assisted CVD. Mater. Lett. 2023, 353, 135292. [Google Scholar] [CrossRef]
  33. Han, G.H.; Neumann, M.; Song, S.; Park, H.W.; Moon, B.H.; Lee, Y.H. Unusual Stacking Sequence of MoS2 and WS2 Vertical Heterostructures in One-Pot Chemical Vapor Deposition Growth. J. Korean Phys. Soc. 2023, 82, 57–67. [Google Scholar] [CrossRef]
  34. Rotunno, E.; Bosi, M.; Seravalli, L.; Salviati, G.; Fabbri, F. Influence of Organic Promoter Gradient on the MoS2 Growth Dynamics. Nanoscale Adv. 2020, 2, 2352–2362. [Google Scholar] [CrossRef]
  35. Seravalli, L.; Bosi, M.; Fiorenza, P.; Panasci, S.E.; Orsi, D.; Rotunno, E.; Cristofolini, L.; Rossi, F.; Giannazzo, F.; Fabbri, F. Gold Nanoparticle Assisted Synthesis of MoS2 Monolayers by Chemical Vapor Deposition. Nanoscale Adv. 2021, 3, 4826–4833. [Google Scholar] [CrossRef] [PubMed]
  36. Yang, S.Y.; Shim, G.W.; Seo, S.-B.; Choi, S.-Y. Effective Shape-Controlled Growth of Monolayer MoS2 Flakes by Powder-Based Chemical Vapor Deposition. Nano Res. 2017, 10, 255–262. [Google Scholar] [CrossRef]
  37. Pei, J.; Yang, J.; Xu, R.; Zeng, Y.H.; Myint, Y.W.; Zhang, S.; Zheng, J.C.; Qin, Q.; Wang, X.; Jiang, W.; et al. Exciton and Trion Dynamics in Bilayer MoS2. Small 2015, 11, 6384–6390. [Google Scholar] [CrossRef]
  38. Cadiz, F.; Tricard, S.; Gay, M.; Lagarde, D.; Wang, G.; Robert, C.; Renucci, P.; Urbaszek, B.; Marie, X. Well Separated Trion and Neutral Excitons on Superacid Treated MoS2 Monolayers. Appl. Phys. Lett. 2016, 108, 251106. [Google Scholar] [CrossRef]
  39. Splendiani, A.; Sun, L.; Zhang, Y.; Li, T.; Kim, J.; Chim, C.-Y.; Galli, G.; Wang, F. Emerging Photoluminescence in Monolayer MoS2. Nano Lett. 2010, 10, 1271–1275. [Google Scholar] [CrossRef]
  40. Lee, C.; Yan, H.; Brus, L.E.; Heinz, T.F.; Hone, J.; Ryu, S. Anomalous Lattice Vibrations of Single- and Few-Layer MoS2. ACS Nano 2010, 4, 2695–2700. [Google Scholar] [CrossRef]
  41. Li, H.; Zhang, Q.; Yap, C.C.R.; Tay, B.K.; Edwin, T.H.T.; Olivier, A.; Baillargeat, D. From Bulk to Monolayer MoS2: Evolution of Raman Scattering. Adv. Funct. Mater. 2012, 22, 1385–1390. [Google Scholar] [CrossRef]
  42. Golovynskyi, S.; Irfan, I.; Bosi, M.; Seravalli, L.; Datsenko, O.I.; Golovynska, I.; Li, B.; Lin, D.; Qu, J. Exciton and Trion in Few-Layer MoS2: Thickness- and Temperature-Dependent Photoluminescence. Appl. Surf. Sci. 2020, 515, 146033. [Google Scholar] [CrossRef]
  43. Amani, M.; Lien, D.H.; Kiriya, D.; Xiao, J.; Azcatl, A.; Noh, J.; Madhvapathy, S.R.; Addou, R.; Santosh, K.C.; Dubey, M.; et al. Near-Unity Photoluminescence Quantum Yield in MoS2. Science 2015, 350, 1065–1068. [Google Scholar] [CrossRef] [PubMed]
  44. Birmingham, B.; Yuan, J.; Filez, M.; Fu, D.; Hu, J.; Lou, J.; Scully, M.O.; Weckhuysen, B.M.; Zhang, Z. Spatially-Resolved Photoluminescence of Monolayer MoS2 under Controlled Environment for Ambient Optoelectronic Applications. ACS Appl. Nano Mater. 2018, 1, 6226–6235. [Google Scholar] [CrossRef]
  45. Mouri, S.; Miyauchi, Y.; Matsuda, K. Tunable Photoluminescence of Monolayer MoS2 via Chemical Doping. Nano Lett. 2013, 13, 5944–5948. [Google Scholar] [CrossRef]
  46. Lu, A.Y.; Martins, L.G.P.; Shen, P.C.; Chen, Z.; Park, J.H.; Xue, M.; Han, J.; Mao, N.; Chiu, M.H.; Palacios, T.; et al. Unraveling the Correlation between Raman and Photoluminescence in Monolayer MoS2 through Machine-Learning Models. Adv. Mater. 2022, 34, e2202911. [Google Scholar] [CrossRef]
  47. Liu, H.; Zhu, Y.; Meng, Q.; Lu, X.; Kong, S.; Huang, Z.; Jiang, P.; Bao, X. Role of the Carrier Gas Flow Rate in Monolayer MoS2 Growth by Modified Chemical Vapor Deposition. Nano Res. 2016, 10, 643–651. [Google Scholar] [CrossRef]
  48. Cao, Y.; Luo, X.; Han, S.; Yuan, C.; Yang, Y.; Li, Q.; Yu, T.; Ye, S. Influences of Carrier Gas Flow Rate on the Morphologies of MoS2 Flakes. Chem. Phys. Lett. 2015, 631–632, 30–33. [Google Scholar] [CrossRef]
  49. Cho, Y.J.; Sim, Y.; Lee, J.H.; Hoang, N.T.; Seong, M.J. Size and Shape Control of CVD-Grown Monolayer MoS2. Curr. Appl. Phys. 2023, 45, 99–104. [Google Scholar] [CrossRef]
  50. Lee, Y.H.; Zhang, X.Q.; Zhang, W.; Chang, M.T.; Lin, C.T.; Chang, K.D.; Yu, Y.C.; Wang, J.T.W.; Chang, C.S.; Li, L.J.; et al. Synthesis of Large-Area MoS2 Atomic Layers with Chemical Vapor Deposition. Adv. Mater. 2012, 24, 2320–2325. [Google Scholar] [CrossRef]
  51. Zhang, Y.; Zhang, Y.; Ji, Q.; Ju, J.; Yuan, H.; Shi, J.; Gao, T.; Ma, D.; Liu, M.; Chen, Y.; et al. Controlled Growth of High-Quality Monolayer WS2 Layers on Sapphire and Imaging Its Grain Boundary. ACS Nano 2013, 7, 8963–8971. [Google Scholar] [CrossRef] [PubMed]
  52. Johari, M.H.; Sirat, M.S.; Mohamed, M.A.; Mustaffa, A.F.; Mohmad, A.R. Computational Fluid Dynamics Insights into Chemical Vapor Deposition of Homogeneous MoS2 Film with Solid Precursors. Cryst. Res. Technol. 2023, 58, 2300139. [Google Scholar] [CrossRef]
  53. Herman, M.A.; Richter, W.; Sitter, H. Epitaxy; Springer Series in Materials Science; Springer: Berlin/Heidelberg, Germany, 2004; Volume 62, ISBN 978-3-642-08737-0. [Google Scholar]
  54. Panasci, S.E.; Koos, A.; Schilirò, E.; Di Franco, S.; Greco, G.; Fiorenza, P.; Roccaforte, F.; Agnello, S.; Cannas, M.; Gelardi, F.M.; et al. Multiscale Investigation of the Structural, Electrical and Photoluminescence Properties of MoS2 Obtained by MoO3 Sulfurization. Nanomaterials 2022, 12, 182. [Google Scholar] [CrossRef] [PubMed]
  55. Kong, D.; Wang, H.; Cha, J.J.; Pasta, M.; Koski, K.J.; Yao, J.; Cui, Y. Synthesis of MoS2 and MoSe2 Films with Vertically Aligned Layers. Nano Lett. 2013, 13, 1341–1347. [Google Scholar] [CrossRef] [PubMed]
  56. Pondick, J.V.; Woods, J.M.; Xing, J.; Zhou, Y.; Cha, J.J. Stepwise Sulfurization from MoO3 to MoS2 via Chemical Vapor Deposition. ACS Appl. Nano Mater. 2018, 1, 5655–5661. [Google Scholar] [CrossRef]
  57. Withanage, S.S.; Kalita, H.; Chung, H.-S.; Roy, T.; Jung, Y.; Khondaker, S.I. Uniform Vapor-Pressure-Based Chemical Vapor Deposition Growth of MoS2 Using MoO3 Thin Film as a Precursor for Coevaporation. ACS Omega 2024, 3, 18943–18949. [Google Scholar] [CrossRef]
  58. Kumar, P.; Viswanath, B. Horizontally and Vertically Aligned Growth of Strained MoS2 Layers with Dissimilar Wetting and Catalytic Behaviors †. CrystEngComm 2017, 19, 5068–5078. [Google Scholar] [CrossRef]
  59. Kwak, T.; Lee, J.; So, B.; Choi, U.; Nam, O. Growth Behavior of Wafer-Scale Two-Dimensional MoS2 Layer Growth Using Metal-Organic Chemical Vapor Deposition. J. Cryst. Growth 2019, 510, 50–55. [Google Scholar] [CrossRef]
  60. Lin, X.; Liu, Y.; Wang, K.; Wei, C.; Zhang, W.; Yan, Y.; Li, Y.J.; Yao, J.; Zhao, Y.S. Two-Dimensional Pyramid-like WS2 Layered Structures for Highly Efficient Edge Second Harmonic Generation. ACS Nano 2018, 12, 689–696. [Google Scholar] [CrossRef]
  61. Negri, M.; Francaviglia, L.; Kaplan, D.; Swaminathan, V.; Salviati, G.; Fontcuberta I Morral, A.; Fabbri, F. Excitonic Absorption and Defect-Related Emission in Three-Dimensional MoS2 Pyramids †. Nanoscale 2022, 14, 1179–1186. [Google Scholar] [CrossRef]
  62. Wang, S.; Rong, Y.; Fan, Y.; Pacios, M.; Bhaskaran, H.; He, K.; Warner, J.H. Shape Evolution of Monolayer MoS2 Crystals Grown by Chemical Vapor Deposition. Chem. Mater. 2014, 26, 6371–6379. [Google Scholar] [CrossRef]
  63. Zhu, Z.; You, J.; Zhu, D.; Jiang, G.; Zhan, S.; Wen, J.; Xia, Q. Effect of Precursor Ratio on the Morphological and Optical Properties of CVD-Grown Monolayer MoS2 Nanosheets. Mater. Res. Express 2021, 8, 045008. [Google Scholar] [CrossRef]
  64. Wang, S.; Pacios, M.; Bhaskaran, H.; Warner, J.H. Substrate control for large area continuous films of monolayer MoS2 by atmospheric pressure chemical vapor deposition. Nanotechnology 2016, 27, 085604. [Google Scholar]
  65. Lin, Y.-C.; Zhang, W.; Huang, J.-K.; Liu, K.-K.; Lee, Y.-H.; Liang, C.-T.; Chu, C.-W.; Li, L.-J. Wafer-Scale MoS2 Thin Layers Prepared by MoO3 Sulfurization. Nanoscale 2012, 4, 6637–6641. [Google Scholar] [CrossRef]
Nanomaterials 14 01749 g001

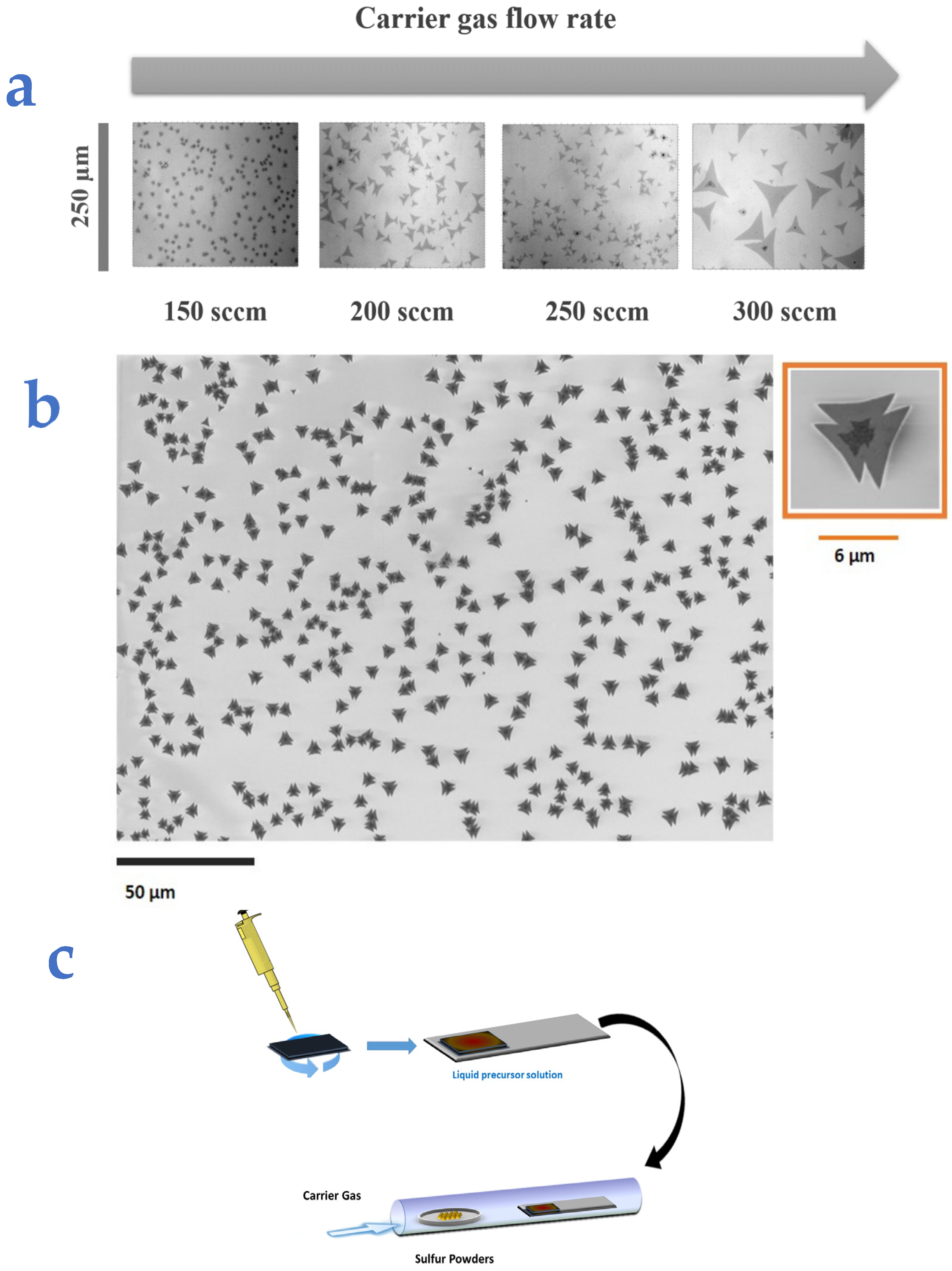

Figure 1. (a) Optical microscopy images of flakes at different nitrogen flows. (b) SEM image of the sample with at a flow rate of 150 sccm. (c) Schematic of the synthesis procedure.
Figure 1. (a) Optical microscopy images of flakes at different nitrogen flows. (b) SEM image of the sample with at a flow rate of 150 sccm. (c) Schematic of the synthesis procedure.
Nanomaterials 14 01749 g001
Nanomaterials 14 01749 g002

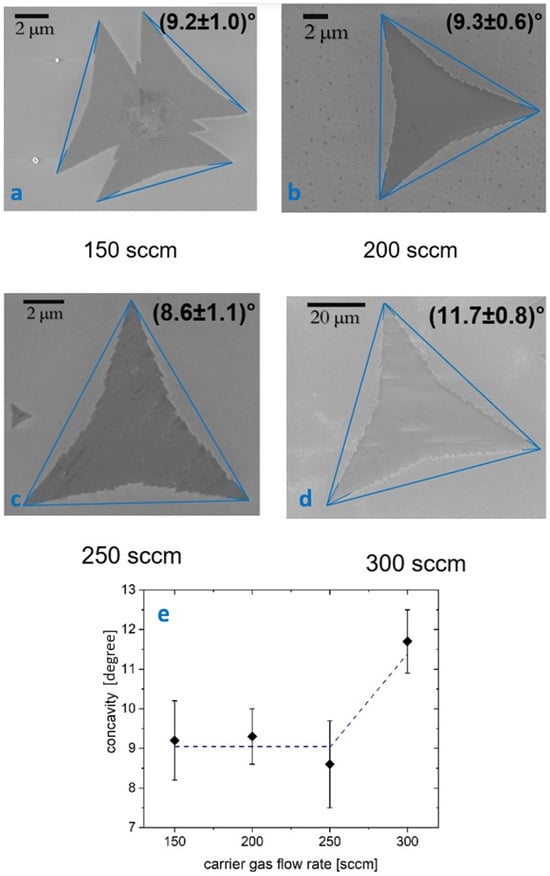

Figure 2. (a–d) SEM images and flake concavity for flow rates of 150, 200, 250, 300 sccm, respectively. (e) Concavity values plotted as a function of flow rate, with the dashed line as a guide for the eye.
Figure 2. (a–d) SEM images and flake concavity for flow rates of 150, 200, 250, 300 sccm, respectively. (e) Concavity values plotted as a function of flow rate, with the dashed line as a guide for the eye.
Nanomaterials 14 01749 g002
Nanomaterials 14 01749 g003

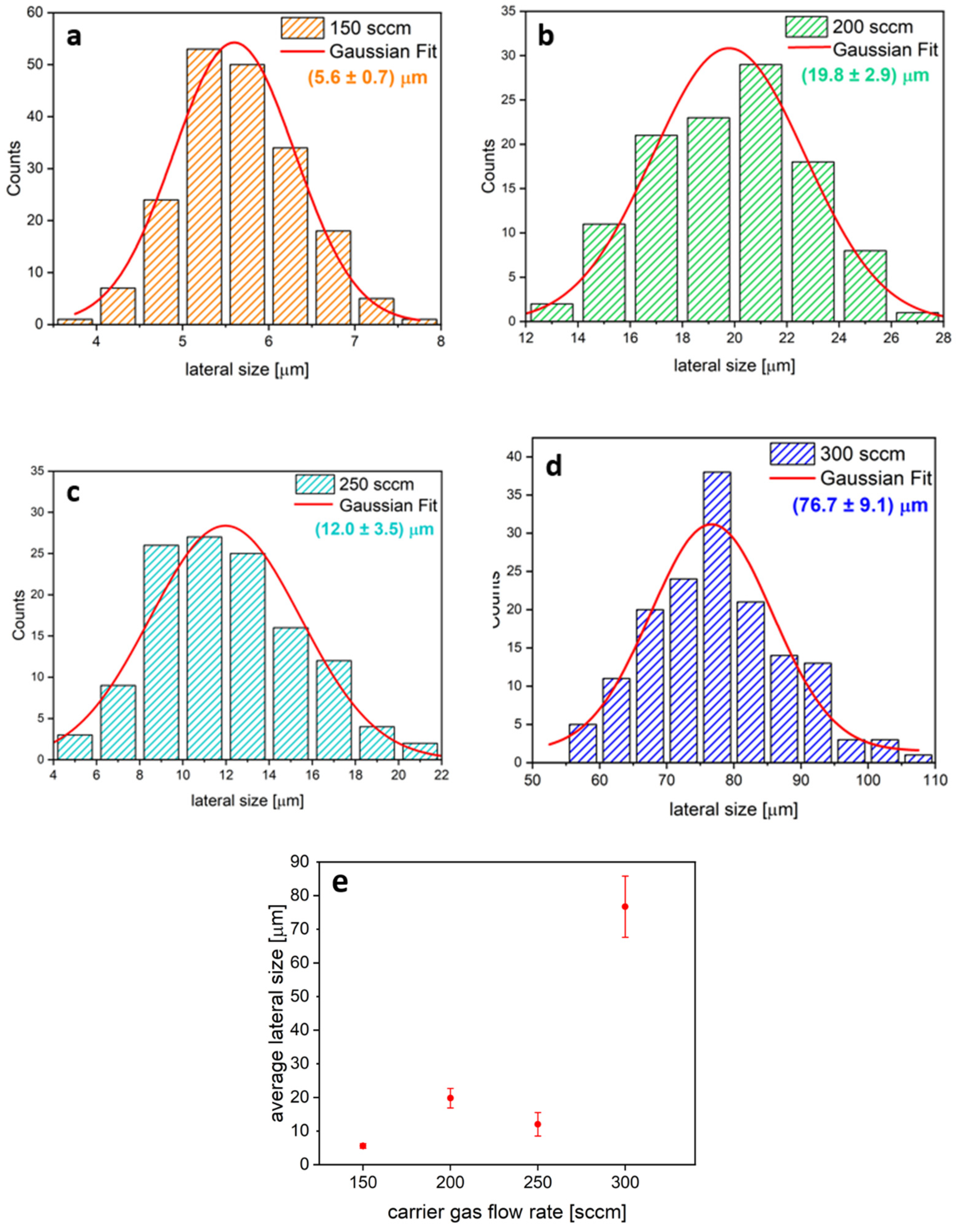

Figure 3. (a–d) Statistical analysis of the lateral dimensions of MoS2 flakes at different flow rates (150, 200, 250, 300 sccm). (e) Average lateral size of flakes as a function of the carrier flow rate.
Figure 3. (a–d) Statistical analysis of the lateral dimensions of MoS2 flakes at different flow rates (150, 200, 250, 300 sccm). (e) Average lateral size of flakes as a function of the carrier flow rate.
Nanomaterials 14 01749 g003
Nanomaterials 14 01749 g004

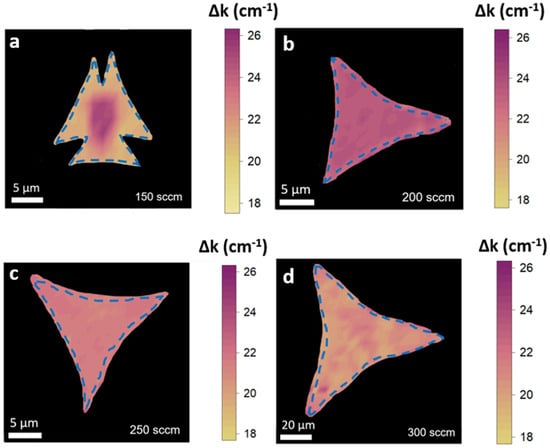

Figure 4. (a–d) Raman mode separation maps of MoS2 at flow rates 150-200-250-300 sccm. Yellow areas indicate monolayer and bilayer MoS2, while pink and purple areas indicate few-layer MoS2.
Figure 4. (a–d) Raman mode separation maps of MoS2 at flow rates 150-200-250-300 sccm. Yellow areas indicate monolayer and bilayer MoS2, while pink and purple areas indicate few-layer MoS2.
Nanomaterials 14 01749 g004
Nanomaterials 14 01749 g005

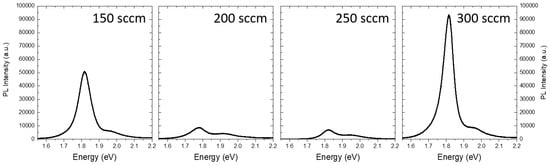

Figure 5. PL spectra for samples at flow rates of 150-200-250-300 sccm.
Figure 5. PL spectra for samples at flow rates of 150-200-250-300 sccm.
Nanomaterials 14 01749 g005
Nanomaterials 14 01749 g006

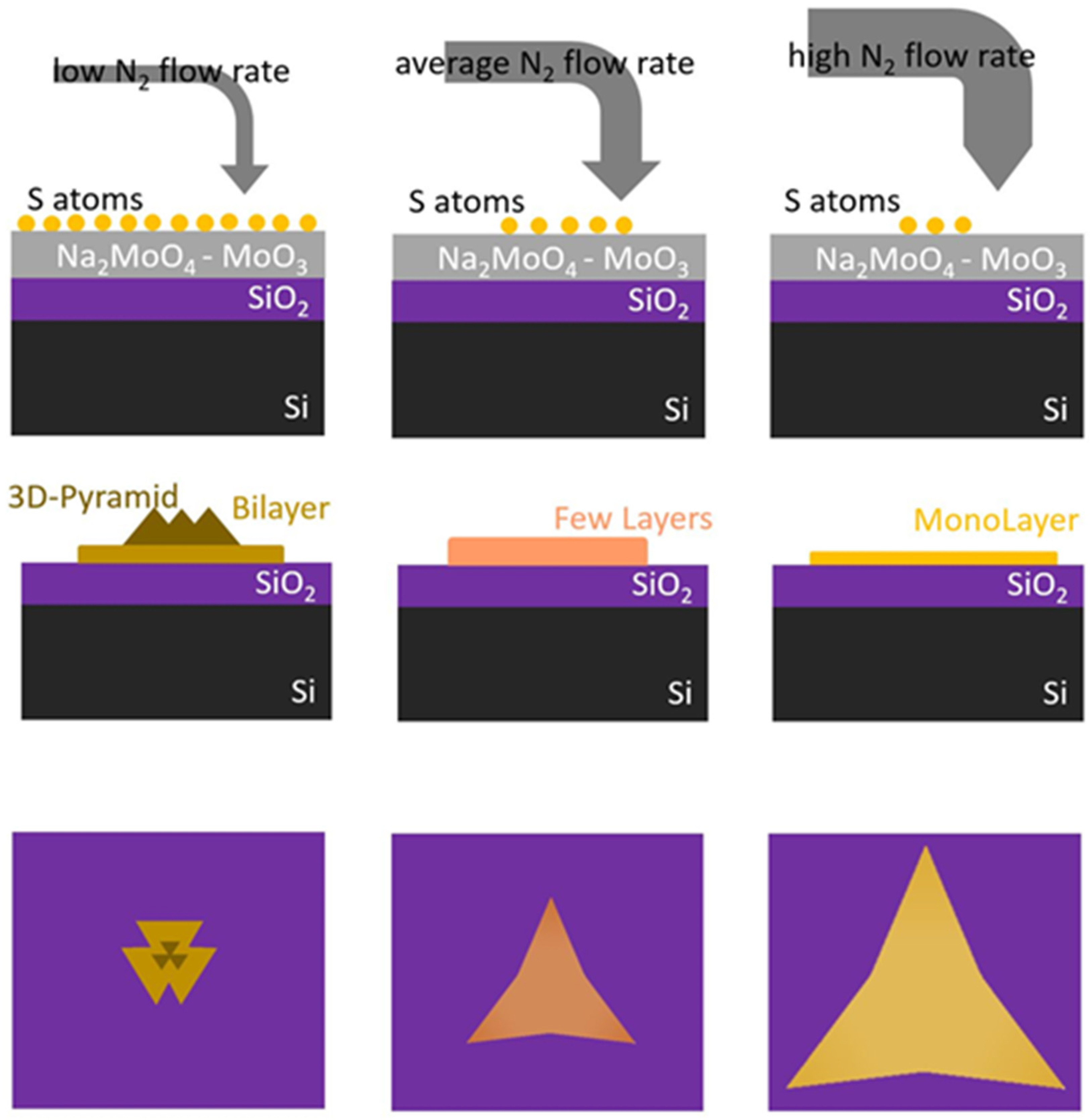

Figure 6. A sketch illustrating the influence of the carrier gas flow rate on sulfur supply, as well as on the shape, size, and number of layers of the flakes, with side and top views of the MoS2 structures.
Figure 6. A sketch illustrating the influence of the carrier gas flow rate on sulfur supply, as well as on the shape, size, and number of layers of the flakes, with side and top views of the MoS2 structures.
Nanomaterials 14 01749 g006
Table 1. Overview of recent studies on 2D-MoS2 growth, summarizing key parameters from selected publications to provide standard reference values for different growth approaches.
Table 1. Overview of recent studies on 2D-MoS2 growth, summarizing key parameters from selected publications to provide standard reference values for different growth approaches.
Flake Size (µm)Mo PrecursorTemperatureSubstrateNo. of LayersApplicationsRef.
continuousMoO3 thin film1000 °Cc-sapphireTrilayersElectronics (FET)[65]
10–50MoO3 powders750 °CSiO2/SiMono and BilayersPhotonics[34]
10–100MoO3 powders700–720 °CSiO2/SiMonolayersn.a.[36]
10–20Liquid850 °Cc-sapphireMonolayersElectronics (FET)[17]
100–250Liquid725 °CSiO2/SiMono and BilayersElectronics (FET)[19]
100–200Liquid820 °CSiO2/SiMonolayersn.a.This work
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Esposito, F.; Bosi, M.; Attolini, G.; Rossi, F.; Fornari, R.; Fabbri, F.; Seravalli, L. Influence of the Carrier Gas Flow in the CVD Synthesis of 2-Dimensional MoS2 Based on the Spin-Coating of Liquid Molybdenum Precursors. Nanomaterials 2024, 14, 1749. https://doi.org/10.3390/nano14211749

AMA Style

Esposito F, Bosi M, Attolini G, Rossi F, Fornari R, Fabbri F, Seravalli L. Influence of the Carrier Gas Flow in the CVD Synthesis of 2-Dimensional MoS2 Based on the Spin-Coating of Liquid Molybdenum Precursors. Nanomaterials. 2024; 14(21):1749. https://doi.org/10.3390/nano14211749

Chicago/Turabian Style

Esposito, Fiorenza, Matteo Bosi, Giovanni Attolini, Francesca Rossi, Roberto Fornari, Filippo Fabbri, and Luca Seravalli. 2024. "Influence of the Carrier Gas Flow in the CVD Synthesis of 2-Dimensional MoS2 Based on the Spin-Coating of Liquid Molybdenum Precursors" Nanomaterials 14, no. 21: 1749. https://doi.org/10.3390/nano14211749

APA Style

Esposito, F., Bosi, M., Attolini, G., Rossi, F., Fornari, R., Fabbri, F., & Seravalli, L. (2024). Influence of the Carrier Gas Flow in the CVD Synthesis of 2-Dimensional MoS2 Based on the Spin-Coating of Liquid Molybdenum Precursors. Nanomaterials, 14(21), 1749. https://doi.org/10.3390/nano14211749

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
