Carbon-Supported High-Loading Sub-4 nm PtCo Alloy Electrocatalysts for Superior Oxygen Reduction Reaction

by
Linlin Xiang
1,2,
Yunqin Hu
1,
Yanyan Zhao
3,
Sufeng Cao
4 and
Long Kuai
1,2,*
1
School of Chemical and Environmental Engineering, Anhui Laboratory of Clean Catalytic Engineering, Key Laboratory of Production and Conversion of Green Hydrogen, Anhui Polytechnic University, Beijing Middle Road, Wuhu 241000, China
2
Institute of Energy, Hefei Comprehensive National Science Center, Hefei 230031, China
3
The Rowland Institute at Harvard, 100 Edwin H Land Blvd, Cambridge, MA 02142, USA
4
Aramco Boston Downstream Center, 400 Technology Square, Cambridge, MA 02139, USA
*
Author to whom correspondence should be addressed.
Nanomaterials 2023, 13(16), 2367; https://doi.org/10.3390/nano13162367
Submission received: 31 May 2023 / Revised: 31 July 2023 / Accepted: 15 August 2023 / Published: 18 August 2023
(This article belongs to the Special Issue Carbon-Based Nanomaterials for Highly Efficient Catalysis)
Browse Figures
Review Reports Versions Notes

Abstract

:
Increasing the loading density of nanoparticles on carbon support is essential for making Pt-alloy/C catalysts practical in H2-air fuel cells. The challenge lies in increasing the loading while suppressing the sintering of Pt-alloy nanoparticles. This work presents a 40% Pt-weighted sub-4 nm PtCo/C alloy catalyst via a simple incipient wetness impregnation method. By carefully optimizing the synthetic conditions such as Pt/Co ratios, calcination temperature, and time, the size of supported PtCo alloy nanoparticles is successfully controlled below 4 nm, and a high electrochemical surface area of 93.8 m2/g is achieved, which is 3.4 times that of commercial PtCo/C-TKK catalysts. Demonstrated by electrochemical oxygen reduction reactions, PtCo/C alloy catalysts present an enhanced mass activity of 0.465 A/mg at 0.9 V vs. RHE, which is 2.0 times that of the PtCo/C-TKK catalyst. Therefore, the developed PtCo/C alloy catalyst has the potential to be a highly practical catalyst for H2–air fuel cells.

1. Introduction

Renewable energy technologies (such as solar energy, wind energy, hydropower, etc.) have developed rapidly in recent years [1,2,3]. However, due to their inherent intermittency, volatility, and randomness, they face the challenge of large-scale grid connection. Using hydrogen energy as a bridge to achieve the separation of renewable energy generation and terminal electricity consumption in terms of time is one of the best solutions for the large-scale application of renewable energy [4,5,6]. The primary approach is to use electricity generated from renewable energy to produce hydrogen and then continuously convert the chemical energy in hydrogen into electrical energy through proton exchange membrane fuel cells (PEMFCs) [7,8,9,10]. Unlike traditional thermal power generation, the hydrogen energy generation route using PEMFCs as carriers achieves zero emissions and has high energy conversion efficiency [11].
For electrochemical reactions in the cathode and anode of PEMFCs, the most efficient catalysts are precious metal platinum (Pt)-based catalysts [12,13,14,15]. However, due to the more complex cathodic oxygen reduction reaction (ORR) process and higher reaction energy barrier, it is necessary to use a large amount of Pt catalysts to achieve considerable performance. Therefore, developing high-performance Pt-based catalysts has always been a problem that continues to be solved to promote the large-scale commercialization of PEMFCs. Compared with Pt/C catalysts, using cheap transition metals (M) and Pt to construct alloy nanoparticles is currently widely considered the most promising method to solve the development problem of high-performance Pt-based catalysts [16,17,18,19,20]. A series of studies show that introducing other transition metals into the Pt lattice can regulate Pt’s electronic structure and improve Pt atoms’ utilization through ligand and geometric effects respectively, thus effectively improving Pt’s mass activity [21]. For example, Stamenkovic et al. first revealed that the specific activity of PtNi3 (111) single crystal catalysts is 90 times that of commercial Pt/C [22]. Shao-Horn’s research group developed PtNi alloy nanoparticles with a mass activity of ~0.6 A/mgPt at 0.9 V vs. RHE [23].
At present, many Pt-alloy/C catalysts reported in the literature have achieved high activity. However, the loading density of Pt-alloy nanoparticles is much lower than that of Pt/C catalysts [24,25,26]. This results in an increase in the thickness of the membrane electrode catalytic layer during practical applications and a proportional increase in the mass transfer impedance of O2, which limits the catalytic activity of the catalyst, especially when working at high current densities [27]. Generally, commercial fuel cell vehicle cathode catalysts require Pt loading greater than 50% (mass fraction) [27]. In addition, Pt-alloy formation requires high temperatures of 500–700 °C [28,29]. It can be imagined that high-density Pt-alloy particles are extremely prone to sintering at such high temperatures. Therefore, it is a great challenge to prepare small-sized Pt-alloy/C catalysts with a high loading of Pt as a practical catalyst for PEMFCs. Pt-alloy/C catalysts prepared in such conditions generally present a large size and low electrochemical surface area (ECSA). Herein, we present a 40% Pt-weighted sub-4 nm PtCo/C alloy catalyst via a simple large-scale incipient wetness impregnation method. By carefully optimizing the synthetic conditions such as Pt/Co ratios, calcination temperature, and time, the size of the supported PtCo nanoparticles is successfully controlled below 4 nm, and a high electrochemical surface area (ECSA) of 93.8 m2/g is achieved, which is 3.4 times that of commercial PtCo/C-TKK catalysts. Demonstrated by electrochemical oxygen reduction reactions, PtCo/C alloy catalysts present an enhanced mass activity of 0.465 A/mg at 0.9 V vs. RHE, which is 2.0 times that of the state-of-the-art commercial PtCo/C-TKK catalyst.

2. Materials and Methods

2.1. Materials’ Preparation

Typically, for preparing 40% Pt3Co2/C-8h catalysts, 0.84 g of 18.8% weighted H2PtCl6 solution and 0.32 mL of 1.27 mol/L Co(NO3)2·6H2O solution were added to 0.200 g of carbon black (Ketjenblack EC600JD). The mixture was dried in air at 200 °C for 2 h with a heating rate of 2 °C/min. Subsequently, the dried mixture was reduced at 560 °C in a 10 vol% H2/Ar with a heating rate of 2 °C/min. When cooling to room temperature, the powder was carefully transferred from the tube furnace.
The final Pt3Co2/C-8h alloy catalyst was obtained by etching the partial Co in a 1.0 mol/L H2SO4 solution. After etching, the products were washed three times and finally dried in a vacuum oven at 60 °C.
The other materials were obtained through similar processes. The differences were the Pt/Co ratio, the reduction temperature/time, or the kinds of cheap metals.

2.2. Materials’ Characterizations

The morphologies of samples were characterized via TEM (Technai G20 S-TWIN, FEI, Hillsboro, OR, USA) with a 200 kV acceleration voltage. The element distribution was studied using HAADF-STEM-EDX mapping. The phase of catalysts was analyzed using XRD (D8, Brook, Nordrhein-Westfalen, Germany) with Cu Kα radiation (λ = 0.15418 nm). The chemical states of surface elements were characterized via X-ray photoelectron spectroscopy (Thermo Fisher Scientific K-Alpha, ESCALAB 250XI, Waltham, MA, USA). Thermogravimetric analysis (STA, 2500) for the carbon content was conducted from 30 °C to 800 °C under an O2 atmosphere. The content of each element in the sample was analyzed by inductively coupled plasma atomic emission spectrometry (ICP-AES, Agilent 5110, Santa Clara, CA, USA).

2.3. Electrochemical Measurements

Rotating disk electrode (RDE) measurements were performed in a three-electrode electrochemical cell. The cell temperature was controlled with cycling water (25 °C). The reference electrode potentials were calibrated to the reversible hydrogen electrode (RHE) potentials. The working electrode was catalyst-modified RDE (5.0 mm) with a Pt loading of 15 µg cm−2. The catalysts were electrochemically activated by CV scanning between 0.05 and 1.05 V at 250 mV s−1 in a N2-saturated 0.1 M HClO4 solution. Then, the LSV curves were obtained from 0.05 V to 1.05 V at 10 mV s−1 in O2-saturated 0.1 M HClO4 with the rotating speed at 1600 rpm.
The mass-related kinetic current density (Jk) of the catalyst at 0.9 V vs. RHE was calculated according to Jk = J × JL/((JL − J) × LPt), where J, JL, and LPt represent the current density at 0.9 V vs. RHE, the diffusion-limited current density, and Pt loading, respectively. The ohm resistance (R) was measured using electrochemical impedance spectroscopy from 0.1 Hz to 10,000 Hz with an amplitude of 5 mV at the initial potential of 0.05 V.

3. Results

3.1. Synthesis and Characterizations

The preparation process for PtCo/C alloy catalysts is described in the experimental section. Generally, a mixture solution containing H2PtCl6/Co(NO3)2 with a designated Pt/Co ratio was added to carbon black (Ketjenblack EC600JD). The loading of Pt was controlled to 40%; manually stir in the pan until the water is completely evaporated and the carbon black powder is uniformly dispersed in powder form. The dried H2PtCl6/Co(NO3)2/C mixture was subsequently reduced at 560 °C in 10% H2/Ar with a 50 mL/min flow rate. Other Pt-alloy catalysts synthesized with Cu, Fe, and Ni metals use the same synthetic method but change cobalt nitrate into other metal nitrates and adjust the calcination temperature for synthesis. Figure 1 shows a typical Pt3Co2/C-8h alloy catalyst obtained in a Pt/Co ratio of 3/2 and reducing the time to 8 h in 10% H2/Ar. All the catalysts were treated in 0.5 M H2SO4 before characterization and electrochemical measurements. According to the lower magnification transmission electron microscope (TEM) image (Figure 1a), PtCo alloy nanoparticles are uniformly dispersed on the carbon supports. It presents a small proportion of nanoparticles exceeding 6 nm. The higher magnification TEM image (Figure 1b) further shows partial small nanoparticles with a size of less than 2 nm. Based on the statistics of more than 200 random nanoparticles, the particle size of Pt3Co2/C-8h catalysts is 3.5 ± 1.0 nm. Furthermore, X-ray energy dispersive spectroscopy (EDS) mapping (Figure 1c) equipped with high-angle annular dark field scanning transmission electron microscopy (HAADF-STEM) exhibits a good overlap of Pt and Co elements in individual nanoparticles, suggesting a high alloy degree of Pt/Co.
We further investigated the effect of the Pt/Co ratio on the size and phase of alloyed nanoparticles. As shown in the X-ray powder diffraction (XRD) patterns (Figure 2a), all the diffraction peaks shifted after doping with Co in comparison with pure Pt (111) at 39.8°, and the peaks’ positions are between pure Pt and pure Co (111) at 42.6°. The shift in the XRD peaks to higher positions is also ascribed to the structural strain, namely compression stress, due to the smaller size of Co as compared with Pt [30]. As the Co content increases, the degree of shift increases. The more shifted degree indicates a higher alloy degree of Pt/Co [31]. However, the peak becomes sharper with the increase in Co content, indicating that the size of the supported nanoparticles becomes larger, which is well in agreement with the TEM image and size distribution. Pt3Co1/C-8h (Figure 2b,c) presents a uniform size distribution of 3.1 ± 0.9 nm. However, many large nanoparticles exist in Pt1Co1/C-8h (Figure 2d,e), suggesting that it is more difficult to control the size of highly alloyed catalysts.
As displayed in Figure 3, the calcination time in 10% H2/Ar also affects the size and phase of alloyed nanoparticles. XRD patterns (Figure 3a) show that the ordered intermetallic compounds appear within 4 h. When the reduction time is prolonged to 12 h, there is a significant increase in size. Typically, Pt3Co2/C-4h (Figure 3b,c) and Pt3Co2/C-12h (Figure 3d,e) possess a size distribution of 2.8 ± 0.8 nm and 3.9 ± 1.5 nm, respectively. In addition, we found that the diffraction peak of Pt3Co2/C-4h is asymmetric, indicating that there are partial PtCo nanoparticles with a low degree of alloying. Thus, the size and degree of alloying are a pair of constraints.
We further explored the carbon-supported 40% Pt-alloy catalysts with the cheaper Cu, Fe, and Ni metals. According to the HAADF-STEM-EDS mappings, the signal of Pt is well overlapped with the corresponding Cu (Figure 4a), Fe (Figure 4b), and Ni (Figure 4c) elements, indicating the formation of highly alloyed nanoparticles [32]. However, there were significant differences in the size distribution. For Pt3Cu2/C, we can obtain a highly uniform size distribution of 3.1 ± 0.9 nm (Figure S1). However, the size control of PtFe/C (Figure S2) and PtNi/C (Figure S3) is still a big challenge.

3.2. Electrochemical Evaluation of the Oxygen Reduction Reaction

The electrochemical surface area (ECSA) and mass activity at 0.9 V (vs. RHE, and the same below) (MA0.9) of 40% PtCo/C alloy catalysts were measured on a rotating disc electrode (RDE). To obtain the ECSAs, the cyclic voltammetry (CV) curves (Figure 5a) were carried out in N2-saturated 0.1 M HClO4. The ECSAs were calculated according to the hydrogen adsorption/desorption current densities [33]. To obtain the MA0.9 values, the linear sweep voltammetry (LSV) curves (Figure 5b) were performed in O2-saturated 0.1 M HClO4 and corrected with an ohmic resistance of 23 Ω determined by electrochemical impedance testing. Figure 5c,d displays the Pt/Co ratio-dependent ECSA and MA0.9 values. The ECSAs of Pt3Co1/C-8h, Pt3Co2/C-8h, and Pt1Co1/C-8h are 93.9, 86.8, and 26.1 m2/g, respectively. The MA0.9 of Pt3Co1/C-8h, Pt3Co2/C-8h, and Pt1Co1/C-8h are 0.292, 0.354, and 0.273 A mg−1. It can be seen that the ECSA of Pt3Co1/C-8h is slightly higher than that of Pt3Co2/C-8h, but the MA0.9 is lower. High ECSA corresponds to more electrochemically active sites that have smaller sizes, while high MA0.9 not only requires smaller particle sizes but also a better electronic structure of nanoalloys. As shown in Figure 2a, the diffraction peak of Pt3Co1/C-8h is wider than that of Pt3Co2/C-8h. According to the Scherrer formula, the local size of Pt3Co1/C-8h is smaller, but the diffraction peak shift of Pt3Co1/C-8h is smaller than that of Pt3Co2/C-8h, indicating that the degree of the alloy significantly affects the activity. In addition, Pt1Co1/C-8h with the highest alloy degree exhibits lower ECSA and lower MA0.9, which are caused by the larger particle sizes [32]. Thus, we must coordinate alloying degree and size to achieve optimal performance.
As shown in Figure 6a, the CV curve shows that the hydrogen adsorption/desorption current density of the prepared Pt3Co2/C-4h catalyst (black curve) is higher than that of both Pt3Co2/C-8h and Pt3Co2/C-12h catalysts, indicating that the ECSA is larger. In addition, according to Figure 6b, the LSV curves of both the Pt3Co2/C-4h and Pt3Co2/C-8h catalysts show a larger polarization current at 0.9 V than Pt3Co2/C-12h. As shown in Figure 6c, the ECSA values for Pt3Co2/C-4h, Pt3Co2/C-8h, and Pt3Co2/C-12h are 93.8, 62.7, and 60.4 m2/g, respectively. The MA0.9 values (Figure 6d) for Pt3Co2/C-4h, Pt3Co2/C-8h, and Pt3Co2/C-12h are 0.465, 0.402, and 0.341 A/mg, respectively. As shown in Figure 6e, Pt3Co2/C-4h has a lower Tafel slope of 59.3 mV dec-1, indicating that it has a faster kinetic process. In addition, we also calculated the specific activity (SA) of the catalyst in Figure 6f. Higher SA means a higher conversion frequency of a single active site, and rapid mass transfer will also accelerate the dissolution of Pt atoms while increasing the pressure of material transport [34]. Therefore, our work is mainly devoted to the construction of small-sized alloy nanocatalysts with higher ECSA and MA0.9. We further studied the stability of the Pt3Co2/C-4h catalyst as shown in Figure S6. Under the accelerated durability test (ADT) of 10,000 cycles, the ECSA loss rate was 14.8% and the MA0.9 loss rate was 32.2%. XRD patterns (Figure 3a) have shown that the Pt3Co2/C-4h catalyst possesses an optimized alloying degree and size distribution, so it presents the highest MA0.9 value.
The surface chemical composition and elemental valence of each element in the prepared samples were characterized using X-ray photoelectron spectroscopy (XPS). As shown in (Figure 6g,h), the signal of surface Co is very weak, and the XPS detection depth is several atomic layers on the surface, indicating that after acid etching, the surface of the alloy nanoparticles is dominated by Pt. In addition, Pt in the Pt 4f region and Co in the Co 2p region exist in the metal states of (Pt0) and (Co0). Compared with the standard Pt0 4f peak (71.13 eV and 74.40 eV), Pt 4f7/2 and Pt 4f5/2 show lower binding energies (70.83 eV and 74.13 eV). Figure 6h shows that the binding energy of the Co0 2p3/2 and Co0 2p1/2 peaks (780.33 eV and 795.4 eV) has a positive shift in comparison with the standard Co0 2p peaks (777.80 eV and 793.30 eV). These changes in binding energy indicate that there is an electronic interaction between Pt and Co.
We also carried out thermogravimetric analysis (TGA) for the carbon content in the sample of Pt3Co2/C-4h. TGA was conducted from 30 °C to 800 °C under an O2 atmosphere. As shown in Figure S5, about 5% of the mass loss before 100 °C is caused by the adsorbed water in the sample [35]. At first, the mass of the carbon matrix decreases slowly with the increase in temperature. After the temperature of about 344 °C, the sample curve depicts obvious weight loss, which can be attributed to the complete oxidation of the carbon matrix; the weight loss of Pt3Co2/C-4h is 52.5%. Therefore, the metal loading can be calculated to be about 44.5%. To illustrate the atomic ratio of Pt3Co2/C-4h metal, we carried out an ICP test. The ratio of Pt to Co after acid etching is 1.46:1, which is basically in line with our expectations.
As a meaningful addition, we also studied the electrochemical performance of the obtained catalysts, as shown in Figure 4. The CV curves (Figure 7a) show that the hydrogen adsorption/desorption current density of Pt3Cu2/C (black curve) is higher than that of Pt3Co2/C, Pt3Fe2/C, and Pt3Ni2/C catalysts. The LSV curve of the Pt3Co2/C catalyst shows the largest polarization current at 0.9 V. The ECSA values (Figure 7c) for Pt3Cu2/C, Pt3Co2/C, Pt3Ni2/C, and Pt3Fe2/C catalysts are 102, 93.8, 70.8, and 55.2 m2/g, respectively. The MA0.9 values (Figure 7d) for Pt3Cu2/C, Pt3Co2/C, Pt3Ni2/C, and Pt3Fe2/C are 0.386, 0.465, 0.407, and 0.257 A/mg, respectively. It can be found that the size distribution and activity can be further adjusted by changing the doping metals.

4. Discussion

Above all, we demonstrate a simple incipient wetness impregnation method to obtain a series of small-sized PtM (M = Fe, Co, Ni, and Cu) nanoalloy catalysts with high loadings. The whole process is carried out at room temperature and pressure to ensure that the active component is fixed to the carbon carrier to the maximum extent during the solvent evaporation process. The optimized 40% weighted PtCo/C electrocatalyst is Pt3Co2/C-4h with ECSA and MA0.9 values of 93.8 m2/g and 0.465 A/mg, which are 3.4 and 2.0 times that of commercial PtCo/C catalysts (TANAKA TKK, Figure S4). The Pt3Co2/C-4h catalyst shows superior application potential for PEMFCs. In addition, we also find that the Pt3Ni2/C catalyst is a highly active catalyst with an MA0.9 value of 0.407 A/mg. As a potential catalyst, its MA0.9 value would be further enhanced if the particle size could be well controlled. However, it is more challenging to synthesize high-loading PtNi/C catalysts with a size lower than 4 nm.

5. Conclusions

In summary, this work presents a 40% Pt-weighted sub-4 nm PtCo/C alloy catalyst via a simple incipient wetness impregnation method. The optimized PtCo/C alloy catalyst achieves a high electrochemical surface area of 93.8 m2/g. Demonstrated by electrochemical oxygen reduction reactions, PtCo/C alloy catalysts present a mass activity of 0.465 A/mg at 0.9 V vs. RHE, which is 2.0 times that of the PtCo/C-TKK catalyst. The developed PtCo/C alloy catalysts have the potential to be highly practical catalysts for H2-air fuel cells.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano13162367/s1, Figure S1: TEM image (left) and size distribution (right) of 40% Pt3Cu2/C catalyst; Figure S2: TEM image (left) and size distribution (right) of 40% Pt3Fe2/C catalyst; Figure S3: TEM image (left) and size distribution (right) of 40% Pt3Ni2/C catalyst; Figure S4: CV curve in N2-saturated 0.1 M HClO4 (a) iR-corrected LSV curve in O2-saturated 0.1 M HClO4 (b) of commercial PtCo/C catalysts (TANAKA TKK). Figure S5: Thermogravimetric analysis (TGA) curves under the O2 atmosphere flow from 30 °C to 800 °C of Pt3Co2/C-4h. Figure S6: The CV curves in N2-saturated 0.1 M HClO4 (a) and iR-corrected LSV curves in O2-saturated 0.1 M HClO4 (b) of PtCo/C-4h before (black curves) and after (red curves) 10,000 cycles. Table S1: The calcination time, grain size, average particle size and ordering degree of Pt3Co2-4h, Pt3Co2-8h and Pt3Co2-12h catalysts were summarized respectively. Table S2: Comparison of Polarization current at 0.9 V, ECSA and SA of Pt3Co2-560 °C-4h, Pt3Cu2-600 °C-4h, Pt3Ni2-550 °C-8h and Pt3Fe2-400 °C-4h catalysts.

Author Contributions

Conceptualization, L.K.; data curation, L.X. and Y.Z.; formal analysis, Y.H.; funding acquisition, L.K.; methodology, L.X. and Y.H.; project administration, L.K.; supervision, L.K.; validation, S.C.; writing—original draft, L.X.; writing—review and editing, Y.Z., S.C. and L.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Science and Technology Program of Wuhu (2022yf60), the University Synergy Innovation Program of Anhui Province (GXXT-2022-007), the Foundation of Anhui Polytechnic University (Youth Talent Training Program (2021)), and the Anhui Provincial Education Department (gxgnfx2021132).

Data Availability Statement

All data presented in the article are available upon request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nazir, H.; Louis, C.; Jose, S.; Prakash, J.; Muthuswamy, N.; Buan, M.E.M.; Floxf, C.; Chavan, S.; Shi, X.; Kauranen, P.; et al. Is the H2 economy realizable in the foreseeable future? Part I: H2 production methods. Int. J. Hydrogen Energy 2020, 45, 13777–13788. [Google Scholar] [CrossRef]
  2. Sun, N.; Song, J.J.; Tao, Q.M.; Kan, E.J.; Kuai, L. High-loading single-atom Pt/TiO2 mesoporous catalysts for superior photocatalytic oxidation of benzyl alcohol. Microporous Mesoporous Mater. 2022, 337, 111949. [Google Scholar] [CrossRef]
  3. Amjith, L.R.; Bavanish, B. A review on biomass and wind as renewable energy for sustainable environment. Chemosphere 2022, 293, 133579. [Google Scholar] [CrossRef]
  4. Wang, C.; Zang, H.; Liu, C.J.; Wang, J.H.; Kuai, L.; Geng, B.Y. Neighboring Pt single-atoms and clusters synergistic acid hydrogen evolution: Superior activity and mechanism understanding. Inorg. Chem. 2023, 62, 6856–6863. [Google Scholar] [CrossRef] [PubMed]
  5. Wang, C.; Kuai, L.; Cao, W.; Singh, H.; Zakharov, A.; Niu, Y.R.; Sun, H.X.; Geng, B.Y. Highly dispersed Cu atoms in MOF-derived N-doped porous carbon inducing Pt loads for superior oxygen reduction and hydrogen evolution. Chem. Eng. J. 2021, 426, 130749. [Google Scholar] [CrossRef]
  6. Wang, Y.; Pang, Y.H.; Xu, H.; Martinezc, A.; Chen, K.S. PEM Fuel cell and electrolysis cell technologies and hydrogen infrastructure development—A review. Energy Environ. Sci. 2022, 15, 2288–2328. [Google Scholar] [CrossRef]
  7. Jiao, K.; Xuan, J.; Du, Q.; Bao, Z.M.; Xie, B.; Wang, B.W.; Zhao, Y.; Fan, L.H.; Wang, H.Z.; Hou, Z.J.; et al. Designing the Next Generation of Proton-exchange Membrane Fuel Cells. Nature 2021, 595, 361–369. [Google Scholar] [CrossRef]
  8. Wang, Y.; Diaz, D.F.R.; Chen, K.S.; Wang, Z.; Adroher, X.C. Materials, Technological Status, and Fundamentals of PEM Fuel Cells—A Review. Mater. Today 2020, 32, 178–203. [Google Scholar] [CrossRef]
  9. Xi, J.B.; Jung, H.S.; Xu, Y.; Xiao, F.; Bae, J.W.; Wang, S. Synthesis strategies, catalytic applications, and performance regulation of single-atom catalysts. Adv. Funct. Mater. 2021, 31, 2008318. [Google Scholar] [CrossRef]
  10. Kim, H.W.; Bukas, V.J.; Park, H.; Park, S.; Diederichsen, K.M.; Lim, J.; Cho, Y.H.; Kim, J.; Kim, W.; Han, T.H.; et al. Mechanisms of Two-Electron and Four-Electron Electrochemical Oxygen Reduction Reactions at Nitrogen-Doped Reduced Graphene Oxide. ACS Catal. 2019, 10, 852–863. [Google Scholar] [CrossRef]
  11. Mekhilef, S.; Saidur, R.; Safari, A. Comparative study of different fuel cell technologies. Renew. Sustain. Energy Rev. 2012, 16, 981–989. [Google Scholar] [CrossRef]
  12. Xiao, F.; Wang, Y.C.; Wu, Z.P.; Chen, G.; Yang, F.; Zhu, S.; Siddharth, K.; Kong, Z.; Lu, A.; Li, J.C.; et al. Recent Advances in Electrocatalysts for Proton Exchange Membrane Fuel Cells and Alkaline Membrane Fuel Cells. Adv. Mater. 2021, 33, e2006292. [Google Scholar] [CrossRef] [PubMed]
  13. Hu, Y.Q.; Xiang, L.L.; Kuai, L.; Zhao, Y.Y.; Cao, S.F.; Liu, L.; Fang, C.H.; Geng, B.Y. PtClx intermediates strategy to ultrahigh-loading sub-3 nm Pt/C catalysts for H2-air fuel cells. ACS Mater. Lett. 2023, 5, 2256–2262. [Google Scholar] [CrossRef]
  14. Ioroi, T.; Siroma, Z.; Yamazaki, S.I.; Yasuda, K. Electrocatalysts for PEM Fuel Cells. Adv. Energy Mater. 2018, 9, 1801284. [Google Scholar] [CrossRef]
  15. Ryoo, R.; Kim, J.; Jo, C.; Han, S.W.; Kim, J.C.; Park, H.; Han, J.; Shin, H.S.; Shin, J.W. Rare-earth-platinum Alloy Nanoparticles in Mesoporous Zeolite for Catalysis. Nature 2020, 585, 221–224. [Google Scholar] [CrossRef] [PubMed]
  16. Guo, L.M.; Zhang, D.F.; Guo, L. Structure Design Reveals the Role of Au for ORR Catalytic Performance Optimization in PtCo-Based Catalysts. Adv. Funct. Mater. 2020, 30, 2001575. [Google Scholar] [CrossRef]
  17. Chen, S.; Li, M.; Gao, M.; Jin, J.; van Spronsen, M.A.; Salmeron, M.B.; Yang, P. High-Performance Pt-Co Nanoframes for Fuel-Cell Electrocatalysis. Nano Lett. 2020, 20, 1974–1979. [Google Scholar] [CrossRef]
  18. Ding, X.; Li, M.; Jin, J.L.; Huang, X.B.; Wu, X.; Feng, L.G. Graphene aerogel supported Pt-Ni alloy as efficient electrocatalysts for alcohol fuel oxidation. Chin. Chem. Lett. 2022, 33, 2687–2691. [Google Scholar] [CrossRef]
  19. Gao, P.; Pu, M.; Chen, Q.; Zhu, H. Pt-Based Intermetallic Nanocrystals in Cathode Catalysts for Proton Exchange Membrane Fuel Cells: From Precise Synthesis to Oxygen Reduction Reaction Strategy. Catalysts 2021, 11, 1050. [Google Scholar] [CrossRef]
  20. Qiao, Z.; Wang, C.; Li, C.; Zeng, Y.; Hwang, S.; Li, B.; Karakalos, S.; Park, J.; Kropf, A.J.; Wegener, E.C.; et al. Atomically Dispersed Single Iron Sites for Promoting Pt and Pt3Co Fuel Cell Catalysts: Performance and Durability Improvements. Energy Environ. Sci. 2021, 14, 4948–4960. [Google Scholar] [CrossRef]
  21. Stamenkovic, V.R.; Mun, B.S.; Arenz, M.; Mayrhofer, K.J.J.; Lucas, C.A.; Wang, G.F.; Ross, P.N.; Marković, N.M. Trends in electrocatalysis on extended and nanoscale Pt-bimetallic alloy surfaces. Nat. Mater. 2007, 6, 241–247. [Google Scholar] [CrossRef] [PubMed]
  22. Stamenkovic, V.R.; Fowler, B.; Mun, B.S.; Wang, G.F.; Ross, P.N.; Lucas, C.A.; Marković, N.M. Improved Oxygen Reduction Activity on Pt3Ni(111) via Increased Surface Site Availability. Science 2007, 315, 493–497. [Google Scholar] [CrossRef] [PubMed]
  23. Hong, W.T.; Risch, M.; Stoerzinger, K.A.; Grimaud, A.; Suntivich, J.; Shao-Horn, Y. Toward the rational design of non-precious transition metal oxides for oxygen electrocatalysis. Energy Environ. Sci. 2015, 8, 258–266. [Google Scholar] [CrossRef]
  24. Cheng, H.; Gui, R.; Yu, H.; Wang, C.; Liu, S.; Liu, H.F.; Zhou, T.P.; Zhang, N.; Zheng, X.S.; Chu, W.S.; et al. Subsize Pt-based Intermetallic Compound Enables Long-term Cyclic Mass Activity for Fuel-cell Oxygen Reduction. Proc. Natl. Acad. Sci. USA 2021, 118, e2104026118. [Google Scholar] [CrossRef] [PubMed]
  25. Chong, L.; Wen, J.G.; Kubal, J.; Sen, F.G.; Zou, J.X.; Greeley, J.; Chan, M.; Barkholtz, H.; Ding, W.J.; Liu, D.-J. Ultralow-loading Platinum-cobalt fuel Cell Catalysts Derived Fromimidazolate Frameworks. Science 2018, 362, 1276–1281. [Google Scholar] [CrossRef] [PubMed]
  26. Wang, D.; Xin, H.L.; Hovden, R.; Wang, H.; Yu, Y.; Muller, D.A.; DiSalvo, F.J.; Abruna, H.D. Structurally Ordered Intermetallic Platinum-cobalt Core-shell Nanoparticles with Enhanced Activity and Stability as Oxygen Reduction Electrocatalysts. Nat. Mater. 2013, 12, 81–87. [Google Scholar] [CrossRef]
  27. Shen, L.; Ma, M.; Tu, F. Recent advances in high-loading catalysts for low-temperature fuel cells: From nanoparticle to single atom. SusMat 2021, 1, 569–592. [Google Scholar] [CrossRef]
  28. Li, J.; Xi, Z.; Pan, Y.T.; Spendelow, J.S.; Duchesne, P.N.; Su, D.; Li, Q.; Yu, C.; Yin, Z.; Shen, B.; et al. Fe Stabilization by intermetallic L10-FePt and Pt catalysis enhancement in L10-FePt/Pt nanoparticles for efficient oxygen reduction reaction in fuel cells. J. Am. Chem. Soc. 2018, 140, 2926–2932. [Google Scholar] [CrossRef]
  29. Yang, C.-L.; Wang, L.-N.; Yin, P.; Liu, J.Y.; Chen, M.-X.; Yan, Q.-Q.; Wang, Z.-S.; Xu, S.-L.; Chu, S.-Q.; Cui, C.H.; et al. Sulfur-anchoring synthesis of platinum intermetallic nanoparticle catalysts for fuel cells. Science 2021, 374, 459–464. [Google Scholar] [CrossRef]
  30. Guan, D.Q.; Zhong, J.; Xu, H.Y.; Huang, Y.-C.; Hu, Z.W.; Chen, B.; Zhang, Y.; Ni, M.; Xu, X.M.; Zhou, W.; et al. A universal chemical-induced tensile strain tuning strategy to boost oxygen-evolving electrocatalysis on perovskite oxides. Appl. Phys. Rev. 2022, 9, 011422. [Google Scholar] [CrossRef]
  31. Li, J.; Sharma, S.; Liu, X.; Pan, Y.-T.; Spendelow, J.S.; Chi, M.; Jia, Y.; Zhang, P.; Cullen, D.A.; Xi, Z.; et al. Hard-magnet L10-CoPt nanoparticles advance fuel cell catalysis. Joule 2019, 3, 124–135. [Google Scholar] [CrossRef]
  32. Chen, K.; Mao, K.K.; Bai, Y.; Duan, D.L.; Chen, S.M.; Wang, C.M.; Zhang, N.; Long, R.; Wu, X.J.; Song, L.; et al. Phosphate-induced interfacial electronic engineering in VPO4-Ni2P heterostructure for improved electrochemical water oxidation. Chin. Chem. Lett. 2022, 33, 452–456. [Google Scholar] [CrossRef]
  33. Ding, H.; Wang, P.; Su, C.J.; Liu, H.F.; Tai, X.L.; Zhang, N.; Lv, H.F.; Lin, Y.; Chu, W.S.; Wu, X.J.; et al. Epitaxial growth of ultrathin highly crystalline Pt-Ni nanostructure on a metal carbide template for efficient oxygen reduction reaction. Adv. Mater. 2022, 34, 2109188. [Google Scholar] [CrossRef] [PubMed]
  34. Zhao, Z.P.; Liu, Z.Y.; Zhang, A.; Yan, X.X.; Xue, W.; Peng, B.S.; Xin, H.L.; Pan, X.Q.; Duan, X.F.; Huang, Y. Graphene-nanopocket-encaged PtCo nanocatalysts for highly durable fuel cell operation under demanding ultralow-Pt-loading conditions. Nat. Nanotechnol. 2022, 17, 968–975. [Google Scholar] [CrossRef]
  35. Yang, X.; Zhang, Z. Carbon-coated vanadium selenide as anode for lithium-ion batteries and sodium-ion batteries with enhanced electrochemical performance. Mater. Lett. 2017, 89, 152–155. [Google Scholar] [CrossRef]
Nanomaterials 13 02367 g001

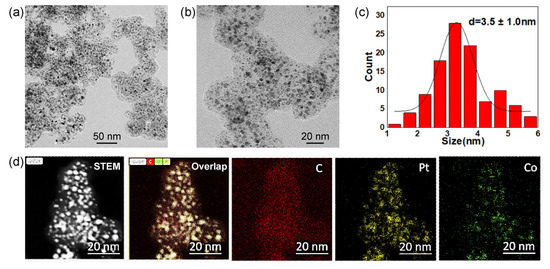

Figure 1. Lower (a) and higher (b) magnification TEM images, size distributions of supported nanoparticles (c), and HAADF-STEM-EDS-mappings (d) of Pt3Co2/C-8h catalysts with a Pt loading of 40%. The subfigures from left to right in (d) mean HAADF-STEM image, overlapped image C, Co and Pt images.
Figure 1. Lower (a) and higher (b) magnification TEM images, size distributions of supported nanoparticles (c), and HAADF-STEM-EDS-mappings (d) of Pt3Co2/C-8h catalysts with a Pt loading of 40%. The subfigures from left to right in (d) mean HAADF-STEM image, overlapped image C, Co and Pt images.
Nanomaterials 13 02367 g001
Nanomaterials 13 02367 g002

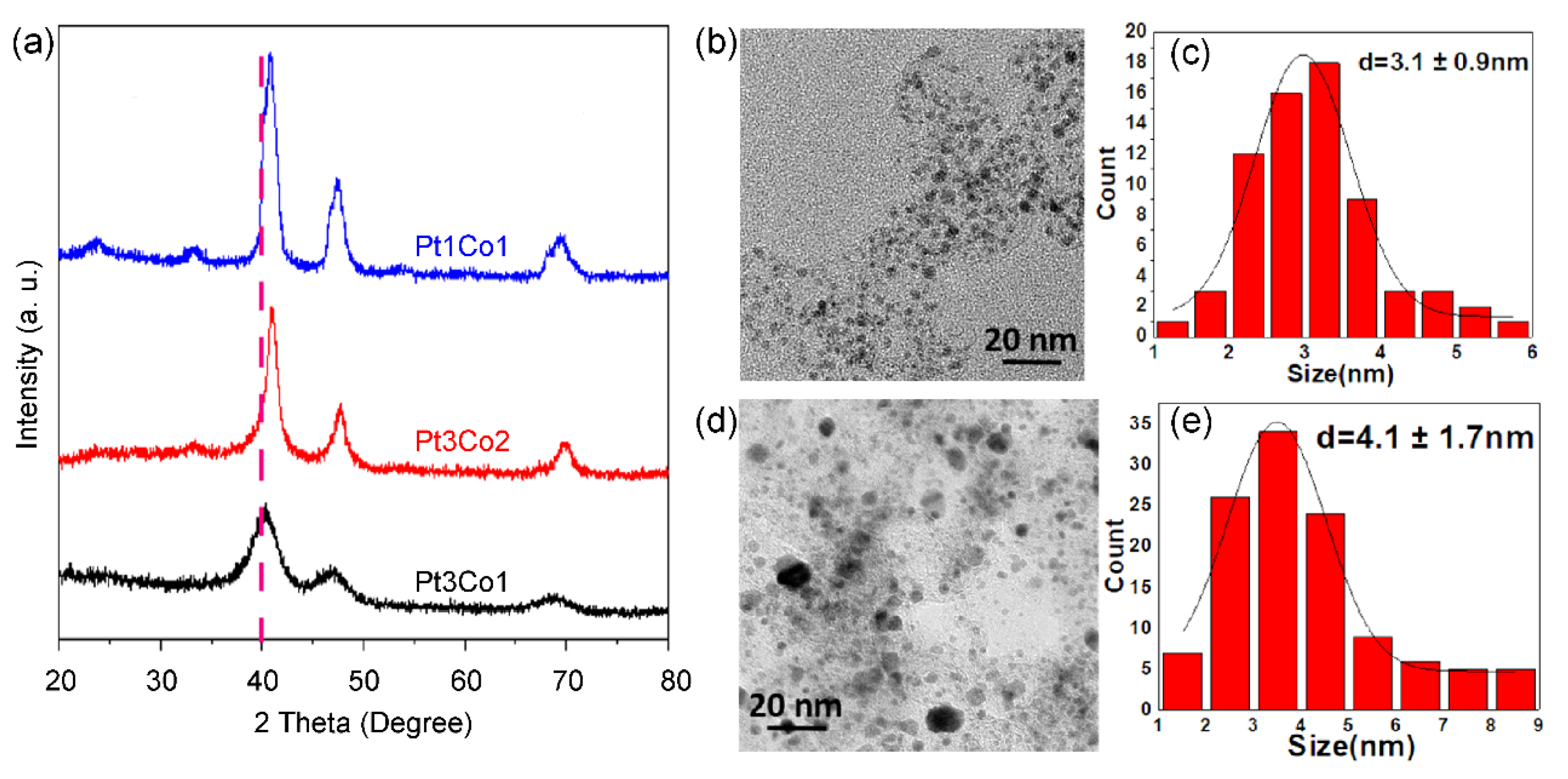

Figure 2. XRD patterns of (a) Pt3Co1/C-8h (black curve), Pt3Co2/C-8h (red curve), and Pt1Co1/C-8h (blue curve) catalysts. TEM images (b,d) and size distributions (c,e) of supported nanoparticles of Pt3Co1/C-8h (b,c) and Pt1Co1/C-8h (d,e) catalysts.
Figure 2. XRD patterns of (a) Pt3Co1/C-8h (black curve), Pt3Co2/C-8h (red curve), and Pt1Co1/C-8h (blue curve) catalysts. TEM images (b,d) and size distributions (c,e) of supported nanoparticles of Pt3Co1/C-8h (b,c) and Pt1Co1/C-8h (d,e) catalysts.
Nanomaterials 13 02367 g002
Nanomaterials 13 02367 g003

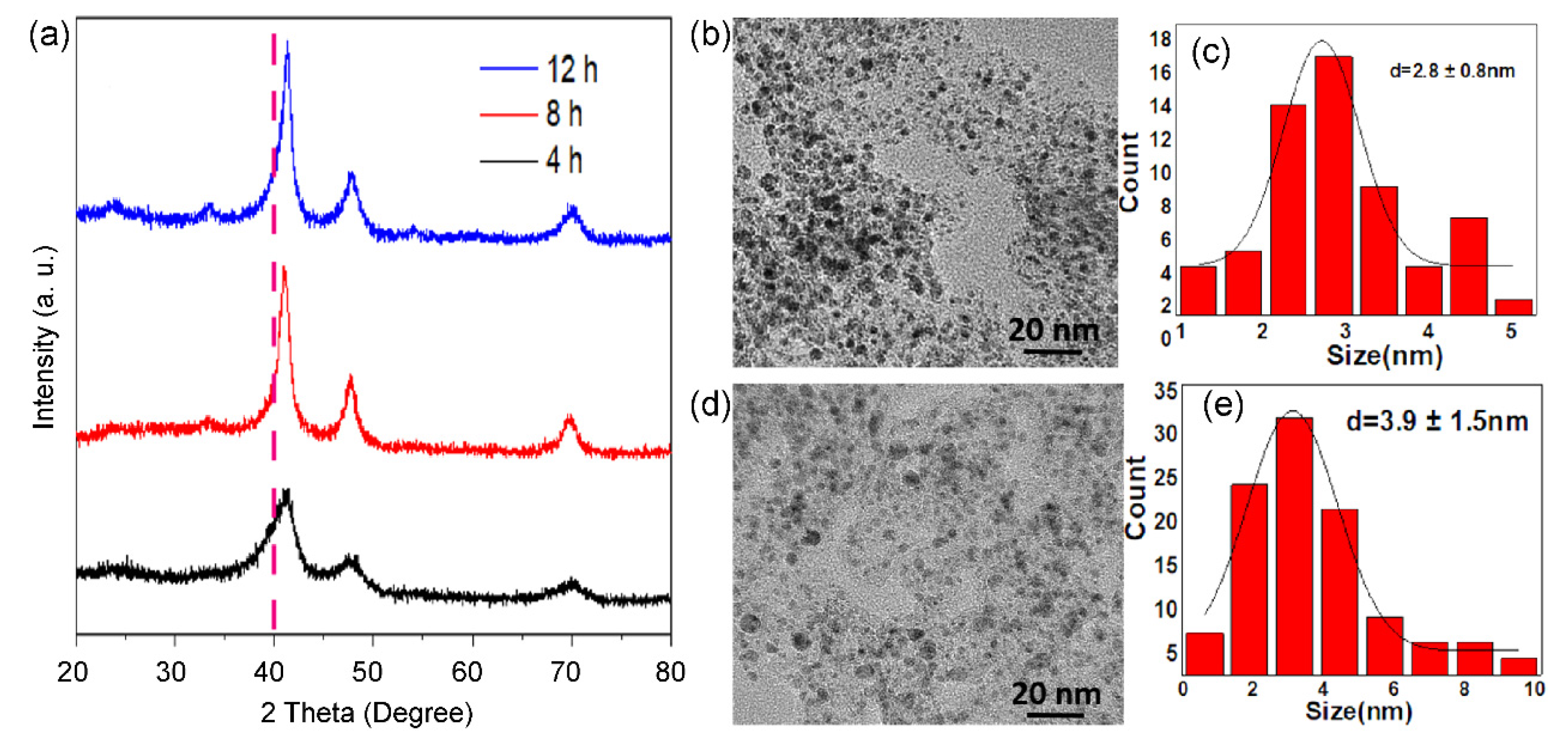

Figure 3. XRD patterns (a) of Pt3Co2/C-4h (black curve), Pt3Co2/C-8h (red curve), and Pt3Co2/C-12h (blue curve) catalysts. TEM images (b,d) and size distributions (c,e) of supported nanoparticles of Pt3Co2/C-4h (b,c) and Pt3Co2/C-12h (d,e) catalysts.
Figure 3. XRD patterns (a) of Pt3Co2/C-4h (black curve), Pt3Co2/C-8h (red curve), and Pt3Co2/C-12h (blue curve) catalysts. TEM images (b,d) and size distributions (c,e) of supported nanoparticles of Pt3Co2/C-4h (b,c) and Pt3Co2/C-12h (d,e) catalysts.
Nanomaterials 13 02367 g003
Nanomaterials 13 02367 g004

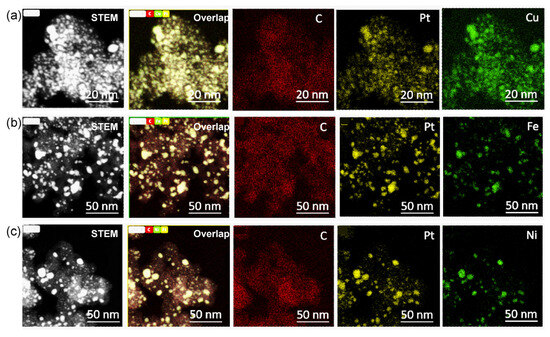

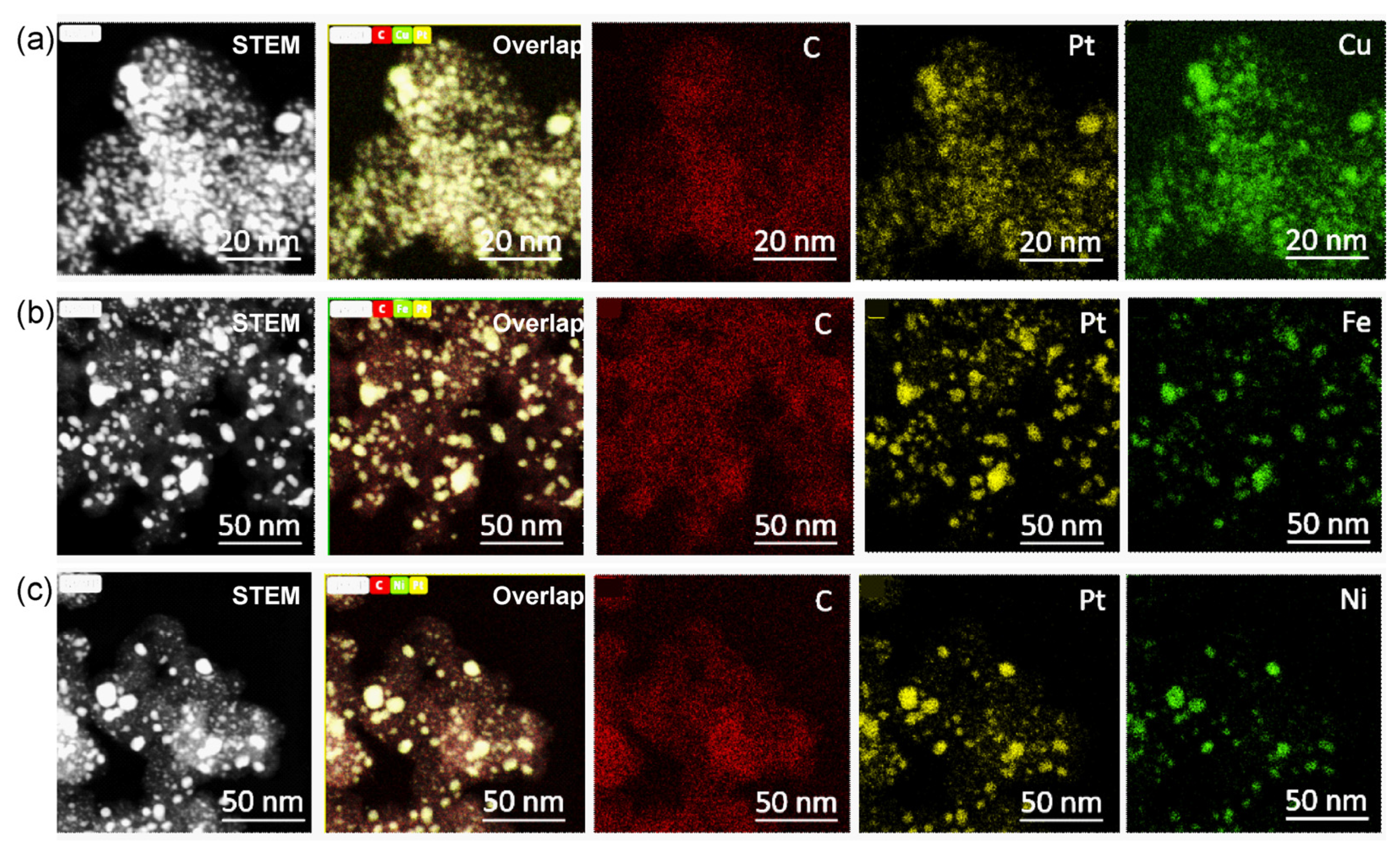

Figure 4. HAADF-STEM-EDS-mappings of Pt3Cu2/C (a), Pt3Fe2/C (b), and Pt3Ni2/C (c) catalysts with a Pt loading of 40%. The subfigures from left to right in (a) mean HAADF-STEM image, overlapped image C, Cu and Pt images, and it is similar for (b,c).
Figure 4. HAADF-STEM-EDS-mappings of Pt3Cu2/C (a), Pt3Fe2/C (b), and Pt3Ni2/C (c) catalysts with a Pt loading of 40%. The subfigures from left to right in (a) mean HAADF-STEM image, overlapped image C, Cu and Pt images, and it is similar for (b,c).
Nanomaterials 13 02367 g004
Nanomaterials 13 02367 g005

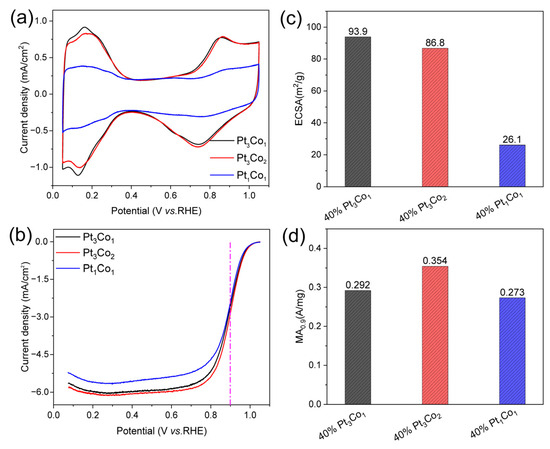

Figure 5. Electrocatalytic performance. (a) CV curves in N2-saturated 0.1 M HClO4, (b) LSV curves of the Pt3Co1/C-8h, Pt3Co2/C-8h, and Pt1Co1/C-8h catalysts (with internal resistance corrected) in O2-saturated 0.1 M HClO4. Comparison of (c) ECSAs and (d) MAs of the catalysts at 0.9 V (vs. RHE). The measurements were performed on an RDE with a rotating speed of 1600 rpm at 25 °C.
Figure 5. Electrocatalytic performance. (a) CV curves in N2-saturated 0.1 M HClO4, (b) LSV curves of the Pt3Co1/C-8h, Pt3Co2/C-8h, and Pt1Co1/C-8h catalysts (with internal resistance corrected) in O2-saturated 0.1 M HClO4. Comparison of (c) ECSAs and (d) MAs of the catalysts at 0.9 V (vs. RHE). The measurements were performed on an RDE with a rotating speed of 1600 rpm at 25 °C.
Nanomaterials 13 02367 g005
Nanomaterials 13 02367 g006

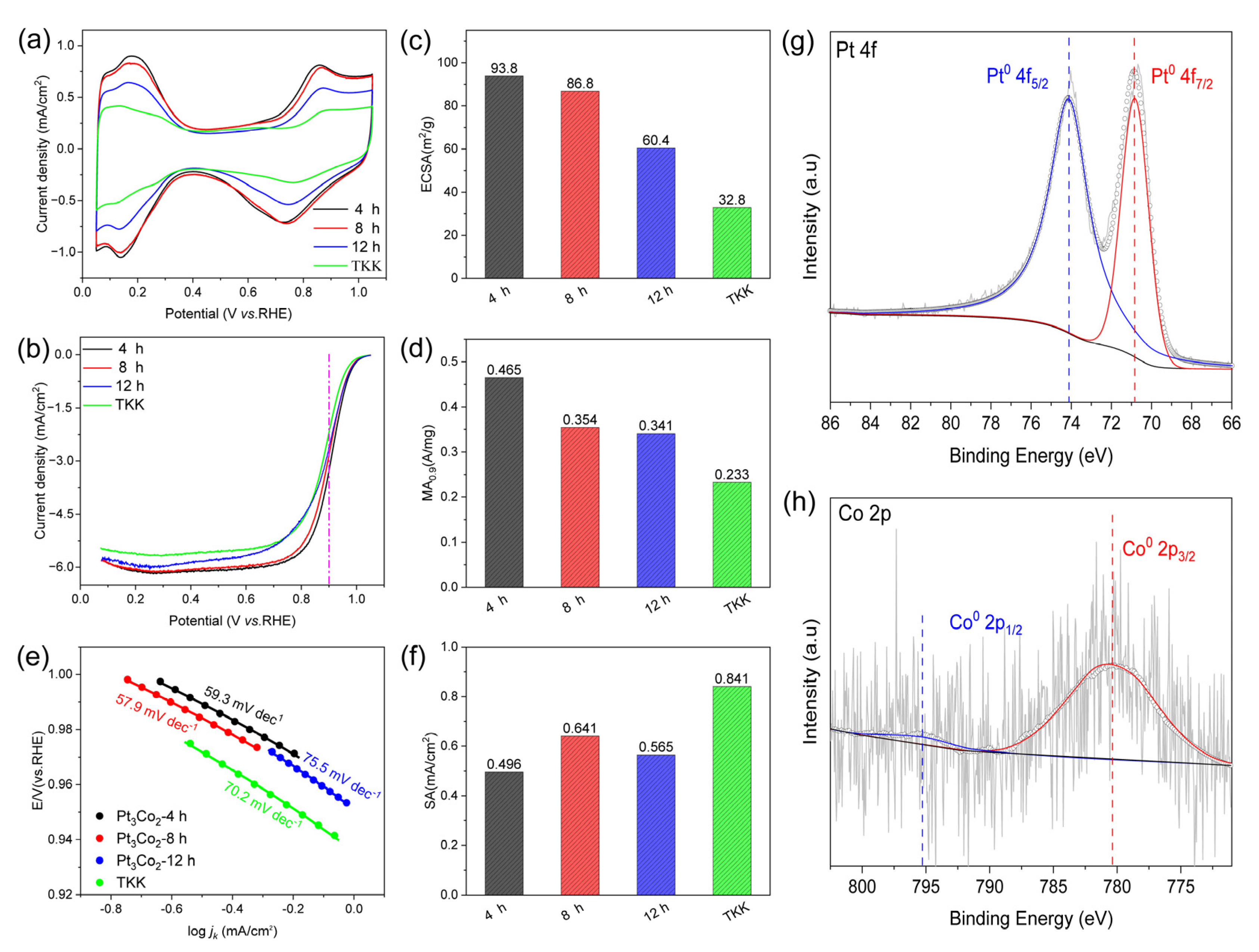

Figure 6. Electrocatalytic performance. (a) CV curves in N2-saturated 0.1 M HClO4, (b) LSV curves of the Pt3Co2/C-4h, Pt3Co2/C-8h, Pt3Co2/C-12h, and TKK catalysts (with internal resistance corrected) in O2-saturated 0.1 M HClO4. Comparison of (c) ECSAs and (d) MAs of the catalysts at 0.9 V (vs. RHE). (e) Tafel curves. (f) Specific activities (SAs). (g,h) High-resolution XPS results of Pt 4f and Co 2p for Pt3Co2/C-4h particles. The measurements were performed on an RDE with a rotating speed of 1600 rpm at 25 °C.
Figure 6. Electrocatalytic performance. (a) CV curves in N2-saturated 0.1 M HClO4, (b) LSV curves of the Pt3Co2/C-4h, Pt3Co2/C-8h, Pt3Co2/C-12h, and TKK catalysts (with internal resistance corrected) in O2-saturated 0.1 M HClO4. Comparison of (c) ECSAs and (d) MAs of the catalysts at 0.9 V (vs. RHE). (e) Tafel curves. (f) Specific activities (SAs). (g,h) High-resolution XPS results of Pt 4f and Co 2p for Pt3Co2/C-4h particles. The measurements were performed on an RDE with a rotating speed of 1600 rpm at 25 °C.
Nanomaterials 13 02367 g006
Nanomaterials 13 02367 g007

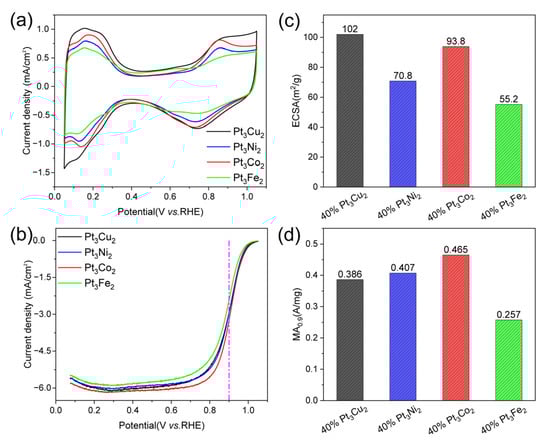

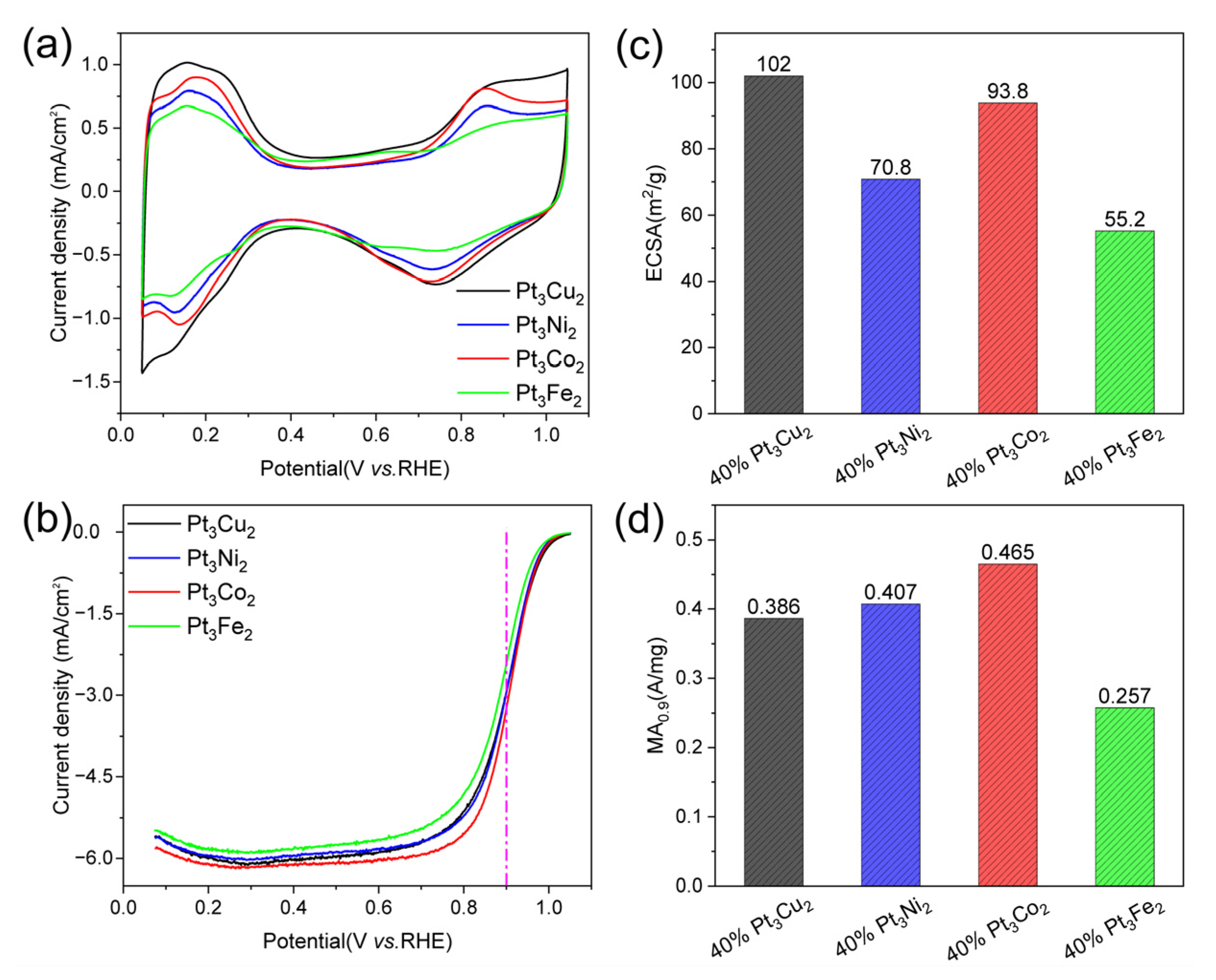

Figure 7. Electrocatalytic performance. (a) CV curves in N2-saturated 0.1 M HClO4, (b) LSV curves of the Pt3Cu2/C, Pt3Ni2/C, Pt3Co2/C, and Pt3Fe2/C catalysts (with internal resistance corrected) in O2-saturated 0.1 M HClO4. Comparison of (c) ECSAs and (d) MAs of the catalysts at 0.9 V (vs. RHE). The measurements were performed on an RDE with a rotating speed of 1600 rpm at 25 °C.
Figure 7. Electrocatalytic performance. (a) CV curves in N2-saturated 0.1 M HClO4, (b) LSV curves of the Pt3Cu2/C, Pt3Ni2/C, Pt3Co2/C, and Pt3Fe2/C catalysts (with internal resistance corrected) in O2-saturated 0.1 M HClO4. Comparison of (c) ECSAs and (d) MAs of the catalysts at 0.9 V (vs. RHE). The measurements were performed on an RDE with a rotating speed of 1600 rpm at 25 °C.
Nanomaterials 13 02367 g007
