Microwave-Assisted Fabrication of High Energy Density Binary Metal Sulfides for Enhanced Performance in Battery Applications

by
Kenna L. Salvatore
1,
Justin Fang
1,
Christopher R. Tang
2,3,
Esther S. Takeuchi
1,2,3,4,
Amy C. Marschilok
1,2,3,4,
Kenneth J. Takeuchi
1,2,3,4,* and
Stanislaus S. Wong
1,*
1
Department of Chemistry, State University of New York at Stony Brook, Stony Brook, NY 11794-3400, USA
2
Department of Materials Science and Chemical Engineering, State University of New York at Stony Brook, Stony Brook, NY 11794-3400, USA
3
Institute for Energy Sustainability and Equity, State University of New York at Stony Brook, Stony Brook, NY 11794-3400, USA
4
Interdisciplinary Science Department, Brookhaven National Laboratory, Upton, NY 11973-5000, USA
*
Authors to whom correspondence should be addressed.
Nanomaterials 2023, 13(10), 1599; https://doi.org/10.3390/nano13101599
Submission received: 13 March 2023 / Revised: 7 April 2023 / Accepted: 5 May 2023 / Published: 10 May 2023
(This article belongs to the Section Energy and Catalysis)
Browse Figures
Versions Notes

Abstract

:
Nanomaterials have found use in a number of relevant energy applications. In particular, nanoscale motifs of binary metal sulfides can function as conversion materials, similar to that of analogous metal oxides, nitrides, or phosphides, and are characterized by their high theoretical capacity and correspondingly low cost. This review focuses on structure–composition–property relationships of specific relevance to battery applications, emanating from systematic attempts to either (1) vary and alter the dimension of nanoscale architectures or (2) introduce conductive carbon-based entities, such as carbon nanotubes and graphene-derived species. In this study, we will primarily concern ourselves with probing metal sulfide nanostructures generated by a microwave-mediated synthetic approach, which we have explored extensively in recent years. This particular fabrication protocol represents a relatively facile, flexible, and effective means with which to simultaneously control both chemical composition and physical morphology within these systems to tailor them for energy storage applications.

1. Introduction

Binary semiconducting metal sulfides (MxSy) possess novel optical, electrical, and chemical properties, and have been considered for a multitude of different applications. Specifically, they have been developed as building blocks for photovoltaic devices, including dye-sensitized cells, all-inorganic nanoparticle solar cells, and hybrid nanocrystal-polymer composite solar cells, in addition to lasers, waveguides, and other optoelectronic devices [1,2,3,4]. Moreover, they have found usage as either supercapacitors or catalysts for the hydrogen and oxygen evolution reactions [5,6,7]. In addition, they have been investigated for biomedical applications [8,9,10], including but not limited to biosensors and photothermal therapy.
In the context of this Review, metal sulfides frequently have been assessed for their viability as components of batteries. Specifically, they can function as conversion materials, similar to that of analogous metal oxides, nitrides, or phosphides, and are characterized by their high theoretical capacity and correspondingly low cost [11,12]. In particular, binary metal sulfides are attractive candidates as electrodes for battery applications, because of their advantageous attributes for increasing latent charge and ion mobility through (i) the exposure of reactive surface areas, (ii) a favorable reduction in ion diffusion distances, and (iii) an enhancement in cyclability. Furthermore, the utilization of metal sulfides as battery-active materials is particularly tantalizing not only due to the possibility of both anionic and cationic redox activity, where the transition metal cation can be reduced, but also because of the inclusion and functionality associated with the sulfur moiety [13,14]. Accessing the electrochemical reactivity of both species necessitates employing a broad voltage range; however, the benefit of this is the possibility of very high capacities. The use of a wide voltage window renders the selection of the current collector critical. For lithium batteries, low voltages can only be accessed using a copper current collector to avoid the formation of lithium-aluminum alloys with an aluminum foil current collector [15]. However, to access high voltages, the use of copper is not possible, due to the possibility of copper oxidation. A solution that has been employed in the past has been to use a carbon matrix as the current collector in order to avoid the reactivity that is inherent to the metal foil current collectors [16]. By comparison with more commonly used oxides, metal sulfides benefit from (a) a wider palette of possible achievable redox chemistries, (b) superior conductivities, and (c) improved reversibilities [17]. Conversely, sulfides are hindered from realizing their full theoretical potential for battery applications by limitations such as poor cycling retention due to issues ascribable in part to volume expansion and low conductivity.
One promising approach towards mitigating these deficiencies is to produce these materials as their nanoscale analogs [18]. As is well known, nanomaterials can possess properties which differ significantly from and can be better than those of the corresponding bulk due to the vast increase in surface area-to-volume ratios and associated surface-induced effects at this scale. Specifically, the advantages of creating nanoscale motifs include but are not limited to (a) an increase in the number of active sites, (b) shorter distances associated with a more rapid and effective electron and ion transport, (c) the potential for spatial confinement and control of electron and ion movement in either one or more dimensions, and (d) a greater resistance to volume change (and hence, an improved cycle stability).
Indeed, the community has found that, while shrinking down metal sulfides to nanoscale formulations is a helpful generalizable strategy, the approach is complicated by factors such as (1) dimensionality and (2) the presence of conductive additives, which also play key roles in terms of impacting the inherent electrochemical performance of these materials. We define the nature of dimensionality in terms of the conventionally accepted sense of enabling spatial confinement along orthogonal planes of as-prepared structures to the nanoscale regime. Hence, representative examples of zero-dimensional (0D), one-dimensional (1D), two-dimensional (2D), and three-dimensional (3D) nanomaterials include quantum dots, nanowires, nanosheets, and sea-urchin assemblies, respectively.
From the literature, it is known that 0D materials tend to maintain not only a greater structural and cycling stability but also a reduced volume expansion compared to bulk. By comparison, 1D structures exhibit not only an increased surface area but also shortened distances for both electron and Li-ion transport. In addition, 2D materials are characterized by large surface areas, thereby resulting in an increased number of exposed active sites, shortened Li-ion diffusion distances, and superior structural stability [11]. However, despite the clear benefits associated with 0D, 1D, and 2D motifs, the performance of these materials can often be hindered by aggregation effects, which manifest themselves in observables such as a decrease in cycling [19]. Hence, 3D architectures, which ironically often consist of agglomerations of individual 0D, 1D, and/or 2D components [11], have been found in some cases to combine and incorporate the best attributes of all of these constituent units. Specifically, 3D motifs often display a high overall surface area for reactivity, especially when compared with either 0D or 1D analogs, with implications for (a) the presence of a plethora of active surface sites; (b) diminished Li diffusion distances; (c) an enhanced structural stability; and (d) a favorable reduction in not only overall aggregation of the material but also undesirable re-stacking of lower-dimensional building blocks, such as nanosheets [11]. As such, 3D nanoscale structures frequently demonstrate better structural stability, specific capacity, and rate performance metrics as compared with 0D, 1D, and 2D analogs, respectively, due not only to their increased reactive surface areas but also to their ability to moderate volume expansion effects during relevant redox reactions [20,21,22,23].
With respect to the addition of conductive additives, we note that although a number of other equally valid and significant approaches (including but not limited to either the insertion of molecular and elemental dopants or the addition of self-healing polymers [24,25]) also exist, herein we focus our discussion on the introduction of discrete carbon-based materials, such as 1D carbon nanotubes (CNTs), 2D graphene, graphene oxide (GO), reduced graphene oxide (rGO), and liquid-exfoliated graphene (LEGr). It has been noted that these materials, in combination with either metal sulfides or oxides, lead to unique hierarchical assemblies, characterized by a greater stability, a notably better conductivity, and the capability for accommodating volume changes during cycling [26]. As an example, analysis of a mixture of multi-walled carbon nanotubes (MWNTs) coupled with metal oxides revealed notable improvements in electrochemical activity for battery applications as compared with pristine and unfunctionalized metal oxides alone [27]. Furthermore, other reports have emphasized the benefits of introducing carbon additives, such as rGO [28,29] and graphene [30,31], for appreciably boosting cycling stability and capacity.
With the ultimate goal of enhancing conductivity and reducing the extent of volume change due to electrochemical reactions within binary metal sulfides, this review therefore centers on structure–composition–property relationships, emanating from deliberative attempts to either (1) vary and alter the dimension of nanoscale architectures or (2) introduce conductive carbon-based entities. It should be noted that many distinctive synthesis techniques [32,33,34], such as hydrothermal, solid-state, and solvothermal-inspired reactions, have been previously reported for these nanoscale metal sulfide motifs. Nevertheless, as compared with these other methods, rapid and uniform heating (made possible using microwave irradiation in particular) can yield advantages, such as a short reaction time, a facility of synthesis, and a consistency of the resulting product in terms of size, shape, and composition.
Therefore, in this Review, we will primarily concern ourselves with metal sulfide nanostructures generated by a microwave-mediated synthetic approach [35,36], which we have explored extensively in recent years. To highlight the significance of this body of work, in Table 1, we summarize data from the literature pertaining to specific capacities measured over multiple cycles of diverse metal sulfide electrode nanomaterials, synthesized using microwave-assisted processes. The metal sulfide nanoparticles we have considered in this Review, namely copper sulfide, iron sulfide, molybdenum sulfide, and vanadium sulfide, can be broadly divided into two general categories, based on their crystal structure, i.e., layered versus non-layered. In this context, we consider and correlate some of the more important defining parameters of these systems, such as theoretical capacity, cost, toxicity, and morphology, as well as the facility of their synthesis.

2. Advantages and Disadvantages of Microwave-Assisted Methods

The obvious question is: why microwave-based chemistry [55]? Microwave-assisted methods to produce metal sulfides represent the use of a potentially environmentally sustainable means with which to fabricate nanomaterials using shortened reaction times with uniform heating across the reaction medium, while simultaneously maintaining control over a large number of reaction parameters in order to enable the facile production of respectable quantities of pure and homogeneous products with high yields. Many wet chemical processes are unable to readily satisfy all of these criteria at once, associated with ensuring sample purity. Moreover, whereas reaction variables, such as time, temperature, and precursors, can be carefully tuned and tailored, as with most other synthesis protocols including but not limited to hydrothermal and solvothermal techniques, microwave-derived procedures [35,36] offer a much broader parameter space with which to tweak and optimize product formation with comparative ease, including but not limited to power, pressure, and solvent selection.
In particular, solvent identity is a crucial choice, because the solvent must not only be miscible with the precursor solute molecules but also be capable of absorbing microwave energy, as measured by its tangent factor (δ) [56]. As an example, in a previous paper by this group, we found that VS4 nanoflowers could be reliably generated over a range of sizes in high quantities and yields simply by changing the polarity of the solvent, which in turn influenced the resulting reaction kinetics and thereby impacted the dimension and morphology of the final product [18].
Prior reports have found that the choice of the synthesis method used to create testable samples (such as metal sulfides in particular) has a significant impact, with clear implications for the resulting electrochemical performance. As an illustrative example comparing the relative benefits of using materials derived from microwave-assisted versus hydrothermal methods, several studies have analyzed this issue in the context of optoelectronic applications [36], supercapacitors [57], electrocatalytic reactions such as the hydrogen evolution reaction (HER) [58], and lithium-ion batteries (LIBs) [59,60,61]. In particular, with respect to the performance of ZnCo2O4 flower-like materials [8] generated using both synthesis techniques, the sample fabricated via microwave irradiation exhibited an enhanced cycling performance after 45 cycles of 1411 mA h g−1 as compared with the much lower value of 217 mA h g−1 for its hydrothermally produced analogue. One plausible explanation for the observed difference is that the microwave-initiated material in question was characterized by smaller crystallite sizes. As we will subsequently explore, similar types of behavior have been observed with respect to the use of distinctive classes of metal sulfides incorporated within lithium-ion, sodium-ion, magnesium-ion, and lithium-sulfur batteries as either the anode or the cathode.
For the sake of completeness, we should note that one possible disadvantage of microwave-assisted methods based on anecdotal evidence in our lab is that, depending on the targeted system, sample size, shape, and crystallinity are not necessarily homogeneous and uniform within isolated samples produced by this technique, and as such, are more difficult to simultaneously control. Moreover, depending on the configuration of the microwave reactor, the maximum volume of a reaction vessel may be limited, thereby potentially hindering scale-up of the method. As a corollary issue [62], the fact that microwave systems cannot easily be incorporated into existing engineering scaffolds for the fabrication of large-scale materials needed for battery production is a significant disadvantage, since the replacement of current similar conventional systems would require a good deal of investment. Additionally, in many cases involving the use of microwave irradiation in facilitating chemical transformations, the true origins of the overall microwave enhancement and heating effect are either uncertain or poorly understood, which does not help in enabling the widespread implementation and acceptance of this technology.

3. Non-Layered Binary Sulfides (Copper, Zinc, Cobalt, Indium, and Iron)

We will first consider binary metal sulfides characterized by non-layered crystal structures, i.e., typically sulfides incorporating late-transition and post-transition metals. Many types of these metal sulfides generated via microwave-assisted synthesis have been utilized for battery applications. One common example is green covellite copper sulfide (CuS), which possesses an elevated electronic conductivity (10−3 S cm−1), a favorable theoretical capacity (560 mA h g–1), and a correspondingly large voltage hysteresis profile—of relevance for their use as LIB anodes [63,64]. Not surprisingly, due to its comparatively low cost and high abundance, CuS has been tested in magnesium-ion [37,65,66], lithium-ion [26,39,40,67,68], and sodium-ion [38,41] battery applications. In terms of dimensionality, CuS spheres [39], nanotubes [66], nanosheets [37,38,65,68], nanodiscs [69], and nanoflowers [40] have been generated using microwave-mediated processes.

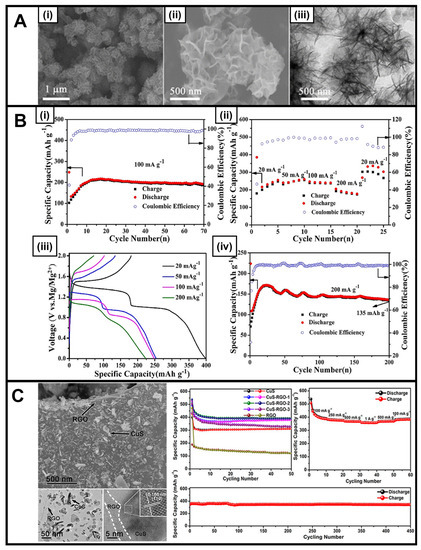

In a typical reaction, copper chloride (copper source) and thioacetamide (sulfur source) were added to a mixed solvent containing water and ethanol and irradiated at 300 W for 30 min to yield nanosheets measuring roughly 200 nm in diameter (Figure 1A) [37]. These materials exhibited promise as Mg-ion cathodes, demonstrating not only an enhanced reversible discharge capacity of 300 mA h g–1 at 20 mA g–1 but also an exceptional cycling stability of 135 mA h g–1 at 200 mA g–1 over 200 cycles (Figure 1B). The performance of these motifs can be attributed to their 3D hierarchical structure, in which the constituent component nanosheets maintain a large surface area that is exposed for interaction with the electrolyte while also providing sufficient space for expansion and contraction, which is associated with ion intercalation and removal. Furthermore, as another example, camellia-like nanosheet superstructures of CuS have been produced via the combination of PVP, copper chloride, and sodium thiosulfate through a microwave-assisted reaction [38]. The resulting catalyst served as an excellent anode material in sodium-ion batteries, exhibiting a stable capacity of 347.1 mA h g−1, even after 1000 cycles at 5.0 A g−1 [38].
Reflecting an alternate approach, CuS materials have also been combined together with conductive carbon additives, such as CNTs [39,67], reduced graphene oxide (rGO) [40,41], and graphene [26], in order to boost both cycling stability and overall conductivity versus control samples consisting of CuS alone; the incorporation of reduced graphene oxide in particular led to noticeable benefits. We elaborate on these as-produced structures as follows. A CuS/CNT composite was generated via an in situ microwave-assisted reaction, in which CuS spheres were grown onto the underlying CNT backbone; indeed, the nucleation of CuS on the CNTs was enabled by the fact that as a material, the CNTs preferentially heated faster than the solvent itself under microwave irradiation conditions [39].
Moreover, at different levels of CNT incorporation, the microwave-generated CuS/CNT composite performed noticeably better as an anode in a Li-ion battery than identical analogs derived from ball milling processing, an observation which can be ascribed to an improved integration between CuS and CNTs within microwave-generated samples. The electrochemical testing was conducted using an electrode prepared on a Cu foil positioned within a coin cell versus a lithium counter electrode using 1 M lithium bis(trifluoromethanesulfonyl)imide within a 1,3-dioxolane and dimethyl ether electrolyte. As such, the cycling tests were conducted in lithium metal half-cells. Specifically, in these microwave-derived composites, excellent stability was recorded after 450 cycles at 400 mA h g−1, with measured capacities ranging from 437 to 569 mA h g−1 as a function of increasing CNT content.
A complementary CuS-rGO composite consisting of CuS nanosheets and rGO was tested as an anode replacement for Na-ion storage. It yielded a measured specific capacity of 392.9 mA h g–1 after 50 cycles at a current density of 100 mA h g–1 coupled with a high initial Coulombic efficiency of 94% (Figure 1C), in addition to a sustained specific capacity of 345 mA h g–1 noted after 450 cycles at a current density of 1 A g–1 [41]. The effects of the electrolyte were also tested within this system, with demonstrably improved performance measured in an ether-based solvent due to its ability to suppress polysulfide intermediates. A final example of a CuS/graphene composite was created under in situ reaction conditions involving the use of sodium thiosulfate as the sulfur precursor and copper chloride as the copper precursor in a mixture, which was subjected to a power cycling algorithm; the as-produced CuS nanoparticles were deposited onto underlying graphene sheets. The resulting composite gave rise to an improved reversible capacity of 348 mA h g−1, which was maintained after 1000 cycles at a current density of 2.0 A g−1. It was determined that the CuS component had benefited from enhanced Li-ion transfer and reduced contact resistance, as a result of its attachment to adjoining graphene sheets [26].
Other studies have explored additional, analogous materials, such as zinc sulfide (ZnS) [42], indium sulfide (In2S3) [44], nickel sulfide [45], and cobalt sulfide (Co9S8) [43], as well as iron sulfide (FeS2 and Fe3S4) for sodium-ion [42,43,45] and lithium-ion battery [44,70] applications. It is worth noting that ZnS is known for a favorable combination of non-toxicity, comparatively low cost, and relatively high theoretical capacity in LIB (962.3 mA h g−1) [71]. As an example, ZnS nanoparticles were made via a microwave-assisted method in less than 15 min in the presence of varying amounts of GO [42]. By optimizing the amount of GO within the sample, the ensuing ZnS-rGO electrode delivered a high specific capacity of 481 mA h g−1, measured at 100 mA g−1 after 50 cycles for sodium-ion battery anodes, denoting observations ascribable in part to the greater surface area and better electronic conductivity associated with the addition of rGO [42].
Co9S8 materials possess an intrinsically high capability, when used as anode materials. To reinforce the significance and advantages of graphene addition, composites incorporating quasi-spherical motifs of microwave-derived Co9S8 and rGO delivered improved activity within SIB anodes. Specifically, a high reversible capacity of 426.2 mA h g−1 at a current density of 100 mA g−1 was measured and remained at a relatively high value of 346.3 mA h g−1 even after 30 cycles, a finding which was attributable in part to the presence of the rGO additive. The presence of this additive reduces the Co9S8 particle size from 200–400 nm down to ~20 nm, buffers volume changes associated with charging and discharging, and increases conductivity [43].
Additionally, while mainly utilized in the context of photocatalysts and solar cells, In2S3 is attractive for battery applications, because it possesses not only a reasonably sizeable theoretical capacity of 713 mA h g−1 but also a desirable spinel crystal structure similar to that of high-performing materials such as magnetite and lithium titanate [72]. Not surprisingly, In2S3 nanoflowers and nanoparticles have been dispersed onto graphene nanosheets to form a sandwich-like hierarchical structure for LIB anodes [44]. As a starting point, In2S3 nanoflowers were first optimized by controlling parameters, such as temperature and time to construct structures measuring several hundred nanometers in diameter at 140 °C for 20 min upon reaction of indium chloride and thioacetamide precursor reagents with CTAB as the surfactant in water (Figure 2A(i)).

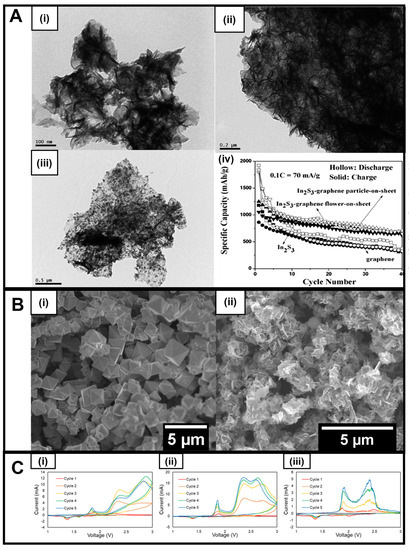

To create the corresponding In2S3-graphene composites, an in situ reaction was utilized, in which graphene was introduced into the above mixture prior to microwave irradiation. The as-formed In2S3-graphene composites exhibited two unique morphologies, denoted as “In2S3–graphene nanoparticle-on-sheet” (Figure 2A(iv)) and “In2S3–graphene flower-on-sheet” (Figure 2A(ii)) motifs. Whereas both composites revealed more than 1.5 times the reversible capacities of the pristine control material, the “In2S3-graphene nanoparticle-on-sheet” structure, in particular, gave rise to a greater cycle stability at larger currents, an observation most likely ascribed to the higher relative quantities of graphene (whose presence can not only reduce volume change but also improve mechanical stability and conductivity) versus those of the nanoflowers present within the sample (Figure 2A(iii)).
In another example, our group has recently worked on iron sulfides (FeS2 and Fe3S4) that can be produced using a microwave-based technique. FeS2 typically occurs in two forms, namely pyrite (cubic) and marcasite (orthorhombic). However, few reports have demonstrated the ability to isolate either of these crystallographic phases in large quantities at the nanoscale [73]. Nevertheless, phase control and facet formation are important parameters to consider. For example, based on previous studies, the (111) facet (compared with others) of FeS2 was particularly considered to be an attractive and promising candidate for LIB anode applications; however, it is difficult to synthesize, due to its comparatively high-energy formation. Because octahedra signify one of the few shapes in which this facet is predominantly featured and exposed, we recently focused on generating pure pyrite FeS2 octahedra using microwave-based chemistry in the absence of either surfactants or corrosive solvent conditions so as to decrease the level of impurities and defects that might have interfered with subsequent electrochemical analyses. As such, we employed a solvent mixture of water and ethylene glycol in the presence of thioacetamide and iron chloride as the sulfur and iron precursor, respectively, to fabricate high-quality octahedra (Figure 2B(i)) using a simpler, much faster, and more efficacious protocol than previous approaches [74].
Modifications to this underlying procedure enabled us to synthesize nanosheets of greigite or Fe3S4, another iron sulfide which has had limited testing for battery applications despite possessing a relatively high theoretical capacity of 725 mA h g–1, arising in part from the consequences of an 8e− reversible conversion reaction. Greigite is unusual in that, as a sulfide-based spinel, it retains a similar structure to magnetite. To achieve our synthetic objective, we substituted L-cysteine for the sulfur precursor and optimized the metal-to-sulfur ratio in order to control not only the chemical composition but also the resulting morphology. The driving force for a successful reaction appeared to be the choice of the sulfur precursor, as it could dictate the amount of sulfur-containing species present at any given moment within the reaction medium.
Furthermore, the as-synthesized Fe3S4 nanosheets were also combined with conductive carbon additives, specifically with MWNTs and graphene, albeit by using an ex situ method. (Figure 2B(ii)). The production of these carbon-based composites fortunately did not introduce either apparent impurities or perceptible changes in the isolated morphology. Cyclic voltammetry of the as-generated samples (Figure 2C) shows that the incorporation of carbon is beneficial to the current produced, with the MWNT-containing material evincing greater current values (Figure 2C(ii)) than either the as-synthesized Fe3S4 alone (Figure 2C(i)) or the graphene-containing heterostructure (Figure 2C(iii)). This observation thereby confirms the clear advantages of introducing conductive carbon additives in order to create high-performing iron sulfide-based composite motifs.

4. Layered Transition Metal Dichalcogenides (MoS2, WS2, SnS2)

An important subset of metal sulfides encompasses the transition metal dichalcogenides (TMDC) due to their characteristic layered structure, in which transition metal atoms are sandwiched between chalcogenides in such a way to form 2D layers that are connected to other adjacent layers by weak van der Waals forces. These layers can be used to boost electrochemical performance by taking advantage of the superior ion intercalation potential both within and between the individual, discrete layers [29]. Typical TMDC materials include but are not limited to molybdenum disulfide (MoS2), tungsten disulfide (WS2), and tin disulfide (SnS2).

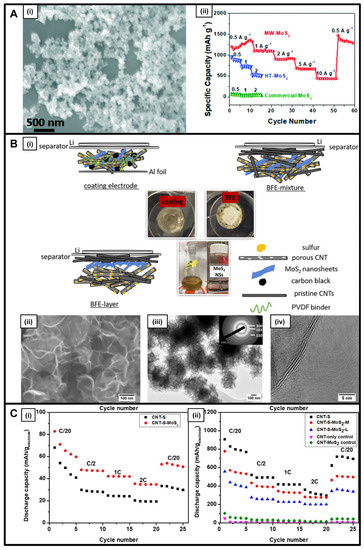

Molybdenum sulfide is known for its applicability as an anode replacement in lithium-ion [29,31,46], sodium-ion [28,30,31], and lithium-sulfur [47] batteries, evincing both a unique layered structure and favorable electronic properties [28]. Published reports cite the possibility of synthesizing a range of diverse morphologies, such as particles [28,46], nanosheets [30,31,47], and nanocrystals [29]. As previously implied, the choice of the synthesis protocol has an inordinate impact upon the dimensionality and architecture of the resulting product. In this vein, microwave-based methods yielded small 0D nanoparticles (‘MW-MoS2’) measuring 20 to 30 nm in diameter, whereas analogous hydrothermal techniques produced larger 3D flower-like motifs (HT-MoS2) (Figure 3A) [46]. Upon incorporation into LIB anodes, compared with these flower-like analogs, the smaller MW-MoS2 nanoparticles demonstrated not only an enhanced initial capacity of 1199 mA h g−1 but also a high stability during the cycling process, characterized by a Coulombic efficiency of 75% and an exceptional rate capability (Figure 3A) [46]. This unexpected finding was ascribed to the comparatively larger exposed surface area coupled with the substantial pore volume of samples generated during the microwave treatment versus those that had been synthesized hydrothermally.
Separately, 2D MoS2 nanosheets produced via a microwave-assisted method in the presence of an ether solvent were probed as cathodes within a binder-free electrode configuration (BFE) for lithium-sulfur battery applications (Figure 3B) [47]. Specifically, these MoS2 nanosheets exhibited an excellent capacity of 694 mA h/gsulfur and a specific energy of 1435 Wh/kgsulfur (600 Wh/kgelectrode)—measured at a C/2 rate of 835 mA g–1 after 200 cycles within a di(propylene glycol) dimethyl ether (DPGDME) electrolyte (Figure 3C) [47]. It should be noted that the use of the BFE configuration gave rise to a significant cycling stability compared with that measured for coated electrodes. Moreover, the addition of a CNT-based network to these MoS2 nanosheets led to increased polysulfide trapping, which consequentially improved ion transfer and diffusion.

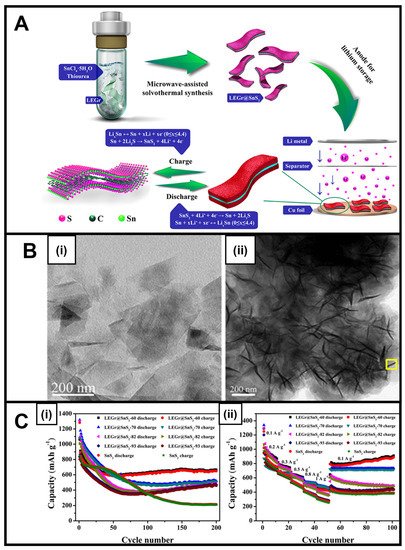

Microwave-generated tin sulfide (SnS2), which is known for its inherently high electronic conductivity, has been tested for its applicability in lithium-ion [31,48,75,76,77,78] and sodium-ion batteries [31] in the guise of nanoflakes [31,75], intercalated sheets [76], and microflowers [77]. As a layered 2D motif, SnS2 gave rise to a relatively high theoretical capacity of 645 mA h g–1 for LIB applications. The corresponding SnS2-based composites, produced using a microwave-derived technique with tin and sulfur precursors in the presence of liquid exfoliated graphene (LEGr), led to an unusual architecture created by SnS2 nanosheets nucleating onto LEGr nanosheets (Figure 4A,B) [48]. This LEGr-based SnS2 composite was found to retain a high storage capacity coupled with an enhanced cycling stability of 664 mA h g–1 after 200 cycles at a 300 mA h g–1 current density (Figure 4C), with the measured performance attributed to the high conductivity and mechanical stabilization against the volume change provided by LEGr [48].
WS2 represents another TMDC material, that can form as favorable layered 2D sheets and enable not only superior ion intercalation but also enhanced measured reversibility [29,49]. As such, analogously synthesized LEGr@WS2 composites prepared using a microwave-assisted solvothermal method that suppresses the formation of WO3 impurities were characterized by a 2D hierarchical structure possessing excellent interfacial contact between the WS2 and the LEGr surfaces, denoting a desirable interface for promoting excellent electrochemical performance and cycling stability for LIB anode applications. Moreover, by varying the relative quantities of W and S within these composites, these LEGr@WS2 materials displayed not only a reversible capacity of 714 mA h g–1 after 100 cycles at a current density of 300 mA g–1 but also a stable capacity of 534 mA h g–1 after 450 cycles at a high current of 1 A g–1 [49].

5. Vanadium Sulfide

The vanadium sulfide system has historically been less well-studied and is somewhat more complex to control. Nevertheless, it can exist as either a layered or a non-layered form, depending on stoichiometric considerations. In particular, vanadium disulfide or VS2 possesses the typical TMDC layered structure, in which V is sandwiched between two S layers, and it has recently been attracting significant interest as an electrode material for energy storage applications [79]. In the process of attempting to create this material, our group was able to develop and optimize a reliable microwave-derived synthesis of a related vanadium sulfide, namely VS4, which possesses a structural similarity to both pyrite (FeS2) and vaesite (NiS2) [80].
Interestingly, VS4 itself is highly desirable for its high theoretical capacity for both SIBs and LIBs (1196 mA h g–1) [81]. Experimentally, it was found that patronite (VS4) arises in the presence of a carbon substrate due in part to the potential for favorable electron transfer, whereas in its absence, VS2 tends to form [82]. From a synthetic perspective, VS4 has been manufactured via microwave-mediated methods as 1D nanorods [18], 2D nanosheets [50,51], and 3D nanoflowers [18,51] to probe their efficacy as anodes for battery applications.

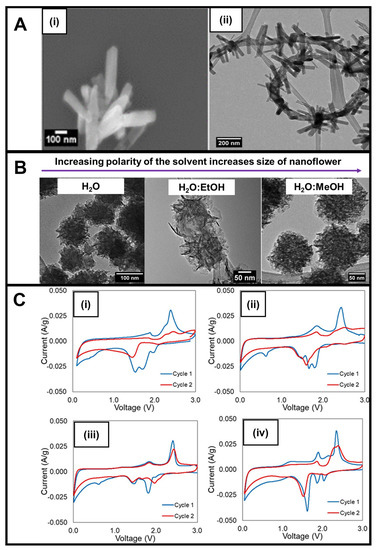

In our lab, whereas 1D nanorods were created using vanadyl acetylacetonate as the vanadium precursor and thioacetamide as the sulfur precursor within a DMF solvent after 10 min of reaction time (Figure 5A(i)), the corresponding 3D nanoflowers could be synthesized by replacing the original vanadium precursor with sodium orthovanadate and substituting DMF with aqueous solvents ranging from a water/ethanol or a pure methanol mixture. In particular, VS4 nanoflowers measuring from 100 to 200 nm in diameter were constructed by varying the solvent composition from water onwards to a water/ethanol mixture and ultimately to a water/methanol combination (Figure 5B); increasing solvent polarity led to a corresponding increase in the size of the resulting VS4 nanoflowers. Our modification to the microwave synthesis protocol was noteworthy in that the process did not require the use of a conductive carbon substrate and ran at shorter reaction times in a neutral environment while still demonstrating the capability of exerting proper compositional and morphological control [83].
A deliberate approach was used to evaluate the electrochemistry of the samples. Rather than using a planar Cu or Al foil as the current collector, a three-dimensional carbon substrate was utilized [84]. The incorporation of this substrate enabled the evaluation of the as-synthesized material over a wide voltage range with the kinetics of electron and ion transport unimpeded by the electrode design, thereby allowing for evaluation of the core material properties. The experiment was conducted, wherein the lithium electrode served as both the reference and counter electrolyte versus the transition metal sulfide functioning as the working electrode. Regarding the electrochemical testing of these samples, interestingly, unlike most conventional materials, the VS4 nanorods did not provide any evidence for the formation of a SEI layer during CV cycling during testing (Figure 5C(i)). Analogous VS4 nanorods subjected to thermal annealing even showed a greater cycling stability (Figure 5C(ii)). In the latter case, the annealing process presumably favored crystallite formation, increased the degree of crystallization overall, and diminished the presence of amorphous phases that might otherwise have led to structural disorder and a decrease in Li diffusion.
Upon the addition of MWNTs within the context of an in situ reaction, we were able to form a composite consisting of a distinctive ‘necklace’-like morphology, in which attached, evenly spaced VS4 nanorods projected radially outwards from the surface of a circular and winding spatial arrangement of an underlying MWNT backbone (Figure 5A(ii)) [18]. Electrochemical testing of this composite suggested that the addition of the MWNTs via the in situ reaction favorably enhanced both CV cycling stability and conductivity (Figure 5C(iii)). Moreover, the MWNTs themselves also could more readily accommodate for volume changes occurring during the lithiation/delithiation process. Finally, it should be noted that as compared with VS4 nanorods, VS4 nanoflowers maintained a better enhanced reversibility during CV cycling (Figure 5C(iv)), a finding attributable most likely to an increase in surface area and porosity, which subsequently led to both an improved Li-ion transport and a greater capability to accommodate for volume change [34].
In another study, microwave-synthesized VS4 nanosheets were grown as nanospheres, hollow nanospheres, and nanoflowers (with the precise morphology controlled by adjusting the temperature and duration of the microwave heating), and investigated for their performance as anodes in the context of sodium-ion batteries. It was found that the hollow nanospheres yielded the best performance, with a specific capacity of 1226.7 mA h g−1 after 100 cycles at 200 mA g−1. The long-term cycling capacity was measured to be 1129.6 mA h g−1 after 1000 cycles at 2 A g−1. This higher performance metric can likely be ascribed to the hollow nanospherical shape, which maximizes surface area-to-volume ratios while offering resistance to volume changes arising from the process of sodium-ion insertion and removal [51].

6. Conclusions and Outlook

Metal sulfides are attractive candidates for battery applications due to their favorable electrical conductivity, decent mechanical and thermal stability, relatively low cost, and reasonable electrochemical activity [85,86,87]. As such, the use of microwave-assisted reactions represents a viable, rapid, facile, and reasonably mild methodology with which to produce high-quality, pure metal sulfides in large quantities. These protocols have enabled both chemical and morphological control for the production of metal sulfides, incorporating different sizes and dimensions that are relevant for energy applications. For example, as shown in Table 1, MoS2 nanosheets, VS4 nanorods, Fe3S4 nanosheets, and CuS flowers generated through the mediation of microwave-based chemistry have all shown important promise for battery applications.
From the prior literature, it is clear that the effect of varying dimensionality and morphology is significant, although it is difficult to draw any broad, generalizable conclusions. For example, we have found that, with VS4, the use of 3D nanoflowers as opposed to 1D nanorods was seen to increase the observed reversibility, presumably due in part to the comparative increase in the number of exposed surface-active sites on the constituent 2D nanosheets of the ‘flower-like’ motifs [18]. By contrast, due to the increased interfacial contact between the metal sulfide and the carbon-based support, In2S3 particle-graphene composites exhibited an enhanced electrochemical activity as compared with their In2S3 flower-graphene analogs [44]. Moreover, other unexpected factors, such as the choice of the solution electrolyte, can influence the behavior of metal sulfides incorporated within battery systems; for example, the use of an ether-based electrolyte (as opposed to other electrolyte compositions) can optimize the overall performance and cyclability of certain metal sulfides for battery performance [41,47].
In addition, their associated carbon-based composites, composed of materials in which carbon additives were added to the underlying metal sulfide-based frameworks, such as either In2S3-nanoparticle-on-sheet or VS4 ‘necklace-like’ motifs, exhibited perceptibly enhanced electrochemical performance. Specifically, sulfides combined with MWNTs, graphene, and rGO yielded measurable improvements in both cyclability and capacity, implying the legitimate value of introducing conductive carbon additives as a means of increasing conductivity.
It is worth noting that the intrinsic flexibility of microwave-based techniques suggests the adaptability of this methodology towards fabricating ever more geometrically sophisticated architectures. Regarding the issue of morphological complexity, core@shell motifs are known to increase the stability and capacity of samples for LIB applications, presumably because the core–shell interface creates desirable void spaces that allow for not only the ability to account for volume changes during cycling but also the capability of facilitating electrolyte penetration. As such, Cu@MoS2 core–shell nanowires were found to possess a higher reversible capacity of 570.6 mA h g−1 after 250 cycles at a current density of 0.5 A g−1 as compared with MoS2 alone [52].
With respect to the parallel issue of enabling chemical tuning, the example of Mo1−xWxS2 alloy nanoflowers produced from microwave-assisted procedures enabled an improvement in electrochemical performance as compared with either pure WS2 or MoS2 alone. Specifically, the initial discharge and charge capacities of the Mo0.5W0.5S2 alloy were 774.9 and 635.9 mA h g−1, with a high initial Coulombic efficiency (CE) of 82.1%; indeed, the reversible capacity of the alloy was found to increase with measured CE values of 97.0% and 99.4% for the 3rd and 100th cycles, respectively [53]. Furthermore, the Mo0.5W0.5S2 alloy electrode maintained a reversible capacity of 271.9 mA h g−1 after 400 cycles. In this case, varying and optimizing the Mo/W ratio led to enhancements in both electronic conductivity and cycling stability, presumably due to the tailorability of the interlayer spacing dimension within these materials, thereby allowing for more effective Li-ion diffusion and volume accommodation.
Moreover, chemical tuning via doping of the sulfur in these materials with other chalcogenide elements using microwave-assisted synthesis procedures is also possible and can boost electrochemical performance as compared with pure sulfides. For example, CuS0.96Te0.04 nanosheets prepared using microwave-assisted synthesis were found to exhibit excellent performance metrics as a magnesium-ion battery cathode, as these were characterized by a specific capacity of 394.5 mA h g−1 at 50 mA g−1 current density, as compared with that of 305.4 mA h g−1 for pure CuS nanosheets measured under identical conditions. Furthermore, the long-term specific capacity for the CuS0.96Te0.04 nanosheets yielded a promising 114.8 mA h g−1 value after 200 cycles at 500 mA g−1. These enhancements in performance are attributed not only to an increase in Mg-ion mobility and diffusion kinetics due to the larger size and polarizability of the Te anions but also to improvements in redox reversibility behavior [54].
While all of this prior work suggests that considerable progress has been made in the investigation of binary metal sulfides for energy storage applications, further research is still necessary for sulfide materials to overcome their current inherent limitations and achieve their full potential. As such, several key issues still need to be tackled and are listed as follows:
(1)
In the realm of material science and engineering, crucial chemical strategies associated with addressing the fabrication of tailored heterostructures, doping with heteroatoms, and the directed introduction of defects and vacancies should be more fully explored.
(2)
The role of experimental reaction parameters in dictating structure–property-–performance relationships that are relevant to battery performance is a fundamentally difficult challenge in assessing how the desired electrode performance can be informed and ultimately tuned by the rational selection and synthesis of target materials. Probing and optimizing microwave-assisted synthesis methods, with their potential to induce an improved control over nanomaterial composition, nucleation, growth, morphology, and other characteristics, will facilitate all of these important outcomes.
(3)
A theoretical understanding of the many factors that contribute to, for instance, electrode performance and stability, coupled with the acquisition of basic mechanistic insights, will be necessary for analyzing and perfecting charge storage behavior. Specifically, computational simulation will enable and strengthen knowledge about relevant reaction mechanisms and kinetics so as to yield greater improvements in battery safety and material optimization.
(4)
Finally, although it is beyond the scope of the current review, it is worth pointing out that a number of in situ synchrotron-based characterization techniques, such as operando XRD, ex situ XAS, and XRF, have all been successfully used to assess the simultaneous chemical and physical evolution of sulfide-based systems, including MoS2 and CuS within the context of practical, operating batteries, as a means of tracking nuanced changes in their structure, chemistry, and morphology as a function of their electrochemical performance [14,88]. In combination with other structural characterization methods which allow for the monitoring of the evolution of battery components in use, such as in situ TEM [78], these techniques have been employed and will continue to be utilized in terms of elucidating relevant electrochemical mechanisms, analyzing the composition of SEI layers, and providing valuable information about not only possible side reactions but also key electron/ion transport pathways [86].

Author Contributions

K.L.S. and J.F.: contributions to the drafting, design, and data acquisition, interpretation, revision & approval, associated with the paper; C.R.T., E.S.T., A.C.M. and K.J.T.: contributions to the data acquisition, interpretation, revision & approval, associated with the paper; S.S.W.: contributions to the original conception, drafting, design, and data acquisition, interpretation, revision & approval, associated with the paper. And S.S.W. has acted as a point of contact between the editor and the other authors, keeping the co-authors informed and involving them in major decisions about the paper. All authors have read and agreed to the published version of the manuscript.

Funding

All of the work described in these studies was funded as part of the Center for Mesoscale Transport Properties (m2M), an Energy Frontier Research Center supported by the U.S. Department of Energy, Office of Science, Basic Energy Sciences, under award #DE-SC0012673. Experimental research characterization was carried out in part at the Center for Functional Nanomaterials, Brookhaven National Laboratory, an Office of Science User Facility, which is supported by the U.S. Department of Energy, Office of Basic Energy Sciences, under Contract No. DE-SC0012704. E.S.T. acknowledges funding from the William and Jane Knapp Chair for Energy and the Environment.

Data Availability Statement

Data is contained within the article itself.

Conflicts of Interest

The authors declare no conflict of interest.
