A Stretchable and Self-Healing Hybrid Nano-Generator for Human Motion Monitoring
1
Physical Education Department, Northeastern University, Shenyang 110819, China
2
College of Sciences, Northeastern University, Shenyang 110819, China
*
Authors to whom correspondence should be addressed.
Academic Editors: Rongming Wang, Shuhui Sun and Jung Woo Lee
Nanomaterials 2022, 12(1), 104; https://doi.org/10.3390/nano12010104
Received: 17 November 2021
/
Revised: 24 December 2021
/
Accepted: 28 December 2021
/
Published: 29 December 2021
(This article belongs to the Special Issue Advanced Nanomaterials for Electrochemical Energy Conversion and Storage)

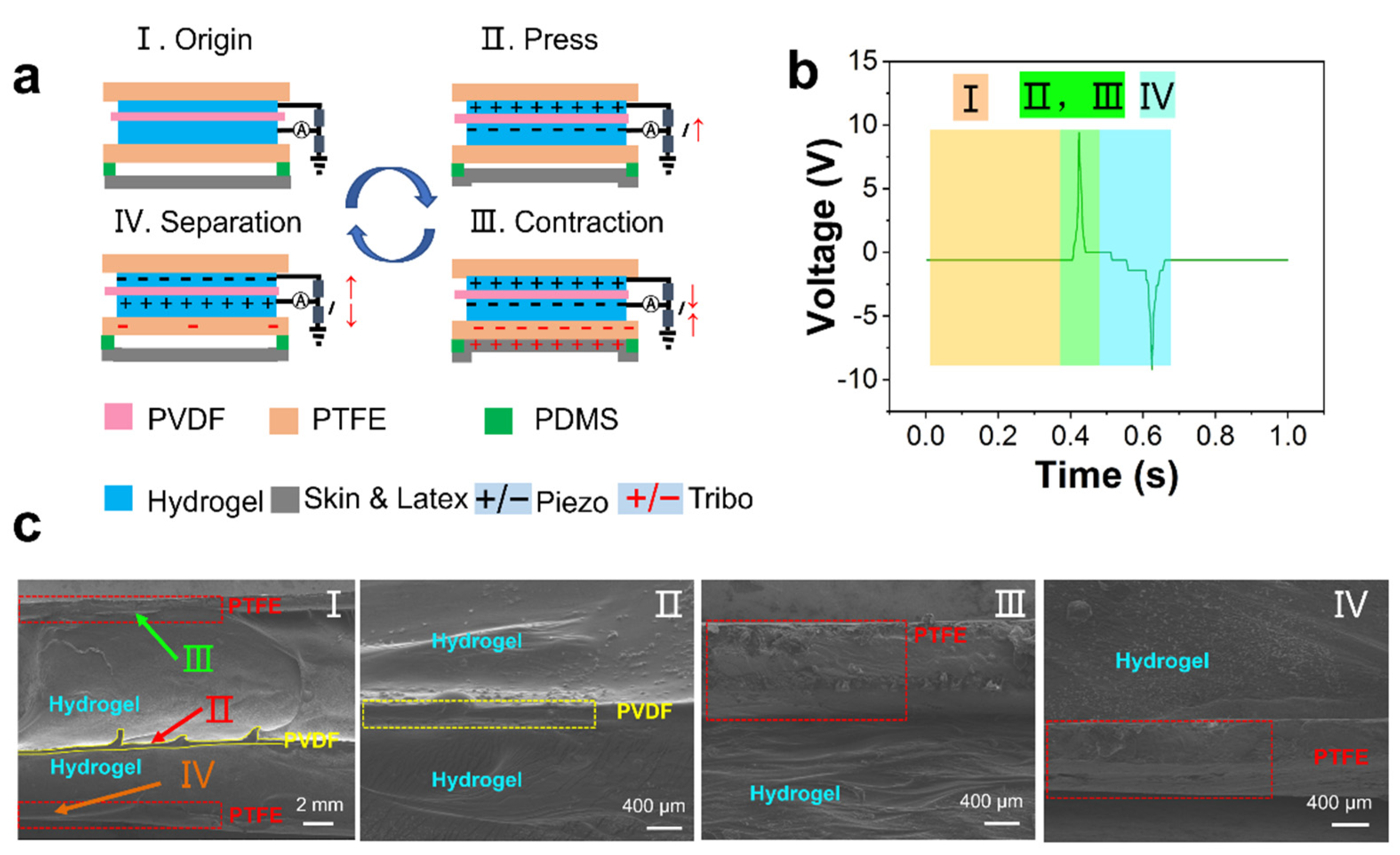

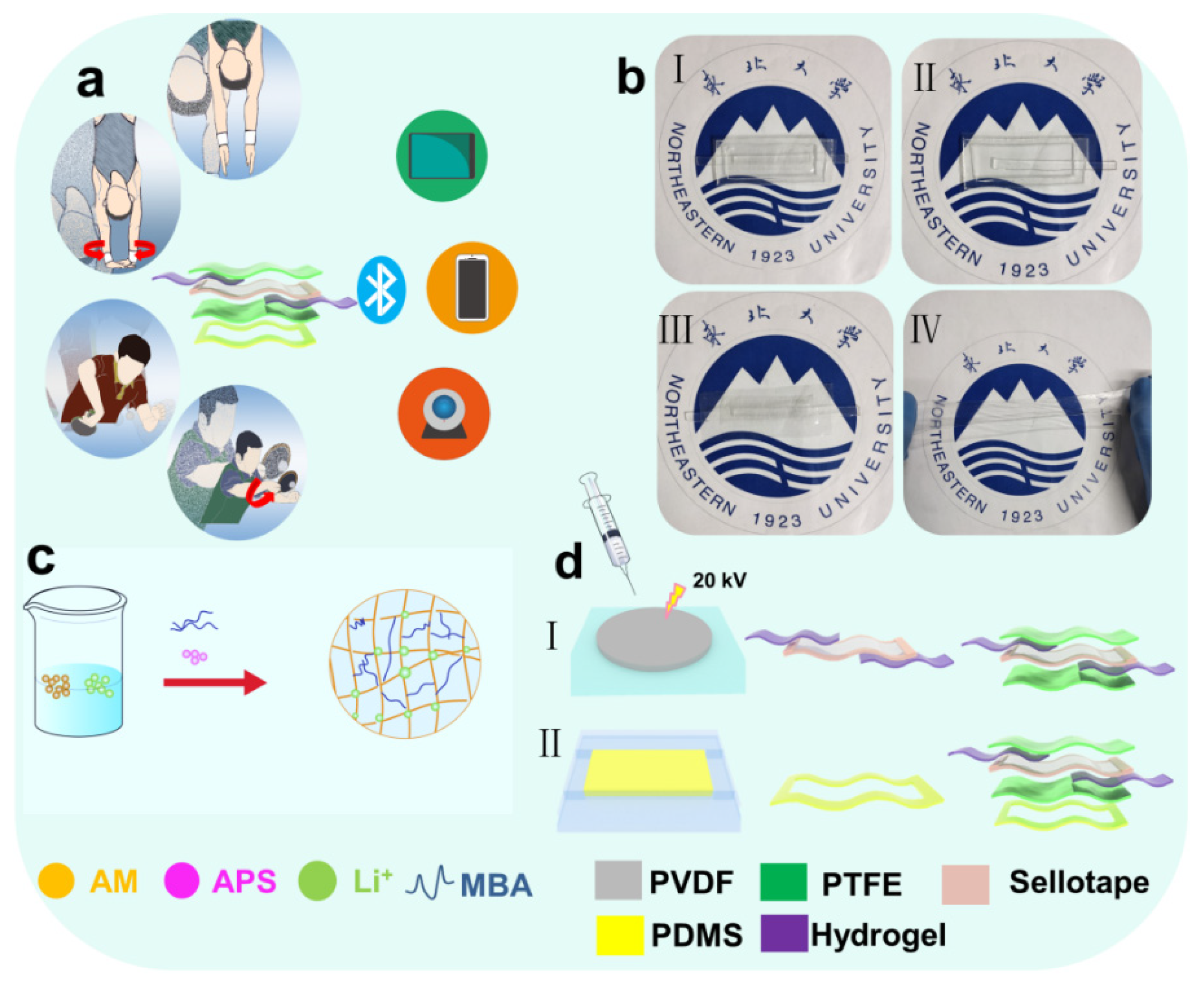

Transparent stretchable wearable hybrid nano-generators present great opportunities in motion sensing, motion monitoring, and human-computer interaction. Herein, we report a piezoelectric-triboelectric sport sensor (PTSS) which is composed of TENG, PENG, and a flexible transparent stretchable self-healing hydrogel electrode. The piezoelectric effect and the triboelectric effect are coupled by a contact separation mode. According to this effect, the PTSS shows a wide monitoring range. It can be used to monitor human multi-dimensional motions such as bend, twist, and rotate motions, including the screw pull motion of table tennis and the 301C skill of diving. In addition, the flexible transparent stretchable self-healing hydrogel is used as the electrode, which can meet most of the motion and sensing requirements and presents the characteristics of high flexibility, high transparency, high stretchability, and self-healing behavior. The whole sensing system can transmit signals through Bluetooth devices. The flexible, transparent, and stretchable wearable hybrid nanogenerator can be used as a wearable motion monitoring sensor, which provides a new strategy for the sports field, motion monitoring, and human-computer interaction.
View Full-Text
Keywords:
self-powered; sports monitoring; hydrogel; hybrid nano-generator
▼
