Article

Improving Formation Conditions and Properties of hBN Nanosheets Through BaF2-assisted Polymer Derived Ceramics (PDCs) Technique

by
Boitumelo J. Matsoso
,
Victor Vuillet-a-Ciles
,
Laurence Bois
,
Bérangère Toury
and
Catherine Journet
*
Laboratoire des Multimatériaux et Interfaces, UMR CNRS 5615, Univ Lyon, Université Claude Bernard Lyon 1, F-69622 Villeurbanne CEDEX, France
*
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(3), 443; https://doi.org/10.3390/nano10030443
Submission received: 17 January 2020 / Revised: 20 February 2020 / Accepted: 26 February 2020 / Published: 29 February 2020
(This article belongs to the Section Nanocomposite Materials)
Browse Figures
Review Reports Versions Notes

Abstract

Hexagonal boron nitrite (hBN) is an attractive material for many applications such as in electronics as a complement to graphene, in anti-oxidation coatings, light emitters, etc. However, the synthesis of high-quality hBN at cost-effective conditions is still a great challenge. Thus, this work reports on the synthesis of large-area and crystalline hBN nanosheets via the modified polymer derived ceramics (PDCs) process. The addition of both the BaF2 and Li3N, as melting-point reduction and crystallization agents, respectively, led to the production of hBN powders with excellent physicochemical properties at relatively low temperatures and atmospheric pressure conditions. For instance, XRD, Raman, and XPS data revealed improved crystallinity and quality at a decreased formation temperature of 1200 °C upon the addition of 5 wt% of BaF2. Moreover, morphological determination illustrated the formation of multi-layered nanocrystalline and well-defined shaped hBN powders with crystal sizes of 2.74–8.41 ± 0.71 µm in diameter. Despite the compromised thermal stability, as shown by the ease of oxidation at high temperatures, this work paves way for the production of large-scale and high-quality hBN crystals at a relatively low temperature and atmospheric pressure conditions.

Graphical Abstract

1. Introduction

For over a decade, an enormous scientific research effort has been devoted to the synthesis, tuning, and investigating of various properties and applications of metallic, semiconducting, and insulating two-dimensional (2D) materials. This tremendous research interest in 2D materials is due to the successful isolation of graphene from highly-oriented pyrolytic graphite (HOPG) [1,2,3]. Amongst the most studied 2D materials, hexagonal boron nitride (hBN) continues to attract attention due to its unique physicochemical properties. Owing to the strong covalent sp2 bonds in the BN plane, hBN exhibits a large bandgap (~5.9 eV), high mechanical strength, good thermal conductivity, chemical inertness, and thermal stability. Moreover, the atomically smooth surface and close in-plane lattice mismatch to graphene (~1.8%) [4,5], renders hBN an important layered material complementary to graphene and other 2D materials [4,6,7,8,9,10]. As a result, this has led to a myriad of potential applications for hBN; ranging from encapsulation of graphene [4,11], tunneling barrier [12], deep ultraviolet light emitters [13], protective coatings and/or lubricants [14,15], hydrogen storage [16], all the way to dielectric substrates [5]. For instance, graphene-based transport devices integrated with an hBN dielectric layer have been found to exhibit enhanced mobility and excellent current on-off ratios, compared to those fabricated from graphene stacked on other substrates [5,17,18,19,20,21]. Furthermore, the absence of dangling bonds or trapped charges in hBN is of significant importance for enhancing the film performance especially when hBN is integrated with transition metal dichalcogenides such as MoS2 [22,23,24]. Last but not least, the electrical insulating behavior of hBN enables it to serve as a platform for charge fluctuation, contact resistance, gate dielectric, a passivation layer, Coulomb drag, as well as the atomic tunneling layer in a variety of fundamental scientific and technological fields [12,15,23,25,26].
However, for hBN to reach its ultimate practical application in the optoelectronic and dielectric industry, synthesis of large-area high-quality single crystals of hBN, at cost effective conditions, is a very crucial issue. Consequently, numerous techniques have been developed and employed to produce hBN; these include processes such as mechanical exfoliation [5,27,28], sputtering [29,30], pulsed laser deposition (PLD) [31,32], atomic layer deposition (ALD) [33,34,35], and chemical vapor deposition (CVD) [36,37]. For instance, with graphene, mechanical exfoliation has been widely used to produce high-quality hBN nanosheets. On the contrary, mechanical exfoliation is strictly limited to the fabrication of small-scale devices as the process produces flakes of a limited size, inconsistent yields, and a variable number of hBN layers. Additionally, other techniques basically require extremely sophisticated equipment using high temperatures and pressures [13]. Therefore, in an attempt to circumvent these drawbacks, the use of the polymer derived ceramics (PDCs) [36,37,38,39,40] process coupled with the addition of a crystallization agent such as lithium nitride (Li3N) has been reported to provide an alternative approach for preparing large-scale and high-quality single crystals of hBN nanosheets for further applications in next-generation electronics. During the PDCs method, a polymeric precursor is synthesized from its monomers, after which it is then converted into ceramic after shaping. Among the various precursors that have been used for the PDCs-synthesis of hBN nanosheets, polyborazylene (PBN) has shown to lead to the production of large-area highly crystallized hBN at temperatures as low as ~1400 °C [36,37,38,39,40]. This is owing to its relatively high ceramic yield and high purity. Most importantly, the B/N ratio within PBN polymer is ideal to produce stoichiometric hBN, with the only contaminants being hydrogen atoms that are easily removed during the ceramization step. Despite the synthesis of large-area and well-crystallized hBN nanosheets via the conventional PDCs process, the search for further improvements so as to synthesize well-crystallized hBN nanosheets at relatively lower sintering temperatures, still remains a paramount necessity and occupies the activity of today’s scientific community. One such technology, which has been overlooked for almost a decade, is the use of halides in combination with lithium nitride (Li3N) [41]. In this process, the Li3N acts as a crystallization promoter to produce highly crystallized hBN, whereas the halides help to facilitate the melting of Li3N, leading to the synthesis of hBN nanosheets at temperatures as low as ~800 °C at a prolonged time of 22–56 h. As such, this work reports on the use of PDCs process coupled with Li3N-additives in combination with the group II halides, in particular, barium fluoride (BaF2), to produce large-area well-crystallized hBN nanosheets at low temperatures. The work provides a new platform for the large-scale synthesis of hBN nanosheets at cost-effective conditions without compromising the physicochemical properties of hBN nanosheets.

2. Materials and Methods

2.1. Procedure

The pure monomer of borazine was prepared from a reaction between ammonium sulfate ((NH4)2SO4, ≥ 99%, Aldrich, Saint-Louis, MO, USA) and sodium borohydride (NaBH4, 98% purity, Aldrich, Saint-Louis, MO, USA) in tetraethylene glycol dimethyl ether or tetraglyme (C10H22O5, ≥ 99%, Alfa Aesar, Ward Hill, MASS, USA) solvent, as reported by Wideman et al [42]. After the purification of borazine via distillation, the polymeric precursor was obtained by through the poly-condensation of borazine at 55 °C inside a pressure-sealed system under argon for 5 d; generating colorless polyborazylene (PBN) [15,39,43,44]. For the synthesis of boron nitrides nanosheets (BNNSs); inside the glove-box and under argon atmosphere, lithium nitride (Li3N, 99.4%, Alfa Aesar, Ward Hill, MASS, USA) at a 5 wt.% ratio, as a crystallization agent, and varying amounts (0–10 wt.%) of barium fluoride (BaF2, 99%, Alfa Aesar, Karlsruhe, Germany), as a melting-point reduction agent, were added to PBN, then the mixture was homogenized via stirring for 10 min. After which the suspension was heated to 200 °C in an alumina crucible and kept for 1 h to give a solid-state polymer [41]. Finally, the stabilized mixture was annealed for 1 h at 1200 °C (1 °C/min) under inert nitrogen (N2, 98%, Air Liquide, Paris, France) atmosphere.

2.2. Methods

The morphology and electronic structure of the synthesized materials were ascertained using various characterization techniques. The crystal structure of the hBN nanosheets was confirmed using a powder X-ray diffractometer (Bruker, Billerica, MASS, USA) (PXRD) Bruker D8 Advanced, equipped with the Cu-K radiation source and using the PMMA zero-background substrate. MEB Zeiss Merlin Compact scanning electron microscopy (SEM), at the accelerating voltage of 80 kV, was used to determine the morphology of the nanomaterials. Further morphological analyses were carried on the MET Phillips CM120 transmission electron microscope (TEM) (Philips, Amsterdam, The Netherlands) at 120 kV. The degree of crystallization of the hBN nanosheets was determined in the backscattering geometry using the HORIBA Jobin-Yvon Labram Evolution Raman spectrometer (Horiba, Kyoto, Japan) at 532 nm laser excitation wavelength. The functional groups and surface interactions of the BN nanosheets nanostructures were investigated using SAFAS Monaco SP2000-IR700 spectrometer in the range of 4000–600 cm−1. The surface area, pore volumes, and diameters of the as-prepared samples were acquired from the BELsorpII mini, after degassing the samples for 4 h at 100 °C, thereafter, adsorption and desorption of ultra-pure N2 gas was performed. Chemical composition and bonding configurations for the bulk hBN samples were determined by XPS using a PHI Quantera SXM spectrometer (Physical Electronics, Chanhassen, MN, USA). A monochromatized aluminum Kα radiation was used with a 200 µm spot diameter and a take-off angle of 45°, before and after 2 µm sputtering with Ar+ ions. Charge compensation was provided by an in-lens electron flood gun and separate low energy argon ion source. Finally, thermogravimetric analyses were determined using the TGA/DSC2 form Mettler Toledo (Mettler Toledo, Columbus, Ohio, USA). An hBN sample of ~15 µL mass was placed into a 150 mg alumina crucible with pierced lid, after which the decomposition profile of the sample was established from 30–1400 °C, at a heating rate of 20 °C/min, under 50 µL mL−1 Ar.

3. Results and Discussion

Growth of large-area hBN nanosheets at low temperatures and atmospheric pressure conditions was successfully achieved through a BaF2-assisted PDCs technique. After synthesis, the structural, composition and electronic properties were investigated using XRD, XPS, Raman, and IR spectroscopies, whereas the morphological properties were determined using TEM and SEM microscopies.

3.1. Structural and Electronic Properties

3.1.1. Powder XRD Analysis

The composition and crystallinity of the BNNS samples synthesized with addition of various amounts of BaF2 and annealed at 1200 °C were examined by the powder XRD (Figure 1a), after which their XRD patterns were compared with that of standard hBN (ICCD card #: 34–421). The results for all samples showed the characteristic fingerprint diffraction patterns for highly crystallized hexagonal boron nitride (hBN) (Figure 1a); evident by the pronounced (002) diffraction peak at 2θ ≈ 26.5–26.8°, as well as the less intense (004), (110) and (112) peaks centered at 2θ ≈ 55.4°, 2θ ≈ 76.2°, 2θ ≈ 81.7°, respectively. However, a much deeper investigation of the diffraction patterns revealed the formation of two phases of hexagonal (hBN) and rhombohedral (rBN) boron nitride (Figure 1b) for samples with low contents of BaF2 (i.e., 0 and 2.5 wt%). On the other hand, upon increasing the BaF2 content from 5–10 wt%, the XRD patterns indicated that the most favored principal phase is the hBN (Figure 1b), as the relative intensities of the (101) and (012) peaks for rBN are relatively diminished. As such, the results showed the significance of the addition of BaF2 to the PBN/Li3N pre-ceramization mixture towards improving the crystallinity of the hBN phase. It can, therefore, be proposed that improved crystallinity of the hBN nanosheets is achieved through the facilitation of faster melting of Li3N by BaF2 [41], thereby leading to lower formation temperature as compared to our previous studies [38,40,43]. However, it is also noteworthy to mention that regardless of the improved crystallinity with increasing BaF2 content (10 wt%), the presence of unmelted impurities from Li and Ba complexes is evident from the XRD patterns, thereby compromising the quality of the inherent as-synthesized BNNS samples. This was also observed with a further increase in BaF2 content (20–30 wt%, not shown here). Thus, the addition of equally small amounts (5 wt%) of both Li3N and BaF2 led to the formation of crystalline hBN nanosheets at relatively low temperatures and atmospheric conditions.
A further indication of an improved crystallinity of the hBN phase within the BNNS samples was through the separation of the (100) and (101) peaks accompanied by the symmetrically sharpening of (002), as well as increasing intensities of (102), (110), and (112) peaks. Furthermore, the interlayer d002-spacing values of ~3.34 Å for all samples were determined to be close to that of high-crystalline bulk value for the commercial hBN samples (Table 1), suggesting a good crystallization rate for each sample after the addition of BaF2. The slightly lower interlayer distance for the 5 wt% BaF2 sample (~3.331 Å) is indicative of the improved d-p interaction occurring between the p-orbital electrons in hBN and those in the d-orbital of barium [45], consequently resulting in a better-crystallized sample upon the introduction of BaF2. Similar results were observed with the addition of higher BaF2 contents, with the 20 wt% BaF2 sample registering a d002-spacing value of ~3.328 Å, whereas that of the 30 wt% BaF2 sample was ~3.326 Å. Finally, the degree of crystallization of the hBN phase within the BNNS samples was evaluated in terms of the "graphitization index, GI" (Table 1), as indicated by Equation (1):
G I = [ ( 100 ) a r e a + ( 101 ) a r e a ] ( 102 ) a r e a
The significance of the value for the G.I. is that the higher the value is the less the three-dimensional ordering is within the hBN and the reverse is true [46,47,48,49,50], therefore implying a lateral growth of the hBN crystallites. So, in the light of this information, Table 1 shows that BNNS samples synthesized with the addition of 5 wt.% BaF2 can be considered to have a less three-dimensional ordering in the crystal structure, as evident by the G.I. value of 3.83c.a. This has later been confirmed by TEM analyses which showed the formation of larger hBN nanosheets upon addition of 5 wt% BaF2.

3.1.2. XPS Analysis

The XPS analysis was used as a surface-sensitive and standard technique for determining the overall elemental composition (at. %) and different bonding states within the as-synthesized samples. Figure S1a shows a typical surface XPS survey scan for the hBN samples and the spectra exhibited at least five peaks: two distinct peaks corresponding to B1s (190.9 eV) and N1s (397.8 eV), two weak peaks corresponding to O1s (532.1 eV) and Ba3d (780.1 eV), as well as another peak corresponding to advantageous C1s (284.2 eV). However, after sputtering a 2 µm surface from the samples with Ar+ ions, no carbon was found within the bulk of the samples: thus, indicating the removal of any adsorbed atmospheric carbon atoms. Therefore, by taking the integrated peak areas of the B1s, N1s, O1s, Li1s, and Ba3d from the XPS survey spectra, the overall elemental composition of the bulk samples was determined as a function of increasing BaF2, as depicted in Table 2. It can be seen that both boron and nitrogen concentrations increased with addition of more BaF2, thereby leading to B/N ratios of 1.62%, 1.64%, 1.57%, and 1.50% for the hBN nanosheets grown after addition of 0, 2.5, 5, and 10 wt% BaF2, respectively (Table 2). The observed decrease in the B/N ratio corroborated XRD results by indicating that the addition of BaF2 makes coalescence of bigger hBN domains more, thus compromising the quality of the resultant hBN nanosheets. On the other hand, the increasing lithium content between the addition of 0 and 2.5 wt% BaF2 is suggestive of the formation of lithium complexes due to the presence of Ba as well as the formation of smaller hBN domains, as later confirmed by high-resolution XPS and TGA analysis. Improved growth of hBN domains through faster melting of these lithium complexes in the presence of Ba atoms was indicated by the decreasing Li1s content after the addition of 5 and 10 wt% BaF2, which was also followed by further reduction of the oxygen content with increasing BaF2 content.
To determine the different bonding configurations of each constituent element (B, N, O, Li and Ba) in the bulk hBN samples as a function of BaF2 content, their high-resolution XPS spectra were fitted with Lorentzian–Gaussian (GL30) peaks using the CasaXPS software. The B1s for all samples exhibited a broad spectral peak with a full width at half maximum (FWHM) was in the range of 1.8–2.7 eV (Figure 2a). This is wider than the reported FWHM value for B in high-quality hBN (0.92 eV) [51]. This signifies the presence of different bonding states for B atoms. Therefore, to determine the chemical environments of the B atoms in the nanosheets, the B1s spectral peaks were deconvoluted into three component peaks centered at 190.9–191.0, 192.0–192.1, and 193.2–193.4 eV, respectively. These corresponded to the contribution from sp2-BN bonds in high-quality hBN, B–O bonds in B2O2, as well as Li2B4O7 bonds, respectively [51,52,53]. The relatively high intensity for the sp2-BN peak component is an indication that the boron atoms are expectedly and predominantly bonded to nitrogen atoms into a hexagonal lattice to form large domains of hBN. Furthermore, an increase in the relative concentration of the sp2-BN up to addition of 5 wt.% BaF2 could be suggestive of the presence of larger hBN domains, whilst a decrease in its concentration is an indication of a degradation of the hBN domains, but formation of smaller fragments of hBN that are prone to be terminated by oxygen atoms. The results thus corroborated XRD results, as the quality of the hBN nanosheets was observed to be compromised with the increasing addition of BaF2. The formation of larger and better quality hBN domains was further ascertained by the position of the B-O bonds as a function of BaF2 content. For instance, the positions of the B–O bonds were found to be red-shifted with increasing BaF2 content up to the addition of 5 wt.% after which it continued to blue-shift with addition of more BaF2. This, therefore, suggested the existence of different bonding states around/within the B–O domains. In particular, the B–O peak position in 0 wt.% BaF2 hBN nanosheet sample (~193.2 eV) was closer to that of B–O bonds in B2O2 (~192.55 ± 0.05 eV) [52,54,55], an indication that boron atoms at the defective edges are surrounded by oxygen atoms to form regions of B2O2 domains. However, on increasing the BaF2 content up to addition of 5 wt.%, the B–O peak position red-shifted to ~192.1 eV, an indication that there is substitution of the oxygen atoms in the B2O2 domains with boron and/or nitrogen atoms due to the formation of larger and better quality hBN domains, thereby leading to presence of less saturated B2O2 domains. Due to the degradation of the structure as a result of impurities from Ba and Li, the peak position of B–O bonds was observed to blue-shift to ~193.4 eV, signifying the formation of B2O2 domains at the defect regions of the hBN domains and/or the small fragments of uncoalescenced PBN.
Confirmation of the bonding states obtained from the B1s was supported by the deconvolution of the XPS N1s spectra (Figure 2b). At least two component peaks centered at 397.9–398.0 eV and 398.9–399.5 eV were observed for all and these were ascribed to the formation of sp2N–B and N-H2 bonding configurations [36,51,53,56,57]. Lack of the component peak at higher binding energies (i.e., ~401 eV), corresponding to NOx bonding states, is indicative that all the nitrogen atoms within the samples have a high affinity of boron atoms to form hBN domains. Furthermore, the bonding states of the oxygen, lithium, and barium atoms was determined by peak fitting of the O1s, Li1s, and the Ba3d high-resolution XPS spectra, as shown in Figure S1. From Figure S1b, it can be seen that the O1s was fitted to at least two component peaks. The peaks centered at 531.8–532.4 eV and 529.5–530.1 eV can be ascribed to the contribution from O–B and O–Ba bonds, respectively [54,58]. Interestingly, the component peak at 529.5–530.1 eV could be attributed to the presence of metallic oxide bonds such as O–Li [59,60]; thus, highlighting the ambiguity of using the O1s to assign the bonding configurations of the as-synthesized samples. However, the relative concentrations of the component peaks indicate that most of the oxygen atoms are bonded to the metallic impurities. Moreover, the intensity of the O1s spectra for all samples is observed to decrease with increasing BaF2 content, which is in good agreement with the survey spectra, thereby indicating the improved quality with BaF2 content. The bonding states of oxygen atoms were confirmed by the deconvolution of the Ba3d spectra (Figure S1c), which depicted the presence of α (779.8–781.3 eV) and β (795.1–798.8 eV) couplings of barium oxide [61,62]. Lack of component peaks corresponding to bonding states such as Ba-N [63] is suggestive that the Ba atoms remain bonded to oxygen atoms to form the stable oxide form outside the hBN domains, thereby, having no impact on the overall structure of hBN nanosheets. Finally, the contribution from the residual lithium was indicated by the peak at ~55.7 eV on the Li1s spectra (Figure S1d), which can be attributed to the presence of Li2B4O7 bonds [59,60]. The presence of these bonds can be ascribed to the role played by the crystallization agent (Li3N) when it breaks down PBN, to form individual nucleates of B-N, that can aggregate and grow into hBN domains. The relatively large intensity of Li2B4O7 peak at lower BaF2 content (0 & 2.5 wt.%) could suggest incomplete decomposition of PBN by Li3N, whereas the decreasing intensity of peaks with increasing BaF2 content is indicative of the effect of BaF2 in dissolving the Li-complexes (i.e., Li2B4O7, Li2B2O4, or Li3BN2), thereby freeing and permitting boron and/or nitrogen atoms to contribute in the growth of hBN domains.

3.1.3. Raman and FT-IR Analysis

Further structural and electronic properties of the as-synthesized BNNS materials were evaluated using Raman spectroscopy. Like graphene and despite the minor difference in the stacking sequence (i.e., ABgraphene versus AA′hBN), Raman spectroscopy is also a powerful technique for determining the crystallinity and quality of hBN nanomaterials. As a result, Figure 3a display Raman spectra taken from ~10 different areas of the BNNS samples. The spectra showed the first-order active Raman vibrating mode of hBN (E2g) [27,64,65,66,67] centered at ~1365.4 ± 1.6 cm−1. To determine the crystallinity of hBN materials, studies by Nemanich et al. have reported that there is a direct correlation between the finite-size effects within hBN with the inherent position and broadening of the Raman vibrational modes [67]. Their report indicated that the E2g vibrational mode blue-shifted and broadened with decreasing crystallites sizes. From Figure S2b, the full width at half maximum (FWHM) values for the samples was found to decrease with BaF2 content up to 5 wt%, from 17.01 cm−1 for the 0 wt% BaF2 hBN sample to 11.07 cm−1 for the 5 wt% BaF2 hBN sample (Figure S2b). The FWHM values thus signify the formation of larger crystallites and subsequently improvement in the crystallinity and quality of the 5 wt% BaF2 hBN sample. Further confirmation of improved crystallinity was observed through red-shift in the position of E2g vibrational mode from ~1366.9 ± 0.25 cm−1 for the 0 wt% BaF2 sample to ~1365.3 ± 0.21 cm−1 for the 5 wt% BaF2 sample, after which the peak position blue-shift up to ~1366.4 ± 0.08 cm−1 upon increasing the BaF2 content to 10 wt.%. The proposed growth mechanism is illustrated in Scheme 1. In summary, the Raman data demonstrated that it is possible to achieve high-quality and crystalline BNNS at atmospheric conditions and reasonably moderate temperatures, in comparison with those hBN nanosheets that have been prepared at high temperature and high pressure [13,38,39,40].
Fourier transform infrared (FT-IR) spectroscopy constitutes one of the most used techniques for the identification and characterization of phases in BN nanomaterials. This is due to the fact that the sp2 and sp3 hybridization states of B-N bonds can be easily distinguished by the well-defined adsorption bands [68,69,70]. Therefore, to determine the influence of the addition of BaF2 on the surface functionalizations of the hBN samples, the FTIR measurements were performed at room temperature. As expected, by two IR active transverse optical (TO) phonon modes of sp2 bonded B–N were observed (Figure 3b). The broad and asymmetrical E1u adsorption band at ~1340–1360 cm−1 corresponded to the in-plane boron-nitrogen-boron (B–N–B) stretching vibrational modes within one basal plane, whereas the sharp and symmetrical A2u adsorption band, centered at ~740–760 cm−1, can be ascribed to the out-of-plane B–N–B bending vibrational modes between two or more basal planes [68,70]. Further analysis of the FT-IR spectra of the modified hBN samples revealed a red-shift of the E1u adsorption band, whilst the A2u adsorption band was observed to blue-shift with increasing BaF2 content.
A slight red shift of the B–N–B stretching mode up to the addition of 5 wt% BaF2 relative to the 0 wt.% BaF2 sample (Figure S2c, blue line-circles) could be suggestive of the addition of strain in the crystal lattice due to the lateral growth of the crystal sizes within the basal plane. However, an introduction of impurities and incomplete and/or growth of individual small crystallites with increasing BaF2 content (10–30 wt.%), leads to a blue-shift in the A2u vibrational mode due to removal strain. Similarly, a blue-shift was observed for the E1u mode for 2.5 and 10 wt.% BaF2 hBN samples in comparison to the 5 wt.% BaF2 sample (Figure S2c, red line-squares). This can be attributed to the progressive loss of long-range order, in the form of the bond-angle and bond-length disorder, due to the formation of structural defects and distortion of the crystalline structures [71]. The results are in good agreement with the XRD data that indicated the presence of barium and lithium impurities upon the addition of more BaF2. On the contrary, a slight red-shift for the 5 wt.% BaF2 hBN sample further supported the formation of large-area hBN nanosheets, thus leading to the addition of strain in between the basal plane.

3.1.4. Thermal Stability Investigation

The thermogravimetric analysis (TGA) curves depicting the normalized percentage mass-change of the as-synthesized hBN samples as a function of temperature are illustrated in Figure 3c. The plots showed that the decomposition of the samples can be considered to occur in at least four steps. The samples are observed to be stable up to ~60 °C, after which subsequent decomposition begins at different on-set temperatures (region I), which can be ascribed to the varying crystallinity of the samples. In particular, the on-set temperature for the 0 wt% BaF2 sample was determined to be ~74 °C; whilst those for modified samples were found to be ~67 °C, ~82 °C, and ~69 °C, for 2.5, 5, and 10 wt% BaF2 hBN samples, respectively. The highest on-set temperature for the 5 wt% BaF2 sample is in corroboration with XRD and Raman analyses which indicated improved crystallinity, thus indicating the difficulty of breaking the stable bonds at relatively low temperatures. On the other hand, the lowest onset decomposition temperature for 2.5 wt% BaF2 sample can be attributed to the incomplete restructuring of the hBN lattice to form larger crystallites due to insufficient amount of BaF2. Owing to the formation of these incomplete crystallites, the entire bond structure is weakened, thereby leading to faster degradation. In the case of 10 wt% BaF2 sample, the earlier onset decomposition temperature can be ascribed to the disruption of the lattice of the hBN structure due to the fast melting of Li3N in the presence of larger content of BaF2 and formation of impurity complexes, as depicted by XRD analysis. Consequently, a weakened structure that is prone to easy loss of hydrogen atoms and faster decomposition is formed. Region II, with mass losses occurring at temperatures between 150–600 °C, is due to the decomposition of lower energy bonds, such as dehydrogenation of intercalated H2 (~436 kJ/mol) between the hBN nanosheets as well as hydrogen atoms bonded to the edge-defects (i.e., B–H bonds at ~330 kJ/mol; N-H bond at 314 kJ/mol; O–H bond at ~428 kJ/mol; adsorbed H–OH bonds at ~498 kJ/mol) [72,73,74] within the hBN lattice. The decomposition of the entire hBN lattice also occurs within this region (i.e., B–N bond at ~398 kJ/mol). Decomposition and removal of other compounds such as Ba–F (~487 kJ/mol), Ba–OH (~477 kJ/mol), N-F (~301 kJ/mol), Li-H (~247 kJ/mol), Li–OH (~427 kJ/mol), and/or Li–F (~577 kJ/mol) [72,73,74] are also observed within this region. The decomposition of these low energy bonds is thus depicted by the presence of two peaks on the DTG curves (Figure S1d). Between 600–1200 °C (region III), an increase in mass of 0.22%, 0.35%, and 0.42% was observed 2.5, 5, and 10 wt% BaF2 hBN samples, respectively. On the contrary, further decrease in the decomposition profile of the 0 wt% BaF2 hBN sample was recorded in this region, and corresponds to the removal of α-Li3BN2 and β-Li3BN2 complexes at ~860 °C and 920 °C, respectively [75,76], depicted by XPS. Thereafter, the final degradation of the 0 wt% BaF2 hBN sample is observed beyond 1200 °C. Interestingly, the 0 wt% BaF2 hBN sample does not decompose completely to 0 wt% (Figure S1d), however, only ~1.2 mg (8.52%) of the sample was decomposed (region IV). This can be attributed to the oxidation of BN by residual O2 inside the TGA oven from the inert gas used (i.e., Ar, 99%, Alphagaz), leading to the subsequent formation of thin layer of thermally stable boron trioxide (B2O3, ~1850 °Cboiling, and ~1500 °Csublimation) [77,78] on the surface of the nanosheets as well as evolution of a certain amount of nitrogen oxides (NOx) [79], which ultimately prevents further decomposition. Upon addition of 2.5 wt% BaF2, a mass increase of ~0.22% (~ 30.1 µg) in region III occurred within a temperature range of ~910–1220 °C, attributed to the removal of the α-Li3BN2 complexes as well as the formation of thermally stable B2O3 layer. However, with the addition of more BaF2 from 5 to 10 wt%, the mass increase was recorded to be ~0.27% (~36.0 µg) and ~0.42% (~61.5 µg) in the temperature ranges of ~630–1330 °C and ~770–1310 °C, respectively. In both cases, the faster formation of the thermally stable B2O3 layer could suggest the lack of the Li3BN2 complexes as a result of the faster melting of Li3N, which was facilitated by the addition of BaF2, thereby corroborating the XRD data. The rate of oxidation for the BaF2-samples can be ascribed to the purity, crystallinity and specific surface area (SSA) [80,81]. For instance, highly-crystalline BN with a small SSA, as in the case of the 5 wt% BaF2 hBN nanoplatelets, provides less reactive sites for oxidation and thus a smaller weight gain, in comparison to moderately-crystalline BN with a small SSA (10 wt% BaF2 hBN) and poorly-crystalline BN (2.5 wt% BaF2 hBN). Beyond 1350 °C (region IV), the decomposition of the B2O3 layer by the residual boron atoms leads to the formation and removal of the gaseous dioxodiborane compounds (B2O2) [82,83,84], as based on Equation (2):
2 3 B ( g ) + 2 3 B 2 O 3 ( l ) → B 2 O 2 ( g )
The differential scanning calorimetry (DSC) curve (Figure S3a) provided important information regarding the heat-flow arising by a series of physical or chemical procedures, such as decomposition, oxidation, as a function of temperature. An endothermic peak was observed for 0 and 5 wt.% BaF2 hBN samples at ~151.1 °C and ~147.1 °C, respectively; whereas no thermal phenomena were observed for other samples (Figure S3i). This corresponded to the endothermic reactions associated with the dehydrogenation of the samples. Further endothermic reactions associated with the decomposition of all samples were depicted by the decrease in the heat flow in the temperature range of ~480–620 °C (Figure S3ii). Moreover, small exothermic peaks appeared in the temperature range of ~640–1400 °C (Figures S3iii and S3iv), indicating the oxidation of the samples as shown by the increasing mass on TGA thermograms and hence confirming the transformation of BN to B2O3. All parameters related to the TGA/DSC measurements are presented in Table S2.

3.1.5. Surface Area Determination

Surface area and pore-size distribution of hBN are essential properties for its potential application in energy storage and conversion devices as well as in biotechnological applications. As such the specific surface area (SSA), pore-size distribution of the as-synthesized hBN samples were determined using the multi-point Brunauer–Emmet-Teller (BET) method through adsorption/desorption measurements of N2 at 77K. From the N2 adsorption/desorption isotherm curves (Figure 4a), the hBN synthesized with the addition of BaF2 demonstrated a type II isotherm with increasing BaF2 content; an indication of the formation of macroporous or non-porous materials [85]. Minor N2 amounts were adsorbed under relatively lower relative pressures (P/P0 < 0.01) for all samples, with no hysteresis loop being observed under low pressure (P/P0 < 0.45); an indication of the absence of micropores and mesopores on the materials’ surface. Interestingly, the hysteresis loop was observed to decrease between adsorption/desorption under higher pressures (P/P0 > 0.45) with increasing BaF2 content. Thus, the physical adsorption mechanism on the as-synthesized hBN samples can be described as follows: without BaF2 content (i.e., 0 wt.%), the N2 adsorption is a formation of an unrestricted multilayer after the completion of a monolayer, followed by delayed desorption of N2. Thus, this accounts for the high specific surface area recorded for the 0 wt.% BaF2 hBN sample (~8.7 m2/g), which can then be attributed to the presence of a relatively small amount of macropores (Figure 4b) and/or the external rough surface [80,86]. On the other hand, with the addition of BaF2 content, the adsorption mechanism can be presumed to be following the adsorption and desorption of the monolayer of N2 onto the material’s external rough surface of the basal planes due to the non-porous morphology of the samples. This is shown by the adsorption curve which does not reach a plateau at a relatively high pressure close to unity (P/P0 ∼ 0.99), but rather extends indefinitely. Therefore, based on the multi-point BET method, the specific surface areas for the samples were then determined from the BET plots extracted using points between 0.05 < P/P0 < 0.30 (Figure S4) and these were found to be 8.7, 3.5, 3.6, and 2.9 m2/g for samples prepared after addition of 0, 2.5, 5, and 10 wt% of BaF2, respectively. Table S2 gives a summary of the textual properties of these samples.

3.2. Morphological Analysis

The morphological properties of the hBN nanosheets obtained at 1200 °C after the addition of varying amounts of BaF2 were investigated by scanning electron microscopy (SEM). Figure 5a displays the typical SEM micrographs of the as-synthesized 5 wt.% BaF2 hBN nanosheets, whereas the micrographs of other samples, as well as the commercial sample of hBN (99.5%, Alfa Aesar), are represented in Figure S4. The dimensions of crystals of the hBN samples were then determined to be 2.74 ± 0.67, 8.41 ± 0.71, and 5.30 ± 0.31 µm for samples annealed after the addition of 2.5, 5, and 10 wt.% of BaF2, respectively. On the contrary, it was difficult to determine the flake-size for the 0 wt.% Ba F2 hBN sample since the sample was an agglomerated mass of irregular shaped and jagged-edged plate-like crystals (Figure S5a). However, upon the introduction of BaF2, the morphology of the crystals becomes more defined (Figure 5a and Figure S5b,c); like that of the well-defined disc-shaped and homogenous nanoplatelets of the commercial hBN sample (Figure S5d). For instance, with the addition of 5 wt.% BaF2, the hBN nanosheets display a much more well-defined, smooth-edged and homogenous plate-like morphology. This is expected as both Raman and XRD data suggested an improved crystallinity of the hBN nanosheets upon the addition of 5 wt% BaF2. Although an increase in the BaF2 content to 10 wt% (Figure S5c) also led to the formation of well-defined and plate-like nanosheets, the size of the nanosheets was compromised as evident by the breakage of the nanoplatelets. More degradation in the size of the nanoplatelets was also observed with samples synthesized with the addition of 20 and 30 wt% BaF2. The formation of smaller hBN nanosheets with increasing BaF2 content may be attributed to the abrupt melting of Li3N due to the presence of more cations form BaF2, thus consequently leading to incomplete crystallization of hBN from PBN. Similar results were reported by various groups, whereby they showed that not only does the different usage of cations led to the formation of different morphologies of hBN nanosheets, but an increase in these cations resulted in compromised morphologies of such hBN nanostructures [87,88]. The final determination of the morphological properties of the hBNNS samples was performed using the transmission electron microscopy (TEM). Low magnification TEM micrographs (Figure 5b and Figure S6) illustrated that the samples are mainly composed of overlapping sheet-like structures, with crystal sizes of 0.89 ± 0.01, 2.88 ± 0.74, 3.32 ± 0.25, and 3.15 ± 0.67 µm, for samples annealed after addition of 0, 2.5, 5, and 10 wt.% of Ba F2, respectively. Remarkably, the low-magnification TEM images further corroborated the SEM micrographs by depicting the formation of thinner and larger hBN nanosheets, with well-defined disc-shape, after the addition of 5 wt% of BaF2.

4. Conclusions

Hexagonal boron nitride (hBN) nanosheets exhibiting well-defined morphology and large crystal size were successfully synthesized at low temperatures (1200 °C) and atmospheric pressure through modification of the polymer-derived ceramics (PDCs) technique with varying amounts of barium fluoride (BaF2). The XRD, Raman, and XPS data revealed the formation of highly-crystalline hBN nanosheets with the FWHME2g of 11.07 cm−1 and a G.I. value of c.a. 3.83 upon addition of 5 wt% BaF2 to the pre-ceramization mixture of PBN and 5 wt% Li3N. Morphological analysis revealed formation well-defined shape for the nanosheets with an average size ranging from 2.74 ± 0.67 µm to 8.41 ± 0.71 µm from SEM and 2.88 ± 0.74 µm to 3.32 ± 0.25 µm from TEM after chemical exfoliation. On the other hand, thermogravimetric analysis showed that the addition of BaF2 led to the formation of less stable samples, as evidenced by the ease of oxidation at high temperatures. However, this work paves the way for the production of large-scale and good-quality hBN crystals at relatively low temperature and atmospheric pressure conditions.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/10/3/443/s1, Figure S1. (a) Survey spectra of the sample before sputtering with Ar+ ions, as well as high resolution of (b) O1s, (c) Ba3d, and (d) Li1s.; Figure S2. Relation of increasing addition of BaF2 to (a) FWHM of (002) XRD peak (b) Raman peak FWHM, and (c) FTIR out- and in-plane vibrational modes. (d) DTG plot of the as-synthesized samples.; Figure S3. (a) DSC plots for the as-synthesized samples: (i)-(iv) Regions of exothermic and endothermic reaction during sample decomposition.; Figure S4. Multi-point BET plots in the relative pressure range 0.05 < P/P0 < 0.30 for the as-synthesized samples.; Figure S5. SEM micrographs of as-synthesized BNNS samples annealed at 1200 °C, after addition of 5 wt% Li3N and (a) 0, (b) 2.5 and (c) 10 wt% BaF2. (d) SEM micrograph of nanoplatelets of commercial hBN (99%, Alfa Aesar).; Figure S6. Low magnification TEM images of BNNS samples annealed at 1200 °C, after addition of 5 wt% Li3N and (a) 0, (b) 2.5 and (c) 10 wt% BaF2.; Table S1. TGA parameters for the as-synthesized hBN samples; Table S2. Textual parameters of the as-synthesized hBN samples.

Author Contributions

All authors have contributed equally to the manuscript. Contributions are as follows: conceptualization, B.T. and C.J.; methodology, B.T and V.V.-a-C.; software, B.T., B.J.M. and C.J.; validation, B.T., V.V.-a-C. and C.J.; formal analysis, B.J.M., L.B.; investigation, B.J.M.; resources, C.J., B.T., and L.B.; data curation, B.J.M.; writing—original draft preparation, B.J.M.; writing—review and editing, B.J.M., C.J., L.B., and B.T.; visualization, C.J.; supervision, C.J. and B.T.; project administration, C.J. and B.T.; funding acquisition, C.J. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by European Graphene flagship (Grant number: 785219), CNRS Délégation Rhône Auvergne, and Université Claude Bernard Lyon 1.

Acknowledgments

The authors are grateful to Centre Technologique des Microstructures (CTµ) for access to various microscopy facilities. Sincere gratitude goes to Rodica Chirac and Francois Toche from La Plateforme Lyonnaise d’Analyse Thermique (PLAT) at LMI for the thermogravimetric analysis of the samples. Ruben Vera at Institut des Sciences Analytiques (ISA, Université Lyon 1) for X-ray diffraction analyses, as well as the Institut Lumière Matière (ILM, Université Lyon 1) for access to the Raman facilities. Lastly, sincere gratitude goes to Céline Brunon at Science et Surface for XPS analysis.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviation

PDCspolymer derived ceramics
hBNhexagonal boron nitride
wt%weight percentage
Li3Nlithium nitride
BaF2barium fluoride

References

  1. Geim, A.K. Graphene: Status and Prospects. Science 2009, 324, 1530–1534. [Google Scholar] [CrossRef] [PubMed]
  2. Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.; Katsnelson, M.I.; Grigorieva, I.V.; Dubonos, S.V.; Firsov, A.A. Two-dimensional gas of massless Dirac fermions in graphene. Nature 2005, 438, 197. [Google Scholar] [CrossRef] [PubMed]
  3. Geim, A.K.; Novoselov, K.S. The rise of graphene. Nat. Mater. 2007, 6, 183. [Google Scholar] [CrossRef] [PubMed]
  4. Mayorov, A.S.; Gorbachev, R.V.; Morozov, S.V.; Britnell, L.; Jalil, R.; Ponomarenko, L.A.; Blake, P.; Novoselov, K.S.; Watanabe, K.; Taniguchi, T.; et al. Micrometer-Scale Ballistic Transport in Encapsulated Graphene at Room Temperature. Nano Lett. 2011, 11, 2396–2399. [Google Scholar] [CrossRef]
  5. Dean, C.R.; Young, A.F.; Meric, I.; Lee, C.; Wang, L.; Sorgenfrei, S.; Watanabe, K.; Taniguchi, T.; Kim, P.; Shepard, K.L.; et al. Boron nitride substrates for high-quality graphene electronics. Nat. Nanotechnol. 2010, 5, 722. [Google Scholar] [CrossRef]
  6. Okada, M.; Sawazaki, T.; Watanabe, K.; Taniguch, T.; Hibino, H.; Shinohara, H.; Kitaura, R. Direct Chemical Vapor Deposition Growth of WS2 Atomic Layers on Hexagonal Boron Nitride. Acs Nano 2014, 8, 8273–8277. [Google Scholar] [CrossRef]
  7. Behura, S.; Nguyen, P.; Che, S.; Debbarma, R.; Berry, V. Large-Area, Transfer-Free, Oxide-Assisted Synthesis of Hexagonal Boron Nitride Films and Their Heterostructures with MoS2 and WS2. J. Am. Chem. Soc. 2015, 137, 13060–13065. [Google Scholar] [CrossRef]
  8. Lee, G.-H.; Yu, Y.-J.; Cui, X.; Petrone, N.; Lee, C.-H.; Choi, M.S.; Lee, D.-Y.; Lee, C.; Yoo, W.J.; Watanabe, K.; et al. Flexible and Transparent MoS2 Field-Effect Transistors on Hexagonal Boron Nitride-Graphene Heterostructures. Acs Nano 2013, 7, 7931–7936. [Google Scholar] [CrossRef]
  9. Zhang, Z.; Hu, S.; Chen, J.; Li, B. Hexagonal boron nitride: a promising substrate for graphene with high heat dissipation. Nanotechnology 2017, 28, 225704. [Google Scholar] [CrossRef]
  10. Gannett, W.; Regan, W.; Watanabe, K.; Taniguchi, T.; Crommie, M.F.; Zettl, A. Boron nitride substrates for high mobility chemical vapor deposited graphene. Appl. Phys. Lett. 2011, 98, 242105. [Google Scholar] [CrossRef]
  11. Lee, G.-H.; Cui, X.; Kim, Y.D.; Arefe, G.; Zhang, X.; Lee, C.-H.; Ye, F.; Watanabe, K.; Taniguchi, T.; Kim, P.; et al. Highly Stable, Dual-Gated MoS2 Transistors Encapsulated by Hexagonal Boron Nitride with Gate-Controllable Contact, Resistance, and Threshold Voltage. Acs Nano 2015, 9, 7019–7026. [Google Scholar] [CrossRef]
  12. Britnell, L.; Gorbachev, R.V.; Jalil, R.; Belle, B.D.; Schedin, F.; Katsnelson, M.I.; Eaves, L.; Morozov, S.V.; Mayorov, A.S.; Peres, N.M.R.; et al. Electron Tunneling through Ultrathin Boron Nitride Crystalline Barriers. Nano Lett. 2012, 12, 1707–1710. [Google Scholar] [CrossRef]
  13. Watanabe, K.; Taniguchi, T.; Niiyama, T.; Miya, K.; Taniguchi, M. Far-ultraviolet plane-emission handheld device based on hexagonal boron nitride. Nat. Photonics 2009, 3, 591. [Google Scholar] [CrossRef]
  14. Liu, Z.; Gong, Y.; Zhou, W.; Ma, L.; Yu, J.; Idrobo, J.C.; Jung, J.; MacDonald, A.H.; Vajtai, R.; Lou, J.; et al. Ultrathin high-temperature oxidation-resistant coatings of hexagonal boron nitride. Nat. Commun. 2013, 4, 2541. [Google Scholar] [CrossRef]
  15. Cornu, D.; Miele, P.; Toury, B.; Bonnetot, B.; Mongeot, H.; Bouix, J. Boron nitride matrices and coatings from boryl borazine molecular precursors. J. Mater. Chem. 1999, 9, 2605–2610. [Google Scholar] [CrossRef]
  16. Chen, X.; Gao, X.P.; Zhang, H.; Zhou, Z.; Hu, W.K.; Pan, G.L.; Zhu, H.Y.; Yan, T.Y.; Song, D.Y. Preparation and Electrochemical Hydrogen Storage of Boron Nitride Nanotubes. J. Phys. Chem. B 2005, 109, 11525–11529. [Google Scholar] [CrossRef]
  17. Ramasubramaniam, A.; Naveh, D.; Towe, E. Tunable Band Gaps in Bilayer Graphene−BN Heterostructures. Nano Lett. 2011, 11, 1070–1075. [Google Scholar] [CrossRef] [PubMed]
  18. Kharche, N.; Nayak, S.K. Quasiparticle Band Gap Engineering of Graphene and Graphone on Hexagonal Boron Nitride Substrate. Nano Lett. 2011, 11, 5274–5278. [Google Scholar] [CrossRef] [PubMed]
  19. Fan, Y.; Zhao, M.; Wang, Z.; Zhang, X.; Zhang, H. Tunable electronic structures of graphene/boron nitride heterobilayers. Appl. Phys. Lett. 2011, 98, 83103. [Google Scholar] [CrossRef]
  20. Kaloni, T.P.; Joshi, R.P.; Adhikari, N.P.; Schwingenschlögl, U. Band gap tunning in BN-doped graphene systems with high carrier mobility. Appl. Phys. Lett. 2014, 104, 73116. [Google Scholar] [CrossRef]
  21. Britnell, L.; Gorbachev, R.V.; Jalil, R.; Belle, B.D.; Schedin, F.; Mishchenko, A.; Georgiou, T.; Katsnelson, M.I.; Eaves, L.; Morozov, S.V.; et al. Field-Effect Tunneling Transistor Based on Vertical Graphene Heterostructures. Science 2012, 335, 947–950. [Google Scholar] [CrossRef] [PubMed]
  22. Chen, X.; Wu, Y.; Wu, Z.; Han, Y.; Xu, S.; Wang, L.; Ye, W.; Han, T.; He, Y.; Cai, Y.; et al. High-quality sandwiched black phosphorus heterostructure and its quantum oscillations. Nat. Commun. 2015, 6, 7315. [Google Scholar] [CrossRef] [PubMed]
  23. Das, S.; Gulotty, R.; Sumant, A.V.; Roelofs, A. All Two-Dimensional, Flexible, Transparent, and Thinnest Thin Film Transistor. Nano Lett. 2014, 14, 2861–2866. [Google Scholar] [CrossRef]
  24. Chan, M.Y.; Komatsu, K.; Li, S.-L.; Xu, Y.; Darmawan, P.; Kuramochi, H.; Nakaharai, S.; Aparecido-Ferreira, A.; Watanabe, K.; Taniguchi, T.; et al. Suppression of thermally activated carrier transport in atomically thin MoS2 on crystalline hexagonal boron nitride substrates. Nanoscale 2013, 5, 9572–9576. [Google Scholar] [CrossRef] [PubMed]
  25. Amorim, B.; Schiefele, J.; Sols, F.; Guinea, F. Coulomb drag in graphene--boron nitride heterostructures: Effect of virtual phonon exchange. Phys. Rev. B 2012, 86, 125448. [Google Scholar] [CrossRef]
  26. Wang, J.; Yao, Q.; Huang, C.-W.; Zou, X.; Liao, L.; Chen, S.; Fan, Z.; Zhang, K.; Wu, W.; Xiao, X.; et al. High Mobility MoS2 Transistor with Low Schottky Barrier Contact by Using Atomic Thick h-BN as a Tunneling Layer. Adv. Mater. 2016, 28, 8302–8308. [Google Scholar] [CrossRef]
  27. Gorbachev, R.V.; Riaz, I.; Nair, R.R.; Jalil, R.; Britnell, L.; Belle, B.D.; Hill, E.W.; Novoselov, K.S.; Watanabe, K.; Taniguchi, T.; et al. Hunting for Monolayer Boron Nitride: Optical and Raman Signatures. Small 2011, 7, 465–468. [Google Scholar] [CrossRef]
  28. Wang, Z.; Tang, Z.; Xue, Q.; Huang, Y.; Huang, Y.; Zhu, M.; Pei, Z.; Li, H.; Jiang, H.; Fu, C.; et al. Fabrication of Boron Nitride Nanosheets by Exfoliation. Chem. Rec. 2016, 16, 1204–1215. [Google Scholar] [CrossRef]
  29. Kulikovsky, V.Y.; Shaginyan, L.R.; Vereschaka, V.M.; Hatynenko, N.G. Preparation of thin hard boron nitride films by r.f. magnetron sputtering. Diam. Relat. Mater. 1995, 4, 113–119. [Google Scholar] [CrossRef]
  30. Sutter, P.; Lahiri, J.; Zahl, P.; Wang, B.; Sutter, E. Scalable Synthesis of Uniform Few-Layer Hexagonal Boron Nitride Dielectric Films. Nano Lett. 2013, 13, 276–281. [Google Scholar] [CrossRef]
  31. Velázquez, D.; Seibert, R.; Man, H.; Spentzouris, L.; Terry, J. Pulsed laser deposition of single layer, hexagonal boron nitride (white graphene, h-BN) on fiber-oriented Ag(111)/SrTiO3(001). J. Appl. Phys. 2016, 119, 95306. [Google Scholar] [CrossRef]
  32. Glavin, N.R.; Jespersen, M.L.; Check, M.H.; Hu, J.; Hilton, A.M.; Fisher, T.S.; Voevodin, A.A. Synthesis of few-layer, large area hexagonal-boron nitride by pulsed laser deposition. Thin Solid Film. 2014, 572, 245–250. [Google Scholar] [CrossRef]
  33. Hao, W.; Marichy, C.; Journet, C.; Brioude, A. A Novel Two-Step Ammonia-Free Atomic Layer Deposition Approach for Boron Nitride. ChemNanoMat 2017, 3, 656–663. [Google Scholar] [CrossRef]
  34. Sprenger, J.K.; Sun, H.; Cavanagh, A.S.; Roshko, A.; Blanchard, P.T.; George, S.M. Electron-Enhanced Atomic Layer Deposition of Boron Nitride Thin Films at Room Temperature and 100 °C. J. Phys. Chem. C 2018, 122, 9455–9464. [Google Scholar] [CrossRef]
  35. Mårlid, B.; Ottosson, M.; Pettersson, U.; Larsson, K.; Carlsson, J.-O. Atomic layer deposition of BN thin films. Thin Solid Film. 2002, 402, 167–171. [Google Scholar] [CrossRef]
  36. Kim, K.K.; Hsu, A.; Jia, X.; Kim, S.M.; Shi, Y.; Hofmann, M.; Nezich, D.; Rodriguez-Nieva, J.F.; Dresselhaus, M.; Palacios, T.; et al. Synthesis of Monolayer Hexagonal Boron Nitride on Cu Foil Using Chemical Vapor Deposition. Nano Lett. 2012, 12, 161–166. [Google Scholar] [CrossRef]
  37. Singh, R.; Kalita, G.; Mahyavanshi, R.D.; Adhikari, S.; Uchida, H.; Tanemura, M.; Umeno, M.; Kawahara, T. Low temperature wafer-scale synthesis of hexagonal boron nitride by microwave assisted surface wave plasma chemical vapour deposition. Aip Adv. 2019, 9, 35043. [Google Scholar] [CrossRef]
  38. Yuan, S.; Toury, B.; Journet, C.; Brioude, A. Synthesis of hexagonal boron nitride graphene-like few layers. Nanoscale 2014, 6, 7838–7841. [Google Scholar] [CrossRef]
  39. Termoss, H.; Toury, B.; Brioude, A.; Dazord, J.; Le Brusq, J.; Miele, P. High purity boron nitride thin films prepared by the PDCs route. Surf. Coat. Technol. 2007, 201, 7822–7828. [Google Scholar] [CrossRef]
  40. Yuan, S.; Toury, B.; Benayoun, S.; Chiriac, R.; Gombault, F.; Journet, C.; Brioude, A. Low-Temperature Synthesis of Highly Crystallized Hexagonal Boron Nitride Sheets with Li3N as Additive Agent. Eur. J. Inorg. Chem. 2014, 2014, 5507–5513. [Google Scholar] [CrossRef]
  41. Feigelson, B.N.; Frazier, R.M.; Twigg, M. III-Nitride crystal growth from nitride-salt solution. J. Cryst. Growth 2007, 305, 399–402. [Google Scholar] [CrossRef]
  42. Wideman, T.; Sneddon, L.G. Convenient Procedures for the Laboratory Preparation of Borazine. Inorg. Chem. 1995, 34, 1002–1003. [Google Scholar] [CrossRef]
  43. Bernard, S.; Miele, P. Polymer-derived boron nitride: A review on the chemistry, shaping and ceramic conversion of borazine derivatives. Materials 2014, 7, 7436–7459. [Google Scholar] [CrossRef]
  44. Gervais, C.; Maquet, J.; Babonneau, F.; Duriez, C.; Framery, E.; Vaultier, M.; Florian, P.; Massiot, D. Chemically Derived BN Ceramics: Extensive 11B and 15N Solid-State NMR Study of a Preceramic Polyborazilene. Chem. Mater. 2001, 13, 1700–1707. [Google Scholar] [CrossRef]
  45. Auwärter, W. Hexagonal boron nitride monolayers on metal supports: Versatile templates for atoms, molecules and nanostructures. Surf. Sci. Rep. 2019, 74, 1–95. [Google Scholar] [CrossRef]
  46. Zhang, N.; Liu, H.; Kan, H.; Wang, X.; Long, H.; Zhou, Y. The Influence of Surface-Active Agent on the Micro-Morphology and Crystallinity of Spherical Hexagonal Boron Nitride. J. Nanosci. Nanotechnol. 2015, 15, 6218–6224. [Google Scholar] [CrossRef]
  47. Xue, Y.; Elsanousi, A.; Fan, Y.; Lin, J.; Li, J.; Xu, X.; Lu, Y.; Zhang, L.; Zhang, T.; Tang, C. N,N-Dimethyl formamide facilitated formation of hexagonal boron nitride from boric acid. Solid State Sci. 2013, 24, 1–5. [Google Scholar] [CrossRef]
  48. Balint, M.G.; Petrescu, M.I. An attempt to identify the presence of polytype stacking faults in hBN powders by means of X-ray diffraction. Diam. Relat. Mater. 2009, 18, 1157–1162. [Google Scholar] [CrossRef]
  49. Nistor, L.; Teodorescu, V.; Ghica, C.; Van Landuyt, J.; Dinca, G.; Georgeoni, P. The influence of the h-BN morphology and structure on the c-BN growth. Diam. Relat. Mater. 2001, 10, 1352–1356. [Google Scholar] [CrossRef]
  50. Thomas, J., Jr.; Weston, N.E.; O’connor, T.E. Turbostratic1 Boron Nitride, Thermal Transformation to Ordered-layer-lattice Boron Nitride. J. Am. Chem. Soc. 1962, 84, 4619–4622. [Google Scholar] [CrossRef]
  51. Watanabe, M.O.; Itoh, S.; Mizushima, K.; Sasaki, T. Bonding characterization of BC2N thin films. Appl. Phys. Lett. 1996, 68, 2962–2964. [Google Scholar] [CrossRef]
  52. Matsoso, B.J.; Ranganathan, K.; Mutuma, B.K.; Lerotholi, T.; Jones, G.; Coville, N.J. Single-step synthesis of crystalline h-BN quantum- and nanodots embedded in boron carbon nitride films. Nanotechnology 2017, 28. [Google Scholar] [CrossRef] [PubMed]
  53. Ci, L.; Song, L.; Jin, C.; Jariwala, D.; Wu, D.; Li, Y.; Srivastava, A.; Wang, Z.F.; Storr, K.; Balicas, L.; et al. Atomic layers of hybridized boron nitride and graphene domains. Nat. Mater. 2010, 9, 430. [Google Scholar] [CrossRef] [PubMed]
  54. Derre, A.; Filipozzi, L.; Peron, F. High temperature behaviour and oxidation resistance of carbon-boron-nitrogen compounds obtained by LPCVD. J. Phys. Iv Fr. 1993, 3, C3-195–C3-202. [Google Scholar] [CrossRef]
  55. Nicholls, R.J.; Aslam, Z.; Sarahan, M.C.; Koós, A.; Yates, J.R.; Nellist, P.D.; Grobert, N. Boron-Mediated Nanotube Morphologies. Acs Nano 2012, 6, 7800–7805. [Google Scholar] [CrossRef]
  56. Kang, Y.; Chu, Z.; Zhang, D.; Li, G.; Jiang, Z.; Cheng, H.; Li, X. Incorporate boron and nitrogen into graphene to make BCN hybrid nanosheets with enhanced microwave absorbing properties. Carbon 2013, 61, 200–208. [Google Scholar] [CrossRef]
  57. Golberg, D.; Bando, Y.; Han, W.; Kurashima, K.; Sato, T. Single-walled B-doped carbon, B/N-doped carbon and BN nanotubes synthesized from single-walled carbon nanotubes through a substitution reaction. Chem. Phys. Lett. 1999, 308, 337–342. [Google Scholar] [CrossRef]
  58. Ozturk, B.; de-Luna-Bugallo, A.; Panaitescu, E.; Chiaramonti, A.N.; Liu, F.; Vargas, A.; Jiang, X.; Kharche, N.; Yavuzcetin, O.; Alnaji, M.; et al. Atomically thin layers of B–N–C–O with tunable composition. Sci. Adv. 2015, 1, e1500094. [Google Scholar] [CrossRef]
  59. Kuznetsov, A.Y.; Kruzhalov, A.V.; Ogorodnikov, I.N.; Sobolev, A.B.; Isaenko, L.I. Electronic structure of lithium tetraborate Li2B4O7 crystals. Cluster calculations and x-ray photoelectron spectroscopy. Phys. Solid State 1999, 41, 48–50. [Google Scholar] [CrossRef]
  60. Singh, L.; Chopra, V.; Lochab, S.P. Synthesis and characterization of thermoluminescent Li2B4O7 nanophosphor. J. Lumin. 2011, 131, 1177–1183. [Google Scholar] [CrossRef]
  61. Siriwardane, R.V.; Poston, J.A.; Fisher, E.P.; Lee, T.H.; Dorris, S.E.; Balachandran, U. Characterization of ceramic-metal composite hydrogen separation membranes consisting of barium oxide, cerium oxide, yttrium oxide and palladium. Appl. Surf. Sci. 2003, 217, 43–49. [Google Scholar] [CrossRef]
  62. Verhoeven, J.A.T.; van Doveren, H. XPS studies on Ba, BaO and the oxidation of Ba. Appl. Surf. Sci. 1980, 5, 361–373. [Google Scholar] [CrossRef]
  63. Ali, S.; Aguas, M.D.; Hector, A.L.; Henshaw, G.; Parkin, I.P. Solid state metathesis routes to metal nitrides; use of strontium and barium nitrides as reagents and dilution effects. Polyhedron 1997, 16, 3635–3640. [Google Scholar] [CrossRef]
  64. Golberg, D.; Bando, Y.; Huang, Y.; Terao, T.; Mitome, M.; Tang, C.; Zhi, C. Boron Nitride Nanotubes and Nanosheets. Acs Nano 2010, 4, 2979–2993. [Google Scholar] [CrossRef] [PubMed]
  65. Arenal, R.; Ferrari, A.C.; Reich, S.; Wirtz, L.; Mevellec, J.-Y.; Lefrant, S.; Rubio, A.; Loiseau, A. Raman spectroscopy of single-wall boron nitride nanotubes. Nano Lett. 2006, 6, 1812–1816. [Google Scholar] [CrossRef] [PubMed]
  66. Stenger, I.; Schué, L.; Boukhicha, M.; Berini, B.; Plaçais, B.; Loiseau, A.; Barjon, J. Low frequency Raman spectroscopy of few-atomic-layer thick hBN crystals. 2d Mater. 2017, 4, 31003. [Google Scholar] [CrossRef]
  67. Nemanich, R.J.; Solin, S.A.; Martin, R.M. Light scattering study of boron nitride microcrystals. Phys. Rev. B 1981, 23, 6348–6356. [Google Scholar] [CrossRef]
  68. Djouadi, M.A.; Ilias, S.; Bouchier, D.; Pascallon, J.; Sené, G.; Stambouli, V. Quantitative interpretation of infrared absorption bands from hexagonal, cubic and mixed boron nitride films. Diam. Relat. Mater. 1998, 7, 1657–1662. [Google Scholar] [CrossRef]
  69. Gielisse, P.J.; Mitra, S.S.; Plendl, J.N.; Griffis, R.D.; Mansur, L.C.; Marshall, R.; Pascoe, E.A. Lattice infrared spectra of boron nitride and boron monophosphide. Phys. Rev. 1967, 155, 1039–1046. [Google Scholar] [CrossRef]
  70. Geick, R.; Perry, C.H.; Rupprecht, G. Normal modes in hexagonal boron nitride. Phys. Rev. 1966, 146, 543–547. [Google Scholar] [CrossRef]
  71. Matsuoka, M.; Langhi, M.P., Jr.; Isotani, S.; Chubaci, J.F.D. Fourier transform infrared spectroscopy analysis of thin boron nitride films prepared by ion beam assisted deposition. physica status solidi c 2014, 11, 509–512. [Google Scholar] [CrossRef]
  72. Rablen, P.R.; Hartwig, J.F. Accurate borane sequential bond dissociation energies by high-level ab initio computational methods. J. Am. Chem. Soc. 1996, 118, 4648–4653. [Google Scholar] [CrossRef]
  73. Darwent, B.D. National Standard Reference Data Series, National Bureau of Standards. J. Chem. Educ. Wash. Dc 1965, 42, 502. [Google Scholar]
  74. Luo, Y.R. Comprehensive handbook of chemical bond energies. Compr. Handb. Chem. Bond Energ. 2007, 1–1656. [Google Scholar]
  75. Németh, K. Ultrahigh energy density Li-ion batteries based on cathodes of 1D metals with -Li-N-B-N- repeating units in α-LixBN2 (1 ≤ x ≤ 3). J. Chem. Phys. 2014, 141, 1–7. [Google Scholar] [CrossRef]
  76. Sahni, K.; Ashuri, M.; Emani, S.; Kaduk, J.A.; Németh, K.; Shaw, L.L. On the synthesis of lithium boron nitride (Li3BN2). Ceram. Int. 2018, 44, 7734–7740. [Google Scholar] [CrossRef]
  77. Oda, K.; Aoki, K.; Inada, S.; Nagae, M.; Yoshio, T. Oxidation of boron nitride powder in wet oxygen. J. Ceram. Soc. Jpn. 2003, 111, 81–82. [Google Scholar] [CrossRef]
  78. Jacobson, N.; Farmer, S.; Moore, A.; Sayir, H. High-Temperature Oxidation of Boron Nitride: I, Monolithic Boron Nitride. J. Am. Ceram. Soc. 1999, 82, 393–398. [Google Scholar] [CrossRef]
  79. Lavrenko, V.A.; Alexeev, A.F. High-temperature oxidation of boron nitride. Ceram. Int. 1986, 12, 25–31. [Google Scholar] [CrossRef]
  80. Kostoglou, N.; Polychronopoulou, K.; Rebholz, C. Thermal and chemical stability of hexagonal boron nitride (h-BN) nanoplatelets. Vacuum 2015, 112, 42–45. [Google Scholar] [CrossRef]
  81. Xu, L.; Li, S.; Zhang, Y.; Zhai, Y. Synthesis, properties and applications of nanoscale nitrides, borides and carbides. Nanoscale 2012, 4, 4900–4915. [Google Scholar] [CrossRef] [PubMed]
  82. Scheer, M.D. The molecular weight and vapor pressure of gaseous boron suboxide. J. Phys. Chem. 1958, 62, 490–493. [Google Scholar] [CrossRef]
  83. Nguyen, M.T.; Matus, M.H.; Ngan, V.T.; Grant, D.J.; Dixon, D.A. Thermochemistry and Electronic Structure of Small Boron and Boron Oxide Clusters and Their Anions. J. Phys. Chem. A 2009, 113, 4895–4909. [Google Scholar] [CrossRef] [PubMed]
  84. Inghram, M.G.; Porter, R.F.; Chupka, W.A. Mass Spectrometric Study of Gaseous Species in the B–B2O3 System. J. Chem. Phys. 1956, 25, 498–501. [Google Scholar] [CrossRef]
  85. Sing, K.S.W.; Everet, D.H.; Haul, R.A.W. Provisional international union of pure and applied chemistry commission on colloid and surface chemistry subcommittee on reporting gas adsorption data * reporting physisorption data for gas / solid systems with Special Reference to the Determination of S. Pure Appl. Chem. 1985, 57, 603–619. [Google Scholar] [CrossRef]
  86. Gregg, S.J.; Sing, K.S.W.; Salzberg, H.W. Adsorption Surface Area and Porosity. J. Electrochem. Soc. 1967, 114, 279C. [Google Scholar] [CrossRef]
  87. Pakdel, A.; Zhi, C.; Bando, Y.; Nakayama, T.; Golberg, D. A comprehensive analysis of the CVD growth of boron nitride nanotubes. Nanotechnology 2012, 23, 215601. [Google Scholar] [CrossRef]
  88. Şen, Ö.; Emanet, M.; Çulha, M. One-Step Synthesis of Hexagonal Boron Nitrides, Their Crystallinity and Biodegradation. Front. Bioeng. Biotechnol. 2018, 6, 83. [Google Scholar] [CrossRef]
Nanomaterials 10 00443 g001

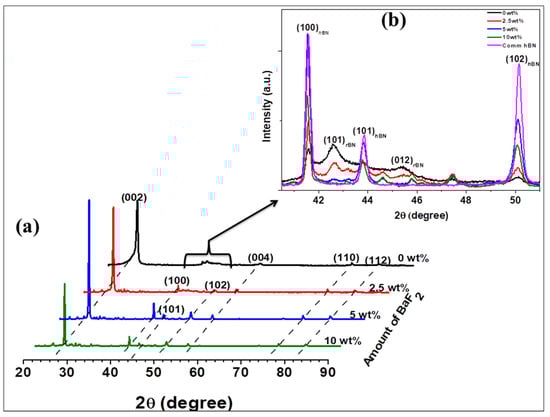

Figure 1. (a,b) XRD patterns for BNNS samples annealed at 1200 °C after the addition of 5 wt% Li3N together with 0–10 wt% of BaF2.
Figure 1. (a,b) XRD patterns for BNNS samples annealed at 1200 °C after the addition of 5 wt% Li3N together with 0–10 wt% of BaF2.
Nanomaterials 10 00443 g001
Nanomaterials 10 00443 g002

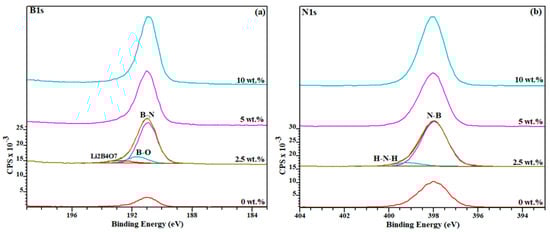

Figure 2. High-resolution XPS spectra showing a deconvoluted peak of (a) B1s, and (b) N1s for all hBN nanosheet samples after the addition of 0–10 wt% of BaF2.
Figure 2. High-resolution XPS spectra showing a deconvoluted peak of (a) B1s, and (b) N1s for all hBN nanosheet samples after the addition of 0–10 wt% of BaF2.
Nanomaterials 10 00443 g002
Nanomaterials 10 00443 g003

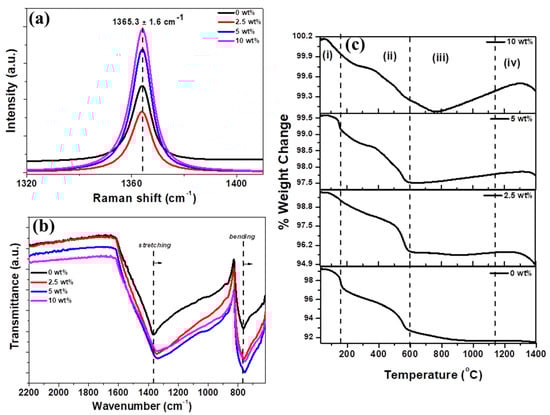

Figure 3. (a) Raman spectra, (b) FTIR spectra, and (c) TGA profiles for BNNS samples annealed at 1200 °C after the addition of 5 wt% Li3N and 0–10 wt% BaF2.
Figure 3. (a) Raman spectra, (b) FTIR spectra, and (c) TGA profiles for BNNS samples annealed at 1200 °C after the addition of 5 wt% Li3N and 0–10 wt% BaF2.
Nanomaterials 10 00443 g003
Nanomaterials 10 00443 sch001

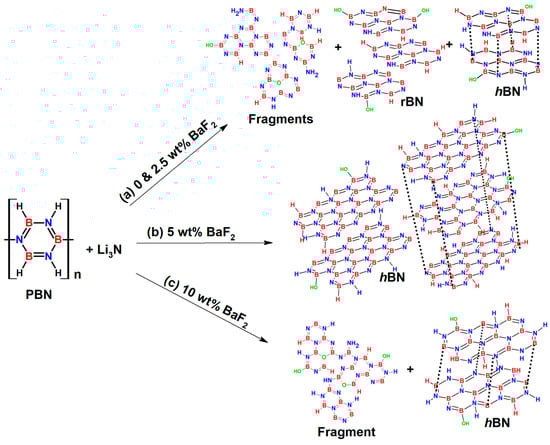

Scheme 1. Summary of growth mechanism for BNNS samples annealed at 1200 °C after the addition of 5 wt.% Li3N and (a) 0-2.5 wt.%, (b) 5 wt.%, (c) 10 wt.% of BaF2.
Scheme 1. Summary of growth mechanism for BNNS samples annealed at 1200 °C after the addition of 5 wt.% Li3N and (a) 0-2.5 wt.%, (b) 5 wt.%, (c) 10 wt.% of BaF2.
Nanomaterials 10 00443 sch001
Nanomaterials 10 00443 g004

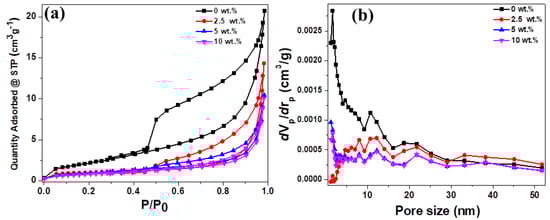

Figure 4. (a) N2 adsorption/desorption isotherms and (b) pore-size distribution plots for the as-synthesized hBN samples annealed at 1200 °C after addition of 0–10 wt.% of BaF2.
Figure 4. (a) N2 adsorption/desorption isotherms and (b) pore-size distribution plots for the as-synthesized hBN samples annealed at 1200 °C after addition of 0–10 wt.% of BaF2.
Nanomaterials 10 00443 g004
Nanomaterials 10 00443 g005

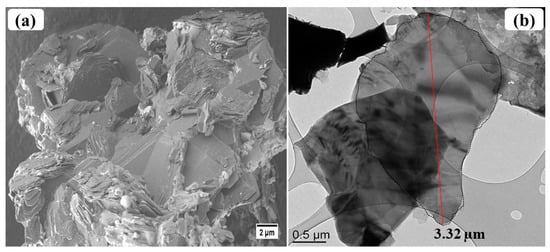

Figure 5. (a) SEM and (b) TEM micrographs of as-synthesized BNNS materials annealed at 1200 °C after the addition of 5 wt.% BaF2.
Figure 5. (a) SEM and (b) TEM micrographs of as-synthesized BNNS materials annealed at 1200 °C after the addition of 5 wt.% BaF2.
Nanomaterials 10 00443 g005
Table 1. XRD parameters of hBN nanosheets in comparison to the commercial hBN.
Table 1. XRD parameters of hBN nanosheets in comparison to the commercial hBN.
Amount of BaF2 (wt%)Graphitization Index (GI)d002-spacing (Å)Position (2θ)
(002)(100)(101)
0 -3.3226.5--
2.5-3.3426.6--
5 3.833.3326.741.5743.83
10 1.883.3426.841.5643.81
hBNcomm1.193.3326.741.6043.83
Table 2. Atomic compositions of bulk samples of hBN nanosheets.
Table 2. Atomic compositions of bulk samples of hBN nanosheets.
Elements (at%)B/N Ratio
Amount of BaF2 (wt%)BNOLiBa
0 50.331.113.84.8-1.62
2.552.331.99.95.30.51.64
5 56.936.35.81.0-1.57
10 57.338.13.40.90.21.50

Share and Cite

MDPI and ACS Style

Matsoso, B.J.; Vuillet-a-Ciles, V.; Bois, L.; Toury, B.; Journet, C. Improving Formation Conditions and Properties of hBN Nanosheets Through BaF2-assisted Polymer Derived Ceramics (PDCs) Technique. Nanomaterials 2020, 10, 443. https://doi.org/10.3390/nano10030443

AMA Style

Matsoso BJ, Vuillet-a-Ciles V, Bois L, Toury B, Journet C. Improving Formation Conditions and Properties of hBN Nanosheets Through BaF2-assisted Polymer Derived Ceramics (PDCs) Technique. Nanomaterials. 2020; 10(3):443. https://doi.org/10.3390/nano10030443

Chicago/Turabian Style

Matsoso, Boitumelo J., Victor Vuillet-a-Ciles, Laurence Bois, Bérangère Toury, and Catherine Journet. 2020. "Improving Formation Conditions and Properties of hBN Nanosheets Through BaF2-assisted Polymer Derived Ceramics (PDCs) Technique" Nanomaterials 10, no. 3: 443. https://doi.org/10.3390/nano10030443

APA Style

Matsoso, B. J., Vuillet-a-Ciles, V., Bois, L., Toury, B., & Journet, C. (2020). Improving Formation Conditions and Properties of hBN Nanosheets Through BaF2-assisted Polymer Derived Ceramics (PDCs) Technique. Nanomaterials, 10(3), 443. https://doi.org/10.3390/nano10030443

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
