# How Sensitive Is the Elasticity of Hydroxyapatite-Nanoparticle-Reinforced Chitosan Composite to Changes in Particle Concentration and Crystallization Temperature?

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

_{10}(PO

_{4})

_{6}(OH)

_{2}; HA) which occurs naturally in vertebrate tissues such as bones and teeth [1]. Thus, we can expect it to possess excellent biocompatibility, osteoconduction and osteointegration [2]. Additionally, we note that there are two key characteristics of HA which make it an ideal candidate for blending into and reinforcing the chitosan matrix for applications in tissue engineering [3,4,5]: (1) mechanical stability (when synthesized into the form of nanoparticles with size of 100 nm or less) [6,7] and (2) an affinity to biopolymers [8]. To this end, HA-reinforced chitosan composites in the form of fibres—especially with hierarchical architectures [9] synthesized for consistency with the natural hierarchy of biological tissues [10]—find potential applications in tissue engineering. These findings are well-reported in the literature. For instance, Bhattarai et al. [11] demonstrated that chitosan-based nanofibers with an average fiber diameter controllable from a few microns down to 40 nm and that a narrow size distribution could be fabricated by electrospinning. The nanofibers were deposited as a nonwoven mat or as an aligned bundle of controllable size; in either case, the nanofibrous structure demonstrated the capacity to promote the attachment of human osteoblasts and chondrocytes and to maintain the characteristic cell morphology and viability [11]. Zhang et al. [12] found that HA/chitosan composite fibre could encourage the growth of cells residing on it; the population of cells increased by 43% (10 days) and 110% (15 days) in scaffolds made from electrospun HA/chitosan fibres. Lai et al. [13] demonstrated that the osteogenic differentiation of human mesenchyma stem cells (hMSCs) increased with HA concentration in an HA-reinforced chitosan fibrous scaffold. The study of Lai et al. [13] reveals that seeding hMSCs in an HA-reinforced chitosan fibrous scaffold has potential for bone regeneration, and such a scaffold may be used for bone tissue engineering.

## 2. Results

**Table 1.**The mechanical properties of the hydroxyapatite (HA)-reinforced chitosan fibres. A total of eight different combinations of crystallization temperature (two levels) and HA concentration (four levels) were explored. The values of the respective mechanical properties are shown as mean ± SEM for informational purposes (SEM: standard error of the mean).

Crystallization Temperature (°C) | HA Concentration (mass fraction) | No. of Specimens | Stiffness (MPa) | Strength (MPa) | Toughness (MPa) |
---|---|---|---|---|---|

40 | 0.05 | 8 | 2612.6 ± 131.7 | 34.2 ± 2.2 | 1.6 ± 0.3 |

40 | 0.10–0.15 | 16 | 1330.8 ± 87.9 | 19.7 ± 0.9 | 1.1 ± 0.2 |

40 | 0.20–0.30 | 16 | 1213.8 ± 48.3 | 16.9 ± 0.7 | 0.7 ± 0.1 |

40 | 0.40–0.60 | 8 | 1205.3 ± 199.0 | 20.1 ± 3.1 | 0.4 ± 0.1 |

100 | 0.05 | 8 | 1123.5 ± 100.3 | 19.2 ± 1.3 | 1.4 ± 0.2 |

100 | 0.10–0.15 | 8 | 970.1 ± 51.3 | 16.4 ± 0.9 | 0.6 ± 0.1 |

100 | 0.20–0.30 | 16 | 1384.8 ± 90.9 | 23.9 ± 1.9 | 0.7 ± 0.1 |

100 | 0.40–0.60 | 16 | 2899.5 ± 194.6 | 36.3 ± 2.4 | 1.5 ± 0.2 |

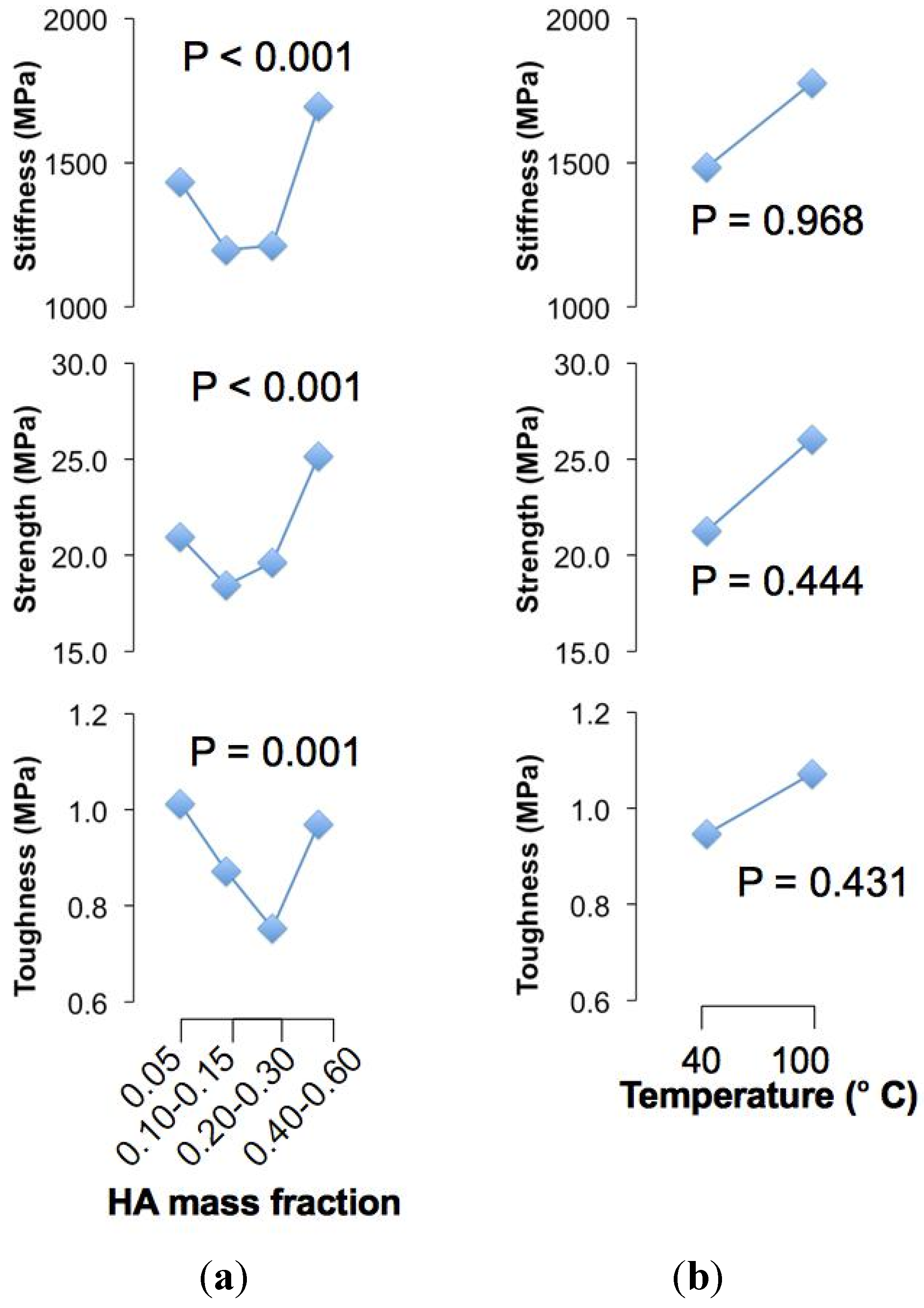

**Figure 1.**Main effect plots. (

**a**) Plot of the mean value of the respective mechanical properties (averaged over the values of the respective specimens for the different crystallization temperatures) versus hydroxyapatite (HA) concentration; (

**b**) Plot of the mean value of the respective mechanical properties (averaged over the values of the respective specimens for the different HA concentrations) versus crystallization temperature.

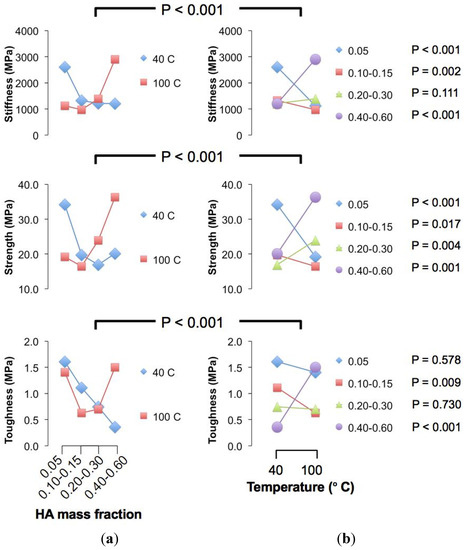

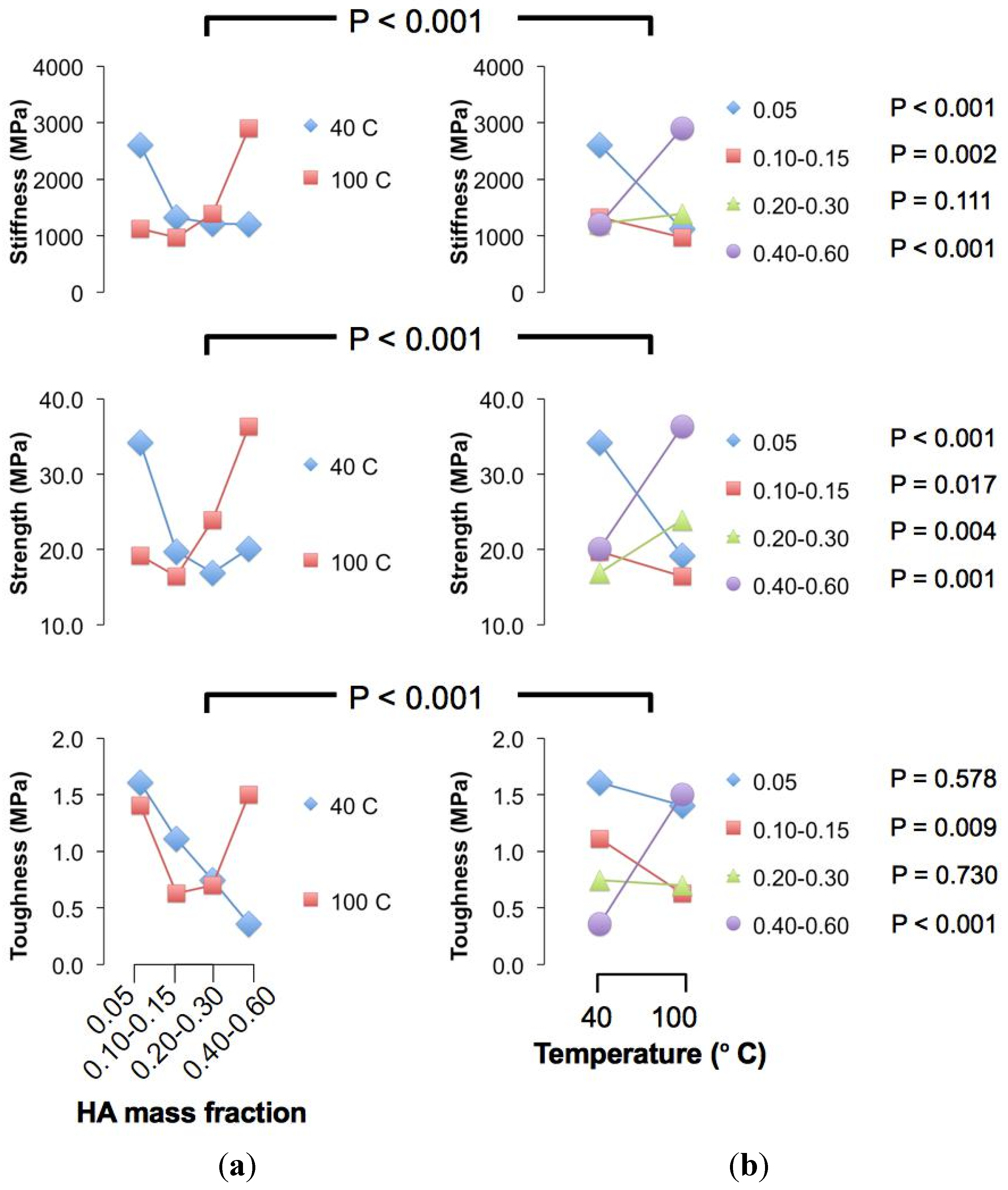

**Figure 2.**Interaction plots. (

**a**) Plot of the mean value of the respective mechanical properties (for each crystallization temperature) versus hydroxyapatite (HA) concentration; (

**b**) Plot of the mean value of the respective mechanical properties (calculated for each HA concentration) versus crystallization temperature. The P values for the overall interaction effects test are indicated above each row of graphs. In the right panel, the P values to the right of the legends are associated with respective HA concentration.

_{0}, of the chitosan fibre reinforced by HA nanoparticles. It is observed that β increases with increase in HA concentration, peaking at 0.10–0.15 (for both 40 °C and 100 °C levels). Thereafter, β decreases somewhat with an increase in HA concentration. With regards to the 40 °C crystallization temperature, σ

_{0}is high at low HA concentration (i.e., 0.05); σ

_{0}decreases when the HA concentration increases to 0.10–0.15 and fluctuates with further increase in HA concentration. With regard to the 100 °C crystallization temperature, while the σ

_{0}is high at a low particle concentration (i.e., 0.05), the magnitude decreases when the HA concentration increases to 0.10–0.15; thereafter, the σ

_{0}increases dramatically with increasing HA concentration. Figure 3 illustrates how these parameters influence the reliability of the fibres using a plot of the reliability function, R(σ), versus fracture stress in the fibre, σ, for all the levels of HA concentration and crystallization temperature considered in this study. Thus the form (parameterized by β) of the curves corresponding to 40 °C (0.10–0.15, 0.20–0.30, 0.40–0.60 HA concentration) levels and 100 °C (0.05, 0.10–0.15, 0.20–0.30 HA concentration) levels features a very narrow spreads of strength variability as compared to 40 °C (0.05 HA concentration) levels and 100 °C (0.40–0.60 HA concentration) levels. Correspondingly, the σ

_{0}for the 40 °C (0.05 HA concentration) and 100 °C (0.40–0.60 HA concentration) levels are dramatically larger than those associated with the other levels.

**Table 2.**Analysis of the Weibull modulus, β, and the characteristic strength, σ

_{0}, of chitosan fibres reinforced by hydroxyapatite (HA) nanoparticles.

Crystallization Temperature (°C) | HA Concentration (mass fraction) | β | σ_{0} (MPa) |
---|---|---|---|

40 | 0.05 | 5.6 | 36.9 |

40 | 0.10–0.15 | 6.3 | 21.2 |

40 | 0.20–0.30 | 6.1 | 18.2 |

40 | 0.40–0.60 | 2.6 | 23.0 |

100 | 0.05 | 5.3 | 20.8 |

100 | 0.10–0.15 | 6.6 | 17.6 |

100 | 0.20–0.30 | 3.2 | 26.8 |

100 | 0.40–0.60 | 3.9 | 40.1 |

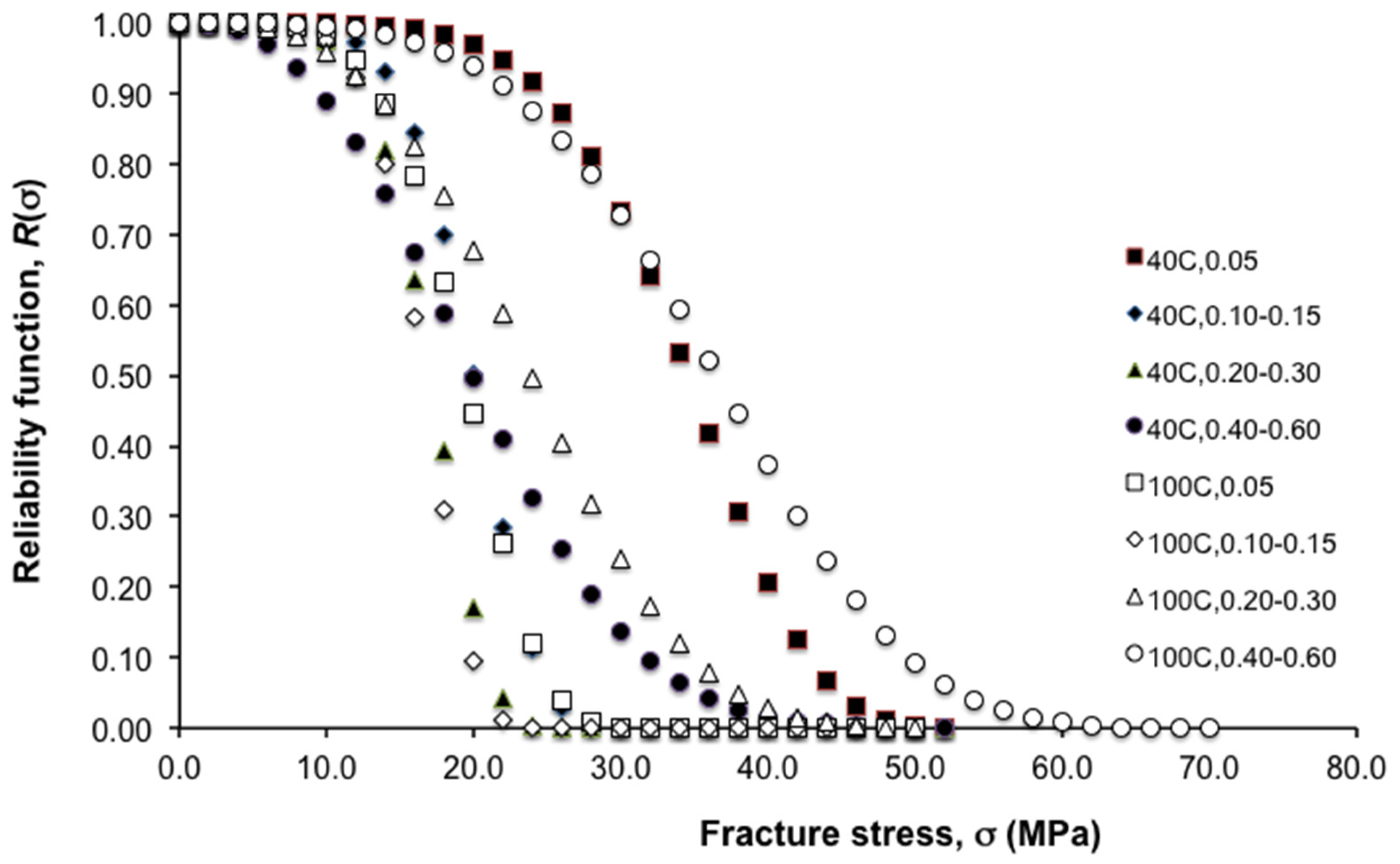

**Figure 3.**Plot of reliability function, R(σ), versus fracture stress in the fibre, σ, at varying hydroxyapatite (HA) concentrations and crystallization temperatures. Note: R(σ) = exp(−(σ/σ

_{0})

^{β}), where σ

_{0}and β are the characteristic strength and the Weibull modulus, respectively.

## 3. Discussion

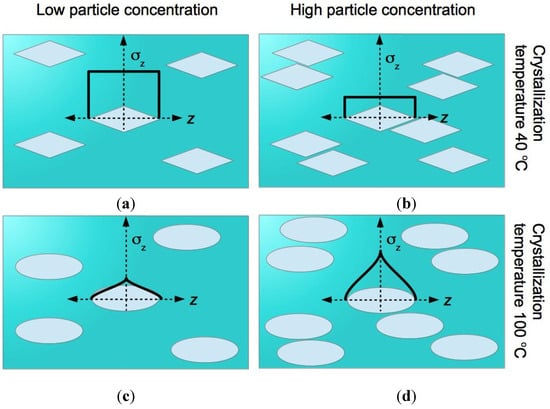

**Figure 4.**Schematic of HA-nanoparticle-reinforced chitosan composite fibre. (

**a**,

**c**) and (

**b**,

**d**) depict HA in the chitosan matrix at low and high concentrations, respectively; (

**a**,

**b**) and (

**c**,

**d**) depict HA particles corresponding to crystallization temperature at 40 and 100 °C, respectively. Overlaying one of the particles in each panel is a sketch of the graph of axial stress (σ

_{z}) in the particle versus distance (z) along the particle axis.

## 4. Experimental Methods

_{3}PO

_{4}to 250 mL of 0.2M Ca(OH)

_{2}. HA nanocrystals were precipitated at 40 °C and 100 °C respectively; the reaction in the medium was terminated at pH = 7.4. The white precipitates were collected after sedimentation. The chitosan solution (10 mL, 3% w/v) was prepared by stirring chitosan in acetic acid (1% w/v). A suspension (5 mL), containing precipitates of HA, was mixed with the chitosan solution (10 mL). With the help of a coagulant (NaOH 10% w/v) solution a predrawn wet spun fiber extrusion process [30] was used to extrude fibres from the chitosan-HA mixture (at a rate of 3.1 cm/min). At the exit, the fibres were collected into a coagulant solution (NaOH 10% w/v) and subsequently removed from the coagulant solution. The fibres possessed diameters ranging 174.1 to 240.3 μm. The fibres were sectioned to lengths of 150 mm; each test specimen was stretched to rupture using a tensile machine (E1000, Instron, Norwood, MA, USA) at a displacement rate of 0.04 mm/s.

_{0}]

^{β}). Here, β and σ

_{0}represent the Weibull modulus and the characteristic strength, respectively. In particular, β parameterizes the variability of σ; low β values correspond to high variability and vice versa. σ

_{0}is the stress value at which 63% of the fibres have fractured. In strength definition, we have the reliability function R(σ) = exp(−{σ/σ

_{0}}

^{β}) which refers to the proportion of the population of specimens sampled which will have a survived at fracture stress σ. To evalue β and σ

_{0}for the different treatment groups, we first determined the median rank position (MR, to order of magnitude, this is identified with R) for each experimentally derived value of σ. This was carried out by ranking the σ data in ascending magnitude. The corresponding estimates of MR was evaluated using the equation MR = {i − 0.3}{n + 0.4}

^{−1}, where n represents the size of the treatment group and i is the position of the corresponding σ. We then fitted straight lines to the Weibull plot of log(log(1/{1–MR(σ)})) versus log(σ) for each group. Here we note that the value of β was identified with the slope of the respective straight lines while the value of σ

_{0}was found by equating −βlog(σ

_{0}) to the y-intercept of the straight line.

## 5. Conclusions

- The mechanical properties of the chitosan composite fibre are sensitive to HA concentration and crystallization temperature;
- However, owing to interactions between the two factors, the changes in the mechanical properties due to varying HA concentration also depend on the crystallization temperature (and vice versa);
- There exists a critical HA concentration level at which the magnitude of the respective mechanical properties is a minimum.

## Acknowledgements

## Author Contributions

## Conflicts of Interest
