LP-Based Row Generation Using Optimization-Based Sorting Method for Solving Budget Allocation with a Combinatorial Number of Constraints

Abstract

A novel approach was developed that combined LP-based row generation with optimization-based sorting to tackle computational challenges posed by budget allocation problems with combinatorial constraints. The proposed approach dynamically generated constraints using row generation and prioritized them using optimization-based sorting to ensure a high-quality solution. Computational experiments and case studies revealed that as the problem size increased, the proposed approach outperformed simplex solutions in terms of solution search time. Specifically, for a problem with 50 projects (N = 50) and 2,251,799,813,685,250 constraints, the proposed approach found a solution in just 1.4 s, while LP failed due to the problem size. The proposed approach demonstrated enhanced computational efficiency and solution quality compared to traditional LP methods.

1. Introduction

Budget allocation problems, commonly referred to as capital budgeting problems, often involve many constraints [1]. These constraints typically consist of 2^N investment patterns, which further increase to 2 ✕ (2^N − 1) patterns when considering upper and lower bounds. Consequently, efficiently and effectively solving these problems becomes increasingly challenging, particularly when considering the total number of projects represented by N. Traditional optimization techniques may struggle to handle the combinatorial explosion of constraints, often resulting in time-consuming computations and no guarantee of optimal solutions within a reasonable timeframe [2]. However, recent advancements in linear programming-based row generation and optimization-based sorting methods offer promising solutions to address these challenges.

Linear programming (LP) provides a powerful framework for modeling and solving optimization problems with linear constraints. By formulating the budget allocation problem as an LP model, decision makers can systematically allocate resources to various activities while considering multiple objectives and constraints [3,4,5]. However, when faced with many combinatorial constraints, the traditional LP formulation may become computationally intractable.

An innovative approach combines linear programming-based row generation to overcome this challenge. Row generation involves iteratively generating new constraints (rows) added to the problem formulation, effectively expanding the solution space and refining the solution quality [6]. By iteratively adding constraints that are most relevant to the current solution, the row generation process enables efficient exploration of the combinatorial constraint space.

Furthermore, optimization-based sorting methods enhance the row-generation process by incorporating sorting algorithms tailored to the specific constraints and objectives of the budget allocation problem. This algorithm employs intelligent search strategies to efficiently discover the optimal solutions. With a focus on practical applications, the optimization-based sorting method has demonstrated the ability to generate optimal solutions within a reasonable timeframe [7,8].

The combination of linear programming-based row generation and optimization-based sorting methods offers a powerful approach to solving budget allocation problems with a combinatorial number of constraints. This integrated methodology allows decision makers to handle large-scale optimization problems, allocate resources efficiently, and identify optimal budget allocation strategies.

This study aims to explore and analyze the proposed method by investigating theoretical foundations, outlining the advantages and challenges of related techniques, and discussing practical implementation. Randomly generated structural problems are examined to illustrate the efficiency and potential of this approach in complex budget allocation scenarios. Extensive computational experiments and case studies demonstrate that our approach outperforms simplex solutions in solution search time as the problem size increases.

By leveraging the capabilities of linear programming-based row generation and optimization-based sorting, decision makers can make informed budget allocation decisions, optimize resource utilization, and achieve superior financial outcomes. The proposed methodology holds immense promise for organizations facing complex budget allocation challenges, enabling them to navigate the intricate landscape of constraints and make strategic resource allocation decisions. Further elaboration on our proposed approach can be found in Section 3, Section 4, Section 5, Section 6 and Section 7. Section 3 introduces problem structures and notations. Section 4 applies row generation to solve the budget allocation model. Section 5 demonstrates the application of sorting methods in the row-generation process. Section 6 proves the optimal solutions derived from sorting methods. Finally, Section 7 showcases the model’s application in solving budget allocation problems.

2. Literature Review

Budget allocation problems with combinatorial constraints are complex optimization models originating from the study by Weingartner [9], which has found applications in various fields such as resource allocation and project planning. Linear programming (LP) is a widely used technique to solve such problems efficiently. However, when dealing with a large number of constraints, the computational complexity of LP becomes time-consuming to solve. This literature review explores the application of the row-generation techniques to enhance the efficiency of solving budget allocation problems with combinatorial constraints using sorting methods.

Row generation, a sub-technique within Benders decomposition, is a powerful approach initially proposed by Unger [10,11], which offers an application for solving large-scale LP problems in budget allocation. It focuses on generating a subset of constraints, known as “rows”, dynamically during the optimization process. Hummeltenberg [12], Zak [13], Muter et al. [14], Muter and Sezer [15] and Witthayapraphakorn et al. [16] consistently highlight the advantages of employing a row generation algorithm that incorporates a warm-start strategy and an approximation scheme, surpassing the performance of linear programming, particularly in scenarios involving a substantial number of constraints. These compelling findings affirm the efficacy of row-generation technique as an effective approach for addressing linear programming problems characterized by a comprehensive set of constraints. According to the literature reviews over the past decade, a limited number of studies have investigated the application of row-generating techniques in the context of budget allocation problems; however, notable research by Fard et al. [17] has contributed to this area. Their study presents a model employing the bender decomposition method for budgeting purposes within international humanitarian organizations and provides analytical insights into the optimal solution. Additional scholarly studies employ the row generation method to allocate various types of resources, such as energy [18] and location [19,20]. Although the row generation method accelerates solution discovery in large linear problems, its efficacy may diminish with an abundance of constraints, leading to slower solution times. Consequently, researchers are exploring additional methods, such as sorting techniques [21], to enhance the effectiveness of row generation in addressing very large-scale problems. However, there is no observed research integrating heuristics into row generation to address problem solving in large-scale linear programming problems, existing heuristics for solving LP problems with combinatorial constraints prioritize finding the best solution without guaranteeing optimization [22].

The possibility of utilizing effective heuristic methods to generate initial starting points in combinatorial optimization motivates the exploration of applying sorting techniques, specifically in budget allocation problems known for their exceptional efficiency in identifying feasible solutions [21]. Sorting is a technique that aims to prioritize constraints based on their potential impact on the solution quality. This approach involves assigning weights or scores to constraints and ordering them in a way that maximizes the likelihood of finding a feasible solution quickly. Sorting has been successfully employed in various allocation problems. For example, Song and Mu [23] propose a heuristic algorithm based on assignment to solve the sequence sorting problem of large-scale automated storage requests in multiple input/output (multi-I/O) depots. The proposed algorithm considers equivalent merging and minimum cost merging methods of subloops to eliminate subloops that emerged in the sorting process. Their proposed algorithm offers a solution to optimize the sequence of storage requests in multi-I/O depots, which can improve efficiency and cost-effectiveness in practice. Weiner et al. [24] provide valuable insights into the utilization of sorting in subproblems optimization and highlight its potential for solving large-scale mixed-integer programs (MIPs). Specifically, their research demonstrates the effective utilization of machine learning (ML) for ranking constraint relaxations of MIPs. Their proposed method outperforms existing heuristic and ML-based methods in terms of solution quality and computational time. The authors suggest that their approach has the potential to be applied to other optimization problems beyond MIPs.

The feasibility of using row generation methods (i.e., Benders decomposition) is hindered by the complexity of combinatorial constraints and the limited time availability for solution generation. Consequently, the utilization of sorting techniques is motivated by the intricate nature of combinatorial constraints while also taking into account the potential implementation of row-generation methods within the available computational time and the problem size to be solved. The current literature on budget allocation problems lacks evidence supporting the effectiveness of combining heuristics and LP approaches (i.e., integer programming, Benders decomposition, and row generation) in achieving optimal solutions. Moreover, studies in related fields, like location allocation and network allocation, provide insights into the comparative speed of solution discovery using mixed methods. Fischetti et al. [25] demonstrate the practical effectiveness and straightforward implementation of their proposed approach, which applies Benders decomposition to solve the facility allocation master problem with non-separable subproblems. By employing a simple sorting application on Benders cut, their study showcases the successful application of generalized Benders cuts for convex problems. Furthermore, numerous studies have explored alternative heuristics beyond sorting to identify optimal solutions in combination with the Benders decomposition method. For example, Maher [26] reveals how large neighborhood search heuristics can enhance Benders decomposition algorithms and improve mixed-integer programming solvers. Costa and Gendron [27], Maheo et al. [28], and Oliveira et al. [29] employ heuristic techniques, such as branch-and-cut, local search, Pareto-optimal cuts, and multiple cuts, to generate additional cuts when solving the master problem through Benders decomposition. Their respective studies focus on fixed-charge network design [27], bin allocation for waste management [28], and multiple allocation hub network design [29].

The review provides a comprehensive overview of the evolution in budget allocation or capital budgeting research, transitioning from traditional linear programming and row generation to the utilization of diverse heuristic approaches, specifically focusing on the utilization of sorting algorithms. Our main contribution to this study is represented in the implementation of linear programming-based row generation using optimization-based sorting methods for budget allocation problems. The study compares the efficiency of solution-finding, measured in terms of time, by employing linear programming, the row generation method, and a hybrid approach combining row generation and sorting. Through computational experiments and case studies, we have demonstrated the advantages of this combined approach and proved whether employing sorting methods will yield equivalent results with binary programming or integer programming techniques, particularly when compared to the conventional row generation method and linear programming.

3. Problem Structures and Notations

The problem structure of budget allocation involves determining how available budget resources should be allocated among different projects within an organization or government entity, considering factors such as maximizing profits and constraint-based resource limitations. When making investment decisions for each project, there are two options: invest or not invest. This results in a total of 2^N possible patterns, considering all projects N. Furthermore, when considering budget allocation within the investment boundaries as lower and upper bounds, there are a total of 2 ✕ (2^N − 1) combinatorial constraints to be considered. Efficiently solving large problems involves employing the principle of row generations while considering maximum and minimum total investments for project groups. Furthermore, utilizing the sorting method to rank constraints enhances problem-solving efficiency through row generation.

The proposed approach for budget allocation, following the structure described by Sangkhasuk et al. [30], can be stated as:

• The objective is to maximize the overall benefits obtained from allocating budget resources among the different projects.
• Each project receives a budget allocation proportional to its potential benefits, with allocations not exceeding 1.
• The total budget allocation across all projects is limited to a maximum of 1.
• Combinatorial constraints consist of 2 ✕ (2^N − 1) constraints, where N represents the number of projects.
• Each investment pattern has a lower and upper boundary of each constraint that is proportional to the amount of investment. For instance, if there are five projects, an investment pattern must allocate between 0.1 and 0.8 of the investment, resulting in N − 1 boundary values.

The notations in order to formulate the above model are as follows:

Z—Objective function, which aims to maximize investment benefits.

c_j—Benefits obtained from investment project j based on the allocated funds.

x_j—Decision variable, which is the proportion of investment in project j.

a_ij—Allocated investment pattern i in project j (j = 1, 2, …, N) among 2 to N − 1 projects, denoted by a_ij = 1 or 0.

N—Total number of projects.

U_k—Upper bound constraint set on the proportion of investment in k projects.

L_k—Lower bound constraint set on the proportion of investment in k projects.

u_k—Proportional investment for a total number of allocated investment projects used to create the upper bound constraint of investment in Equation (2), where u_k < u_k+1 and 0 < u_k < 1.

l_k—Proportional investment for a total number of allocated investment projects used to create the lower bound constraint of investment in Equation (3), where l_k < u_k and l_k < l_k+1 and 0 < l_k < 1.

Low_j—Lower bound of x_j

Up_j—Upper bound of x_j

The mathematical model (1)–(5) is used for budget allocation problems as follows:

$$\mathrm{Max} Z={\displaystyle \sum _{j=1}^N{c}_j{x}_j}$$

(1)

subject to

$${\displaystyle \sum _{j=1}^N{a}_{ij}{x}_j}\le U_k, i=1,2,\dots ,2^N-N-1$$

(2)

$${\displaystyle \sum _{j=1}^N{a}_{ij}{x}_j}\ge L_k, i=1,2,\dots ,2^N-N-1$$

(3)

$${\displaystyle \sum _{j=1}^N{x}_j\le 1}$$

(4)

$$Lo{w}_j\le x_j\le U{p}_j$$

(5)

where the values of $U_k$ and $L_k$ are related to the total number of allocated investment projects k.

The objective function (1) is formulated to optimize investment profits. The upper ($U_k$) bound (2) and lower ($L_k$) bound (3) serve to establish boundaries for the investment pattern. In this particular context, binary sequences are employed to conveniently represent investment patterns, with 1 indicating funding and 0 denoting a lack of funding (e.g., 1 1 0 0 0 or 1 0 1 0 0 for five projects). Constraint (4) ensures cumulative investment proportions for funded projects do not exceed 1, maintaining the total investment within available budgets. Additionally, constraint (5) imposes a restriction on the investment proportion, confining it within the range of 0 to 1.

Table 1. Relationship between U_k and L_k with the total number of allocated investment projects.

${\displaystyle \sum _{\mathit{j}=1}^{\mathit{N}}{\mathit{a}}_{\mathit{i}\mathit{j}}}$	Uk	Lk
2	u2	l2
$⋮$	$⋮$	$⋮$
k	uk	lk
$⋮$	$⋮$	$⋮$
N − 1	uN − 1	lN − 1

presents the values of variables $u_k$ and $l_k$ in constraints (2) and (3), respectively, which are dependent on the total number of allocated investment projects.

4. Row Generation Applied to Solving Budget Allocation Model

The utilization of the row generation method in the context of the budget allocation problem encompasses three distinctive sub-models, which consist of:

• Mathematical model for relaxed budget allocation;
• Row generation applied to the upper bound model;
• Row generation applied to the lower bound model.

4.1. Sub-Model 1: Mathematical Model for Relaxed Budget Allocation

Introduce relaxations to account for flexibility in the budget allocation process. Relaxations allow for partial allocations or fractional allocations of the budget. Instead of using binary variables, we may allow fractional values for decision variables. This enables allocating a portion of the budget to multiple alternatives, allowing for more fine-grained resource allocation. The mathematical model for relaxed investment allocation incorporates the objective function (1) and constraints (4) and (5), with constraints (2) and (3) substituted by constraints (6) and (7), respectively,

$${\displaystyle \sum _{j=1}^N{a}_{rj}^U{x}_j}\le U_k, r=1,2,\dots ,R,$$

(6)

$${\displaystyle \sum _{j=1}^N{a}_{rj}^L{x}_j}\ge L_k, r=1,2,\dots ,R,$$

(7)

where the $a_{rj}^U$ and $a_{rj}^L$ represent the upper and lower bounds of investment in project j for round r of solution finding, the initial solution is obtained by utilizing the objective function (1), and constraints (4) and (5) during the first round (r = 0). Subsequently, constraints (6) and (7) are incrementally added in each subsequent round until the most feasible and optimal solution is achieved at round R, where $R\le 2^N-1$.

4.2. Sub-Model 2: Row Generation Applied to the Upper Bound Constraint

By iteratively generating new constraints, row generation refines the mathematical model and progressively narrows down the feasible solution space. The lower bound is gradually improved by finding better feasible solutions at each iteration, while the upper bound is tightened by adding new constraints to the model. This process continues until the optimal solution is obtained or until the termination criterion is satisfied. Specifically, in the case of row generation for the upper bound model, the mathematical model can be expressed as follows:

$$\mathrm{Max} T_k^U={\displaystyle \sum _{j=1}^N{a}_{jk}^{*U}{x}_j^{*r-1}}-U_k,$$

(8)

subject to

$${\displaystyle \sum _{j=1}^N{a}_{jk}^{*U}}=k,$$

(9)

$$a_{jk}^{*U}=\{0,1\},$$

(10)

$$k=2,\dots ,N-1,$$

(11)

where $T_k^U$ is the target value, in an unconventional form, represents the objective of finding an investment pattern that violates the upper limit constraint under k investment projects, $a_{jk}^{*U}$ is the decision variable for investing in project j in case of allocating k investment projects that violates the highest upper limit constraint, $x_j^{*r-1}$ is a constant obtained from finding the value of $x_j$ in the mathematical model for capital budgeting under relaxed conditions in the previous round r − 1, and k is the sum of the number of investment projects, with a value ranging from 1 to N − 1.

The model described in (8)–(11) is utilized to generate constraints (6) in round r. The objective function (8) aims to identify an investment pattern that surpasses the upper limit constraint the most among k investment projects. Constraint (9) outlines the requirement for investing in k investment projects. Constraint (10) determines the decision of investing or not in project j, given the allocation of k investment projects. Constraint (11) ensures that all potential solutions are iterated for N − 1 rounds using the objective function (8) under constraints (9) and (10). The value of $a_{jk}^{*U}$ that yields the highest positive value of $T_k^U$ is then then transferred to $a_{rj}^U$ in constraint (6).

4.3. Sub-Model 3: Row Generation Applied to the Lower Bound Constraint

During row generation for the lower bound constraint, the feasible solution space undergoes further refinement, integrating stricter constraints and narrowing down the range of potential solutions. This iterative process facilitates the exploration of various allocations and enhances resource optimization, taking into account the lower bound. The model for this process is as follows:

$$\mathrm{Min} T_k^L={\displaystyle \sum _{j=1}^N{a}_{jk}^{*L}{x}_j^{*r-1}}-L_k,$$

(12)

subject to

$${\displaystyle \sum _{j=1}^N{a}_{jk}^{*L}}=k,$$

(13)

$$a_{jk}^{*L}=\{0,1\},$$

(14)

$$k=2,\dots ,N-1,$$

(15)

where $T_k^L$ is the target value with the objective of violating the lowest upper bound investment format under k investment projects, $a_{jk}^{*L}$ is the decision variable for investing in project j in the case where there is investment in project k, which violates the lower bound constraint the most, and k is the total number of investment projects with a value ranging from 1 to N − 1.

The model represented in (12) to (15) is utilized for generating the constraints (7) in round r. The objective function (12) is designed to identify the investment pattern in project k that maximally violates the lower bound constraint. Constraint (13) establishes the investment constraint for project k. Constraint (14) determines the investment status of project j when project k is being investment. Constraint (15) sets the condition for exploring all possible solutions in N − 1 rounds by the objective function (12) under constraints (12) to (14). Subsequently, it assigns the value of $a_{jk}^L$ that yields the lowest negative value of $T_k^L$ to $a_{rj}^L$ in in constraint (7).

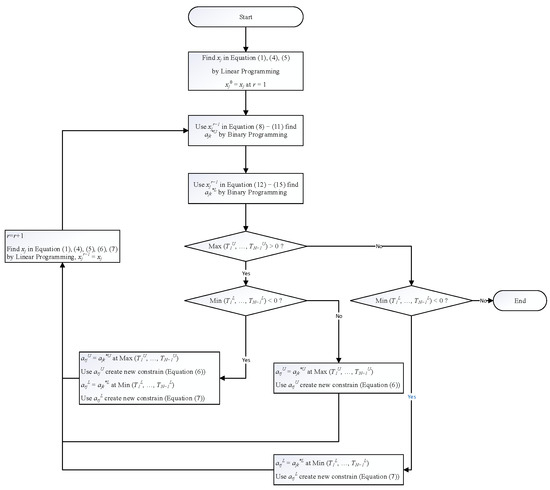

The working process of row generation applied to solving the budget allocation model, using three sub-models, can be summarized concisely based on the steps outlined in Figure 1. The specific details of each step are as follows:

• Step 1: Find the value of $x_j$ in round r = 1 using linear programming with Equations (1), (4) and (5), then set $x_j^{*0}$ = $x_j$;
• Step 2: Use $x_j^{*r-1}$ and Equations (8) to (11) to find the value of $a_{jk}^{*U}$ using binary programming;
• Step 3: Use $x_j^{*r-1}$ and Equations (12) to (15) to find the value of $a_{jk}^{*L}$ using binary programming;
• Step 4: Check the values of Max($T_2^U$, $T_3^U$,…,$T_{N-1}^U$) and Min($T_2^L$, $T_3^L$,…,$T_{N-1}^L$), and separate into four conditions:
  Max($T_2^U$, $T_3^U$,…,$T_{N-1}^U$) > 0 and Min($T_2^L$, $T_3^L$,…,$T_{N-1}^L$) < 0, proceed to Step 5;
  Max($T_2^U$, $T_3^U$,…,$T_{N-1}^U$) > 0 and Min($T_2^L$, $T_3^L$,…,$T_{N-1}^L$) ≥ 0, proceed to Step 6;
  Max($T_2^U$, $T_3^U$,…,$T_{N-1}^U$) ≤ 0 and Min($T_2^L$, $T_3^L$,…,$T_{N-1}^L$) < 0, proceed to Step 7;
  Max($T_2^U$, $T_3^U$,…,$T_{N-1}^U$) ≤ 0 and Min($T_2^L$, $T_3^L$,…,$T_{N-1}^L$) ≥ 0, proceed to Step 9;
• Step 5: Set $a_{rj}^U$ = $a_{jk}^{*U}$, where $a_{jk}^{*U}$ is the set of answers for Max($T_2^U$, $T_3^U$,…,$T_{N-1}^U$), then use $a_{rj}^U$ to create Equation (6). Set $a_{rj}^L$ = $a_{jk}^{*L}$, where $a_{jk}^{*L}$ is the set of answers for Min($T_2^L$, $T_3^L$,…,$T_{N-1}^L$), then use $a_{rj}^L$ to create Equation (7). Proceed to Step 8;
• Step 6: Set $a_{rj}^U$ = $a_{jk}^{*U}$, where $a_{jk}^{*U}$ is the set of answers for Max($T_2^U$, $T_3^U$,…,$T_{N-1}^U$), then use $a_{rj}^U$ to create Equation (6). Proceed to Step 8;
• Step 7: Set $a_{rj}^L$ = $a_{jk}^{*L}$, where $a_{jk}^{*L}$ is the set of answers for Min($T_2^L$, $T_3^L$,…,$T_{N-1}^L$), then use $a_{rj}^L$ to create Equation (7). Proceed to Step 8;
• Step 8: Adjust the value of r = r + 1, find the value of $x_j$ in round r using Linear Programming with Equations (1), (4), (5), (6) and (7), then set $x_j^{*r-1}$ = $x_j$. Return to Step 2;
• Step 9: stops the search for solutions, with $x_j$ being the final solution set that provides the best result. The entire process of the nine steps can be summarized as shown in Figure 1.

5. Application of Sorting Method in Row Generation Process

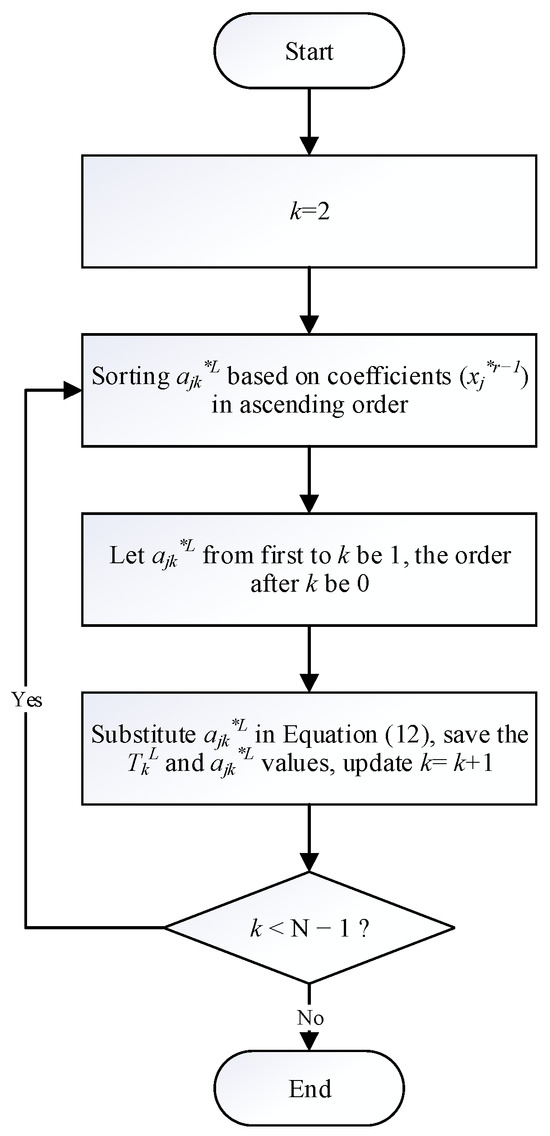

The row generation process in the budget allocation model incorporates a sorting method that utilizes descending order sorting for determining $a_{jk}^{*U}$ from Equations (8) to (11), and ascending order for determining $a_{jk}^{*L}$ from Equations (12) to (15). This sorting method is utilized as an alternative to binary programming in order to derive the solutions for $a_{jk}^{*U}$ and $a_{jk}^{*L}$ variables during steps 2 and 3 of the row generation process outlined in Section 4. The sorting technique proposed by Witthayapraphakorn et al. [16] is adopted, although its effectiveness in yielding the maximum value of $T_k^U$ for all values of k and the absence of lower boundary conditions is yet to be formally proven. Consequently, this section focuses on explaining the procedure for obtaining the solution for $T_k^L$. The proof demonstrating that the sorting method attains the maximum value of $T_k^U$ for all values of k is presented in Section 6. The proof employs a case-by-case approach similar to that used for $T_k^L$, but modified to demonstrate the attainment of the minimum value instead of the maximum value. The steps for the sorting method, aiming to minimize the value of $a_{jk}^{*L}$, are presented concisely in Figure 2. The following are the detailed explanations for each step:

• Step 1: Set k = 2;
• Step 2: Sort $a_{jk}^{*L}$ in ascending order using the value of $x_j^{*r-1}$;
• Step 3: Set $a_{jk}^{*L}$ to 1 for the first k elements and 0 for the remaining elements;
• Step 4: Compute $T_k^L$ using Equation (12) with the updated values of $a_{jk}^{*L}$, and record the value of $T_k^L$ and $a_{jk}^{*L}$. update k = k + 1;
• Step 5: Check if k < N − 1. If true, go to Step 2; otherwise, go to Step 6;
• Step 6: End the process and return the values of $T_k^L$ and $a_{jk}^{*L}$ for use in the Row Generation process.

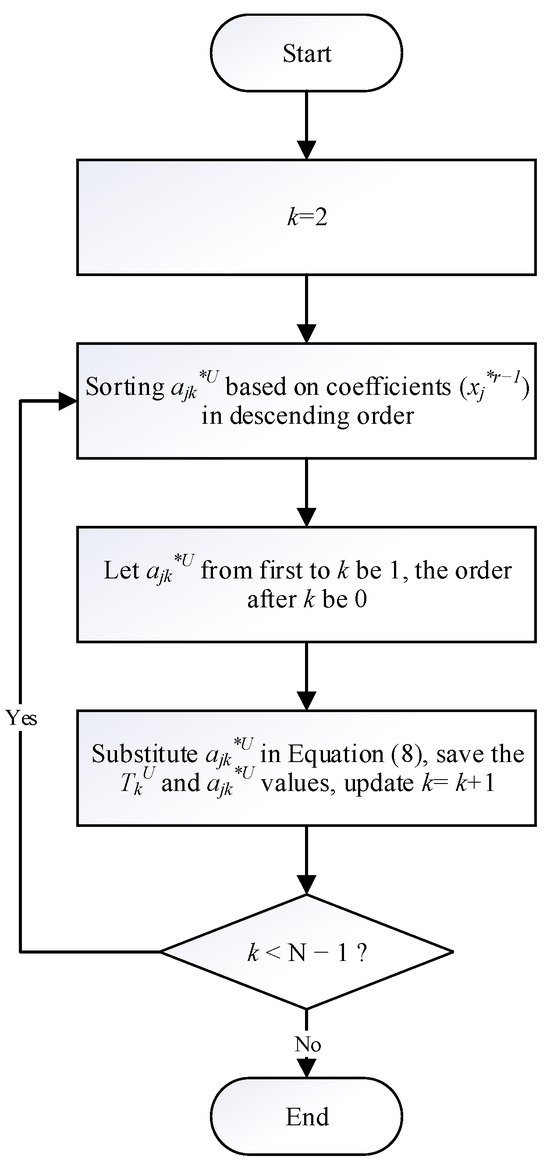

For determining the value of $a_{jk}^{*U}$, a comparable methodology to that presented in Figure 2 will be employed, with the exception that step 2 will involve sorting in descending order, and step 4 will entail determining the value of $T_k^U$ using Equation (8). A comprehensive overview of the entire procedure is depicted in Figure 3.

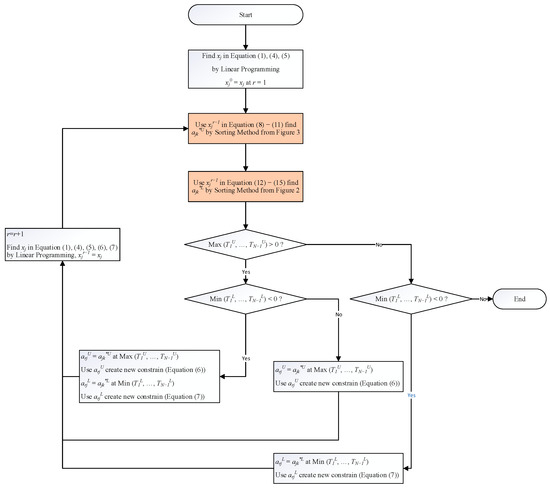

In the sorting method outlined in Figure 2 and Figure 3, when applied to row generation (as explained in Section 4, it serves as an alternative to binary programming in determining the values of $a_{jk}^{*U}$ and $a_{jk}^{*L}$ in steps 2 and 3. The resulting flow chart is similar to Figure 1, but Figure 4 highlights notable differences with two distinct colored text boxes.

6. Proving Optimal Solutions Derived from Sorting Methods

In this section, our objective is to provide proof of optimality for the sorting method presented in Figure 3, specifically in determining the optimal value of $T_k^U$ for any feasible solution $a_k^{*U}$. We aim to demonstrate that the value obtained from the sorting method is greater than or equal to the value of $T_k^U$ obtained from $a_k^{*U}$.

Let $a_k^{*U}$ represent an arbitrary feasible solution. Without loss of generality, we assume that the coefficients $x_j^{*r-1}$ are sorted in descending order as b(j), following the prescribed sorting method.

For any k = 2,…, N − 1, in accordance with the sorting method, we assign $a_{jk}^{*U}$ = 1 to the k largest coefficients in b, denoted by b(j), while setting $a_{jk}^{*U}$ = 0 for the remaining coefficients. Let S denote the set of indices corresponding to the k largest coefficients in b, defined as S = {j: b(j) belongs to the k largest coefficients in b}. Consequently, we have $a_{jk}^{*U}$ = 1 for j ∈ S, and $a_{jk}^{*U}$ = 0 for j ∉ S.

Subsequently, we proceed to calculate the value of $T_k^U$ for the solution obtained through the sorting method:

$$T_k^U=b\left(1\right)a_{1k}^{*U}+b\left(2\right)a_{2k}^{*U}+\dots +b\left(N\right)a_{Nk}^{*U}=b\left(1\right)+b\left(2\right)+\dots +b\left(k\right)$$

The rationale behind the final step is based on the fact that $a_{jk}^{*U}$ is assigned a value of 1 for j ∈ S, where S represents the indices corresponding to the k largest coefficients in b. This implies that the elements within S are indeed the k largest coefficients in b.

Moving forward, let us now proceed to compute $T_k^U$ for the arbitrary solution $a_k^{*U}$:

$$T_k^U=x_1^{*r-1}{a}_{1k}^{*U}+x_2^{*r-1}{a}_{2k}^{*U}+...+x_N^{*r-1}{a}_{Nk}^{*U}=\sum (x_j^{*r-1}\times a_{jk}^{*U}),$$

$T_k^U$= ∑($x_j^{*r-1}$), for j ∈ S (because $a_{jk}^{*U}$ = 1 for j ∈ S) + ∑($x_j^{*r-1}$), for j ∉ S (because $a_{jk}^{*U}$ = 0 for j ∉ S).

Since $x_j^{*r-1}$ is sorted in descending order as b(j), we have b(j) ≥ $x_j^{*r-1}$ for all j. Therefore:

$$\sum \left(x_j^{*r-1}\right),\mathrm{for} j\in S\le \sum \left(b\right(j\left)\right), \mathrm{for} j\in S,$$

$$\sum \left(x_j^{*r-1}\right),\mathrm{for} j\notin S\le \sum \left(b\right(j\left)\right), \mathrm{for} j\notin S.$$

By combining the aforementioned inequalities, we obtain the following expression:

$$T_k^U=\sum (x_j^{*r-1}), \mathrm{for} j \in S+\sum (x_j^{*r-1}), \mathrm{for} j\notin S$$

$$\le \sum \left(b\right(j\left)\right), \mathrm{for} j \in S+\sum \left(b\right(j\left)\right), \mathrm{for} j \notin S=\sum \left(b\right(j\left)\right)=T_k^U (\mathrm{from} \mathrm{the} \mathrm{sorting} \mathrm{method})$$

It has been demonstrated that the value of $T_k^U$ obtained from the sorting method solution is greater than or equal to the value derived from any alternative feasible solution $a_k^{*U}$. Consequently, the sorting method yields an optimal solution.

In order to establish the validity of the sorting method presented in Figure 2, we can employ a similar proof approach as previously used, wherein we demonstrate the minimization of the obtained value and subsequently apply the sorting method in ascending order.

7. Computational Studies

This section applies the proposed approach to exemplify a budget allocation problem and compares the solving time among three methods: linear programming, row generation, and the proposed model (row generation using an optimization-based sorting method: ROS).

7.1. Experimental Model

The experiments are conducted using Matlab Version R2022b with Computer Spec Processor IntelI CoreI i7-7700 3.60 GHz, RAM 32.0 GB solving by linprog function for linear programming and intlinprog for binary programming.

To formulate the problem, random values c_j, u_k, and l_k will be generated in accordance with the assumptions specified in Equations (1) to (5). Initially, there will be a substantial gap between the values of u_k and l_k for an equivalent number of projects to preclude the occurrence of infeasible solutions; the Matlab code for configuring the problem can be accessed from the following link: http://surl.li/ngrgi (accessed on 20 November 2023). The experiments are conducted in two parts:

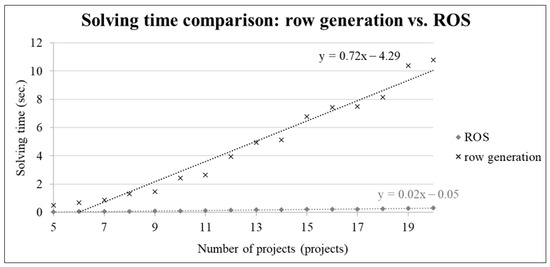

• Comparison of processing time for all three methods with project sizes ranging from 5 to 20 projects, with one additional project added for each iteration;

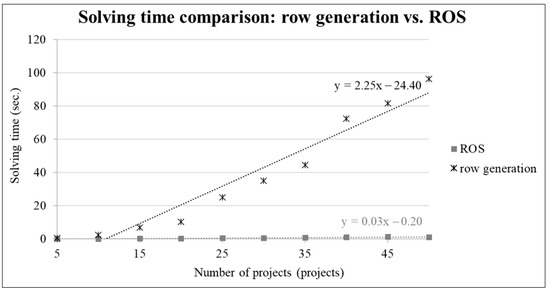

• Comparison of processing time for row generation and ROS methods for larger problem sizes, with project sizes ranging from 5 to 50 projects, with an additional five projects added for each iteration.

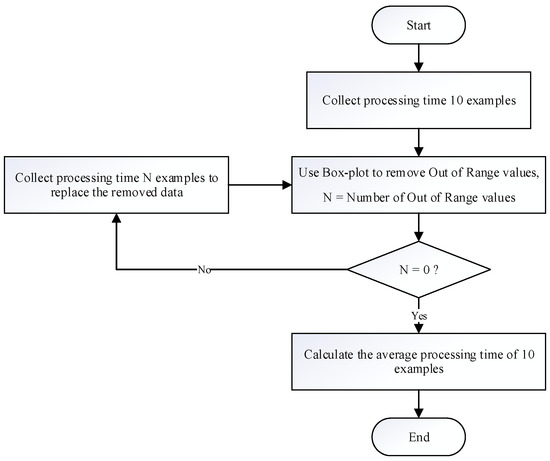

To gather data on processing time, the initial 10 examples were recorded, and any outliers were eliminated through the utilization of box plots. Subsequently, further data were acquired until no outliers remained, and the average processing time was computed. The process is visually presented in Figure 5.

7.2. Experimental Results

The experimental findings involved a comparative assessment of processing time across three different methods within the context of a linear problem structure, categorized by problem sizes. These sizes were divided into two ranges: (1) spanning from 5 to 20 projects and (2) spanning from 5 to 50 projects.

Table 2. Average processing time in seconds.

Number of Projects	Number of Constraints	Primal Model	Row Generation	ROS Model
5	62	0.01	0.51	0.05
6	126	0.01	0.69	0.06
7	254	0.01	0.86	0.06
8	510	0.01	1.32	0.08
9	1022	0.01	1.47	0.09
10	2046	0.01	2.42	0.11
11	4094	0.03	2.64	0.12
$⋮$	$⋮$	$⋮$	$⋮$	$⋮$
19	1,048,574	373.57	10.38	0.29
20	2,097,150	1757.13	10.79	0.30

presents the outcomes of the processing time comparison for problem sizes ranging from 5 to 20 projects, visually represented in Figure 6 and Figure 7. Additionally, Figure 8 illustrates the comparison for problem sizes ranging from 5 to 50 projects.

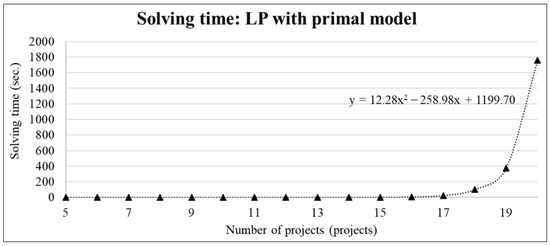

Table 2 demonstrates the superiority of the linear programming primal model over alternative methods in speed for problem sizes from 5 to 9 projects. For larger sizes (11 projects or more), the ROS method outperforms the linear programming model. Furthermore, a comparison with the row generation method consistently shows that the ROS method provides faster performance, attributed to the efficiency of sorting algorithms in identifying optimal solutions from sortable values. Figure 6 and Figure 7 visually illustrate the processing time and problem size relationships, indicating an exponential increase for the primal model in linear programming with problem size, while both row generation and ROS methods exhibit linear correlations, particularly noticeable for smaller problem sizes (N < 17 for row generation or N < 9 for ROS, as indicated in Table 2).

The advantage of employing the primal model in linear programming is evident for smaller problem sizes due to its smaller matrix structure and the need for only a single computation cycle, unlike the row generation method requiring multiple rounds (R rounds) and more time. However, for larger sizes, such as 20 projects, the primal model’s matrix dimensions can become impractically large, making it less time-efficient. In contrast, the row generation and ROS methods, despite requiring multiple rounds, often prove faster due to their more compact problem matrices. The ROS method, in particular, exhibits a less steep slope in processing time compared to the row generation method. Figure 8 confirms the consistent linear relationship between processing time and problem size for both row generation and ROS methods at 50 projects, with the ROS method displaying a less pronounced slope. Additional experiments were performed to clarify the relationship between processing time and problem size for these methods. Furthermore, a comparative analysis of solutions derived from linear programming with the primal model and the ROS method underscores the markedly smaller matrix size produced by the row generation approach, detailed in Section 8.

The row generation and ROS methods developed in this study rely on a unique structure defined by Equations (1) to (5). Their applicability is limited to problems strictly adhering to these assumptions, rendering them ineffective for deviations from the specified structure. This specificity extends to the experimental design, requiring even randomly generated examples to align with predetermined assumptions. In contrast, the linear programming approach remains adaptable to solution-finding within the scope of a linear model, regardless of structural changes in the problem.

8. Comparative Analysis: Solving Solutions Utilizing the Primal Model and ROS Method

This section illustrates a comparative example between solutions obtained through linear programming with the primal model and the ROS method. The focus is on assessing solution equivalence and exploring the extent of matrix size differences between the two approaches. The hypothetical scenario involves a company with eight projects, each having a distinct return on investment, as detailed in

Table 3. Individual project earnings in dollars.

Project	1	2	3	4	5	6	7	8
Earning in dollars (USD)	10	30	1	14	40	14	40	20

. Specific investment conditions, including upper and lower limits as a percentage of the total investment, are outlined in

Table 4. Investment limit based on the number of projects.

Number of Projects	2	3	4	5	6	7
Lower bound (%)	1	3	4	5	6	7
Upper bound (%)	30	40	60	65	80	90

. Additionally, individual project investment constraints are specified as a percentage of the total investment in

Table 5. Individual project investment limit.

Project	1	2	3	4	5	6	7	8
Lower bound (%)	14	0.70	0.50	0.34	0.25	12	0.40	13
Upper bound (%)	50	70	50	40	80	40	50	20

. With a total investment budget of USD 4,000,000, the objective is to determine the optimal investment pattern maximizing profit under the given conditions.

8.1. Demonstration of Problem Solving with the Primal Model

The given problem statement transforms into the primal model with the following mathematical representation:

$$\mathrm{Max} Z=10x_1+30x_2+x_3+14x_4+40x_5+14x_6+40x_7+20x_8,$$

subject to

$$\begin{gathered} x_1+0+0+0+0+0+0+0\le 0.50, \\ {x}_1+x_2+0+0+0+0+0+0\le 0.30, \\ 0+x_2+x_3+x_4+x_5+x_6+x_7+x_8\le 0.90, \\ ⋮ \\ {x}_1+x_2+x_3+x_4+x_5+x_6+x_7+x_8\le 1.00. \end{gathered}$$

Solving the matrix size of $510\times 8$ for the primal model using linear programming and applying the results to the investment scenario yields an USD 86.2 million return (Z = 21.55), representing the solution to this example problem as detailed in

Table 6. Results obtained through the application of the primal model-solving approach.

${\mathit{x}}_{\mathit{j}}$	${\mathit{x}}_1$	${\mathit{x}}_2$	${\mathit{x}}_3$	${\mathit{x}}_4$	${\mathit{x}}_5$	${\mathit{x}}_6$	${\mathit{x}}_7$	${\mathit{x}}_8$
Investment Proportion (%)	14.00	12.50	10.00	12.50	12.50	12.50	13.00	13.00
Project	1	2	3	4	5	6	7	8
Amount of Investment (in Million USD)	0.56	0.50	0.40	0.50	0.50	0.50	0.52	0.52

.

8.2. Demonstration of Problem Solving with the ROS Method

Applying the ROS method for problem solving involves structuring the example problem into a mathematical model with Equations (1), (4) and (5), as follows:

$$\mathrm{Max} Z=10x_1+30x_2+x_3+14x_4+40x_5+14x_6+40x_7+20x_8,$$

subject to

$$\begin{gathered} x_1+0+0+0+0+0+0+0\le 0.50, \\ 0+0+0+0+0+0+0+x_8\le 0.20, \\ {x}_1+0+0+0+0+0+0+0\ge 0.14, \\ ⋮ \\ {x}_1+x_2+x_3+x_4+x_5+x_6+x_7+x_8\le 1.0, \end{gathered}$$

The established mathematical model reveals a smaller initial problem size with a matrix dimension of $17\times 8$, which is significantly smaller than the primal model. This smaller size leads to faster computation when solving with linear programming, as demonstrated in

Table 7. Results of $x_j$.

${\mathit{x}}_{\mathit{j}}$	${\mathit{x}}_1$	${\mathit{x}}_2$	${\mathit{x}}_3$	${\mathit{x}}_4$	${\mathit{x}}_5$	${\mathit{x}}_6$	${\mathit{x}}_7$	${\mathit{x}}_8$
Solution	0.14	0.007	0.005	0.0034	0.5906	0.12	0.004	0.13

. Substituting obtained solutions into $x_j^{*0}$ facilitates the calculation of $a_{jk}^{*U}$ and $a_{jk}^{*L}$. By arranging $x_j^{*0}$ in descending order ($x_5^{*0}$, $x_1^{*0}$, $x_8^{*0}$, $x_6^{*0}$, $x_2^{*0}$, $x_3^{*0}$, $x_7^{*0}$, $x_4^{*0}$), the solution pattern for $a_{jk}^{*U}$ maximizing the value of $T_k^U$ (2 ≤ k ≤ N − 1) is presented in

Table 8. Results of $a_{jk}^{*U}$ and $T_k^U$.

${\mathit{T}}_{\mathit{k}}^{\mathit{U}}={\displaystyle \sum _{\mathit{j}=1}^{\mathit{N}}{\mathit{a}}_{\mathit{j}\mathit{k}}^{*\mathit{U}}{\mathit{x}}_{\mathit{j}}^{*\mathit{r}-1}}-{\mathit{U}}_{\mathit{k}}$	${\mathit{U}}_{\mathit{k}}$	k	${\mathit{a}}_{1\mathit{k}}^{*\mathit{U}}$	${\mathit{a}}_{2\mathit{k}}^{*\mathit{U}}$	${\mathit{a}}_{3\mathit{k}}^{*\mathit{U}}$	${\mathit{a}}_{4\mathit{k}}^{*\mathit{U}}$	${\mathit{a}}_{5\mathit{k}}^{*\mathit{U}}$	${\mathit{a}}_{6\mathit{k}}^{*\mathit{U}}$	${\mathit{a}}_{7\mathit{k}}^{*\mathit{U}}$	${\mathit{a}}_{8\mathit{k}}^{*\mathit{U}}$
0.43	0.30	2	1	0	0	0	1	0	0	0
0.46	0.40	3	1	0	0	0	1	0	0	1
0.38	0.60	4	1	0	0	0	1	1	0	1
0.34	0.65	5	1	1	0	0	1	1	0	1
0.19	0.80	6	1	1	1	0	1	1	0	1
0.10	0.90	7	1	1	1	0	1	1	1	1

. Choosing the pattern from with the highest value, we convert it into Equation (6) and incorporate it into the initial model. Before proceeding, it’s crucial to identify the solution pattern for $a_{jk}^{*L}$ minimizing $T_k^L$. Arranging $x_j^{*0}$ values in ascending order yields the sequence $x_4^{*0}$, $x_7^{*0}$, $x_3^{*0}$, $x_2^{*0}$, $x_6^{*0}$, $x_8^{*0}$, $x_1^{*0}$, $x_5^{*0}$, with the resulting pattern displayed in

Table 9. Results of $a_{jk}^{*L}$ and $T_k^L$.

${\mathit{T}}_{\mathit{k}}^{\mathit{L}}={\displaystyle \sum _{\mathit{j}=1}^{\mathit{N}}{\mathit{a}}_{\mathit{j}\mathit{k}}^{*\mathit{L}}{\mathit{x}}_{\mathit{j}}^{*\mathit{r}-1}}-{\mathit{L}}_{\mathit{k}}$	${\mathit{L}}_{\mathit{k}}$	k	${\mathit{a}}_{1\mathit{k}}^{*\mathit{L}}$	${\mathit{a}}_{2\mathit{k}}^{*\mathit{L}}$	${\mathit{a}}_{3\mathit{k}}^{*\mathit{L}}$	${\mathit{a}}_{4\mathit{k}}^{*\mathit{L}}$	${\mathit{a}}_{5\mathit{k}}^{*\mathit{L}}$	${\mathit{a}}_{6\mathit{k}}^{*\mathit{L}}$	${\mathit{a}}_{7\mathit{k}}^{*\mathit{L}}$	${\mathit{a}}_{8\mathit{k}}^{*\mathit{L}}$
−0.003	0.01	2	0	0	0	1	0	0	1	0
−0.018	0.03	3	0	0	1	1	0	0	1	0
−0.020	0.04	4	0	1	1	1	0	0	1	0
0.089	0.05	5	0	1	1	1	0	1	1	0
0.209	0.06	6	0	1	1	1	0	1	1	1
0.339	0.07	7	1	1	1	1	0	1	1	1

.

Based on Table 9 solutions, we apply solution pattern $a_{j4}^{*L}$ from $T_4^L$, featuring the lowest value. Integrating this $a_{j4}^{*L}$ value into Equation (7) and incorporating it into the initial model, we derive Equations (6) and (7) during the solution process for $a_{jk}^{*U}$ and $a_{jk}^{*L}$. These equations are added to the original model, resulting in the articulated updated model. Following the revised mathematical model, the solution is derived using the process outlined in Figure 4 until completion, with summarized results and matrix sizes in each round r presented in

Table 10. The results and the size of the matrix in each round r.

r	Variable	j								Matrix Size	Z
		1	2	3	4	5	6	7	8
1	$x_j^{*r-1}$	0.140	0.007	0.005	0.003	0.591	0.120	0.004	0.130	$17\times 8$	29.73
	$a_{rj}^U$	1	0	0	0	1	0	0	1
	$a_{rj}^L$	0	1	1	1	0	0	1	0
2	$x_j^{*r-1}$	0.140	0.007	0.005	0.003	0.130	0.120	0.465	0.130	$19\times 8$	29.73
	$a_{rj}^U$	1	0	0	0	0	0	1	1
	$a_{rj}^L$	0	1	1	1	0	0	0	0
$⋮$	$⋮$	$⋮$	$⋮$	$⋮$	$⋮$	$⋮$	$⋮$	$⋮$	$⋮$	$⋮$	$⋮$
9	$x_j^{*r-1}$	0.140	0.125	0.100	0.125	0.130	0.125	0.125	0.130	$27\times 8$	21.55
	$a_{rj}^U$	0	0	0	0	0	0	0	0
	$a_{rj}^L$	0	0	0	0	0	0	0	0

. The updated model is as follows:

$$\mathrm{Max} Z=10x_1+30x_2+x_3+14x_4+40x_5+14x_6+40x_7+20x_8,$$

subject to

$$\begin{gathered} x_1+0+0+0+0+0+0+0\le 0.50, \\ 0+0+0+0+0+0+0+x_8\le 0.20, \\ {x}_1+0+0+0+0+0+0+0\ge 0.14, \\ ⋮ ⋮ \\ {x}_1+x_2+x_3+x_4+x_5+x_6+x_7+x_8\le 1.00, \\ {x}_1+0+0+0+x_5+0+0+x_8\le 0.40, \\ 0+x_2+x_3+x_4+0+0+x_7+0\ge 0.04. \end{gathered}$$

Table 10 illustrates the completion of nine rounds, with incremental conditions added in each round for solution derivation. In the final round, the problem structure had a matrix size of $27\times 8$, significantly smaller than the primal model’s $510\times 8$. Despite the smaller size, the outcome, with Z = 21.55, yields an identical profit of USD 86.2 million as obtained using the primal model. These results demonstrate that employing the ROS method leads to a more compact problem structure, facilitating faster solution processing in each round r. However, for scenarios with fewer investment projects, the cumulative rounds in the ROS method may result in longer processing times than the primal model. Conversely, in scenarios with a larger number of projects, the primal model’s significantly larger matrix size makes the ROS method comparatively faster due to its smaller matrix size in each round, as evident from the experiments shown in Section 7.2.

9. Conclusions

The budget allocation problem addressed in this study is a matrix-structured problem that becomes increasingly complex as the number of projects (N) increases. The traditional linear programming approach faces significant challenges due to the exponential growth of constraints, making it computationally expensive and impractical for larger problem sizes. To overcome this issue, the study proposes a novel solution using the principles of row generation and sorting methods. The row generation technique incrementally adds constraints to the problem, eliminating the need to include all constraints upfront. This approach reduces complexity and improves computational efficiency. Additionally, the binary programming method traditionally used to create constraints is replaced with the sorting method, which proves to be faster and less complex for generating subproblems.

The experimental results demonstrate that the row-generation hybrid sorting method significantly decreases computation time compared to linear programming. For instance, when N = 20 with 2,097,150 constraints, the linear programming method takes an average computation time of 1757.13 s, while the row generation hybrid sorting method only requires 0.30 s. Even when the problem size increases to N = 50 with 2,251,799,813,685,250 constraints, the row generation hybrid sorting method is completed in just 1.4 s, while linear programming fails to find a solution due to problem scales.

Comparisons among the three methods, including linear programming with the primal model, row generation, and the ROS method, reveal valuable insights. Linear programming excels for smaller problem sizes but becomes inefficient for larger ones. The ROS method consistently demonstrates faster processing times compared to both linear programming and the row generation method. This efficiency can be attributed to the inherent advantages of sorting algorithms in finding optimal solutions among sorted values. The relationship between processing time and problem size is visualized in Figure 5 and Figure 6, indicating that linear programming exhibits a polynomial regression, while the row generation and ROS methods exhibit linear regressions. The ROS method shows a lower slope than the row generation method, signifying superior efficiency in scaling with increasing problem sizes.

In summary, the results underscore the considerable time consumption associated with linear programming for larger problem sizes. Conversely, the row generation hybrid sorting method and the ROS method maintain a linear relationship with problem size, providing more efficient solutions. These insights offer a comparative understanding of method performance concerning problem size and processing time, offering guidance for addressing similar matrix-structured problems, such as the capital budgeting problem studied in this research. Utilizing the row generation and ROS methods introduced here requires exclusive applicability to problems adhering to mathematical structures outlined by Equations (1) to (5). Adapting these methods to analogous structures with different conditions or variables mandates a thorough study of the modified structure for appropriate adjustments. However, it is crucial to emphasize that, even with a comprehensive investigation of the problem’s structure, there is no guarantee of consistently successful adaptations of the row generation and ROS methods.

10. Further Research

Given Equations (3) and (4), the careful assignment of values to U_k and L_k is crucial to avoid infeasible solutions. To address the potential for infeasibility, a two-stage LP (stochastic linear programming) approach can be employed, which helps mitigate the risk of constraint infeasibility. This involves introducing two types of variables into Equations (3) and (4): corrective action variables and opportunity cost variables. However, it is important to note that incorporating these variables may significantly increase the model’s complexity, resulting in a substantial growth in the number of variables to $2\times 2^N$ for each variable type, thereby leading to an LP model with an exceedingly large number of constraints and variables. This aspect opens avenues for future research and investigation.
