# The Effect of Mooring Line Parameters in Inducing Parametric Resonance on the Spar-Buoy Oscillating Water Column Wave Energy Converter

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Device and Mathematical Model

#### 2.1. Equation of Motion

#### 2.2. Nonlinear Froude–Krylov Force Model

#### 2.3. Viscous Drag Force Model

#### 2.4. Mooring System Model

## 3. Results

#### 3.1. Configuration ${m}_{3}$

#### 3.2. Analysis of Mooring Configurations

## 4. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Wendt, F.; Nielsen, K.; Yu, Y.H.; Bingham, H.; Eskilsson, C.; Kramer, B.; Babarit, A.; Bunnik, T.; Costello, R.; Crowley, S.; et al. Ocean Energy Systems Wave Energy Modeling Task: Modeling, Verification, and Validation of Wave Energy Converters. J. Mar. Sci. Eng.
**2019**, 7, 379. [Google Scholar] [CrossRef] [Green Version] - Ransley, E.; Yan, S.; Brown, S.; Graham, D.; Musiedlak, P.H.; Windt, C.; Schmitt, P.; Davidson, J.; Ringwood, J.; Wang, J.; et al. A blind comparative study of focused wave interactions with floating structures (CCP-WSI Blind Test Series 3). Int. J. Offshore Polar Eng.
**2019**. in review. [Google Scholar] [CrossRef] [Green Version] - Renzi, E.; Doherty, K.; Henry, A.; Dias, F. How does Oyster work? the simple interpretation of Oyster mathematics. Eur. J. Mech. B/Fluids
**2014**, 47, 124–131. [Google Scholar] [CrossRef] [Green Version] - Bracco, G.; Casassa, M.; Giorcelli, E.; Giorgi, G.; Martini, M.; Mattiazzo, G.; Passione, B.; Raffero, M.; Vissio, G. Application of sub-optimal control techniques to a gyroscopic Wave Energy Converter. Renew. Energ. Offshore
**2014**, 1, 265–269. [Google Scholar] - Pozzi, N.; Bracco, G.; Passione, B.; Sirigu, S.A.; Mattiazzo, G. PeWEC: Experimental validation of wave to PTO numerical model. Ocean Eng.
**2018**, 167, 114–129. [Google Scholar] [CrossRef] - Vissio, G.; Valério, D.; Bracco, G.; Beirão, P.; Pozzi, N.; Mattiazzo, G. ISWEC linear quadratic regulator oscillating control. Renew. Energy
**2017**, 103, 372–382. [Google Scholar] [CrossRef] - Sun, C.; Shang, J.; Luo, Z.; Lu, Z.; Wu, G. Using Flexible Blades to Improve the Performance of Novel Small-Scale Counter-Rotating Self-Adaptable Wave Energy Converter for Unmanned Marine Equipment. J. Mar. Sci. Eng.
**2019**, 7, 223. [Google Scholar] [CrossRef] [Green Version] - Todalshaug, J.H.; Asgeirsson, G.S.; Hjálmarsson, E.; Maillet, J.; Möller, P.; Pires, P.; Guérinel, M.; Lopes, M.F. Tank testing of an inherently phase-controlled wave energy converter. Int. J. Mar. Energy
**2016**, 15, 68–84. [Google Scholar] [CrossRef] - Mekhiche, M.; Edwards, K.A. Ocean power technologies power buoy: system-level design, development and validation methodology. In Proceedings of the 2nd Marine Energy Technology Symposium, San Francisco, CA, USA, 10 June 2014. [Google Scholar]
- Gomes, R.P.F.; Henriques, J.C.; Gato, L.M.C.; Falcão, A.F. Hydrodynamic optimization of an axisymmetric floating oscillating water column for wave energy conversion. Renew. Energy
**2012**, 44, 328–339. [Google Scholar] [CrossRef] - Weber, J. WEC Technology Readiness and Performance Matrix – finding the best research technology development trajectory. In Proceedings of the 4th International Conference on Ocean Energy, Dublin, Ireland, 17 October 2012. [Google Scholar]
- Bull, D.; Costello, R.; Babarit, A.; Nielsen, K.; Kennedy, B.; Bittencourt Ferreira, C.; Roberts, J.; Weber, J. Scoring the Technology Performance Level (TPL) Assessment. In Proceedings of the Twelfth European Wave and Tidal Energy Conference, Cork, Ireland, 27 August–1 September 2017; pp. 1–9. [Google Scholar]
- Weber, J.; Roberts, J. Cost, time and risk assessment of different wave energy converter technology development trajectories. In Proceedings of the Twelfth European Wave and Tidal Energy Conference, Cork, Ireland, 27 August–1 September 2017; pp. 1–8. [Google Scholar]
- Giorgi, G.; Ringwood, J.V. Comparing nonlinear hydrodynamic forces in heaving point absorbers and oscillating wave surge converters. J. Ocean Eng. Mar. Energy
**2018**, 4, 25–35. [Google Scholar] [CrossRef] - Giorgi, G.; Ringwood, J.V. A Compact 6-DoF Nonlinear Wave Energy Device Model for Power Assessment and Control Investigations. IEEE Trans. Sustain. Energy
**2018**. [Google Scholar] [CrossRef] - Ringwood, J.V.; Merigaud, A.; Faedo, N.; Fusco, F. Wave Energy Control Systems: Robustness Issues. IFAC-PapersOnLine
**2018**, 51, 62–67. [Google Scholar] [CrossRef] - Gilloteaux, J.C.; Babarit, A.; Ducrozet, G.; Durand, M.; Clément, A.H. A Non-Linear Potential Model to Predict Large-Amplitudes-Motions: Application to the SEAREV Wave Energy Converter. In Proceedings of the ASME 2007 26th International Conference on Offshore Mechanics and Arctic Engineering, San Diego, CA, USA, 10–15 June 2009; pp. 529–535. [Google Scholar] [CrossRef]
- Tarrant, K.R. Numerical Modeling of Paramtetric Resonace of a Heaving Point Absorber Wave Energy Converter. Ph.D. Thesis, Trinity College Dublin, Dublin, Ireland, 2015. [Google Scholar]
- Guerinel, M.; Zurkinden, A.S.; Alves, M.; Sarmento, A. Validation of a partially nonlinear time domain model using instantaneous froude-krylov and hydrostatic forces. In Proceedings of the 10th European Wave and Tidal Energy Conference; Technical Committee of the European Wave and Tidal Energy Conference, Aalborg, Denmark, 2–5 September 2013. [Google Scholar]
- Wang, H.; Somayajula, A.; Falzarano, J.; Xie, Z. Development of a Blended Time-Domain Program for Predicting the Motions of a Wave Energy Structure. J. Mar. Sci. Eng.
**2019**, 8, 1. [Google Scholar] [CrossRef] [Green Version] - Giorgi, G.; Ringwood, J.V. Analytical representation of nonlinear Froude–Krylov forces for 3-DoF point absorbing wave energy devices. Ocean Eng.
**2018**, 164, 749–759. [Google Scholar] [CrossRef] [Green Version] - Letournel, L.; Chauvigné, C.; Gelly, B.; Babarit, A.; Ducrozet, G.; Ferrant, P. Weakly nonlinear modeling of submerged wave energy converters. Appl. Ocean Res.
**2018**, 75, 201–222. [Google Scholar] [CrossRef] - Michele, S.; Sammarco, P.; D’Errico, M. Weakly nonlinear theory for oscillating wave surge converters in a channel. J. Fluid Mech.
**2018**, 834, 55–91. [Google Scholar] [CrossRef] [Green Version] - Lee, K.R.; Koo, W.; Kim, M.H. Fully nonlinear time-domain simulation of a backward bent duct buoy floating wave energy converter using an acceleration potential method. Int. J. Nav. Archit. Ocean Eng.
**2013**, 5, 513–528. [Google Scholar] [CrossRef] [Green Version] - Abbasnia, A.; Guedes Soares, C. Fully nonlinear simulation of wave interaction with a cylindrical wave energy converter in a numerical wave tank. Ocean Eng.
**2018**, 152, 210–222. [Google Scholar] [CrossRef] - Windt, C.; Davidson, J.; Ringwood, J.V. High-fidelity numerical modeling of ocean wave energy systems: A review of computational fluid dynamics-based numerical wave tanks. Renew. Sustain. Energy Rev.
**2018**, 93, 610–630. [Google Scholar] [CrossRef] [Green Version] - Giorgi, G.; Ringwood, J.V. Parametric motion detection for an oscillating water column spar buoy. In Proceedings of the 3rd International Conference on Renewable Energies Offshore RENEW, Lisbon, Portugal, 10 October 2018. [Google Scholar]
- Tarrant, K.R.; Meskell, C. Investigation on parametrically excited motions of point absorbers in regular waves. Ocean Eng.
**2016**, 111, 67–81. [Google Scholar] [CrossRef] - Fossen, T.I.; Nijmeijer, H. Parametric resonance in dynamical systems. Parametr. Reson. Dyn. Syst.
**2012**, 1–330. [Google Scholar] [CrossRef] - Giorgi, G.; Ringwood, J.V. Articulating parametric resonance for an OWC spar buoy in regular and irregular waves. J. Ocean Eng. Mar. Energy
**2018**, 4, 311–322. [Google Scholar] [CrossRef] - Correia da Fonseca, F.X.; Gomes, R.P.; Henriques, J.C.; Gato, L.M.; Falcão, A.F. Model testing of an oscillating water column spar-buoy wave energy converter isolated and in array: Motions and mooring forces. Energy
**2016**, 112, 1207–1218. [Google Scholar] [CrossRef] - Davidson, J.; Ringwood, J.V. Mathematical modeling of mooring systems for wave energy converters—A review. Energies
**2017**, 10, 666. [Google Scholar] [CrossRef] [Green Version] - WETFEET. Grant Agreement 641334. 2015. Available online: http://www.wetfeet.eu/ (accessed on 7 January 2020).
- Collins, K.; Greaves, D.; Iglesias, G.; Hann, M.; Howey, B.; Harnois, V. D6.1—Analysis of Different Potential Configurations of Non-Rigid Inter-Moored Devices. Technical Report. 2016. Available online: http://www.wetfeet.eu/wp-content/uploads/2018/09/WETFEET-Deliverable-6.1.pdf (accessed on 7 January 2020).
- Genuardi, L.; Bracco, G.; Sirigu, A.S.; Bonfanti, M.; Paduano, B.; Dafnakis, P.; Mattiazzo, G. An application of model predictive control logic to inertial sea wave energy converter. In Advances in Mechanism and Machine Science. IFToMM WC 2019. Mechanisms and Machine Science; Springer: Berlin, Germany, 2019; Volume 73, pp. 3561–3571. [Google Scholar] [CrossRef]
- Giorgi, G.; Ringwood, J.V. Articulating Parametric Nonlinearities in Computationally Efficient Hydrodynamic Models. IFAC-PapersOnLine
**2018**, 51, 56–61. [Google Scholar] [CrossRef] - Fossen, T.I. Handbook of Marine Craft Hydrodynamics and Motion Control; John Wiley/Sons: Hoboken, NJ, USA, 2011. [Google Scholar]
- Gomes, R.; Henriques, J.; Gato, L.; Falcão, A. Time-domain simulation of a slack-moored floating oscillating water column and validation with physical model tests. Renew. Energy
**2020**, 149, 165–180. [Google Scholar] [CrossRef] - Giorgi, G.; Ringwood, J.V. Relevance of pressure field accuracy for nonlinear Froude–Krylov force calculations for wave energy devices. J. Ocean Eng. Mar. Energy
**2018**, 4, 57–71. [Google Scholar] [CrossRef] [Green Version] - Giorgi, G.; Ringwood, J.V. Analytical Formulation of Nonlinear Froude–Krylov Forces for Surging-Heaving- Pitching Point Absorbers. In Proceedings of the ASME 2018 37th International Conference on Ocean, Offshore and Arctic Engineering, Madrid, Spain, 17–22 June 2018. [Google Scholar]
- Giorgi, G. Nonlinear Froude–Krylov Matlab Demonstration Toolbox. 2019. Available online: https://zenodo.org/record/3544848#.XhMzwHERVPY (accessed on 7 January 2020).
- Sirigu, S.A.; Bonfanti, M.; Passione, B.; Begovic, E.; Bertorello, C.; Dafnakis, P.; Bracco, G.; Giorcelli, E.; Mattiazzo, G. Experimental investigation of the hydrodynamic performance of the ISWEC 1:20 scaled device. In Proceedings of the NAV International Conference on Ship and Shipping Research, Venice, Italy, 19–22 September 2018; pp. 551–560. [Google Scholar] [CrossRef]
- Faltinsen. Sea Loads on Ships and Offshore Structures; Cambridge University Press: Cambridge, UK, 1990. [Google Scholar]

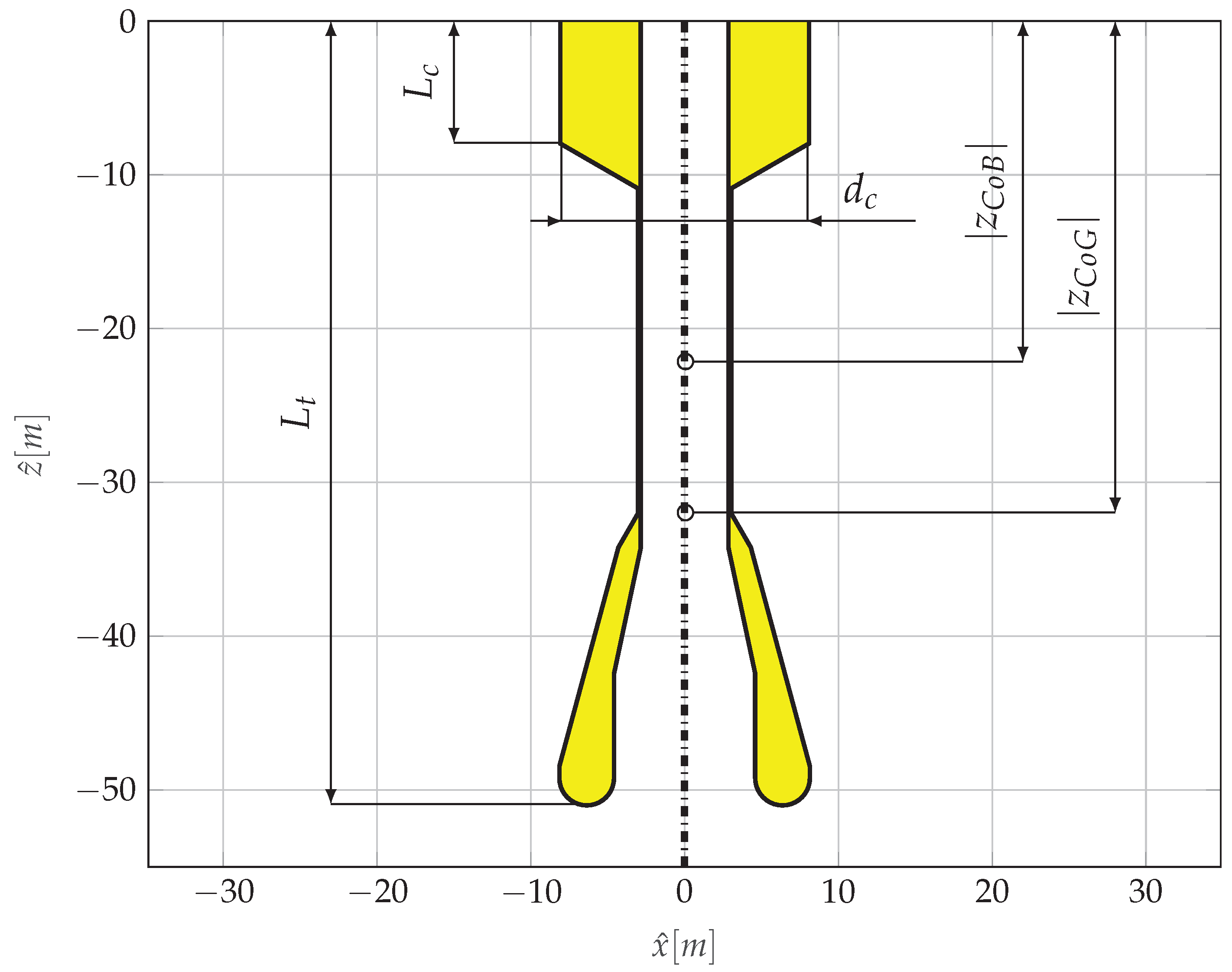

**Figure 1.**Cross-section view of the floating oscillating water column geometry with full scale dimensions.

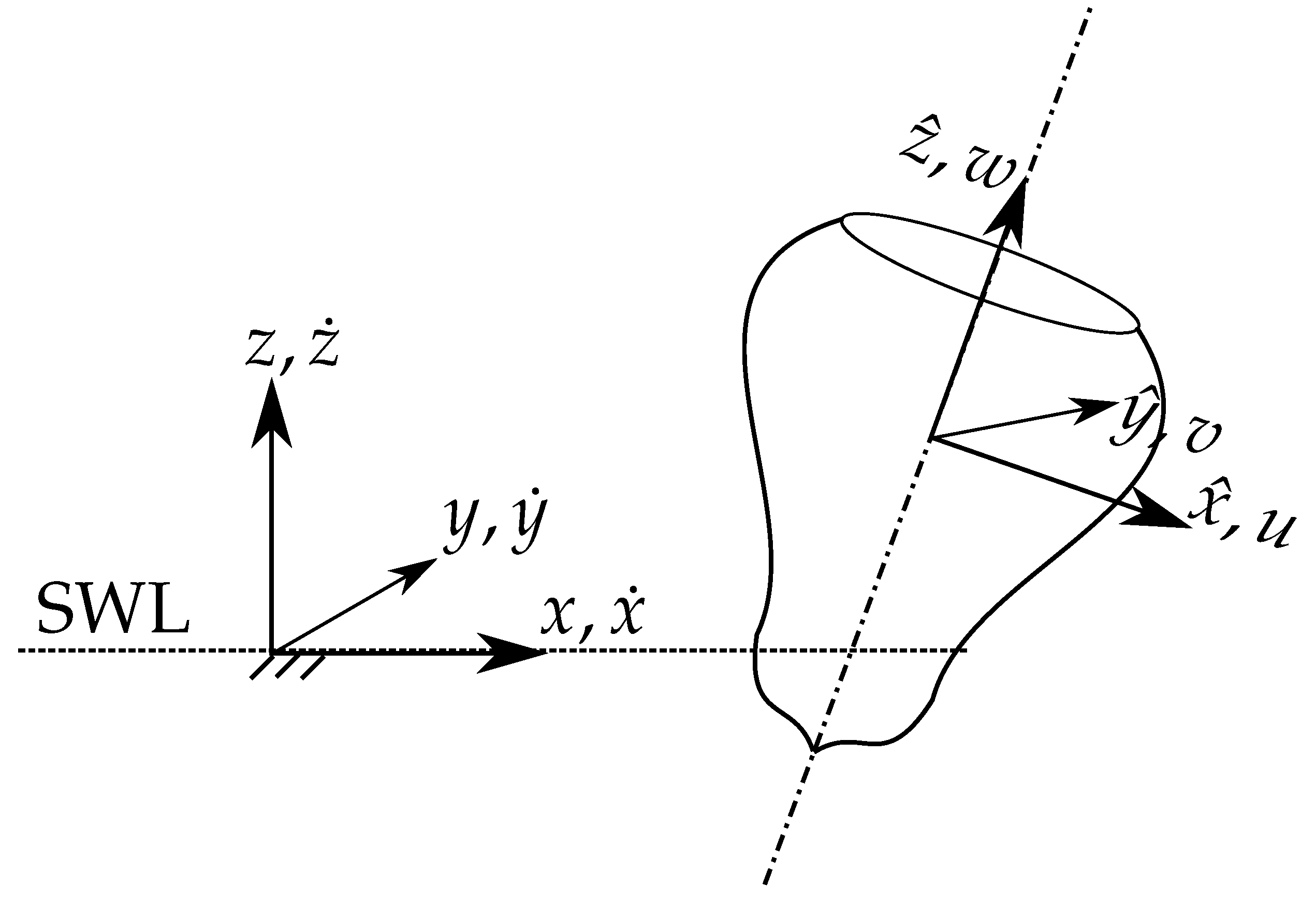

**Figure 2.**Inertial frame $\left(\right)$, with the origin at still water level (SWL), and body-fixed (non-inertial) frame $\left(\right)$, after an arbitrary displacement. At rest the two frames coincide. The velocities are according to the inertial frame $\left(\right)$ and the body-fixed frame $\left(\right)$.

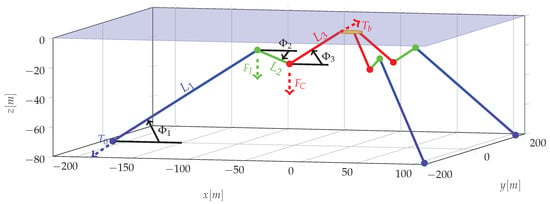

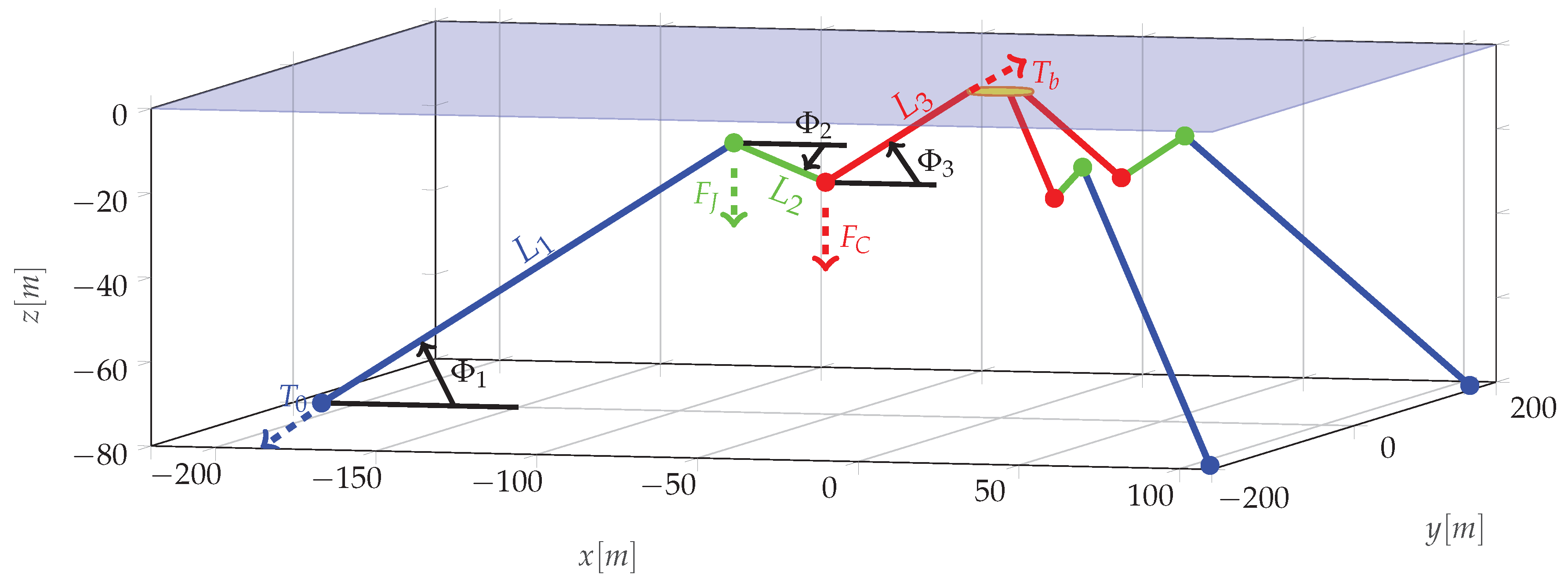

**Figure 3.**Mooring system layout with three lines 120${}^{\circ}$ apart. Each line is divided in three segments of length ${L}_{1}$, ${L}_{2}$, and ${L}_{3}$. ${F}_{C}$ is the net clump-weight force and ${F}_{J}$ is the net jumper force (negative in the figure). The quasi-static model solves for the tension at the vessel (${T}_{v}$), the tension at the anchor (${T}_{0}$), and the angles of the three lines (${\mathsf{\Phi}}_{1}$, ${\mathsf{\Phi}}_{1}$, and ${\mathsf{\Phi}}_{3}$).

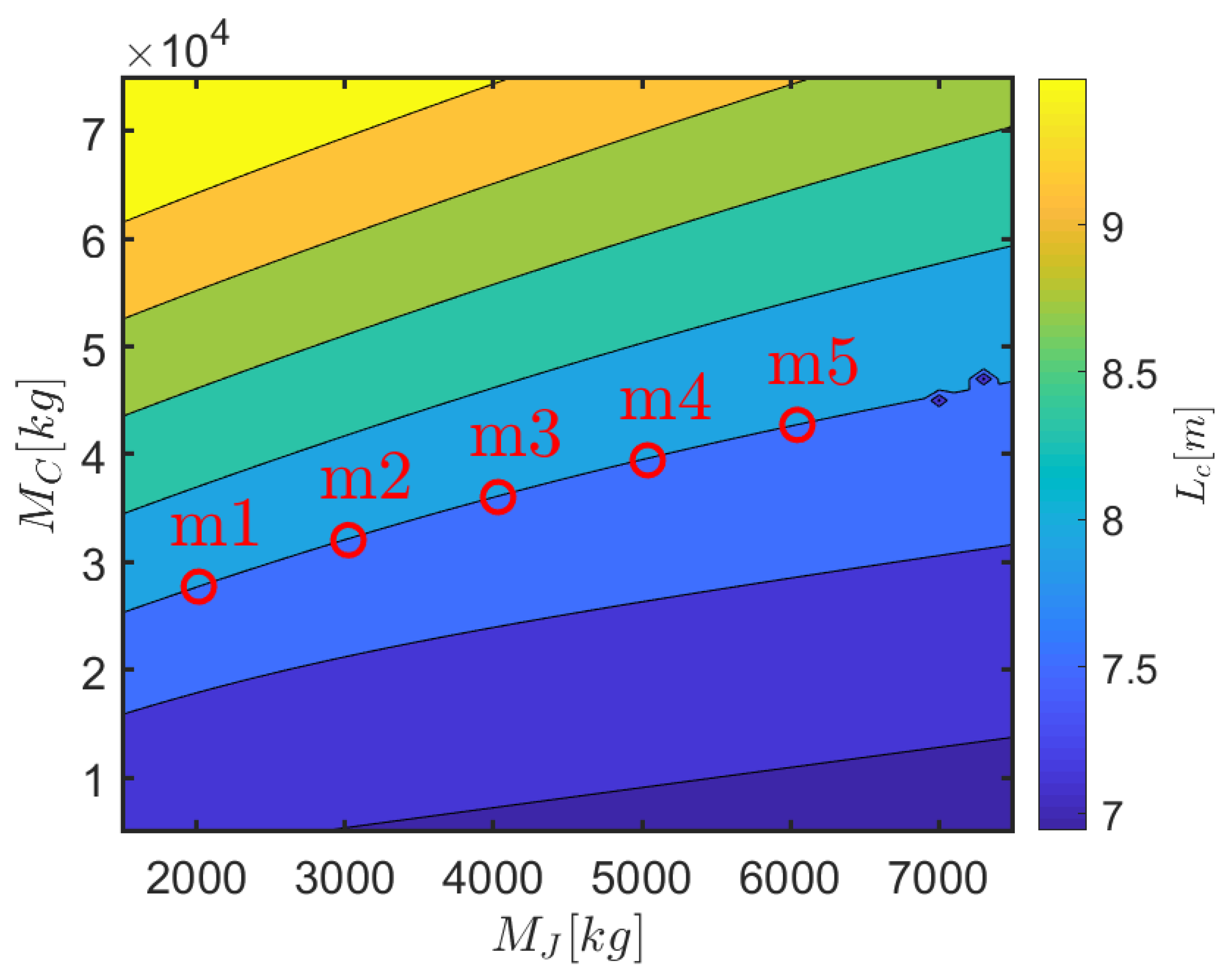

**Figure 4.**Map of jumper mass (${M}_{J}$) and clump-weight mass (${M}_{C}$) to the resulting draft of the top cylindrical section of the floater. Five different configurations are studied (${m}_{1}$ to ${m}_{5}$), as tabulated in Table 4, all resulting in a draft of 7.91 m.

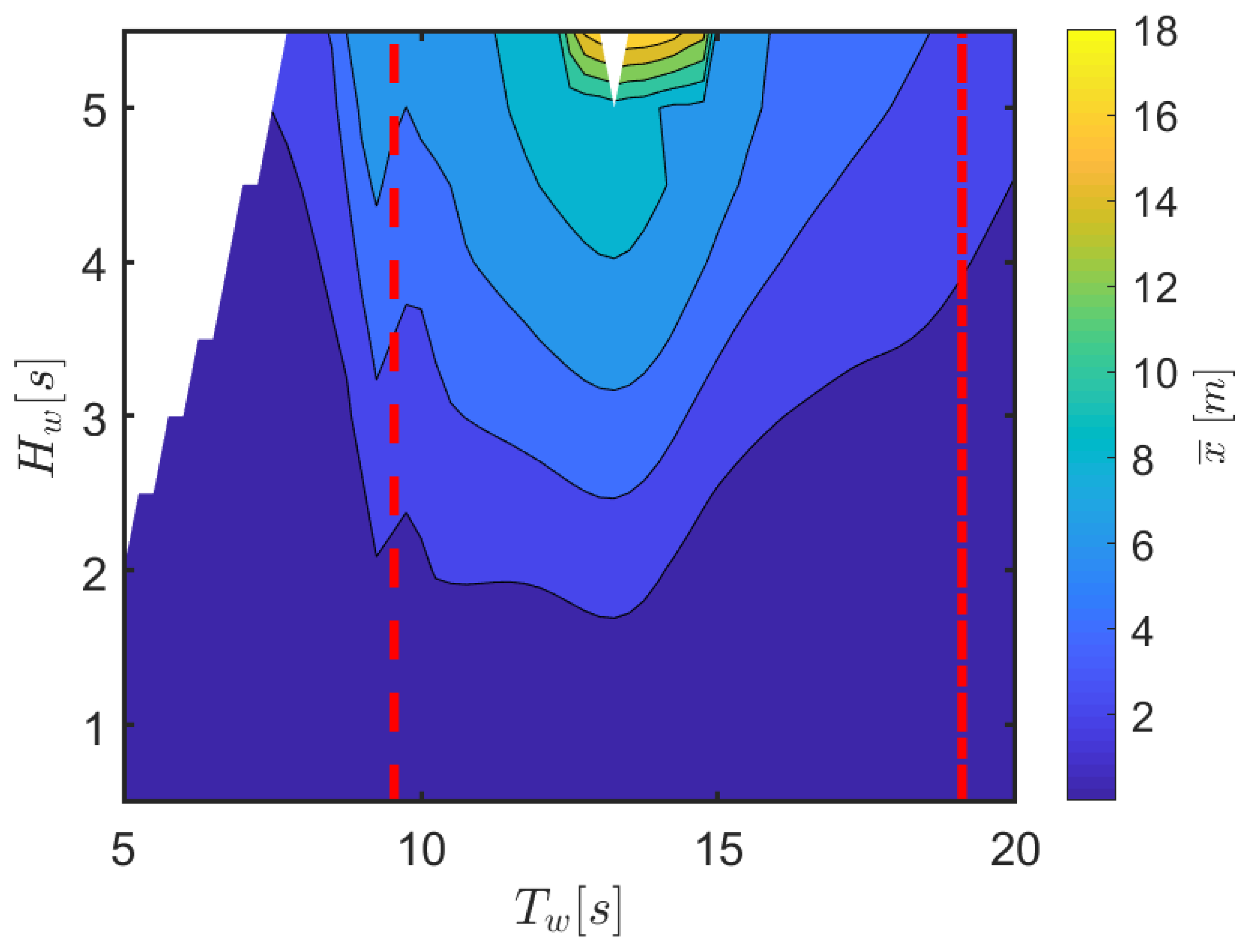

**Figure 5.**Mean displacement in surge $\overline{x}$ due to drift effects for configuration ${m}_{3}$ as a function of ${T}_{w}$ and ${H}_{w}$. The dashed and dash-dotted red lines correspond to ${T}_{w}=\frac{1}{2}{T}_{n,5}$ and ${T}_{w}={T}_{n,5}$, respectively.

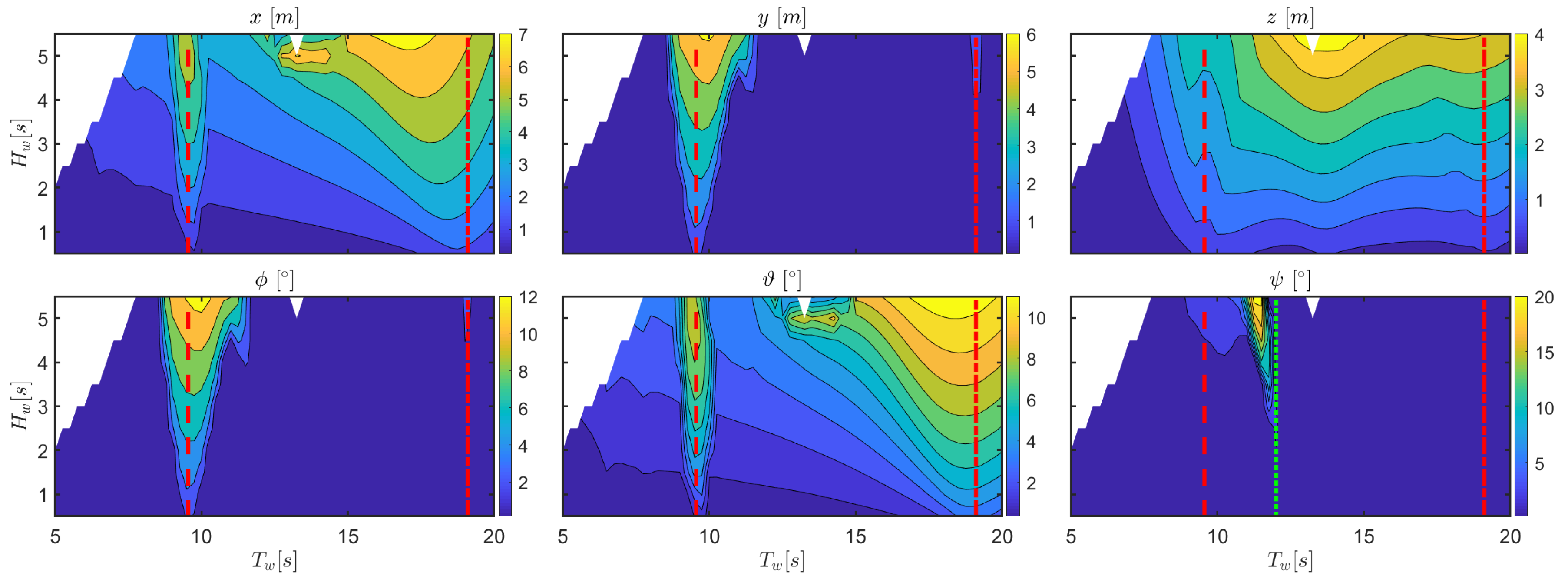

**Figure 6.**Amplitude of the response for configuration ${m}_{3}$ as a function of ${T}_{w}$ and ${H}_{w}$. The dashed and dash-dotted red lines correspond to ${T}_{w}=\frac{1}{2}{T}_{n,5}$ and ${T}_{w}={T}_{n,5}$, respectively. The green dotted line refers to ${T}_{w}=\frac{1}{2}{T}_{n,6}$.

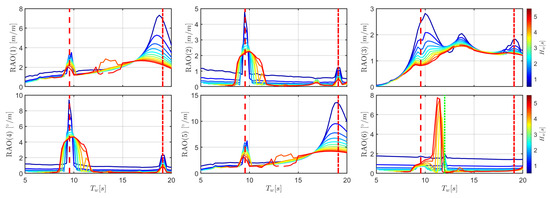

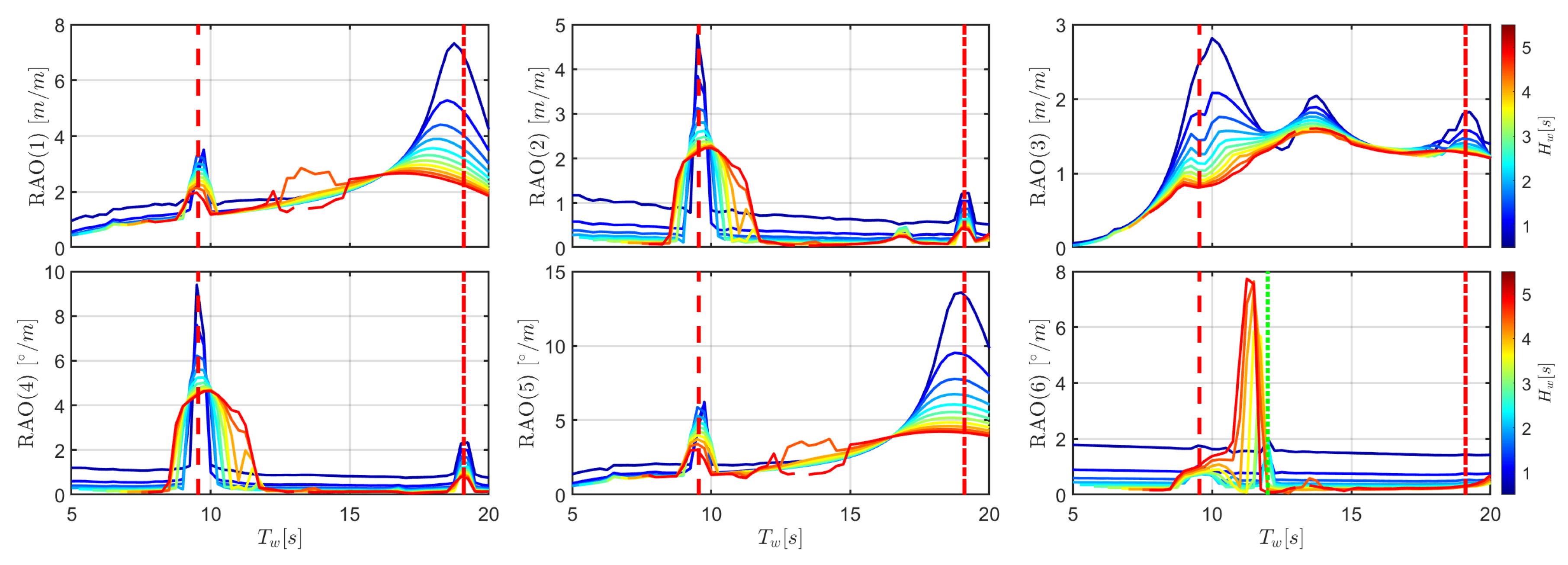

**Figure 7.**Response amplitude operator for configuration ${m}_{3}$ as a function of ${T}_{w}$, for different ${H}_{w}$, as shown in the color bar. The dashed and dash-dotted red lines correspond to ${T}_{w}=\frac{1}{2}{T}_{n,5}$ and ${T}_{w}={T}_{n,5}$, respectively. The green dotted line refers to ${T}_{w}=\frac{1}{2}{T}_{n,6}$.

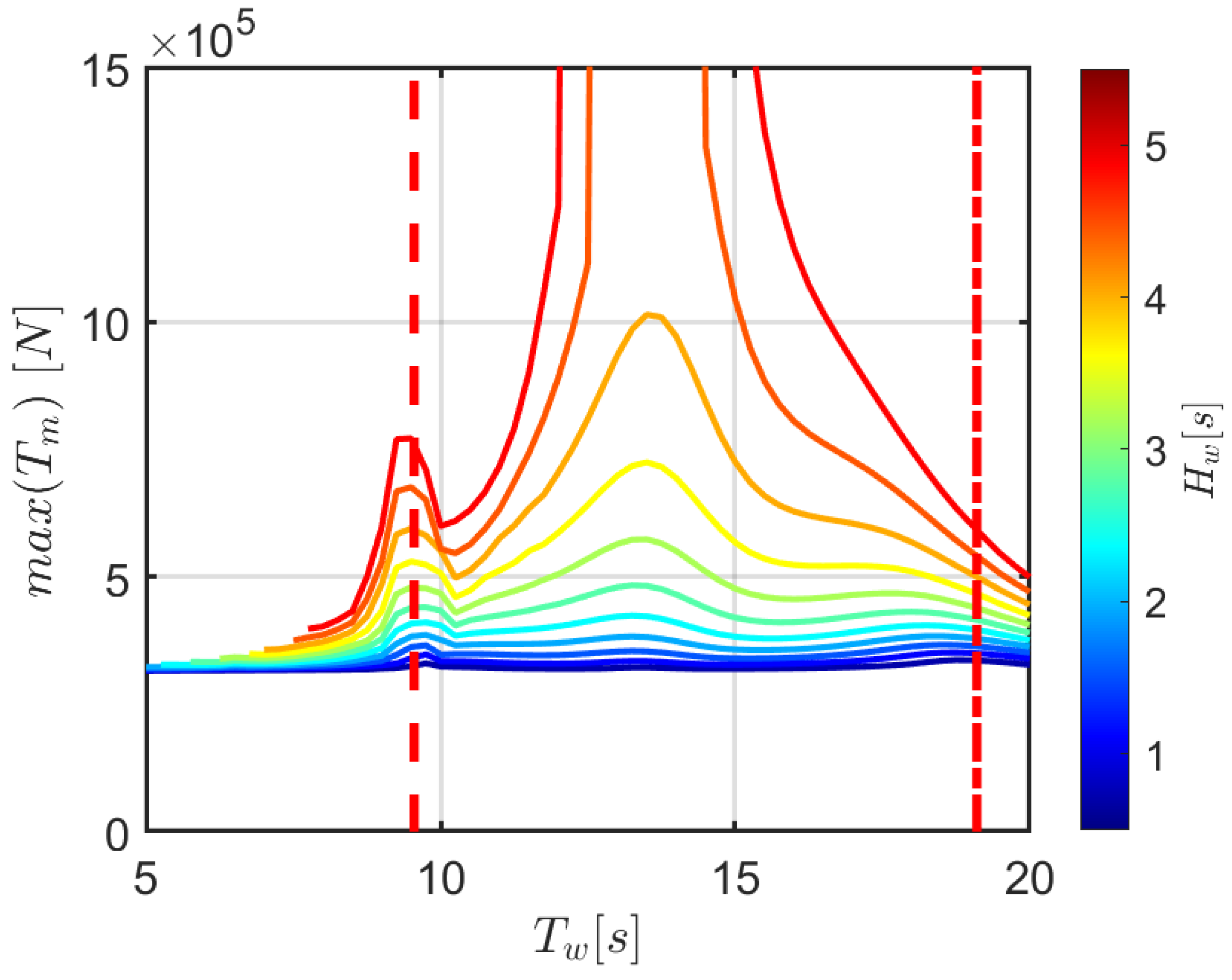

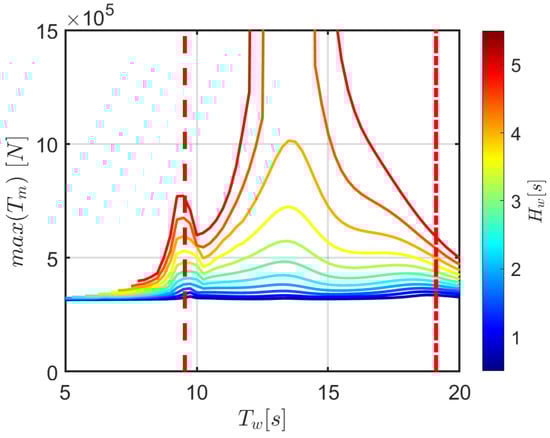

**Figure 8.**Peak tension of the front mooring at the fairlead as a function of ${T}_{w}$, for different ${H}_{w}$. The dashed and dash-dotted red lines correspond to ${T}_{w}=\frac{1}{2}{T}_{n,5}$ and ${T}_{w}={T}_{n,5}$, respectively.

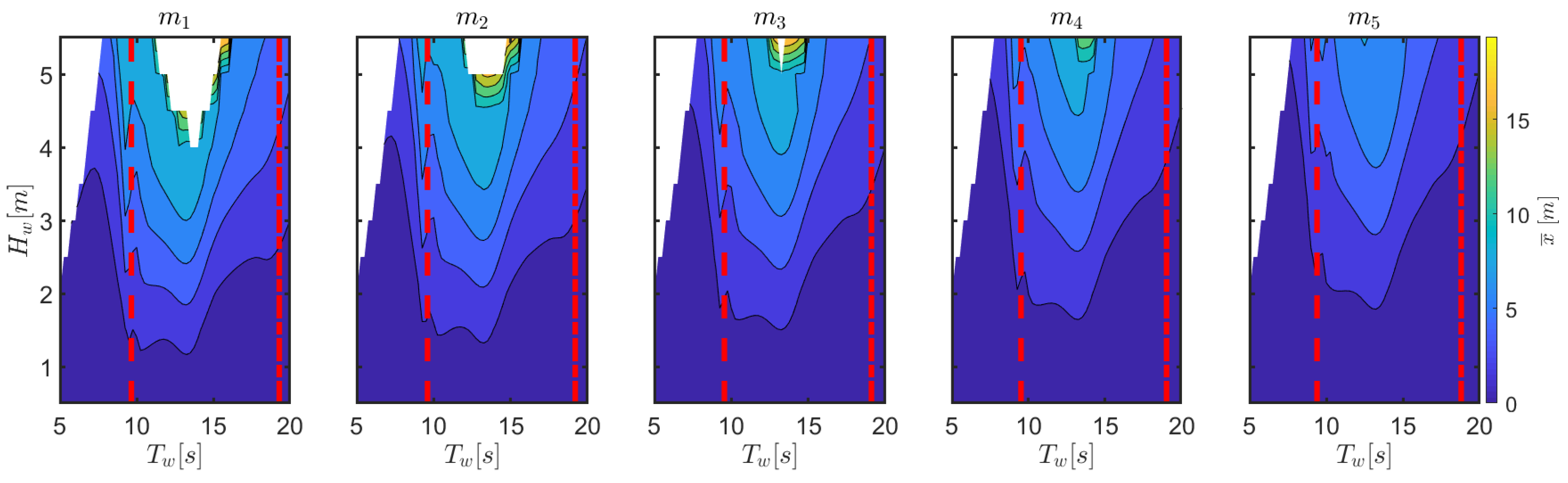

**Figure 9.**Mean displacement in surge $\overline{x}$ due to drift effects as a function of ${T}_{w}$ and ${H}_{w}$, for different mooring configurations. The dashed and dash-dotted red lines correspond to ${T}_{w}=\frac{1}{2}{T}_{n,5}$ and ${T}_{w}={T}_{n,5}$, respectively.

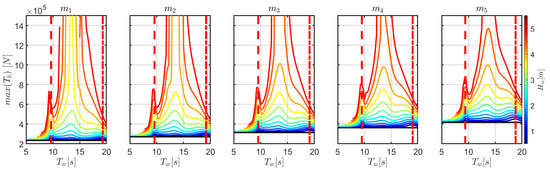

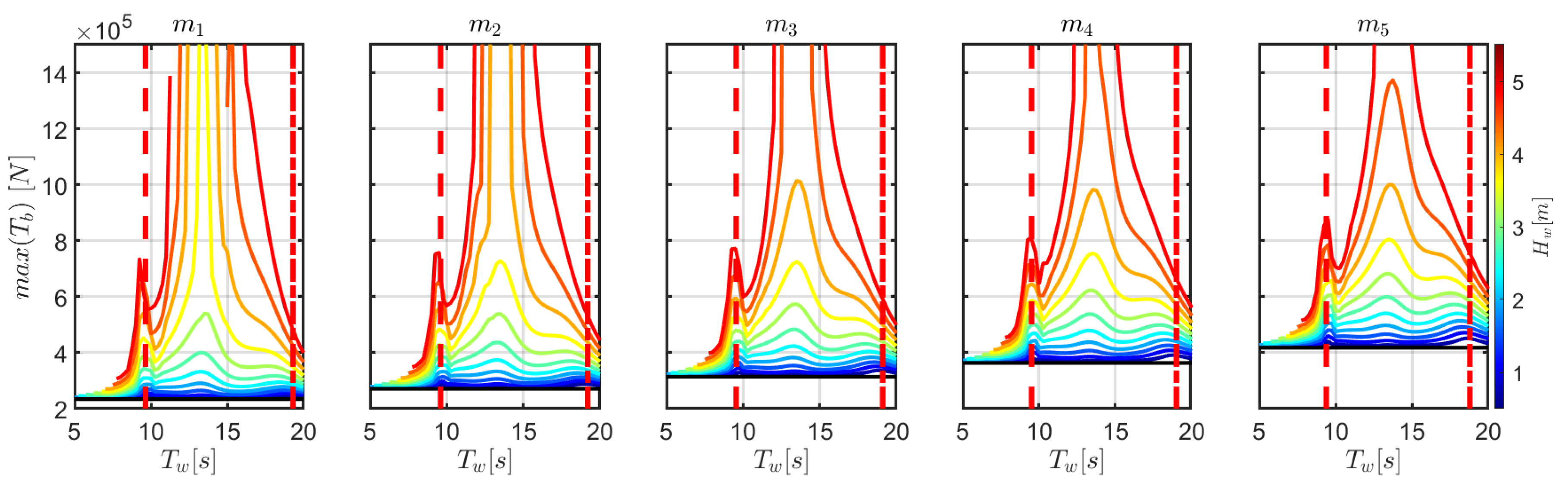

**Figure 10.**Peak tension of the front mooring at the fairlead as a function of ${T}_{w}$, for different ${H}_{w}$ and for different mooring configurations, as tabulated in Table 3. The black line represents the pre-tension. The dashed and dash-dotted red lines correspond to ${T}_{w}=\frac{1}{2}{T}_{n,5}$ and ${T}_{w}={T}_{n,5}$, respectively.

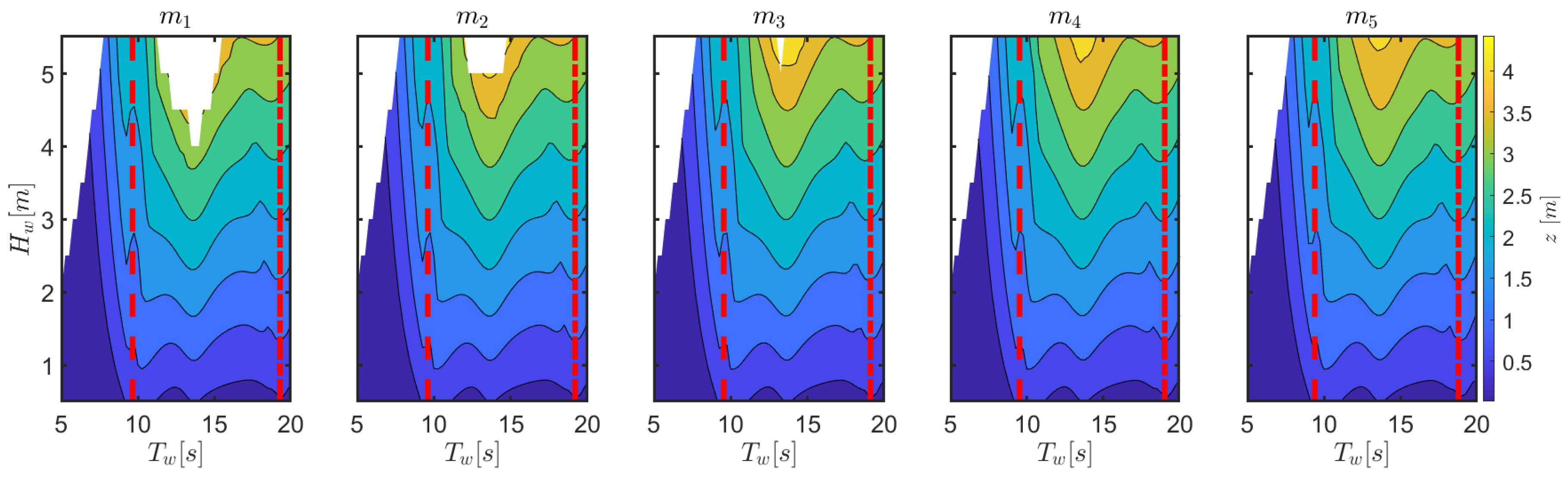

**Figure 11.**Amplitude of the heave response for different mooring configurations, as tabulated in Table 3. For a fair comparison, the same color bar applies to all plots. The dashed and dash-dotted red lines correspond to ${T}_{w}=\frac{1}{2}{T}_{n,5}$ and ${T}_{w}={T}_{n,5}$, respectively.

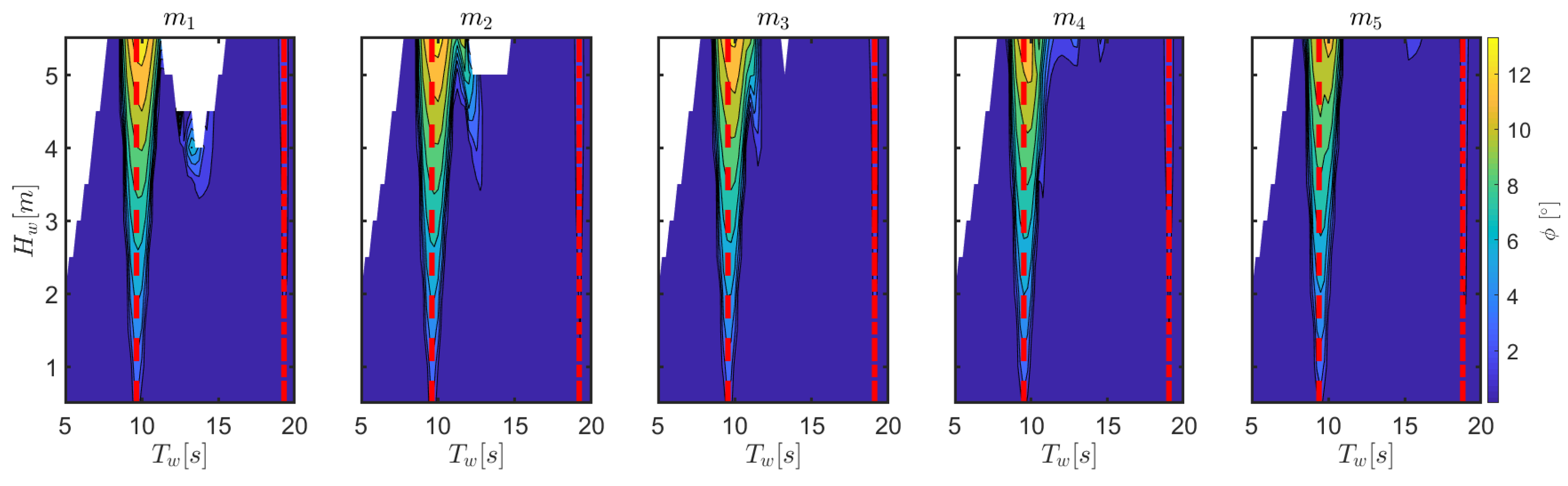

**Figure 12.**Amplitude of the roll response for different mooring configurations, as tabulated in Table 3. For a fair comparison, the same color bar applies to all plots. The dashed and dash-dotted red lines correspond to ${T}_{w}=\frac{1}{2}{T}_{n,5}$ and ${T}_{w}={T}_{n,5}$, respectively.

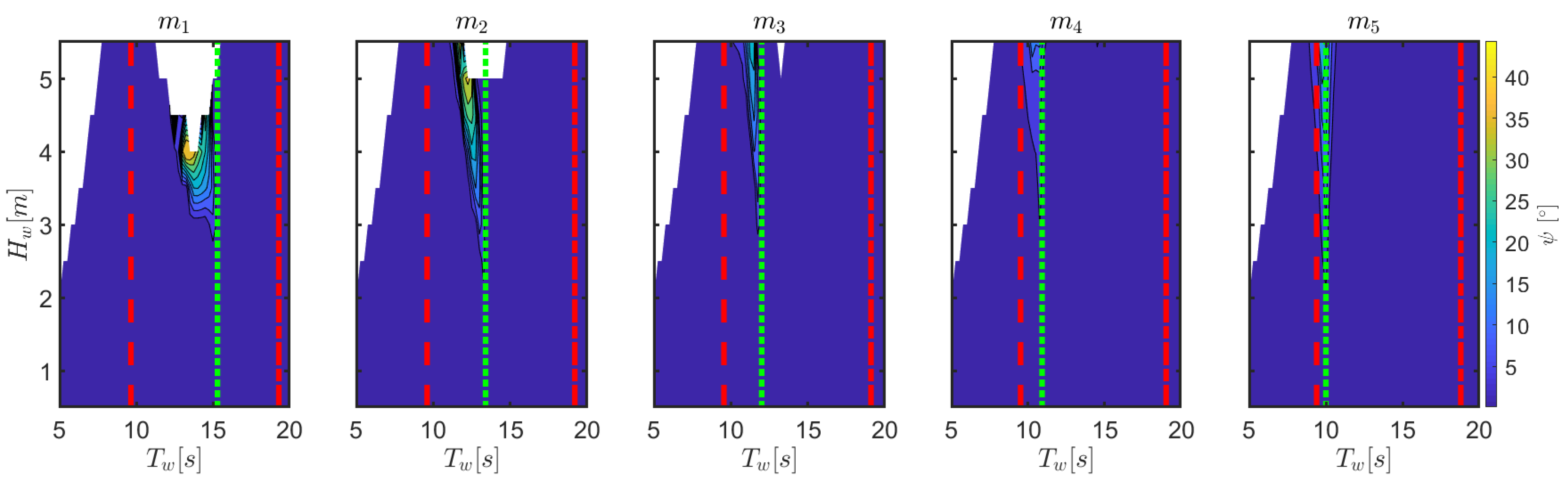

**Figure 13.**Amplitude of the yaw response as a function of ${T}_{w}$ and ${H}_{w}$, for different mooring configurations, as tabulated in Table 3. For a fair comparison, the same color bar applies to all plots. The dashed and dash-dotted red lines correspond to ${T}_{w}=\frac{1}{2}{T}_{n,5}$ and ${T}_{w}={T}_{n,5}$, respectively. The green dotted line refers to ${T}_{w}=\frac{1}{2}{T}_{n,6}$.

**Table 1.**Physical properties of the spar-buoy oscillating water column (OWC) device shown in Figure 1, in full-scale.

Parameter | Symbol | Value | Units |
---|---|---|---|

Water depth | h | 80.00 | [m] |

Diameter of the top cylinder | ${d}_{c}$ | 16.00 | [m] |

Draft of top cylinder | ${L}_{c}$ | 7.91 | [m] |

Total submerged length | ${L}_{t}$ | 50.91 | [m] |

Vertical coordinate of Centre of Gravity | ${z}_{\mathrm{CoG}}$ | −31.96 | [m] |

Vertical coordinate of Centre of Buoyancy | ${z}_{\mathrm{CoB}}$ | −22.14 | [m] |

Mass | M | 2.86$\xb7{10}^{6}$ | [kg] |

Perpendicular moment of inertia | ${I}_{x}={I}_{y}$ | 1.53$\xb7{10}^{9}$ | [kg m${}^{2}$] |

Axial moment of inertia | ${I}_{z}$ | 1.12$\xb7{10}^{8}$ | [kg m${}^{2}$] |

Orifice diameter | ${d}_{o}$ | 0.864 | [m] |

${\mathit{C}}_{\mathit{d},\mathit{c}}$ | ${\mathit{C}}_{\mathit{d},3}$ | ${\mathit{C}}_{\mathit{d},37}$ | ${\mathit{C}}_{\mathit{d},6}$ |
---|---|---|---|

1.75 | 0.175 | 0.2 | 0.125 |

**Table 3.**Parameters of the full-scale mooring system, based on the experimental tests in [31].

Parameter | Symbol | Value | Units |
---|---|---|---|

Line diameter | ${d}_{l}$ | 32 | [mm] |

Net line density | ${\rho}_{L}^{*}$ | 3.55 | [kgm${}^{-3}$] |

Jumper mass | See Table 4 | ||

Jumper density | ${\rho}_{J}$ | 123.00 | [kgm${}^{-3}$] |

Clump-weight mass | See Table 4 | ||

Clump-weight density | ${\rho}_{C}$ | 8097.50 | [kgm${}^{-3}$] |

Length from anchor to jumper | ${L}_{1}$ | 143.28 | [m] |

Length from jumper to clump-weight | ${L}_{2}$ | 37.01 | [m] |

Length from clump-weight to buoy | ${L}_{3}$ | 50.40 | [m] |

Radius at the anchor | ${R}_{a}$ | 211.2 | [m] |

Depth at the anchor | h | 80 | [m] |

Radius of attachment at the buoy | ${R}_{b}$ | −9.28 | [m] |

Depth of attachment at the buoy | ${h}_{b}$ | −2.58 | [m] |

**Table 4.**Jumper and clump weight masses for five different mooring configurations that ensure the same draft of the top cylinder of the floater ${L}_{c}$ of 7.91 m, as shown in Figure 4. The consequent pre-tension is also reported.

Configuration | Jumper Mass [kg] | Clump-Weight Mass [kg] | Pre-Tension [N] |
---|---|---|---|

${m}_{1}$ | 2015.2 | 27,737 | 2.34$\xb7{10}^{5}$ |

${m}_{2}$ | 3022.8 | 32,050 | 2.71$\xb7{10}^{5}$ |

${m}_{3}$ | 4030.5 | 36,044 | 3.14$\xb7{10}^{5}$ |

${m}_{4}$ | 5038.1 | 39,460 | 3.63$\xb7{10}^{5}$ |

${m}_{5}$ | 6045.7 | 42,742 | 4.18$\xb7{10}^{5}$ |

**Table 5.**Natural periods from free decay tests for different mooring configurations, as in Table 4.

${\mathit{T}}_{\mathit{n}}\left[\mathit{s}\right]$ | ||||||
---|---|---|---|---|---|---|

${\mathit{m}}_{\mathbf{1}}$ | ${\mathit{m}}_{\mathbf{2}}$ | ${\mathit{m}}_{\mathbf{3}}$ | ${\mathit{m}}_{\mathbf{4}}$ | ${\mathit{m}}_{\mathbf{5}}$ | ||

Surge & Sway | ${T}_{n,1}$ | 187 | 167 | 150 | 132 | 117 |

Heave | ${T}_{n,3}$ | 10.2 | 10.1 | 10.1 | 10.1 | 10.1 |

Roll & Pitch | ${T}_{n,5}$ | 19.3 | 19.2 | 19.1 | 19.1 | 18.9 |

Yaw | ${T}_{n,6}$ | 30.6 | 26.8 | 24.0 | 21.8 | 20.0 |
