Foundations in Offshore Wind Farms: Evolution, Characteristics and Range of Use. Analysis of Main Dimensional Parameters in Monopile Foundations

Abstract

Renewable energies are the future, and offshore wind is undoubtedly one of the renewable energy sources for the future. Foundations of offshore wind turbines are essential for its right development. There are several types: monopiles, gravity-based structures, jackets, tripods, floating support, etc., being the first ones that are most used up to now. This manuscript begins with a review of the offshore wind power installed around the world and the exposition of the different types of foundations in the industry. For that, a database has been created, and all the data are being processed to be exposed in clear graphic summarizing the current use of the different foundation types, considering mainly distance to the coast and water depth. Later, the paper includes an analysis of the evolution and parameters of the design of monopiles, including wind turbine and monopile characteristics. Some monomials are considered in this specific analysis and also the soil type. So, a general view of the current state of monopile foundations is achieved, based on a database with the offshore wind farms in operation.

1. Introduction

Wind energy can be considered nowadays a main participant in the energy market and power generation [1,2]. In 2016, it overtook coal as the second-largest form of generation capacity in Europe, only being overpassed by gas, and showing the highest development rate of every source considered [3]. Although the offshore wind energy sector is still far from the stage of maturity of its older brother (onshore wind) [4], the similarities between both have allowed offshore wind turbines [5] to become efficient and commercial-ready in a relatively short time [6]. During 2018, a total of 4496 MW were installed in six different countries [7]. China became the largest investor of this field (1800 MW), overtaking the United Kingdom for the first time (1312 MW), who had led the market during the past years. Germany (969 MW), Belgium (309 MW), Denmark (61 MW) and South Korea (35 MW) were the other participants.

Referring to the total installed capacity, the United Kingdom is still far ahead of any other country, covering 35.0% of the total power. Germany and China stay behind, accounting for 27.3% and 19.6%, respectively. Denmark, Sweden and the Netherlands, who started designing and testing these installations in the 90s, are still playing an important role as industry manufacturers and technology developers; however, the capacity installed in these countries has not gone up to that scale.

Table 1. Capacity installed by country at the end of 2018 (UK: United Kingdom; GER: Germany; CHI: China; DEN: Denmark; BEL: Belgium; NET: Netherlands; SWE: Sweden; VIE: Vietnam; JAP: Japan; KOR: Korea; FIN: Finland; USA: United States of America; IRE: Ireland; SPA: Spain; NOR: Norway; FRA: France) (Own elaboration based on [3,7]).

Country	Wind Farms	Power Installed (MW)	% Total Power Installed	Turbines Installed	Average Wind Farm Power (MW)	Average Turbine Capacity (MW)
UK	37	8184	35.0%	1920	221.2	4.3
GER	23	6375	27.3%	1314	277.2	4.9
CHI	36	4581	19.6%	1224	127.3	3.7
DEN	14	1327	5.7%	514	94.8	2.6
BEL	8	1187	5.1%	274	148.4	4.3
NET	6	1118	4.8%	365	186.3	3.1
SWE	5	201	0.9%	86	40.2	2.3
VIE	2	99	0.4%	62	49.5	1.6
JAP	11	84	0.4%	35	7.6	2.4
KOR	3	71	0.3%	24	23.7	3.0
FIN	3	68	0.3%	24	22.7	2.8
USA	1	30	0.1%	5	30.0	6.0
IRE	1	25	0.1%	7	25.0	3.6
SPA	2	10	0.0%	2	5.0	5.0
NOR	1	2	0.0%	1	2.0	2.0
FRA	1	2	0.0%	1	2.0	2.0

gives some details of the picture at the end of 2018.

According to [8,9,10,11,12,13,14,15], the main advantages of offshore wind farms over onshore ones can be briefly described as follows:

• The existing wind resource in the sea is higher than in nearby coasts.
• Due to its location offshore, the visual and acoustic impact is lower than wind farms on land, which allows better use of the existing wind resource, with larger turbines and the use of more efficient blade geometries. Likewise, the lower surface roughness in the sea favors the use of lower tower heights.
• It provides a bigger creation of employment in the phases of construction, assembly and maintenance, due to the greater complexity during installation and exploitation.
• Possibility of integration in mixed marine complexes.
• Spaciousness of the environment.
• More constant and stable energy generated.

However, these marine facilities also have significant disadvantages with respect to terrestrial ones, which are limiting their development: non-existence of electrical infrastructures close to the location; more severe environmental conditions; evaluation of wind resource more complex and expensive; and above all, its higher investment ratios and operating expenses, needing specific technologies for construction and foundations, transport and assembly at sea, laying of electrical networks underwater and operation and maintenance tasks [16,17]. Furthermore, there is some research emphasizing the advantages of harnessing wind and waves at the same facility [18,19,20].

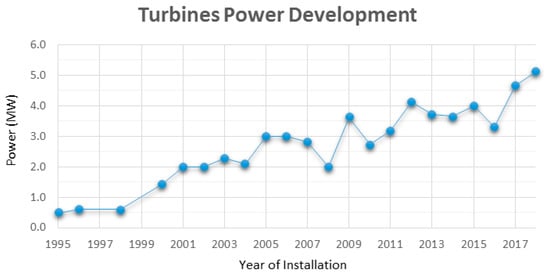

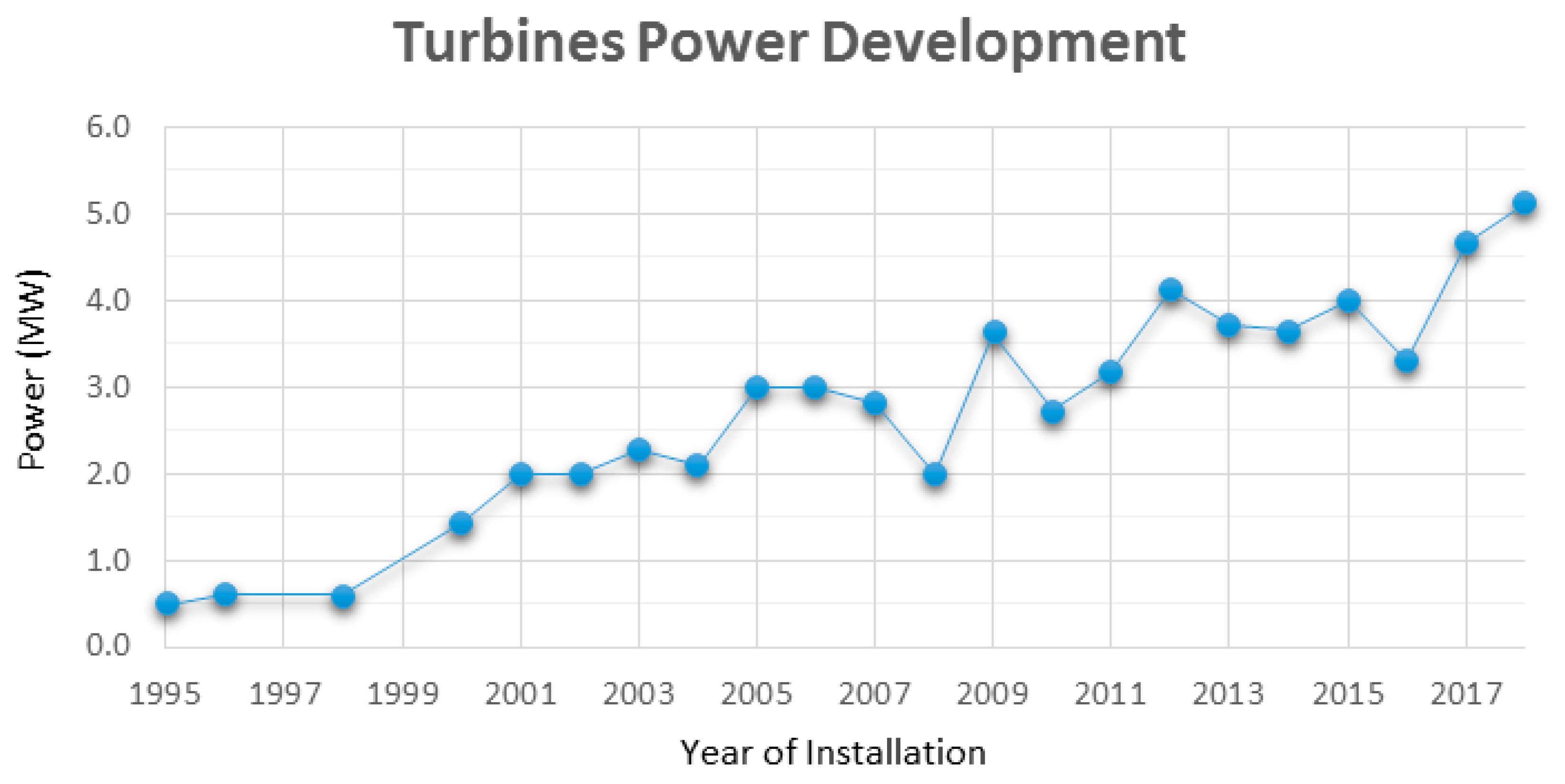

In order to face the investment costs and become more productive and, therefore, more attractive to the market investors, offshore wind farms must generate as much power as possible with the lowest construction and installation costs [21,22,23]. Developing more and more efficient turbines has become the greatest challenge of the sector from the early years, while the costs of foundations and electric installations remain stable [24,25]. During the last 25 years, the average power capacity of the turbines has increased by 1500% (Figure 1), evolving from the first Vestas and Nordtrank used in 1995, with a capacity of 500 kW (Figure 2), to the 7–8 MW turbines that are already being used on some of the largest and newest projects these days [26]. The European Offshore Wind Deployment Centre in Scotland, and Horns Rev 3 in Denmark, are currently using Vestas V164-8.4 MW turbines, the most powerful turbines nowadays for commercial power generation. Currently, the industry is talking about exceeding 10 MW unit power [27,28].

2. Typologies of Foundations

Located in such a dynamic and extremely powerful element as the sea is, foundations become one of the main elements of these projects, receiving over one-third of the total cost [29,30,31,32]. As they must support the wind turbines, absorbing all the forces and loads and providing a safe and stable base, defining the right typology of foundation can have a huge impact both on the economic and technical sides, becoming especially vital these last years as wind farms are being located further from the coast, and every element must be designed and optimized in detail, to avoid performance problems and reduce maintenance works.

As was previously discussed in the article, offshore wind farms, even nowadays, are placed in a few selected locations. There are several conditions that limit the range of use of this type of installations [33,34,35,36]:

• The depth is vital when defining installation costs. Greater depths associates higher costs and the use of more complex and specialised technologies, something that is reflected in the final investment of the wind farm, reducing its profitability. Closed seas, located within continental platforms, have an average depth significantly lower than oceans and open seas, being more convenient for this type of project [37].
• Meteocean climate, in particular, wave height values [38,39,40]. Sea zones with high wave heights make installation and maintenance work more complicated, requiring more workload and economic resources, in addition to damaging the foundations and causing phenomena such as to scour the seabed [41,42,43,44,45], which weakens the structure and requires closer surveillance and maintenance work.
• The distance to coast [46]. In order to have a higher intensity wind and less impact on the landscape and the coast, in the location of this type of facilities, it is sought to distance them as far as possible from the coastline, since this also allows the use of turbines of greater nominal size and power. However, as it has been discussed before, this usually leads to an increase in depth, with the inconveniences that this entails. Therefore, the optimal location for a wind farm is the one that is placed as far from the coastline as possible while keeping a low depth.
• Spontaneous or unexpected phenomena such as earthquakes, tsunamis or extreme meteorological offshore events. Additional information from location, ground composition and soil-foundation interactions become much more relevant at regions where these events appear more frequently [47,48,49].

Other factors to consider are the typology of the stratum of the seabed on which engineers support the foundations [50], possible impacts to shipping routes or other offshore installations, and sea climate. Furthermore, it is important taking into account that there are still some uncertainties for the design of the foundations of these facilities [51].

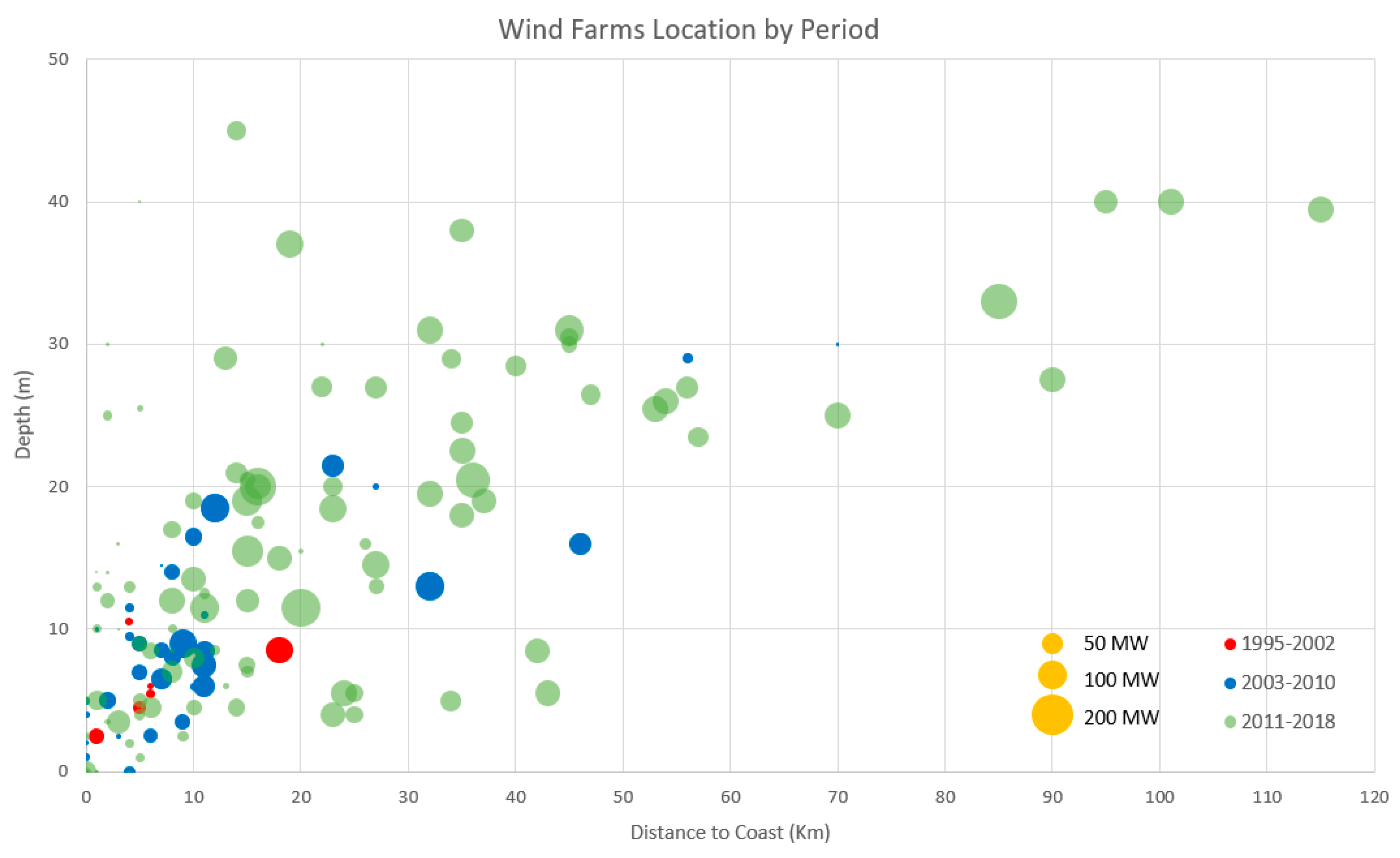

As wave height is a dynamic value that may vary in a significant way for every wind turbine inside each farm, depending on several different factors, the paper is focused on the other main conditioners: the depth of the seabed and the distance from the coast. The development of new technologies and manufacturing and construction procedures [52], together with the increase in the size of wind farms and turbines and the increase in society’s awareness of visual and environmental impacts [53,54], has led to the displacement of these installations further from the coastline, as it can be seen in Figure 2 (the size of the bubbles represents the capacity installed).

Table 2. Average depth and distance conditions of installed farms by location at the end of 2018.

Location	Wind Farms	Power Installed (MW)	Power Installed (%)	Depth (m)	Distance to Coast (km)	Ratio Depth/Distance
North Sea	61	12,933	55.4%	23.4	30.0	0.78
Irish Sea	15	2938	12.6%	13.1	10.1	1.29
Eastern China Sea	16	2574	11.0%	5.3	16.7	0.32
Baltic Sea	20	2186	9.4%	12.4	10.9	1.14
Yellow Sea	13	1365	5.8%	7.5	11.3	0.66
South China Sea	10	777	3.3%	6.5	8.3	0.78
English Channel	1	400	1.7%	29.0	13.0	2.23
Japan Sea	6	66	0.3%	13.4	1.5	8.94
Philippines Sea	7	53	0.2%	39.9	6.3	6.34
Atlantic Ocean	4	42	0.2%	21.4	7.3	2.95
Lake Vanern	1	30	0.1%	9.5	4.0	2.38

shows the average depth and distance to coast in different locations and also the ratio depth/distance. In the case of lower depth and distance to coast, the more convenient and cost-efficient the construction project of the wind farm will be [55].

Regarding the wind farms operating these days, low-depth seas belonging to the continental platforms are the optimal location for these installations, where the ratio between the seabed depth and the distance is under or close to 1 m/km.

In Europe, the North Sea, Baltic Sea and Irish Sea stand as the best spots and mostly the first that have lead the sector since the beginning of the century. In the case of Asia, seas such as Eastern China, Southern China and the Yellow Sea provide an even better ratio, which can undoubtedly be a reason to explain the fast development and huge interest that this sector has brought to this continent.

Depending on the depth of the seabed, as well as the surrounding conditions and sea climate, different solutions have been used since the first offshore wind turbines were designed. Some of the most important typologies of foundations are defined as follows [55,56,57,58,59]:

• Gravity-based structure (GBS): concrete-based structure which can be constructed with or without small steel or concrete skirts. The base width can be adjusted to suit the actual soil conditions. The proposed design includes a central steel or concrete shaft for transition to the wind turbine tower [60,61].
• Monopile: the monopile support structure is a simple design by which the tower is supported by the monopile, either directly or through a transition piece, which is a transitional section between the tower and the monopile. The monopile continues down into the soil. The structure is made of cylindrical steel tubes [62,63].
• Tripod: three-leg structure made of cylindrical steel tubes. The central steel shaft of the tripod makes the transition to the wind turbine tower. The tripod can have either vertical or inclined pile sleeves. Inclined pile sleeves are used when the structure is to be installed with a jack-up drilling rig. The base width and pile penetration depth can be adjusted to suit the actual environmental and soil conditions [64].
• Jacket: similar to the tripods described above, with the difference of having four piles instead of three. These metal piles are linked together thanks to a lattice that provides strength and stability to the whole structure. They have dimensions similar to the tripods but given their greater adaptability to diverse conditions and stability, they are more widespread than these, until being the second most used typology only behind the monopiles [65,66].
• Floating: The floating support structure consists of a floating platform and a platform anchoring system. The platform has a transition piece to install the tower on top of that. The platform can have several typologies: spar, semisubmersible and tension leg platform (TLP) [67,68].

Besides the previously mentioned types of foundations, there are others in development to be used in the offshore wind industry. One of the most known is the suction caisson being used in oil and gas with very good results [69,70,71]. This typology provides a stable and light base, whose strength comes directly, not from its weight or depth, but from the compaction of the supporting soil through the suction of the water. Suction caissons work very well in soft soils such as clays [72,73].

The seabed depth has often been used as the main conditioner to choose the most convenient typology for a project. Various articles and reports have attempted to settle the range of employment, establishing approximate parameters based on the behavior that each one of them experiences when facing sea climates.

Table 3. Range of use of typology by seabed depth.

Foundation	Ashuri and Zaaijer, 2007	DNV, 2013	Iberdrola, 2017
GBS	0–10 m	0–25 m	0–30 m
Monopile	0–30 m	0–25 m	0–15 m
Tripod/Jacket	>20 m	20–50 m	>30 m
Floating	>50 m	>50 m	>50 m

includes some of the most accepted criteria [74,75].

However, the depth of the seabed is not the only condition to be considered. Other factors such as the availability of resources [76] and technology and experience in a certain type over the others make different markets bet on different solutions in similar environments.

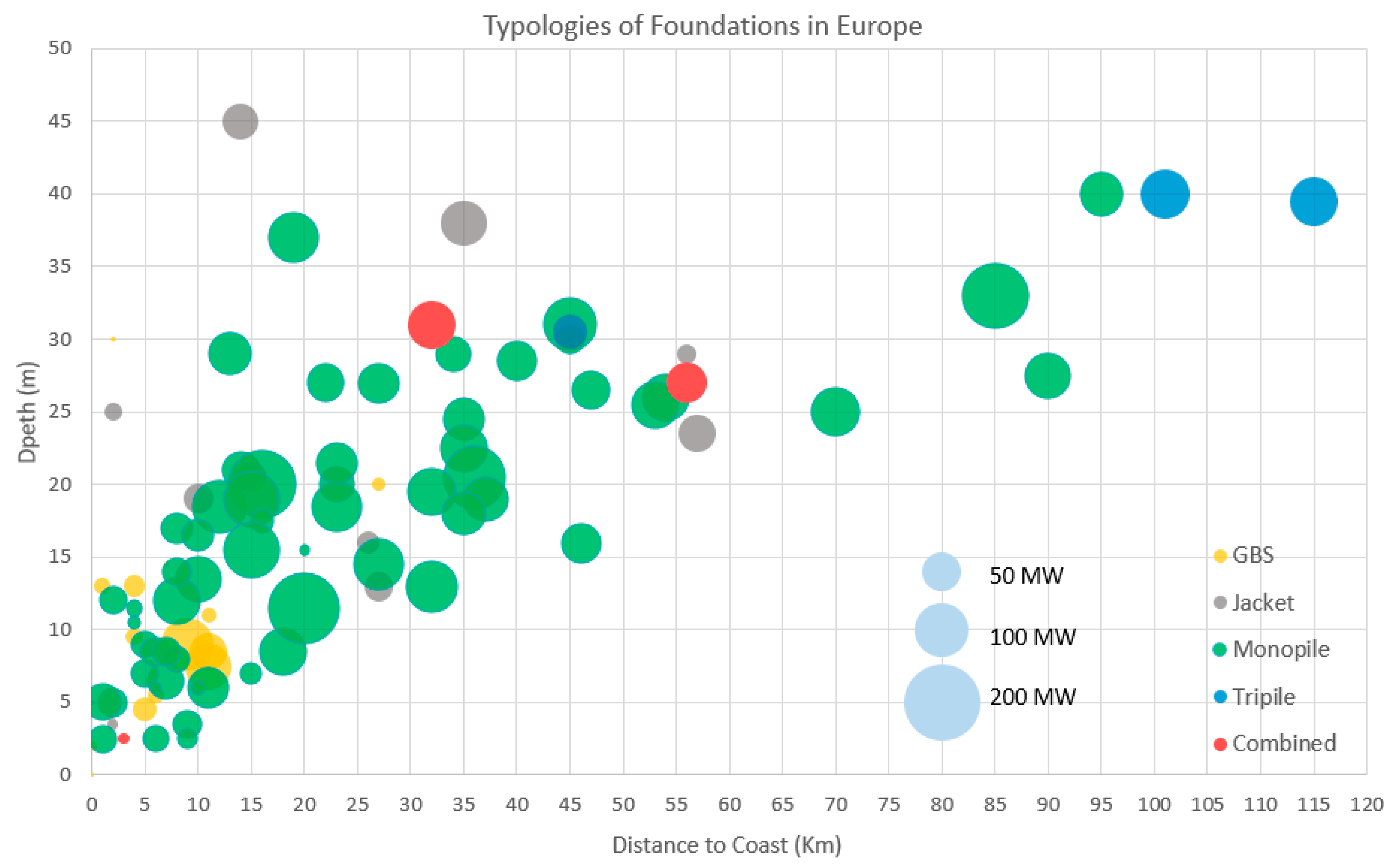

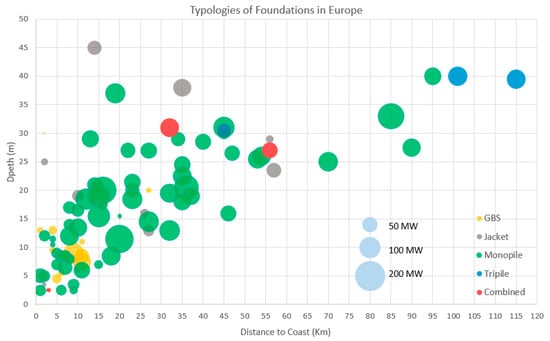

Figure 3 and Figure 4 show the comparison of the typologies in Europe and in Asia according to the parameters of depth and distance to the coast.

The maturity of the sector in Europe has allowed the installation of wind farms in remote areas not yet considered in Asia, both in distance and depth. The best example is the Global Tech I Park, in Germany (400 MW, 115 Km from the coast, 80 x 5 MW turbines, AREVA M5000 wind turbine, situated in the German Exclusive Economic Zone (EEZ), 180km away from the Bremerhaven Emden in the north-west, Germany). In Europe, monopile foundations after decades of experience and acquired knowledge, present a high percentage of use compared to the other typologies in Europe (77%). The specialisation in their design and manufacturing makes them, due to cost and range of aptitude, the most appropriate alternative in most wind farms located in shallow and intermediate depths.

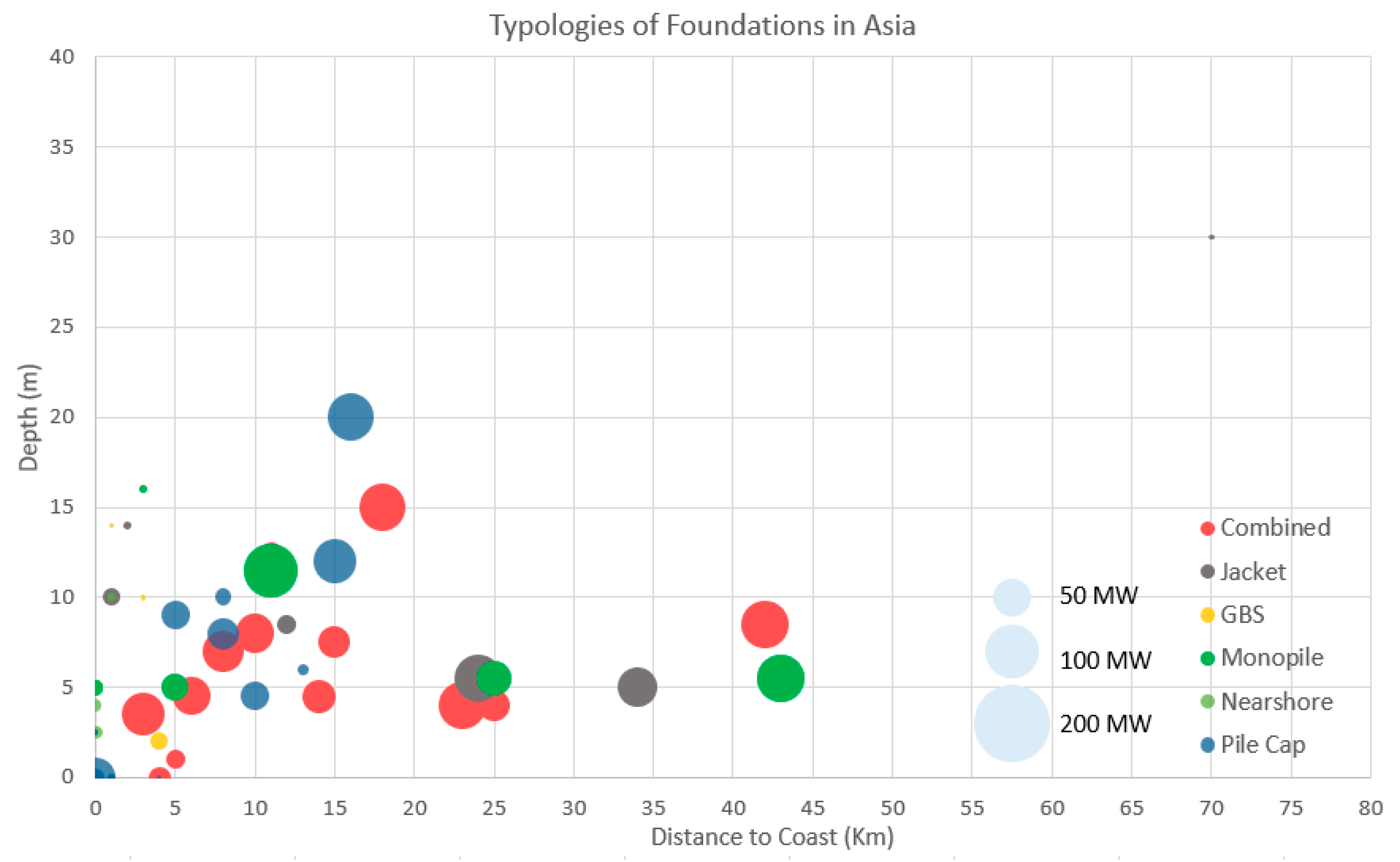

Meanwhile in Asia, the arrival of offshore wind energy in a continent without tradition in facilities of this type has led to the use of various solutions. On the other hand, the optimal conditions of some Asian seas with shallow depths at great distances, explains the use of simple and inexpensive typologies such as pile cap concrete foundations. Wind farms with several different typologies are also common, mainly pile cap foundations and monopile or jacket structures.

Although floating foundations have not been represented in the previous graphs, to facilitate the visualisation of the data, they will be analysed separately. As it can be extracted from previous text, all the conventional typologies present problems or a high degree of uncertainty when depths are greater than 50 meters. However, it is in these regions where the wind resource is the strongest and most stable, and the distance to the coastline minimises the impact on the environment and the landscape. Due to these reasons, many market participants started to investigate and develop new solutions that allow the installation and operation of wind farms at greater depths and distances, without compromising the safety of wind turbines or requiring huge installation and maintenance costs. Some of the advantages that floating platforms can offer compared to the other types are:

• Allowing the installation of wind farms in regions with great potential in the production of wind energy but which cannot be supported with current typologies.
• They offer a competitive alternative in medium depths (30–50 m), since they do not require a preparation of the seabed nor is it necessary to carry out works in the large-scale environment. Therefore, the impact on the ecosystem is lower.
• They allow countries without a continental platform and great depths at a short distance from the coast (America, Southern Europe, among others), to step forward in the market to which they barely had access to a few years ago.

The biggest disadvantage of this type of project is the need for research and development until it is viable and used in real installations, together with the enormous associated cost involved. Despite all this, several demonstrations and pilot projects have already been carried out, and the behaviour and profitability of this type of proposal are currently being analysed.

Table 4. Floating projects in operation at the end of 2018 (JAP: Japan; NOR: Norway; UK: United Kingdom; FRA: France).

Wind Farm	Country	Power (MW)	Turbines	Depth (m)	Distance (Km)	Year
Fukushima Floating -2	JAP	12.0	2	122.5	20	2018
Fukushima Floating -1	JAP	2.0	1	122.5	20	2013
Sakiyama Wind Turbine	JAP	2.0	1	40.0	5	2016
Hywind	NOR	2.0	1	220.0	10	2009
Hywing Scotland	UK	30.0	5	103.0	25	2018
Floatgen Project Demo	FRA	2.0	1	30.0	22	2018

includes the floating projects already operating.

With a total of 154 offshore wind farms classified and analysed using all the data set created for this research, it has been limited to the range of use of each one of the considered typologies, establishing both the areas of frequent use and the singular projects that are outside these limits, and which is interesting to mention since they establish the limits of these foundations in the future (

Table 5. Typologies of foundations by range of use (1995–2018).

Typology	Depth (m)	Distance (Km)	Max. Depth (m)	Max Distance (Km)
Pile Cap	0–15	0–15	15	15
Combined	0–15	0–30	30	35
GBS	0–20	0–15	30	30
Monopile	0–30	0–60	40	100
Jacket	5–50	5–60	50	70
Tripod	25–50	40–120	40	120
Floating	>50	5–25	220	25

, Figure 5).

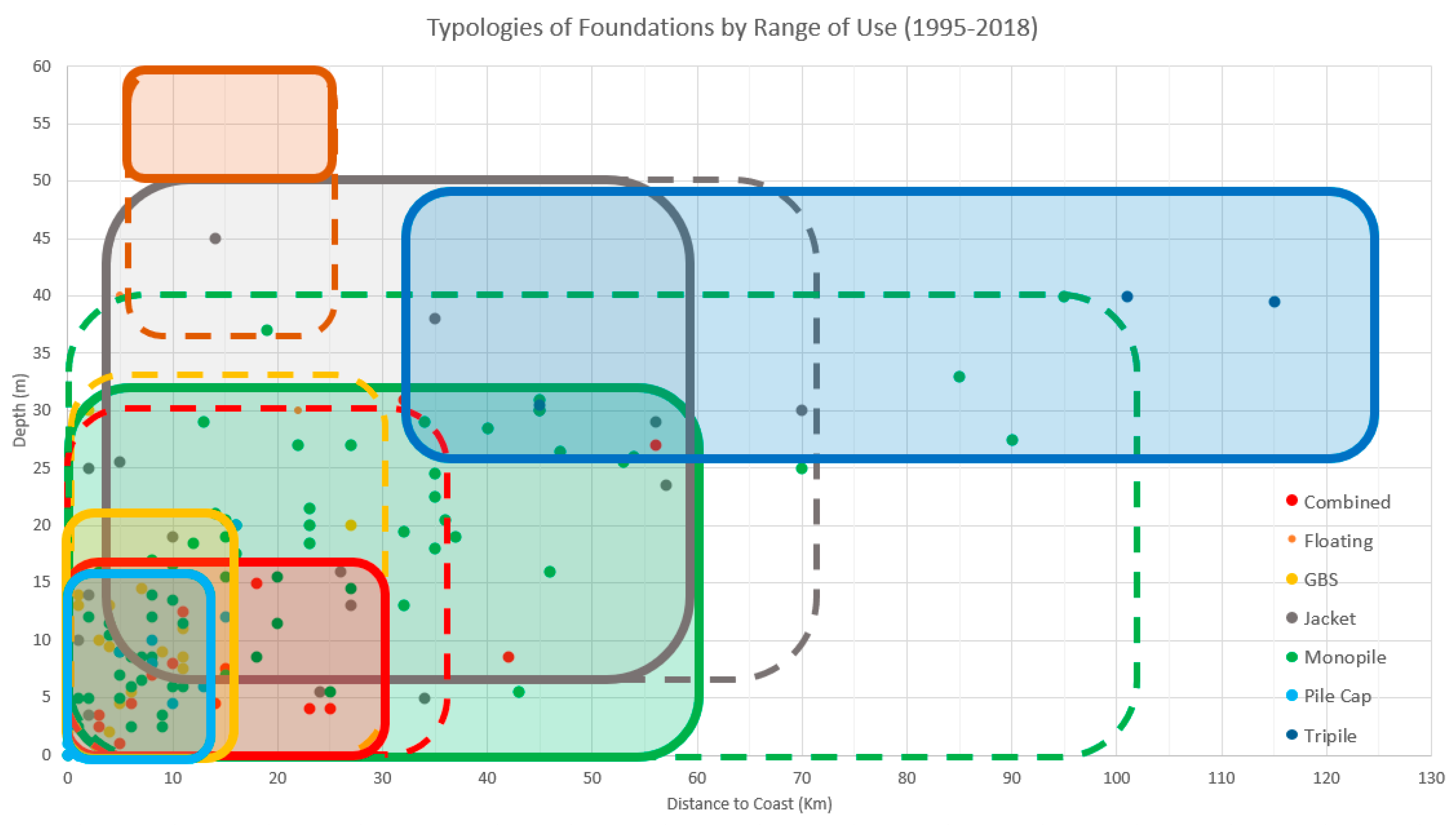

In Figure 5, the areas inside the solid lines represent the regions where each typology has been used various times, while the areas outside the solid lines but inside the dashed ones represent the regions where these typologies have been used for single projects. Those dashed-line areas can be of interest, as they set the possibilities of these different solutions in the short and medium-term.

As it can be seen from the Table 5 and Figure 5, there are three differentiated zones for which different solutions are used, depending mainly on the depth of the seabed but also on the distance to the coast and location of the wind farm:

• In shallow depths (0–20 m), the typologies used differ depending on the continent. In Europe, GBS and monopile foundations have been the most frequent option, with the former being used at distances less than 15–20 km from the coast, and the latter at greater distances. In Asia, on the other hand, the pile cap foundations and the combined wind farms (mainly pile cap and monopiles) have been chosen for practically all the foundations.
• At medium depths (20–40 m), the most commonly used foundations are monopile and jacket typologies. The main difference between the two is the use of the second ones in depths from 35–40 m. It is in these depths when the monopiles begin to experience buckling and instability phenomena, being necessary to resort to more stable structures with better behavior under severe marine conditions. Bac Lieu wind farm, the first one in Vietnam, stands as one of the examples of pile cap foundations [77].
• On the other hand, it is important to highlight the use of tripod foundations. Although there are currently only three wind farms with this typology, their excellent behavior in areas far from the coast makes them a competitive alternative at medium-high depths and large distances, these regions being potentially the most demanded for installation of wind farms in Europe during the coming years.
• At greater depths (>50 m) floating foundations are the only typology that has been used to date. It can, therefore, be assumed that above this depth these typologies are those that a priori can be considered as the only possible alternative, although in particular conditions other typologies (usually tripod or jacket) may be used as well.

3. Monopiles: Evolution and Parameters of Design

As has been explained previously, if there is a typology that stands out above the others, both in frequency and range of use, it is the monopile typology. Considered an alternative since the first years of development of this sector, it has several characteristics that explain its popularity and widespread use:

• Simplicity: a simple and easily standardised design allows it to be manufactured in series without the need for cutting-edge technology, shortening construction and installation times and, therefore, reducing costs without compromising the safety and operability of the installation.
• Adaptability: linked to the previous point. Its simple design makes it possible to adapt to different dimensions and characteristics, without excessive complications to external conditions, avoiding the need for a large amount of field data, providing competitive solutions in shallow depths as well as in larger ones.
• Behavior: possibly the main strength of this typology. Able to stand favourably against external forces without increasing installation and maintenance costs. Mainly in high distances and average depths (25–35 m) where typologies such as GBS and HRPC (High Rise Pile Cap) are not competitive, and the use of jacket and tripod foundations can greatly increase the cost of the project, monopiles are considered the best alternative, even nowadays.

Monopiles began to be used mainly in 2002 when offshore wind was considered for the first time a competitive alternative in some parts of Europe, and the first relevant projects came up (Horns Rev 1, 160 MW, Denmark, Vestas V80-2.0 MW, North Sea, Denmark). These large wind parks needed to move away from the coast to minimise environmental and social impact, in addition to seeking a more powerful and stable wind resource. GBS foundations could not compete at intermediate depths and jacket structures were not economically viable.

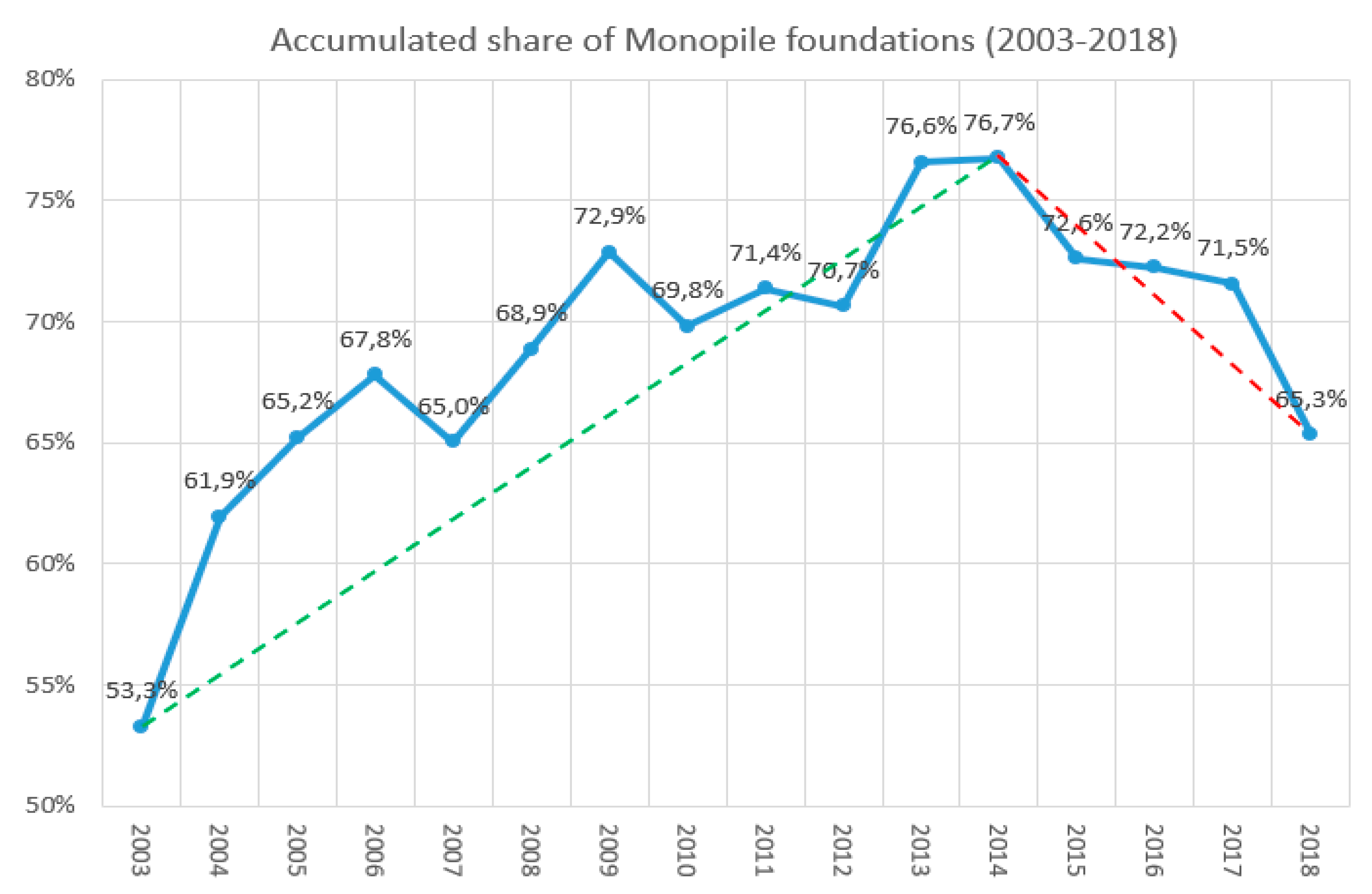

During the next years, this typology experienced a great development (marked in green in Figure 6), as more resources were invested to reduce manufacturing costs while improving the building processes. Some companies, collecting the knowledge obtained from each project, soon became solid specialised brands who developed new solutions and techniques, spreading the use of monopiles out of their initial range. At the top of its popularity in 2014, monopile foundations were used in 76.7% of the total wind turbines operating in the world by that time (Figure 6).

The decreasing period takes place as of 2014 (highlighted in red), and presents a decreasing trend from the 77% existing in that year to the current 65%. To explain this fact, two facts must be considered.

On the one hand, the tendency to move wind farms away from the coast towards greater depths favours the use of more solid and stable typologies (jacket, tripod), with a better performance in the face of more severe marine climates.

On the other hand, the development of the sector in the Asian countries with different environmental conditions and technical solutions, has favoured the decrease of this quota. However, as it has been already seen, turbines have barely been installed at intermediate depths in Asia and when they begin to do so, monopiles will be considered again.

In order to adapt to the needs of each wind farm, monopiles have evolved over the years. Its main dimensions, diameter and length have increased to be able to support increasingly high and heavy turbines and greater depths. If it is analysed, these changes during the last 10 years in which 90% of all existing monopiles have been installed, the results are exposed in

Table 6. Monopiles characteristics (2009–2018).

Year	Power Installed (MW)	Turbines Installed	Average Turbine Power, Pn (MW)	Average Diameter, ø (m)	Average Length, L (m)	Average Depth, d (m)	Average Distance to Coast, DC (Km)
2009	457	127	3.6	4.85	37.8	7.6	5.7
2010	862	311	2.8	4.26	40.4	11.7	20.2
2011	232	72	3.2	5.00	43.0	19.3	15.0
2012	184	51	3.6	6.00	55.0	27.0	22.0
2013	2149	599	3.6	5.13	47.8	13.1	15.7
2014	1063	317	3.4	5.48	58.8	19.2	24.4
2015	2072	564	3.7	5.47	55.4	17.9	27.8
2016	698	191	3.7	5.68	62.2	9.5	16.5
2017	3144	609	5.2	6.83	69.0	23.6	46.1
2018	3598	608	5.9	7.26	69.1	22.4	27.4

.

As can be seen, both the length and the diameter of the piles have evolved proportionally to the power of the turbines, maintaining constant ratios. However, in order to analyse the relationship of these dimensions with the average depth and distance to the coast, it is seen that the ratio is not constant and there are relevant deviations.

In order to study these correlations more carefully, some monomials from the previous table are shown in

Table 7. Monopiles monomials (2009–2018).

Year	ø/L (m/m)	ø/Pn (m/KW)	L/Pn (m/KW)	ø/d (m/m)	L/d (m/m)	ø/DC (m/Km)	L/DC (m/Km)	d/DC (m/Km)
2009	0.13	1.35	10.5	0.64	5.0	0.85	6.6	1.33
2010	0.11	1.54	14.6	0.36	3.5	0.21	2.0	0.58
2011	0.12	1.55	13.3	0.26	2.2	0.33	2.9	1.29
2012	0.11	1.66	15.2	0.22	2.0	0.27	2.5	1.23
2013	0.11	1.43	13.3	0.39	3.6	0.33	3.0	0.83
2014	0.09	1.63	17.5	0.29	3.1	0.22	2.4	0.79
2015	0.10	1.49	15.1	0.31	3.1	0.20	2.0	0.64
2016	0.09	1.55	17.0	0.60	6.5	0.34	3.8	0.58
2017	0.10	1.32	13.4	0.29	2.9	0.15	1.5	0.51
2018	0.11	1.23	11.7	0.32	3.1	0.26	2.5	0.82
Average	0.11	1.48	14.2	0.37	3.5	0.32	2.92	0.86

.

The monomial with the lowest variation is the ratio Diameter/Length of the monopile, staying close to 0.10–0.11 during the last years. This parameter can be helpful at the time of designing the right length of the pile based on the diameter of the wind turbine.

Although the other coefficients show a higher variability, in order to obtain a valid correlation for wind farms with the current characteristics and conditions, those obtained from the data corresponding to the last years will be more useful for this study. With these parameters, engineers can make estimations of the dimensions of the foundations, considering both the conditions of the environment and the power of the chosen turbines.

Other parameters that may be of interest are the hub height and blade length of the turbines, which directly affect the electrical production capacity. In

Table 8. Hub and blade heights of monopile wind farms by year (1996–2018).

Year	PN (MW)	Hub Height (m)	Total Height (m)	Blade Length (m)	Monopile Length (m)	Ratio Blade/Hub	Monopile/Hub	Monopile/Blade
1996	0.61	50.0	71.5	21.5	19.0	0.43	0.27	0.88
1998	0.60	41.5	60.0	18.5	21.0	0.45	0.35	1.14
2000	1.43	65.0	100.5	35.5	32.5	0.55	0.32	0.92
2002	2.00	70.0	110.0	40.0	30.0	0.57	0.27	0.75
2003	2.30	61.0	102.2	41.2	45.0	0.68	0.44	1.09
2004	2.16	67.0	110.3	43.3	40.0	0.65	0.36	0.92
2005	3.00	70.0	115.0	45.0	41.0	0.64	0.36	0.91
2006	3.00	75.0	120.0	45.0	49.0	0.60	0.41	1.09
2007	3.25	76.8	126.0	49.3	48.5	0.64	0.38	0.98
2008	2.00	59.0	99.0	40.0	54.0	0.68	0.55	1.35
2009	3.60	78.8	132.3	53.5	37.8	0.68	0.29	0.71
2010	2.77	70.0	114.3	44.3	40.4	0.63	0.35	0.91
2011	3.22	75.3	125.3	50.0	43.0	0.66	0.34	0.86
2012	3.61	90.2	150.2	60.1	55.0	0.67	0.37	0.92
2013	3.59	79.6	134.9	55.3	47.8	0.69	0.35	0.86
2014	3.35	83.2	139.7	56.5	58.8	0.68	0.42	1.04
2015	3.67	87.0	145.8	58.8	55.4	0.68	0.38	0.94
2016	3.65	91.3	152.3	61.0	62.3	0.67	0.41	1.02
2017	5.16	97.5	167.7	70.2	69.0	0.72	0.41	0.98
2018	5.92	99.8	174.2	74.4	69.1	0.75	0.40	0.93

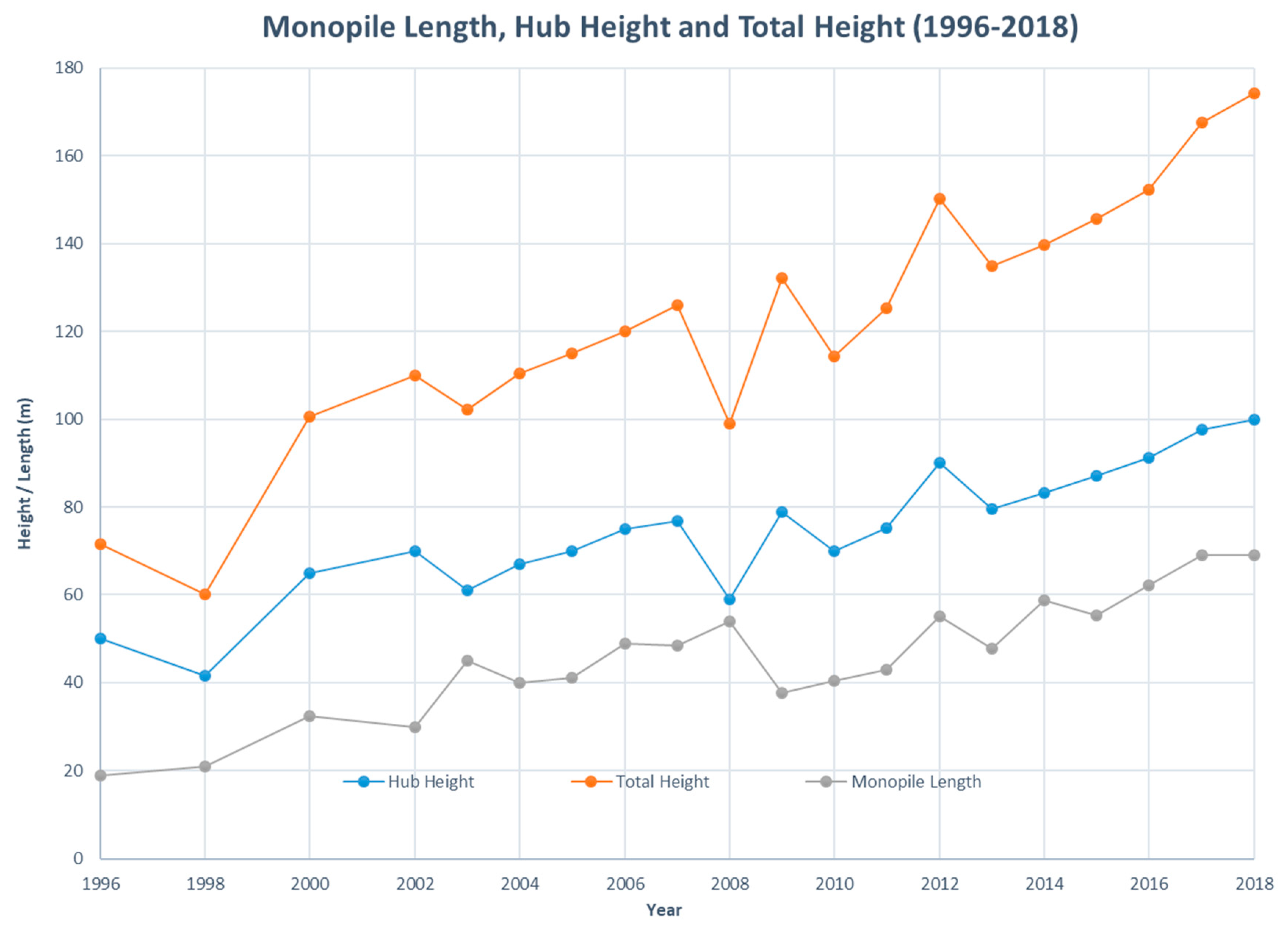

and Figure 7, it can be seen how they have evolved their average values over the years, and their relationship with the length of the monopile foundations.

Some interesting monomials can be extracted, like the ratios of Monopile Length/Blade Height, and Monopile Length/Hub Height, which have remained constant through the years (0.3–0.4 for the first one, and 0.9–1.0 for the second one). However, the monomial that shows a higher variation is the ratio Blade Length/Hub Height, from 0.43 in 1996 to 0.75 in 2018. Bigger blades lead to more efficient turbines and higher productions, and the location of offshore wind farms far from any affect on humans, and the lower surface roughness of the sea allows this ratio to keep growing.

Finally, some data on the predominant soil composition in each of these wind farms have also been included. In the same way as in previous sections, several monomials have been obtained.

Table 9. Soil composition on monopile wind farms.

Soil Type	Power (MW)	% Type of Soil (Total Power)	Pn (MW)	Wind Farms	Average Depth (m)	ø (m)	Lenght (m)	Ratio ø/L	Ratio Length/Depth
Sand/Clay	1582	10.3%	3.5	8	11.8	5.0	52.0	0.10	4.40
Sand/Bedrock	135	0.9%	2.0	4	9.3	3.6	32.1	0.11	3.47
Sand	9199	60.1%	4.2	39	17.9	5.6	57.8	0.10	3.23
Clay	2191	14.3%	4.1	10	14.8	5.4	48.5	0.11	3.28
Sand/Gravel	775	5.1%	3.5	3	12.0	5.1	40.7	0.13	3.39
Sand/Chalk	97	0.6%	3.6	1	9.0	-	34.0		3.78
Clay/Gravel	165	1.1%	3.0	1	16.0	4.5	55.0	0.08	3.44
Clay/Bedrock	576	3.8%	3.6	1	20.0	5.0	55.0	0.09	2.75
Chalk	595	3.9%	6.3	2	20.8	7.3	70.5	0.10	3.40

includes some important figures related to the soil type, including the percentage considering the power installed and some of the monomials previously used.

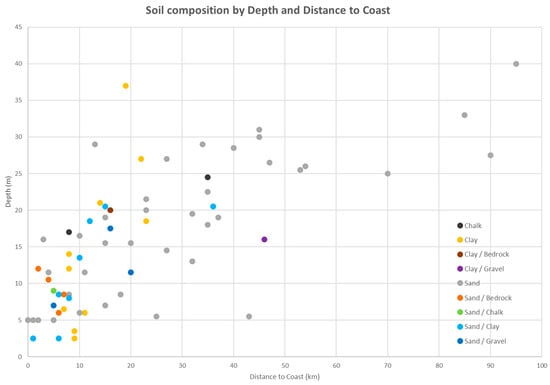

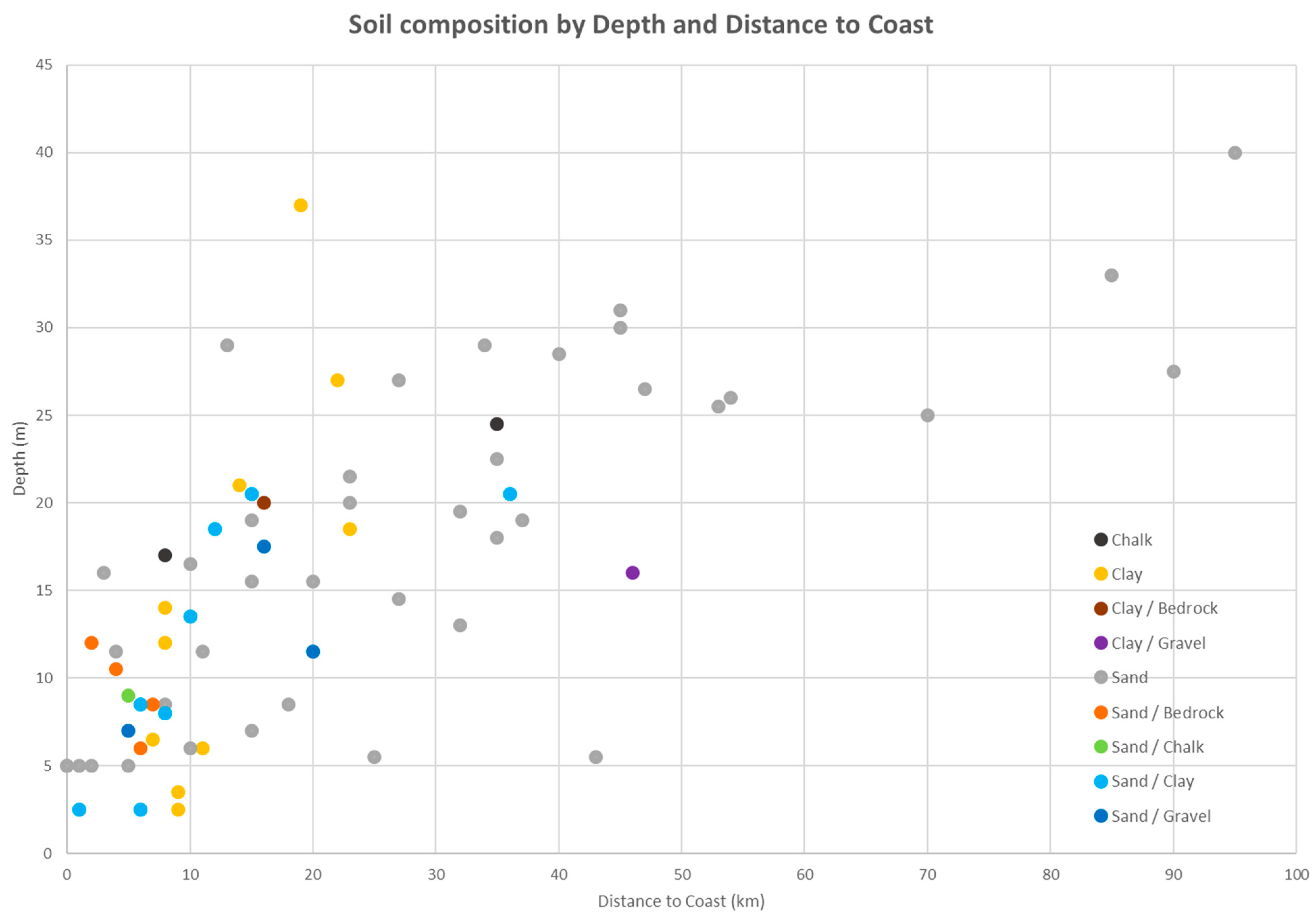

Placing our data on a graphic similar to Figure 5, it is shown in Figure 8 how monopile wind farms are located depending on average depth and distance to the coast for every different soil composition.

4. Discussion of Results

The offshore wind sector awaits great potential both in the short and long term. The development of technology, the increase of competitiveness, reduction in costs and the interest by companies and institutions have motivated the development of a growing number of new projects year after year. In those areas where these wind facilities were already consolidated, that is, the regions surrounding the North Sea in Europe (Germany, the United Kingdom, the Netherlands, Denmark and Belgium), and China in Asia, this development has favoured the arrival of the first “megaprojects”, installations of high power capacity carried out with the objective of not only supplying a significant quota of energy demand but with the ambitious objective of leading the production of electricity of their respective countries in not too long a space of time.

Regarding the countries that had not taken part in this sector yet, the consolidation of these projects together with the increase in the profitability of these facilities and the good results demonstrated, has led to the entry of new participants. A large number of European countries with access to the coast have already begun to analyze the viability and consent to the drafting of projects of this type, or in other cases, to carry out experimentation and analysis facilities that may favour the development of new wind farms in the future. Similarly, both the United States and various Asian countries have started to develop projects of this type over the past few years, some of which are already operating.

It must be highlighted the extensive use of monopiles, used in mostly all types of depths and environments. About this typology, it will be spoken of in more detail in the next lines. In addition, it can be observed the different trends and ranges of use for each of the foundations analysed. In shallow depths (0–15 m), it can be mainly found with foundations by gravity or GBS and pile cap foundations in Asia. These typologies have been progressively abandoned as wind turbines moved away from the coast and other typologies that needed less competent strata appeared. In the case of pile caps, they are still used in Asia in wind farms that are close to the coast. GBS foundations have been included in recent projects where the depth and sea conditions are a priori not convenient for them. At medium depths, it can be found the most used typologies today, the monopiles, and the jacket and tripod structures. Monopile foundations are currently used in more than 60% of wind turbines operating worldwide.

With regards to the analysis of the technical characteristics, the appearance of a constant value throughout all the foundations carried out from the beginning of these projects to the present, is the Diameter/Length ratio, which has remained unchanged for 20 years, always close to 0.10–0.11 and that seems to be the limit from which the phenomena of instability, vibration and deflection may appear.

Regarding the blade and hub heights, once more of this typology has evolved to be able to support bigger structures and turbines and maintain a constant ratio with both blade length and hub heights. If we look at the soil composition, we observe than this typology can adapt to different environments while keeping similar parameters and dimensions, proving it as a convenient and cost-effective solution even on heterogeneous locations.

For the jacket structures, their adaptability and excellent behavior in adverse conditions make them the best option in medium-high depths (20–40 m), especially in those areas where the monopiles can be instable and show deflection and bulking. On the contrary, its design and manufacturing complexity, unique for each wind turbine, and the cost associated with it has prevented its usual use until just a few years ago (2014–2015). However, since then its use quota has been increasing year after year, and as the technology on this typology becomes generalised and its own costs decrease, so will its expansion. As for the tripod foundations, although theoretically their features and benefits are at an intermediate point between monopiles and jacket structures, analysing the operational wind farms at present, it can be seen that their use is concentrated in the same area and in very similar conditions: high depths (30–40 m) and great distances to the coast (50–100 km).

5. Conclusions

The main conclusions of this research are:

• Offshore wind energy is experiencing constant growth in recent years, consolidating itself as one of the fields with more potential. For this form of energy generation to be competitive, several years of research and development have been necessary.
• Monopiles are the most used foundations in shallow (0–15 m) and intermediate depths (15–30 m). The simplicity of designing and manufacturing, together with a vast knowledge inherited from experience, especially in Europe, has led this typology to be the first option in more than 60% of the world’s offshore wind foundations nowadays.
• Jacket and tripod structures remain as strong competitors to monopiles when the seabed depth is higher than 30 m. Floating solutions, which are beginning to be used for real energy production, are supposed to take the market by storm in the near future, bringing this sector to places that remain unavailable nowadays.
• Monopiles evolution has been studied according the following monomials: diameter/length, diameter/turbine power, length/turbine power, diameter/water depth, length/diameter, dimeter/distance to the coast, length/distance to the coast, and water depth/ distance to the coast, with the following average values: 0.11; 1.48; 14.2; 0.37; 3.5; 0.32; 2.92; 0.86.
• The Diameter/Length monomial has the lowest variation, staying close to 0.10–0.11 during the last years, so it can be used for a first and fast figure of the length of the pile.
• The other coefficient with a higher variability can be used for the first estimate in case of using the monomials value obtained in last years, the most current ones.
