J. Mar. Sci. Eng. 2018, 6(3), 75; https://doi.org/10.3390/jmse6030075

Free Surface Characteristics of Flow around Two Side-by-Side Circular Cylinders

1
State Key Laboratory of Hydraulics and Mountain River Engineering, Sichuan University, Chengdu 610065, China
2
College of Water Resource & Hydropower, Sichuan University, Chengdu 610065, China
*
Author to whom correspondence should be addressed.
Received: 23 May 2018 / Revised: 18 June 2018 / Accepted: 18 June 2018 / Published: 25 June 2018
(This article belongs to the Section Ocean Engineering)
Full-Text   |   PDF [4708 KB, uploaded 28 June 2018]   |

Abstract

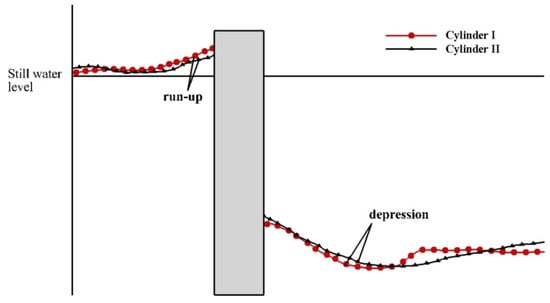

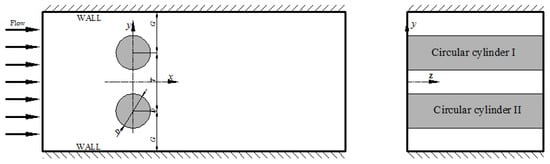

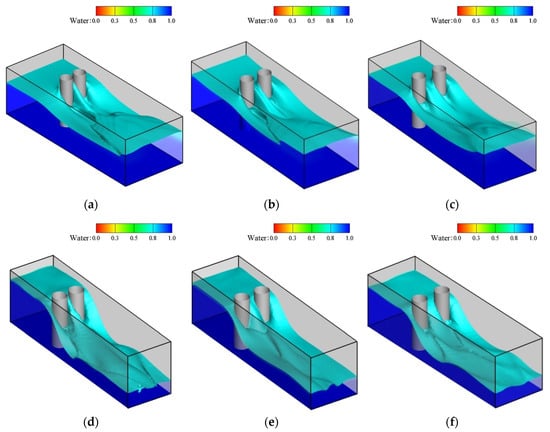

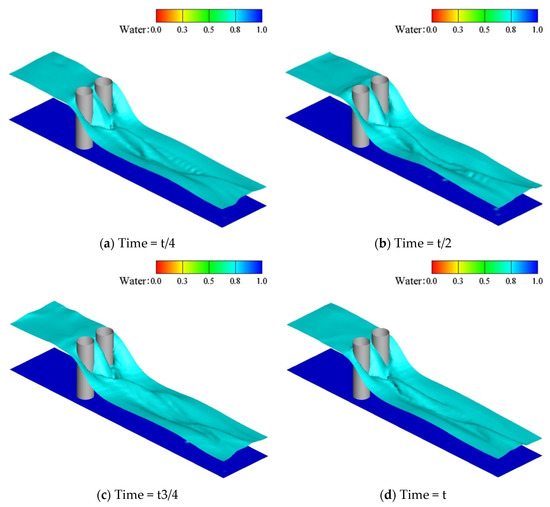

The three-dimensional free surface characteristics of flow around two equal diameter cylinders in a side-by-side arrangement were studied numerically. The flow fields were simulated with a three-dimensional finite volume method based on the RNG k-ɛ model for Reynolds number Re = 1.0 × 104. The volume-of-fluid method was applied to track air–water interfaces. Computations were performed for gap ratios of 1.25, 1.5, and 1.75 to examine the influence of the gap between two cylinders, and for distance to diameter ratios of 8.0 and 1.0 to study the wall proximity effects. The model was verified by comparing it with the other numerical and experimental results. The results indicated that the evolution of the free surface was periodic in time scale. A weak hydraulic jump occurs in the wake flow. Moreover, a significant difference between upstream and downstream free surface elevations exists in the vicinity of the cylinder. A runup in front of the cylinder and a ‘depression’ around the side edge were also observed. Computational results showed that the flow near the two cylinders was pushed outwards, and the flow between the cylinder and the wall was deflected inwards by the wall. The vortex structures on and near the free surface were closely correlated with the free surface. The shedding vortex far from the free surface was not affected. View Full-Text
Keywords: free surface; two side-by-side cylinders; volume of fluid; gap ratio; flow patterns free surface; two side-by-side cylinders; volume of fluid; gap ratio; flow patterns
