# Congestion-Free Ant Traffic: Jam Absorption Mechanism in Multiple Platoons

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Model and Simulation Scenario

#### 2.1. Model

- The binary variable ${s}_{i}\left(t\right)$ is either zero or one depending on whether the cell is empty (zero) or occupied (one) by an ant at time step t.
- The pheromone concentration ${\sigma}_{i}\left(t\right)$ is a numerical variable ranging from zero to ${\sigma}_{\mathrm{sat}}$. ${\sigma}_{i}\left(t\right)=0$ means that there is no pheromone in cell i at time step t, whereas ${\sigma}_{i}\left(t\right)={\sigma}_{\mathrm{sat}}$ means that the cell is saturated with pheromone at that time step.
- ${\mathsf{\Omega}}_{i}$ represents a resistance or drag that the cells present against the ant motion. ${\mathsf{\Omega}}_{i}$ represents factors related to trail conditions such as obstacle, rough trail, or uphill, which have a negative impact on the motion of ants. In short, ${\mathsf{\Omega}}_{i}$ provides opposition to the motion in the preferred direction, which is represented in ATM by a negative velocity (velocity in the opposite direction). In a given simulation, ${\mathsf{\Omega}}_{i}$ is constant for a given cell. To avoid ants moving backwards, ${\mathsf{\Omega}}_{i}$ is designed to always be positive, but less than the non-zero minimum ant velocity $\left({v}_{min}\right)$ (as explained later, ${\mathsf{\Omega}}_{i}$ is used while defining the heterogeneous trail.).

- ${v}_{j}\left(t\right)$ is the instantaneous velocity of ant j at time step t. ${v}_{j}\left(t\right)$ is continuous and ranges from zero to one.
- ${p}_{j}\left(t\right)$ is the position of ant j on the trail at time step t and ranges from zero to L. Similar to ${v}_{j}\left(t\right)$, ${p}_{j}\left(t\right)$ is also continuous.

#### 2.1.1. Stage I: Ant Motion

#### 2.1.2. Stage II: Pheromone Updating

- Evaporation:$${\sigma}_{i}^{\prime}(t+1)={\sigma}_{i}\left(t\right)-({\sigma}_{i}\left(t\right)\times er),\phantom{\rule{1.em}{0ex}}if\phantom{\rule{1.em}{0ex}}{\sigma}_{i}\left(t\right)>0.$$
- Accumulation:$${\sigma}_{i}(t+1)=\left(\right)open="\{"\; close>\begin{array}{cc}({\sigma}_{i}^{\prime}(t+1)+\tau ),\hfill & \phantom{\rule{1.em}{0ex}}if\phantom{\rule{1.em}{0ex}}{s}_{i}\left(t\right)=1\phantom{\rule{1.em}{0ex}}and\phantom{\rule{1.em}{0ex}}{\sigma}_{i}^{\prime}(t+1){\sigma}_{sat}\phantom{\rule{1.em}{0ex}}and\phantom{\rule{1.em}{0ex}}{v}_{j}\left(t\right)0\hfill \\ {\sigma}_{sat},\hfill & \phantom{\rule{1.em}{0ex}}if\phantom{\rule{1.em}{0ex}}{s}_{i}\left(t\right)=1\phantom{\rule{1.em}{0ex}}and\phantom{\rule{1.em}{0ex}}{\sigma}_{i}^{\prime}(t+1){\sigma}_{sat}.\hfill \end{array}$$

#### 2.2. Simulation Scenarios

#### 2.2.1. Periodic Boundary Conditions and Introduction of New Ants

#### 2.2.2. Trail Scenarios

#### Homogeneous Trail

#### Heterogeneous Trail

## 3. Fundamental Diagrams and Evaporation Rate

#### 3.1. High to Medium Evaporation Rate ($0.1<er\le 1$)

#### 3.2. Meager Evaporation Rate ($0\le er<0.001$)

#### 3.3. Low Evaporation Rate ($0.01<er<0.1$)

## 4. Model Validation

## 5. Analysis of Jam-Free Ant Traffic

#### 5.1. Intra-Platoon Analysis

#### 5.2. Inter-Platoon Analysis

#### 5.3. Analysis of Platoon Headway and Density

## 6. Concluding Discussion

## Author Contributions

## Funding

## Conflicts of Interest

## Appendix A. Variables in the Ant Trail Model

#### Appendix A.1. Minimum Velocity in ATM (v_{min})

**Figure A1.**(

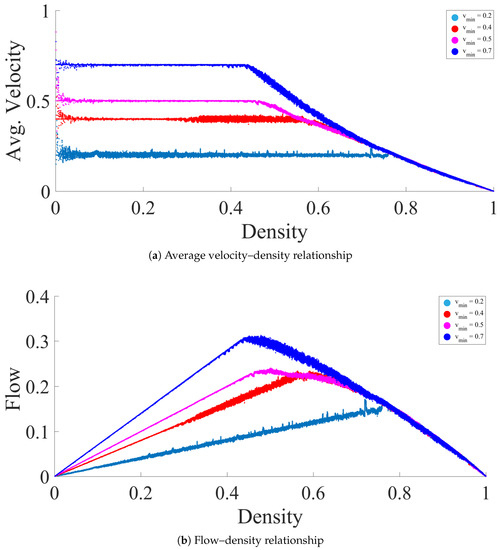

**a**) Average velocity and (

**b**) flow of agents plotted against their densities for different ${v}_{min}$ values (indicated in the legend). Parameters other than ${v}_{min}$ were kept constant: L = 1000 cells, ${\sigma}_{sat}$ = 80, $er$ = 0.02.

#### Appendix A.2. Pheromone Saturation Level (σ_{sat})

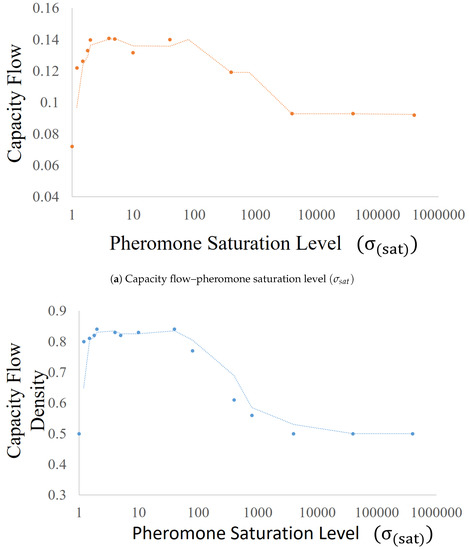

**Figure A2.**The (

**a**) capacity flow and (

**b**) capacity flow density in the simulation are plotted against ${\sigma}_{sat}$. Parameters other than ${\sigma}_{sat}$ were kept constant: L = 1000 cells, ${v}_{min}$ = 0.15, $er$ = 0.02.

## References

- Khaluf, Y.; Ferrante, E.; Simoens, P.; Huepe, C. Scale invariance in natural and artificial collective systems: A review. J. R. Soc. Interface
**2017**, 14, 20170662. [Google Scholar] [CrossRef] [PubMed] - Jennings, N.R. On agent-based software engineering. Artif. Intell.
**2000**, 117, 277–296. [Google Scholar] [CrossRef] [Green Version] - Ponta, L.; Cincotti, S. Traders’ networks of interactions and structural properties of financial markets: An agent-based approach. Complexity
**2018**, 2018, 9072948. [Google Scholar] [CrossRef] - Batty, M. Cities and Complexity: Understanding Cities with Cellular Automata, Agent-Based Models, and Fractals; The MIT Press: Cambridge, MA, USA, 2007. [Google Scholar]
- Chowdhury, D.; Schadschneider, A.; Nishinari, K. Physics of transport and traffic phenomena in biology: From molecular motors and cells to organisms. Phys. Life Rev.
**2005**, 2, 318–352. [Google Scholar] [CrossRef] - Nishinari, K. Jamology: Physics of Self-Driven Particles and toward Solution of All Jams; Distributed Autonomous Robotic Systems 8; Springer: Berlin/Heidelberg, Germany, 2009; pp. 175–184. [Google Scholar]
- Chopard, B.; Droz, M. Cellular Automata Modeling of Physical Systems; Cambridge University Press: Cambridge, UK, 1998. [Google Scholar]
- Helbing, D. Traffic and related self-driven many-particle systems. Rev. Mod. Phys.
**2001**, 73, 1067. [Google Scholar] [CrossRef] - Chowdhury, D.; Guttal, V.; Nishinari, K.; Schadschneider, A. A cellular-automata model of flow in ant trails: non-monotonic variation of speed with density. J. Phys. Math. Gen.
**2002**, 35, L573. [Google Scholar] [CrossRef] - Couzin, I.D.; Franks, N.R. Self-organized lane formation and optimized traffic flow in army ants. Proc. R. Soc. Lond. Biol. Sci.
**2003**, 270, 139–146. [Google Scholar] [CrossRef] [PubMed] [Green Version] - John, A.; Schadschneider, A.; Chowdhury, D.; Nishinari, K. Collective effects in traffic on bi-directional ant trails. J. Theor. Biol.
**2004**, 231, 279–285. [Google Scholar] [CrossRef] [Green Version] - Nishinari, K.; Sugawara, K.; Kazama, T.; Schadschneider, A.; Chowdhury, D. Modelling of self-driven particles: Foraging ants and pedestrians. Phys. Stat. Mech. Its Appl.
**2006**, 372, 132–141. [Google Scholar] [CrossRef] [Green Version] - Chaudhuri, D.; Nagar, A. Absence of jamming in ant trails: Feedback control of self-propulsion and noise. Phys. Rev. E
**2015**, 91, 012706. [Google Scholar] [CrossRef] [Green Version] - John, A.; Schadschneider, A.; Chowdhury, D.; Nishinari, K. Trafficlike collective movement of ants on trails: Absence of a jammed phase. Phys. Rev. Lett.
**2009**, 102, 108001. [Google Scholar] [CrossRef] [PubMed] - Guo, N.; Hu, M.B.; Jiang, R.; Ding, J.; Ling, X. Modeling no-jam traffic in ant trails: A pheromone-controlled approach. J. Stat. Mech. Theory Exp.
**2018**, 2018, 053405. [Google Scholar] [CrossRef] - Garnier, S.; Guérécheau, A.; Combe, M.; Fourcassié, V.; Theraulaz, G. Path selection and foraging efficiency in Argentine ant transport networks. Behav. Ecol. Sociobiol.
**2009**, 63, 1167–1179. [Google Scholar] [CrossRef] - Vittori, K.; Talbot, G.; Gautrais, J.; Fourcassié, V.; Araújo, A.F.; Theraulaz, G. Path efficiency of ant foraging trails in an artificial network. J. Theor. Biol.
**2006**, 239, 507–515. [Google Scholar] [CrossRef] [PubMed] - Chowdhury, D.; Santen, L.; Schadschneider, A. Statistical physics of vehicular traffic and some related systems. Phys. Rep.
**2000**, 329, 199–329. [Google Scholar] [CrossRef] [Green Version] - Goss, S.; Aron, S.; Deneubourg, J.L.; Pasteels, J.M. Self-organized shortcuts in the Argentine ant. Naturwissenschaften
**1989**, 76, 579–581. [Google Scholar] [CrossRef] - Beckers, R.; Deneubourg, J.L.; Goss, S. Trails and U-turns in the selection of a path by the ant Lasius niger. J. Theor. Biol.
**1992**, 159, 397–415. [Google Scholar] [CrossRef] - Hölldobler, B.; Wilson, E.O. The Ants; Harvard University Press: Cambridge, MA, USA, 1990. [Google Scholar]
- Wilson, E.O. The Insect Societies; [Distributed by Oxford University Press]; Harvard University Press: Cambridge, MA, USA, 1971. [Google Scholar]
- Camazine, S.; Deneubourg, J.L.; Franks, N.R.; Sneyd, J.; Bonabeau, E.; Theraula, G. Self-Organization in Biological Systems; Princeton University Press: Princeton, NJ, USA, 2003; Volume 7. [Google Scholar]
- Andryszak, N.; Payne, T.L.; Dickens, J.; Moser, J.C.; Fisher, R. Antennal olfactory responsiveness of the Texas leaf cutting ant (Hymenoptera: Formicidae) to trail pheromone and its two alarm substances. J. Entomol. Sci.
**1990**, 25, 593–600. [Google Scholar] [CrossRef] - Czaczkes, T.J.; Grüter, C.; Ellis, L.; Wood, E.; Ratnieks, F.L. Ant foraging on complex trails: Route learning and the role of trail pheromones in Lasius niger. J. Exp. Biol.
**2013**, 216, 188–197. [Google Scholar] [CrossRef] - Nishinari, K.; Chowdhury, D.; Schadschneider, A. Cluster formation and anomalous fundamental diagram in an ant-trail model. Phys. Rev. E
**2003**, 67, 036120. [Google Scholar] [CrossRef] [Green Version] - Kunwar, A.; John, A.; Nishinari, K.; Schadschneider, A.; Chowdhury, D. Collective traffic-like movement of ants on a trail: dynamical phases and phase transitions. J. Phys. Soc. Jpn.
**2004**, 73, 2979–2985. [Google Scholar] [CrossRef] - Tisue, S.; Wilensky, U. Netlogo: A simple environment for modeling complexity. In Proceedings of the International Conference on Complex Systems, Boston, MA, USA, 16–21 May 2004; Volume 21, pp. 16–21. [Google Scholar]
- Schadschneider, A. The nagel-schreckenberg model revisited. Eur. Phys. J. B-Condens. Matter Complex Syst.
**1999**, 10, 573–582. [Google Scholar] [CrossRef] - Nishi, R.; Tomoeda, A.; Shimura, K.; Nishinari, K. Theory of jam-absorption driving. Transp. Res. Part B Methodol.
**2013**, 50, 116–129. [Google Scholar] [CrossRef] - Taniguchi, Y.; Nishi, R.; Ezaki, T.; Nishinari, K. Jam-absorption driving with a car-following model. Phys. A Stat. Mech. Its Appl.
**2015**, 433, 304–315. [Google Scholar] [CrossRef]

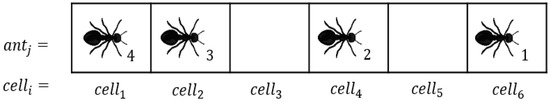

**Figure 1.**Schematic representation of the ant-trail model (ATM), showing a single-lane unidirectional ant trail from left to right. Each cell is indexed by i, and each ant is indexed by j. At any given time, each cell can contain only one ant.

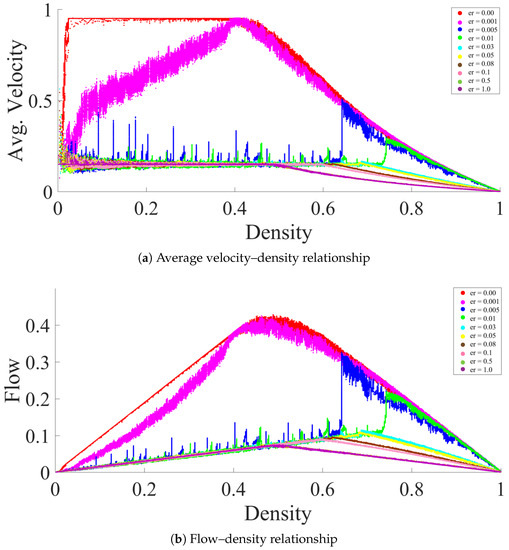

**Figure 2.**A fundamental diagram of the ATM simulation for different $er$ values is plotted: (

**a**) average velocity–density relationship (

**b**) flow–density relationship. Parameters other than $er$ were kept constant: $L=1000$ cells, ${\sigma}_{sat}$ = 80, ${v}_{min}$ = 0.15.

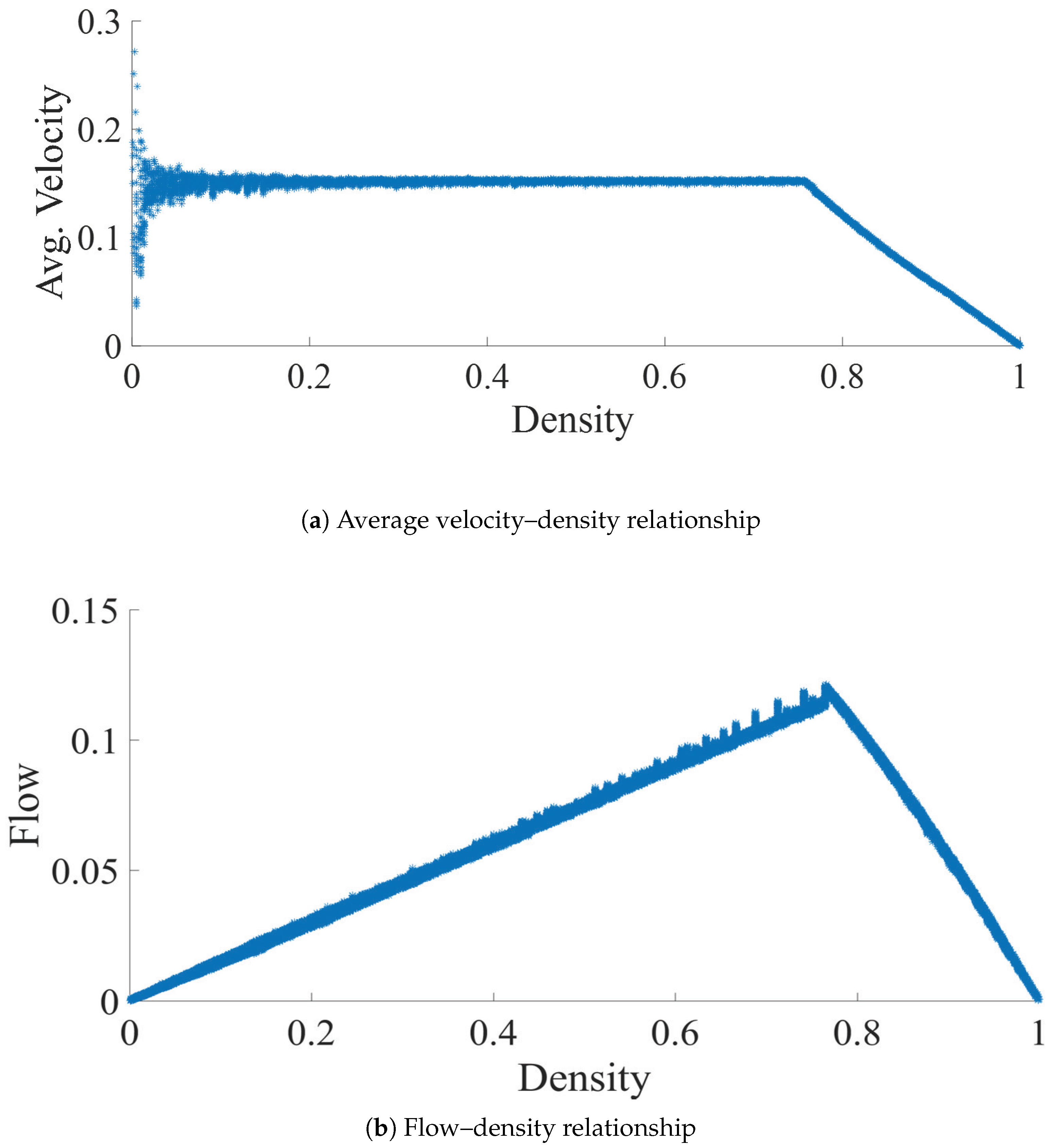

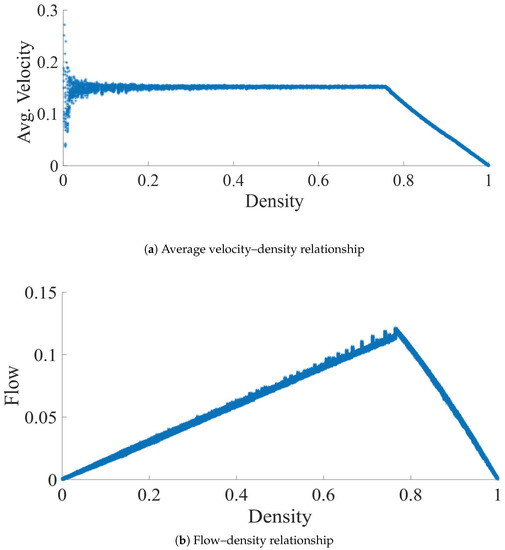

**Figure 3.**(

**a**) Average velocity and (

**b**) flow of agents plotted against their density. Simulation scenario: $er=0.02$, L = 1000 cells, ${\sigma}_{sat}$ = 80, and ${v}_{min}$ = 0.15.

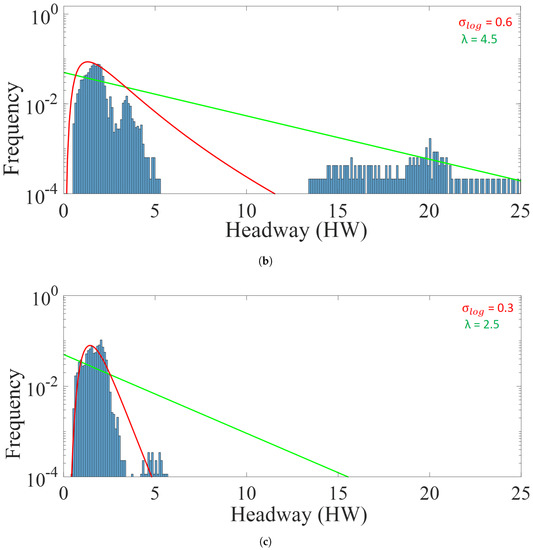

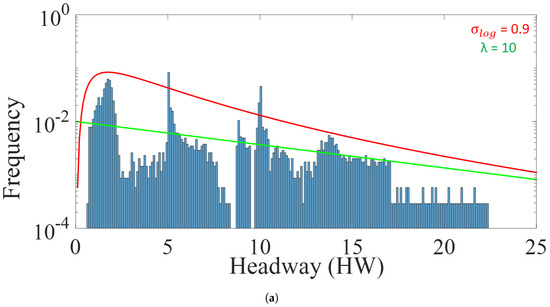

**Figure 4.**The distance headway distribution in different density ranges is plotted: $\left(\mathbf{a}\right)\phantom{\rule{1.em}{0ex}}d\phantom{\rule{1.em}{0ex}}\in \phantom{\rule{1.em}{0ex}}[0,0.2]$, $\phantom{\rule{1.em}{0ex}}\left(\mathbf{b}\right)\phantom{\rule{1.em}{0ex}}d\phantom{\rule{1.em}{0ex}}\in \phantom{\rule{1.em}{0ex}}[0.2,0.4],\phantom{\rule{1.em}{0ex}}\left(\mathbf{c}\right)\phantom{\rule{1.em}{0ex}}d\phantom{\rule{1.em}{0ex}}\in \phantom{\rule{1.em}{0ex}}[0.4,0.7]$. For all density ranges, the corresponding log normal (red) ($(Frequency\left(HW\right))=\frac{1}{HW{\sigma}_{log}\sqrt{2\pi}}{e}^{\frac{{(D-ln(HW))}^{2}}{2{\sigma}_{log}^{2}}})$) and negative-exponential (green) $(Frequency(HW)={e}^{(}\frac{-HW}{\lambda})$ distributions are also shown. Simulation scenarios: $er=0.02$, L = 1000 cells, ${\sigma}_{sat}$ = 80, ${v}_{min}$ = 0.15.

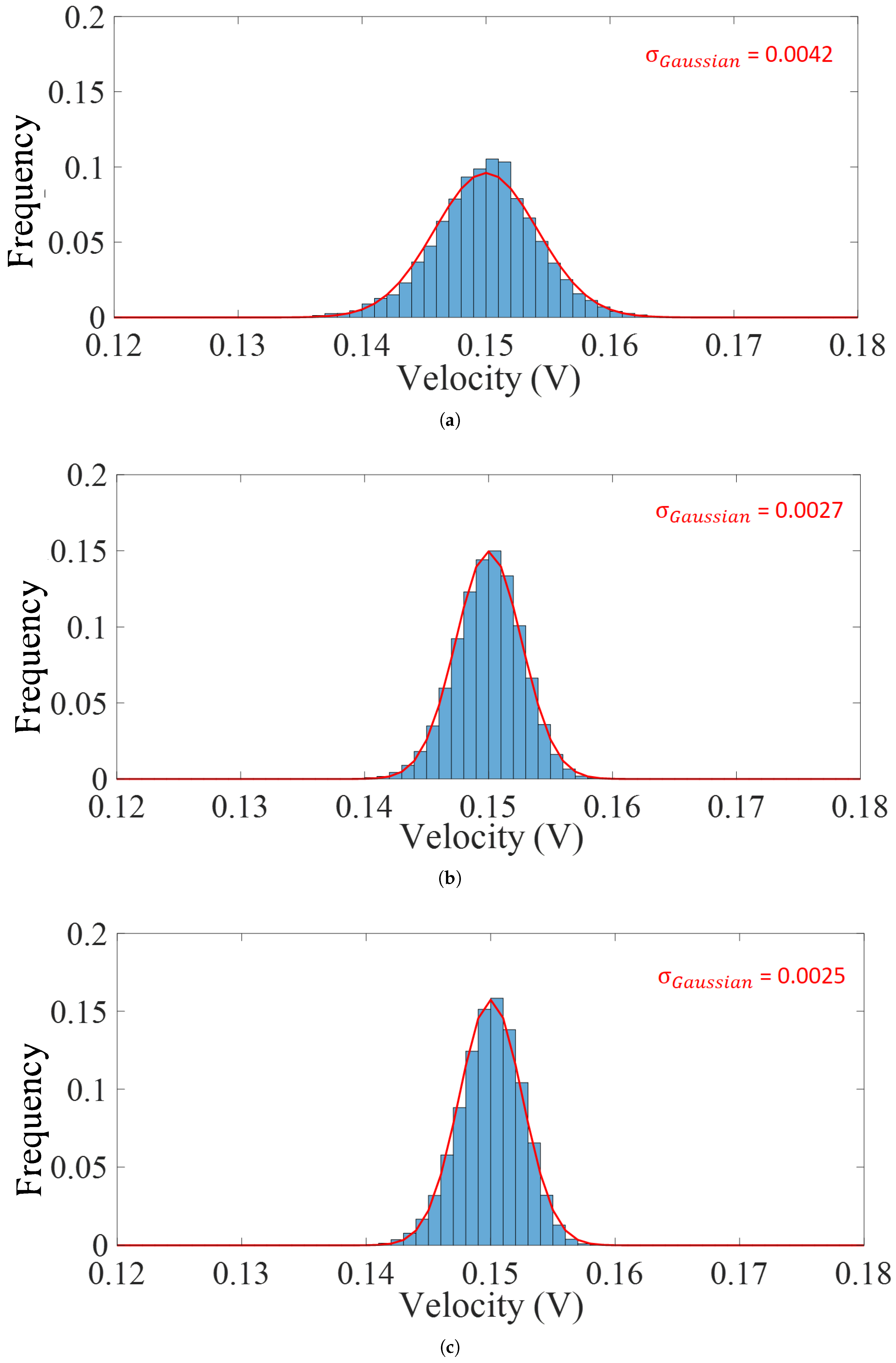

**Figure 5.**The velocity distribution of agents in different densities is plotted: $(\mathbf{a})\phantom{\rule{1.em}{0ex}}d\phantom{\rule{1.em}{0ex}}\in \phantom{\rule{1.em}{0ex}}[0,0.2]$, $(\mathbf{b})\phantom{\rule{1.em}{0ex}}d\phantom{\rule{1.em}{0ex}}\in \phantom{\rule{1.em}{0ex}}[0.2,0.4],(\mathbf{c})\phantom{\rule{1.em}{0ex}}d\phantom{\rule{1.em}{0ex}}\in \phantom{\rule{1.em}{0ex}}[0.4,0.7]$. For all density ranges, the corresponding Gaussian distribution $(Frequency(v))=\frac{1}{\sigma \sqrt{2\pi}}{e}^{\frac{-{(V-v)}^{2}}{2{\sigma}^{2}}})$ is also shown. Simulation scenarios: $er=0.02$, L = 1000 cells, ${\sigma}_{sat}$ = 80, ${v}_{min}$ = 0.15.

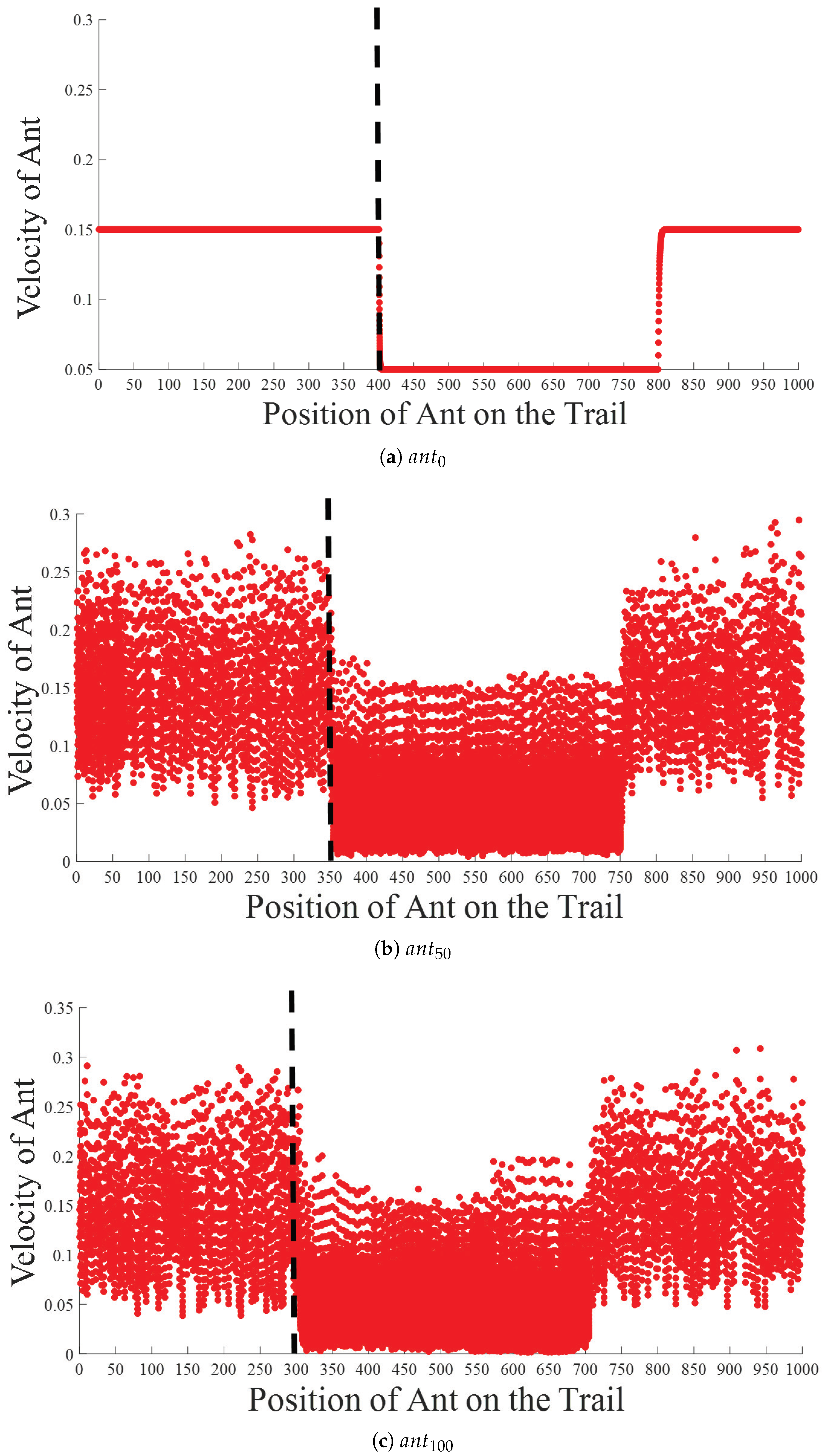

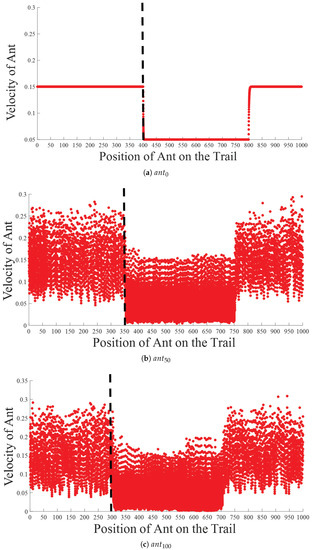

**Figure 6.**The instantaneous velocities of (

**a**) $an{t}_{0}$, (

**b**) $an{t}_{50}$, and (

**c**) $an{t}_{100}$ in the intra-platoon analysis plotted against the positions of the same ants. The presented data were extracted from an ATM computer simulation of a heterogeneous trail. Simulation scenarios: $er=0.02$; high-resistance section $(\mathsf{\Omega}=0.1)$ of trail = $cel{l}_{400}$–$cel{l}_{800}$, L = 1000 cells, ${\sigma}_{sat}$ = 80, ${v}_{min}$ = 0.15.

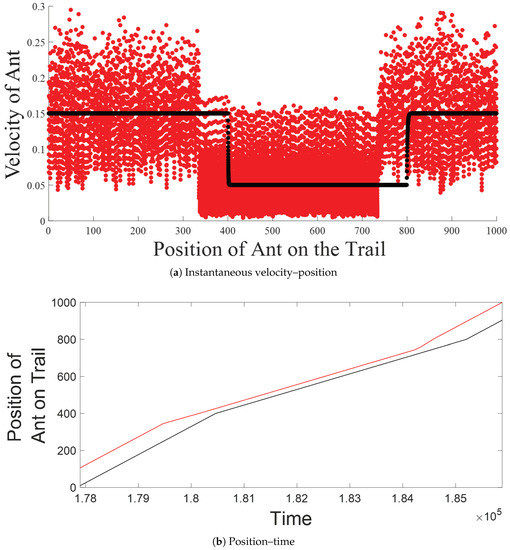

**Figure 7.**(

**a**) Instantaneous velocities of ants plotted against the positions of the same ants for prototypical inter-platoon analysis. (

**b**) The positions of the ants plotted against time for prototypical inter-platoon analysis. Data were obtained from an ATM computer simulation of a heterogeneous trail. Ants observed: last ant in leading platoon (red); leader of the following platoon (black). Simulation scenarios: $er=0.02$, high-resistance section $(\mathsf{\Omega}=0.1)$ of trail = $cel{l}_{400}$–$cel{l}_{800}$, L = 1000 cells, ${\sigma}_{sat}$ = 80, ${v}_{min}$ = 0.15.

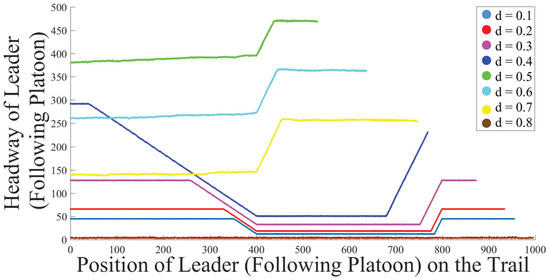

**Figure 8.**Headway (jam absorption buffer) of the leader of the following platoon for different densities $\left(d\right)$ plotted against the position of the same ant for inter-platoon analysis. Simulation scenarios: $er=0.02$, high-resistance section $(\mathsf{\Omega}=0.1)$ of trail = $cel{l}_{400}$–$cel{l}_{800}$, L = 1000 cells, ${\sigma}_{sat}$ = 80, ${v}_{min}$ = 0.15.
