Can Large Educational Institutes Become Free from Grid Systems? Determination of Hybrid Renewable Energy Systems in Thailand

Abstract

In some countries, renewable energy resources have become one of the mainstreams of energy savings and sustainable development. Thailand is one of the major countries to use renewable energy generation facilities in public buildings. In particular, public educational institutes consume large amounts of electricity from the grid. To reduce the electricity dependency on the national grid connection and greenhouse gas emissions, this paper introduces potential optimized solutions of renewable energy generation systems for a public university in Thailand, Chiang Mai University. Based on the simulation results from HOMER software, the potential configuration organized by PV panels, batteries and converters is proposed. The suggested configuration achieves 100% of the renewable fraction with $0.728 of the cost of energy for per electricity. Moreover, the greenhouse gas emissions are significantly reduced. Both the implications and limitations are presented based on simulation results.

1. Introduction

Owing to the considerable social and environmental concerns, environment and energy issues are two of the main motivations of global sustainable development [1]. In particular, certain countries have struggled to achieve two goals, economic growth and energy savings [2]. Among these countries, Thailand is one of the major countries attempting to contribute energy savings [3]. In 2013, approximately 8.58% of the final electricity consumption was produced by total renewable energy resources (14,107 GWh from 164,322 GWh of the final consumption) [4]. Although this share is not insignificant compared to other countries, the electricity generated from renewable energy resources, which are one of the most appropriate to use renewable energy facilities, could be larger than the current amount of renewable energy facilities [5]. Moreover, the majority of renewable energy facilities currently used in Thailand are hydro and biomass facilities (Table 1; [5]). Therefore, solar and wind energy have significant potential.

Table 1. Current status of electricity production from renewable energy facilities in Thailand [5].

Sources	Amount (GWh)	Share
Primary solid biofuels	6141	43.50%
Hydro	5748	40.70%
Solar PV	1080	7.70%
Biogases	539	3.80%
Wind	305	2.20%
Municipal waste	293	2.10%
Geothermal	1	-
Solar thermal	<1.0	-
Tide, wave, ocean	<1.0	-

Moreover, because Thailand which is one of the nations in the United Nations Framework Convention on Climate Change (UNFCCC), agreed the Paris Agreement which presents the Intended Nationally Determined Contribution (INDC), the government of Thailand should attempt to reduce the emission of greenhouse gases (GHG) by utilizing renewable energy resources [6]. Table 2 summarizes key descriptions which are applied to Thailand.

Table 2. Key points which are applied to Thailand in the Paris Agreement [6,7].

Item	Descriptions
Greenhouse gas emissions	20% reduction of GHG emissions compared to the projected BAU (business-as-usual) target in 2030
Global average temperature increase	Below 2 celcius degrees
National renewable energy targets to respond the Paris agreement	30% of total energy consumption from renewable energy resources in 2036

As the initial part of Thailand national government’s contribution, the government has aimed to apply renewable energy facilities in public buildings for energy savings [8]. Among these buildings, public education institutes are required to contribute to energy saving through the installation of renewable and sustainable energy facilities [9].

Currently, Thailand has employed a long-term national energy and electricity planning policy which is called as the Power Development Plan (PDP) from 2015 to 2036 [10]. The majority of PDP considers the production and distribution of renewable energy facilities in Thailand. That is, renewable energy and its facilities are among the top priorities in the successful applications of PDP. Because dependence on fossil fuels can be environmentally and economically unsustainable with notable heavy burdens on the national economy, Thailand’s government hopes to fully revise its national energy systems with renewable energy. Based on the key concept of PDP, the Alternative Energy Development Plan 2015 was introduced and employed for the reduction of dependence on fossil fuels and the promotion of using alternative energy facilities from 7279 MW to 19,635 MW-capacity (2014–2036).

However, only few studies have investigated and explored the potentiality and possibilities of renewable energy facilities in Southeast Asia. Table 3 summaries the findings of previous studies which were conducted in Southeast Asia.

Table 3. Examples of the suggested configuration of renewable energy production systems in Southeast Asia.

Regions	Year	Configuration	Cost and Renewable Fraction
Maldives [11]	2018	PV-diesel generator-battery	$0.245 per kWh of COE (cost of energy) and 30% of renewable fraction
Indonesia [12]	2013	PV-wind turbine-battery	$0.751 per kWh of COE and 100% of renewable fraction
Myanmar [13]	2018	PV-diesel generator-battery	$0.193–$1.830 per kWh of COE
Thailand [14]	2002	PV-diesel generator-battery	$0.589 per kWh of COE and 36.9% of renewable fraction
Cambodia [15]	2017	PV-diesel generator-battery	$0.377 per kWh of COE and 13.0% of renewable fraction
Malaysia [16]	2017	PV-battery	$1.220 per kWh of COE and 100% of renewable fraction

As presented in Table 3 and the findings of previous studies conducted in Southeast Asia, there are notable economic burdens in successfully diffusing renewable energy production facilities. Thus, several nations have attempted to preferentially employ the facilities with the considerations of their public institutions and organizations [17,18].

Therefore, the current study introduces the optimal configuration of renewable energy generation systems for Chiang Mai University, which is one of the largest public universities in Thailand. Using HOMER software (Hybrid Renewable and Distributed Generation System), the possible components of the configuration are introduced by reducing the environmental pollution and the dependence on the national grid system. Although there are notable limitations of HOMER software in exploring the feasibility of renewable resources including the needs of time-series datasets, notable time consumption, and certain criteria on converge, HOMER software can consider multiple combinations of different energy-related technologies, provide relatively precise results, and present optimized configurations of energy production systems [19]. That is, the current study aims to respond to the following research questions.

• Research question 1 What is the optimal renewable electricity production system for Chiang Mai University in Thailand?
• Research question 2 How much are the amount of greenhouse gas emissions reduced by as a result of using the optimal system for the university?

2. Chiang Mai University

2.1. Location and Facilities

Chiang Mai University is one of the largest universities in Thailand [20]. Because the university is public, “the Energy Conservation Promotion Act of Thailand for government building” should be applied [21]. This means that energy conservation and saving facilities should be constructed for the buildings. Under the act, the establishment of these facilities is fully supported by the government. In the university, there are approximately 170 buildings. Although the university is organized in four separate campuses, the main campus, Suan Sak Campus, has the main electricity demand of the university. The latitude and longitude of the university are 18.80° N and 98.95° E, respectively. This means that the main campus is located approximately 5 km-west from the center of the city. In 2015, approximately 36,000 students and 2500 staff worked in the university. Figure 1 shows the location of Chiang Mai University, Thailand [20].

Figure 1. The location of Chiang Mai University (created by the authors).

2.2. Load Information

The current electricity system of Chiang Mai University is operated by the national grid system. The amount of electricity consumed in 2015 was calculated to be 17,654,195 kWh. Because this amount is too heavy to simulate, the current study used the 50% scaled electricity load information for the simulation. Based on the 50% scaled electricity load information, 1385 kW of peak electricity and 19,472 kWh/d of average daily peak electricity were examined. The load factor in 2015 was calculated to be 0.586 (Figure 2).

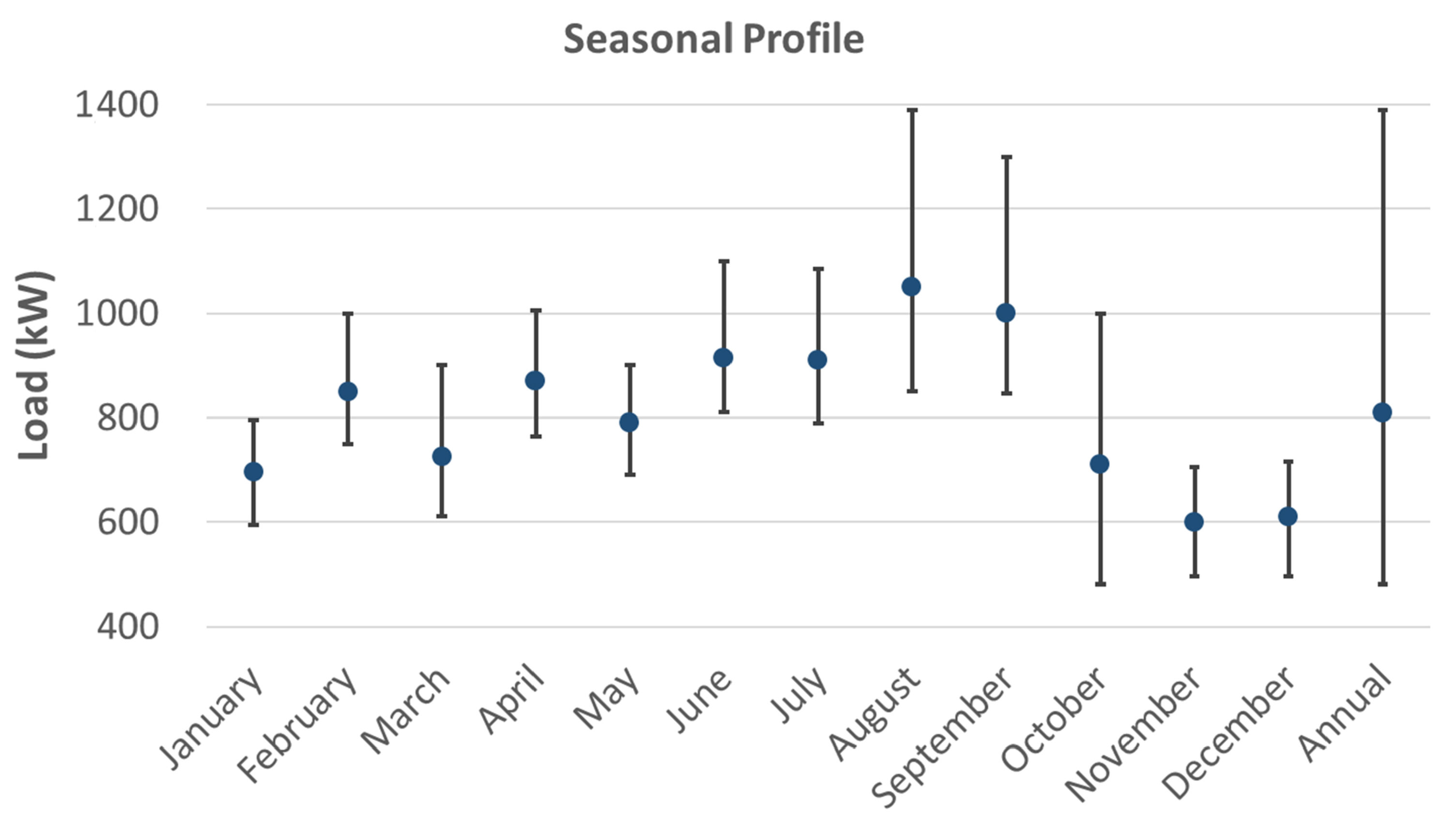

Figure 2. Monthly seasonal electricity load profile of Chiang Mai University (created by the authors).

2.3. Wind Resources

The wind resource datasets of Chiang Mai University were obtained from the Thai Meteorological Department (2014) [22]. Because the height of wind turbines currently operated in Thailand is 25 m, the wind speed at 25 m was considered to be intermediate between that at 50 m and at the ground. Figure 3 shows the monthly average wind speed of the university. The annual average wind speed is 2.507 m/s.

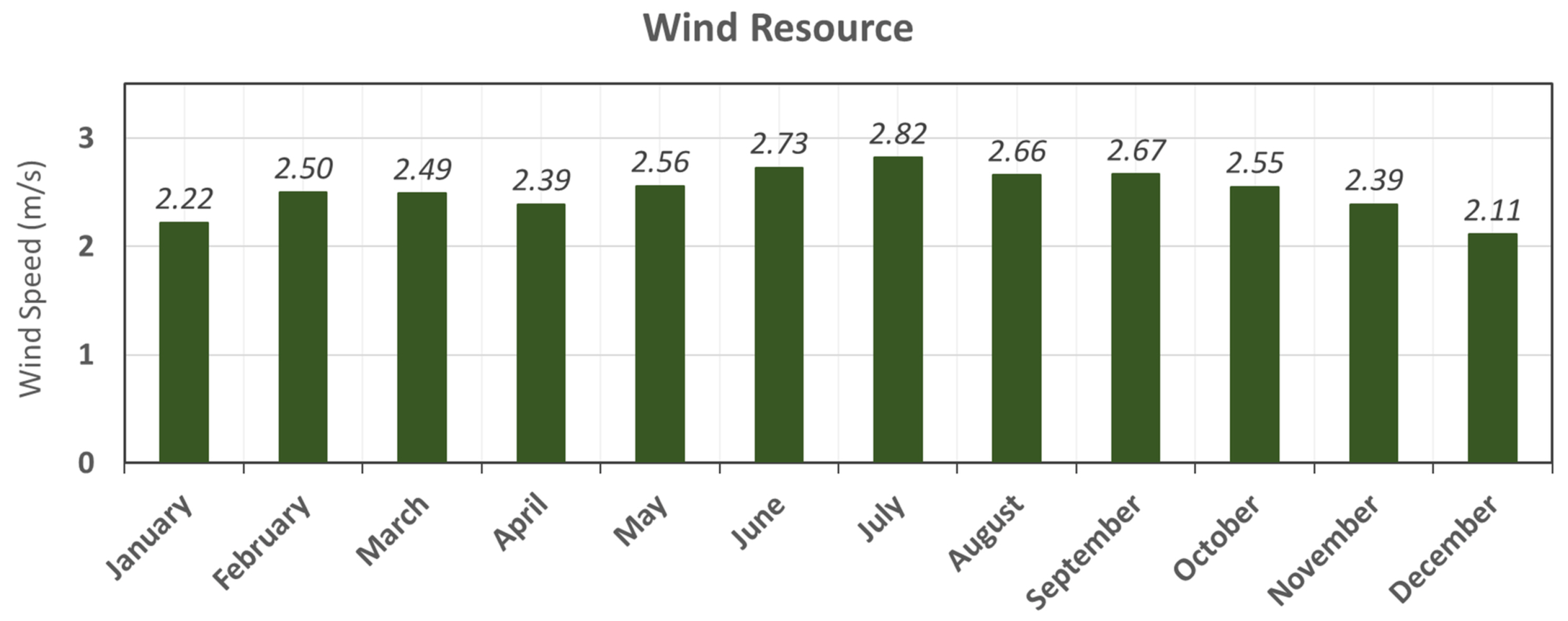

Figure 3. Wind resource information of Chiang Mai University (created by the authors).

2.4. Solar Resources

The datasets provided by the National Aeronautics and Space Administration (NASA) were used as the information of solar resources in the simulation [23]. Figure 4 presents the annual baseline datasets of the solar resources. Based on the datasets, 0.554 of the annual solar clearness index and 5.257 kWh/m${}^2$/d of the solar average daily radiation are presented. The definition of solar clearness index is defined as “the ratio of the daily horizontal radiation to the extraterrestrial value” [24].

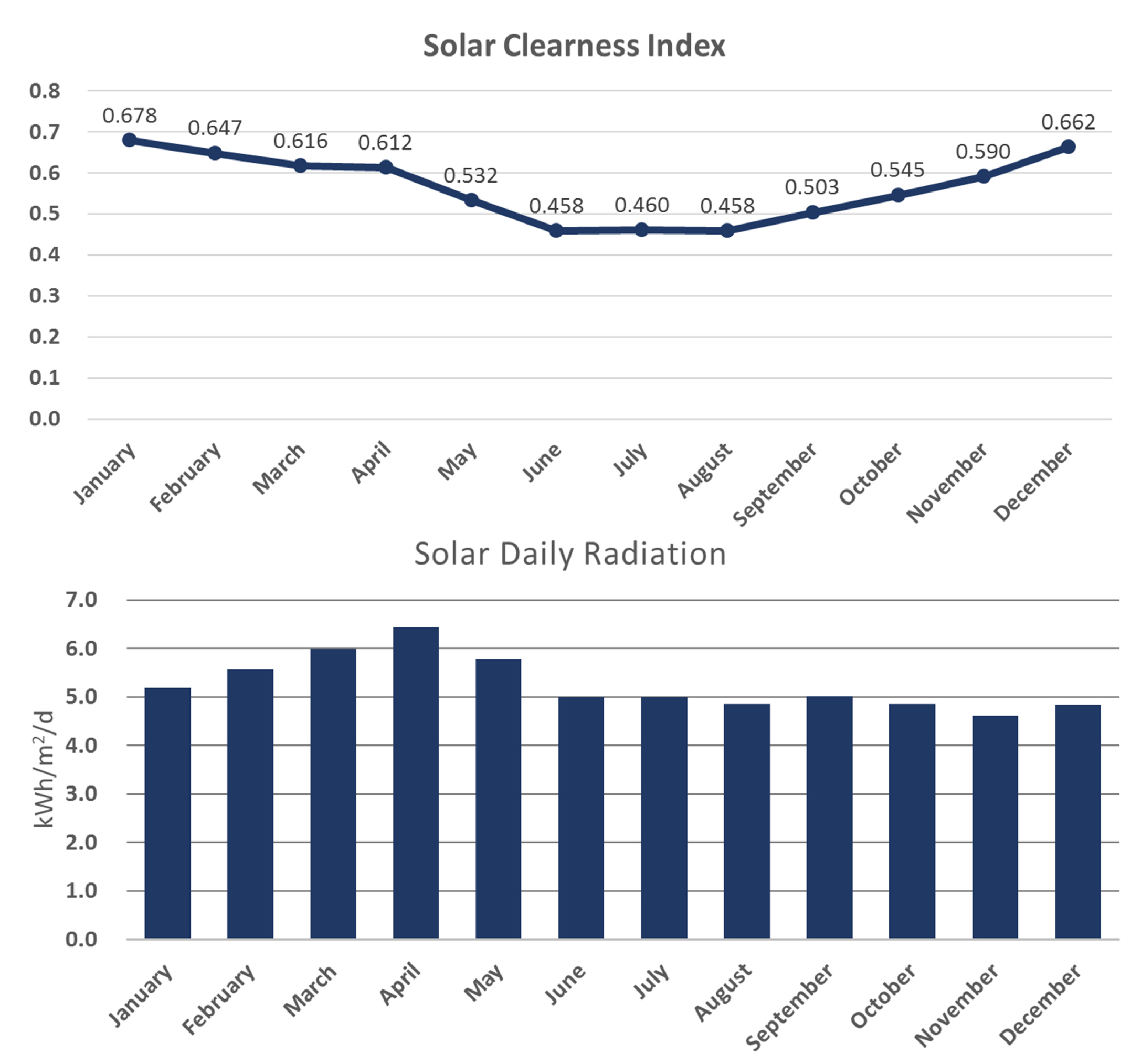

Figure 4. Solar resource information of Chiang Mai University (created by the authors).

3. Key Parameters for the Simulation

3.1. Annual Real Interest Rate

To calculate the accurate economic results from the simulation, the annual real interest rate in Thailand should be input in the HOMER simulations [25]. Based on the official introduction of the World Bank, an annual real interest rate of 5.38% was used [26].

3.2. Economic Evaluations

Before the considerations of economic evaluations, the current study only considers the configurations which can achieve 100% of renewable fraction. To evaluate the simulation results, the optimal configurations were ranked by two economic outputs, the cost of energy (COE) and the net present cost (NPC). The COE is referred to as “the average consumed cost in producing 1 kWh from the suggested system” [27]. Moreover, the NPC is “the consumed cost in establishing, operating, maintaining, and replacing the components of the suggested system in the project lifetime” [28,29]. Based on a previous simulation background, the project lifetime was assumed to be 25 years. Other specific economic methods and calculations used in the simulations were employed by the validated examinations introduced by [30].

3.3. Environmental Parameters

Based on the electricity and energy generation information of the traditional grid system, 632 g of CO${}_2$ (carbon dioxide), 2.74 g of SO${}_2$ (sulfur dioxide), and 1.34 g of NO and NO${}_2$ (nitrogen oxides) are reduced when the grid system does not need to generate 1 kWh of electricity.

4. Renewable Electricity Generation Systems

To propose independent renewable electricity generation systems, PV arrays, wind turbines, batteries, and a converter were employed as the possible components for organizing the systems. Table 4 lists the cost specifications of the components used in the simulations based on the cost information of the components in prior studies [27,28,29,30]. HOMER was used to present the optimal configurations of possible renewable electricity generation systems for Chiang Mai University.

Table 4. Detailed economic and technical information of the components in the simulation [27,28,29,30] (O&M cost: Operation & Management cost; created by the authors).

Components	Size	Capital Cost ($)	Replacement Cost ($)	O&M Cost ($ per Year)	Lifetime (Years)	Considered Capacity	Others
PV array	1.0 kW	1800	1800	25	20	0−25,000 kW (5 kW-capacity steps)	Derating factor: 80% Ground reflectance: 20% [31]
Wind turbine	2 units	29,000	29,000	400	15	0−100 units (2-unit steps)	Type: Generic 10 kW turbine Hub height: 25 m [32]
Battery	1 unit	1229	1229	10	− (hour -oriented)	0−30,000 units (5-unit steps)	Nominal capacity: 1156 Ah and 6.94 kWh Round trip efficiency: 80% Nominal voltage: 6 V Lifetime throughput: 9645 kWh [33]
Converter	1.0 kW	800	800	10	15	0−2500 kW (5 kW-capacity steps)	Efficiency: 90%

5. Results

Table 5 and Figure 5 list the optimal configuration composed by PV arrays, wind turbines, a converter, and batteries. Table 6 shows the total and annual costs of the components in the simulation. The combination of 12,780 kW-capacity of the PV arrays, 17,965 battery units with a 1525 kW-capacity of the electric converter is suggested to respond to the electricity demand of Chiang Mai University.

Table 5. Optimal configuration for Chiang Mai University (created by the authors).

Components	Index	Components	Index
PV array	12,780 kW	Initial capital cost	$46,607,984
Wind turbine	0 unit	Operating cost	$1,734,385 per year
Battery	17,965 units	Total net present cost	$70,147,848
Converter	1525 kW	Cost of energy	$0.728 per kWh
Renewable fraction	100%

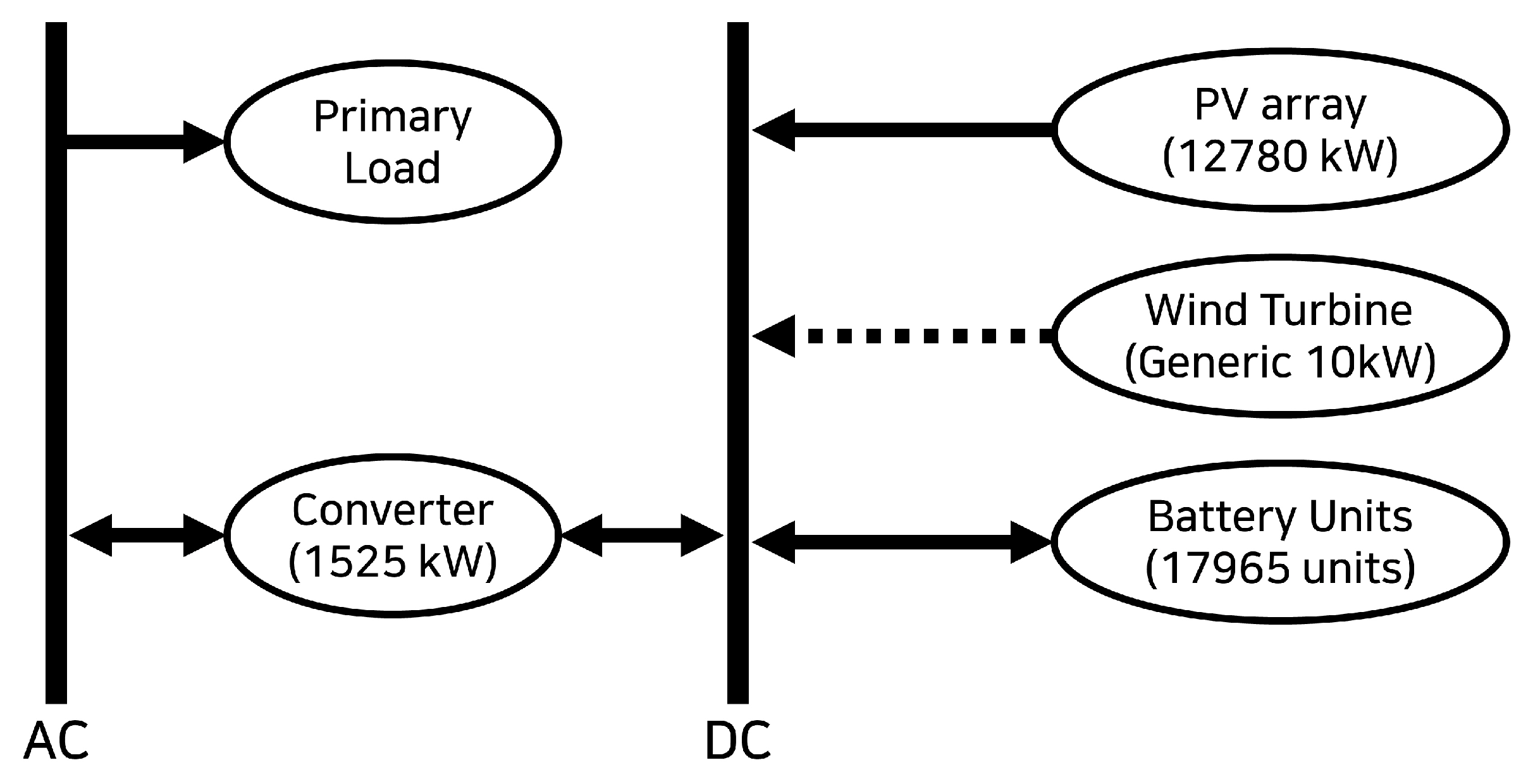

Figure 5. The suggested configuration (created by the authors).

Table 6. Total and annual costs of the optimal configuration (created by the authors).

Category	Component	Capital ($)	Replacement ($)	O&M ($)	Salvage ($)	Total ($)
Total cost	PV array	23,004,000	8,065,651	4,336,400	−4,654,895	30,751,156
	Batteries	22,078,984	18,050,268	2,438,292	−5,460,543	37,106,988
	Converter	1,525,000	694,860	206,980	−137,149	2,289,690
	System	46,607,984	26,810,779	6,981,672	−10,252,586	70,147,848
Annual cost	PV array	1,694,904	594,266	319,500	−342,966	2,265,704
	Batteries	1,626,750	1,329,919	179,650	−402,325	2,733,993
	Converter	112,360	51,196	15,250	−10,105	168,701
	System	3,434,013	1,975,382	514,400	−755,397	5,168,399

The optimal configuration shows $5,168,399 of the annual costs with $0.728 per kWh of the COE level. The cash flow is introduced in Figure 6. The annual electricity production was estimated to be 20,768,330 kWh. Figure 7 presents the monthly electricity production. The monthly PV power production and battery state of charge are presented in Figure 8 and Figure 9, respectively.

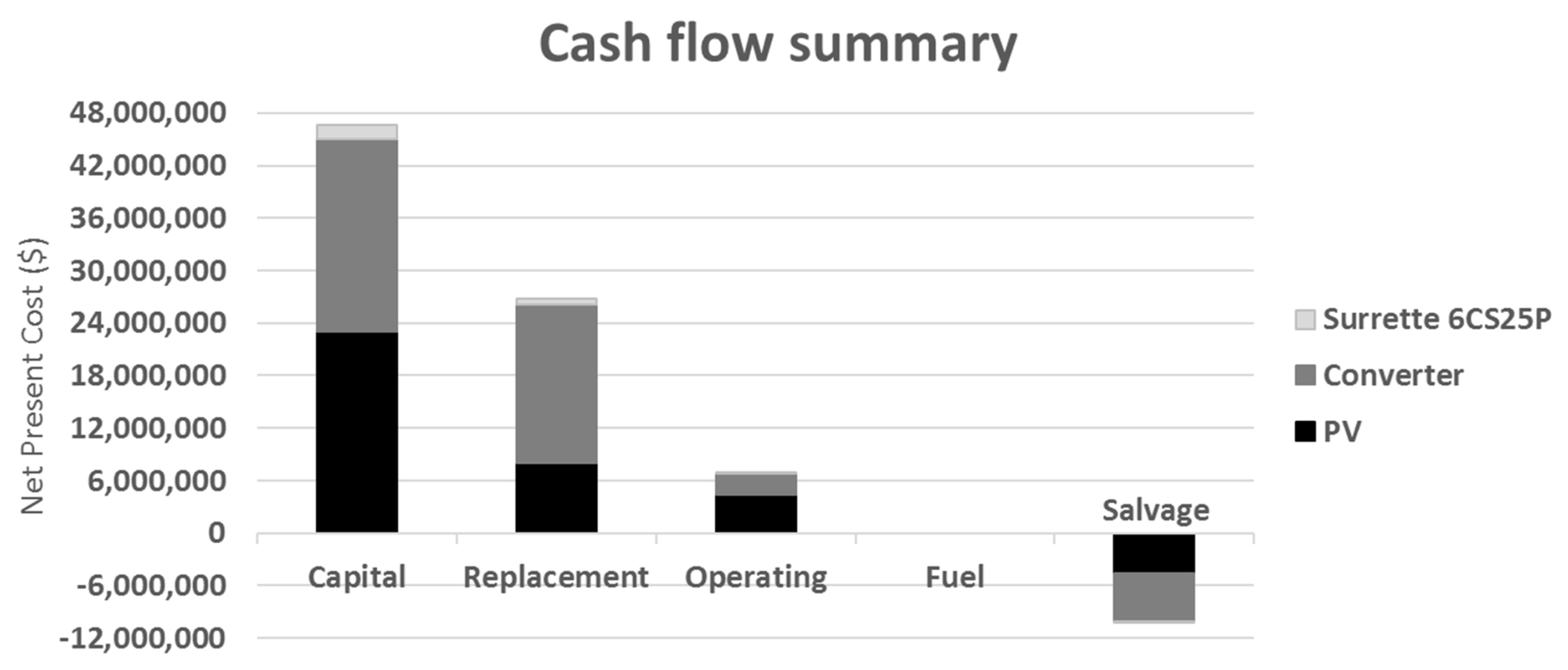

Figure 6. Summary of cash flow in the suggested configuration (created by the authors).

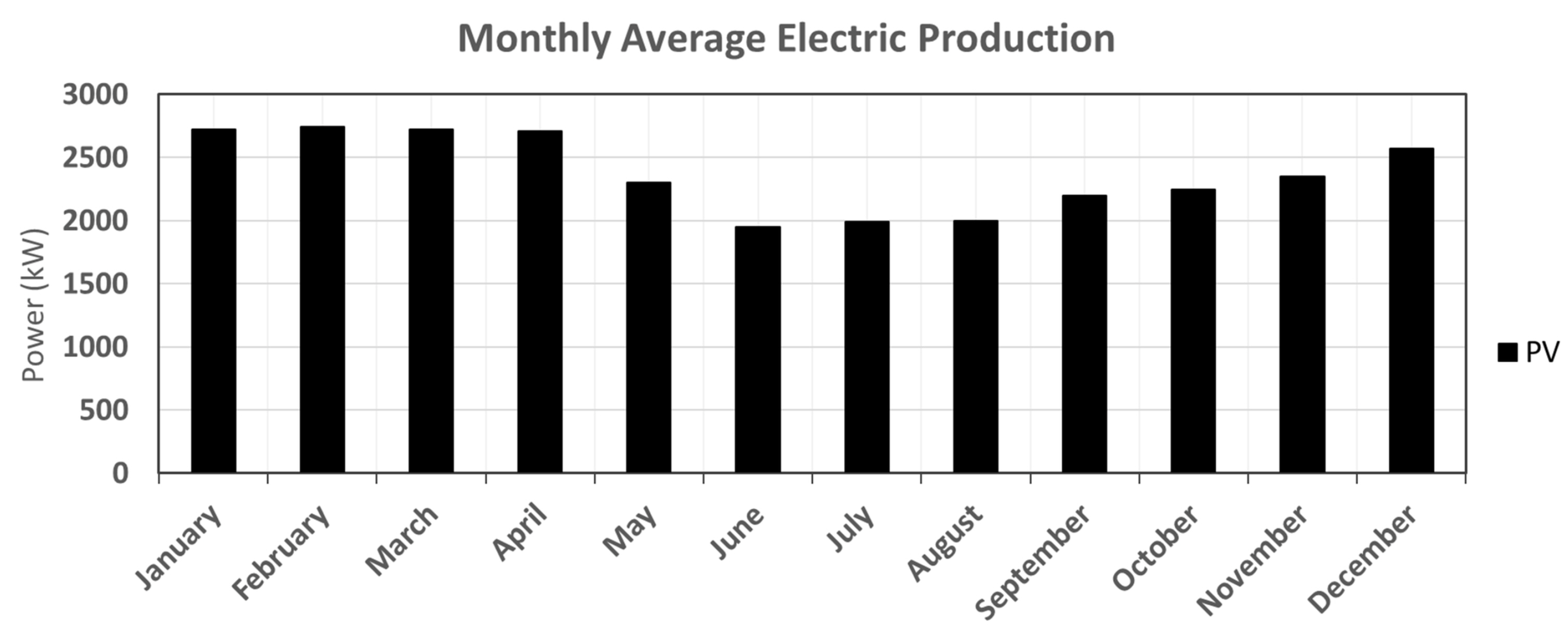

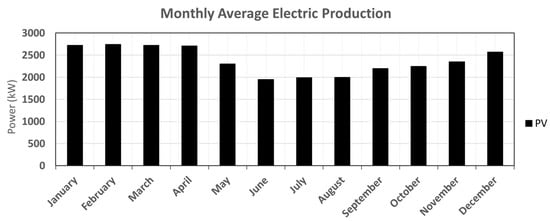

Figure 7. Monthly production of electricity from the suggested configuration (created by the authors).

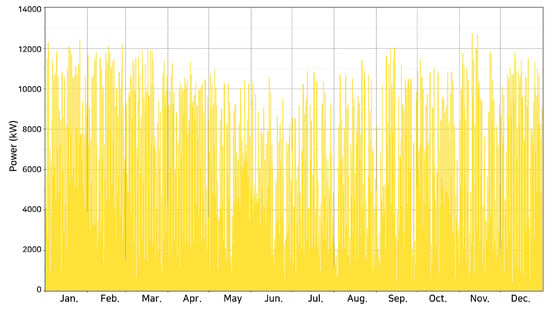

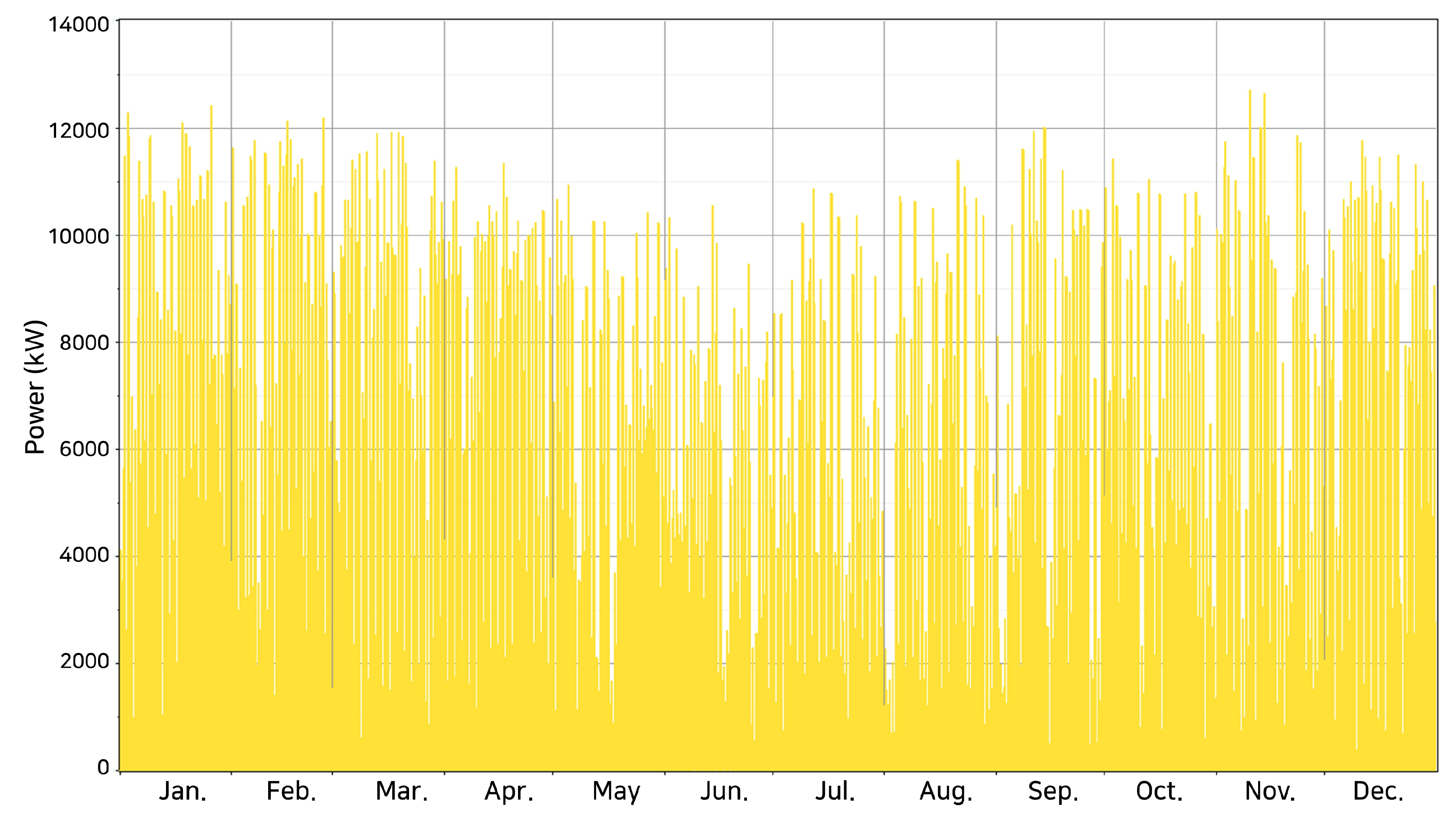

Figure 8. Monthly PV power production of the suggested configuration (created by the authors).

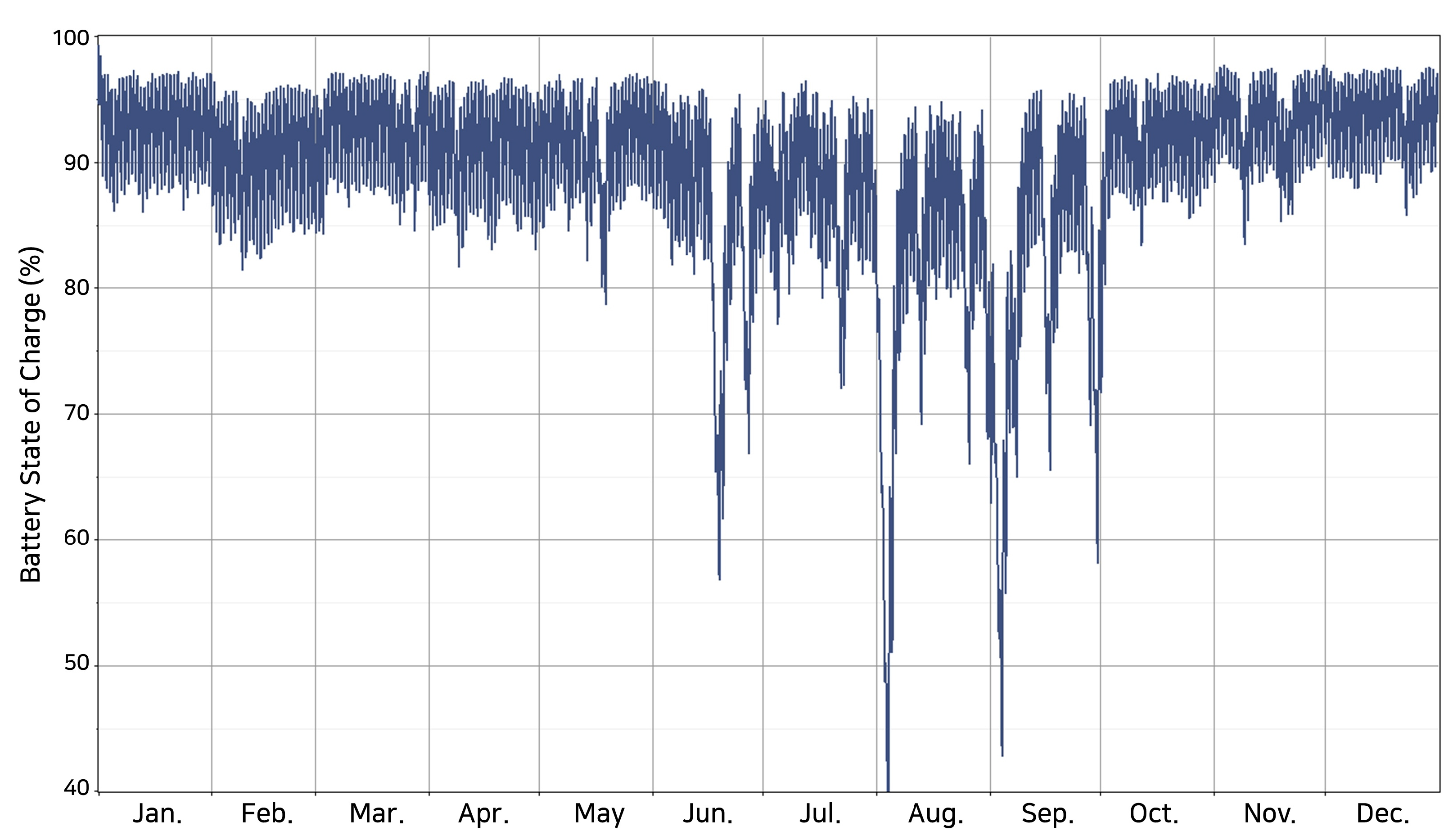

Figure 9. Monthly battery state of charge of the suggested configuration (created by the authors).

The key findings from the simulation results in the current study could be introduced as follows. First, the combination of PV array-batteries-converter was proposed for Chiang Mai University. Second, the suggested configuration from the simulation shows $70,147,828 of the total NPC level with $0.728 kWh of the COE level. Third, the optimal configuration meets the 100% renewable fraction, because the purpose of this study was to present independent renewable electricity generation systems for Chiang Mai University.

Moreover, there are the notable amounts of the annual reduced environmental pollutants of the proposed configurations, instead of using the current grid system. 4,487,738 kg of CO${}_2$, 19,456 kg of SO${}_2$, and 9515 kg of NO and NO${}_2$ cannot be annually emitted by employing the proposed configuration in this study.

6. Discussion and Conclusions

To respond rapidly to the increased electricity demand in countries with sustainable development, and to reduce environmental pollution, several countries have set national plans and policies for renewable energy production facilities [34]. Following this effort, the current study proposes the potential configuration of renewable energy production facilities for Chiang Mai University in Thailand to utilize local renewable resources. Two economic evaluations, COE and NPC, were used to assess the economic feasibility of the configuration. Related to research question 1, the potentially optimal configuration was organized by 12,780 kW-capacity PV array, 17,965 battery units, and 1525 kW-capacity electronic converter.

The configuration, which was composed of a PV array, a converter and batteries with a 5.38% annual real interest rate, achieved a $0.728 per kWh COE with a 100% renewable fraction. The results of the simulation shows the possibility of an eco-friendly campus in Thailand by presenting the potential configuration of renewable energy generation systems for Chiang Mai University. Although the simulation results show heavy initial capital costs, the suggested systems can be practical in allowing the university to be a long-term eco-friendly campus. In addition, because the simulations did not consider the national grid system, which is used as the current electricity system of the university, the suggested systems can achieve greater performance by trading the electricity between the suggested systems and the grid connection. Moreover, using the suggested system shows the significantly reduced environmental pollutants. Related to research question 2, the emissions of greenhouse gas are notably reduced. Moreover, compared to the current electricity system of Chiang Mai University, 179,510 kg of CO${}_2$, 778 kg of SO${}_2$, and 381 kg of NO and NO${}_2$ can be annually eliminated when the suggested system is installed and operated. It means that using the suggested system can provide environmental benefits for the university.

Compared to the findings of several previous studies conducted in Southeast Asia [12,14], the simulation results of the current study indicated that the suggested configuration can achieve 100% of renewable fraction with $0.728 per kWh of COE. Considering the suggested configuration of previous studies in Thailand [14], the suggested configuration in the current study excluded the usage of diesel generators. Considering about $0.858 per kWh of COE is provided by the national grid system in Thailand [35], the COE level presented by the suggested system, $0.728 per kWh of COE, is considered as the economical configuration.

This study had several limitations. First, other policies on renewable energy in Thailand were not considered. For example, the Thailand government started to apply feed-in-tariff policies to power production facilities [36,37]. Second, economic theories that can be used in the energy industry were not considered in the simulations. Prior studies found that there are notable economic theories validated in the renewable energy industry [38]. Third, the economic dynamics of developing countries were not considered. Several scholars indicated that the economic dynamics of developing countries can be a main hindrance to diffusing renewable energy facilities [39]. For example, the pay back period with the internal rate of return of the suggested system can be considered. Third, because the amount of electricity considered in Chiang Mai University is significantly heavy to simulate (17,654,195 kWh), the current study employs the 50% scaled electricity load information. Therefore, future studies should extend the findings of the current study by addressing these limitations.
