Open AccessFeature PaperArticle

Development of Multiphoton Ionization Time-of-Flight Mass Spectrometry for the Detection of Small Emulsion Droplets

Department of Materials Science and Engineering, Graduate School of Engineering, University of Fukui, 3-9-1 Bunkyo, Fukui 910-8507, Japan
*
Author to whom correspondence should be addressed.
Appl. Sci. 2018, 8(3), 413; https://doi.org/10.3390/app8030413
Received: 29 January 2018 / Revised: 1 March 2018 / Accepted: 8 March 2018 / Published: 11 March 2018
(This article belongs to the Special Issue Photoionization Mass Spectrometry)

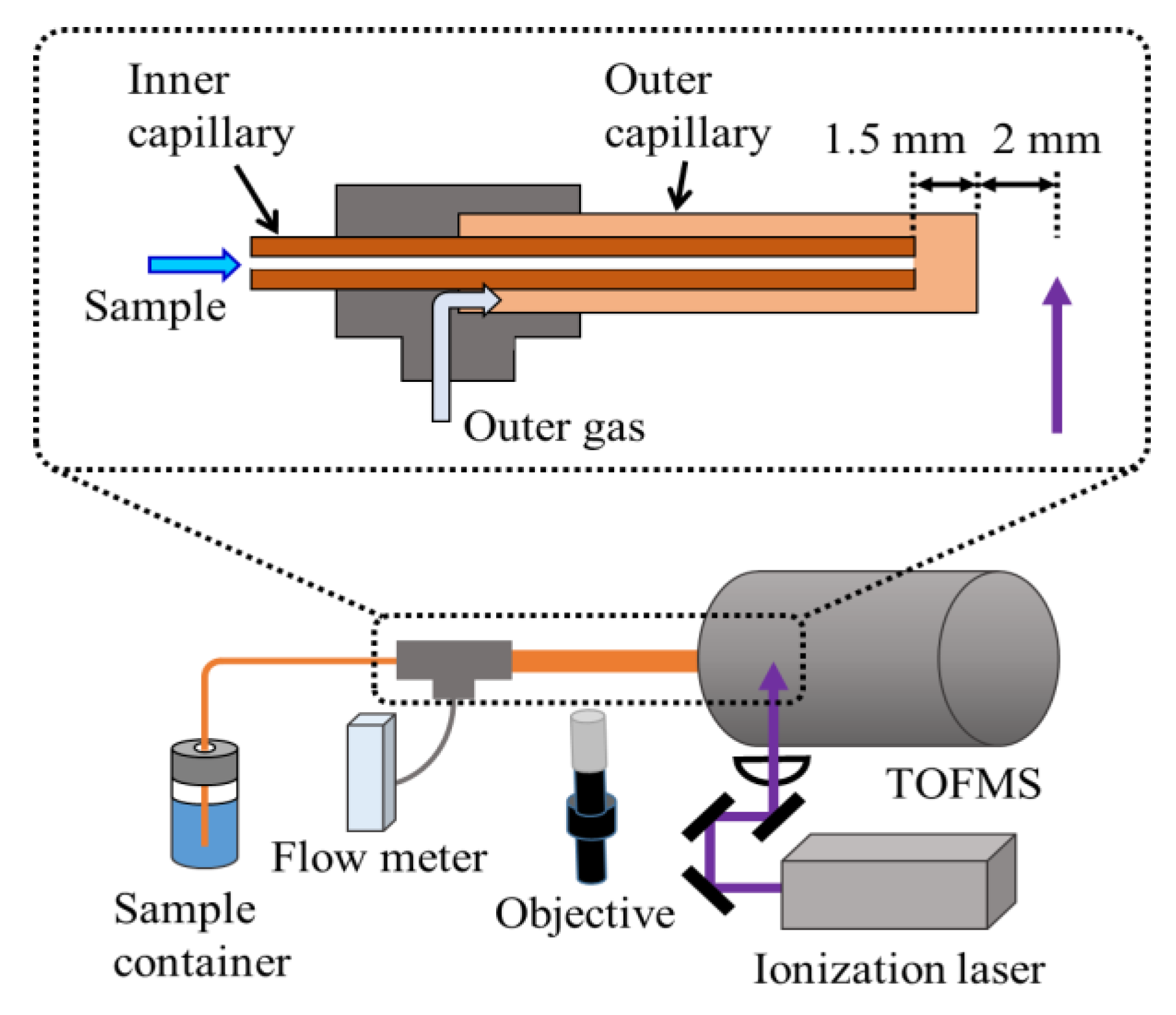

A system for measuring small oil droplets in an oil-in-water (O/W) emulsion was developed using multiphoton ionization time-of-flight mass spectrometry. In the present study, a capillary column with an inner diameter of 15 µm was used for sample introduction. Moreover, a compact microscopic system was constructed for observing an emulsion flowing through a capillary column. As a result, the length for sample introduction was shortened, which is preferable for the direct evaluation of an emulsion. Using this system, the minimum diameter of a detectable toluene droplet in an O/W emulsion was decreased to 1.7 µm. The present system could be used to evaluate the local microenvironment and stability of an emulsion. View Full-Text
Keywords: MPI-TOFMS; O/W emulsion; emulsion droplet MPI-TOFMS; O/W emulsion; emulsion droplet
Show Figures

Graphical abstract

MDPI and ACS Style

Fujita, C.; Sugimura, Y.; Uchimura, T. Development of Multiphoton Ionization Time-of-Flight Mass Spectrometry for the Detection of Small Emulsion Droplets. Appl. Sci. 2018, 8, 413.
