Retrieval of Similar Evolution Patterns from Satellite Image Time Series^{ †}

^{*}

^{†}

## Abstract

**:**

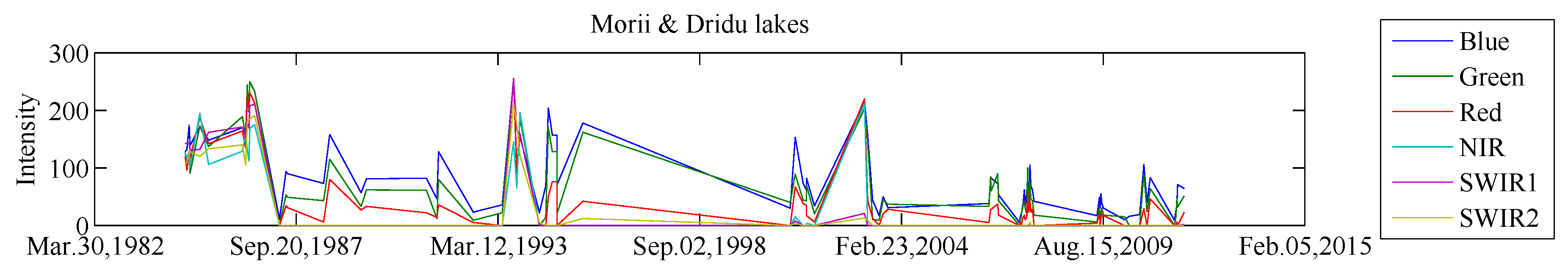

## 1. Introduction

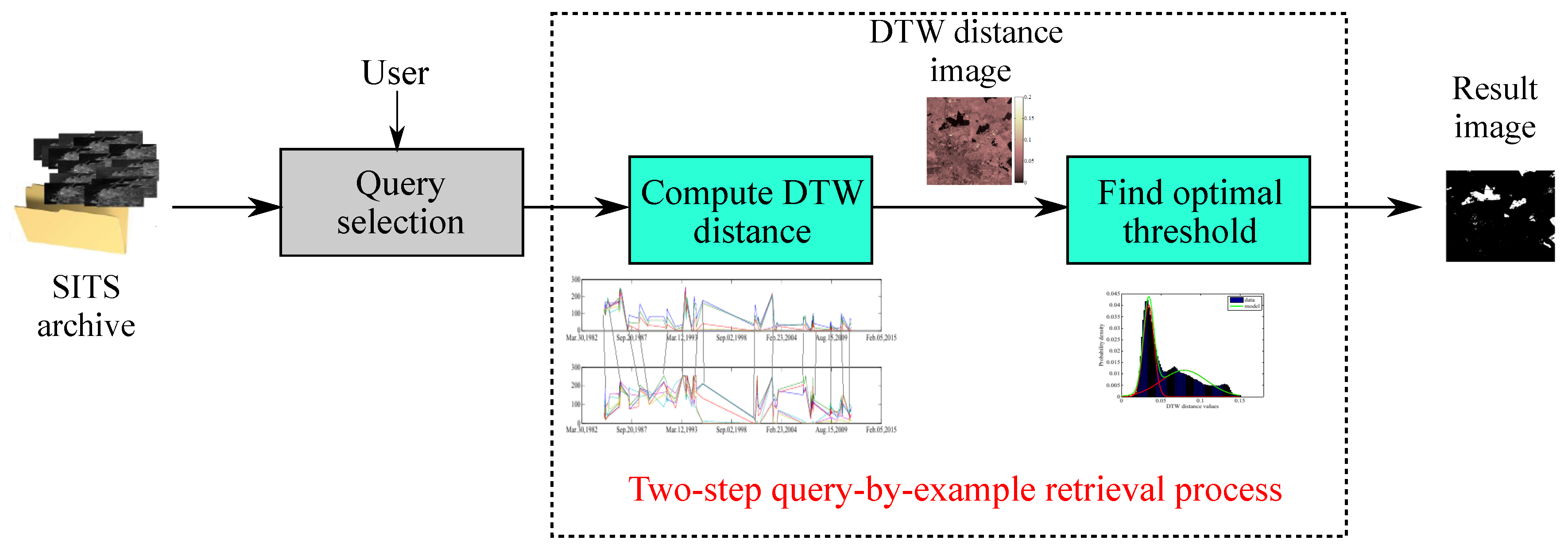

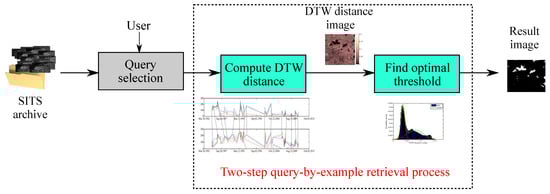

## 2. Materials and Methods

#### 2.1. Dynamic Time Warping (DTW)

#### 2.2. Determining the Optimal Threshold Using Expectation-Maximization

- Expectation step (E-step). Compute the log-likelihood (i.e., the logarithm of the posterior probability) with respect to the current values of the parameters ${\theta}^{\left(t\right)}$:$$L\left({\theta}^{\left(t\right)}\right)=ln{p}_{{\theta}^{\left(t\right)}}\left(x\right)$$
- Maximization step (M-step). Update the model parameters such that the log-likelihood approaches its maximum, i.e., the convergence of the EM algorithm guarantees that the log-likelihood value is increased with each iteration [19]. It is usually convenient to introduce a mapping between the new model parameters ${\theta}^{(t+1)}$ and the previous ones ${\theta}^{\left(t\right)}$. According to [18] and following the notations in [19], the means, squared standard deviations, and mixture probabilities for each class $k\in \{s,n\}$ can be re-estimated using the following set of relations:$$\begin{array}{ccc}\hfill {\pi}_{k}^{(t+1)}& =& \frac{{\displaystyle \sum _{x}}{\zeta}_{k}^{\left(t\right)}\left(x\right)}{N}\hfill \end{array}$$$$\begin{array}{ccc}\hfill {\mu}_{k}^{(t+1)}& =& \frac{{\displaystyle \sum _{x}}{\zeta}_{k}^{\left(t\right)}\left(x\right)\xb7x}{{\displaystyle \sum _{x}}{\zeta}_{k}^{\left(t\right)}\left(x\right)}\hfill \end{array}$$$$\begin{array}{ccc}\hfill {\sigma}_{k}^{(t+1)}& =& {\left(\frac{{\displaystyle \sum _{x}}{\zeta}_{k}^{\left(t\right)}\left(x\right)\xb7{\left(x-{\mu}_{k}^{\left(t\right)}\right)}^{2}}{{\displaystyle \sum _{x}}{\zeta}_{k}^{\left(t\right)}\left(x\right)}\right)}^{\frac{1}{2}}\hfill \end{array}$$$${\zeta}_{k}^{\left(t\right)}\left(x\right)=\frac{{\pi}_{k}^{\left(t\right)}\mathcal{N}\left(x\right|{\mu}_{k}^{\left(t\right)},{\sigma}_{k}^{\left(t\right)})}{{\sum}_{{k}^{\prime}}{\pi}_{{k}^{\prime}}^{\left(t\right)}\mathcal{N}\left(x\right|{\mu}_{{k}^{\prime}}^{\left(t\right)},{\sigma}_{{k}^{\prime}}^{\left(t\right)})}.$$

## 3. Experiments

## 4. Discussion

#### 4.1. Discovery of Similar Patterns in SITS

#### 4.2. Damage Assessment

#### 4.3. Land Cover and Land Use Mapping over Long Time Series

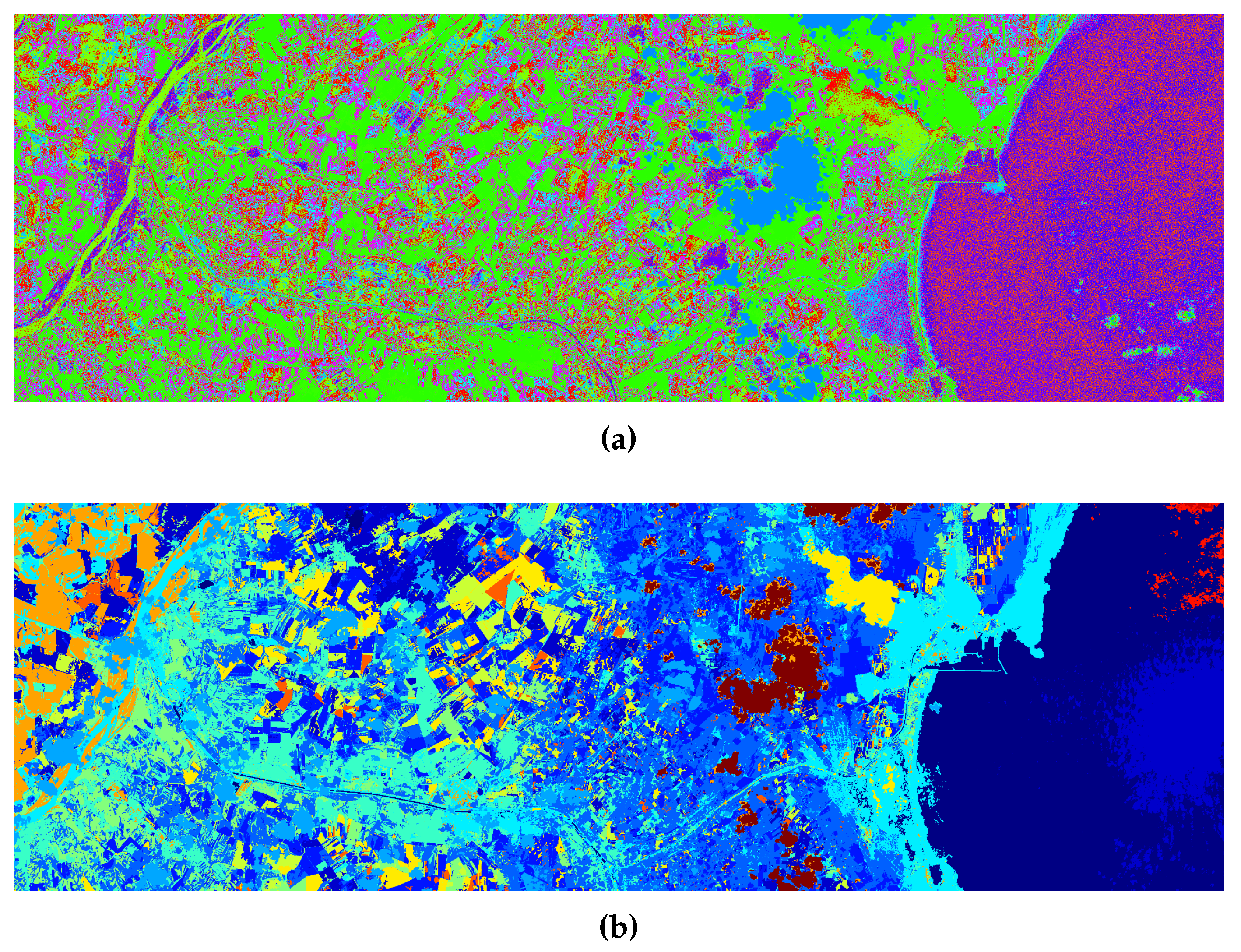

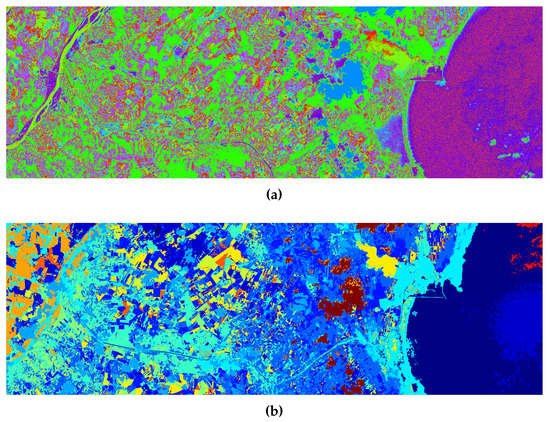

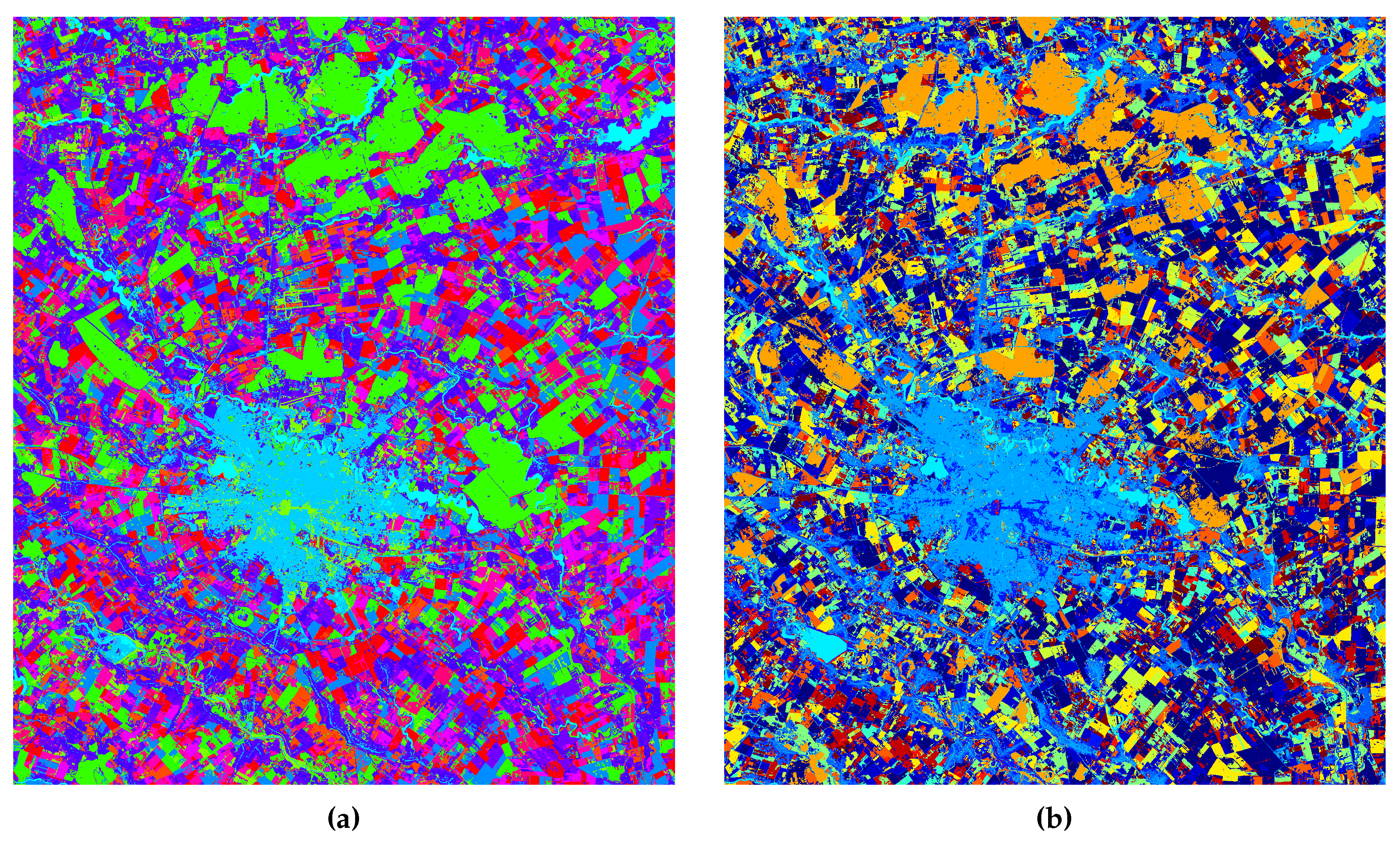

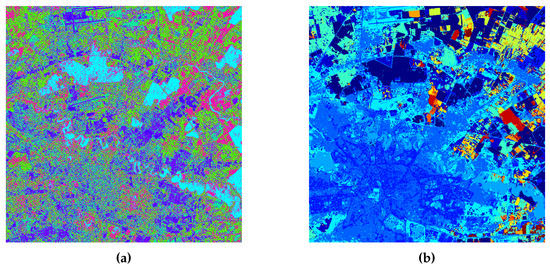

#### 4.4. Comparison with Other State-of-the-Art SITS Analysis Methods

#### 4.5. Final Remarks

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Abbreviations

SITS | Satellite Image Time Series |

USGS | United States Geological Survey |

DTW | Dynamic Time Warping |

LDA | Latent Dirichlet Allocation |

SVM | Support Vector Machine |

ML | Maximum Likelihood |

MLE | Maximum Likelihood Estimation |

EM | Expectation-Maximization |

OA | Overall Accuracy |

MAR | Missed Alarm Rate |

FAR | False Alarm Rate |

## References

- Bruzzone, L.; Prieto, D.F. Automatic analysis of the difference image for unsupervised change detection. IEEE Trans. Geosci. Remote Sens.
**2000**, 38, 1171–1182. [Google Scholar] [CrossRef] - Bovolo, F.; Bruzzone, L. A Theoretical Framework for Unsupervised Change Detection Based on Change Vector Analysis in the Polar Domain. IEEE Trans. Geosci. Remote Sens.
**2007**, 45, 218–236. [Google Scholar] [CrossRef] [Green Version] - Celik, T. Unsupervised Change Detection in Satellite Images Using Principal Component Analysis and k-Means Clustering. IEEE Geosci. Remote Sens. Lett.
**2009**, 6, 772–776. [Google Scholar] [CrossRef] - Radoi, A.; Datcu, M. Automatic Change Analysis in Satellite Images Using Binary Descriptors and Lloyd-Max Quantization. IEEE Geosci. Remote Sens. Lett.
**2015**, 12, 1223–1227. [Google Scholar] [CrossRef] - Rabiner, L.; Juang, B.H. Fundamentals of Speech Recognition; Prentice-Hall, Inc.: Upper Saddle River, NJ, USA, 1993. [Google Scholar]
- Skutkova, H.; Vitek, M.; Babula, P.; Kizek, R.; Provaznik, I. Classification of genomic signals using dynamic time warping. BMC Bioinform.
**2013**, 14, S1. [Google Scholar] [CrossRef] [PubMed] - Petitjean, F.; Inglada, J.; Gancarski, P. Satellite Image Time Series Analysis Under Time Warping. IEEE Trans. Geosci. Remote Sens.
**2012**, 50, 3081–3095. [Google Scholar] [CrossRef] - Radoi, A.; Burileanu, C. Query-by-Example Retrieval in Satellite Image Time Series. In Proceedings of the 2018 41st International Conference on Telecommunications and Signal Processing (TSP), Athens, Greece, 4–6 July 2018; pp. 1–5. [Google Scholar] [CrossRef]
- Maus, V.; Camara, G.; Cartaxo, R.; Sanchez, A.; Ramos, F.M.; de Queiroz, G.R. A Time-Weighted Dynamic Time Warping Method for Land-Use and Land-Cover Mapping. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens.
**2016**, 9, 3729–3739. [Google Scholar] [CrossRef] - Belgiu, M.; Csillik, O. Sentinel-2 cropland mapping using pixel-based and object-based time-weighted dynamic time warping analysis. Remote Sens. Environ.
**2018**, 204, 509–523. [Google Scholar] [CrossRef] - Tan, C.W.; Webb, G.; Petitjean, F. Indexing and classifying gigabytes of time series under time warping. In Proceedings of the 2017 SIAM International Conference on Data Mining, Houston, TX, USA, 27–29 April 2017. [Google Scholar]
- Vaduva, C.; Costachioiu, T.; Patrascu, C.; Gavat, I.; Lazarescu, V.; Datcu, M. A Latent Analysis of Earth Surface Dynamic Evolution Using Change Map Time Series. IEEE Trans. Geosci. Remote Sens.
**2013**, 51, 2105–2118. [Google Scholar] [CrossRef] [Green Version] - Pelletier, C.; Valero, S.; Inglada, J.; Champion, N.; Dedieu, G. Assessing the robustness of Random Forests to map land cover with high resolution satellite image time series over large areas. Remote Sens. Environ.
**2016**, 187, 156–168. [Google Scholar] [CrossRef] - Julea, A.; Meger, N.; Bolon, P.; Rigotti, C.; Doin, M.P.; Lasserre, C.; Trouve, E.; Lazarescu, V.N. Unsupervised Spatiotemporal Mining of Satellite Image Time Series Using Grouped Frequent Sequential Patterns. IEEE Trans. Geosci. Remote Sens.
**2011**, 49, 1417–1430. [Google Scholar] [CrossRef] - Petitjean, F.; Gançarski, P.; Masseglia, F.; Forestier, G. Analysing Satellite Image Time Series by Means of Pattern Mining. In Intelligent Data Engineering and Automated Learning; Lecture Notes in Computer Science; Springer: Berlin/Heidelberg, Germany, 2010; Volume 6283, pp. 45–52. [Google Scholar]
- Radoi, A.; Datcu, M. Spatio-temporal characterization in satellite image time series. In Proceedings of the 8th International Workshop on the Analysis of Multitemporal Remote Sensing Images, MultiTemp 2015, Annecy, France, 22–24 July 2015; pp. 1–4. [Google Scholar] [CrossRef]
- Muller, M. Dynamic Time Warping. In Information Retrieval for Music and Motion; Springer: Berlin/Heidelberg, Germany, 2007; pp. 69–84. [Google Scholar] [CrossRef]
- Redner, R.A.; Walker, H.F. Mixture Densities, Maximum Likelihood and the EM Algorithm. SIAM Rev.
**1984**, 26, 195–239. [Google Scholar] [CrossRef] - Bishop, C.M. Pattern Recognition and Machine Learning (Information Science and Statistics); Springer-Verlag New York, Inc.: Secaucus, NJ, USA, 2006. [Google Scholar]

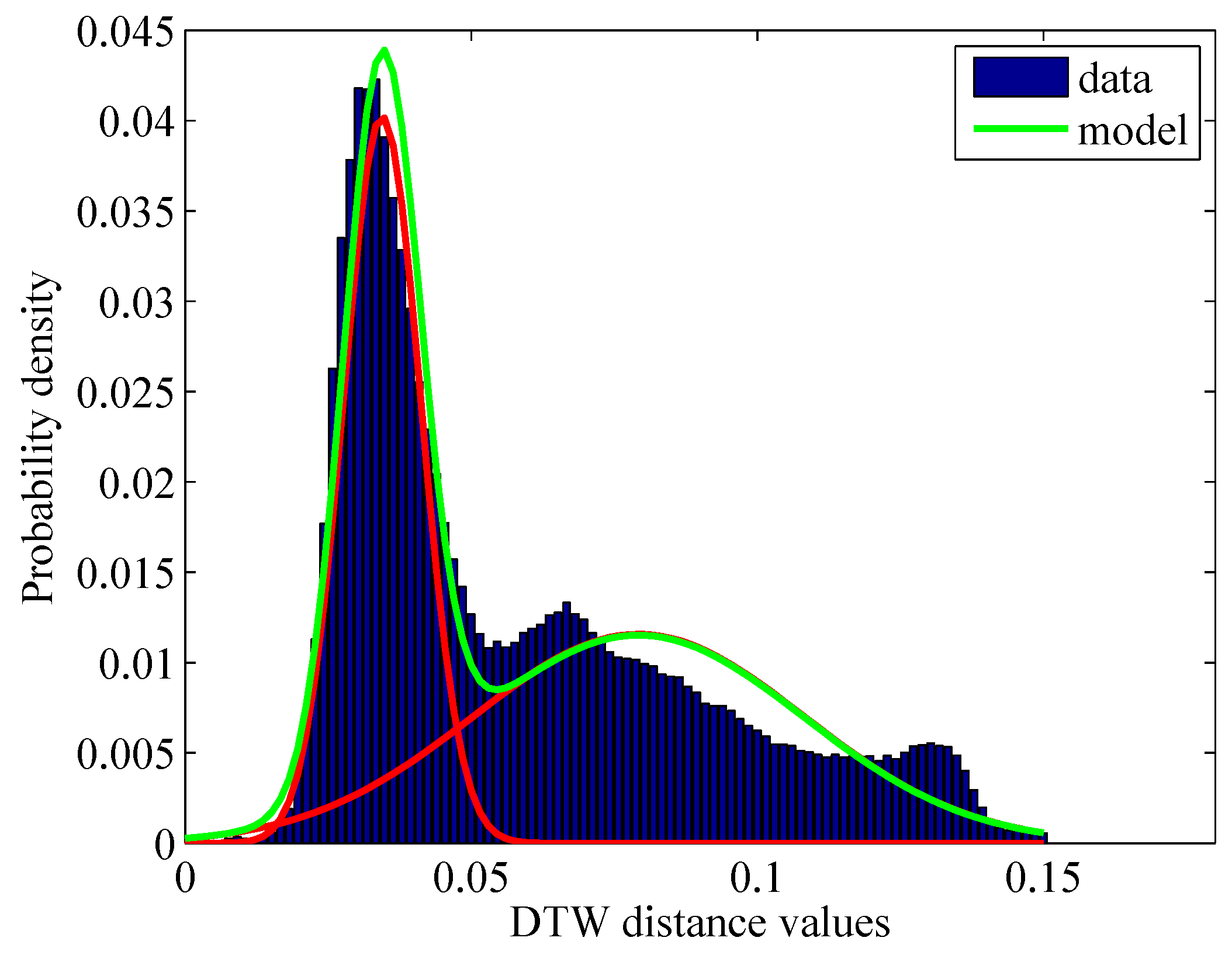

**Figure 3.**Histogram over DTW similarity scores and a mixture of two Gaussian distributions fitted to these scores.

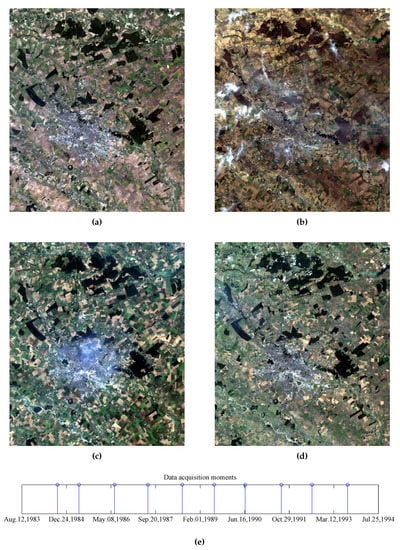

**Figure 4.**Short Landsat SITS comprised of 10 images captured between 1984–1993. Only four representative images (i.e., containing specific changes) of the series are shown: (

**a**) 1984, (

**b**) 1987, (

**c**) 1988, (

**d**) 1992. The distribution of the acquisition moments is shown in (

**e**).

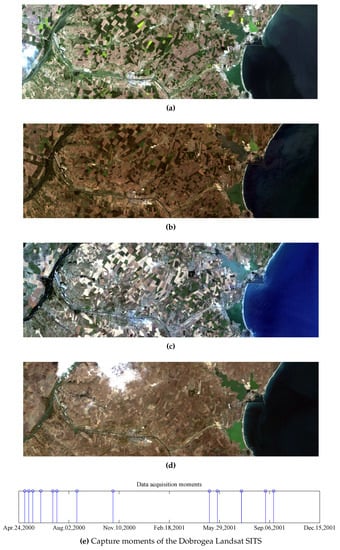

**Figure 5.**Dobrogea Landsat SITS comprised of 13 images captured between 6 May 2000 and 14 September 2001, in the Dobrogea region. Four images of the series are shown, namely: (

**a**) 6 May 2000, (

**b**) 22 May 2000, (

**c**) 9 July 2000, and (

**d**) 29 October 2000. The distribution of the acquisition moments is shown in (

**e**).

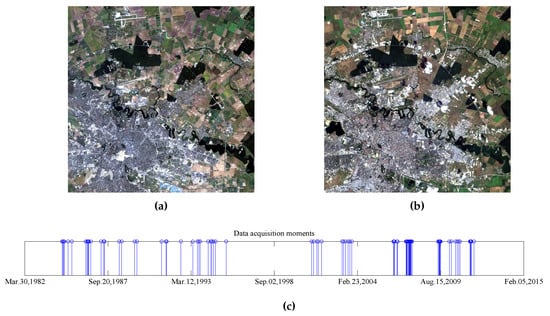

**Figure 6.**Long Landsat SITS comprised of 88 images captured in 1984–2011. Only the first and the last images of the series are shown, namely (

**a**) 1984 and (

**b**) 2011. The distribution of the acquisition moments is shown in (

**c**).

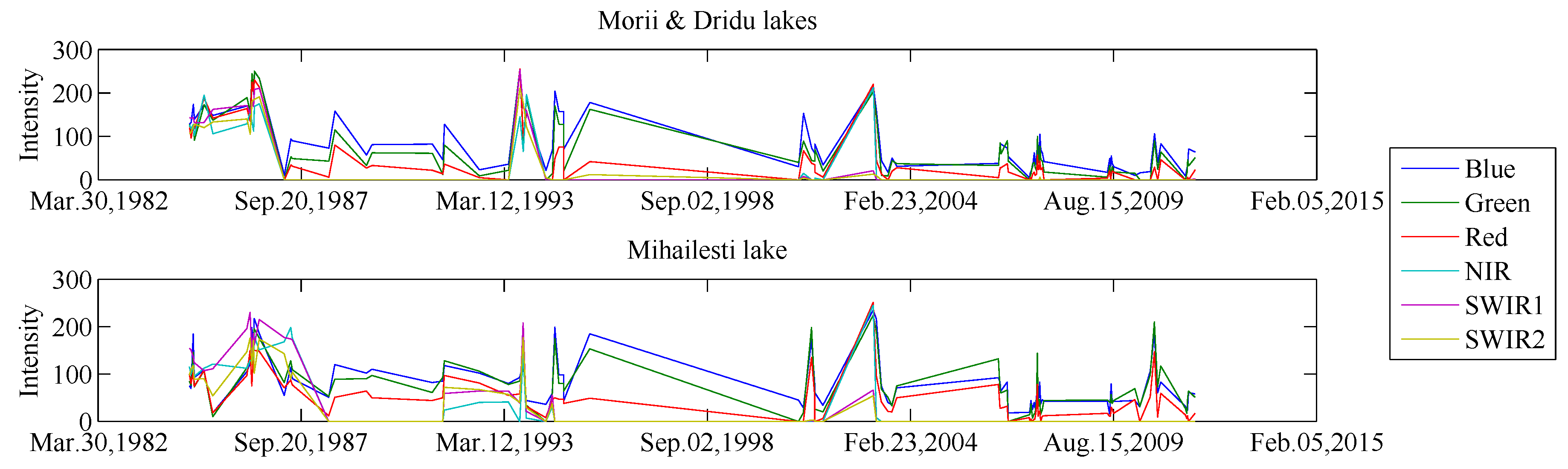

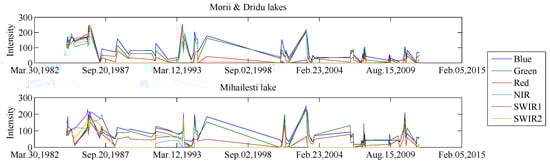

**Figure 7.**Spectro-temporal signatures during the construction of the accumulation lakes. The two spectro-temporal signatures are characterized by different temporal evolutions in the period that corresponds to their construction, namely 1984–1993.

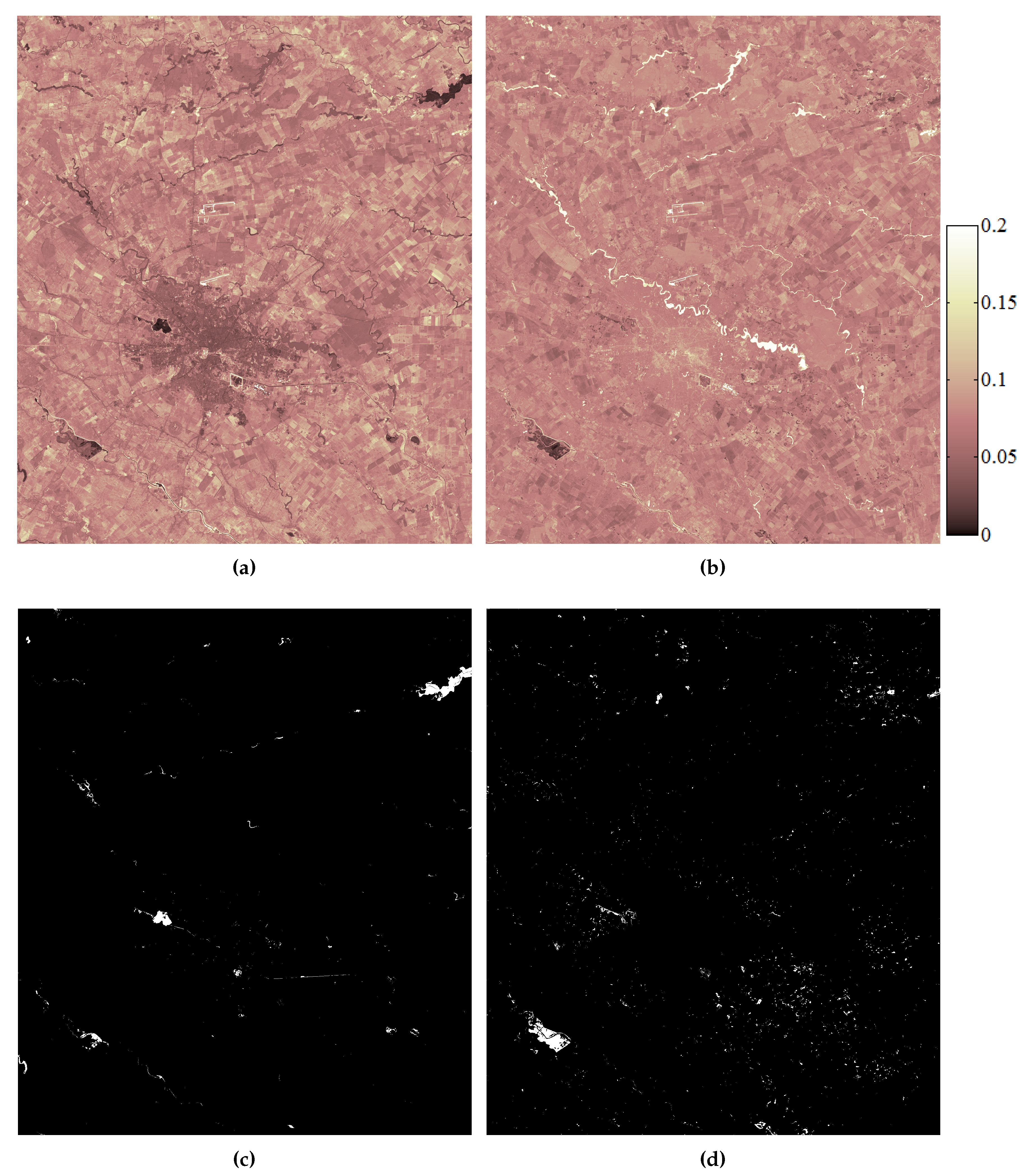

**Figure 8.**Pattern discovery in short Landsat SITS. (

**a**) DTW distance image for a query marked inside the Morii & Dridu accumulation lakes. (

**b**) DTW distance image for a query marked inside Mihailesti accumulation lake. (

**c**) Pattern discovery using the proposed method for Morii & Dridu accumulation lakes. (

**d**) Pattern discovery using the proposed method for Mihailesti accumulation lake. In the case of DTW distance images presented in (

**a**,

**b**), dark color represents similar evolutions and bright color represents non-similar evolutions, whereas in (

**c**,

**d**), white pixels correspond to spatio-temporal patterns that are similar to the query, which was selected from the region of interest.

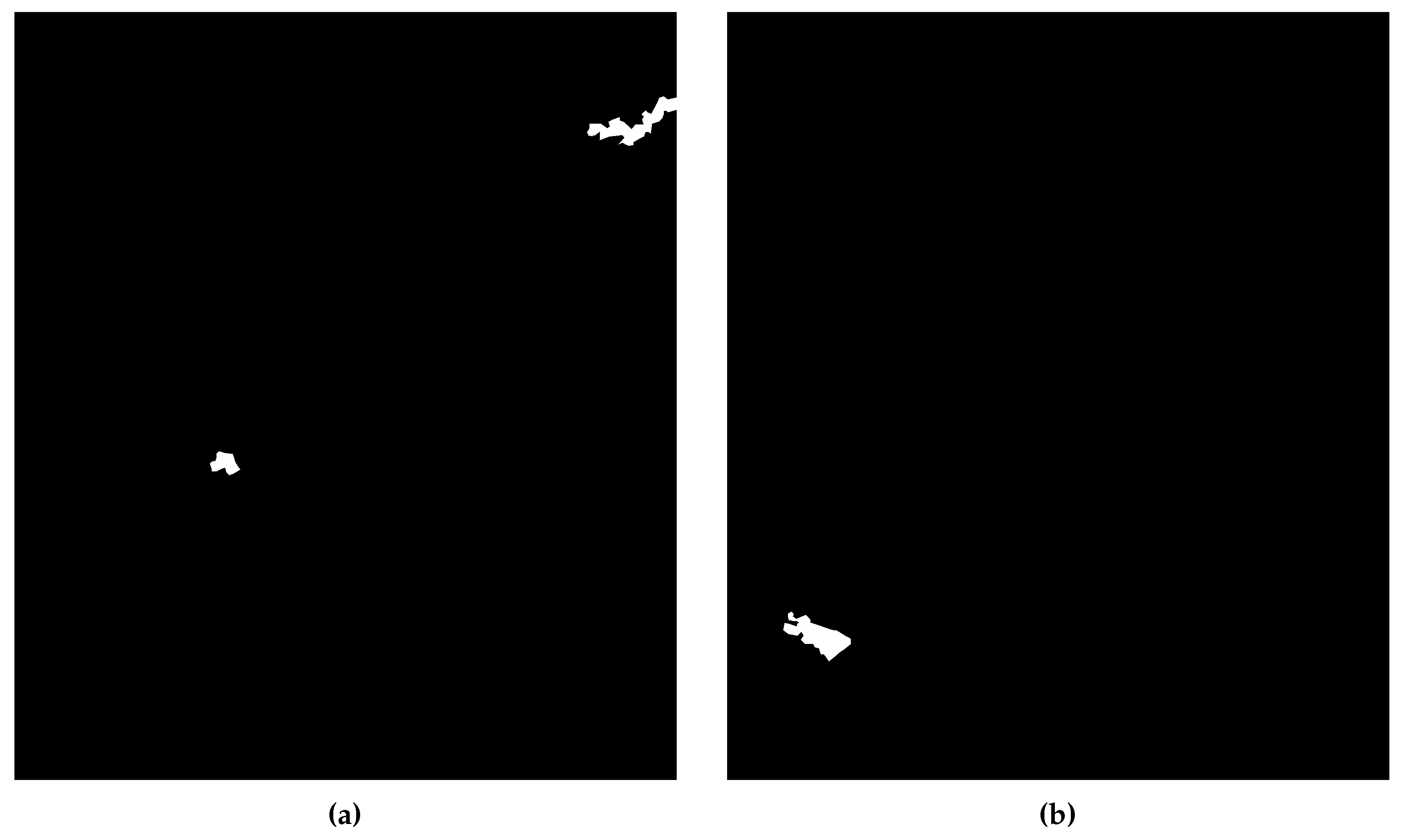

**Figure 9.**Ground truth for short Landsat SITS. White pixels delimit (

**a**) Morii & Dridu accumulation lakes and (

**b**) Mihailesti accumulation lake.

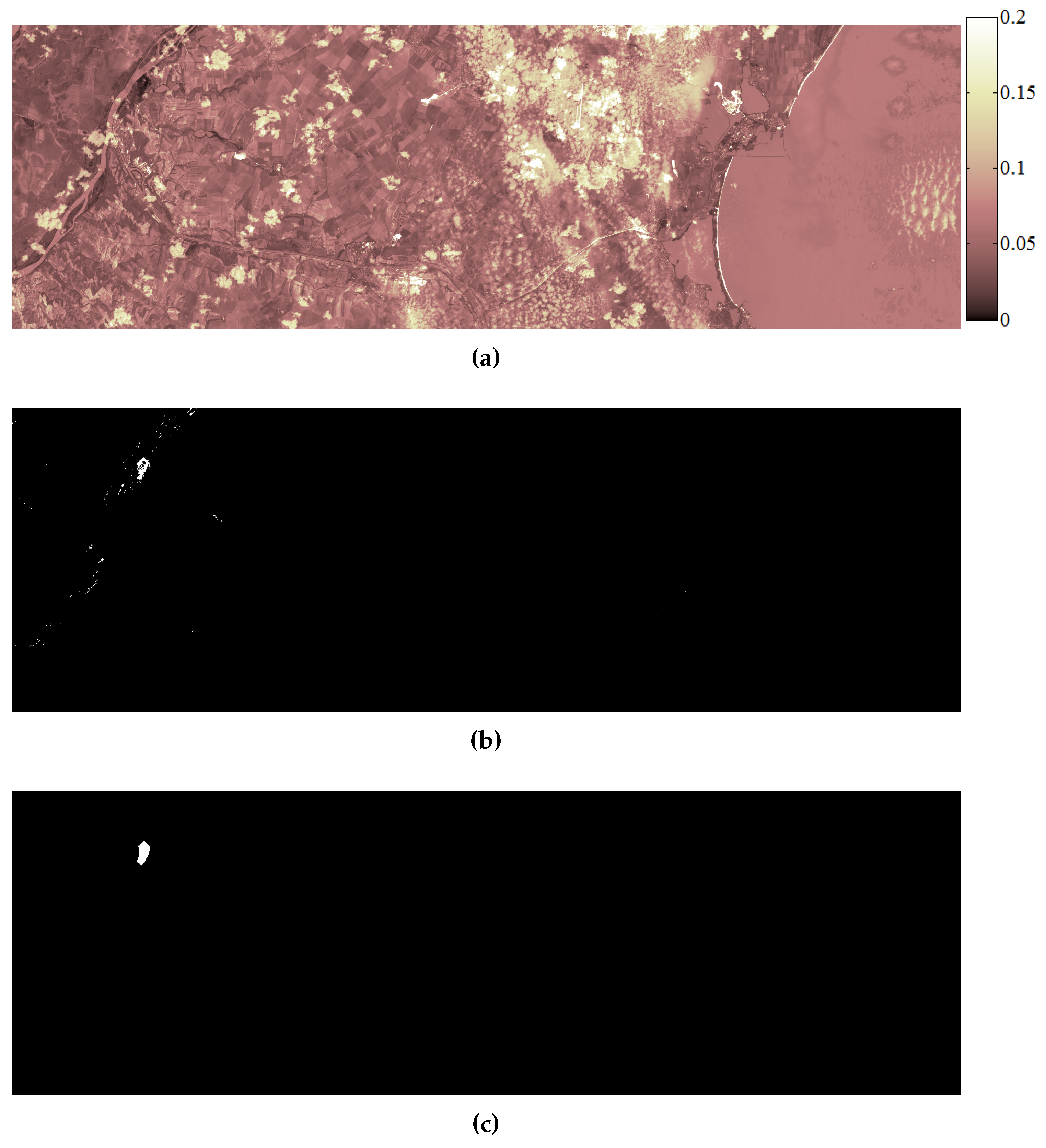

**Figure 10.**Delimitation of areas affected by floods in Dobrogea. (

**a**) DTW distance image for a query in the flooded area. (

**b**) Delimitation of the affected area using the proposed algorithm. (

**c**) Ground truth marking the flooded areas. In the case of DTW distance image presented in (

**a**), dark color represents similar evolutions and bright color represents non-similar evolutions, whereas in (

**b**) white pixels correspond to spatio-temporal patterns that are similar to the query, which was selected from the region of interest.

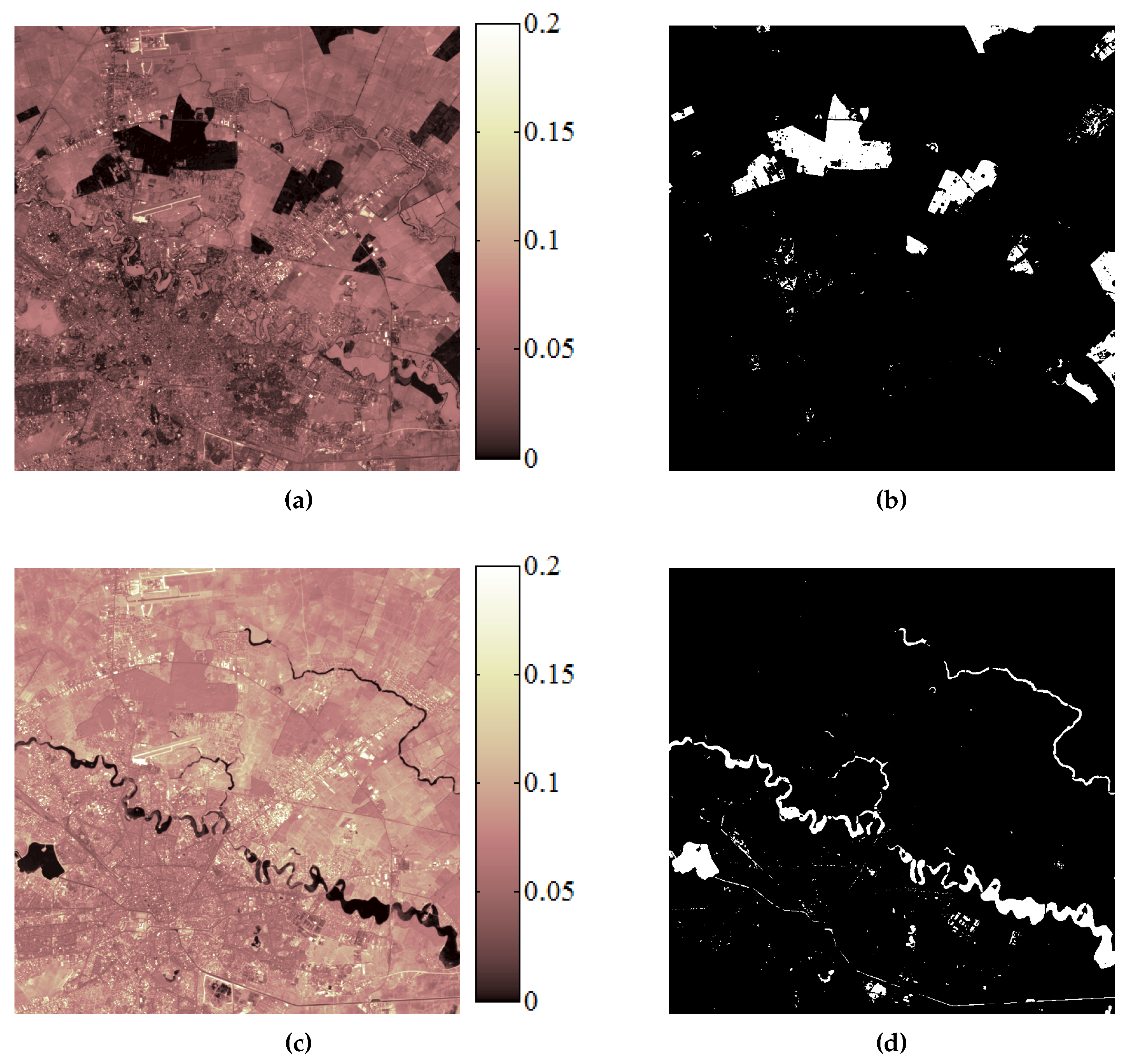

**Figure 11.**Land cover mapping in long Landsat SITS. (

**a**) DTW distance image for a query made inside the forestry area. (

**b**) Forestry area delimitation using the proposed query-by-example retrieval method. (

**c**) DTW distance image for a query made in an area covered by water. (

**d**) Water delimitation using the proposed query-by-example retrieval method. In the case of DTW distance images presented in (

**a**,

**c**), dark color represents similar evolutions and bright color represents non-similar evolutions, whereas in (

**b**,

**d**), white pixels correspond to spatio-temporal patterns that are similar to the query, which was selected from the region of interest.

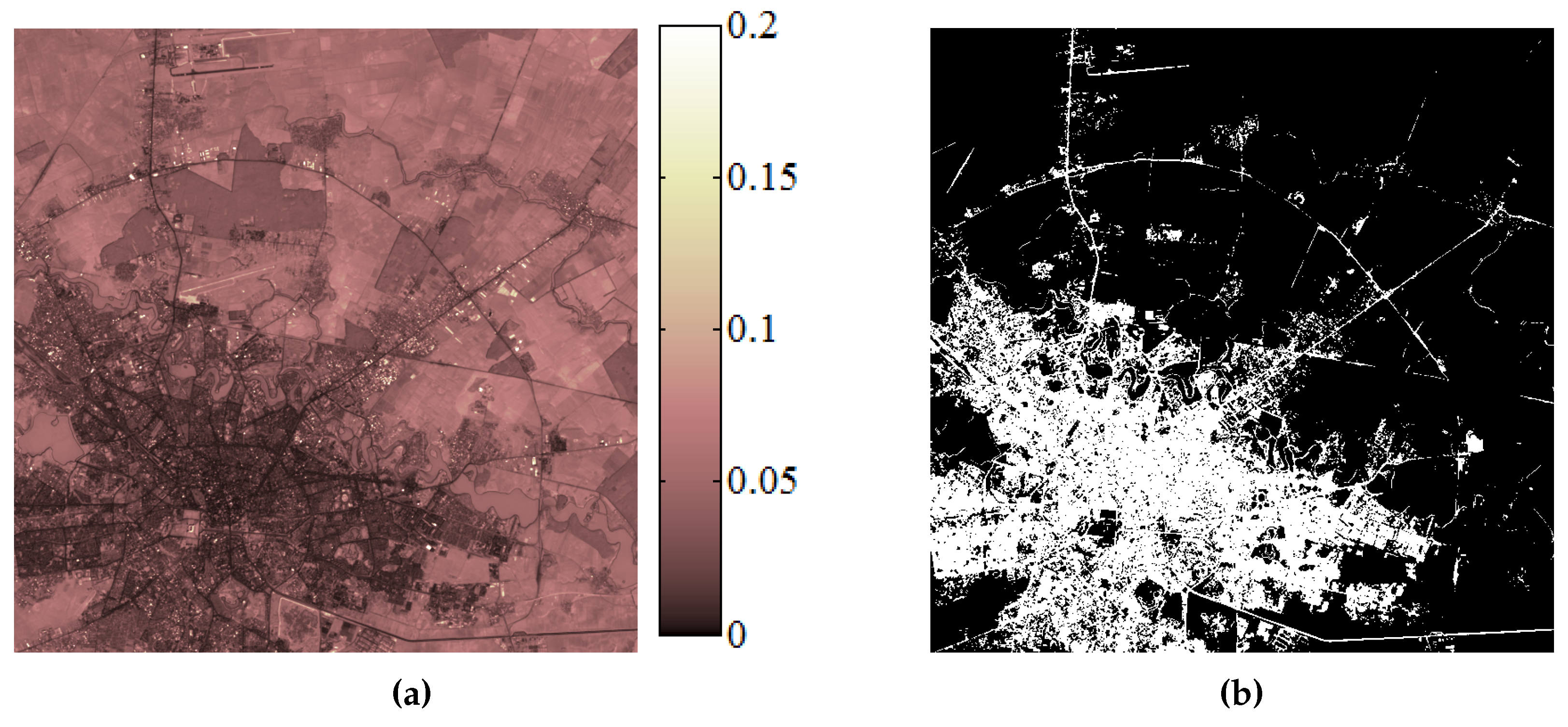

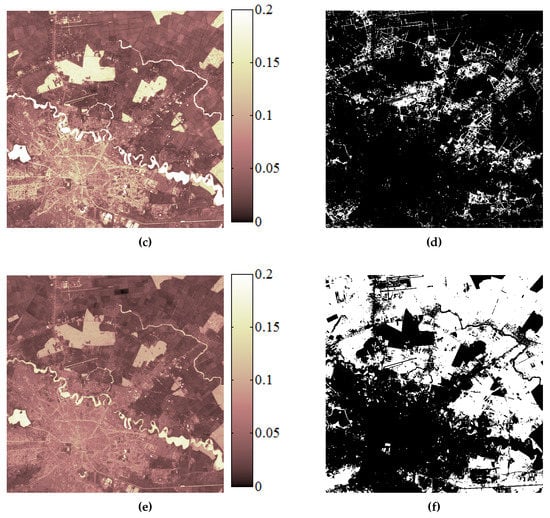

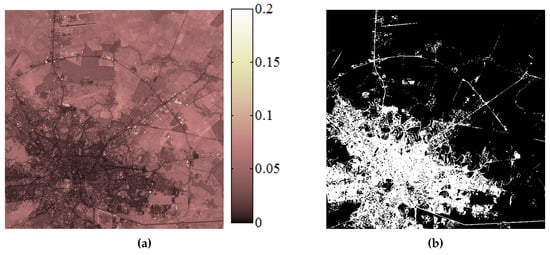

**Figure 12.**Land use mapping in long Landsat SITS. (

**a**) DTW distance image for a query made in the urban area. (

**b**) Urban area delimitation using the proposed query-by-example retrieval method. (

**c**) DTW distance image for a query made in the extra-urban area. (

**d**) Extra-urban area delimitation using the proposed query-by-example retrieval method. (

**d**) DTW distance image for a query made inside the agricultural area. (

**e**) Agricultural area delimitation using the proposed query-by-example retrieval method. In the case of DTW distance images presented in (

**a**,

**c**,

**e**), dark color represents similar evolutions and bright color represents non-similar evolutions, whereas in (

**b**,

**d**,

**f**), white pixels correspond to spatio-temporal patterns that are similar to the query, which was selected from the region of interest.

**Table 1.**Example of computation of the Dynamic Time Warping (DTW) distance matrix for two sequences, ’5463545’ and ’0102130’.

0 | 1 | 0 | 2 | 1 | 3 | 0 | |
---|---|---|---|---|---|---|---|

5 | 5 | 9 | 14 | 17 | 21 | 23 | 28 |

4 | 9 | 8 | 12 | 14 | 17 | 18 | 22 |

6 | 15 | 13 | 14 | 16 | 19 | 20 | 24 |

3 | 18 | 15 | 16 | 15 | 16 | 16 | 19 |

5 | 23 | 19 | 20 | 18 | 20 | 18 | 21 |

4 | 27 | 22 | 23 | 20 | 21 | 19 | 22 |

5 | 32 | 26 | 27 | 23 | 24 | 21 | 24 |

Query | Overall Accuracy | Missed Alarm Rate | False Alarm Rate |
---|---|---|---|

Morii and Dridu | 99.68% | 26.84% | 0.23% |

Mihailesti | 99.36% | 30.36% | 0.56% |

Query | Overall Accuracy | Missed Alarm Rate | False Alarm Rate |
---|---|---|---|

Flooded area | 99.96% | 2.36% | 0.13% |
