Application of Symbiotic Organisms Search Algorithm for Parameter Extraction of Solar Cell Models

Abstract

Extracting accurate values for relevant unknown parameters of solar cell models is vital and necessary for performance analysis of a photovoltaic (PV) system. This paper presents an effective application of a young, yet efficient metaheuristic, named the symbiotic organisms search (SOS) algorithm, for the parameter extraction of solar cell models. SOS, inspired by the symbiotic interaction ways employed by organisms to improve their overall competitiveness in the ecosystem, possesses some noticeable merits such as being free from tuning algorithm-specific parameters, good equilibrium between exploration and exploitation, and being easy to implement. Three test cases including the single diode model, double diode model, and PV module model are served to validate the effectiveness of SOS. On one hand, the performance of SOS is evaluated by five state-of-the-art algorithms. On the other hand, it is also compared with some well-designed parameter extraction methods. Experimental results in terms of the final solution quality, convergence rate, robustness, and statistics fully indicate that SOS is very effective and competitive.

1. Introduction

Solar energy is considered as a promising tool to fight environmental pollution and fossil energy consumption. As the main application of solar energy, solar photovoltaic (PV) has recently achieved leapfrog development. Solarpower Europe reveals that only seven countries installed over 1 GW PV in 2016. That number was changed to nine in 2017, and in 2018, the number keeps increasing and should reach 14 [1]. China, as the country with the biggest capacity of PV power, installed 24.3 GW, which was about 38% of the world’s newly installed capacity PV power, in the first half of 2018 [2]. According to data from the International Energy Agency, by 2040, the fast-developing market of PV in China and India will cause solar to be the largest source of low-carbon capacity [3]. A PV system is a multi-component power unit utilized to directly convert solar energy into electricity. As the core device of a PV system, a solar cell’s accurate modelling and parameter extraction are very important for the performance analysis of the PV system [4]. For solar cells, their current-voltage (I-V) characteristics are widely simulated by the most popular single diode model and double diode model [5], which have five and seven unknown parameters, respectively, that need to be extracted.

Extracting accurate value for these relevant unknown model parameters is vital and necessary, and has drawn researchers’ attention in recent years [6,7]. The propounded parameter extraction methods roughly include analytical methods [8,9,10,11,12,13,14,15] and optimization methods. Analytical methods employ mathematical formulations to obtain the model parameters based on a few pivotal data points of I-V characteristic curve. Their merits are simplicity, computational efficiency, and ease of implementation. However, the solution quality depends heavily on the accuracy of the opted data points. A small degree of noise on these points may result in significant errors for these parameters.

Instead of relying on several key data points, optimization methods take all measured data points into account. The parameter extraction problem is firstly converted to an optimization problem. A well-designed optimization method is then used to solve the problem to optimality with the goal of fitting all measured points. Compared with the analytical methods, the dominant advantage of optimization methods is that more accurate values for these relevant parameters can be achieved as a result of the utilization of all measured I-V points. The optimization methods consist of deterministic methods and metaheuristic methods. Deterministic methods, in general, are local search algorithms because they rely mostly on the gradient information. Therefore, they are prone to being caught in a local extremum, especially in solving intricate multimodal problems such as the parameter extraction problem concerned here. In addition, they require the target functions to be convex and differentiable, among others. To meet the implementation demand, simplification and linearization are usually needed, which may lead to poor approximate solutions and thus cause them to be unreliable [16].

Metaheuristic methods, as a feasible and effective alternative to the deterministic methods, have gained increasing interest recently. They relax the problem formulation and pay no attention to the gradient information, and thus can overcome the shortcomings of deterministic methods. Hence, they can serve as reliable tools for multimodal problems. In the last few years, researchers have attempted to apply various metaheuristic methods to deal with the problem concerned in this paper. Bastidas-Rodriguez et al. [17] utilized genetic algorithm (GA) to extract parameters of the single diode model based on five operating points. El-Naggar et al. [18] applied simulated annealing (SA) to identify parameters of PV models. Bana and Saini [19] developed a particle swarm optimization (PSO) with binary constraints to extract single diode model parameters. Nunes et al. [20] proposed a guaranteed convergence PSO for both benchmark cases and real experimental data. Ishaque et al. [21] put forward a penalty based differential evolution (DE) to achieve accurate parameters of PV modules at different environmental conditions. Chellaswamy and Ramesh [22] designed an adaptive DE to yield accurate parameters of solar cell models. Jiang et al. [23] implemented an improved adaptive DE (IADE) to estimate the parameters of solar cells and modules. Askarzadeh and Rezazadeh [24] applied artificial bee swarm optimization (ABSO) to obtain promising parameters for both single diode and double diode models. Chen et al. [25] proposed a generalized oppositional teaching-learning-based optimization (GOTLBO) to acquire accurate parameters of solar cells, and then hybridized artificial bee colony (ABC) with TLBO to identify parameters of different PV models [26]. Yu et al. developed several well-designed methods including self-adaptive TLBO [27], improved JAYA (IJAYA) [28], and multiple learning backtracking search algorithm [29] to estimate parameters of PV models. Oliva et al. used chaotic maps to enhance the performance of whale optimization algorithm (WOA) [30] and ABC [31], respectively, for parameter extraction of solar cells. Kichou et al. [32] employed five different algorithms to achieve parameters for two PV models. Ma et al. [33] statistically compared the performance of six algorithms on parameter extraction of PV models. In addition to the abovementioned methods, many more different types of metaheuristics [34,35,36,37,38,39,40,41,42,43,44,45,46] are also applied to the problem considered here.

Metaheuristic methods exhibit diverse attributes regarding number of tuning parameters and searching strategies. However, the famous no-free-lunch theorem [47] has highly remarked that no single method that can be adopted as the gold standard for every optimization problem. Hence, it is necessary and important to attempt new ones with the constant hope of obtaining promising solutions for the parameter extraction problem of solar cell models, which motivates the authors to apply a young, yet efficient metaheuristic named the symbiotic organisms search (SOS) algorithm in this paper to assess its performance. SOS, proposed by Cheng and Prayogo [48], is inspired by the symbiotic interaction ways employed by organisms to improve their overall competitiveness in the ecosystem. SOS has some noticeable merits such as being free from tuning algorithm-specific parameters, good equilibrium between exploration and exploitation, and being easy to implement [49,50]. These merits encourage researchers to apply SOS to a host of engineering problems.

SOS has proven itself a worthy competitor and alternative in many optimization problems. Nonetheless, the promising method has not been employed to solve the problem considered here. The aim of this paper is first to present experimental results validating the performance of SOS in dealing with the parameter extraction problem of solar cell models. Three test cases consisting of the single diode model, double diode model, and PV module model are served to evaluate the effectiveness of SOS along with necessary comparisons. The experimental results comprehensively indicate that SOS behaves competitively compared with other methods.

The rest of this paper is organized as follows. The problem formulation is briefly presented in Section 2. In Section 3, the SOS is provided. Then, the results are analyzed in Section 4 and this paper is concluded in Section 5.

2. Problem Formulation

2.1. Single Diode Model

Single diode model is a very popular model used to simulate the I-V characteristic of a solar cell. The output current $I_{\mathrm{L}}$ (A), as depicted in Figure 1, can be formulated as follows according to Kirchhoff’s current law.

$$I_{\mathrm{L}}=I_{\mathrm{ph}}-I_{\mathrm{d}}-I_{\mathrm{sh}}$$

(1)

where $I_{\mathrm{ph}}$, $I_{\mathrm{d}}$, and $I_{\mathrm{sh}}$ are the photo generated current (A), diode current (A), and shunt resistor current (A), respectively. $I_{\mathrm{d}}$ and $I_{\mathrm{sh}}$ are calculated by Equations (2) and (3), respectively [24,35,51,52,53].

$$I_{\mathrm{d}}=I_{\mathrm{sd}}\cdot [\exp (\frac{V_{\mathrm{L}}+R_{\mathrm{s}}\cdot I_{\mathrm{L}}}{n{V}_{\mathrm{t}}})-1]$$

(2)

$$I_{\mathrm{sh}}=\frac{V_{\mathrm{L}}+R_{\mathrm{s}}\cdot I_{\mathrm{L}}}{R_{\mathrm{sh}}}$$

(3)

$$V_{\mathrm{t}}=\frac{kT}{q}$$

(4)

where $V_{\mathrm{L}}$ and $V_{\mathrm{t}}$ represent the output voltage (V) and thermal voltage (V), respectively. $I_{\mathrm{sd}}$ is the reverse saturation current (A). $R_{\mathrm{s}}$ and $R_{\mathrm{sh}}$ denote the series resistance (Ω) and shunt resistance (Ω), respectively. $n$ is the diode ideal factor. $k=1.3806503\times {10}^{-23}\mathrm{J}/\mathrm{K}$ is the Boltzmann constant. $q=1.60217646\times {10}^{-19}\mathrm{C}$ is the electron charge. $T$ denotes the cell temperature in Kelvin.

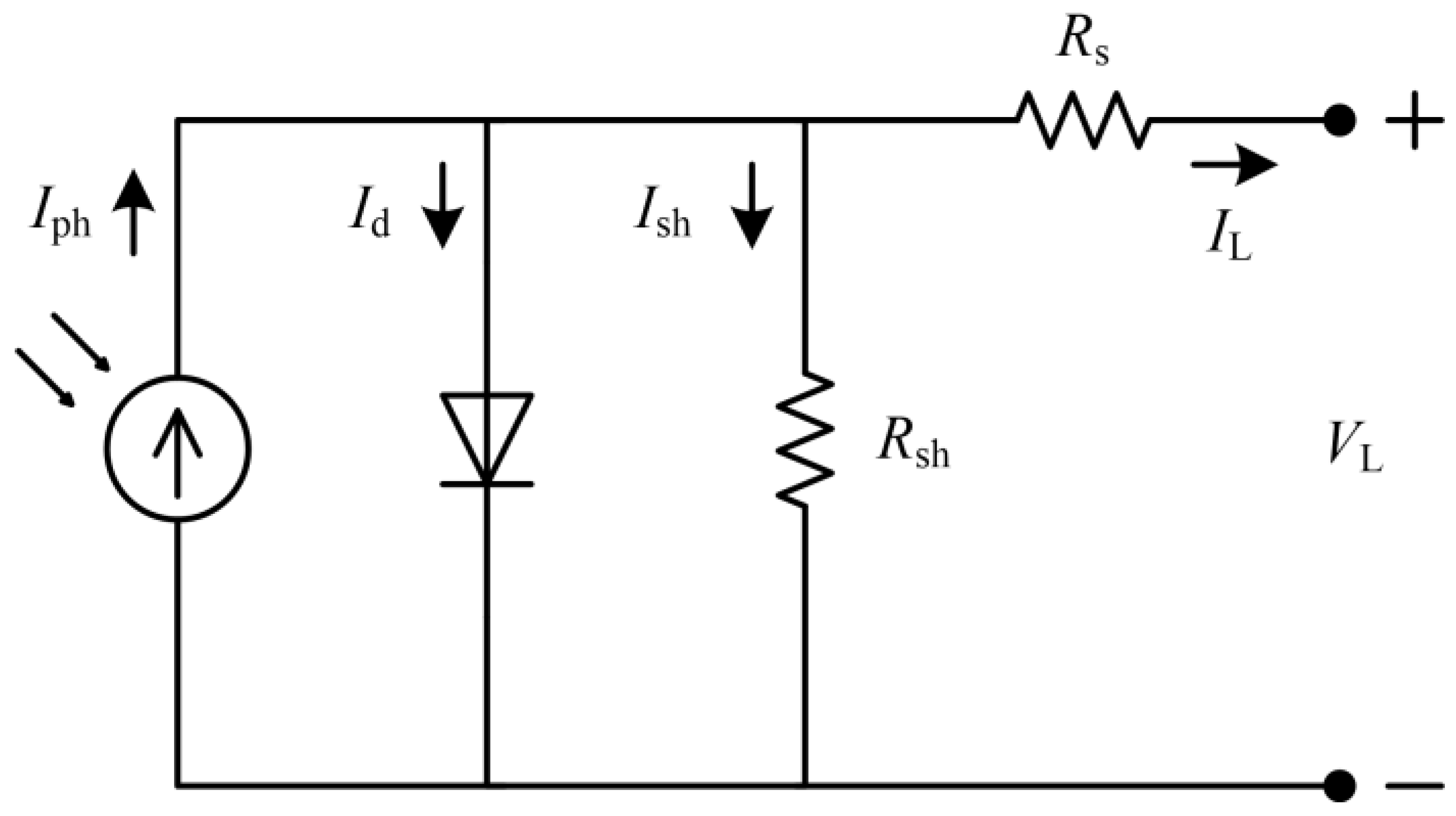

Figure 1. Single diode model.

Substituting Equations (2)–(4) into Equation (1), the output current $I_{\mathrm{L}}$ can be written as follows:

$$I_{\mathrm{L}}=I_{\mathrm{ph}}-I_{\mathrm{sd}}\cdot [\exp (\frac{V_{\mathrm{L}}+R_{\mathrm{s}}\cdot I_{\mathrm{L}}}{n{V}_{\mathrm{t}}})-1]-\frac{V_{\mathrm{L}}+R_{\mathrm{s}}\cdot I_{\mathrm{L}}}{R_{\mathrm{sh}}}$$

(5)

It is observed from Equation (5) that if we know the values of $I_{\mathrm{ph}},I_{\mathrm{sd}},R_{\mathrm{s}},R_{\mathrm{sh}},\mathrm{and}n$, then the I-V characteristic of this model can be constructed. Therefore, accurate extraction of these five unknown parameters is the core of this study.

2.2. Double Diode Model

The above model performs well for almost all types of solar cells [5]. However, its performance is unsatisfactory at low irradiance for thin films based solar cells. The problem can be handled well by the double diode model [24,35]. The output current in Figure 2 is formulated as follows [52,54,55]:

$$\begin{array}{lll}{I}_{\mathrm{L}}& =& I_{\mathrm{ph}}-I_{\mathrm{d}1}-I_{\mathrm{d}2}-I_{\mathrm{sh}}\\ & =& I_{\mathrm{ph}}-I_{\mathrm{sd}1}\cdot [\exp (\frac{V_{\mathrm{L}}+R_{\mathrm{s}}\cdot I_{\mathrm{L}}}{n_1{V}_{\mathrm{t}}})-1]\\ & & -I_{\mathrm{sd}2}\cdot [\exp (\frac{V_{\mathrm{L}}+R_{\mathrm{s}}\cdot I_{\mathrm{L}}}{n_2{V}_{\mathrm{t}}})-1]-\frac{V_{\mathrm{L}}+R_{\mathrm{s}}\cdot I_{\mathrm{L}}}{R_{\mathrm{sh}}}\end{array}$$

(6)

where $I_{\mathrm{sd}1}$ and $I_{\mathrm{sd}2}$ represent the diffusion current (A) and saturation current (A), respectively. $n_1$ and $n_2$ are the diode ideal factors. Compared with the single diode mode, this model adds two more unknown parameters ($I_{\mathrm{sd}2}\mathrm{and}{n}_2$) and thereby the total number of unknown parameters that need to be extracted is seven ($I_{\mathrm{ph}},I_{\mathrm{sd}1},I_{\mathrm{sd}2},R_{\mathrm{s}},R_{\mathrm{sh}},n_1\mathrm{and}{n}_2$).

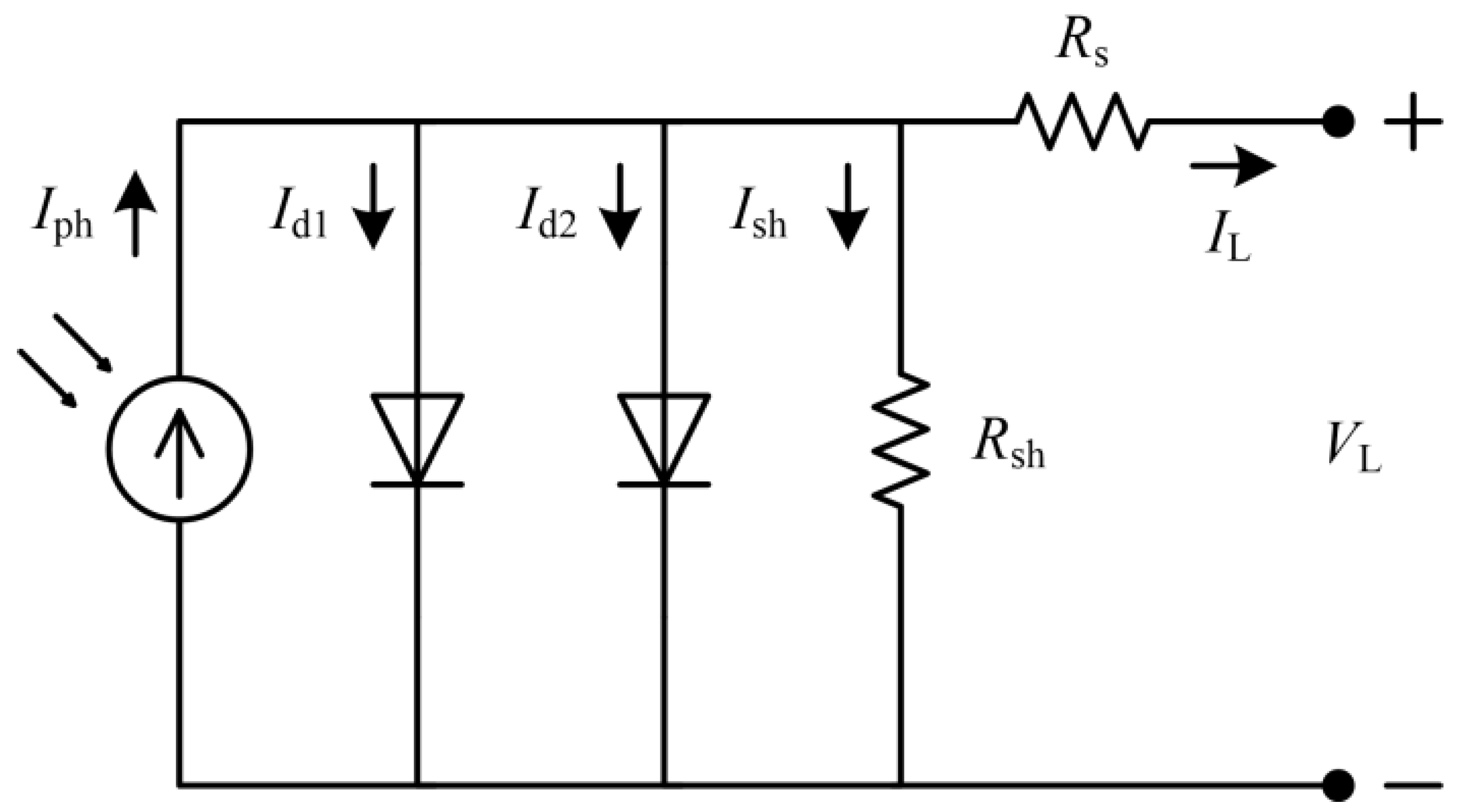

Figure 2. Double diode model.

2.3. PV Module

In general, a PV module is used to raise the output voltage. The corresponding output current is calculated as follows [19,28,56,57]:

$$I_{\mathrm{L}}=N_{\mathrm{p}}\left\{I_{\mathrm{ph}}-I_{\mathrm{sd}}\cdot [\exp (\frac{V_{\mathrm{L}}/N_{\mathrm{s}}+R_{\mathrm{s}}{I}_{\mathrm{L}}{N}_{\mathrm{p}}}{n{V}_{\mathrm{t}}})-1]-\frac{V_{\mathrm{L}}/N_{\mathrm{s}}+R_{\mathrm{s}}{I}_{\mathrm{L}}/N_{\mathrm{p}}}{R_{\mathrm{sh}}}\right\}$$

(7)

where $N_{\mathrm{s}}$ and $N_{\mathrm{p}}$ denote the number of solar cells in series and in parallel, respectively.

2.4. Objective Function

Accurate extracted values for the involved unknown parameters of solar cell models should make the constructed model coincide with the real model. Namely, by using the constructed model, the calculated data should match the measured data well. Therefore, the difference between the measured current and the calculated current can be used to reflect the agreement degree. In general, the root mean square error (RMSE) is highly preferred [18,20,21,22,23,24,25].

$$\min F(x)=\mathrm{RMSE}(x)=\sqrt{\frac{1}{N}{\displaystyle {\sum }_{i=1}^N{f}_i{(V_L,I_L,x)}^2}}$$

(8)

where $N$ is the number of measured data and $x$ is the solution vector.

For the abovementioned three models, the objective functions $f(V_L,I_L,x)$ and the solution vectors $x$ are as follows:

$$\{\begin{array}{l}{f}_{\mathrm{single}\mathrm{diode}}(V_L,I_L,x)=I_{\mathrm{ph}}-I_{\mathrm{sd}}\cdot [\exp (\frac{V_{\mathrm{L}}+R_{\mathrm{s}}\cdot I_{\mathrm{L}}}{n{V}_{\mathrm{t}}})-1]-\frac{V_{\mathrm{L}}+R_{\mathrm{s}}\cdot I_{\mathrm{L}}}{R_{\mathrm{sh}}}-I_{\mathrm{L}}\\ x_{\mathrm{single}\mathrm{diode}}=\text{{}{I}_{\mathrm{ph}},I_{\mathrm{sd}},R_{\mathrm{s}},R_{\mathrm{sh}},n\text{}}\end{array}$$

(9)

$$\{\begin{array}{l}{f}_{\mathrm{double}\mathrm{diode}}(V_L,I_L,x)=I_{\mathrm{ph}}-I_{\mathrm{sd}1}\cdot [\exp (\frac{V_{\mathrm{L}}+R_{\mathrm{s}}\cdot I_{\mathrm{L}}}{n_1{V}_{\mathrm{t}}})-1]\\ -I_{\mathrm{sd}2}\cdot [\exp (\frac{V_{\mathrm{L}}+R_{\mathrm{s}}\cdot I_{\mathrm{L}}}{n_2{V}_{\mathrm{t}}})-1]\\ -\frac{V_{\mathrm{L}}+R_{\mathrm{s}}\cdot I_{\mathrm{L}}}{R_{\mathrm{sh}}}-I_{\mathrm{L}}\\ x_{\mathrm{double}\mathrm{diode}}=\text{{}{I}_{\mathrm{ph}},I_{\mathrm{sd}1},I_{\mathrm{sd}2},R_{\mathrm{s}},R_{\mathrm{sh}},n_1,n_2\text{}}\end{array}$$

(10)

$$\{\begin{array}{l}{f}_{\mathrm{PV}\mathrm{module}}(V_L,I_L,x)=N_{\mathrm{p}}\left\{\begin{array}{l}{I}_{\mathrm{ph}}-I_{\mathrm{sd}}\cdot [\exp (\frac{V_{\mathrm{L}}/N_{\mathrm{s}}+R_{\mathrm{s}}{I}_{\mathrm{L}}/N_{\mathrm{p}}}{n{V}_{\mathrm{t}}})-1]\\ -\frac{V_{\mathrm{L}}/N_{\mathrm{s}}+R_{\mathrm{s}}{I}_{\mathrm{L}}/N_{\mathrm{p}}}{R_{\mathrm{sh}}}\end{array}\right\}-I_{\mathrm{L}}\\ x_{\mathrm{PV}\mathrm{module}}=\text{{}{I}_{\mathrm{ph}},I_{\mathrm{sd}},R_{\mathrm{s}},R_{\mathrm{sh}},n\text{}}\end{array}$$

(11)

3. Symbiotic Organisms Search (SOS) Algorithm

SOS [48] is a young, yet effective metaheuristic inspired by the symbiotic interaction ways employed by organisms to improve their overall competitiveness in the ecosystem. Each organism (i.e., population individual) is represented as a D-dimensional vector $X_i=[x_{i,1},x_{i,2},\dots ,x_{i,D}]$, where $i=1,2,\dots ,ps$, $ps$ is the number of organisms in the ecosystem (i.e., population size). SOS contains mutualism, commensalism, and parasitism phases.

3.1. Mutualism Phase

In this phase, two organisms establish a good interaction relationship in which they can obtain what they need, and thus their mutual survival advantage can be increased simultaneously. For each organism $X_i$ of the ecosystem, a random distinct organism $X_j$ is selected to interact with $X_i$ by the following formulations:

$$X_{i,\mathrm{new}}=X_i+\mathrm{rand}(0,1)\cdot (X_{\mathrm{best}}-B{F}_1\cdot MV)$$

(12)

$$X_{j,\mathrm{new}}=X_j+\mathrm{rand}(0,1)\cdot (X_{\mathrm{best}}-B{F}_2\cdot MV)$$

(13)

where $X_{i,\mathrm{new}}$ and $X_{j,\mathrm{new}}$ are new candidate solutions for $X_i$ and $X_j$, respectively. $\mathrm{rand}(a,b)$ is a random number generated uniformly in (a,b). $B{F}_1$ and $B{F}_2$ are benefit factors with the random value 1 or 2. $X_{\mathrm{best}}$ represents the best organism of the ecosystem. $MV=(X_i+X_j)/2$ is the relationship characteristic.

3.2. Commensalism Phase

In this phase, two organisms build a unidirectional relationship where one organism $X_i$ benefits from the other organism $X_j$ as shown in Equation (14), whereas $X_j$ gets nothing from $X_i$.

$$X_{i,\mathrm{new}}=X_i+\mathrm{rand}(-1,1)\cdot (X_{\mathrm{best}}-X_j)$$

(14)

3.3. Parasitism Phase

In parasitism, one organism $X_i$ improves its survivability through harming the other organism $X_j$. In SOS, this relationship is modeled as follows. An organism $X_i$ is copied and used to create an artificial parasite $AP$. Then, some random dimensions of $AP$ are selected and modified by a random number generated within the corresponding bounds. The other organism $X_j$, selected randomly from the ecosystem, serves as a host to the parasite $AP$. If $AP$ is better than $X_j$, then $X_j$ will be replaced by $AP$; otherwise, $AP$ will be discarded.

The pseudo-code of SOS is presented in Algorithm 1. It can be seen that apart from the common parameter, that is, the population size used in all metaheuristic algorithms, SOS has no algorithm-specific parameters that need to be well-tuned.

Algorithm 1: The pseudo-code of SOS
1:	Initialize an ecosystem $X$ with $ps$ organisms randomly
2:	Calculate the fitness value of each organism
3:	Set the iteration number $t=1$
4:	While the terminating criterion is not met do
5:	Select the fittest organism $X_{\mathrm{best}}$ of the ecosystem
6:	For $i=1$ to $ps$ do
7:	/* mutualism phase */
8:	Select a random organism $X_j$ ($j\ne i$) from the ecosystem
9:	Generate the i-th new organism $X_{i,\mathrm{new}}$ using Equation (12)
10:	Generate the j-th new organism $X_{j,\mathrm{new}}$ using Equation (13)
11:	Calculate the fitness value of $X_{i,\mathrm{new}}$ and $X_{j,\mathrm{new}}$
12:	Replace the old organism if it is defeated by the new one
13:	/* commensalism phase */
14:	Select a random organism $X_j$ ($j\ne i$) from the ecosystem
15:	Generate the i-th new organism $X_{i,\mathrm{new}}$ using Equation (14)
16:	Calculate the fitness value of $X_{i,\mathrm{new}}$
17:	Replace the old organism if it is defeated by the new one
18:	/* parasitism phase */
19:	Select a random organism $X_j$ ($j\ne i$) from the ecosystem
20:	Generate an artificial parasite $AP=X_i$
21:	Select a random number of dimensions of $AP$
22:	Replace the selected dimensions using a random number
23:	Calculate the fitness value of the modified $AP$
24:	Replace $X_j$ if the modified $AP$ is better than $X_j$
25:	End for
26:	$t=t+1$
27:	End while

4. Results and Discussions

4.1. Test PV Models

In this work, SOS is applied to three cases including single diode, double diode, and PV module models. The datasets are derived from the literature [58]. The measurements are conducted on an RTC France silicon solar cell and a Photowatt-PWP201 solar module. The former operates under 1000 W/m² at 33 °C. The latter contains 36 polycrystalline silicon cells connected in series operating under 1000 W/m² at 45 °C. The boundaries of extracted parameters are presented in Table 1.

Table 1. Parameter boundaries of solar cell models.

Parameter	Single/Double Diode Model		PV Module Model
	Lower Bound	Upper Bound	Lower Bound	Upper Bound
Iph (A)	0	1	0	2
Isd (µA)	0	1	0	50
Rs (Ω)	0	0.5	0	2
Rsh (Ω)	0	100	0	2000
n, n1, n2	1	2	1	50

4.2. Experimental Settings

In this work, the maximum number of fitness evaluations (Max_FEs), which is set to 50,000 [29], serves as the terminating criterion. In addition, to verify the effectiveness of SOS, five state-of-the-art algorithms including across neighborhood search (ANS) [59], biogeography-based learning particle swarm optimization (BLPSO) [60], competitive swarm optimizer (CSO) [61], chaotic teaching-learning algorithm (CTLA) [62], and levy flight trajectory-based whale optimization algorithm (LWOA) [63] are used for performance comparison. These five methods keep the original algorithm parameters, except the population size ps, setting the same unified value 50 for fair comparison. For each case, each method runs 50 times independently.

4.3. Experimental Results and Comparison

4.3.1. Results Comparison on the Single Diode Model

The experimental results of the first case are tabulated in Table 2. The symbols Min, Max, Mean, and Std. dev. represent the minimum, maximum, mean, and standard deviation values, respectively, over 50 independent runs. The experimental results of some well-designed methods, including SA [18] IADE [23], ABSO [24], GOTLBO [25], IJAYA [28], differential evolution (DE) [33], biogeography-based optimization algorithm with mutation strategies (BBO-M) [34], grouping-based global harmony search (GGHS) [35], chaotic asexual reproduction optimization (CARO) [40], bird mating optimizer (BMO) [44], and pattern search (PS) [45], are also provided in Table 2 for comparison. It can be seen that, compared with ANS, BLPSO, CSO, CTLA, and LWOA, SOS can acquire the lowest RMSE value (9.8609 × 10⁻⁴). Considering the mean, maximum, and standard deviation values, SOS also consistently performs better than them. In addition, SOS is also highly competitive against other recently proposed methods. It is better than IADE, ABSO, BBO-M, GGHS, GOTLBO, CARO, PS, and SA, except not better than DE, IJAYA, and BMO. Although DE, IJAYA, and BMO beat SOS, the disparities are very small.

Table 2. RMSE results for the single diode model.

Method	Min	Max	Mean	Std. Dev.
IADE	9.8900 × 10−4	NA	NA	NA
ABSO	9.9124 × 10−4	NA	NA	NA
BBO-M	9.8634 × 10−4	NA	NA	NA
GGHS	9.9078 × 10−4	NA	NA	NA
GOTLBO	9.87442 × 10−4	1.98244 × 10−3	1.33488 × 10−3	2.99407 × 10−4
CARO	9.8665 × 10−4	NA	NA	NA
DE	9.8602 × 10−4	NA	NA	NA
IJAYA	9.8603 × 10−4	1.0622 × 10−3	9.9204 × 10−4	1.4033 × 10−5
BMO	9.8608 × 10−4	NA	NA	NA
PS	2.863 × 10−1	NA	NA	NA
SA	1.70 × 10−3	NA	NA	NA
ANS	9.9689 × 10−4	1.4385 × 10−3	1.1051 × 10−3	1.0141 × 10−4
BLPSO	1.4836 × 10−3	2.2415 × 10−3	1.9092 × 10−3	1.7404 × 10−4
CSO	1.6358 × 10−3	2.4104 × 10−3	2.0058 × 10−3	1.7398 × 10−4
CTLA	1.0991 × 10−3	1.8027 × 10−3	1.3772 × 10−3	1.7132 × 10−4
LWOA	1.0873 × 10−3	9.1622 × 10−3	3.1119 × 10−3	1.8838 × 10−3
SOS	9.8609 × 10−4	1.1982 × 10−3	1.0245 × 10−3	5.2184 × 10−5

NA: Not available in the literature.

The best extracted values for the five unknown parameters of single diode model are given in Table 3. We observe that these listed methods almost extract close values for the unknown parameters. Utilizing the extracted parameters in Table 3, we reconstruct the characteristic curves as illustrated in Figure 3. We see that both the output current and power calculated by SOS match the measured values well throughout the whole range of voltage. In addition, we also tabulate the output current data calculated by ANS, BLPSO, CSO, CTLA, LWOA, and SOS in Table 4. An error index the sum of individual absolute error (SIAE) given in Equation (15) is used to evaluate the fitting error. It is obvious that the SIAE value of SOS is the smallest, followed by that of ANS, LWOA, BLPSO, CTLA, and CSO, meaning that SOS achieves more accurate values for the relevant parameters of single diode model.

$$\mathrm{SIAE}={\displaystyle {\sum }_i^N|I_{L_{i,\mathrm{measured}}}-I_{L_{i,\mathrm{calculated}}}|}$$

(15)

Table 3. xtracted parameters for the single diode model.

Method	Iph (A)	Isd (µA)	Rs (Ω)	Rsh (Ω)	n	RMSE
IADE	0.7607	0.33613	0.03621	54.7643	1.4852	9.8900 × 10−4
ABSO	0.76080	0.30623	0.03659	52.2903	1.47583	9.9124 × 10−4
BBO-M	0.76078	0.31874	0.03642	53.36277	1.47984	9.8634 × 10−4
GGHS	0.76092	0.32620	0.03631	53.0647	1.48217	9.9079 × 10−4
GOTLBO	0.760780	0.331552	0.036265	54.115426	1.483820	9.8744 × 10−4
CARO	0.76079	0.31724	0.03644	53.0893	1.48168	9.8665 × 10−4
DE	0.7608	0.323	0.0364	53.719	1.4812	9.8602 × 10−4
IJAYA	0.7608	0.3228	0.0364	53.7595	1.4811	9.8603 × 10−4
PS	0.7617	0.9980	0.0313	64.1026	1.6000	2.863 × 10−1
SA	0.7620	0.4798	0.0345	43.1034	1.5172	1.70 × 10−3
ANS	0.7607	0.3407	0.0362	54.7917	1.4866	9.9689 × 10−4
BLPSO	0.7599	0.4977	0.0347	96.5115	1.5257	1.4836 × 10−3
CSO	1.0205	0.3658	1.2122	1689.0050	48.8206	1.6358 × 10−3
CTLA	0.7650	0.4280	0.0357	61.1131	1.5092	1.0991 × 10−3
LWOA	1.0284	0.3145	1.2218	1272.0197	48.2413	1.0873 × 10−3
SOS	0.7608	0.3579	0.0359	53.7835	1.4916	9.8609 × 10−4

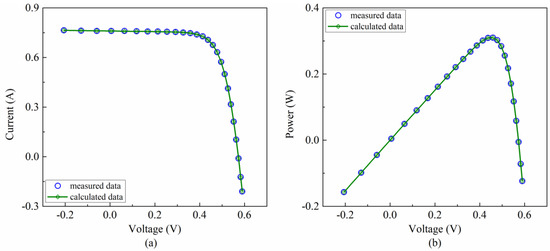

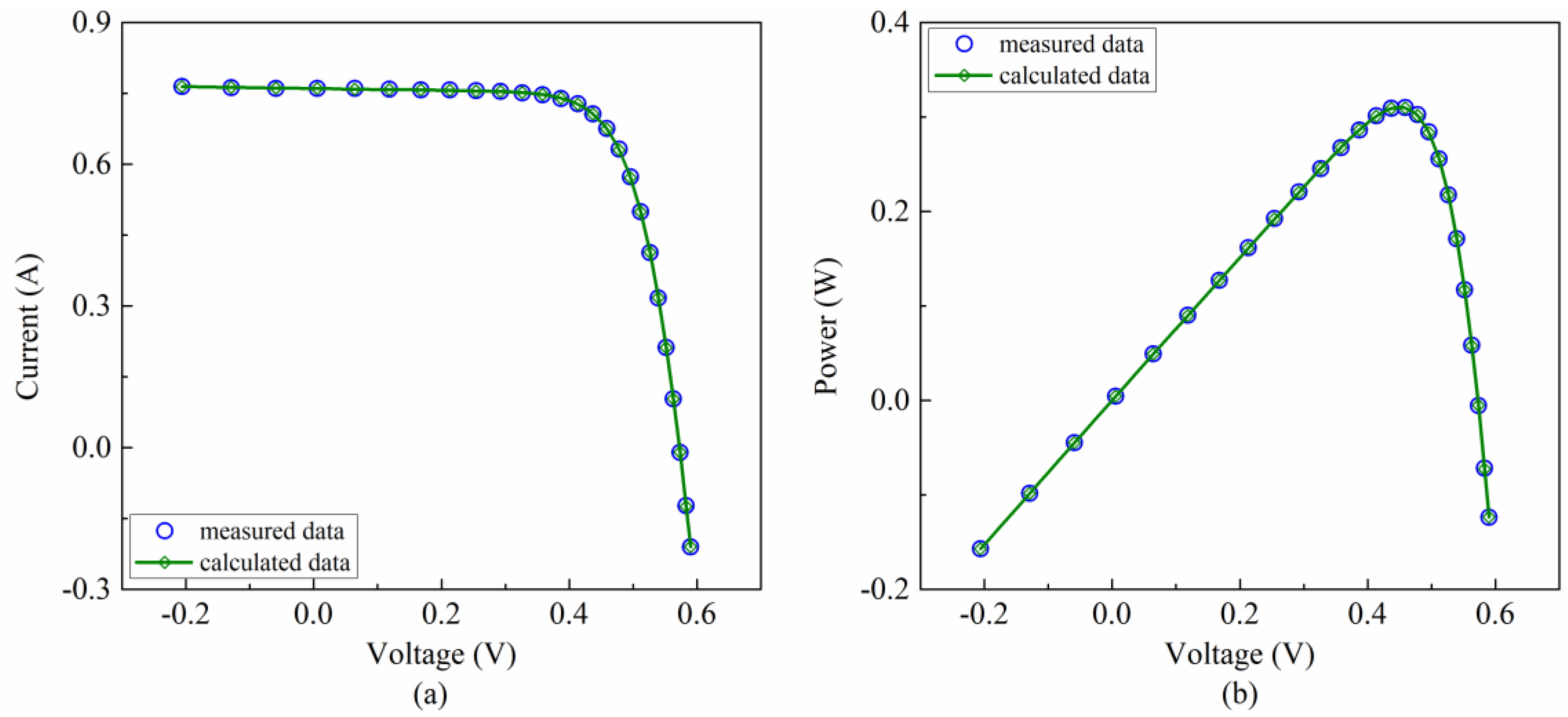

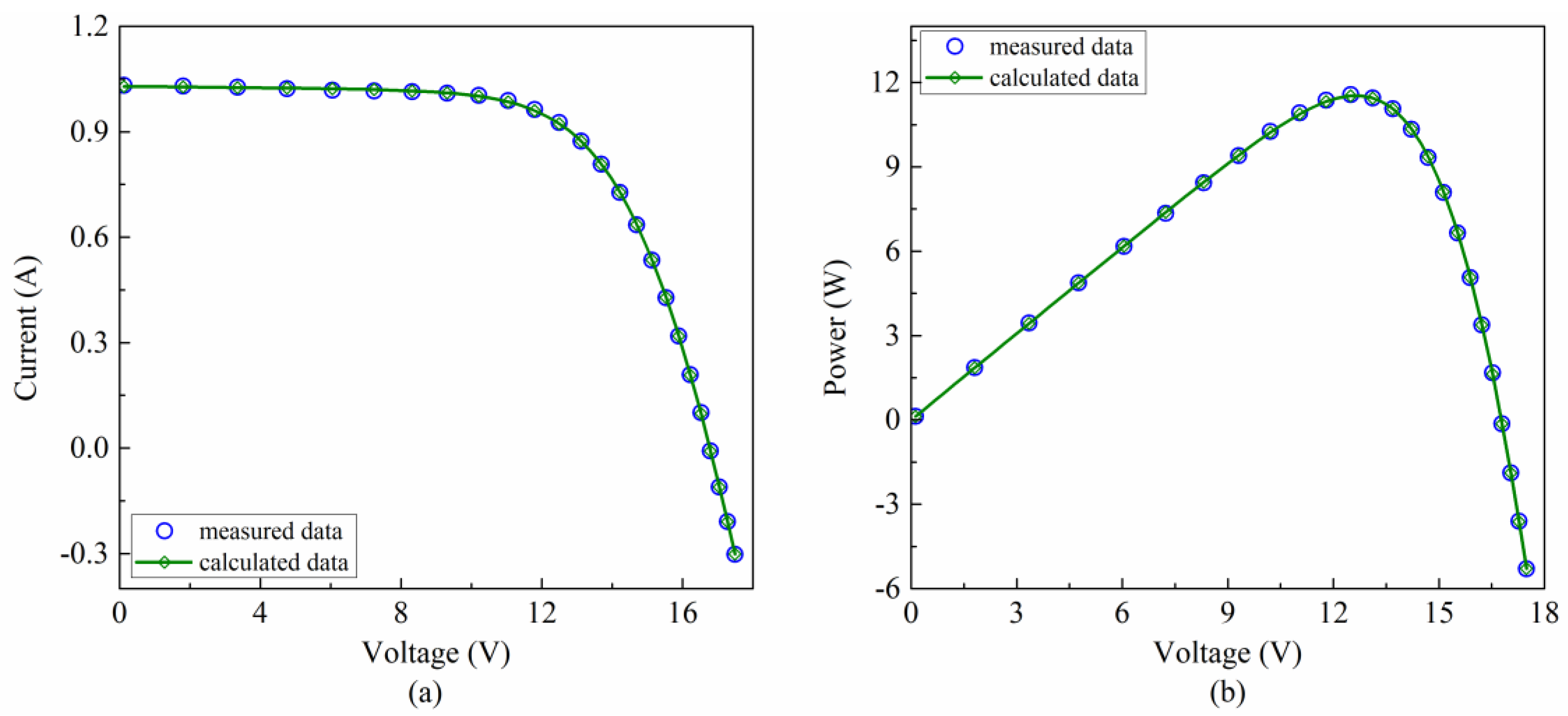

Figure 3. Extraction results by SOS for the single diode model. (a) Current; (b) power.

Table 4. Fitting results for the single diode model.

Item	VL (V)	IL Measured (A)	IL Calculated (A)
			ANS	BLPSO	CSO	CTLA	LWOA	SOS
1	−0.2057	0.7640	0.7639	0.7617	0.7614	0.7679	0.7631	0.7641
2	−0.1291	0.7620	0.7625	0.7609	0.7606	0.7667	0.7618	0.7627
3	−0.0588	0.7605	0.7613	0.7602	0.7598	0.7655	0.7607	0.7614
4	0.0057	0.7605	0.7601	0.7595	0.7591	0.7645	0.7597	0.7602
5	0.0646	0.7600	0.7590	0.7589	0.7585	0.7635	0.7587	0.7591
6	0.1185	0.7590	0.7580	0.7584	0.7579	0.7626	0.7578	0.7581
7	0.1678	0.7570	0.7571	0.7578	0.7573	0.7618	0.7570	0.7572
8	0.2132	0.7570	0.7561	0.7572	0.7567	0.7609	0.7561	0.7562
9	0.2545	0.7555	0.7551	0.7564	0.7559	0.7599	0.7552	0.7551
10	0.2924	0.7540	0.7537	0.7552	0.7546	0.7585	0.7538	0.7537
11	0.3269	0.7505	0.7514	0.7530	0.7524	0.7561	0.7517	0.7514
12	0.3585	0.7465	0.7473	0.7489	0.7484	0.7519	0.7477	0.7473
13	0.3873	0.7385	0.7400	0.7414	0.7412	0.7443	0.7406	0.7399
14	0.4137	0.7280	0.7273	0.7282	0.7288	0.7310	0.7280	0.7271
15	0.4373	0.7065	0.7068	0.7072	0.7091	0.7099	0.7076	0.7065
16	0.4590	0.6755	0.6751	0.6750	0.6789	0.6774	0.6759	0.6748
17	0.4784	0.6320	0.6306	0.6303	0.6369	0.6322	0.6315	0.6303
18	0.4960	0.5730	0.5719	0.5715	0.5812	0.5727	0.5726	0.5716
19	0.5119	0.4990	0.4994	0.4991	0.5119	0.4997	0.4999	0.4991
20	0.5265	0.4130	0.4134	0.4134	0.4288	0.4133	0.4137	0.4133
21	0.5398	0.3165	0.3173	0.3175	0.3342	0.3169	0.3173	0.3172
22	0.5521	0.2120	0.2122	0.2126	0.2292	0.2116	0.2120	0.2122
23	0.5633	0.1035	0.1029	0.1032	0.1181	0.1021	0.1026	0.1029
24	0.5736	−0.0100	−0.0091	−0.0091	−0.0025	−0.0101	−0.0094	−0.0091
25	0.5833	−0.1230	−0.1243	−0.1249	−0.1180	−0.1255	−0.1245	−0.1244
26	0.5900	−0.2100	−0.2092	−0.2104	−0.2078	−0.2105	−0.2092	−0.2094
SIAE			0.0182	0.0275	0.1347	0.0739	0.0191	0.0181

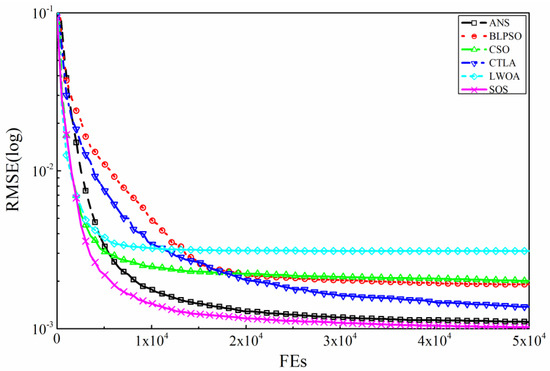

Besides, the convergence curves are presented in Figure 4. It is obvious that SOS is slightly slower than LWOA in the opening phase, however, the latter stagnates soon and then suffers from premature convergence, indicating that it has been caught in a local optimum. For the other four methods, SOS consistently converges faster than them throughout the whole evolutionary process.

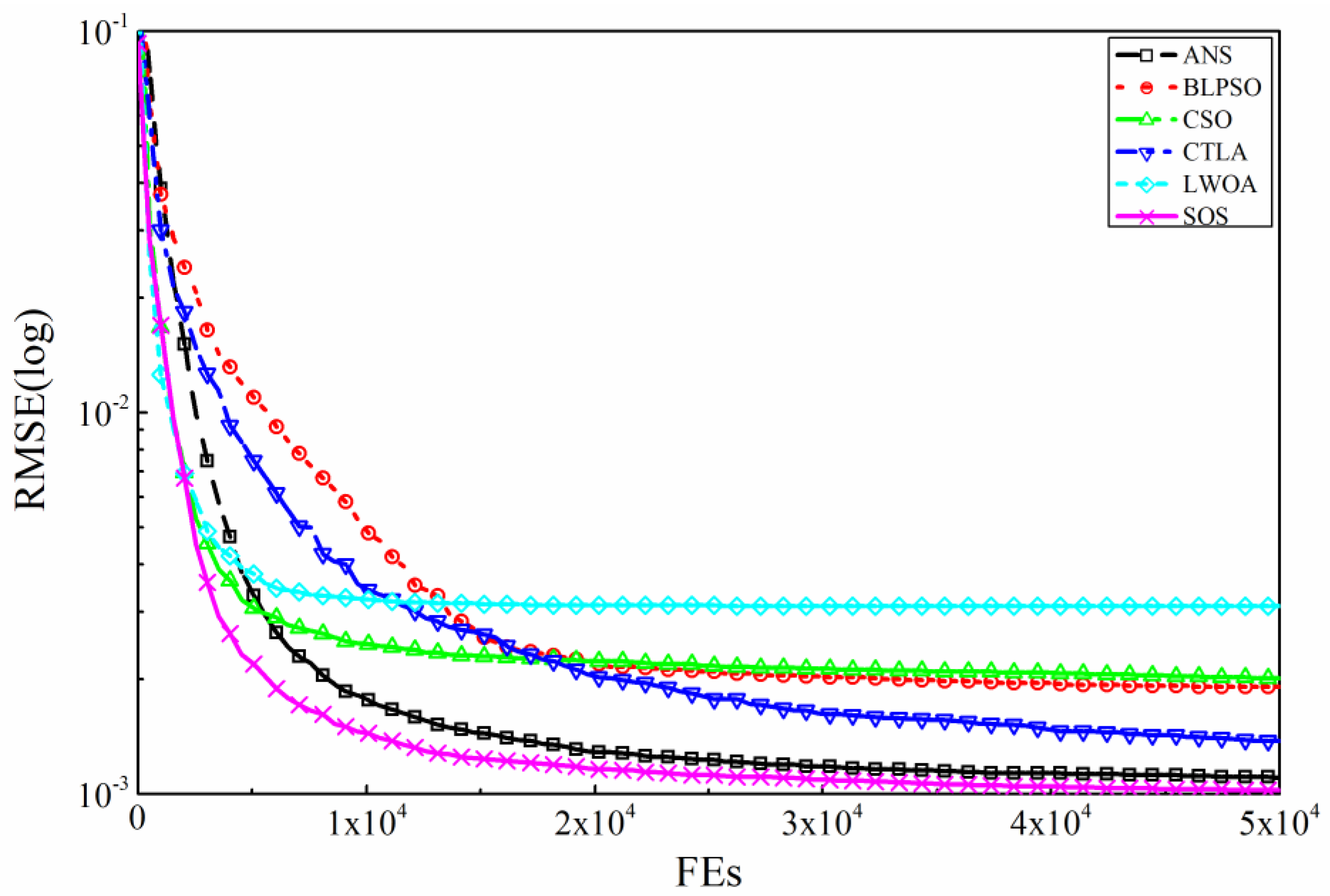

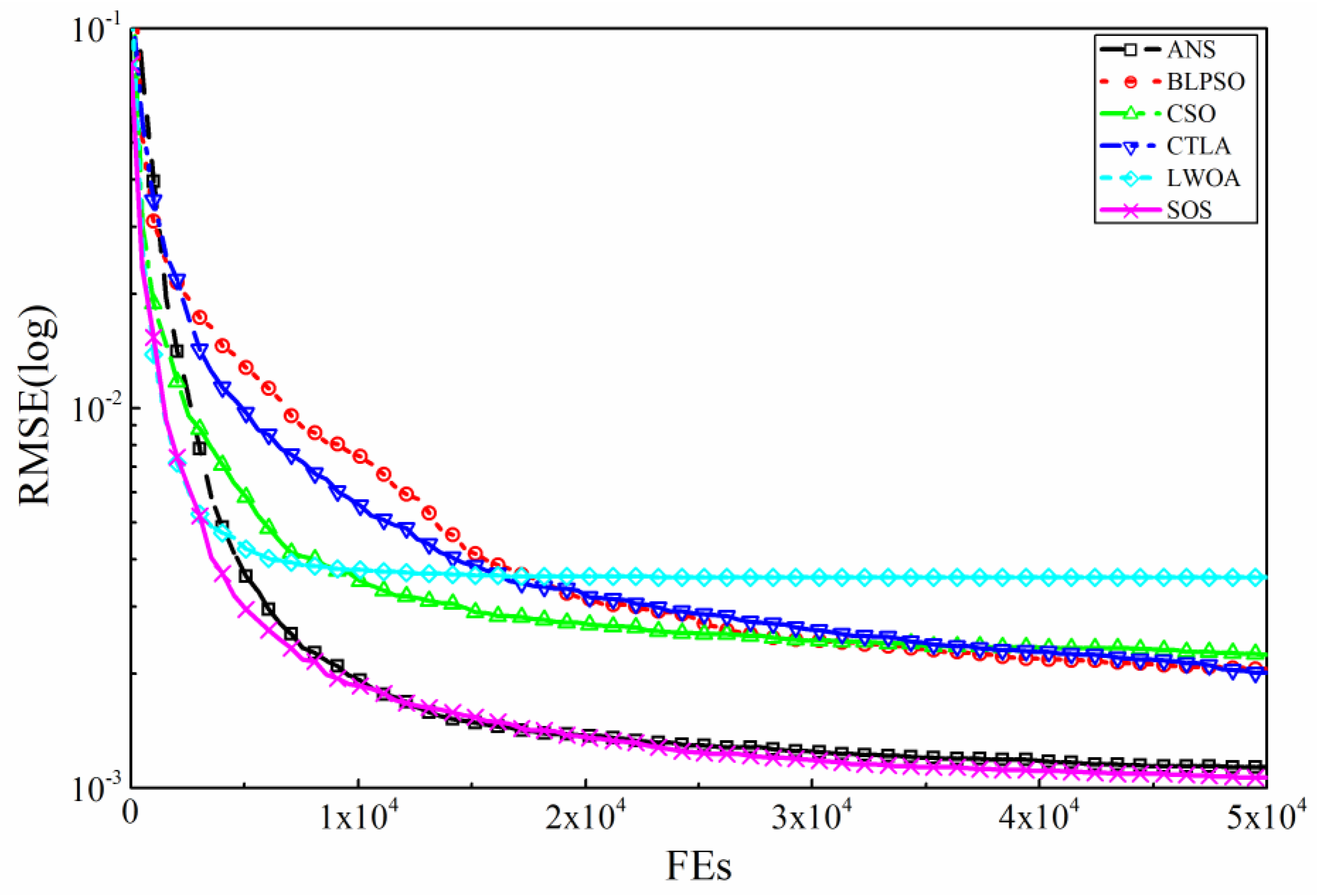

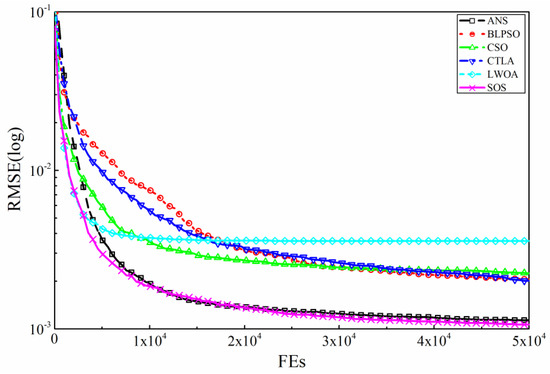

Figure 4. Convergence curves for the single diode model.

4.3.2. Results Comparison on the Double Diode Model

The experimental results of the second case are summarized in Table 5. Similar to the comparison results on the single diode model, SOS performs better than ANS, BLPSO, CSO, CTLA, and LWOA in various RMSE indicators on the double diode model. SOS is surpassed by GOTLBO, CARO, and IJAYA, but it outperforms GGHS, PS, and SA. It is worth noting that the standard deviation value of SOS is the smallest among all compared methods, which indicates that SOS is highly robust. The extracted parameters are tabulated in Table 6. The reconstructed characteristic curves provided in Figure 5 clearly demonstrate that the calculated current and power achieved by SOS match up well with the measured values. The curve fitting results presented in Table 7 manifest once again that SOS can yield the smallest SIAE value (0.0182), followed by ANS, LWOA, BLPSO, CTLA, and CSO, which demonstrates the high accuracy of the parameters extracted by SOS for the double diode model. The convergence graph illustrated in Figure 6 reveals that SOS exhibits noticeably faster convergence rate than BLPSO, CSO, CTLA, and LWOA, but not ANS, which is slightly faster than SOS during the intermediate stage. However, ANS is surpassed by SOS in other stages.

Table 5. RMSE results for the double diode model.

Method	Min	Max	Mean	Std. dev.
GGHS	9.8635 × 10−4	NA	NA	NA
GOTLBO	9.83177 × 10−4	1.78774 × 10−3	1.24360 × 10−3	2.09115 × 10−4
CARO	9.8260 × 10−4	NA	NA	NA
IJAYA	9.8293 × 10−4	1.4055 × 10−3	1.0269 × 10−3	9.8625 × 10−5
PS	1.5180 × 10−2	NA	NA	NA
SA	1.9000 × 10−2	NA	NA	NA
ANS	1.0042 × 10−3	1.4456 × 10−3	1.1337 × 10−3	9.9500 × 10−5
BLPSO	1.5704 × 10−3	2.5312 × 10−3	2.0554 × 10−3	2.0186 × 10−4
CSO	1.7013 × 10−3	2.7735 × 10−3	2.2421 × 10−3	2.2059 × 10−4
CTLA	1.3216 × 10−3	3.1002 × 10−3	2.0145 × 10−3	4.0895 × 10−4
LWOA	1.3120 × 10−3	1.3387 × 10−2	3.5838 × 10−3	2.6270 × 10−3
SOS	9.8518 × 10−4	1.3498 × 10−3	1.0627 × 10−3	9.6141 × 10−5

NA: Not available in the literature.

Table 6. Extracted parameters for the double diode model.

Method	Iph (A)	Isd1 (µA)	Rs (Ω)	Rsh (Ω)	n1	Isd2 (µA)	n2	RMSE
GGHS	0.76079	0.97310	0.03690	56.8368	1.92126	0.16791	1.42814	9.8635 × 10−4
GOTLBO	0.760752	0.800195	0.036783	56.075304	1.999973	0.220462	1.448974	9.83177 × 10−4
CARO	0.76075	0.29315	0.03641	54.3967	1.47338	0.09098	1.77321	9.8260 × 10−4
IJAYA	0.7601	0.0050445	0.0376	77.8519	1.2186	0.75094	1.6247	9.8293 × 10−4
PS	0.7602	0.9889	0.0320	81.3008	1.6000	0.0001	1.1920	1.5180 × 10−2
SA	0.7623	0.4767	0.0345	43.1034	1.5172	0.0100	2.0000	1.9000 × 10−2
ANS	0.7609	0.1785	0.0369	51.5905	1.8181	0.2466	1.4581	1.0042 × 10−3
BLPSO	0.7607	0.5481	0.0338	78.6922	1.5442	0.0542	1.5765	1.5704 × 10−3
CSO	0.7628	0.7954	0.0409	15.7733	1.6936	0.6780	1.8138	1.7013 × 10−3
CTLA	0.7570	0.8542	0.0313	89.6464	1.7879	0.3812	1.5230	1.3216 × 10−3
LWOA	0.7597	0.2342	0.0355	86.8763	1.4679	0.3709	1.6989	1.3120 × 10−3
SOS	0.7606	0.5408	0.0365	55.5537	1.9346	0.2418	1.4579	9.8518 × 10−4

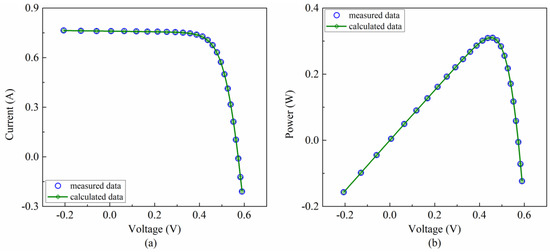

Figure 5. Extraction results by SOS for the double diode model. (a) Current; (b) power.

Table 7. Fitting results for the double diode model.

Item	VL (V)	IL Measured (A)	IL Calculated (A)
			ANS	BLPSO	CSO	CTLA	LWOA	SOS
1	−0.2057	0.7640	0.7644	0.7630	0.7738	0.7591	0.7618	0.7638
2	−0.1291	0.7620	0.7629	0.7620	0.7690	0.7582	0.7609	0.7625
3	−0.0588	0.7605	0.7615	0.7611	0.7645	0.7574	0.7601	0.7612
4	0.0057	0.7605	0.7603	0.7603	0.7605	0.7567	0.7593	0.7600
5	0.0646	0.7600	0.7591	0.7595	0.7567	0.7561	0.7586	0.7590
6	0.1185	0.7590	0.7581	0.7588	0.7533	0.7554	0.7580	0.7580
7	0.1678	0.7570	0.7571	0.7581	0.7501	0.7548	0.7574	0.7571
8	0.2132	0.7570	0.7561	0.7574	0.7470	0.7541	0.7567	0.7561
9	0.2545	0.7555	0.7550	0.7565	0.7440	0.7532	0.7559	0.7551
10	0.2924	0.7540	0.7536	0.7552	0.7407	0.7518	0.7547	0.7536
11	0.3269	0.7505	0.7513	0.7528	0.7366	0.7494	0.7525	0.7513
12	0.3585	0.7465	0.7472	0.7485	0.7312	0.7449	0.7484	0.7472
13	0.3873	0.7385	0.7400	0.7407	0.7233	0.7369	0.7410	0.7399
14	0.4137	0.7280	0.7274	0.7273	0.7116	0.7234	0.7280	0.7271
15	0.4373	0.7065	0.7071	0.7060	0.6951	0.7023	0.7072	0.7066
16	0.4590	0.6755	0.6756	0.6737	0.6718	0.6704	0.6753	0.6750
17	0.4784	0.6320	0.6312	0.6290	0.6412	0.6265	0.6307	0.6307
18	0.4960	0.5730	0.5724	0.5704	0.6024	0.5689	0.5719	0.5720
19	0.5119	0.4990	0.4997	0.4984	0.5557	0.4979	0.4994	0.4995
20	0.5265	0.4130	0.4136	0.4133	0.5009	0.4136	0.4137	0.4136
21	0.5398	0.3165	0.3172	0.3178	0.4394	0.3185	0.3176	0.3174
22	0.5521	0.2120	0.2120	0.2133	0.3717	0.2137	0.2126	0.2123
23	0.5633	0.1035	0.1026	0.1041	0.3002	0.1034	0.1031	0.1029
24	0.5736	−0.0100	−0.0093	−0.0082	0.2259	−0.0105	−0.0090	−0.0091
25	0.5833	−0.1230	−0.1243	−0.1241	0.1483	−0.1289	−0.1246	−0.1243
26	0.5900	−0.2100	−0.2089	−0.2098	0.0904	−0.2168	−0.2098	−0.2091
SIAE			0.0189	0.0283	1.6176	0.0789	0.0247	0.0182

Figure 6. Convergence curves for the double diode model.

4.3.3. Results Comparison on the PV Module Model

The RMSE values of the third case listed in Table 8 indicate that SOS, together with IJAYA, can provide the smallest RMSE value (2.4251 × 10⁻³) among all methods. Based on the optimal extracted parameters in Table 9, the corresponding characteristic curves are rebuilt and illustrated in Figure 7. It is clear that the output current and power calculated by SOS are highly in coincidence with the measured values. The SIAE results presented in Table 10 repeatedly manifest that SOS can achieve the most accurate values for the unknown parameters, followed by ANS, BLPSO, LWOA, CTLA, and CSO. The curves presented in Figure 8 state clearly that SOS is consistently faster than its competitors from beginning to end.

Table 8. RMSE results for the photovoltaic (PV) module model.

Method	Min	Max	Mean	Std. dev.
CARO	2.427 × 10−3	NA	NA	NA
IJAYA	2.4251 × 10−3	2.4393 × 10−3	2.4289 × 10−3	3.7755 × 10−6
PS	1.18 × 10−2	NA	NA	NA
SA	2.70 × 10−3	NA	NA	NA
ANS	2.4310 × 10−3	2.5658 × 10−3	2.4702 × 10−3	2.9121 × 10−5
BLPSO	2.4296 × 10−3	2.5616 × 10−3	2.4884 × 10−3	3.3055 × 10−5
CSO	2.4537 × 10−3	3.0650 × 10−3	2.5804 × 10−3	7.7274 × 10−5
CTLA	2.4782 × 10−3	3.5579 × 10−3	2.7760 × 10−3	2.4714 × 10−4
LWOA	2.6352 × 10−3	6.7023 × 10−2	1.0936 × 10−2	1.3115 × 10−2
SOS	2.4251 × 10−3	2.5103 × 10−3	2.4361 × 10−3	1.7503 × 10−5

NA: Not available in the literature.

Table 9. Extracted parameters for the PV module model.

Method	Iph (A)	Isd (µA)	Rs (Ω)	Rsh (Ω)	n	RMSE
CARO	1.03185	3.28401	1.20556	841.3213	48.40363	2.427 × 10−3
IJAYA	1.0305	3.4703	1.2016	977.3752	48.6298	2.4251 × 10−3
PS	1.0313	3.1756	1.2053	714.2857	48.2889	1.18 × 10−2
SA	1.0331	3.6642	1.1989	833.3333	48.8211	2.7000 × 10−3
ANS	1.0301	3.6650	1.1967	1070.4564	48.8377	2.4310 × 10−3
BLPSO	1.0302	3.6462	1.1964	1029.5378	48.8198	2.4296 × 10−3
CSO	1.0205	3.6578	1.2122	1689.0050	48.8206	2.4537 × 10−3
CTLA	1.0248	2.6365	1.2689	1722.6637	47.5838	2.4782 × 10−3
LWOA	1.0284	3.1435	1.2218	1272.0197	48.2413	2.6352 × 10−3
SOS	1.0303	3.5616	1.1991	1017.7000	48.7291	2.4251 × 10−3

Figure 7. Extraction results by SOS for the photovoltaic (PV) module model. (a) Current; (b) power.

Table 10. Fitting results for the PV module model.

Item	VL (V)	IL Measured (A)	IL Calculated (A)
			ANS	BLPSO	CSO	CTLA	LWOA	SOS
1	0.1248	1.0315	1.0288	1.0289	1.0197	1.0240	1.0273	1.0289
2	1.8093	1.0300	1.0272	1.0272	1.0187	1.0230	1.0259	1.0272
3	3.3511	1.0260	1.0257	1.0257	1.0177	1.0220	1.0246	1.0256
4	4.7622	1.0220	1.0241	1.0241	1.0166	1.0210	1.0233	1.0241
5	6.0538	1.0180	1.0224	1.0223	1.0154	1.0198	1.0218	1.0223
6	7.2364	1.0155	1.0201	1.0200	1.0135	1.0180	1.0198	1.0199
7	8.3189	1.0140	1.0166	1.0164	1.0103	1.0151	1.0165	1.0164
8	9.3097	1.0100	1.0108	1.0106	1.0047	1.0098	1.0110	1.0105
9	10.2163	1.0035	1.0009	1.0007	0.9951	1.0006	1.0014	1.0007
10	11.0449	0.9880	0.9848	0.9846	0.9792	0.9850	0.9857	0.9847
11	11.8018	0.9630	0.9598	0.9596	0.9542	0.9603	0.9609	0.9597
12	12.4929	0.9255	0.9230	0.9229	0.9175	0.9235	0.9242	0.9230
13	13.1231	0.8725	0.8725	0.8724	0.8668	0.8726	0.8736	0.8725
14	13.6983	0.8075	0.8072	0.8071	0.8014	0.8064	0.8080	0.8072
15	14.2221	0.7265	0.7278	0.7277	0.7220	0.7261	0.7283	0.7279
16	14.6995	0.6345	0.6363	0.6363	0.6305	0.6337	0.6364	0.6364
17	15.1346	0.5345	0.5356	0.5356	0.5299	0.5323	0.5353	0.5357
18	15.5311	0.4275	0.4288	0.4288	0.4234	0.4252	0.4281	0.4288
19	15.8929	0.3185	0.3186	0.3187	0.3137	0.3154	0.3179	0.3187
20	16.2229	0.2085	0.2079	0.2079	0.2034	0.2053	0.2071	0.2079
21	16.5241	0.1010	0.0984	0.0984	0.0945	0.0970	0.0978	0.0984
22	16.7987	−0.0080	−0.0082	−0.0081	−0.0114	−0.0081	−0.0085	−0.0081
23	17.0499	−0.1110	−0.1110	−0.1110	−0.1135	−0.1093	−0.1109	−0.1109
24	17.2793	−0.2090	−0.2092	−0.2092	−0.2110	−0.2056	−0.2087	−0.2091
25	17.4885	−0.3030	−0.3021	−0.3021	−0.3032	−0.2966	−0.3011	−0.3020
SIAE			0.0423	0.0424	0.1380	0.0646	0.0452	0.0421

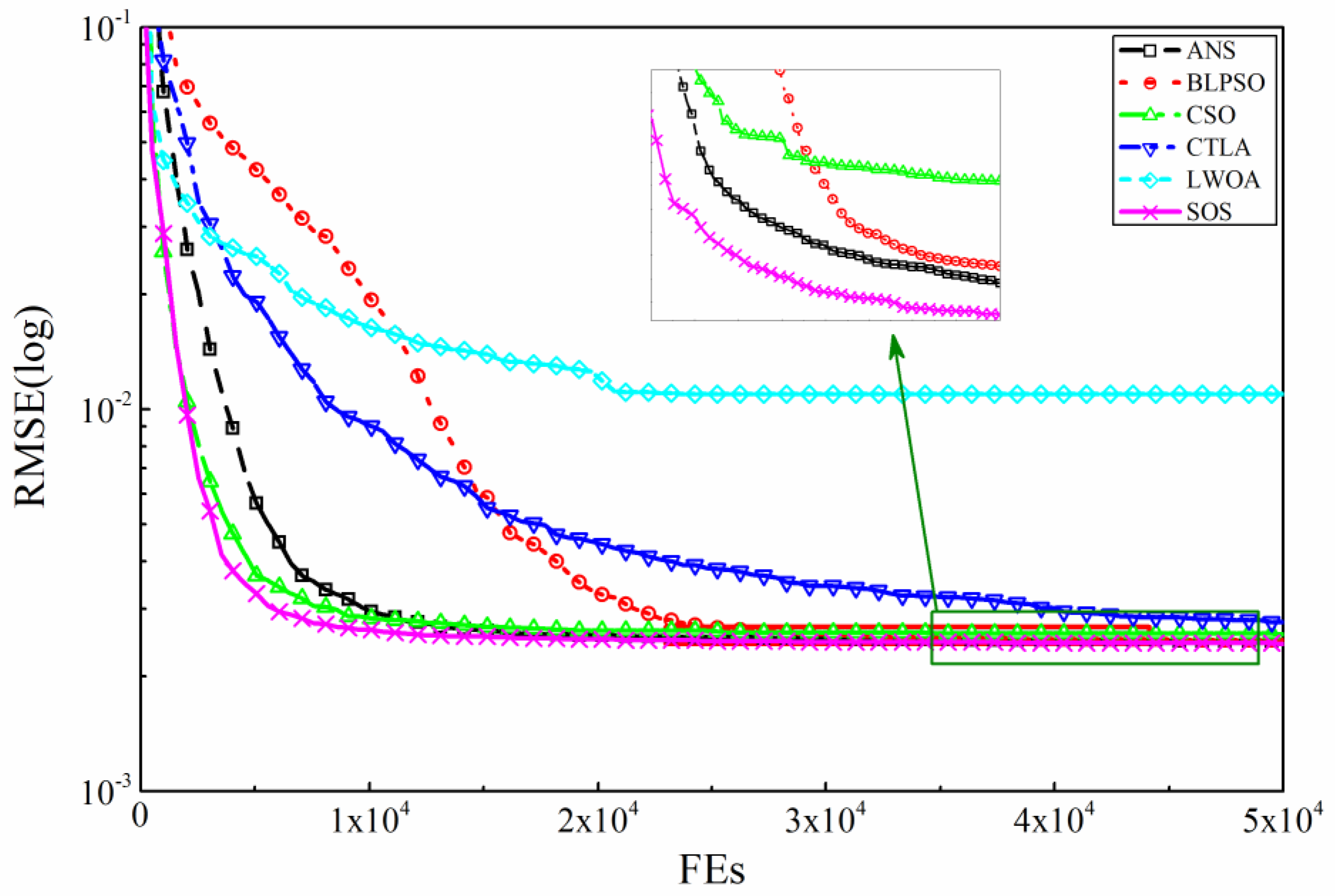

Figure 8. Convergence curves for the PV module model.

4.3.4. Statistical Analysis

The significance difference between two methods can be measured by the statistical analysis. Wilcoxon’s rank sum test is a reliable and robust statistical analysis tool and is widely used in metaheuristic methods. In this paper, the Wilcoxon’s rank sum test at a 0.05 confidence level is used to identify the significance difference between SOS and other compared methods on the same case. The test results are tabulated in Table 11. The symbol “†” denotes that SOS is statistically better than its competitor. The results demonstrate that SOS significantly outperforms every method on every case (p < 0.05), indicating the better performance of SOS from another perspective.

Table 11. Statistical analysis results based on Wilcoxon’s rank sum.

SOS Vs.	Single Diode Model	Double Diode Model	PV Module Model
ANS	† (p = 2.3044 × 10−8)	† (p = 3.4341 × 10−6)	† (p = 5.5646 × 10−12)
BLPSO	† (p = 7.0661 × 10−18)	† (p = 7.0661 × 10−18)	† (p = 9.9263 × 10−14)
CSO	† (p = 7.0661 × 10−18)	† (p = 7.0661 × 10−18)	† (p = 8.9852 × 10−18)
CTLA	† (p = 2.1975 × 10−17)	† (p = 7.5041 × 10−18)	† (p = 9.5403 × 10−18)
LWOA	† (p = 1.2866 × 10−17)	† (p = 8.4620 × 10−18)	† (p = 7.0661 × 10−18)

5. Conclusions and Future Work

The SOS algorithm is applied to solve the parameter extraction problem of solar cell models in this paper. To validate the effectiveness of SOS, it is applied to three models including single diode model, double diode model, and PV module models. From the comparison results of SOS with five state-of-the-art algorithms, namely, ANS, BLPSO, CSO, CTLA, and LWOA, it is summarized that SOS can extract more accurate and robust values for the unknown parameters with a faster convergence rate. The superiority of SOS is also demonstrated through statistical analysis based on the Wilcoxon’s rank sum test. In addition, the feasibility of SOS is further confirmed through comparison with some well-designed parameter extraction methods and it indicates that SOS is highly competitive. Meanwhile, there is still room for improvement for SOS to achieve more accurate values, especially for the double diode model. In summary, SOS behaves potential effectively in solving the parameter extraction problem of solar cell models. In future, some advanced strategies such as orthogonal learning and hybridization will be employed to further improve its performance.
