Next Article in Journal
Convective Heat Transfer and Particle Motion in an Obstructed Duct with Two Side by Side Obstacles by Means of DPM Model
Next Article in Special Issue
Influence of the Origin of Polyamide 12 Powder on the Laser Sintering Process and Laser Sintered Parts
Previous Article in Journal
Pushover Analysis on Infill Effects on the Failure Pattern of Reinforced Concrete Frames
Previous Article in Special Issue
Mechanically Strong CaSiO3 Scaffolds Incorporating B2O3-ZnO Liquid Phase
Article Menu
Issue 4 (April) cover image

Export Article

Open AccessArticle
Appl. Sci. 2017, 7(4), 430;

Dense Pure Tungsten Fabricated by Selective Laser Melting

School of Materials Science and Engineering, Tsinghua University, Beijing 100084, China
Department of Materials and Environmental Chemistry, Arrhenius Laboratory, Stockholm University,S‐106 91 Stockholm, Sweden
Authors to whom correspondence should be addressed.
Academic Editor: Peter Van Puyvelde
Received: 21 February 2017 / Revised: 16 April 2017 / Accepted: 19 April 2017 / Published: 23 April 2017
(This article belongs to the Special Issue Materials for 3D Printing)
Full-Text   |   PDF [5285 KB, uploaded 24 April 2017]   |

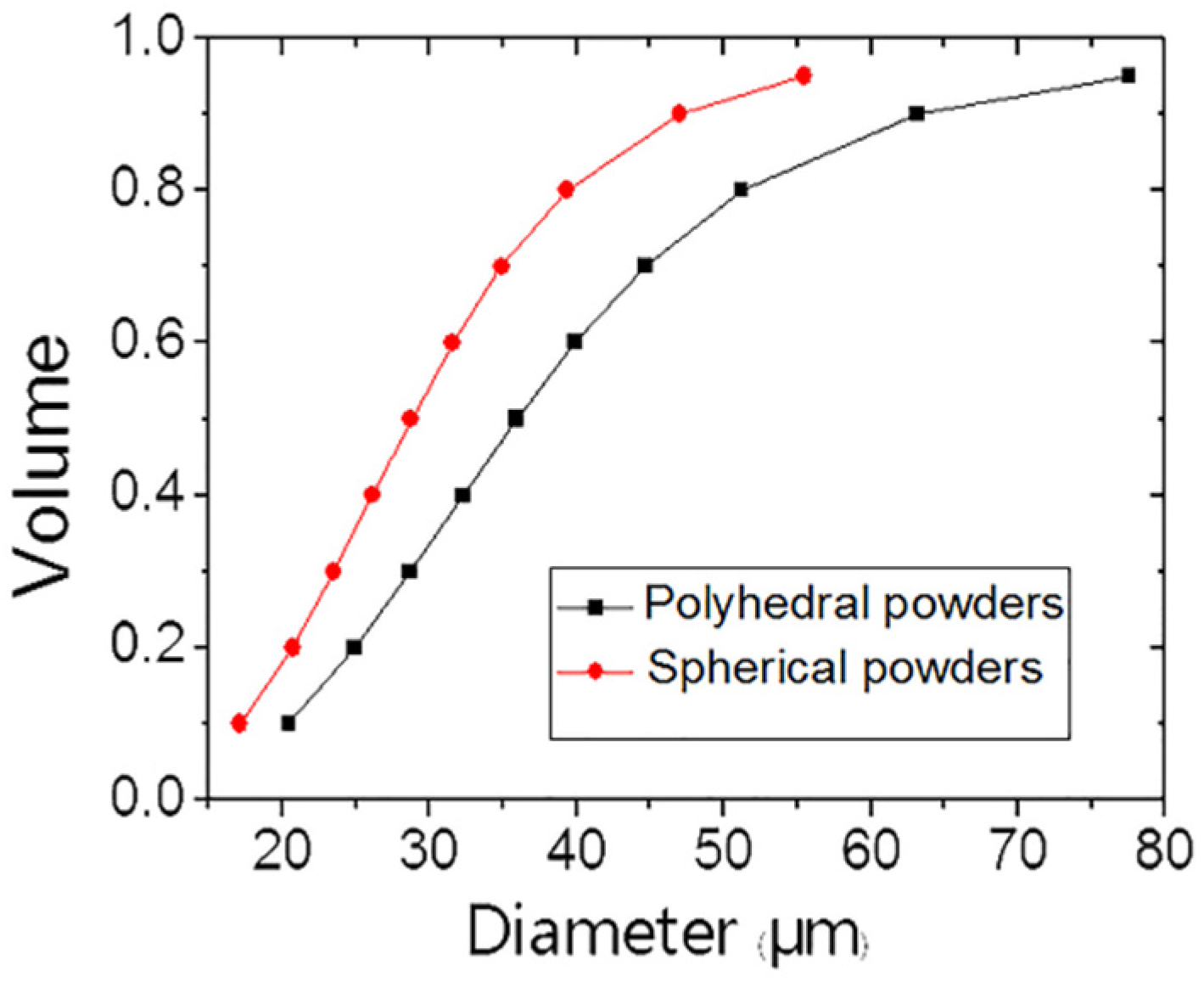

Additive manufacturing using tungsten, a brittle material, is difficult because of its high melting point, thermal conductivity, and oxidation tendency. In this study, pure tungsten parts with densities of up to 18.53 g/cm3 (i.e., 96.0% of the theoretical density) were fabricated by selective laser melting. In order to minimize balling effects, the raw polyhedral tungsten powders underwent a spheroidization process before laser consolidation. Compared with polyhedral powders, the spherical powders showed increased laser absorptivity and packing density, which helped in the formation of a continuous molten track and promoted densification. View Full-Text
Keywords: selective laser melting; pure tungsten; spherical powders; laser absorptivity; packing density; densification selective laser melting; pure tungsten; spherical powders; laser absorptivity; packing density; densification

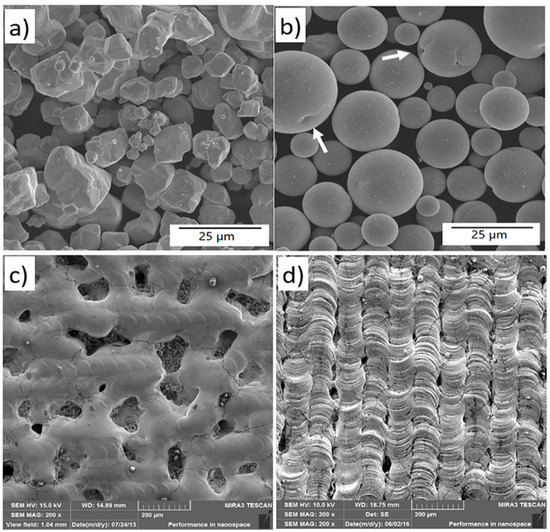

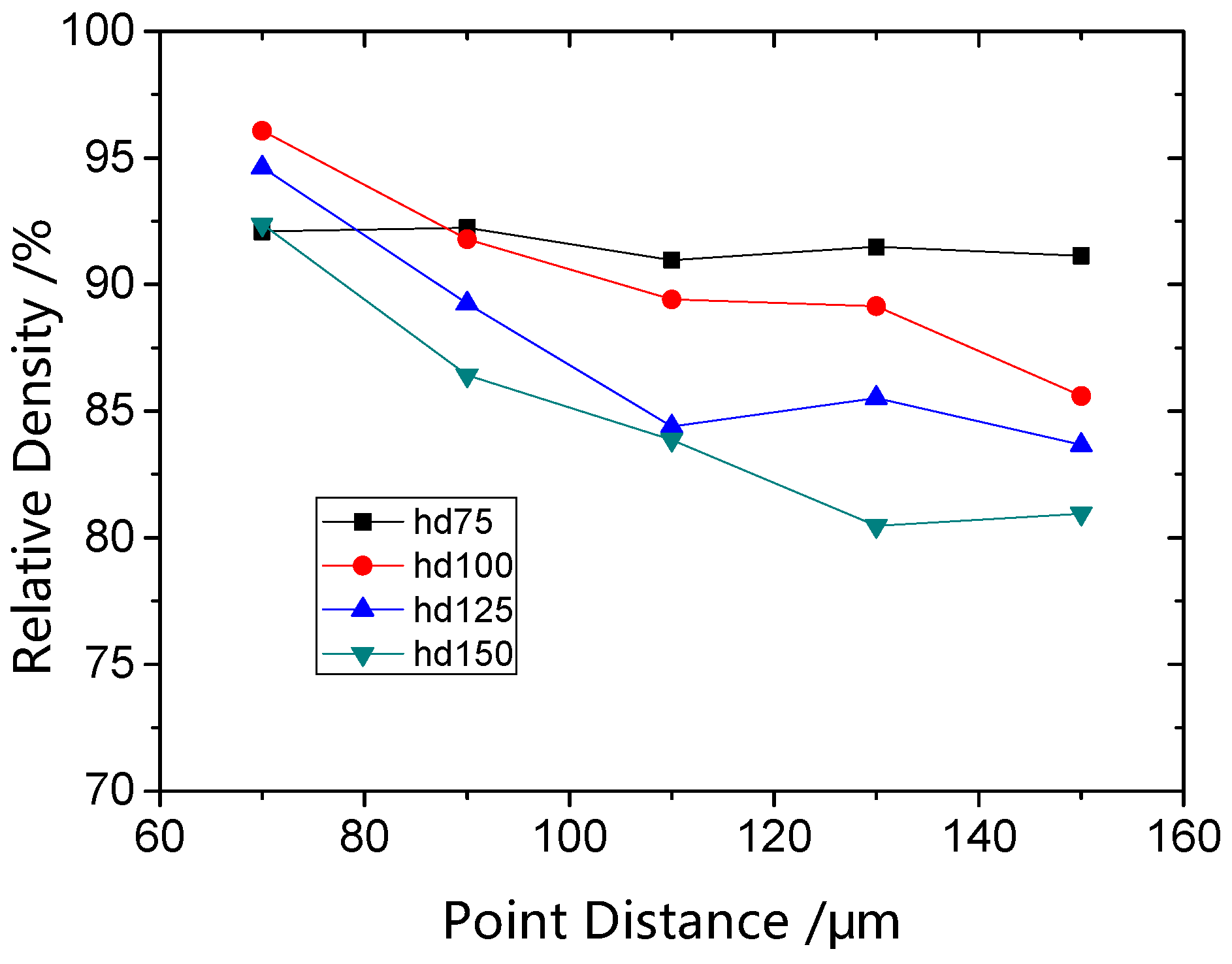

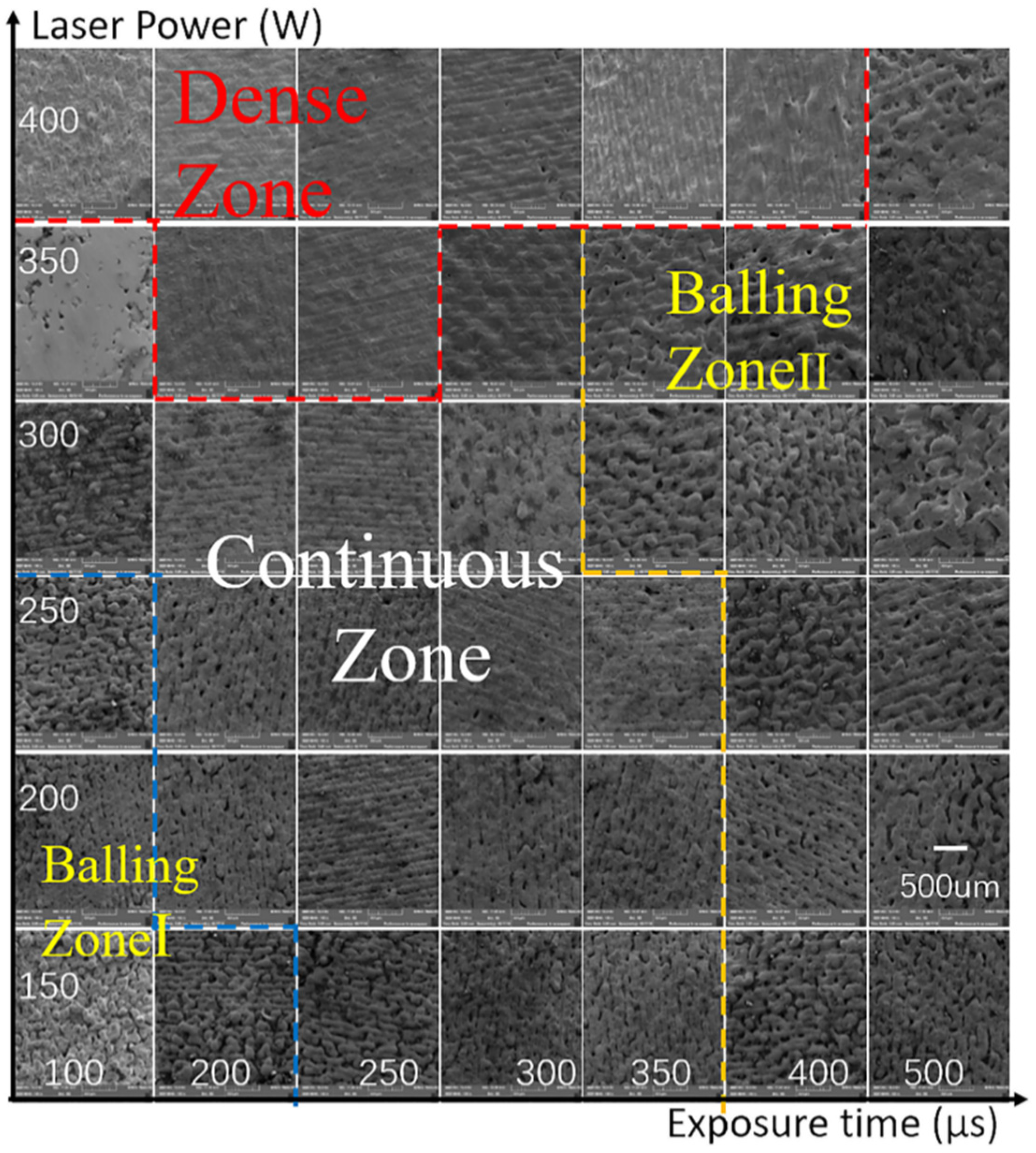

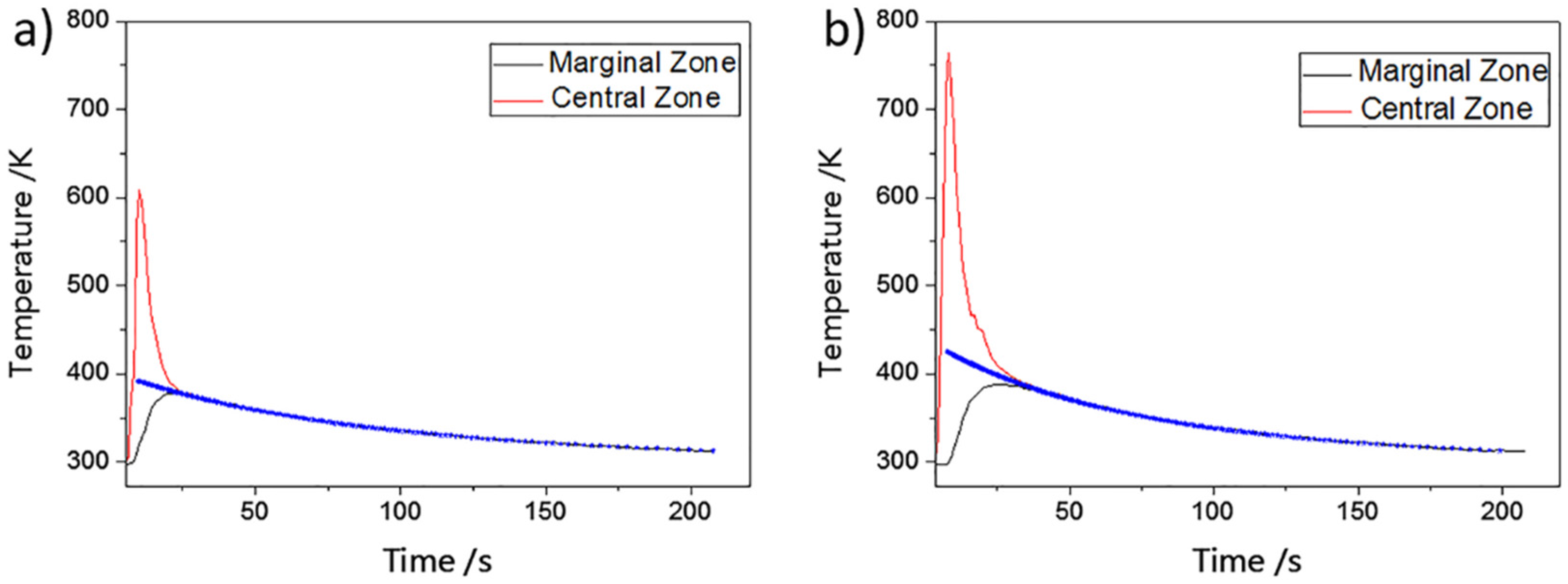

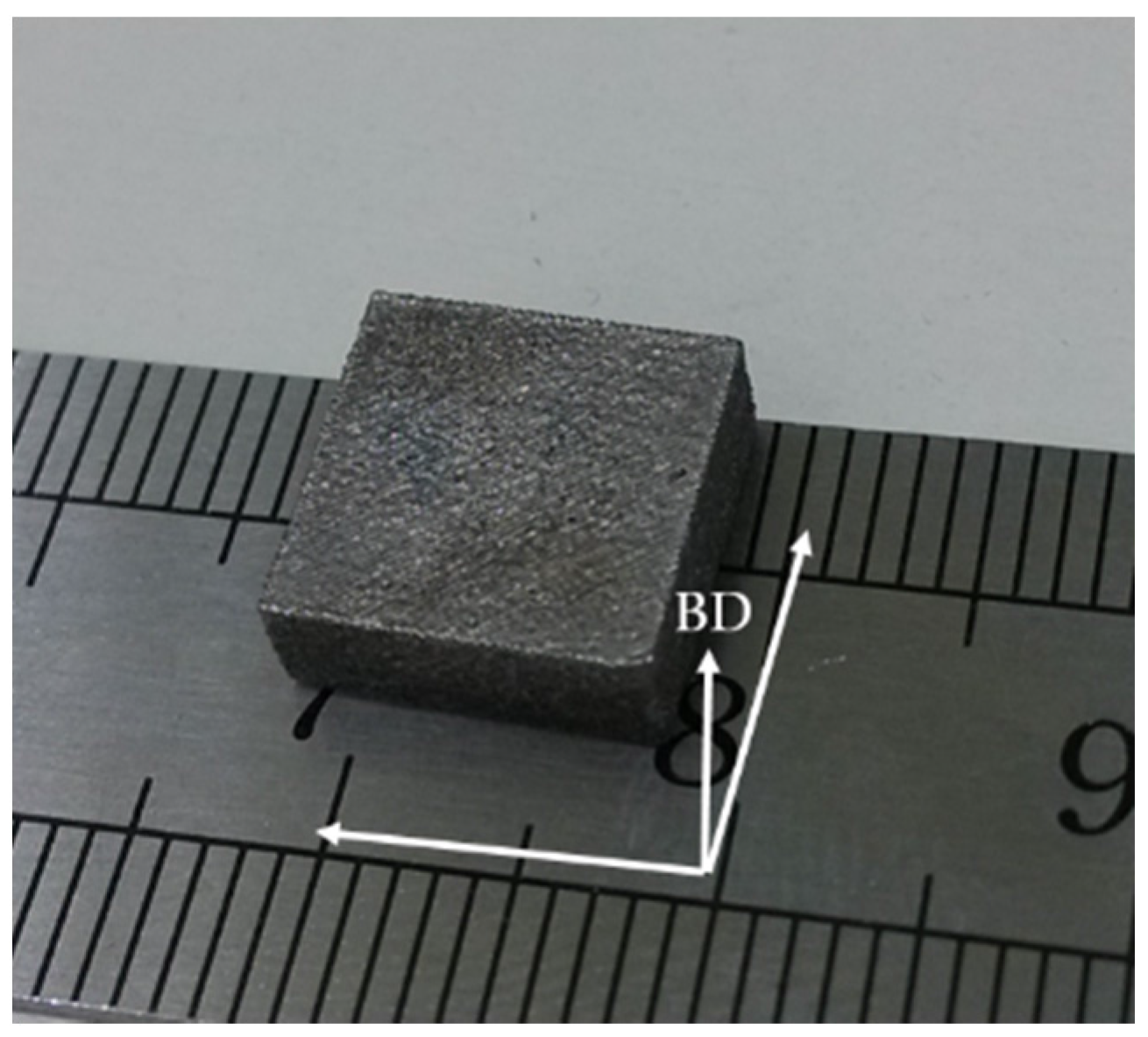

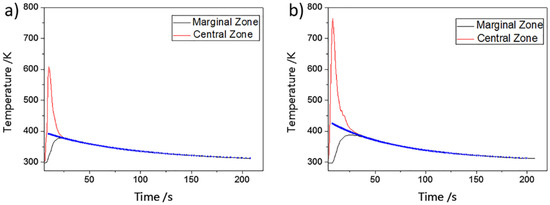

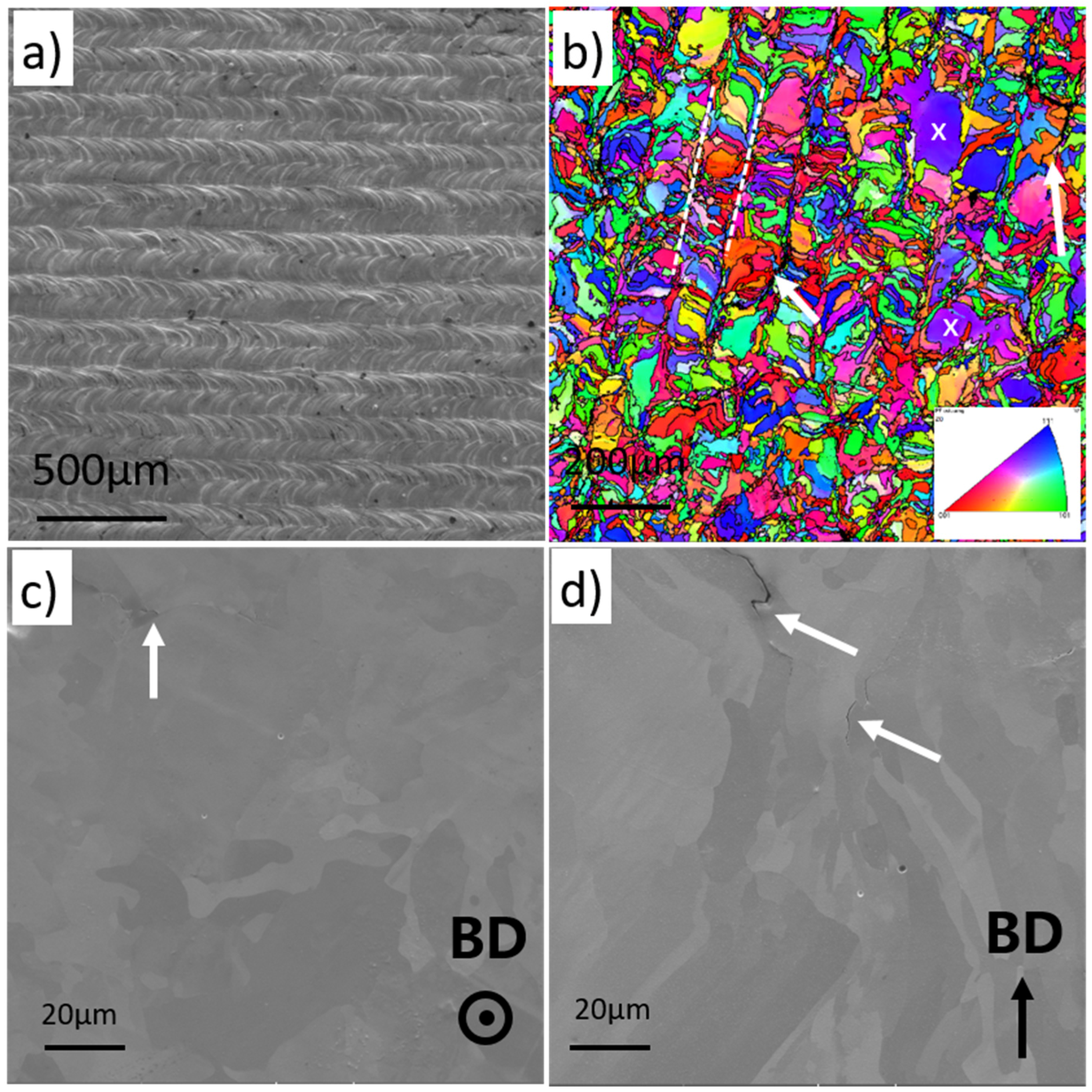

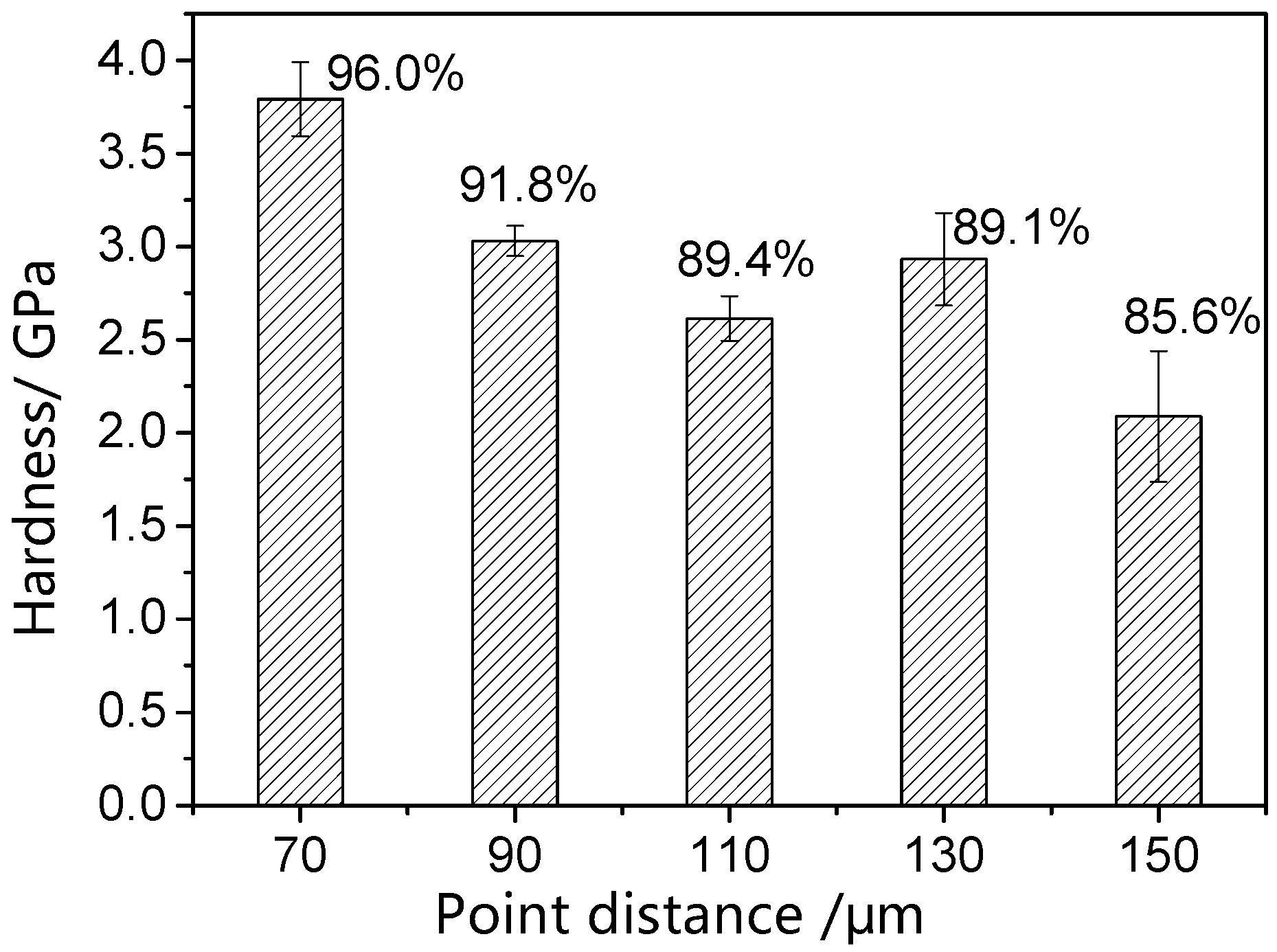

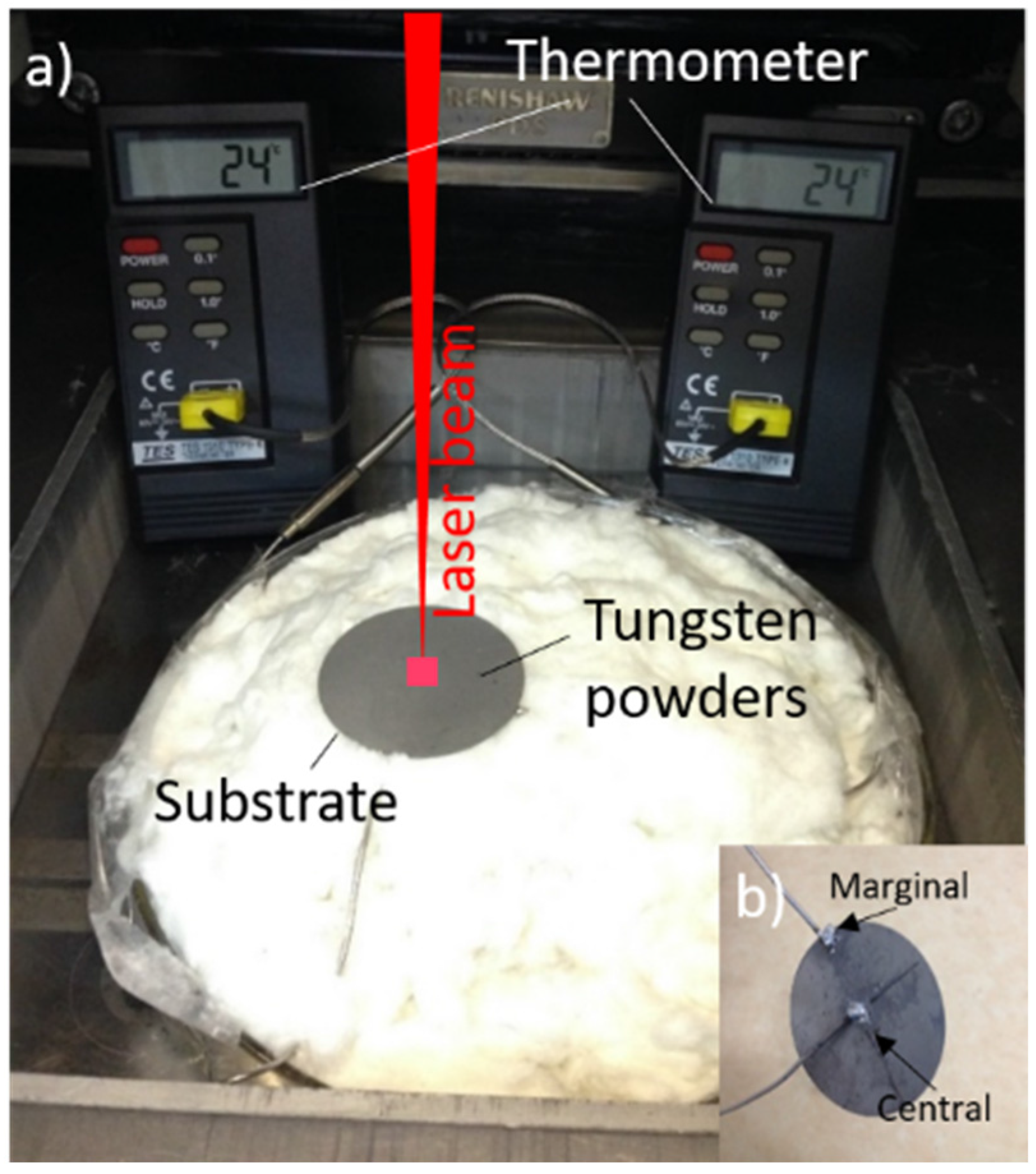

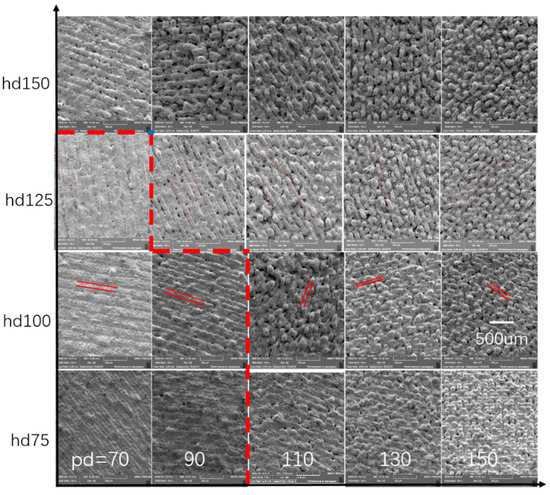

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Wang, D.; Yu, C.; Zhou, X.; Ma, J.; Liu, W.; Shen, Z. Dense Pure Tungsten Fabricated by Selective Laser Melting. Appl. Sci. 2017, 7, 430.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Appl. Sci. EISSN 2076-3417 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
