Next Article in Journal
Modeling of Cyclic Strength for the Asphalt Concrete Considering Damage Accumulation
Next Article in Special Issue
Multimodal Magnetic-Plasmonic Nanoparticles for Biomedical Applications
Previous Article in Journal
Precision Obtained Using an Artificial Neural Network for Predicting the Material Removal Rate in Ultrasonic Machining
Previous Article in Special Issue
Targeted Molecular Imaging of Pancreatic Cancer with a Miniature Endoscope
Open AccessArticle

Investigating the Role of Shell Thickness and Field Cooling on Saturation Magnetization and Its Temperature Dependence in Fe3O4/γ-Fe2O3 Core/Shell Nanoparticles

1
Department of Physics, United Arab Emirates University, Al-Ain 15551, UAE
2
Max-Planck-Institute for Chemical Physics of Solids, Nöthnitzer Straße-40, 01187 Dresden, Germany
*
Author to whom correspondence should be addressed.
Appl. Sci. 2017, 7(12), 1269; https://doi.org/10.3390/app7121269
Received: 31 October 2017 / Revised: 15 November 2017 / Accepted: 21 November 2017 / Published: 5 December 2017
(This article belongs to the Special Issue Biological Applications of Magnetic Nanoparticles)

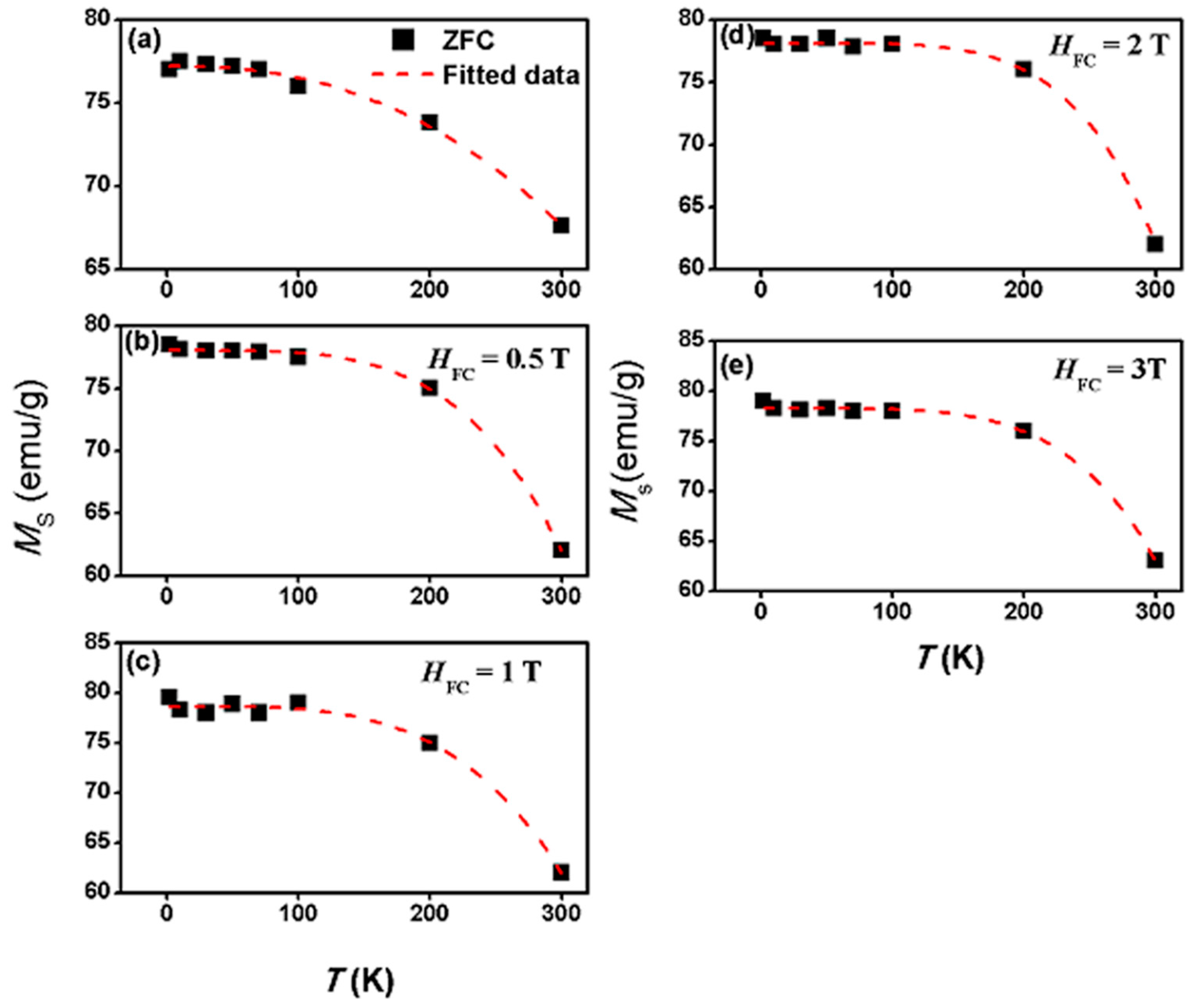

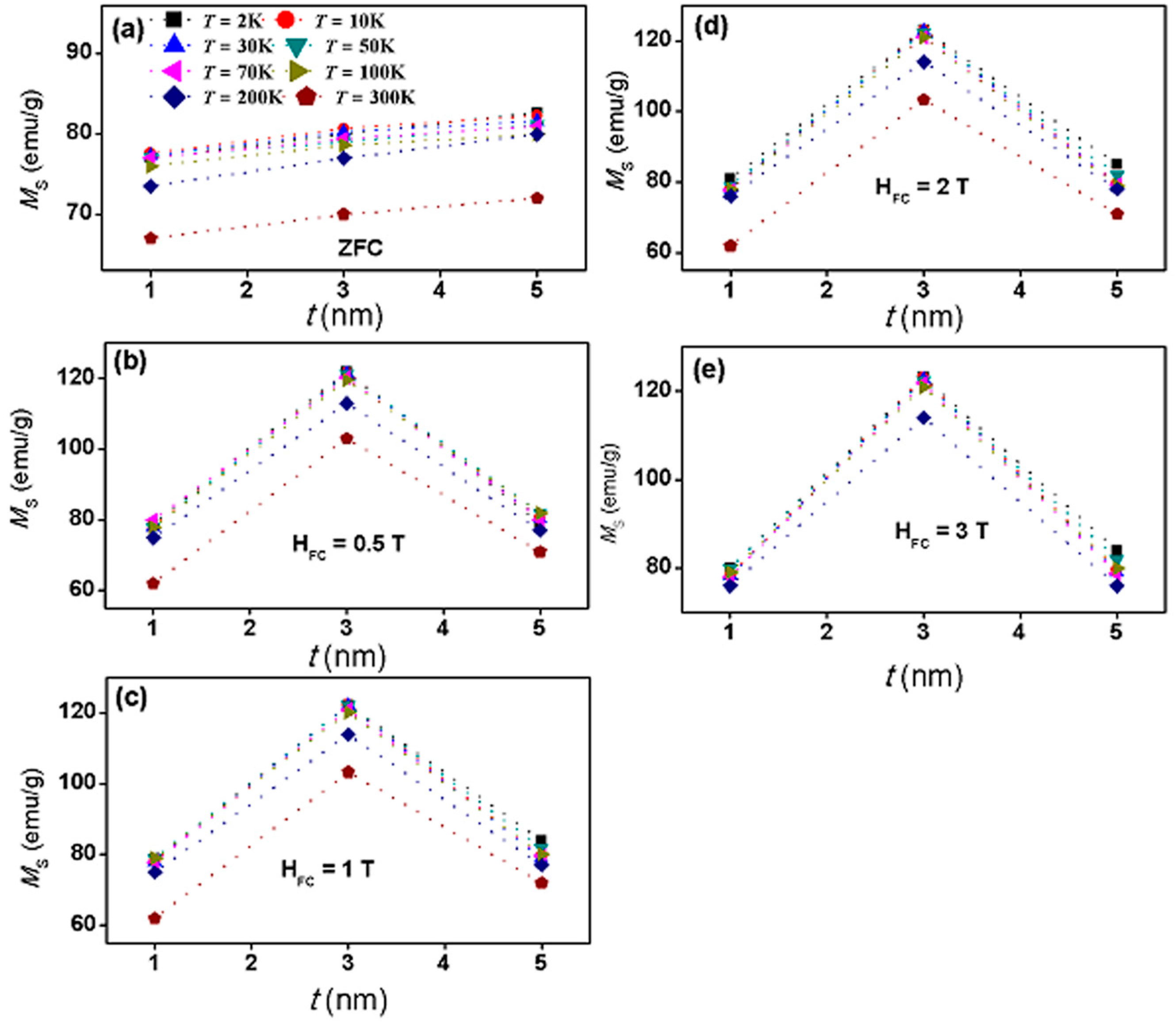

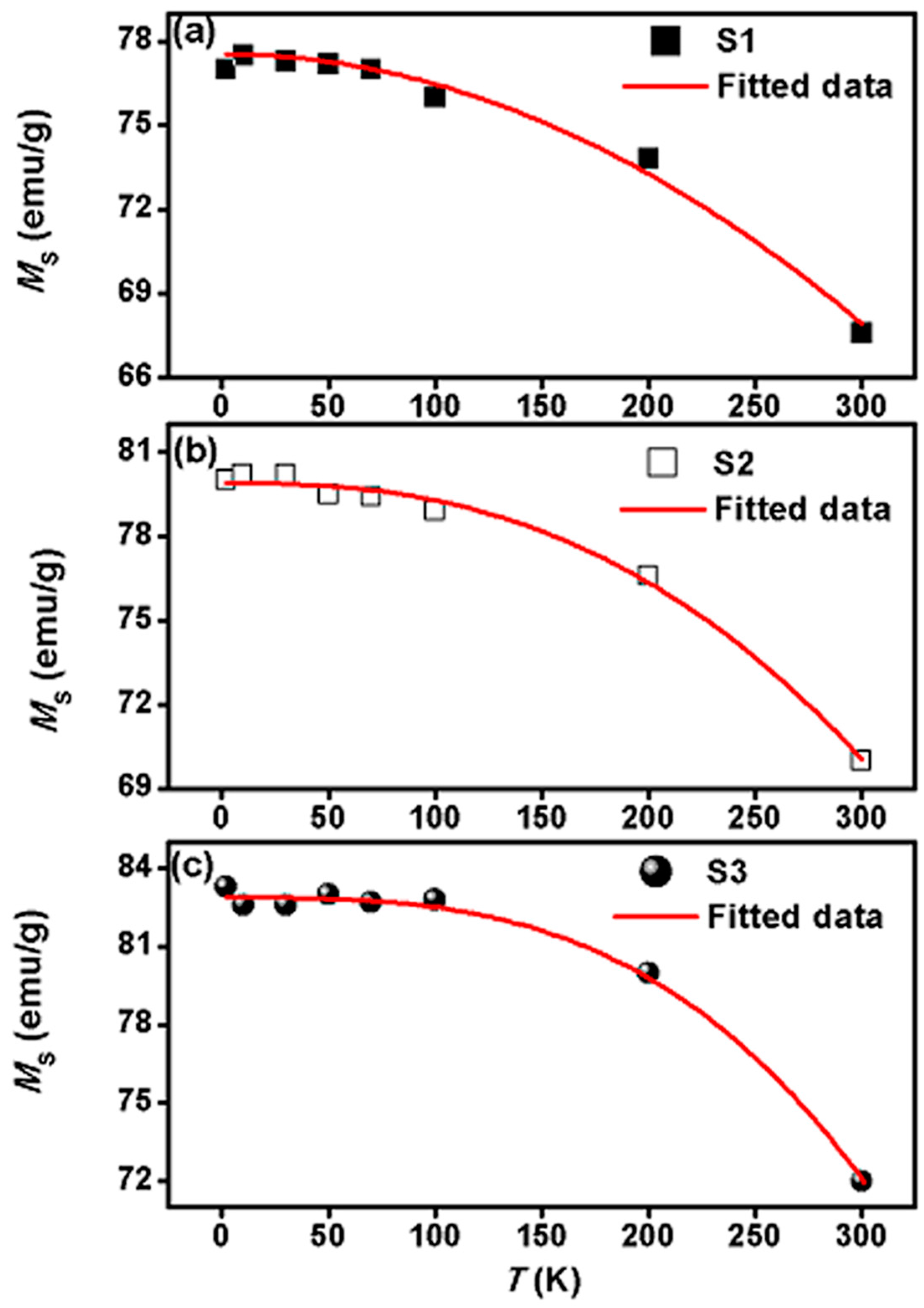

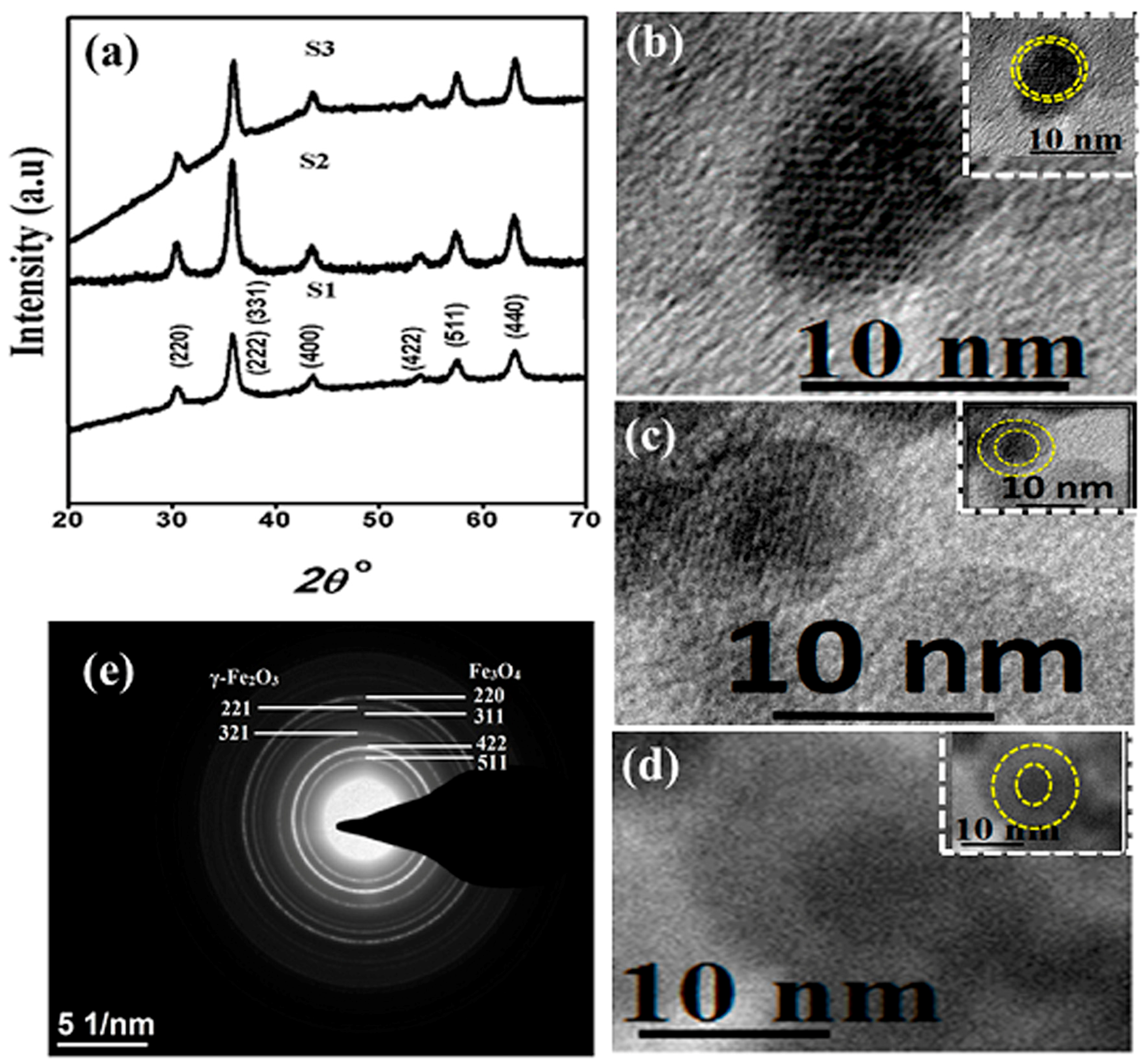

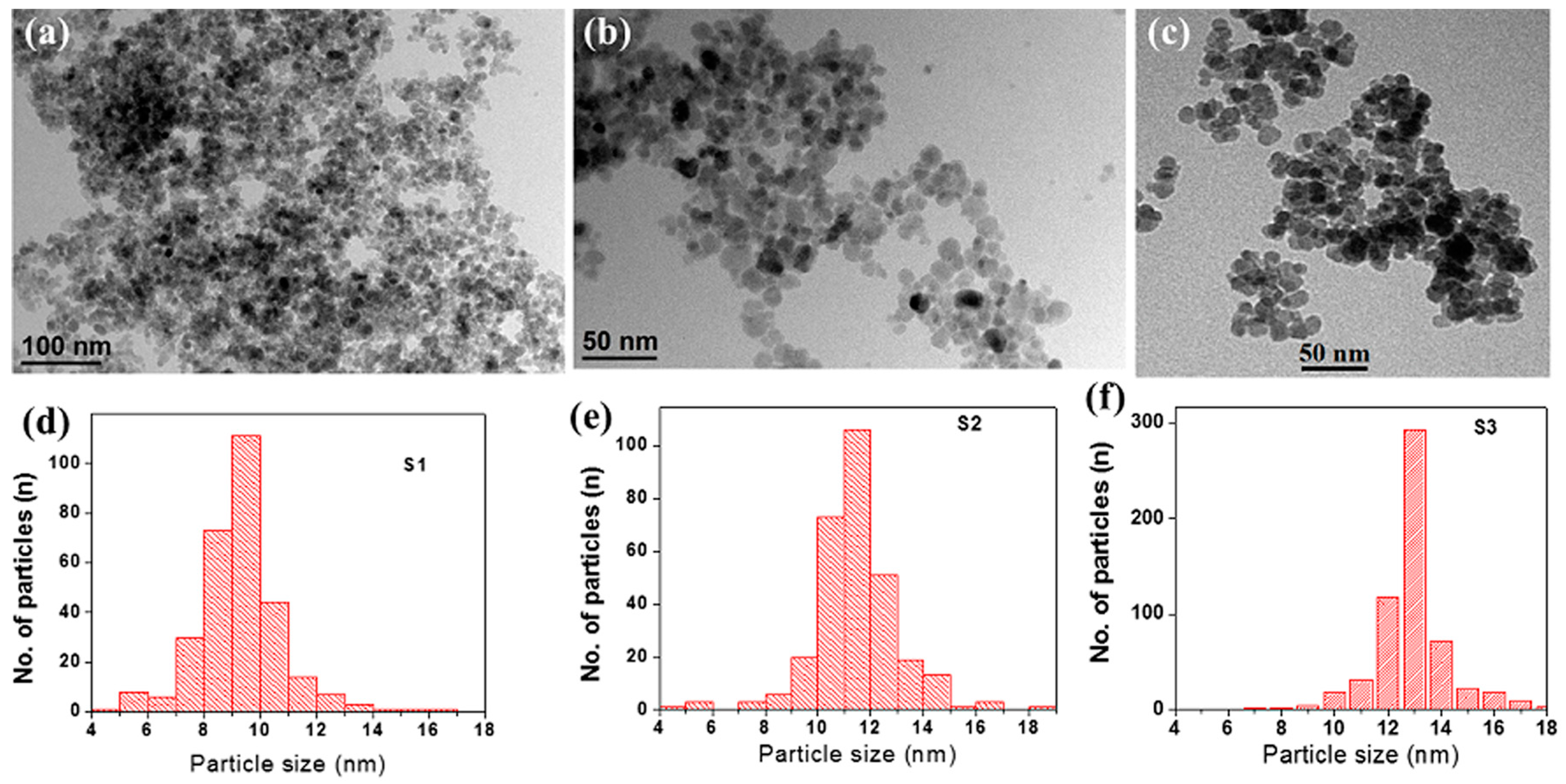

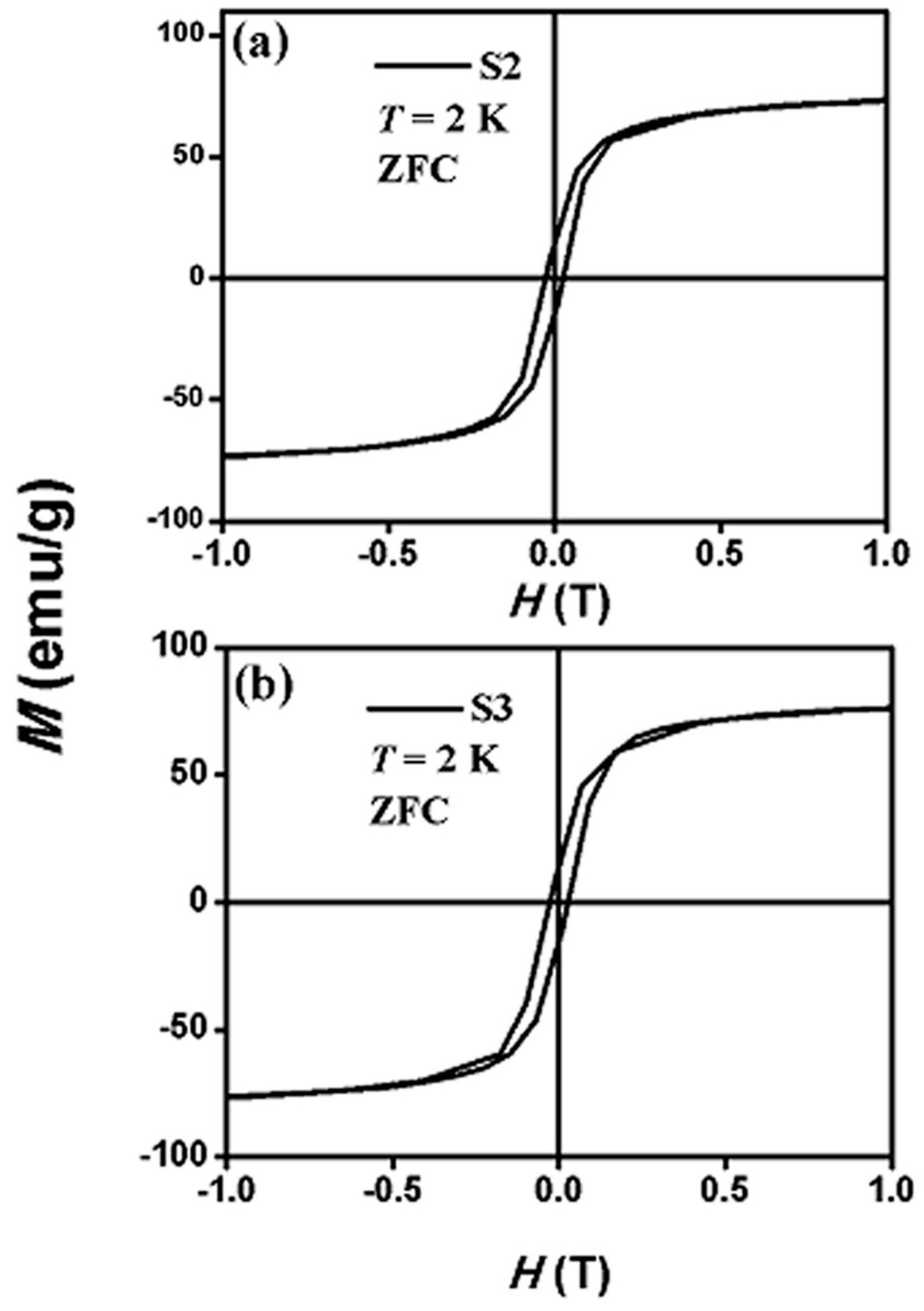

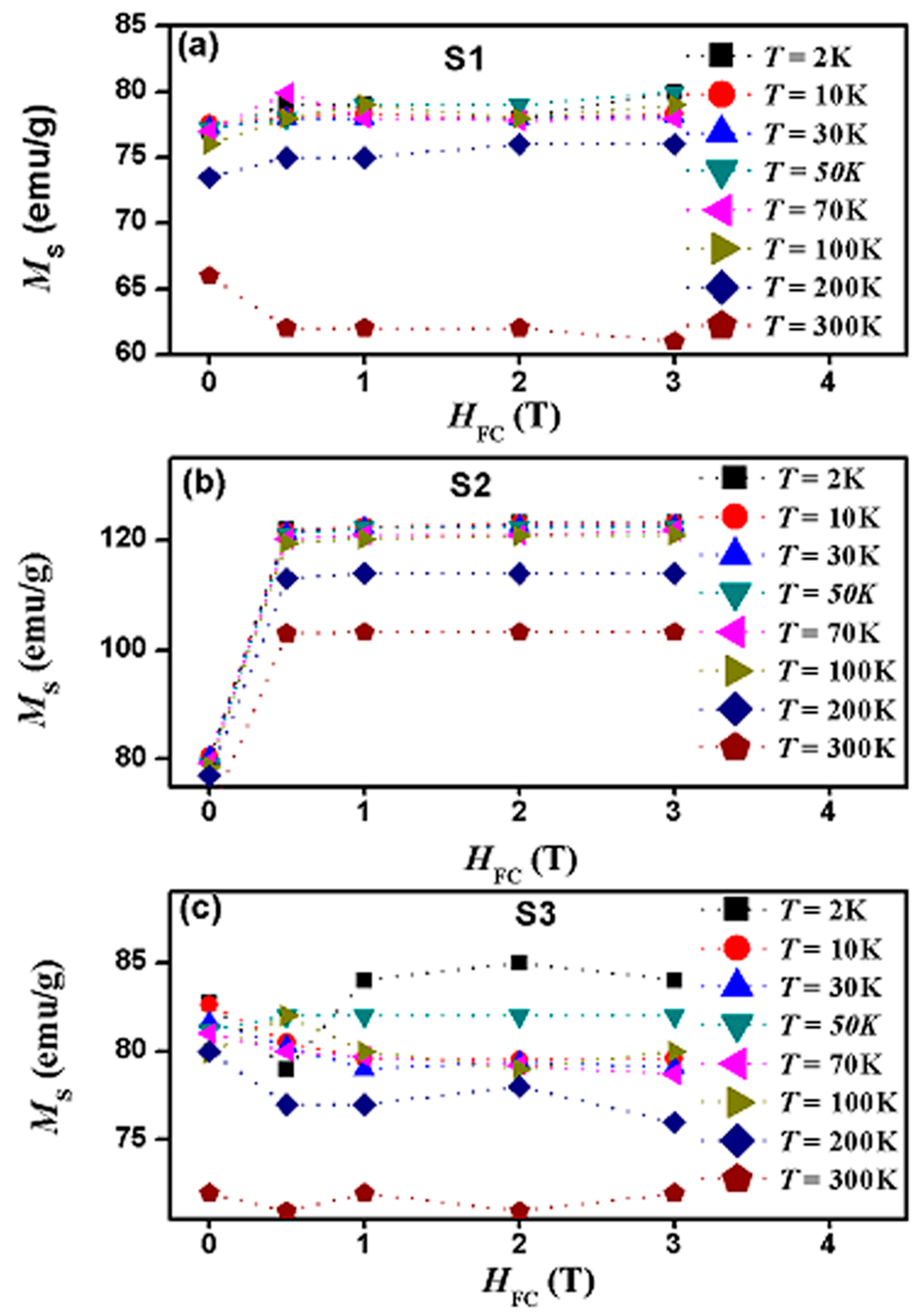

Understanding saturation magnetization and its behavior with particle size and temperature are essential for medical applications such magnetic hyperthermia. We report the effect of shell thickness and field cooling on the saturation magnetization and its behavior with temperature in Fe3O4/γ-Fe2O3 core/shell nanoparticles of fixed core diameter (8 nm) and several shell thicknesses. X-ray diffraction (XRD) analysis and transmission electron microscopy (TEM, high-resolution transmission electron microscopy (HRTEM)) were used to investigate the phase and the morphology of the samples. Selected area electron diffraction (SAED) confirmed the core/shell structure and phases. Using a SQUID (San Diego, CA, USA), magnetic measurements were conducted in the temperature range of 2 to 300 K both under zero field-cooling (ZFC) and field-cooling (FC) protocols at several field-cooling values. In the ZFC state, considerable enhancement of saturation magnetization was obtained with the increase of shell thickness. After field cooling, we observed a drastic enhancement of the saturation magnetization in one sample up to 120 emu/g (50% larger than the bulk value). In both the FC and ZFC states, considerable deviations from the original Bloch’s law were observed. These results are discussed and attributed to the existence of interface spin-glass clusters which are modified by the changes in the shell thickness and the field-cooling. View Full-Text
Keywords: nanoparticles; magnetization; shell thickness; Bloch’s law nanoparticles; magnetization; shell thickness; Bloch’s law
Show Figures

Graphical abstract

MDPI and ACS Style

Obaidat, I.M.; Nayek, C.; Manna, K. Investigating the Role of Shell Thickness and Field Cooling on Saturation Magnetization and Its Temperature Dependence in Fe3O4/γ-Fe2O3 Core/Shell Nanoparticles. Appl. Sci. 2017, 7, 1269.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
