Process Optimization of Microwave-Assisted Extraction of Chlorophyll, Carotenoid and Phenolic Compounds from Chlorella vulgaris and Comparison with Conventional and Supercritical Fluid Extraction

Abstract

The production of bioactive products from microalgae biomass with efficient and environmentally friendly technologies is a field of great research interest. The present work focuses on the recovery of high-added value bioactive components from Chlorella vulgaris through microwave-assisted extraction (MAE) with aq. ethanol 90% v/v. The effect of extraction temperature (40–60 °C), duration (5–25 min), solvent-to-biomass ratio (20–90 mL_solv/g_biom), and microwave power (300–800 watts) was investigated regarding the extraction yield, extract’s chlorophyll, carotenoid and phenolic content, and antioxidant activity. MAE optimization at 60 °C, 300 watts, 14 min, and 22 mL_solv/g_biom led to 11.14% w/w yield, 63.36 mg/g_extr total chlorophylls, 7.06 mg/g_extr selected carotenoids of astaxanthin, lutein and β-carotene, 24.88 mg/g_extr total carotenoids, 9.34 mg_GA/g_extr total phenolics, and 40.49 mg_extr/mg_DPPH IC₅₀ (antioxidant activity indicator). Moreover, the conventional solid-liquid extraction (SLE) with aq. ethanol 90% v/v, the supercritical fluid extraction (SFE) with CO₂, as well as SFE with cosolvent addition (10% w/w ethanol), were also performed for comparison purposes. The results revealed that SLE presented the highest yield. However, the non-conventional methods of MAE and SFE led to extracts of competitive or even better quality under significantly shorter extraction duration.

1. Introduction

The utilization of microalgae as a source of bioactive compounds has already integrated them into industrial applications. The considerable variance of the compounds synthesized from microalgae, such as fatty acids, polysaccharides, pigments, and phenolic compounds, make them suitable for use in animal feed, fertilizer, food, cosmetics, and health products [1,2].

Despite the extensive biodiversity of microalgae, the genus of Chlorella is considered the most auspicious for commercial applications, along with Dunaliella, Botryococcus, Chlamydomonas, and Arthrospira [3]. The acceptance of Chlorella in human use and consumption is responsible for its wide cultivation across Asia, the United States, and Europe [4] and its dominance in the global microalgae market along with the well-known Arthrospira (Spirulina) [5].

Among the Chlorella species, the most common Chlorella vulgaris (C. vulgaris) is considered a high-potential biomass. C. vulgaris cells encounter an abundance of bioactive molecules, including phenolic compounds, chlorophylls, and carotenoids [6]. Chlorella sp. presents higher phenolic content among other species [7]. Chlorophylls are the most plentiful pigment of C. vulgaris (up to 2% dw), while the presence of the accessory carotenoid pigments is also considered remarkable [8]. The aforementioned biocomponents are well-known for demonstrating curative and repairing effects and exhibiting antibacterial, antifungal, and antioxidant activity [9].

In recent years, microwave-assisted extraction (MAE) has been applied to extract biocomponents from microalgae biomass [10]. MAE is considered a non-conventional method [11], during which microwave radiation is rapidly absorbed by the biomass and converted into thermal energy. The biomass is heated through dipole rotation and ionic conduction [12]. The microwave energy absorption and, thus, heat generation can be measured through the dissipation factor (tan δ). This term is proportional to the dielectric loss (ε″) and inversely proportional to the dielectric constant (ε′) of the solvent, indicating that the presence of polar solvents is considered necessary [13]. In contrast to the conventional solid-liquid extraction, the non-conventional method of MAE offers reduced thermal gradients and instant heating of the biomass, as well as enhanced extraction yield during rapid extractions and decreased solvent quantities [14,15]. In the case of Chlorella, the studies of MAE are mainly focused on lipid extraction [16,17,18,19] followed by carotenoids [20,21], whereas few studies have dealt with the extraction of bioactive compounds such as proteins [22] and polysaccharides [23].

The studies of MAE concerning Chlorella biomass have been limited to the investigation of individual component categories. Nevertheless, studying a multitude of bioactive compounds derived from Chlorella’s extracts, along with their antioxidant activity, would be considered useful for the utilization of such products in demanding industrial fields.

The aim of the present work is the study of the non-conventional microwave-assisted extraction (MAE) of high value-added biocomponents from Chlorella vulgaris biomass, utilizing the green solvent aq. ethanol 90% v/v. MAE’s study included the investigation of essential process parameters, quantitative and qualitative effect study, data correlation and process optimization. The variations of extraction temperature (40–60 °C), duration (5–25 min), solvent-to-biomass ratio (20–90 mL_solv/g_biom), and microwave power (300–800 watts) were investigated regarding the effect on the extraction yield, extract’s total phenolic and pigment (chlorophylls and carotenoids) content, and antioxidant activity. The advantageous acquaintance of this work is not only the effect study of MAE’s operational conditions on extract’s several bioactive compounds and antioxidant activity but also the beneficial comparison of MAE with different extraction methods. More specifically, the results of optimized MAE were compared with the conventional solid-liquid extraction (SLE) and the novel supercritical fluid extraction (SFE).

2. Materials and Methods

2.1. Materials

Commercially available biomass of Chlorella vulgaris was purchased from Go Superfoods Ltd. (Sheffield, UK) in June 2021. The biomass was cultivated in natural water open ponds in South China, harvested with mesh screens, milled, spray-dried and received in powder form.

Anhydrous sodium carbonate, 99.5%, ethanol, ≥99.8% (analytical reagent grade), ethyl acetate, ≥99.9% (HPLC—Isocratic grade), gallic acid, 98% (ACS Reagent), orthophosphoric acid, 85.4% (analytical grade reagents), methanol, ≥99.8% (HPLC grade), methyl tert-butyl ether (MTBE), 99.5% (HPLC grade), and water (HPLC gradient grade) were purchased from Fisher Scientific International Inc. (Pittsburgh, PA, USA). Carbon dioxide, 99.5%, was purchased from Air-Liquid Hella (Athens, Greece). Astaxanthin, ≥98%, and lutein, ≥92%, were purchased from Acros Organics BVBA (Antwerp, Belgium) and Extrasynthese SAS (Lyon, France), respectively. β-carotene, 99%, and 2,2-diphenyl-1-picrylhydrazyl (DPPH) free radicals were purchased from Sigma Aldrich Co. (Saint Louis, MO, USA), while Folin–Ciocalteu reagent was purchased from Carlo Erba Reagents SAS (Milan, Italy).

2.2. Extraction Methods

2.2.1. Microwave-Assisted Extraction (MAE)

The microwave-assisted extraction was performed in a MAS-II Plus microwave synthesis/extraction reaction workstation (Sineo Microwave Chemistry Technology Co. Ltd., Shanghai, China). Approximately 1 g of C. vulgaris powder was loaded in a double-wall vessel along with an appropriate amount of aq. ethanol, 90% v/v. Τhe choice of solvents and the ethanol/water ratio resulted from a preliminary study as well as the findings of Cha et al. [24], which exhibited the solvent’s advantage over other ratios and organic solvents regarding the extraction of C. vulgaris’ biocomponents. The mixture was stirred at 500 rpm, and the extraction conditions of temperature, duration, solvent-to-biomass ratio, and microwave power were regulated according to an appropriate experimental design (see Paragraph 2.4). Solvent losses were minimized by adjusting a condenser on the top of the extraction vessel. After the MAE, the mixture was centrifuged at 1110× g for 8 min in a Hermle centrifuge Z206-A (Hermle AG, Baden-Württemberg, Germany). The supernatant of the centrifuged mixture was filtered through a ChromPure PTFE/L 0.45 μm filter and evaporated under vacuum at 100 mbar and 45 °C in a Hei-Vap Advantage ML rotary evaporator (Heidolph Instruments GmbH & Co, KG, Bayern, Germany). Finally, all the dry extracts were temporarily maintained at −18 °C until further analysis. The extraction yield was determined gravimetrically by the received extracts’ weight, and the experimental error was determined from the triple repetition of the central point of the experimental design.

2.2.2. Solid-Liquid Extraction (SLE)

During the conventional method of solid-liquid extraction, 37 mL of aq. ethanol, 90% v/v, and approximately 1 g of C. vulgaris powder (ratio 37 mL_solv/g_biom) were stirred at 500 rpm via a Carousel tech stirring hotplate (Radleys, Essex, UK) and heated at 30 °C for 24 h in a double-wall vessel placed in the dark. The extraction conditions were considered optimum according to a previous study [25]. Solvent losses were minimized by adjusting a condenser on the top of the extraction vessel. After the SLE, the steps described in paragraph 2.2.1. were followed regarding the mixture centrifugation, supernatant filtration, vacuum evaporation, and extract storage. The SLE was performed in duplicate, and extraction yield was determined gravimetrically by the extracts’ weight.

2.2.3. Supercritical Fluid Extraction (SFE)

The supercritical fluid extraction with CO₂ was performed in a bench scale apparatus (SFE-500, SEPAREX CHIMIE FINE, Champigneulles, France), which is described in detail by Papamichail et al. [26]. During SFE, approximately 80 g of C. vulgaris powder was loaded along with glass beads (4.5 mm) in the extraction vessel. The extraction was performed at 60 °C and 250 bar. The solvent flow rate was adjusted at 40 g/min, and total solvent consumption was set at 100 kg_CO2/kg_biom. The solvent-solute mixture was depressurized, and the extract was collected from 2 separators operating at 8 °C and 60 and 10 bar, respectively. The extraction conditions were considered optimum according to a previous study [27].

The cosolvent addition was also examined in the above experimental conditions by inserting ethanol through a piston pump. The ethanol content in CO₂ was set at 10% w/w. The final mixture of ethanol solutes was vacuum evaporated at 100 mbar and 45 °C.

Finally, all the dry extracts were temporarily maintained at −18 °C until further analysis. SFE experiments, with or without cosolvent presence, were performed in duplicate and extraction yield was determined gravimetrically by the total weight loss of the extraction vessel.

2.3. Extract Analyses

Apart from the determination of the extraction yield, further analysis was performed for the MAE, SLE, and SFE extracts. All the applied methods mentioned below are adequately described in previous work [25].

In brief, the total phenolic content (TPC) was determined through the Folin-Ciocalteu assay at 765 nm and expressed as the gallic acid equivalent mass of the extract (mg_GA/g_extr), according to Drosou et al. [28]. The total chlorophyll (CHL) and carotenoid (CAR) contents were determined spectrophotometrically at 480, 510, 630, 647, and 664 nm, according to the equations derived from Jeffrey et al. [29,30] (equations are provided in Appendix A), and expressed in the mass ratio of the corresponding compound to extract (mg/g_extr). The antioxidant activity was determined through the DPPH^• scavenging assay at 515 nm, according to Laina et al. [31]. The indicator of half-maximal inhibitory concentration was expressed in the mass ratio of the extract to the DPPH free radical (mg_extr/mg_DPPH). All the above spectrophotometric assays were performed in a Shimadzu UV-1900i UV-Vis Spectrophotometer (Shimadzu Corporation, Kyoto, Japan) using quartz cuvettes of 1 cm length.

Finally, selected carotenoids, namely astaxanthin, lutein and β-carotene, were determined through reversed-phase high-performance chromatography (RP-HPLC), according to Stramarkou et al. [32], in a corresponding system consisting of a Jasco PU-1580 HPLC pump (Jasco Inc., Easton, MD, USA), a Jasco LG-1580-04 gradient unit (Jasco Inc., Easton, MD, USA), a Rheodyne 7125 injector (Rheodyne Europe GmbH, Bensheim, Germany) with 20 L loop, a Jones 7955 column chromatography heater (Jones Chromatography Limited, Wales, UK) and a Shimadzu SDP-M20A Diode Array Detector (DAD; Shimadzu Corporation, Kyoto, Japan). The stationary phase was immobilized in a YMC C30 reversed-phase column, 5 μm, 250 × 4.6 mm I.D. (YMC Co., Ltd., Kyoto, Japan). The mobile phase consisted of methanol, MTBE and aq. Phosphoric acid, 1% v/v, the column temperature was maintained at 35 °C and the flow rate at 1 mL/min. The linear gradient was adjusted according to

Table 1. The linear gradient adjusted for the RP-HPLC analysis.

Time (min)	aq. Phosphoric Acid, 1% v/v (% v/v)	Methanol (% v/v)	MTBE (% v/v)
0	4	81	15
15	4	66	30
23	4	16	80
27	4	16	80
27.1	4	81	15
35	4	81	15

. All the injected external carotenoid standards and C. vulgaris extracts were dissolved in ethyl acetate. The particular content (sel. CAR) was expressed in the mass ratio of the selected carotenoids to extract (mg/g_extr).

2.4. Experimental Design, Statistical Analysis & Process Optimization

In this study, a Face-Centered Central Composite Design (FC-CCD) was applied for the effective study of 4 operational parameters of MAE at 3 levels (−1, 0, +1), and response surface methodology (RSM) was performed for data correlation. The independent parameters studied were extraction temperature (T) from 40 to 60 °C, duration (t) from 5 to 25 min, solvent-to-biomass ratio (R) from 20 to 90 mL_solv/g_biom, and microwave power (P) from 300 to 800 watts. The examined responses were extraction yield and total phenolic (TPC), chlorophyll (CHL), and carotenoid (CAR) contents, selected carotenoid content (sel. CAR), and antioxidant activity (IC₅₀). According to

Table 2. Experimental conditions and results of MAE of C. vulgaris regarding yield, total phenolic (TPC), chlorophyll (CHL), selected carotenoid (sel. CAR), carotenoid content (CAR) and antioxidant activity (IC₅₀), according to the applied experimental design.

Run	T	P	t	R	Yield	TPC	CHL	sel. CAR	CAR	IC50
	(°C)	(watts)	(min)	(mLsolv/ gbiom)	(% w/w)	(mgGA	(mg/	(mg/	(mg/	(mgextr
						/gextr)	gextr)	gextr)	gextr)	/mgDPPH)
1	40	300	5	20	5.42	7.08	31.16	2.70	11.27	68.25
2	40	300	5	90	8.02	5.23	12.13	2.82	3.87	57.95
3	40	300	25	20	8.63	8.76	25.85	3.71	9.89	60.04
4	40	300	25	90	11.37	5.88	14.33	3.99	4.88	59.13
5	40	550	15	55	13.19	11.53	41.39	7.44	17.59	37.82
6	40	800	5	20	8.29	8.28	62.06	7.79	21.19	37.15
7	40	800	5	90	12.35	6.89	49.09	4.77	18.08	54.17
8	40	800	25	20	10.33	8.06	48.87	8.48	17.53	50.36
9	40	800	25	90	15.31	6.74	34.94	5.65	12.39	54.02
10	50	300	15	55	15.25	9.20	29.88	4.50	11.90	50.18
11	50	550	5	55	11.44	6.53	39.13	5.22	13.92	59.25
12	50	550	15	20	9.26	8.84	67.87	11.84	23.09	42.00
13	50	550	15	55	11.66	11.41	51.5	5.62	19.48	41.87
14	50	550	15	55	11.98	13.09	52.8	5.48	18.65	40.49
15	50	550	15	55	13.30	11.06	46.79	4.91	20.4	48.69
16	50	550	15	90	14.29	9.73	39.06	7.21	16.03	53.58
17	50	550	25	55	13.71	9.19	29.08	8.17	11.22	56.42
18	50	800	15	55	13.79	9.06	34.70	5.40	12.26	53.80
19	60	300	5	20	12.68	7.95	64.01	8.59	17.53	50.70
20	60	300	5	90	15.35	8.39	35.11	4.99	14.42	60.47
21	60	300	25	20	10.10	8.84	47.40	4.46	17.36	51.77
22	60	300	25	90	16.48	6.04	42.82	3.79	16.57	65.64
23	60	550	15	55	15.02	10.74	48.09	4.41	19.66	63.10
24	60	800	5	20	11.77	8.27	30.87	3.96	10.61	65.00
25	60	800	5	90	13.72	6.23	38.12	5.80	15.75	71.69
26	60	800	25	20	17.61	6.88	22.03	3.67	7.40	55.94
27	60	800	25	90	20.18	8.38	24.23	6.32	9.85	56.43
CV * (%)					5.77	7.48	5.12	5.78	3.66	8.20

* Coefficient of variation of the central point repetition (Runs: 13–15).

, the experimental design consisted of 8 axial points, 16 factorial points and 3 repetitions of the central point. The FC-CCD is considered one of the most popular designs of response surface methodology (RSM) and facilitates effect studies by avoiding a full-factorial design [33,34].

The data correlation of each response was expressed through the polynomial Equation (1). Response transformation, according to Equation (2), was also applied where considered mandatory.

$$\begin{gathered} Y=b_0+{{\displaystyle \sum }}_{i=1}^4{b}_i {\mathrm{X}}_{\mathrm{i}}+{{\displaystyle \sum }}_{i=1}^4{b}_{ii} {{\mathrm{X}}_{\mathrm{i}}}^2+{{\displaystyle \sum }}_{i=1}^3{{\displaystyle \sum }}_{j=i+1}^4{b}_{ij} {\mathrm{X}}_{\mathrm{i}} {\mathrm{X}}_{\mathrm{j}}+{{\displaystyle \sum }}_{i=1}^2{{\displaystyle \sum }}_{j=2}^3{{\displaystyle \sum }}_{k=3}^4{b}_{ijk} {\mathrm{X}}_{\mathrm{i}} {\mathrm{X}}_{\mathrm{j}} {\mathrm{X}}_{\mathrm{k}} \\ +{{\displaystyle \sum }}_{i=1}^3{{\displaystyle \sum }}_{j=i+1}^4{b}_{1ij} {\mathrm{X}}_{\mathrm{i}} {{\mathrm{X}}_{\mathrm{j}}}^2+{{\displaystyle \sum }}_{i=1}^3{{\displaystyle \sum }}_{j=i+1}^4{b}_{2ij} {{\mathrm{X}}_{\mathrm{i}}}^2{\mathrm{X}}_{\mathrm{j}} \end{gathered}$$

(1)

Y′ = f(Y) ↔ Y = f(Y′)

(2)

where Y and Y′ stand for the corresponding response and transformation, respectively, $b_0$, $b_i$, $b_{ii}$, and $b_{ij}$ stand for the constant, linear, quadratic and 2-factor interaction coefficients, respectively, $b_{ijk}$, $b_{1ij}$, and $b_{2ij}$ stand for the cubic coefficients, and X_i, X_j and X_k stand for the examined independent variables.

Fisher’s statistical test (F-test) was applied for the determination of the statistical significance with a 95% significance level. Finally, the experimental design, modeling, and statistical analysis of the experimental data were performed using the Design Expert^® Version 13 software trial version (Stat-Ease Inc., Minneapolis, MN, USA).

3. Results & Discussion

3.1. MAE of Bioactive Compounds

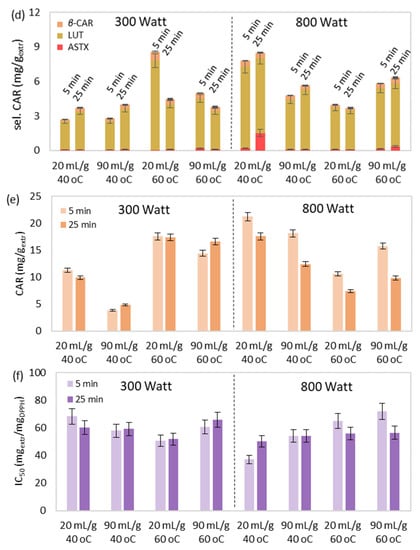

The extracts obtained from MAE demonstrated a dark green color and a slight fishy odor. The experimental results of all the examined responses are presented in Table 2. The extraction yield presented a wide value range depending on the applied extraction conditions and varied from 5.42 to 20.18% w/w, which correspond to the mildest and the most intense operational conditions, respectively.

Moreover, lutein was the dominant carotenoid among the selected carotenoids that were identified and quantified through the RP-HPLC (Figure 1d, Figure 2d, Figure 3d, Figure 4d and Figure 5d). Chlorella is, in fact, considered a carotenoid-abundant biomass and especially rich in lutein [35]. Lutein has already been a dominant target compound for extraction from Chlorella biomass with the conventional SLE [24,36,37,38], the innovative MAE [21], as well as SFE [36,38,39].

Additionally, the extract’s chlorophyll content mainly consisted of chlorophyll a. Chlorophyll b was present in smaller quantities, while chlorophyll c was even more limited (Figure 1c, Figure 2c, Figure 3c, Figure 4c and Figure 5c). This observation could be justified by the dominance of chlorophyll a over b and c in Chlorella biomass [40,41].

Furthermore, the effect of the independent variables of extraction temperature, duration, solvent-to-biomass ratio and microwave power is presented in Figure 1, Figure 2, Figure 3, Figure 4 and Figure 5 and discussed in detail in the following sections.

3.1.1. Effect of Time

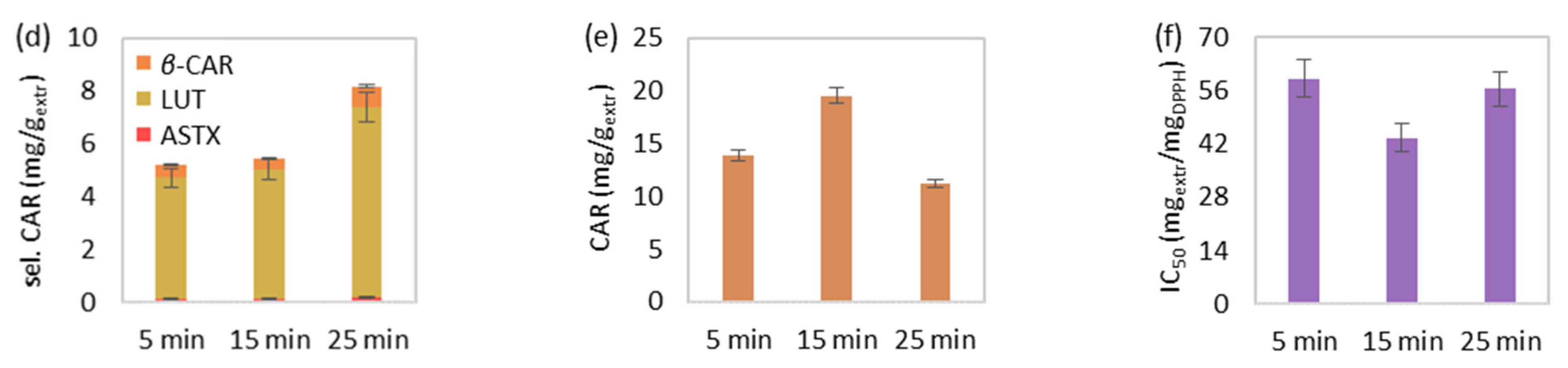

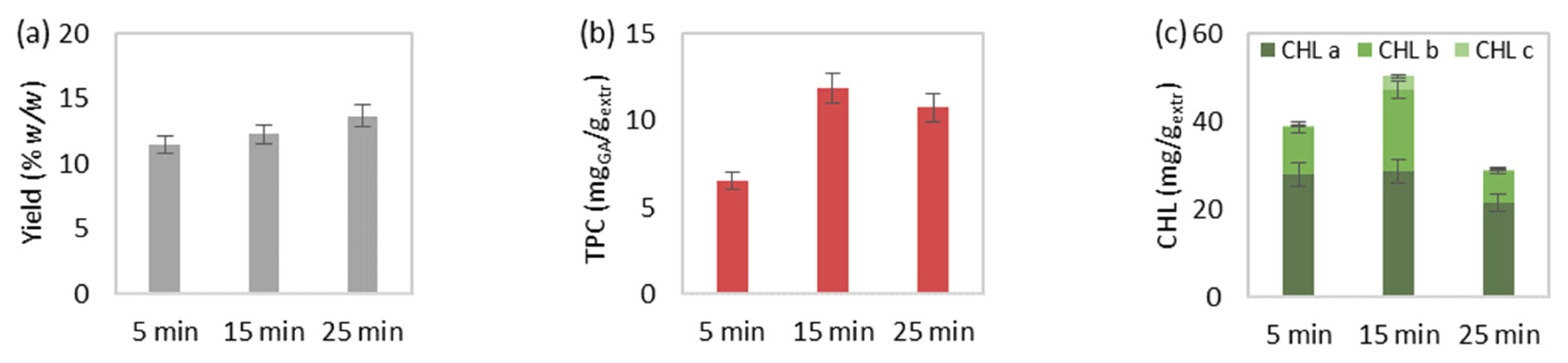

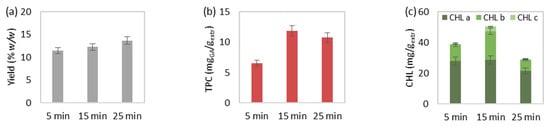

The effect of increasing time, from 5 to 15 and eventually 25 min, on the MAE at 50 °C, 55 mL_solv/g_biom and 550 watts is illustrated in Figure 1. The extraction yield was slightly increased during the elevation of extraction duration (Figure 1a). In addition, the total phenolic (Figure 1b), chlorophyll (Figure 1c), carotenoid content (Figure 1e), and extract’s antioxidant activity (Figure 1e) were favored during time increase from 5 to 15 min, while extraction for 25 min led to a value decrease of the aforementioned responses. However, the extraction for 25 min improved the selected carotenoid content, especially lutein (Figure 1d). In general, the increase in extraction time results in the improvement of extraction yield [42]. Still, the prolonged extraction duration and extended exposure to microwave irradiation may lead to the degradation of certain thermolabile bioactive compounds [43]. Similar observations were also made in other studies regarding the deterioration of chlorophyll [44], carotenoid [21,45] and phenolic content [42,46], as well as the extract’s antioxidant activity [42,46] of algal or different types of extracts after prolonged MAE.

3.1.2. Effect of Solvent-to-Biomass Ratio

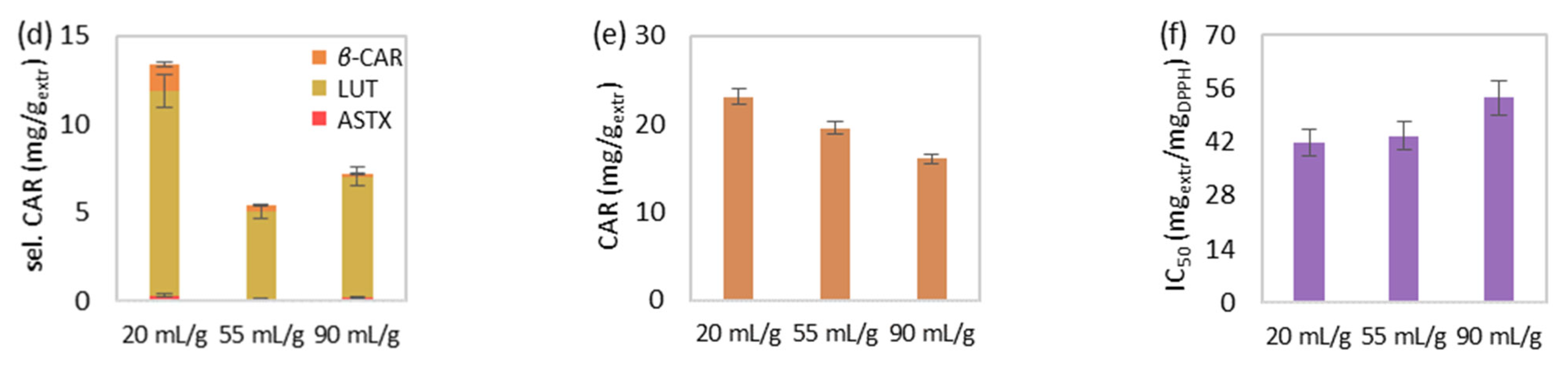

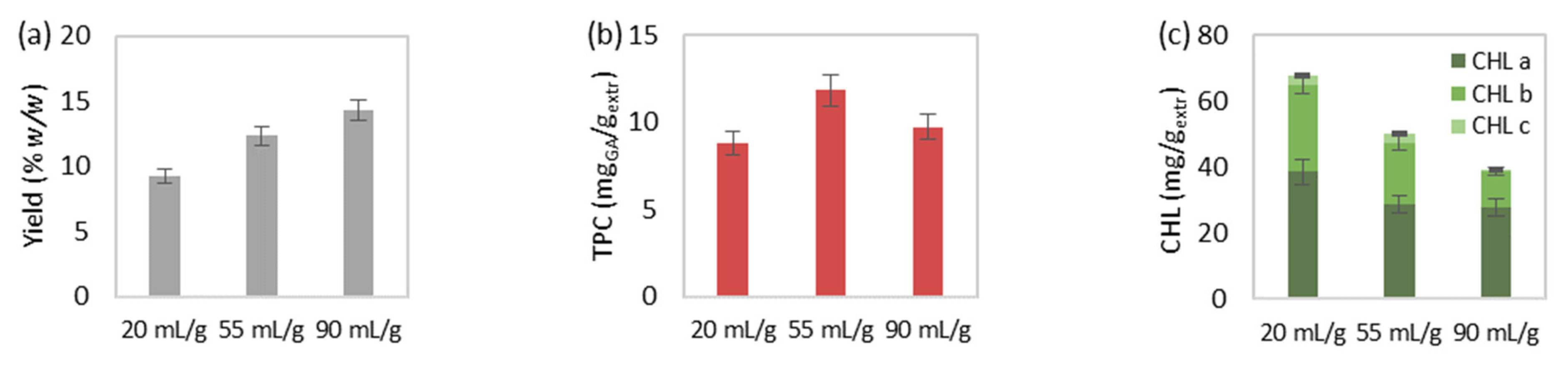

The increase of solvent-to-biomass ratio, from 20 to 55 and eventually 90 mL_solv/g_biom, during MAE at 50 °C, 15 min and 550 watts led to extraction yield improvement (Figure 2a). However, chlorophylls (Figure 2c), carotenoids (Figure 2e), as well as the extract’s antioxidant activity (Figure 2f) were not favored by the solvent-to-biomass ratio rise and therefore were decreased. The selected carotenoid content (Figure 2d) was negatively affected by the ratio increase, but lutein was slightly increased above 55 mL_solv/g_biom. Finally, total phenolic content (Figure 2b) initially improved from 20 to 55 mL_solv/g_biom, while further solvent-to-biomass increase led to reduced values.

According to the literature, an increase in the solvent-to-biomass ratio on MAE is considered contradictory, leading either to increased extraction yield [47,48,49] or enhanced yield, which afterward decreases [50,51,52,53]. The solvent-to-biomass ratio increase offers a greater concentration gradient to the biomass-solvent system, contributes to the solvent’s amount sufficiency and mixing adequacy and therefore offers faster and intensified diffusion phenomena [54,55]. This could justify the yield’s rise during the solvent-to-biomass ratio’s increase from 20 to 90 mL_solv/g_biom, as well as the initial enhancement of total phenolic content from 20 to 55 mL_solv/g_biom. However, solvent increment during MAE demands higher microwave power and duration in order to reach the required temperature [15]. In addition, the solvent-to-biomass ratio’s increase might lead to the dissolution and extraction of undesirable compounds and hence lower solvent selectivity toward components of interest [56]. The above reasons might be responsible for the decreasing values of the examined pigment concentration and antioxidant activity of the extracts during solvent-to-biomass ratio increase from 20 to 90 mL_solv/g_biom, as well as the reduced phenolic content for ratio above 55 mL_solv/g_biom.

3.1.3. Effect of Temperature

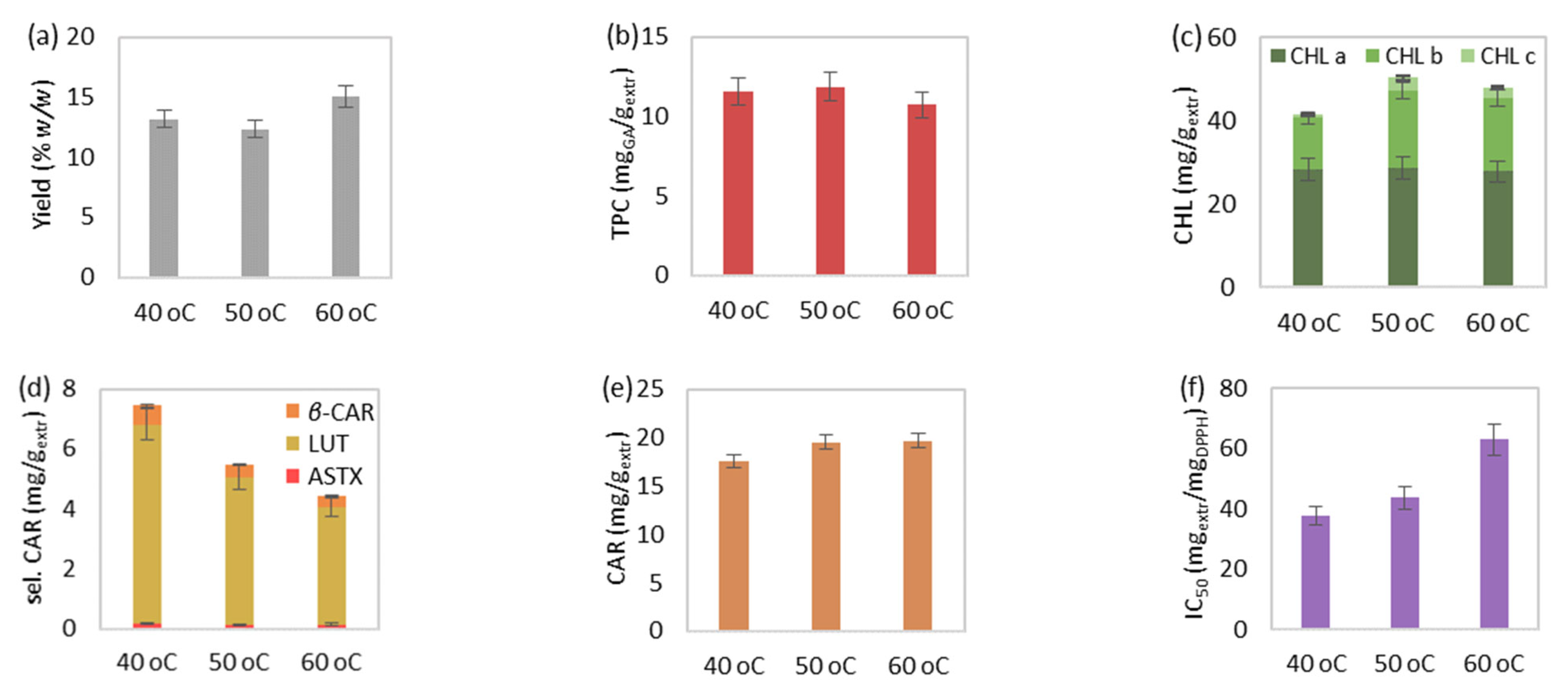

The effect of increasing temperature, from 40 to 50 and eventually 60 °C, on the MAE at 15 min, 55 mL_solv/g_biom and 550 watts is illustrated in Figure 3. The initial increase from 40 to 50 °C did not favor the extraction yield, while further temperature elevation led to improved recovery of total extract at 60 °C (Figure 3a). Moreover, the extract’s total pigment content was moderately improved during temperature increase (Figure 3c,e). The above observations could be justified by the decrease of solvent’s viscosity from 40 to 60 °C, and therefore an increase of its solvation power [57,58].

On the other hand, the extract’s antioxidant activity deteriorated during the temperature increase (Figure 3f). This could be attributed to the reduced content of lutein (Figure 3d), which presents much higher antioxidant activity compared to other carotenoids, e.g., 15- and 10-time folds of lycopene and β-carotene [59]. In particular, the selected carotenoid content presented a downward trend, probably due to the domination of their degradation instead of their extraction, also noted in the literature during microwave radiation at temperatures close to 60 °C [60]. Moreover, chlorophylls present appreciable antioxidant activity at high concentrations [61], and thus the moderate increase of chlorophyll content could not significantly affect the extract’s antioxidant activity.

Finally, total phenolic content presented a slight decrease, but the temperature rise was considered imperceptible (Figure 3b). A similar weak temperature effect was also observed in the literature [53,62].

3.1.4. Effect of Microwave Power

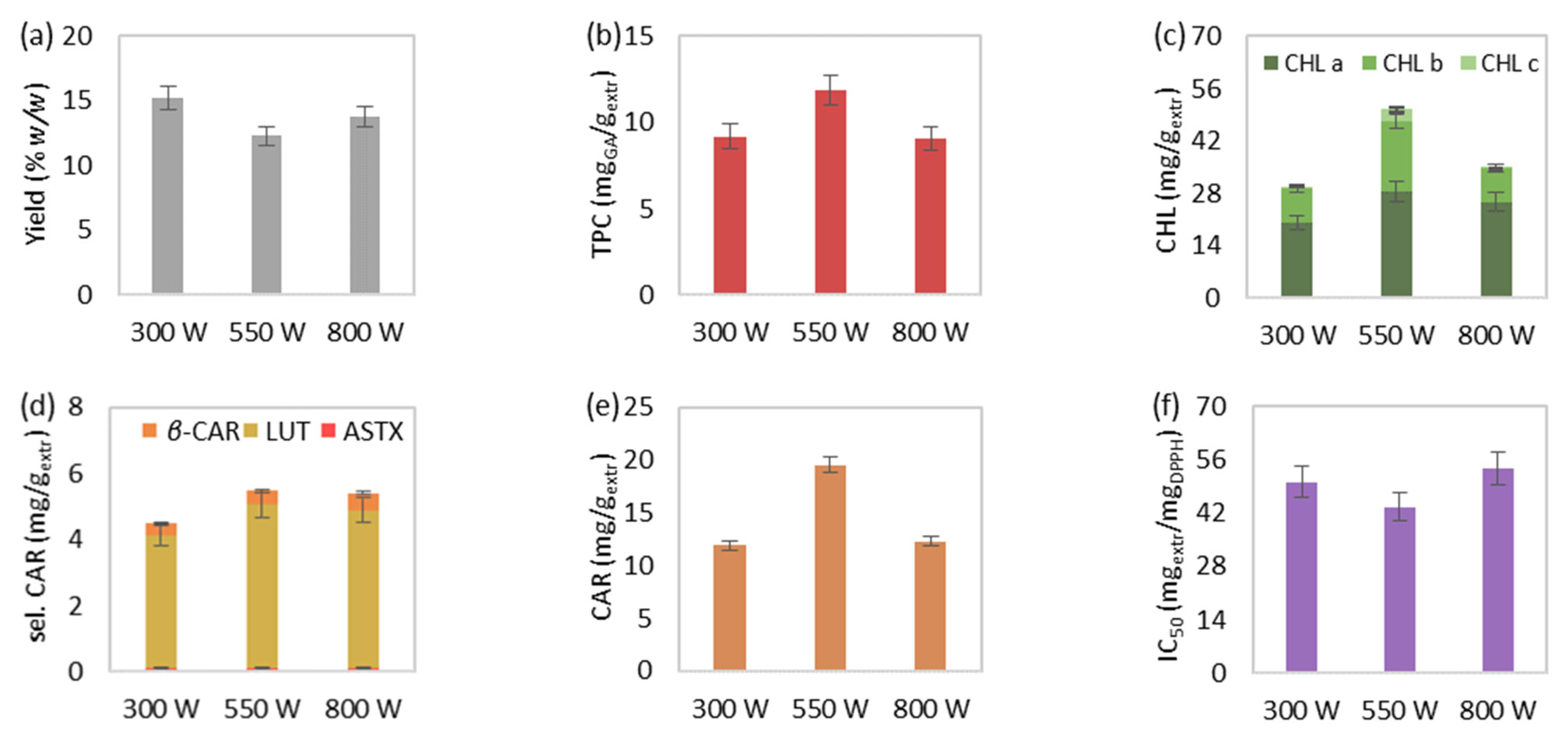

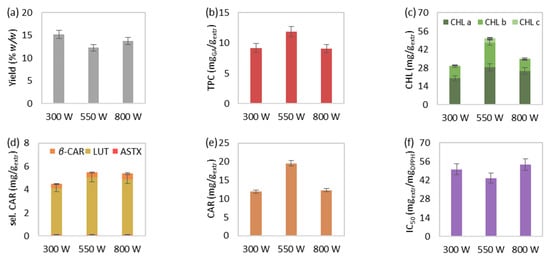

The effect of increasing microwave power, from 300 to 550 and eventually 800 watts, on the MAE at 15 min, 55 mL_solv/g_biom and 50 °C is illustrated in Figure 4. The extraction yield was overall not favored by the microwave power elevation. A decrease at 550 watts was noted, followed by a slight increase at 800 watts, which, however, did not exceed the extraction yield at 300 watts (Figure 4a). Microwave power increase from 300 to 550 watts significantly favored total phenolic (Figure 4b), chlorophyll (Figure 4c), and carotenoid content (Figure 4e), while the extract’s antioxidant activity (Figure 4f) was affected accordingly. Nevertheless, MAE under the high microwave power value of 800 watts worsened the aforementioned responses.

During the microwave power increase from 300 to 550 watts, the augmented microwave radiation improved the content of the examined bioactive compounds as a result of the boosted molecular interaction between the biomass and the electromagnetic field. However, further increase of the microwave power above 550 watts could possibly be responsible for the deterioration and thermal degradation of the extract’s bioactive components [63,64]. Similar findings were also observed regarding the extracted phenolic compounds and pigments, as well as the extract’s bioactivity from other natural raw materials [46,53,63]. Finally, an MAE study of proteins from C. vulgaris showed that the microwave power increase significantly reduced the protein recovery yield [22]. Considering the high protein content of C. vulgaris, as emerged from a previous study (~45% dw) [25], a decreasing extraction yield could be considered a possible outcome during extraction under excessive microwave power.

3.1.5. Synergistic Effect

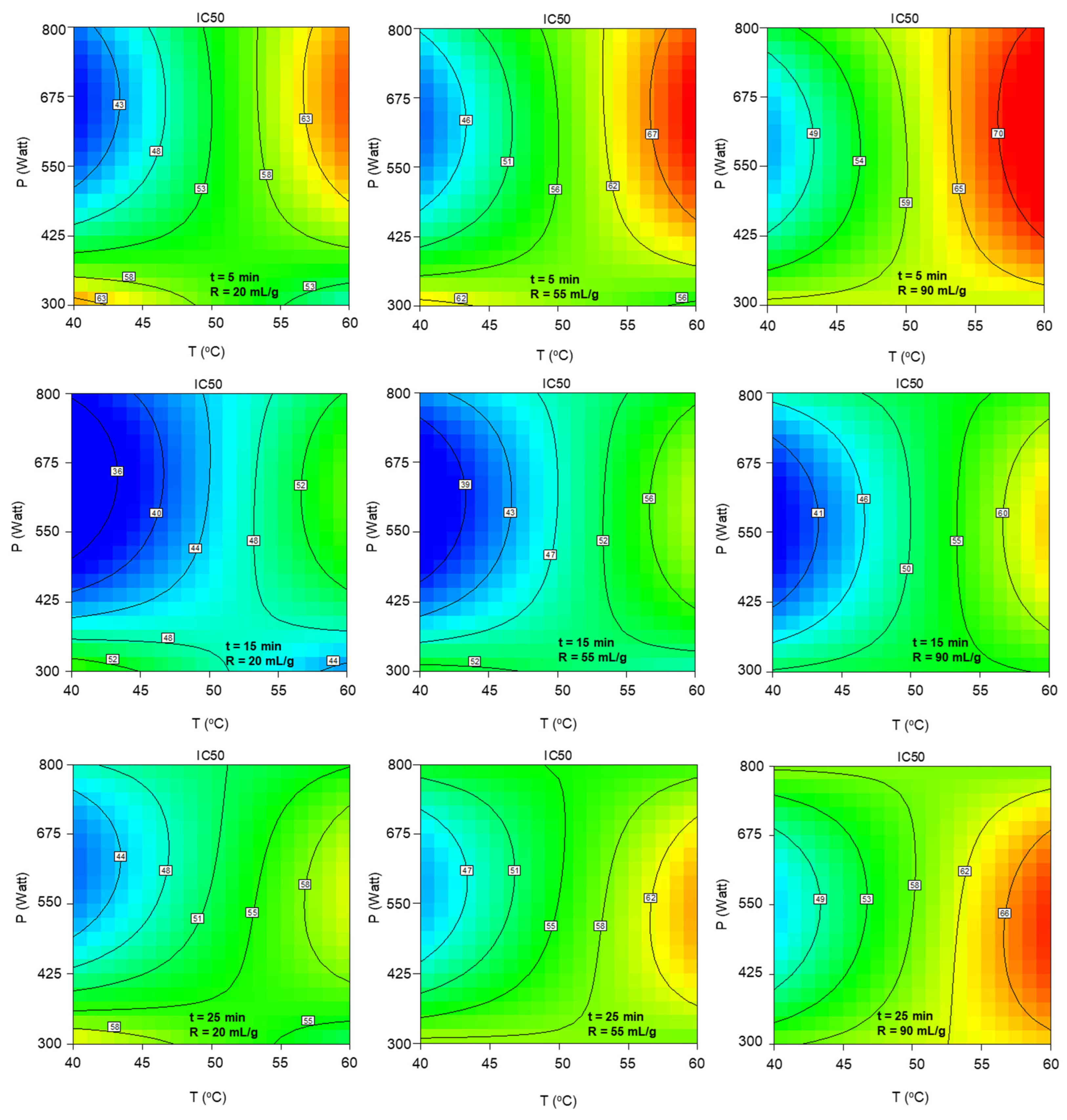

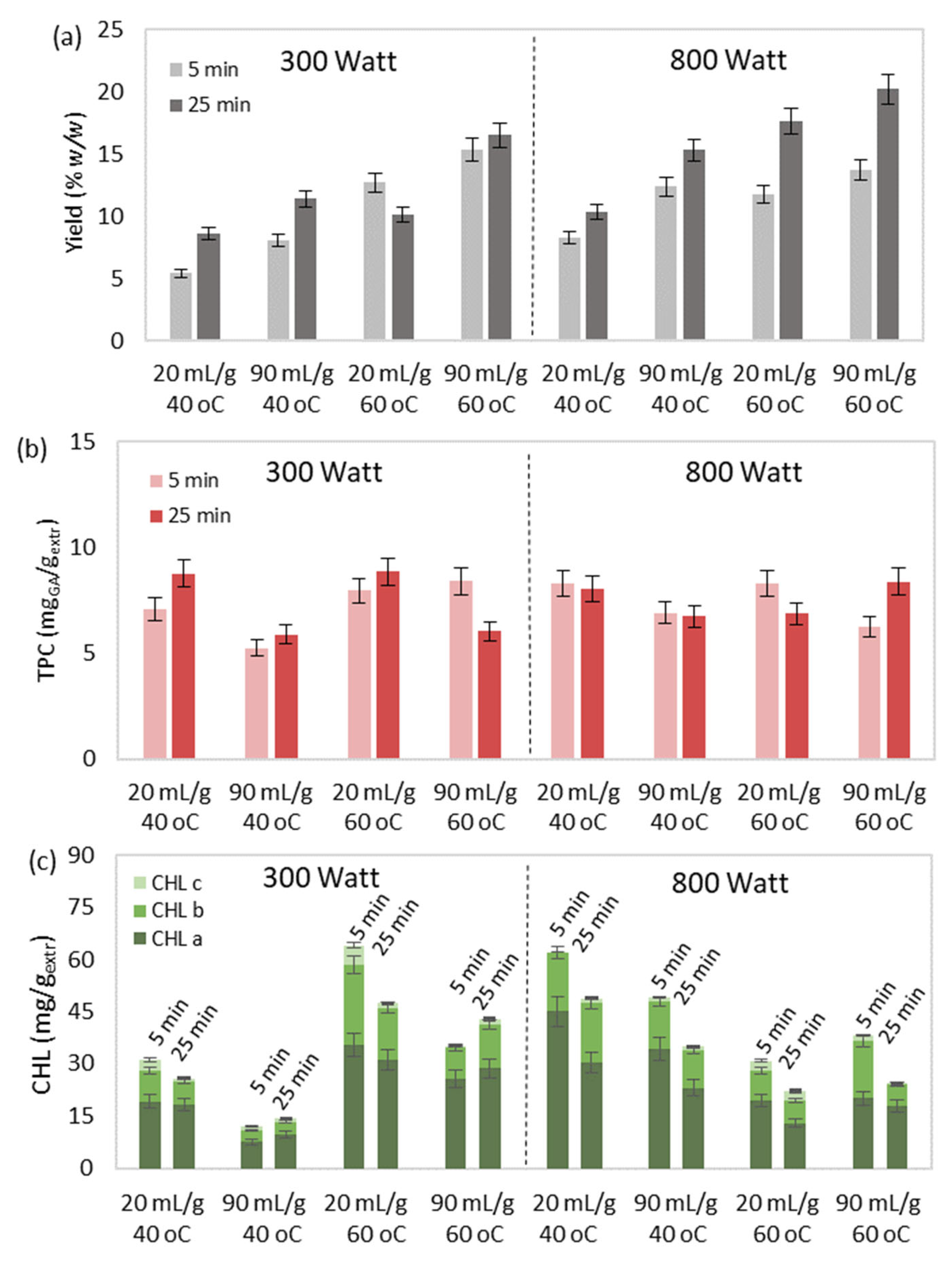

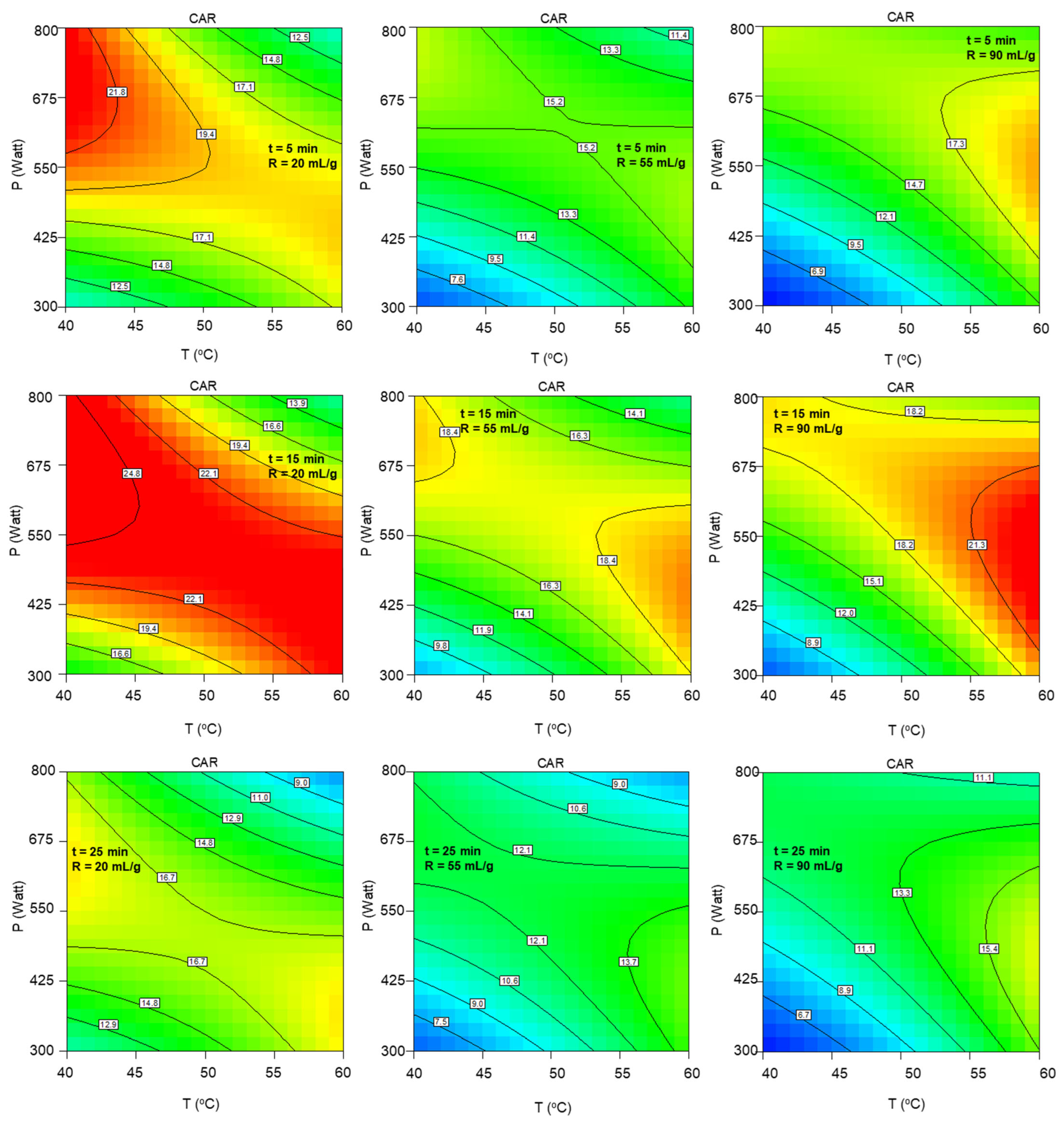

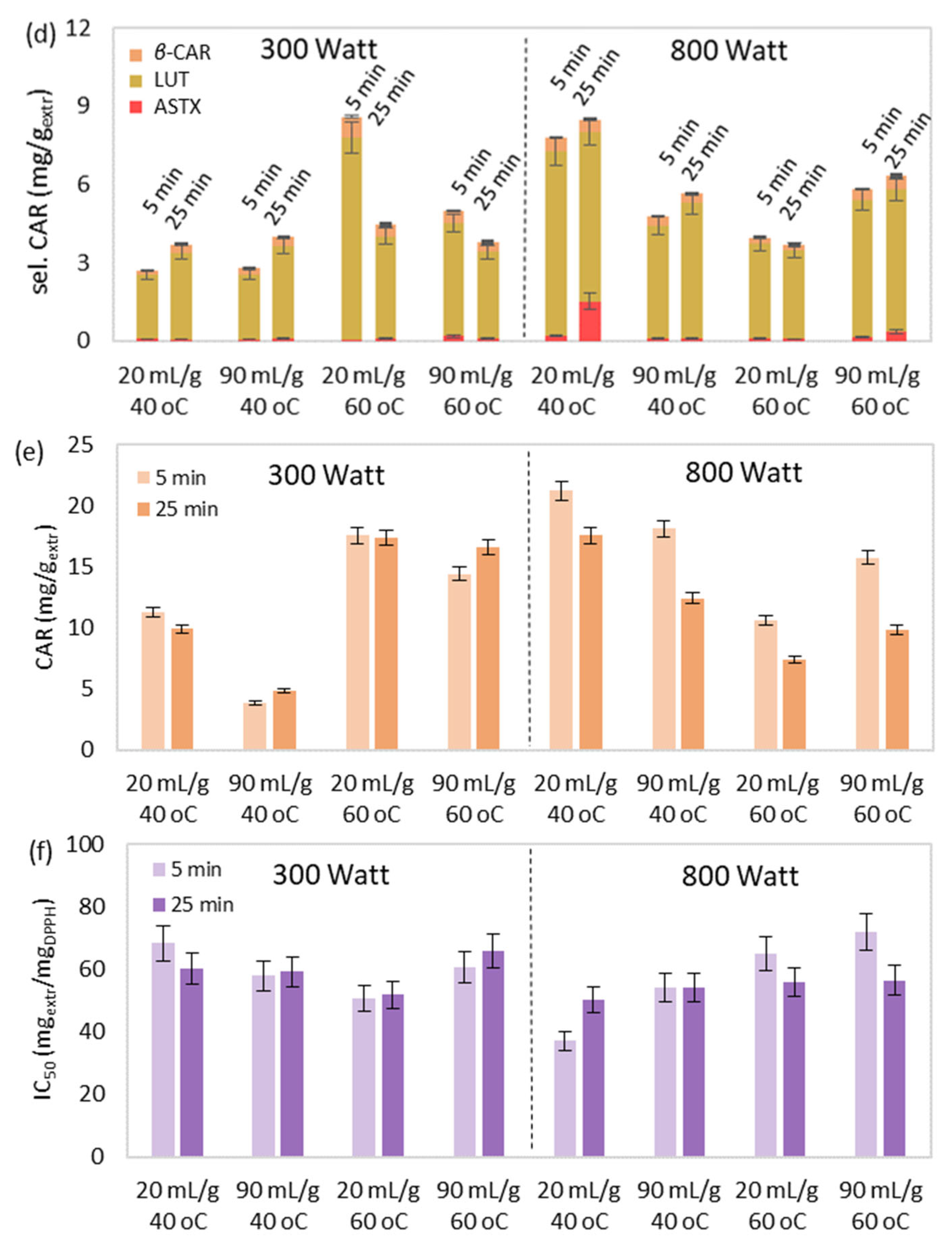

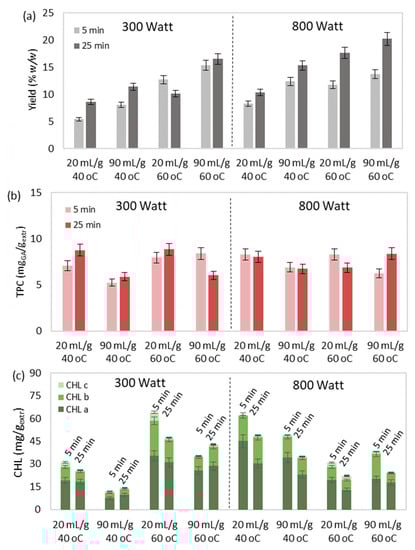

The understanding of the synergistic effect of the examined operational conditions was also attempted through Figure 5. It was observed that the simultaneous increase of extraction temperature, duration, solvent-to-biomass ratio and microwave power led to significantly improved yield (Figure 5a).

However, excessive values of the aforementioned parameters could be responsible for the deterioration and degradation of the extract’s bioactive compounds [65]. More specifically, improved pigment content (Figure 5c–e) and antioxidant activity (Figure 5f) were observed under either high temperature and low microwave power or low temperature and high microwave power during low values of extraction duration and solvent-to-biomass ratio. Finally, no specific trend was observed regarding the total phenolic content (Figure 5b), with the lowest values occurring during MAE at low temperatures and microwave power levels and high solvent-to-biomass ratios.

3.2. Statistical Analysis & Process Optimization

3.2.1. Regression Model Equations

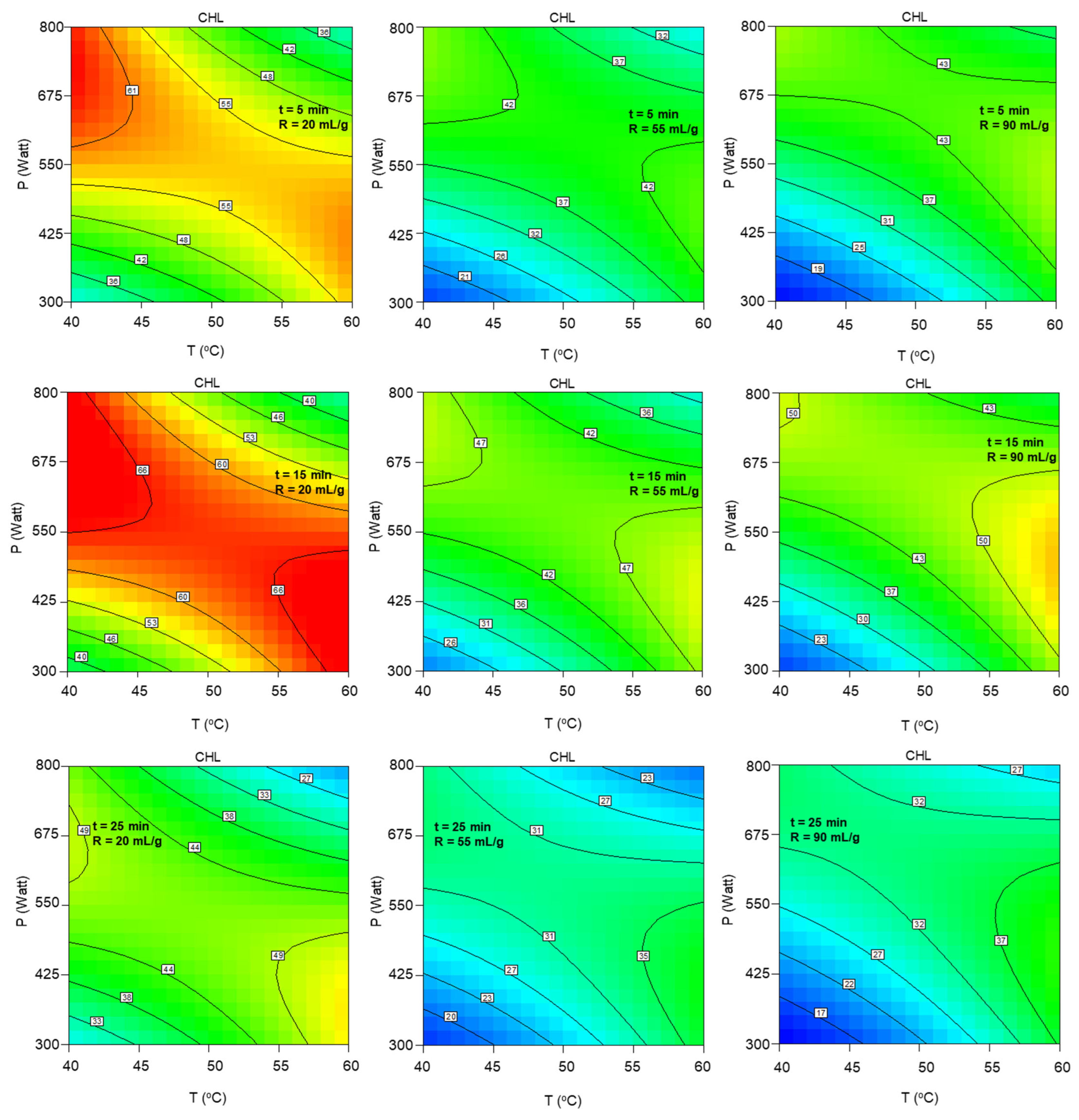

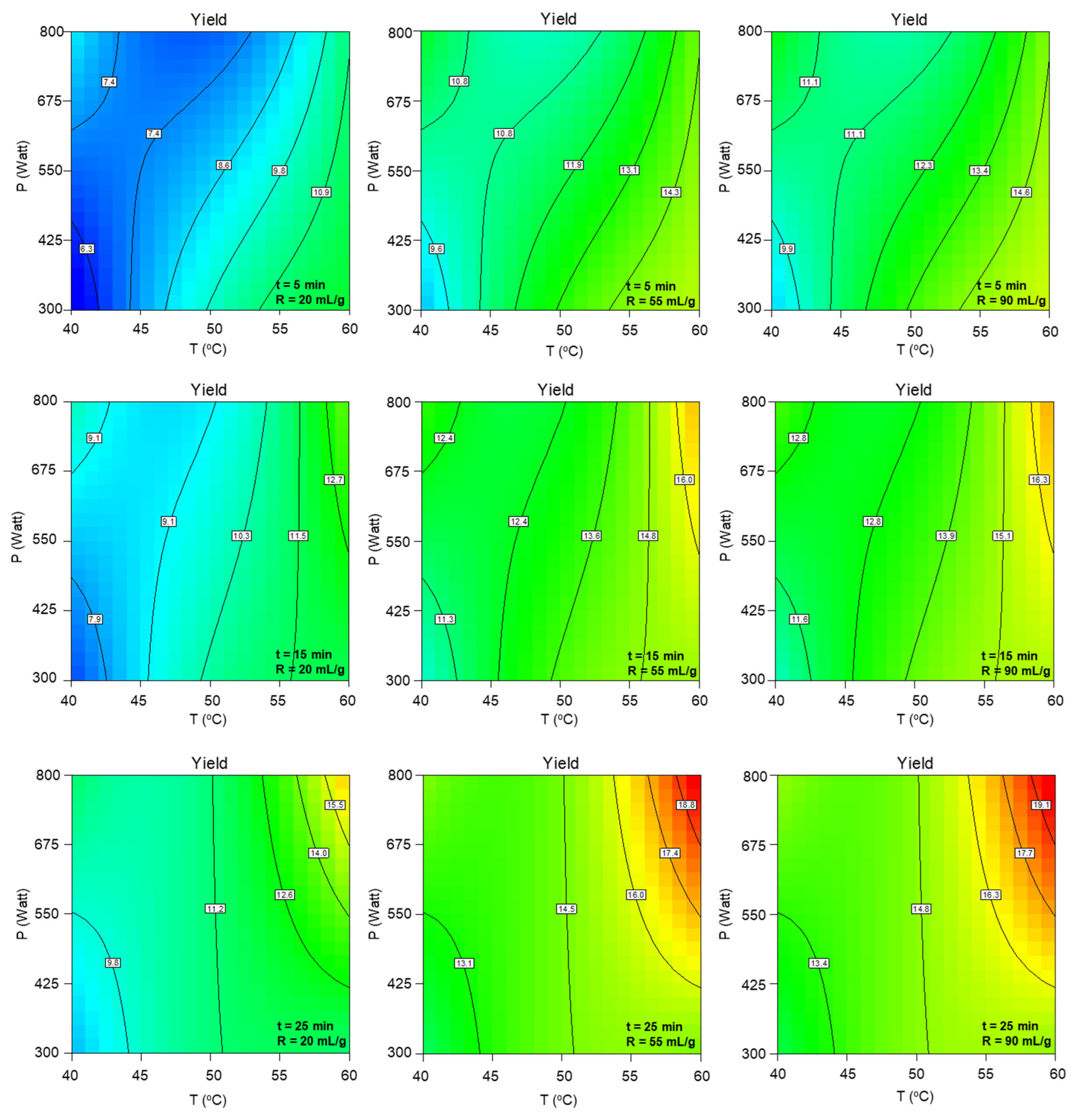

The analysis tool of ANOVA was employed for the statistical analysis of the examined responses. The results of ANOVA are presented and evaluated in Appendix B. The Equations (1) and (2) were applied to fit the experimental responses of yield, extract’s total chlorophyll and carotenoid content, as well as antioxidant activity (

Table 3. Optimal MAE conditions of bioactive compounds from Chlorella vulgaris.

Factor	Value
T (°C)	60
P (watts)	300
t (min)	14
R (mLsolv/gbiom)	22
Response	Predicted	Experimental
Yield (% w/w)	12.00	11.14
Total Chlorophylls (mg/gextr)	67.73	63.36
Selected Carotenoids (mg/gextr)	n/a *	7.06
Total Carotenoids (mg/gextr)	22.83	24.88
Total Phenolics (mg/gextr)	n/a *	9.34
IC50 (mgextr/mgDPPH)	43.00	40.49

* Not applicable.

) and are presented below:

Yield = −115.1271 + 4.3438 T + 0.2334 P + 1.0443 t + 0.1885 R − 0.0090 TP − 0.0215 T t − 0.0016 P t − 0.0374 T² − 0.0012 R² + 0.3828 10⁻⁴ T P t + 0.8281 10⁻⁴ T² P

(3)

CHL′ = −0.6675 + 0.0686 T + 0.0120 P + 0.0775 t − 0.0448 R − 0.1400 10⁻³ T P + 0.3049 10⁻³ T R − 0.3119 10⁻⁴ P t + 0.1409 10⁻⁴ P R − 0.4491 10⁻⁴ P² − 0.0023 t²
+ 0.1540 10⁻³ R²

(4)

Chlorophylls = exp^CHL′

(5)

CAR′ = −1.5102 + 0.0580 T + 0.0124 P + 0.0964 t − 0.0506 R − 0.1365 10⁻³ T P + 0.4853 10⁻³ T R − 0.4068 10⁻⁴ P t + 0.1564 10⁻⁵ P R − 0.4901 10⁻⁵ P² − 0.0027 t²
+ 0.1296 10⁻³ R²

(6)

Carotenoids = exp^CAR′

(7)

IC₅₀ = 416.4306 − 6.7840 T − 1.2351 P − 5.0817 t − 1.1183 R + 0.0237 T P + 0.0545 T t + 0.0228 T R + 0.0061 P t + 0.0019 P R + 0.8633 10⁻³ P² + 0.0805 t² − 0.1266 10⁻³ T P t − 0.3453 10⁻⁴ T P R − 0.1656 10⁻⁴ T P²

(8)

where yield is expressed in % w/w, carotenoids and chlorophylls are expressed in mg/g_extr, and the antioxidant’s activity quantitative measure IC₅₀ is expressed in mg_extr/mg_DPPH. The correlation of the extract’s total phenolic and selected carotenoid content was not accomplished to the desired extent; thus, the corresponding models were not included.

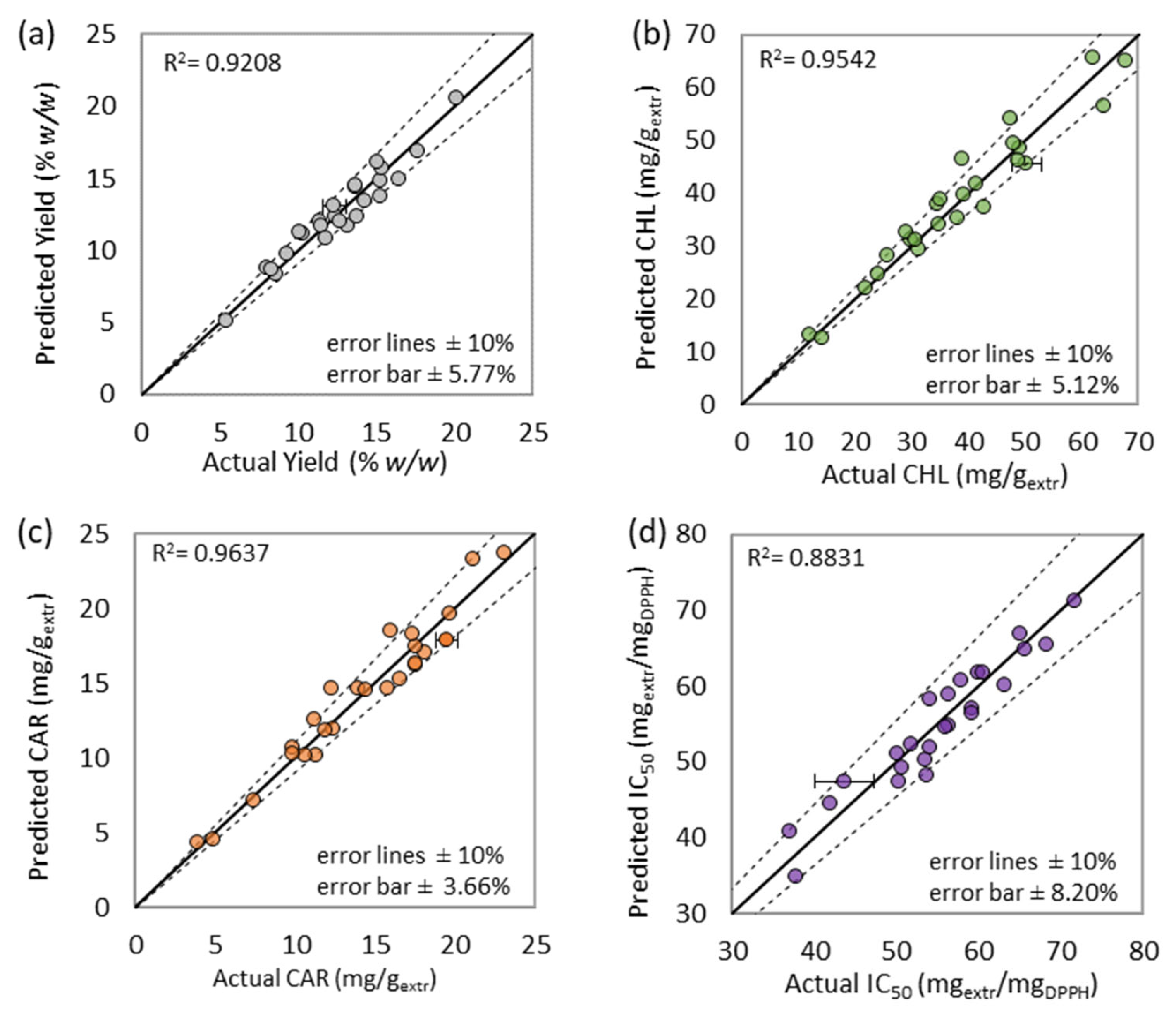

The ANOVA results (Appendix B) led to a successful data correlation, while the models’ satisfactory accuracy and precision are also proved by the affinity of the predicted and experimental data presented in Figure 6. According to the information provided in Appendix B, the extraction yield is considered highly affected by the individual effect of temperature and solvent-to-biomass ratio and the combined effect of temperature, pressure, and duration (T P t). Moreover, chlorophyll content is proved highly dependent on solvent-to-biomass ratio, while the same applies between antioxidant activity and temperature. Finally, all the successfully associated responses were significantly affected by the combined factor of temperature and microwave power (T P).

3.2.2. Optimization of MAE’s Operational Conditions & Model’s Verification

Regarding the optimization process followed, the examined responses of yield and pigment content were set to maximize, and IC₅₀ was set to minimize, as the independent variables ranged in their domain. Among the proposed solutions, the final choice was based on the maximization of the objective function of desirability, the possibility of low microwave power application and, thus, the moderate cooling needs of the extraction vessel to maintain a temperature-controlled system. Therefore, MAE’s optimal conditions chosen were 60 °C, 300 watts, 14 min, and 22 mL_solv/g_biom.

Finally, a confirmation experiment was carried out under the proposed set of operational conditions, the results of which are presented in Table 3. None of the experimental responses exceeded 10%, indicating the sufficient description and adequate precision of the models [66,67].

3.3. Comparison of MAE, SLE & SFE

The selected methods of SLE, MAE, SFE and SFE-10% ethanol were examined for comparison purposes. SLE, MAE and SFE were conducted under optimal conditions [25,27], while a typical low cosolvent concentration [68,69] was also examined during SFE-10% ethanol. The extraction conditions of each method are presented in

Table 4. The applied conditions of conventional solid-liquid extraction (SLE), microwave-assisted extraction (MAE), supercritical fluid extraction with CO₂ (SFE), and supercriticzal fluid extraction with CO₂ and cosolvent addition (SFE-10% ethanol).

Parameter	SLE	MAE	SFE	SFE-10% Ethanol
Solvent	aq. Ethanol 90% v/v	aq. Ethanol 90% v/v	CO2	CO2-Ethanol 90/10 w/w
Solvent-to-biomass ratio (mLsolv/gbiom)	30	22	100	100
Stirring (rpm)	500	500	n/a*	n/a*
Temperature (°C)	30	60	60	60
Pressure (bar)	1	1	250	250
Solvent flow rate (g/min)	n/a *	n/a*	40	40
Microwave power (watts)	n/a *	300	n/a*	n/a*
Duration (h)	24	0.23	3.3	3.3

* Not applicable.

.

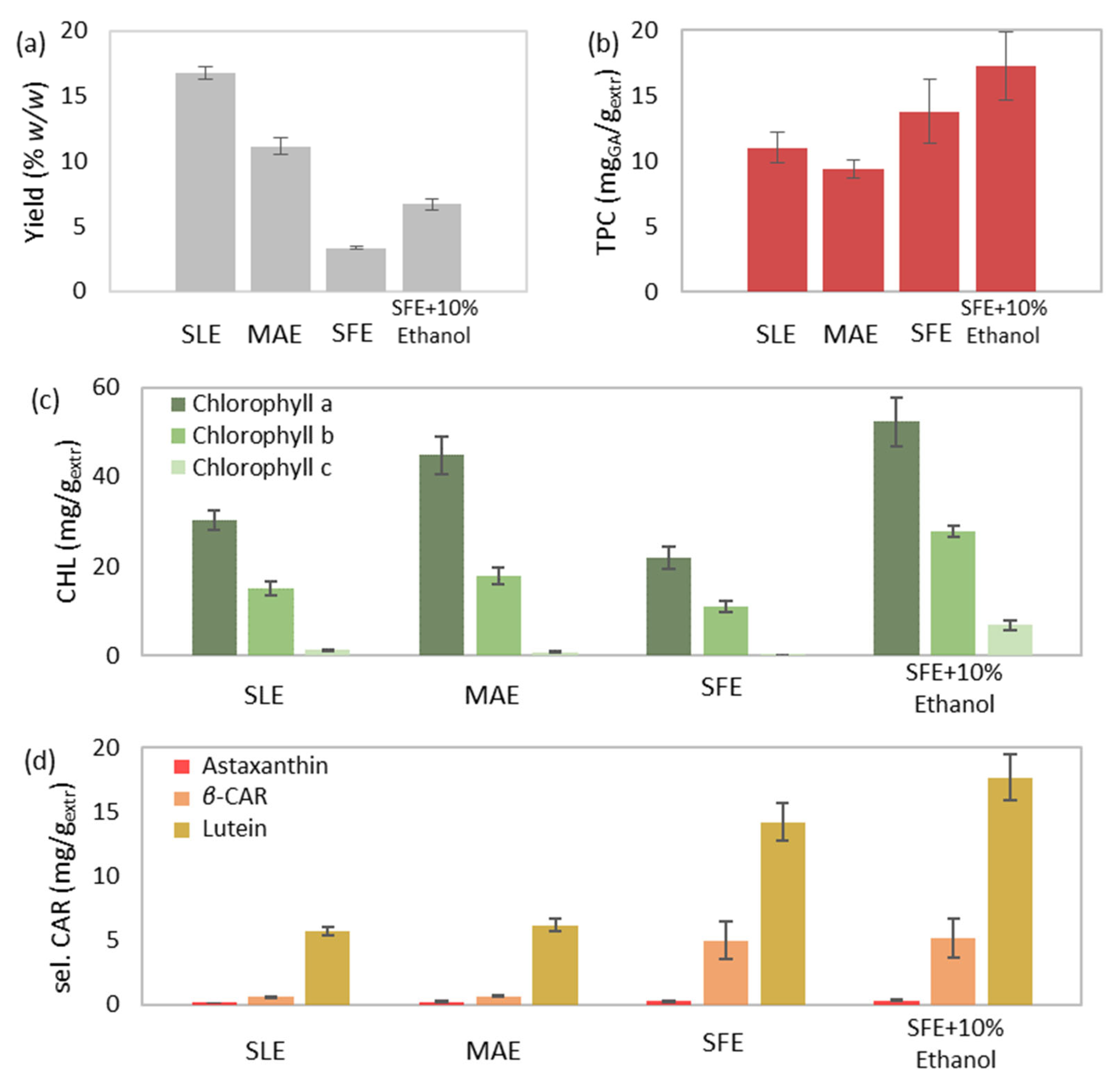

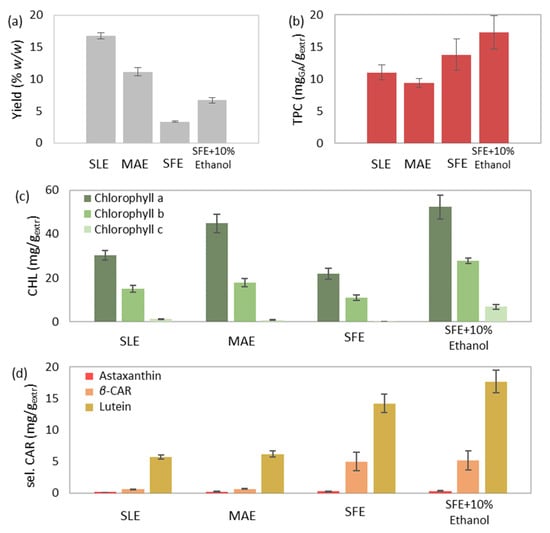

The extraction yield increased in the following order: SFE (3.32% w/w) < SFE-10% ethanol (6.70% w/w) < MAE (11.14% w/w) < SLE (16.77% w/w; Figure 7a). The simple yet protracted process of SLE resulted in the highest extraction efficiency. Thereinafter, MAE resulted in a 34% decreased yield compared to SLE. However, the duration of MAE was almost 104 times shorter than SLE. The application of SFE led to an 80% reduced yield compared to SLE; nevertheless, it was achieved more than seven times faster. Finally, the addition of ethanol during SFE allowed the co-extraction of more polar compounds enhanced SFE and doubled the extraction yield. In conclusion, among all the performed methods, MAE offered the foremost yield in the shortest possible time and with the lowest solvent requirements.

Regarding the phenolic compounds, the use of polar solvents has been reported to favor the extraction of flavonoid glycosides and phenols of high molecular weight, whereas non-polar solvents are considered more effective for phenolic acids, flavonoid aglycons and certain phenolic terpenes [70]. It could be assumed that similar types of phenolic compounds were extracted during SLE (11.02 mg_GA/g_extr) and MAE (9.34 mg_GA/g_extr) and that the assistance of the conventional extraction via microwave power led to a comparable recovery in reduced time (Figure 7b). On the other hand, SFE probably extracted other phenolic types of lower polarity and led to a slightly enhanced phenolic content (13.80 mg_GA/g_extr). Finally, the highest phenolic content was derived from SFE-10% ethanol (17.30 mg_GA/g_extr), probably due to the recovery of several phenolic types of varying polarities. However, the significant experimental error did not allow for safe conclusions.

The individual and total chlorophyll content presented an increasing trend in the following order: SFE < SLE < MAE < SFE-10% ethanol (Figure 7c). A polar solvent is considered capable of easily dissolving green pigments [71]. Consequently, the chlorophyll content of SLE (46.65 mg/g_extr) and MAE (63.36 mg/g_extr) emerged higher than the less chlorophyll selective method of SFE (32.88 mg/g_extr). Moreover, the presence of ethanol has been proven efficient for the extraction of chlorophylls during SFE by modifying the solvent’s polarity [72]. Therefore, the extract’s chlorophyll content derived from SFE-10% ethanol (86.95 mg/g_extr) prevailed over the rest of the extracts.

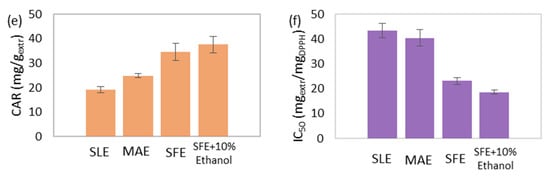

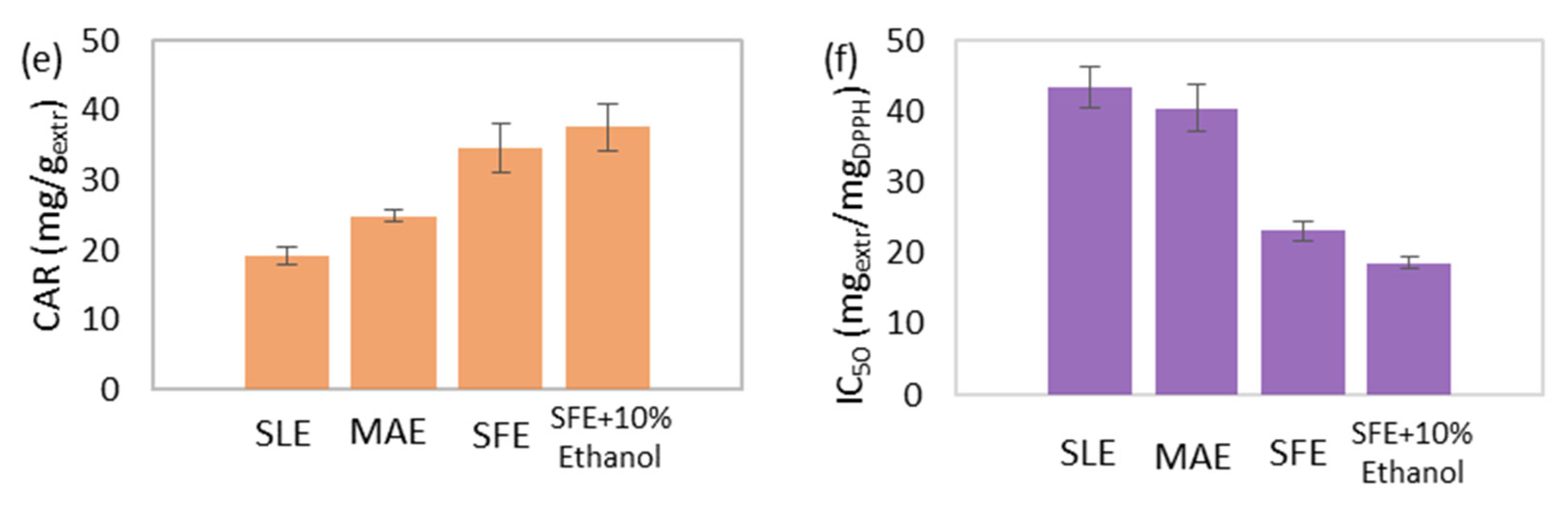

The total carotenoid content presented an increasing trend with the following order: SLE (19.06 mg/g_extr) < MAE (24.88 mg/g_extr) < SFE (34.61 mg/g_extr) < SFE-10% ethanol (37.60 mg/g_extr; Figure 7e). Similarly, the selected carotenoid content followed the same increasing trend (Figure 7d). Carotenoids are non-polar components consisting of non-polar hydrocarbons and more polar xanthophylls [73]. Among the abundance of carotenoids, the hydrocarbon β-carotene, as well as the xanthophylls, lutein, astaxanthin, canthaxanthin, violaxanthin and zeaxanthin have been identified in C. vulgaris biomass [8,74]. Utilizing a polar solvent during conventional SLE favored the extraction of lutein and other more polar carotenoids over the non-polar β-carotene. Providing microwave power through MAE using the same solvent simply enhanced the solubility of more polar carotenoids. Applying SFE with a non-polar solvent increased both hydrocarbons and xanthophylls, while the addition of a polar cosolvent during SFE-10% ethanol enhanced the coextraction of more polar carotenoids (e.g., lutein) and led to the extract with the highest carotenoid content.

Moreover, IC₅₀ presented a decreasing trend with the following order: SLE (43.51 mg_extr/mg_DPPH) > MAE (40.49 mg_extr/mg_DPPH) > SFE (23.17 mg_extr/mg_DPPH) > SFE-10% ethanol (18.66 mg_extr/mg_DPPH; Figure 7f), which is inversely proportional to antioxidant power. Carotenoids are valuable bioactive components that present a notable antioxidant activity [59]. Moreover, chlorophyll content can positively affect antioxidant power in case of high concentration [61]. Consequently, the chlorophyll and carotenoid richest extract emerging from SFE-10% ethanol presented the strongest antioxidant activity.

Finally, the extracts of SLE and MAE presented a dark green color and a characteristic fishy odor, whereas the dark brown-green extract of SFE-10% ethanol and the dark yellow SFE extract presented no unpleasant smell. The fishy odor of the extract was avoided during SFE due to the abrupt depressurization of CO₂ and the subsequent removal of the VOCs, the volatile organic compounds responsible for the odor of microalgae [75].

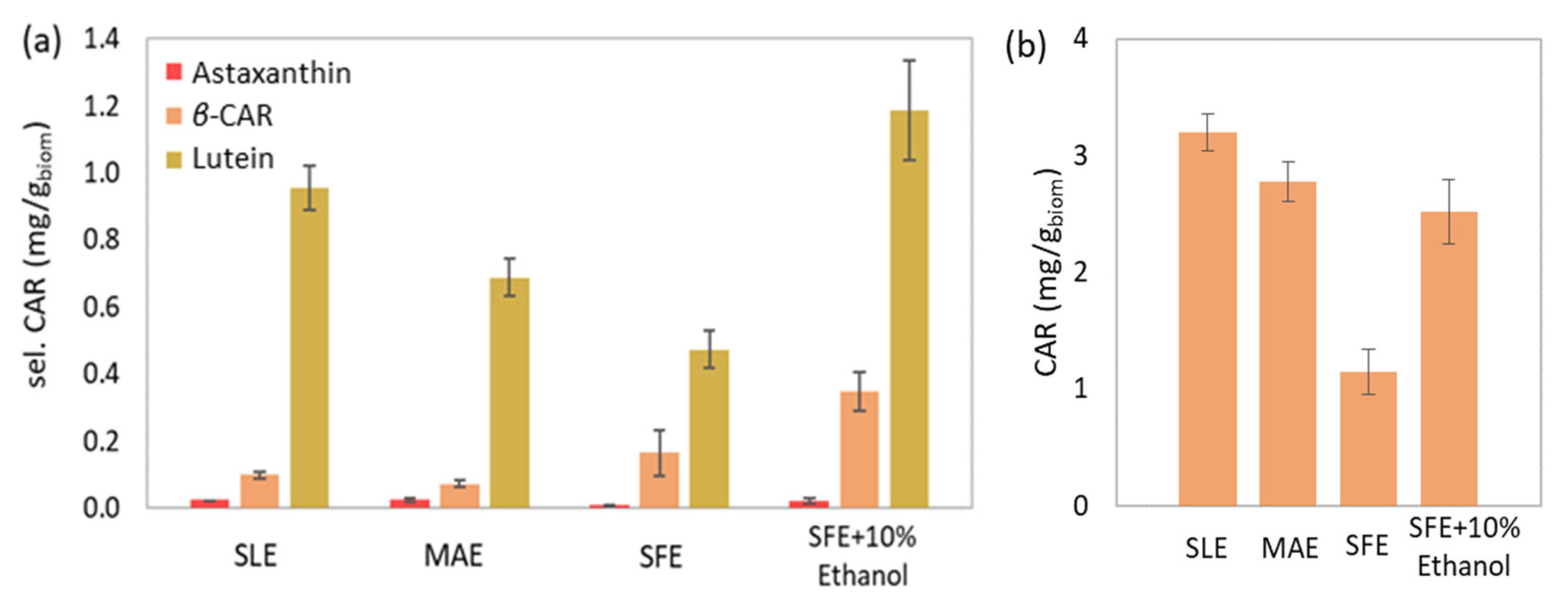

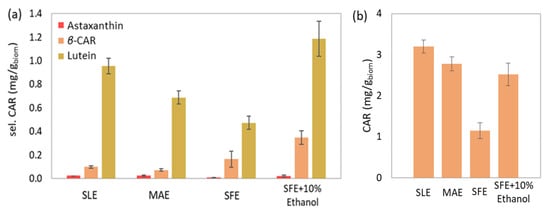

Additionally, the evaluation of the biocomponent recovery per biomass was attempted for each extraction method. The recovery of carotenoids is presented indicatively in Figure 8, considering their significantly high prices (250–2000 USD/kg) [76]. The SLE presented the highest selected (1.08 mg/g_biom) and total carotenoid (3.20 mg/g_biom) recovery. However, ΜAΕ results (selected: 0.79 and total carotenoids: 2.77 mg/g_biom) rival those of SLE and can support its application against the conventional technique. The rich selected carotenoid content of SFE compensates for the noticeably lower yield (0.65 mg/g_biom); however, this is not the case for total carotenoid content, leading to a significantly lower recovery (1.15 mg/g_biom). Nevertheless, cosolvent addition gives SFE a comparative advantage over the other methods regarding the selected carotenoids (2.52 mg/g_biom) and is considered competitive with the conventional SLE and the proposed MAE referring to total carotenoids (2.52 mg/g_biom).

In conclusion, SLE provided the highest yield yet the most inferior extract in terms of the examined bioactive compounds and antioxidant activity. On the one hand, MAE offered the advantage of a satisfactory yield in an exceptionally reduced extraction time and with lower solvent consumption while providing relatively improved extract quality compared to SLE. On the other hand, SFE presented the lowest extraction yield and selectivity towards chlorophylls, yet a significantly improved extract was obtained in terms of carotenoid content, antioxidant activity and smell. Eventually, the addition of a cosolvent improved the dissolving ability of SC-CO₂, therefore, increasing the yield of SFE, the bioactive compound content, and the extract’s antioxidant activity.

4. Conclusions

In the present work, the main parameters of the extraction, i.e., temperature, duration, solvent-to-biomass ratio, and microwave power, were examined during the microwave-assisted extraction of bioactive compounds from C. vulgaris biomass with aq. ethanol 90% v/v. The obtained extracts were subjected to determination of their yield, total phenolic, chlorophyll, and carotenoid content, as well as their antioxidant activity. The correlation between the examined parameters and the determined responses was based on the ANOVA and led to reliable models, except for the total phenolic and selected carotenoid content, which failed to correlate.

The data correlation proved the significance of the individual influence of temperature and solvent-to-biomass ratio, as well as the combined factor of temperature, power, and duration (T P t) on the extraction yield. The solvent-to-biomass ratio highly affected chlorophyll content, while temperature proved to be the most significant factor affecting the extract’s antioxidant activity. Nevertheless, all the responses of phenolic, chlorophyll, carotenoid content, and the extract’s antioxidant activity were significantly affected by the combined factor of temperature and microwave power (T P).

Consequently, MAE was optimized, aiming at the simultaneous maximization of all the correlated responses. The determined optimal extraction conditions of temperature, microwave power, duration, and solvent-to-biomass ratio were 60 °C, 300 watts, 14 min, and 22 mL_solv/g_biom, respectively.

Furthermore, the comparison of MAE with SLE and SFE with and without cosolvent (10% w/w ethanol) also led to important observations. During the use of the same polar solvent, the MAE’s bioactive compounds and extract’s antioxidant activity were slightly improved compared to SLE. Despite the higher SLE yield, the assistance of microwave power offered a satisfactory extraction yield and an improved extract during an extremely shorter amount of time. Alternatively, the application of SFE with a non-polar solvent proved to be of decisive importance for the greater selectivity towards carotenoids over chlorophylls, and the remarkably improved extract’s antioxidant activity, at the expense of extraction yield, which was significantly lower. However, the attempt to address the yield obstacle of SFE through the addition of a polar cosolvent narrowed the gap between MAE and SFE and also led to an overall enhanced extract.

In conclusion, the two non-conventional time-saving methods of MAE and SFE were considered very promising with competitive extracts compared to the conventional SLE. SFE, with or without the cosolvent presence, offered more limited yet more competing extracts than MAE. However, the products of both methods could be exploited in the demanding industry fields of food, cosmetics, fertilizers, animal feed and health products, according to their characteristics and value.
