Design and Analysis of a Novel Microspeaker with Enhanced Low-Frequency SPL and Size Reduction

Featured Application

This novel microspeaker can be used in future portable devices, such as smartphones, tablet PCs, and smartwatches that require enhanced acoustic performance, while reducing the speaker exterior size.

Abstract

In the era of multimedia devices, smartphones have become the primary device for consuming multimedia content. As technological developments have facilitated a more immersive multimedia experience, enlarged displays and the use of several sensors have limited the allowable size of microspeakers. Although sound plays an important role when consuming multimedia content, the limited space for microspeakers in modern devices leads to poor acoustic performance, especially at low frequencies. To address this issue, this paper proposes a novel microspeaker structure that enhances the low-frequency sound pressure level (SPL), while also featuring reduced exterior dimensions. The structure was designed and analyzed using 3D finite element analysis. Through coupling analysis, the simulation results were verified on the basis of the experimental results. The novel microspeaker has one outer magnet surrounding the entire coil, unlike in prototype microspeakers, which have two outer magnets. The gap between the top plates and coil is reduced, and a new type of coil is introduced for the purpose of increasing electromagnetic force. The samples were manufactured, and their SPLs were tested in an anechoic chamber. The experimental results prove that the proposed microspeaker offers an improved SPL at low frequencies compared with prototype microspeakers.

1. Introduction

With the introduction and development of portable wireless devices, mobile devices have become essential to daily life. As many people use these devices to perform various tasks, the devices serve as a personal computer (PC). Currently, an increasing number of people use these portable wireless devices, especially smartphones, to consume multimedia content. Owing to the increased demand for multimedia content, production of entertainment content such as games, music, and videos has also increased. Sound plays an important role in providing an immersive experience for users, particularly low-frequency sound. Thus, sound is an important consideration for consumers when selecting a smartphone. Usually, a microspeaker is located at the bottom of the smartphone and is responsible for generating sounds when needed.

In the earlier versions of cellular phones, a round microspeaker was used. Hwang et al. introduced and analyzed circular and elliptical microspeakers [1]. To improve the sound pressure level (SPL), Hwang et al. also introduced a microspeaker with a new magnetic circuit [2]. Instead of using only the outer magnet, they also added a central magnet to increase the magnetic force [2]. To improve the space utilization in cellular phones, Kwon et al. developed a rectangular microspeaker [3]. Furthermore, Lee and Hwang developed a rectangular microspeaker in enlarged liquid-crystal displays that has modified structures to improve the acoustic performance, and new structures were added to the yoke to improve the flux density [4]. To develop thinner speakers for cellular phones, Lee et al. proposed a novel magnetic circuit in which the top plate was eliminated [5]. To reduce the thickness, Lee et al. used horizontally magnetized outer magnets instead of vertically magnetized outer magnets [5]. Advances in material research have also prompted engineers to use new materials in microspeakers. A piezoelectric speaker was developed for use in very thin devices [6,7]. The piezoelectric speaker has a multilayer structure that is thinner than the prototype microspeaker structure. However, this type of speaker is not widely adopted, owing to its high cost and poor acoustic performance at low frequencies. For a smartphone with a bezel-less display, indirect- and direct-vibration actuators were introduced and analyzed [8,9]. Compared with a microspeaker that generates sound by vibrating the diaphragm attached to the coil, these actuators are attached to the display panel, which generates sound by vibrating the elastic display panel. Microspeakers are widely used in other products. One example is a wearable device called the neckband. A neckband speaker with a passive vibrator was designed and analyzed by Kim et al. using Klippel measurement equipment [10]. The effect of the diaphragm material on the loudspeaker performance was analyzed by Wang et al. for a better frequency response [11]. Diaphragms with micro-corrugations were analyzed by Bae et al. to determine the effects on the acoustic performance [12]. In terms of the sound quality of the speaker module, one study proposed and optimized an L-shaped module [13]. To analyze a speaker system, Hernandez et al. proposed a method to obtain the nonlinear parameters in the speaker system, such as the force factor. Nonlinear parameters are defined as a function of the voice coil displacement [14]. With the advances in computational power, Reddy et al. were able to conduct an analysis of the acoustic performance of a microspeaker using a machine learning algorithm [15].

Previously, devices contained few components, which restricted the size of the microspeakers. In addition, the thicker bezels around the display afforded sufficient space for the microspeaker. However, owing to the demand for larger displays, bezel-less displays were introduced, and many components, such as digital stylus pens, need to be mounted on the smartphone. The design changes of the smartphones are shown in Figure 1.

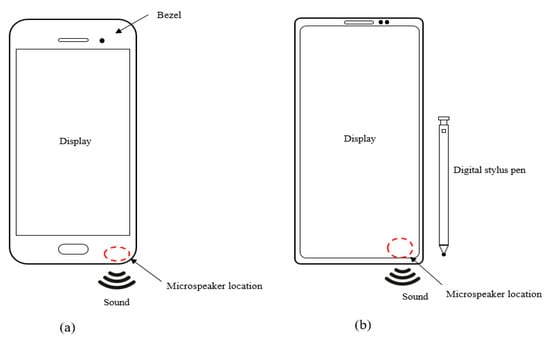

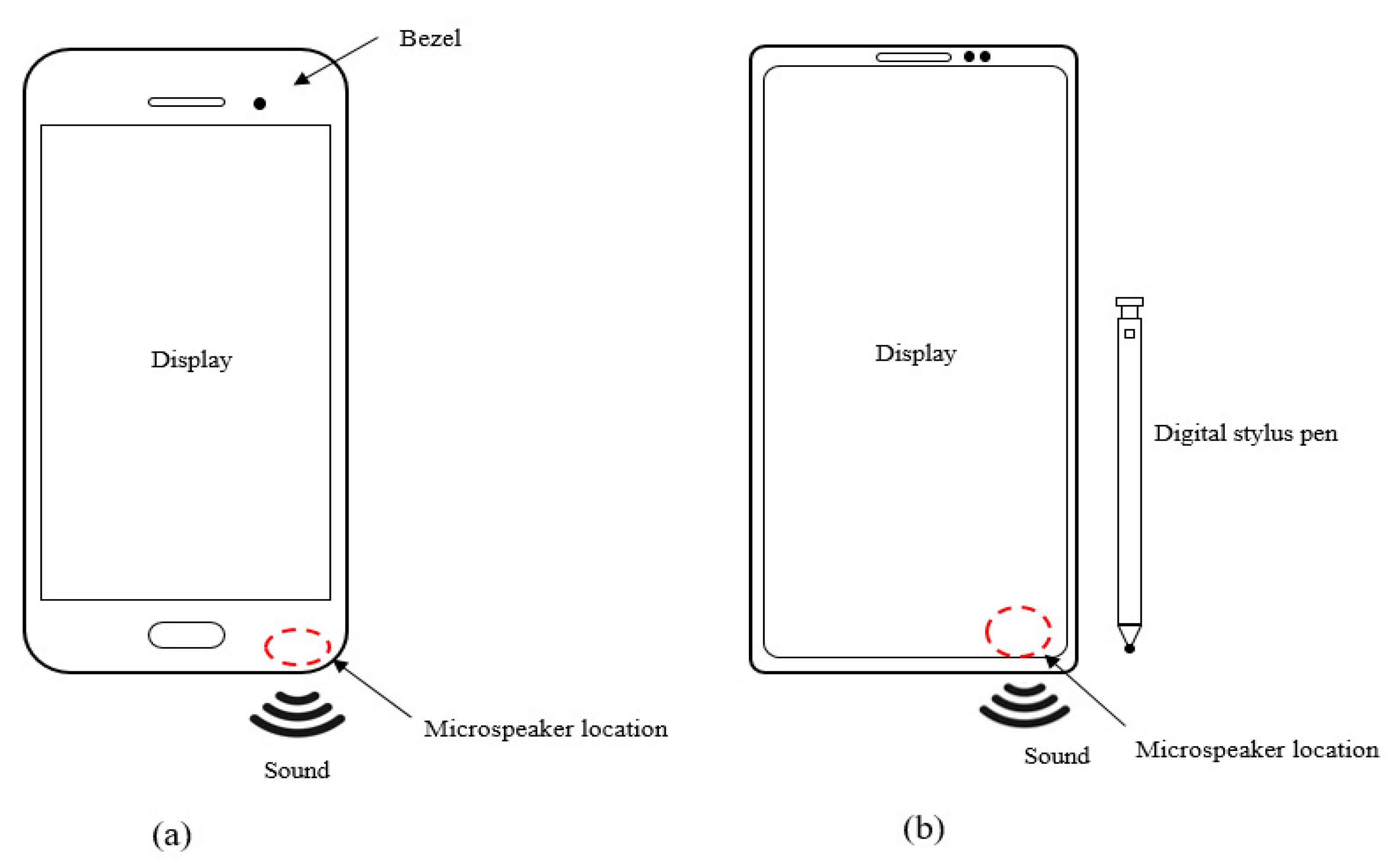

Figure 1. Schematics of the change in smartphone design and microspeaker location: (a) design with thick bezels and (b) design with a bezel-less display and a digital stylus pen.

For this reason, the allowable size of microspeakers has decreased, and prototype microspeakers can no longer be used in newer smartphones. Owing to this design shift, smartphones require smaller speakers, especially in terms of length and height. However, size reduction necessitates a reduction in the magnetic circuit structure, resulting in low acoustic performance over all frequencies. Low-frequency sound is important for providing immersive experience when consuming multimedia content. Thus, in this study, a novel microspeaker with reduced exterior dimensions was designed to improve the low-frequency SPL.

For enhancement of the low-frequency SPL for microspeakers, the magnetic circuit structure must change to increase the force. In this paper, a novel magnetic circuit structure is proposed. The introduction of a new magnetic circuit accompanied many design changes, including the coil, top plates, yoke, and permanent magnet. To improve the electromagnetic force, we designed a ring-shaped permanent magnet, and the distance between the top plates and the coil was reduced. In addition, a new type of coil was used to increase the force. These design elements can be applied in many future microspeaker products requiring smaller size but with improved low-frequency SPL.

The prototype speaker, termed 1610_SPK, mainly consists of a coil, three neodymium permanent magnets, a center diaphragm, a side diaphragm, a yoke, and top plates. The prototype 1610_SPK has a length of 16.0 mm, a width of 10.0 mm, a height of 2.11 mm, and a coil resistance of 6.0 Ω. The coil and diaphragms are the moving components in 1610_SPK. The coil is attached to the diaphragms, and the vibration from the coil vibrates the diaphragms, which, in turn, generates sound. The remaining components are fixed and stationary. The design of the prototype 1610_SPK, its components, and manufactured samples are presented in Figure 2.

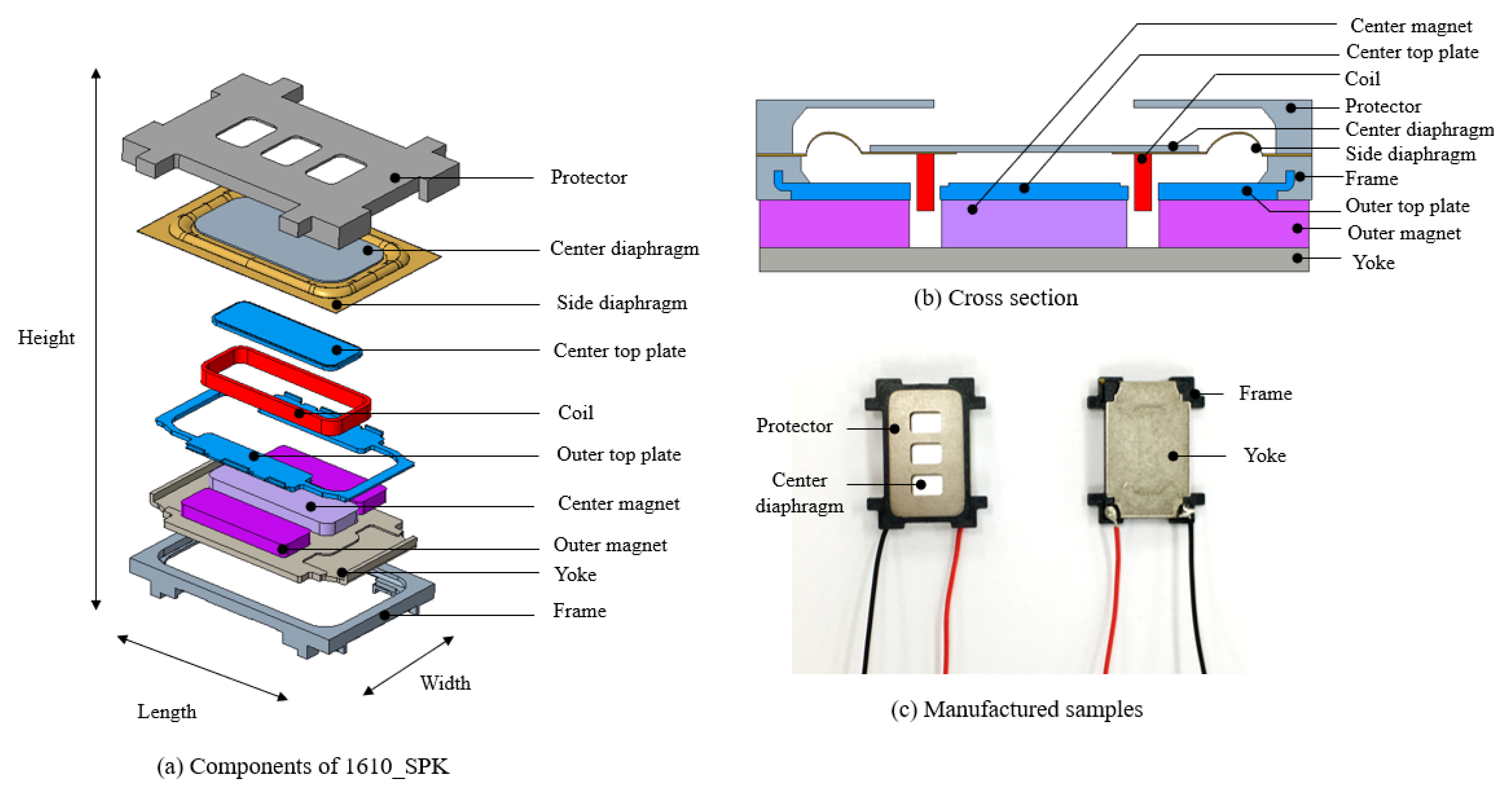

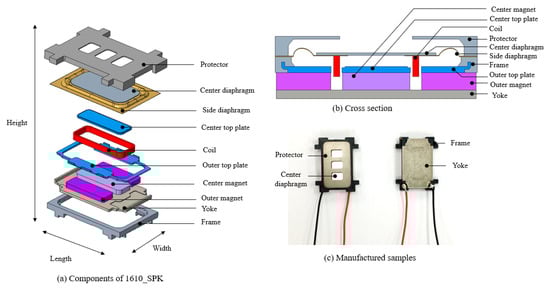

Figure 2. Structure of 1610_SPK: (a) components, (b) cross-sectional view, and (c) manufactured samples.

2. Analysis Method (Prototype)

Analysis of the microspeaker was conducted by solving three domains: electromagnetic domain, mechanical domain, and acoustic domain. Three domains were coupled with specific parameters called the force factor and the effective diaphragm area. To calculate the SPL, three domains should be solved simultaneously using coupled analysis. This means that coupled analysis is used for solving a multiphysics system. The coupled analysis was based on solving the domains described in Figure 3, and the flow chart (procedures) of the coupled analysis is shown in Figure 4. The electromagnetic and mechanical domains were expressed as circuits with resistors, voltage sources, capacitors, and inductors. On the basis of the impedance analogy, the mechanical domain was formed in the circuit. The acoustic domain was modeled under 3D simulating experimental conditions for the SPL measurement. The parameters in each domain were found in advance before the coupled analysis to obtain the SPL. The prototype 1610_SPK was used in the analysis method.

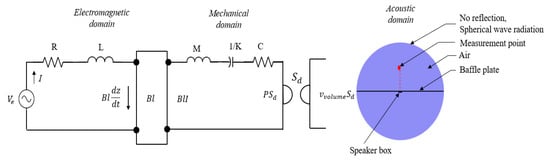

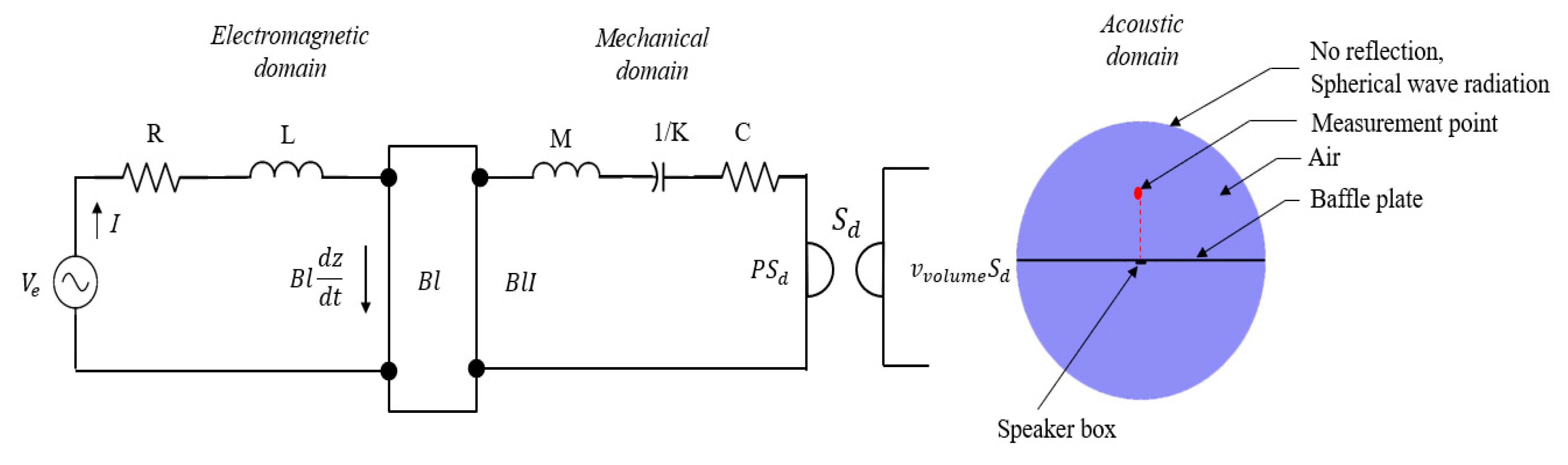

Figure 3. Equivalent circuit (electromagnetic and mechanical) and acoustic domain for the coupled analysis.

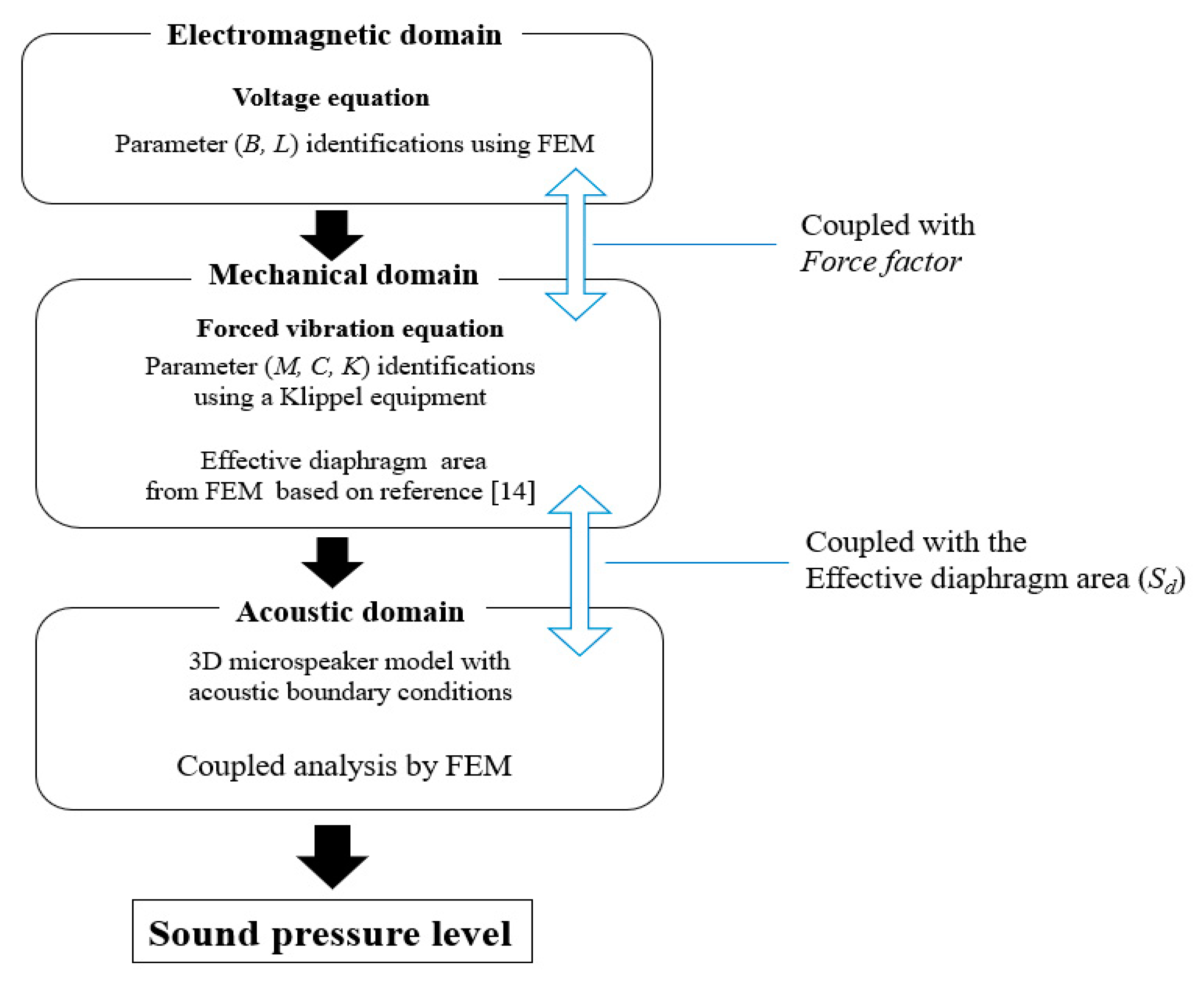

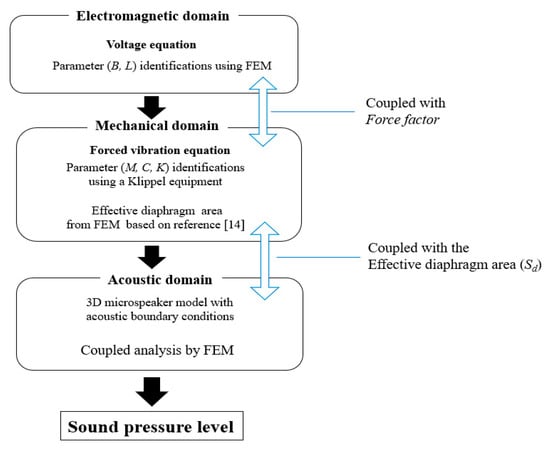

Figure 4. Flow chart (procedures) of the coupled analysis.

2.1. Electromagnetic Analysis

The governing equation for the electromagnetic analysis is expressed as follows:

$$V_e=IR+L\frac{dI}{dt}+Bl\left(z\right)\frac{dz}{dt}$$

(1)

where $V_e$, I, R, L, t, l, and z are the voltage, current, resistance, inductance, time, coil length, and displacement, respectively. The vibration of the coil generates a back electromotive force (back EMF), which is expressed as $Bl\left(z\right)\frac{dz}{dt}t$ in Equation (1). The back EMF is the product of the force factor and the velocity in the z-direction, derived in the mechanical domain. Equation (1) is called the voltage equation, and it can be described as a circuit shown in Figure 3 in the electromagnetic domain. To solve the voltage equation, we identified the parameters in advance.

The flux density was obtained by using a finite element method (FEM)-based commercial software (Ansys). The flux density in the coil was obtained by solving the following governing equations:

B = ∇ × A
∇ × H = J
B = μH

(2)

where B is the magnetic flux density, ∇× is the vector curl operation, A is the magnetic vector potential, J is the current density, H is the magmatic intensity, and μ is the magnetic permeability. The flux linkage is defined as follows:

$$\lambda \left(z,I\right)=NSB\left(z,I\right)$$

(3)

where N is the number of coil turns, S is the coil cross-sectional area, and B is the average flux density passing through the coil. The inductance is expressed as the derivative of the flux linkage to the displacement expressed in Equation (4):

$$L=\frac{d\lambda }{dI}$$

(4)

The force that causes coil vibration is the Lorentz force. If the direction of the current flowing in the coil and the direction of the magnetic field are known, the direction of the Lorentz force can be determined. The force factor is derived by dividing the Lorentz force by the current. They are expressed as

$$\begin{array}{c}{F}_{Lorentz}={\displaystyle \oint }Idl\times B\\ Force factor=F_{Lorentz}/I=Bl\end{array}$$

(5)

The material properties needed for the electromagnetic analysis are listed in Table 1.

Table 1. Material properties used for the electromagnetic analysis.

Part	Material	Property	Value	Unit
Air	-	Permeability	4π × 10−7	H/m
Magnet (N52H)	NdFeB	Remanence	1.45	T
Top plate	SPCC	Permeability	B-H curve	H/m
Yoke	SPCC	Permeability	B-H curve	H/m
Coil	Copper	Permeability	4π × 10−7	H/m

The top plates and the yoke were made of SPCC (Steel Plate Cold Commercial) and had a nonlinear relationship between B and H. B and H were correlated with a nonlinear parameter called magnetic permeability. This nonlinear value was calculated from the slope of the B–H curve. The B–H curve of SPCC is shown in Figure 5.

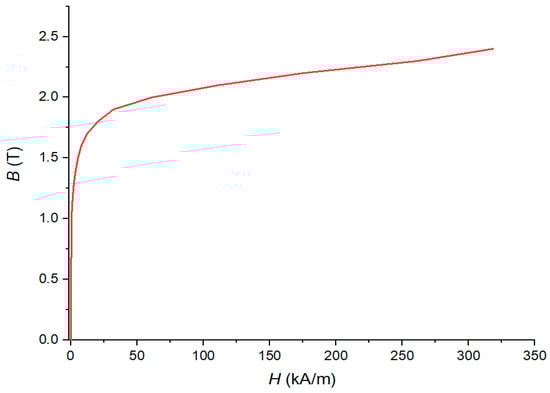

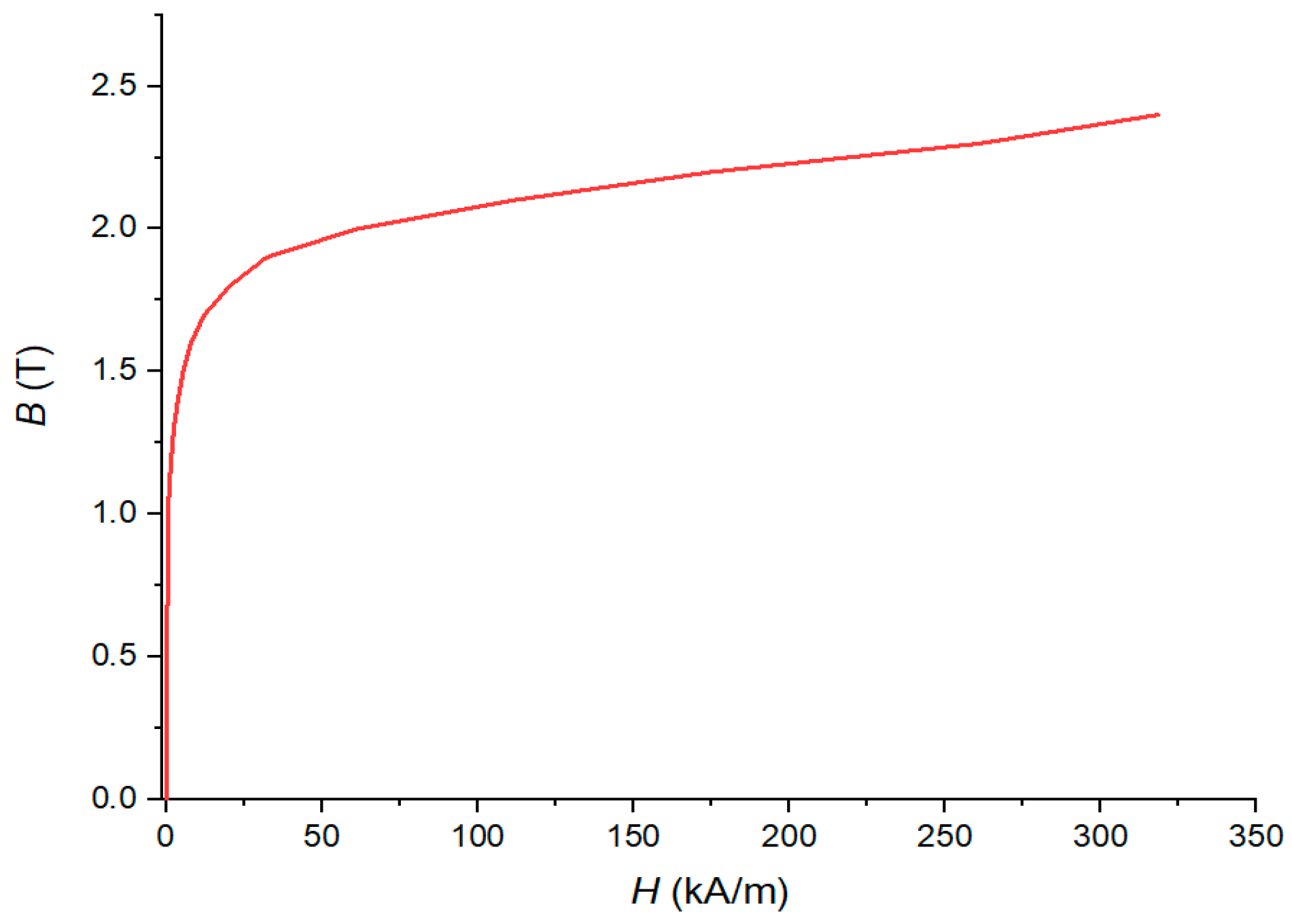

Figure 5. Nonlinear B-H curve of SPCC.

A sphere shape domain was made around the microspeaker to simulate the air region. At the surface of the air region, we applied a magnetic insulation boundary condition, meaning that the flux was tangential to its boundaries. The hexahedral element was used at the coil, magnet, and center diaphragm because of its simple shape. For the rest of the parts, a tetrahedral element was used because of the complexity of its boundary shape. Because the electromagnetic force was calculated from the coil, we used the fine element size in the coil. In addition, the top plates and the yoke that provide paths for the magnetic fluxes were also finely meshed for accurate results. The type of element, element size, and element number for the analysis are listed in Table 2.

Table 2. Mesh and element used in the analysis.

Part	Element Type	Element Size	Element Number
Air	Tetrahedral	2.50 mm	89.47 × 104
Magnet	Hexahedral	0.50 mm	3.70 × 104
Top plates	Tetrahedral	0.25 mm	2.97 × 104
Yoke	Tetrahedral	0.25 mm	4.48 × 104
Coil	Hexahedral	0.10 mm	12.74 × 104
Center diaphragm	Hexahedral	0.25 mm	1.38× 103
Side diaphragm	Tetrahedral	0.25 mm	1.96 × 104

The average flux density on the coil of the prototype 1610_SPK was found to be 0.560 T. The flux density on the coil and its distribution in the cross section are shown in Figure 6. The results of the force factor and inductance are shown in Figure 7.

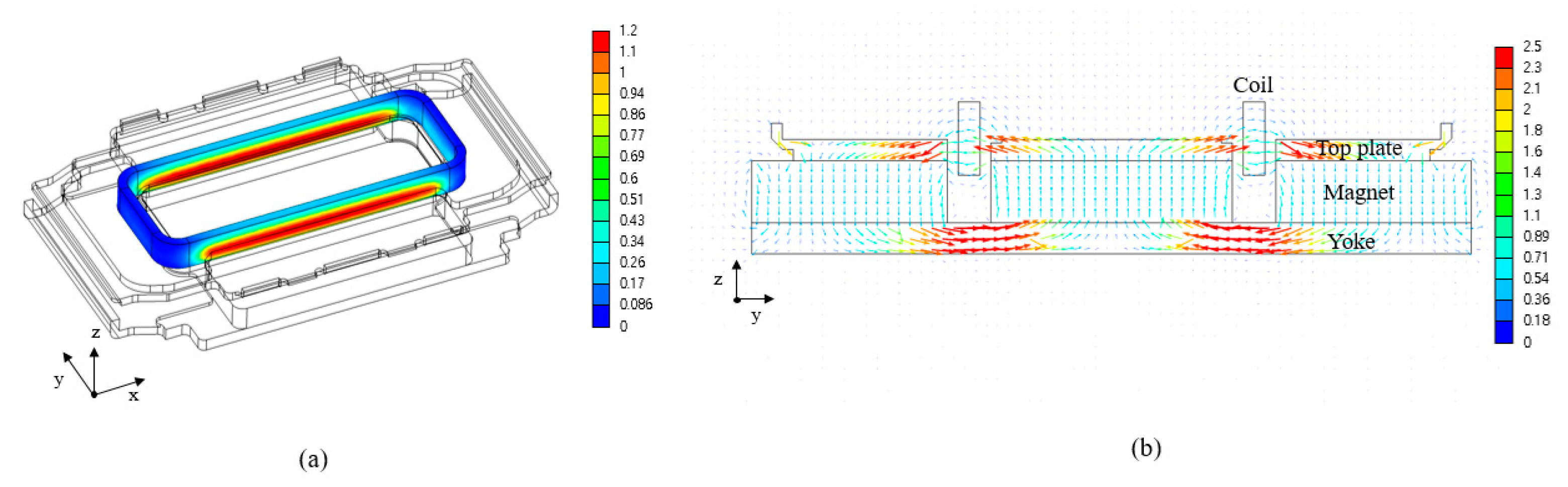

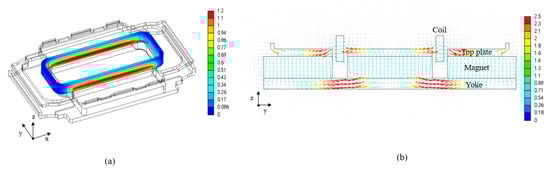

Figure 6. Flux density distribution of 1610_SPK: (a) coil and (b) cross section.

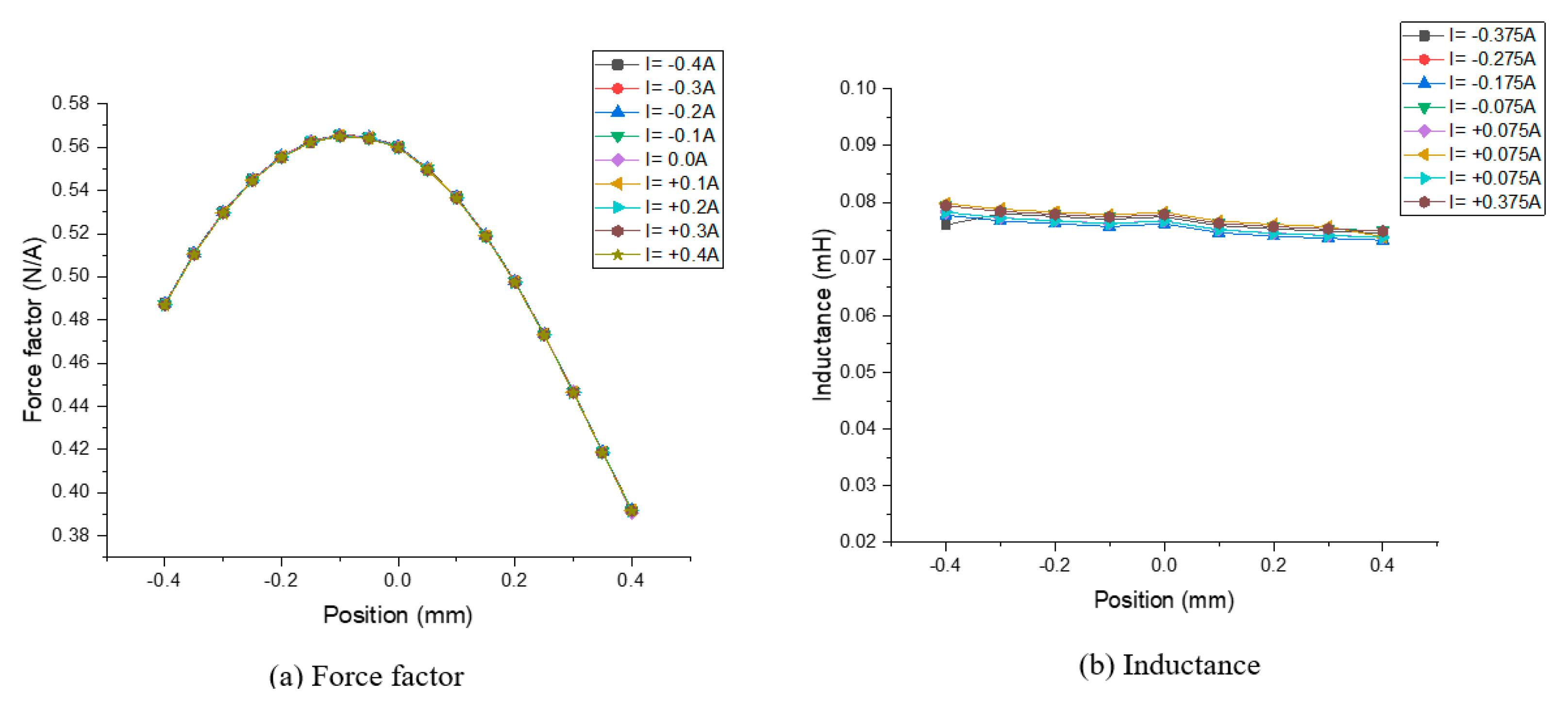

Figure 7. Results of the force factor and inductance of 1610_SPK: (a) force factor and (b) inductance.

2.2. Mechanical Analysis

In the mechanical analysis, the system was formed with lumped parameters of mass, stiffness, and damping. The governing equation is expressed as follows:

$$M\frac{d^{2}z}{d{t}^2}+C\frac{dz}{dt}+Kz=F_{Lorentz}\left(t\right)$$

(6)

where M, C, K, and z are the mass coefficient, damping coefficient, stiffness coefficient, and displacement, respectively. The force in the mechanical domain is the Lorentz force from the electromagnetic analysis. The mechanical system of the microspeaker included a center diaphragm, a side diaphragm, and a coil. The governing equation (Equation (6)) can be described as a circuit in the mechanical domain shown in Figure 3 using the impedance analogy.

The lumped parameters of the mechanical system (M, C, and K) were measured using Klippel measurement equipment. Klippel measurement equipment is a laser-based measurement device that includes a power amplifier (PLX 1802), the Distortion Analyzer 2 (H1-DA2), and a laser scanner. For the measurement, electric wires were connected to the microspeaker, which was fixed using the stationary jig. The laser point was positioned at the center of the diaphragm. Figure 8 shows the Klippel equipment and its settings. Ten manufactured prototype 1610_SPK samples were measured, and the measured values were averaged. The measurement results are listed in Table 3.

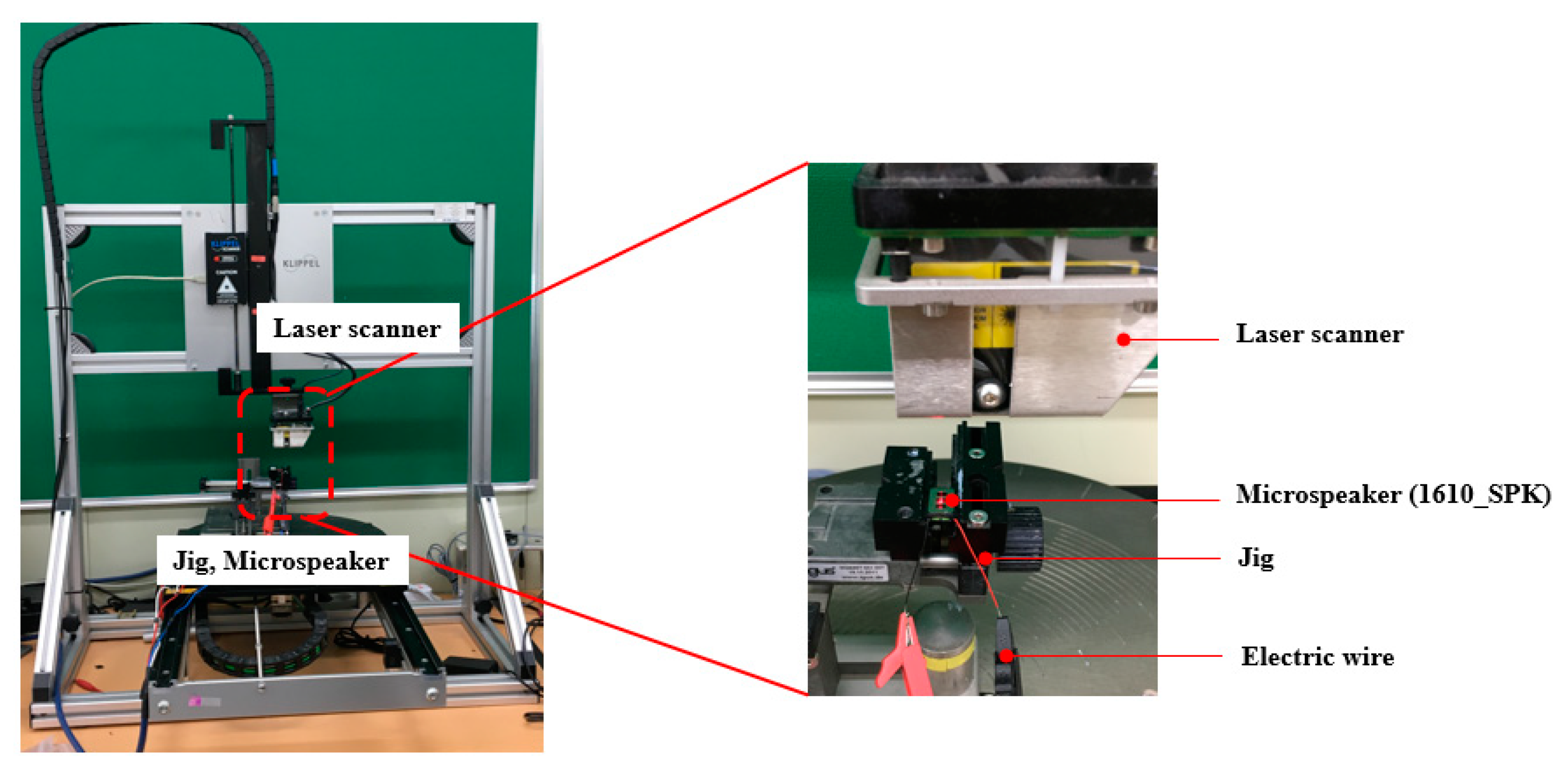

Figure 8. Experimental setup for the measurement using Klippel equipment.

Table 3. Measured values of 1610_SPK using Klippel equipment.

Variable	Name	Value	Unit
M	Mass	54.90	Mg
C	Damping	0.083	kg/s
K	Stiffness	1.130	N/mm

2.3. Electromagnetic–Mechanical–Acoustic Coupled Analysis

The electromagnetic and mechanical domains were coupled with a force factor. The force factor is in the governing equations as a form of back EMF and Lorentz force in Equations (1) and (6). In the acoustic domain, the volume velocity was coupled with the velocity from the mechanical domain. The acoustic pressure was calculated using the force. The relationships can be written as

$$P=\frac{F_{Lorentz}}{S_d}$$

(7)

$$v_{volulme}=S_d\frac{dz}{dt}$$

(8)

where P is the acoustic pressure, $S_d$ is the effective diaphragm area, and $v_{volulme}$ is the volume velocity. These two equations are coupled with the effective diaphragm area $S_d$. Thus, an effective diaphragm area of 1610_SPK should be found. Jiang et al. suggested a method to obtain an effective diaphragm area [16]. Figure 9 illustrates how to determine the effective diaphragm area ($S_d$) and its boundary conditions for mechanical FEM analysis.

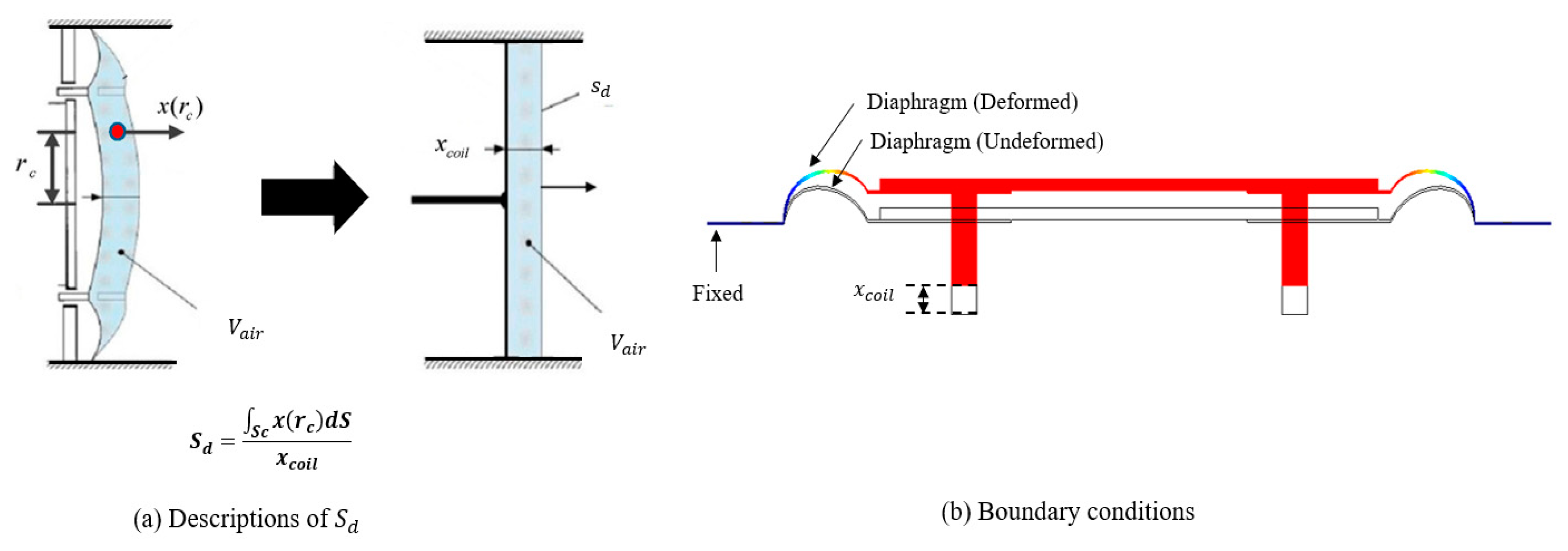

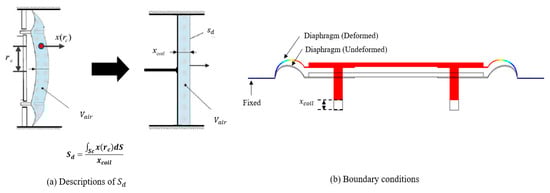

Figure 9. Method of determining the effective diaphragm area and its boundary conditions: (a) effective diaphragm area and (b) boundary conditions.

Figure 9a is adapted from “Analysis and Design of Helmholtz Protector to Improve High-Frequency Response of Insert Earphone,” Jiang, Y.-W., Xu, D.-P., Jiang, Z.-X., Kim, J.-H. and Hwang, S.-M. 2019, Appl. Sci., 9(12), p. 2541.

The $S_d$ of 1610_SPK was found using a FEM-based commercial software (Ansys). The material properties needed for the analysis are listed in Table 4. The effective diaphragm area of 1610_SPK was found to be 95.96 mm².

Table 4. Material properties for finding the effective diaphragm area ($S_d$).

Part	Material	Young’s Modulus	Poisson’s Ratio	Density
Coil	Copper	126 GPa	0.34	5321 kg/m3
Center diaphragm	Aluminum alloy	68.9 GPa	0.33	856.1 kg/m3
Side diaphragm	TPEE compound	0.003 GPa	0.42	1223 kg/m3

For the SPL analysis, the electromagnetic and mechanical domains were modeled as equivalent circuits, and the acoustic domain was modeled in 3D using the FEM-based software, as shown in Figure 3. Because the microspeaker SPL was measured in an anechoic chamber, the sound emitted from the microspeaker was not reflected and was absorbed by the chamber walls. To simulate the experimental conditions in the FEM software, we made a sphere-shaped air region with its boundary condition of spherical wave radiation directed outward in the acoustic domain. In addition, the baffle plate used in actual experimental conditions was simulated as a hard boundary wall in the software. The SPL measurement point was made at a distance of 0.1 m away from the speaker. After obtaining all the parameters needed for the coupled analysis, we calculated the SPL using FEM software (Virtual.Lab). In the software, each domain was modeled as shown in Figure 3.

3. Experimental Verifications (Prototype)

The experiment for measuring the SPL was conducted in an anechoic chamber. The electric wires were connected to the prototype 1610_SPK for the input signals, and the speaker was inserted into the speaker box with a back volume of 0.6 cc. The speaker was fixed with a baffle plate using clamps. The microphone for measuring the SPL was located at a distance of 0.1 m along the central axis of the microspeaker.

Sinusoidal signals ranging from frequencies of 100 Hz to 20,000 Hz were applied to the speaker with an input voltage of 3.1 Vrms. To obtain sufficient data in the overall frequency range, we used 1/12 octave for the input frequency resolution.

The experimental system (B&K system) used for measuring the SPL consisted of a power amplifier (B&K, 2718), a microphone (B&K, 4191), and the PULSE Multi-Analyzer system (B&K, 3560C). In the B&K system, the sound signal from the microphone was transformed into SPL data in the frequency domain via a fast Fourier transform. The sampling frequency of the microphone was 48 kHz. Figure 10 shows the experimental setup and measurement system connections. Ten prototype 1610_SPK samples were used in the experiment, and the SPL was measured three times for each sample. The measured SPL was averaged at each tested frequency.

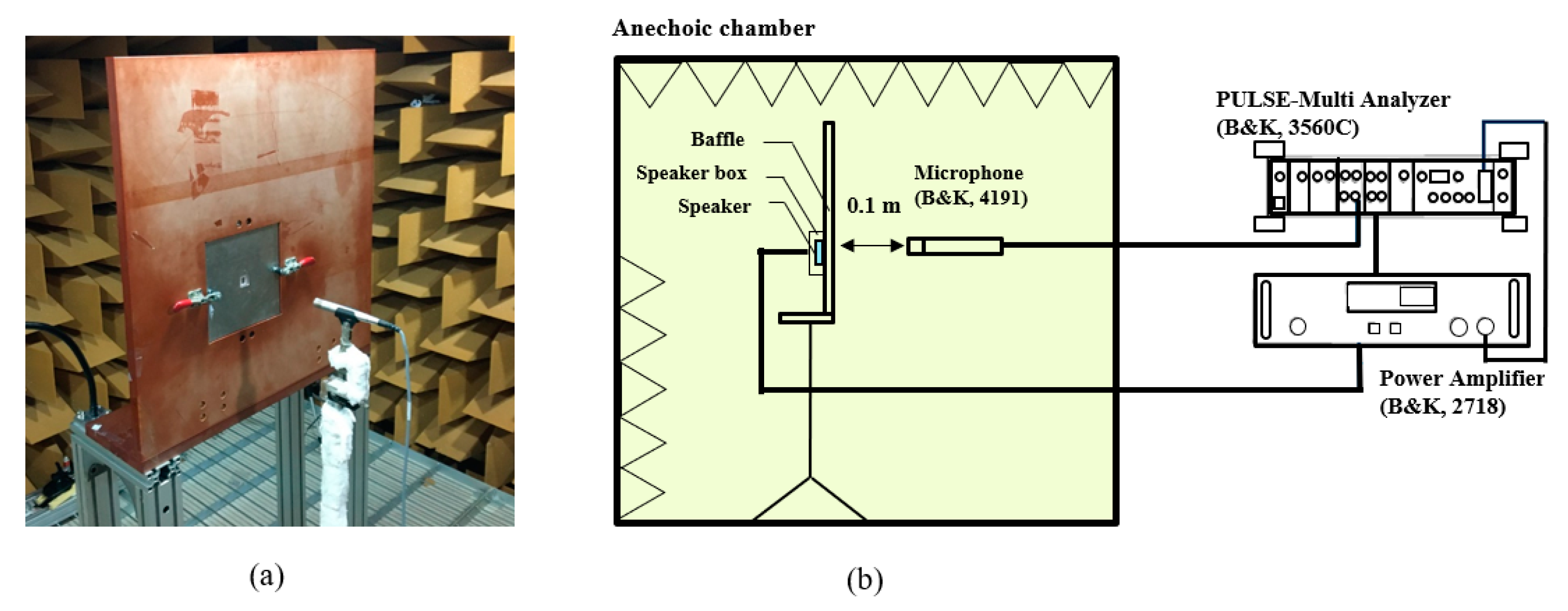

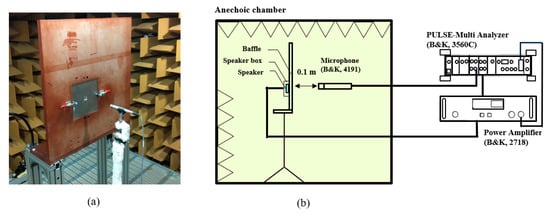

Figure 10. Experimental setup and equipment connections for the SPL measurement: (a) experimental setup in an anechoic chamber; (b) B&K equipment connections.

The acoustic performance of the microspeaker at low frequencies can be represented by an arithmetic mean (average) of the SPL from four frequencies: 200 Hz, 300 Hz, 500 Hz, and 700 Hz. The average SPL of the prototype 1610_SPK from the four frequencies was found to be 77.92 dB. Table 5 shows the SPL of 1610_SPK at four frequencies and its averaged value.

Table 5. Sound pressure level (SPL) of the prototype 1610_SPK at four frequencies.

Frequency	200 Hz	300 Hz	500 Hz	700 Hz	Average
SPL (dB)	64.40	72.78	82.62	91.89	77.92

The simulation and experimental results for the overall frequencies are shown in Figure 11. The results were found to be well matched in terms of the SPL and displacement. This indicates that the analysis method can be used to predict and analyze other speaker models.

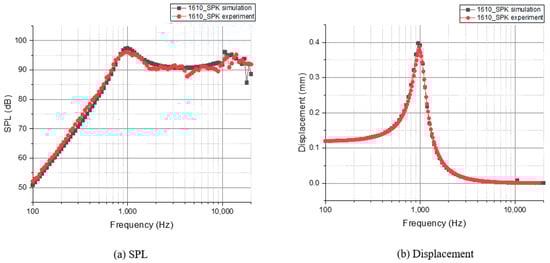

Figure 11. Experiment and simulation results of 1610_SPK: (a) SPL and (b) displacement.

4. New Microspeaker Design

The size of a speaker affects its performance, i.e., the SPL. A large speaker typically has better performance owing to the larger magnets, top plates, yoke, coil, and other components. Large magnets can generate a greater Lorentz force. In contrast, small speakers limit the dimensions of the magnets, yoke, top plates, and coil, resulting in a lower Lorentz force. To increase the low-frequency SPL while reducing the speaker dimensions, we needed to consider the structures as well as other design factors. The proposed microspeaker, 1410_SPK, was designed with a length of 14 mm, width of 10 mm, and height of less than 2.1 mm. For this design of 1410_SPK, we considered the magnetic circuit structure, air gap, and coil. The flux density and the force were calculated at z = 0 mm (initial position) with an input voltage of 3.1 Vrms.

4.1. Magnetic Circuit Structure Design

The Lorentz force (electromagnetic force) is the force that drives the coil vibration. To increase the Lorentz force, the flux density passing through coil B or the total coil length l need to be increased. As the design of the speaker coil determines both the flux density and the total coil length, it is important to appropriately design the coil to maximize the Lorentz force. In addition, the low-frequency SPL can be improved by using a heavier coil. By adopting a large-diameter coil, the mass and total length of the coil are increased simultaneously. However, this increased coil diameter leads to an increased thickness and height of the coil, which causes a low flux density, resulting in a decreased Lorentz force. The schematics of the coil are shown in Figure 12.

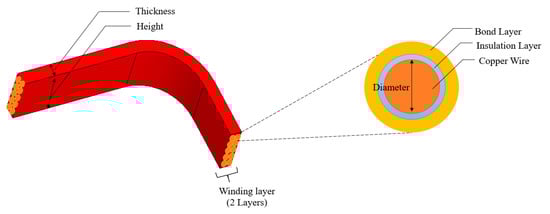

Figure 12. Schematic of the coil design.

For the proposed microspeaker, 1410_SPK, a 0.077-mm coil diameter was used, unlike the 0.070-mm coil used in 1610_SPK. By using this coil with a larger diameter, we increased the mass and length of the coil by approximately 51% and 25%, respectively, compared with those of the prototype 1610_SPK. The coil specifications of 1610_SPK and 1410_SPK are listed in Table 6. Because a coil with a larger diameter and the same resistance of 6 Ω was used, the height of 1410_SPK exceeded that of 1610_SPK, making it unsuitable for newer smartphones. The yoke thickness around the coil and also the distance between the upper part of the yoke and the bottom surface of the coil were reduced for solving the height problem. Figure 13 shows the component thicknesses for 1610_SPK and the newly designed 1410_SPK. As shown in this figure, the distance between the bottom of the yoke and the top surface of the coil in 1410_SPK was less than that in 1610_SPK.

Table 6. Coil specification of 1610_SPK and 1410_SPK.

Model	Diameter	Winding Layer	Coil Height	Coil Thickness	Mass	Total Length
1610_SPK	0.070 mm	4	1.02 mm	0.328 mm	46.41 mg	1339.3 mm
1410_SPK	0.077 mm	4	1.16 mm	0.356 mm	69.99 mg	1675.7 mm

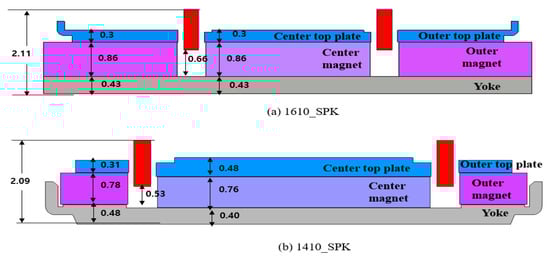

Figure 13. Schematic of the coil design: (a) 1610_SPK and (b) 1410_SPK.

The magnets in the speaker are the main source of magnetic flux. The generated magnetic flux is concentrated on the coil through the top plates. The prototype 1610_SPK has a total of three permanent magnets: one center magnet and two outer magnets. Figure 14 depicts the design of 1610_SPK and the average flux density distribution on the coil, which is divided into eight sections. Because the design of 1610_SPK is symmetric, the coil flux density is also symmetric. As shown in Figure 14b, the longer part of the coil is labeled as section ⓐ, the corner part as section ⓑ, and the shorter part as section ⓒ for comparison purposes. Over the entire coil, 1610_SPK has an average flux density of 0.560 T.

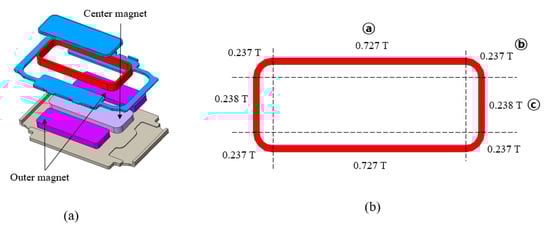

Figure 14. Flux density distribution in 1610_SPK: (a) magnet design and (b) flux density distribution over the coil.

As in 1610_SPK, one center magnet and two outer magnets were deployed in 1410_SPK. The design of 1410_SPK with a total of three magnets, called 1410_SPK_3mag, is shown in Figure 15b. Owing to the reduction in the length of the speaker from 16.0 to 14.0 mm, we used smaller outer magnets compared with those in 1610_SPK. Owing to the smaller outer magnets, the flux density of 1410_SPK_3mag was lower than that of the coil in 1610_SPK. Although the average flux density in 1410_SPK was 13.4% lower than that in 1610_SPK, the longer coil length resulted in a 4.6% larger force.

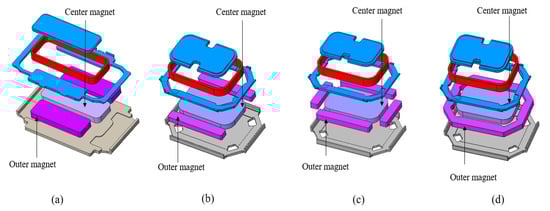

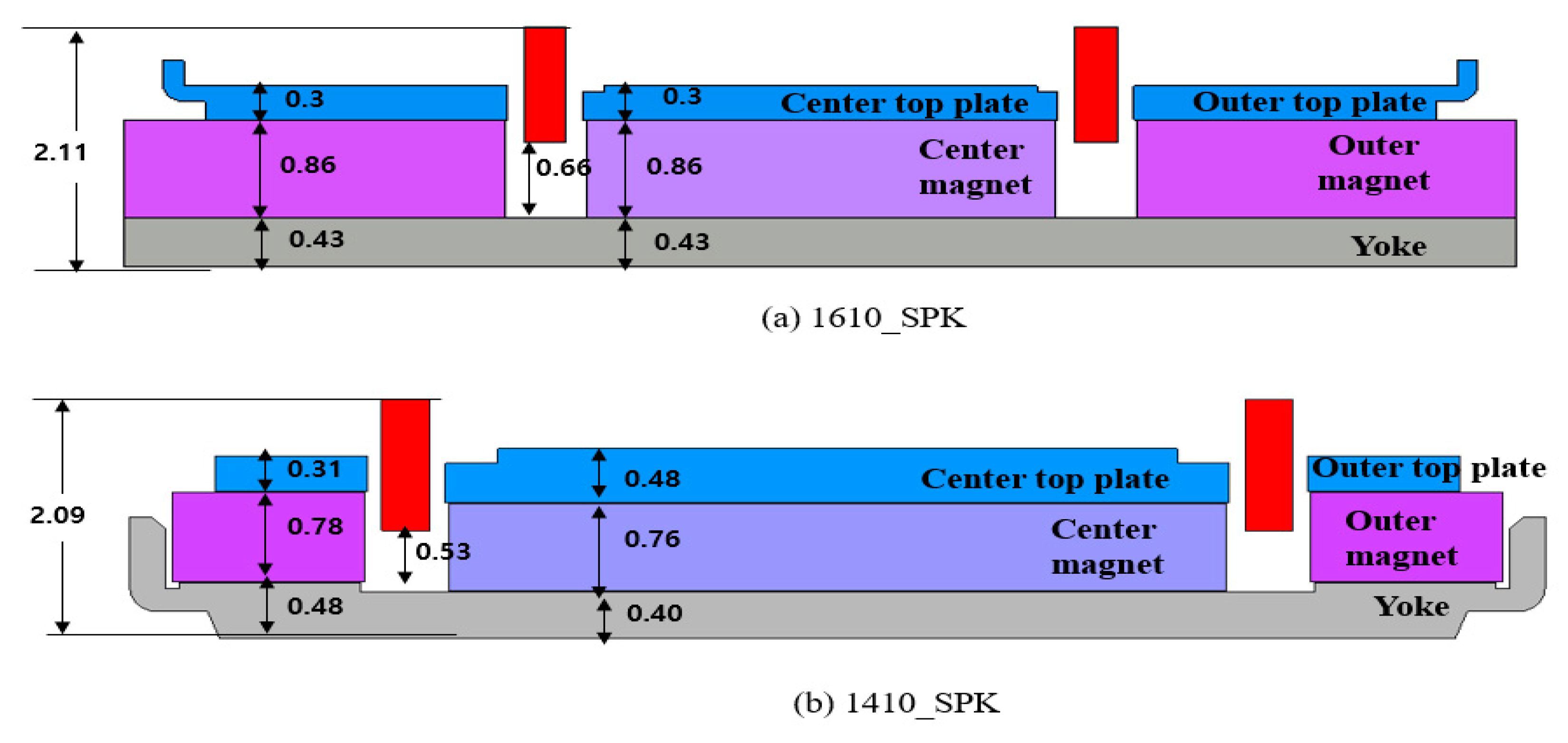

Figure 15. Magnetic circuit structures: (a) 1610_SPK, (b) 1410_SPK 3mag, (c) 1410_SPK 5mag, and (d) 1410_SPK_2mag (ring shape).

As shown in Figure 14b, the shorter part of the coil (section ⓒ) has a lower flux density than that of the longer part (section ⓐ). This is because there are no outer magnets in section ⓒ. This can also be seen in Figure 15b. To increase the flux density in section ⓒ, we added two additional outer magnets, as shown in Figure 15c; thus, 1410_SPK features a total of five magnets. This resulted in a 10.8% increase in the total force compared with that when using the 1410_SPK with two outer magnets.

The flux density at the corner (section ⓑ) can be improved by placing magnets around the corner side of the coil. For the flux density improvement around the corners, we designed an additional ring-shaped outer magnet. This magnet was implemented such that it surrounded the entire coil, leading to a 13.8% improvement in the total force, compared with that when using the 1410_SPK with two outer magnets. To make a ring-shaped magnet, first, the exterior shape was made by cutting the outside of the permanent magnet. After creating an exterior shape, a thin wire was inserted into the center of the magnet and the inside part was cut out, resulting in a ring-shaped magnet. The flux density distribution in each section and the total force results are listed in Table 7. Overall, the result of the magnetic structure analysis showed that the total force improved by approximately 19% when using the large-diameter coil and the ring-shaped outer magnet that surrounds the entire coil. Thereafter, an air-gap design analysis for 1410_SPK_2mag was conducted.

Table 7. Result of the force due to the changes in magnetic circuit structure designs.

Model	1610_SPK	1410_SPK_3mag	1410_SPK_5mag	1410_SPK_2mag
Magnet Number	3	3	5	2 (ring shape)
Center magnet Volume	28.14 mm3	37.65 mm3	37.65 mm3	37.65 mm3
Outer magnet Volume	39.29 mm3	19.24 mm3	30.26 mm3	34.35 mm3
Flux density at section ⓐ	0.727 T	0.598 T	0.588 T	0.586 T
Flux density at section ⓑ	0.237 T	0.365 T	0.430 T	0.470 T
Flux density at section ⓒ	0.238 T	0.405 T	0.588 T	0.598 T
Total flux density	0.560 T	0.485 T	0.538 T	0.551 T
Force	0.388 N	0.406 N	0.450 N	0.462 N

4.2. Air Gap Design

The top plates and the yoke, which are made of SPCC, are the important components of the microspeaker structure. The magnetic flux generated by the permanent magnets is concentrated on the coil through the top plates and the yoke. The air gap refers to the distance between the top plate and the coil, as shown in Figure 16. In microspeaker designs, the distance between the coil and the top plate is the same as that between the magnets and the coil. Additional center top plates, outer top plates, center magnets, and outer magnets can be used if the air gap is decreased, as a decreased air gap can improve the total force. The air gap of 1610_SPK was 0.15 mm. Previously, the achievable minimum air gap was 0.15 mm, owing to the manufacturing technology at that time. During the manufacturing process, the coil is inserted between the center top plate and the outer top plate, and then the air gap is manually checked by human eyes using a tool maker microscope (Mitutoyo).

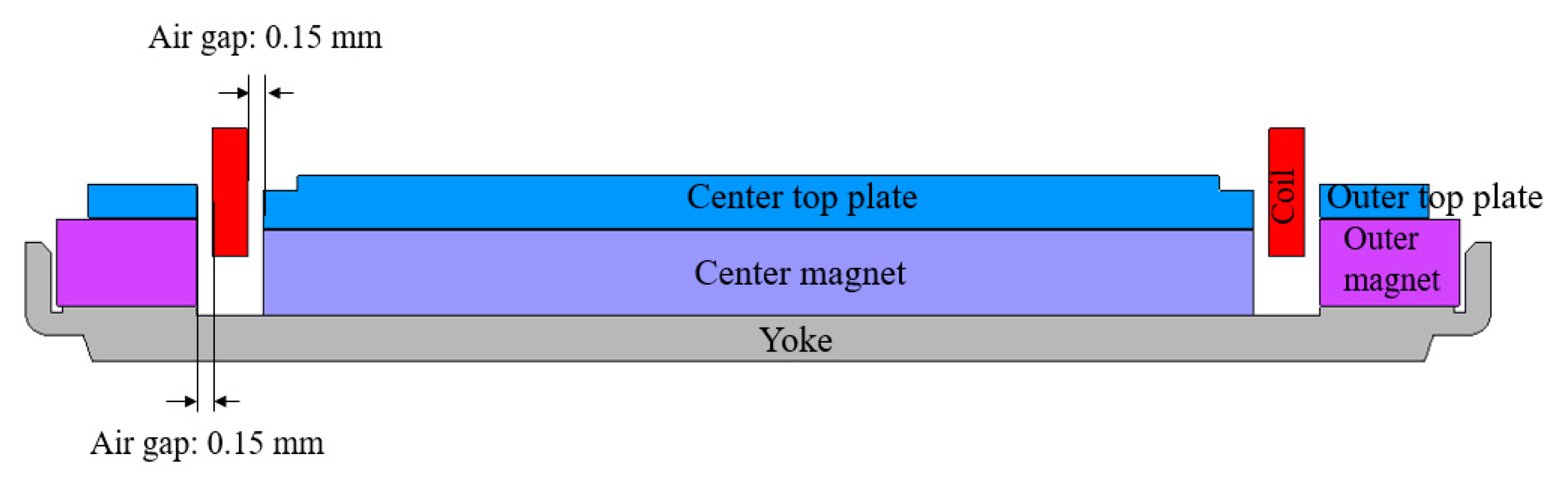

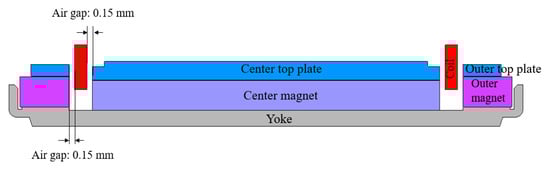

Figure 16. The prototype 1410_SPK with an air gap of 0.15 mm.

Advances in manufacturing technology have enabled the reduction of the air gap in speaker designs, owing to the tightly controlled tolerances of modern jigs and molds. The air gap is reduced using new automated machines that inspect the air gap during manufacturing. Owing to the new automated visual inspection machine (Hirox), the air gap can be reduced from 0.15 to 0.10 mm. Reducing the air gap concentrates more magnetic flux in the coil, resulting in a higher force. In the analysis, the coil dimensions were fixed, and the air gap was gradually reduced. The results of the flux density and the force acting on the coil when the air gap was reduced from 0.15 to 0.1 mm are presented in Table 8.

Table 8. Changes in the flux density and force with respect to the air gap.

Air Gap	Flux Density	Force
0.15 mm	0.551 T	0.462 N
0.14 mm	0.561 T	0.470 N
0.13 mm	0.571 T	0.478 N
0.12 mm	0.580 T	0.486 N
0.11 mm	0.590 T	0.494 N
0.10 mm	0.599 T	0.502 N

The results show that reducing the air gap from 0.15 to 0.10 mm increased the force by approximately 8.7%. Subsequently, 1410_SPK with two permanent magnets (a ring-shaped outer magnet and a center magnet) and an air gap of 0.10 mm was subjected to coil design analysis.

4.3. New Coil Design

The coil consists of three main components: copper for the current flow, an insulation layer, and a bond layer. Owing to advances in technology, a coil with a thinner bond layer has been introduced, which enables a reduction in the coil height and thickness compared with the dimensions of the conventional coil used in 1610_SPK. A comparison between the conventional and the new coil is shown in Figure 17a. Figure 17b depicts the coil winding cross section of 1410_SPK; except for the bond layer thickness, the thicknesses of the copper wires and insulation layers are similar.

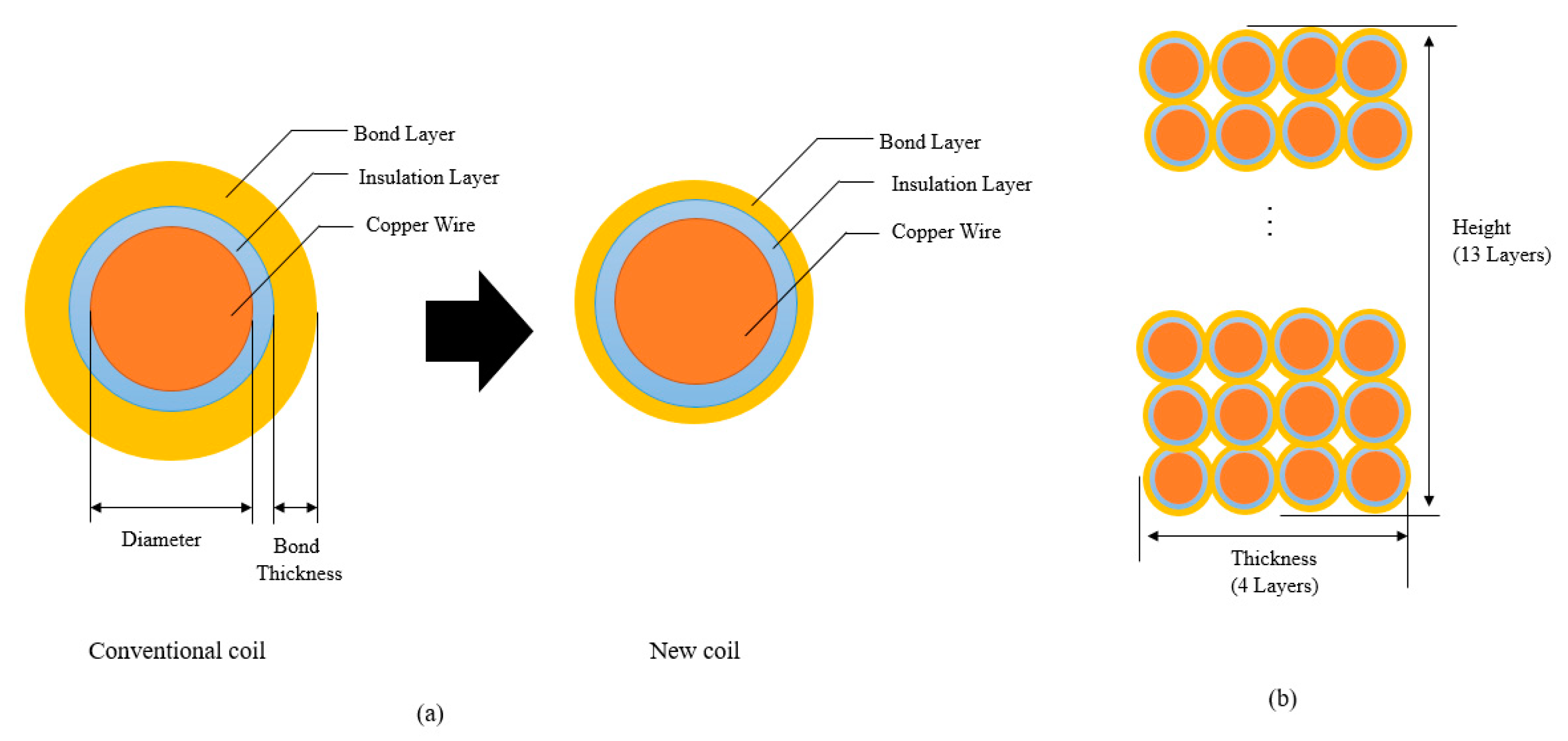

Figure 17. Schematic of the coil structures: (a) conventional and new coils and (b) cross-sectional view of the 1410_SPK coil winding.

The prototype 1410_SPK has 4 horizontal layers of coil as well as 13 vertical layers. When the conventional coil is used in 1410_SPK, the bond has a thickness of approximately 0.012 mm, which results in a thickness of 0.356 mm and a height of 1.16 mm. The bond layer of the new coil is approximately 25% thinner, at 0.009 mm; in other words, for the same resistance, the newly designed coil offers reduced exterior dimensions. For a coil diameter of 0.077 mm, the thickness and height are 0.344 mm and 1.12 mm, respectively. A reduction of over 3% was achieved in terms of thickness and height. The smaller coil enables the use of larger magnets and top plates, with an air gap of 0.10 mm. This results in a 2.4% higher force than that when using the conventional coil. Another approach to improve the force is to increase the total length of the new coil using a diameter greater than 0.077. Thus, the coil length can be increased while maintaining the same exterior dimensions as those for the conventional coil diameter of 0.077 mm. A diameter of 0.080 mm for the new coil matches the overall dimensions of the conventional coil with a diameter of 0.077 mm. The specifications for 1410_SPK when using the conventional and new coils are listed in Table 9.

Table 9. Specifications of 1410_SPK and result when using the conventional and new coils.

Model	1410_SPK	1410_SPK	1410_SPK_
Coil type	Conventional	New	New
Diameter	0.077 mm	0.077 mm	0.080 mm
Bond thickness	0.006 mm	0.0045 mm	0.0045 mm
Coil height	1.16 mm	1.12 mm	1.16 mm
Coil thickness	0.356 mm	0.344 mm	0.356 mm
Coil mass	69.99 mg	69.92 mg	81.21 mg
Coil total length	1675.7 mm	1675.7 mm	1807.6 mm
Flux density	0.599 T	0.614 T	0.599 T
Force	0.502 N	0.514 N	0.541 N

The results show that using a diameter of 0.080 mm has a better force. The 1410_SPK with a diameter of 0.080 mm was chosen for the SPL experiment.

5. Samples and Experiment

On the basis of the analysis of the design, we manufactured 1410_SPK samples. Figure 18 depicts each component and the assembled 1410_SPK. For the SPL experiment, like with 1610_SPK, we placed 1410_SPK in a speaker box with a back volume of 0.6 cc. The experiment was conducted in an anechoic chamber using B&K equipment. The SPL results from the experiment and the simulation were in good agreement, as shown in Figure 19.

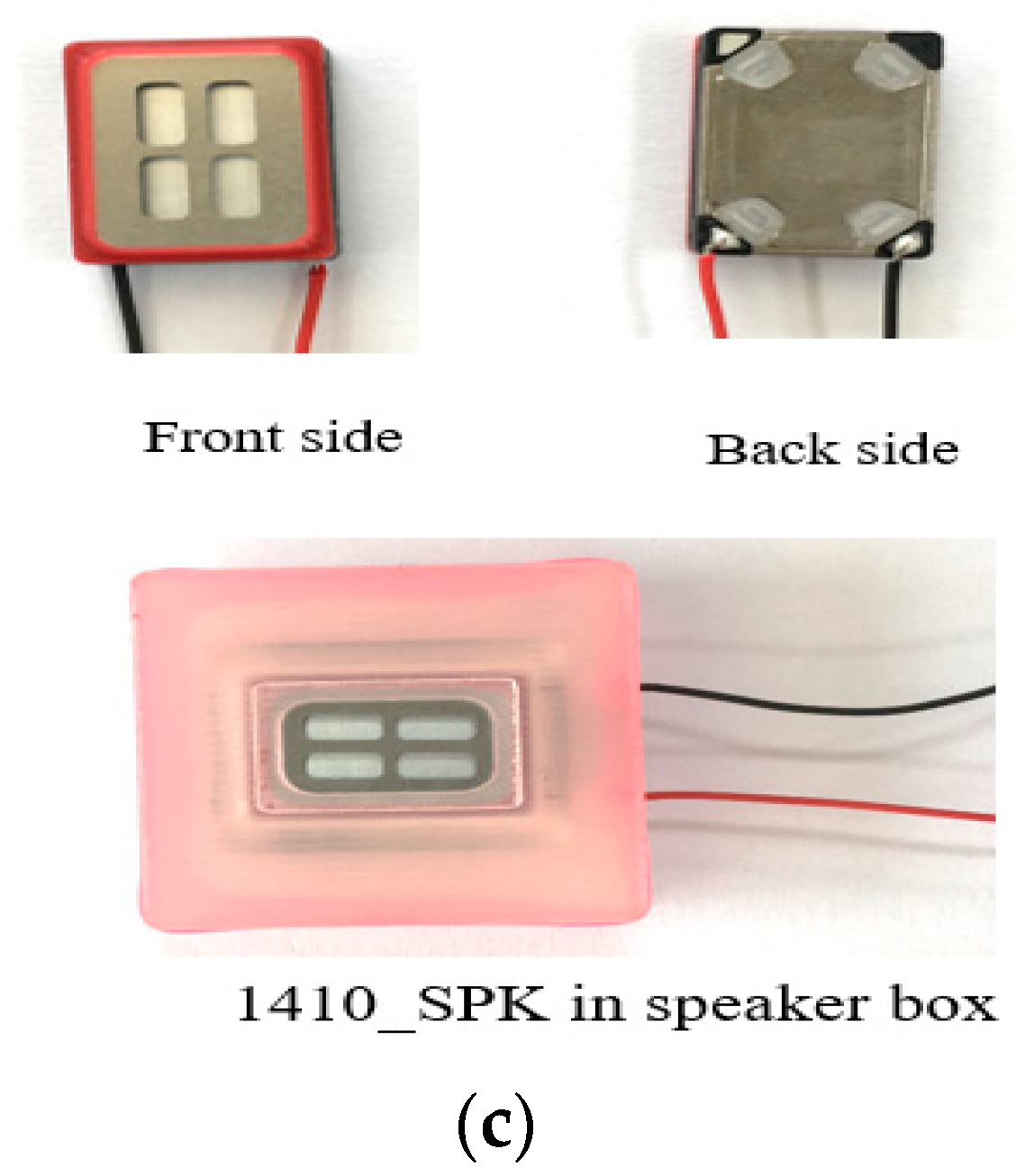

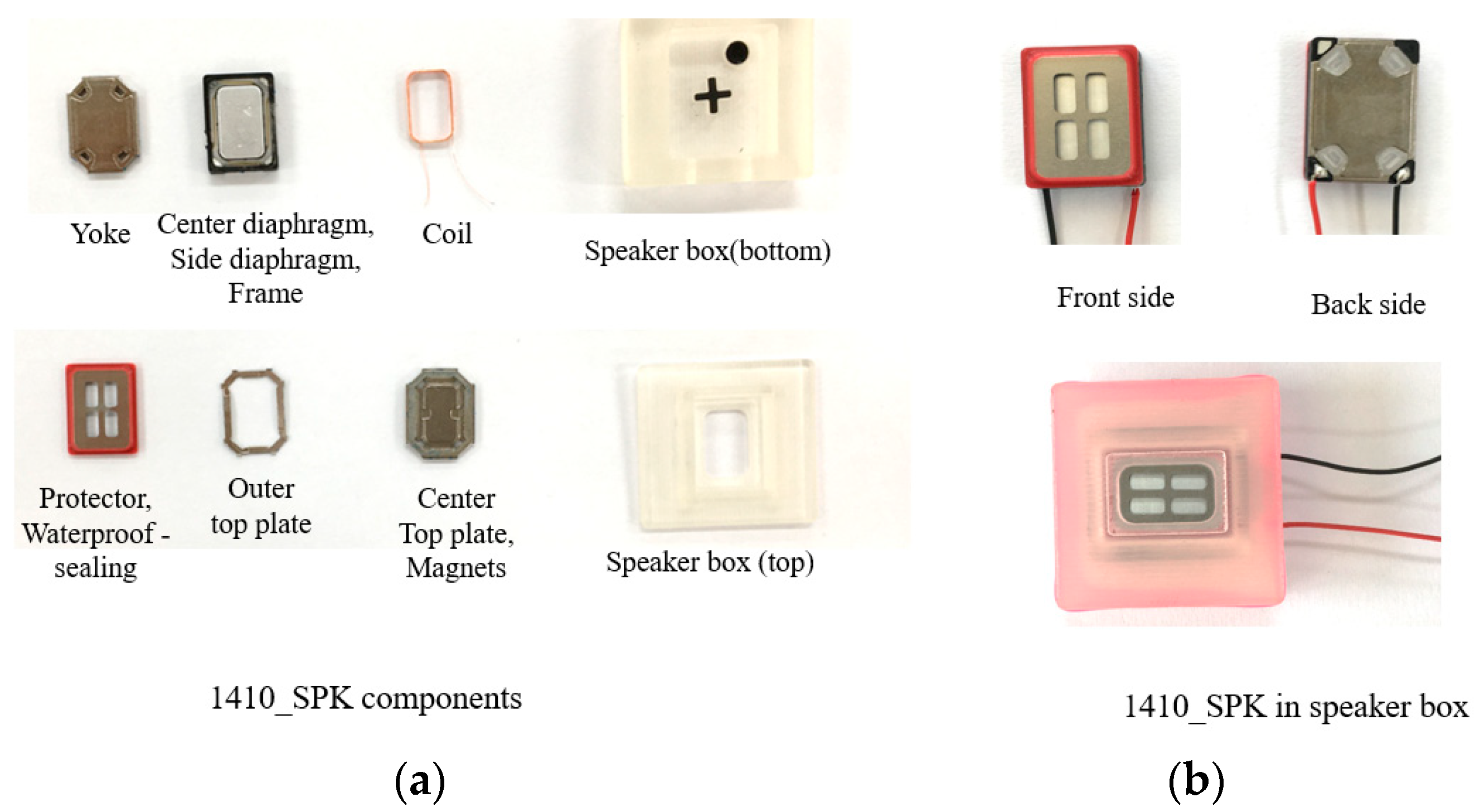

Figure 18. Final design of 1410_SPK and manufactured samples: (a) 3D model of 1410_SPK, (b) manufactured components for 1410_SPK, and (c) assembled sample.

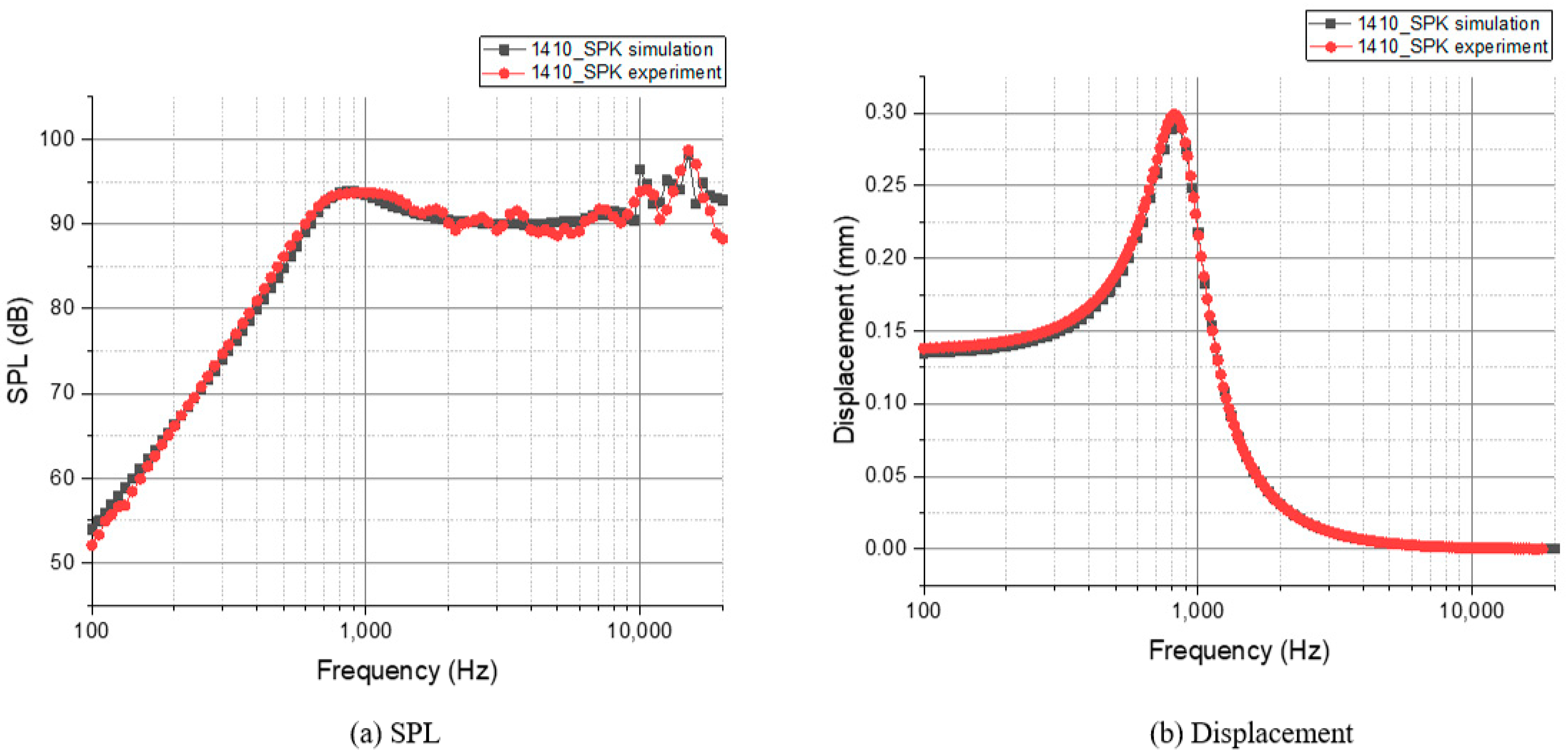

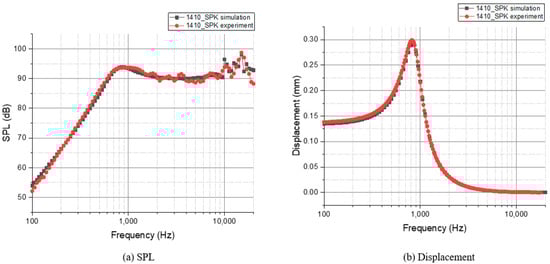

Figure 19. Experiment and simulation results of 1410_SPK: (a) SPL and (b) displacement.

6. Results

The SPL of the prototype 1610_SPK and that of the newly designed 1410_SPK are compared in Figure 20. The average SPL of 1410_SPK at four low frequencies was found to be 79.79 dB. The SPL comparisons between 1610_SPK and 1410_SPK at four frequencies are listed in Table 10.

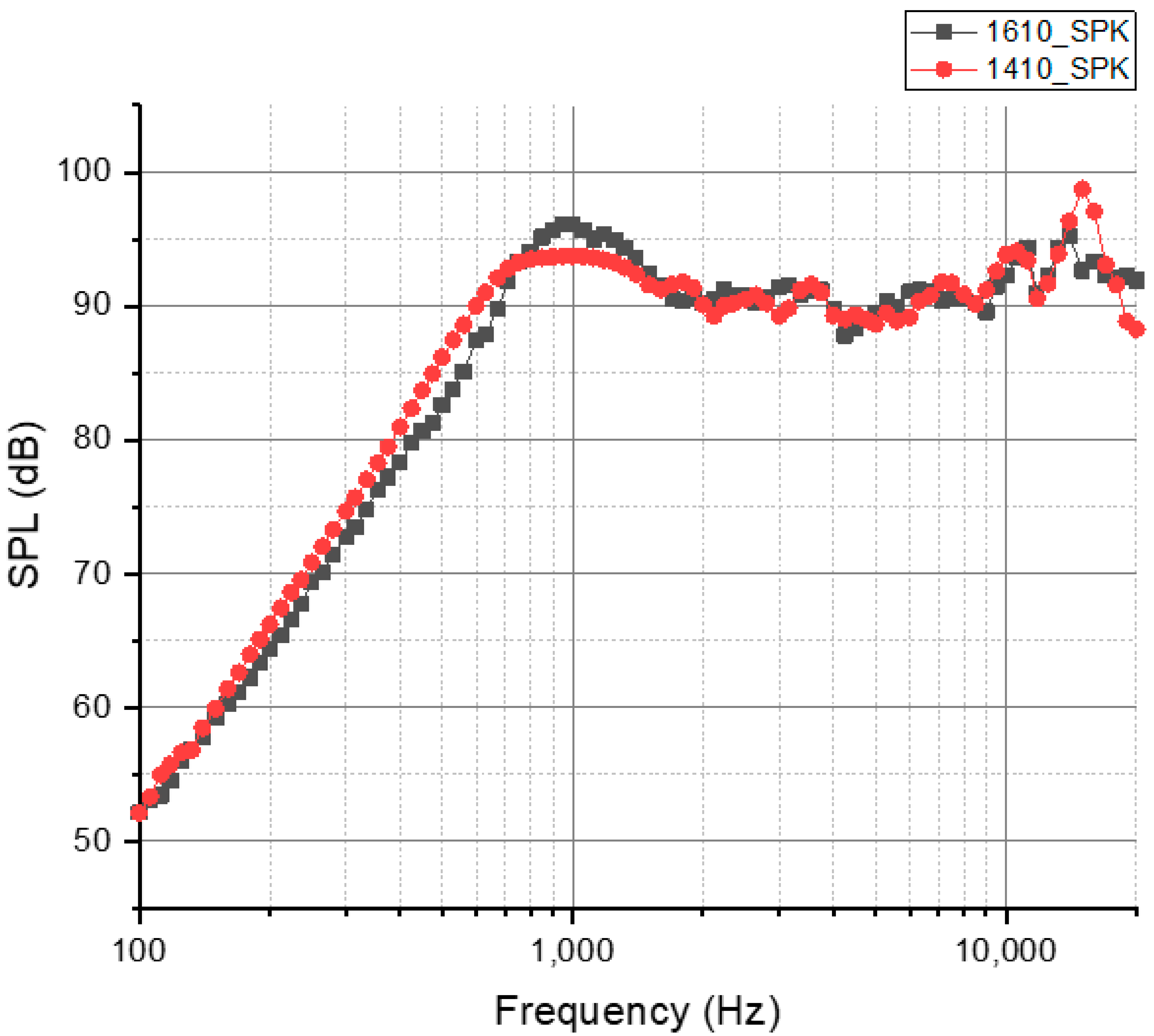

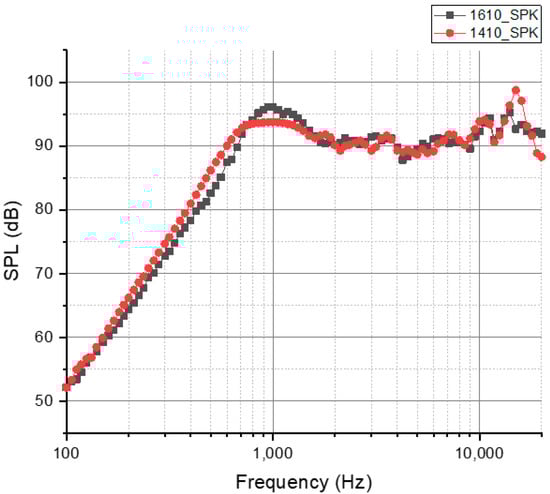

Figure 20. Comparison of the SPL for 1610_SPK and 1410_SPK.

Table 10. SPL comparisons between 1610_SPK and 1410_SPK at four frequencies.

Frequency	1610_SPK	1410_SPK
200 Hz	64.40 dB	66.20 dB
300 Hz	72.78 dB	74.69 dB
500 Hz	82.62 dB	86.16 dB
700 Hz	91.89 dB	92.83 dB
Average	77.92 dB	79.79 dB
Difference	-	+1.87 dB

From the table, it can be seen that the SPL of 1410_SPK was higher by 1.87 dB at low frequencies than that of the prototype 1610_SPK. In terms of acoustic performance, the 1.87 dB improvement at low frequencies is a considerable improvement. This improvement was achieved via the heavier coil and the increased electromagnetic force, compared with those in 1610_SPK. At around 1000 Hz, the SPL of 1410_SPK was lower than that of 1610_SPK, owing to the damping of the SDP. Except around 1000 Hz, the SPL of 1410_SPK was similar to or better than that of its larger 1610_SPK counterpart. Overall, 1410_SPK yielded an improved SPL at low frequencies, while also featuring reduced speaker dimensions from 16.0 × 10.0 × 2.11 to 14.0 × 10.0 × 2.09 mm.

7. Conclusions

Smartphones have become daily necessities for many people. At present, acoustic performance has become an important feature when selecting smartphones. However, the bezel-less display and the numerous components, such as digital stylus pens, mounted in new-generation smartphones have decreased the allowable size of microspeakers. This reduced size degrades the acoustic performance of microspeakers, especially the SPL. To address this problem, we designed and tested a novel microspeaker, called 1410_SPK, in this study. This speaker aims to achieve an improved low-frequency SPL, while featuring reduced dimensions (relative to the prototype speaker). Coupled analysis was used to solve the multiphysics system of the microspeaker. The FEM analysis of the speaker and its SPL results were verified using the results of the experiment with the 1610_SPK prototype microspeaker. The electromagnetic force in the novel microspeaker (1410_SPK) was increased using a large-diameter coil. A ring-shaped permanent magnet that surrounds the exterior coil was used for flux density improvement. Furthermore, the air gap was reduced from 0.15 to 0.10 mm using an automated visual inspection machine. A coil with a thin bond layer was also introduced to increase the total force. The proposed 1410_SPK was manufactured, and its SPL was measured in an anechoic chamber. The SPL, which represents the low-frequency performance, was averaged from four frequencies. Comparison of the SPL proves that 1410_SPK offers an average SPL that is 1.87 dB higher than that of 1610_SPK. The 1.87 dB improvement at low frequencies is a considerable improvement considering the size reduction. Owing to the improved electromagnetic force, the smaller 1410_SPK has almost the same acoustic performance as that of 1610_SPK, except at frequencies around 1 KHz.

The results of this study on microspeakers can be applied to future portable devices such as smartphones, tablet PCs, or smartwatches that require small microspeakers with better acoustic performance.
