# Robustness Analysis for Multi-Agent Consensus Systems with Application to DC Motor Synchronization

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Multi-Agent Consensus System Preliminaries

#### 2.1. Graph Theory

#### 2.2. Multi-Agent Forced Consensus Control

#### 2.3. Information Flow Topology

## 3. DC Motor Speed Consensus Control

#### 3.1. Three Agents Cyclic Topology

#### 3.2. Fixed Reference

**Remark**

**1.**

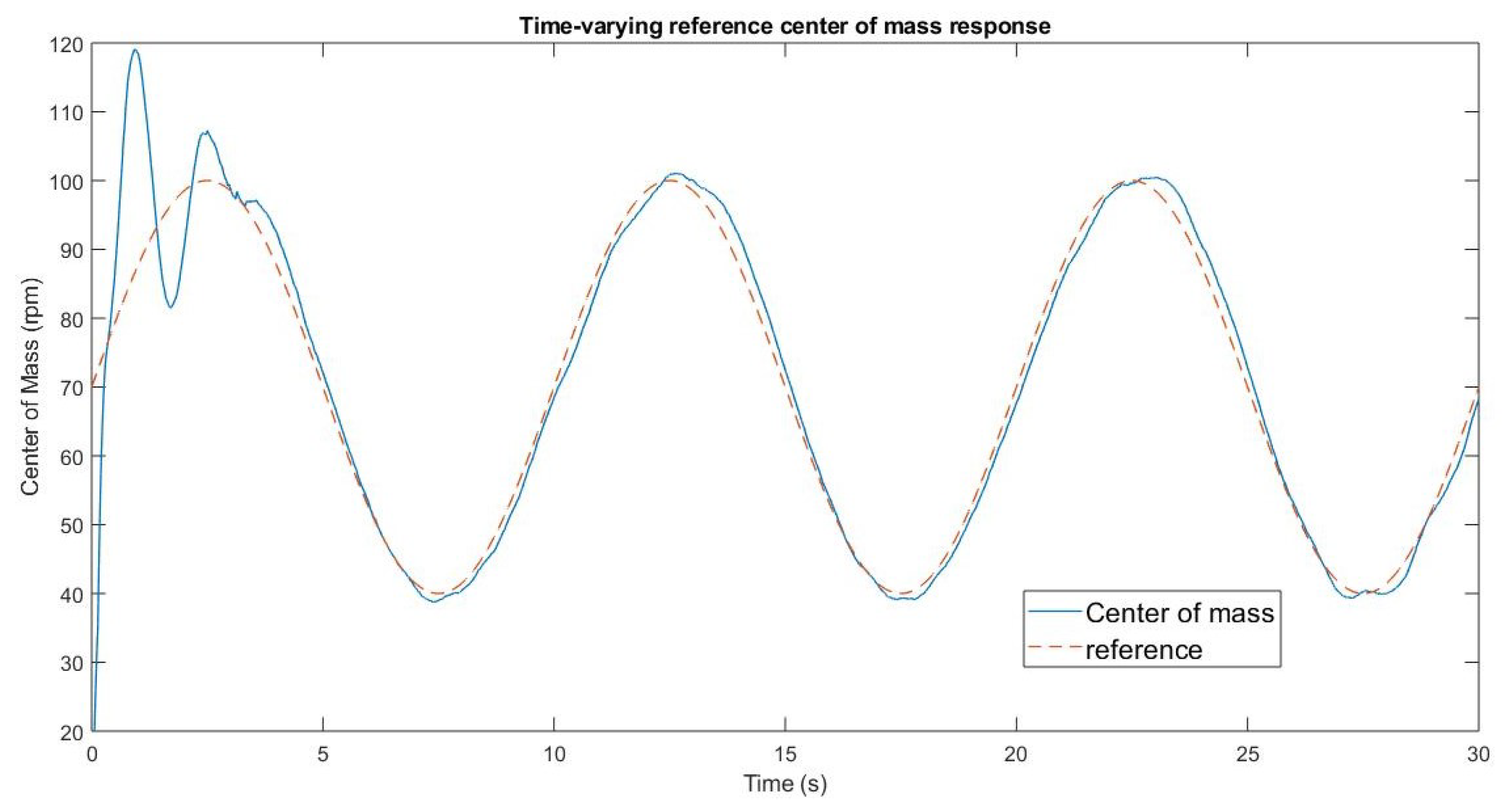

#### 3.3. Time Varying Reference

## 4. Robust Consensus Analysis

#### 4.1. Robust Consensus for the Multi-Agent System

#### 4.2. A Practical Example of Computing the Time Delay Margin in Communication between Agents

## 5. Experimental Results

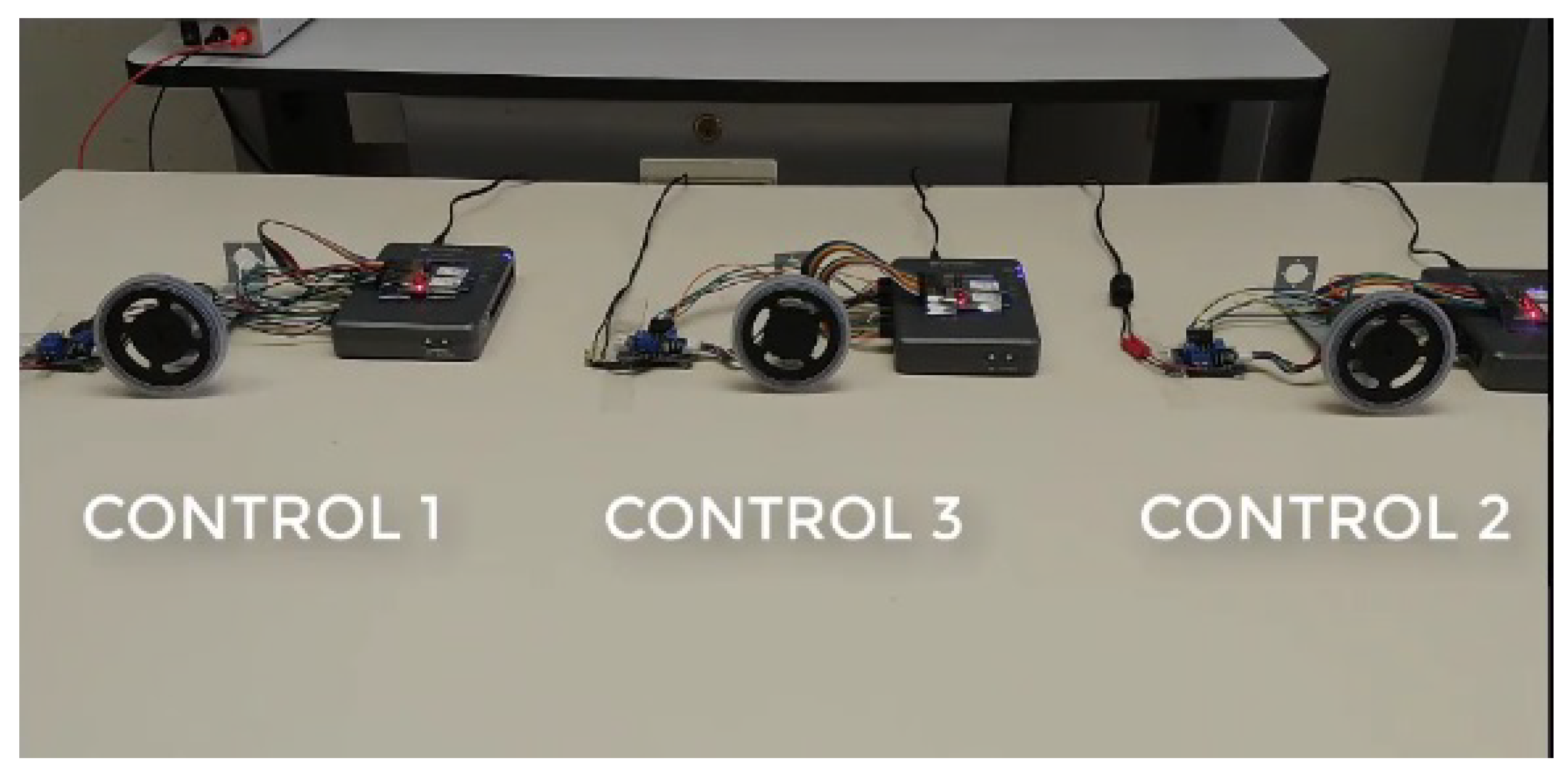

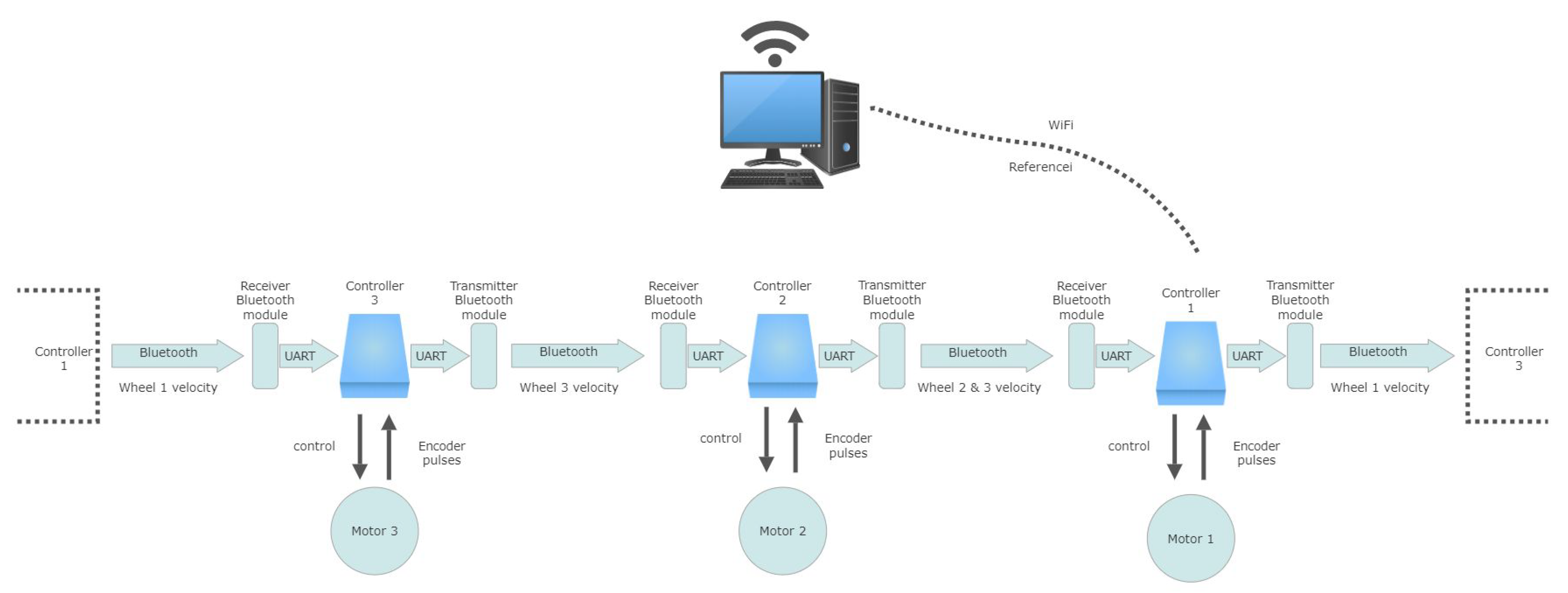

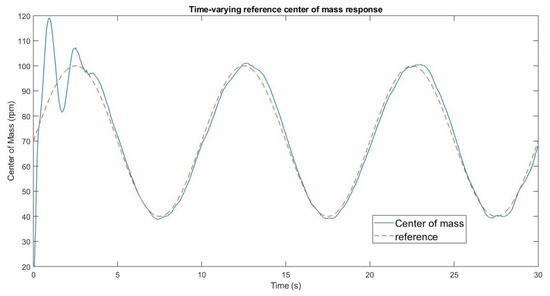

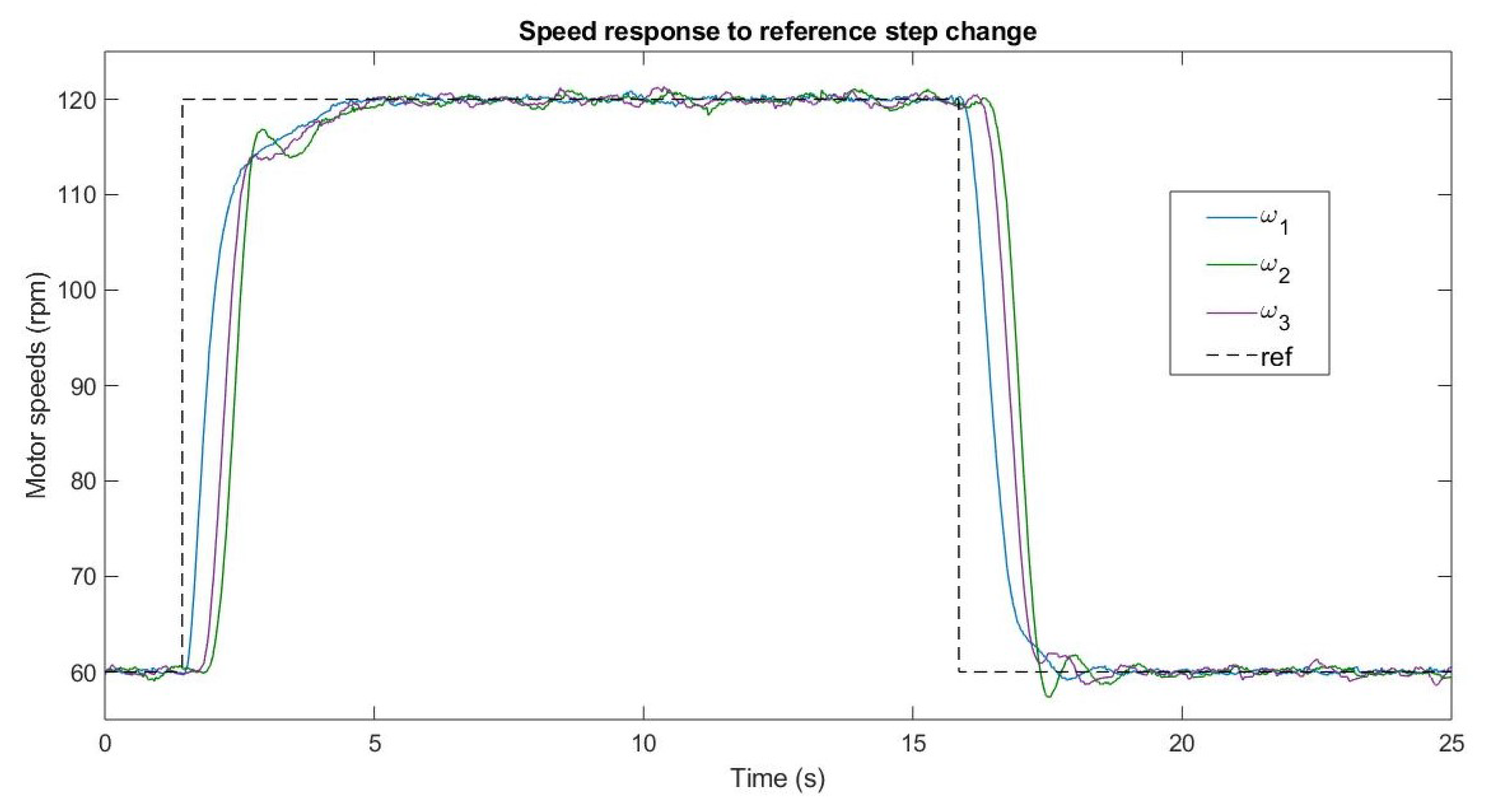

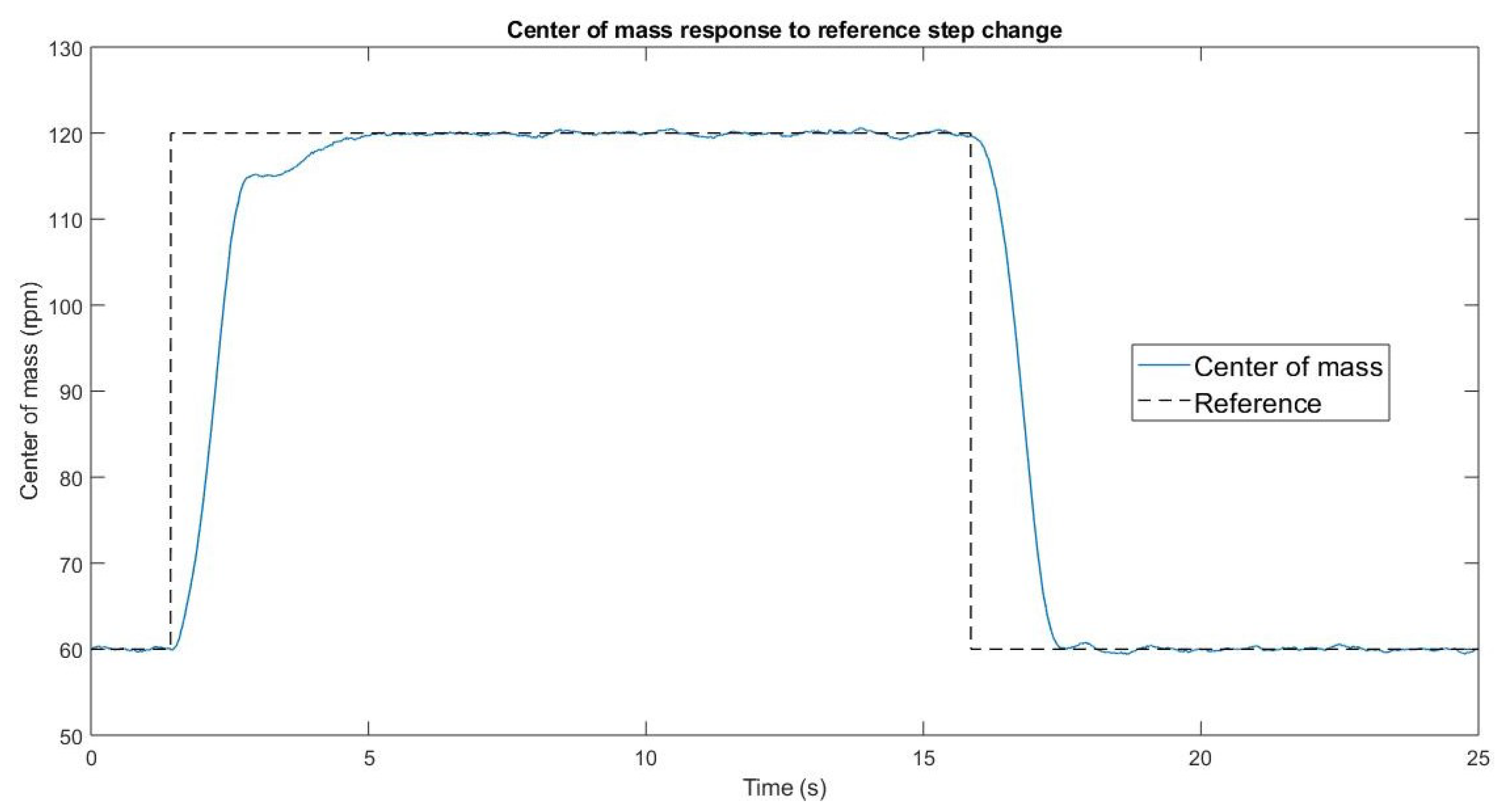

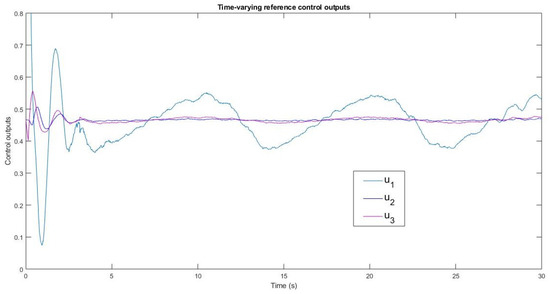

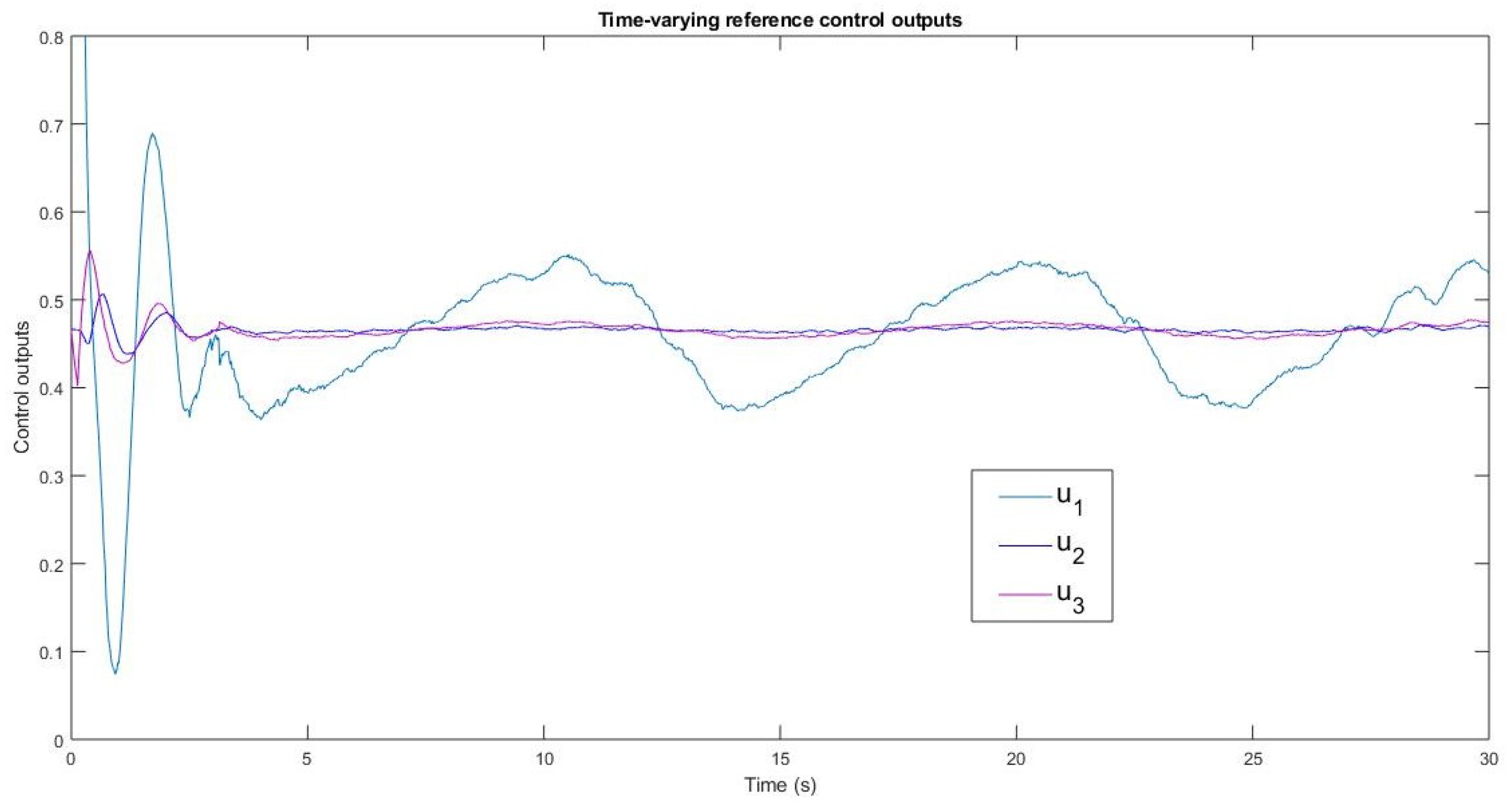

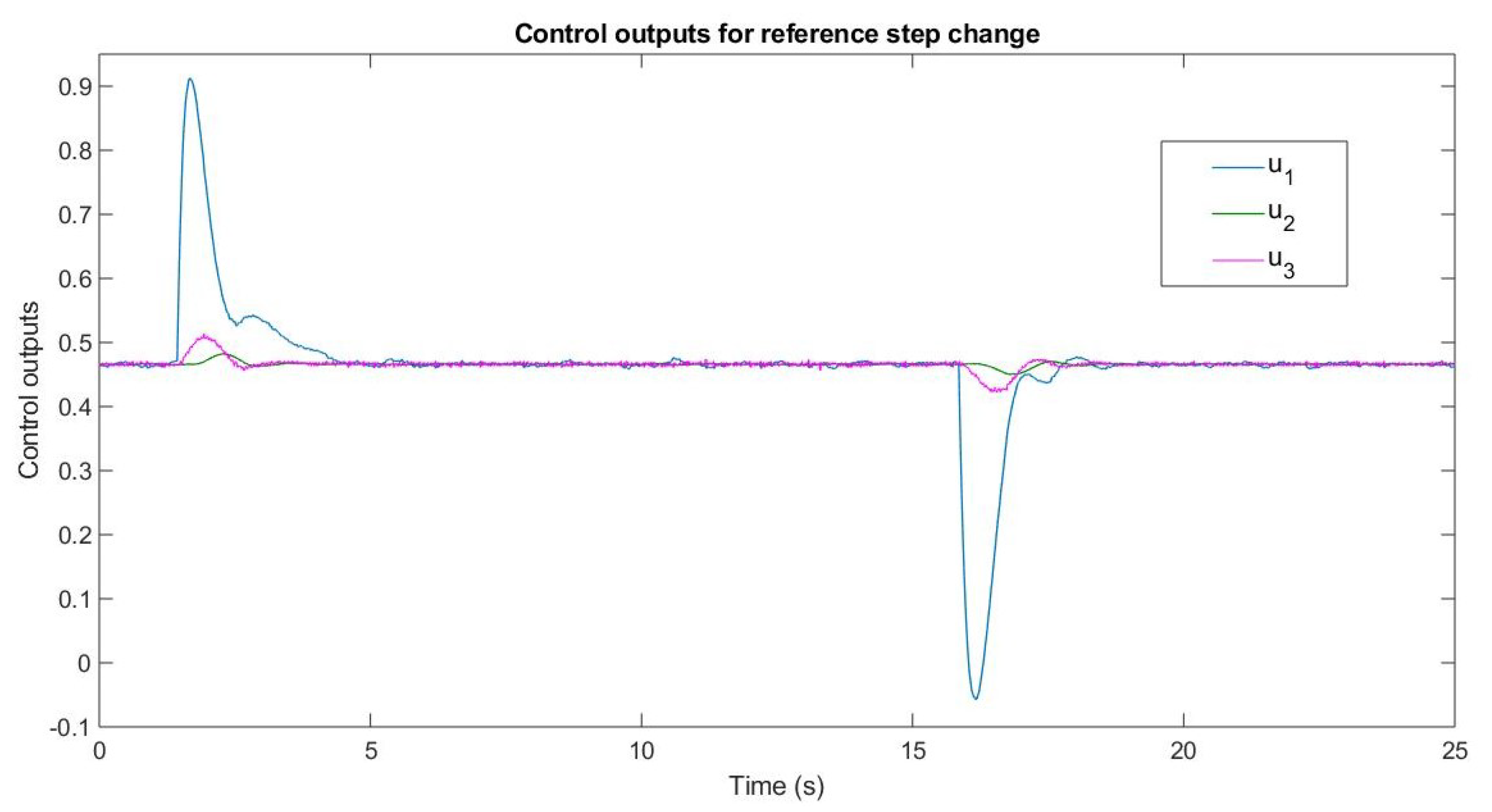

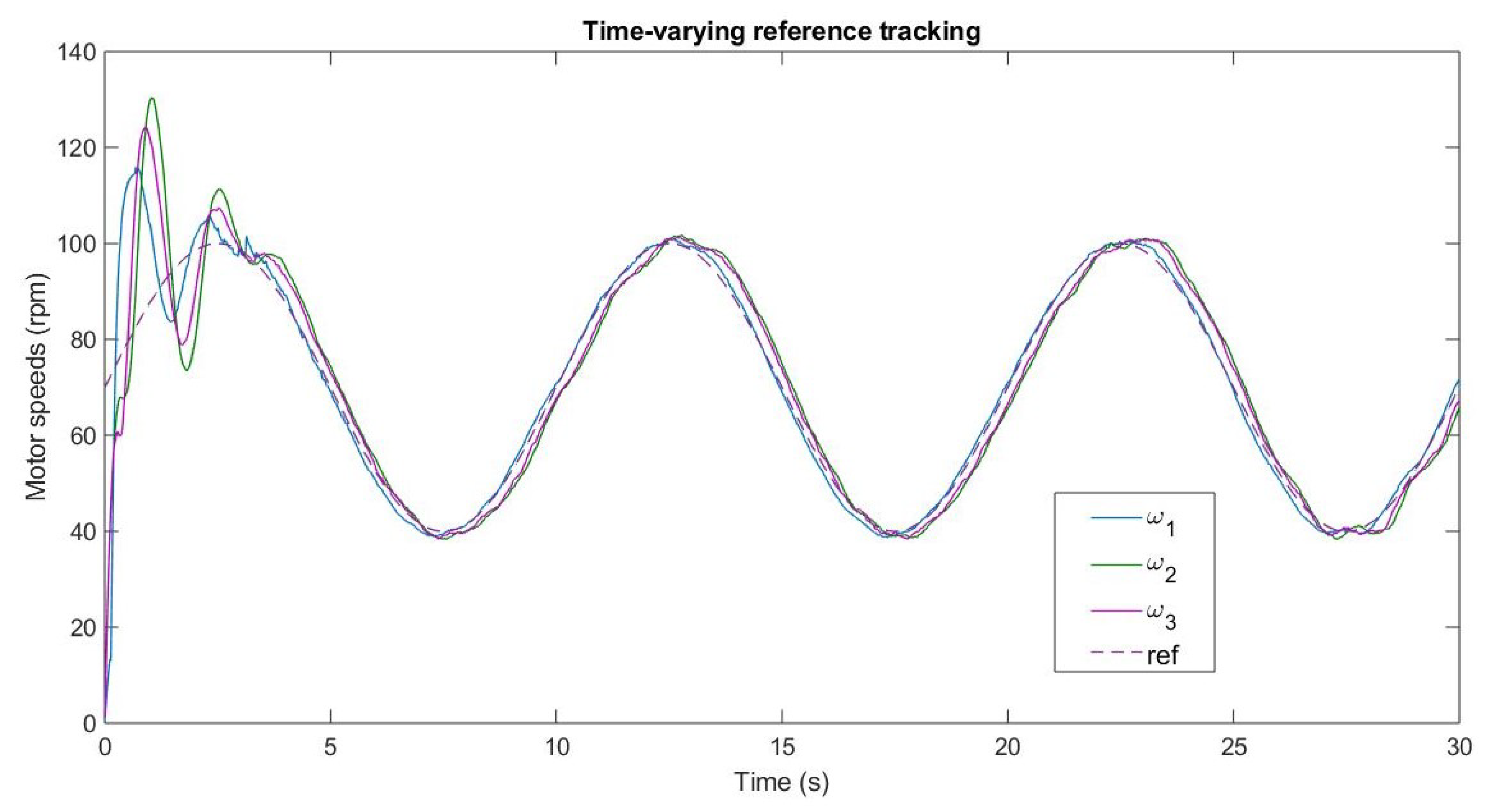

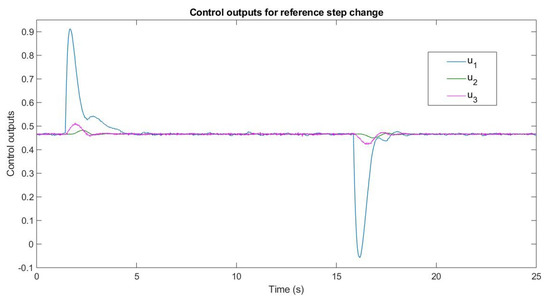

^{®}. Before the tests, the WiFi communication was used to configure the controllers parameters, but, during the tests, it was only used to send the reference value from the computer to the leader controller. The gains ${k}_{p}=0.07$ and ${k}_{cm}=1$ were chosen to have an underdamped response. Note that while controllers 2 and 3 need one speed state information via Bluetooth, the controller 1, the leader, needs to have all speeds to calculate the center of mass. Approximate motor parameter values are shown in Table 1. It is important to note that, in this system, there may be several sources of uncertainty, namely motor parameters, measurement noise, and transmission delays. A schematic diagram of the multi-agent system is shown in Figure 2, and the experimental implementation is presented in Figure 3.

## 6. Conclusions and Future Work

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Leonard, N.E.; Fiorelli, E. Virtual leaders, artificial potentials and coordinated control of groups. In Proceedings of the 40th IEEE Conference on Decision and Control (Cat. No.01CH37228), Orlando, FL, USA, 4–7 December 2001; pp. 2968–2973. [Google Scholar]
- Arrichiello, F.; Chiaverini, S.; Fossen, T. Formation Control of Marine Surface Vessels Using the Null-Space-Based Behavioral Control. In Lecture Notes in Control and Information Sciences: Group Coordination and Cooperative Control; Springer: Berlin/Heidelberg, Germany, 2006; pp. 1–19. [Google Scholar]
- Chen, X.; Serrani, A. ISS-Based Robust Leader/Follower Trailing Control. In Lecture Notes in Control and Information Sciences: Group Coordination and Cooperative Control; Springer: Berlin/Heidelberg, Germany, 2006; pp. 75–91. [Google Scholar]
- Lozano, R.; Spong, M.W.; Guerrero, J.A.; Chopra, N. Controllability and observability of leader-based multi-agent systems. In Proceedings of the 47th IEEE Conference on Decision and Control, Cancun, Mexico, 9–11 December 2008; pp. 3713–3718. [Google Scholar]
- Olfati-Saber, R.; Fax, J.A.; Murray, R.M. Consensus and Cooperation in Networked Multi-Agent Systems. Proc. IEEE
**2007**, 95, 215–233. [Google Scholar] - Ren, W.; Beard, R.W.; Atkins, E.M. Information Consensus in Multivehicle Cooperative Control. IEEE Control Syst. Mag.
**2007**, 27, 71–82. [Google Scholar] - Guerrero, J.A.; Olivares, D.; Romero, G. Forced Bipartite Consensus for Multi-Agent Systems. In Proceedings of the 44th Annual Conference of the IEEE Industrial Electronics Society (IECON), Washington, DC, USA, 21–23 October 2018; pp. 2335–2340. [Google Scholar]
- Nagata, T.; Sasaki, H. A multi-agent approach to power system restoration. IEEE Trans. Power Syst.
**2002**, 17, 457–462. [Google Scholar] [CrossRef] - Balch, T.; Arkin, R.C. Behavior-based formation control for multirobot teams. IEEE Trans. Robot. Autom.
**1998**, 14, 926–939. [Google Scholar] [CrossRef] [Green Version] - Guerrero, J.A.; Lozano, R. Flight Formation of Multiple Mini Rotorcraft based on Nested Saturations. In Proceedings of the 2010 IEEE/RSJ International Conference on Intelligent Robots and Systems, Taipei, Taiwan, 18–22 October 2010; pp. 634–639. [Google Scholar]
- Chuang, C.W.; Haung, C.L.; Lee, C.D.; Kao, C.C.; Fung, R.F. Synchronization and tension control of dual motor systems via MIMO discrete pseudo model following integral variable structure control. Mech. Mach. Theory
**2009**, 44, 499–510. [Google Scholar] [CrossRef] - Chiu, G.T.C.; Tomizuka, M. Coordinated Position Control of Multi-Axis Mechanical Systems. J. Dyn. Syst. Meas. Control
**1998**, 120, 389–393. [Google Scholar] [CrossRef] - Guzey, H.C.; Dumlu, A.; Guzey, N.; Alpay, A. Optimal Synchronizing Speed Control of Multiple DC Motors. In Proceedings of the 4th International Conference on Optimization and Applications, Mohammedia, Morocco, 26–27 April 2018; pp. 1–5. [Google Scholar]
- Li, L.; Sun, L.; Zhang, S.; Yang, Q. Speed tracking and synchronization of multiple motors using ring coupling control and adaptive sliding mode control. ISA Trans.
**2015**, 58, 635–649. [Google Scholar] [CrossRef] [PubMed] - Zhao, D.; Li, C.; Ren, J. Speed Synchronization of Multiple Induction Motors with Total Sliding Mode Control. Syst. Eng. Theory Pract.
**2009**, 29, 110–117. [Google Scholar] [CrossRef] - Zhang, Z.; Chau, K.T.; Wang, Z. Chaotic Speed Synchronization Control of Multiple Induction Motors Using Stator Flux Regulation. IEEE Trans. Magn.
**2012**, 48, 4487–4490. [Google Scholar] [CrossRef] - Kose, E.; Muhurcu, A. The Control of Brushless DC Motor for Electric Vehicle by Using Chaotic Synchronization Method. Stud. Inform. Control
**2018**, 27, 403–412. [Google Scholar] [CrossRef] [Green Version] - Bhattacharyya, S.P. Robust control under parametric uncertainty: An overview and recent results. Annu. Rev. Control
**2017**, 44, 45–77. [Google Scholar] [CrossRef] - Matusu, R.; Senol, B.; Pekar, L. Value-Set-Based Approach to Robust Stability Analysis for Ellipsoidal Families of Fractional-Order Polynomials with Complicated Uncertainty Structure. Appl. Sci.
**2019**, 9, 5451. [Google Scholar] [CrossRef] [Green Version] - Sun, Y.-G.; Xie, S.; Xu, J.-Q.; Lin, G.-B. A Robust Levitation Control of Maglev Vehicles Subject to Time Delay and Disturbances: Design and Hardware Experimentation. Appl. Sci.
**2020**, 10, 1179. [Google Scholar] [CrossRef] [Green Version] - Wu, L.; Zhao, R.; Li, Y.; Chen, Y.-H. Optimal Design of Adaptive Robust Control for the Delta Robot with Uncertainty: Fuzzy Set-Based Approach. Appl. Sci.
**2020**, 10, 3472. [Google Scholar] [CrossRef] - Trentelman, H.L.; Takaba, K.; Monshizadeh, N. Robust Synchronization of Uncertain Linear Multi-Agent Systems. IEEE Trans. Autom. Control
**2013**, 58, 1511–1523. [Google Scholar] [CrossRef] [Green Version] - Wang, X.; Li, S. Distributed finite-time consensus algorithms for leader–follower second-order multi-agent systems with mismatched disturbances. In Proceedings of the IEEE American Control Conference, Boston, MA, USA, 6–8 July 2016; pp. 2814–2819. [Google Scholar]
- Huang, M.; Manton, J.H. Coordination and Consensus of Networked Agents with Noisy Measurements: Stochastic Algorithms and Asymptotic Behavior. SIAM J. Control Optim.
**2009**, 8, 134–161. [Google Scholar] [CrossRef] - Guerrero, J.A.; Romero, G.; Lozano, R. Robust consensus tracking of leader-based multi-agent systems. In Proceedings of the 2010 American Control Conference, Baltimore, MD, USA, 30 June–2 July 2010; pp. 6299–6305. [Google Scholar]
- Godsil, C.; Royle, G. Graduate Texts in Mathematics: Algebraic Graph Theory; Springer: Berlin, Germany, 2001. [Google Scholar]
- Mesbahi, M.; Egerstedt, M. Graph Theoretic Methods in Multiagent Networks; Princeton University Press: Princeton, NJ, USA, 2010. [Google Scholar]
- Guerrero, J.A.; Castillo, P.; Challal, Y. Trajectory Tracking for a Group of Mini Rotorcraft Flying in Formation. In Proceedings of the IFAC World Congress, Milano, Italy, 27 August–2 September 2011; pp. 6331–6336. [Google Scholar]
- Romero, G.; Guerrero, J.A.; Reyes, L.D.; Lozano, R.; Olivares, D. Robustness Margin for Leader-based Multi-agent Consensus Systems in Presence of Parametric Uncertainty. In Proceedings of the 44th Annual Conference of the IEEE Industrial Electronics Society (IECON), Washington, DC, USA, 21–23 October 2018; pp. 2625–2630. [Google Scholar]
- Luenberger, D.G. Optimization by Vector Space Methods; John Wiley & Sons, Inc.: New York, NY, USA, 1969. [Google Scholar]
- Romero, G.; Diaz, I.; Perez, I.; Guerrero, J.A.; Lara, D.; Rivera, J. New results on robust stability for differential-difference systems with affine linear parametric uncertainty. Int. J. Syst. Sci.
**2013**, 44, 14–22. [Google Scholar] [CrossRef] - Thowsen, A. An Analytic Stability Test for a Class of Time-Delay Systems. IEEE Trans. Autom. Control
**1981**, 26, 735–736. [Google Scholar] [CrossRef] - Thowsen, A. The Routh-Hurwitz Method for Stability Test for a Class of Time-Delay Systems. Int. J. Control
**1981**, 33, 991–995. [Google Scholar] [CrossRef]

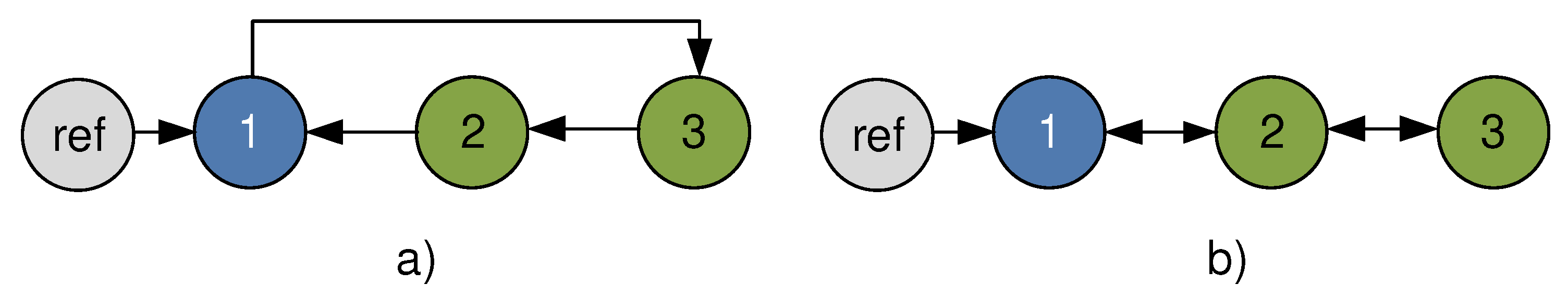

**Figure 1.**Information flow configuration: (
