Article

Reconstruction of Pressureless Sintered Micron Silver Joints and Simulation Analysis of Elasticity Degradation in Deep Space Environment

by 1, 1, 1,* and 2
1
School of Reliability and Systems Engineering, Beihang University, Beijing 100191, China
2
China Academy of Space Technology, Beijing 100094, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(18), 6368; https://doi.org/10.3390/app10186368
Received: 22 July 2020 / Revised: 19 August 2020 / Accepted: 9 September 2020 / Published: 12 September 2020
(This article belongs to the Special Issue Reliability Analysis of Electrotechnical Devices)

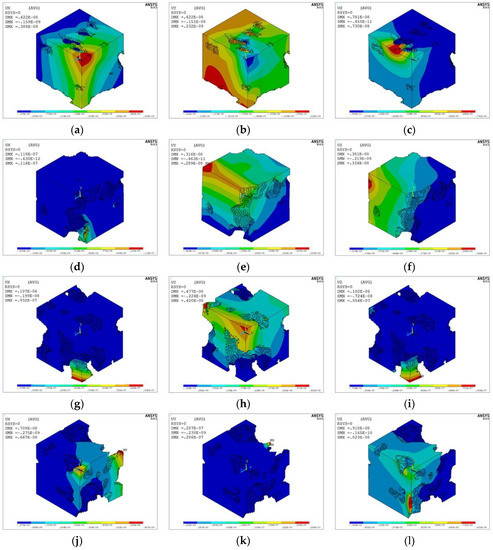

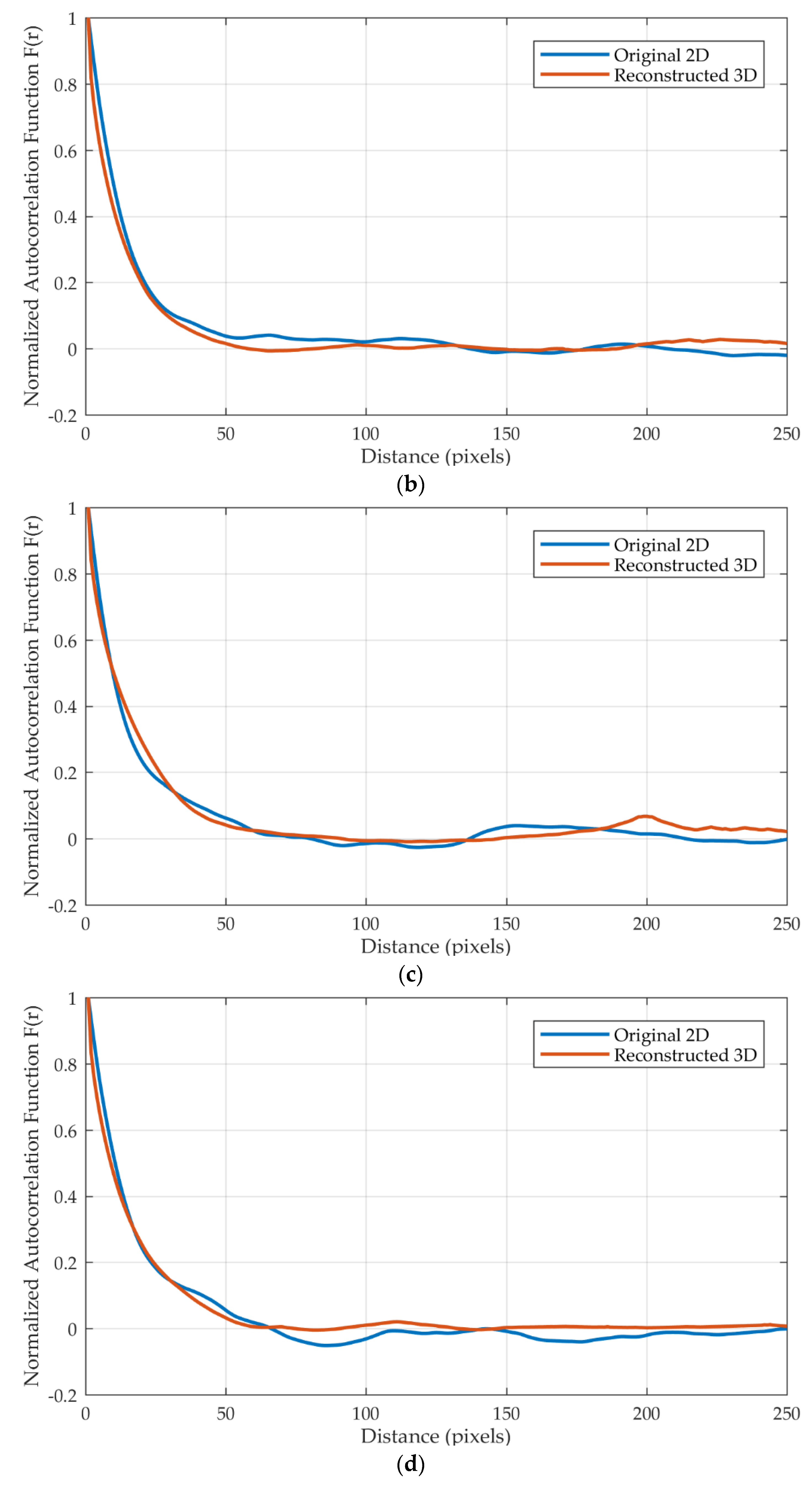

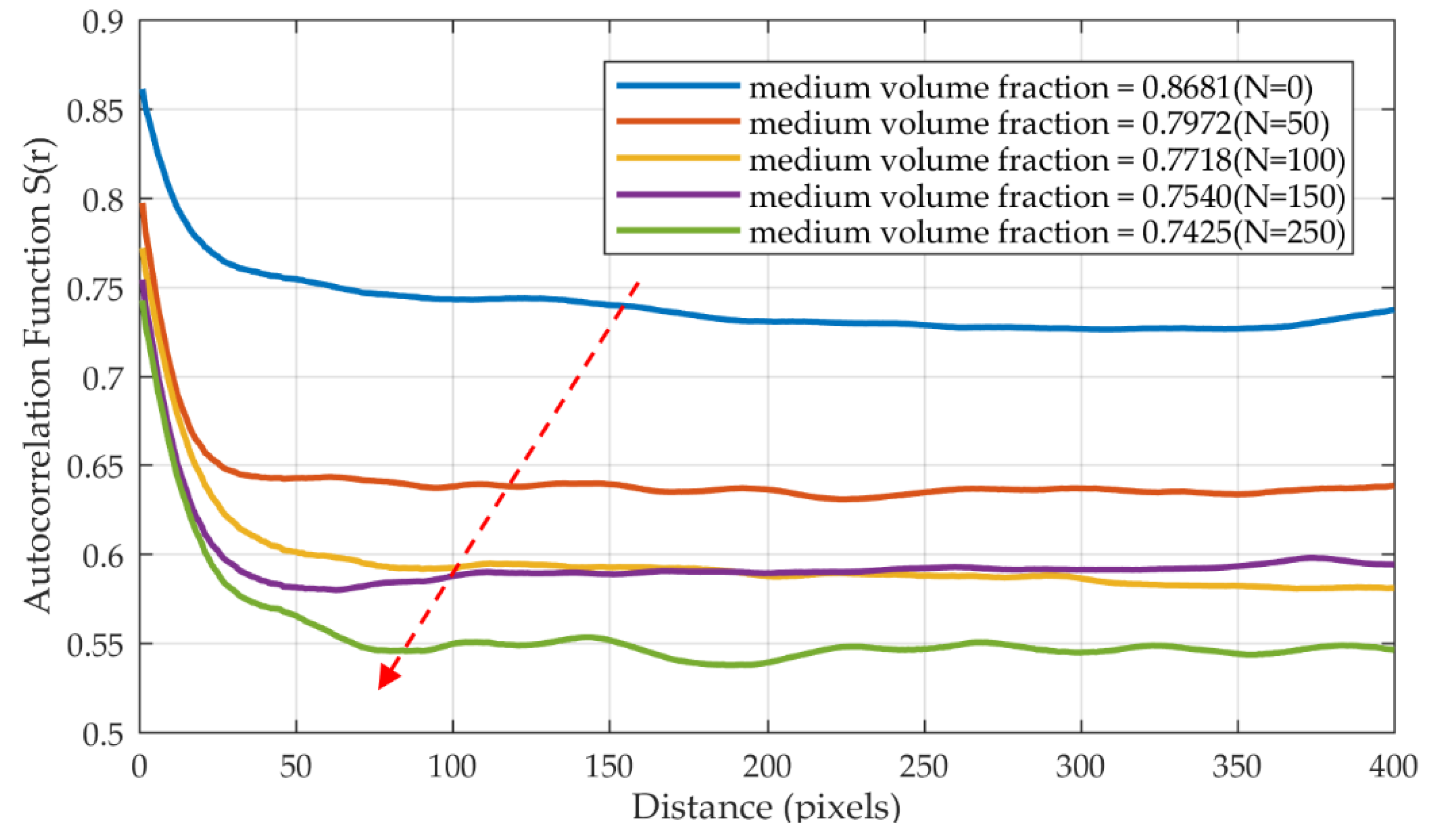

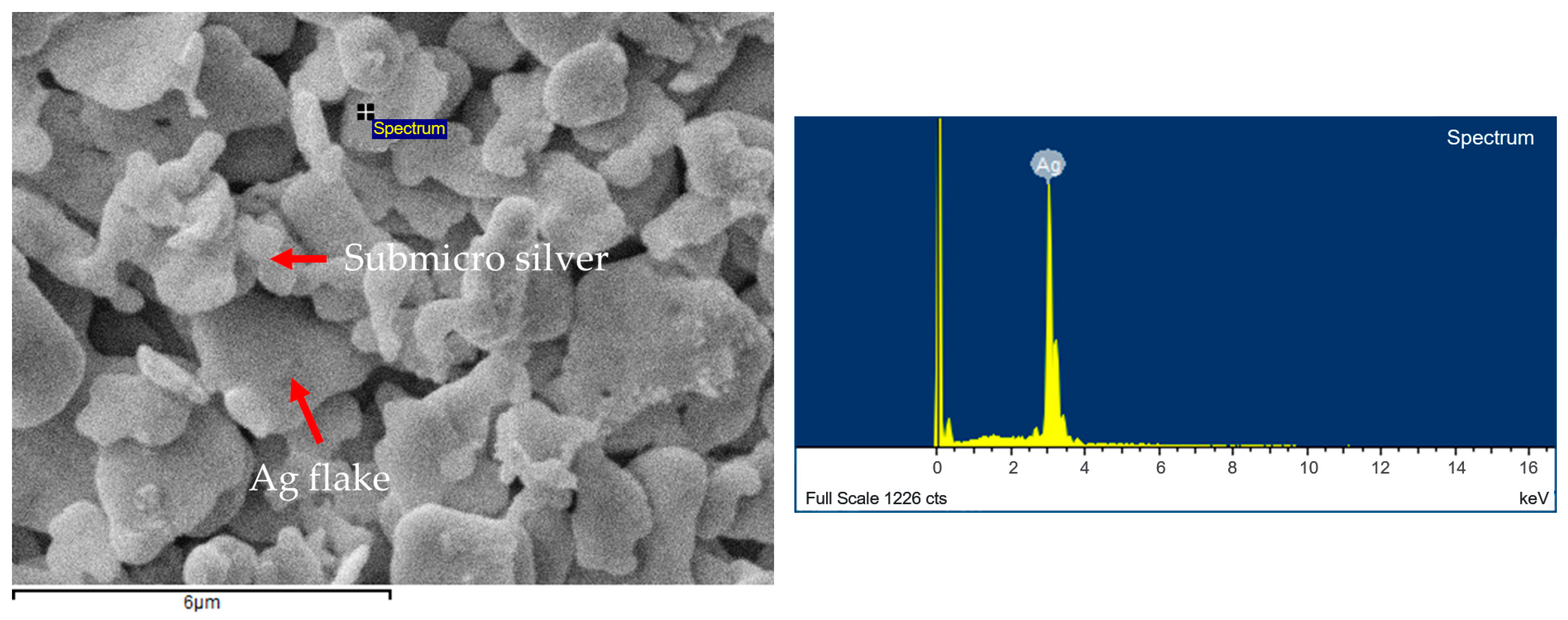

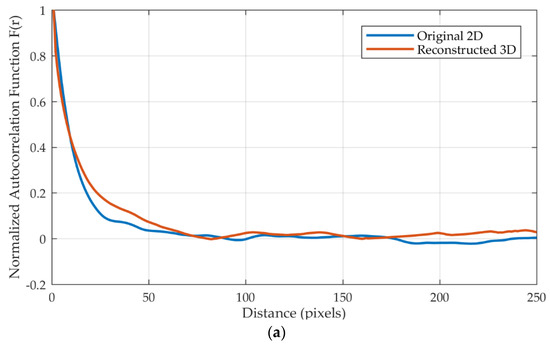

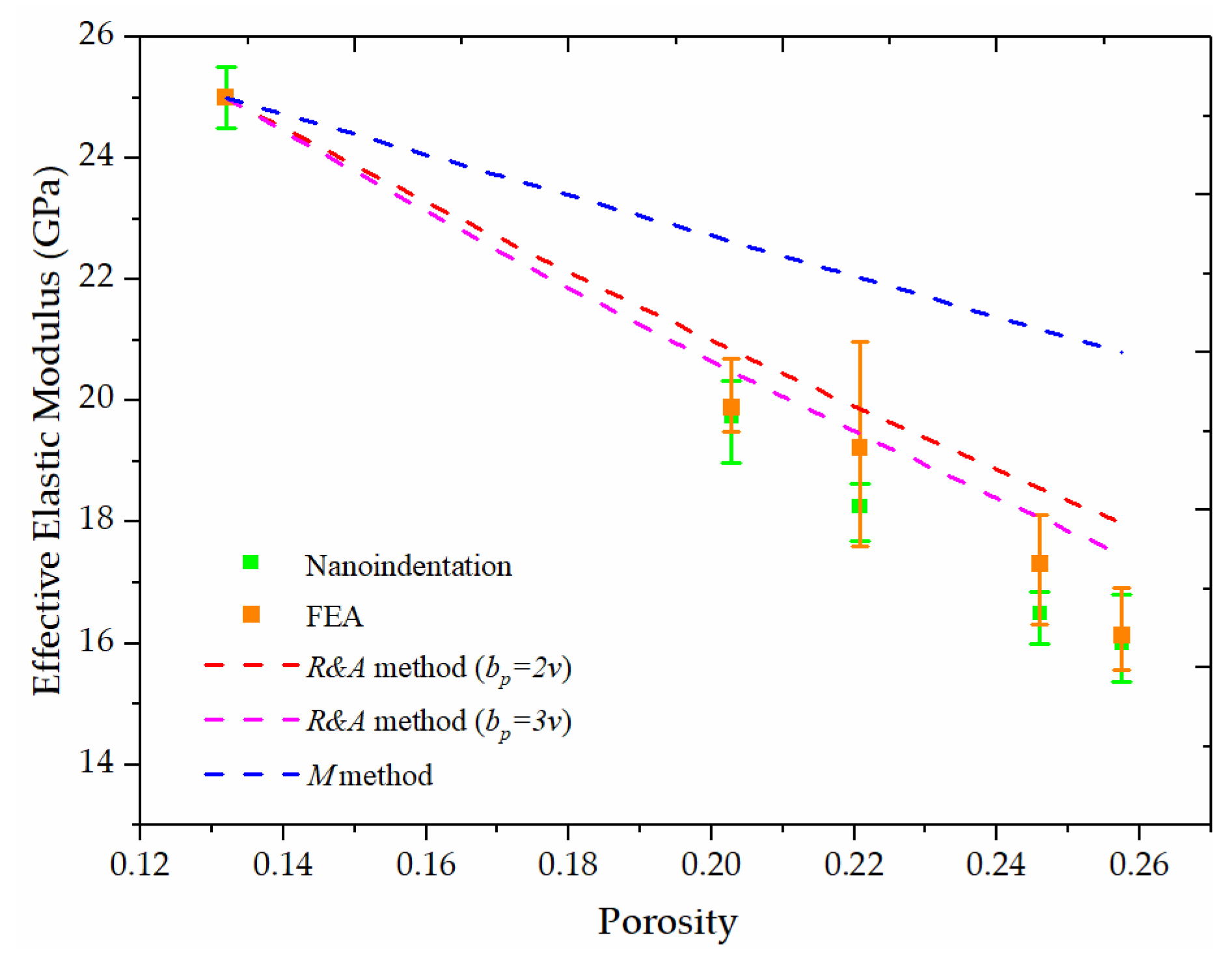

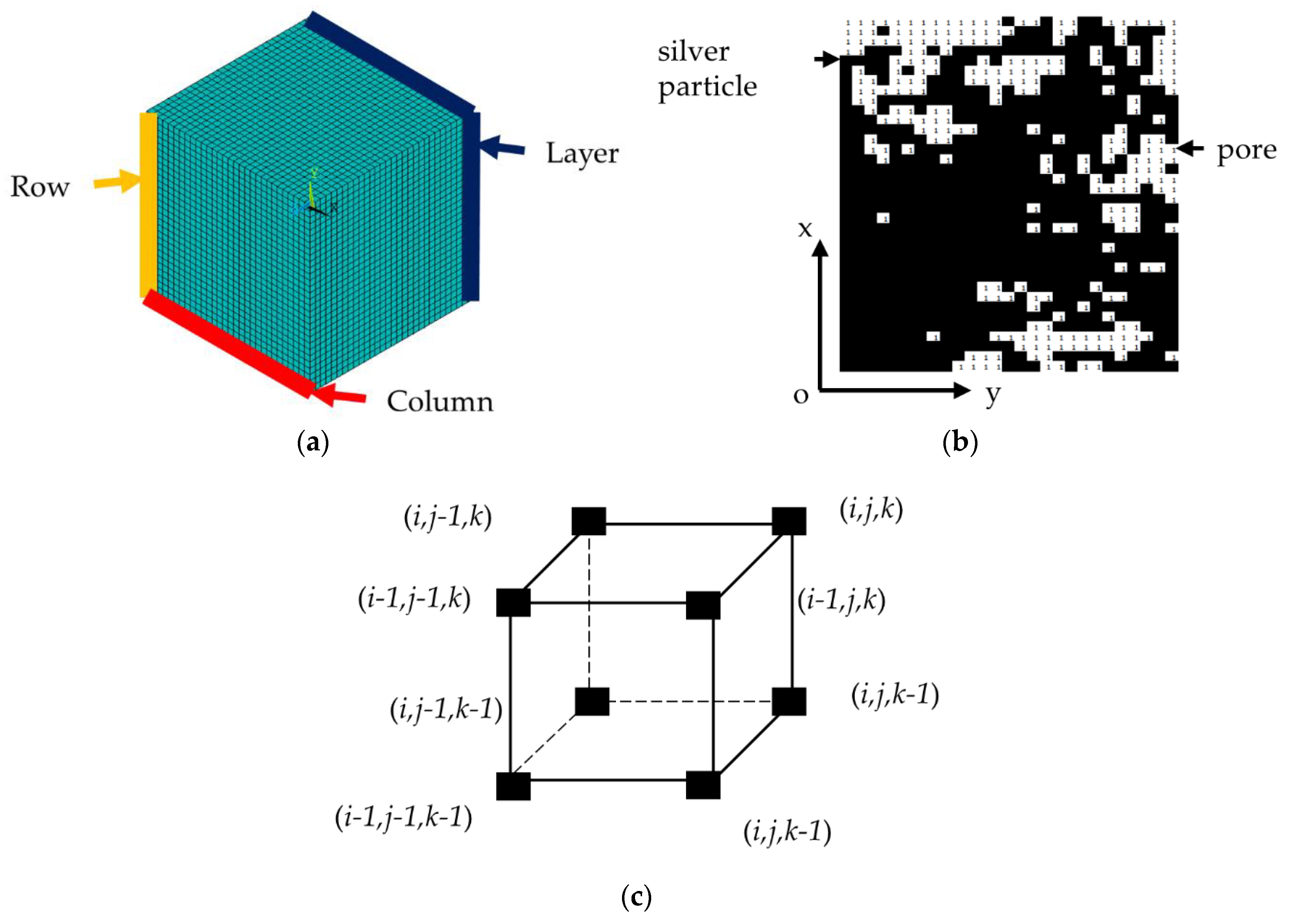

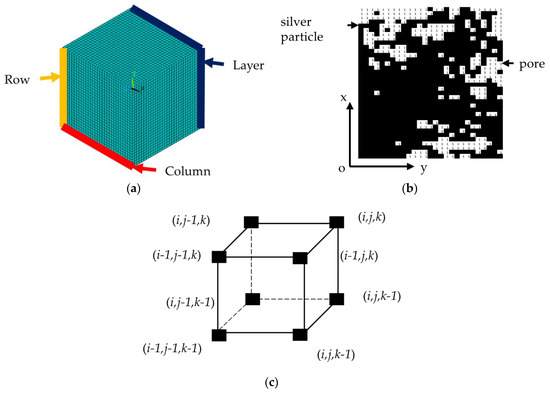

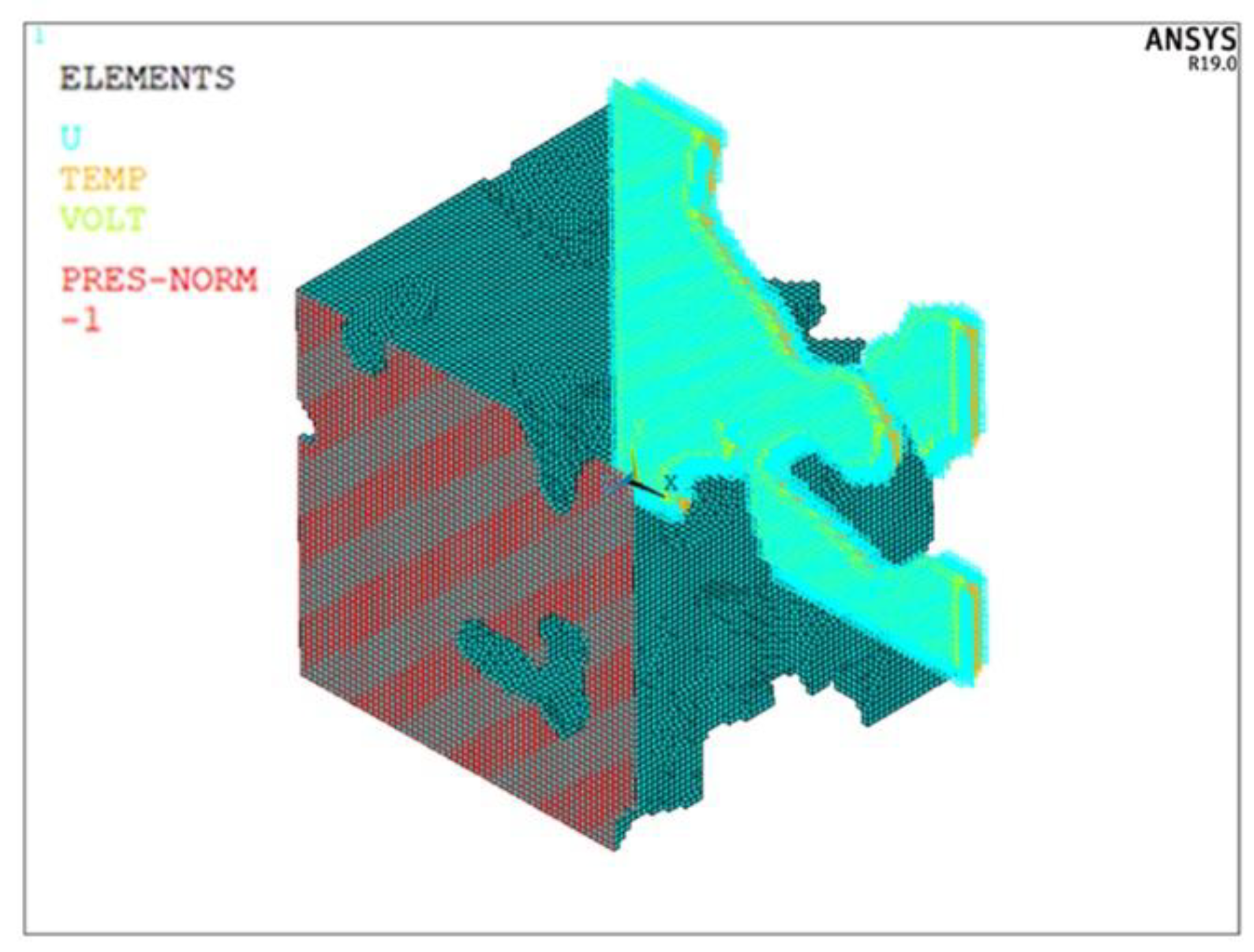

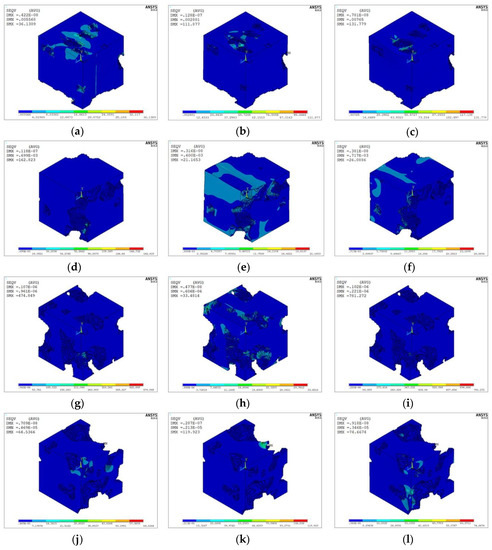

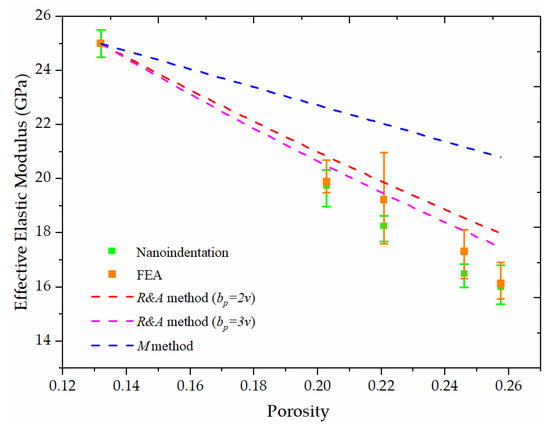

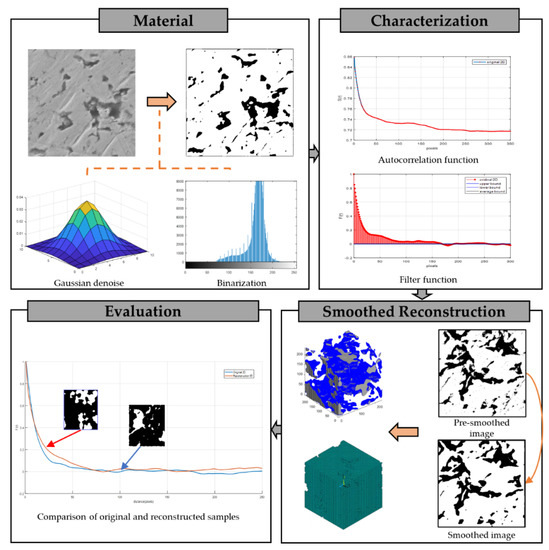

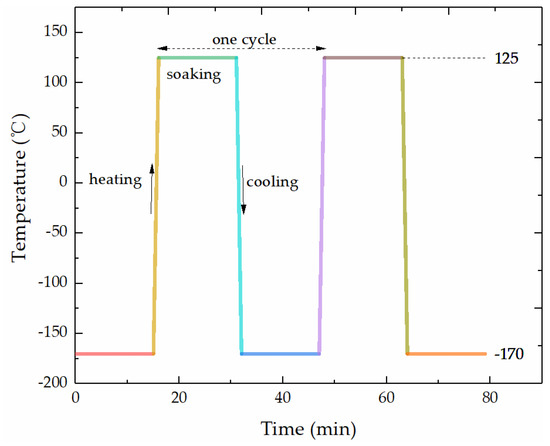

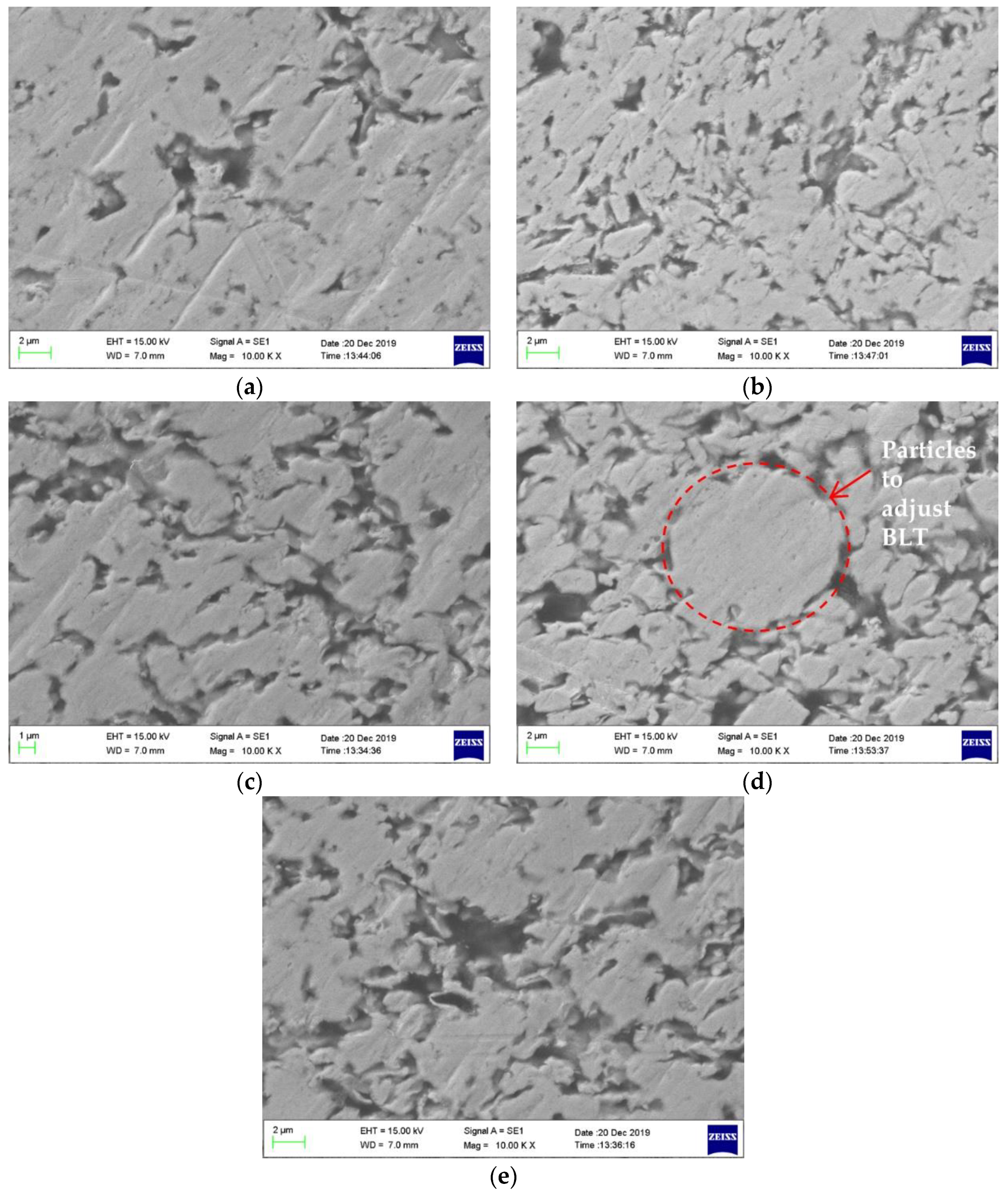

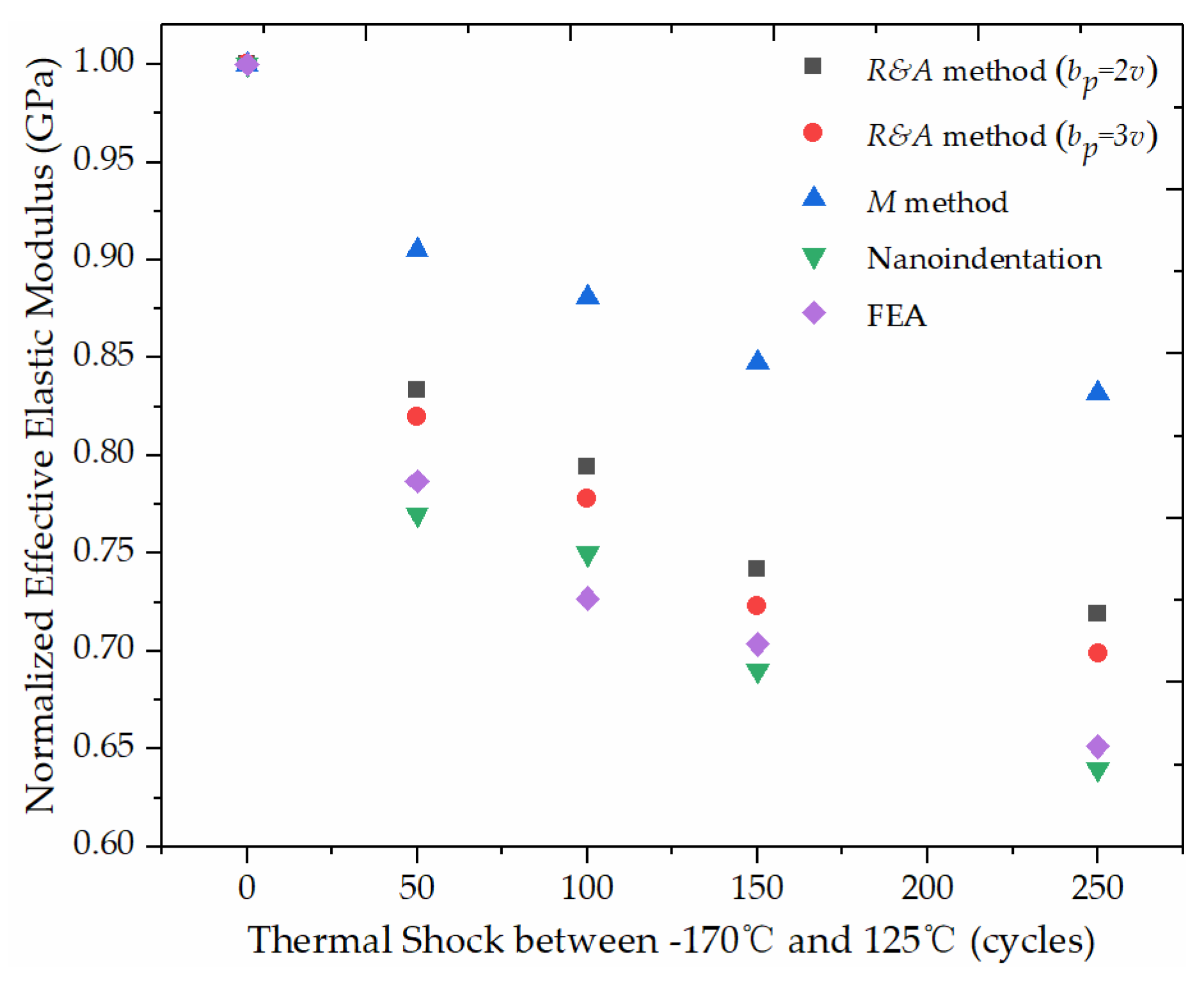

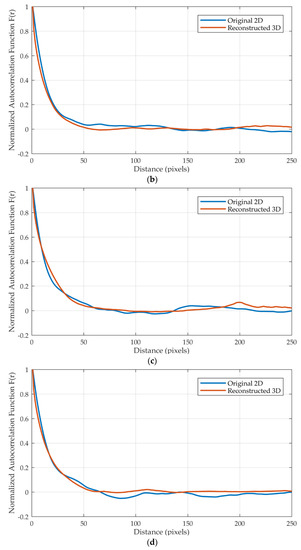

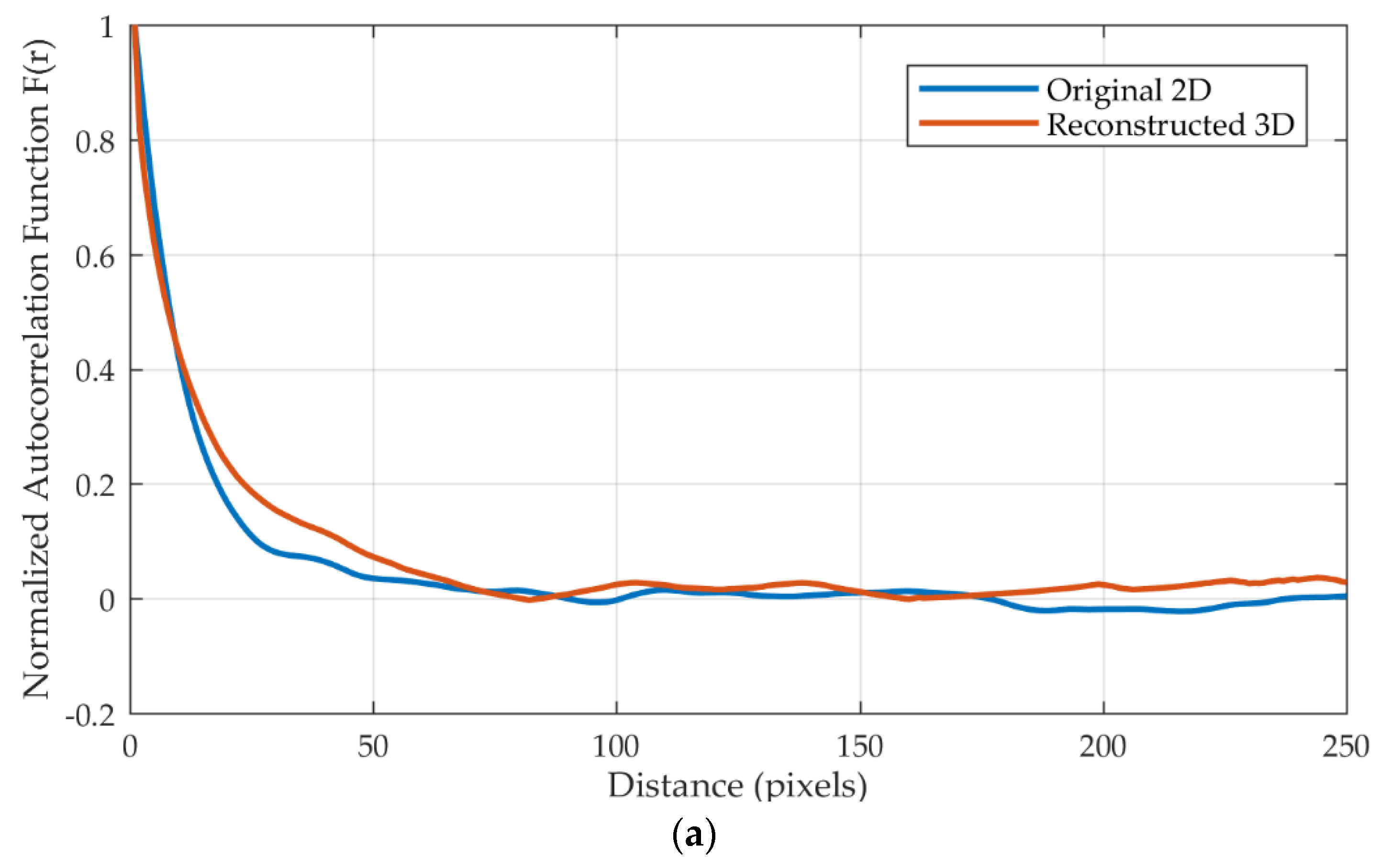

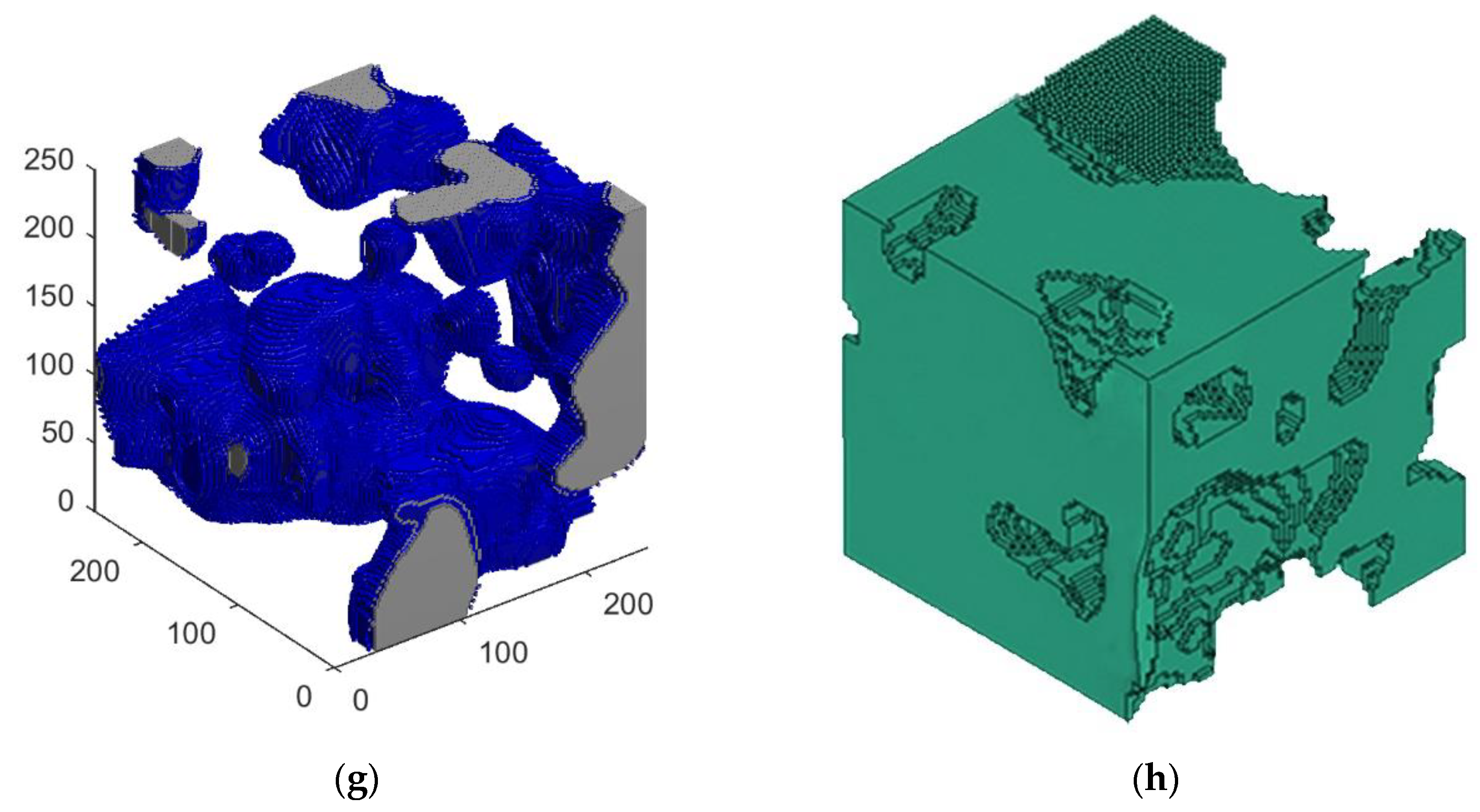

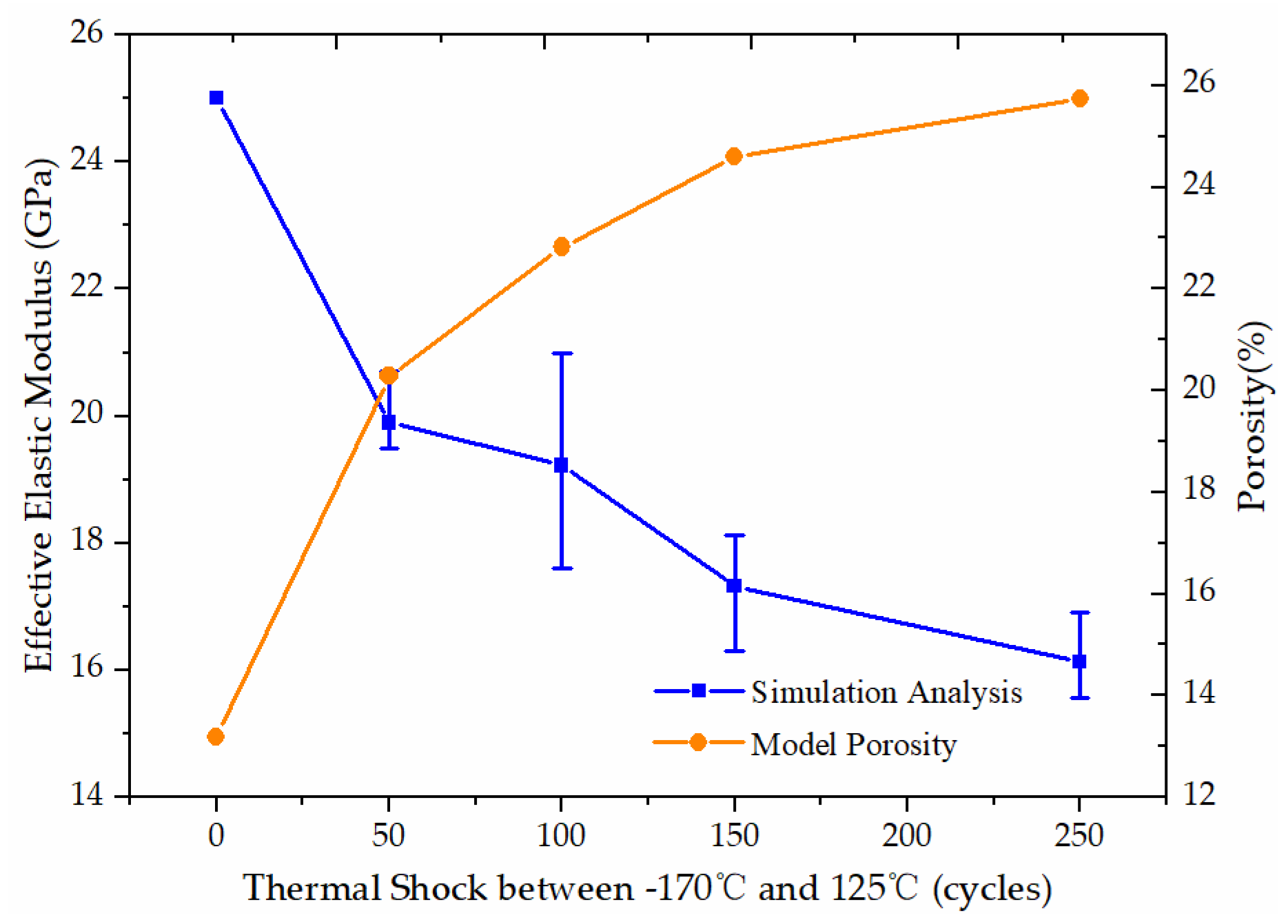

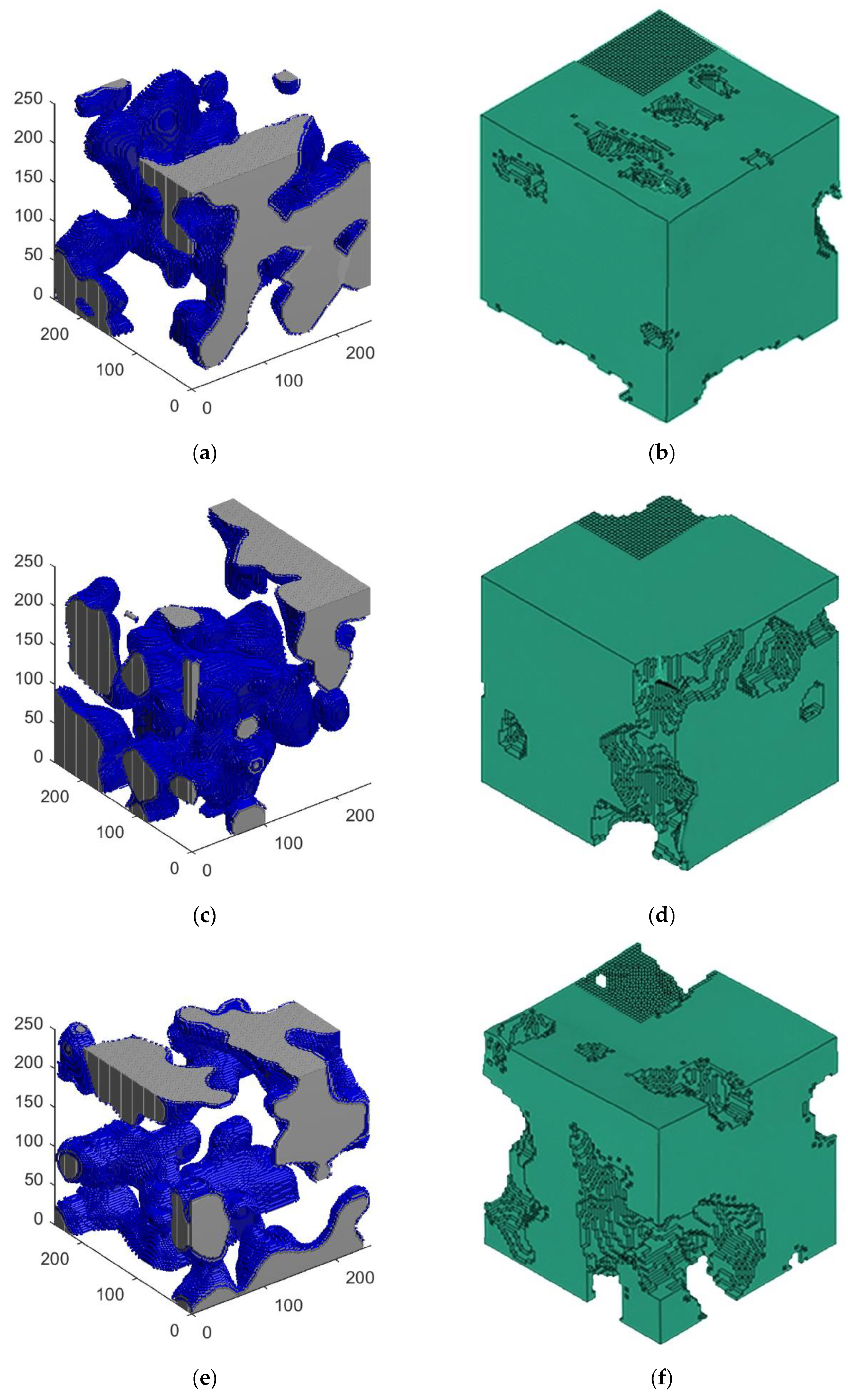

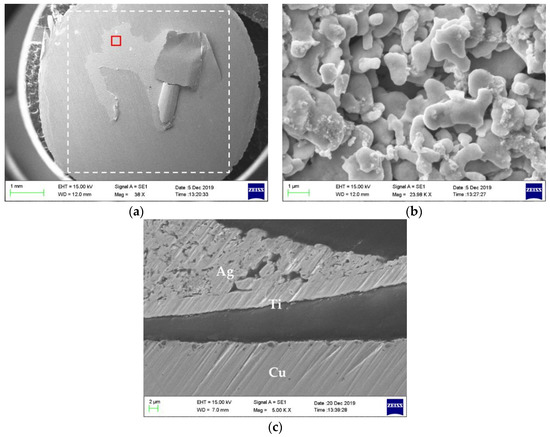

With excellent economy and properties, pressureless sintered micron silver has been regarded as an environmentally friendly interconnection material. In order to promote its reliable application in deep space exploration considering the porous microstructural evolution and its effect on macroscopic performance, simulation analysis based on the reconstruction of pressureless sintered micron silver joints was carried out. In this paper, the deep space environment was achieved by a test of 250 extreme thermal shocks of −170 °C~125 °C, and the microstructural evolution was observed by using SEM. Taking advantage of the morphology autocorrelation function, three-dimensional models of the random-distribution medium consistent with SEM images were reconstructed, and utilized in further Finite Element Analysis (FEA) of material effective elastic modulus through a transfer procedure. Compared with test results and two analytical models, the good consistency of the prediction results proves that the proposed method is reliable. Through analyzing the change in autocorrelation functions, the microstructural evolution with increasing shocks was quantitively characterized. Mechanical response characteristics in FEA were discussed. Moreover, the elasticity degradation was noticed and the mechanism in this special environment was clarified. View Full-Text
Keywords: pressureless sintered micron silver joints; deep space environment; extreme thermal shocks; reconstruction; simulation; elastic mechanical properties pressureless sintered micron silver joints; deep space environment; extreme thermal shocks; reconstruction; simulation; elastic mechanical properties
